USER MANUAL HBA1000X TAURUS

Simple line drawing of a rectangular container or stand (no text or symbols)

Line drawing of a blender with a handle and spout (no text or symbols)

Line drawing of a manual push-button press tool with handle and spout (no text or symbols)

Line drawing of a balloon with a handle and spout, no text or symbols present

CLICK Fig.1.1 Fig.1.2

Line drawings of a hairdryer tool with a handle and base, showing mechanical assembly (no text or symbols)

Fig.2 CLICK

Fig.2.1

Line drawing of a hand holding a cylindrical object above a container with a handle (no text or symbols)

Line drawing of a hand pouring coins into a water-filled container with floating objects (no text or symbols)

Line drawing of a hand using a manual pump to press or brush into a container with eggs (no text or symbols)

Fig.2.2 Fig.2.2

Fig.3

CLICK Fig.3.1

Fig.4

Line drawing of a mechanical tool or device with a flanged top and two curved arms (no text or symbols)

Español

Batidora de varilla

HB1000X

HBA1000X

DESCRIPCIÓN

A Regulador de velocidades

B Pulsador

C Función Turbo

D Cuerpo motor

E Varilla

F Vaso medidor

G Batidor (*)

H Picador (*)

If the model of your appliance does not have the accessories described above, they can also be bought separately from the Technical Assistance Service.

USE AND CARE

- Fully extend the appliance's power cable before each use.

- Do not use the appliance if its accessories are not properly fitted.

- Do not use the appliance if the accessories attached to it are defective. Replace them immediately.

- Do not use the appliance if it is empty.

- Do not use the appliance if the on/off switch does not work.

- Store this appliance out of reach of children and/or persons with physical, sensory or reduced mental or lack of experience and knowledge.

- Keep the appliance in good condition. Check that the moving parts are not misaligned or jammed and make sure there are no broken parts or anomalies that may prevent the appliance from operating correctly.

- Use the appliance and its accessories and tools in accordance with these instructions, taking into account the working conditions and the work to be performed. Use the appliance for operations different from those intended could result in a hazardous situation.

- Never leave the appliance connected and unattended if is not in use. This saves energy and prolongs the life of the appliance.

- Do not use the appliance on any part of the body of a person or animal.

- Do not use the appliance with frozen goods or those containing bones.

- Do not use the appliance for more than 1 minute at a time. Do not use cycles of more than 5 minutes. When using 5-minute cycles allow a resting period of at least 1 minute between each cycle. Under no circumstances should the appliance be operated for more time than necessary.

As a reference in the annexed table appears some recipes, that include the amount of food to process and the operating time of the appliance.

Ingredient Max. Quantity		Duration Accessory
Carrots and water mixture	240 grs carrots, 360 ml water	10 seconds (5 cycles with resting periods of 1 minute between each cycle)	Stick blender leg
Meat 250 gr	meat 10 seconds	(3 cycles with resting periods of 2 minutes between each cycle)	Chopper

INSTRUCTIONS FOR USE

BEFORE USE:

- Make sure that all products' packaging has been removed.

- Before using the product for the first time, clean the parts that will come into contact with food in the manner described in the cleaning section.

- Prepare the appliance according to the function you wish to use.

USE:

- Extend the cable completely before plugging it in.

- Connect the appliance to the mains.

- The pilot light comes on.

- Turn the appliance on, by using the on/off button.

- Select the desired speed.

- Work with the food you want to process.

ELECTRONIC SPEED CONTROL:

- The speed of the appliance can be regulated by using the speed regulator control (A). This function is very useful, as it makes it possible to adapt the speed of the appliance to the type of work that needs to be done.

TURBO FUNCTION:

- The appliance has a Turbo function. By activating the Turbo function all the power of the motor becomes available, thus obtaining a finer finish in the final texture of the product.

ONCE YOU HAVE FINISHED USING THE APPLIANCE:

• Stop the appliance by releasing the pressure on the on/off button.
• Unplug the appliance from the mains.
• Clean the appliance.

ACCESSORIES:

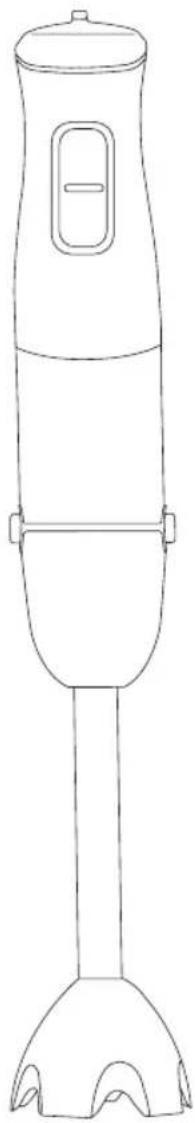

STICK BLENDER ACCESSORY (FIG.1):

• This accessory is used for making sauces, soups, mayonnaise, milkshakes, baby food ...
• Attach the stick to motor body by pressing until you hear a click (Fig.1.1).
• Put the food to be prepared in the jar and switch the appliance on.

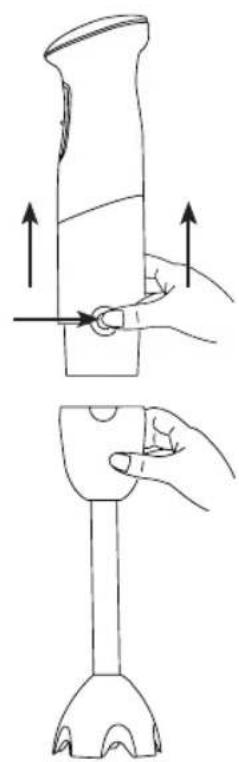

• Detach the stick to motor body by pressing the buttons. (Fig.1.2).

CHOPPING ACCESSORY (FIG.2):

• This accessory is used to chop vegetables or meat...
• To avoid damage to the appliance, remove bones, nerves, cartilage, etc. from the meat.

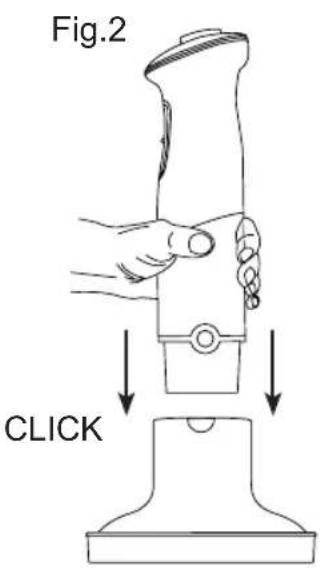

• Fit the adapter fitting to the motor unit by pressing until you hear a click (Fig.2.1).

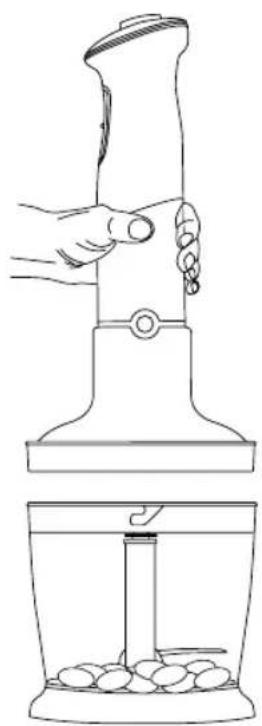

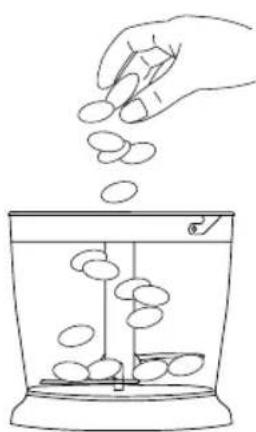

• Put the food to be prepared in the chopping container and attach the cover until you hear a click (Fig.2.2).
• Be careful: do not switch the appliance on if the whole unit is not properly fitted and connected together.
• Stop the appliance when the food reaches the desired texture.
• Detach the unit from the lid, and release the adapter fitting.
• Note: Do not work with turbo dunction with this accessory attached.

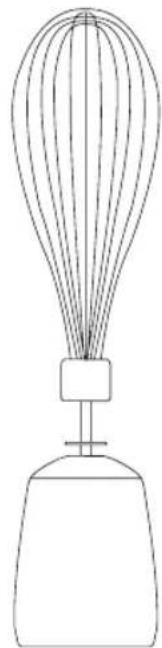

WHISK ACCESSORY (FIG.3):

• This accessory is used to whip cream, beat egg whites...

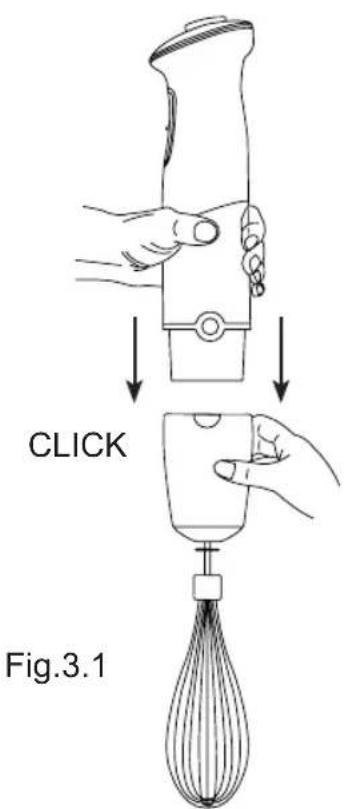

• Insert the whisk into the adapter fitting. Join this unit to the motor unit by pressing until you hear click (Fig.3.1).
• Put the food into a large receptacle and switch the appliance on. For best results, turn the whisk clockwise.
• Remove the whisk accessory and release the adapter fitting.
• Note1: Do not work at high speeds with this accessory attached, as this would cause defects in the whisk (spinning its wires).
• Note2: To free the whisk from the adapter fitting, pull the ring on the whisk.

SAFETY THERMAL PROTECTOR:

• The appliance has a safety device, which protects the appliance from overheating.
• If the appliance turns itself off and does not switch itself on again, disconnect it from the mains supply, and wait for approximately 15 minutes before reconnecting. If the machine does not start again seek authorised technical assistance.

CLEANING

• Disconnect the appliance from the mains and allow it to cool before undertaking any cleaning task.
• Clean the equipment with a damp cloth with a few drops of washing-up liquid and then dry.
• Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.
• Never submerge the appliance in water or any other liquid or place it under running water.
• During the cleaning process, take special care with the blades, as they are very sharp.
• It is advisable to clean the appliance regularly and remove any food remains.
• If the appliance is not in good condition of cleanliness, its surface may degrade and inexorably affect the duration of the appliance's useful life and could become unsafe to use.
• The following pieces may be washed in a dishwasher (using a soft cleaning program):
• Measuring cup.
• Chipper (without cover)
• Whisk (without adapter fitting)

- The draining/drying position of the articles washable in the dishwasher or in the sink must allow the water to drain away easily (Fig.4).

- Then dry all parts before its assembly and storage.

Français

Mixeur

HB1000X

HBA1000X

DESCRIPTION

HACKZUBEHÖR (FIG.2):

ACCESSORI PICADOR (FIG.2):

ACCESSORI BATEDOR (FIG.3):

ELEKTRISCHE SNELHEIDSCONTROLE:

This product enjoys the recognition and protection of the legal guarantee in accordance with current legislation. To enforce your rights or interests you must go to any of our official technical assistance services.

You can find the closest one by accessing the following web link: http://taurus-home.com/

You can also request related information by contacting us.

You can download this instruction manual and its updates at http://taurus-home.com/
