USER MANUAL Wine Up TAURUS

EN. Instructions for use

FR. Mode d'emploi

Line drawing of a cleaning or cleaning device with a vertical tube, coiled spring, and two supporting devices (no text or symbols)

Fig. 1 Fig. 2

ES

English (Original instructions)

WINE OPENER WINE UP

DESCRIPTION

A Release button
B Extract button
C Charging socket
D Main body
E Decanting Pourer
F Vacuum stopper
G Foil cutter
H Base

I Supply cord

J Corkscrew worm

K Pilot light

USE AND CARE

• Do not turn the appliance over while it is in use or connected to the mains power supply.
• This appliance is for household use only, not professional, industrial use.
• Do not use the appliance if release and extract buttons not work.
• Do not force the appliance's work capacity.
• Do not open the battery under any circumstances whatsoever.
• Keep the appliance in good condition. Check that the moving parts are not misaligned or jammed and make sure

there are no broken parts or anomalies that may prevent the appliance from operating correctly.

• Use the appliance and its accessories and tools in accordance with these instructions, taking into account the working conditions and the work to be performed. Use the appliance for operations different from those intended could result in a hazardous situation.
• Do not use the appliance to open more than 12 bottles at a time. After that allow the appliance a resting period of at least 10 minutes between each cycle. Under no circumstances should the appliance be operated for more time than necessary.
• Do not force the product onto a bottle or attempt to speed up the mechanism. This product works best when operating at its intended speed.
• Use the appliance only and exclusively for opening corked bottles.

CHARGING THE BATTERY

• A new battery is not fully charged and must therefore be charged before the appliance is used for the first time.
• Charge the battery at an atmospheric temperature of between 4 and 40^ .
• Carefully insert the charging cord into de Type-C charging socket at the back

of the opener and once secure plug the charger into the mains.

• The pilot light will come on to indicated that the charger is charging the battery.
• Approximately 6 hours are needed for a complete charger of the battery. Never attempt to overcharge the battery (although it is recommended that the first charge of the battery be of 12 hours in duration).
• When the battery is charged disconnect the charger from the mains supply.
• Note: For a long battery life, it is advisable to charge the battery, only when it has run out completely.
• Note: An adapter is not included with this product. Charge it only with UL/GS or equivalent safety approved adapters with output voltage of 5V=.

CAUTIONS

• Do not use the appliance while it is connected to the charger.
• This product is charged with a small current and long-term charging will not cause damage to this product.
• The standby time of the product is one month. If product is not in use for over a month, please charge it again before use.

INSTRUCTIONS FOR USE

BEFORE USE

• Make sure that all product's packaging has been removed.

• Please read carefully the "Safety advice and warnings" booklet before first use

• Before using the product for the first time, clean the parts that will come into contact with wine in the manner described in the cleaning section.

• Do not immerse the appliance in water or any other liquid to avoid harm to yourself or the product.
• Keep body parts (e.g. hands) and/or utensils away from the corkscrew to avoid damage
• Do not dismantle the product by yourself.

HOW TO USE THE FOIL CUTTER

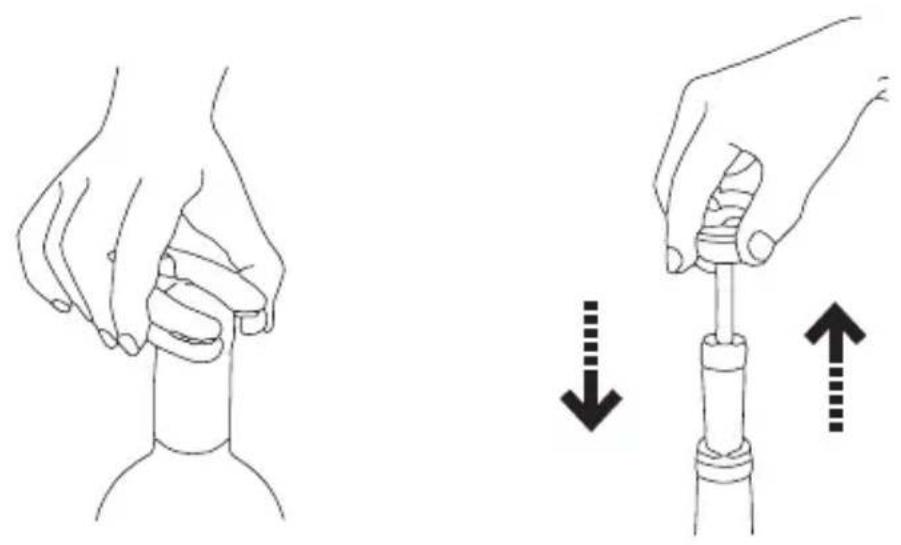

• Remove the foil cutter from the base and carefully place it around the neck of the bottle, hold it tightly and twist it around the sealing foil. (Fig.1).
• The blade of the foil cutter is sharp. Do not touch it with your fingers or any part of your body.

USE

• Hold the bottle firmly with one hand and hold the wine opener with the other. Carefully place the bottom of the wine opener body on top of the wine bottle and ensure the wine opener body remains in line with the bottle as vertically as possible.
• Press the extract button and hold, slightly pressing the wine opener body downward at the same time. The corkscrew worm will turn in a clockwise direction and enter the cork, then gradually remove it from the bottle in 6-8 seconds.
• When the cork is entirely pulled out, the wine opener stops automatically.

Release the button and take the opener off the bottle.

• Press the release button and hold for 5-7 seconds, the cork automatically comes out from the opener.
• This product is suitable for wine bottles with a bottle neck outer diameter of no more than 35mm.

HOW TO USE THE DECANTING POURER

• Carefully insert the decanting pourer firmly into the bottle neck.
• Tilt the bottle to pour the wine through the decanter stopper.

HOW TO USE THE VACUUM STOPPER

• Carefully insert the stopper into the bottle neck firmly.
• Pull the pump handle up and down and stop when the handle gets too hard to pull up again, meaning vacuum is completed (Fig.2).
• Store the bottle in a wine cabinet or refrigerator for better preserving effects.
• When using the stopper to preserve, it is not recommended to store the wine bottle horizontally.

CLEANING

• Clean the outer parts of the appliance with a damp cloth with a few drops of washing-up liquid and then dry. CAUTION! Do not immerse electrical parts of the appliance in any liquid.
• Do not use solvents, or products with an acid or base pH such as bleach,

or abrasive products, for cleaning the appliance.

• Never immerse the appliance in water or any other liquid or place it under running water.
• If the appliance is not in good condition of cleanliness, its surface may degrade and inexorably affect the duration of the appliance's useful life and could become unsafe to us.

HOW TO REMOVE THE BATTERY FROM INSIDE THE DEVICE

• This appliance contains a battery that are only replaceable by skilled persons.
• In case you need to replace the battery, take the appliance to an authorised technical support service. Do not try to dismantle or repair without assistance, as this may be dangerous.
