USER MANUAL Caledonia RAHID50BG Linarie

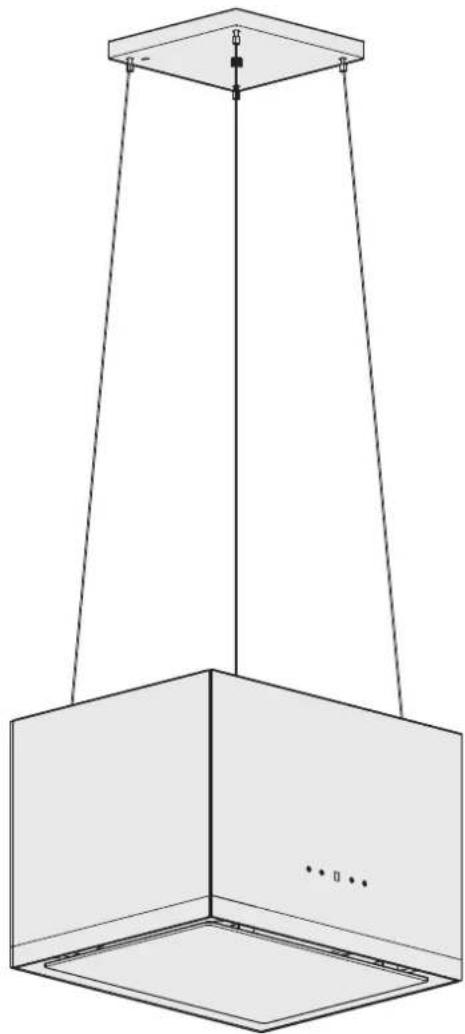

Simple line drawing of a ceiling structure with support beams and a base panel (no text or symbols)

CONGRATULATIONS

Congratulations and thank you for choosing Linärie to introduce a new comfort of cooking in your home. We are sure you will find your new appliance a pleasure to use and a great asset to your kitchen.

This appliance complies with all relevant safety requirements in Australia. Inappropriate use can, however, lead to personal injury and damage to property.

In order to operate the unit correctly and safely, please read this instruction manual carefully before installation and usage. This user manual which provides you with all required instructions related to safety, installation, use and maintenance of the appliance.

For future reference, please store this booklet in a safe place and ensure that all users are familiar with the contents. Pass them on to any future owner of the appliance.

Record Model & Serial Number

Model:

Serial Number ....

Register your product www.linarie.com.au

IMPORTANT

Adherence to the directions for use in this manual is extremely important for health and safety. Failure to strictly adhere to the requirements in this manual may result in personal injury, property damage and affect your ability to make a claim under Linärie's manufacturer's warranty provided with your product. Products must be used, installed and operated in accordance with this manual. You may not be able to claim on Linärie's manufacturer's warranty in the event that your product fault is due to failure to adhere this manual.

Correct Conditions of Use

• The appliance is intended for use in the home and similar environments only. It is not intended for commercial use.
• The appliance is not suitable for outdoor use, non-stationary installation (e.g. on ships, vehicles), or heating rooms.
• It must only be used to extract vapors and remove odors from cooking. Any other usage is at the owner's risk.
• Where a recirculation rangehood is fitted above a gas cooktop, please ensure that there is an adequate supply of fresh air into the room in which it is installed. Please seek the advice of a qualified gas fitter if necessary.

i Linärie does not assume any liability for damage arising from non-adherence to these documents and from improper assembly. The electricity connection must be made by a qualified specialist. Installation must comply with the valid standards, regulations and laws. All safety and warning information and the operating and installation instructions must be complied with.

TABLE OF CONTENTS

1. General Information ...... 03

1.1 Appliance information
2. General Safety Instructions 03

2.1 General safety information

2.2 Safety instruction - Installation

2.3 Exhaust air Operation 04

2.4 Correction use & Operation

2.5 Disassembling and Disposal of the Appliance 05

2.6 Accessories and Spare parts 3. Description of the Functions .....05

3.1 Air extraction mode

3.2 Recirculation mode

1. Technical data sheet 05

2. Installation 06

5.1 Pre-installation

5.2 Safety distance

5.3 Installation tips/

5.3 Installation {External ventilation}

5.4 Installation {Air extraction} 09

1. Operation 09

6.1 Control panel and function keys
6.2 Remote control and features .....10

6.3 Pairing remote control with appliance

6.4 Energy saving tips

1. Troubleshooting ..... 11

2. Cleaning and maintenance .....12

8.1 Stainless steel

8.2 Control panel

8.3 Cleaning agents

8.4 Aluminum grease filter

8.5 Removing the aluminum glass filter

8.6 Activated carbon filter 13

8.7 Replacing lamps

1. Environmental tips ...... 14

2. Warranty and After sales service

Additional information on products, accessories, warranty, replacement parts and services can be found at www.linarie.com.au

1. GENERAL INFORMATION

1.1 Appliance Information

• A damaged appliance can be dangerous. If you find the appliance is damaged or marked, you must report it within 7 days if you wish to claim for damage/marks under the manufacturer's warranty. This does not affect your statutory rights. Do not use a damaged appliance.
• The manufacturer's warranty will be invalidated if the appliance is not repaired by a Linärie approved service technician.

2. GENERAL SAFETY INSTRUCTIONS

The appliance complies with the stipulated safety requirements in Australia. The user is responsible for appliance cleaning and maintenance as well as its safe use. Improper use can lead to personal injury and damage to property.

2.1 General Safety Instructions

Children and People with Special Needs

WARNING

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• The appliance is NOT suitable for use by children without supervision.
• Young children should be supervised near the appliance to ensure they do not play with this appliance.

• Children may be able to wrap themselves in packing material or pull it over their heads with the risk of suffocation. Keep children away from any packing material.

• Faulty components must only be replaced by genuine Linärie spare parts. The manufacturer can only guarantee the safety of the appliance when Linärie replacement parts are used.

• If the power cord is damaged, it must only be replaced by a Linärie authorized service technician or suitably qualified electrician in order to avoid a hazard.
• Linärie cannot be held liable for noncompliance with these instructions, resulting from incorrect or improper use or operation.

Unauthorized Modifications

Unauthorised modifications can cause the appliance to pose risks. Do not conduct any modifications to the appliance.

Cleaning & Maintenance

The device must be cleaned regularly. Dirt can lead to damage or the buildup of odors. (See "Cleaning and maintenance" section).

• Always clean the appliance exactly as indicated in the operating instructions.
- Always ensure the appliance is switched off before cleaning or replacing parts.
- Clean the appliance immediately after any food spillage and the filter regularly to keep the appliance working efficiently.
- There is a risk of fire if cleaning is not carried out as described in these operating instructions.
- Make sure no water penetrates inside the device when cleaning. Do not use a steam cleaning appliance to clean this appliance. The steam could reach electrical components and cause a short circuit.
- In areas which may be subject to infestation by cockroaches or other vermin, pay particular attention to keeping the machine and its surroundings in a clean condition at all times. Any damage which may be caused by cockroaches or other vermin will not be covered by the machine warranty.

2.2 Safety Instructions - Installation

WARNING

The appliance must only be installed and assembled by trained specialists who are familiar with and comply with the standard national regulations and supplementary regulations of ventilation systems.

• In order to avoid any potential hazard, the installation instructions must be followed.
• Observe all regional regulations for the installation of ventilation systems.
• During installation, maintenance and repair work, the appliance must be disconnected from the mains electricity supply. It is only completely isolated from the electricity supply when:
• the mains circuit breaker is switched off, or

• it is switched off at the wall socket and the plug is withdrawn from the socket.

• Do not pull the mains connection cable but the mains plug to disconnect your appliance from the mains electricity supply.

• Refer to the cooktop manufacturer's instructions as to whether a rangehood may be operated above the cooktop.
• If the rangehood is used with cookers that burn gas or other fuels, there must be adequate ventilation in the room.

• Insufficient distance between the cooktop and the rangehood can result in damage to the rangehood. The minimum safety distances between the top of the cooktop and the bottom of the rangehood given in the "Installation" section must be maintained, unless the cooktop manufacturer states that a greater distance is required. If more than one cooking appliance is fitted beneath the rangehood, and they have different minimum safety distances to the rangehood, select the greater distance.

• Ensure that all specified vents, openings and airspaces are not blocked.

• All ducting, pipework and fittings must be of non-flammable material.
• The appliance must not be connected to a chimney or vent flue which is in current use for exhausting fumes from appliances burning gas or other fuels. Neither should it be connected to ducting which ventilates rooms with fireplaces. (See "Exhaust Air Operation" section).

• Do not connect the appliance to the mains electricity supply by a multi-socket unit or an extension lead. Extension leads are a fire hazard and do not guarantee the required safety of the appliance.

• Tampering with electrical connections or components and mechanical parts is highly dangerous to the user and can cause operational faults. Only open the housing as described in the instructions given in "Installation" and in the "Cleaning & Maintenance" sections of this booklet. Under no circumstances should any other parts of the housing be opened.

• THIS APPLIANCE MUST BE PROPERLY EARTHED. It is most important that this basic safety requirement is present and tested regularly and, where there is any doubt, the household wiring system should be inspected by a qualified electrician.
• Linärie cannot be held liable for noncompliance with these instructions, resulting from incorrect or improper use or operation.

2.3 Exhaust Air Operation

WARNING

Danger of poisoning from recirculated exhaust gases! Do not operate the appliance in extract air mode if it is operated together with a room air-dependent fireplace and sufficient air circulation is not guaranteed.

Room air-dependent fireplaces such as gas, oil, wood or coal heaters, boilers or instantaneous water heaters draw the air from the room and lead it outdoors through an exhaust pipe or chimney. In extract air mode, air is extracted from the kitchen and neighbouring rooms. Without sufficient supply air, negative pressure is created. The heating appliance will be starved of oxygen, impairing combustion. Toxic gases from the chimney or exhaust pipe can be sucked back into the living rooms.

• Make sure that sufficient fresh air supply is guaranteed and that the air can circulate.
• A supply air/exhaust air wall box is not sufficient to ensure compliance with the limit value.

Safe operation is only possible if the negative pressure at the location of the fireplace does not exceed 4 Pa (0.04 mbar). This can be achieved if the air required for combustion can flow in through non-closable openings in doors and windows in conjunction with a supply air / exhaust air wall box. In any case, have a master chimney sweep advise you and assess the entire ventilation system of the house. If necessary, they can tell you the necessary measure for ventilation.

If the rangehood is used exclusively in recirculation mode, where the air is directed back into the room in which it is located, operating a heating appliance which depends on the room air at the same time is not hazardous.

2.4 Correction Use & Operation

• For safety reasons, this appliance may only be used after it has been built in.
• Reliable and safe operation of this rangehood can only be assured if it has been connected to the mains electricity supply.
• Before using the appliance, ensure that all packaging materials are removed from the appliance and make sure that the connection data on the data plate [voltage (V) and frequency (Hz)] indicated on the rangehood correspond to the voltage and frequency of the power supply in your household. Consult a qualified electrician if in doubt.
• DO NOT use the rangehood without the filters in place. This way you will avoid the risk of grease and dirt getting into the appliance and hindering its smooth operation.
• Never use an open flame beneath the rangehood. To avoid the danger of fire, do not flambé or grill over an open flame. When switched on, the rangehood could draw flames into the filter. Fat deposits could ignite, presenting a fire hazard.

• DO NOT store or spray flammable materials in the appliance or near this appliance while it is in operation (e.g. aerosols).

• The rangehood can become damaged when exposed to excessive heat.

• When using the rangehood over a gas cooktop, ensure that any burners in use are always covered by a pan. Switch the cooking zone off when a pan is removed, even for a short time.
• Select a pan which is suitable for the size of the burner.
• Regulate the flame so that it does not burn up the sides of the pan.
• Avoid overheating the pan (e.g. when cooking with a wok).
• Always switch the rangehood on when a cooking zone is in use, otherwise condensation may collect in the rangehood, which could cause corrosion.
• When cooking with oil or fat, chip pans and deep fat fryers etc., do not leave the pans unattended. Never leave an open grill unattended when grilling. Overheated oil and fat can ignite and could set the rangehood on fire.

CAUTION

The rangehood can get very hot during cooking due to heat rising from the cooktop. Do not touch the housing or the grease filters until the rangehood has cooled down.

2.5 Disassembling and Disposal of the Appliance

(see the "Environmental Tips" section for best practices on disposing of this appliance).

The device must only be disassembled by trained specialists who are familiar with and comply with the standard national regulations and supplementary regulations of the local utility companies.

Work on electrical components must only be conducted by trained electrical personnel.

3. DESCRIPTION OF THE FUNCTIONS

Depending on the model of the rangehood, the following options are available:

3.1 Air extraction mode

The air is drawn in and cleaned by the grease filter and directed outside.

3.2 Recirculation mode

• The air is drawn in and cleaned first by the grease filter and then by a charcoal filter. The cleaned air is then recirculated back into the kitchen.
• When using recirculation mode, ensure a sufficient supply of fresh air, e.g. by opening a window.

4. TECHNICAL DATA SHEET

Parameter Value
Power Supply Voltage	220-240V ~ 50Hz
Dimensions(width, depth x height)	50 x 40 x 86176cm
Carton Size(width, depth x height)	61.5 x 50.5 x 52.5cm
Weight (incl. accessories / packaging)	23.3kg
Weight (NOT incl. accessories / packaging)	19.3g
Rangehood
Power Levels 3 Speeds
Electronic Control Yes
Max. Air Extraction Power 700m3/h
Motor Power 190W
Rated Lamp Power (x2) 1.5W
Sound Power Level <71dB(A)
Filter
Aluminum/Stainless Steel Surface 5 Layers
Accessories
Remote Control (Wireless) Yes
Activated carbon filter (CF110) Yes

2.6 Accessories and Spare parts

Incorrect components can lead to personal injury or damage to the appliance. Only use original Linärie spare parts for repairs.

Modifications, additions or alterations to the appliance can lead to safety risks. If spare parts or accessories from other manufacturers are used, the warranty will be invalidated, and Linärie cannot accept liability.

Please check www.linarie.com.au for more information.

Non-return flap

The non-return flap is designed to prevent the exchange of room and outside air taking place. The flap is closed when the rangehood is switched off. When the rangehood is switched on, the non-return flap opens for the cooking vapors to be blown directly outside. If the on-site ventilation system does not have a non-return flap, the nonreturn flap supplied must be fitted.

• Ensure a normal and comfortable room climate (humidity of 45–60%), e.g. by opening natural ventilation openings or using domestic ventilation systems.
• After every use in recirculation mode, switch the rangehood to a low level for about 15 minutes.

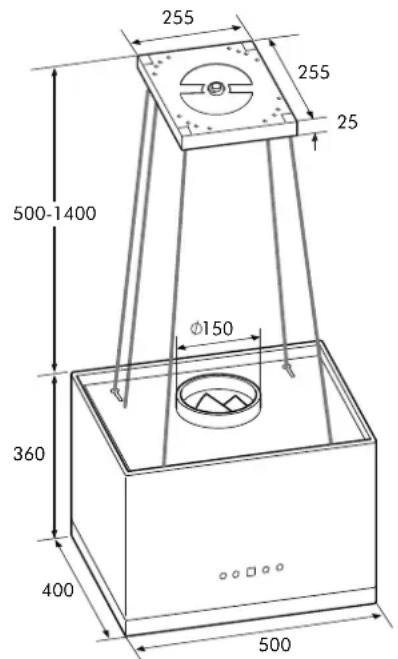

Appliance Dimensions

255 255 25 500-1400 Ø150 360 400 500

5. INSTALLATION

WARNING

Before installation, it is important to read the information given on the following pages as well as the "General Safety Instructions" at the beginning of this booklet. Failure to install the appliance correctly could invalidate any warranty or liability claims and lead to prosecution.

5.2 Safety Distance

The minimum distances between the highest part of a cooktop (including trivets, dials - depending on model) and the bottom of the rangehood are as follows, unless a greater distance is specified by the manufacturer of your cooking appliance. See also "General Safety instructions" section.

WARNING

If you are fitting a front panel made of wood or plastic to the rangehood, observe the safety distances given by the cooktop manufacturer regarding the use of easily flammable materials.

5.1 Pre-Installation

Before installing the rangehood, peel off any protective plastic covering and remove polystyrene from inside behind the fan motor.

Cooking appliance	Min. Distance
Electric cooktop	600mm (AU, NZ)
Electric grill, deep fat fryer (electric)	650 mm
Multi-MJ/h total output, with no burner having a greater output than 16.2 MJ/h.	650 mm
Multi-burner gas cooktop with total output greater than 45.4 MJ/h, but with a maximum of 77.8 MJ/h, with no burner having a greater output than 17.3 MJ/h.	760 mm
Multi-burner gas cooktop with total output greater than 77.8 MJ/h, with a single burner having a greater output than 17.3 MJ/h.	Not possible
Single burner gas cooktop with a maximum output of 21.6 MJ/h.	650 mm
Single burner gas cooktop with an output greater than 21.6 MJ/h, but with a maximum of 29.2 MJ/h.	760 mm
Single burner gas cooktop with an output greater than 29.2 MJ/h.	Not possible

5.3. Installation Tips

GENERAL INFORMATION

• To achieve optimum vapor extraction, the rangehood must cover the cooktop. It should be positioned centrally over the cooktop, not to the side.
• The cooktop should be no wider than the rangehood and, if possible, it should be narrower, especially for safety distances greater than 750 mm.
• The installation area must be easily accessible. The rangehood should be easily accessible and easy to dismantle in the event that service is required. This should be taken into consideration when planning the position of cupboards, shelves, ceilings or features in the vicinity of the rangehood.

5.3 Installation [External Ventilation]

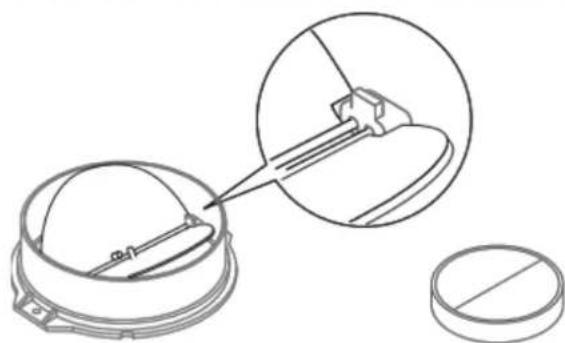

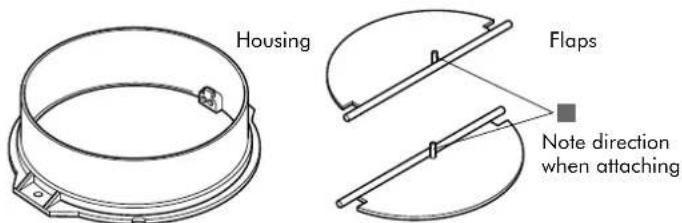

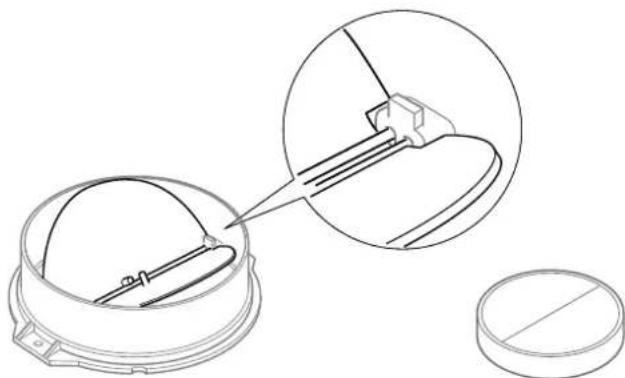

Mounting of V-flap

If the rangehood does not have a pre-assembled V-flap, install the parts as follows:

1. Install the first half into the housing
2. The pin should be facing upwards.
3. The axle is inserted into the holes on the housing.
4. Repeat all the steps for the second half of the flap.

Housing Flaps Note direction when attaching

If you have an air outlet to the outside, the rangehood can be connected via an extraction duct (enamel, aluminium, flexible pipe or non-combustible material with an internal diameter of 150 mm) as shown on the left.

Diagram of a mechanical device with a rotating lever and base, no text or symbols present

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with cross-sectional view (no text or symbols)

cont.. installation

NOTE:

1. Before installation, make sure to switch off the main switch.
2. The ceiling must be able to support a weight of at least 120kg and the thickness of the ceiling must be equal of greater than 30cm.
3. Rangehood should be position at a distance of 65-75cm for optimal efficiency.

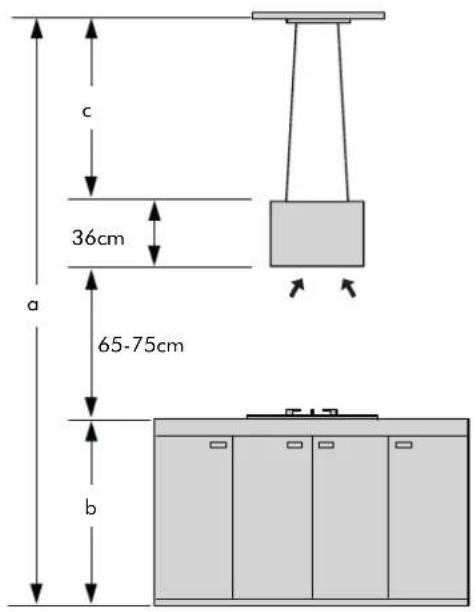

① Measure the distance between the ceiling and the floor. (refer to the image on the right)

a - ceiling to floor distance =

b - cook top =

c - length of the rope =

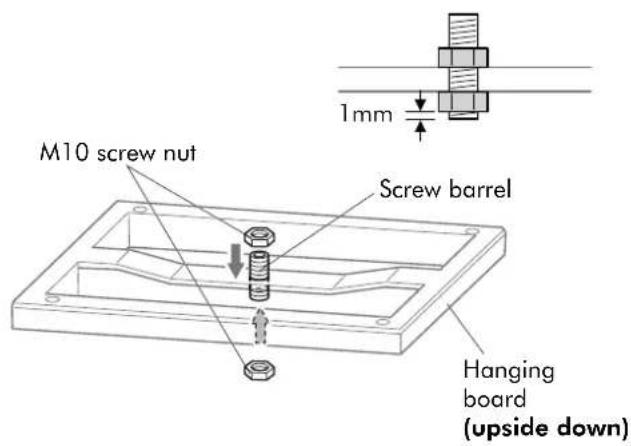

2 Attach the screw cylinder to the hanging board using 2 M10 screw nuts as shown below.

M10 screw nut Screw barrel Hanging board (upside down)

c 36cm a 65-75cm b

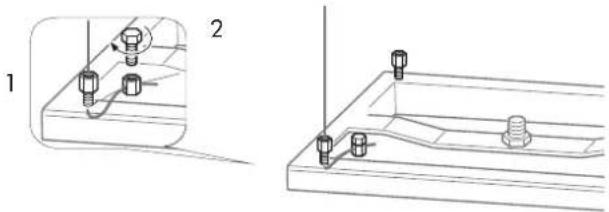

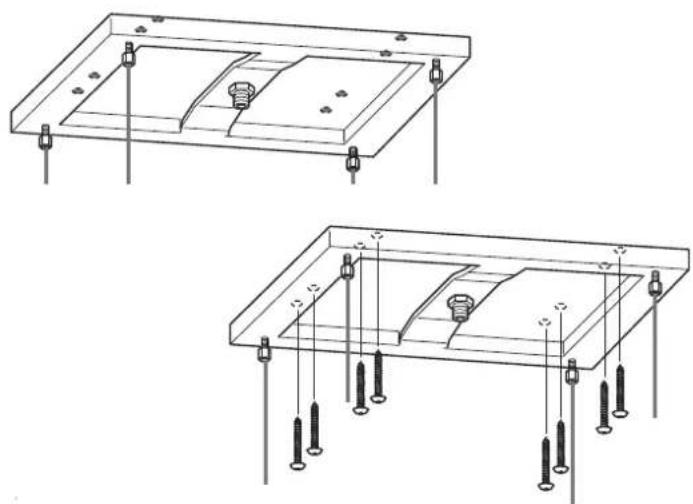

3 Attach 4 adjustable screws to the hanging board. Align the screw and do not over tighten.

Technical line drawing of a mechanical component with mounting holes and a central bolted part (no text or symbols)

④ Pass wire ropes through the adjustable screws. and fix using clamping screw and nut. Make sure to measure ropes according to length on step 1.

Technical line drawing showing two mechanical assembly steps: one with a bolt and nut, the other with a pin inserted into a base plate (no text or symbols)

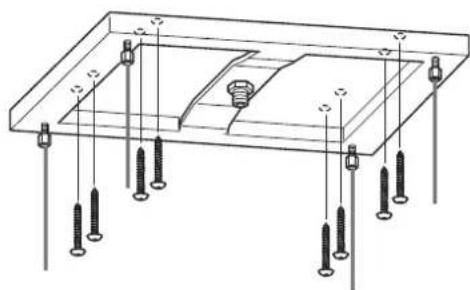

5 Mark the ceiling with (8) corresponding holes from the hanging board. Then make holes using a drill.

Technical line drawing of two identical mechanical assembly components with mounting holes and supporting posts (no text or symbols)

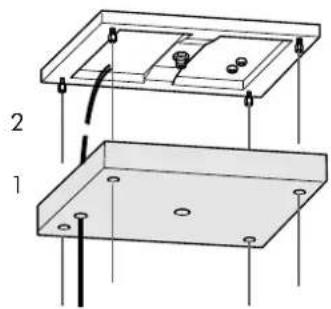

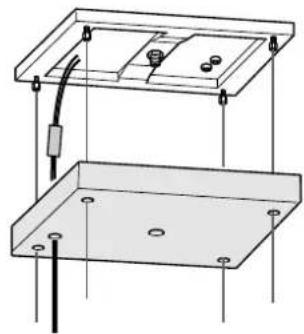

6 Pass through the wire rope to the cover. Match the hole for the power cord.

Technical diagram of a mechanical assembly with two components and mounting holes (no text or symbols)

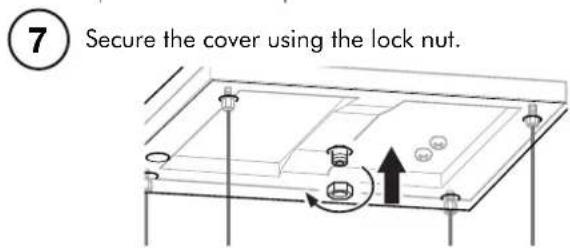

7 Secure the cover using the lock nut.

cont. installation

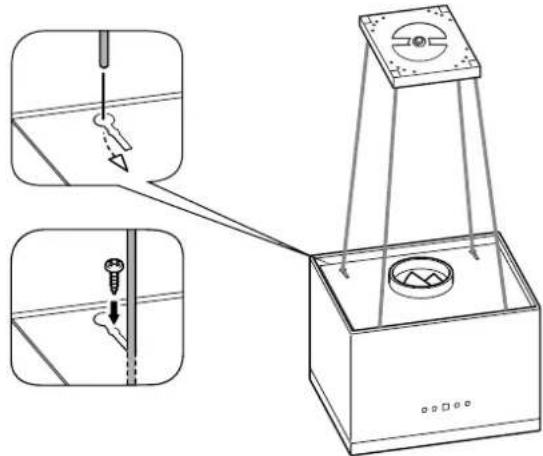

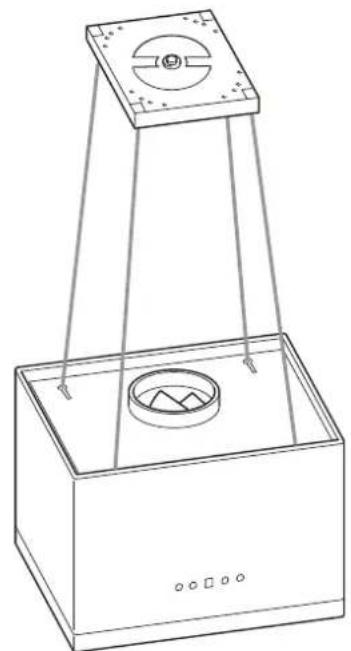

⑧ Insert wire rope to rangehood hole as shown. Secure it with countersunk screws (ST4x8mm).

Technical diagram showing a mechanical assembly with two views of a component, including a screw and a circular component with internal features.

10 Insert power cable to rangehood cover plate and connect to the cables coming out of the ceiling.

Technical diagram of two mechanical components with mounting holes and internal channels (no text or symbols)

Secure connected wires with insulating tape.

⑨ Loosen the cover lock nut

Pure mechanical assembly diagram showing a rotating component with mounting holes and a downward arrow (no text or symbols)

⑪ Slowly loosen adjusting screws and align rangehood horizontally. Tighten the wire ropes evenly.

Technical diagram of a mechanical assembly with two views (top and bottom) showing components like a bracket, screw, and mounting holes (no text or labels)

12 Re-attach the rangehood cover. Make sure power cable is secured.

Pure technical diagram showing a mechanical assembly with no text, numbers, or symbols

Line drawing of a simple electrical enclosure with a square top and circular base, suspended by wires (no text or symbols)

5.4 Installation [Air Extraction]

CAUTION

• Before installation, it is important to read the information given on the following pages as well as the "Appliance Dimensions" and the "Warning and Safety instructions" sections at the beginning of this booklet. This is particularly crucial when using the rangehood at the same time as a heating appliance that relies on oxygen from the same room, which could result in the build-up of toxic fumes.
• The rangehood should be installed according to local and national building regulations. Seek approval from the building inspector where necessary.

The following rules must be strictly observed to achieve optimum air extraction.

• Make sure that the exhaust pipe extends as short and straight as possible.
• Do not reduce the size or restrict the exhaust pipe. When using exhaust air pipes, always install the pipe tightly to minimise pressure loss.
• Non-compliance with these basic instructions will reduce the performance and increase the noise level of the rangehood.
• All installation work must be carried out by an electrician or a qualified person.

CAUTION

Risk of injury! For safety reasons, only use the size of fastening or mounting screw recommended in these operating instructions. Non-compliance with these instructions can lead to injuries and electric shocks.

NOTE

Remember that any constriction of the airflow will reduce extraction performance and increase operating noise.

• Do not connect the exhaust pipe of the rangehood to an existing ventilation system used for another appliance, e.g. a flue, gas pipes or hot air pipes.
• In case the exhaust air pipe is bent, the angle of the exhaust air pipe should not be less than 120^ . Never point the exhaust air pipe downwards, but always horizontally or guide the pipe from the starting point upwards to the air outlet on the outside wall.
• After installation, please make sure that the rangehood is positioned horizontally to prevent grease from accumulating.
• Make sure that the exhaust pipe selected for installation complies with the relevant standards and is fire-retardant.

6. OPERATION

WARNING

• The rangehood may only be operated when the aluminum stainless steel grease filter and of the rangehood is installed (see "Installation Instructions" section).
• Clean the cooking zone before using the cooktop for the first time (see the "Cleaning" section).
• Observe all safety and warning information during operation (see the "General Safety Instructions" section).

6.1 Control Panel and Function Keys

• Best results are obtained by using a low speed for normal conditions and a high speed when odors are more concentrated.
• Turn the hood on for a few minutes before you start cooking.
• The hood should be left on for 15 minutes after cooking or until all odors have dispersed.
• The control switches are located on the front panel of the unit. See Image below.

Timer

Lamp

Speed

Power

Timer Button

• When the rangehood is in operation and the TIMER button is pressed, the rangehood switches to timer mode. Press again to exit the timer function. The above steps can be operated repeatedly.
• The default setting is 9 minutes. The timer then starts counting down the time. The remaining time is shown in the display: 9 > 8 > 7 > 6 > 5 > 4 > 3 > 2 > 1 > 0 . When [0] is shown, the rangehood is automatically switched off.
• Press and hold the TIMER button to deactivate the timer again.

Light Button

• Press the LIGHT button to switch on the light. Press the button again to switch it off.
• The lamp function could be operated without pressing the power button.

Speed Button

• The motor offers 3 speed levels: low/1, medium/2 and high/3.
• Press the INCREASE / REDUCE button several times to run the motor at the following power: low > medium > high > low. LED display shows the corresponding speed: 1 > 2 > 3 > 1.

Power Button

- Press the POWER button to switch the rangehood on and off.

6.2 Remote Control and Features

Light Button

- Press the ⚙ button to switch on the light. Press the button again to switch it off. The light is independent of other functions.

Increase speed

- Each time you press the ▲ button, the speed is increased to the next level. The display indicates the corresponding speed. If you want to switch off the motor, press the ▼ button until the motor stops.

Reduce speed

- Each time you press the ▼ button, the speed is decreased. The display indicates the corresponding speed. If you want to switch off the motor, press the ▼ button until the motor stops.

Timer button Setting the timer

• Press the ⬆ button to activate the timer function. The timer is initially set to 5 minutes. Each time you press ▲, the time is increased by 1 minute. Each time you press ▼, the time is reduced by 1 minute. A time of 1-60 minutes can be set.
• Once you have set the timer, press the ⚙ button again to confirm or wait 10 seconds until the set time is automatically. The motor runs until the time you set runs out, then it switches off automatically.
• In case you want to use the timer with the same time, just press the TIMER button and then wait 10 seconds. If you want to enter a different time, proceed as described in steps 1 and 2.

NOTE

If you want to end an active timer prematurely, press the TIMER button while the timer is running.

6.3 Pairing remote control with your Appliance

The remote control must establish a new connection with the rangehood in order to be used.

Pairing the Remote Control

• Turn the rangehood on and long press the power button for 5 seconds. The indicators light will flash from one button to another which means the rangehood is in connection mode.
• Press any button on remote control to confirm the connection. The remote control can be used to control the rangehood: power on/off, speed control, light, timer.

6.4 Energy Saving tips

This rangehood operates very efficiently and economically. The following will help you to save even more energy when using it:

• Ensure that there is sufficient ventilation in the kitchen when cooking. In extraction mode, if there is insufficient air flow the rangehood cannot operate efficiently and this causes increased operating noise levels.
• Always cook with the lowest possible setting. This produces fewer cooking vapors, so you can use a lower rangehood power level and therefore benefit from reduced energy consumption.
• Check the power level selected on the rangehood. A lower power level is generally sufficient for the majority of cooking. Only use the Booster setting when necessary.

Pairing the Remote Control

• To establish a new connection, you will need to reset the previous connection.
• To reset the existing connection, long press the power button on the rangehood for 5 seconds. The indicators light will flash from one button to another. Then long press the power button for 5 seconds again so that the existing connection is cleared.

• Once the previous connection is reset, the rangehood will go into standby mode. Then, repeat the steps above to connect the rangehood to a new remote control.

• When a large volume of cooking vapors is being produced, switch to a high-power level in good time. This is more efficient than operating the rangehood for longer to try to capture cooking vapors which have already been distributed throughout the kitchen.
  • Make sure that you switch the rangehood off after use.

• Clean or change the filters at regular intervals. Heavily soiled filters reduce performance, increase the risk of fire and are unhygienic.

7. TROUBLESHOOTING

Observe all safety and warning information during operation. (see the General Safety Instructions" section)

Problem	Possible Cause	Possible Solution
The light turns on but the motor does not run.	The motor is switched off.	Switch on the motor with the SPEED button.
	The motor switch is broken.	Contact a specialist company.
	The motor is broken.	Contact a specialist company.
Lights and engine do not work.	Your mains security fuse is flipped or broken.	Flip the fuse switch or replace the fuse..
	The power cable is loose or not connected.	Connect the power cord correctly.
The light does not work.	The light is broken.	Replace the bulb.
Unsatisfactory suction performance.	The distance between the cooker and the rangehood is too far.	Reduce the distance.
		Check that the fan speed is set high enough for the task.
		Clean the grease filter.
		Check to see if the kitchen is adequately vented to allow the entry of fesh air.
		If set up for recirculation, check that the charcoal filter is still effective.(recommended to be replaced every 2-3months)
		If set up for extraction, check that the ducting and outlets are not blocked.
The rangehood hangs crooked.	One of the fixing screws is not propely tightened.	Tighten the screw securely.
The rangehood has switch off during operation.	The safety cut-out device has been tripped off.	Turn off the hob and wait for the device to reset.
	The rangehood has been installed below the heights indicated in the installation instructions.	Fix the distance. If the distance is not appropriate, the motor will cut out frequently which will damage the hood.

If you have completed all of the above checks and is still experiencing difficulty, please contact your local Linärie Service Center (see the "Warranty and Spare Parts" sections).

WARNING

Any electrical repairs to this appliance must conform to your local, state and federal laws. Please contact the service center if in any doubt before undertaking any of the above. Always disconnect the unit from the power source when opening the unit.

8. CLEANING & MAINTENANCE

GENERAL INFORMATION

• Allow the appliance to cool down completely before cleaning and maintenance.
• The surfaces and controls are susceptible to scratches and abrasion. Please observe the following cleaning instructions.

8.1 Stainless steel

- The stainless steel must be cleaned regularly (weekly) to ensure a long service life. Stainless steel surfaces can be cleaned with a proprietary nonabrasive cleaning agent designed specifically for use on stainless steel.

8.2 Control panel

- The control panel can be cleaned with warm soapy water. Make sure the cloth is clean and thoroughly wrung out before cleaning the control panel. Use a dry, soft cloth to remove excess moisture after cleaning.

WARNING

Observe all safety and warning information during operation (see the "General Safety Instructions" section). Before maintenance or cleaning, the rangehood should always be disconnected from the power supply. Make sure that the rangehood is switched off and the plug has been removed. Exterior surfaces are prone to scratches and dents. Therefore, please follow the cleaning instructions to achieve the best possible result without damage.

8.3 Cleaning agents

WARNING

Do not use stainless steel cleaning agents on the controls. Use neutral cleaning agents and avoid using harsh cleaning chemicals, strong household cleaners or products containing abrasive cleaners as this will affect the appearance of the appliance and may remove the printed symbols on the control panel.

8.4 Aluminum grease filter

WARNING

An oversaturated filter is a fire hazard. The aluminum grease filter in the appliance removes solid particles from the kitchen vapors, grease, dust, etc., therefore, preventing soiling of the rangehood.

Grease filter cleaning intervals

- The grease filter should be cleaned regularly (at least every 3-4 weeks) to avoid a build-up of grease

Cleaning the grease filter by hand

The reusable aluminum filter can be cleaned by hand. Soak them in water together with a grease-dissolving detergent for about 3 minutes and then brush them gently with a soft brush. Do not apply too much pressure to avoid damaging the filter. Allow the filter to air dry afterwards, but do not place it directly in the sun. Filters should always be washed separately from crockery and kitchen utensils!

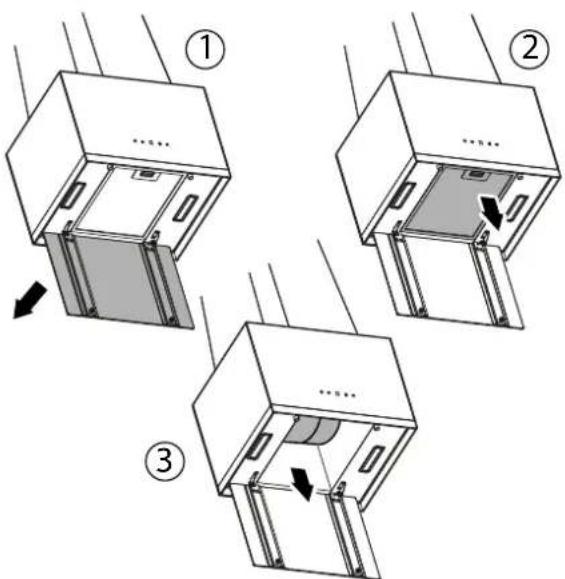

8.5 Removing the aluminum grease filter

• When removing the grease filter do not tilt it downwards at an angle. This can damage the retaining pins.
• With the deflector plate pushed in, grip the front of the deflector plate and hold the grease filter securely. Whilst holding the grease filter, pull the deflector plate out as shown.
• Then pull the filter downwards to remove it.
• Switch off the fan.

When handling a grease filter, be careful not to drop it. This can result in damage to the filter and the cooktop below. Make sure you hold the filter securely at all times when handling it.

Remove the filter as shown in the image below and reinsert the filter in reverse order.

Diagram showing three steps of a device opening with labeled components and directional arrows indicating movement.

8.6 Activated carbon filter

If the rangehood is connected for recirculation, a charcoal filter must be inserted in addition to the grease filter. This is designed to absorb cooking odors.

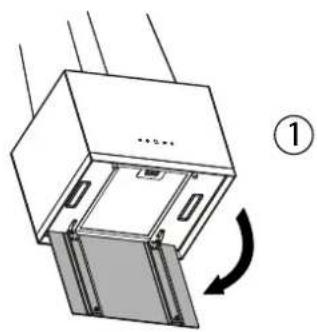

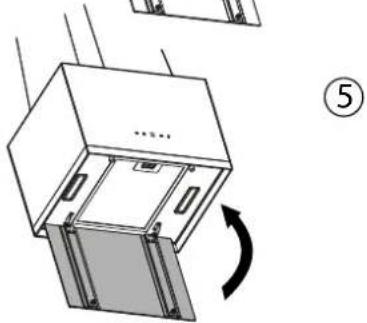

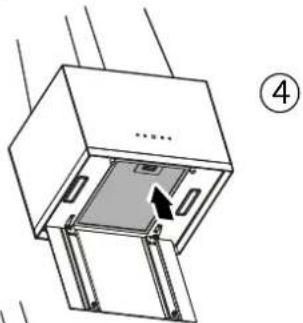

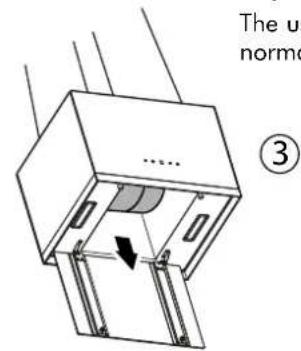

Installing and replacing the activated charcoal filter

The installation of the activated carbon filter is done as follows:

• Disconnect the rangehood from the power supply before installation.
• Press the filter lock and remove the main filter.

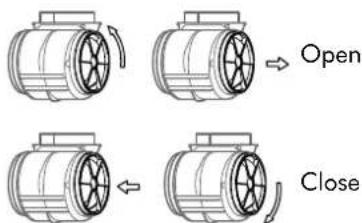

• Rotate the carbon filter counter-clockwise on both sides of the motor. Replace the old carbon filters with new carbon filters.
• Replace the main filters.
• Reconnect the power supply.

Diagram of a device with a rotating arrow indicating rotation, no text or symbols present

Diagram of a device with a highlighted internal component and labeled parts (no text or symbols present)

The use normo ..... ③

Open Close

Replace filter on both sides

WARNING

Make sure that the filter is tightly closed. It can otherwise detach and become dangerous. If an activated carbon filter is connected, the suction power is reduced.

When to change the activated charcoal filter?

The activated charcoal filter should be changed after 3 to 6 months, depending on your cooking habits. Allow the appliance to cool down completely before maintenance. Replacement charcoal filters can be obtained from www.linarie.com.au

Disposing of the activated charcoal filter

The used activated charcoal filter can be disposed with the normal household waste.

Diagram of a device with an arrow indicating a component or connection, labeled with number 4 (no text or symbols on the diagram itself)

Diagram of a 3D printer or scanner device with a curved arrow indicating rotation, no text or symbols present.

8.7 Replacing the lamps

Observe all safety and warning information during operation (see the "General Safety Instructions" section).

The lamps should be replaced with the following:

ILCOS D code: DSS-1.5/65-S-120/33

LED Type: Reactangle LED light

Wattage: 2 x 1.5W

Voltage Range: DC 12V

Dimensions:

120±1 33±0.5

WARNING

• The lamps become hot when in use. Allow the lamps to cool down completely before changing them.
• The lamp must be replaced by the manufacturer, its after-sales service or similarly qualified persons.
• Always switch off the power supply before carrying out any work on the appliance.
• Always hold the lamp with a cloth or gloves when inserting or removing it to ensure that sweat does not come into contact with the lamp, as this can reduce its life.

To replace the lamps:

• Disconnect the rangehood from the mains electrical supply before replacing the lamps
• Rotate the cover counter-clockwise. Loosen the screw of the stainless-steel filter and remove it.
• Press the light connector to remove the light bulb.
  • Install the new light and reconnect the cable.

9. ENVIRONMENTAL TIPS

Observe all safety and warning information during operation (see the "General Safety Instructions" section).

9.1 Disposal considerations

The transport and protective packaging has been selected from materials which are environmentally friendly for disposal, and can normally be recycled.

Recycling the packaging reduces the use of raw materials in the manufacturing process and also reduces the amount of waste in landfill sites. Ensure that any plastic wrappings, bags etc. are disposed of safely and kept out of the reach of babies and young children. Danger of suffocation.

9.2 Disposing of your old appliance

Electrical devices marked with this label may not be disposed of in domestic waste at the end of their service life.

Electrical and electronic appliances often contain valuable materials. They also contain specific materials, compounds and components, which were essential for their correct function and safety. These could be hazardous to human health and to the environment if disposed of with your domestic waste or if handled incorrectly. Please do not, therefore, dispose of your old appliance with your household waste.

Please dispose of those materials by contacting your local authorities and ask for the correct method of disposal. Please ensure that your old appliance poses no risk to children while being stored prior to disposal.

By disposing of this product in accordance with the regulations, you protect the environment and the health of those around you from negative consequences.

Prohibition sign with crossed-out trash bin and no text or symbols

10. WARRANTY & AFTER SALES SERVICE

Observe all safety and warning information during operation (see the "General Safety Instructions" section).

In the event of a fault which you cannot remedy yourself, please contact Linärie.

10.1 Warranty

The manufacturer's warranty for this appliance is 2 years.

10.2 After sales service

The contact details for Linärie are given at the beginning and of these instructions.

When contacting Linärie, please quote the model and serial number of your appliance. These can be found on the data plate, after removing the grease filter.

Record model & serial number

Model:

Serial Number:......

Register your product www.linarie.com.au

10.3 Replacement of spare parts

Incorrect components can lead to personal injury or damage to the appliance. Use only genuine original Linärie spare parts.

Modifications, additions or alterations to the appliance can lead to safety risks. If spare parts or accessories from other manufacturers are used, the warranty will be invalidated, and Linärie cannot accept liability.

Please check www.linarie.com.au for more information.

LIKE TO KNOW MORE?

For further information on all Linärie appliances, or to obtain detailed dimension and installation information, phone or email our Customer Care team or visit our website:

Australia

[e-mail]

www.linarie.com.au

Follow Us

@Linarie.Appliances

© Linärie

Operating and installation instructions:

Original

√ Translation

Osass Australia Pty Ltd.

ACN 005 635 398

ABN 96 005 635 398

Linärie Contact

[e-mail]

www.linarie.com.au

The distribution and duplication of this document, as well as the use and disclosure of its contents are prohibited unless expressly authorised.

These operating and installation instructions have been drawn up with the greatest of care. But it cannot be ruled out that subsequent technical modifications have not yet been incorporated or the relevant content has not yet been adapted. Please accept our apologies in this eventuality. An updated version can be requested from our team. Subject to printing errors and mistakes.

© Linärie

All rights reserved.

CALEDONIA

Hotte îlot

RAHID50BG

Pure technical line drawing of a ceiling structure without any text, numbers, or symbols

FR

5.4 Installation [ Ventilation externe]

Technical line drawing of a Boîtier circular component with mounting base (no text or symbols)

5.1 Pré-installation

Diagram of a mechanical device with a rotating component and a handle, labeled with number 1 (no text or symbols on the diagram itself)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with cross-sectional view (no text or symbols)

NOTE :

Technical line drawing of a mechanical component with mounting holes and a central bolted part (no text or symbols)

Technical line drawing showing two mechanical assembly steps with bolts and a base plate (no text or symbols)

Technical line drawing of a mechanical assembly with mounting holes and internal components (no text or symbols)

Technical line drawing of a mechanical assembly with bolts and a central component (no text or symbols)

Technical line drawing of a mechanical assembly with mounting holes and internal components (no text or symbols)

Pure diagram of a mechanical or electrical component with no text, numbers, or symbols

SUITE DE L'INSTALLATION

Technical diagram showing mechanical assembly with labeled components and zoomed-in detail views

Pure mechanical diagram showing a rotating component with arrows indicating motion (no text or symbols)

Technical diagram of two mechanical components with mounting holes and a curved arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical assembly with mounting base and support structure (no text or symbols)

Pure technical diagram of a mechanical assembly with no text, numbers, or symbols

Line drawing of a mechanical device with a square top and rectangular base, suspended by wires (no text or symbols)

5.5 Installation [Extraction d'air]

ATTENTION

Diagram showing three 3D printer setups with labeled parts and directional arrows indicating movement or force.

③

SUITE NETTOYAGE ET ENTRETIEN

Diagram showing two steps of a device interior with labeled components and directional arrows indicating rotation or movement.

Diagram showing two steps of a device opening with labeled components and rotation arrow

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

[e-mail]

www.linarie.com.au

Suivez-nous

Linärie
