USER MANUAL ES-ED64 PANASONIC

Operating Instructions

(Household) Epilator

Model No. ES-ED64

BC

English 3

Français 21

Español.... 39

Panasonic electric shaver with visible buttons and control knob (no text or symbols on body)

2

ES-ED64_AM.indb 2 2014/03/03 9:31:43

Panasonic®

Operating Instructions

(Household) Epilator

Model No. ES-ED64

Contents

Safety precautions.... 4 Using the sonic exfoliation head ....14

Intended use ....9 Cleaning ....15

Quick steps for epilating....9 Replacing the exfoliation brush ....16

Parts identification ....10 Troubleshooting ....17

Charging 11 Battery life 19

Before use ....11 Removing the built-in rechargeable Using the opilation head ....12 battery....19

Specifications ....19

Thank you for purchasing this Panasonic product.

Before operating this unit, please read these instructions completely and save them for future use.

Safety precautions

To reduce the risk of injury, loss of life, electric shock, fire, and damage to property, always observe the following safety precautions.

Explanation of symbols

The following symbols are used to classify and describe the level of hazard, injury, and property damage caused when the denotation is disregarded and improper use is performed.

DANGER

Denotes a potential hazard that will result in serious injury or death.

WARNING

Denotes a potential hazard that could result in serious injury or death.

CAUTION

Denotes a hazard that could result in minor injury.

The following symbols are used to classify and describe the type of instructions to be observed.

This symbol is used to alert users to a specific operating procedure that must not be performed.

This symbol is used to alert users to a specific operating procedure that must be followed in order to operate the unit safely.

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic precautions should always be followed, including the following: Read all instructions before using this appliance.

DANGER To reduce the risk of electric shock:

1. Do not reach for an appliance that has fallen into water. Unplug immediately.
2. Do not place or store appliance where it can fall or be pulled into a tub or sink. Do not place in or drop into water or other liquid.
3. Except when charging, always unplug this appliance from the electrical outlet immediately after using.
4. Unplug this appliance before cleaning.

WARNING To reduce the risk of burns, fire, electric shock, or injury to persons:

1. Do not use this appliance with damaged epilation head as it has the potential to result in facial injury.
2. Not for use by or on children or invalids. Close supervision is necessary when used near children or invalids.

1. Use this appliance only for its intended use as described in this manual. Do not use attachments not recommended by the manufacturer.
2. Never operate this appliance if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into water. Return the appliance to a service center for examination and repair.
3. Keep the cord away from heated surfaces.
4. Never drop or insert any object into any opening.
5. Do not use outdoors or operate where aerosol (spray) products are being used or where oxygen is being administered.
6. Always attach charger to appliance first, then to outlet. To disconnect, turn all controls to 'OFF' then remove plug from outlet.

SAVE THESE INSTRUCTIONS

WARNING

This product has a built-in rechargeable battery. Do not throw into flame or heat. Do not charge, use, or leave in high temperatures.

- Doing so may cause overheating, ignition, or explosion.

Do not store within reach of children or infants. Do not let them use it.

- Doing so may cause an accident or injury due to accidental ingestion of the brush, etc.

Never disassemble except when disposing of the product. - Doing so may cause fire, electric shock, or injury.

Do not modify or repair.

- Doing so may cause fire, electric shock, or injury. Contact an authorized service center for repair (battery change etc).

Do not use in a way exceeding the rating of the household outlet or the wiring.

- Exceeding the rating by connecting too many plugs to one household outlet may cause fire due to overheating.

Do not damage or modify, or forcefully bend, pull, or twist the cord. Also, do not place anything heavy on or pinch the cord.

- Doing so may cause electric shock or fire due to a short circuit.

Do not connect or disconnect the adaptor to a household outlet with a wet hand.

- Doing so may cause electric shock or injury.

WARNING

Do not use anything other than the supplied AC adaptor. Also, do not charge any other product with the supplied AC adaptor.

- Doing so may cause burn or fire due to a short circuit.

Immediately stop using and remove the adaptor if there is an abnormality or malfunction.

• Using it in such conditions may cause fire, electric shock, or injury.

• The main unit, adaptor or cord is deformed or abnormally hot.
  • The main unit, adaptor or cord smells of burning.
• There is abnormal sound during use or charging of the main unit, adaptor or cord.
• Immediately request inspection or repair at an authorized service center.

Fully insert the adaptor or appliance plug.

- Failure to do so may cause fire, electric shock, or burn.

Always ensure the appliance is operated on an electric power source matched to the rated voltage indicated on the AC adaptor.

- Failure to do so may cause fire, electric shock, or burn.

Regularly clean the power plug and the appliance plug to prevent dust from accumulating.

- Failure to do so may cause fire due to insulation failure caused by humidity.

Disconnect the adaptor and wipe with a dry cloth.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and

knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

- Failure to do so may cause an accident or injury.

The supply cord cannot be replaced. If the cord is damaged, the AC adaptor should be scrapped.

- Failure to do so may cause an accident or injury.

CAUTION

Do not wrap the cord around the adaptor when storing.

- Doing so may cause the wire in the cord to break with the load, and may cause fire due to a short circuit.

Do not allow pins or trash to adhere to the power plug or the appliance plug.

- Doing so may cause electric shock or fire due to a short circuit.

Do not continuously aim the light directly into your eyes.

- Doing so may cause dizziness.

Do not turn ON the switch without the head attached.

- Doing so may cause finger injury or cause hair or clothing entanglement and damage.

Do not use with the frame removed.

- Doing so may cause injury to the skin or cause hair or clothing entanglement and damage.

CAUTION

Disconnect the adaptor or the appliance plug by holding onto the adaptor or the appliance plug instead of the cord.

- Disconnecting by holding onto the cord may cause electric shock or injury.

The skin protector is easily damaged, so store with the protection cap attached.

- Failure to do so may result in deformation or damage to the skin protector, which may cause injury to skin.

▶ About using the epilation head

Do not apply strong pressure to the skin, move repeatedly over the same area or move back and forth in one area. Also, do not use with a jabbing motion.

- Doing so may cause injury or inflammation of the skin, or increased pain.

Do not use the epilation head for legs/arms to epilate your underarms and bikini-line.

- Doing so may cause injury or inflammation of the skin.

Do not use in the following cases:

• Before or during menstruation, pregnancy, or about one month after giving birth

On suntanned skin

- When you are not well or if you feel any abnormalities on your skin or body

- Use in such cases may cause the skin to become sensitive or cause inflammation, bleeding, or increased pain.

Do not use on the following body areas:

- Injury, rash, moles, bruises, warts, pimples, etc. - Face, genitals and genital area, or thighs

- Inner side of the upper arms and areas such as elbows or knees which are prone to sagging

- Doing so may cause injury, inflammation of the skin, or bleeding.

The following persons should not use this appliance:

- Persons suffering from atopic dermatitis or rashes and other skin diseases

- Persons with allergic diathesis or persons who are easily irritated by cosmetics, clothing, metals, etc.

· Persons who are easily suppurated

- Persons suffering from varicose veins, diabetes, hemophilia, etc.

· Persons who have trouble stopping bleeding

- Persons who have suffered skin problems (suppuration, inflammation, etc.) caused by epilation (plucking, depilation, waxing, etc.)

- Use in such cases may cause the skin to become sensitive or cause inflammation, bleeding, or increased pain.

Do not use epilation head in the following ways:

• Using just before swimming or sea bathing (use at least 2 days before such activities)

• Using just before bathing

Sharing with your family or others

- Engaging in extreme sports or exercise right after epilation

- Doing so may cause infection or inflammation resulting from bacteria that enter the body from the pores.

CAUTION

If skin problems continue for 2 days or longer after treatment, stop using the unit and contact a dermatologist.

- Failure to do so may cause symptoms to worsen.

Apply the skin protector at a 90° angle to your skin with gentle force.

- Failure to do so may cause injury to the skin or cause hair or clothing entanglement and damage.

▶ About using the sonic exfoliation head

Do not use sonic exfoliation head in the following ways:

- Injury, rash, moles, bruises, blisters, corns, warts, pimples, etc.

Face, genitals and genital area

- Apply with strong pressure to the skin

- Use continuously for long periods of time on the same area

Sharing with your family or others

- Doing so may cause injury to the skin, infection, inflammation, bleeding, pigmentation or other trouble, or worsening of such symptoms.

▶ Disposing of the rechargeable battery

DANGER

The rechargeable battery is exclusively for use with this epilator. Do not use the battery with other products.

Do not charge the battery after it has been removed from the product.

• Do not throw into fire or apply heat.
• Do not hit, disassemble, modify, or puncture with a nail.
• Do not let the positive and negative terminals of the battery get in contact with each other through metallic objects.
• Do not carry or store the battery together with metallic jewelry such as necklaces and hairpins.
• Do not charge, use, or leave the battery where it will be exposed to high temperatures, such as under direct sunlight or near other sources of heat.
• Never peel off the tube.
• Doing so may cause overheating, ignition, or explosion.

WARNING

After removing the rechargeable battery, do not keep it within reach of children and infants.

- The battery will harm the body if accidentally swallowed. If this happens, consult a physician immediately.

WARNING

If the battery fluid leaks out, take the following precautions. Do not touch the battery with your bare hands.

- The battery fluid may cause blindness if it comes in contact with your eyes.

Do not rub your eyes. Wash immediately with clean water and consult a physician.

- The battery fluid may cause inflammation or injury if it comes in contact with the skin or clothes.

Wash it off thoroughly with clean water and consult a physician.

Intended use

▶ Using the epilation/sonic exfoliation head

The appliance can be used for wet or dry epilation. The following is the symbol for a wet epilator. It means that the epilation/sonic exfoliation head can be used in a bath or shower.

English

WARNING: Detach the main body from the AC adaptor before cleaning it in water.

Notes

• Do not use paint thinner, benzene, alcohol, etc. to clean the appliance. Doing so may cause failure, cracking or discoloration of the main body. Wipe with a cloth soaked in soapy water and wrung tightly.
• Keep the appliance away from sinks, bathrooms or other high-humidity areas where it could be exposed to water and moisture after use.
• Keep the appliance away from where it will be exposed to high temperatures or direct sunlight.
• When storing the epilator, always attach the protection cap for the epilation/sonic exfoliation head.

Quick steps for epilating

Charging

(→ Page 11)

2 Selecting the head

(→ Page 11)

Epilating

(→ Page 12)

English

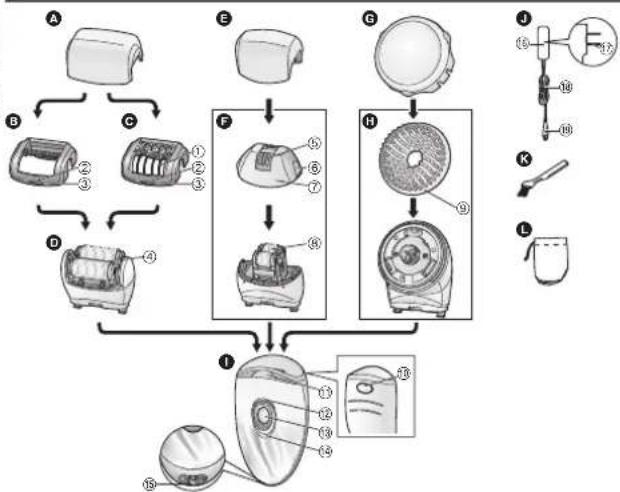

Parts identification

A Protection cap for epilation head (legs/arms)
B Fast cap
© Gentle cap (→ Page 14)
① Skin protector
② Cap release rib
③ Frame
D Epilation head for legs/arms
④ Epilation discs
E Protection cap forepilation head (underarms/bikini-line)
F Epilation head for underarms/bikini-line

⑤ Skin protector (metal part on the outside)

⑥ Frame release rib

⑦ Frame

⑧ Epilation discs (inside)

© Protection cap for sonic exfoliation head

H Sonic exfoliation head

⑨ Exfoliation brush

① Main body

⑩ Head release button

⑪ LED light

⑫ SOFT mode light

⑬ Power switch

⑭ Charging light

⑮ Socket

J AC adaptor (RE7-77)

⑯ Adaptor

⑰ Power plug

⑱ Cord

⑲ Appliance plug

Accessories

K Cleaning brush

L Pouch

Charging

For best performance, fully charge the appliance before use. You cannot operate the appliance while charging.

Charging time = Approx. 1 hour

The epilator can be used for approximately 30 minutes (40 minutes when using the gentle cap) after 1 hour of charging. (This will differ depending on the temperature.)

Plug the AC adaptor into the epilator (a) and a household outlet (b).

- Recommended ambient temperature for charging is 15 - 35 °C (59 - 95 °F). The battery may not charge properly or not at all under extreme low or high temperatures.

Diagram showing a device connected to a plug with labeled parts (a) and (b)

While charging

Red light appears.

After charging is completed

Red light goes off.

Abnormal charging

Blinks twice every second.

• The charging time may decrease depending on the charging capacity.

• After charging is completed, turning the power switch ON with the epilator plugged in will cause the charging light to light up and then turn off after 5 seconds.
  This shows that the epilator is fully charged.

• To keep charging the battery will not affect battery performance.

• When charging the epilator for the first time or when it has not been in use for more than 6 months, the time it takes to charge the epilator may increase, or the charging light may not glow for a few minutes. It will eventually glow if kept connected.
• The AC adaptor is intended to be correctly oriented in a vertical or floor mount position.
• If the shape of the plug does not fit the power outlet, use an attachment plug adaptor of the proper configuration.

Before use

Changing the head

1 Remove the head while pushing the head release button.

2 Push the head until it clicks.

The LED light comes on when the power is turned on. The light will remain on while the power is ON.

Operation will change in order from "NORMAL" → "SOFT" → "OFF" each time the power switch is pressed.

NORMAL

In NORMAL mode, epilation is performed in a short time with fast disc rotation speed.

SOFT

SOFT mode will control the rotation speed of the discs, and minimize irritation at the time of epilation.

• The green lamp will light up when using SOFT mode.

Illustration of a hand holding a device next to a circular inset showing concentric rings (no text or symbols)

OFF

The power will be switched OFF.

Using the epilation head

Areas suitable for epilation

The epilator can be used on the areas.

Illustration of a person sitting on the floor performing a bandage exercise (no text or symbols)

The epilator can be used on the areas. Before epilating the bikini-line, be sure to put on your swim wear or panties etc. and check the areas you wish to epilate.

- Using the epilator on areas other than those marked may cause pain or skin trouble.

Areas not suitable for epilation

The epilator should not be used on the inner side of the upper arms and areas such as elbows or knees which are prone to sagging.

WET epilation (epilating after wetting the skin and epilator and then applying foam) makes the skin softer so it is gentler to your skin when epilating. For DRY epilation, begin at step 3. Before DRY epilation, wipe dry any moisture or sweat from the skin.

1 Wet your skin.

2 Wet the discs and place a small quantity of liquid shower gel on the discs.

• Always use shower gel when wet epilating.
- Rinse any shower gel off of your hands.

3 Select the mode by pressing the power switch [1⑬]. (→ Page 12)

- Foam is created. Foam makes the epilator slide better, so you can move it fast.

- We recommend using the appliance in an ambient temperature range of 5 - 35 °C (41 - 95 °F). If used outside this range, the appliance may stop operating.

Upwards from the bottom of the leg. Inwards from the outside of the arm.

Illustration of two human body positions with bandages and a finger, no text or symbols present

Move in several directions as underarm/bikini line hair grows in different directions.

Stretch the skin with your fingers, and move slowly from inside to outside going against the flow of hair.

Tips for best epilation results

The hair removal is not permanent, so from the 2nd use we recommend that you epilate the underarms about once a week and the arms and legs about once every two weeks.

When epilating for the first time, or using for the sensitive skin, we recommend using the gentle cap. The gentle cap has a skin protector for gentler epilation, to remove hair by holding the skin down to reduce pain.

- We also recommend to use the SOFT mode rotation. (Page 12)

1. Remove the fast cap [B].
2. Attach the gentle cap [C].

Illustration of two hands holding a device with a scroll and a button, showing mechanical components (no text or symbols)

• Reddening might appear after use. A cool towel will help if you feel pain or there is a rash.
• If your skin gets dry after epilation, we recommend applying a moisture lotion two days after epilation.
  • Make sure skin is clean before and after use.

Trim your hair before epilating for the first time or if you have not epilated for a long time. Hair removal is easier and less painful when the hair is short.

Using the sonic exfoliation head

• We recommend using about once per week.
- We recommend using on areas for epilation about 2 days before actual epilation. Exfoliation may help to prevent ingrown hairs.

1 Attach the sonic exfoliation head [H].

- Push down firmly until you hear a "click".

2 Wet your skin.

- Use shower gel to protect your skin.

3 Pour a small quantity of water and shower gel into the center of the exfoliation brush [H⑨].

• Rinse any excess shower gel off of your hands.
• Do not use body scrub paste that contains granular salt or abrasive particles to avoid shortening the lifetime of the appliance.

Use shower gel in the amount indicated by line (a) and water in the amount indicated by line (b) on the protection cap for the sonic exfoliation head [G].

Line drawing of a hand washing a toothbrush with a water droplet (no text or symbols)

4 Select the mode by pressing the power switch [1⑬]. (→ Page 12)

- Foam is created. Foam protects your skin from over exfoliation.

5 Put the exfoliation brush onto your skin and begin exfoliation.

• We recommend using on legs, arms (especially elbows and knees) and neckline.

Do not use on sensitive areas of skin or face.

• Do not continue to hold in one place. Slide over skin in a circular pattern.
• Apply to the same area of skin for approximately 30 seconds each time, check your skin and adjust usage accordingly.

6 Moisturize by applying a moisturizer that suits your skin on the area where the exfoliation brush was used.

Cleaning

• Always clean the heads and caps after use to keep them in a hygienic state.
- Switch off and unplug the appliance before cleaning.
• Take care not to damage the skin protector, the frame, the fast cap and the gentle cap during cleaning.

Dry cleaning [BCDF]

Epilation head

1. Lift fast/gentle caps, the frame upward while holding the cap release rib [B②]/the frame release rib [F⑥].

1. Clean the gentle cap [C], the epilation head [D, F] with the cleaning brush [K].

Illustration of three hand-drawn steps in a mobile phone setup, showing hand positioning and cleaning (no text or symbols)

English

Wet cleaning [BCDFH]

Epilation head

1. Wet the discs, and then apply liquid hand soap.

1. Turn the switch on and then foam is created.

1. Wash the head with water to wash out hair.

2. Do not use hot water.

3. If soap is not completely washed away, then a white deposit can accumulate and prevent the discs from moving smoothly.

1. Turn the switch off, wipe the appliance with a dry cloth and dry it well.

Sonic exfoliation head

English

1. Pour a small quantity of water and liquid hand soap into the center of the exfoliation brush.
2. Turn the switch on and then foam is created.
3. Use water to thoroughly rinse away foam and liquid hand soap.

• Thoroughly rinse the hole in the center of the exfoliation brush.

1. Switch off, remove the sonic exfoliation head and thoroughly rinse the underside of the sonic exfoliation head.
2. Wipe the appliance with a dry cloth and dry it well.

3

4

5

Illustration of a cleaning board with three components: a toilet, a bag, and a cleaning device (no text or symbols)

Replacing the exfoliation brush

The exfoliation brush lifetime is approximately 1 year (assuming 3 minutes use per week). We recommend replacing the exfoliation brush about once a year.

1. Holding the exfoliation brush by the sides, remove from the sonic exfoliation head.
2. Attach new exfoliation brush to the sonic exfoliation head.

Troubleshooting

Problem Possible cause		Action
The appliance does not operate.	When epilating	It is not charged. Fully charge the appliance.	Charging is only possible when connected to the household outlet.Disconnect from the household outlet before use.Request repair at an authorized service center.
		The switch is turned ON with the adaptor connected to the household outlet.
		The skin protector or discs are deformed, cracked, or damaged.
		Hair dust has accumulated. Clean the hair dust.
		Shower gel has adhered to the discs.	Wash it off by soaking in warm water.
	When exfoliating	Shower gel has adhered to the sonic exfoliation head.	Rinse in warm water. If shower gel does not rinse away, remove the sonic exfoliation head and soak in warm water.
The usage time gets short.	When epilating	The appliance is not used at recommended temperature.	Use at the recommended ambient temperature of 5 - 35 °C (41 - 95 °F).
		The appliance is pressed against skin too hard.	Contact skin with gentle force.
		Not fully charged Fully charge the appliance.
Cannot remove hair.		The appliance is used on long hair.	Use on hair approximately 2 to 3 mm long (approximately 1/8").
The hair becomes stubble.		The way the unit is applied or moved is not correct.	Refer to page 13.

English

Problem Possible cause		Action
The appliance stops during operation.	When epilating	► The appliance is pressed against skin too hard.	► Contact skin with gentle force.
		► Not fully charged Fully charge the appliance.	►
The appliance is not removing the hair as well as before.		► Hair dust has accumulated. Clean the hair dust.	►
		► The skin protector or discs are deformed, cracked, or damaged.	► Request repair at an authorized service center.
Will not produce foam well.	When exfoliating	► Insufficient amount of shower gel or water.	► Adjust the amount of shower gel or water.
		► Shower gel used does not create foam. Try using	► another kind of shower gel.
Does not remove cuticles sufficiently.		► Not applying enough pressure to the skin or for a long enough time.	► Adjust degree of pressure and/or amount of time while monitoring the condition of your skin.
		► Exfoliation brush deterioration from continuous use	► Replace the exfoliation brush about once per year.

If the problems still cannot be solved, contact the store where you purchased the unit or a service center authorized by Panasonic for repair.

Battery life

The life of the battery is 3 years if charged approximately once every week. The battery in this epilator is not intended to be replaced by consumers.

Removing the built-in rechargeable battery

ATTENTION:

A lithium ion battery that is recyclable powers the product you have purchased. Please call 1-800-8-BATTERY for information on how to recycle this battery.

Remove the built-in rechargeable battery before disposing of the epilator.

This figure must only be used when disposing of the epilator, and must not be used to repair it. If you dismantle the epilator yourself, it will no longer be waterproof, which may cause it to malfunction.

• Disconnect the cord from the epilator when removing the battery.
• Press the power switch to turn on the power and then keep the power on until the battery is completely discharged.
• Perform steps ① to ⑤ and lift the battery, and then remove it.
• Please take care not to short-circuit the battery.

Technical diagram of a device with numbered components and directional arrows indicating internal movement or assembly.

Specifications

Power supply	See the name plate on the AC adaptor. (Automatic voltage conversion)
Charging time Approx. 1 hour

This product is intended for household use only.

Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: To assure continued compliance, install and use in accordance with provided instructions. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Personal Care & Beauty Care Products

FOR USA AND PUERTO RICO ONLY

30-Day Quality

Satisfaction Guarantee

If you are dissatisfied with any Panasonic Personal Care & Beauty Care Products for any reason, simply return it to the place of purchase with a dated proof of purchase, in the original packaging, with all accessories, parts and instructions, within 30 days of the date of purchase, for a full refund, or call Panasonic at 1-800-338-0552.

Abuse or misapplication of this product voids the guarantee.

FOR YOUR CONVENIENCE, WE HAVE ESTABLISHED A TOLL-FREE (IN USA ONLY) NATIONAL ACCESSORY PURCHASE HOT LINE AT 1-800-332-5368.

Panasonic®

Mode d'emploi

1 Charge (→ Page 29)

Diagram showing a hairdryer connected to a plug with labeled parts (a) and (b)

Illustration of a hand holding a device next to a circular inset showing concentric rings (no text or symbols)

ARRÊT

Illustration of a person sitting on the floor performing a bandage exercise (no text or symbols)

Illustration of two human arm positions with a 90-degree angle marker (no text or symbols)

Illustration of a hand washing a toothbrush with a water droplet, no text or symbols present

Illustration of three hands holding a small electronic device with a grid and a close-up view (no text or symbols)

Illustration of three electronic devices on a tray, one emitting smoke or dust (no text or symbols)

Remplacement de la brosse exfoliante

Exploded view diagram of a mechanical device with numbered components and directional arrows indicating assembly or movement.

Spécifications

Diagram showing a handheld device connected to a plug, labeled with parts (a) and (b)

Diagram of a handheld device with a circular inset showing a labeled 'SOFT' component (no text or symbols on the device itself)

OFF

Illustration of a person sitting on the floor performing a bandage or stretch (no text or symbols)

Illustration of two human arm positions with a finger and wrist, showing different movement patterns (no text or symbols)

Illustration showing two-step instructions for using a device to adjust internal components, labeled 1 and 2.

Line drawing of a hand using a water dispenser to clean a toothbrush (no text or symbols)

Illustration of three hands installing or adjusting a component, showing hand positioning and assembly (no text or symbols)

Illustration of three electronic devices on a tray, one emitting smoke or dust (no text or symbols)

Exploded view diagram of a mechanical device with numbered components and directional arrows indicating assembly or operation.

Especificaciones

Panasonic Corporation of North America

Two Riverfront Plaza, Newark, NJ 07102-5490

IN CANADA CONTACT:

AU CANADA, COMMUNIQUEZ AVEC:

Panasonic Canada Inc.

5770 Ambler Drive, Mississauga, Ontario L4W 2T3

www.panasonic.com

EN MEXICO CONTACTE CON:

Panama, Republic of Panama

[phone]

Service • Assistance • Accessories

www.panasonic.ca/english/support (In Canada)

www.panasonic.ca/french/support (Au Canada)

http://www.panasonic.com

⑤ EN, CA, ES

Printed in China

Imprimé en Chine

Impreso en China

0000000000 X0000-0
