USER MANUAL Thor 404 TKL Genesis

text_image GENESIS THOR 404TKL QUICK INSTALLATION GUIDE WWW.GENESIS-ZONE.COM PRODUCT & SUPPORT INFORMATION | PLEASE SCAN QRCODE | or GENESIS. All rights reserved. GENESIS name and logo, and all related products and services names, design marks and logos are the copyright to registered trademarks or GENESIS. All other product and service marks contained herein are the manufacturers of their respective owners (12390) WWW.GENESIS-ZONE.COM

WELCOME TO #GENESISGAMING

Genesis Thor 404 TKL - 1

text_image Diagram showing four sequential steps of a mechanical or electrical assembly, with labeled components and directional arrows.

Genesis Thor 404 TKL - 2

Genesis Thor 404 TKL - 3

Genesis Thor 404 TKL - 4

Genesis Thor 404 TKL - 5

Genesis Thor 404 TKL - 6

Genesis Thor 404 TKL - 7

Genesis Thor 404 TKL - 8

natural_image Gray cloud icon with a downward arrow, symbolizing download or download (no text or symbols)

DOWNLOAD SOFTWARE
ON OUR WEBSITE

www.genesis-zone.com/support

Genesis Thor 404 TKL - 9

© GENESIS. All rights reserved, GENESIS name and logo, and all printed product and service names, design marks and logos are the trademarks or registered trademarks of GENESIS N. other product and service marks contained herein are the trademarks of their respective owners.

FROM NOW ON, YOU ARE PART OF GENESIS HISTORY TOO!

Starting our adventure with Genesis, we knew very well, that creating hardware for gamers is a big responsibility.

As enthusiasts of virtual gaming, from the very beginning, we wanted to create devices that would meet the expectations not only of ourselves but all fans of gaming around the world.

Each of the suggestions, comments, and feedback we constantly receive from you - our engaged community – has contributed to the development of many products. The best proof of it is the keyboard that is just resting in your hands - Genesis Thor 404 TKL, in the development of which a key role was taken by the community of enthusiasts gathered around „EnvyTech”.

Genesis Thor 404 TKL - FROM NOW ON, YOU ARE PART OF GENESIS HISTORY TOO! - 1

GENESIS

Genesis Thor 404 TKL - FROM NOW ON, YOU ARE PART OF GENESIS HISTORY TOO! - 2

We hope that it will deliver you many hours of fun and help you to break your own limits in gaming passion, which connects all of us.

TABLE OF CONTENTS

Product Information 3
EN - User manual 4
FR - Manuel de l'Utilisateur ....4
ES - Manual de usuario 5
PT - Manual do usuário 6
DE - Benutzerhandbuch....7
SE - Användarmanual 8
IT - Manuale d'uso....9
PL - Instrukcja obsługi 9
CZ - Návod k použití 10
SK - Navod na použitie 11
RO - Manual de utilizare 12
BG - Ръководство за употреба....13
HU - Használati utasítás....14
RS - Упутство за коришнсье....14
RU - Руководство пользователя 15
GR - Εγχευρίδιο χρήστη 16
Regulatory....18

PRODUCT INFORMATION

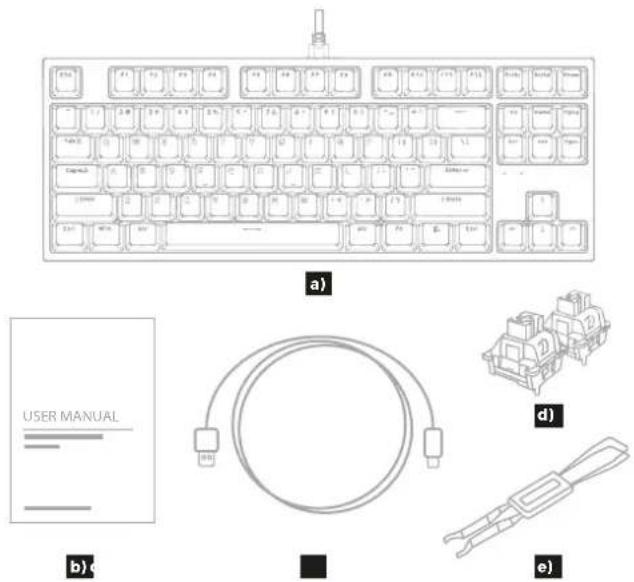

PACKAGE CONTENT / CONTENU/ CONTENIDO DEL EMBALAJE / CONTEÚDO / PAKET-INHALT / INNEHÁLL / CONTENUTI / ZAWARTOŠĆ / OBSAH BALENI / OBSAH BALENIA / CONTINUT PACHET / СЪДЪРЖАНИЕ НА КУТИЯТА / CSOMAG TARTALMA / САДРЖАЛ / КОМПЛЕКТАЦИЯ / ПЕРИЕХОМENO

Genesis Thor 404 TKL - PRODUCT INFORMATION - 1

REQUIREMENTS / EXIGENCES REQUISES / REQUISITOS / REQUISITOS / SYSTEMANFORDERUNGEN / KRAV / REQUISITI / WYMAGANIA / POŽADAVKY / POŽIADAVKY / CERINTE DE SISTEM / ИЗИСКВАНИЯ / KÖVETELMĚNYEK / ЗАХТЕВЕ / СИСТЕМНЫЕ ТРЕБОВАНИЯ / АПАТИЗЕІІ

PC or compatible device with a USB port / PC ou périphérique compatible avec un port USB / PC u otro dispositivo compatible con un puerto USB / PC ou dispositivo compativel com portaUSB / PC oder PC-kompatibles Gerät mit einem USB-Anschluss / PC eller USB-kompatibel enhet / Dispositivo compatibile con PC o USB / PC lub urządzenie kompatybilne z portem USB / Počitač, nebo jiné zanzení s portem USB / Počitač, alebo iné zariadenie s portem USB / PC sauchecipament compatibil PC cu un port USB liber / PC или съмместivo устройство e USB port / PC vagy kompatibilis eszköz USB portatai / PC или yređaj kompatibilniční na portom USB / PIK или устройства c portom USB / II įporstikačs utaloškyotnči štuškační uščektý mě žúpe USB

Windows ^® 7/8/10/11, Android

EN - USER MANUAL

INSTALLATION

- Connect the cable to a free USB port on your computer, it is necessary to wait about 15 seconds for the first connection until the drivers are fully installed.

- The keyboard includes software that allows you to set up advanced features, if you want to use these features, you need to download and install the software from our website www.genesis-zone.com

- Open the installation folder and then double-click the setup.exe file.

• Follow the instruction to install the program.

• After a successful installation, the software icon appears on the main bottom panel. Double-clicking the icon opens the settings interface.

1. REPLACING SWITCHES

- Remove the keycap by pulling up vertically

• Install a metal clamp under the switch body in place showed on the figure

- Push the clamp arms to the switch body and simultaneously pull up vertically

- Insert vertically replacement switch into the holes on the PCB board and gently push down

- Insert the keycap and connect the keyboard to the computer

Note: If the switch does not work after replacement, check if the legs of switch are installed correctly in the holes on the PCB board or have not been bent.

2. DIRECTION OF BACKLIGHT EFFECTS

Press the keys Fn + End to change direction of backlight effects.

To change the backlight brightness level press keys Fn + Arrow Up/Down.

4. SPEED OF BACKLIGHT EFFECTS

To change the speed of backlight effects, press keys Fn + Arrow Left/Right

5. BACKLIGHT COLOR CHANGE

To change the backlight color, press keys Fn + Del

6. BACKLIGHT MODE CHANGE

Press the keys Fn + Home to change between 18 backlight modes.

7. STATIC BACKLIGHT MODE

Press the keys Fn + Ins to activate static backlight mode.

8. GAME BACKLIGHT MODE

Press the keys Fn + 8/9/0 to change between 3 game backlight modes.

9. CUSTOM BACKLIGHT MODE

Custom mode allows to set the individual illumination of each key.

- Select 1 of 2 available custom modes by pressing Fn + /

- Press Fn + Backspace to start recording. Led indicator will start flashing

- Press any keys you want to backlight (for each key you can choose 1 of 8 predefined colors by pressing same key in loop)

- Press Fn = Backspace to finish recording and save settings. Led indicator will stop flashing

Note: During recording you can adjust brightness of illumination by pressing Fn + Arrow Up/Down.

10. RESTORE FACTORY SETTINGS

All saved settings can be easy restored to default settings by pressing the keys [FN+ESC].

To restore factory settings, hold the keys [FN-ESC] for 5 seconds.

FR - MANUEL DE L'UTILISATEUR

INSTALLATION

- Select 1 of 2 available custom modes by pressing Fn + -/=

CE EU Declaration of Conformity - Hereby, IMPAKT S.A. declares that the equipment type NKG-2069, NKG-2070, NKG-2071, NKG-2072 are in compliance with Directives 2014/30/EU, 2011/65/EU and 2015/863/EU. The full text of the EU declaration of conformity is available via the product tab at www.genesis-zone.com. The WEEE symbol (the crossed-out wheeled bin) usage indicates that this product is not a household waste. Appropriate waste management aids in avoiding consequences, which are harmful for people and environment and result from dangerous materials used in the device, as well as, improper storage and processing of such equipment. Segregated household waste collection allows recycling of materials and components of which the device was made of. In order to get detailed information about recycling of this particular product, please contact your retailer or a local authority.

Genesis Thor 404 TKL - INSTALLATION - 1

The safe product, conforming to the UKCA requirements.

SAFETY INFORMATION

- Use as intended, improper usage may break the device.

• Non-authorized repairs or disassembly voids the warranty and may damage the product.

- Dropping or hitting the device may lead to device being damaged, scratched or flawed in other way.

- Do not use the product in low and high temperatures, strong magnetic fields and clamp or dusty surroundings.

GENERAL

• The safe product, conforming to the EU requirements.

• The product is made in accordance with RoHS European standard.

• 2 years limited manufacturer warranty
