Lith 400 RGB - Keyboard Genesis - Free user manual and instructions

Product Type	Mechanical Gaming Keyboard
Model	Lith 400 RGB
Brand	Genesis
Layout	Full-size (104 keys)
Switch Type	Mechanical (RGB backlit)
Backlighting	Per-key RGB with multiple modes
Connectivity	Wired USB 2.0
Cable Length	1.8 meters braided cable
Polling Rate	1000 Hz
Key Rollover	N-key rollover
Anti-Ghosting	Full anti-ghosting
Multimedia Keys	Dedicated multimedia controls
Wrist Rest	Detachable magnetic wrist rest
Dimensions (L x W x H)	445 x 135 x 40 mm
Weight	Approx. 1.2 kg
Operating System	Windows 10/11, macOS, Linux
Warranty	2 years

Frequently Asked Questions - Lith 400 RGB Genesis

How do I clean the Lith 400 RGB keyboard?

Unplug the keyboard, use a soft damp cloth to wipe the surface. For deep cleaning, remove keycaps with a keycap puller and clean with isopropyl alcohol.

Is there software to customize the RGB lighting?

Yes, download the Genesis Control Software from the official website. It allows customization of lighting modes, colors, and effects per key.

What type of mechanical switches does the keyboard use?

The Genesis Lith 400 RGB uses RGB mechanical switches, typically outemu blue or red equivalents, providing tactile or linear feedback.

Can I use this keyboard with a console?

It works with PC and Mac via USB. For consoles like PS4/Xbox One, it may work for basic input but full RGB and multimedia keys may not function.

How do I reset the keyboard to factory settings?

Press and hold Fn + Esc for 5 seconds until the backlight flashes. This resets all customizations.

Is the keyboard waterproof?

No, it is not fully waterproof. It has a splash-resistant design, but avoid spilling liquids. If spilled, unplug and dry immediately.

How do I change the lighting modes?

Press Fn + Insert (or home key) to cycle through preset modes. Use software for full customization.

What is the warranty period?

Genesis offers a 2-year limited warranty against manufacturing defects. Check the manual for terms and claims process.

Can I program macros?

Yes, via the Genesis Control Software. You can assign macros to any key, including complex sequences.

Why is my keyboard not responding?

Try reconnecting the USB cable to a different port. If still not working, perform a factory reset or check for driver updates. Ensure the USB port is powered.

USER MANUAL Lith 400 RGB Genesis

• Ultra-flat and quiet X-Scissors keys
• Anti-ghosting function for 19 keys
• RGB backlight with PRISMO effect
• Gaming software with profile and macro editor

SPECIFICATION

• Keyboard size 465 x 195 x 25 mm
• Connector USB
  • Number of key 104
  • Number of multimedia keys 12

EN

PL

DE

ES

CZ

SK

RO

HU

BG

RU

INSTALLATION

Connect your device to the USB port of your computer, it is necessary to wait about 15 seconds for the first connection until the drivers are fully installed. The keyboard includes software that allows you to set up advanced features, if you want to use these features, you need to download and install the software from our website www.genesis-zone.com. Open the installation folder and then double-click the setup.exe file. Follow the installation instructions. After a successful installation, the software icon appears on the main bottom panel. Double-clicking the icon opens the settings interface.

ARROW FUNCTION CHANGE

Press [Fn] + [W] to swap arrow function with WASD keys function.

SPEED OF BACKLIGHT EFFECTS

To change the backlight brightness level press keys [Fn] + [Arrow Up] / [Arrow Down]

Note: This function works only in modes [Fn] + [1] , [Fn] + [2] , [Fn] + [3] , [Fn] + [4] , [Fn] + [6] and [Fn] + [8]

CUSTOM MODE

Custom mode allows you to set the individual illumination of each zone:

1. Hold [Fn] button and double press button [7] to enter into "Custom Mode".
2. Press the [Fn] + arrow Up/Down to change color.
3. Press the [ Fn ] + arrow Right/Left to move between 6 zones.
4. Hold [Fn] button and double press button [7] to save settings.

To change the backlight brightness level press keys [Fn] + [Page Up] / [Page Dn]

Note: This function works only in modes [Fn] + [5] and [Fn] + [7]

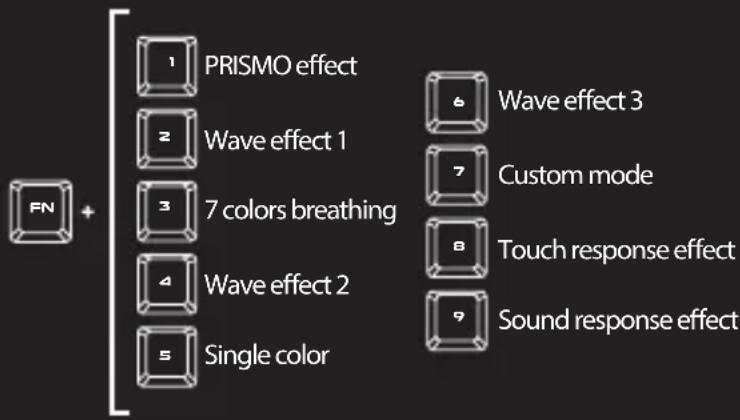

BACKLIGHT MODE CHANGE

Press the keys [Fn] + [1] ... [9] to change between 9 backlight modes.

PACKAGE CONTENT

• Lith 400 RGB gaming keyboard
- Quick installation guide

REQUIREMENTS

• PC or PC compatible device with a USB port
- Windows® XP/Vista/7/8/10, Android, Linux

WARRANTY

• 2 years limited manufacturer warranty

SAFETY INFORMATION

• Use as directed.
  • Non-authorized repairs or taking the device to pieces make the warranty void and may cause the product damage.
• Avoid to hit or friction with a hard object, otherwise it will lead to grind surface or other hardware damage.
• Do not use the product in low and high temperatures, in strong magnetic fields and in the damp or dusty atmosphere.
• Do not drop, knock, or shake the device. Rough handling can break it.
• Slots and openings in the case are provided for ventilation and should not be obscure. Blocking the vents can cause overheating of the device.

GENERAL

• The safe product, conforming to the EU requirements.
• The product is made in accordance with RoHS European standard.
- The WEEE symbol (the crossed-out wheeled bin) using indicates that this product in not home waste. Appropriate waste management aids in avoiding consequences which are harmful for people and environment and result from dangerous materials used in the device, as well as improper storage and processing. Segregated household waste collection aids recycle materials and components of which the device was made. In order to get detailed information about recycling this product please contact your retailer or a local authority.

CECHY

Abstract spiral pattern inside a triangular shape (no text or symbols)

WWW.GENESIS-ZONE.COM

PRODUCT & SUPPORT

INFORMATION

PLEASE SCAN QRCODE |
