MDG20MNB - Dryer MAYTAG - Free user manual and instructions

USER MANUAL MDG20MNB MAYTAG

MAYTAG COMMERCIAL

INSTALLATION INSTRUCTIONS

ORIGINAL INSTRUCTIONS

COMMERCIAL GAS OR ELECTRIC DRYER

MODELS MDG20MNBGW, MDG20CSBGW, MDE20MNBGW, MDE20CSBGW, MDG20PRBGW, MDG20PDBGW, MDE20PRBGW, MDE20PDBGW

INSTRUCTIONS D'INSTALLATION

INSTRUCTIONS D'ORIGINE

SÈCHE-LINGE À GAZ OU ÉLECTRIQUE À USAGE COMMERCIAL

MODÈLES MDG20MNBGW, MDG20CSBGW, MDE20MNBGW, MDE20CSBGW, MDG20PRBGW, MDG20PDBGW, MDE20PRBGW, MDE20PDBGW

IF YOU NEED ASSISTANCE ....7

TOOLS & PARTS 8

SPECIFICATIONS 8

DIMENSIONS/CLEARANCES 9

DRYER INSTALLATION REQUIREMENTS .... 10

GAS DRYER INSTALLATION REQUIREMENTS ....11

ELECTRIC DRYER INSTALLATION REQUIREMENTS ...... 13

DRYER VENTING REQUIREMENTS 14

INSTALLING LEVELING LEGS AND COIN BOX ....17

LEVELING 18

GAS SUPPLY CONNECTION ....18

TECHNICAL SPECIFICATIONS-GAS DRYER....19

COMPLETE INSTALLATION ....21

REVERSING DRYER DOOR SWING 22

ELECTRONIC CONTROL SETUP INSTRUCTIONS (PD & PN/PR MODELS) 23

DRYER DISPOSAL....28

WARRANTY 29

TABLE DE MATIÈRES

SÉCURITÉ DE LE SECHE-LINGE....30

INSTRUCTIONS D'ENTRETIEN .... 34

SI VOUS AVEZ BESOIN D'ASSISTANCE....34

OUTILS ET PIÈCES....35

SPÉCIFICATIONS....35

DIMENSIONS/DÉGAGEMENT 36

EXIGENCES D'INSTALLATION DE LA SÉCHEUSE....37

EXIGENCES D'INSTALLATION DE LA SÉCHEUSE À GAZ.38

EXIGENCES D'INSTALLATION POUR LE SECHE-LINGE A GAZ 39

EXIGENCES D'INSTALLATION POUR LE SECHE-LINGE ELECTRIQUE 40

EXIGENCES CONCERNANT L'ÉVACUATION DU SECHE-LINGE 41

INSTALLATION DES PIEDS DE NIVELLEMENT ET DE LA CAISSE A MONNAIE ....44

NIVELLEMENT 45

RACCORDEMENT DE L'ALIMENTATION EN GAZ....46

CARACTÉRISTIQUES TECHNIQUES — SECHE-LINGE À GAZ....47

ACHEVER L'INSTALLATION....49

INVERSION DU SENS D'OUVERTURE DE LA PORTE (FACULTATIF)....50

INSTRUCTIONS DE RÉGLAGE DU TABLEAU DE COMMANDE ÉLECTRONIQUE (MODÈLES PD ET PN SEULEMENT)....52

MISE AU REBUT DE LE SECHE-LINGE....57

GARANTIE 58

ÍNDICE

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."

These words mean:

! DANGER

You can be killed or seriously injured if you don't immediately follow instructions.

WARNING

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

WARNING - RISK OF FIRE/FLAMMABLE MATERIALS

This is an additional safety alert symbol that alerts you to the risk of fire.

WARNING - "Risk of Fire"

• Clothes dryer installation and service must be performed by a Whirlpool authorized installer.
• Install the clothes dryer according to the manufacturer's instructions and local codes.
• Do not install a clothes dryer with flexible plastic venting materials or flexible metal (foil type) duct. If flexible metal duct is installed, it must be of a specific type identified by the appliance manufacturer as suitable for use with clothes dryers. Flexible venting materials are known to collapse, be easily crushed, and trap lint. These conditions will obstruct clothes dryer airflow and increase the risk of fire.
• To reduce the risk of severe injury or death, follow all installation instructions.
• Save these instructions.

It is recommended that the owner post, in a prominent location, instructions for the customer's use in the event the customer smells gas. This information should be obtained from your gas supplier.
■ Post the following warning in a prominent location.

FOR YOUR SAFETY

1. DO NOT USE OR STORE GAS OR OTHER FLAMMABLE MATERIALS IN THIS APPLIANCE OR NEAR THIS APPLIANCE.
2. DO NOT SPRAY AEROSOLS IN THE VICINITY OF THIS APPLIANCE WHILE IT IS IN OPERATION.
3. DO NOT MODIFY THIS APPLIANCE.

ARNING:

FIRE OR EXPLOSION HAZARD

Failure to follow safety warnings exactly could result in serious injury, death or property damage.

• Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

• WHAT TO DO IF YOU SMELL GAS:

• Do not try to light any appliance.

• Do not touch any electrical switch; do not use any phone in your building.
• Clear the room, building, or area of all occupants.
• Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire department.

-Installation and service must be performed by a qualified installer, service agency, or the gas supplier.

WARNING: Gas leaks cannot always be detected by smell.

For more information, contact your gas supplier.

If a gas leak is detected, follow the "What to do if you smell gas" instructions.

IMPORTANT SAFETY INSTRUCTIONS

When discarding or storing your old clothes dryer, remove the door.

SAVE THESE INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS

WARNING: To reduce the risk of fire, electric shock, or injury to persons when using the dryer, follow basic precautions, including the following:

• Read all instructions before using the dryer.
  ■ This dryer is intended only for drying clothes and textiles that have been washed in water. Do not use for any other purpose.

■ WARNING: If you smell gas, do not use the dryer or any electrical equipment nearby. Warn other people to clear the area. Contact the dryer owner immediately.

■ If it is unavoidable that fabrics that contain vegetable or cooking oil or that have been contaminated by hair care products be placed in a tumble dryer, they should first be washed in hot water with extra detergent – this will reduce, but not eliminate the hazard.

■ Do not dry articles that have been previously cleaned in, washed in, soaked in, or spotted with gas, dry-cleaning solvents, other flammable, or explosive substances as they give off vapors that could ignite or explode.

■ Items that have been soiled with substances such as cooking oil, acetone, alcohol, gas, kerosene, spot removers, turpentine, waxes, and wax removers should be washed in hot water with extra detergent before being dried in the dryer.

■ Do not dry unwashed items in the dryer.

■ Do not use this dryer if industrial chemicals have been used for cleaning. The possible presence of residual quantities of aggressive or decomposed chemicals in the load may produce damage to the dryer and harmful fumes.

■ Do not allow children to play on, in, or with the dryer. Close supervision of children is necessary when the dryer is used near children.

■ This dryer is not intended for use by persons (including children aged from 8 years and above) with reduced physical, sensory, or mental capabilities, or lack of experience or knowledge, unless they have been given supervision or instruction concerning use of the dryer by a person responsible for their safety.

■ Before the dryer is removed from service or discarded, remove the door to the dryer compartment.

■ The appliance must be disconnected from it's power source during service and when replacing parts.

■ If drum rotation is blocked due to trapped textiles, disconnect the dryer from the electrical supply before gently removing the blockage.

■ If the dryer is not heating, or appears to be defective or damaged, do not use it. Contact the owner.

■ Do not install or store the dryer where it will be exposed to the weather.

■ Do not tamper with controls.

■ Clean dryer lint screen before or after each load.

■ Do not use this dryer without the lint screen in place.

■ Do not repair or replace any part of the dryer or attempt any servicing unless specifically recommended in this Installation Instructions that you understand and have the skills to carry out.

■ Fabric softeners, or similar products, should be used as specified by the fabric softener instructions.

■ Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber-backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the tumble dryer.

■ The final part of a tumble dryer cycle occurs without heat (cool-down cycle) to ensure that the articles are left at a temperature that ensures that the items will not be damaged.

■ WARNING: Never stop a tumble dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated. (Avoids risk of spontaneous combustion).

■ In case of electrical supply failure, remove the load quickly and spread it out to avoid risk of spontaneous combustion.

- Keep area around the exhaust opening and adjacent surrounding areas free from the accumulation of lint, dust, and dirt.

■ The fresh air ventilation openings into the room and into the dryer must not be blocked or sealed.

■ Do not reach into the dryer if the drum is moving.
■ Do not open door while dryer is in operation. It will stop.
■ When loading or re-loading the dryer, avoid touching hot metal parts of the drum (burn risk).
■ Remove all objects from pockets such as lighters and matches.
■ Cleaning and user maintenance shall not be made by children without supervision.

■ WARNING: The appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by a utility.

■ The dryer must not be installed behind a lockable door, a sliding door, or a door with a hinge on the opposite side to that of the dryer in such a way that full opening of the dryer door is restricted.

■ The appliance is intended, but not limited, to be used in public areas.

■ Children of less than 3 years should be kept away unless continuously supervised.

■ This appliance incorporates an earth connection for functional purposes only.

■ IEC Load Capacity - 9.0 kg.

■ Exhaust air must not be discharged into a flue which is used for exhausting fumes from appliances burning gas or other fuels.

Emergency stop control: After installation, access to mains plug (gas dryer) or mains supply (electric dryer) via a double-pole switch must be maintained at all times in order to ensure immediate deactivation of the dryer in case of emergency.

■ The interior of the dryer and dryer exhaust vent should be cleaned periodically by Whirlpool authorized service personnel.

■ See “Electrical Requirements” section for earthing instructions.

■ Adequate ventilation has to be provided to avoid the back-flow of gases into the room from appliances burning fuels, including open fires.

■ Oil-affected items can ignite spontaneously, especially when exposed to heat sources such as in a tumbler dryer. The items become warm, causing an oxidation reaction in the oil. Oxidation creates heat. If the heat cannot escape, the items can become hot enough to catch fire. Piling, stacking or storing oil-affected items can prevent heat from escaping and so create a fire hazard.

■ See DIMENSIONS/CLEARANCES section for minimum installation spacing requirements.

■ This dryer is not fitted with a supply cord and a plug. Means for disconnection from the supply mains having a contact separation in all poles that provide full disconnection under over-voltage category III conditions must be provided, otherwise means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.

SAVE THESE INSTRUCTIONS

MAINTENANCE INSTRUCTIONS

■ Clean lint screen before and after each cycle.
■ Removing accumulated lint:

From inside the dryer cabinet:

Lint should be removed every 2 years or more often, depending on dryer usage. Cleaning should be done by a Whirlpool authorized person.

From the exhaust vent:

Lint should be removed every 2 years, or more often, depending on dryer usage.

• Keep area around dryer clear and free from combustible materials, gas, and other flammable vapors and liquids.
• Keep dryer area clear and free from items that would obstruct the flow of combustion and ventilation air.

If dryer does not operate, check the following:

■ Electrical supply is connected.
■ Circuit breaker is not tripped or house fuse is not blown.
■ Door is closed. Listen closely to hear the door switch activate.
■ Controls are set in a running or "on" position.
■ For gas dryers, check that gas supply shut-off valves are set in open position.

WARNING: Improper connection of the equipment-earthing conductor can result in a risk of electric shock. It is your responsibility to check with a qualified electrician or service representative if you are in doubt as to whether the dryer is properly earthed and meets all local codes and ordinances. Do not modify the plug provided with the dryer: If it will not fit the outlet, have a proper outlet installed by a qualified electrician.

IF YOU NEED ASSISTANCE

If you need help, contact the dealer from whom you purchased the appliance, or a Maytag designated service company. When calling, please know the purchase date and the complete model and serial number of your appliance. This information will help us to better respond to your request.

IF YOU NEED SERVICE:

Contact your authorized Maytag Commercial Laundry distributor. To locate your authorized Maytag Commercial Laundry distributor, visit www.maytagcommerciallaundry.com.

For written correspondence:

Maytag Commercial Laundry Service Department

2000 N M 63

Benton Harbor, Michigan 49022-2632 USA

Tools Needed:

8" or 10" 8" or 10" Flat-Blade Screwdriver Phillips Screwdriver Pipe Wrench Adjustable Wrench (that opens to 1")
Torx T-20 ↑ Security 1" Hex-Head Screwdriver or Bit 5/16" Socket Wrench Socket Wrench		Pliers (that open to 1	9/16")
Level	Utility Knife	1/4" Nut Driver	27" Wood Block
Caulk Gun and Caulk (for installing new exhaust vent)	Vent Clamps Suitable for Gas Type	Pipe-Joint Compound	Putty Knife
Flashlight (optional)	1" Open-End Wrenches	Ruler or Measuring Tape

Parts Supplied:

Four identical cylindrical objects with different top and bottom caps, arranged in a row (no text or symbols)

Illustration of three different types of threaded fasteners or bolts (no text or symbols present)

NOTE: The circuit diagram for this dryer is located inside the lower front panel, within the Tech Sheets.
Technical Specifications:
220-240V,50Hz.AC
4575 W
Total mass: 68 kg max.

SPECIFICATIONS

These units are sold in multiple regions with different requirements for measuring capacity. Below are a few of the valid forms of measure posted on this product:

Dry Linen Capacity: A weight measure that reflects a minimum threshold for dry volume capacity that is needed for import tariff purposes.

IEC Capacity: The capacity measure that represents the maximum capacity of dry linens and textiles which the manufacturer declares can be treated in a specific cycle.

TORX and T20 are trademarks of Acument Intellectual Properties, LLC.

Dry Linen Capacity

10.5 kg (23 lb)

IEC Capacity

9.0 kg (20 lb)

Sound Level

LpA: 58 dB(A) (Kpa+/-10 dB(A))

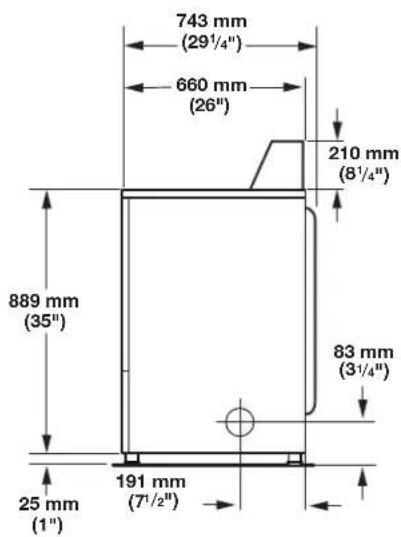

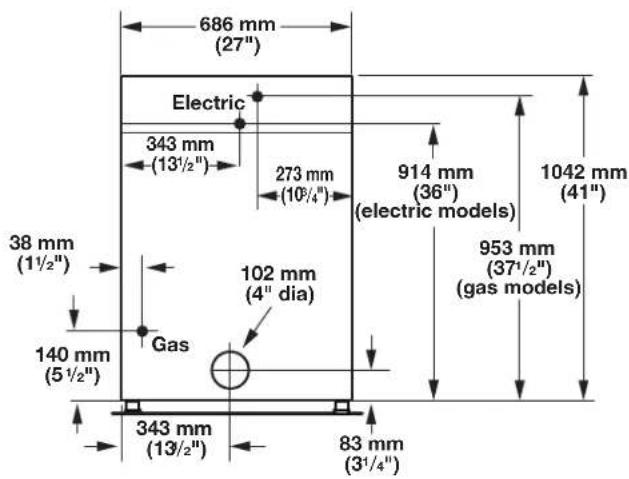

DIMENSIONS/CLEARANCES

Dimensions

Side View

Back View

743 mm (29½") 660 mm (26") 210 mm (8½") 889 mm (35") 83 mm (3½") 25 mm (1") 191 mm (7½)

686 mm (27") Electric 343 mm (13½") 273 mm (10⁶/⁴") 914 mm (36") (electric models) 1042 mm (41") 38 mm (1½") 102 mm (4" dia) Gas 953 mm (37½") (gas models) 140 mm (5½") 343 mm (13½") 83 mm (3½/4")

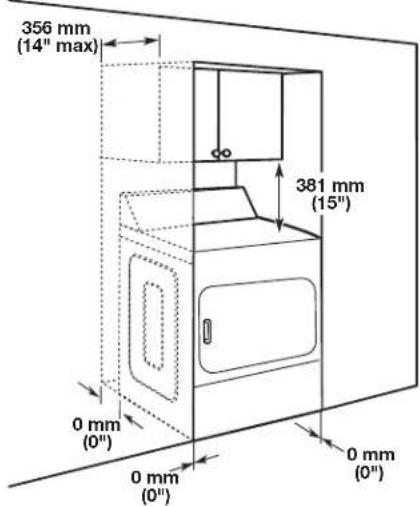

Clearances

Front View, Recessed Opening Side View, Recessed In Closet

356 mm (14" max) 381 mm (15") 0 mm (0") 0 mm (0") 0 mm (0")

356 mm (14" max) 381 mm (15") 76 mm (3"/3") 310 cm" (48 in./48 in.) 127 mm (5") 25 mm (1") Closet Door to Front of Dryer 76 mm (3"/3") 155 cm" (24 in./24 in.)

Location Requirements

WARNING

Explosion Hazard

Keep flammable materials and vapors, such as petrol, away from dryer.

Do not install in a garage.

Failure to do so can result in death, explosion, or fire.

Your dryer can be installed in a basement, laundry room, or recessed area.

This dryer is not intended for installation in a mobile home.

Companion appliance location requirements should also be considered.

IMPORTANT: Do not install or store the dryer where it will be exposed to the weather. Proper installation is your responsibility.

You will need:

A grounded electrical outlet located within 1.8 m (6 ft.) of where the power cord is attached to the back of the dryer. See “Electrical Requirements.”
A level floor with a maximum slope of 25 mm (1") under entire dryer. Installing the dryer on soft floor surfaces, such as carpets or surfaces with foam backing, is not recommended.

Dryer installation clearances

■ The location must be large enough to allow the dryer door to be fully opened.
■ Additional spacing should be considered for ease of installation and servicing. The door opens more than 180°.
■ Additional clearances might be required for wall, door, and floor moldings.
■ Additional spacing of 25 mm (1") on all sides of the dryer is recommended to reduce noise transfer.

When installing a dryer:

IMPORTANT: Observe all governing codes and ordinances.

■ Check code requirements: Some codes limit or do not permit installation of clothes dryers in garages, closets, or sleeping quarters. Contact your local building inspector.
NOTE: For installation in Australia and New Zealand, install dryer in accordance with AS/NZS 5601.1 and local governance codes.
■ Gas Dryers only: Make sure that lower edges of the cabinet, plus the back and bottom sides of the dryer, are free of obstructions to permit adequate clearance of air openings for combustion air. See “Recessed Area and Closet Installation Instructions” below for minimum spacing requirements.

Recessed Area and Closet Installation Instructions

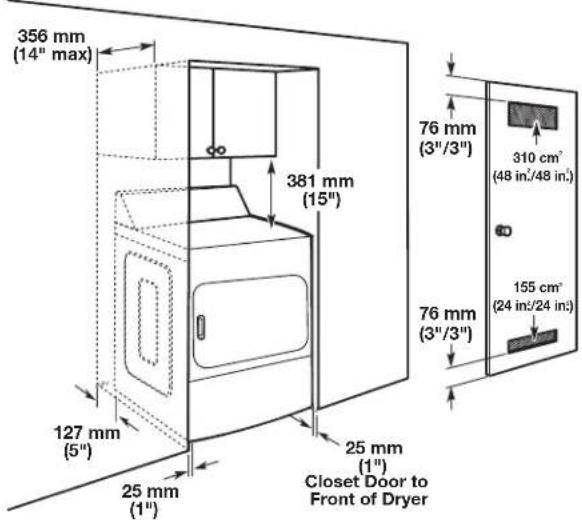

This dryer may be installed in a recessed area or closet. For recessed area and closet installations, minimum clearances can be found on the warning label on the rear of the dryer or in "Dimensions/Clearances."

The installation spacing is in millimeters and is the minimum allowable. Additional spacing should be considered for ease of installation, servicing, and compliance with local codes and ordinances.

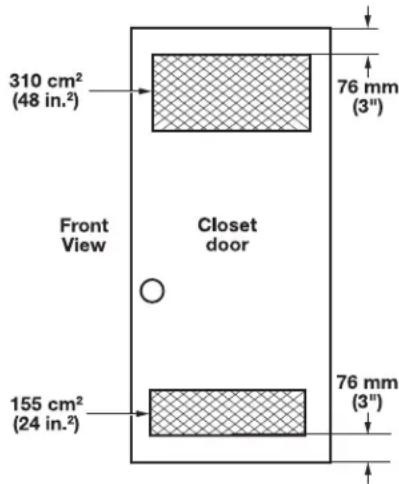

If closet door is installed, the minimum unobstructed air opening in the top and bottom of the door shall be depicted in below diagram. Louvered door with equivalent air openings is acceptable.

The dryer must be exhausted outdoors.

No other fuel-burning appliance may be installed in the same closet as the dryer.

NOTE: For installation in Australia and New Zealand, refer to AS/NZS 5601.1 for ventilation requirements.

310 cm² (48 in.²) 76 mm (3") Front View Closet door 155 cm² (24 in.²) 76 mm (3")

Electrical Requirements

WARNING

Dangerous Voltage

IMPORTANT: Observe all governing codes and ordinances.

This dryer is supplied without an electric cord and plug. It must be connected by a Whirlpool authorized service person to a single-phase electricity supply at the voltage shown on the dataplate, using a suitable fixed wiring installation in accordance with local and national wiring regulations.

■ A 3-wire circular cord of minimum conductor size 1.0 mm cross-section area should be used.
■ A 10 A supply fuse should be used, and a switch with a clear OFF marking having a contact separation in both poles that provides full disconnection under over-voltage category III conditions must be incorporated into the fixed wiring in accordance with local wiring regulations. The dryer should be positioned so that the disconnection switch is clearly visible and easily accessible to the user. This disconnection switch also provides the function of an emergency stop control for the user.
A cord clamp bush is provided on the dryer, and should be tightened on completion of wiring. The electrical mains terminals are located behind the small rear access panel (terminal block cover), and connections should be made in accordance with the terminal markings. Remember to replace the terminal access panel (terminal block cover).

NOTE: In accordance with the European EMC Directive (2014/30/EU), the maximum electricity supply system impedance to which the gas dryer should be connected is declared to be 0.054 Ohm + j0.034 Ohm.

NOTE: Electrical safety standards: The manufacturer has chosen compliance with IEC/EN.60335 standards as the most appropriate for this product.

WARNING

Electric Shock Hazard

This is a 3-wire appliance which must be earthed.

Do not earth to a gas pipe.

Do not change the power supply cord plug. If it does not fit the outlet, have a proper outlet installed by a qualified electrician.

Do not use an extension cord with this dryer.

Failure to follow these instructions could result in death, fire, or serious injury.

If codes permit and an additional ground bond wire is used, it is recommended that a qualified electrician determine that the ground bond path is adequate.

Recommended Earthing Method:

It is your responsibility to contact a qualified electrical installer to ensure that the electrical installation is adequate and in conformance with all local codes and ordinances.

Gas Supply

WARNING

Explosion Hazard

Connect this dryer to a regulated gas supply. Supply pressure must be in accordance with the Technical Specifications.

Install a shut-off valve.

Securely tighten all gas connections.

If connected to LP, have a Whirlpool authorized service person make sure gas pressure is correct.

Failure to do so can result in death, explosion, or fire.

IMPORTANT: Observe all governing codes and ordinances. In Australia and New Zealand, refer to AS/NZS 5601.1 – Gas Installations.

Gas Supply

Before installation, check that the local gas distribution conditions, nature of gas and pressure, and the adjustment of the appliance are compatible. Burner information will be found on the model/serial rating plate in the door recess of the dryer. If this information does not agree with the type of gas available, see your dealer.

Natural Gas:

This dryer is factory adjusted for use with NATURAL GAS (G20), and no further adjustment should be required at installation.

L.P. Gas:

This dryer is also certified for use with L.P. (propane or butane) gases with appropriate conversion. No attempt shall be made to convert the appliance from the gas specified on the model/serial rating plate for use with a different gas without consulting the serving gas supplier.

Conversion must be done by a Whirlpool authorized service technician. Gas conversion kit (European Country), part number W10233219, is available for purchase from your dealer. Gas conversion kit (Australia), part number W10315369, is available for purchase from your dealer. Full instructions are supplied with the kit.

Natural Gas (France/Belgium):

This dryer is also certified for France/Belgium for use with G20/G25 gases (20 mbar/25 mbar) with appropriate conversion. No attempt should be made to convert this appliance from the gas specified on the gas rating label for use with a different gas without consulting the serving gas supplier. Gas conversion must be done by a Whirlpool authorized gas service technician. Conversion kit, part number (W10181947) is available for purchase from your dealer. Full instructions are supplied with the kit.

Supply line requirements:

Provide a rigid gas supply line to the dryer location. It should be minimum 12.5 mm (1/2") ID. When acceptable to the gas supplier and local codes, 10 mm (3/8") ID rigid supply line may be used for lengths under 6.1 m (20'). Pipe-joint compounds resistant to the action of L.P. gas must be used.

NOTE: For installation in Australia and New Zealand, refer to AS/NZS 5601 for pipe sizing details. All piping is to be in accordance with AS/NZS 5601.1 – Gas Installations.

Gas connection to the dryer itself should be made by means of a flexible gas hose suitable for the appliance and gas category in accordance with national installation regulations. If in doubt, contact the gas supplier. It should be minimum 10 mm (3/8") ID.

A means of restraint should be used between the dryer and the wall to avoid straining of the rigid gas supply when the dryer is moved. An appropriate length of chain and a wall hook is recommended.

The dryer gas inlet connection is a 3/8" NPT thread. An adapter is supplied for conversion to standard ISO.228-1 thread (3/8" BSP).

Check for leaks by using an approved noncorrosive leak-detection solution. Bubbles will show a leak. Correct any leak found. A pressure measurement tapping is provided on the gas valve within the dryer, accessible after removal of the lower front panel.

The dryer must be disconnected from the gas supply piping system during any pressure testing of that system.

Electrical Requirements

WARNING

Dangerous Voltage

IMPORTANT: Observe all governing codes and ordinances.

This dryer is supplied without an electric cord and plug. It must be connected by a Whirlpool authorized service person to a single-phase electricity supply at the voltage shown on the dataplate, using a suitable fixed wiring installation in accordance with local and national wiring regulations.

■ A 3-wire circular cord of minimum conductor size 2.5 mm cross-section area should be used.
■ A 25 A (minimum) supply fuse should be used, and a switch with a clear OFF marking having a contact separation in both poles that provides full disconnection under over-voltage category III conditions must be incorporated into the fixed wiring in accordance with local wiring regulations by a Whirlpool authorized service person. The dryer should be positioned so that the disconnection switch is clearly visible and easily accessible to the user. This disconnection switch also provides the function of an emergency stop control for the user.
A cord clamp bush is provided on the dryer, and should be tightened on completion of wiring. The electrical mains terminals are located behind the small rear access panel (terminal block cover), and connections should be made in accordance with the terminal markings. Remember to replace the terminal access panel (terminal block cover).

NOTE: In accordance with the European EMC Directive (2014/30/EU), the maximum electrical supply system impedance to which the electric dryer should be connected is declared to be 0.054 Ohm + j0.034 Ohm.

NOTE: Electrical safety standards: The manufacturer has chosen compliance with IEC/EN.60335 standards as the most appropriate for this product.

WARNING

Electric Shock Hazard

This is 3-wire appliance which must be earthed. Do not earth to a gas pipe.

Failure to follow these instructions could result in death, fire, or serious injury.

If codes permit and an additional ground bond wire is used, it is recommended that a qualified electrician determine that the ground bond path is adequate.

Recommended Earthing Method

It is your responsibility to contact a qualified electrical installer to ensure that the electrical installation is adequate and in conformance with all local codes and ordinances.

WARNING

Fire Hazard

Use a heavy metal vent.

Do not use a plastic vent.

Do not use a metal foil vent.

Failure to follow these instructions can result in death or fire.

WARNING: To reduce the risk of fire, this dryer MUST BE EXHAUSTED OUTDOORS.

IMPORTANT: Observe all governing codes and ordinances. In Australia and New Zealand, refer to AS/NZS 5601.1 – Gas Installations.

Dryer exhaust must not be connected into any gas vent, chimney, wall, ceiling, attic, crawlspace, or a concealed space of a building. Only rigid or flexible metal vent shall be used for exhausting.

(102 mm) 4"

102 mm (4") Heavy, Metal Exhaust Vent

■ Only a 102 mm (4") heavy, metal exhaust vent and clamps may be used.
■ Do not use plastic or metal foil vent.

Rigid metal vent:

■ Recommended for best drying performance and to avoid crushing and kinking.

Flexible metal vent: (Acceptable only if accessible to clean)

■ Must be fully extended and supported in final dryer location.
■ Remove excess to avoid sagging and kinking that may result in reduced airflow and poor performance.
■ Do not install in enclosed walls, ceilings, or floors.
■ The total length should not exceed 2.4 m/4(ft.).

NOTE: If using an existing vent system, clean lint from entire length of the system and make sure exhaust hood is not plugged with lint. Replace plastic or metal foil vents with rigid metal or flexible metal vents. Review “Vent System Chart” and if necessary, modify existing vent system to achieve best drying performance.

Elbows:

■ 45° elbows provide better airflow than 90° elbows.

BetterGood

Clamps:

■ Use clamps to seal all joints.
■ Exhaust vent must not be connected or secured with screws or other fastening devices that extend into interior of duct and catch lint. Do not use duct tape.

DRYER VENTING REQUIREMENTS

Vent Hoods

102 mm (4") Diameter Exhaust Hoods

Box Hood

Louvered Hood

Angled Hood

Exhaust hood must be at least 305 mm (12") from the ground or any object that may be in the path of the exhaust (such as flowers, rocks, bushes, or snow).

325 min min. (12")

Vent System Length

Maximum Vent Length/Vent Connection

Maximum length of vent system depends upon the type of vent used, number of elbows, and type of exhaust hood.

Vent System Chart (Rigid Metal Vent)

No. of 90° Turns	Box and Louvered Hood	Angled Hood
0 39.6 m (130 ft.)	39.3 m (129 ft.)
1 38.1 m (125 ft.)	36.3 m (119 ft.)
2 35.1 m (115 ft)	33.2 m (109 ft.)
3 32.3 m (106 ft.)	30.5 m (100 ft.)
4 29.9 m (98 ft.)	28.0 m (92 ft.)

For vent systems not covered by the vent specification chart, see your parts distributor.

Provision must be made for enough air for combustion and ventilation. (Check governing codes and ordinances.) See "Recessed Area and Closet Installation Instructions" in the "Location Requirements" section.

A 102 mm (4") outlet hood is preferred. However, a 64 mm (2½") outlet exhaust hood may be used. A 64 mm (2½") outlet creates greater back pressure than other hood types. For permanent installation, a stationary vent system is required.

Connect Vent

1. If connecting to existing vent, make sure the vent is clean.
2. Using a 102 mm (4") clamp, connect vent to exhaust outlet in dryer.

Diagram of a curved pipe with a circular arrow indicating clockwise motion (no text or symbols)

Vent Collar

1. Tighten hose clamp with Phillips screwdriver.

Line drawing of a hand using a tool to trim a curved pipe (no text or symbols)

1. Make sure the vent is secured to exhaust hood with a 102 mm (4") clamp.

Pure technical line drawing of a curved pipe or duct with no text, numbers, or symbols

1. Move dryer into final position. Do not crush or kink vent. Make sure dryer is level.

NOTE: Testing for proper ventilation should be done with a Manometer. Minimum: 0.2 mm (0.01"). Maximum: 16 mm (0.6").

NOTE: Do not remove vent collar.

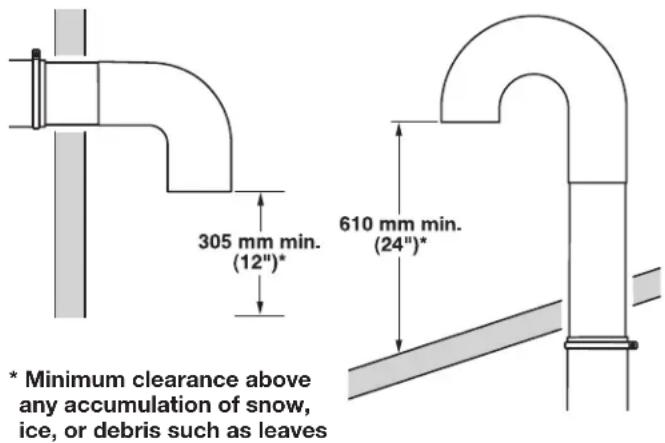

If an Exhaust Hood Cannot be Used Multiple Dryer Venting

The outside end of main vent should have a sweep elbow directed downward.

305 mm min. (12") * Minimum clearance above any accumulation of snow, ice, or debris such as leaves 610 mm min. (24")*

If main vent travels vertically through the roof, rather than through wall, install a 180^ sweep elbow on end of vent at least 610 mm (2 ft.) above surface of roof.

The opening in wall or roof shall have a diameter 13 mm (1/2") larger than vent diameter. Vent should be centered in opening.

Do not install screening over end of vent for best performance.

A main vent can be used for venting a group of dryers. The main vent should be sized to remove 5663 l/min. (200 CFM) of air per dryer. Large-capacity lint screens of proper design may be used in main vent if checked and cleaned frequently. The room where the dryers are located should have make-up air equal to or greater than CFM of all the dryers in the room.

Back-draft dampers are available from your distributor and should be installed in the vent of each dryer to keep exhausted air from returning into dryers and to keep exhaust in balance within main vent. Unobstructed return air openings are required.

Although usually each single-load dryer should have an unobstructed outdoor air opening of 155 cm^2 (24 in. ^2 ) (based on 6.5 cm^2 [1 in. ^2 ] per 252 kcal [1,000 Btu]), common make-up air openings are also acceptable. Set up common openings so the make-up air is distributed equally to all of the dryers. Keep in mind that the coverage area must be increased by 33% to account for the use of registers or louvers over the openings. Also, make-up air openings should not be installed near the location where exhaust vents exit the building.

Each vent should enter the main vent at an angle pointing in the direction of the airflow. Vents entering from the opposite side should be staggered to reduce the exhausted air from interfering with the other vents.

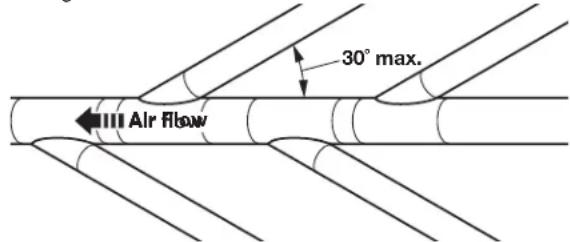

30° max. III Air Flow

The maximum angle of each vent entering the main vent should be no more than 30^ .

Keep air openings free of dry cleaning fluid fumes. Fumes create acids which, when drawn through the dryer heating units, can damage dryers and items being dried.

A clean-out cover should be located on the main vent for periodic cleaning of the vent system.

NOTE: For more dryer venting information, please refer to Whirlpool document W10100920.

INSTALLING LEVELING LEGS AND COIN BOX

The console houses the electronic control board. The board is factory set for a dry time of 30 minutes. Consult the tech sheet found inside the dryer toe panel to reset dry time and for other options.

The card reading mechanism is not included, but is available from your usual industry sources.

WARNING

Excessive Weight Hazard

Use two or more people to move and install dryer.

Failure to do so can result in back or other injury.

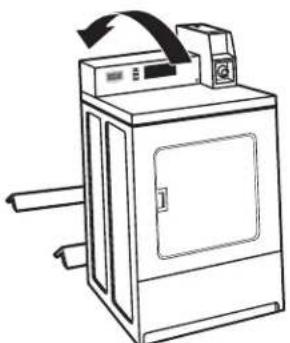

1. Prepare dryer for leveling legs

NOTE: Slide dryer onto cardboard or hardboard before moving to avoid damaging floor covering.

Using two or more people, move dryer to desired installation location.

Take tape off front corners of dryer. Open dryer and remove the literature and parts packages. Wipe drum interior with a damp cloth to remove any dust.

Take two cardboard corners from the dryer carton and place them on the floor in back of the dryer. Firmly grasp the body of the dryer and gently lay it on its back on the cardboard corners. Disconnect power before making electrical connections.

Line drawing of a washing machine with a door and control panel (no text or symbols)

(appearance may vary)

Line drawing of a rectangular box with internal compartments and mounting points (no text or symbols)

2. Screw in leveling legs

Examine leveling legs and find diamond marking. Screw legs into leg holes by hand. Use an adjustable wrench or 25 mm (1") hex-head socket wrench to finish turning legs until diamond marking is no longer visible. Then fit a covered foot boot over each leg foot.

To protect the floor, use a large piece of cardboard from the dryer carton. Stand dryer up on the cardboard. Slide the dryer until it is close to its final location. Leave enough room for electrical connection and to connect the exhaust vent.

A longer leveling foot is available if needed on extremely sloped floors, Part Number 279810.

The meter case houses the factory-installed accumulator timer with actuating arm or service switch.

The service door lock and key and coin box lock and key may not be included but are available from the usual industry sources.

1. Install coin box

Remove the service door of the meter case by lifting it up at the back. Install the money-accepting device. (Refer to manufacturer's instructions for proper installation.)

Line drawing of a laboratory instrument with a control panel and base (no text or symbols)

Replace the meter case service door. Put the coin vault with lock and key in the meter case opening.

Remove cardboard or hardboard from under dryer. Adjust the legs of the dryer up or down until the dryer is level.

2. Install added security device

Check that power is not supplied to the dryer.

Open and remove the service door.

Insert the narrow part of the security cone into the oblong hole in the bottom rear of the meter case assembly.

Pass the security bolt through this cone and thread it by hand into the cage nut below the oblong hole.

Tighten the security bolt by hand a few turns before using a wrench to tighten until snug.

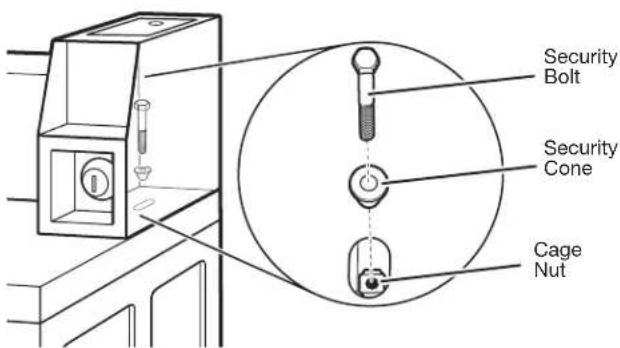

Security Bolt Security Cone Cage Nut

NOTE: Installing the security bolt provides added security, but will add to the service time when the top needs to be removed for servicing the dryer.

Leveling your dryer properly reduces excess noise and vibration.

WARNING

Excessive Weight Hazard

Use two or more people to move and install dryer.

Failure to do so can result in back or other injury.

1. Remove cardboard from beneath dryer. Place a level on top edges of dryer, checking each side and front. If not level, tip dryer and adjust legs up or down as shown in Step 3, repeating as necessary.

Simple line drawing of a rectangular container with side handles and a horizontal bar (no text or symbols)

Not Level LEVEL Not Level

1. Grip dryer from top and rock back and forth, making sure all four legs are firmly on floor. Repeat, rocking dryer from side to side. If dryer rocks, go to Step 3 and adjust leveling legs.

Line drawing of a washing machine with airflow arrows indicating motion (no text or symbols)

1. If dryer is not level, use a 25 mm or 1" open-end or adjustable wrench to turn the leveling leg counterclockwise to lower the dryer or clockwise to raise the dryer. Recheck levelness of dryer and that all four legs are firmly in contact with the floor. Repeat as needed.

HELPFUL TIP: You may want to prop up front of dryer about 102 mm (4") with a wood block or similar object that will support weight of dryer.

Illustration of a hand using a wrench to lift a screw (no text or symbols present)

GAS SUPPLY CONNECTION (on some models)

Make Gas Connection

WARNING

Explosion Hazard

Use a new CSA International approved gas supply line.

Install a shut-off valve.

Securely tighten all gas connections.

If connected to propane, have a qualified person make sure gas pressure does not exceed 13" (33 cm) water column.

Examples of a qualified person include:

licensed heating personnel, authorized gas company personnel, and authorized service personnel.

Failure to do so can result in death, explosion, or fire.

1. Connect gas supply to dryer. If the flexible gas hose has 10 mm (3/8") BSP thread, use the supplied conversion thread adapter. Use pipe-joint compound resistant to the action of L.P. gas for gas connections.

If necessary for service, open the toe panel. Use a putty knife to press on the 2 toe panel locks located at the top of the toe panel. Pull downward on the toe panel to open. Toe panel is hinged at the bottom.

1. Open the shut-off valve in the gas supply line and make sure the dryer has its own gas supply opened.

2. Test all connections by brushing on an approved noncorrosive leak-detection solution. Bubbles will show a leak. Correct any leaks found.

3. Remove red cap from the dryer gas supply line.

European Country:	CH, CZ, CY, ES, GB, GR, IE, IT, LT, PT, SI, SK, TR	BG, CY, CZ, DK, EE, FI, GR, HR, IT, LT, NO, RO, SE, SI, SK
European Gas Category:	II_2H3+	II_2H3B/P
Butane Supply Pressure (G30): 28-30 mbar 30 mbar
Adjusted Pressure: N/A N/A
L.P. Supply Pressure (G31):	37 mbar 30 mbar
Adjusted Pressure: N/A N/A

With France/Belgium NATURAL GAS conversion kit: Injector size 1.65 mm Heat input gross: 5.9 kW

European Country:	FR, BE
European Gas Category:	I_2E+
Supply Pressure (G20):	20 mbar
Supply Pressure (G25):	25 mbar
Adjusted Pressure:	N/A

Factory set for NATURAL GAS: Injector size: 2.2 mm Heat input gross: 5.9 kW

Country:	AT, BG, CH, CZ, DK, EE, ES, FI, GB, GR, HR, IE, IS, IT, LT, LV, NO, PT, RO, SE, SI, SK, TR
European Gas Category:	I_2H
Gas Flow Rate:	0.562703 m^3/hr
Supply Pressure (G20):	20 mbar
Factory Adjusted Pressure (G20):	7.4 mbar

Factory set for NATURAL GAS: Injector size: 2.2 mm Heat input gross: 5.9 kW

Country:	LU, RO
European Gas Category:	II_2E3B/P
Gas Flow Rate:	0.562703 m^3/hr
Supply Pressure (G20):	20 mbar
Factory Adjusted Pressure (G20):	7.4 mbar

With L.P. Gas Conversion Kit: Injector size: 1.25 mm Heat input gross: 6.4 kW

Country:	LU, RO
European Gas Category:	II_2E3B/P
Butane Supply Pressure (G30):	30 mbar
Adjusted Pressure:	N/A
L.P. Supply Pressure (G31):	30 mbar
Adjusted Pressure:	N/A

Factory set for NATURAL GAS: Injector size: 2.2 mm Heat input gross: 5.9 kW
Country: DE, LU, PL, RO
European Gas Category:	I_2E
Gas Flow Rate: 0.562703 m	^3/hr
Supply Pressure (G20): 20 mbar
Factory Adjusted Pressure (G20): 7.4 mbar
Factory set for Australia/New Zealand NATURAL GAS: Injector size: 2.2 mm Heat input gross: 5.9 kW
Country: AU, NZ
Supply Pressure (G20): minimum 1.13 kPa
Adjusted Pressure (Test Point Pressure): 0.74 kPa
Nominal Hourly Gas Consumption: 21.1 MJ/h
With Australia L.P. Gas Conversion Kit: Injector Size: 1.40 mm Heat input gross: 6.54 kW
Country: AU, NZ
L.P. Supply Pressure: 2.75 kPa
Adjusted Pressure: 2.75 kPa
Nominal Hourly Gas Consumption: 23 MJ/h
Factory set for NATURAL GAS: Injector size: 2.2 mm Heat input gross: 5.0 kW
Country:	NL
European Gas Category:	I_2L	II_2L3B/P
Gas Flow Rate:	0.562703 m^3/hr	0.562703 m^3/hr
Gas Flow Rate:	25 mbar	25 mbar
Factory Adjusted Pressure (G25):	7.4 mbar	7.4 mbar
With L.P. Gas Conversion Kit: Injector size: 1.25 mm Heal input gross: 6.4 kW
Country:	MT, PL	NL
European Gas Category	I_3B/P	II_2L3B/P
Butane Supply Pressure (G30)	30 mbar
Adjusted Pressure:	N/A
L.P. Supply Pressure:	30 mbar
Adjusted Pressure:	N/A
NOTE: Conversion kit: From Natural Gas to L.P. Gas - Europe: Whirlpool Part No. W10233219.Conversion kit: From Natural Gas to L.P. Gas - Australia: Whirlpool Part No. W10315369.Conversion kit: From Natural Gas to Natural Gas - France/Belgium: Whirlpool Part No. W10181947.Manufacturer: Whirlpool Corporation, Benton Harbor, Michigan 49022, U.S.A.Manufacturing Site: Whirlpool Corporation, 1300 Marion-Agosta Rd., Marion, OH, 43302, U.S.A.EU Representatives: Whirlpool EMEA S.p.A., Via Carlo Pisacane, 1, 20016 Pero (MI) Italy

COMPLETE INSTALLATION

1. Check the electrical requirements. Be sure that you have the correct electrical supply and the recommended earthing method. See "Electrical Requirements."
2. Check that all parts are now installed. If there is an extra part, go back through the steps.
3. Check that you have all of your tools.
4. Dispose of/recycle all packaging materials.

WARNING

Electrical Shock Hazard

Plug into a grounded 3 or 4 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

1. Check dryer operation. Close dryer door. Set the cycle. Operating time will accumulate per number of coins.
   Using a full heat cycle (not the air cycle), let the dryer run for at least five minutes. Dryer will stop when time is used up. Make sure the dryer turns off.
   NOTE: Dryer door must be closed for dryer to operate.
   When door is open, dryer stops, but timer continues to run.

2. Gas Models only: Open the dryer door. Check that the inside of the dryer is warm. If the burner does not ignite and you can feel no heat inside the dryer, shut off dryer for 5 minutes. Check that all supply valve controls are in "ON" position and that the electrical cord is plugged in. Repeat five-minute test.

3. If drying time is too long, make sure that the lint screen is clean and that there are no obstructions to airflow in the dryer vent system.

4. Restart the dryer and allow it to complete a full heat cycle (not air cycle) to make sure it is working properly.

5. Plug into an grounded outlet, or connect power.

You can change your door swing from a right-side opening to left-side opening, if desired.

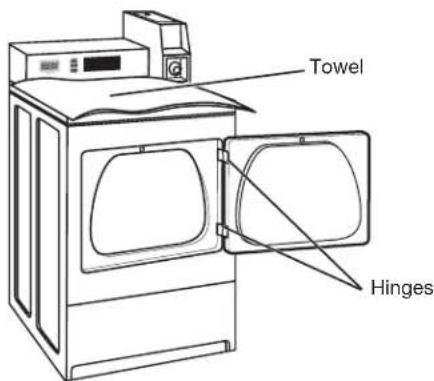

Remove the Door Assembly

1. Place a towel or soft cloth on top of dryer or work space to avoid scratching of the surface.
2. Open dryer door. Remove bottom screws from cabinet side of hinges. Loosen (do not remove) top screws from cabinet side of hinges.

Towel Hinges

1. Lift door until top screws in cabinet are in large part of hinge slot. Pull forward off screws. Set door (handle side up) on top of dryer. Remove top screws from cabinet.
2. Remove screws attaching hinges to door.

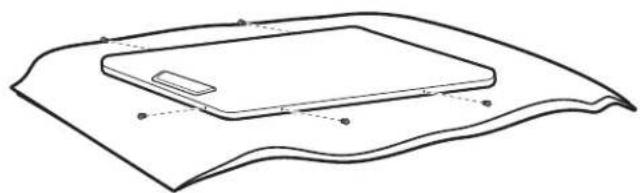

3. Remove screws at top, bottom, and side of door (5 screws).

Simple line drawing of a rectangular object with a small rectangular cutout, placed on a curved surface (no text or symbols)

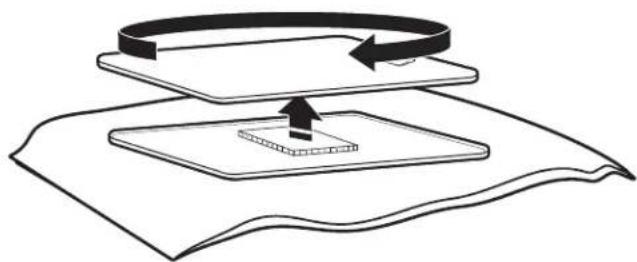

1. Holding door over towel on dryer, grasp sides of outer door and gently lift to separate it from inner door. Do not use a putty knife to pry apart. Do not pull on door seal or plastic door catch.

Diagram showing a layered structure with arrows indicating rotation or movement, no text or symbols present

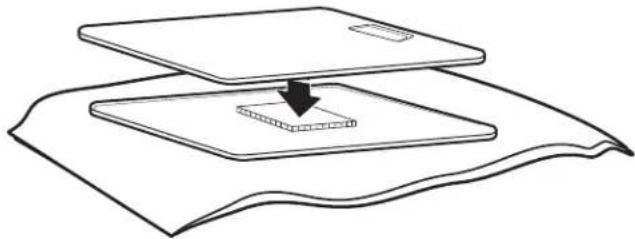

1. Be certain to keep cardboard spacer centered between doors. Reattach outer door panel to inner door panel so handle is on the side where hinges were just removed.

Diagram showing two stacked plates with a downward arrow indicating a process or movement (no text or symbols)

1. Reattach screws at top, bottom, and side of door (5 screws).

Simple line drawing of a rectangular object on a wavy base, with no text or symbols present.

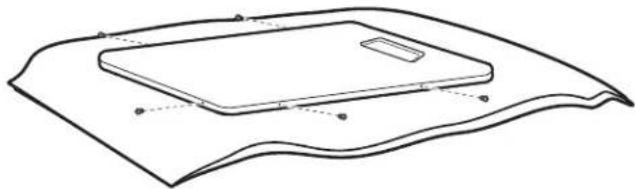

1. Attach door hinges to dryer door so that larger hole is at the bottom of the hinge and the hinge pin is toward the door front.

Diagram showing a square frame with a magnified inset of a device (no text or symbols present)

1. Remove the 4 screws that attach 2 plugs on the left side. Attach plugs to right side using the same 4 screws.
2. Insert screws into bottom holes on left side of cabinet. Tighten screws halfway. Position door so large end of door hinge slot is over screws. Slide door up so screws are in bottom of slots. Tighten screws. Insert and tighten top screws in hinges.

Two identical 3D illustrations of a door lock with two key holes, shown from different angles (no text or symbols)

1. Close door and check that door strike aligns with door catch. If needed, slide door catch left or right within slot to adjust alignment.

ELECTRONIC CONTROL SETUP INSTRUCTIONS

(PD & PN/PR MODELS ONLY)

IMPORTANT

Electrostatic Discharge (ESD) Sensitive Electronics

ESD problems are present everywhere. ESD may damage or weaken the electronic control assembly. The new control assembly may appear to work well after repair is finished, but failure may occur at a later date due to ESD stress.

■ Use an anti-static wrist strap. Connect wrist strap to green ground connection point or unpainted metal in the appliance.

-OR-

Touch your finger repeatedly to a green ground connection point or unpainted metal in the appliance.

■ Before removing the part from its package, touch the anti-static bag to a green ground connection point or unpainted metal in the appliance.
■ Avoid touching electronic parts or terminal contacts; handle electronic control assembly by edges only.
■ When repackaging failed electronic control assembly in anti-static bag, observe above instructions.

General Information

BLANK DISPLAY – This condition indicates the dryer is inoperative. Enter set-up mode to view diagnostic code.

"0 MINUTES" SHOWING IN DISPLAY – This indicates the cycle is complete and the dryer cannot be operated. Coins dropped or debit inputs during this condition will be stored in escrow but cannot be used until normal operation is restored by opening and closing the door. If a door switch has failed, it must be replaced before normal operation can be restored.

COLD START (Initial first use) – Dryer is programmed at the factory as follows:

5 minutes dry time/quarter (coin 1)

\$1.50 dry price (fixed cycle with top off)

WARM START (after power failure) – A few seconds after power is restored, if a cycle was in progress at the time of the power failure, "RESELECT CYCLE" will flash in the display, indicating a button needs to be pressed to restart dryer.

PRICING – After the door is opened and then closed following the completion of a cycle, the display indicates the cycle price (unless set for free operation). As coins are dropped or debit inputs arrive, the display will change to lead the user through the initiation of a cycle.

There are four (4) types of dryer pricing:

Fixed "Vend" Pricing

A dryer set up for “Fixed Cycle” operation can only accept additional time accumulated by increments equal to the length of a complete dry cycle. A maximum of 99 minutes may be purchased; no additional credit is given for coins dropped with 99 minutes in the display.

Accumulator Pricing

If the price is set to one coin 1, then accumulator pricing is in effect. Cycle time can be purchased one coin at a time up to the maximum time of 99 minutes. Stacked models will credit all money to a cycle with a single button press while in accumulator pricing.

Fixed Cycle With Top Off Pricing

A dryer set to offer “Top Off” capability will allow time to be added to an existing dry cycle in increments equal to the number of minutes of dry time per quarter (coin 1), up to 99 minutes, regardless of the cost required to start the dryer. No credit is given for coins or debit inputs entered when the control is displaying 99 minutes.

FREE CYCLES – This is established by setting the cycle price to zero. When this happens, “SELECT CYCLE” will appear rather than a cycle price. Any cycle started as a free cycle will automatically terminate when the door is opened.

DEBIT CARD READY – This dryer is debit card ready. It will accept a variety of debit card systems, but does NOT come with a debit card reader. Refer to the debit card reader manufacturer for proper dryer setup. In models converted to a Generation 1 debit card system, debit pulses represent the equivalent of one coin (coin 1).

Display

After the dryer has been installed and plugged in, the display will show "0 minutes."

Single Load Models

HEAVY DUTY HIGH HEAT NORMAL MEDIUM HEAT DELICATES LOW HEAT 0 MINUTES

Once the unit has been plugged in and the dryer door opened and closed, the display will show the price.

Single Load Models

HEAVY DUTY HIGH HEAT NORMAL MEDIUM HEAT DELICATES LOW HEAT PRICE 1.50

ELECTRONIC CONTROL SETUP INSTRUCTIONS

(PD & PN/PR MODELS ONLY)

Control Set-up Procedures

IMPORTANT: Read all instructions before operating.

The fabric setting buttons along with the digital display are used to set up the dryer controls. The display can contain 4 numbers and/or letters and a decimal point. These are used to indicate the set-up codes and related code values available for use in programming the appliance.

How to Use the Buttons to Program the Controls

1. The HEAVY DUTY button is used to adjust the values associated with set-up code. Pressing the button will change the value by increments. Rapid adjustment is possible by holding down the button.

2. The NORMAL button will advance through the set-up codes. Pressing the button will advance to the next available set-up code. Holding down the NORMAL button will automatically advance through the set-up codes at a rate faster than 1 per second.

3. The DELICATES button is used to select or deselect options.

Start Operating Set-up

■ Single Load Models: Insert service door key, turn, and lift to remove service door.

IMPORTANT: The console must not be opened unless power is first removed from the dryer. To access connector AA1:

→ Unplug dryer or disconnect power.
→ Open console, disconnect plug on AA1, close console.
→ Plug in dryer or reconnect power.

The dryer is now in the set-up mode.

NOTE: This dryer is preset at the factory and does not require any programming. However, if you want to change the settings, follow the "Set-Up Codes" guide to the right.

■ Units are pre-set at the factory for fixed cycle price with top off.

Set-Up Codes

■ The NORMAL button will advance you from code to code.
■ The HEAVY DUTY button will change the code value.
■The DELICATES button will select or deselect options.

The set-up code is indicated by the one or two left-hand characters. The set-up code value is indicated by the two or three right-hand characters.

Code Explanation

606 REGULAR CYCLE PRICE

606 Represents the number of quarters (coin 1) needed to start the dryer; may adjust from 0–39 (See VALUE OF COIN 1 b.05). Advance from 0–39 by pressing the HEAVY DUTY button. Factory default of 6 quarters = \$1.50.

- Press the NORMAL button once to advance to next code.

705 REGULAR DRY TIME

705 Represents the number of minutes per quarter (coin 1).

Factory default of 5 minutes per coin.

Example: 6 quarters x 5 minutes = 30 minutes.

By pressing the HEAVY DUTY button, value adjusts from 1–75 minutes.

- Press the NORMAL button once to advance to next code.

800 TYPE OF DRYER PRICING

800 Fixed Cycle with Top Off. For detailed description, see "General User Information."

- Press the NORMAL button once to advance to next code.

9 00 CYCLE COUNTER OPTION

This option is either NOT SELECTED "OFF" or SELECTED "ON."

9 00 Not Selected "OFF."

9 0C Selected "ON" and not able to be deselected.

- Press the DELICATES button 3 consecutive times to select "ON." Once selected "ON" it cannot be deselected.

- Press the NORMAL button once to advance to next code.

If cycle counter (9 0C) is selected, the following is true:

1 00 Cycles in HUNDREDS 1 02 = 200

2 00 Cycles in ONES 2 25 = 25

TOTAL CYCLES = 225

This is "VIEW ONLY" and cannot be cleared.

- Press the NORMAL button once to advance to next code.

ELECTRONIC CONTROL SETUP INSTRUCTIONS

(PD & PN/PR MODELS ONLY)

Code Explanation

1.00 MONEY COUNTER OPTION

This option is either NOT SELECTED "OFF" or SELECTED "ON."

1.00 Not Selected "OFF."

1.0C Selected "ON."

- Press the DELICATES button 3 consecutive times to select "ON" and 3 consecutive times to remove (Not Selected "OFF"). Counter resets by going from "OFF" to "ON."

1. C0 Selected "ON" and not able to be deselected.

- To select "ON" and not able to be deselected, first select "ON," then within 2 seconds, press the DELICATES button twice, the HEAVY DUTY button once, and exit set-up mode.

- Press the NORMAL button once to advance to next code.

2.00 SPECIAL PRICING OPTIONS

This option is either NOT SELECTED "OFF" or SELECTED "ON."

2.00 Not Selected "OFF," and next available code will be A.00.

1. SP Selected "ON."

- Press the DELICATES button once to change this selection.

If SPECIAL PRICING OPTION is selected, there is access to codes "3.XX" through "9.XX."

- Press the NORMAL button once to advance to next code.

If money counter (1.0C or 1.C0) is selected, the following is true:

3 00 Dollars in HUNDREDS 3 01 = \$100.00

4 00 Dollars in ONES 4 68 = \$ 68.00

5 00 Number of CENTS 5 75 = \$ 00.75

TOTAL = \$168.75

OPTIONS 3.XX - 9.XX TO USE IF SPECIAL PRICING IS SELECTED

Code Explanation

3.06 SPECIAL CYCLE PRICE

3.06 Represents the number of quarters (coin 1) to start the dryer; may adjust from 0–39. (See VALUE OF COIN 1 b.05.)

• Advance from 0–39 by pressing the HEAVY DUTY button. Factory default of 6 quarters = \$1.50.
• Press the NORMAL button once to advance to next code.

4.05 Represents the number of minutes per quarter (coin 1).

• Factory default of 5 minutes per coin. Example: 6 quarters x 5 minutes = 30 minutes.
• By pressing the HEAVY DUTY button, the value can be adjusted from 1–75 minutes.
• Press the NORMAL button once to advance to next code.

5.00 TIME-OF-DAY CLOCK, MINUTES

5.00 This is the TIME-OF-DAY CLOCK, minute setting; select 0–59 minutes by pressing the HEAVY DUTY button.

- Press the NORMAL button once to advance to next code.

6.00 TIME-OF-DAY CLOCK, HOURS

NOTE: Uses military time or 24 hr. clock.

6.00 This is the TIME-OF-DAY CLOCK, hour setting; select 0–23 hours by pressing the HEAVY DUTY button.

- Press the NORMAL button once to advance to next code.

ELECTRONIC CONTROL SETUP INSTRUCTIONS

(PD & PN/PR MODELS ONLY)

Code Explanation

7.00 SPECIAL PRICE START HOUR

NOTE: Uses military time or 24 hr. clock.

7.00 This is the start hour; 0–23 hours.

• Select START HOUR by pressing the HEAVY DUTY button.
• Press the NORMAL button once to advance to next code.

8.00 SPECIAL PRICE STOP HOUR

NOTE: Uses military time or 24 hr. clock.

8.00 This is the stop hour; 0–23 hours.

• Select STOP HOUR by pressing the HEAVY DUTY button.
• Press the NORMAL button once to advance to next code.

9.10 SPECIAL PRICE DAY

9.10 This represents the day of the week and whether special pricing is selected for that day. A number followed by "0" indicates no selection that particular day (9.10). A number followed by an "S" indicates selected for that day (9.1S). Days of the week (1–7) are selected by pressing the HEAVY DUTY button. Press the DELICATES button once to select special pricing for each day chosen.

When exiting set-up code "9," the display must show the current day of week:

DISPLAY DAY OF WEEK CODE (selected)

10 Day 1 = Sunday 1S
20 Day 2 = Monday 2S
30 Day 3 = Tuesday 3S
40	Day 4 = Wednesday 4S
50	Day 5 = Thursday	5S
60	Day 6 = Friday	6S
70	Day 7 = Saturday 7S

- Press the NORMAL button once to advance to next code.

A. 00 VAULT VIEWING OPTION

This option is either NOT SELECTED "OFF" or SELECTED "ON."

A. 00 Not Selected "OFF."

A. SC Selected "ON."

• Press the DELICATES button once to change this selection. When selected, the money and/or cycle counts will be viewable (if counter option(s) is selected) when the coin box is removed.
• Press the NORMAL button once to advance to next code.

Code Explanation

b. 05 VALUE OF COIN 1

b. 05 This represents the value of coin 1 in number of nickels: 05 = \$0.25.

• By pressing the HEAVY DUTY button, there is an option of 1–199 nickels.
• Press the NORMAL button once to advance to next code.

C. 20 VALUE OF COIN 2/VALUE OF DRYER TOP OFF

C. 20 This represents the value of coin 2 in number of nickels: 20 = \$1.00. For models using Enhanced Debit, this field represents the value of top off in nickels.

• By pressing the HEAVY DUTY button, there is an option of 1–199 nickels.
• Press the NORMAL button once to advance to next code.

d.00 COIN SLIDE OPTION

This option is either NOT SELECTED "OFF" or SELECTED "ON."

d.00 Not Selected "OFF."

d.CS Selected "ON."

- Press the DELICATES button 3 consecutive times for this selection. When coin slide mode is selected, set "b." equal to value of slide in nickels. Set "606" (REGULAR CYCLE PRICE) and "3.06" (SPECIAL CYCLE PRICE) to number of slide operations. NOTE: If the installer sets up "CS" on a coin drop model, it will not register coins.

- Press the NORMAL button once to advance to next code.

E. 00 ADD COINS OPTION

This option is either NOT SELECTED "OFF" or SELECTED "ON." This option causes the customer display to show the number of coins (coin 1) to enter, rather than the dollars-and-cents amount. The number in the display changes as the coins are accepted.

E. 00 Not Selected "OFF."

E. AC Selected "ON."

• Press the DELICATES button 3 consecutive times to change this selection.
• Press the NORMAL button once to advance to next code.

ELECTRONIC CONTROL SETUP INSTRUCTIONS

(PD & PN/PR MODELS ONLY)

Code Explanation

J. Cd PAYMENT MODE (COIN/DEBIT OPTION)

J. Cd Both coin and debit selected. Press the DELICATES button 3 consecutive times to change this selection.

J. C_ Coins selected, debit disabled. Press the DELICATES button 3 consecutive times to change this selection.

J._d Debit Card selected, coins disabled. Press the DELICATES button 3 consecutive times to change this selection.

J. Ed Enhanced Debit is self-selected when a Generation 2 card reader is installed in the dryer. The Ed option cannot be manually selected or deselected.

- Press the NORMAL button once to advance to next code.

L. 00 PRICE SUPPRESSION OPTION

This option is either NOT SELECTED "OFF" or SELECTED "ON." This option causes the customer display to show "ADD" or "AVAILABLE" rather than the amount of money to add. (Used mainly in debit installations.)

L. 00 Not Selected "OFF."

L. PS Selected "ON."

- Press the DELICATES button once to change this selection.

- Press the NORMAL button once to advance to next code.

n. CE CLEAR ESCROW OPTION

This option is either NOT SELECTED "OFF" or SELECTED "ON." When selected, money held in escrow for 30 minutes without further escrow or cycle activity will be cleared.

n. 00 Not Selected "OFF."

- Press the DELICATES button once to change this selection.

- Press the NORMAL button once to advance to next code.

END of SET-UP PROCEDURES

EXIT FROM SET-UP MODE

Single-Load Models: Reinstall access door.

DIAGNOSTIC GUIDE

If the set-up mode is entered and one of the following has occurred, the appropriate diagnostic code will be in the display.

SINGLE DRYERS

CODE EXPLANATION

d1 Dryer door sense error on control board or due to power line interference (cycles and price display disabled until diagnostic code is manually cleared).

d4 Dryer motor control circuit error (cycles and customer display disabled until diagnostic code is manually cleared).

d5 Blocked coin 1 or coin drop control circuit failure (coin recognition and customer display disabled while blockage persists).

d9 Voltage detected below 90 VAC for 8 seconds.

d12 Motor sense error on control board or due to power line interference (cycles and customer display disabled until diagnostic code is manually cleared).

d13 Blocked coin 2 or coin drop control circuit failure (coin recognition and price display disabled while blockage persists).

d16 Not receiving communications from installed debit card reader in Enhanced (Generation 2) Debit mode.

This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE).

By ensuring this product is disposed of correctly, you will help avoid potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.

Disposal must be carried out in accordance with local environmental regulations for waste disposal.

For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

MODEL NOMENCLATURE:

MDG – Maytag Gas

MDE - Maytag Electric

20 - Model Type Number

CS - Coin Slide

MN - Timer Non-Pay

PD - Coin Drop

PN – Electronic Non-Pay

PR - Electronic Control - Card Ready

B - Series Revision

G - Global

W - White

IMPORTANT SAFETY INSTRUCTIONS

When discarding or storing your old clothes dryer, remove the door.

SAVE THESE INSTRUCTIONS

MAYTAG COMMERCIAL LAUNDRY LIMITED WARRANTY

IF YOU NEED SERVICE:

Contact your authorized Maytag Commercial Laundry distributor. To locate your authorized Maytag Commercial Laundry distributor, visit www.maytagcommerciallaundry.com.

For written correspondence:

Maytag Commercial Laundry Service Department

2000 N M 63

Benton Harbor, Michigan 49022-2632 USA

FIVE YEAR LIMITED WARRANTY

WHAT IS COVERED

WHAT IS NOT COVERED

FIVE YEAR LIMITED WARRANTY (PARTS ONLY — LABOR NOT INCLUDED)

For the first five years from the original date of purchase, when this commercial appliance is installed, maintained, and operated according to the instructions attached to or furnished with the product, Maytag brand of Whirlpool Corporation (hereafter "Maytag") will pay for factory specified replacement parts to correct defects in materials or workmanship that existed when this commercial appliance was purchased. This limited warranty does not include labor.

YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. Maytag recommends that you use an “authorized” service provider to diagnose and repair your Commercial Laundry product. Maytag will not be responsible under this warranty to provide additional replacement parts as a result of incorrect diagnosis or repair by an “unauthorized” service company. Except in the European Union, this limited warranty is valid only when the commercial appliance is used in the country in which it was purchased. This limited warranty is effective from the date of the original consumer purchase. Proof of original purchase date is required to obtain service under this limited warranty.

1. All other costs including labor, transportation, shipping, or custom duties for covered parts.
2. Factory specified replacement parts if this commercial appliance is used for other than normal, commercial use or when it is used in a manner that is inconsistent to published user or operator instructions and/or installation instructions.
3. Service calls to correct the installation of your commercial appliance, to instruct you on how to use your commercial appliance, to replace or repair house fuses, or to correct external wiring or plumbing.
4. Service calls to repair or replace appliance light bulbs, air filters, or water filters. Consumable parts are excluded from warranty coverage.
5. Damage resulting from improper handling of product during delivery, theft, accident, alteration, misuse, abuse, fire, flood, acts of God, improper installation, installation not in accordance with local electrical or plumbing codes, or use of products not approved by Maytag.
6. Pick up and delivery. This commercial appliance is designed to be repaired on location.
7. Repairs to parts or systems resulting from unauthorized modifications made to the commercial appliance.
8. The removal and reinstallation of your commercial appliance if it is installed in an inaccessible location or is not installed in accordance with published installation instructions.
9. Damage resulting from exposure to chemicals.
10. Changes to the building, room, or location needed in order to make the commercial appliance operate correctly.
11. Factory specified replacement parts on commercial appliances with original model/serial numbers that have been removed, altered, or cannot be easily determined.
12. Discoloration, rust, or oxidation of stainless steel surfaces.
13. Factory specified replacement parts as a result of incorrect diagnosis or repair by an "unauthorized" service company.

The cost of repair or replacement under these excluded circumstances shall be borne by the customer.

DISCLAIMER OF IMPLIED WARRANTIES

IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO FIVE YEARS OR THE SHORTEST PERIOD ALLOWED BY LAW. Some locations may not allow limitations on the duration of implied warranties of merchantability or fitness, so this limitation may not apply to you. This warranty gives you specific legal rights, and you also may have other rights that vary.

DISCLAIMER OF REPRESENTATIONS OUTSIDE OF WARRANTY

Maytag makes no representations about the quality, durability, or need for service or repair of this major appliance other than the representations contained in this Warranty. If you want a longer or more comprehensive warranty than the limited warranty that comes with this major appliance, you should ask your retailer about buying an extended warranty. The benefits to you given by this warranty are in addition to other rights and remedies available to you under a law in relation to the goods or service to which this warranty relates. Please contact Maytag for further information on warranty terms.

LIMITATION OF REMEDIES; EXCLUSION OF INCIDENTAL AND CONSEQUENTIAL DAMAGES

YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. MAYTAG SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some locations do not allow the exclusion or limitation of incidental or consequential damages, so these limitations and exclusions may not apply to you. This warranty gives you specific legal rights, and you also may have other rights that vary by location.

Maytag Commercial Laundry Service Department

2000 N M 63

Four identical cylindrical objects with different top and bottom caps, arranged in a row (no text or symbols)

Patins (4)

Illustration of three different types of threaded fasteners or bolts (no text or symbols present)

(102 mm) 4"

Line drawing of a pipe fitting with a tool, no text or symbols present

Pure technical line drawing of a curved mechanical component without any text, numbers, or symbols

30° max. Adebowl'd air

Technical line drawing of a two-port refrigerator with internal compartments and control panel (no text or symbols)

Line drawing of a laboratory instrument with a control panel and base (no text or symbols)

Simple line drawing of a rectangular container with side handles and a horizontal bar at the bottom (no text or symbols)

Line drawing of a washing machine with airflow arrows indicating airflow direction (no text or symbols)

Line drawing of a hand holding a wrench, with a tool above a curved line (no text or symbols)

Raccordement au gaz

AVERTISSEMENT

Risque d'explosion

Simple line drawing of a rectangular object with a small rectangular cutout, placed on a curved surface (no text or symbols)

Diagram showing a layered structure with arrows indicating motion or force direction (no text or symbols)

Diagram showing two stacked plates with a downward arrow indicating a process or movement (no text or symbols)

Simple line drawing of a rectangular object with a curved base and dotted lines indicating hidden edges (no text or symbols)

Diagram showing a device with a lens and its internal components, including a magnified view of the lens (no text or symbols present)

Two identical 3D diagrams of a door lock with keyhole and screw holes, shown side by side (no text or symbols)

0 MINUTES

Maytag Commercial Laundry Service Department

2000 N M 63

Maytag Commercial Laundry Service Department

2000 N M 63

Four identical cylindrical objects with different top and bottom caps, arranged in a row (no text or symbols)

Cuñas (4)

Illustration of three different types of threaded fasteners or bolts (no text or symbols present)

(102 mm) 4"

Three line drawings of a door handle with different internal compartments (no text or symbols)

Capota tipo caja Capota tipo persiana Capota angular

Diagram showing two pipe drainage system steps: one with a circular arrow indicating clockwise direction, the other with a circular arrow indicating clockwise direction (no text or labels)

Line drawing of a pipe fitting with a tool, no text or symbols present

Pure technical diagram of a curved mechanical component with no text or symbols

Technical line drawing of two household appliances: a front-mounted washing machine and a closed oven, with no visible text or symbols.

Line drawing of a laboratory instrument with control panel and base unit (no text or symbols)

Simple line drawing of a rectangular container with side handles and a horizontal bar (no text or symbols)

Line drawing of a washing machine with airflow arrows indicating motion (no text or symbols)

Line drawing of a hand holding a wrench, with a tool above a surface (no text or symbols)

Simple line drawing of a rectangular object with a small rectangular cutout, placed on a curved surface (no text or symbols)

Diagram of a layered mechanical or electronic component with directional arrows indicating motion (no text or symbols)

Diagram showing two stacked plates with a downward arrow indicating a process or movement (no text or symbols)

Simple line drawing of a rectangular object with a curved base and dotted lines indicating hidden edges (no text or symbols)

Diagram showing a device with a lens and its internal components, including a magnified view of the lens (no text or symbols present)

Two identical 3D diagrams of a door lock with keyhole and screw holes, shown side by side (no text or symbols)

0 MINUTES

TOTAL DE CICLO = 225

Maytag Commercial Laundry Service Department

2000 N M 63

Maytag Commercial Laundry Service Department

2000 N M 63

Benton Harbor, Michigan 49022-2632 USA

Attrezzi necessari:

Four identical cylindrical objects with different top caps, arranged in a row (no text or symbols)

Illustration of three different types of threaded fasteners or bolts (no text or symbols present)

(102 mm) 4"

Line drawing of a hand holding a tool near a pipe fitting (no text or symbols)

Pure technical line drawing of a curved mechanical component with no text or symbols

Line drawing of a washing machine with a door and control panel (no text or symbols)

Line drawing of a rectangular box with internal compartments and mounting brackets (no text or symbols)

Line drawing of a laboratory instrument with a control panel and display (no text or symbols)

Simple line drawing of a rectangular container with four corner handles (no text or symbols)

Line drawing of a washing machine with directional arrows indicating airflow or movement (no text or symbols)

Line drawing of a hand holding a wrench, with a tool inserted into the pipe (no text or symbols)

Simple line drawing of a rectangular object with a small rectangular cutout, placed on a curved surface (no text or symbols)

Diagram of a mechanical or electronic assembly with layered components and directional arrows (no text or symbols)

Diagram showing two stacked plates with a downward arrow indicating compression or disassembly (no text or symbols)

Simple line drawing of a rectangular object with a curved base and dotted lines indicating hidden edges (no text or symbols)

Diagram showing a device with a lens and its internal components, including a magnified view of the lens (no text or symbols present)

Two identical 3D diagrams of a door lock with keyhole and screw holes (no text or symbols)

0 MINUTES

Maytag Commercial Laundry Service Department

2000 N M 63

Benton Harbor, Michigan 49022-2632 USA

GARANZIA LIMITATA DI CINQUE ANNI

VOCI INCLUSE NELLA GARANZIA

VOCI ESCLUSE DALLA GARANZIA

GARANZIA LIMITATA DI CINQUE ANNI (SOLO PER LE PARTI RICAMBIO— MANUTENZIONE ESCLUSA)
