USER MANUAL BP-S500F BLUEPALM

Outdoor-Powerstation

BP-S500F

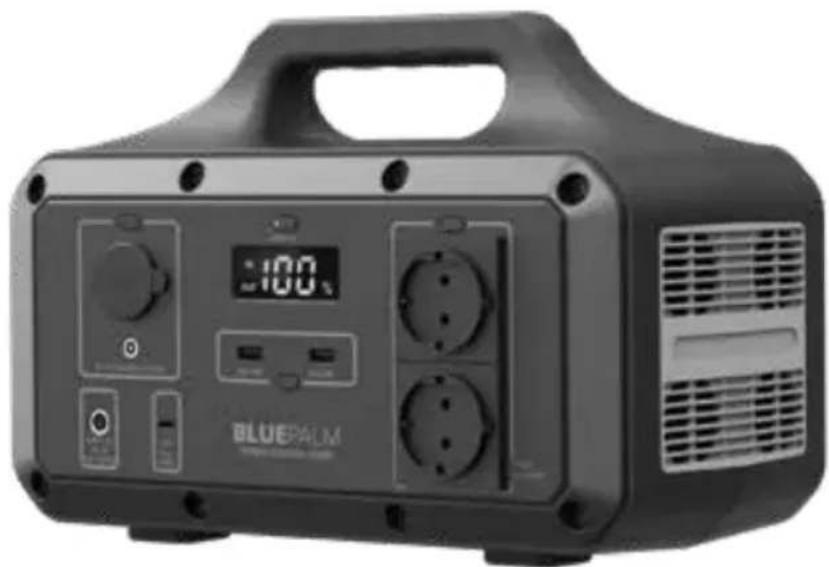

Black BLUE PALM portable charging device with digital display and control buttons (no visible text or symbols on main body)

HERZLICHEN GLÜCKWUNSCH! DANKE, DASS SIE SICH FÜR EIN PRODUKT VON BLUEPALM ENTSCHIEDEN HABEN.

BLUEPALM

Inhaltsverzeichnis

Batteries: LiFe PO4 19.2V/27Ah (518.4Wh)

DC Input: 12-32V---10A 240W Max.

PD Input/Output: 5V---3A, 9V---3A, 12V---3A,

15V---3A, 20V---5A, 100W Max.

Output: Car Charger/DC: 12V---10A 120W (total: 10A)

USB-A1/USB-A2:5V=3A, 9V=2A, 12V=1.5A (18W Max.)

AC(Sine wave): 220V-240V\~3.48A, 50Hz, 800W Max.

Stable at 800W Peak at 1600W Maximum total output: 800W

Charging temperature: 0-40°C Discharge temperature: -10-40°C

Schuss Home Electronic

Scheringgasse 3, A-1140 Wien

Made in China

Pure electrical circuit lines without any symbols

Netzadapter

Autoladegerät

BLUEPALM

Aufladbare Geräte

Black-and-white photo of a portable energy kit with digital display and control buttons, placed on grassy ground against a cloudy sky (no visible text or symbols)

BLUEPALM

GARANTIE

Declares that the product

EN IEC 62368-1:2020+A11:2020

EMV

EN 301489-1 V2.2.3 (2019-11)

EN 301489-17 V3.2.4(2020-09)

EN 55032:2015

EN 55035:2017

Funk

EN 300328 V2.2.2 (2019-07)

Reach SVHC(EC)NO. 1907/2006

Place and date of issue:

Declaration reference:

SCHUSS HOME ELECTRONIC GMBH 1140 W. 2000 Soweigna 3 Tel: [phone], Fax: 227 www.chome-home.at Bevollmacher Verstreter des Herstellers. Authorized representative of manufacture

BLUEPALM

Black BLUEPALM portable energy organizer with digital display and control buttons (no visible text or symbols on main body)

FÉLICITATIONS! MERCI D'AVOIR CHOISI UN PRODUIT DE BLUEPALM.

BLUEPALM

Table des matières

Batteries: LiFe PO4 19.2V/27Ah (518.4Wh)

DC Input: 12-32V---10A 240W Max.

PD Input/Output: 5V=3A, 9V=3A, 12V=3A,

15V==3A, 20V==5A, 100W Max.

Output: Car Charger/DC: 12V=10A 120W (total: 10A)

USB-A1/USB-A2:5V=3A, 9V=2A, 12V=1.5A (18W Max.)

AC(Sine wave): 220V-240V\~3.48A, 50Hz, 800W Max.

Stable at 800W Peak at 1600W Maximum total output: 800W

Charging temperature: 0-40°C Discharge temperature: -10-40°C

Schuss Home Electronic

Scheringgasse 3, A-1140 Wien

Made in China

Dispositif rechargeable

Black-and-white photo of a portable energy kit with digital display and control buttons, placed on grassy ground against a cloudy sky (no visible text or symbols)

BLUEPALM

GARANTIE

DÉCLARATION DE CONFORMITÉ DÉCLARATION DE CONFORMITÉ

Schuss Home Electronic GmbH

Scheringgasse 3

1140 Vienne

AUTRICHE

EN IEC 62368-1:2020+A11:2020

EMC

EN 301489-1 V2.2.3 (2019-11)

EN 301489-17 V3.2.4(2020-09)

EN 55032:2015

EN 55035:2017

Aspects radio

EN 300328 V2.2.2 (2019-07)

Reach SVHC(EC)NO. 1907/2006

Directive RoHs / Directive RoHs 2011/65/EU & (EU) 2015/863

Black BLUEPALM portable energy organizer with digital display and control buttons (no visible text or symbols on main body)

CONGRATULAZIONI! GRAZIE PER AVER SCELTO UN PRODOTTO BLUEPALM.

BLUEPALM

Batteries: LiFe PO4 19.2V/27Ah (518.4Wh)

DC Input: 12-32V---10A 240W Max.

PD Input/Output: 5V---3A, 9V---3A, 12V---3A,

15V---3A, 20V---5A, 100W Max.

Output: Car Charger/DC: 12V---10A 120W (total: 10A)

USB-A1/USB-A2:5V=3A, 9V=2A, 12V=1.5A (18W Max.)

AC(Sine wave): 220V-240V\~3.48A, 50Hz, 800W Max.

Stable at 800W Peak at 1600W Maximum total output: 800W

Charging temperature: 0-40°C Discharge temperature: -10-40°C

Schuss Home Electronic

Scheringgasse 3, A-1140 Wien

Made in China

Pure electrical circuit lines without any symbols

Black-and-white photo of a portable electricity generator on grassy field, no visible text or symbols

BLUEPALM

GARANZIA

EN IEC 62368-1:2020+A11:2020

EMC

EN 301489-1 V2.2.3 (2019-11)

EN 301489-17 V3.2.4(2020-09)

EN 55032:2015

EN 55035:2017

Aspetti radiofonici

EN 300328 V2.2.2 (2019-07)

Reach SVHC(EC)NO. 1907/2006

RoHs directive / Direttiva RoHs 2011/65/EU & (UE) 2015/863

Black BLUE PALM portable energy kit with digital display and control buttons (no visible text or symbols on main body)

GEFELICITEERD!

BEDANKT VOOR HET KIEZEN VAN EEN PRODUCT VAN BLUEPALM.

BLUEPALM

Inhoudsopgave

Batteries: LiFe PO4 19.2V/27Ah (518.4Wh)

DC Input: 12-32V---10A 240W Max.

PD Input/Output: 5V---3A, 9V---3A, 12V---3A,

15V---3A, 20V---5A, 100W Max.

Output: Car Charger/DC: 12V---10A 120W (total: 10A)

USB-A1/USB-A2:5V=3A, 9V=2A, 12V=1.5A (18W Max.)

AC(Sine wave): 220V-240V\~3.48A, 50Hz, 800W Max.

Stable at 800W Peak at 1600W Maximum total output: 800W

Charging temperature: 0-40°C Discharge temperature: -10-40°C

Schuss Home Electronic

Scheringgasse 3, A-1140 Wien

Made in China

Black-and-white photo of a portable electricity generator on grassy field, no visible text or symbols

BLUEPALM

GARANTIE

EN IEC 62368-1:2020+A11:2020

EMC

EN 301489-1 V2.2.3 (2019-11)

EN 301489-17 V3.2.4(2020-09)

EN 55032:2015

EN 55035:2017

Radio-aspecten

EN 300328 V2.2.2 (2019-07)

Reach SVHC(EC)NO. 1907/2006

Black BLUEPHUM portable charging station with digital display and control buttons (no visible text or symbols on main body)

GRATTIS! TACK FÖR ATT DU VALT EN PRODUKT FRÅN BLUEPALM.

BLUEPALM

Batteries: LiFe PO4 19.2V/27Ah (518.4Wh)

DC Input: 12-32V---10A 240W Max.

PD Input/Output: 5V---3A, 9V---3A, 12V---3A,

15V---3A, 20V---5A, 100W Max.

Output: Car Charger/DC: 12V---10A 120W (total: 10A)

USB-A1/USB-A2:5V=3A, 9V=2A, 12V=1.5A (18W Max.)

AC(Sine wave): 220V-240V\~3.48A, 50Hz, 800W Max.

Stable at 800W Peak at 1600W Maximum total output: 800W

Charging temperature: 0-40°C Discharge temperature: -10-40°C

Schuss Home Electronic

Scheringgasse 3, A-1140 Wien

Made in China

Pure electrical circuit lines without any symbols

AC-strömadapter

Billaddare

BLUEPALM

Laddbar enhet

USB-utgång: Smartphone, Smartwatch, digitalkamera, läsplatta, surfplatta, etc. 12V biluttag: Ljus, biladapter, etc.

Black-and-white photo of a portable electricity generator on grassy field, no visible text or symbols

BLUEPALM

GARANTI

EN IEC 62368-1:2020+A11:2020

EMC

EN 301489-1 V2.2.3 (2019-11)

EN 301489-17 V3.2.4(2020-09)

EN 55032:2015

EN 55035:2017

Radioaspekter

EN 300328 V2.2.2 (2019-07)

Reach SVHC(EC)NO. 1907/2006

RoHs-direktivet / RoHs-direktivet 2011/65/EU& (EU) 2015/863

Black BLUE PALM portable charging station with digital display and control buttons (no visible text or symbols on main body)

GRATULUJEME! DĚKUJEME, ŽE JSTE SI VYBRALI VÝROBEK ZNAČKY BLUEPALM.

BLUEPALM

Obsah

Batteries: LiFe PO4 19.2V/27Ah (518.4Wh)

DC Input: 12-32V---10A 240W Max.

PD Input/Output: 5V---3A, 9V---3A, 12V---3A,

15V---3A, 20V---5A, 100W Max.

Output: Car Charger/DC: 12V---10A 120W (total: 10A)

USB-A1/USB-A2:5V=3A, 9V=2A, 12V=1.5A (18W Max.)

AC(Sine wave): 220V-240V\~3.48A, 50Hz, 800W Max.

Stable at 800W Peak at 1600W Maximum total output: 800W

Charging temperature: 0-40°C Discharge temperature: -10-40°C

Schuss Home Electronic

Scheringgasse 3, A-1140 Wien

Made in China

Pure electrical circuit lines without any symbols

AC napájecí adaptér

Autonabiječka

BLUEPALM

Dobíjecí zařízení

Black-and-white photo of a portable electricity generator on grassy field, no visible text or symbols

BLUEPALM

ZÁRUKA

EN IEC 62368-1:2020+A11:2020

EMC

EN 301489-1 V2.2.3 (2019-11)

EN 301489-17 V3.2.4(2020-09)

EN 55032:2015

EN 55035:2017

Rádiové aspekty

EN 300328 V2.2.2 (2019-07)

Reach SVHC(EC)NO. 1907/2006

RoHS-Richtlinie / RoHS směrnice 2011/65/EU & (EU) 2015/863

Black BLUE PALM portable energy organizer with digital display and control buttons (no visible text or symbols on main body)

GRATULUJEME!

ĐAKUJEME, ŽE STE SI VYBRALI PRODUKT OD SPOLOČNOSTI BLUEPALM.

BLUEPALM

Obsah

Batteries: LiFe PO4 19.2V/27Ah (518.4Wh)

DC Input: 12-32V---10A 240W Max.

PD Input/Output: 5V=3A, 9V=3A, 12V=3A,

15V==3A, 20V==5A, 100W Max.

Output: Car Charger/DC: 12V=10A 120W (total: 10A)

USB-A1/USB-A2:5V=3A, 9V=2A, 12V=1.5A (18W Max.)

AC(Sine wave): 220V-240V\~3.48A, 50Hz, 800W Max.

Stable at 800W Peak at 1600W Maximum total output: 800W

Charging temperature: 0-40°C Discharge temperature: -10-40°C

Schuss Home Electronic

Scheringgasse 3, A-1140 Wien

Made in China

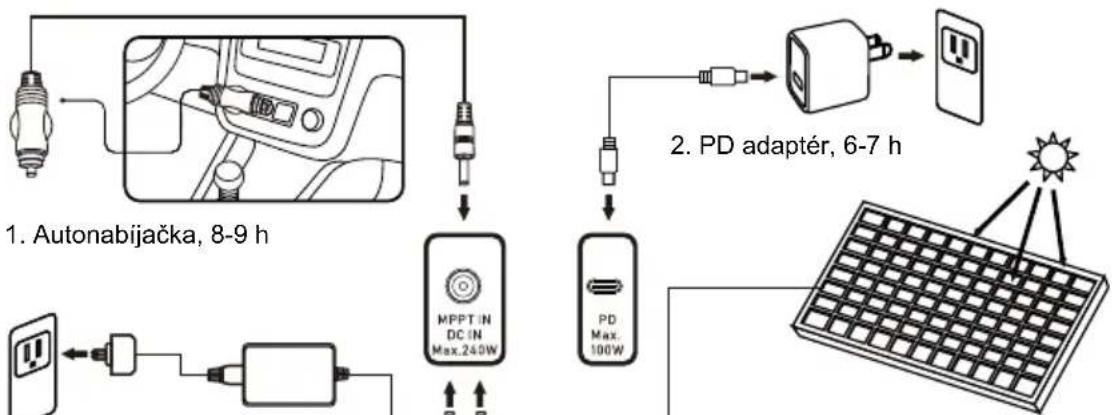

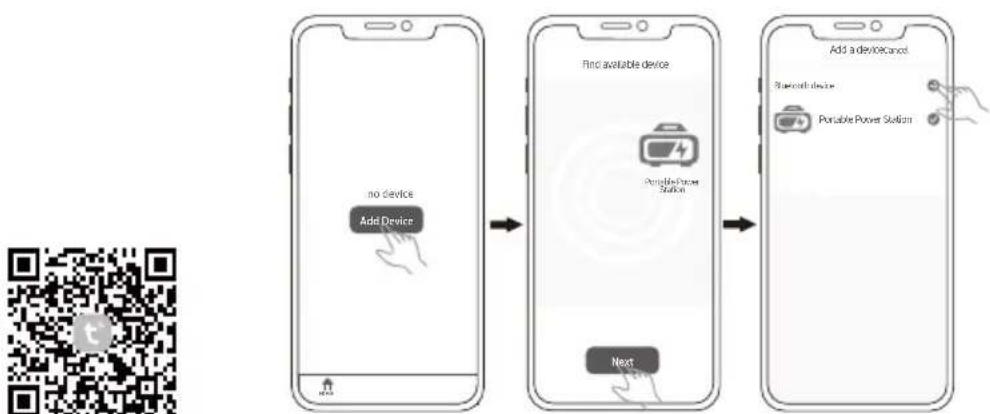

Pokyny pre APLIKÁCIU

Black-and-white photo of a portable electricity generator on grassy field, no visible text or symbols

BLUEPALM

ZÁRUKA

EN IEC 62368-1:2020+A11:2020

EMC

EN 301489-1 V2.2.3 (2019-11)

EN 301489-17 V3.2.4(2020-09)

EN 55032:2015

EN 55035:2017

Rádiové aspekty

EN 300328 V2.2.2 (2019-07)

Reach SVHC(EC)NO. 1907/2006

Smernica RoHs / Smernica RoHs 2011/65/EÚ a (EÚ) 2015/863

Black and white photo of a blue PALM portable energy charging device with control knobs and a digital display (no visible text or symbols on main body)

FELICITĂRI! VĂ MULȚUMIM CĂ AȚI ALES UN PRODUS DE LA BLUEPALM.

BLUEPALM

Cuprins

Batteries: LiFe PO4 19.2V/27Ah (518.4Wh)

DC Input: 12-32V---10A 240W Max.

PD Input/Output: 5V=3A, 9V=3A, 12V=3A,

15V==3A, 20V==5A, 100W Max.

Output: Car Charger/DC: 12V==10A 120W (total: 10A)

USB-A1/USB-A2:5V=3A, 9V=2A, 12V=1.5A (18W Max.)

AC(Sine wave): 220V-240V\~3.48A, 50Hz, 800W Max.

Stable at 800W Peak at 1600W Maximum total output: 800W

Charging temperature: 0-40°C Discharge temperature: -10-40°C

Schuss Home Electronic

Scheringgasse 3, A-1140 Wien

Made in China

Pure electrical circuit lines without any symbols

Adaptor de alimentare AC

Încărcător

BLUEPALM

Black-and-white photo of a portable energy kit with digital display and control buttons, placed on grassy ground against a cloudy sky (no visible text or symbols)

BLUEPALM

GARANTIE

EN IEC 62368-1:2020+A11:2020

EMC

EN 301489-1 V2.2.3 (2019-11)

EN 301489-17 V3.2.4(2020-09)

EN 55032:2015

EN 55035:2017

Aspecte radio

EN 300328 V2.2.2 (2019-07)

Reach SVHC(EC)NO. 1907/2006

Directiva RoHs / Directiva RoHs 2011/65/EU & (UE) 2015/863

Outdoor Power Station

BP-S500F

Black BLUE PALM portable energy supply device with digital display and control buttons (no visible text or symbols on main body)

CONGRATULATIONS! THANK YOU FOR CHOOSING A PRODUCT FROM BLUEPALM.

BLUEPALM

Table of contents

Introduction

Intended use

Explanation of symbols

Safety instructions

Notes on the integrated battery and disposal

Important notes on disposal

Scope of Delivery

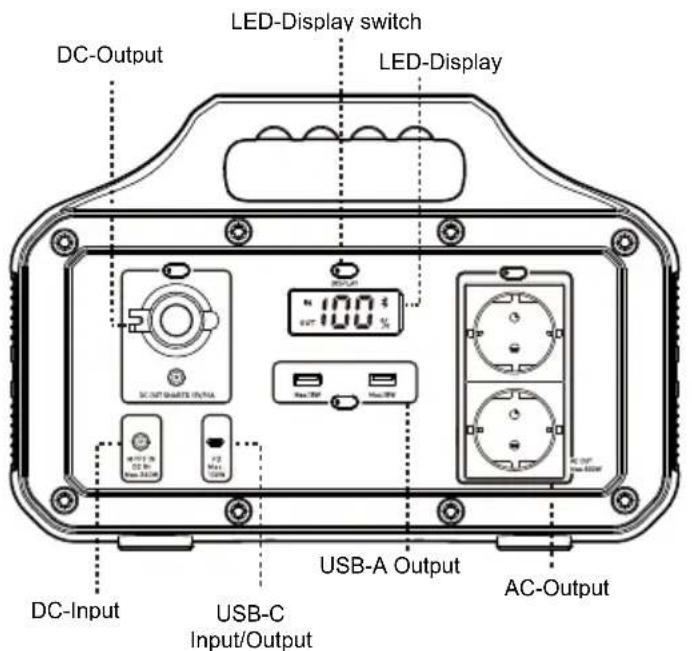

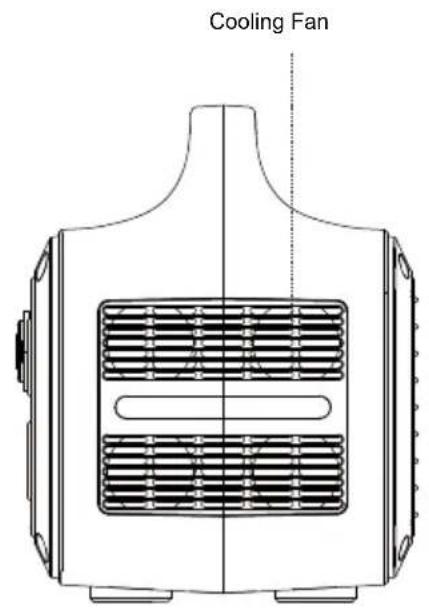

Product details

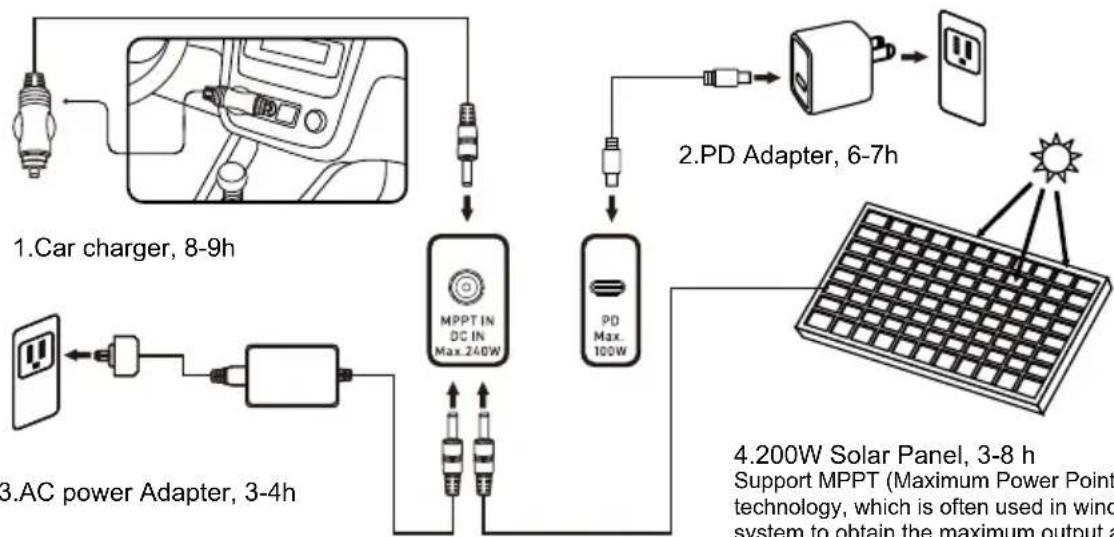

Chargeable Device / Charging Method

Commissioning

Specifications

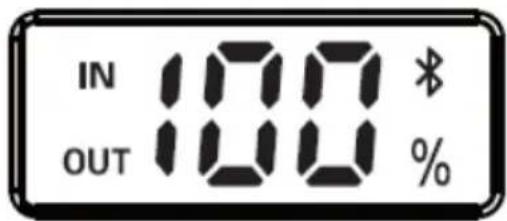

Led Screen Instructions

Frequently Q & A

Chemical Composition

App Instructions

Fault Diagnosis

Storage and maintenance

Technical Data

Disclaimer

Warranty

Declaration of Conformity

PLEASE READ THE OPERATING INSTRUCTIONS CAREFULLY BEFORE STARTING ASSEMBLY, INSTALLATION, OPERATION OR MAINTENANCE. PROTECT YOURSELF AND OTHERS BY FOLLOWING THE SAFETY INSTRUCTIONS. FAILURE TO FOLLOW INSTRUCTIONS COULD RESULT IN PERSONAL INJURY AND/OR PROPERTY DAMAGE AND/OR LOSS OF WARRANTY COVERAGE.

BLUEPALM

Intended use

With 518 Wh of stored energy, you can power electronic devices anytime, anywhere, whether you're camping, in your motorhome, or in case of emergencies or power outages. Our product is not suitable for use with installations, relating to personal safety and relying significantly on the power supply, such as medical equipment, nuclear plant equipment, aircraft and spacecraft manufacturing, etc.

Therefore, we do not accept any liability for accidents involving personal safety, fires or machine breakdowns caused by the use of our product with the above equipment.

Explanation of symbols

DANGER!

WARNING!

Symbol:

Meaning:

Protection class 2

The symbol indicates that the unit is assigned to protection class 2.

Devices of protection class 2 are not connected to the protective conductor. Instead, they have reinforced or double insulation at the level of the rated insulation voltage between active and touchable parts. Electrically conductive surfaces or conductive touchable parts are thus separated from live parts by reinforced or double insulation.

BLUEPALM

Safety instructions

These operating instructions are intended to familiarize you with the operation of this product. It contains important instructions for the use, safety and maintenance of the appliance. Therefore, keep this manual in a safe place so that you can refer to it at any time. Pass them on to subsequent users.

Please observe the safety instructions during use.

Before using the unit, check the unit and its connecting cable as well as accessories for damage. Do not use the unit if it shows visible damage.

Operate the unit only from standard household sockets. Check whether the mains voltage indicated on the type plate corresponds to that of your mains supply.

Do not squeeze the connection cable or pull it over sharp edges or hot surfaces. Do not use the connection cable for carrying.

If the mains lead of this appliance is damaged, it must be replaced by the manufacturer or its after-sales service or a similarly qualified person in order to avoid hazards.

Unplug the appliance: after each use, in case of malfunctions during operation, before cleaning the appliance.

Never pull the plug out of the socket by the mains cable or with wet hands.

The appliance is intended exclusively for household or similar use. It must not be used for commercial purposes!

BLUEPALM

The unit is suitable for indoor use only.

Make sure that the unit has good stability during operation and that it is not possible to trip over the mains cable.

Never use the appliance after a malfunction, e.g. if the appliance has been dropped into water or damaged in any other way.

The manufacturer accepts no responsibility for incorrect use resulting from failure to observe the instructions for use.

Conversion or modification of the product impairs product safety. Caution: Risk of injury!

All modifications or repairs to the unit or accessories may only be carried out by the manufacturer or persons expressly authorized by the manufacturer for this purpose.

Make sure that the product is operated from a socket that is easily accessible so that you can quickly disconnect the unit from the mains in case of an emergency.

Never open the product yourself. Never carry out repairs yourself!

Handle the product with care. It can be damaged by bumps, knocks or falling from even a low height.

Keep the product away from moisture and extreme heat.

Never immerse the product in water or other liquids.

Do not touch the product with wet or damp hands.

BLUEPALM

Never use the product after a malfunction, e.g. if it has been dropped into water or damaged in any other way.

DANGER!

DO NOT disassemble, repair or modify the system or battery. This may result in electric shocks, fire, etc.

DO NOT position the system near or in a fire or expose it to heat.

Do not expose to direct sunlight. This may cause electric shocks, fire, etc.

DO NOT charge, use or store the system in the bathroom or in the rain or damp areas. This may result in electric shocks, fire, etc.

Only use the output socket to supply external devices. Do not connect the output to the mains under any circumstances.

Connection to the mains supply may result in electric shock, injury or fire.

DO NOT touch the system or the plugs with wet hands. This can lead to electric shocks.

DO NOT connect metal objects to the AC input or AC output. This may cause electric shocks, fire, etc.

DO NOT rub the eyes if liquid from inside the system enters the eyes. If this happens, flush the eyes with water and seek medical advice immediately. There is a risk of blindness.

BLUEPALM

DO NOT dispose of the system with household waste.

Comply with local laws regarding disposal of the system.

DO NOT use unsuitable power cables. This may result in electric shocks, fire, etc.

DO NOT operate the system beyond the specified input voltage. This may result in electric shock, fire, etc.

DO NOT use the system if it is not functioning correctly. This may result in electric shocks, fire, damage to the system, etc.

DO NOT move the system while it is charging or in operation. This may result in electric shock, damage to the system or other injury.

WARNING

Use the system only in a clean and dry environment. Do not use or store in dusty and humid environments. Failure to comply with these regulations may result in a short circuit, smoke formation or fires if metal dust or small metal parts come into contact with the connections.

Check the system before each use. Do not use the system if it is damaged or defective. If you find that the system has any damage or cracks, is defective or has any other

If the system shows any abnormalities, DO NOT continue to use the system and contact the dealer or service center.

Do not use the system if the power cable is damaged or defective.

BLUEPALM

Keep the system away from children. DO NOT allow children to use the power supply unit. This may cause accidents or injuries. This system must not be used by children. Keep the system and its connecting cables out of the reach of children.

Children are not allowed to play with the system.

The system must not be used by persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the system in a safe way and understand the hazards involved.

Keep the system away from pets.

DO NOT use or store the system in an environment with high temperatures. This may cause the system to deform or overheat.

If liquid from inside the system comes into contact with skin or clothing, wash the affected areas with tap water.

Contact with the liquid can cause injury.

Unplug the power cable from the socket during storms.

A thunderstorm can cause overcurrent from the socket, which can cause overheating, fires or other accidents.

DO NOT charge the system using power supply systems that operate outside the 100-240 V range. This may otherwise cause overheating, fire, etc.

BLUEPALM

DO NOT position the system on its side or upside-down during use or storage. This may cause the system to leak or overheat, resulting in other accidents.

CAUTION

If rust, peculiar odors, overheating or other abnormal conditions are detected, stop using the system immediately and contact the dealer or our service center.

The system meets all legal requirements for the transport of hazardous materials.

This system contains LifePO4 batteries.

According to the airline's transport standards, lithium batteries with 100Wh capacity cannot be transported by air.

For transport in vehicles, ensure that the system is properly secured when transported in a motor vehicle.

Failure to comply with this provision may result in damage to the system, electric shocks, overheating, fire and other accidents.

The system may only be charged, and used, at ambient temperatures between -10 and 40°C (14-104 °F).

Operating the system above or below this temperature range may result in overheating or reduced performance.

Switch off the system immediately if it has been accidentally dropped, dropped or subjected to strong vibrations.

BLUEPALM

To avoid accidents, please contact the dealer or our service center to have the system checked and repaired.

Carefully read the instructions for the electrical appliances you intend to connect to the power supply unit.

Make sure that the unit you are connecting is switched off before connecting.

A unit that starts suddenly can cause accidents or injuries.

When activating the protection function and disconnecting the appliance plug, disconnect the electrical equipment from the plug. Switch off the system when not in use/storage to avoid electric shock as well as unnecessary discharge of the battery, etc.

Keep the unit away from other objects when moving it.

Take extra care so that the appliance never falls to the floor.

Place the unit on a stable surface. This also makes it easier to read the displays.

The unit should not be exposed to shocks or vibrations. Otherwise, there is a risk of fire.

When in use, power supplies generate electromagnetic fields which may interfere with the normal operation of medical implants or personal medical devices such as pacemakers, cochlear implants, hearing aids, defibrillators, etc. If such medical devices are used, contact the manufacturer for any restrictions on the use of such devices. These measures are essential to ensure a sufficient safety distance between the

BLUEPALM

medical implants (e.g. pacemakers, cochlear implants, hearing aids, defibrillators, etc.) and this product while it is in use.

If the power supply is connected to a refrigerator in normal mode, power fluctuations may cause the power supply to be switched off automatically. We do not recommend connecting a refrigerator in which medicines, vaccines or other valuable or medical or even non-medically important substances are stored to the unit.

However, if the power supply is connected to a refrigerator where medicines, vaccines or other valuable substances, medical or non-medical, are stored, it is recommended to set the AC output in the app to "always on". This helps to establish a continuous power supply and efficient power consumption.

Keep the original packaging of the unit and use it in case of transport.

Notes on the integrated battery and disposal

Used rechargeable batteries do not belong in household waste. As a consumer, you are legally obliged to return used rechargeable batteries for proper disposal. You can hand in your rechargeable batteries at the public collection points in your municipality or wherever rechargeable batteries of the same type are sold.

Batteries do not belong in the hands of children.

Do not heat the battery above 60 °C and do not throw it into fire: risk of fire, explosion and burns!

BLUEPALM

Do not short-circuit the battery.

Do not attempt to open batteries.

Stay close to the unit when charging and check its temperature regularly. Stop charging immediately if it becomes very overheated. A battery that becomes very hot or deformed during charging is defective and must not be used any further.

Do not subject the battery to mechanical stress. Avoid dropping, hitting, bending or cutting the battery.

When charging the battery, make absolutely sure that the polarity of the charging plug is correct. If the charging plug is incorrectly connected, the charger is unsuitable or the polarity is reversed, there is a risk of short circuit and explosion!

Never discharge the battery completely, this will shorten its life.

If the unit is to be stored for a longer period of time, it is recommended that the remaining capacity of the battery is approx. 30 % of the charge volume.

Avoid direct sunlight at the storage location. The ideal temperature is 10 - 20 °C.

Low temperature may affect the battery capacity of the product.

BLUEPALM

The product can be charged at a temperature in the range 0^ - 40^ .

If you charge the product at a temperature below 0^ , we recommend

The product can supply power to other devices in the temperature range -10^ - 40^ .

	RECYCLINGThe packaging materials can be recycled. Therefore, it is recommended to dispose of them in sorted waste.
	DISPOSALThe symbol "crossed-out dustbin" requires the separate disposal of waste electrical and electronic equipment (WEEE). Electrical and electronic equipment may contain hazardous and environmentally dangerous substances. Therefore, do not dispose of this in unsorted residual waste, but at a designated collection point for waste electrical and electronic equipment. By doing so, you are helping to protect resources and the environment.For more information, please contact your dealer or local authorities.
	DECLARATION OF CONFORMITYWe hereby certify that this article complies with the essential requirements, regulations and directives of the EU.You can view the detailed declaration of conformity at any time under the following link: www.schuss-home.at/de/downloads/

Errors and technical modifications excepted.

Operating the unit in a residential environment may cause radio interference.

BLUEPALM

Batteries: LiFe PO4 19.2V/27Ah (518.4Wh)

DC Input: 12-32V---10A 240W Max.

PD Input/Output: 5V---3A, 9V---3A, 12V---3A,

15V---3A, 20V---5A, 100W Max.

Output: Car Charger/DC: 12V---10A 120W (total: 10A)

USB-A1/USB-A2:5V=3A, 9V=2A, 12V=1.5A (18W Max.)

AC(Sine wave): 220V-240V\~3.48A, 50Hz, 800W Max.

Stable at 800W Peak at 1600W Maximum total output: 800W

Charging temperature: 0-40°C Discharge temperature: -10-40°C

Schuss Home Electronic

Scheringgasse 3, A-1140 Wien

Made in China

Note: DoD refers to the Depth of Discharge, is the local inverter efficiency. DoD=90%, =90%.

DoD may vary depending on ambient-operating temperature and discharge rate. Load power and charging time are measured in Watt and Hour.

With the package you have purchased you have received:

• Solar converter with powerbank
• 230-volt power supply
• Cigarette lighter connection adapter
- Operating instructions

Packing List

Outdoor power Supply	AC power adapter	Car charger User manual

BLUEPALM

DC-Output LED-Display switch LED-Display DC-Input USB-C Input/Output 100 % DC-Output USB-A Output AC-Output

Cooling Fan

Product details

LED Display Switch

Short Press to Control LED display on/off

Long press 2s clear the BT blind list

Input

1. DC: 240W(30V)
2. USB-C PD 100W
3. Solar: 240 (17-24V)
4. Car Charger: 240W (12-30V)

Output

1. USB-C: PD 100W
2. USB-A 1/2: 18W
3. Car Charger/DC Output shared 120W
4. AC: Stable at 800W Peak at 1600W

IN 100 * OUT 100 %

AC-Power adapter

Car charger

BLUEPALM

Chargeable device

USB Output: Smartphone, Smartwatch, Digital Camera, E-reader, Tablet, etc.
12V Car charger Outlet: Light, Car Adaptor, etc.

AC Output: Laptop, LED screen, Household appliances, etc.

AC Output:
	LED lights 12V/5W (86 h)		Camera 16WH (27 times)		Laptop 60WH (7 times)		TV 110W (3.5h)
	Drone 60WH (7 times)		Fan 45W (8.5h)		Wall breaking machine 250W (15 h)		Projector 100W (4 h)

USB Output						DC Output
	iPhone 122851mAh(40 times)		NintendoSwitch4310mAh (25times)		Ipadpro202128.65Wh(15 times)		Car chargerOutlet Carrefrigerator 65W(6.5 h)

Charging Methode

Before using or storing the product, please charge it with the charger. When connected to the mains for charging, the indicator light of the charger is on, and the LED screen will display the current charging ratio. When the LED screen shows that the power is 100%, it means full. The current battery level can be checked through the LED screen.

4.200W Solar Panel, 3-8 h Support MPPT (Maximum Power Point Tracking) technology, which is often used in wind or solar power system to obtain the maximum output and best charging performance Actual performance is related to weather, temperature, battery status and other factors.

BLUEPALM

Use Instructions

How to use it:

1. Press the switch next to each port you will use.
2. When the indicator light next to the port is on, the output is turned on, and the responding device can be charged.
3. AC Output is stable at 800W (peak at 1600W). If the product is used beyond the maximum power, the power supply will be automatically turned off to protect the product during overload use.
4. Press ON/OFF button for turn off output.
5. If the product is not used for a long time, it should be recharged e very three months. It is better to keep the power at 60%-80% and store it in a cool and dry place.

Attention! If the AC port is not in use, please turn it off to save power.

Note: The output supports charging during use. The output can work simultaneously with the maximum load

Specifications

	KG	←→↓	●↑	●↑	—↑↓	●↓	●↓	—↓	●
Capacity Weight		Dimension	DC Input	Solar Input	USB-C IN/OUT	Car charger Output	DC Output	USB-A Output 2	AC Output* 2
518.6Wh (27000mAh / 19.2V)	7.0 kg	332*178* 225mm	DC 240W (30V)	DC 240W (17-24V)	PD100 W	120W Max	12V/120 W	18W Max.	Stable at 800W Peak at 1600W

Battery Cell	Cycle times	Storage Temperature	Operation Temperature	Charging Temperature	Protect system	Bluetooth	Certificate
LiFePO4 Battery	3000times	-10-45°C	-10-40°C	0-40°C	Overcharge protection, Over discharge protection Overcurrent protection Over temperature protection Short circuit protection, Overvoltage protection	Bluetooth 5.0 with App

BLUEPALM

LED Screen Instructions

The LED screen of this product displays the product usage status. When the product is fully charged, the LED screen turns off and stops charging. When any function is activated, the screen will light up. When the screen display is not needed, you can press the button to turn off the LED screen.

1. The input power
   2.Battery level display
2. The Bluetooth logo
3. The output power

1 IN OUT 100 2 * 4 %

Operating Temperature range:

Low temperature may affect the battery capacity of the product. The product can be charged in a temperature range of 0^ - 40^ . Charge the product when the temperature is below 0^ , We recommend placing the product in an insulated cooler or other temperature conditions, also connect it to a power source (AC output socket, solar photovoltaic panel). The product can charge the device in the temperature range of -10^ - 40^ .

Frequently Q&A

What is the battery type?

LiFePO4 Battery.

Can the product be taken on the aircraft?

No, According to the airline transportation standards, 100Wh capacity of lithium battery can not board the aircraft.

How to estimate the working time of the product?

The LED display of this product can help you better understand the working status of the power supply. When the IN (input terminal) in the screen is on: it means the product is charging. When the OUT (output terminal) in the screen is on: it means the product is in the discharging state.

You can recognize the remaining working time of the product by the battery percentage in the display.

BLUEPALM

Chemical composition of Toxic and harmful substances

Part Name	Toxic and harmful substances or chemical elements
	Pb	Hg	Cd	Cr(VI)	PBB	PBDE
Product Shell	O	O	O	O	O	O
Circuit Module	X	O	O	O	O	O
Small Hardware	O	O	O	O	O	O
Charging Cable	O	O	O	O	O	O

O : The content of hazardous substances in homogeneous materials all components are limit requirement specified in GB-T 26572.

X: The content of hazardous substance in at least one of the average materials of the part exceeds the limit requirement of GB-T 26572, and there is no mature alternative in the industry at present, which meets the environmental protection requirements of the EU RoHS directive.

This information for reference purposes only and does not represent a binding agreement. Product (Color, Size, OSD, etc.) in kind prevail.

APP Instructions

1) Search "Tuya Smart" and download it through the App Store or Android application,
2) For the first use, please press the screen button until the Bluetooth icon appears on the screen. If you have already installed, please go directly to step 7, 3) After installing and running the app, after logging in, select "Add Device",
4) After finding the equipment, It will display the following page (If it can't be find, please check the Bluetooth permissions or repeat the first step),
5) Click "Next", enter the add page,

BLUEPALM

6) Click "+", add the equipment, connect it,

7) Once the connection is completed, the user can control the USB port output, the in-vehicle output, the AC output, and the lighting control.

Fault diagnosis

If your device is not successfully charged with this product, please follow the steps below:

1. Ensure that the output port is open, LED indicator lights on the power button.
2. Check the LED power display, if it is 20% or less, please charge the product.
3. The power of the device you are using exceeds the maximum power of the port of the product.
4. The device link cable you are using is not plugged in well or has poor contact.

Solar photovoltaic panels:

Choose our solar photovoltaic products, just insert the DC port, you can easily charge the product with solar energy. This product uses MPPT (Maximum Power Tracking) technology, which can compare the output voltage point of the solar panel with the battery voltage of the product in real time, so as to find the maximum power output point that the solar panel can provide and charge the battery of the machine to obtain the best Charging efficiency.

AC adapter:

The product must be charged with the AC adapter specified by us. We will not be responsible for any consequences caused by charging with other adapters.

Storage and maintenance

Switch off the product before storage and store it in a dry, ventilated place at room temperature. Do not place it near sources of water. For prolonged storage, charge and discharge the product every three months to prolong the life of the battery.

For long-term storage, please discharge the product every three months (first discharge to 0%, then fully charge and finally discharge to 60%). The product is not covered by the warranty if it is not charged and discharged for more than 6 months.

BLUEPALM

Technical data

GENERAL	Model BP-S500F
	Capacity 518Wh
	Cell Chemistry LiFePo4
	Single Cell Capacity 27Ah@3,2V/pcs
	Lifecycle	4000+ Cycles to 80% Capacity
	Indicator APP / LED Screen
	Discharge Temp. 14°F-140°F (-10°C-40°C)
	Charging Temp.	32°F-104°F (0°C-40°C)
	Material ABS+PC
	Weight 6.5±0,5kg
	Dimensions	332*178* 225 mm
	Battery Management System OVP, OCP,	ODP, SCP, etc.
	Solar Charge System	MPPT Charge Controller
INPUT	DC7909	240W Max (DC / Solar 12V-32V)
	USB-C 100W Max
OUTPUT	AC	220V-240V @ 50/60Hz800W Max
	USB-C 100W Max
	USB-A	18W Max
	DC 5525	120W Max (12V/10A)
	Car Port	120W Max (12V/10A)

BLUEPALM

Disclaimer

Our company shall not be liable for any damage caused by fire, earthquake, use by a third party, other accidents, willful misconduct on the part of the customer, improper use or other abnormal conditions. Do not repair any damage to the AC plug or power supply yourself. The warranty covers all terms and conditions of the warranty. Contents not specified in the warranty terms and conditions are beyond our responsibility. Our company accepts no liability for any damage caused by improper use or failure to comply with these operating instructions.

Black-and-white photo of a portable electricity generator on grass, no visible text or symbols on the device body.

BLUEPALM

WARRANTY

With this quality product from BLUEPALM, you have made a decision for innovation, durability and reliability.

For this BLUEPALM unit, we grant a warranty period of 2 years from the date of purchase, valid in Austria, Germany, Sweden, Netherlands, Romania, Czech Republic, Slovakia! If, contrary to expectations, service work should nevertheless be necessary on your unit during this period, we hereby guarantee to repair it free of charge (spare parts and labour) or (at the discretion of Schuss) to exchange the product. If neither repair nor replacement is possible for economic reasons, we reserve the right to issue a credit note for the current value. In the event of warranty claims, please contact your specialist dealer or us directly. We would like to point out that repair work that has not been carried out by the authorized contract workshop in Austria immediately terminates the validity of this warranty.

This warranty does not cover:

• Repair or replacement of parts due to normal wear and tear
• Damage due to non-observance of the operating instructions
• Devices that are used - even only partially - for commercial purposes
• equipment mechanically damaged by external influence (fall, impact, breakage, improper use, etc.) as well as wear and tear of an aesthetic nature.
• Equipment that has been improperly handled
• Units that have not been opened by our authorized service workshop.
• Consumer expectations not met.
• Damage caused by force majeure, water, lightning, overvoltage.
- Units where the type designation and/or serial number on the unit has been changed, deleted, made illegible or removed.
• Services outside our authorized workshops, the transport costs to an authorized workshop or to us and back, and the associated risks.

We expressly point out that within the warranty period, a lump sum of € 60,- (indexed basis CPI 2010, June 2015) will be charged in case of operating errors or if no error was detected.

The absolute warranty period of 2 years from the date of purchase is not extended by the provision of warranty service (repair or replacement of the unit). The 2-year guarantee is only valid on presentation of the purchase receipt (must contain the name and address of the dealer as well as the complete designation of the appliance) and the corresponding guarantee certificate, on which the type of appliance as well as the serial number (visible on the box and on the back or bottom of the appliance) must be noted! Without presentation of the guarantee certificate, only the legal guarantee applies! We expressly point out that the statutory warranty rights are not affected by this warranty and continue undiminished. Schuss Home Electronic GmbH and its vicarious agents shall only be liable for damages in the event of gross negligence or intent. In any case, liability for loss of profit, expected but not realised savings, consequential damage and damage from third party claims is excluded. Damages to or for recorded data are always excluded from the liability for damages.

Congratulations on your choice. We wish you much pleasure with your BLUEPALM appliance!

ADDRESS

Schuss Home Electronic GmbH

1140 Vienna, Scheringgasse 3

Tel.: [phone]

Type designation: ....

Serial number: ....

In the event of a warranty claim, this warranty certificate must be handed over together with the unit to the authorized service workshop or the dealer from whom you purchased the unit!

BLUEPALM

DECLARATION OF CONFORMITY

DECLARATION OF CONFORMITY

Schuss Home Electronic GmbH

Scheringgasse 3

1140 Vienna

AUSTRIA

Declares that the product

Declares that the product

Manufacturer

Producer

BLUEPALM

Designation

Description

Power Station

Model no.

Model No.

BP-S500F

complies with the following directives, standards and/or regulations: is conformity with following directives, norms and/or regulations:

RED Richtlinie / RED directive 2014/53/EU

Health and safety

EN IEC 62368-1:2020+A11:2020

EMC

EN 301489-1 V2.2.3 (2019-11)

EN 301489-17 V3.2.4(2020-09)

EN 55032:2015

EN 55035:2017

Radio aspects

EN 300328 V2.2.2 (2019-07)

Reach SVHC(EC)NO. 1907/2006

RoHs Directive / RoHs directive 2011/65/EU & (EU) 2015/863

Place and date of the exhibition:

Place and date of issue:

Vienna, 2022-12-30

Declaration reference:

Declaration reference:

SCHUSS HOME ELECTRONIC GMBH

Scheringgasse 3, 1140 Vienna, AUSTRIA

Subject to changes and misprints, the current version can be downloaded:

Subject to alterations and printing errors, the current version is available for download:
