USER MANUAL CP7304 SOLAC

Black and white photo of a Solac hair curler (no text or symbols visible)

CORTADORA DE PELO Instrucciones de uso HAIR CLIPPER Instructions for use TONDEUSE À CHEVEUX Mode d'emploi HAARSCHNEIDER Gebrauchsanleitung TAGLIACAPELLI Istruzioni per l'uso CORTADOR DE CABELO Instruções de uso TALLADORA DE CABELLS Instruccions d'ús SCHAAR Gebruiksaanwijzing ZASTŘIHOVAČ VLASŮ Návod k pouzití MASZYNKA DO WŁOSÓW Instrukcja obsługi ŠTIPEC DO VLASOV Návod na použitie HAJVÁGÓ Használati utasítás MAШИНКА ЗА ПОДСТРИГВАНЕ Инструкция заупотреба MAŞINĂ DE TUNS PĂRUL Instrucțiuni de utilizare

Technical diagram of a hair styling tool with labeled parts including a brush, fan blade, and clip holder

Fig.1Fi
Fig.2		Fig.4
Fig.5	Fig.6		Fig.7
Fig.8Fig.9

Español

RECORTADORA DE PELO

DESCRIPCIÓN

E Guide comb (3, 6, 9, 12, 15

y 18mm)

F Cutting height scale

G Height-of-cut selector

H Thinning out comb

I Thinning out function switch

J Battery charger

K Lubricating oil

L Cleaning brush

USE AND CARE:

- Fully unroll the appliance's power cable before each use.

- Do not use the appliance if its accessories are not properly fitted.

- Do not use the appliance on wet hair.

- Do not use the appliance if the on/off switch does not work.

- If you use the appliance in a bathroom or similar place, unplug the appliance from the mains when it is not in use, even if it is only for a short while, as proximity to water involves a risk, even if the

appliance is disconnected.

- Disconnect the battery charger from the mains when not in use and before undertaking any cleaning task.

- This appliance is for household use only, not professional or industrial use.

- This appliance should be stored out of reach of children and/or the disabled.

- Keep the appliance in good condition. Check that the moving parts are not misaligned or jammed and make sure there are no broken parts or anomalies that may prevent the appliance from operating correctly.

- Use the appliance and its accessories and tools in accordance with these instructions, taking into account the working conditions and the work to be performed. Use the appliance for operations different from those intended could result in a hazardous situation.

- Do not open the battery/ies under any circumstances whatsoever.

- Do not use the appliance with pets or animals.

- Pay special attention when assembling and removing the accessories, as the blades are

sharp. Be careful and avoid direct contact with the blades' cutting edges.

- Recharge the battery/ies only with the charger supplied by the manufacturer. A charger that is suitable for one type of battery may cause explosion or fire hazard when used with other battery/ies.

CHARGING THE BATTERY

- Caution: A new battery is not fully charged and must therefore be charged before the appliance is used for the first time.

- Charge the battery at an atmospheric temperature of between 4 and 40°C.

- Plug the charger (J) into the mains.

- The first charging takes approximately 10 to 12 hours and subsequent chargings will take about 8 hours. Never attempt to over-charge the batteries.

- Connect the charger (J) to the jack using the socket on the appliance. The socket is located at the lower/back part of the appliance.

- The pilot light will come on to indicate that the charger is charging the battery.

- When the battery is charged disconnect the charger from

the mains supply.

- NB: For a long battery life, it is advisable to charge the battery, only, when it has run out completely.

INSTRUCTIONS FOR USE

BEFORE USE:

- Before using this product for the first time, it is important to make a full charge of batteries.

- Prepare the appliance according to the function you wish to use:

INSERTION OF COMB GUIDE:

- Take the comb guide for both ends and insert in the guidelines at the sides of the appliance until it fits properly (Fig.1).

- To extract the comb guide, just pull out.

USE:

- The appliance can be used by using his batteries.

- Turn the appliance on, by using the on/off switch.

- Select the desired cutting height using the comb height selector (G). Slide it and adjust the height according to the desired cutting length.

HOW TO CUT THE HAIR:

- Situate the person whose hair you are going to cut so that the top of their head is at your eye level. Place a protective towel or cloth around their neck.

- To obtain best results is better to use the appliance on dry hair, as it is much easier to control the hair and the result.

- Comb hair well before cutting. Make sure that there are no tangles or knots.

- Hold the appliance in a calm and relaxed manner in order to ensure maximum control of the cut and a uniform result. Proceed to use short cuts gradually going around the head.

- Leave the hair a little longer than desired length as it can always be altered later.

- While working adapt the comb / comb guide to the desired result

- At regular intervals, stop cutting in order to comb the hair and check the results so far.

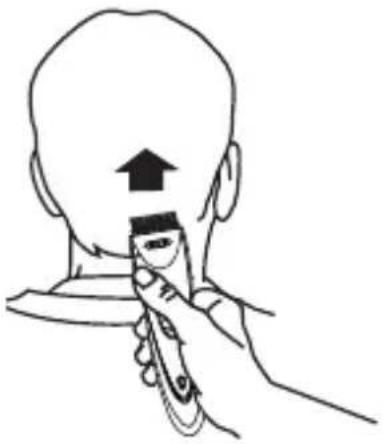

Step 1 Nape:

- Attach comb guide size 3-18mm (E)

- Hold the appliance with the razor facing downwards and begin to cut the hair from the base of the neck.

- Make some upward movements, raising the appliance gradually and away from the head, cutting the hair gradually until the height of the ears (Fig 2)

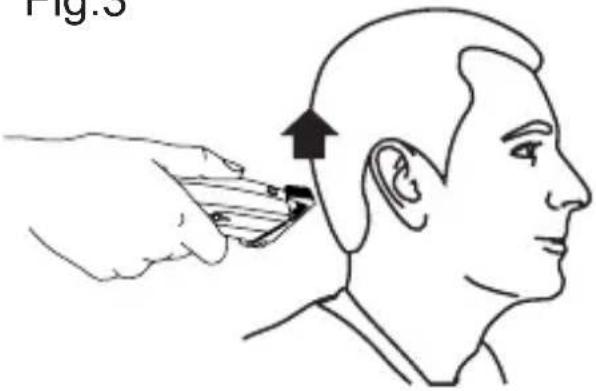

Step 2 The back of the head:

- Attach comb guide (E) and continue with the back of the head (Fig 3)

Step 3 The side of the head:

- Attach comb guide (E) to trim the sideburns and continue until you reach the top of the head.

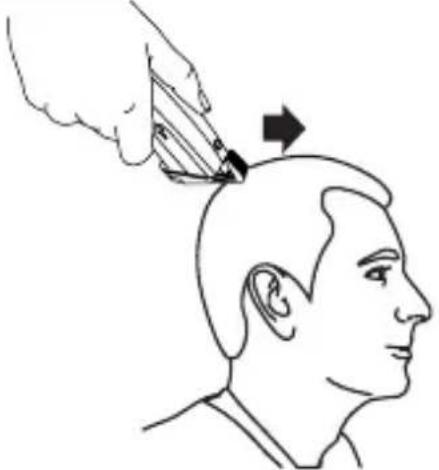

Step 4 The top of the head:

- Using comb guide (E), pass the appliance from the back to the front, against the growth of the hair (Fig 4). In some cases it's necessary to go over what you have done a second time from front to back.

- The comb guide (E) is for when you want to achieve a more precise cut.

- Always work from the back to the front reducing the length between your fingers or the comb and the head gradually.

Step 5. Final touch

- Finally use the appliance without attaching any comb guides to the blades to cut the

hair around the base of the neck, the sides of the neck and the ears.

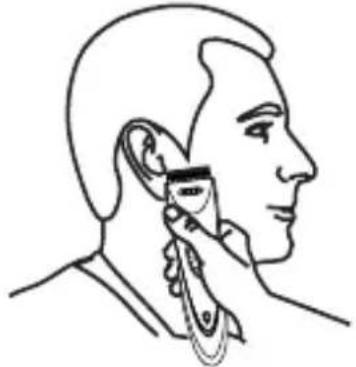

- To make the sideburns straight, turn the appliance over to use the upper blades (Fig 5). Move the appliance adapting it the physiognomy of the head. To achieve more precise results use a shaver.

THINNING OUT FUNCTION:

- The appliance includes a thinning out function, which reduces the volume of hair. Select this function to use or hide the thinning out comb (Fig. 6)

ONCE YOU HAVE FINISHED USING THE APPLIANCE:

- Turn the appliance off, using the on/off switch.

- Clean the appliance.

CLEANING

- Disconnect the appliance from the mains and allow it to cool before undertaking any cleaning task.

- Disassemble the appliance in accordance with the following steps:

- Hide the thinning out comb by using the thinning out comb switch (H)

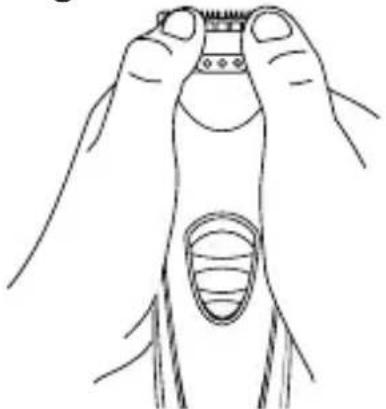

- Hold the appliance with one hand and use the thumb to

press the blades while holding the plastic part with the index finger until the blades come out (Fig. 7).

- Use the cleaning brush (L) to remove the hair from inside the appliance and the blades.

- Clean the equipment with a damp cloth with a few drops of washing-up liquid and then dry.

- Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.

- Never submerge the appliance in water or any other liquid or place it under running water.

- During the cleaning process, take special care with the blades, as they are very sharp.

HOW TO REMOVE THE BATTERIES FROM THE INTERIOR OF THE DEVICE:

- The battery must be removed from the appliance before it is scraped

- Caution: It is important that the batteries are fully dis-charged prior to its withdrawal from the apparatus.

- The appliance must be disconnected from the supply mains when removing the battery.

To remove the batteries, once the life of the applian-ce, proceed as follows:

• Open the top shell of the apparatus, removing pre-viously with the help of a screwdriver fixing screws (Fig 8)

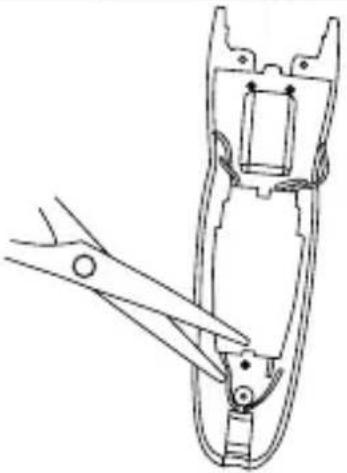

• Identify the battery wires and cut their (Red and Black). To avoid risks of a short circuit with a possible residual battery load, first cut the Red wire and protect it by using insulating tape, then proceed to cut the Black wire proceeding in the same way. (Fig 9)

- Safely remove the battery from its housing

Français

E Pinta guia (3, 6, 9, 12, 15 i 18mm)

This product enjoys the recognition and protection of the legal guarantee in accordance with current legislation. To enforce your rights or interests you must go to any of our official technical assistance services. You can find the closest one by accessing the following web link: http://solac.com

You can also request related information by contacting us by phone.

You can download this instruction manual and its updates at http://solac.com
