USER MANUAL GZC 64300 XBN TEKA

Modern kitchen interior with glossy black walls, oven, and stainless steel appliances (no visible text or symbols)

Black plastic heat exchanger or fan cover with multiple vented chambers and mounting holes (no text or symbols visible)

EN Installation instructions and recommendations for using und maintaining....57

UTILISATION - GEBRUIK - GEBRAUCH - USE

FIG. - AFB. - ABB. 2

Line drawings of two cooking pots with diagonal bracing and heating elements (no text or symbols)

(*) entree d'air: voir chapitre installation (paragraphes 5 et 6)
(*) luchtinlaat: zie installatiehoofdstuk (paragrafen 5 en 6)
(*) Lufteinlass: siehe Installationskapitel (Absätze 5 und 6)

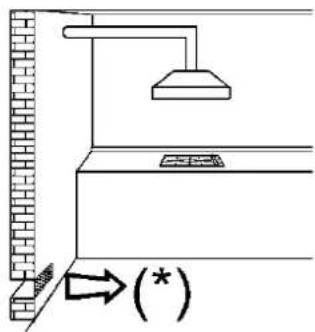

(*) air inlet: see installation chapter (paragraphs 5 and 6)

Diagram showing a wall corner with brick wall and a marked point (*) indicating a location or feature.

FIG. - AFB. - ABB. 3

Diagram showing a ceiling fixture with an air conditioner unit and a directional arrow labeled (*) indicating rotation or movement.

FIG. - AFB. - ABB. 4 F

Diagram showing a wall-mounted device with an arrow pointing to a marked point (*) on the wall, indicating a location or component.

• ABB. 5

NETTOYAGE - REINIGING - REINIGUNG - CLEANING

C T TC AC

FIG. - AFB. - ABB. 6 F

B A B A X

• ABB. 6/A FIG. - AFB. -

Line drawing of a hand using a tool to clean a circular object with a small hole (no text or symbols)

INSTALLATION - INSTALLATIE - INSTALLATION

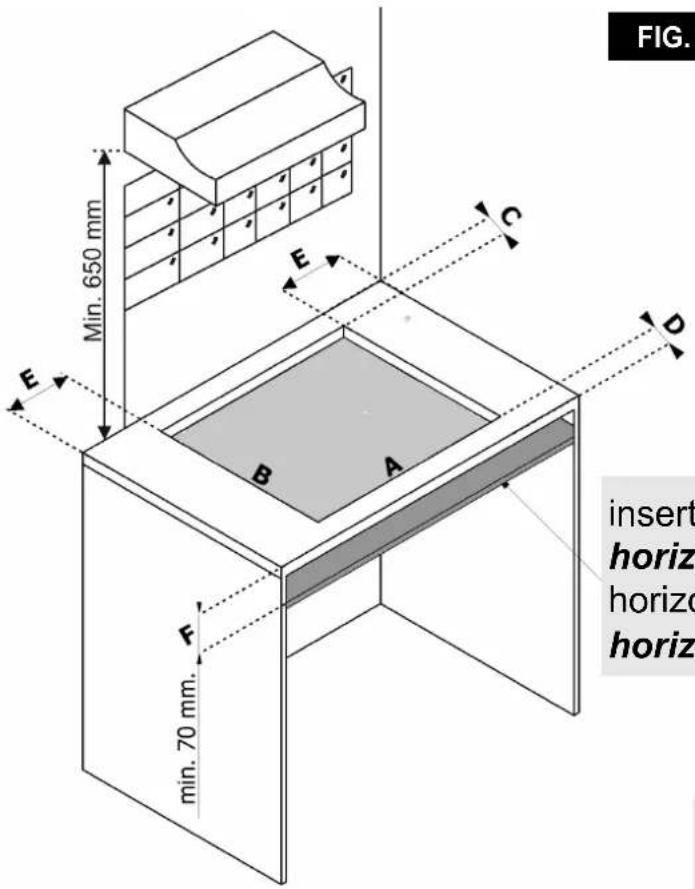

FIG. - AFB. - ABB. 7

FIG. Min. 650 mm E C D B A F min. 70 mm. insert horiz horiz horiz

inserte en bois horizontal horizontaal houten inzetstuk horizontaler Holzeinsatz horizontal wooden insert

Dimensions a respecter (en mm)

Comply with the dimensions (in mm)

Mod: “GZC”	inst. type/tip:	A B C D E F
	B 280 490 55 55 160 70 min.
64300	A 570 480 60 60 165 70 min.
	A 570 480 60 60 165 70 min.
95320 A 850 480 60 60 65 70 min.

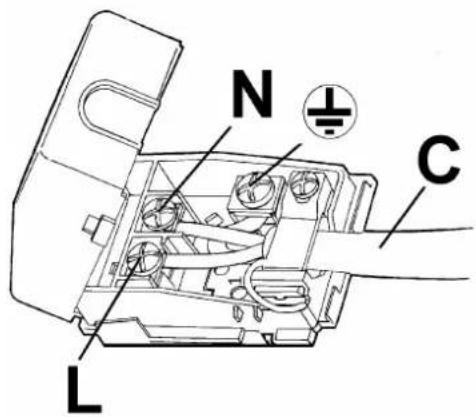

N C L

FIG. - AFB. - ABB. 8

INSTALLATION - INSTALLATIE - INSTALLATION

INSTALLATION TYPE A: cote chrome

Technical diagram showing a mechanical assembly with labeled components (G, F, 1) and directional arrows indicating assembly or movement.

Model: GZC 95320

5320 1 B. 9

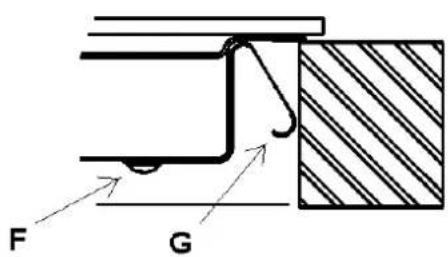

FIG. - AFB. - ABB. 9

G F

FIG. - AFB. - ABB. 9/A

F G

INSTALLATION - INSTALLATIE - INSTALLATION

Technical diagram showing a mechanical component with labeled parts G, F and a magnified inset view of a device with part 2.

Model: GZC 95320

320 2

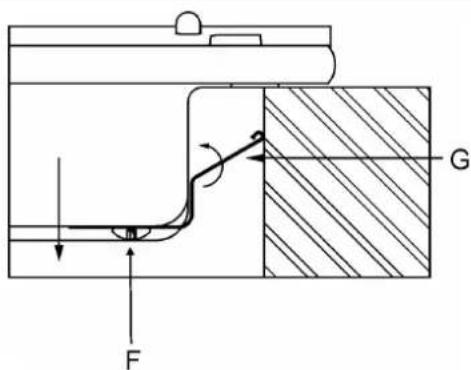

FIG. - AFB. - ABB. 10

F G

FIG. - AFB. - ABB. 10/A

F G

FIG. - AFB. - ABB. 10/B

Procédure pour une installation correcte de la table de cuisson Procedure voor een correcte installatie van de kookplaat Vorgehensweise für eine korrekte Installation des Kochfeldes Procedure for a correct installation of the hob

Technical diagram of a mechanical assembly with labeled components and directional arrows indicating motion or assembly.

INSTALLATION - INSTALLATIE - INSTALLATION

Mod.: 30 cm.

INSTALLATION TYPE/TYP: B

G F

FIG. - AFB. - ABB. 11

INSTALLATION TYPE:

Technical diagram showing a mechanical assembly with labeled parts A and B, likely illustrating a tool or component assembly.

FIG. - AFB. - ABB. 13

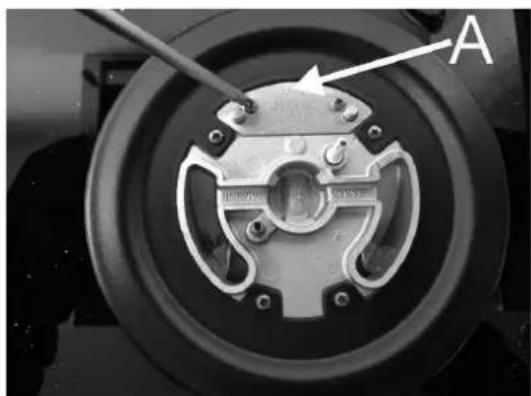

Close-up of a mechanical component with labeled section A, showing internal parts and mounting holes (no readable text or symbols beyond label)

FIG. - AFB. - ABB. 13/A

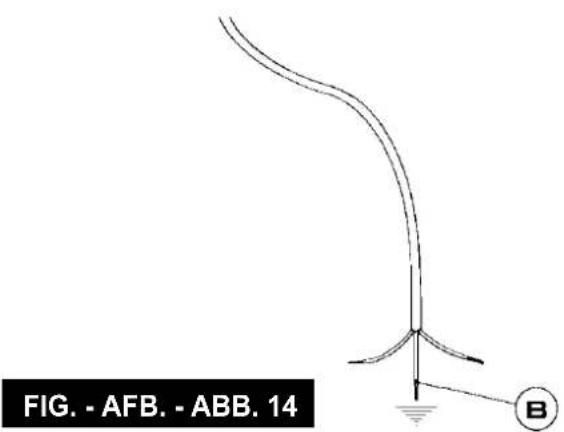

FIG. - AFB. - ABB. 14 B

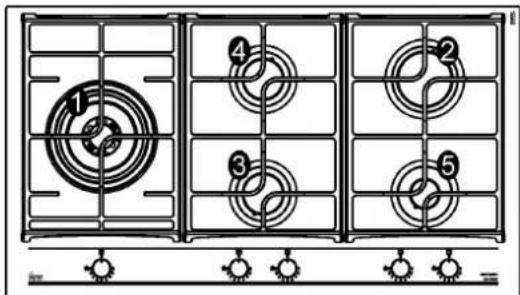

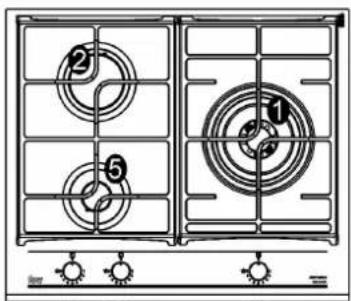

DONNEES TECHNIQUES DE LA RÉGULATION GAZ DE L'APPAREIL

In case of adaptation of the hob to another type of gas, operate as described in the directions for the and installation use and replace the label on the bottom with the one provided in the spare bag.

Line drawing of a portable stove with a circular vent and side grilles (no text or symbols)

7

Diagram of a gas stove with numbered components and control knobs at the bottom

8 11

Diagram of a two-gas stove with numbered circular components and control knobs below

8 11

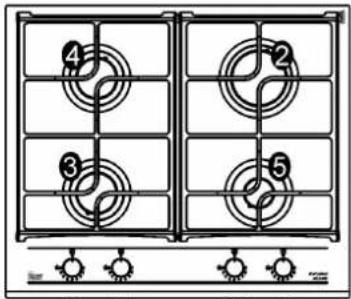

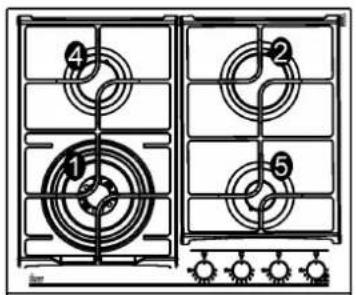

GZC 64300

Diagram of a four-gas stove with numbered chambers and control switches below

10 9
11 8

Diagram of a two-gas stove with numbered components for cooking or heating

10 7 8 11

Diagram of a four-panel electric stove with numbered components and control knobs below

7
9 10
11 8

Diagram of a gas stove interior with numbered circular components and rotary switches below

10 9
7
11 8

GZC 95320

Diagram of a gas stove with numbered components for cooking or heating, showing fan arrangement and rotary controls.

7
10 9
8 11

Diagram of a gas stove interior with numbered compartments and fan layout, showing electrical connections and fan arrangement.

8
11
9
10

INSTALLATION TYPE: A

INSTALLATION TYPE: B

ROBINETS LUBRIFICATION

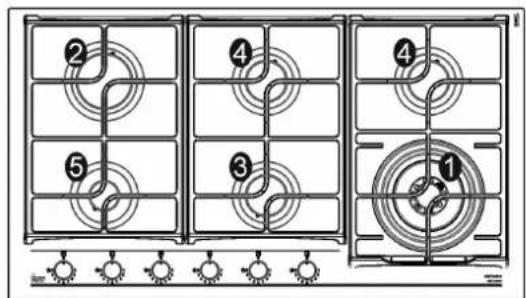

10) REMPLACEMENT DES BUSES

Diagram of a three-g Window (W) gas stove with numbered circular vent slots and control knobs below

7
10 9
8 11

Diagram of a gas stove interior with numbered compartments and fan mechanism, showing electrical connections and control switches.

8
11 10
9
10 7

1 Supersnelle gasbrander (*DCC AFB) van 4000 W
2 Snelle gasbrander van 2800 W
3 Semi snelle gasbrander verlaagd van 1400 W
4 Semi snelle gasbrander van 1750 W
5 Hulpgasbrander van 1000 W
7 Brander 1 bedieningsknop
8 Brander 2 bedieningsknoppen
9 Brander 3 bedieningsknoppen
10 Brander 4 bedieningsknoppen
11 Brander 5 bedieningsknoppen

Diagram of a three-g Window (W) gas stove with numbered circular vent cycles and control knobs below

7
10 9
8 11

Diagram of a three-tier electric stove with numbered components and fan-like heating elements

8
11
10
9
10

Brenner Topf ∅ in cm

Ultrarapid 24 ÷ 26
Schnell	20 ÷ 22
Semirapid reduziert	16 ÷ 18
Semirapid	16 ÷ 18
Hilfsbrenne	10 ÷ 14

INSTALLATIONS TYP: A

The appliance and its accessible parts become hot during use.

Care should be taken to avoid touching heating elements.

Children less than 8 years of age shall be kept away unless continuously supervised.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision.

WARNING:

This cook top was designed to be used exclusively as a cooking appliance: any other use (such as heating rooms) is to be considered improper and dangerous.

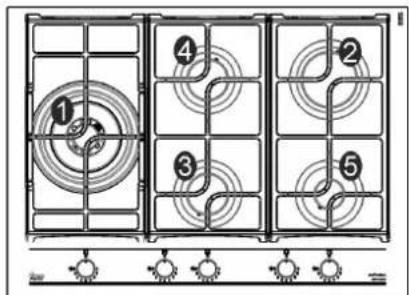

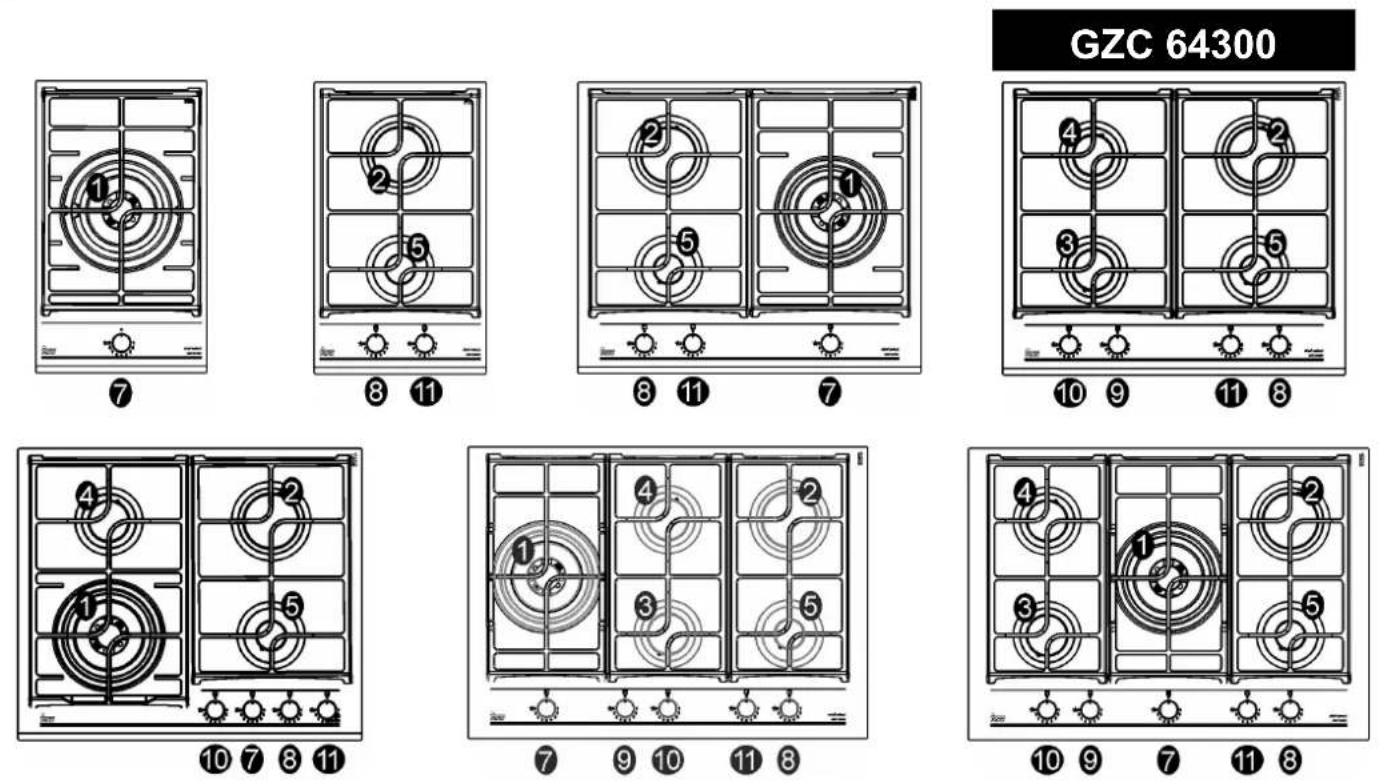

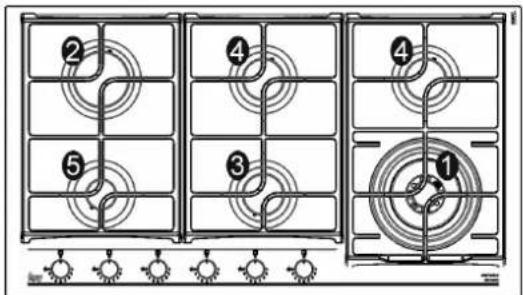

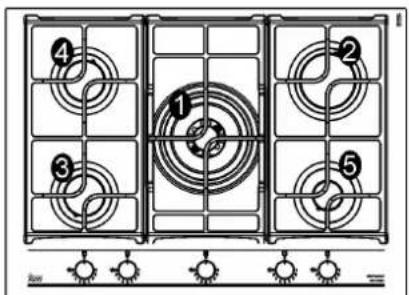

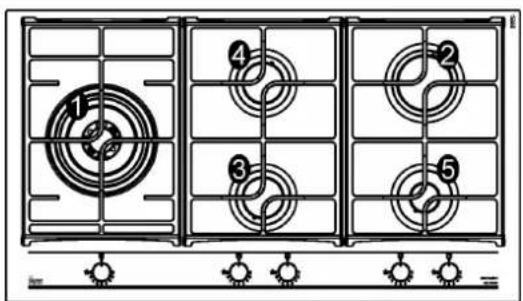

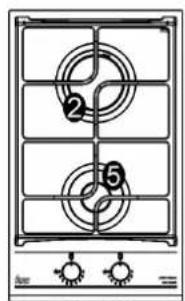

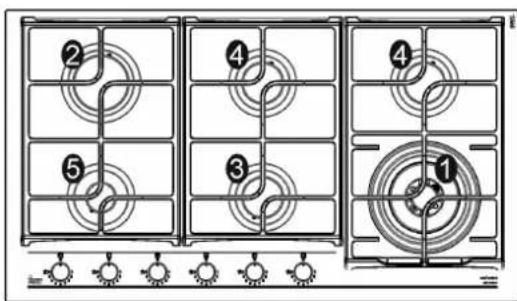

DESCRIPTION OF HOBS

1. Ultra rapid burner (*DCC AFB) of 4000 W
2. Rapid gas burner of 2800 W
3. Semirapid gas burner reduced of 1400 W
4. Semirapid gas burner of 1750 W
5. Auxiliary gas burner of 1000 W
6. Burner n° 1 control knob
7. Burner n° 2 control knob
8. Burner n° 3 control knob
9. Burner n° 4 control knob
10. Burner n° 5 control knob

*DCC AFB: Air from bottom.

Attention: this appliance has been manufactured for domestic use only and it employment by private person.

GZC 95320

Diagram of a three-g Window (W) gas stove with numbered rotary switches and fan-like heating elements

7
10 9
8 11

Diagram of a three-gas stove with numbered components and rotary switches, likely for cooking or heating.

8
11 10
9
10 7

IMPORTANT SAFETY WARNINGS

WARNINGS AND ADVICE FOR THE USER:

• use of a gas cooking appliance produces heat and moisture in the room in which it is installed. The room must therefore be well ventiladed by keeping the natural air vents clear (see fig. 3) and by activating the mechanical aeration device (suction hood or electric fan fig. 4 and fig. 5).
• Intensive and lengthy use of the appliance may require additional ventilation. This can be achieved by opening a window or by increasing the power of the mechanical exhausting system if installed.
• Do not attempt to change the technical characteristics of the product because it can be dangerous.
• If you should not to use this appliance any more (or replace an old model), before disposing of it, make it inoperative in conformity with current law on the protection of health and the prevention of environmental pollution by making its dangerous parts harmless, especially for children who might play on an abandoned appliance.
• Do not touch the appliance with wet or damp hands or feet.
• Do not use the appliance barefoot.
• Never use aerosols near the appliance when it is operating.
• The manufacturer will not be liable for any damage resulting from improper, incorrect or unreasonable use.
• During, and immediately after operation, some parts of the cook top are very hot: avoid touching them.

WARNING: during operation the work surfaces of the cooking area become very hot: keep children away!

• After using the cook top, make sure that the knob is in the closed position and close the main tap of the gas supply or gas cylinder.
• If the gas taps are not operating correctly, call the Service Department.

CAUTION:

In case of hotplate glass breakage:

• shut immediately off all burners and any electrical heating element and isolate the appliance from the power supply;
• do not touch the appliance surface;
  •do not use the appliance.

IMPORTANT!

A perfect installation, adjustment or transformation of the cook top to use other gases requires a QUALIFIED INSTALLER: a failure to follow this rule will void the warranty.

- IMPORTANT: the appliance must be installed following the manufacturer's instructions. The manufacturer will not be liable for injury to persons or animals or property damage caused by an incorrect installation.

- If the installation requires modifications to the home's electrical system or if the socket is incompatible with the appliance's plug, have changes or replacements performed by professionally-qualified person. In particular, this person must also make sure that the section of the wires of the socket is suitable for the power absorbed by the appliance.

- Keep the Warranty Certificate or the sheet of technical data with the Instructions Handbook during the appliance life. It contains important technical data.

IMPORTANT:

The appliance complies with the provisions of the sub-regulations for European Directives:

- Regulation (EU) 2016/426.

WARNINGS:

all our products are conform with the European Norms and relative amendments. The product is therefore conform with the requirements of the European Directivesin force relating to:

• compatibility electromagnetic (EMC);
• electrical security (LVD);
• restriction of use of certain hazardous substances (RoHS);
• EcoDesign (ERP).

1) TRADITIONAL BURNERS

A diagram is screen-printed above each knob on the front panel. This diagram indicates to which burner the knob in question corresponds. After having opened the gas mains or gas bottle tap, light the burners as described below:

- Electrical ignition

Push and turn the knob corresponding to the required burner in an anticlockwise direction until it reaches the full on position of full (position 9 fig. 1), then depress the knob, the tap is equipped with a scale of 9 positions, with each click the flame is reduced until you reach the position of 1, ie the minimum supply of gas.

- Lighting burners equipped with flame failure device

The knobs of burners equipped with flame failure device must be turned in an anticlockwise direction until they reach the full on position 9 (large flame fig. 1) and come to a stop. Now depress the knob in question and repeat the previously indicated operations.

Keep the knob depressed for about 10 seconds once the burner has ignited.

Then follow the instructions for using the tap as explained above.

Note: you are advise not to try and light a burner if the flame divider (Burner Cap) is not correctly place.

In the event of the Burner flames being accidentally extinguished, turn off the burner control and do not attempt to reignite the burner for a least 1 minute.

HOW TO USE THE BURNERS

Bear in mind the following indications in order to achieve maximum efficiency with the least possible gas consumption:

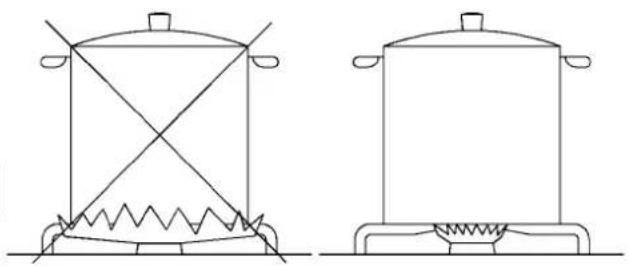

- use adequate pans for each burner (consult the following table and fig. 2).

- When the pan comes to the boil, set the knob to

Burners	Pan ∅ in cm
Ultra Rapid	24 ÷ 26
Rapid	20 ÷ 22
Semirapid reduced	16 ÷ 18
Semirapid	16 ÷ 18
Auxiliary	10 ÷ 14

the reduced rate position 1 (small flame fig. 1).

- Always place a lid on the pans.

WARNINGS:

• burners with flame failure device may only be ignited when the relative knob has been set to the Full on position (Position 9, fig. 1).
• matches can be used to ignite the burners in a blackout.
• Never leave the appliance unattended when the burners are being used. Make sure there are no children in the near vicinity. Particularly make sure that the pan handles are correctly positioned and keep a check on foods requiring oil and grease to cook since these products can easily catch fire.
• If the built-in hot plate has a lid, any spilt food should be immediately removed from this before it is opened. If the appliance has a glass lid, this could shatter when the hot plate becomes hot. Always switch off all the burners before closing the lid.
• Containers wider than the unit are not recommended.
• Don't scrape the pans on the crystal because the surface remains scratch.

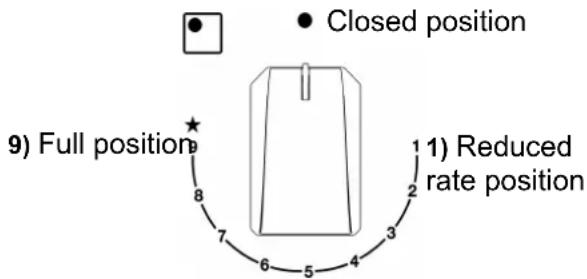

Closed position 9) Full position 1) Reduced rate position

FIG. 1

INSTALLATION CLEAN

IMPORTANT:

always disconnect the appliance from the gas and electricity mains before carrying out any cleaning operation.

2) HOT PLATE

Periodically wash the gas hob, the enamelled stell pan support, the enamelled burner caps "A", "B" and "C" and the burner heads "T" (see fig. 6 and 6/A) with lukewarm soapy water. They should also be cleaned plugs "AC" and flame detection "TC" (see fig. 6). Clean them gently with a small nylon brush as shown (see fig. 6/B) and allow to dry fully. It is very important to clean the surface soon after every use, when the glass is still tepid. Do not wash in the dishwasher.

Do not allow vinegar, coffee, milk, salted water, lemon or tomato juice from remaining in contact with the enamelled surfaces for long periods of time. Do not use metallic sponges, powder abrasives or corrosive sprays.

WARNINGS:

comply with the following instructions, before remounting the parts:

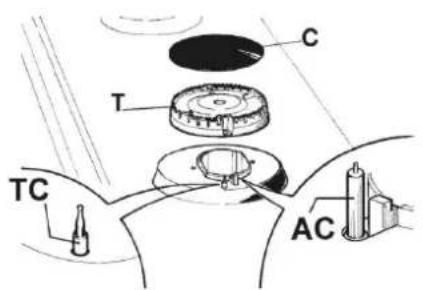

• check that burner head slots "T" (fig. 6) have not become clogged by foreign bodies.

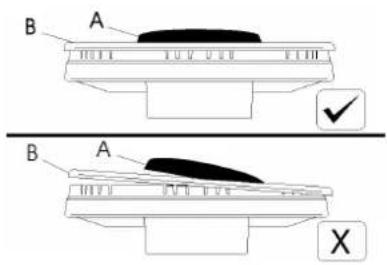

• Check that enamelled burner cap "A - B - C" (fig. 6 - 6/A) have correctly positioned on the burner head. It must be steady.
• The pan support must be placed in the appropriate centering pins, (or on the aluminium profile if present). Verifying the perfect stability.
• Do not force the taps if they are difficult open or close. Contact the technical assistance service for repairs.

- Don't use steam jets for the equipment cleaning.

TECHNICAL INFORMATION FOR THE INSTALLER

Installation, adjustments of controls and maintenance must only be carried out by a qualified engineer.

The appliance must be correctly installed in conformity with current law and the manufacturer's instructions.

Incorrect installation may cause damage to persons, animals or property for which the Manufacturer shall not be considered responsible.

During the life of the system, the automatic safety or regulating devices on the appliance may only be modified by the manufacturer or by his duly authorized dealer.

3) INSTALLING THE HOT PLATE

Check that the appliance is in a good condition after having removed the outer packaging and internal wrappings from around the various loose parts. In case of doubt, do not use the appliance and contact qualified personnel.

Never leave the packaging materials (cardboard, bags, polystyrene foam, nails, etc.) within children's reach since they could become potential sources of danger.

The measurements of the opening made in the top of the modular cabinet and into which the hot plate will be installed are indicated in either fig. 7. Always comply with the measurements given for the hole into which the appliance will be recessed (see fig. 7.)

The appliance belongs to class 3 and is therefore subject to all the provisions established by the provisions governing such appliances.

Note: continuous use could cause the burners to change colour due to the high temperature.

INSTALLATION

4) FIXING THE HOT PLATE

INSTALLATION TYPE: A

The hot plate has a special seal which prevents liquid from infiltrating into the cabinet. Strictly comply with the following instructions in order to correctly apply this seal:

• take off all the movable parts of the hob.
• Cut the seal in 4 parts of the necessary lenght to positioning it on the 4 edges of the crystal.
• Overturn the hot plate and correctly position seal "E" (fig. 11/A under the edge of the hot plate itself, so that the outer side of the seal perfectly matches the outer perimetral edge of the crystal. The ends of the strips must fit together without overlapping.
• Evenly and securely fix the seal to the crystal, pressing it in place with the fingers.

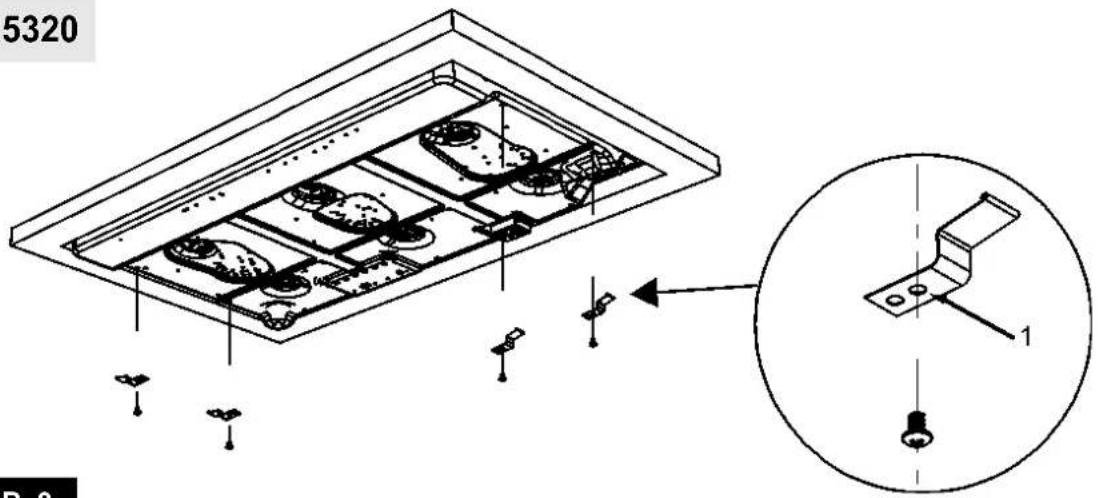

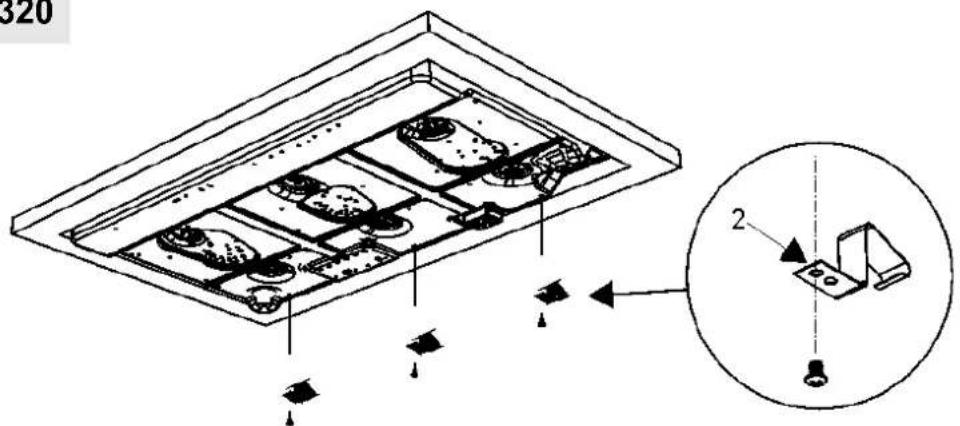

- Place the hooks in their respective positions, use the hole no. 1 as reference for position lateral (fig. 9) and hole no. 2 for positions rear (fig. 10).

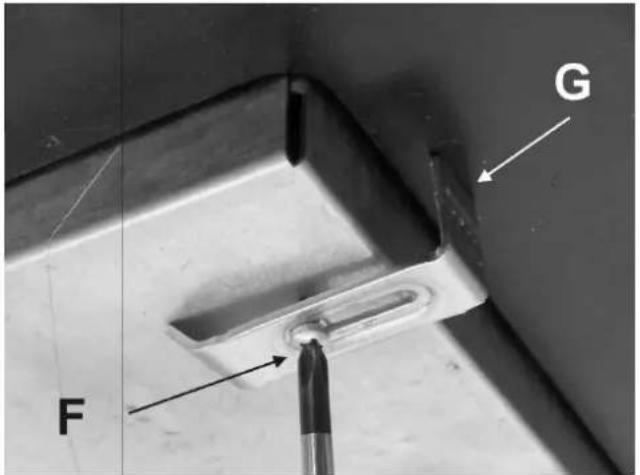

- Secure hooks "G" by means of screws "F" (fig. 9/A for lateral, and fig. 10/A for rear).

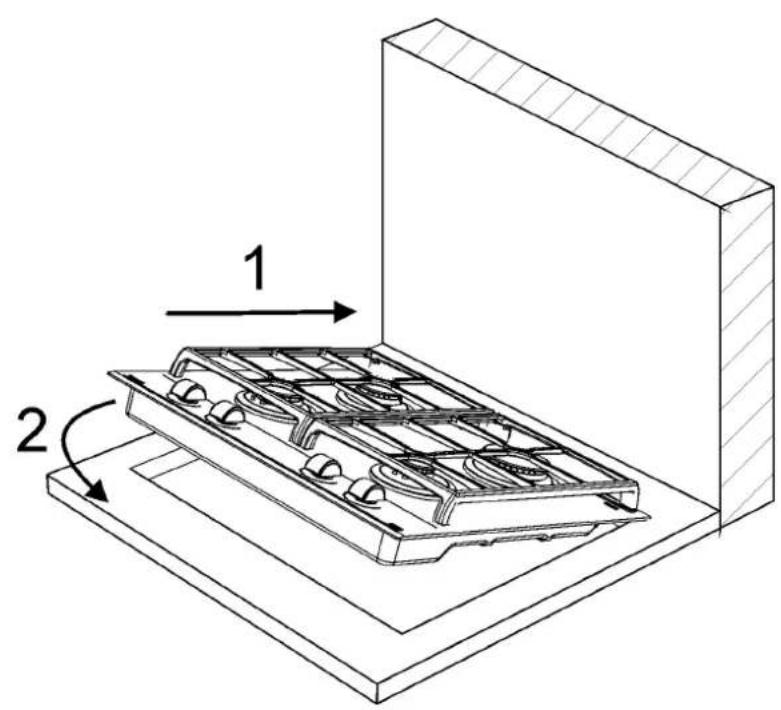

- Insert the cooking hob in the hole of the kitchen cabinet (as a scheme on pag. 9) by exercising a certain level of force in order to get over the resistance of the hooks (fig. 9/B for lateral and fig. 10/B for rear). See image page 8.

- In order to avoid accidental touch with the overheating bottom of the hob, during the working, is necessary to put a wooden insert, fixed by screws, at a minimum distance of 70 mm from the top (see fig. 7).

The hot plate has a special seal which prevents liquid from infiltrating into the cabinet. Strictly comply with the following instructions in order to correctly apply this seal:

• take off all the movable parts of the hob.
• Cut the seal in 4 parts of the necessary length to positioning it on the 4 edges of the crystal.
• Overturn the hot plate and correctly position seal "E" (fig. 11/A under the edge of the hot plate itself, so that the outer side of the seal perfectly matches the outer perimetral edge of the crystal. The ends of the strips must fit together without overlapping.
• Evenly and securely fix the seal to the crystal, pressing it in place with the fingers.
• Position the hob in the hole in the unit and fasten it in place using the appropriate screws "F" of the fastening hooks "G" (see fig. 11).
• In order to avoid accidental touch with the overheating bottom of the hob, during the working, is necessary to put a wooden insert, fixed by screws, at a minimum distance of 70 mm from the top (see fig. 7).

Caution: Do not allow the glass (A) lay directly on the work top. it is the metal bottom "carter" (B) that has to be in touch with the work top (see fig. 11/B).

INSTALLATION

IMPORTANT INSTALLATION SPECIFICATIONS

The installer should note that the appliance that side walls should be no higher than the hot plate itself. Furthermore, the rear wall, the surfaces surrounding and adjacent to the appliance must be able to withstand an temperature of 90 °C.

The adhesive used to stick the plastic laminate to the cabinet must be able to withstand a temperature of not less than 150 °C otherwise the laminate could come unstuck.

The appliance must be installed in compliance with the provisions in force.

This appliance is not connected to a device able to dispose of the combustion fumes. It must therefore be connected in compliance with the above mentioned installation standards. Particular care should be paid to the following provisions governing ventilation and aeration.

5) ROOM VENTILATION

It is essential to ensure that the room in which the appliance is installed is permanently ventilated in order to allow the appliance itself to operate correctly. the necessary amount of air is that required for regular gas combustion and ventilation of the relative room, the volume of which must not be less than 20 m ^3 . Air must naturally flow through permanent openings in the walls of the room in question. These openings must vent the fumes outdoors and their section must be at least 100 cm ^2 (see fig. 3). Construction of the openings must ensure that the openings themselves may never be blocked. Indirect ventilation by air drawn from an adjacent room is also permitted, in strict compliance with the provisions in force.

6) LOCATION AND AERATION

Gas cooking appliances must always dispose of their combustion fumes through hoods. These must be connected to flues, chimneys or straight outside. If it is not possible to install a hood, an electric fan can be installed on a window or on a wall facing outside (see fig. 4). This must be activated at the same time as the appliance (see fig. 5), so long as the specifications in the provisions in force are strictly complied with.

7) GAS CONNECTION

Before connecting the appliance, check that the values on the data label affixed to the underside of the hot plate correspond to those of the gas and electricity mains in the home. A label on the appliance indicates the regulating conditions: type of gas and working pressure. Gas connection must comply with the pertinent standards and provisions in force.

When gas is supplied through ducts, the appliance must be connected to the gas supply system:

• with a rigid steel pipe. The joints of this pipe must consist of threaded fittings conforming to the standards.
• With copper pipe. The joints of this pipe must consist of unions with mechanical seals.
• With seamless flexible stainless steel pipe. The length of this pipe must be 2 meters at most and the seals must comply with the standards.

When the gas is supplied by a bottle, the appliance must be fuelled by a pressure governor conforming to the provisions in force and must be connected:

- with a copper pipe. The joints of this pipe must consist of unions with mechanical seals.

- With seamless flexible stainless steel pipe. The length of this pipe must be 2 meters at most and the seals must comply with the standards. It is advisable to apply the special adapter to the flexible pipe. This is easily available from the shops and facilitates connection with the hose nipple of the pressure governor on the bottle.

- With rubber hose pipe in compliance with standards. The diameter of this hose pipe must be 8 mm and its length must be no less than 400 mm and no more than 1500 mm. It must be firmly fixed to the hose nipple by means of the safety clamp specified by standards.

WARNINGS:

remember that the gas inlet union on the appliance is a 1/2" gas parallel male type in compliance with EN 10226 standards. Installation of stainless steel pipe and rubber hose pipe must ensure that it is never able to touch mobile parts of the built-in cabinet (eg. drawers). Furthermore, it must not pass through compartments that could be used for storage purposes.

When using a rubber hose pipe, it is essential to comply with the following instructions:

- no part of the pipe must be able to touch parts the temperature of which exceeds 90 °C.

- The pipe must not be pulled or twisted, throttled or tightly bent.

- It must not come into contact with sharp edges or corners.

- It must be easy to inspect the entire pipe length in order to check its state of wear.

- The pipe must be replaced within the date stamped on the pipe itself.

INSTALLATION

The electrical connections of the appliance must be carried out in compliance with the provisions and standards in force.

Before connecting the appliance, check that:

• the voltage matches the value shown on the specification plate and the section of the wires of the electrical system can support the load, which is also indicated on the specification plate.
• The electrical capacity of the mains supply and current sockets suit the maximum power rating of the appliance (consult the data label applied to the underside of the hot plate).
• The socket or system has an efficient earth connection in compliance with the provisions and standards in force. The manufacturer declines all responsibility for failing to comply with these provisions.

When the appliance is connected to the electricity mains by a socket:

- fit a standard plug "C" (fig. 8) suited to the load indicated on the data label to the cable. Fit the wires following figure 8, taking care of respecting the following correspondences:

Letter L (live) = brown wire;

Letter N (neutral) = blue wire;

earth symbol ≡ green - yellow wire.

• The power supply cable must be positioned so that no part of it is able to reach an temperature of 90^ C.
• Never use reductions, adapters of shunts for connection since these could create false contacts and lead to dangerous overheating.
• The outlet must be accessible after the built-in.

When the appliance is connected straight to the electricity main:

• install an omnipolar circuit-breaker between the appliance and the electricity main. This circuit-breaker should be sized, in compliance with current installation regulations.
• Remember that the earth wire must not be interrupted by the circuit-breaker.
• For optimum safety, the electrical connection may also be protected by a high sensitivity differential circuit-breaker.

You are strongly advised to fix the relative yellow-green earth wire to an efficient earthing system.

Before performing any service on the electrical part of the appliance, it must absolutely be disconnected from the electrical network.

ADJUSTMENTS

Always disconnect the appliance from the electricity main before making any adjustments. All seals must be replaced by the technician at the end of any adjustments or regulations. Our burners do not require primary air adjustment.

9) TAPS

"Reduced rate" adjustment

• Switch on the burner and turn the relative knob to the "Reduced rate" position (small flame fig. 1).
• Remove knob "M" (fig. 12 and 12/A) of the tap, which is simply pressed on to its rod. The by-pass for minimal rate regulation can be: beside the tap (fig. 12) or inside the shaft. In any case, to access to regulation, it can be done trough the insertion of a small screwdriver "D" beside the tap (fig. 12) or in the hole "C" inside the shaft of the tap (fig 12/A). Turn the throttle screw to the right or left until the burner flame has been adequately regulated to the "Reduced rate" position.

The flame should not be too low: the lowest small flame should be continuous and steady. Re-assemble the several components.

It is understood that only burners operating with G20 gas should be subjected to the above mentioned adjustments. The screw must be fully locked when the burners operate with G30 or G31 (turn clockwise).

TAPS LUBRIFICATION

Should a tap being blocked, do not force and ask for Technical Assistance.

CONVERSIONS

10) REPLACING THE INJECTORS

The burners can be adapted to different types of gas by mounting injectors suited to the type of gas in question. To do this, first remove the burner tops using a wrench. Now unscrew injector(see fig. 13 - 13/A) and fit a injector corresponding to the utilized type of gas in its place. To access the injector, in ultra-fast burners with DCC AFB, remove the injector cover "A" (Fig. 13/A).

It is advisable to strongly tighten the injector in place.

After the injectors have been replaced, the burners must be regulated as explained in paragraphs 9. The technician must reset any seals on the regulating or pre-regulating devices.

The envelope with the injectors and the labels can be included in the kit, or at disposal to the authorized customer Service Centre.

For the sake of convenience, the nominal rate table also lists the heat inputs of the burners, the diameter of the injectors and the working pressures of the various types of gas.

TABLE

BURNERS		GAS	NORMAL PRESSURE mbar	NORMAL RATE		INJECTOR DIAMETER Max10Egars burner*	NOMINAL HEAT INPUT (W)
N°	DESCRIPTION			gr/h	l/h Min.
1	ULTRA RAPID (**DCC AFB)	G30 - BUTANG31 - PROPANG20 - NATURAL	303020	291286	381	100 H1100 H1150 Z1	180018001800	400040004000	55,9 %
2	RAPID	G30 - BUTANG31 - PROPANG20 - NATURAL	303020	204200	267	8383117 S	900900900	280028002800	58,0 %
3	SEMIRAPID REDUCED	G30 - BUTANG31 - PROPANG20 - NATURAL	303020	102100	133	606088 Z	550550550	140014001400	60,0 %
4	SEMIRAPID	G30 - BUTANG31 - PROPANG20 - NATURAL	303020	127125	167	656597 Z	550550550	175017501750	63,0 %
5	AUXILIARY	G30 - BUTANG31 - PROPANG20 - NATURAL	303020	7371	95	505072 X	450450450	100010001000	N.A.

*In accordance with Regulation No. 66/2014 EU measures for the implementation of Directive 2009/125/EC, the performance (EEgas burner) was calculated according to EN 30-2-1 last review with the G20.
**DCC AFB: air from bottom (fig. 13/A).

SERVICING

CABLE TYPES AND SECTIONS

TYPE OF HOT PLATE	TYPE OF CABLE	SINGLE - PHASE POWER SUPPLY
Gas hot plate H05 RR - F Section 3 x 0.75 mm		^2

ATTENTION!!!

If the power supply cable is replaced, the installer should leave the ground wire (B) longer than the phase conductors (fig. 14) and comply with the recommendations given in paragraph 8.

WARNING: MAINTENANCE MUST ONLY BE PERFORMED BY AUTHORISED PERSONS.

In case of failure or cut in the cable, please move away from the cable and do not touch it. Moreover the device must be unplugged and not switched on. Call the nearest authorized service center to fix the problem.

TECHNICAL ASSISTANCE AND SPARE PARTS

Before leaving the factory, this appliance will have been tested and regulated by expert and specialized personnel in order to guarantee the best performances.

Any repairs or adjustments which may be subsequently required may only be carried out by qualified personnel with the utmost care and attention.

For this reason, always contact your Dealer or our nearest After Sales Service Center whenever repairs or adjustments are required, specifying the type of fault and the model of the appliance in your possession.

Please also note that genuine spare parts are only available from our After Sales Service Centers and authorized retail outlets.

The above data are printed on the data label put on the inferior part of the appliance and on the packing label.

The above informations give to the technical assistant the possibility to get fit spare parts and a heaven-sent intervention. We suggest to fill the table below.

MARK:

MODEL:

SERIES:

Keep the Warranty Certificate or the sheet of technical data with the Instructions Handbook during the appliance life. It contains important technical data.

This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE).

This guideline is the frame of a European-wide validity of return and recycling on Waste Electrical and Electronic Equipment.

World map silhouette showing continents and countries, no text or labels present

www.teka.com

Teka Industrial, S.A.

C/Cajo,17

39011 Santander

[phone]
