USER MANUAL CE PB10 LD Systems

Line drawing of a circular device mounted on a rectangular frame with a cable and probe inserted (no text or symbols)

CONTENTS / INHALTSVERZEICHNIS / CONTENU / CONTENIDO / TREŚĆ / CONTENUTO

ENGLISH

ABOUT THIS MANUAL 4

INTENDED USE 4

EXPLANATIONS OF TERMS AND SYMBOLS 4

SAFETY INSTRUCTIONS 5

INSTRUCTIONS FOR OUTDOOR

INSTALLATION EQUIPMENT 7

PACKAGING CONTENT 8

INTRODUCTION 8

INSTALLATION 9

CARE, MAINTENANCE AND REPAIR 10

DIMENSIONS 11

TECHNICAL DATA 11

EXPLANATION OF IP PROTECTION CLASS 12

DISPOSAL 13

MANUFACTURER'S DECLARATIONS 13

DEUTSCH

INFORMATIONEN ZU DIESER

This device has been developed and manufactured to the highest standards of quality to ensure many years of problem-free operation. This is what the name LD Systems stands for with its long standing experience as a manufacturer of high quality audio products. Please read this user manual carefully, to get the most out of your new LD systems product.

You can find more information on LD Systems at our website WWW.LD-SYSTEMS.COM

ABOUT THIS MANUAL

• Read the safety instructions and the entire manual carefully before commissioning.
• Observe the warnings on the unit and in the operating instructions.
  • Always keep the operating instructions within reach.
• If you sell or pass on the appliance, be sure to hand over these operating instructions as well, as they are an essential part of the product.

INTENDED USE

The product is a device for professional audio installation!

The product has been developed for professional use in the field of audio installation and is not intended for household use!

Furthermore, this product is intended for installation by qualified personnel with specialist knowledge and for operation by properly trained persons!

Use of the product that is not in accordance with the specified technical data and operating conditions is considered incorrect use!

Liability is exempted when damage and third-party damage to persons and property is caused by inappropriate use!

The product is not suitable for:

- Use by persons (including children) with limited physical, sensory or mental abilities or lack of experience and knowledge.

- Children (children must be ordered not to play with the device).

EXPLANATIONS OF TERMS AND SYMBOLS

1. DANGER: The word DANGER, possibly in combination with a symbol, indicates immediately dangerous situations or conditions risking life and limb.
2. WARNING: The word WARNING, possibly in combination with a symbol, indicates potentially dangerous situations or conditions for life and limb.
3. CAUTION: The word CAUTION, possibly in combination with a symbol, is used to indicate situations or conditions that may lead to injury.
4. ATTENTION: The word ATTENTION, possibly in combination with a symbol, refers to situations or states that can lead to damage to property and/or the environment.

This symbol identifies hazards that can cause electric shock.

This symbol identifies hazardous areas or hazardous situations.

This symbol indicates hazards caused by hot surfaces.

This symbol indicates dangers due to high volume levels.

This symbol indicates additional information on the operation of the product.

This symbol denotes a device that does not contain any user-serviceable parts.

SAFETY INSTRUCTIONS

DANGER:

1. Do not open the device and do not make any modifications.
2. If your device no longer functions properly, if liquids or objects get inside it or if it has been damaged in any other way, switch it off immediately and disconnect it from the mains. The device may be repaired only by authorised repair technicians.
3. For devices of protection class 1 the protective conductor must be connected correctly. Never disconnect the protective conductor. Devices of protection class 2 do not have a protective conductor.
4. Ensure that live cables are not kinked or otherwise mechanically damaged.
5. Never bypass the device fuse.

WARNING:

1. The device may not be operated if it shows obvious signs of damage.
2. The device may only be installed in a voltage-free state.
3. If the device's power cable is damaged, the device should not be used.
4. Permanently connected power cables may only be replaced by a qualified person.

ATTENTION:

1. Do not operate the device if it has been exposed to large temperature fluctuations (for example, after transport). Moisture and condensation can damage the device. Switch on the device only when it has reached ambient temperature.
2. Make sure that the voltage and frequency of the mains supply correspond to the values indicated on the device. If the device has a voltage selector switch, do not turn the device on until it has been set correctly. Use only suitable power cables.
3. To disconnect the device from the mains at all poles, it is not sufficient to press the on/off switch on the device.
4. Make sure that the fuse used corresponds to the type specified on the device.
5. Make sure that appropriate measures have been taken against power surges (e.g. lightning strike).
6. Observe the specified maximum output current on devices with Power Out connection. Ensure that the total current consumption of all connected devices does not exceed the specified value.
7. Replace pluggable mains cables only with original cables.

DANGER:

1. Danger of suffocation! Plastic bags and small parts must be kept out of reach of persons (including children) with reduced physical, sensory or mental capabilities.
2. Danger caused by falling device! Make sure that the device is securely installed and cannot fall down. Only use suitable stands or mounts (particularly for fixed installations). Ensure that accessories are properly installed and secured. Ensure that all applicable safety regulations are observed.

WARNING:

1. Use the device in the prescribed manner only.
2. Operate the device only with the accessories recommended and intended by the manufacturer.
3. During installation, observe the safety regulations applicable in your country.
4. After connecting the device, check all cable routes to avoid damage or accidents, e.g. due to tripping hazards.
5. Always observe the specified minimum distance to normally flammable materials! Unless explicitly stated, the minimum distance is 0.3 m.

CAUTION:

1. Regarding moving components such as mounting brackets or other moving components, there is a possibility of jamming.

ATTENTION:

1. Do not install or operate the device near any radiators, storage heaters, stoves or other heat sources. Ensure that the device is always installed in such a way that it is sufficiently cooled and cannot overheat.
2. Do not place ignition sources such as lighted candles near the device.
3. Ventilation openings must not be covered and fans must not be blocked.
4. Use the original packaging or packaging provided by the manufacturer for transport.
5. Avoid shock or impact to the device.
6. Observe the IP protection class as well as the ambient conditions such as temperature and humidity according to the specification.
7. Devices can be continuously further developed. In the event of any discrepancies between the operating instructions and the device labelling with regard to operating conditions, performance or other device characteristics, the information on the device always takes precedence.
8. The device is not suitable for tropical climates and for operation at heights of 2000 m above sea level.

CAUTION:

Connecting signal cables can cause a lot of interference noise. Make sure that devices connected to the output are muted when plugged in. Aside from which, interference noise levels may cause damage.

CAUTION: HIGH VOLUME AUDIO PRODUCTS!

This device is designed for professional use.

The commercial operation of this device is subject to the applicable national regulations and guidelines for accident prevention. Hearing damage due to high volume and continuous exposure: Use of this product may generate high sound pressure levels (SPL) that may cause hearing damage. Avoid exposure to high volumes.

INSTRUCTIONS FOR OUTDOOR INSTALLATION EQUIPMENT

1. Units for installation applications are designed for continuous operation.
2. Equipment for outdoor installation is largely weather-resistant. Depending on the design, however, installed seals may be made of materials that deteriorate over time. These must be checked regularly and replaced if necessary.
3. The correct condition of the housing parts and connections must be checked regularly.
4. Surfaces and plastic parts can also weather in installation equipment, e.g. due to UV irradiation. This generally does not impair functionality.
5. Damage to the surface coating can impair the device's corrosion protection. Damaged surface coating (e.g. scratches) must be promptly repaired using suitable measures.
6. Screw connections can be impaired in their freedom of movement (e.g. due to oxidation or impurities). Here, appropriate measures for loosening are to be implemented.
7. Unless explicitly stated otherwise on the device or in the technical data, the devices are intended for installation heights of less than 5 m.

PACKAGING CONTENT

Remove the product from the packaging and remove all packaging material.

Please check the completeness and integrity of the delivery and notify your distribution partner immediately after purchase if the delivery is not complete or if it is damaged.

The packaging includes:

• 1 x CE PB10 Bi-directional loudspeaker with mounting bracket
• User manual

INTRODUCTION

Made of ABS, with an aluminium grille, the CE PB10 is a bi-directional loudspeaker great for providing coverage in public spaces and circulation areas. It is fully IP55 weatherproofed with high impact resistance for demanding outdoor environments. It comes with a built-in bracket for easy mounting. With a power rating of 10W and a frequency response of 180Hz to 16kHz, it projects sound with ease.

FEATURES

• 10 W rated power
  · 100 V Taps: 2.5 / 5 / 10 W
• IP55 weatherproof
  • Built in mounting bracket

INSTALLATION

DANGER: Overhead mounting requires extensive experience, including the calculation of the load limit values of the installation material and regular safety inspection of all installation materials and devices. If you do not have these qualifications, do not attempt to perform an installation yourself. Refer instead to a qualified professional. There is a risk that devices that are incorrectly mounted and secured may come loose and fall down. This can cause serious injury or death.

Before installation, make sure that the amplifier system to which the speaker is to be connected is switched off and that the connection cables are de-energised!

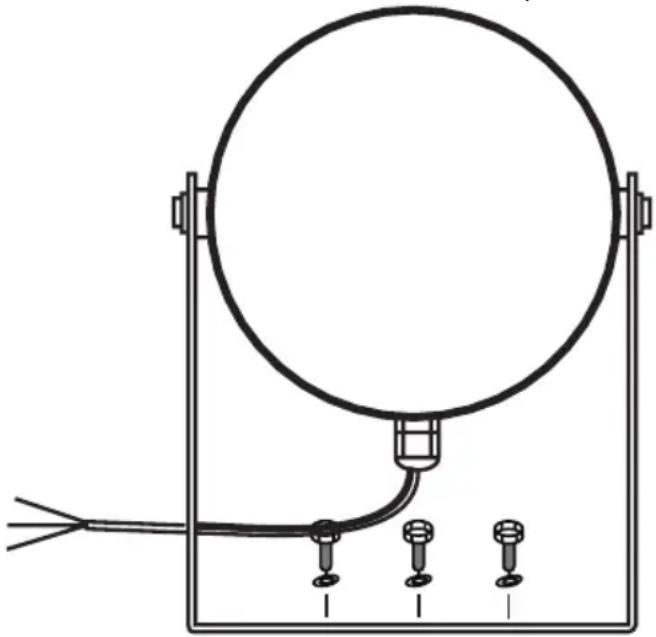

1 Mount the speaker in a suitable position on a sufficiently stable surface.

Outdoor installation: Make sure that the speaker membrane is not standing in water.

Simple line drawing of a circular device mounted on a stand with three pins, no text or symbols present.

2 Connect the desired transformer tap of the cable to the signal supply (see table).

CE PB10
2.5 W @ 100 V green
5 W @ 100 V yellow
10 W @ 100 V red
COM blue

CARE, MAINTENANCE AND REPAIR

In order to ensure the long-term, proper functioning of the device, it must be regularly cleaned and, if necessary, serviced. The servicing requirement depends on the intensity of use and the environment in which it is used.

We recommend a visual inspection before each operation. Furthermore, we recommend carrying out all the applicable service measures specified below once every 500 operating hours or, in the case of a lower intensity of use, at the latest after one year. Warranty claims may be limited should defects result from inadequate service and maintenance.

CARE (CARRIED OUT BY USER)

WARNING! Before carrying out any care and maintenance work, the power supply and, if possible, all device connections must be unplugged.

NOTE! Improper care can lead to impairment or even destruction of the device.

1. Housing surfaces must be cleaned with a clean, damp cloth. Make sure that no moisture can penetrate the device.
2. Air inlets and outlets must be regularly cleaned of dust and dirt. If compressed air is used, make sure that damage to the device is prevented (e.g. fans must be blocked in this case).
3. Lines and plug contacts must be cleaned regularly and dust and dirt must be removed.
4. In general, no cleaning agents or abrasive agents may be used, as they may damage the surface finish. Solvents in particular, such as alcohol, can impair the function of housing seals.
5. Devices must generally be stored dry and protected from dust and dirt.

MAINTENANCE AND REPAIR (BY QUALIFIED PERSONNEL ONLY)

DANGER! There are live components in the device. Even after disconnecting the mains connection, there may still be residual voltage in the device, e.g. due to charged capacitors.

PLEASE NOTE! There are no user-serviceable assemblies in the device.

NOTE! Maintenance and repair work may only be carried out by specialist personnel authorised by the manufacturer. If in doubt, consult the manufacturer.

PLEASE NOTE! Improperly performed maintenance work may affect warranty claims.

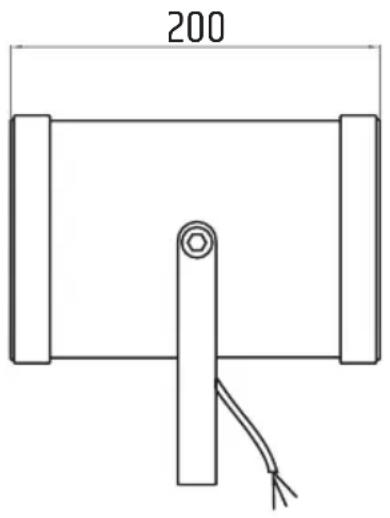

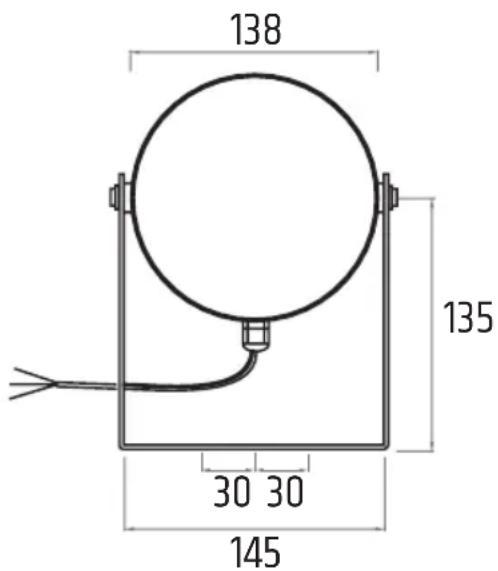

DIMENSIONS (mm)

200

138 135 30 30 145

TECHNICAL DATA

Product number LDCEPB10

Product type Installation loudspeakers

Type Wall and ceiling speakers

Colour White

Woofer size 2 x 5"

100 V inputs 2.5 W / 5 W / 10 W

Frequency response 180 Hz - 16 kHz

Sensitivity (1 W / 1 m) 86 ± 3 dB

Max. load 10 W

IP protection class 55

Ambient temperature -25 - 55°C

Material ABS, Aluminium front grille

Dimensions (W x H x D) 138 mm x 138 mm x 200 mm

Weight 1.7 kg

EXPLANATION OF IP PROTECTION CLASS

1. An IP rating only reflects protection from solid objects and water. It does not describe general weather resistance, such as protection from UV radiation and temperature, etc.
2. The first digit indicates protection from dust, solid objects and contact:

IP2X Protected against solid foreign bodies ≥ 12.5 mm in diameter
IP3X Protected against solid foreign bodies ≥ 2.5 mm in diameter
IP4X Protected against solid foreign bodies ≥ 1.0 mm in diameter
IP5X	Protected against dust in harmful quantities and completely protected against contact
IP6X Are dust-tight and completely protected against contact

1. The second identification digit indicates protection from water:

IPX0 No protection

IPX1 Protection against dripping water

IPX2 Protection against dripping water when the device is tilted up to 15°

IPX3 Protection against falling spray water up to 60° from the vertical

IPX4 Protection against splashing water on all sides

IPX5 Protection against water jets (nozzle) from any angle

IPX6 Protection against strong water jets

IPX7 Protection against temporary immersion

1. In addition, some device-specific measures such as covers and sealing caps are necessary in order to achieve the specified protection class (e.g. protective caps on unused connections).

The IP rating of the product can be found in the technical specifications and is printed on the device.

DISPOSAL

Packaging:

1. Packaging can be fed into the reusable material cycle using the usual disposal methods.
2. Please separate the packaging in accordance with the disposal laws and recycling regulations in your country.

Device:

1. This device is subject to the European Directive on Waste Electrical and Electronic Equipment, as amended. WEEE Directive Waste Electrical and Electronic Equipment. Electronic devices and batteries do not belong in household waste. The device or batteries must be disposed of via an authorised waste disposal company or a municipal waste disposal facility. Please observe the applicable regulations in your country!
2. Observe all disposal laws applicable in your country.
3. As a private customer, you can obtain information on environmentally-friendly disposal options from the seller of the product or the appropriate regional authorities.

MANUFACTURER'S DECLARATIONS

MANUFACTURER'S WARRANTY & LIMITATIONS OF LIABILITY

Adam Hall GmbH, Adam-Hall-Str. 1, D-61267 Neu Anspach / E-mail [e-mail] / +49 (0)6081 / 9419-0. Our current warranty conditions and limitation of liability can be found at: https://cdn-shop.adamhall.com/media/pdf/MANUFACTURERS-DECLARATIONS_LD_SYSTEMS.pdf. Contact your distribution partner for service.

UKCA-CONFORMITY

Hereby, Adam Hall Ltd. declares that this product meets the following guidelines (where applicable): Electrical Equipment (Safety) Regulations 2016 Electromagnetic Compatibility Regulations 2016 (SI 2016/1091) The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulation 2012 (SI 2012/3032) Radio Equipment Regulations 2017(SI 2016/2015)

UKCA-DECLARATION OF CONFORMITY

Products that are subject to Electrical Equipment(Safety)Regulation 2016, EMC Regulation 2016 or RoHS Regulation can be requested at [e-mail]. Products that are subject to the Radio Equipments Regulations 2017 (SI2017/1206) can be downloaded from www.adamhall.com/compliance/

CE CONFORMITY

Adam Hall GmbH hereby confirm that this product meets the following guidelines (where applicable): R&TTE (1999/5/EC) or RED (2014/53/EU) as of June 2017.

Low Voltage Directive (2014/35/EU)

EMC Directive (2014/30/EU)

RoHS (2011/65/EU)

The complete Declaration of Conformity can be found at www.adamhall.com.

Furthermore, you can also request it at [e-mail].

CE DECLARATION OF CONFORMITY

Declarations of conformity for products subject to the LVD, EMC, RoHS Directive can be requested from [e-mail].

Declarations of conformity for products subject to RED Directive

can be downloaded from www.adamhall.com/compliance/.

Subject to misprints and errors, as well as technical or other modifications!
