Product type	Amplified active loudspeaker
Brand	LD Systems
Model	Roadman 102
Dimensions (W x H x D)	280 x 180 x 220 mm
Weight	4.5 kg
Power supply	100-240 V AC, 50/60 Hz
RMS power	100 W
Frequency response	60 Hz - 20 kHz
Connectivity	Bluetooth 5.0, AUX 3.5mm input, Microphone input (XLR/Jack combo), Line output
Main features	Bluetooth playback, built-in microphone, equalization settings, volume control
Maintenance and cleaning	Dust with a soft, dry cloth. Do not use abrasive products.
Safety	Do not expose to moisture or extreme temperatures. Disconnect before cleaning.
Spare parts and repairability	Parts available on request from LD Systems after-sales service.
Included accessories	Power cable, audio cable, user manual
Recommended use	Mobile sound reinforcement, small conferences, background music

Frequently Asked Questions - Roadman 102 LD Systems

How do I connect my Roadman 102 via Bluetooth?

Turn on the speaker, enable Bluetooth on your device (smartphone, tablet), search for "Roadman 102" in the list of devices and select it. Connection is established when the Bluetooth indicator turns solid blue.

Can I plug a microphone into the Roadman 102?

Yes, the speaker has a combo XLR/Jack microphone input. Plug in your microphone, adjust the microphone volume with the dedicated knob, and enjoy amplified sound.

What is the power of the Roadman 102?

The Roadman 102 delivers an RMS power of 100 watts, ideal for indoor or small outdoor use.

How do I clean my LD Systems Roadman 102 speaker?

Use a soft, dry cloth to dust the grille and cabinet. Never use chemicals or a damp cloth. Unplug the device before any cleaning.

What should I do if the sound is distorted or saturated?

Check the overall volume level and the source volume. Reduce gain if necessary. Ensure the audio cable is properly connected and not damaged. Move the microphone away from the speakers to avoid feedback.

Can the Roadman 102 run on battery?

No, the Roadman 102 is an active speaker that must be plugged into the mains via the supplied power cable. It does not have a built-in battery.

What types of inputs are available?

The speaker has a 3.5mm AUX input for audio sources, a combo XLR/Jack microphone input, and a Bluetooth wireless connection.

How to adjust the equalization on the Roadman 102?

The Roadman 102 has separate potentiometers for treble and bass. Turn the corresponding knobs to adjust the sound to your preference.

Can I use the Roadman 102 outdoors?

Yes, it is suitable for outdoor use as long as it is protected from direct rain and humidity. Its compact size makes it easy to carry.

Where can I find the complete user manual?

The user manual is available for free download in PDF format on notice-facile.com or on the official LD Systems website.

USER MANUAL Roadman 102 LD Systems

Line drawing of a rectangular electronic device with a lid and base, no text or symbols present

LD ROADMAN 102

PORTABLE SOUND SYSTEM 150 W

Thank you for choosing LD-Systems!

We have designed this product to operate reliably over many years. Therefore LD-Systems guarantees for high quality products with its name and many years of experience as a producer.

Please, take a few moments to read these instructions carefully, as we want you to enjoy your new LD-Systems products quickly and to the fullest.

For information about LD-Systems check out our website WWW.LD-SYSTEMS.COM

LD ROADMAN 102

PORTABLE PA SPEAKER 150 W

Line drawing of a rectangular electronic device with a logo on the front panel (no text or symbols on the device itself)

PREVENTIVE MEASURES:

1. Please read the attached safety instructions as well as the following instructions carefully.
2. Please keep all the instructions.
3. Please use the device only as intended.
4. Please respect the valid waste management rules. Please deliver the packaging divided into plastic and paper/cardboard to the recycling management.
5. Please refer all servicing to qualified personnel only if the device is damaged, exposed to liquid/rain or if it does not operate normally.
6. Please, do not expose to any kind of heat such as ovens, radiators, or any other devices (incl. amplifiers). Please check for enough distance between amplifiers and walls, racks, etc. to prevent overheating.
7. After connection please check the wiring to prevent any kind of accident or damage.
   Please never use any kind of damaged cable and wiring.
8. Only use authorized and stable stands, brackets, shelves, tables etc.. for installations. Please check for adequate stability against collapse.

CAUTION:

To reduce the risk of electric shock, do not remove cover (or back). No user serviceable parts inside. Refer servicing to qualified personnel.

htning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be cient magnitude to constitute a risk to persons.

clamation mark within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the place.

CAUTION! HIGH VOLUME!

You will operate this system for professional use. Therefore the commercial use of this equipment is liable to the rules and regulations of the Accident Prevention & Insurance Association of your industry sector. Adam Hall as a manufacturer is bound to inform you formally about the existence of eventual sanitary risks.

These speakers are able to induce high acoustic sound pressure levels. 85 db is by law the maximum audio pressure level which your ear can be exposed to during a work day. It was set according to the technical expertise of the occupational medicine as a basis for the noise rating level. Higher sound levels or longer exposition times could damage your ear. The time of exposition by higher sound pressure levels should be shortened in order to prevent from ear damages. Here are a few reliable warning signals which show that you have exposed yourself for a too long period to excessive sound pressure levels:

• You hear bell- or whistling sounds!
• You have the impression that you can't hear high tones anymore!

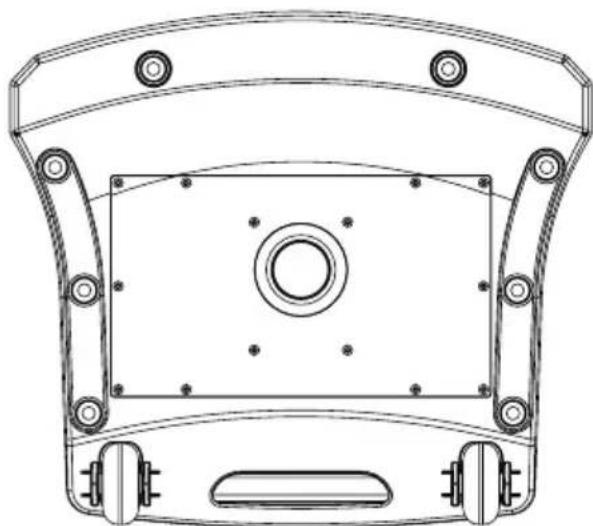

BACK PANEL:

Technical line drawing of a mechanical component with mounting holes and a central circular feature (no text or symbols)

1 WIRELESS RECEIVER MODULE

The roadman 102 is equipped of one wireless receiver module. You can install a second receiver module if you wish to use a second wireless microphone simultaneously.

2 CD PLAYER

Digital Slot-In CD Player with USB memory stick input and SD card slot. CD Player with anti-shock function. Supported files (CD Player, USB Player, SD card reader): Audio CD, MP3, WMA.

3 TAPEDECK (OPTIONAL)

Cassette player/recorder, with tape reverse function

4 CONTROL PANEL

Volume Control: Master, Wired Mic 1 & 2, Line-In, Tape EQ: Bass, Treble Audio Link: XLR In & XLR Out (Master or Slave), RCA In & Out Speaker Out: Switched & Unswitched LED Indicator: Low Battery power (red), battery charging (green blinking), battery fully charged (green).

5 TROLLEY

6 CARRY HANDLE

7 WIRELESS ANTENNAS THREAD

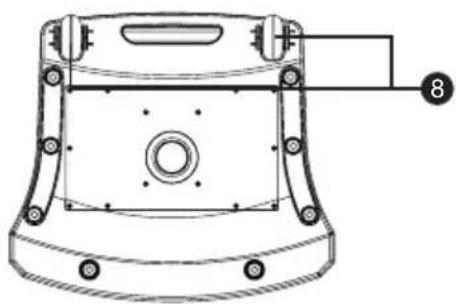

8 WHEELS

SYSTEM COMPONENTS:

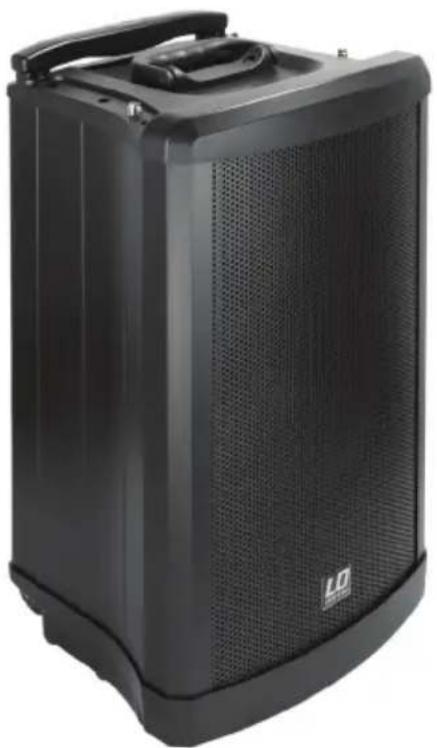

Roadman

Black outdoor portable speaker with ventilation grille and front-mounted handle (no visible text or symbols)

Handheld Microphone

Black handheld microphone with textured body and label (no visible text or symbols on body)

Antenna

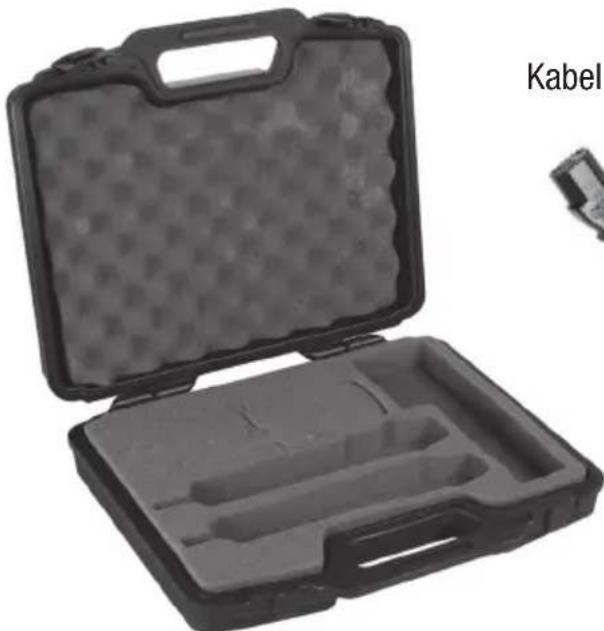

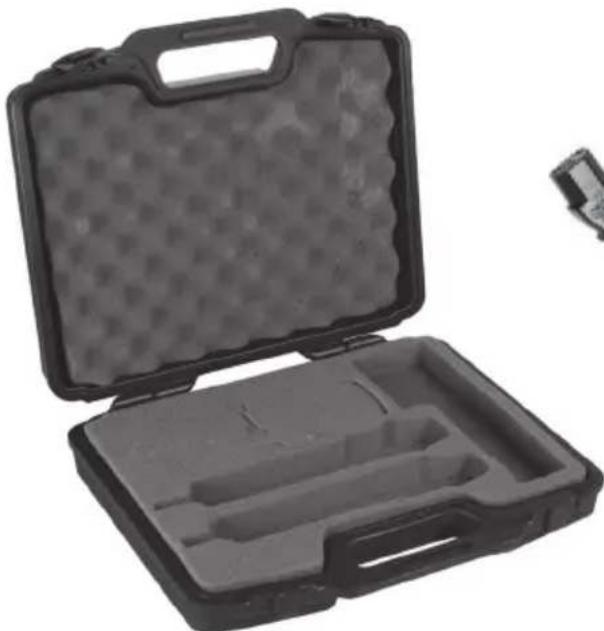

Mic Case

Open black plastic toolbox with hexagonal top and internal compartments (no text or symbols visible)

Power Cord

Black cable with connector and terminal connector, no visible text or symbols

Remote Control

Black remote control with various keypad buttons (no visible text or symbols)

OPTIONAL ACCESSORIES:

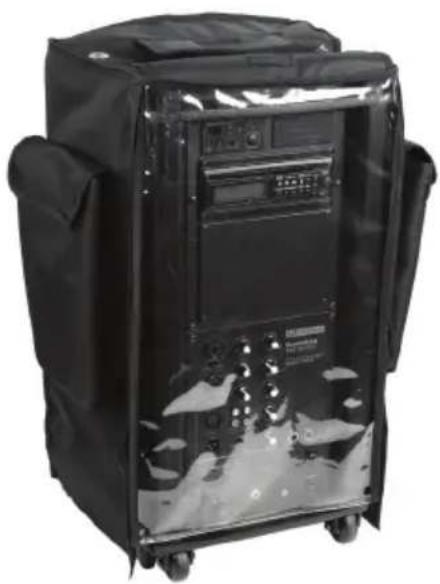

Transport Bag (LDRM102BAG)

Black hardcover device with open lid and visible internal components (no text or symbols)

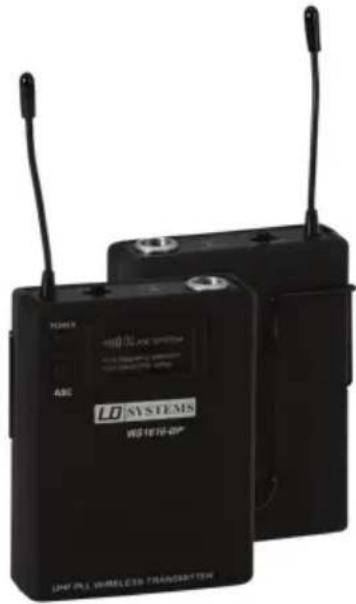

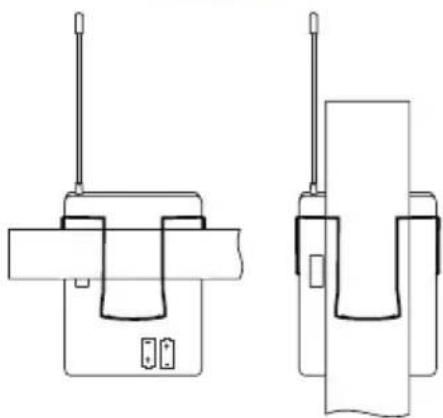

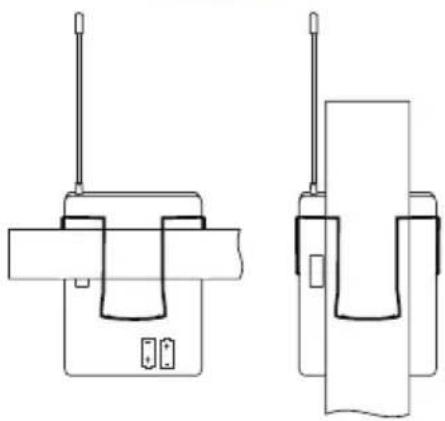

Belt Pack Transmitter (LDWS1616BP)

Two black wireless transceiver devices with visible antennas and labels (no readable text beyond branding)

Tapedeck (LDRM102TD)

Headset Mic (WS100MH3)

Line drawing of a ear with attached medical or electronic devices (no text or symbols)

Additional Receiver (LDRM102R)

CD PLAYER:

1 POWER/VOL

On / Off, Volume control

② PLAY / PAUSE

3 STOP

Stop, return to the main menu

4 FOLDER

Available in USB, MP3 CD and SD Card Mode In Stop Mode: Use the FOLDER (LEFT/RIGHT) buttons to go to the previous/next folder. In Play Mode: Use the FOLDER (LEFT/RIGHT) buttons to go to the first file of the previous/next folder.

5 SKIP (LEFT/RIGHT) BUTTONS

In Play and Stop Mode, press SKIP (LEFT/RIGHT) to go to the previous /next track. In Play Mode keep the SKIP button pressed to fast forward (SKIP RIGHT) or fast reverse (SKIP LEFT) a track.

6 PROG

Function not available

7 MODE

Press this button to switch between SD / USB / CD mode

8 REPEAT

Press once to repeat the current track. Press twice to repeat all tracks.

9 SHUF

Random play

10 EJECT

Remove disc

11 MUTE

Mutes the volume of the SD / USB / CD Player.

12 SD CARD SLOT

13 USB 2.0

Memory stick input

14 IR

Remote control receiver module

Since all our products are constantly controlled and improved, technical changes are possible without prior notice.

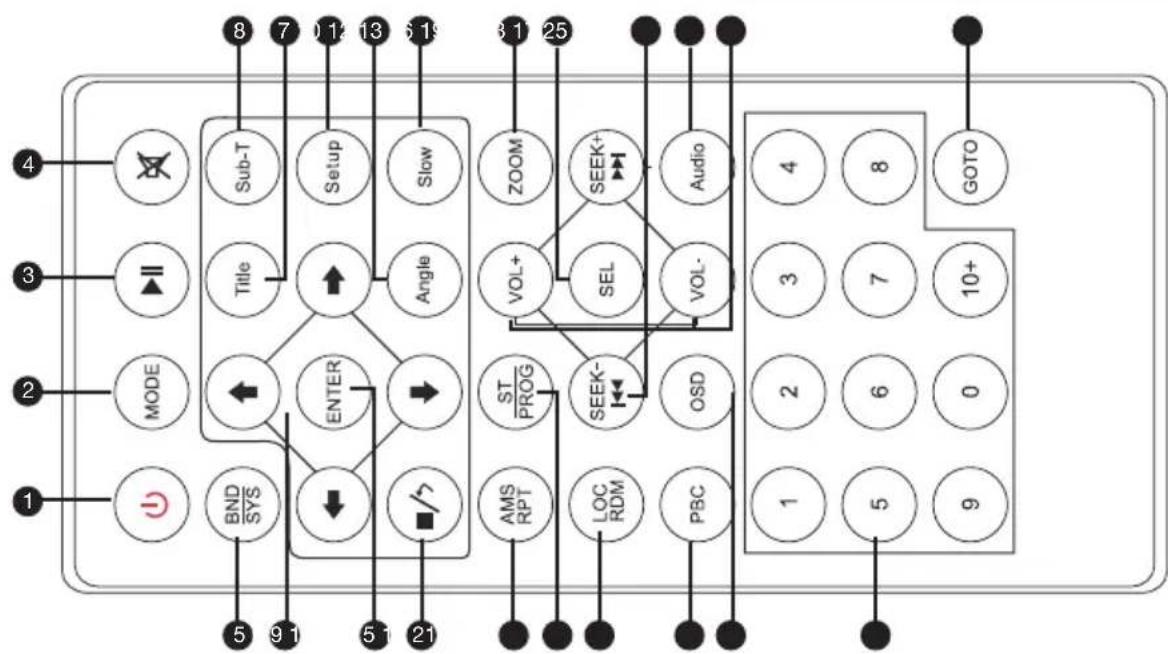

CD REMOTE CONTROL:

The Roadman 102 is equipped with two remote control infrared receiver modules. One on the front and one on the rear panel of the unit. You can therefore use the remote control in front of or behind the speaker.

1 POWER BUTTON: Power switch
② MODE BUTTON: Mode switch
3 ▶|| BUTTON: Pause / play button
4 ✗ BUTTON: Repeated short press to clear and restore the sound.
5 BND/SYS

Function not available

6 BUTTON: ←/→/↑/↓

Function not available

7 TITLE BUTTON:

Function not available

8 SUB-T BUTTON:

Function not available

9 ENTER BUTTON:

Function not available

10 SETUP BUTTON:

Function not available

11 ■/→ BUTTON:

Stop button

12 ANGLE BUTTON:

Function not available

13 SLOW BUTTON:

Function not available

14 AMS / RPT BUTTON:

Press once to repeat the current track. Press twice to repeat all tracks.

15 ST / PROG BUTTON:

Function not available

Since all our products are constantly controlled and improved, technical changes are possible without prior notice.

CD REMOTE CONTROL:

16 ZOOM BUTTON:

Function not available

17 VOL+VOL-BUTTON:

Increase or decrease the volume.

18 „LOC / RDM“ BUTTON

LOC / RDM" button, random play.

19 SEL BUTTON:

Press this button to switch between SD / USB / CD mode

20 / BUTTON:

In Play and Stop Mode, press SKIP (LEFT/RIGHT) to go to the previous /next track.

In Play Mode keep the SKIP button pressed to fast forward (SKIP RIGHT) or fast reverse (SKIP LEFT) a track..

21 PBC BUTTON:

Function not available

22 OSD BUTTON:

Available in Audio CD Mode.

Without pressing: Display shows track running time Press once:

Display shows remaining time for the current track Press twice:

Display shows the CD running time

Press three times:

Display shows remaining CD time

23 AUDIO LEFT / RIGHT STEREO ADJUSTMENT:

Function not available

24 1-10+BUTTON:

Function not available

25 GOTO BUTTON:

Function not available

Since all our products are constantly controlled and improved, technical changes are possible without prior notice.

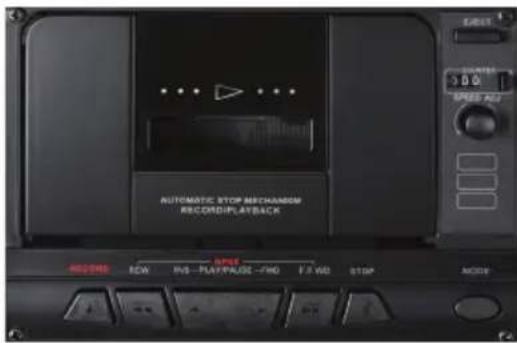

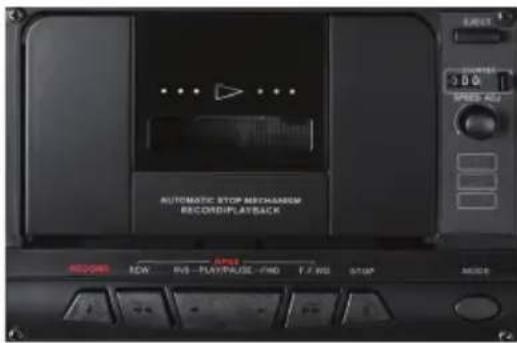

① EJECT
Opens the Cassette slot.
2 COUNTER
3 SPEED ADJ

With this button you can regulate the play speed of the cassette player.

4 CONTINUOUS LOOP

The player will play continuously (A and B Side repeated) until you press stop.

5 SINGLE LOOP

The player will play the A and the B Side and then stop from itself

The player will read only one side of the cassette and then stop from itself.

7 MODE

Allows you to select between Continuous Loop, Single Loop or Single Side playing Mode.

8 STOP
9 FAST FORWARD

The cassette player features an auto search function, pressing this button during play will take you to the next song on the cassette.

10 PLAY

The cassette player features the Auto-Reverse Function. You do not need to turn the cassette when one side is over. The Play button disposes of 2 directions representing both sides of the cassette.

11 FAST REVERSE

The cassette player features an auto search function, pressing this button during play will take you to the previous song on the cassette.

12 RECORD

Push the record button to activate the Recording Mode, then push the play button to start recording.

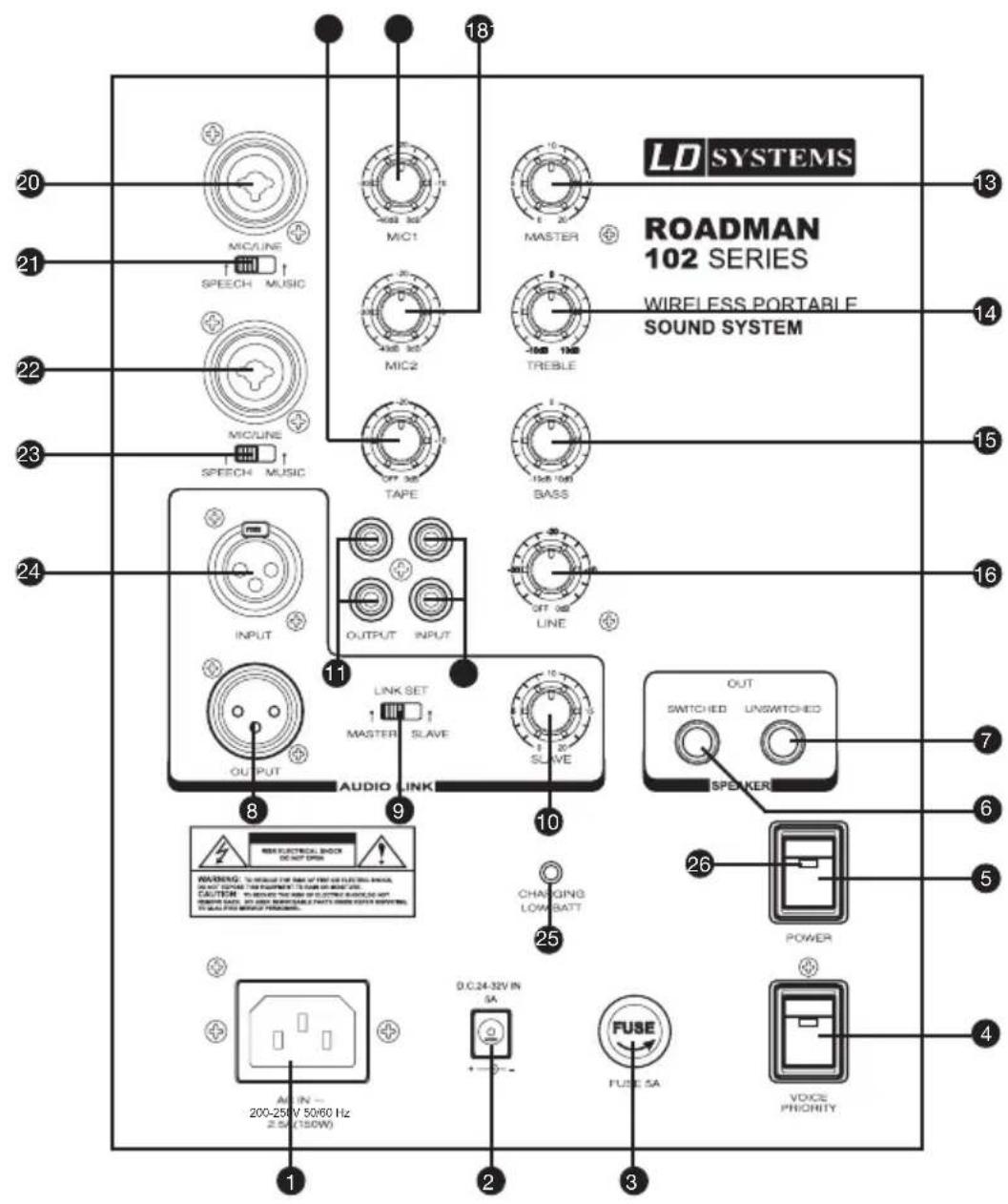

BACK PANEL:

① AC 200-250 V POWER INPUT PLUG
② DC 24-32V POWER INPUT PLUG
③ FUSE 5A
4 VOICE PRIORITY

When Music is playing, turning on the Voice Priority function will automatically decrease the volume of the music when you speak in the microphone.

As soon as you stop talking the music volume increases again. It is the so called "Talk Over" function.

5 POWER SWITCH

This is the general power switch (ON/OFF for the whole system)

SYSTEM SETTINGS AND OPERATIONS:

6 SWITCHED OUT

Use this Output to plug a further passive speaker. When using this output the speaker of the Roadman 102 is automatically muted and the sound only comes out of the passive speaker. (min 4 Ω)

7 UNSWITCHED OUT

Use this Output to plug a further passive speaker. When using this output the sound comes out of both the Roadman and the passive speaker. (min 8 Ω)

8 LINK OUTPUT

This output allows you to connect the Roadman to another Roadman.

9 LINK SET

MASTER / SLAVE: When connecting several Roadman together (from 2 to max. 7) the Master / Slave Order hast to be respected. First Roadman of the "Chain" should be set on Master, the following ones should be set on Slave. The Roadman that is set on Master takes the control over all other Roadman (Volume control, switch ON/OFF etc.)

Pure electrical circuit lines without any symbols

10 VOLUME

Control of Slave Speakers

⑪ RCA OUTPUT

Allows line level output for recording or any other use

12 RCA INPUT

Allows the connection of any line level device

13 MASTER

General volume control of the system

14 TREBLE

TREBLE / HIGH TONE Equalizer

15 BASS

BASS / LOW TONE Equalizer

16 LINE

Line Input (12) volume controller

17 MIC 1

Microphone 1 (20) volume controller

18 MIC2

Microphone 2 (22) volume controller

19 TAPE

Tape volume controller

20 MIC/LINE

Microphone or Line Input 1. Accepts Jack or XLR connectors.

21 SPEECH/MUSIC

SPEECH: Microphone Input Level Music: Line Input Level

22 MIC/LINE

Microphone or Line Input 2. Accepts Jack or XLR connectors.

23 SPEECH/MUSIC

SPEECH = MIC: Microphone Input Level Music = LINE: Line Input Level

24 LINK INPUT

This Input allows you to connect a Roadman to another Roadman. The Link Input of the Slave Roadman should be connected to the Link Output of the Master Roadman.

25 CHARGING / LOW BATT

LED Indicator: Low Battery power (red), battery charging (green blinking), battery fully charged (green).

26 LED INDICATOR

When red, the system is in operation. Turned ON.

WIRELESS RECEIVER MODULE:

1 IR WINDOW

Sends infrared signals to the transmitter (handheld mic) in order to synchronize the frequencies

② POWER

Power switch and Volume controller

③ ASC

After selecting a transmitting frequency in the receiver, press ASC to sync the transmitter. Hold the IR port of the microphone in front of the IR port of the receiver. (Sync with beltpack: Press ASC on the beltpack and on the receiver to activate sync.

4 MUTE LEVEL

Adjusting the receiver squelch setting: This function suppresses noise when the transmitter is off or when the receiver is no longer able to receive a sufficiently strong signal from the transmitter.

The squelch setting of the receiver is adjusted at the factory so that the system functions optimally. Normally, no further adjustment is required.

If readjustment does become necessary, the squelch level should be set so that no noise is

detected in the receiver when the transmitter is off. This makes it possible to suppress interference, but it may also reduce system range under some circumstances. If the squelch level is reduced, interference can increasingly affect transmission quality. However, this may increase system range under some circumstances.

5 AF

Shows if the module receives an audio signal

6 RF

Shows if the module receives a radio signal

7 UP

Channel Up

8 DIGITAL DISPLAY

Digital channel display

9 DOWN

Channel Down

HANDHELD TRANSMITTER

Three diagrams of a device with directional arrows indicating movement or force (no text or symbols present)

① MICROPHONE HEADGRILLE
② GAIN

Use this controller to adjust the microphone sensitivity Left decrease, Right increase.

Factory settings should give you complete satisfaction.

③ RF POWER SWITCH

H stands for High power signal, L for Low power signal.

4 IR PORT

Receives the infrared frequencies sent by the receiver in order to synchronize transmitter and receiver.

5 BATTERIES RACK

Please Insert 2 AA Alkaline batteries (LR 6 1,5 V)

6 POWER/ASC

Green light: Power On

Green flash: IR transmission in progress

Red flash: battery low

⑦ ON/OFF SWITCH

CHANGING BATTERIES

Battery life is about 8 hours. If the Low Battery indicator glows then change the batteries immediately.

BELT PACK TRANSMITTER:

Pure electrical circuit components without any text or symbols

Technical line drawing of two mechanical device configurations with no visible text or symbols

1 ANTENNA

② GAIN SETTINGS

Mic: Microphone

0: Guitar with passive pickup

-10 dB: Guitar with active pickups

③ POWER LED

Green: operating

Red: Battery low

Blinking red: IR transmission is in progress

4 MINI XLR MIC INPUT

Press this button to activate the infrared connection between transmitter and receiver

7 IR PORT

Receives the infrared frequencies sent by the receiver in order to synchronize transmitter and receiver.

WEARING THE BELTPACK TRANSMITTER

Clip the receiver to a belt. For ultimate results, clip the receiver onto a belt by pushing the receiver down onto the belt as far as it goes.

For guitarists, attach the guitar strap "through" the receiver clip.

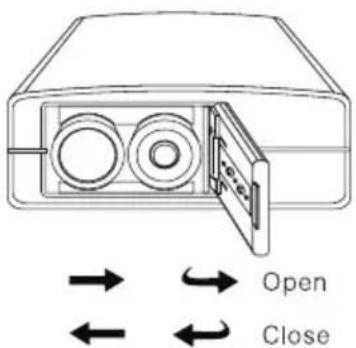

CHANGING THE BATTERIES

Expected life for two alkaline batteries is approximatively 8 hours. When the battery status indicator flashes red the batteries should be changed immediately as show on the left side. Please Insert 2 AA Alkaline batteries (LR 6 1,5 V)

HANDLING OF THE BATTERY:

Before you use your device for the first time the battery should be charged for 12 hours.

When the battery is low, the LED will glow red, when the battery is charging it will flash green.

To charge the battery simply connect the device with the power voltage cable to the AC Current.

This device is equipped with two 12 V4.5AH batteries. They can be used and recharged around 500 times, depending on the use and care.

The batteries should be charged 8 hours long. If the device stays for a long time unused make sure that you charge the battery once every 3 month or at least before the next use.

HOW TO REPLACE THE BATTERIES

1. Make sure that the device is turned off and not connected to the power voltage
2. Unscrew the bottom panel to access the battery storage
3. Disconnect old batteries and connect the new ones. Make sure to respect the +/- order (Red + // Black -).
4. Place the new batteries in the battery storage and screw the bottom panel back.
5. Charge the new batteries at least 12 hours.

Technical line drawing of a mechanical component with mounting holes and central bore (no text or symbols)

AT THE BOTTOM YOU CAN FIND THE BATTERY STORAGE

TECHNICAL SPECIFICATIONS:

BASIC SPECIFICATIONS MAIN UNIT

Output power (max.): 100 W RMS / 4 Ω

Frequency response: 70 Hz - 16 kHz

Maximum sound pressure: 115 dB

THD: < 0,5%

Speaker: 10" Woofer / 1" Tweeter

Power: 100 V - 240 V switching power supply

Charge battery 12 V / 5 Ah (2 pieces)

Size (W x H x D): 355 x 610 x 315 mm

Weight: 19 kg

Receiver module: UHF Module (863 MHz - 865 MHz)

(art. LDRM102R)

Battery life: 4 to 6 hours

CD PLAYER

Product type:

Compact disc digital audio system with mechanic & electronic anti-shock CD, CD-R, CD-R/W, MP3, WMA, USB MP3 WMA, SD MP3, WMA.

Disc loading: Slot-in Type

Power consumption: ≤ 5 W

Dimensions (W x H x D): 160 x 147.4 x 68,5 mm

Weight: 1,2 kg

WIRELESS MIC TRANSMITTER

Max Audio input level: 0 dBV

Dimensions (L x ∅): 250 x 54mm

Weight: 270 g (without batteries)

Power Requirements: 2 "AA" size alkaline or rechargeable batteries

Battery Life: >12 hours (with alkaline batteries)

BELTPACK TRANSMITTER

Max Audio input level: 0 dBV to +10 dBV

Gain Adjustment Range: 30 dB

Input Impedance: 470 kΩ

Dimensions (W x H x D): 85 x 65 x 23 mm

Weight: 80 g (without batteries)

Power Requirements: 2 "AA" size alkaline or rechargeable batteries

Battery Life: > 10 hours (with alkaline batteries)

Since all our products are constantly controlled and improved, technical changes are possible without prior notice.

TECHNICAL SPECIFICATIONS:

LDWS1616 / Roadman / Roadboy

Frequency list for intermodulation free use of up to three wireless microphones simultaneously.

Nr.	Frequency MHz	Simultaneous
1 863,100 X
2 863,900
3 864,500
4 864,900
5 863,200
6 863,300
7 863,400
8 863,500
9 863,600
10 863,700 X
11 863,800
12 864,000
13 864,100 X
14 864,200
15 864,300
16 864,400

MANUFACTURER'S DECLARATIONS:

LIMITED WARRANTY

This Limited Warranty applies to the Adam Hall, LD Systems, Defender, Palmer and Eminence branded products.

The statutory warranty rights towards the seller are not affected by this guarantee. In fact, it justifies, additional independent warranty claims towards Adam Hall.

Adam Hall warrants that the Adam Hall product you have purchased from Adam Hall or from an Adam Hall authorized reseller is free from defects in materials or workmanship under normal use for a period of 2 or 5 years from the date of purchase.

The Limited Warranty Period starts on the date of purchase. In order to receive warranty services you are required to provide proof of the purchase date. Your dated sales or delivery receipt, showing the date of purchase, is your proof of the purchase date. Should products of the brands named above be in need of repair within the limited warranty period, you are entitled to warranty services according to the terms and conditions stated in this document.

This Limited Warranty extends only to the original purchaser of this Adam Hall branded product and is not transferable to anyone who obtains ownership of the Adam Hall branded product from the original purchaser. During the Limited Warranty Period, Adam Hall will repair or replace the defective component parts or the product. All component parts or hardware products removed under this Limited Warranty become the property of Adam Hall.

In the unlikely event that your Adam Hall product has a recurring failure, Adam Hall, at its discretion, may elect to provide you with a replacement unit of Adam Hall's choice that is at least equivalent to your Adam Hall branded product in hardware performance.

Adam Hall does not warrant that the operation of this product will be uninterrupted or error-free. Adam Hall is not responsible for damage that occurs as a result of your failure to follow the instructions included with the Adam Hall branded product.

This Limited Warranty does not apply,

• to wear parts (e.g. accumulator)
• to any product from which the serial number has been removed or that has been damaged or rendered defective as the result of an accident
• in case of, misuse, abuse, or other external causes
• by operation outside the usage parameters stated in the user's documentation shipped with the product
• by use of spare parts not manufactured or sold by Adam Hall
• by modification or service by anyone other than Adam Hall

These terms and conditions constitute the complete and exclusive warranty agreement between you and Adam Hall regarding the Adam Hall branded product you have purchased.

LIMITATION OF LIABILITY

If your Adam Hall branded hardware product fails to work as warranted above, your sole and exclusive remedy shall be repair or replacement. Adam Halls' maximum liability under this limited warranty is expressly limited to the lesser of the price you have paid for the product or the cost of repair or replacement of any hardware components that malfunction in conditions of normal use.

Adam Hall is not liable for any damages caused by the product or the failure of the product, including any lost profits or savings or special, incidental, or consequential damages. Adam Hall is not liable for any claim made by a third party or made by you for a third party.

This limitation of liability applies whether damages are sought, or claims are made, under this Limited Warranty or as a tort claim (including negligence and strict product liability), a contract claim, or any other claim. This limitation of liability cannot be waived or amended by any person. This limitation of liability will be effective even if you have advised Adam Hall of an authorized representative of Adam Hall of the possibility of any such damages. This limitation of liability however, will not apply to claims for personal injury.

This Limited Warranty gives you specific legal rights. You may also have other rights that may vary from state to state or from country to country. You are advised to consult applicable state or country laws for a full determination of your rights.

REQUESTING WARRANTY-SERVICE

To request warranty service for the product, contact Adam Hall or the Adam Hall authorized reseller from which you purchased the product.

EG-DECLARATION OF CONFIRMITY

These products meet the essential requirements as well as the further standards of the EU Directives 199/5/EU, 89/336/EU.

CORRECT DISPOSAL OF THIS PRODUCT (ELECTRICAL WASTE)

(Applicable in the European Union and other European countries with separate collection systems)

This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details on where and how they can recycle this item in an environmentally friendly manner.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal

WEEE-DECLARATION

Your LD-Systems product was developed and manufactured with high quality materials and components which can be recycled and/or reused. This symbol indicates that electrical and electronic equipment must be disposed of separately from normal waste at the end of its operational lifetime.

Please dispose of this product by bringing it to your local collection point or recycling centre for such equipment. This will help to protect the environment in which we all live.

BATTERIES AND ACCUMULATORS

The supplied batteries or rechargeable batteries can be recycled. Please dispose of them as special waste or return them to your specialist dealer. In order to protect the environment, only dispose exhausted batteries.

Adam Hall GmbH, all rights reserved. The technical data and the functional product characteristics can be subject to modifications. The photocopying, the translation, and all other forms of copying of fragments or of the integrality of this user's manual is prohibited.

NOTES:

Line drawing of a rectangular electronic device with a logo on the front panel (no text or symbols on the device itself)

Technical line drawing of a mechanical component with mounting holes and a central circular feature (no text or symbols)

1 FUNKEMPFÄNGER-MODUL

③ TAPEDECK (OPTIONAL)

Black rectangular electronic device with ventilation grille and front-mounted handle (no visible text or symbols)

Handmikrofon

Black handheld microphone with textured body and label (no visible text or symbols on body)

Antenne

Mikrofon-Case

Open black plastic toolbox with hexagonal top cover and internal compartments (no text or symbols visible)

Black cable with connector and terminal connector (no text or symbols visible)

Black remote control device with various function keys and buttons (no visible text or symbols)

Abbildung ähnlich

OPTIONALES ZUBEHÖR:

Black hardcover device with open lid and wheels, no visible text or symbols

Taschensender (LDWS1616BP)

Two black wireless transceiver devices with visible antennas and labels (no readable text beyond branding)

Tapedeck (LDRM102TD)

Headset-Mikrofon (WS100MH3)

Line drawing of a ear with attached medical sensors (no text or symbols)

-Play
-Stop
-Pause
-Next track
-Previous track

-Play
-Stop
-Pause
-Next track
-Previous track

② COUNTER
③ SPEED ADJ

Three schematic diagrams of a device with directional arrows indicating movement or force (no text or symbols)

① MIKROFONKORB

2 GAIN

Pure electrical circuit components without any text or symbols

Technical line drawing of two mechanical device configurations with no visible text or symbols

1 ANTENNE

② GAIN-EINSTELLUNG

Mic: Mikrofon

Technical line drawing of a mechanical component with mounting holes and central bore (no text or symbols)

DAS AKKUFACH BEFINDET SICH IM BODEN DES ROADMAN

TECHNICAL SPECIFICATIONS:

BASIC SPECIFICATIONS MAIN UNIT

Output power (max.): 100 W RMS / 4 Ω

Frequency response: 70 Hz - 16 kHz

Maximum sound pressure: 115 dB

THD: < 0,5%

Speaker: 10" Woofer / 1" Tweeter

Power: 100 V - 240 V switching power supply

Charge battery 12 V / 5 Ah (2 pieces)

Size (W x H x D): 355 x 610 x 315 mm

Weight: 19 kg

Receiver module: UHF Module (863 MHz - 865 MHz)

(art. LDRM102R)

Battery life: 4 to 6 hours

WIRELESS MIC TRANSMITTER

Max Audio input level: 0 dBV

Dimensions (L x ∅): 250 x 54mm

Weight: 270 g (without batteries)

Power Requirements: 2 "AA" size alkaline or rechargeable batteries

Battery Life: >12 hours (with alkaline batteries)

BELTPACK TRANSMITTER

Max Audio input level: 0 dBV to +10 dBV

Gain Adjustment Range: 30 dB

Input Impedance: 470 kΩ

Dimensions (W x H x D): 85 x 65 x 23 mm

Weight: 80 g (without batteries)

Power Requirements: 2 "AA" size alkaline or rechargeable batteries

Battery Life: > 10 hours (with alkaline batteries)

Since all our products are constantly controlled and improved, technical changes are possible without prior notice.

TECHNICAL SPECIFICATIONS:

LDWS1616 / Roadman / Roadboy

Line drawing of a rectangular electronic device with a logo on the front panel (no text or symbols on the device itself)

Technical line drawing of a mechanical component with mounting holes and a central circular feature (no text or symbols)

1 MODULE RÉCEPTEUR SANS FIL

3 PLATINE CASSETTE (EN OPTION)

Black rectangular electronic device with ventilation grille and front-mounted handle (no visible text or symbols)

Micro Main

Black handheld microphone with textured body and label (no visible text or symbols on body)

Antenne

Valisette Micro

Open black plastic toolbox with hexagonal top and internal compartments (no text or symbols visible)

Black cable with connector and plug, no visible text or symbols

Black remote control device with various function keys and buttons (no visible text or symbols)

Black hardcover device with open lid and wheels, no visible text or symbols

Two black wireless earphones with antenna antennas, one labeled 'LD SYSTEMS' and the other 'LW 1010-2P', shown without any readable text beyond labels.

Platine cassette (LDRM102TD)

Micro Serre-tête (WS100MH3)

Line drawing of a ear with attached medical sensors and a terminal device (no text or symbols)

① AC 200-250 V EMBASE POUR CORDON D'ALIMENTATION
2 DC 24-32V EMBASE POUR CORDON D'ALIMENTATION
③ FUSIBLE 5A
4 VOICE PRIORITY En cours de diffusion d'une musique, activer la

Pure electrical circuit lines without any symbols

10 RÉGLAGE

Three schematic diagrams of a device with directional arrows indicating movement or force (no text or symbols)

① GRILLE MICROPHONE

② GAIN

6 INDICATEUR POWER/ASC

Pure electrical circuit components without any text or symbols

Technical line drawing of two mechanical device configurations with no visible text or symbols

1 ANTENNE

② SÉLECTEUR GAIN

Technical line drawing of a mechanical component with mounting holes and central bore (no text or symbols)

L'EMPLACEMENT DES BATTERIES EST SITUÉ SUR LE DESSOUS

TECHNICAL SPECIFICATIONS:

BASIC SPECIFICATIONS MAIN UNIT

Output power (max.): 100 W RMS / 4 Ω

Frequency response: 70 Hz - 16 kHz

Maximum sound pressure: 115 dB

THD: < 0,5%

Speaker: 10" Woofer / 1" Tweeter

Power: 100 V - 240 V switching power supply

Charge battery 12 V / 5 Ah (2 pieces)

Size (W x H x D): 355 x 610 x 315 mm

Weight: 19 kg

Receiver module: UHF Module (863 MHz - 865 MHz)

(art. LDRM102R)

Battery life: 4 to 6 hours

CD PLAYER

Product type:

Compact disc digital audio system with mechanic & electronic anti-shock CD, CD-R, CD-R/W, MP3, WMA, USB MP3 WMA, SD MP3, WMA.

Disc loading: Slot-in Type

Power consumption: ≤ 5 W

Dimensions (W x H x D): 160 x 147.4 x 68,5 mm

Weight: 1,2 kg

WIRELESS MIC TRANSMITTER

Max Audio input level: 0 dBV

Dimensions (L x ∅): 250 x 54mm

Weight: 270 g (without batteries)

Power Requirements: 2 "AA" size alkaline or rechargeable batteries

Battery Life: >12 hours (with alkaline batteries)

BELTPACK TRANSMITTER

Max Audio input level: 0 dBV to +10 dBV

Gain Adjustment Range: 30 dB

Input Impedance: 470 kΩ

Dimensions (W x H x D): 85 x 65 x 23 mm

Weight: 80 g (without batteries)

Power Requirements: 2 "AA" size alkaline or rechargeable batteries

Battery Life: > 10 hours (with alkaline batteries)

Since all our products are constantly controlled and improved, technical changes are possible without prior notice.

TECHNICAL SPECIFICATIONS:

LDWS1616 / Roadman / Roadboy

Frequency list for intermodulation free use of up to three wireless microphones simultaneously.

Nr.	Frequency MHz	Simultaneous
1 863,100 X
2 863,900
3 864,500
4 864,900
5 863,200
6 863,300
7 863,400
8 863,500
9 863,600
10 863,700 X
11 863,800
12 864,000
13 864,100 X
14 864,200
15 864,300
16 864,400

CARACTÉRISTIQUES TECHNIQUES:

GARANTIE LIMITÉE:

Line drawing of a rectangular electronic device with a logo on the front panel (no text or symbols on the device itself)

MEDIDAS PREVENTIVAS:

Technical line drawing of a mechanical component with mounting holes and a central circular feature (no text or symbols)

① RECEPTOR INALÁMBRICO

Black outdoor portable electronic device with ventilation grille and front-mounted handle (no visible text or symbols)

Micrófono de mano

Black handheld microphone with textured body and label (no visible text or symbols on body)

Antena

Micrófono Maletín

Open black plastic toolbox with hexagonal top and internal compartments (no text or symbols visible)

Black cable with connector and plug, no visible text or symbols

Control remoto

Black hardcover device with open lid and visible internal components (no text or symbols)

Petaca transmisora (LDWS1616BP)

Two black wireless transceiver devices with visible antennas and speaker labels (no readable text beyond branding)

Tapedeck (LDRM102TD)

Auricular / micrófono (WS100MH3)

Line drawing of a ear with attached medical or electronic devices (no text or symbols)

Receptor adicional (LDRM102R)

REPRODUCTOR DE CD:

1 POWER/VOL

Three schematic diagrams of a device with directional arrows indicating movement or force (no text or symbols present)

① REJILLA DEL MICRÓFONO
2 GAIN

Pure electrical circuit components without any text or symbols

Technical line drawing of two mechanical device configurations with no visible text or symbols

1 ANTENA

② AJUSTE DE GANANCIA (GAIN)

Mic: Micrófono

Technical line drawing of a mechanical component with mounting flanges and central bore (no text or symbols)

EL COMPARTIMENTO PARA LAS BATERÍAS SE ENCUENTRA EN LA PARTE DE ABAJO

TECHNICAL SPECIFICATIONS:

BASIC SPECIFICATIONS MAIN UNIT

Output power (max.): 100 W RMS / 4 Ω

Frequency response: 70 Hz - 16 kHz

Maximum sound pressure: 115 dB

THD: < 0,5%

Speaker: 10" Woofer / 1" Tweeter

Power: 100 V - 240 V switching power supply

Charge battery 12 V / 5 Ah (2 pieces)

Size (W x H x D): 355 x 610 x 315 mm

Weight: 19 kg

Receiver module: UHF Module (863 MHz - 865 MHz)

(art. LDRM102R)

Battery life: 4 to 6 hours

CD PLAYER

Product type:

Compact disc digital audio system with mechanic & electronic anti-shock CD, CD-R, CD-R/W, MP3, WMA, USB MP3 WMA, SD MP3, WMA.

Disc loading: Slot-in Type

Power consumption: ≤ 5 W

Dimensions (W x H x D): 160 x 147.4 x 68,5 mm

Weight: 1,2 kg

WIRELESS MIC TRANSMITTER

Max Audio input level: 0 dBV

Dimensions (L x ∅): 250 x 54mm

Weight: 270 g (without batteries)

Power Requirements: 2 "AA" size alkaline or rechargeable batteries

Battery Life: >12 hours (with alkaline batteries)

BELTPACK TRANSMITTER

Max Audio input level: 0 dBV to +10 dBV

Gain Adjustment Range: 30 dB

Input Impedance: 470 kΩ

Dimensions (W x H x D): 85 x 65 x 23 mm

Weight: 80 g (without batteries)

Power Requirements: 2 "AA" size alkaline or rechargeable batteries

Battery Life: > 10 hours (with alkaline batteries)

Since all our products are constantly controlled and improved, technical changes are possible without prior notice.

TECHNICAL SPECIFICATIONS:

LDWS1616 / Roadman / Roadboy

Frequency list for intermodulation free use of up to three wireless microphones simultaneously.

Nr.	Frequency MHz	Simultaneous
1 863,100 X
2 863,900
3 864,500
4 864,900
5 863,200
6 863,300
7 863,400
8 863,500
9 863,600
10 863,700 X
11 863,800
12 864,000
13 864,100 X
14 864,200
15 864,300
16 864,400

Line drawing of a rectangular electronic device with a logo on the front panel (no text or symbols on the device itself)

ŚRODKI BEZPIECZEŃSTWA:

Technical line drawing of a mechanical component with mounting holes and a central circular feature (no text or symbols)

1 ODBIORNIK BEZPRZEWODOWY

Black rectangular electronic device with ventilation grille and a small logo on the front panel (no visible text or symbols on body)

Mikrofon ręczny

Black handheld microphone with textured body and label (no visible text or symbols on body)

Antena

Walizka na mikrofony

Open black plastic toolbox with hexagonal top and internal compartments, labeled 'Kabel' in top right corner (no other text or symbols)

Black cable with connector and plug, no visible text or symbols

Black remote control device with keypad and buttons (no visible text or symbols)

OPCJONALNE DODATKI:

Black hardcover device with open lid and visible internal components (no text or symbols)

Nadajnik typu Belt Pack (LDWS1616BP)

Two black wireless transmitters with antenna and ear antennas, no visible text or symbols on the devices themselves.

Magnetofon (LDRM102TD)

Line drawing of a ear with attached medical or electronic devices (no text or symbols)

Three diagrams of a device with directional arrows indicating movement or force (no text or symbols)

① SIATKA GŁOWICY MIKROFONU
2 REGULATOR WZMOCNIENIA (GAIN)

Technical line drawing of two mechanical devices with vertical connectors and mounting brackets (no text or symbols)

① ANTENA

② USTAWIENIA WZMOCNIENIA

Mikrofonowe: mikrofon

Technical line drawing of a mechanical component with mounting holes and central bore (no text or symbols)

SCHOWEK NA AKUMULATORY ZNAJDUJE SIĘ NA SPODZIE URZĄDZENIA

TECHNICAL SPECIFICATIONS:

BASIC SPECIFICATIONS MAIN UNIT

Output power (max.): 100 W RMS / 4 Ω

Frequency response: 70 Hz - 16 kHz

Maximum sound pressure: 115 dB

THD: < 0,5%

Speaker: 10" Woofer / 1" Tweeter

Power: 100 V - 240 V switching power supply

Charge battery 12 V / 5 Ah (2 pieces)

Size (W x H x D): 355 x 610 x 315 mm

Weight: 19 kg

Receiver module: UHF Module (863 MHz - 865 MHz)

(art. LDRM102R)

Battery life: 4 to 6 hours

CD PLAYER

Product type:

Compact disc digital audio system with mechanic & electronic anti-shock CD, CD-R, CD-R/W, MP3, WMA, USB MP3 WMA, SD MP3, WMA.

Disc loading: Slot-in Type

Power consumption: ≤ 5 W

Dimensions (W x H x D): 160 x 147.4 x 68,5 mm

Weight: 1,2 kg

WIRELESS MIC TRANSMITTER

Max Audio input level: 0 dBV

Dimensions (L x ∅): 250 x 54mm

Weight: 270 g (without batteries)

Power Requirements: 2 "AA" size alkaline or rechargeable batteries

Battery Life: >12 hours (with alkaline batteries)

BELTPACK TRANSMITTER

Max Audio input level: 0 dBV to +10 dBV

Gain Adjustment Range: 30 dB

Input Impedance: 470 kΩ

Dimensions (W x H x D): 85 x 65 x 23 mm

Weight: 80 g (without batteries)

Power Requirements: 2 "AA" size alkaline or rechargeable batteries

Battery Life: > 10 hours (with alkaline batteries)

Since all our products are constantly controlled and improved, technical changes are possible without prior notice.

TECHNICAL SPECIFICATIONS:

LDWS1616 / Roadman / Roadboy

Frequency list for intermodulation free use of up to three wireless microphones simultaneously.

Nr.	Frequency MHz	Simultaneous
1 863,100 X
2 863,900
3 864,500
4 864,900
5 863,200
6 863,300
7 863,400
8 863,500
9 863,600
10 863,700 X
11 863,800
12 864,000
13 864,100 X
14 864,200
15 864,300
16 864,400

DEKLARACJA ZGODNOŚCI WE:

OGRANICZONA GWARANCJA

Line drawing of a rectangular electronic device with a logo on the front panel (no text or symbols on the device itself)

AVVERTENZE:

Technical line drawing of a mechanical component with mounting holes and a central circular feature (no text or symbols)

1 MODULO RICEVITORE WIRELESS

Black outdoor portable speaker with ventilation grille and front-mounted handle (no visible text or symbols)

Microfono a mano

Black handheld microphone with textured body and label 'LONIONA' on the shaft (no visible text or symbols on device body)

Antenna

Custodia microfoni

Open black plastic toolbox with hexagonal top and internal compartments (no text or symbols visible)

Black cable with connector and plug, no visible text or symbols

Black remote control device with various function keys and buttons (no visible text or symbols)

Black hardcover device with open lid and wheels, no visible text or symbols

Trasmettitore belt pack (LDWS1616BP)

Two black wireless transmitters with visible antennas and earphones, no text or symbols on the devices themselves.

Line drawing of a ear with attached medical sensors (no text or symbols)

On / Off, controllo volume

② PLAY / PAUSE

3 STOP

7 USCITA NON COMMUTATA

⑧ USCITA DI CONNESSIONE

MODULO RICEVITORE WIRELESS:

1 FINESTRA IR

Three schematic diagrams of a device with directional arrows indicating movement or force (no text or symbols present)

① GRIGLIA DEL MICROFONO
2 GAIN

Pure electrical circuit components without any text or symbols

Technical line drawing of two mechanical device configurations with no visible text or symbols

1 ANTENNA

② PARAMETRI DI GUADAGNO

Mic: microfono

4 INGRESSO MIC MINI XLR

5 PULSANTE ON / OFF

⑥ PULSANTE ASC (ATTIVA LA SINCRONIZZAZIONE)

Technical line drawing of a mechanical component with mounting flanges and central bore (no text or symbols)

Frequency response: 70 Hz - 16 kHz

Maximum sound pressure: 115 dB

THD: < 0,5%

Speaker: 10" Woofer / 1" Tweeter

Power: 100 V - 240 V switching power supply

Charge battery 12 V / 5 Ah (2 pieces)

Size (W x H x D): 355 x 610 x 315 mm

Weight: 19 kg

Receiver module: UHF Module (863 MHz - 865 MHz)

(art. LDRM102R)

Battery life: 4 to 6 hours

CD PLAYER

Product type:

Compact disc digital audio system with mechanic & electronic anti-shock CD, CD-R, CD-R/W, MP3, WMA, USB MP3 WMA, SD MP3, WMA.

Disc loading: Slot-in Type

Power consumption: ≤ 5 W

Dimensions (W x H x D): 160 x 147.4 x 68,5 mm

Weight: 1,2 kg

WIRELESS MIC TRANSMITTER

Max Audio input level: 0 dBV

Dimensions (L x ∅): 250 x 54mm

Weight: 270 g (without batteries)

Power Requirements: 2 "AA" size alkaline or rechargeable batteries

Battery Life: >12 hours (with alkaline batteries)

BELTPACK TRANSMITTER

Max Audio input level: 0 dBV to +10 dBV

Gain Adjustment Range: 30 dB

Input Impedance: 470 kΩ

Dimensions (W x H x D): 85 x 65 x 23 mm

Weight: 80 g (without batteries)

Power Requirements: 2 "AA" size alkaline or rechargeable batteries

Battery Life: > 10 hours (with alkaline batteries)

Since all our products are constantly controlled and improved, technical changes are possible without prior notice.

TECHNICAL SPECIFICATIONS:

LDWS1616 / Roadman / Roadboy

Frequency list for intermodulation free use of up to three wireless microphones simultaneously.

Nr.	Frequency MHz	Simultaneous
1 863,100 X
2 863,900
3 864,500
4 864,900
5 863,200
6 863,300
7 863,400
8 863,500
9 863,600
10 863,700 X
11 863,800
12 864,000
13 864,100 X
14 864,200
15 864,300
16 864,400

DICHIARAZIONI DEL PRODUTTORE:

GARANZIA DEL PRODUTTORE
