FCH100 - Chocolate fountain SIMEO - Free user manual and instructions

Product type	Chocolate maker / milk frother
Brand	Siméo
Model	FCH100
Power supply	220-240 V ~ 50/60 Hz
Power	600 W
Maximum pot capacity	900 ml (4 cups)
Main functions	Heat and froth, froth only, stop
Service temperature	Hot drinks (4 to 6 minutes) or cold
Types of drinks prepared	Hot chocolate, café au lait, cappuccino, lattes, plant-based drinks
Authorized ingredients	Animal milk, plant-based drinks, water, chocolate powder, instant coffee, chicory, cappuccino preparations
Prohibited ingredients	Tablet chocolate, chocolate coins, chocolate chips, coffee beans, praline, hazelnut, nougat
Material of the pot	Not specified (estimated: stainless steel or glass)
Cleaning and maintenance	Wash pot, lid and pouring spout with soapy water; clean heating base with a damp cloth; do not immerse
Safety	Automatic shut-off after 15 min of operation, do not use empty, do not immerse, children 8+ with supervision
Included accessories	Milk pot, lid, heating base, pouring spout
Additional accessories	Available at www.accessoires-electromenager.fr
Repairability	Repair by an Authorized Siméo Service Center (www.simeo.tm.fr)
Warranty	Warranty defined on the enclosed leaflet; does not cover normal wear or improper use
General information	Household use only; do not use with an external timer

Frequently Asked Questions - FCH100 SIMEO

Can I use tablet chocolate or chocolate chips?

No, the device is designed only for soluble chocolate powder. Tablet chocolate, chocolate coins, or chips could damage the device and void the warranty.

What is the maximum amount of liquid I can put in the pot?

The maximum capacity is 900 ml (4 cups). Do not exceed this limit to avoid overflow or splashing.

How to clean the device after use?

Unplug and let cool. Wash the pot, lid, and pouring spout with soapy water. Clean the heating base with a damp cloth. Never immerse the base in water.

Can I use the device to heat only milk?

Yes, you can heat milk (or plant-based drink) alone, in heat and froth mode. Add the desired amount without exceeding 900 ml.

How to get a smooth froth?

Use whole milk or plant-based drinks rich in fat. Operate for 4 to 8 minutes in froth mode (alone or with heat) for a thick and creamy froth.

Does the device shut off automatically?

Yes, it is recommended not to exceed 15 minutes of continuous operation to prevent milk from sticking. The device does not have an automatic shut-off integrated, so monitor the time.

Can I use an extension cord?

Yes, only an extension cord with a grounding plug and sufficient rated current. Fully unwind the device cord before use.

What to do if the power cord is damaged?

Do not use the device. Take it to an Authorized Siméo Service Center for inspection, repair, or replacement. Do not attempt to repair it yourself.

Can I make iced drinks with this device?

Yes, for a cold drink, use only the froth mode (without heat). Add ice cubes if desired, but do not exceed the maximum capacity.

Where to find spare parts or accessories?

Go to www.accessoires-electromenager.fr for original accessories. Use of accessories not recommended by Siméo voids the warranty.

USER MANUAL FCH100 SIMEO

Chocolat chaud-2 portions

Mokkaccino-2 portions

Your safety and the safety of others is very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

Appliance Specifications:

220V/340W,H50/60Hz 600W

THIS PRODUCT IS FOR USE IN 120V AC OUTLET ONLY.

IMPORTANT PRECAUTIONS

1. NEVER immerse the Base or cord in water.
2. NEVER use near water.
3. NEVER leave unit unattended If used near children.
4. NEVER use a scouring pad on the appliance.
5. NEVER use an abrasive sponge or harsh cleaning products on or inside of the appliance.
6. NEVER use for anything other than what this item was originally intended.
7. Avoid contact with moving parts.
8. DO NOT operate this appliance with a damaged cord or plug, or in the event the appliance ever malfunctions.
9. DO NOT place parts in dishwasher.
10. Keep out of reach of children.
11. Unplug appliance from electrical outlet when not in use and before cleaning. Remove plug by gripping the plug body and pulling out of the outlet. Never yank or twist cord to unplug the unit.
12. This appliance is NOT A TOY. This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
13. Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised. Keep the appliance and its cord out of reach of children aged less than 8 years.
14. This appliance is not intended for use by young children or cognitively challenged individuals without supervision.

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including:

1. Read all instructions before operating this appliance.
2. NEVER put fingers or utensils into feed or discharge areas.
3. Keep hands and utensils out of container while unit is in operation to reduce the risk of severe personal injury or damage to the appliance.
4. To protect against electrical shock do not immerse cord, plug or main unit in water or other liquids.
5. Close supervision is necessary when any appliance is used by or near children.
6. Unplug from outlet when not in use and before removing parts for cleaning. Allow appliance to cool before cleaning.

7. DO NOT operate any appliance with a damaged cord or plug or if the appliance has been damaged in any manner. Return the appliance to the nearest repair shop for examination or repair.

8. The manufacturer does not recommend the use of accessory attachments. Use of attachments may result in fire, electrical shock or injuries.

9. DO NOT remove Lid when in use.
10. DO NOT add anything to the container while the appliance is operating.
11. DO NOT let the cord touch hot surfaces.
12. DO NOT place on or near a hot gas or electric burner, or In a heated oven.
13. Extreme caution must be used when moving this appliance with liquids inside.
14. This unit must be on a level surface to operate properly.
15. DO NOT use this appliance for other than its intended use.
16. DO NOT use outdoors FOR HOUSEHOLD USE ONLY.
17. DO NOT leave unit unattended while in use or when plugged into an outlet.
18. Check inside of the container for foreign objects prior to use.
19. A short power supply cord is provided to reduce the risk resulting from becoming entangled or tripping over a long cord.
20. Do not attempt to service this appliance yourself, as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
21. Beverages will be HOT. Avoid contact with hot liquids.
22. Always operate the appliance with cover in place.
23. Make sure the container is properly attached to the base before turning on unit.
24. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
25. Children shall not play with the appliance.
26. The kettle is only to be used with the stand provided.
27. Ensure that the kettle is switched off before removing it from its stand.
28. The food should not be heated for too long a period.
29. This appliance is intended to be used in household and similar applications as: staff kitchen areas in shops, offices and other working environments, farm houses, by clients in hotels, motels and other residential type environments, bed and breakfast type environments

SAVE THESE INSTRUCTIONS! INTRODUCTION

Thank you for purchasing the HOT CHOCOLATE MAKER from Nostalgia™ Making perfectly blended cups of hot cocoa at home has never been easier. The HOT CHOCOLATE MAKER heats and whirls beverages into steamy, delicious drinks in no time. And, its sleek, retro design will complement any kitchen. The HOT CHOCOLATE MAKER makes great: Gourmet Hot Cocoa
Café Lattes & Tea Lattes
Café Mochas & more!

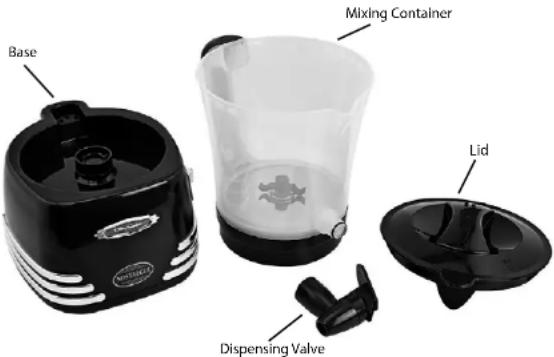

PARTS & ASSEMBLY

Parts
(Glass on cover page not included)

Switch Positions
Left: Heat/Froth (heat and stir) Center: Off Right: Froth (stir)
Cord Location

Cord can be wrapped and stored inside of the bottom of Base when not in use. Please see Important Safeguards section for instructions about the cord & plug.

HOW TO OPERATE

1. Before first use, wipe down the HOT CHOCOLATE MAKER exterior with a clean, non-abrasive cloth or sponge. Thoroughly wash the interior of the Mixing Container with warm, sudsy water and a non-abrasive cloth or sponge. DO NOT immerse Mixing Container in water. Wash Dispensing Valve and Lid in warm, sudsy water and thoroughly dry. DO NOT put the Base in water.
2. Find a stable, waterproof surface near an electrical outlet before starting. Make sure the cord is away from any water source.
3. DO NOT place the HOT CHOCOLATE MAKER near the edge of a table or countertop.
4. Remove the Lid from the Mixing Container.
5. Pour 32 ounces of water or milk into the Mixing Container.

NOTE: Do not fill the Mixing Container past the "Max" fill line.

1. Add 8 to 14 tablespoons of your favorite instant drink mix, depending on whether using milk or water. (See SERVING GUIDE table below.)
2. Replace the Lid on the Mixing Container. Make sure the lid covers the pour spout. DO NOT operate without lid securely in place.
3. Plug the HOT CHOCOLATE MAKER into an outlet.
4. Turn the switch to the "HEAT/FROTH" position. The HOT CHOCALATE MAKER will begin to mix and heat.

NOTE: You may move the switch to the "OFF" position to turn the appliance off at any time. A full 32 ounces takes approximately 6-8 minutes to heat. DO NOT run on "HEAT/FROTH" for more than 15 minutes. This will cause milk to scald.

1. Once the beverage reaches your ideal temperature, turn the switch to the "FROTH" position. Place a cup under the Dispensing Valve press down on the valve. The beverage will mix while it dispenses so that a rich layer of froth is released into your cup along with the hot drink.
2. When the container has less than 1 cup of liquid remaining or is empty, press the "OFF" switch. Dispense any remaining liquid into a cup by pressing down on the Dispensing Valve. You may also pour the beverage out of the top of the Mixing Container by turning the lid clockwise so the "POUR" indicator is aligned with the spout.

The appliance will remain on until you switch it off.

SERVING GUIDE
CUPS 1 2 3 4
LIQUID Milk/Water	8-oz. 16-oz	24-oz. 32-oz
POWDER MIX with Milk	2 Tbsp. 4 Tbsp.	6 Tbsp. 8 Tbsp.
POWDER MIX with Water	4 Tbsp. 7 Tbsp.	11 Tbsp.	4 Tbsp.

NOTE: Pre-packaged instant cocoa, coffee and tea mixes may vary from the quantities indicated in this guide. Use the quantities specified on the packaging for exact measurements.

HELPFUL TIPS

NEVER leave the unit unattended while operating.

SMOKING

A small amount of smoke and/or odor may occur upon heating due to the release of manufacturing oils. This is normal.

NOISE

Some minor expansion/contraction sounds may occur during heating and cooling. This is normal.

HEATING BEVERAGES

DO NOT run the HOT CHOCALATE MAKER on the "HEAT/FROTH" setting for more than 15 minutes. This will cause milk to scale.

CLEANING & MAINTENANCE

1. After using your HOT CHOCOLATE MAKER, disconnect from electrical outlet. Remove plug by gripping the plug body and pulling out of the outlet. Never yank or twist cord to unplug the unit. Allow the appliance to cool completely before cleaning.
2. Remove the Mixing Container from the Base. Pour out any unused beverage.
3. Wash the interior of the Mixing Container with a combination of mild detergent and water. DO NOT submerge the Mixing Container in water. Rinse and dry thoroughly.

4. Unscrew the Dispensing Valve from the Mixing Container by turning counterclockwise. Open the Dispensing Valve and flush with clean water.

5. Wash the lid in warm, soapy water. Rinse and dry thoroughly.

6. Wipe the exterior of the Base and Mixing container with a soft, damp cloth.
7. NEVER Immerse Base in water or put any parts in the dishwasher.

Correct Disposal of this product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling

RECIPES

You can create a variety of frothy, hot beverages with your HOT CHOCOLATE MAKER. Feel free to adjust the ingredients in the following recipes to your particular taste, or create your own delicious cafe-style drinks. The HOT CHOCOLATE MAKER has the capacity for four 8-oz. drinks. If your drink recipe is made for one, remember to adjust your recipes accordingly for multiple servings.

Refer to the serving guide in the How to Operate section for suggested serving sizes. When using pre-packaged cocoa, coffee or tea mixes, use the quantities specified on the packaging for exact measurements.

CAFE AU LAIT

1 Cup Water
1 Heaping Tsp.
Instant Coffee
1 Cup Milk
2 Tsp. Sugar, optional
Pinch of Ground

Nutmeg, optional

Add water, instant coffee, milk and sugar to the HOT

CHOCOLATE MAKER. Turn switch to "HEAT/FROTH".

Run for 4 to 8 minutes, or until beverage reaches

Ideal temperature. Switch to "FROTH" setting.

Dispense the drink into a mug. Sprinkle

nutmeg or ground cinnamon on top.

Serves 2.

1 Cup Water

1 Heaping Tsp.
Instant Coffee
1 Cup Milk
- 3 Tbsp. Chocolate Syrup (or 1 tbsp. unsweetened cocoa powder and 2 tbsp. sugar)

Add Ingredients to the HOT CHOCOLATE

MAKER AND TUN SWITCH TO HEAL/PAOTH

Run for 4 to 8 minutes, or until beverage reaches ideal temperature. Switch to "FROTH" setting.

Dispense the drink into a mug. Sprinkle.

chocolate shavings on top if desired.

Serves 2.

Add ingredients to the HOT CHOCOLATE
MAKER and turn switch to HEAT/PROTH.
Run for 4 to 8 minutes, or until beverage reaches ideal temperature. Switch to "FROTH" setting.
Dispense the drink into a mug.
For Cinnamon-Vanilla and Cream Coffee, add 12 tsp. of ground cinnamon.
Serves 2.

MOCHACCINO

1½ Cups Milk
2/25tbsp.Chocolate Syrup (or 1 tbsp. unsweetened cocoa powder and 2 tbsp.sugar)
CupWater
1 Heaping Tsp. Instant Coffee

Add ingredients to the HOT CHOCOLATE
MAKER and turn switch to "HEAT/FROTH".

Run for 4 to 8 minutes, or until beverage reaches ideal temperature. Switch to "FROTH" setting.
Dispense the drink into a mug. Top with
whipped cream and sweetened chocolate powder or chocolate shavings, if desired.
Serves 2.

MINTY HOT COCOA

2 Heaping Tbsp.
Unsweetened
Cocoa Powder
4 Tsp. Sugar
2 Cups Milk
- 3 Tbsp. Mint Syrup or
Creme de Menthe

Add ingredients to the HOT CHOCOLATE
MAKER and turn switch to "HEAT/FROTH".
Run for 4 to 8 minutes, or until beverage reaches
Ideal temperature. Switch to "FROTH" setting.
Dispense the drink into a mug. Top with whipping cream.
Serves 2.

SPICY MEXICAN HOT CHOCOLATE

3 Tbsp. Instant Hot
Chocolate Mix
1 Tbsp. Chocolate
Syrup
Tsp.Ground
Cinnamon
1 Pinch Chill Powder
Cup Milk
CupWater

Add ingredients to the HOT CHOCOLATE
MAKER and turn switch to "HEAT/FROTH"
Run for 4 to 8 minutes, or until beverage reaches ideal temperature. Switch to "FROTH" setting.
Dispense the drink into a mug. Top with
whipped cream, if desired.
Serves 1.

CREAMY CARAMEL APPLE CIDER

2 Cups Apple Cider
or Apple Juice
Tsp.Cinnamon
4 Tbsp. Caramel Syrup
Whipping Cream

Add apple cider or juice and cinnamon to the HOT

CHOCOLATE MAKER and turn switch to "HEAT/FROTH".

Run for 4 to 8 minutes, or until beverage

reaches ideal temperature. Switch to "FROTH"

setting. Dispense the drink into the mug.

Top with whipping cream and drizzle 2 tbsp. of caramel syrup over the top of each mug.

Serves 2.

RETURNS & WARRANTY

SHOULD YOUR UNIT NOT WORK OR IF DAMAGED WHEN YOU FIRST TAKE IT OUT OF THE BOX, PLEASE RETURN IT TO THE PLACE OF PURCHASE IMMEDIATELY.

HOT CHOCOLATE MAKER / HCM700 SERIES

Should you have any questions, please contact us via email or at the customer service number listed below between the hours of 8:00 AM and 5:00 PM Monday through Friday, Central Standard Time.

Distributed by:

Nostalgie Products LLC

1471 Partnership Dr.

Green Bay, WI 54304-5685

Customer Service

Phone: [phone]

Customer Service Inquiry

To submit a Customer Service inquiry, go to www.nostalgiproducts.com and fill out the Customer Service Inquiry form and click the Submit button.

A representative will contact you as soon as possible.

Product Warranty Terms

Nostalgia Products LLC (the "Company") hereby warrants that for a period of one (1) year from the date of original purchase, this product will be free of defects in material and workmanship under normal home use, provided that the product is operated and maintained in accordance with the operating instructions. As the sole and exclusive remedy under this warranty, the Company will at its discretion either repair or replace the product found to be defective, or issue a refund on the product during the warranty period. This warranty is only available to the original retail purchaser of the product from the date of initial retail purchase, and is only valid with the original sales receipt, as proof of purchase date is required to obtain warranty benefits. All warranty claims must be brought to the attention of the Company within the warranty period and no later than 30 days of the failure to perform. This warranty does not cover normal wear or damage caused by shipping, mishandling, misuse, accident, alteration, improper replacement parts, or other than ordinary household use. You may be required to return the product (with shipping prepaid by you for inspection and evaluation. Return shipping costs are not refundable. The Company is not responsible for returns damaged or lost in transit. Unless otherwise specifically permitted by the operating instructions, this warranty applies to indoor household use only. In order to obtain service under this warranty, please contact the Company at the telephone number listed above or by filling out the Customer Service Inquiry Form located at www.nostalgiaproducts.com. Warranty valid only in USA and Canada.

This warranty is in lieu of all other warranties, expressed or implied, including warranties of merchantability and fitness for a particular purpose, which are hereby excluded to the extent permitted by law. In no event shall the Company be liable for any indirect, incidental, consequential, or special damages arising out of or in connection with this product or the use thereof. Some states, provinces or jurisdictions do not permit the exclusion or limitation of incidental or consequential damages, so the foregoing exclusion or limitation may not apply to you.

This warranty does not apply to re-manufactured merchandise.

Please read the operating instructions carefully. Failure to comply with the operating instructions will void this warranty.

For more information, visit us online at www.nostalglaproducts.com.

Like us on Facebook at www.facebook.com/NostalgiaElectrics. Follow our boards on Pinterest at www.pinterest.com/nostalgiaelectrx. Tweet along with us on Twitter at www.twitter.com/NostalgiaElectrx.

SEGURIDAD

Nostalgia Products LLC 1471 Partnership Dr.

Green Bay, WI 54304 5685

Servicio di cliente Tel#: [phone]

Web: www.nostalgiaproducts.com
