USER MANUAL RLC-843A REOLINK

If you need any technical help, please visit our official support site and contact our support team before returning the products, https://support.realink.com.

CET PRODUCT SERVICE SP. Z O.O.

Ul. Dluga 33 102 Zgierz, Polen

CET PRODUCT SERVICE LTD.

Beacon House Stokenchurch Business Park, Ibstone Rd, Stokenchurch High Wycombe, HP14 3FE, United Kingdom

Aug 2023

QSG1_A_EN

58.03.005.0127

EN/DE/FR/IT/ES

Quick Start Guide

Apply to: RLC-843A

@ReolinkTech https://reolink.com

EN

Contents

What's in the Box 2

Camera Introduction 3

Connection Diagram 5

Set UP the Camera 6

Mount the Camera 7

Troubleshooting

Specification 11

Notification of Compliance 11

EnglishEnglish1 2

What's in the Box

Camera Waterproof Lid

1M Ethernet Cable

Mounting Template

Dust-Absorber

Pack of Screws

Reset Needle

Surveillance Sticker

Quick Start Guide

NOTE:

* Quantity of accessories varies with the camera model you purchase.

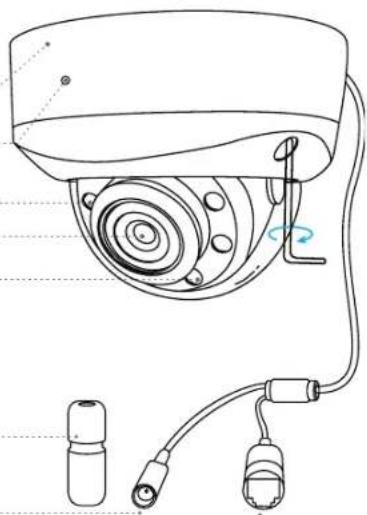

Camera Introduction

PoE Camera

Mount

Built-in Mic

IR LEDs

Lens

Spotlights

Waterproof Lid

Power Port

Network Cable

EnglishEnglish3 4

Technical line drawing of a surveillance camera with attached cables and a connector (no text or symbols)

microSD Card Slot

*Loosen the screws with a screwdriver (not included) to access the microSD card slot

Reset Button

* Press and hold the reset button for 5s with a pin to restore factory settings.

Speaker

Simple line drawing of a helmet with decorative patterns (no text or symbols)

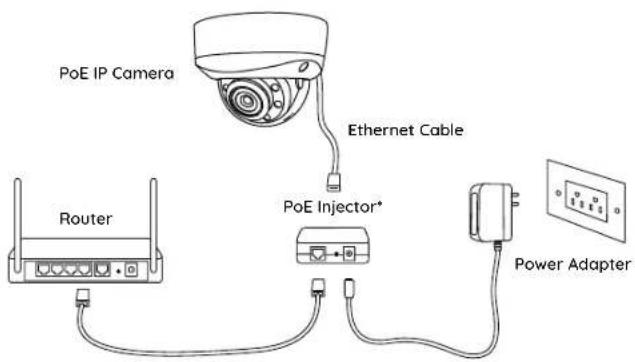

Connection Diagram

Before initial setup, follow the steps below to connect your camera.

1. Connect the camera to a LAN port on your router with an Ethernet cable.

2. Use the power adapter to power on the camera.

NOTE: You can power the camera with a PoE switch, PoE injector, Reolink PoE NVR or a DC 12V power adapter (not included in the package).

PoE IP Camera Ethernet Cable Router PoE Injector* Power Adapter

EnglishEnglish5 6

Set up the Camera

Download and launch the Reolink App or Client software, and follow the onscreen instructions to finish initial setup.

- On Smartphone

Scan to download the Reolink App.

- On PC

Download path of the Reolink Client: Go to https://reolink.com > Support > App & Client.

NOTE:

- If you are connecting the PoE camera to a Reolink PoE NVR, please set up the camera via the NVR interface.

Mount the Camera

Installation Tips

• Do not face the camera towards any light sources.
• Do not point the camera towards a glass window. Or, it may result in poor image quality because of the window glare by infrared LEDs, ambient lights or status lights.
• Do not place the camera in a shaded area and point it towards a well-lit area. Or, it may result in poor image quality. To ensure the best image quality, the lighting condition for both the camera and the capture object shall be the same.
• To ensure better image quality, it's recommended to clean the dome cover with a soft cloth from time to time.
• Make sure the power ports are not directly exposed to water or moisture and not blocked by dirt or other elements.
• With IP waterproof ratings, the camera can work properly under conditions like rain and snow. However, it doesn't mean the camera can work underwater.
• Do not install the camera at places where rain and snow can hit the lens directly.

EnglishEnglish7 8

Install the Camera

Diagram showing three bolts aligned vertically above a horizontal surface, with no text or symbols present.

Put the mounting template on the ceiling and drill holes at the indicated locations, then insert the drywall anchors.

Line drawing of a mechanical device with a spiral component and a handle (no text or symbols)

Screw the dome cover off the camera base with the Allen key.

Technical line drawing of a mechanical component with no visible text or symbols

Screw the camera base to the ceiling.

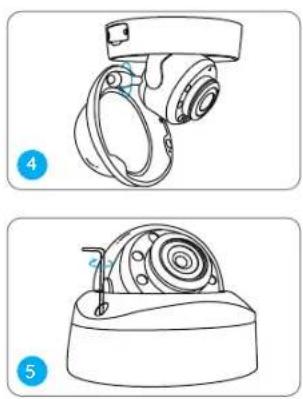

Technical line drawings of a mechanical device with two views (labeled 4 and 5), no text or symbols present.

Adjust the camera's viewing angle as needed.

Attach the dome cover to the camera base by tightening the screws.

EnglishEnglish9 10

Troubleshooting

Camera is not Powering on

If your camera is not powering on, please try the following solutions:

• Make sure your camera is powered on properly. The PoE camera should be powered by a PoE switch/injector, a Realink NVR or a 12V power adapter.
• If the camera is connected to a PoE device as listed above, connect it to another PoE port and check again.
• Try again with another Ethernet cable.

Picture is not Clear

If the picture from the camera is not clear, please try the following solutions:

• Check the camera dome cover for dirt, dust or spiderwebs, and clean the dome cover with a soft, clean cloth. The dust-absorber included in the package is recommended.
• Point the camera to a well-lit area, the lighting condition will affect the picture quality a lot.
• Upgrade the firmware of your camera to the latest version.
• Restore the camera to factory settings and check out again.

Specification

Dimension: Φ132.7 x 98.3 mm

Weight: 750.5g

Operating Temperature: -10°C\~+55°C (14°F-131°F)

For more specifications, visit https://reolink.com/.

Notification of Compliance

FCC Compliance Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

ISED Compliance Statements

This Class B digital apparatus complies with Canadian ICES-003.

Simplified EU Declaration of Conformity

EnglishEnglish11 12

Reolink declares that this device is in compliance with the essential requirements and other relevant provisions of EMC Directive 2014/30/EU and LVD 2014/35/EU.

Correct Disposal of This Product

This marking indicates that this product should not be disposed with other household wastes. throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmentally safe recycling.

Limited Warranty

This product comes with a 2-year limited warranty that is valid only if purchased from Reolink Official Store or a Reolink authorized reseller. Learn more: https://reolink.com/warranty-and-return/.

Terms and Privacy

Use of the product is subject to your agreement to the Terms of Service and Privacy Policy at reolink.com. Keep out of reach of children.
