Welcome to AEG! Thank you for choosing our appliance.

Get usage advice, brochures, troubleshooting, service and repair information: www.aeg.com/support

Subject to change without notice.

CONTENTS

1. SAFETY INFORMATION......63
2. SAFETY INSTRUCTIONS.... 66
3. INSTALLATION 67
4. PRODUCT DESCRIPTION 67
5. DAILY USE 68
6. CARE AND CLEANING 69
7. TROUBLESHOOTING 71
8. ENVIRONMENTAL CONCERNS....71

1. ⚠SAFETY INFORMATION

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damage that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.

1.1 Children and vulnerable people safety

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children of less than 8 years of age and persons with very extensive and complex disabilities shall be kept away from the appliance unless continuously supervised.

- Children should be supervised to ensure that they do not play with the appliance.

- Keep all packaging away from children and dispose of it appropriately.

• Keep children and pets away from the appliance when it operates.
• Children shall not carry out cleaning and user maintenance of the appliance without supervision.

1.2 General Safety

• This appliance is intended for domestic use above hobs, cookers and similar cooking devices.
• This appliance is designed for single household domestic use in an indoor environment.
• This appliance may be used in offices, hotel guest rooms, bed & breakfast guest rooms, farm guest houses and other similar accommodation where such use does not exceed (average) domestic usage levels.
• Before carrying out any maintenance, disconnect the appliance from the power supply.
• CAUTION: Accessible parts may become hot during use with cooking appliances.
• Use only the fixing screws supplied with the appliance if not supplied, use the screws recommended in the installation instructions. Install the appliance in a safe and suitable place that meets installation requirements.
• WARNING: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.
• Do not use adhesives to fix the appliance.
• The minimum distance between the hob surface on which the pans stand and the lower part of the appliance shall be at least 65 cm, unless otherwise specified in the installation instructions for the appliance or hob.
• The discharge of air must comply with local authorities regulations.
• Ensure good air ventilation in the room where the appliance is installed to avoid the backflow of gases into the room from appliances burning gas or other fuels, including open fires.

- Make sure that the ventilation openings are not blocked and the air collected by the appliance is not conveyed into a duct used to exhaust smoke and steam from other appliances (central heating systems, thermosiphons, water-heaters, etc.).

- When the appliance operates with other appliances the maximum vacuum generated in the room should not exceed 0.04 mbar.

- If the supply cord is damaged, it must be replaced by the manufacturer, its Authorised Service Centre or similarly qualified persons to avoid an electrical hazard.

- If the cord set is damaged, it must be replaced by a special cord set available from the manufacturer or its Authorised Service Centre.

- If the appliance is connected directly to the power supply, the electrical installation must be equipped with an isolating device that allows to disconnect the appliance from the mains at all poles. Complete disconnection must comply with conditions specified in the overvoltage category III. The means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.

- Do not flambé under the appliance.

- Do not use to exhaust hazardous or explosive materials and vapours.

- Clean the appliance regularly with a soft cloth to prevent the deterioration of the surface material.

- Do not use a steam cleaner, water spray, harsh abrasive cleaners or sharp metal scrapers to clean the surface of the appliance. Use only neutral detergents.

- Clean grease filters regularly (at least every 2 months) and remove grease deposits from the appliance to prevent the risk of fire.

- Use a cloth to clean the interior of the appliance.

2. SAFETY INSTRUCTIONS

2.1 Installation

WARNING!

Risk of injury, electric shock, fire, burns or damage to the appliance.

• Only a qualified person must install this appliance.
• Do not install or use a damaged appliance.
• Follow the installation instructions supplied with the appliance.
  • Always take care when moving the appliance as it is heavy. Always use safety gloves and enclosed footwear.
• Before installing the appliance remove all the packaging, the labelling and the protective film.
• Do not install the exhaust air into a wall cavity, unless the cavity is designed for that purpose.

2.2 Electrical connection

WARNING!

Risk of fire and electric shock.

• All electrical connections should be made by a qualified electrician.
• Make sure that the parameters on the rating plate are compatible with the electrical ratings of the mains power supply.
• If the symbol ( ) is not printed on the rating plate, the appliance must be earthed.
  • Always use a correctly installed shockproof socket.
• Do not let the electricity mains cable tangle.
• Do not use multi-plug adapters and extension cables.
• If the mains socket is loose, do not connect the mains plug.
• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.

• The shock protection of live and insulated parts must be fastened in such a way that it cannot be removed without tools.

• Make sure the appliance is installed correctly. Loose and incorrect electricity mains cable can make the terminal become too hot.

• Connect the appliance at the end of the installation. Make sure that there is access to the mains after the installation.

2.3 Use

WARNING!

Risk of injury, burns and electric shock.

• This appliance is for cooking purpose only. Do not use the appliance for any other purpose.
• Do not change the specification of this appliance.
• Do not operate the appliance with wet hands or when it has contact with water.
• Use only the accessories supplied with the appliance.
• Keep flames or heated objects away from fats and oils during cooking and frying.
• Do not use uncovered electric grills.
• Do not use the appliance as a storage surface.
• Do not use magnifying glasses, binoculars or similar optical devices to look directly at the lighting of the appliance.
• If the appliance works with other devices, the maximum developed pressure must not exceed 4 Pa (4x10-5 bar).

2.4 Service

• To repair the appliance contact the Authorised Service Centre. Use original spare parts only.
- Concerning the lamp(s) inside this product and spare part lamps sold separately: These lamps are intended to withstand extreme physical conditions in household appliances, such as temperature, vibration, humidity, or are intended to signal information about the operational status of the appliance. They are not intended to be used in other applications and are not suitable for household room illumination.

2.5 Disposal

WARNING!

Risk of injury or suffocation.

- Contact your municipal authority for information on how to dispose of the appliance.

• Disconnect the appliance from the mains supply.
• Cut off the mains electrical cable close to the appliance and dispose of it.

3. INSTALLATION

WARNING!

Refer to Safety chapters.

3.1 Installation instructions

For complete information about the installation of the appliance refer to a separate installation booklet.

4. PRODUCT DESCRIPTION

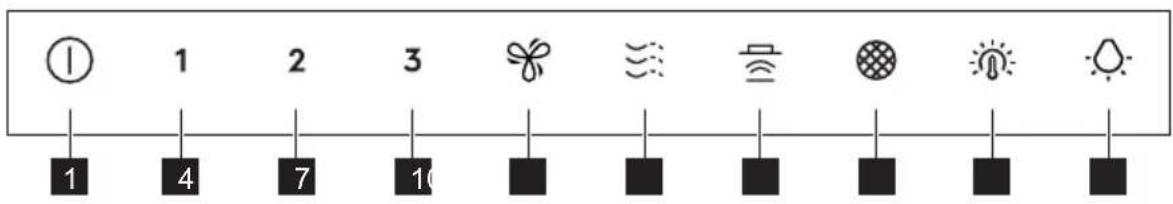

4.1 Control panel overview

① 1 2 3 🍐 ≈ ≈ ≈ ≈ ≈ ≈ ≈ 1 4 7 10

Function Description

1

On / Off Turns the hood on and off.

2

First speed The fan switches to first speed level.

3

Second speed The fan switches to second speed level.

4

Third speed The fan switches to third speed level.

5

Maximum speed The fan switches to maximum speed level. After 8 minutes the appliance returns to previous setting.

6

Breeze The hood operates on the lowest speed. After 60 minutes the appliance turns off.

7

Hob ^2 Hood Indicator of the function to control hood from hob.

8

Filter notification Reminds to change or clean the charcoal filter and clean the grease filter.

9

Light colour temperature Changes the light colour temperature.

10

Lamp Turns the lights on and off. Changes the light intensity.

5. DAILY USE

5.1 Using the hood

Check the recommended speed according to the table below.

1

While heating up food, cooking with covered pots.

2

While cooking with covered pots on multiple cooking zones or burners, gentle frying.

3

While boiling and frying big quantities of food without a lid, cooking on multiple cooking zones or burners.

While boiling and frying big quantities of food without a lid, big humidity.

Refreshes the air in kitchen after cooking at a very low noise level. The function turns off automatically after 60 minutes. Use after cooking only.

It is recommended to leave the hood operating for approximately 15 minutes before and after cooking.

Activating the appliance

To operate the hood:

1. Pull out the drawer of the hood to switch on the control panel.

You can now activate the functions.

1. To activate the function, touch the corresponding symbol.

If the fan speed is not set within one minute after switching on the hood, the control panel will deactivate. To activate it again, touch the symbol.

Deactivating the appliance

To turn off the appliance touch symbol again or close the hood drawer.

When the drawer is closed, the last fan speed setting will be saved. When the drawer is pulled out again, the hood will operate at the last selected fan speed.

Perfect Illumination - Lighting

The hood lighting works independently to other hood functions.

Activating and deactivating the lighting To illuminate the cooking surface touch the

☀ symbol. Touch the symbol again to change the light intensity in the following order: Maximum, Medium, Low, Off.

To switch off the lights, touch and hold the symbol for 3 seconds. Closing the drawer has no effect on the hood light.

Setting the light colour temperature

The hood remembers the last setting of the light colour temperature.

There are two ways to set the light colour temperature:

1. Touch the symbol to change the colour temperature from neutral, through warm to cold.

2. Touch and hold the 🔍 symbol to move smoothly between light colour temperatures. Release it once you reach the desired setting.

5.2 Hob2Hood®

It is a function that connects the hob to a hood. Both the hob and the hood are equipped with an infrared signal communicator. The fan speed is determined based on the mode setting and the temperature of the hottest cookware on the hob. Alternatively, you can manually control

the fan using the hob. This function can be activated from the hob's control panel.

i

If the hood drawer is closed, the Hob2Hood® will only activate the hood light. The fan will remain off. If the drawer is open, the function will activate both the hood light and the fan.

i

For more information how to use the function, refer to the hob user manual.

5.3 Filter notification

Filter alarm reminds to change or clean the charcoal filter and clean the grease filter. The symbol blinks regularly for 30 seconds if the grease filter must be cleaned. The symbol blinks twice per every second for 30 seconds if the charcoal filter must be replaced.

i

This function activates independently after 40 hours of operation for grease filter and 160 hours of operation for charcoal filter.

i

Refer to Cleaning the grease filter in the Care and cleaning chapter.

i

Refer to Replacing the charcoal filter in the Care and cleaning chapter.

i

The function counter for charcoal filter is disabled by default. For recirculation mode, it must be activated.

To activate or deactivate the counter for charcoal filter:

1. Pull out the hood drawer.
2. Make sure the fan and the light are turned off.
3. Touch 2 symbol for 3 seconds.

The function is activated if symbol ⚙ blinks once. The function is deactivated if symbol ⚙ blinks twice.

To reset the function counter in the notification period:

1. Pull out the hood drawer.
2. Touch symbol for 3 seconds.
   The symbol stops blinking for the correct reset.

6. CARE AND CLEANING

6.1 Notes on cleaning

Cleaning Agents

Do not use abrasive detergents and brushes.

Clean the surface of the appliance with a soft cloth with warm water and a mild detergent.

After cooking some parts of appliance can get hot. To avoid stains appliance must be cooled down and dried with clean cloth or paper towels.

Clean stains with a mild detergent.

Keep the hood clean

Clean the appliance each month to prevent the deterioration of the surface material. Clean the interior and grease filters carefully from fat. Fat accumulation or other residue may cause fire. Follow the instructions to clean the filters when the filter notification is on. Refer to the Daily Use chapter.

Charcoal filter

The time of saturation of the charcoal filter varies depending on the type of cooking and the regularity of cleaning the grease filter. Refer to leaflet included in the accessory.

Before carrying out any maintenance, make sure there is no cookware on the hob and that the hood and the hob are disconnected from the power supply.

6.2 Cleaning the grease filter

Filters are mounted with the use of clips and pins on the opposite side.

To clean the filter:

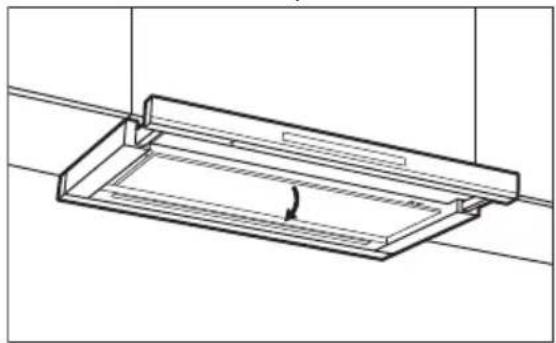

1. Pull the cover to open it.

Technical line drawing of a mechanical component with a rectangular base and angled cutout (no text or symbols)

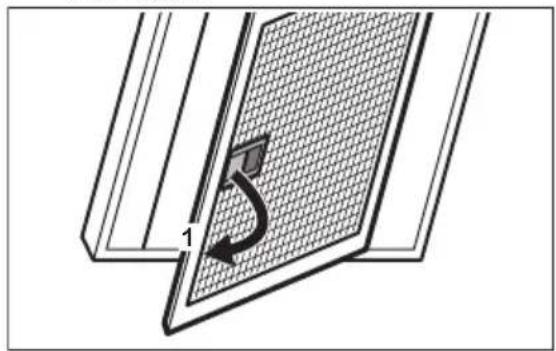

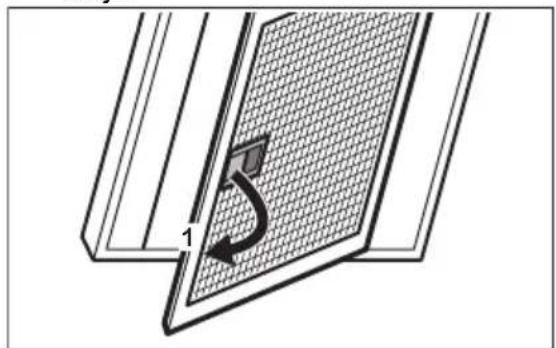

1. Pull the handle on the filter underneath the hood and slightly tilt the front of the filter down.

Diagram of a window with a grid pattern and a curved arrow indicating rotation (no text or symbols)

1. Clean the grease filters by hand using a sponge with non-abrasive detergents, or clean them in a dishwasher. We recommend cleaning the grease filters by hand.

The dishwasher must be set to a low temperature and a short cycle. The grease filter may discolour, it has no influence on the performance of the appliance.

1. To mount the filters back follow the first two steps in reverse order.

Repeat the steps for all filters if applicable.

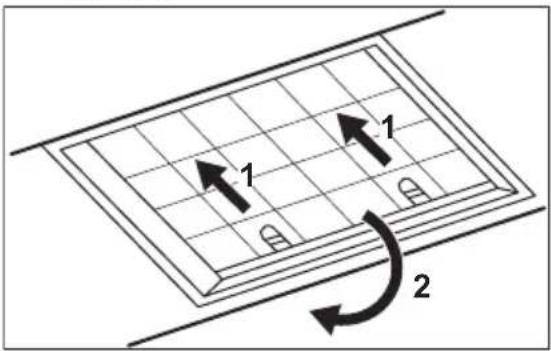

6.3 Replacing the charcoal filter - optional

Depending on type, filter can be or cannot be regenerated. Refer to the leaflet provided with the filter.

To replace the filter:

1. Remove the grease filters from the appliance.
   Refer to "Cleaning the grease filter" in this chapter.
2. Pull the tabs towards the bottom part of the filter.

1 1 2

1. Slightly tilt the front of the filter downwards, then pull.
2. To install a new filter, perform the steps in the following order.

Three identical diagrams showing a mechanical or electrical component with arrows indicating movement, no text or symbols present.

Refer to the separate Installation Instructions booklet.

6.4 Replacing the lamp

This appliance is supplied with a LED lamp and separate control gear (LED driver). These parts can be replaced by a technician only. In case of any malfunction refer to "Service" in the "Safety Instructions" chapter.

7. TROUBLESHOOTING

WARNING!

Refer to Safety chapters.

7.1 What to do if...

Problem Possible cause Remedy
You cannot activate the appliance. The appliance is not connected to a power supply or it is connected incorrectly.		Check if the appliance is correctly connected to the electrical supply.
You cannot activate the appliance. Lack of electrical power supply.		Check the fuse or the main switch. If the fuse or the switch continue to break the circuit, contact a qualified electrician.
You cannot activate the appliance. Cabinet doors are not aligned with the cabinet frame.		Align the cabinet doors.
The lamp does not operate. The lamp is defective. Contact an Authorised Service Centre.
The brightness level or light colour temperature is not as described in the instructions.	Incorrect Perfect illumination setting.	Touch the symbol to check if you are able to change all three colour temperatures.
	The lamp is defective. Contact an Authorised Service Centre.
The appliance does not absorb enough vapours.	The motor speed is not adequate to the appearing vapours.	Increase the speed of the motor.

8. ENVIRONMENTAL CONCERNS

Recycle materials with the symbol. Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances. Do not dispose of

appliances marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.

Technical line drawing of a mechanical component with a curved arrow indicating rotation (no text or symbols)

Diagram of a window with a grid pattern and a curved arrow indicating rotation (no text or symbols)

Three identical diagrams showing a mechanical or electrical component with arrows indicating movement, no text or symbols present.

Technical line drawing of a mechanical component with a curved arrow indicating rotation (no text or symbols)

Diagram of a solar panel with a curved arrow indicating rotation or movement, no text or symbols present

Three identical diagrams showing a mechanical or electrical component with arrows indicating movement, no text or symbols present.

Vt eraldi paigaldusjuhiste brošüüri.

6.4 Lambi vahetamine

Technical line drawing of a mechanical assembly with a rectangular frame and diagonal guide rails (no text or symbols)

Diagram of a window with a grid pattern and a curved arrow indicating rotation (no text or symbols)

Three identical diagrams showing a cylindrical object with an arrow indicating movement, no text or symbols present.

Technical line drawing of a mechanical component with a curved arrow indicating rotation (no text or symbols)

Diagram of a solar panel with a curved arrow indicating rotation (no text or symbols)

5. SVAKODNEVNA UPORABA

5.1 Uporaba nape

Technical line drawing of a mechanical component with a curved arrow indicating rotation (no text or symbols)

1. Povucite ručicu na filtru ispod nape i lagano nagnite prednji dio filtra prema dolje.

Diagram of a door panel with a grid pattern and a curved arrow indicating rotation (no text or symbols)

1. Filtar za masnoću očistite ručno koristeći spužvu s neabrazivnim deterdžentima ili ga očistite u perilici posuđa. Preporučujemo ručno čišćenje filtera za masnoću.

i

Three diagrams showing a mechanical or electrical setup with arrows indicating movement, no text or symbols present.

i

Pogledajte zasebnu knjižicu s uputama za postavljanje.

6.4 Zamjena žarulje

Technical line drawing of a rectangular mechanical component with a curved arrow indicating rotation (no text or symbols)

Diagram of a window with a grid pattern and a curved arrow indicating rotation (no text or symbols)

Three identical diagrams showing a mechanical or electrical component with arrows indicating movement, no text or symbols present.

Technical line drawing of a mechanical component with a curved arrow indicating rotation (no text or symbols)

Diagram of a door panel with a grid pattern and a curved arrow indicating rotation (no text or symbols)

Three identical diagrams showing a mechanical or electrical component with arrows indicating movement, no text or symbols present.

- 350601 g3308s y60s y2u5d3m0y1 s0g0mm0z0 m65b0d0l m2g7m5b0d0.

Technical line drawing of a rectangular enclosure or tray with a curved arrow indicating rotation (no text or symbols)

Diagram of a window with a grid pattern and a curved arrow indicating rotation (no text or symbols)

Three schematic diagrams showing mechanical or electrical components with arrows indicating movement, no text or symbols present.

36m05m05s 36m05m05 m 36m05m05 n 36m05m05 n 36m05m05n 36m05m05n
36m05m05m05n 36m05m05 n 36m05m05n 36m05m05n 36m05m05n 36m05m05n 36m05m05n 36m05m05n 36m05m05n 36m05m05n 36m05m05n 36m05m05n 36m05m05
36m05m05m05n 36m05m05n 36m05m05n 36m05m05n 36m05m05n 36m05m05n 36m05m05n 36m05m05n 36m05m05n 36m05m05n 31m05m05n 31m05m05n 31m05m05n 31m05m05n 31m05m05n 31m05m05n 31m05m05n 31m05m05n 31m05m05n 31m05m05n 36m05m05n 36m05m05n 36m05m05n 36m05m05n 36m05m05n 36m05m05n 36m05m05n 36m05m05n 36m05m05n 37m05m05n 37m05m05n 37m05m05n 37m05m05n 37m05m05n 37m05m05n 37m05m05n 37m05m05n 37m05m05n 37m05m05n 38m05m05n 38m05m05n 38m05m05n 38m05m05n 38m05m05n 38m05m05n 38m05m05n 38m05m05n 38m05m05n 38m05m05n 39m05m05n 39m05m05n 39m05m05n 39m05m05n 39m05m05n 39m05m05n 39m05m05n 39m05m05n 39m05m05n 39m05m05n 38m05m05n 38m05m05n 38m05m05n 38m05m05n 38m05m05n 38m05m05n 38m05m05n 38m05m05n 38m05m05n 37m05m05n 37m05m05n 37m05m05n 37m05m05n 37m05m05n 37m05m05n 37m05m05n 37m05m05n 37m05m05n 36m05m05n 36m05m05n 36m05m05n 36m05m05n 36m05m05n 36m05m05n 36m05m05n 36m05m05n 36m05m05n 35m05m05n 35m05m05n 35m05m05n 35m05m05n 35m05m05n 35m05m05n 35m05m05n 35m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 33m05m05n 33m05m05n 33m05m05n 33m05m05n 33m05m05n 33m05m05n 33m05m05n 33m05m05n 32m05m05n 32m05m05n 32m05m05n 32m05m05n 32m05m05n 32m05m05n 32m05m05n 31m05m05n 31m05m05n 31m05m05n 31m05m05n 31m05m05n 31m05m05n 31m05m05n 31m05m05n 31m05m05n 30m05m05n 30m05m05n 30m05m05n 30m05m05n 30m05m05n 30m05m05n 30m05m05n 30m05m05n 30m05m05n 30m05m05n 31m05m05n 31m05m05n 31m05m05n 31m05m05n 31m05m05n 31m05m05n 31m05m05n 31m05m05n 31m05m05n 32m05m05n 32m05m05n 32m05m05n 32m05m05n 32m05m05n 32m05m05n 32m05m05n 32m05m05n 32m05m05n 32m05m05n 31m05m05n 31m05m05n 32m05m05n 32m05m05n 32m05m05n 32m05m05n 32m05m05n 32m05m05n 32m05m05n 31m05m05n 31m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 32m05m05n 32m05m05n 32m05m05n 32m05m05n 32m05m05n 32m05m05n 32m05m05n 32m05m05n 31m05m05n 32m05m05n 32m05m05n 32m05m05n 32m05m05n 32m05m05n 32m05m05n 31m05m05n 32m05m05n 32m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 31m05m05n 32m05m05n 32m05m05n 32m05m05n 32m05m05n 32m05m05n 32m05m05n 32m05m05n 31m05m05n 32m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 32m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 32m05m05n 34m05m05n 34m05m05n 32m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 32m05m05n 34m05m05n 34m05m05n 34m05m05n 32m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 32m05m05n 32m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 32m05m05n 34m05m05n 32m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 32m05m05n 34m05m05n 32m05m05n 34m05m05n 32m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 31m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 32m05m05n 36m05m05n 36m05m05n 36m05m05n 36m05m05n 36m05m05n 36m05m05n 36m05m05n 36m05m05n 36m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 36m05m05n 36m05m05n 36m05m05n 36m05m05n 36m05m05n 36m05m05n 36m05m05n 36m05m05n 36m05m05n 32m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 36m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 36m05m05n 32m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 36m05m05n 34m05m05n 32m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 36m05m05n 32m05m05n 36m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 32m05m05n 38m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 38m05m05n 32m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 38m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 38m05m05n 36m05m05n 32m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 38m05m05n 32m05m05n 36m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 38m05m05n 32m05m05n 32m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 38m05m05n 36m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 38m05m05n 38m05m05n 34m05m05n 32m05m05n 36m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 36m05m05n 38m05m05n 32m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 38m05m05n 38m05m05n 32m05m05n 36m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 38m05m05n 38m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 36m05m05n 38m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 32m05m05n 31m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 36m05m05n 31m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 38m05m05n 31m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 37m05m05n 31m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 34m05m05n 31 m12 m12 m12 m12 m12 m12 m12 m12 m12 m12 m12 m12 m12 m12 m12 m12 m12 m12 m12 m12 m12 m12 m12 m12 m12 m12 m12 m12 m12 m12 m12 m12 m12 m12	36m05m05n 36m05m05n 36m05m05n 36m05m05n 36m05m05n 36m05m05n 36m05m05n 36m05m05n 36m05m05n 36m05m05n

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram of a solar panel with a grid pattern and directional arrow indicating rotation (no text or symbols)

Three diagrams showing mechanical or electrical components with arrows indicating movement, no text or symbols present.

Technical line drawing of a mechanical component with a curved arrow indicating rotation (no text or symbols)

Diagram of a solar panel with a grid pattern and a curved arrow indicating rotation (no text or symbols)

Three diagrams showing mechanical or electrical components with arrows indicating movement, no text or symbols present.

i

4. PRODUKTA APRAKSTS

Technical line drawing of a mechanical component with a curved arrow indicating rotation (no text or symbols)

Diagram of a solar panel with a grid pattern and a curved arrow indicating rotation (no text or symbols)

Three schematic diagrams showing mechanical or electrical components with arrows indicating movement, no text or symbols present.

i

Technical line drawing of a mechanical assembly with a rectangular frame and internal components (no text or symbols)

Diagram of a solar panel with a curved arrow indicating rotation or movement, no text or symbols present

Three schematic diagrams showing mechanical or electrical components with arrows indicating movement, no text or symbols present.

i

4. PRODUCTBESCHRIJVING

Technical line drawing of a mechanical assembly with a rectangular frame and a curved arrow indicating rotation (no text or symbols)

Diagram of a window with a grid pattern and a curved arrow indicating rotation (no text or symbols)

Three identical diagrams showing a mechanical or electrical component with arrows indicating movement, no text or symbols present.

7. PROBLEEMOPLOSSING

WAARSCHUWING!

Technical line drawing of a mechanical assembly with a rectangular frame and diagonal supports (no text or symbols)

Diagram of a solar panel with a grid pattern and directional arrow, no text or symbols present

Three diagrams showing mechanical or electrical components with arrows indicating movement, no text or symbols present.

Technical line drawing of a mechanical component with a rectangular housing and diagonal supports (no text or symbols)

Diagram of a window with a grid pattern and a curved arrow indicating rotation (no text or symbols)

Three schematic diagrams showing mechanical or electrical components with arrows indicating movement, no text or symbols present.

Technical line drawing of a mechanical component with a rectangular housing and diagonal supports (no text or symbols)

Diagram of a window with a grid pattern and a curved arrow indicating rotation (no text or symbols)

Three schematic diagrams showing mechanical or electrical components with arrows indicating movement, no text or symbols present.

Technical line drawing of a mechanical assembly with a rectangular frame and a curved arrow indicating rotation (no text or symbols)

Diagram of a window with a grid pattern and a curved arrow indicating rotation (no text or symbols)

Three identical diagrams showing a mechanical or electrical component with arrows indicating movement, no text or symbols present.

Technical line drawing of a mechanical component with a curved arrow indicating rotation (no text or symbols)

Diagram of a solar panel with a grid pattern and a curved arrow indicating rotation (no text or symbols)

Three identical diagrams showing a mechanical or electrical component with arrows indicating movement, no text or symbols present.

Technical line drawing of a mechanical component with a curved arrow indicating rotation (no text or symbols)

Diagram of a window with a grid pattern and a curved arrow indicating rotation (no text or symbols)

1. Tukové filtre čistite ručne pomocou špongie s neabrazivnymi čistiacimi prostriedkami alebo ich čistite v

Three schematic diagrams showing mechanical or electrical components with arrows indicating movement, no text or symbols present.

i

Technical line drawing of a mechanical component with a rectangular base and diagonal supports (no text or symbols)

Diagram of a door panel with a grid pattern and a curved arrow indicating rotation (no text or symbols)

Three identical diagrams showing a mechanical or electrical setup with arrows indicating direction of movement (no text or symbols)

i

Technical line drawing of a mechanical component with a curved arrow indicating rotation (no text or symbols)

Diagram of a solar panel with a grid pattern and directional arrow, no text or symbols present

Three schematic diagrams showing mechanical or electrical components with arrows indicating movement, no text or symbols present.

Technical line drawing of a mechanical component with internal channels and a curved arrow indicating motion (no text or symbols)

Diagram of a window with a grid pattern and a curved arrow indicating rotation (no text or symbols)

Three diagrams showing a mechanical or electrical setup with arrows indicating movement, no text or symbols present.

Technical line drawing of a mechanical component with a curved arrow indicating rotation (no text or symbols)

Diagram of a door panel with a grid pattern and a curved arrow indicating rotation (no text or symbols)

Three diagrams showing a mechanical or electrical setup with arrows indicating movement, no text or symbols present.

i

Technical line drawing of a mechanical component with a curved arrow indicating rotation (no text or symbols)

Diagram of a window with a grid pattern and a curved arrow indicating rotation (no text or symbols)

Three schematic diagrams showing mechanical or electrical components with arrows indicating movement, no text or symbols present.

i

Technical line drawing of a mechanical component with a curved arrow indicating rotation (no text or symbols)

Diagram of a window with a grid pattern and a curved arrow indicating rotation (no text or symbols)

Three schematic diagrams showing mechanical or electrical components with arrows indicating movement, no text or symbols present.

Three diagrams showing mechanical or electrical components with arrows indicating movement, no text or symbols present.

Technical line drawing of a mechanical component with a curved arrow indicating rotation (no text or symbols)

Diagram of a solar panel with a curved arrow indicating rotation or movement, no text or symbols present

هذا小微企业 Muslims Concentrated Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Market Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Communities Market Market Market Market Market Market Market Market Market Market Market Market Market Market Market Market Market Market Market Market Market Market Market Market Market Market Market Market Market Market Market Market Market Market Market Market Market Market Market Market Market Market Market Market Market Market Market Market Market Market Market Market Market Market Market Market Market Market Market Market Market Market Market Market Market Market Market Market Market Market Market Market Market Market Market Market Market Market Market Market Market Market Market Market Market Market Market Market Market Market Market Market Market Market Market Market Market Market Market Market市场
