USER MANUAL Aqua Active Profi 20.000 Fiap

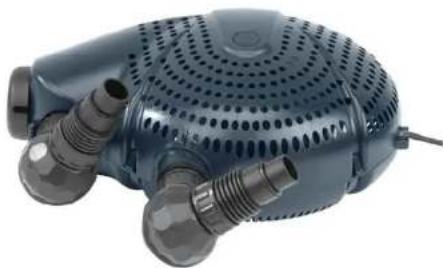

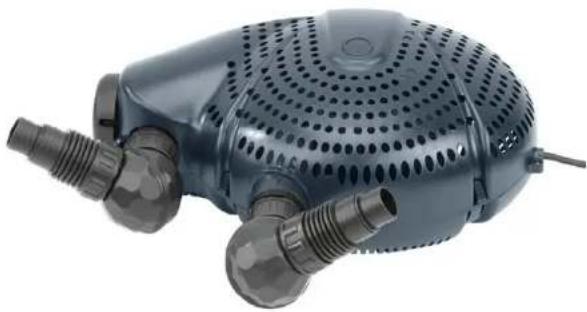

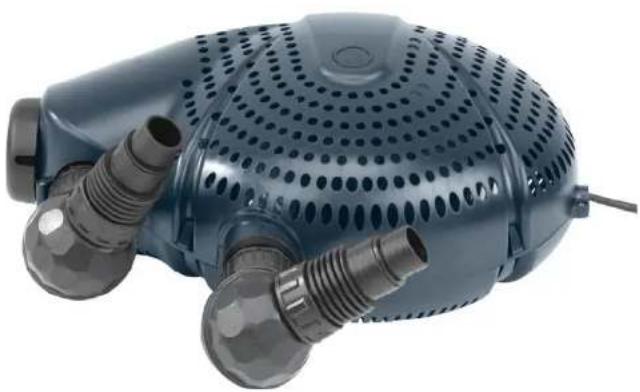

FIAP Aqua Active Profi


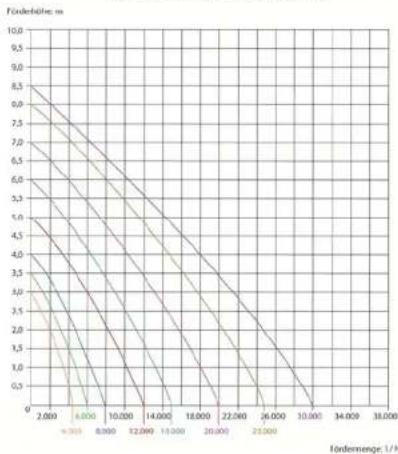

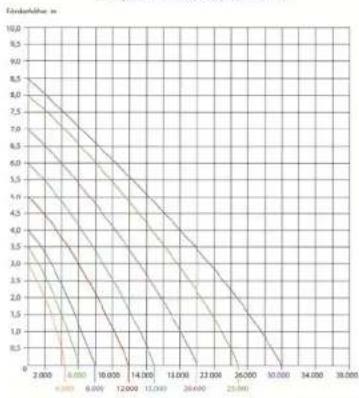

Pumpenkennlinie FIAP Aqua Active Profi
line
Underweight vs | X | Y | |---|---| | 10000 | 10.5 | | 9000 | 9.8 | | 8000 | 9.2 | | 7000 | 8.6 | | 6000 | 8.1 | | 5000 | 7.6 | | 4000 | 7.1 | | 3000 | 6.6 | | 2000 | 6.1 | | 1000 | 5.6 | | 500 | 5.1 | | 250 | 4.6 | | 100 | 4.1 | | 50 | 3.6 | | 25 | 3.1 | | 10 | 2.6 | | 5 | 2.1 | | 2 | 1.6 | | 1 | 1.1 | | 0 | 0.6 |Fördermenges: 1/11
| Art. Nr. | Bezeichnung | Förderleistung | H-max. | Stromart | ||
| Cat. No. | Description | Capacity | Voltage | |||
| 2730 | FIAP | Aqua Active Profi 4.500 | 4.500 l/h | 3 m | 230 V / 50 – 60 Hz | |
| 2731 | FIAP | Aqua Active Profi 6.000 | 6.000 l/h | 3,5 m | 230 V / 50 – 60 Hz | |
| 2732 | FIAP | Aqua Active Profi 8.000 | 8.000 l/h | 4 m | 230 V / 50 – 60 Hz | |
| 2733 | FIAP | Aqua Active Profi 12.000 | 12.000 l/h | 5 m | 230 V / 50 – 60 Hz | |
| 2734 | FIAP | Aqua Active Profi 15.000 | 15.000 l/h | 6 m | 230 V / 50 – 60 Hz | |
| 2735 | FIAP | Aqua Active Profi 20.000 | 20.000 l/h | 7 m | 230 V / 50 – 60 Hz | |
| 2736 | FIAP | Aqua Active Profi 25.000 | 25.000 l/h | 8 m | 230 V / 50 – 60 Hz | |
| 2737 | FIAP | Aqua Active Profi 30.000 | 30.000 l/h | 8,5 m | 230 V / 50 – 60 Hz |
| Art. Nr. | Lobistungs-Aufnahme | Druckanschluss | Sauganschluss | Abmessungen mm | Gewicht kg |
| Cat. No. | Power | Pressure connection | Auger connection | Dimension mm | Weight kg |
| 2730 | 65 W | 32/40/50 mmTitle/tallund/and 11⁄2 AG | 32/40/50 mmTitle/tallund/and 11⁄2 AG | 430 x 260 x 180 | 4,1 |
| 2731 | 95 W | 32/40/50 mmTitle/tallund/and 11⁄2 AG | 32/40/50 mmTitle/tallund/and 11⁄2 AG | 430 x 260 x 180 | 4,1 |
| 2732 | 125 W | 32/40/50 mmTitle/tallund/and 11⁄2 AG | 32/40/50 mmTitle/tallund/and 11⁄2 AG | 430 x 260 x 180 | 4,1 |
| 2733 | 175 W | 32/40/50 mmTitle/tallund/and 11⁄2 AG | 32/40/50 mmTitle/tallund/and 11⁄2 AG | 430 x 260 x 180 | 4,1 |
| 2734 | 290 W | 32/40/50 mmTitle/tallund/and 11⁄2 AG | 32/40/50 mmTitle/tallund/and 11⁄2 AG | 430 x 260 x 180 | 4,4 |
| 2735 | 400 W | 32/40/50 mmTitle/tallund/and 11⁄2 AG | 32/40/50 mmTitle/tallund/and 11⁄2 AG | 430 x 260 x 180 | 4,4 |
| 2736 | 500 W | 32/40/50 mmTitle/tallund/and 11⁄2 AG | 32/40/50 mmTitle/tallund/and 11⁄2 AG | 430 x 260 x 180 | 4,4 |
| 2737 | 580 W | 32/40/50 mmTitle/tallund/and 11⁄2 AG | 32/40/50 mmTitle/tallund/and 11⁄2 AG | 430 x 260 x 180 | 4,4 |
FIAP Aqua Active Profi
D
FIAP Aqua Active Profi
FIAP Aqua Active Profi
Entsorgung
line
| X (inches) | Y (inches) | | :--- | :--- | | 2.000 | 8.5 | | 4.250 | 7.5 | | 6.500 | 6.5 | | 9.000 | 5.5 | | 12.000 | 4.5 | | 15.000 | 3.5 | | 18.000 | 2.5 | | 22.000 | 1.5 | | 26.000 | 0.5 | | 30.000 | 0 | The chart displays a single descending line, indicating a negative correlation between the variables. The x-axis ranges from 2.000 to 33.000 in increments of 2.000, and the y-axis ranges from 0 to 10.0. No legend is present; only one data series is plotted. The title explicitly states 'Flaskerholter: m'.fordermenge: 1/h
FIAP Aqua Active Profi
GB
Information about this operating manual
Please read the operating instructions and familiarise yourself with the unit prior to using it for the first time. Adhere to the safety information for the correct and safe use of the unit.
Intended use
FIAP Aqua Active Profi 4.500 – 30.000, in the following text termed unit, has been exclusively produced for pumping normal pond water for filters, water falls and water courses and has to be used at a water temperature of between 4°C and +35°C. The unit performance can only be controlled by an FIAP Controll Active. The unit is frost proof.
The unit is suitable for use for swimming and bathing ponds in accordance with the national installer regulations.
Use other than that intended
Danger to persons can emanate from this unit if it is not used in accordance with the intended use and in the case of misuse. If used for purposes other than that intended, our warranty and operating permit will become null and void.
CE Manufacturer's Declaration
We declare conformity in the sense of the EC directive, EMC directive (89/336/EEC) as well as the low voltage directive (73/23/EEC). The following harmonised standards apply:
EN 60335-1, EN 60335-2-41, EN 55014-2, EN 61000-3-2, EN 61000-3-3
Safety information
For safety reasons, children and young persons under 16 years of age as well as persons who cannot recognise possible danger or who are not familiar with these operating instructions, are not permitted to use the unit!
Please keep these operating instructions in a safe place! Also hand over the operating instructions when passing the unit on to a new owner. Ensure that all work with this unit is only carried out in accordance with these instructions.
The combination of water and electricity can lead to danger to life and limb, if the unit is incorrectly connected or misused. Only operate the unit if no persons are in the water! Prior to reaching into the water, always disconnect the power supply to all units used in the water. Compare the electrical values of the power supply with those on the type plate on the packaging or on the unit itself. Ensure that the unit is fused for a rated residual current of max. 30 mA via a residual current-operating system. Only operate the unit when plugged into a correctly fitted socket. Keep the power plug and all connection points dry! Protect the connection cable when burying to avoid damage. Only use cables, equipment, adapters, extension or connection cables with an earthed contact and approved for outside use. Do not carry or pull the unit by the connection cable! Never operate the unit if the cable or housing are defective! The power connection cable of this unit cannot be replaced. If the cable is damaged, the entire unit has to be disposed of. Electrical installations at garden ponds must meet the international and national regulations valid for installers. Never open the unit housing or its attendant components, unless this is explicitly mentioned in the operating instructions. Never carry out technical changes to the unit. Only use original spare parts and accessories. Only allow authorised customer service outlets to perform repairs. Never run the unit without water! Never use the pump for fluids other than water! For your own safety, consult a qualified electrician if you have questions or encounter problems!
FIAP Aqua Active Profi
Electrical connection
Only entrust an authorised expert to carry out the electrical connection in accordance with the German EVU and VDE. VDE 0100 Part 702 is valid for all installations. Refer to the type plate for all capacity parameters. Only perform any work on the unit when isolated!
Start-up
Attention! Never operate the unit without filter basket or without water!

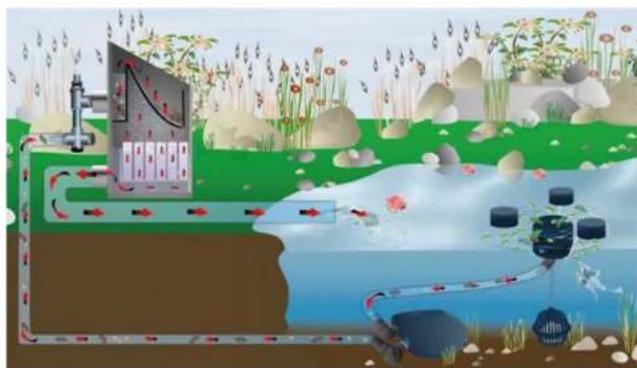

Installation
Disconnect the power supply, then secure the unit to prevent unintentional switching on. Only use the unit in its horizontal position and ensure stable installation on a firm ground. The unit must be positioned below the water surface level and can be placed in (submerged) or outside of the pond (dry).
Dry installation
Open the strainer casings, remove the pump, and fit the suction and pressure line. The installation accessories in the form of stepped hose connection, seals and hose clips are part of the kit.
Connection to the water filter
Fasten hose (32/40/50 mm) on the stepped hose connection and, if necessary, fasten with the hose clip, plug stepped hose connection into the pump outlet, tighten the union nut, then connect the other end of the hose to the water filter.
Connection to the skimmer
Plug the union nut over the stepped hose connection, fasten the hose to the skimmer filter on the stepped hose connection, insert he latter into the inlet regulator of the strainer casing, then fasten union nut.
Attention! If you operate the pump in the strainer casing when submerged, ensure that the skimmer is always connected to the inlet regulator or that the inlet regulator is completely closed ("0" position)!
The power supply must be disconnected to switch off the unit.
Cleaning
Attention! Always disconnect the power supply prior to starting cleaning and maintenance work!

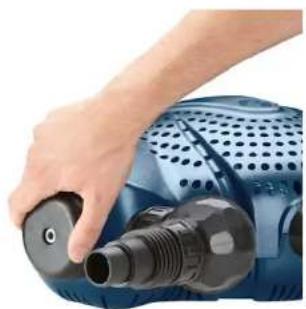

Remove the hoses from the unit. Press in the engagement points on both sides of the outlet opening to the water filter and open the strainer casing, remove the pump from the strainer casing, rotate the pump housing, then clean the Impeller vanes using a brush.
Clean strainer casings, hose connections using clear water and a brush. After cleaning, fit the unit in the reverse order.
Storage/Over-wintering
The unit is frost resistant to minus 20 °C. Should you store the unit outside of the pond, clean it thoroughly and check it for damage, then store immersed in water. Do not immerse the power plug in the water!
Disposal
Dispose of the unit in accordance with the national legal regulations.
FIAP Aqua Active Profi
Malfunction
| Malfunction | Cause | Remedy |
| The unit does not perform its suction function | No mains voltageImpeller blocked/running dry | Check mains voltageClean/check supply lines |
| Water flow insufficient Strainer casing | CleanClean, or replace, if necessaryCheck hose, and replace, if necessaryReduce hose length to reduce frictional loss | |
| Unit switches off after a short running period | Strainer casing cloggedUnit running dry | CleanCheck supply line |

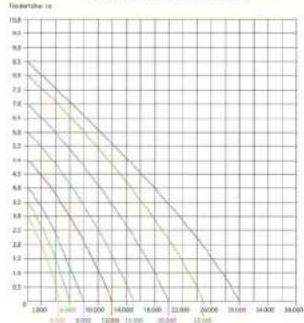

Pumpenkennlinie FIAP Aqua Active Profi
line
| X-axis (l/h) | Y-axis (m) | |---|---| | 2.000 | 8.5 | | 4.000 | 7.5 | | 6.000 | 6.5 | | 8.000 | 5.5 | | 10.000 | 4.5 | | 12.000 | 3.5 | | 14.000 | 2.5 | | 16.000 | 1.5 | | 18.000 | 0.5 | | 20.000 | 9.5 | | 22.000 | 8.5 | | 24.000 | 7.5 | | 26.000 | 6.5 | | 28.000 | 5.5 | | 30.000 | 4.5 | | 32.000 | 3.5 | | 34.000 | 2.5 | | 36.000 | 1.5 | | 38.000 | 0.5 |FIAP Aqua Active Profi
F
FIAP Aqua Active Profi
FIAP Aqua Active Profi
FIAP Aqua Active Profi
