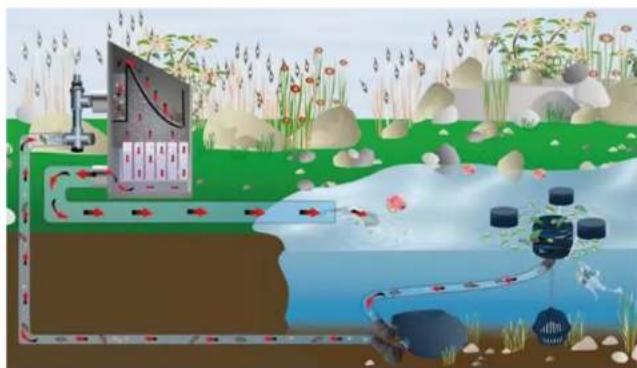

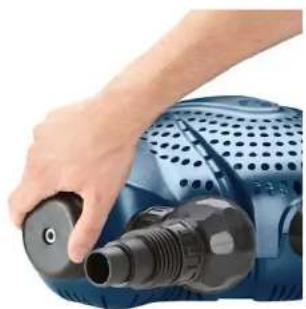

| Product type | Pond water pump |
| Brand | Fiap |
| Model | Aqua Active Profi 25.000 |
| Use | Pumping pond water, filtration, waterfalls, streams |
| Admissible water temperature | +4°C to +35°C |
| Frost resistance | Yes, down to -20°C |
| Hose connection | 32/40/50 mm |
| Flow adjustment | Via FIAP Controll Active (optional) |
| Electrical protection | Recommended residual current protection 30 mA |
| Cleaning | Disconnect before cleaning; clean impeller and filter housings with clean water and brush |
| Safety | Do not use without water flow; do not use if people are in the water; do not open the housing |
| Spare parts | Use only genuine FIAP replacement parts |
| Repairability | Repairs only by authorized service center |
| Recycling | Comply with national regulations |
| Power cable | Not replaceable; do not use if damaged |
| Installation position | Horizontal, submersible or dry on stable surface |
| CE declaration | Compliant with EU directives |
Frequently Asked Questions - Aqua Active Profi 25.000 Fiap
User questions about Aqua Active Profi 25.000 Fiap
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Water pump in PDF format for free! Find your manual Aqua Active Profi 25.000 - Fiap and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Aqua Active Profi 25.000 by Fiap.
USER MANUAL Aqua Active Profi 25.000 Fiap

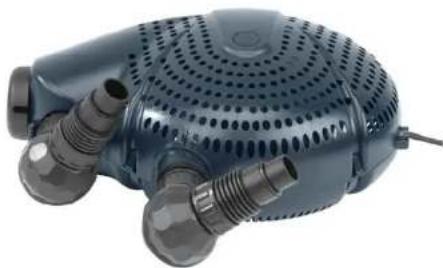

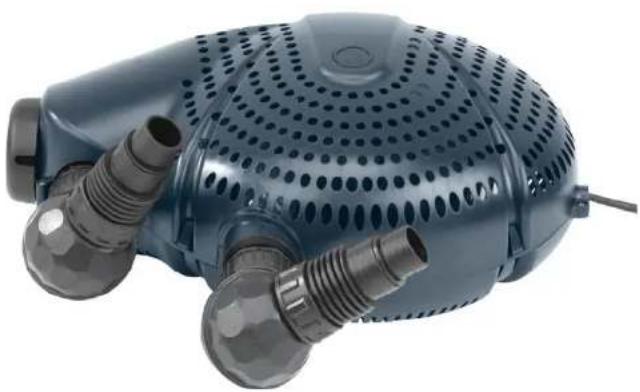

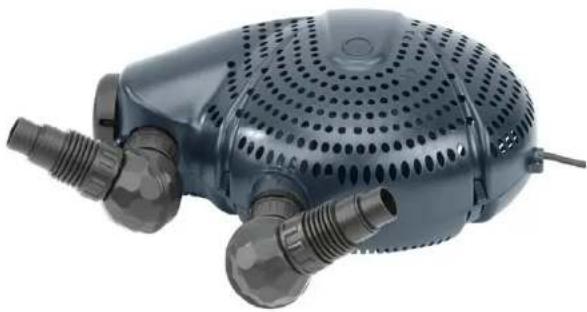

FIAP Aqua Active Profi

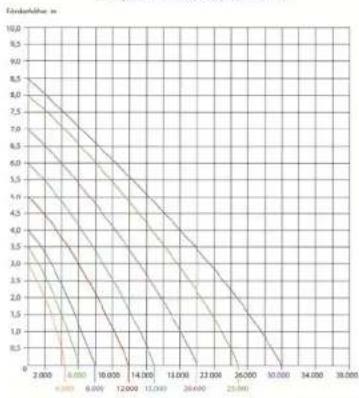

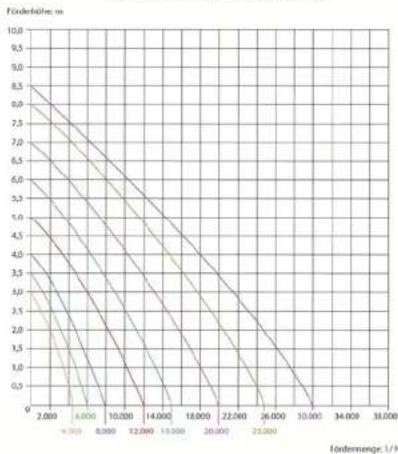

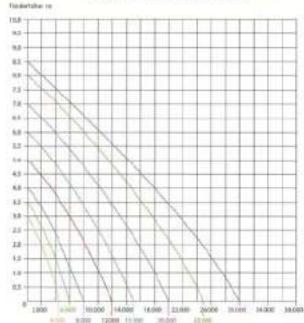

Pumpenkennlinie FIAP Aqua Active Profi
