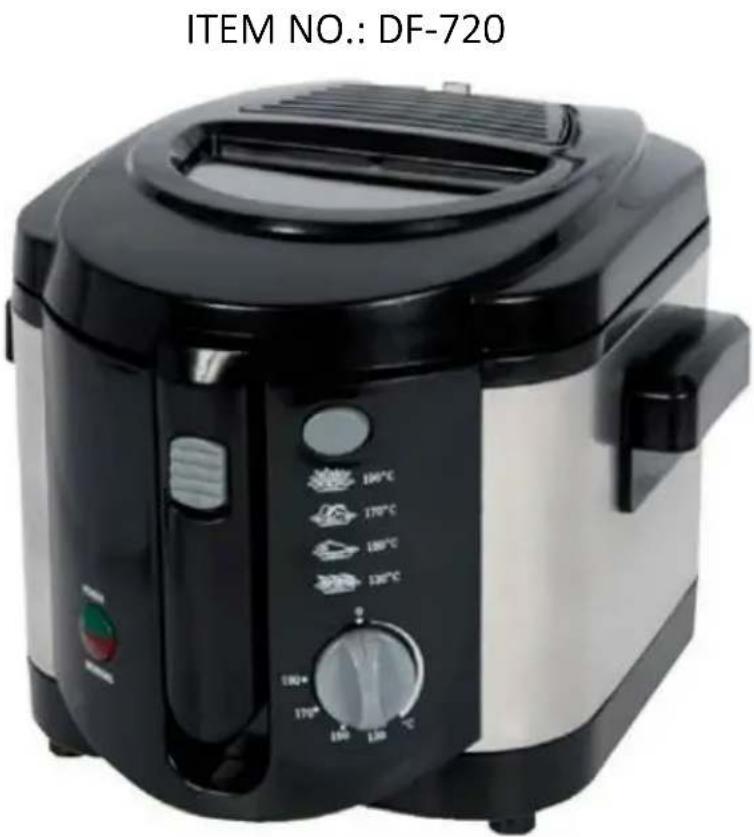

USER MANUAL DF-720 Brentwood

Brentwood® Appliances

© 2021 Brentwood Appliances, Inc.

DEEP FRYER 2L CAPACITY FREIDORA 2L DE CAPACIDAD / FRITEUSE DE 2L CAPACITÉ

Operating and Safety Instructions FOR INDOOR HOUSEHOLD USE ONLY Instrucciones de Operacion y Seguridad SOLO PARA USO DOMESTICO Consignes de Securit et de Fonctionnement

POUR USAGE DOMESTIQUE INTÉRIEUR SEULEMENT

IMPORTANT SAFEGUARDS

When using this or any other electrical appliance, always follow these basic safety precautions, especially when children are present.

READ ALL INSTRUCTIONS BEFORE USE

WARNING-- To reduce the risk of fire, electric shock, serious personal injury and property damage please note the following:

• This product is not intended for use by children. Keep the product out of reach of children and pets. Extra caution is necessary when using this appliance near children.
• Always ensure the product is unplugged from the electrical outlet and allowed to cool before assembling, disassembling, relocating, or cleaning it.
• Do not leave the product unattended while it is in use. Always unplug the product from the electrical outlet when not in use.
• Do not immerse the Base, Power Cord, or Plug of this product in or expose the Power Cord or Plug to water or other liquids.
• Do not move the Deep Fryer when there is hot oil in the appliance.
• Do not touch hot surfaces, use handles or knobs when handling product. Use protective oven mitts when removing the Lid or handling hot containers to avoid burns or personal injury.
• Take proper precautions to prevent burns, fire, or personal or property damage as this appliance generates heat and steam during use.
• Do not use attachments not recommended or sold by the product manufacturer.
• Do not place on or near a hot gas or electric burner, in a heated oven, or other heated surfaces.
• Use the product in a well-ventilated area. Keep at least 4-6 inches of space on all sides of the product to allow adequate air circulation.
• Use appliance on a table or flat surface. Keep the product away from curtains, wall coverings, clothing, dishtowels, or other flammable materials.
• Do not plug or unplug the product from the electrical outlet with a wet hand.
• This product is intended solely for non-commercial, non-industrial, household use in cooking of food for human consumption; do not use the product outdoors or for any other purpose.
• Do not operate the product empty.
• Do not let cord hang over edge of table or counter where it may be tripped over or pulled.
  Do not allow cord to touch hot surfaces.
• Do not operate the product if it has a damaged or cut Power Cord or plug, if wires are exposed, if it malfunctions, if it is dropped or damaged, or if the Motor Housing is dropped in or exposed to water.
• This product has no user-serviceable parts. Do not attempt to examine or repair this product yourself. Please review the Warranty Policy on Page 6.
• Do not put any stress on the power cord where it connects to the product, as the power cord could fray and break.

SPECIAL INSTRUCTIONS: A short power supply cord is provided to reduce the risk of

becoming entangled in or tripping over a longer cord. An extension cord is not recommended for use with this product, but if one must be used:

• The marked electrical rating must be at least as great as that of the product.
• If the product is of a 3-prong grounding type, the extension cord must be a grounding-type 3-wire cord.
• Arrange the extension cord so that it will not drape over the countertop or tabletop where it can be tripped over or pulled.

WARNING: This product is equipped with a polarized plug (one blade is wider than the other blade) to reduce the risk of electrical shock. This is a safety feature. The plug will fit into a polar outlet only one way. If you are unable to insert the plug into the electrical outlet, try reversing t plug. If the plug still does not fit, contact a qualified electrician. Never use the plug with an extension cord unless you can fully insert the plug into the extension cord. Do not alter the plug Do not attempt to defeat the safety purpose of the polarized plug.

SAVE THESE INSTRUCTIONS

FOR FUTURE REFERENCE

Before First Use

IMPORTANT: Please check all packaging material carefully before discarding as there may be accessory parts contained within the packaging material.

1. Wash the Fryer Basket with warm soapy water to remove any dust and dry thoroughly. Wipe the interior and exterior of the Deep Fryer with a damp towel. Dry thoroughly.

Note: NEVER immerse the fryer body, cord or plug in water.

1. Attach the magnetic end of the cord directly into the fryer socket. See Figure A) correct method is with wording "This side up" facing up.
2. Unlock Lid by pressing the Lid Release Button. Remove the Frying Basket by pushing the Handle release button and lifting the Fryer Basket up.

Figure A

Using Your Deep Fryer:

WARNING: Never turn on the fryer with an empty OIL RESERVOIR and make sure it is on a flat, heat resistant surface.

1. Pour approximately 6 cups of oil into the OIL RESERVOIR making sure the oil has not
   passed the indicated MAX line.
2. You can rub a little oil on the Viewing Window to prevent condensation and impede view.
3. Place the frying basket into the fryer and lower into oil. (See Figure 1). To unlock the Handle, slide the Handle Lock Release button towards you and fold Handle back towards fryer exterior (Figure 2) and Close the Lid.
4. Make sure the Fryer is in the "Off"

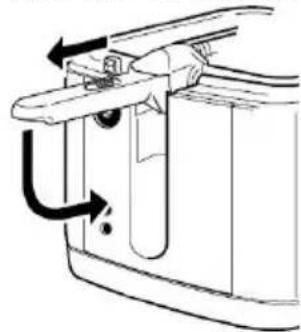

Figure 2

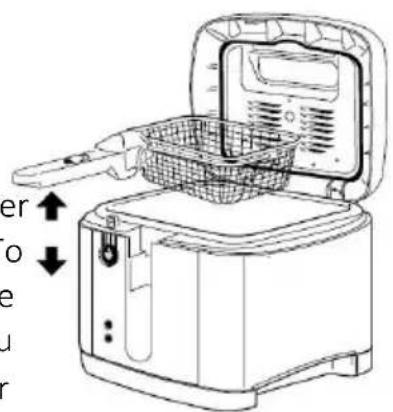

Figure 1

position and insert plug into 120 Volt AC outlet. Turn the Temperature Control to the desired temperature. The Ready Light (Green) will come one when the temperature is reached.

Attention: First use may cause a slight odor or small smoking upon heating, it is normal. This is a result of the heating element chemical reaction. It quickly goes away.

1. Raise the Frying Basket and open Lid. Place food you would like to fry in the Frying Basket and carefully lower into the oil. Close the lid and lower the Handle into its position.
   NOTE: Remove any excess ice crystals on frozen foods before placing in the basket and do not throw food directly in oil without raising the Frying Basket first as to avoid possible burns.
2. Cook according to instructions or use the Frying Guide in this manual.
   NOTE: This appliance is not equipped with a timer. You will need to manually shut it off.
3. Open the Lid and Raise the Frying Basket. Let the fried food drain to remove excess oil and retain crispiness. Lift the Frying Basket from Fryer and carefully pour contents onto a plate that has been covered with paper towels to remove excess oil before serving.
4. Return Frying Basket back to Fryer if you will continue Frying. If more batches of frying will be done, close the lid and allow the oil to rise back to the desired temperature.

Cleaning Your Deep Fryer:

WARNING: Always turn the appliance "Off" and unplug the product, allow it to cool before cleaning or storing. WARNING: Do not place any part of the product in a dishwasher.

NOTICE: Always disconnect appliance from the outlet and then remove the Magnetic Plug from the unit. The plug should always remain on during operation. If it becomes disconnected, immediately unplug the cord from the wall outlet then reconnect the magnetic cord to the socke

1. Once all parts have cooled, remove the Frying Basket from the Oil Reservoir and wash the Frying Basket in hot soapy water. Rinse and towel dry carefully.

Note: The oil reservoir is not removable. If you wish to reuse the oil left in the reservoir, you can safely store it once cooled. After oil has cooled (approx. 2 hours) open lid, and with a large spatula, spoon out the oil into a container. We suggest filtering it through a fine strainer to catch all the bits of food that may have been left behind.

1. You can clean the interior of the Fryer by first wiping the inside with paper towels. Add a small amount of hot soapy water gently wipe the inside using a nonabrasive sponge. Discard the water in the sink and dry the Fryer completely.

IMPORTANT: Never submerge the base or clean under running water. Add water into the unit using a small cup and empty very carefully.

1. A removable condensation trap is located on the back of the Fryer. Clean after each use by simply rinsing with warm water and dry thoroughly.
2. Clean the exterior of the Fryer and Lid with a damp cloth and dry. DO NOT USE ANY TYPE OF STEEL WOOL PADS TO CLEAN MAGNETIC CONTACTS.
3. To replace or clean filters, open the filter cover, the grease filter may be washed with hot soapy water and air dried. Clean the inside cover with sponge and dry thoroughly. Insert charcoal od filter first followed by the grease filter and replace filter cover. NOTE: Ensure Lid is always in its secure place prior to operation of unit.

Frying Times and Temperature Guide:

The Frying times in this chart are a guide and should be adjusted to accommodate the different quantitates, thickness, and taste.

Food Being Fried	Recommended Temperature	Recommended Time (Min)
Egg Rolls (Frozen)	360°F	10-12
Chicken (Bone-In)	360°F	17- 20
Chicken Strips (Boneless)	375°F	6-8
Chicken Nuggets (Frozen)	360°F	4-5
Donuts	375°F	2-3 (until golden brown)
Fish (Battered)	375°F	4- 5
Fish (Fresh)	320°F	5-7
French Fries (Frozen)	Follow directions on package	Package Time
French Fries (Homemade)	320°F	4-6
Onion Rings	375°F	2-4
Shrimp (Breaded)	375°F	3- 5
Vegetable Fritters	340°F	2-3

ONE YEAR LIMITED WARRANTY

Write down the following information about your appliance to better help you obtain assistance or service if you ever need it.

CUSTOMER RECORD

Date of Purchase _ Store/Dealer _

Model/Item No:

THIS WARRANTY APPLIES TO PRODUCTS PURCHASED AND USED IN THE CONTINENTAL U.S. AND CANADA ONLY. This is the only express warranty for this product and is in lieu of any other warranty or condition. This product is warranted to be free from defects in material and workmanship for a period of one (1) year from the date of original purchase. During this period, your exclusive remedy is repair or replacement of this product, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value. This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse.

THIS WARRANTY EXTENDS ONLY TO THE ORIGINAL CONSUMER PURCHASER. KEEP THE ORIGINAL SALES RECEIPT, AS PROOF OF PURCHASE IS REQUIRED TO MAKE A WARRANTY CLAIM.

This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than what is specified on the rating label (E.G., 120V~60Hz). We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you. To make a warranty claim do not return this appliance to the store.

TO OBTAIN WARRANTY SERVICE AND/OR TROUBLESHOOTING INFORMATION:

Call Customer Service at 1-888-903-0060 in the U.S.

Monday through Friday: 9:00am - 5:00pm PST.

U.S. Customers Please Email: [e-mail]

Canadian Customers Please Email: [e-mail]

Go online at www.brentwoodus.com
