TS-118S - Coffee machine Brentwood - Free user manual and instructions

USER MANUAL TS-118S Brentwood

Brentwood® Appliances

© 2021 Brentwood Appliances, Inc.

MOKA ESPRESSO MAKER

MÁQUINA DE CAFÉ EXPRESO MOKA MACHINE À EXPRESSO MOKA

ITEM NO.: TS-118S (STAINLESS STEEL) & TS-118BK (BLACK)

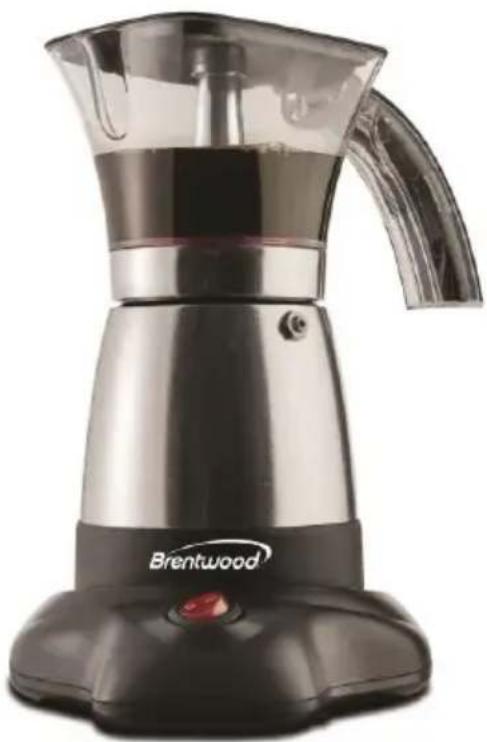

Exterior view of a Brentwood coffee maker with black base and silver handle (no text or symbols on device)

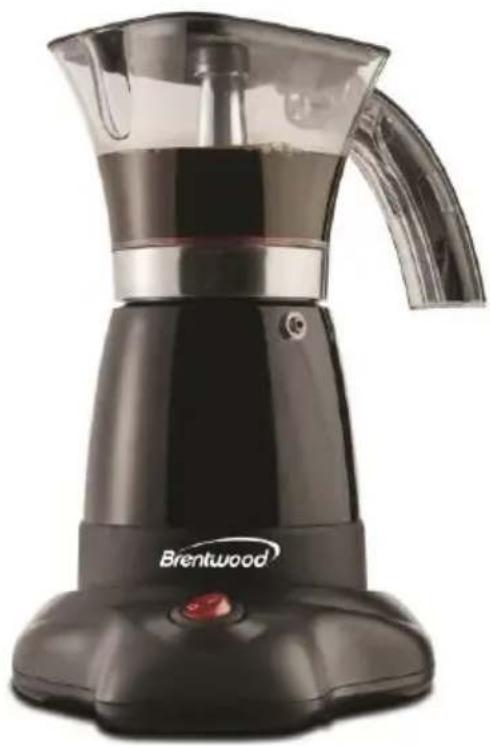

Black Brentwood coffee maker with clear glass handle and red button (no text or symbols on device body)

When using this or any other electrical appliance, always follow these basic safety precautions, especially when children are present.

READ ALL INSTRUCTIONS BEFORE USE

⚠ WARNING-To reduce the risk of fire, electric shock, serious personal injury and property damage please note the following:

- This appliance is not intended for use by children. Keep the appliance out of the reach of children and pets. Extra caution is necessary when using this appliance near children.

- Always ensure the appliance is unplugged from the electrical outlet and allowed to cool before assembling, disassembling, relocating, or cleaning it.

- Do not leave the appliance unattended while it is in use. Always unplug the appliance from the electrical outlet when not in use.

- Do not immerse or expose the Base, Power Cord, or Plug of this appliance in water or other liquids.

- Do not touch hot surfaces. Use handles or knobs when handling product.

- This appliance generates heat and steam during use. Use protective oven mitts or gloves when removing the Lid or handling hot containers to avoid burns and personal injury.

- Do not use attachments not recommended or sold by the Manufacturer.

- Do not place appliance on or near a hot gas or electric burner, in a heated oven, or other heated surfaces.

- Use extreme caution when moving an appliance containing food or liquids.

- Use the appliance in a well-ventilated area. Keep at least 4-6 inches of space on all sides of the product to allow adequate air circulation.

- Keep the appliance away from curtains, wall coverings, clothing, dish towels, or other flammable materials.

- Do not plug or unplug the appliance from the electrical outlet with a wet hand.

- This appliance is intended solely for non-commercial, non-industrial, household use in cooking of food for human consumption; do not use the appliance outdoors or for any other purpose.

- Do not operate the appliance empty.

- Do not let cord hang over edge of table or counter where it may be tripped over or pulled. Do not allow cord to touch hot surfaces.

- Do not operate the appliance if it has a damaged power cord or plug, if wires are exposed, if it malfunctions, if it is dropped or damaged, or if the motor housing is dropped in or exposed to water.

- Do not attempt to examine or repair this appliance yourself. Please review the Warranty Policy on Page 7.

- Do not overload wall outlet, extension cords, or integral convenience holders, as this can result in a fire or electric shock.

- Do not put any stress on the power cord where it connects to the appliance, as the power cord could fray and break.

SPECIAL INSTRUCTIONS: A short power supply cord is provided to reduce the risk of becoming entangled in or tripping over a longer cord. An extension cord is not recommended for use with this product, but if one must be used:

• The marked electrical rating must be at least as great as that of the product.
• Arrange the extension cord so that it will not drape over the countertop or tabletop where it can be tripped over or pulled.

WARNING: This product is equipped with a polarized plug (one blade is wider than the other blade) to reduce the risk of electrical shock. This is a safety feature. The plug will fit into a polarized outlet only one way. If you are unable to insert the plug into the electrical outlet, try reversing the plug. If the plug still does not fit, contact a qualified electrician. Never use the plug with an extension cord unless you can fully insert the plug into the extension cord. Do not alter the plug. Do not attempt to defeat the safety purpose of the polarized plug.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

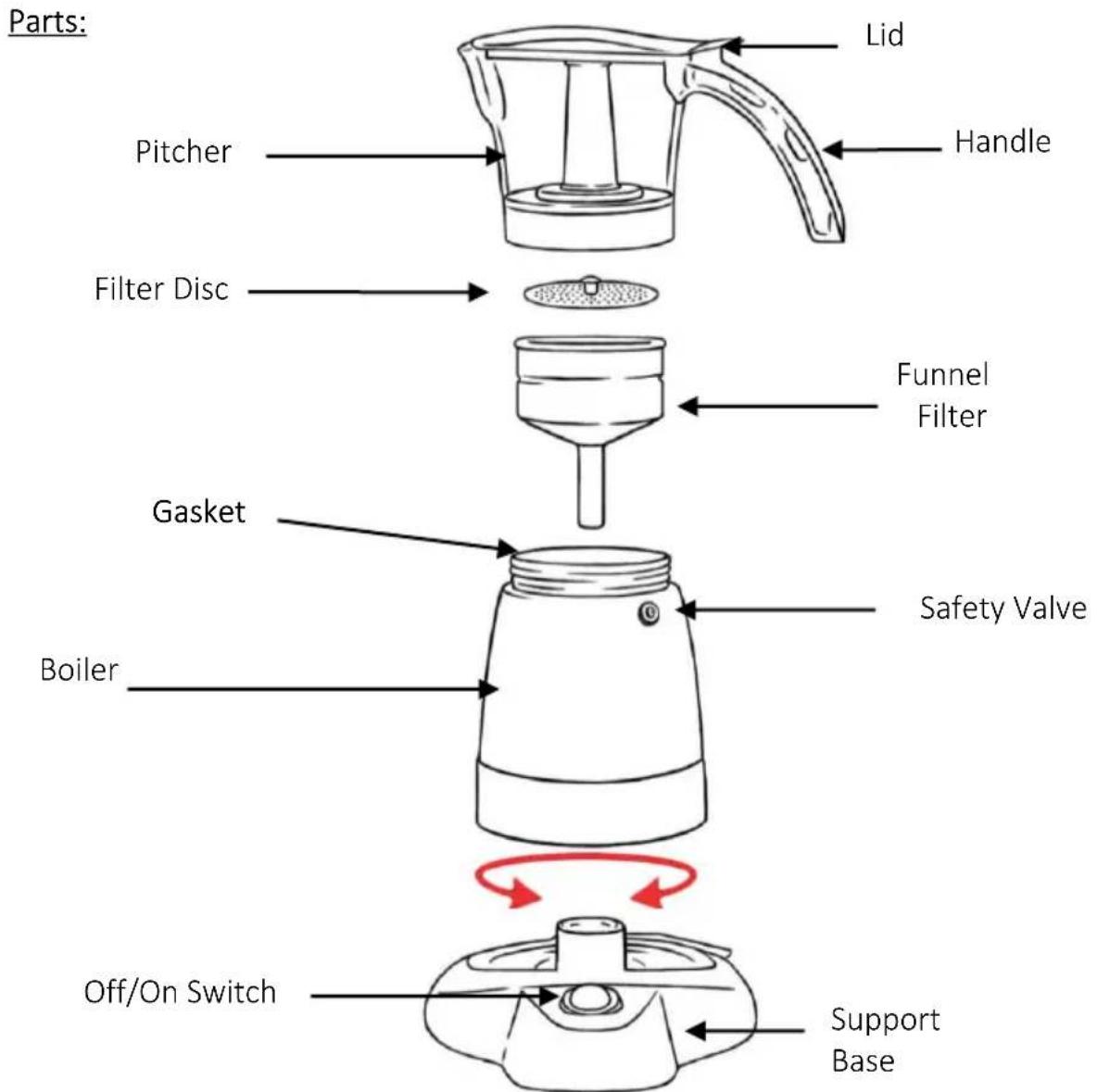

Parts: Lid Handle Pitcher Filter Disc Funnel Filter Gasket Safety Valve Boiler Off/On Switch Support Base

Before First Use

Before your first use, wash the pot and lid using warm soapy water. Run the appliance with water once or twice before brewing an actual pot.

Note: ALWAYS keep the bottom of the 'Boiler' and the 'Support Base' dry.

Attention: First use may cause a slight odor or small smoking upon heating, it is normal. This is a result of the heating element chemical reaction. It quickly goes away.

- Rinse the inside of the Boiler and Pitcher thoroughly before using.

• Dry all parts before using.

- Do not place Boiler on Support Base until it is fully assembled.

- Do not fill Boiler with water while it is on the Support Base.

- Place Support Base on a flat surface and make certain the Off (O)/On (−) is set to (O) before plugging into outlet.

- Place dry Boiler on a flat dry counter or on a dry napkin and fill with water.

NOTE: Do not over fill. Water should NOT exceed Safety Valve.

- Place the Funnel Filter into the Boiler filled with water but not exceed Safety Valve.

• Place the Filter Discon to the dry Funnel Filter. Do not overfill. Filter should sit on the inside groove of the Funnel. If it does not, it has too much coffee grounds in it.
• Place Pitcher onto Boiler (gasket area) and twist to tighten. (Refer to diagram above for proper steps of assembly.
• Now your appliance is ready.
• Before you place the Espresso Maker onto the base, make certain you kept the bottom of the Boiler dry and the Support Base completely dry.
• Place the appliance onto the Support Base and plug into electrical outlet.
  • The Off (O) / On (−) Switch will light up indicating there is power.
  • To turn on, press the Switch from (O) to (−) ON.
• Allow the espresso to brew the entire amount of water you filled it with.
  • Once the water level in the pitcher no longer rises, switch the power to (O) OFF.
• Pour the contents out and repeat steps if you wish.
• ALWAYS keep the appliance in the (O) OFF position and ALWAYS unplug from the electrical outlet when done.

Caution: Parts will be hot. Do not handle immediately after use. Allow appliance to cool before handling the 'Boiler' to clean and dry. Always dry before reassembling the espresso maker and place back on to the unplugged Support Base.

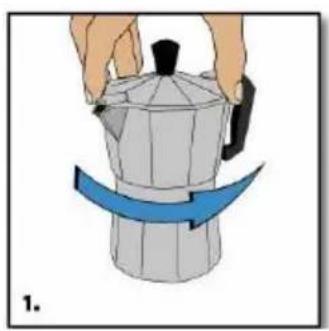

Illustration of hands holding a kettle with a blue ribbon, no text or symbols present

Hand pressing a cylindrical object with an upward arrow, labeled '2.' (no text or symbols on the object itself)

3D wireframe model of a coffee maker with blue base, no text or symbols visible

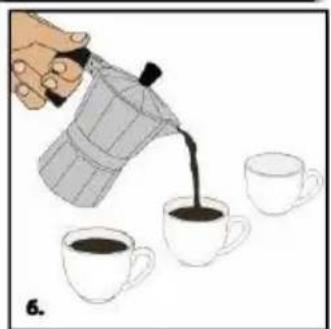

Illustration of a hand pouring dark liquid from a kettle into two cups (no text or symbols)

Using Your Moka Espresso Maker:

WARNING: Hot surfaces.

1. Place the power base on a clean, flat surface. When filling with water, remove your appliance from its power base.

2. According to the number of espresso cups desired (for 3-4 persons, max-7 oz.), fill with enough cold water.

3. Replace filter back on the Boiler and fill with the desired amount of espresso or moka. Place disc filter on top.

4. Twist on the Pitcher to the Boiler and place it on the Support Base.
5. Your appliance is ready for use.
6. Before plugging it into an electrical outlet, make sure you have the OFF (O)/ON (−) Switch set to (O).
7. Keep the OFF/ON Switch always on the OFF position.
8. Plug the Espresso Maker into an electrical outlet and switch the power from (O) to (−) ON.
9. Allow it to brew the entire amount of water you filled it with.
10. Your espresso is ready to be served.
11. Switch the appliance to (O) and unplug from the electrical outlet.
12. Use caution while serving espresso as the Broiler gets extremely hot.

CAUTION: Do not overfill the appliance or operate it when empty.

Cleaning Your Moka Espresso Maker:

WARNING: Always unplug the appliance and allow it to cool before cleaning or storing it.

• Before cleaning always make sure the appliance is on (O). Unplug it from the outlet and allow it to cool down.
• It is recommended to rinse parts immediately after use to make cleaning easier.
• Discharge the water and remaining espresso grounds from the appliance and rinse the Pitcher and Boiler out with warm water and wipe the outside off thoroughly with a dry or damp cloth.
• NEVER immerse the power base unit and the body into water or wash them in a dishwasher.
• Avoid using abrasive and chemical cleaning agents (i.e., liquid bleach, hydrochloric acid, etc.) to clean any accessory parts of the appliance.
• Store product in a cool, dry place, away from the reach of children.

Descaling Your Pot:

WARNING: Always unplug the product before any cleaning. Dry all parts after every use. Descale your pot regularly to avoid tougher stains.

Descaling:

Descaling is the removal of mineral deposits from glass and stainless steel. All water contains minerals including purified and filtered water. After your first use, you may see the first signs of deposits which may be white to reddish brown in color. These stains are not rust nor are they toxic.

Note: Reheating espresso in your pot may discolor or stain the surface at the base of the pot.

To descale your pot, fill the pot full of water, add a small amount of white vinegar, and boil. Unplug the pot and allow the solution to sit for an hour. For darker stains leave overnight. This will remove most deposits that have built up from normal use. Rinse out solution, add fresh water, and boil again. Allow to cool, follow with thorough cleaning, and dry before next use.

ONE YEAR LIMITED WARRANTY

Write down the following information about your appliance to better help you obtain assistance or service if you ever need it.

CUSTOMER RECORD

Date of Purchase ____ Store/Dealer ____

Model/Item No: ____

THIS WARRANTY APPLIES TO PRODUCTS PURCHASED AND USED IN THE CONTINENTAL U.S. AND CANADA ONLY. This is the only express warranty for this product and is in lieu of any other warranty or condition. This product is warranted to be free from defects in material and workmanship for a period of one (1) year from the date of original purchase. During this period, your exclusive remedy is repair or replacement of this product, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value. This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse.

THIS WARRANTY EXTENDS ONLY TO THE ORIGINAL CONSUMER PURCHASER. KEEP THE ORIGINAL SALES RECEIPT, AS PROOF OF PURCHASE IS REQUIRED TO MAKE A WARRANTY CLAIM.

This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than what is specified on the rating label (E.G., 120V\~60Hz). We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you. To make a warranty claim do not return this appliance to the store.

TO OBTAIN WARRANTY SERVICE AND/OR TROUBLESHOOTING INFORMATION:

Call Customer Service at 1-888-903-0060 in the U.S.

Monday through Friday: 9:00 am – 5:00 pm PT

U.S.A. Customers Please Email: [e-mail]

Canadian Customers Please Email: [e-mail]

Go online at www.brentwoodus.com

Illustration of hands using a portable kettle to lift a cylindrical container, with a blue arrow indicating motion (no text or symbols)

Hand pressing a cylindrical object with an upward arrow, labeled '2.' (no text or symbols on the object itself)

Illustration of a hand pouring dark liquid into a coffee cup and two other cups (no text or symbols)

Uso de su Cafetera Moka Espresso:

ADVERTENCIA: Superficies calientes.

Illustration of a hand holding a kettle with a blue arrow indicating compression or lifting (no text or symbols)

Hand pressing a button on a mechanical component with an upward arrow (no text or symbols)

Illustration of a hand pouring dark liquid into a coffee maker with two cups (no text or symbols)
