TS-239BK - Waffle Maker Brentwood - Free user manual and instructions

Product Type	Waffle Maker
Brand	Brentwood
Model	TS-239BK
Power Supply	120 V ~, 60 Hz
Power	800 W (estimated)
Dimensions (approx.)	25 x 20 x 10 cm
Weight (approx.)	1.5 kg
Plate Material	Non-stick Coating
Indicator Lights	Red light (power on), green light (ready to cook)
Locking System	Secure Lock Clasp
Non-slip Feet	Yes
Cord Length	Short (extension cord not recommended)
Use	Indoor household use only
Functions	Waffle cooking with non-stick plates
Cleaning	Non-abrasive damp cloth, do not immerse
Safety	Polarized plug, do not leave unattended, keep out of reach of children
Spare Parts	No user-serviceable parts
Warranty	Refer to warranty policy (page 7 of manual)

Frequently Asked Questions - TS-239BK Brentwood

What should I do if there is an odor or smoke during first use?

This is normal. A slight odor or smoke may occur during first use due to the chemical reaction of the heating element. It will dissipate quickly. Make sure the appliance is used in a well-ventilated area.

How to clean the waffle maker?

Always unplug the appliance and let it cool completely before cleaning. Clean the non-stick plates with a non-abrasive damp cloth and dry thoroughly. Never immerse the base, cord, or plug in water or any other liquid.

Can I use metal utensils on the plates?

No, use only wooden or plastic utensils to remove waffles. Metal utensils may scratch and damage the non-stick coating.

What should I do if the power cord is damaged?

Do not use the appliance if the cord or plug is damaged. Contact a qualified electrician for replacement. The appliance contains no user-serviceable parts.

How to know when the waffle maker is ready to cook?

The red light turns on when the appliance is powered on. The green light turns on when the cooking temperature is reached and the waffle maker is ready to use.

Can I leave the waffle maker unattended while operating?

No, never leave the appliance unattended while in operation. Always unplug it after use and keep it out of reach of children.

Can I use an extension cord with this waffle maker?

The use of an extension cord is not recommended. If absolutely necessary, the extension cord's power rating must be at least equal to that of the appliance and it must be arranged so that it does not drape over the counter.

Why does the red light stay on permanently?

The red light indicates that the appliance is plugged in and powered. It stays on as long as the appliance is powered. The green light turns on and off to indicate the heating cycle.

Can the waffle maker be used for other foods besides waffles?

No, this appliance is designed only for cooking waffles and for household use. Do not use it for other purposes.

How to store the waffle maker after use?

Let the appliance cool completely. Wrap the cord in its compartment under the appliance. Store it in a cool, dry place, out of reach of children.

USER MANUAL TS-239BK Brentwood

Brentwood® Appliances

© 2021 Brentwood Appliances, Inc.

WAFFLE MAKER

WAFLERA / GAUFRIER

ITEM NO.: TS-239BK (BLACK) & TS-239BL (BLUE)

Operating and Safety Instructions

FOR INDOOR HOUSEHOLD USE ONLY

When using this or any other electrical appliance, always follow these basic safety precautions, especially when children are present.

READ ALL INSTRUCTIONS BEFORE USE

⚠ WARNING-To reduce the risk of fire, electric shock, serious personal injury and prop damage please note the following:

• This appliance is not intended for use by children. Keep the appliance out of the reach of children and pets. Extra caution is necessary when using this appliance near children.
• Always ensure the product is unplugged from the electrical outlet and allowed to cool before assembling, disassembling, relocating, or cleaning.
• Do not leave the appliance unattended while it is in use. Always unplug the appliance from the electrical outlet when not in use.
• Do not immerse or expose the Base, Power Cord, or Plug of this appliance in water or other liquids.
• Do not touch hot surfaces. Use protective oven mitts or gloves when removing the Lid or handling hot containers to avoid burns or personal injury.
• This appliance generates heat and steam during use. Please take the proper precautions to avoid burns, fire, and personal or property damage.
• Do not use attachments not recommended or sold by the Manufacturer.
• Do not place appliance on or near a hot gas or electric burner, in a heated oven, or other heated surfaces.
• Use extreme caution when moving an appliance containing food or liquids.
• Use the product in a well-ventilated area. Keep at least 4-6 inches of space on all sides of the product to allow adequate air circulation.
• Use appliance on a table or sturdy flat surface. Keep the appliance away from curtains, wall coverings, clothing, dishtowels, or other flammable materials.
• Do not plug or unplug the appliance from the electrical outlet with a wet hand.
• This appliance is intended solely for non-commercial, non-industrial, household use in cooking of food for human consumption; do not use the product outdoors or for any other purpose.
• Do not operate the appliance empty.
• Do not let cord hang over edge of table or counter where it may be tripped over or pulled. Do not allow cord to touch hot surfaces.
• Do not operate the appliance if it has a damaged power cord or plug, if wires are exposed, if it malfunctions, if it is dropped or damaged, or if the motor housing is dropped in or exposed to water.
• This product has no user-serviceable parts. Do not attempt to examine or repair this product yourself. Please review the Warranty Policy on Page 7.
• Do not put any stress on the power cord where it connects to the appliance, as the power cord could fray and break.

- This appliance does NOT have an "OFF" feature, to shut off please disconnect from power supply.

SPECIAL INSTRUCTIONS: A short power supply cord is provided to reduce the risk of becoming entangled in or tripping over a longer cord. An extension cord is not recommended for use with this product, but if one must be used:

— The marked electrical rating must be at least as great as that of the product.
- Arrange the extension cord so that it will not drape over the countertop or tabletop where it can be tripped over or pulled.

WARNING: This product is equipped with a polarized plug (one blade is wider than the other blade) to reduce the risk of electrical shock. This is a safety feature. The plug will fit into a polarized outlet only one way. If you are unable to insert the plug into the electrical outlet, try reversing the plug. If the plug still does not fit, contact a qualified electrician. Never use the plug with an extension cord unless you can fully insert the plug into the extension cord. Do not alter the plug. Do not attempt to defeat the safety purpose of the polarized plug.

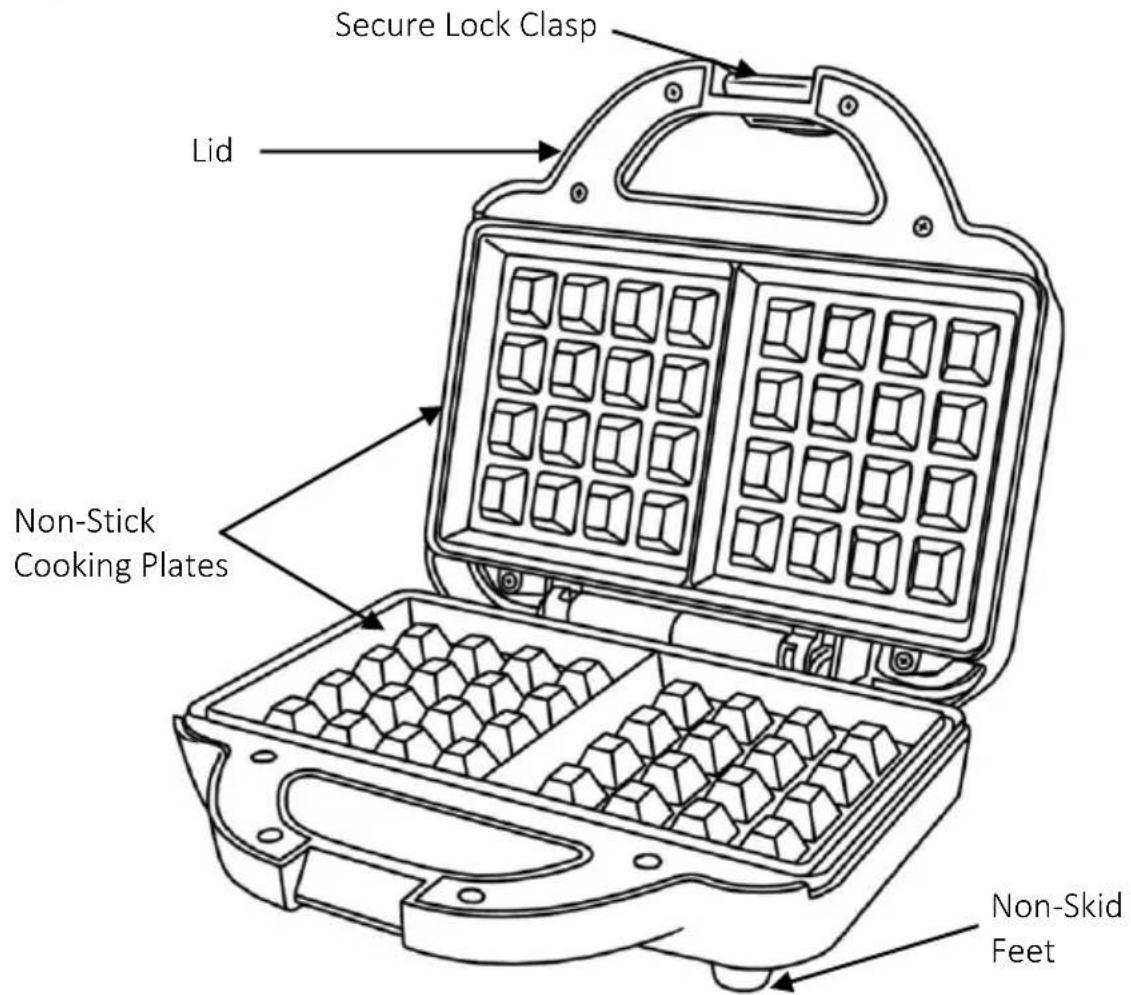

Parts:

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

Before First Use

IMPORTANT: Please check all packaging material carefully before discarding as there may be accessory parts contained within the packaging material.

Before your first use wipe down all surfaces with a damp cloth and then dry.

Using Your Waffle Maker:

WARNING: Avoid contact with hot parts.

1. Place your waffle maker on a sturdy and clean flat surface.
2. You can lightly coat the non-stick cooking plates with a small amount of vegetable oil. You can use a lightly coated paper towel or pastry brush. This helps to prolong the life of your non-stick.
3. Plug the product into a standard 120-volt AC electrical outlet and preheat the appliance by closing the lid. The red power light will come on to indicate the appliance is preheating. Preheat your appliance for a minimum of 3 minutes. The green ready light will come on to indicate it is ready to cook.

Attention: First use may cause a slight odor or small smoking upon heating, it is normal. This is a result of the heating element chemical reaction. It quickly goes away.

1. While the appliance preheats you can prepare the batter for your Waffle Maker.

2. Once the green ready light has come on raise the lid using an oven mitt to prevent any burns. Fill each of the wells with your prepared mixture.

CAUTION: Do not overfill the product or operate it when empty.

1. Close the lid using the oven mitt and secure lock clasp in position.

NOTE: Steam may be released from the appliance during cooking. Only handle the appliance using kitchen gloves to avoid burns.

1. Cooking time generally ranges from 5-7 minutes and can vary depending on ingredients and consistency of your batter.

2. Once your Waffles have finished cooking raise the lid with the oven mitt. Remove the Waffles using a plastic or wooden spoon, do not use metal utensils as they may scratch and damage the non-stick cooking surface.

3. If you are cooking more than one batch of Waffles in a session, after the first batch lower the lid to maintain the heat level until its ready to cook the next batch.

4. As soon as you are finished cooking your batch of Waffles, unplug the appliance and allow it to cool.

Cleaning Your Waffle Maker:

WARNING: Always unplug the product and allow it to cool before cleaning or storing.

NOTICE: Never immerse the waffle maker, plug or cord in water or any other liquid.

• Make sure the appliance is completely cooled before handling.
• Clean the upper and lower non-stick plates using a damp nonabrasive cloth.
• Exterior of waffle maker can be cleaned with a damp cloth as well.
• Dry all parts thoroughly before storing or using again.
• Wrap the cord in the cord storage below the appliance. Store in a cool, dry place. Away from reach of children.

Buttermilk Waffle Recipe

Ingredients:
2 Cups Shifted Flour	1 tsp baking soda	1/3 Cup Melted Butter
2 tbsp white sugar	1/2 tsp salt	2 large eggs, lightly beaten
2 tsp baking powder	2 cups low-fat buttermilk	1 tsps Vanilla Extract
Directions:
1. Whisk flour, sugar, baking powder, baking soda, and salt together in a bowl until evenly combined. Whisk buttermilk and butter together in a separate bowl; add eggs. Stir buttermilk mixture into flour mixture until just combined and batter is slightly lumpy; add vanilla extract.
2. Preheat a waffle maker according to instructions.
3. Pour enough batter into the preheated waffle maker. Cook according to instructions.

Chocolate Waffle Recipe

Ingredients:
2 Cups Shifted Flour	2 tbsp Sugar	6 tbsp Melted Butter
1/4 cup Cocoa powder	1/2 tsp salt	1/3 cup mini chocolate chips
1/4 tsp baking soda	2 large eggs	optional
1 1/2 tsp baking powder	1 3/4 cups low-fat buttermil
Directions:
1. Shift the flour with all the dry ingredients.
2. In a separate bowl beat the egg, add the buttermilk and melted butter. Combine the liquid with the dry ingredients with a few swift strokes. Add chocolate chips if you are using them.
3. Cook them in your waffle maker, as you normally do.
4. These waffles aren't super that sweet, which is a good thing.
5. Serve with warm maple syrup and berries!
(Add a scoop of ice cream for a fun dessert. Or serve with crushed berries and homemade whipped cream as a special breakfast!)

Hint:

You can make any recipe a bit better for you by switching to Whole Wheat Flour, using an alternative baking sugar and always using low fat milk!

ONE YEAR LIMITED WARRANTY

Write down the following information about your appliance to better help you obtain assistance or service if you ever need it.

CUSTOMER RECORD

Date of Purchase ____ Store/Dealer ____

Model/Item No: ____

THIS WARRANTY APPLIES TO PRODUCTS PURCHASED AND USED IN THE CONTINENTAL U.S. AND CANADA ONLY. This is the only express warranty for this product and is in lieu of any other warranty or condition. This product is warranted to be free from defects in material and workmanship for a period of one (1) year from the date of original purchase. During this period, your exclusive remedy is repair or replacement of this product, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value. This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse.

THIS WARRANTY EXTENDS ONLY TO THE ORIGINAL CONSUMER PURCHASER. KEEP THE ORIGINAL SALES RECEIPT, AS PROOF OF PURCHASE IS REQUIRED TO MAKE A WARRANTY CLAIM.

This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than what is specified on the rating label (E.G., 120V\~60Hz). We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you. To make a warranty claim do not return this appliance to the store.

TO OBTAIN WARRANTY SERVICE AND/OR TROUBLESHOOTING INFORMATION:

Call Customer Service at 1-888-903-0060 in the U.S.

Monday through Friday: 9:00am – 5:00pm PST.

U.S. Customer Please Email: [e-mail]

Canadian Customers Please Email: [e-mail]

Go online at www.brentwoodus.com

© 2021 Brentwood Appliances, Inc.
