TS-1402BL - Waffle Maker Brentwood - Free user manual and instructions

USER MANUAL TS-1402BL Brentwood

Brentwood® Appliances

© 2021 Brentwood Appliances, Inc.

WAFFLE BOWL MAKER

WAFLERA / GAUFRIER

ITEM NO.: TS-1401BL (SINGLE) & TS-1402BL (DOUBLE)

White BLENTWOOD brand brush tool with black handle and circular base (no text or symbols visible)

White BLENTwood smartwatch with black handle and circular button (no visible text or symbols on device body)

Operating and Safety Instructions

FOR INDOOR HOUSEHOLD USE ONLY

When using this or any other electrical appliance, always follow these basic safety precautions, especially when children are present.

READ ALL INSTRUCTIONS BEFORE USE

⚠ WARNING-To reduce the risk of fire, electric shock, serious personal injury and property damage please note the following:

- This appliance is not intended for use by children. Keep the appliance out of the reach of children and pets. Extra caution is necessary when using this appliance near children.

- Always ensure the product is unplugged from the electrical outlet and allowed to cool before assembling, disassembling, relocating, or cleaning it.

- Do not leave the appliance unattended while it is in use. Always unplug the appliance from the electrical outlet when not in use.

- Do not immerse or expose the Base, Power Cord, or Plug of this appliance in water or other liquids.

- This appliance generates heat and steam during use, do not touch hot surfaces. Use protective oven mitts or gloves when removing the Lid or handling hot containers to avoid burns or personal injury.

- Do not use attachments not recommended or sold by the Manufacturer.

- Do not place appliance on or near a hot gas or electric burner, in a heated oven, or other heated surfaces.

- Use extreme caution when moving an appliance containing food or liquids.

- Use the product in a well-ventilated area. Keep at least 4-6 inches of space on all sides of the product to allow adequate air circulation.

- Use appliance on a table or sturdy flat surface. Keep the appliance away from curtains, wall coverings, clothing, dishtowels, or other flammable materials.

- Do not plug or unplug the appliance from the electrical outlet with a wet hand.

- This appliance is intended solely for non-commercial, non-industrial, household use in cooking of food for human consumption; do not use the product outdoors or for any other purpose.

- Do not operate the appliance empty.

- Do not let cord hang over edge of table or counter where it may be tripped over or pulled.

- Do not operate the appliance if it has a damaged power cord or plug, if wires are exposed, if it malfunctions, if it is dropped or damaged, or if the motor housing is dropped in or exposed to water.

- This appliance has no user-serviceable parts. Do not attempt to examine or repair this appliance yourself. Please review the Warranty Policy on Page 6.

- Do not put any stress on the power cord where it connects to the appliance, as the power cord could fray and break.

- This appliance does not have an "OFF" feature, to shut off please disconnect from power supply.

SPECIAL INSTRUCTIONS: A short power supply cord is provided to reduce the risk of becoming entangled in or tripping over a longer cord. An extension cord is not recommended for use with this product, but if one must be used:

• The marked electrical rating must be at least as great as that of the product.
• Arrange the extension cord so that it will not drape over the countertop or tabletop where it can be tripped over or pulled.

WARNING: This product is equipped with a polarized plug (one blade is wider than the other blade) to reduce the risk of electrical shock. This is a safety feature. The plug will fit into a polarized outlet only one way. If you are unable to insert the plug into the electrical outlet, try reversing the plug. If the plug still does not fit, contact a qualified electrician. Never use the plug with an extension cord unless you can fully insert the plug into the extension cord. Do not alter the plug. Do not attempt to defeat the safety purpose of the polarized plug.

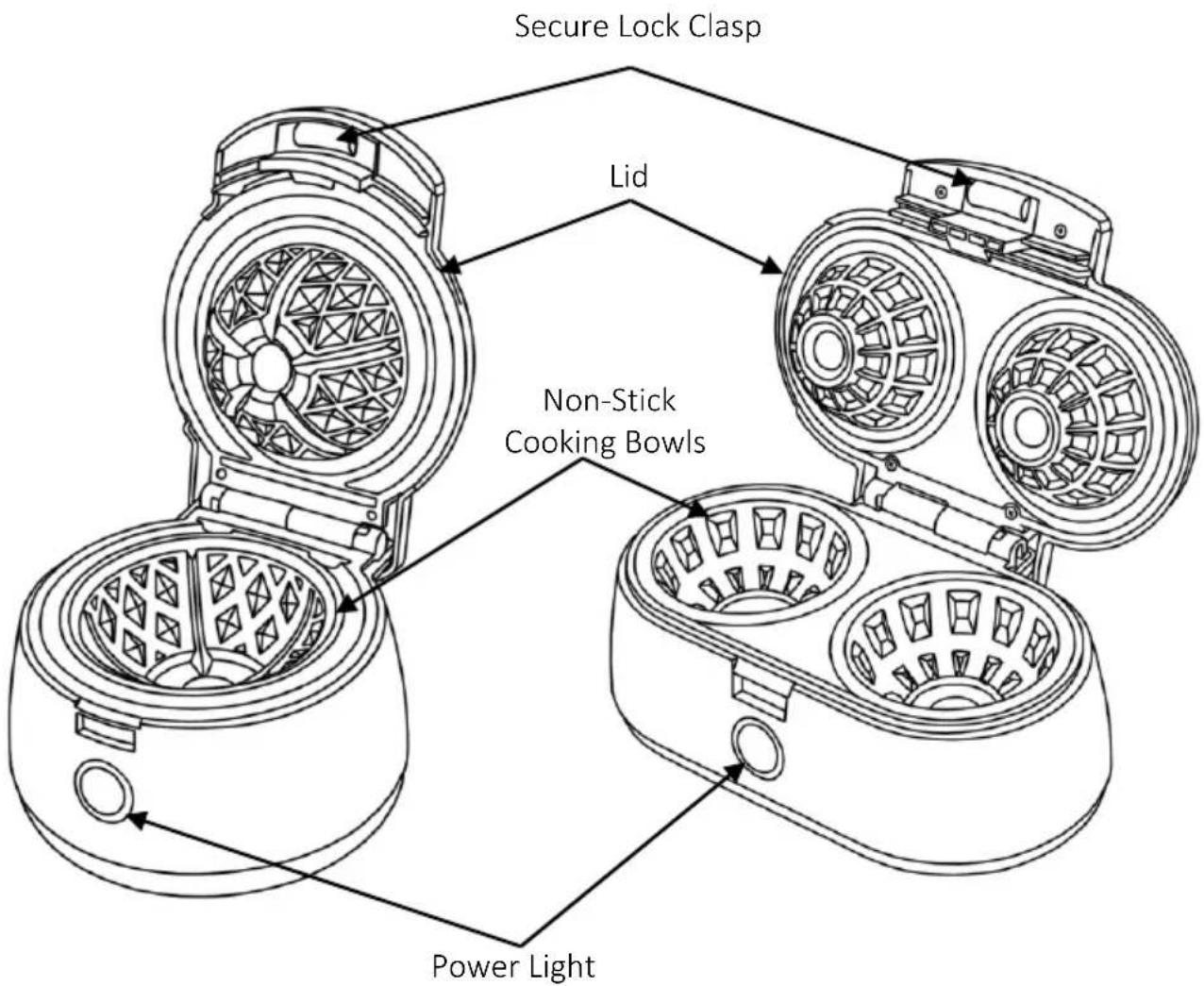

Parts:

SAVE THESE INSTRUCTIONS

FOR FUTURE REFERENCE

Using Your Waffle Bowl Maker:

WARNING: Avoid contact with hot parts.

IMPORTANT: Please check all packaging material carefully before discarding as there may be accessory parts contained within the packaging material.

1. Before your first use wipe down all surfaces with a damp cloth and then dry.
2. You can lightly coat the non-stick cooking plates with a small amount of vegetable oil. This helps to prolong the life of your non-stick.
3. Place your waffle bowl maker on a sturdy and clean flat surface. Plug the product into a standard 120-volt AC electrical outlet and preheat the appliance by closing the lid. Attention: First use may cause a slight odor or small smoking upon heating, it is normal. This is a result of the heating element chemical reaction. It quickly goes away.
4. When the Power is on, the red power light will come on to indicate the appliance is preheating. The green ready light will come on to indicate it is ready to cook.
5. Once the green ready light has come on raise the lid using an oven mitt. Fill the bowls with the waffle batter about a 14 of the way or to the fill line. Do not over fill.
6. Close the lid using the oven mitt and secure lock clasp in position. NOTE: Steam may be released from the appliance during cooking. Only handle the appliance using kitchen gloves to avoid burns.
7. Cooking time generally ranges 1-2 minutes and can vary depending on taste.
8. Once your waffle bowls have finished cooking, raise the lid with the oven mitt. Remove the using a plastic or wooden spoon, do not use metal utensils as they may scratch and damage the non-stick cooking surface.
9. If you are cooking more than one batch of waffles in a session, after the first batch lower the lid to maintain the heat level until its ready to cook the next batch.

Cleaning Your Waffle Bowl Maker:

NOTICE: Never immerse the Waffle bowl maker, plug or cord in water or any other liquid.

• Disconnect the Waffle Bowl maker from the electrical outlet.
• Make sure the appliance is completely cooled before handling.
• Clean the upper and lower non-stick plates using a damp nonabrasive cloth.

NOTE: NEVER IMMERSE THE WAFFLE BOWL MAKER

• Exterior of Waffle Bowl maker can be cleaned with a damp cloth as well.
• Wrap the cord in the cord storage below the appliance.
• Dry all parts thoroughly before storing or using again.
• Store in a cool, dry place. Away from reach of children.

Recipe Ideas:

Waffle Bowls (Your choice of prepackaged waffle mix.)

Add your preference of the following: cinnamon, vanilla, sugar, and/or chocolate chips for those chocolate lovers. Spray with cooking oil and fill the bowl(s) with the waffle batter to the MAX LINE. Do not over fill. Close the lid using the oven mitt and secure lock clasp in position. Reminder to periodically check for preferred level of crispiness.

Breakfast Bowl (Hash Brown)

Use your choice of frozen hash browns. Spray with cooking oil and flatten on the waffle bowl maker. Cook crisp to your liking. Fill with your choice of eggs, cheeses, bacon and top with chives. Reminder to periodically check for preferred level of crispiness.

Taco Bowl (Tortilla)

Use your choice of tortilla (corn or flour). Spray with cooking oil and place tortilla on the waffle bowl and cook to your liking. Then fill with beans, rice and cheese. Top with guacamole, sour cream, and jalapenos for an authentic taco bowl experience. Reminder to periodically check for preferred level of crispiness.

ONE YEAR LIMITED WARRANTY

Write down the following information about your appliance to better help you obtain assistance or service if you ever need it.

CUSTOMER RECORD

Date of Purchase ____ Store/Dealer ____

Model/Item No: ____

THIS WARRANTY APPLIES TO PRODUCTS PURCHASED AND USED IN THE CONTINENTAL U.S. AND CANADA ONLY. This is the only express warranty for this product and is in lieu of any other warranty or condition. This product is warranted to be free from defects in material and workmanship for a period of one (1) year from the date of original purchase. During this period, your exclusive remedy is repair or replacement of this product, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value. This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse.

THIS WARRANTY EXTENDS ONLY TO THE ORIGINAL CONSUMER PURCHASER. KEEP THE ORIGINAL SALES RECEIPT, AS PROOF OF PURCHASE IS REQUIRED TO MAKE A WARRANTY CLAIM.

This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than what is specified on the rating label (E.G., 120V\~60Hz). We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you. To make a warranty claim do not return this appliance to the store.

TO OBTAIN WARRANTY SERVICE AND/OR TROUBLESHOOTING INFORMATION:

Call Customer Service at 1-888-903-0060 in the U.S.

Monday through Friday: 9:00 am – 5:00 pm PT

U.S. Customers Please Email: [e-mail]

Canadian Customers Please Email: [e-mail]

Go online at www.brentwoodus.com

NOTA: NUNCA SUMERJA LA WAFLERA

© 2021 Brentwood Appliances, Inc.
