Product Type	Electric Waffle Maker
Brand	Brentwood
Model	TS-230S
Power Supply	120 V AC, 60 Hz
Power	Approximately 1000 W
Dimensions (approx.)	25 x 20 x 10 cm
Weight (approx.)	1.8 kg
Plate Material	Non-stick Coating
Adjustable Temperature	Yes, via a dial
Indicator Lights	Red light (power on) and green light (ready)
Number of waffles per batch	2 (dual mold)
Safety Lock	Yes, locking latch
Cord Storage	Storage space under the appliance
Usage	Indoor household use only
Cleaning	Damp cloth, do not immerse
Safety	Polarized plug, automatic shut-off by unplugging
Included Accessories	None (except manual)
Warranty	Refer to warranty policy on page 7 of the manual
Repairability	No user-serviceable parts

Frequently Asked Questions - TS-230S Brentwood

How to use the waffle maker for the first time?

Before first use, wipe all surfaces with a damp cloth and dry. Preheat the closed appliance for at least 3 minutes until the green light turns on. Slight smoking may occur, this is normal.

How much batter to put in the waffle maker?

Fill each mold without overfilling. Do not operate the appliance empty. The batter should not overflow when closing the lid.

How to clean the waffle maker?

Unplug the appliance and let it cool. Clean the non-stick plates with a damp non-abrasive cloth. Never immerse the appliance in water. Wipe the exterior with a soft cloth.

Why is there smoke during first use?

The heating element undergoes a slight chemical reaction during first use. This smoke or odor disappears quickly. Make sure you are in a well-ventilated area.

Can metal utensils be used on the plates?

No, only use wooden or plastic utensils to avoid scratching the non-stick coating.

The green light does not turn on, what to do?

Check that the appliance is properly plugged in and that the temperature dial is set to a position other than '0'. The green light turns on when the cooking temperature is reached.

What is the recommended cooking time?

The cooking time varies from 5 to 10 minutes depending on the recipe and batter consistency. Monitor for desired browning.

How to store the waffle maker after use?

Wrap the cord in the storage space located under the appliance. Store it in a cool, dry place, out of reach of children.

Can I use an extension cord with this appliance?

Use of an extension cord is not recommended. If necessary, use an extension cord with a power rating at least equal to the appliance and arrange it to avoid tripping hazards.

What to do if the appliance does not heat up?

Make sure the plug is fully inserted into a polarized outlet. If the problem persists, contact a qualified electrician. The appliance contains no user-serviceable parts.

USER MANUAL TS-230S Brentwood

© 2021 Brentwood Appliances, Inc.

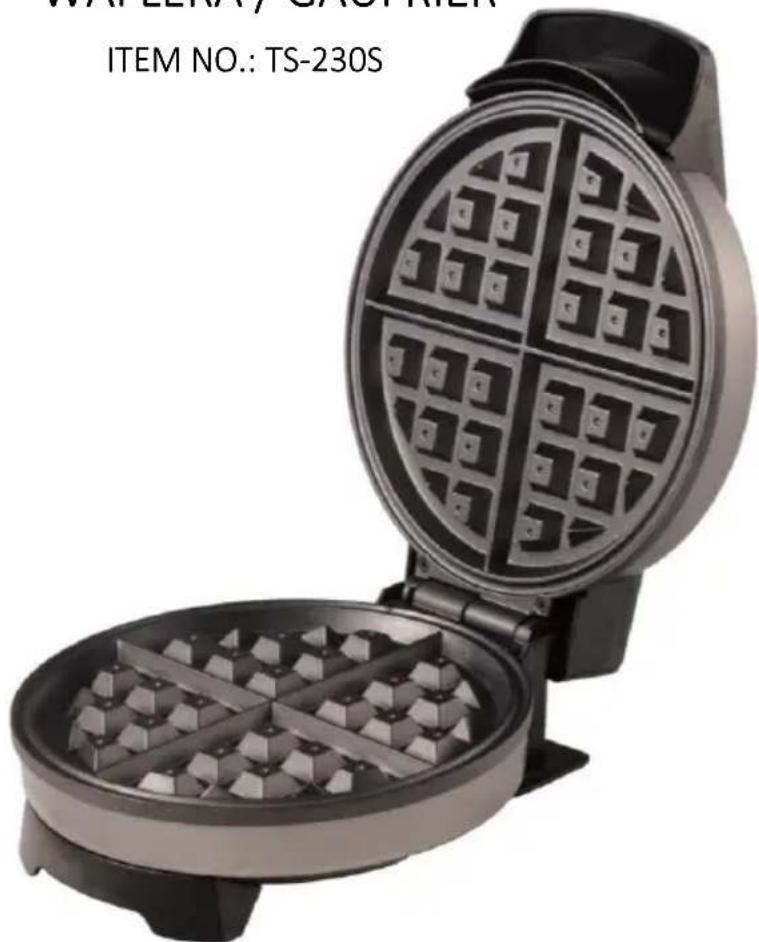

WAFFLE MAKER

WAFLERA / GAUFRIER

ITEM NO.: TS-230S

Operating and Safety Instructions

FOR INDOOR HOUSEHOLD USE ONLY

When using this or any other electrical appliance, always follow these basic safety precautions, especially when children are present.

READ ALL INSTRUCTIONS BEFORE USE

⚠ WARNING-To reduce the risk of fire, electric shock, serious personal injury and property damage please note the following:

• This appliance is not intended for use by children. Keep the appliance out of the reach of children and pets. Extra caution is necessary when using this appliance near children.
• Always ensure the product is unplugged from the electrical outlet and allowed to cool before assembling, disassembling, relocating, or cleaning.
• Do not leave the appliance unattended while it is in use. Always unplug the appliance from the electrical outlet when not in use.
• Do not immerse or expose the Base, Power Cord, or Plug of this appliance in water or other liquids.
• This appliance generates heat and steam during use, do not touch hot surfaces. Use handles or knobs when handling product. Use protective oven mitts to avoid burns or personal injury.
• Do not use attachments not recommended or sold by the Manufacturer as it may cause fire, electric shock or injury.
• Do not place appliance on or near a hot gas or electric burner, in a heated oven, or other heated surfaces.
• Use extreme caution when moving an appliance containing food or liquids.
• Use the product in a well-ventilated area. Keep at least 4-6 inches of space on all sides of the product to allow adequate air circulation.
• Use appliance on a table or sturdy flat surface. Keep the appliance away from curtains, wall coverings, clothing, dishtowels, or other flammable materials.
• Do not plug or unplug the appliance from the electrical outlet with a wet hand.
• This appliance is intended solely for non-commercial, non-industrial, household use in cooking of food for human consumption; do not use the product outdoors or for any other purpose.
• Do not operate the appliance empty.
• Do not let cord hang over edge of table or counter where it may be tripped over or pulled. Do not allow cord to touch hot surfaces.
• Do not operate the appliance if it has a damaged power cord or plug, if wires are exposed, if it malfunctions, if it is dropped or damaged, or if the motor housing is dropped in or exposed to water.
• This appliance has no user-serviceable parts. Do not attempt to examine or repair this appliance yourself. Please review the Warranty Policy on Page 7.
• Do not put any stress on the power cord where it connects to the appliance, as the power cord could fray and break.
• This appliance does not have an “OFF” feature, to shut off please disconnect from power supply.

SPECIAL INSTRUCTIONS: A short power supply cord is provided to reduce the risk of

becoming entangled in or tripping over a longer cord. An extension cord is not recommended for use with this product, but if one must be used:

• The marked electrical rating must be at least as great as that of the product.
• Arrange the extension cord so that it will not drape over the countertop or tabletop where it can be tripped over or pulled.

WARNING: This product is equipped with a polarized plug (one blade is wider than the other blade) to reduce the risk of electrical shock. This is a safety feature. The plug will fit into a polar outlet only one way. If you are unable to insert the plug into the electrical outlet, try reversing t plug. If the plug still does not fit, contact a qualified electrician. Never use the plug with an extension cord unless you can fully insert the plug into the extension cord. Do not alter the plug Do not attempt to defeat the safety purpose of the polarized plug.

SAVE THESE INSTRUCTIONS

FOR FUTURE REFERENCE

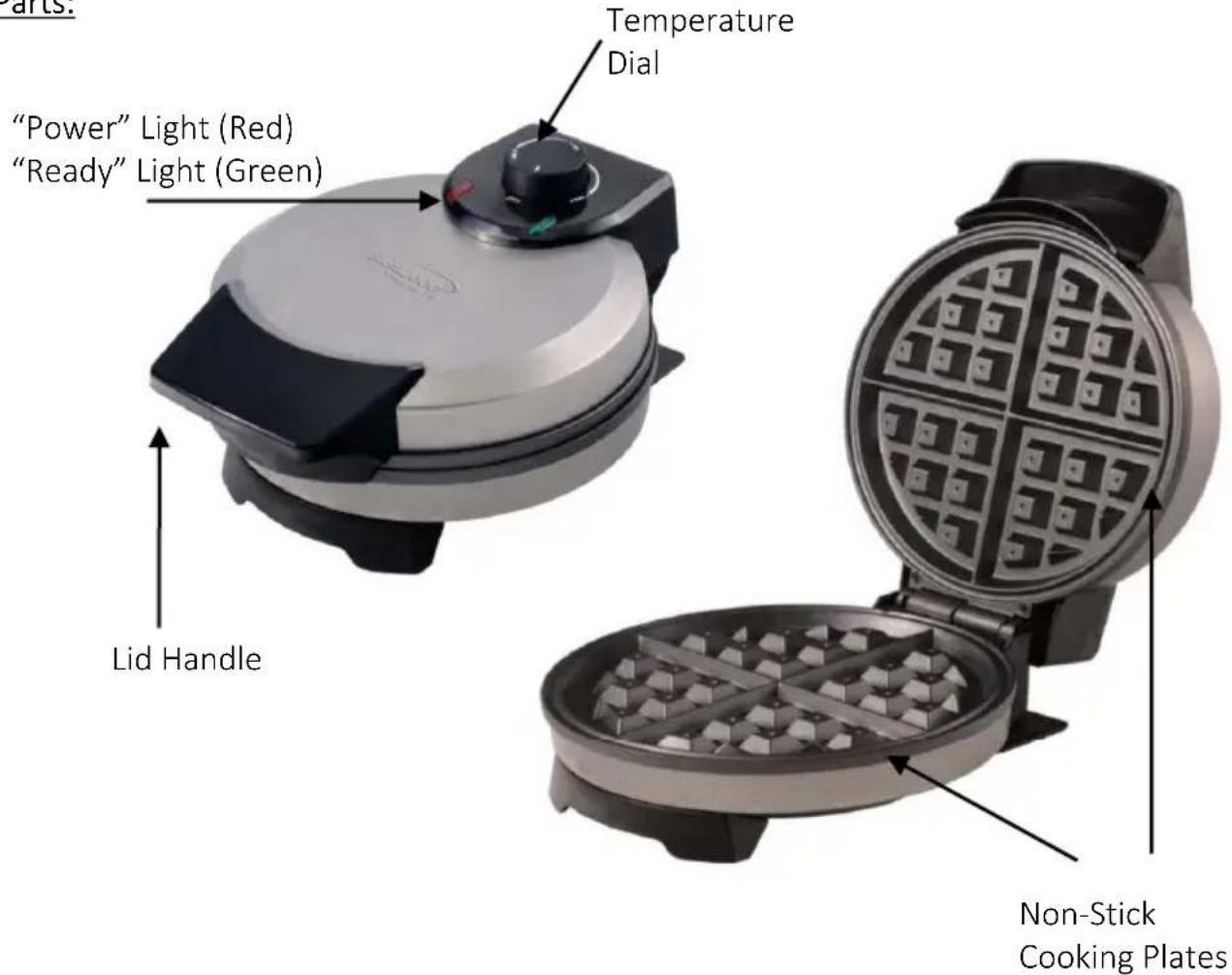

Parts:

Attention: First use may cause a slight odor or small smoking upon heating, it is normal. This is a result of the heating element chemical reaction. It quickly goes away.

1. Before your first use wipe down all surfaces with a damp cloth and then dry.
2. You can lightly coat the non-stick cooking plates with a small amount of vegetable oil. This helps to prolong the life of the non-stick surface.

3. Plug the product into an electrical outlet, turn dial to set temperature and preheat with the lid closed.

4. When the Power is on, the red power light will come on to indicate the appliance is preheating. Preheat your appliance for a minimum of 3 minutes. The green ready light will come on to indicate it is ready to cook.

5. While the appliance preheats you can prepare the batter for your Waffle Maker. See Recipe Ideas on Page 5).

6. Once the green ready light has come on raise the lid using an oven mitt to prevent any burns.

CAUTION: Do not overfill the product or operate it when empty.

1. Fill each of the Non-Stick cooking wells with your prepared mixture. Close the lid and secure lock clasp in position.

NOTE: Steam may be released from the appliance during cooking. Only handle the appliance using kitchen gloves to avoid burns.

1. Cooking time generally ranges from 5-10 minutes and can vary depending on ingredients and consistency of your batter.
2. Once your Waffles have finished cooking raise the lid with the oven mitt. Remove the Waffles using a plastic or wooden spoon, do not use metal utensils as they may damage the cooking surface.
3. If you are cooking more than one batch of Waffles in a session, after the first batch lower the lid to maintain the heat level until its ready to cook the next batch.

Cleaning Your Waffle Maker:

WARNING: Always unplug the product and allow it to cool before cleaning or storing.

NOTICE: Never immerse the waffle maker, plug or cord in water or any other liquid.

• Disconnect the waffle maker from the electrical outlet.
• Make sure the appliance is completely cooled before handling.
• Clean the upper and lower non-stick plates using a damp nonabrasive cloth.

NOTE: NEVER IMMERSE THE WAFFLE MAKER

• Exterior of waffle maker can be cleaned with a damp cloth as well.
• Wrap the cord in the cord storage below the appliance.
• Dry all parts thoroughly before storing or using again.
• Store in a cool, dry place. Away from reach of children.

RECIPE IDEAS

Classic Belgian Waffle

Ingredients:2 Cups Flour4 tsps Baking Powder 1/2 sps. Salt 1/4 Cup Sugar2 Eggs 1/2 Cup Melted Butter2 Cups Milk1 tsps Vanilla ExtractAlternate Ingredient:1 Tsp: Cinnamon

Directions:Preheat Waffle Maker according to instructionsMix the dry ingredients together in a large bowl, s aside.In a separate bowl, separate egg whites and beat stiff peaks formMix together the egg yolks, milk, melted butter, a vanilla, stir slightlyAdd to dry ingredients and mix well. Then Fold in whitesCook in waffle iron between medium and high he for 5-10 minutes

Modern Belgian Waffle

Ingredients:1 (.25 oz): active dry yeast 1/4 Cup: Milk (warm) 23/4 Cup: Milk (warm)3 Eggs: Yolks3 Eggs: Whites 3/4 Cup: Butter melted and use lukewarm 1/2 Cup: Sugar (white) 11/2 Tsp: Salt2 Tsps: Vanilla Extract4 Cups: All -Purpose FloorAlternate Ingredient:1 Tsp: Cinnamon

Directions:1. Dissolve yeast in 1/4 cup warm milk in a bowl and stand until creamy. (Approx. 8-10 minutes)2. Whisk the egg yolks, 1/4 cup of warm milk and but (melted).3. While whisking, stir in sugar, salt, vanilla extract and the yest mixture.4. Next while whisking, stir in the remaining milk and flour, alternating. Finish with the flour last.5. Beat egg whites until soft peaks form, fold into th batter, cover tightly with wrap and let rise in a w environment until size doubles.6. Preheat Waffle Maker according to instructions.7. Pour mixture into Waffle Maker, do not over fill.8. Cooking time will be approximately: 5-10 Minute medium and high heat

Make it even sweeter by adding any of the following toppings!

• Freshly Chopped Strawberries, Raspberries, Blueberries and/or Bananas
  • Chocolate Chips, Marshmallows
• Powdered Sugar
• Chopped Walnuts
  • Whip Cream and/or Whip Butter

ONE YEAR LIMITED WARRANTY

Write down the following information about your appliance to better help you obtain assistance or service if you ever need it.

CUSTOMER RECORD

Date of Purchase ____ Store/Dealer ____

Model/Item No: ____

THIS WARRANTY APPLIES TO PRODUCTS PURCHASED AND USED IN THE CONTINENTAL U.S. AND CANADA ONLY. This is the only express warranty for this product and is in lieu of any other warranty or condition. This product is warranted to be free from defects in material and workmanship for a period of one (1) year from the date of original purchase. During this period, your exclusive remedy is repair or replacement of this product, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value. This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse.

THIS WARRANTY EXTENDS ONLY TO THE ORIGINAL CONSUMER PURCHASER. KEEP THE ORIGINAL SALES RECEIPT, AS PROOF OF PURCHASE IS REQUIRED TO MAKE A WARRANTY CLAIM.

This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than what is specified on the rating label (E.G., 120V\~60Hz). We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you. To make a warranty claim do not return this appliance to the store.

TO OBTAIN WARRANTY SERVICE AND/OR TROUBLESHOOTING INFORMATION:

Call Customer Service at 1-888-903-0060 in the U.S.

Monday through Friday: 9:00am – 5:00pm PST.

U.S. Customers Please Email: [e-mail]

Canadian Customers Please Email: [e-mail]

Go online: www.brentwoodus.com

NOTA: NUNCA SUMERJA LA WAFLERA

© 2021 Brentwood Appliances, Inc.
