USER MANUAL MPI-90W Brentwood

Brentwood® Appliances

© 2021 Brentwood Appliances, Inc.

STEAM IRON WITH AUTO SHUT-OFF

PLANCHA A VAPOR CON APAGADO AUTOMÁTICO FER À REPASSER À VAPEUR AVEC ARRÊT AUTOMATIQUE

MPI-90R (RED)

Red and black steam iron with a white collar (no visible text or symbols)

Black and white steam iron with visible steam drop and handle (no text or symbols)

MPI-90BK (BLACK)

White steam iron with silver mesh and black handle, no visible text or symbols

MPI-90W (WHITE)

Operating and Safety Instructions

FOR INDOOR HOUSEHOLD USE ONLY

1 Max Clean

Line drawing of a steam iron with a handle and spout (no text or symbols)

3 40W 3W

Illustration of a steam iron with a downward arrow indicating motion (no text or symbols)

Diagram of a mechanical component with directional arrows and a labeled section (no readable text or symbols)

Illustration of an iron iron cutting through a saw, showing blade and side details (no text or symbols)

7 Max Clean

8

IMPORTANT SAFEGUARDS

When using this or any other electrical appliance, always follow these basic safety precautions, especially when children are present.

READ ALL INSTRUCTIONS BEFORE USE

⚠ WARNING-- To reduce the risk of fire, electric shock, serious personal injury and property damage please note the following:

- This product is not intended for use by children. Keep the product out of reach of children and pets. Extra caution is necessary when using this appliance near children.

- Always ensure the product is unplugged from the electrical outlet and allowed to cool before assembling, disassembling, relocating, or cleaning it.

- Do not leave the product unattended while it is in use. Always unplug the product from the electrical outlet when not in use.

- Do not immerse the Base, Power Cord, or Plug of this product in or expose the Power Cord or Plug to water or other liquids.

- Do not touch hot surfaces to avoid burns or personal injury.

- Take proper precautions to prevent burns, fire, or personal or property damage as this appliance generates heat and steam during use.

- Do not use attachments not recommended or sold by the product manufacturer.

- Do not place on or near a hot gas or electric burner, in a heated oven, or other heated surfaces.

- Use extreme caution when moving an appliance containing hot food, water, or other liquids.

- Use the product in a well-ventilated area. Keep at least 4-6 inches of space on all sides of the product to allow adequate air circulation.

- Use appliance on a table or flat surface. Keep the product away from curtains, wall coverings, clothing, dishtowels, or other flammable materials.

- Do not plug or unplug the product from the electrical outlet with a wet hand.

- This product is intended solely for non-commercial, non-industrial, do not use the product outdoors or for any other purpose.

- Do not let cord hang over edge of table or counter where it may be tripped over or pulled. Do not allow cord to touch hot surfaces.

- Do not operate the product if it has a damaged or cut Power Cord or plug, if wires are exposed, if it malfunctions, if it is dropped or damaged, or if the Motor Housing is dropped in or exposed to water.

- This product has no user-serviceable parts. Do not attempt to examine or repair this product yourself. Please review the Warranty Policy on Page 7.

- Do not put any stress on the power cord where it connects to the product, as the power cord could fray and break.

SPECIAL INSTRUCTIONS:

- The Iron should always be turned to "OFF" before plugging or unplugging from outlet.

• Always disconnect Iron from electrical outlet when filling with water, emptying or when not in use.
• Burns can occur from touching hot metal parts, hot water or hot steam. Use caution when you turn the Steam Iron upside down as there may be hot water in the reservoir.
• Never immerse the iron, cable or plug in any liquid.

- An extension cord is not recommended for use with this product, but if one must be used:

— The marked electrical rating must be at least as great as that of the product.
- Arrange the extension cord so that it will not drape over the countertop or tabletop where it can be tripped over or pulled.

WARNING: This product is equipped with a polarized plug (one blade is wider than the other blade) to reduce the risk of electrical shock. This is a safety feature. The plug will fit into a polarized outlet only one way. If you are unable to insert the plug into the electrical outlet, try reversing the plug. If the plug still does not fit, contact a qualified electrician. Never use the plug with an extension cord unless you can fully insert the plug into the extension cord. Do not alter the plug. Do not attempt to defeat the safety purpose of the polarized plug.

Before First Use

IMPORTANT: Please check all packaging material carefully before discarding as there may be accessory parts contained within the packaging material.

1. We recommend passing the iron over an ordinary cloth before using for the first time.
2. If the fabric is mixed, set the thermostat to the temperature of the fiber requiring the lower temperature.
3. If you do not know the composition of the fabric, try testing on a hidden corner of the garment. Start with a low temperature and increase it gradually until it reaches the ideal temperature.
4. Never iron areas with traces of perspiration or other marks. The heat of the plate fixes the stains on the fabric making them irremovable.

Attention: First use may cause a slight odor or small smoking upon heating, it is normal. This is a result of the heating element chemical reaction. It quickly goes away.

GARMENT LABEL	FABRIC TYPE	THERMOSTAT
	Synthetic	● low
	Silk - Wool	●● medium
	Cotton - Linen	●●● high
	Fabric should not be ironed

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

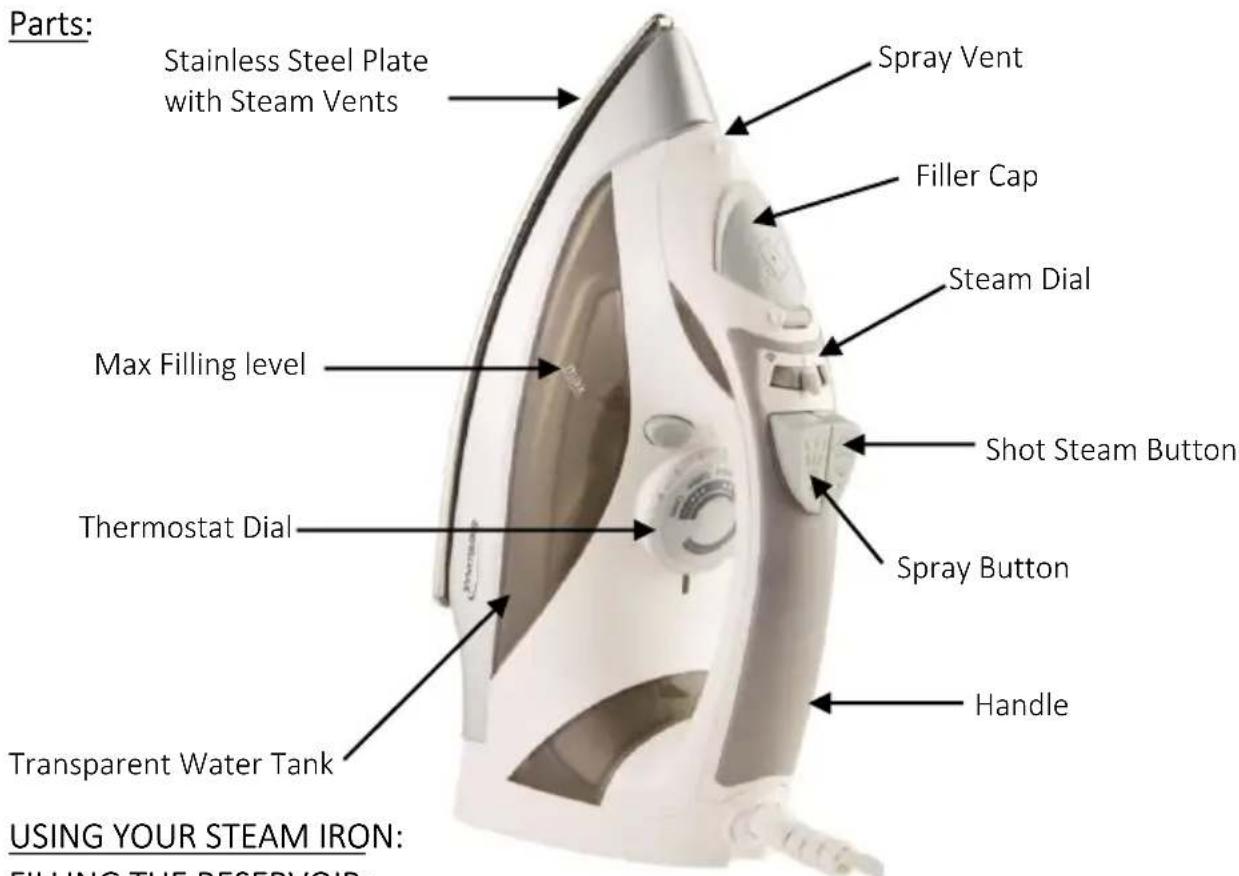

Parts: Stainless Steel Plate with Steam Vents Spray Vent Filler Cap Steam Dial Max Filling level Shot Steam Button Thermostat Dial Spray Button Handle Transparent Water Tank USING YOUR STEAM IRON: FILLING THE RESERVOIR

USING YOUR STEAM IRON:

FILLING THE RESERVOIR:

1. Check that the plug is disconnected from the socket. Move the steam knob to "O" Fig. 1.

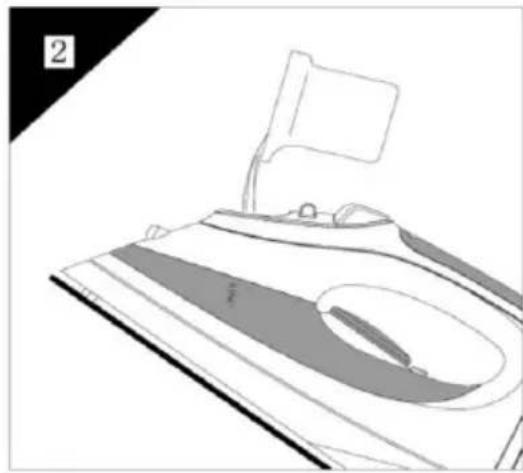

2. Raise the tip of the iron to help the water enter the opening without overflowing.
3. Slowly pour the water into the reservoir using the special measure and taking care not to go over the maximum level (about 170ml) indicated by "MAX" on the reservoir.

SELECTING THE TEMPERATURE:

1. Put the iron in a vertical position. Put the plug in the socket.

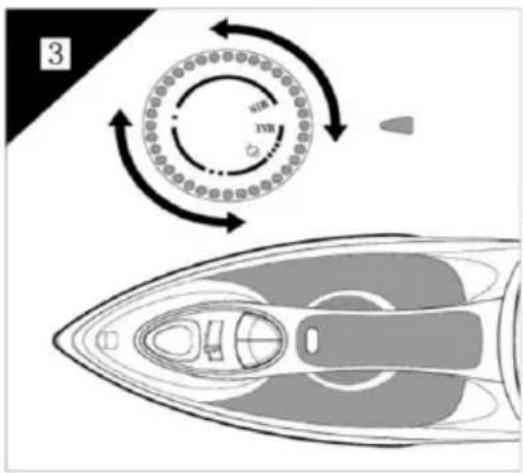

2. Adjust the temperature knob according to the international symbol on the garment label [Fig. 3]. Warning: Once plugged in, power light stays on. If left plugged and not used, the iron will BEEP, and indicator light will blink, and iron will shut off.

WARNING-- Iron has 3-Way Auto Shut-Off after 30 seconds on side or soleplate and 8 minutes on heel. It is recommended NOT to leave the iron on the side or soleplate when in use. IT IS RECOMMENDED TO USE AND TO BE STORED ON ITS HEEL (VERTICALLY).

SELECTING THE STEAM:

1. The quantity of steam is regulated by the steam knob.
2. Turn the steam knob to a position between minimum and maximum depending on the quantity of steam required and the temperature selected.

Warning: the iron gives off steam continuously only if you hold the iron horizontally. You can stop the continuous steam by placing the iron in a vertical position or by moving the steam knob to "As indicated on the steam knob and in the initial table, you can only use steam at the highest temperatures. If the selected temperature is too low, water may drip onto the plate.

SELECTING SHOT-STEAM AND STEAM WHEN IRONING VERTICALLY:

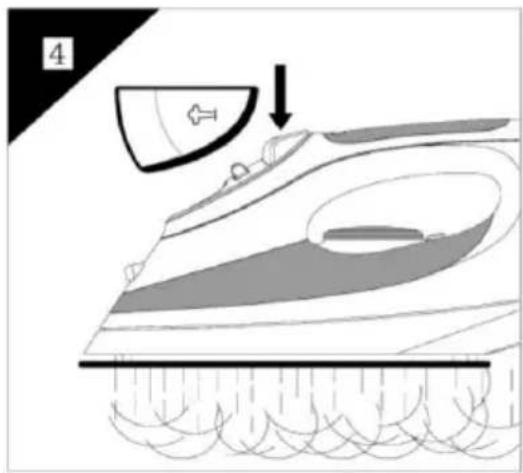

1. Press the shot-steam button to generate a powerful burst of steam that can penetrate the fabrics and smooth the most difficult and tough creases. Wait for a few seconds before press in again [Fig. 4].

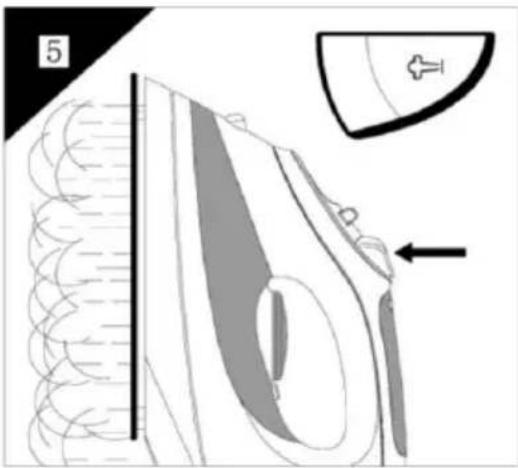

2. By pressing the shot-steam button at intervals you can also iron vertically (curtains, hung garments, etc.) [Fig. 5].

Warning: the shot-steam function can only be used at high temperatures. Stop the emission when the power light comes on, and then start ironing again only after the light has gone off.

DRY IRONING

To iron without steam, follow the instructions in section “Steam Ironing”, leaving the steam selector on position “O”.

SPRAY FUNCTION

1. Make sure that there is water in the reservoir.

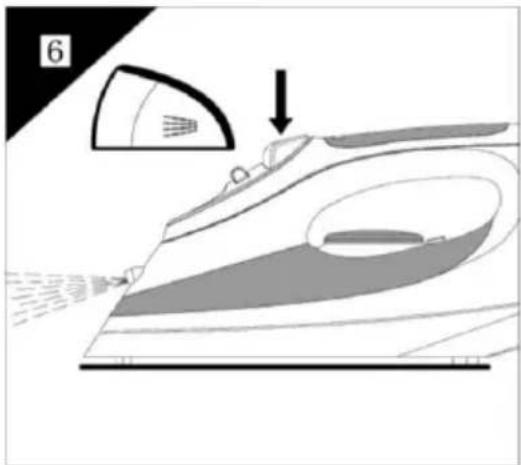

2. Press the spray button slowly (for a dense spray) or quickly (for a vaporized spray) [Fig. 6].

Warning: for delicate fabrics, we recommend moistening the fabric beforehand using the spray function or putting a damp cloth between the iron and the fabric. To avoid staining, do not use t spray on silk or synthetic fabrics.

Self-Cleaning:

The self-cleaning feature cleans inside the plate, removing impurities. We recommend using it every 10 to 15 days. Directions are as follows:

1. Fill the tank up to the maximum level indicated and set the steam selector to "O".
2. Set the thermostat dial to the maximum temperature and wait for a 3-5 minutes to get hot.
3. Pull the plug out of the socket and hold the iron horizontally over the sink.

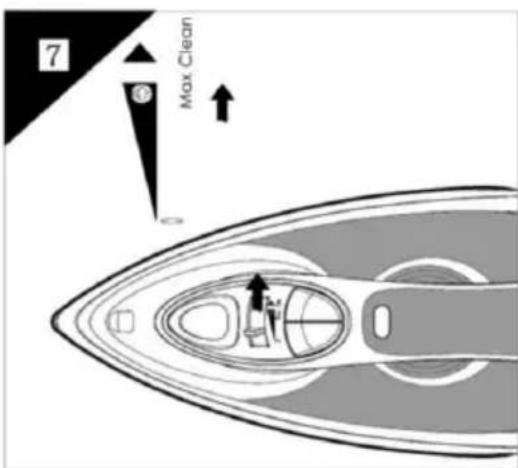

4. Hold the Steam Control Knob on the deaning position for 60\~90 seconds, until all the boiling water, steam, and impurities come out [Fig. 7].
5. When the soleplate has cooled down, you can clean it with a damp cloth.

Cleaning:

Note: before cleaning the iron in any way, make sure that the appliance plug is not connected to the socket.

Any deposits, starch residue or size left on the plate can be removed using a damp cloth or a nonabrasive liquid detergent.

Avoid scratching the plate with steel wool or metallic objects.

The plastic parts can be cleaned with a damp cloth then wiped over with a dry cloth.

Storing your Steam Iron:

WARNING: Always unplug the product and allow it to cool before cleaning or storing it.

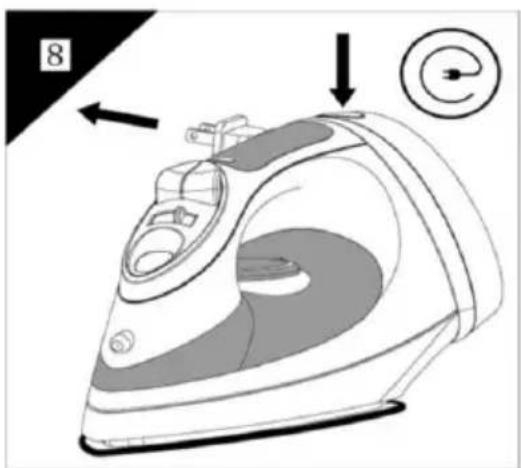

- When ironing is complete, turn the Steam Dial to the "O" position. When there is no steam, turn the Temperature Dial to "OFF" point. Unplug the product from the electrical outlet.

NOTICE: Always unplug the product from the electrical outlet when it is not in use or will be left unattended.

• Empty the reservoir by turning the Iron Upside down and gently shaking it. Please be very careful as contents might still be hot.
• Leave iron vertically to cool down completely. Always store iron in vertical position.
• Dry all part thoroughly before storing or using again.

ONE YEAR LIMITED WARRANTY

Write down the following information about your appliance to better help you obtain assistance or service if you ever need it.

CUSTOMER RECORD

Date of Purchase ____ Store/Dealer ____

Model/Item No: ____

THIS WARRANTY APPLIES TO PRODUCTS PURCHASED AND USED IN THE CONTINENTAL U.S. AND CANADA ONLY. This is the only express warranty for this product and is in lieu of any other warranty or condition. This product is warranted to be free from defects in material and workmanship for a period of one (1) year from the date of original purchase. During this period, your exclusive remedy is repair or replacement of this product, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value. This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse.

THIS WARRANTY EXTENDS ONLY TO THE ORIGINAL CONSUMER PURCHASER. KEEP THE ORIGINAL SALES RECEIPT, AS PROOF OF PURCHASE IS REQUIRED TO MAKE A WARRANTY CLAIM.

This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than what is specified on the rating label (E.G., 120V\~60Hz). We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you. To make a warranty claim do not return this appliance to the store.

TO OBTAIN WARRANTY SERVICE AND/OR TROUBLESHOOTING INFORMATION:

Call Customer Service at 1-888-903-0060 in the U.S.

Monday through Friday: 9:00 am – 5:00 pm PT

U.S. Customers Please Email: [e-mail]

Canadian Customers Please Email: [e-mail]

Go online at www.brentwoodus.com

PRECAUCIONES IMPORTANTES

RECOMMANDATIONS ADDITIONNELLES:
