MPI-42BK - Iron Brentwood - Free user manual and instructions

USER MANUAL MPI-42BK Brentwood

Brentwood® Appliances

© 2024 Brentwood Appliances, Inc.

HANDHELD GARMENT STEAMER

VAPORIZADOR DE MANO PARA ROPA DEFROISSEUR VAPEUR

ITEM NO.: MPI-42BK

Black and gold portable steam machine with a side-mounted rack, no visible text or symbols on the device body.

Operating and Safety Instructions FOR INDOOR HOUSEHOLD USE ONLY

When using this or any other electrical appliance, always follow these basic safety precautions, especially when children are present.

READ ALL INSTRUCTIONS BEFORE USE

⚠ WARNING-- To reduce the risk of fire, electric shock, serious personal injury and property damage please note the following:

• This product is not suitable for children 8 years of age or younger who are physically unsound, sensory, or mentally impaired or lack of relevant experience and knowledge, unless they are supervised or directed to use this product to ensure their safe use and make them aware of the relevant precautions.
• Do not allow children to play with this product. When the product is energized or cooling, keep the product and its power cord out of the reach of children under 8 years of age.
  • Children 8 years of age or younger should clean this product only under supervision.
• The steam holes of this product will become very hot during use. Do not touch the steam holes, otherwise it may cause burns.
• Be sure to unplug the power cord before cleaning the product, installing, or removing brush accessories, or filling the water into the water tank.
• Always ensure the product is unplugged from the electrical outlet and allowed to cool before assembling, disassembling, relocating, or cleaning it.
• Do not leave the product unattended while it is in use. Always unplug the product from the electrical outlet when not in use.
• Do not immerse the Base, Power Cord, or Plug of this product in or expose the Power Cord or Plug to water or other liquids.
• Do not touch hot surfaces and only use the handle of this product when operating.
• Take proper precautions to prevent burns, fire, or personal or property damage as this appliance generates heat and steam during use.
• Only use attachments that came with the package from the manufacturer.
• Do not place on or near a hot gas or electric burner, in a heated oven, or other heated surfaces.
• Use the product in a well-ventilated area. Keep at least 4-6 inches of space on all sides of the product to allow adequate air circulation.
• Keep the product away from flammable materials.
• When using this unit, place it on a flat stable surface or table when pausing to adjust the hanging garment.

• Do not plug or unplug the product from the electrical outlet with wet hands.

• This product is intended solely for non-commercial, non-industrial, household use. This product cannot be used outdoors or for any other purpose.

• Do not operate the product empty.
• While using, do not let cord cross a walking path where it may be tripped over or pulled. Do not allow cord to touch hot surfaces.
• Do not operate the product if it has a damaged or cut Power Cord or plug, if wires are exposed, if it malfunctions, if it is dropped or damaged, or if the Motor Housing is dropped in or exposed to water.
• This appliance has no user-serviceable parts. Do not attempt to examine or repair this appliance yourself. Please review the Warranty Policy on Page 10.
• Do not put any stress on the power cord where it connects to the product, as the power cord could fray and break.

SPECIAL INSTRUCTIONS:

• The Garment Steamer should not be set on steam - 📋 - before plugging or unplugging from the electrical outlet.
• Always disconnect garment steamer from electrical outlet and remove water tank to fill with water, emptying or when not in use.
• Burns can occur from touching hot metal parts, hot water, or hot steam. Use caution when you turn the garment steamer upside down as there is still hot water in the tank.

• An extension cord is not recommended for use with this product, but if one must be used:

• The marked electrical rating must be at least as great as that of the product

• If the product is of a 3-prong grounding type, the extension cord must be a grounding-type 3-wire cord.
• Arrange the extension cord so that it will not drape over the countertop or tabletop where it can be tripped over or pulled.

WARNING

WARNING: This product is equipped with a polarized plug (one blade is wider than the other blade) to reduce the risk of electrical shock. This is a safety feature. The plug will fit into a polarized outlet only one way. If you are unable to insert the plug into the electrical outlet, try reversing the plug. If the plug still does not fit, contact a qualified electrician. Never use the plug with an extension cord unless you can fully insert the plug into the extension cord. Do not alter the plug. Do not attempt to defeat the safety purpose of the polarized plug.

FOR HOUSEHOLD USE ONLY. PLEASE READ INSTRUCTIONS BEFORE USE AND SAVE FOR FUTURE REFERENCE.

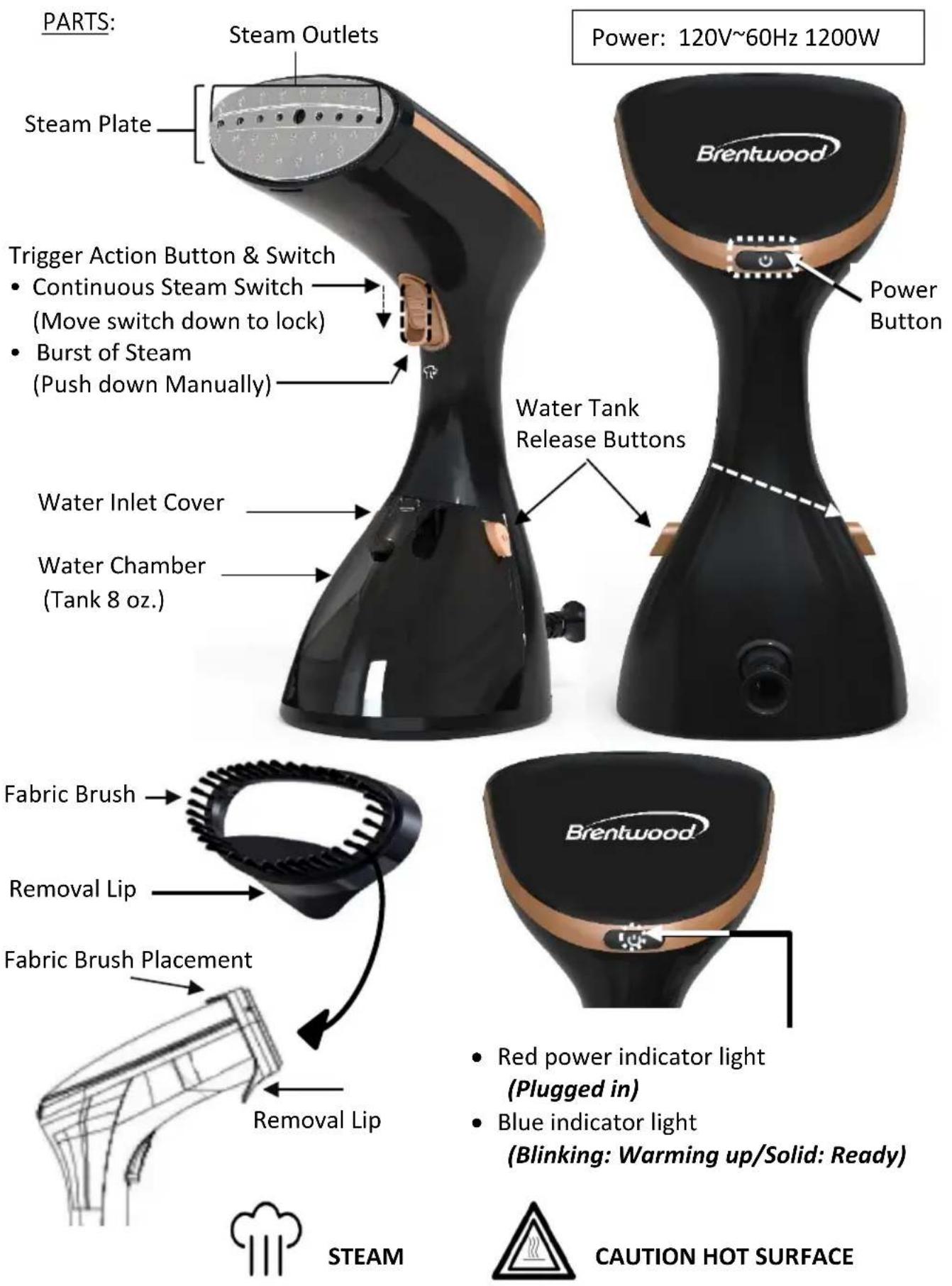

PARTS: Steam Outlets Steam Plate Trigger Action Button & Switch Continuous Steam Switch (Move switch down to lock) Burst of Steam (Push down Manually) Water Tank Release Buttons Water Inlet Cover Water Chamber (Tank 8 oz.) Fabric Brush Removal Lip Fabric Brush Placement Removal Lip Brentwood Power 120V~60Hz 1200W Brentwood Red power indicator light (Plugged in) Blue indicator light (Blinking: Warming up/Solid: Ready) STEAM CAUTION HOT SURFACE

Before First Use

IMPORTANT: Please check all packaging material carefully before discarding as there may be accessory parts contained within the packaging material.

1. Before connecting the product to the power supply, check whether the voltage marked on the product is consistent with the local power supply voltage.
2. If the plug, power cord, or product itself has been significantly damaged, or the product has fallen or leaked, do not reuse the product.
3. If the power cable is damaged, replace it with a professional to avoid danger.
4. Users shall not leave the product while it is connected to the power supply.
5. The steam holes of this product will become very hot during use. Do not touch the steam holes, otherwise it may cause burns.
6. Be sure to unplug the power cord and allow it to cool for 30 minutes before cleaning the product, installing, or removing brush accessories, or filling the water into the water tank.

Daily Use tips:

1. If the product is connected to a power supply, do not allow the steam holes to touch any surface while using the product.
2. Periodically check whether the power cable is damaged.
3. During the operation of the product, do not allow the power cord to contact high temperature steam.
4. Do not use the product when the water tank is empty.
5. When you leave the product for a short time, turn off the power supply and unplug from the electrical outlet.
6. After ironing, be sure to turn off the power and unplug. Let the steamer cool for 30 minutes before cleaning, installing, or removing brush accessories. Only empty the water tank once the steamer has cooled down.
7. This product is for household use only.
8. Do not drag this product on the floor.
9. Vapors may damage or discolor certain walls or doors. Mind your environment and where you hang the garment to be steamed.

Recommended Water Type:

1. According to the design, this product is suitable for tap water. However, if you live in an area with very hard water, scale accumulation may occur very quickly.
2. Therefore, it is recommended to use distilled water as this would extend the service life of your product.
3. Do not fill perfume, starch, descaling agent, ironing agent or other chemicals into the water tank. This product is not suitable for the use of these chemicals.

Using your Garment Steamer

This garment steamer is designed for vertical hanging clothes. To avoid any steam gathering behind the garment when hung, check for breathable room to avoid the garment from collecting moisture and only hang the garment where it will not damage any surface.

1. Remove water tank and fill with clean distilled water.

Special Notes: Never use the product when empty. Do not fill the tank while still connected to the garment steamer. The water tank must be removed from the garment steamer to fill. We recommend using distilled water with this steamer.

1. How to add water to the water tank:

Step 1: Place the garment steamer on a clean and dry countertop for the non-slip rubber pads to grip firmly.

Step 2: With your dominant hand, place the thumb and index finger on the release buttons found on each side of the water tank. Note: The middle finger and the ring finger will also be engaged to apply pressure when you are pulling the tank out.

Step 3: Place your other hand on the body of the garment steamer and pull the tank out. Note: This will get easier as you use it.

Step 4: Open the water inlet cover, fill the water tank with distilled water (do not exceed the MAX line).

Step 5: Close the inlet cover and push the water tank back into its position on the garment steamer.

1. Insert Fabric Brush: WARNING! Only insert the Brush when the steamer is cold. Brush fits on the steamer one way only. With the removal lip section towards the bottom. Press down on the brush to snap into place. (See Parts on Page 4 for details.)

WARNING: Always ensure the product is unplugged from the electrical outlet and allowed to cool (30 minutes) before assembling, disassembling, relocating, or cleaning.

1. Remove Fabric Brush: WARNING! Only remove the Brush when the steamer is cold. Place one hand on the handle area of the steamer and with the other hand, place your thumb on the fatter part of the Fabric Brush's face and with your index finger on the Removal Lip pull outward (towards you).

WARNING: Always ensure the product is unplugged from the electrical outlet and allowed to cool (30 minutes) before assembling, disassembling, relocating, or cleaning.

1. Insert the power plug into an outlet.
2. The red power light will illuminate.
3. Press the Power Button once, this will turn the steamer on, and the blue indicator light will illuminate and blink. Note: during this time, the temperature of the electric heating plate has not reached its proper

temperature to engage the electromagnetic pump to start the steam, there will be no steam spray until the blue indicator light is solid.

1. After 30 seconds, the blue light will stop blinking indicating that the temperature for the steamer has been reached and is ready.

2. Hold the garment steamer horizontally (away from bodily parts, pets, and flammable material) and press down on the trigger action button for 3-5 minutes or for continuous steam, you may lock it by pushing the trigger switch down. Do this step for the first time to clear out any remaining production impurities. If the peculiar smell persists after 5 minutes, continue the release of steam until you are satisfied with the result.

Attention: First use may cause a slight odor or small smoking upon heating, it is normal. This is a result of the heating element being used for the first time.

Steam Settings:

- Trigger Action Button:

Burst of Steam (push down manually) – by using this manual feature, it triggers the electromagnetic pump and generates steam. Once you lift your finger and release the push down button, the steam turns off.

- Trigger Switch:

Continuous Steam (move switch down to lock) – this will trigger the electromagnetic pump to start the steam continuously. Remove finger and release the switch in the down lock position. The product is now continuously steaming. When done, push the switch up and it will unlock. Release your finger and the steam turns off.

Automatic Power Shutoff

This machine will power off after 15 minutes of non-use. To reuse, press the power switch once, and the blinking blue light will illuminate, wait until the blue light stops blinking and proceed.

Use of Fabric Brush

WARNING: Do not attempt to attach or detach any accessories when the appliance is hot. Keep steamer away from faces, human body parts, and flammable material. The steam holes become extremely hot. The risk of burns may occur!

• To attach fabric brush (align the upper and lower card slots during assembly, and then press inward to easily assemble)
• After installing the fabric brush into the brush frame, plug into a power outlet and turn on the garment steamer.
• To smooth away wrinkles on clothes, curtains, blankets, or other home textiles.

For Best Ironing Results

• When steaming, keep 1-2 inches away from the fabric and move it in different directions to remove wrinkles. Note: if you have stubborn wrinkles, get the steamer closer to the garment where it is close to touching the fabric of the garment.
• Steam Fabric brush can be used with almost any kind of fabric, including cotton, polyester, and wool. Please read the garment's care label to check that it can be steam ironed. Certain materials such as leather, suede and velvet cannot be steam ironed.
• To ensure the garment can be steam ironed, test the iron on a small part of the interior of the garment. If no damage occurs, the entire garment can be ironed.
  • Steam will not remove stains from a garment.

Cleaning and Maintenance

• Before cleaning the garment steamer in any way, make sure that the appliance is unplugged from the electrical outlet and allow adequate time for the steamer to cool for a minimum of 30 minutes. Store the appliance in a dry, safe place on it's base vertically.
• Avoid scratching the plate with steel wool or metallic objects.
• The plastic parts can be cleaned with a damp cloth then wiped over with a dry cloth.
• Once you allow it to cool, carefully remove the water tank and open the water inlet cover to empty the tank.

NOTE: To extend the life of your appliance, we highly suggest you discard any remaining water after every use. If you leave any remaining water in the tank, this will create mineral deposits and if not maintained regularly (See ‘Removing Mineral Deposits’ below) may cause the Iron to malfunction and stop working. Clean the appliance and accessories only when they have completely cooled.

- Never put detergent, chemicals, salt, perfume, dyes, or any other liquid except water into the water tank. Many of these substances are highly flammable and may cause bodily harm, while certain additives can corrode and clog the iron components. Never add any essential oils to the tank water.

Removing Mineral Deposits

A common problem with steam irons is the accumulation of mineral deposits in the tubes. This normally happens when tap water is used to fill the steamer

Reduce and Remove:

To reduce the buildup of mineral deposits, we highly suggest you ONLY use filtered water, mineral water, or distilled water.

3 Times a Year:

If used regularly without using distilled water, the following steps may help reduce the levels of mineral buildup.

1. Ensure the appliance is unplugged and cool.

2. Make a solution that is 1 part vinegar to 2 parts water. Fill tank with solution and turn on the steamer switch and let it steam consecutively for 5 minutes. Once the 5 minutes are up, turn off the continuous steam and remove the Water Chamber and dump the remaining solution into a sink. After 10 hours, it can be filled with clean water and reused.

Quick trouble shooting tips

Question	Possible Solutions
If the Hand Steam Iron is not heating.	Check that the plug is inserted correctlyCheck whether the power button is on.
If the Hand Steam Iron does not produce steam.	Check that the water tank is properly assembled.Press the steam switch.Adjust the angle of the hand steam iron to ensure that the suction end can contact the water in the tank.
If water is leaking from the water tank.	Make sure the water tank is properly closed.Check whether the silicone at the water inlet is not damaged.
The steam engine operates with a loud buzz or pumping sound.	Check the water level if there is no water or the water level is low.Please add water to the tank, do not exceed the MAX line.
Avoid discoloration of metal parts on clothing.	Do not use a hanging ironing machine directly on metal parts.Use steam carefully when metal parts are around.

ONE YEAR LIMITED WARRANTY

Write down the following information about your appliance to better help you obtain assistance or service if you ever need it.

CUSTOMER RECORD

Date of Purchase ____ Store/Dealer ____

Model/Item No: ____

THIS WARRANTY APPLIES TO PRODUCTS PURCHASED AND USED IN THE U.S.

CONTINENTAL AND CANADA ONLY. This is the only express warranty for this product and is in lieu of any other warranty or condition. This product is warranted to be free from defects in material and workmanship for a period of one (1) year from the date of original purchase. During this period, your exclusive remedy is repair or replacement of this product, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace it with a similar one of equal or greater value. This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse.

THIS WARRANTY EXTENDS ONLY TO THE ORIGINAL CONSUMER PURCHASER. KEEP THE ORIGINAL SALES RECEIPT, AS PROOF OF PURCHASE IS REQUIRED TO MAKE A WARRANTY CLAIM.

This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than what is specified on the rating label (E.G., 120V\~60Hz). We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you. To make a warranty claim do not return this appliance to the store.

TO OBTAIN WARRANTY SERVICE AND/OR TROUBLESHOOTING INFORMATION:

Call Customer Service at 1-888-903-0060 in the U.S.

Monday through Friday: 9:00am – 5:00pm PST.

US Customers Please Email: [e-mail]

☐ Canadian Customers Please Email: [e-mail]

Go online at www.brentwoodus.com

PRECAUCIONES IMPORTANTES

RECOMMANDATIONS ADDITIONNELLES:

© 2024 Brentwood Appliances, Inc.
