TS-111BK - Coffee machine Brentwood - Free user manual and instructions

USER MANUAL TS-111BK Brentwood

Brentwood® Appliances

© 2022 Brentwood Appliances, Inc.

Brentwood coffee maker with white mug and black control panel (no visible text or symbols)

*Includes Porcelain Mug

Operating and Safety Instructions

FOR INDOOR HOUSEHOLD USE ONLY

When using this or any other electrical appliance, always follow these basic safety precautions, especially when children are present.

READ ALL INSTRUCTIONS BEFORE USE

WARNING-To reduce the risk of fire, electric shock, serious personal injury, and property damage please note the following:

• This product is not intended for use by children. Keep the product out of reach of children and pets.
• Always ensure the product is unplugged from the electrical outlet and allow to cool before assembling, disassembling, relocating, or cleaning.
• This appliance does not have an auto shutoff feature. When done brewing, you must manually turn it off. Then unplug from electrical outlet.

- Do not leave the product unattended while it is in use. Always unplug the product from the electrical outlet when not in use.

- Do not immerse the Base, Power Cord, or Plug of this product in or expose the Power Cord or Plug to water or other liquids.

- Do not touch hot surfaces. Use handles or knobs when handling product. Use protective oven mitts or gloves when removing the Lid or handling hot containers to avoid burns or personal injury.

• Take proper precautions to prevent burns, fire, or personal or property damage as this appliance generates heat and steam during use.

- Do not use attachments not recommended or sold by the product manufacturer.

- Do not place on or near a hot gas or electric burner, in a heated oven, or other heated surfaces.

- Use extreme caution when moving an appliance containing hot food, water, or other liquids.

- Use the product in a well-ventilated area. Keep at least 4-6 inches of space on all sides of the product to allow adequate air circulation.

- Use appliance on a table or other flat surface.

- Keep the product away from curtains, wall coverings, clothing, dishtowels, or other flammable materials.

- Do not plug or unplug the product from an outlet with a wet hand.

- This product is intended solely for non-commercial, household use in preparing food for human consumption.

- Do not use the product outdoors or for any other purpose.

- Do not operate the product empty.

• Do not let cord hang over edge of table or counter where it may be tripped over or pulled. Do not allow cord to touch hot surfaces.
• Do not operate the product if it has a damaged or cut Power Cord or plug, if wires are exposed, if it malfunctions, if it is dropped or damaged, or if the Motor Housing is dropped in or exposed to water.

- This product has no user-serviceable parts. Do not attempt to examine or repair this product yourself. Please review the Warranty Policy on Page 6.

- Do not put any stress on the power cord where it connects to the product, as the power cord could fray and break.

SPECIAL INSTRUCTIONS:

A short power supply cord is provided to reduce the risk of becoming entangled in or tripping over a longer cord. An extension cord is not recommended for use with this product, but if one must be used:

– The marked electrical rating must be at least as great as that of the product.
- Arrange the extension cord so that it will not drape over the countertop or tabletop where it can be tripped over or pulled.

WARNING: This product is equipped with a polarized plug (one blade is wider than the other blade) to reduce the risk of electrical shock. This is a safety feature. The plug will fit into a polarized outlet only one way. If you are unable to insert the plug into the electrical outlet, try reversing the plug. If the

Line drawing of a plug with two terminals and a coiled cable (no text or symbols)

plug still does not fit, contact a qualified electrician. Never use the plug with an extension cord unless you can fully insert the plug into the extension cord. Do not alter the plug. Do not attempt to defeat the safety purpose of the polarized plug.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

Before First Use

IMPORTANT: Please check all packaging material carefully before discarding as there may be accessory parts contained within the packaging material.

We recommend running the appliance once full through before first use. This allows the dust or impurities to pass through.

WARNING: Do not place any part of the product in a dishwasher.

Attention: First use may cause a slight odor or small smoking upon heating, it is normal. This is a result of the heating element chemical reaction. It quickly goes away.

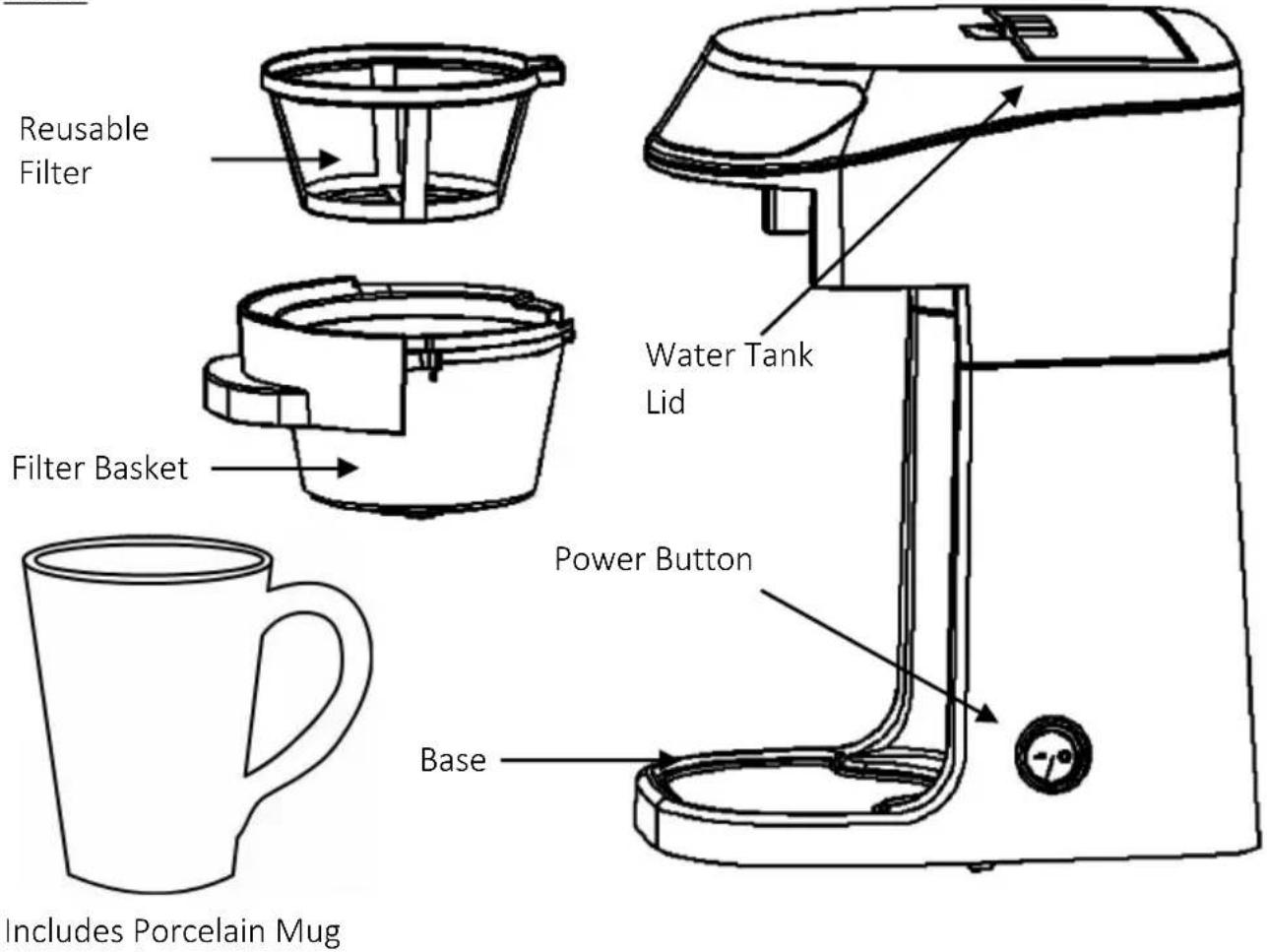

Parts:

Reusable Filter Water Tank Lid Filter Basket Power Button Base Includes Porcelain Mug

Using Your Single Cup Coffee Maker:

WARNING: Avoid contact with moving parts.

1. Lift the top cover and fill with water. (Minimum is 13 oz.'s)

CAUTION: Do not overfill the product or operate it when empty.

1. Add three tablespoons of finely ground coffee or four tablespoons of regular ground coffee into the reusable filter. Paper filters may be used in place of the included reusable filter. Accepts #1 Paper Cone Filters with a Flat Bottom.

2. Place the reusable filter into the filter basket and place filter basket into the coffee maker.

3. Place the Cup on base directly below the water dispenser.
4. Plug the power cord into a standard 120volt AC electrical outlet. Switch the Coffee Maker ON. The Coffee Maker will now begin to brew.
5. Once done brewing, you must manually switch the appliance off. This appliance does not have an auto shutoff feature.
6. Once you have shutoff the appliance, unplug from the electrical outlet.
7. Your coffee is now ready.

WARNING: Always unplug the product from the electrical outlet when it is not in use or will be left unattended.

Cleaning Your Single Cup Coffee Maker:

WARNING: Always unplug the product and allow it to cool before cleaning or storing.

• The Filter Basket may be placed on the upper rack of a dishwasher for cleaning or hand washed in warm, soapy water.
• The Reusable Filter must be washed by hand. Do not place in dishwasher.
  NOTE: When washed in a dishwasher, the parts may appear to fade. Restore by polishing them with a soft, dry cloth.
• Wipe the exterior surface of the Coffeemaker with a soft, damp cloth. Do not use metal scouring pads or abrasive cleaners.

ONE YEAR LIMITED WARRANTY

Write down the following information about your appliance to better help you obtain assistance or service if you ever need it.

CUSTOMER RECORD

Date of Purchase ____ Store/Dealer ____

Model/Item No: ____

THIS WARRANTY APPLIES TO PRODUCTS PURCHASED AND USED IN THE CONTINENTAL U.S. AND CANADA ONLY. This is the only express warranty for this product and is in lieu of any other warranty or condition. This product is warranted to be free from defects in material and workmanship for a period of one (1) year from the date of original purchase. During this period, your exclusive remedy is repair or replacement of this product, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value. This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse.

THIS WARRANTY EXTENDS ONLY TO THE ORIGINAL CONSUMER PURCHASER. KEEP THE ORIGINAL SALES RECEIPT, AS PROOF OF PURCHASE IS REQUIRED TO MAKE A WARRANTY CLAIM.

This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than what is specified on the rating label (E.G., 120V\~60Hz). We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you. To make a warranty claim do not return this appliance to the store.

TO OBTAIN WARRANTY SERVICE AND/OR TROUBLESHOOTING INFORMATION:

Call Customer Service at 1-888-903-0060 in the U.S.

Monday through Friday: 9:00am – 5:00pm PST.

U.S. Customers Please Email: [e-mail]

Canadian Customers Please Email: [e-mail]

Go online at www.brentwoodus.com

Line drawing of a plug with two terminals and a coiled cable (no text or symbols)

© 2022 Brentwood Appliances, Inc.
