USER MANUAL TS-1405BL Brentwood

Brentwood® Just for Fun

© 2021 Brentwood Appliances, Inc.

WAFFLE CONE MAKER WAFLERA / GAUFRIER

ITEM NO.: TS-1405BL

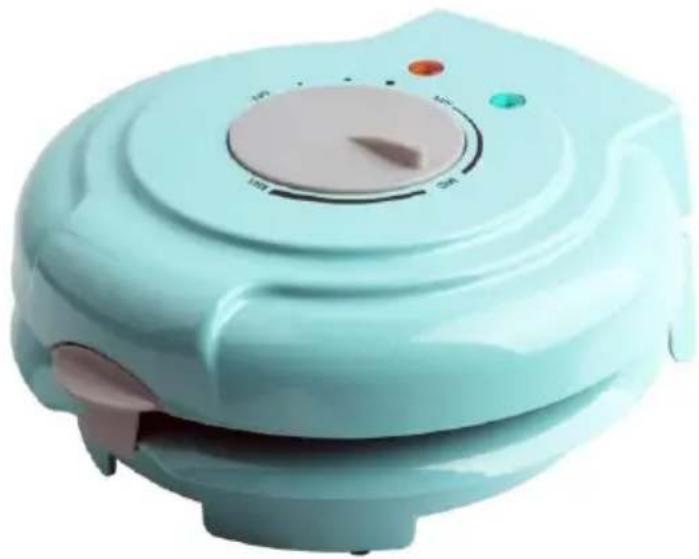

Light blue electric grill with control knob and two buttons (no visible text or symbols)

Operating and Safety Instructions FOR INDOOR HOUSEHOLD USE ONLY Instrucciones de Operación y Seguridad SOLO PARA USO DOMESTICO Consignes de Sécurité et de Fonctionnement POUR USAGE DOMESTIQUE INTÉRIEUR SEULEMENT

IMPORTANT SAFEGUARDS

When using this or any other electrical appliance, always follow these basic safety precautions, especially when children are present.

READ ALL INSTRUCTIONS BEFORE USE

⚠ WARNING-To reduce the risk of fire, electric shock, serious personal injury and property damage please note the following:

- This appliance is not intended for use by children. Keep the appliance out of the reach of children and pets. Extra caution is necessary when using this appliance near children.

- Always ensure the product is unplugged from the electrical outlet and allowed to cool before assembling, disassembling, relocating, or cleaning.

- Do not leave the appliance unattended while it is in use. Always unplug the appliance from the electrical outlet when not in use.

- Do not immerse or expose the Base, Power Cord, or Plug of this appliance in water or other liquids.

- Do not touch hot surfaces. Use protective oven mitts or gloves when removing the Lid or handling hot containers to avoid burns or personal injury.

- This appliance generates heat and steam during use. Please take the proper precautions to avoid burns, fire, and personal or property damage.

- Do not use attachments not recommended or sold by the Manufacturer.

- Do not place appliance on or near a hot gas or electric burner, in a heated oven, or other heated surfaces.

- Use extreme caution when moving an appliance containing food or liquids.

- Use the product in a well-ventilated area. Keep at least 4-6 inches of space on all sides of the product to allow adequate air circulation.

- Use appliance on a table or sturdy flat surface. Keep the appliance away from curtains, wall coverings, clothing, dishtowels, or other flammable materials.

- Do not plug or unplug the appliance from the electrical outlet with a wet hand.

- This appliance is intended solely for non-commercial, non-industrial, household use in cooking of food for human consumption; do not use the product outdoors or for any other purpose.

- Do not operate the appliance empty.

- Do not let cord hang over edge of table or counter where it may be tripped over or pulled. Do not allow cord to touch hot surfaces.

- Do not operate the appliance if it has a damaged power cord or plug, if wires are exposed, if it malfunctions, if it is dropped or damaged, or if the motor housing is dropped in or exposed to water.

- This appliance has no user-serviceable parts. Do not attempt to examine or repair this appliance yourself. Please review the Warranty Policy on Page 7.

• Do not put any stress on the power cord where it connects to the appliance, as the power cord could fray and break.
  • Always turn your Waffle Maker OFF.
• Always disconnect from power supply when NOT in use.

SPECIAL INSTRUCTIONS: A short power supply cord is provided to reduce the risk of becoming entangled in or tripping over a longer cord. An extension cord is not recommended for use with this product, but if one must be used:

• The marked electrical rating must be at least as great as that of the product.
• Arrange the extension cord so that it will not drape over the countertop or tabletop where it can be tripped over or pulled.

WARNING: This product is equipped with a polarized plug (one blade is wider than the other blade) to reduce the risk of electrical shock. This is a safety feature. The plug will fit into a polarized outlet only one way. If you are unable to insert the plug into the electrical outlet, try reversing the plug. If the plug still does not fit, contact a qualified electrician. Never use the plug with an extension cord unless you can fully insert the plug into the extension cord. Do not alter the plug. Do not attempt to defeat the safety purpose of the polarized plug.

SAVE THESE INSTRUCTIONS

FOR FUTURE REFERENCE

HOUSEHOLD USE ONLY

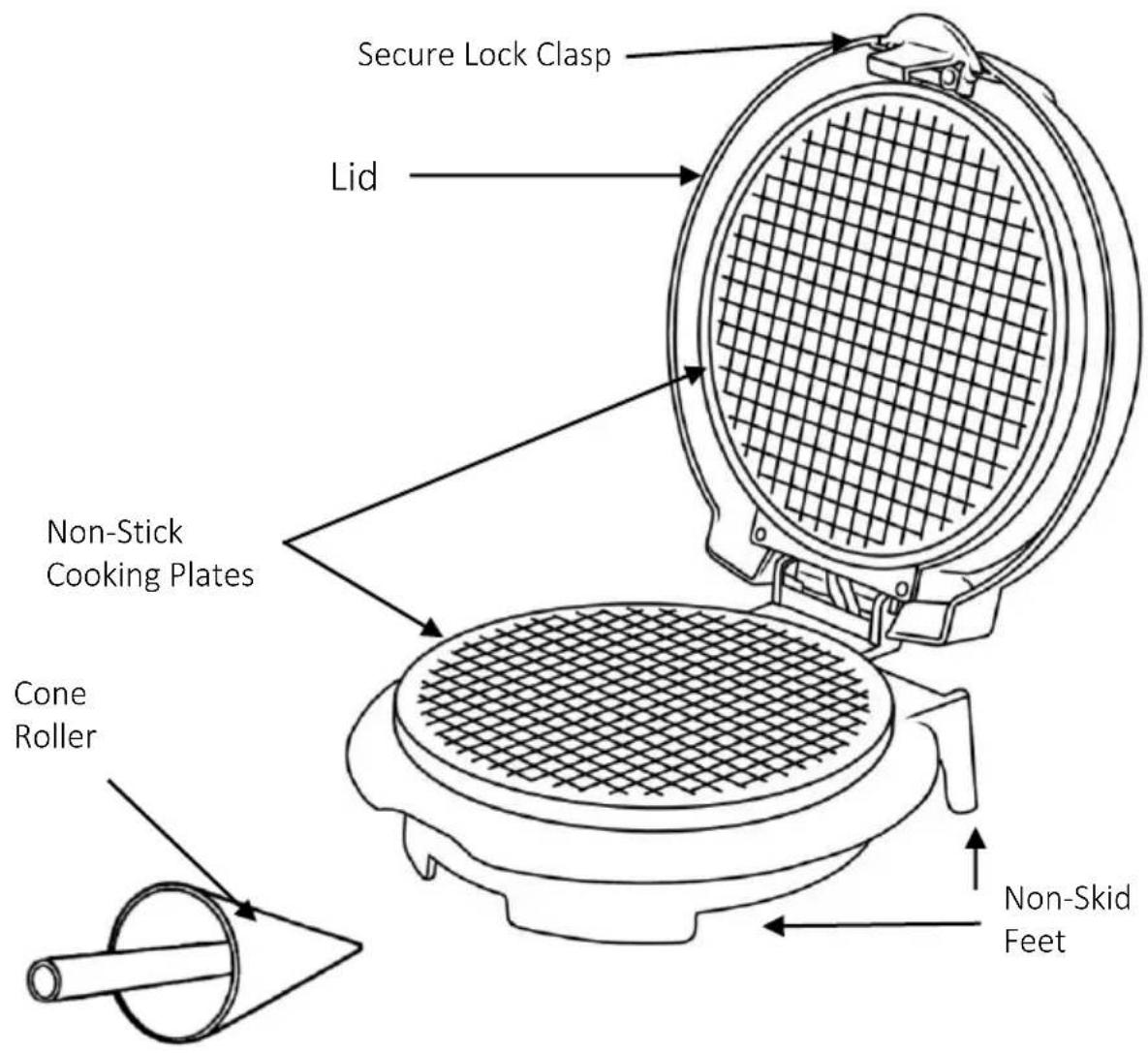

Parts:

Secure Lock Clasp Lid Non-Stick Cooking Plates Cone Roller Non-Skid Feet

Temperature Range: 375-450°F

Before First Use

IMPORTANT: Please check all packaging material carefully before discarding as there may be accessory parts contained within the packaging material.

Before your first use wipe down all surfaces with a damp cloth and then dry.

Using Your Waffle Maker:

WARNING: Avoid contact with hot parts.

CAUTION: This appliance gets extremely hot, and we recommend operating this appliance with oven mitts or potholders.

1. Place your waffle maker on a sturdy and clean flat surface.

2. You can lightly coat the non-stick cooking plates with a small amount of oil. You can use a lightly coated paper towel or pastry brush. This helps to prolong the life of your non-stick.

3. Plug the product into an AC electrical outlet and preheat the appliance by closing the lid.
   The red power light will come on to indicate the appliance is preheating. The green ready light will come on to indicate it is ready to cook.
   Attention: First use may cause a slight odor or small smoking upon heating, it is normal.
   This is a result of the heating element chemical reaction. It quickly goes away.

4. While the appliance preheats you can prepare the batter.

5. Once the green ready light has come on, raise the lid using an oven mitts or potholders to prevent any burns. Pour 14 cup of your prepared mixture onto the cooking plate.

CAUTION: Do not overfill the product or operate it when empty.

1. Close the lid using oven mitts or potholders and secure lock clasp in position.

NOTE: Steam may be released from the appliance during cooking. Only handle the appliance using oven mitts or potholders to avoid burns.

1. Cooking time generally ranges from 1-3 minutes and can vary depending on ingredients and consistency of your batter.

2. Once your Waffles have finished cooking, raise the lid with oven mitts or potholders. Remove the Waffles using a plastic or wooden spoon (not included), do not use metal utensils as they may scratch and damage the non-stick cooking surface.

3. Immediately use the "Cone Form" and fold the waffle over itself, overlapping itself. Let cool to hold shape, then set aside for use.

4. If you are cooking more than one batch of Waffles in a session, after the first batch lower the lid to maintain the heat level until its ready to cook the next batch.

5. When finished, unplug the appliance, and allow it to cool.

Cleaning Your Waffle Maker:

WARNING: Always unplug the product and allow it to cool before cleaning or storing.

NOTICE: Never immerse the waffle maker, plug, or cord in water or any other liquid.

• Make sure the appliance is completely cooled before handling.
• Clean the upper and lower non-stick plates using a damp nonabrasive cloth.
• Exterior of Waffle Maker can be cleaned with a damp cloth as well.
• Dry all parts thoroughly before storing or using again.
• Wrap the cord in the cord storage below the appliance. Store in a cool, dry place. Away from reach of children and pets.

Waffle Cone Recipe #1

Ingredients:
1 Cup Heavy Cream	1/4 Tsp. Ground Cinnamon	Level: Easy
1 Tsp. Vanilla Extract	Pinch Ground Nutmeg
1 1⁄2 Cup Powdered Sugar	1 Tbsp Cornstarch	Yields: 8 Cones
1 1⁄2 Cup Flour	Oil, for the Waffle Maker
		Time:1 Hour 5 Minutes
Directions:
1. In a bowl with a whisk, whip the cream with the vanilla until mousse-like (it won't form peaks.) Sift the remaining ingredients together and stir them into the cream to make a batter.
2. Let the batter sit for 30 minutes.
3. Heat up your Waffle Maker according to the preheating instructions. Open the Waffle Maker using oven mitts or potholder and carefully apply oil on the cooking surfaces. Pour 1⁄4 cup of the batter towards the back of the Waffle Maker, close lid and lock. Bake until golden brown, 2-31⁄2 Minutes depending on your liking.
4. Open the Waffle Maker using oven mitts or potholder and carefully remove the cooked batter with a small offset spatula. Place on plate and using your Cone Roller, mold the waffle as desired. After a few minutes, the waffle cup/cone will take its shape. Allow to cool completely. Fill with any desired filling. Enjoy!

Waffle Cone Recipe #2

Ingredients:
2 Large Eggs	Oil to coat the Waffle Maker	Level: Easy
1 Cup Heavy Cream
1 Tsp. Vanilla Extract	Feel free to add any additions:	Yields: 10-12 Cones
1 Cup Sugar	Ground Nutmeg
1 Cup Flour	Cinnamon	Time:
1/4 Tsp. Kosher Salt	Powder Sugar	1 Hour 20 Minutes
Directions:
1. Whisk the eggs, heavy cream, and vanilla extract in a bowl until well combined, about 1 minute. In another bowl sift the flour, sugar, and salt. Stir the dry ingredients into the cream mixture until the batter is smooth.
2. Heat up your Waffle Maker according to the preheating instructions. Open the Waffle Maker using oven mitts or potholder and carefully apply oil on the cooking surfaces. Pour 1⁄4 cup of the batter towards the back of the Waffle Maker, close lid and lock. Bake until golden brown, 2-31⁄2 Minutes depending on your liking.
3. Open the Waffle Maker using oven mitts or potholder and carefully remove the cooked batter with a small offset spatula. Place on plate and using your Cone Roller, mold the waffle as desired. After a few minutes, the waffle cup/cone will take its shape. Allow to cool completely. Fill with any desired filling. Enjoy!

ONE YEAR LIMITED WARRANTY

Write down the following information about your appliance to better help you obtain assistance or service if you ever need it.

CUSTOMER RECORD

Date of Purchase ____ Store/Dealer ____

Model/Item No: ____

THIS WARRANTY APPLIES TO PRODUCTS PURCHASED AND USED IN THE CONTINENTAL U.S. AND CANADA ONLY. This is the only express warranty for this product and is in lieu of any other warranty or condition. This product is warranted to be free from defects in material and workmanship for a period of one (1) year from the date of original purchase. During this period, your exclusive remedy is repair or replacement of this product, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value. This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse.

THIS WARRANTY EXTENDS ONLY TO THE ORIGINAL CONSUMER PURCHASER. KEEP THE ORIGINAL SALES RECEIPT, AS PROOF OF PURCHASE IS REQUIRED TO MAKE A WARRANTY CLAIM.

This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than what is specified on the rating label (E.G., 120V\~60Hz). We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you. To make a warranty claim do not return this appliance to the store.

TO OBTAIN WARRANTY SERVICE AND/OR TROUBLESHOOTING INFORMATION:

U.S.A. Customer Service Call: 1-888-903-0060

Monday through Friday: 9:00 am – 5:00 pm

U.S. Customers Please Email: [e-mail]

Canadian Customers Please Email: [e-mail]

Go online at www.brentwoodus.com

Brentwood® Just for Fine

© 2021 Brentwood Appliances, Inc.
