Product type	Sink
Brand	Smeg
Model	LZ792A2
Material	Non-porous surface (composite or similar)
Color	Light or dark (depending on model)
Number of basins	1 (estimate)
Installation type	Built-in
Dimensions (W x D x H)	Not provided
Weight	Not provided
Package contents	Sink, user manual, packaging (bags, polystyrene)
Included accessories	None (silicone not included)
Daily cleaning	Soft non-abrasive sponge and regular dish soap, rinse and dry
Stain removal (light color)	Bleach + warm water solution (3/4, 1/4), let sit for 8 hours, rinse thoroughly
Stain removal (dark color)	Soft sponge and detergent, circular motions, rinse with warm water
Anti-limescale treatment	Anti-limescale product diluted in warm water, circular motions, rinse
Weekly descaling	Fill basin with warm water + 2 tablespoons of detergent, leave for 5-6 hours, rinse
Prohibited products	Ammonia, caustic soda, drain cleaners, steel wool, abrasive sponges
Maximum admissible temperature	Avoid hot pans (up to 500 °C) - do not place directly
Installation instructions	Clean before installation, use a qualified professional
Warranty	Standard, not applicable if maintenance instructions not followed

Frequently Asked Questions - LZ792A2 SMEG

How to clean the Smeg LZ792A2 sink daily?

Use a soft non-abrasive sponge and regular dish soap. Rinse thoroughly with warm water then dry carefully with a microfiber cloth.

How to remove stubborn stains on a light-colored sink?

Prepare a solution of bleach and warm water (3/4 and 1/4). Apply evenly, let it sit for about 8 hours (preferably overnight), then rinse thoroughly and dry.

How to remove stubborn stains on a dark-colored sink?

Use a soft non-abrasive sponge with regular dish soap. Make small circular motions, rinse with warm water and dry. Repeat 1-2 times if necessary.

How to prevent limescale stains?

Perform a weekly descaling treatment: fill the basin with warm water, add two tablespoons of liquid or powder detergent (or a tablet), let it sit for 5 to 6 hours, then rinse and dry thoroughly.

What products are prohibited for cleaning the sink?

Never use cleaners containing ammonia, caustic soda, drain cleaners, nor steel wool or abrasive sponges that would damage the surface.

Can hot pans be placed directly on the sink?

No, avoid placing hot pans, pots, or coffee makers directly on the surface. This could cause discoloration or irreversible damage.

How to install the Smeg LZ792A2 sink correctly?

Before mounting, clean the sink with a mild detergent to remove production residues. Use qualified personnel according to current standards. Silicone is not included.

Is silicone included with the sink?

No, the silicone is not included. You must purchase it separately for installation.

What to do with plastic and polystyrene packaging?

Do not leave them within reach of children as they can be a source of danger (choking). Dispose of them according to sorting instructions.

How to preserve the warranty of my Smeg sink?

Follow the cleaning and maintenance instructions provided in the manual meticulously. Any non-compliance may render the standard warranty null and void.

USER MANUAL LZ792A2 SMEG

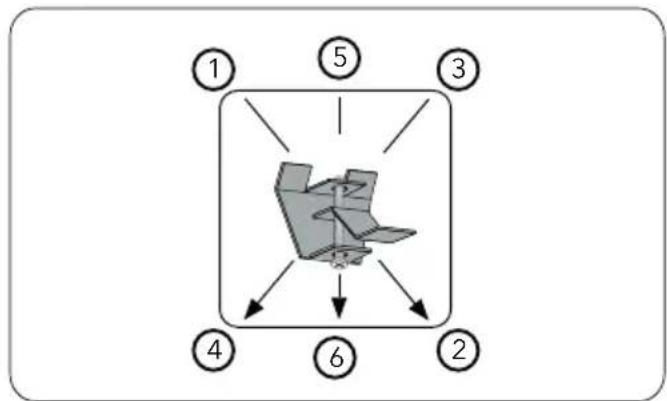

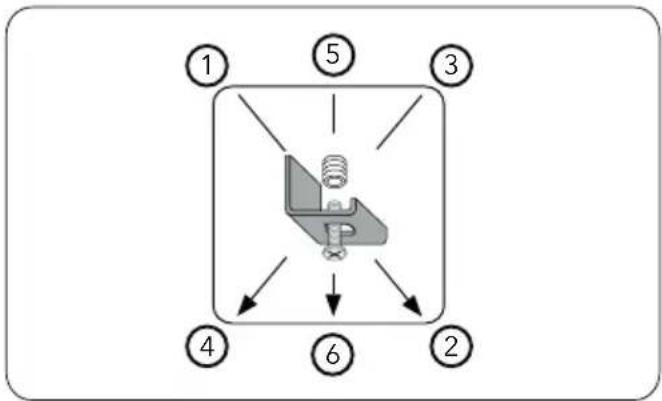

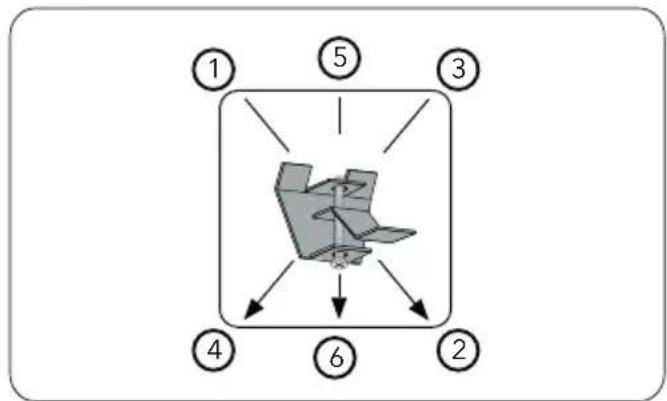

Isometric diagram of a device with two stacked plates and directional arrows indicating movement or force (no text or symbols)

Diagram of a layered mechanical or electronic component with upward arrows indicating motion or force, no text or symbols present.

Simple line drawing of a hand wiping a surface with motion lines (no text or symbols)

2. MANUTENZIONE STRAORDINARIA

Simple line drawing of a crossed-out kitchen counter with no text or symbols

Simple line drawing of a cooking pot with crossed-out diagonals (no text or symbols)

Before fitting the sink, it is advisable to wash it using standard dish detergent and a soft sponge to remove any manufacturing residues.

Rinse the sink thoroughly and dry it using a microfibre cloth.

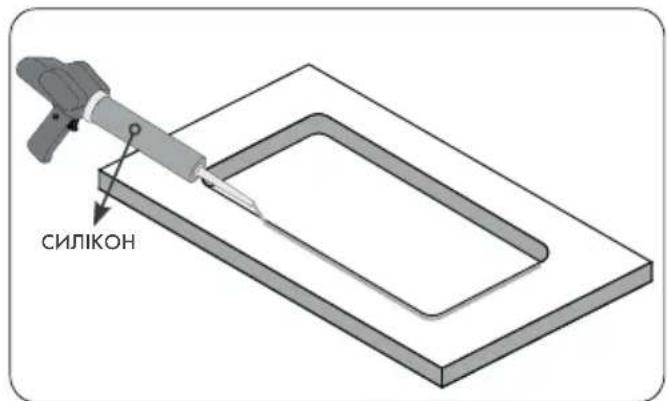

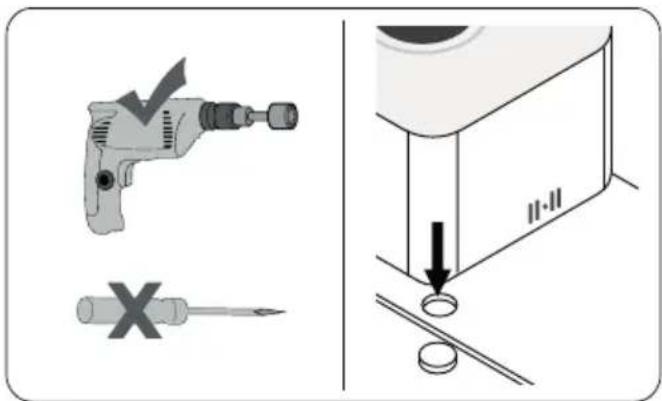

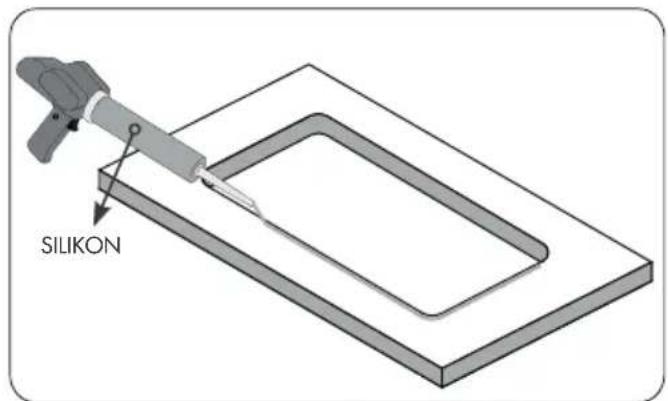

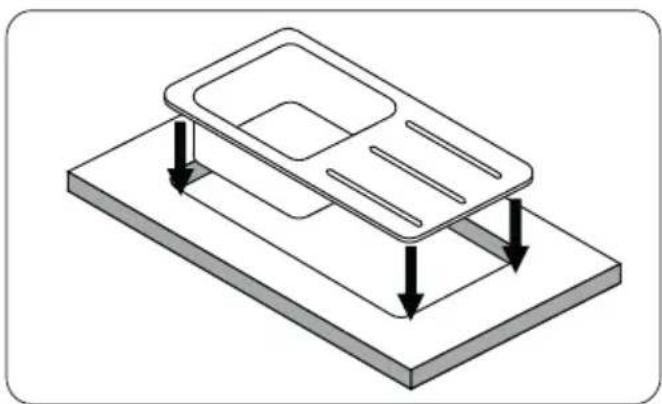

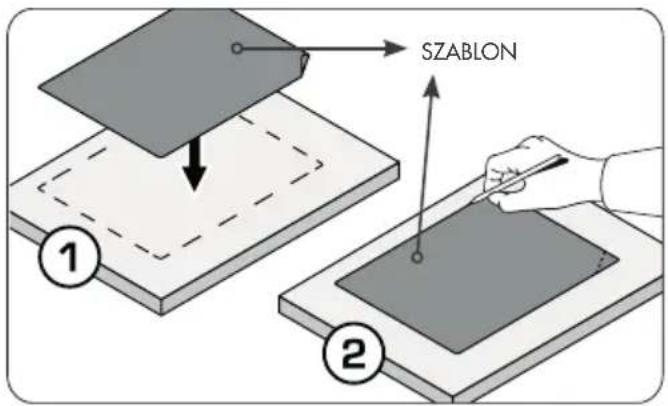

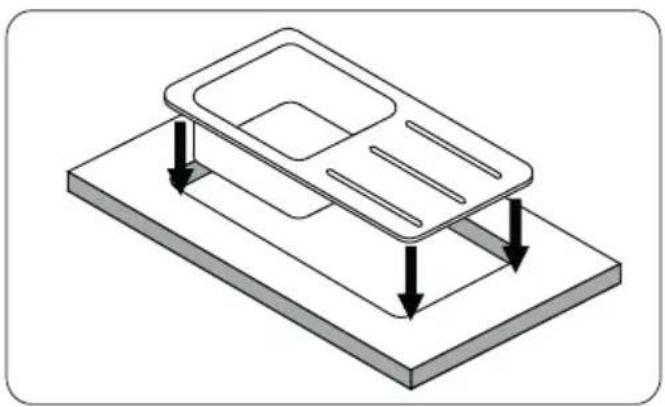

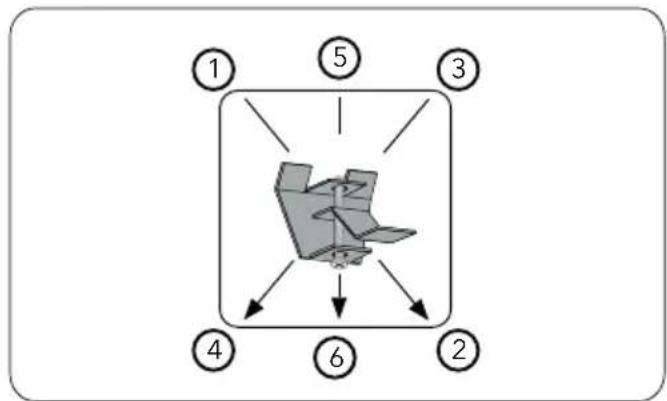

STANDARD INSTALLATION

Isometric diagram of a device with two stacked plates and directional arrows indicating movement or force (no text or symbols)


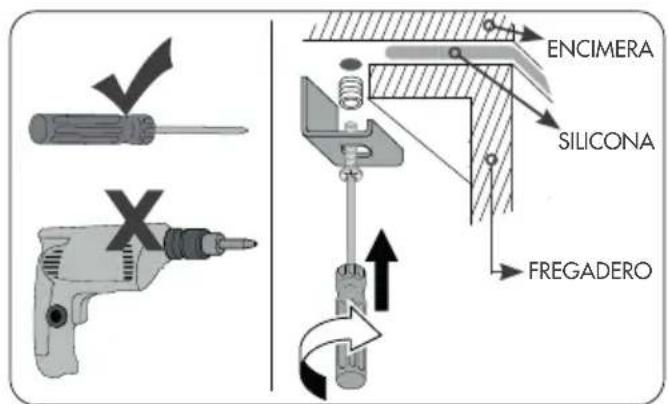

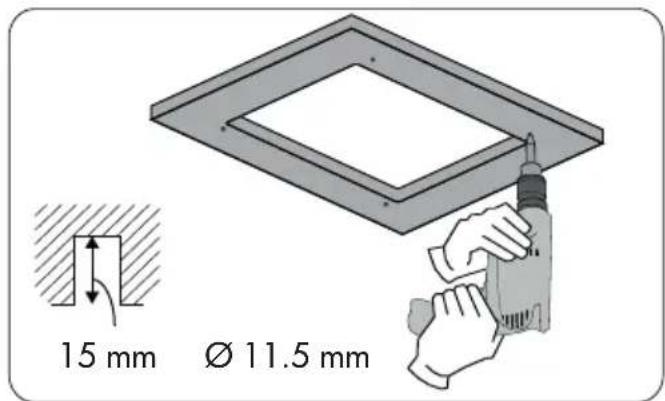

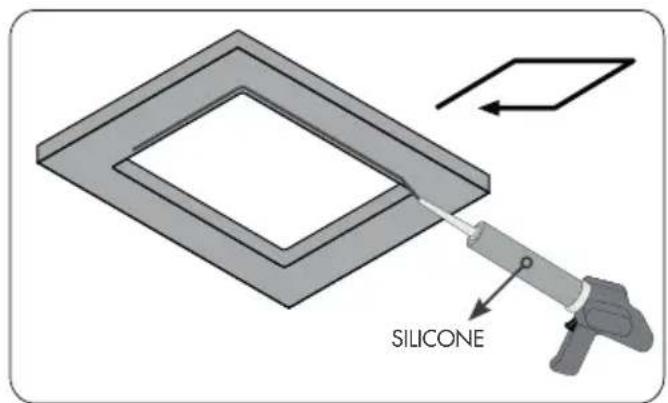

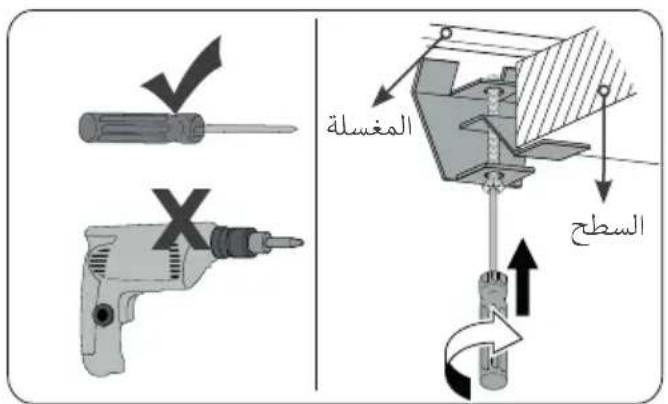

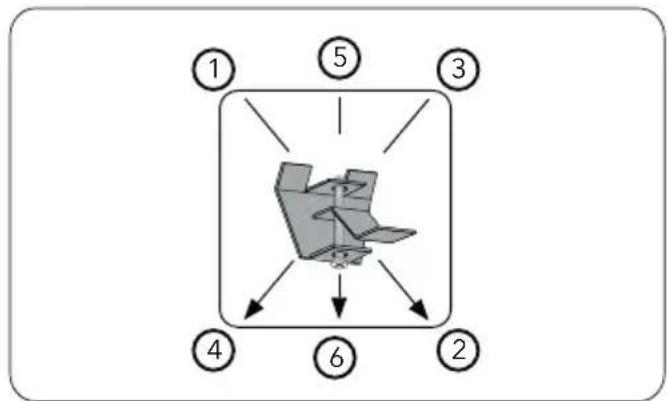

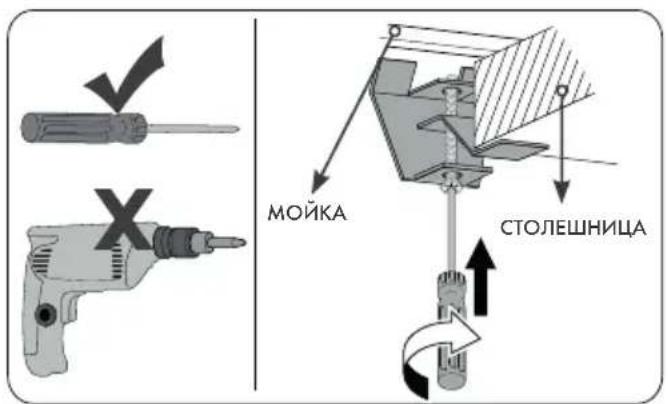

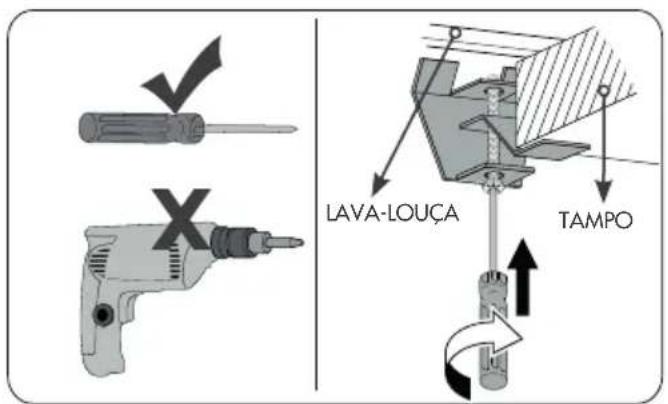

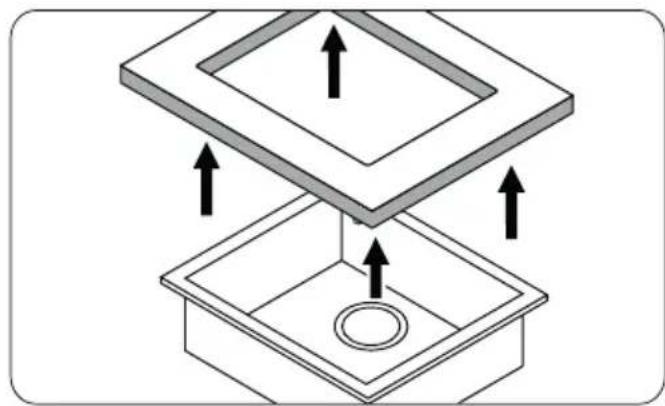

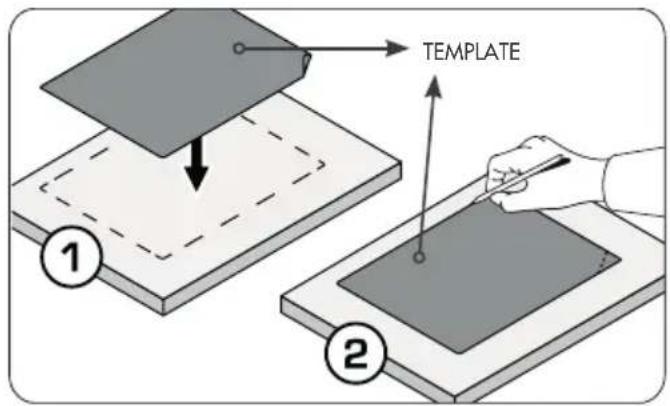

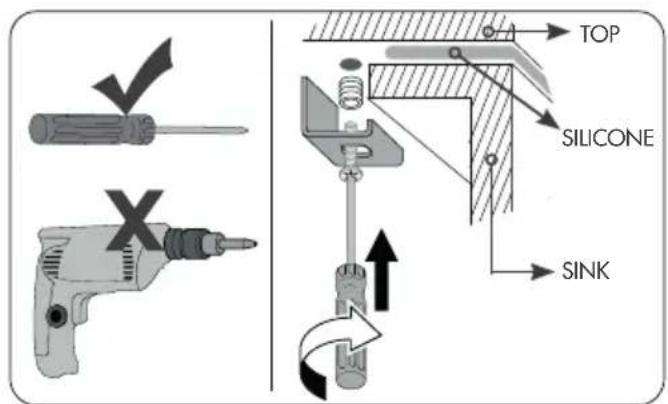

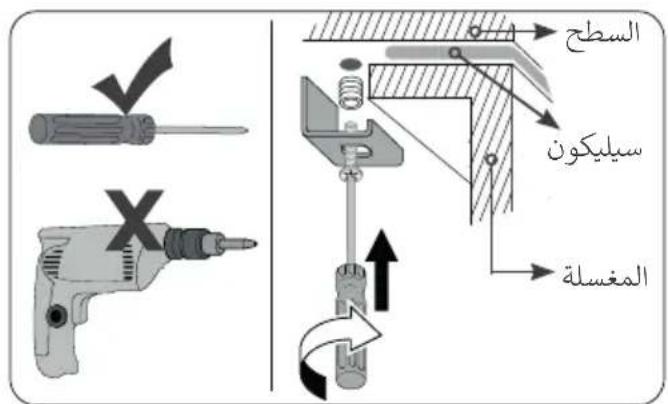

UNDERMOUNT INSTALLATION

Diagram of a mechanical assembly with two stacked components and upward arrows indicating motion (no text or symbols)

The packaging materials (plastic bags, expanded polystyrene, etc.) must not be left within reach of children as they are a potential hazard.

Installation and support should be undertaken by qualified individuals, in accordance with the applicable legal requirements.

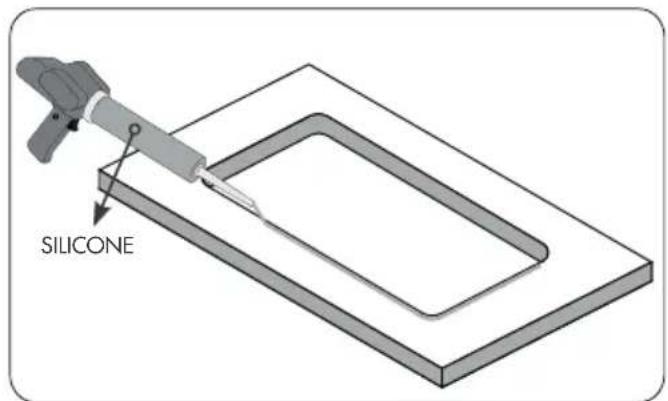

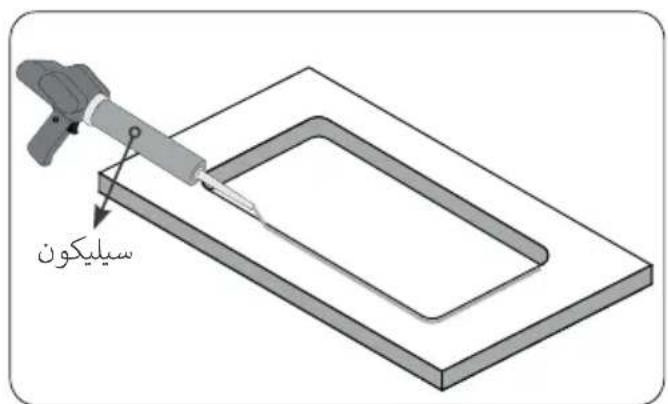

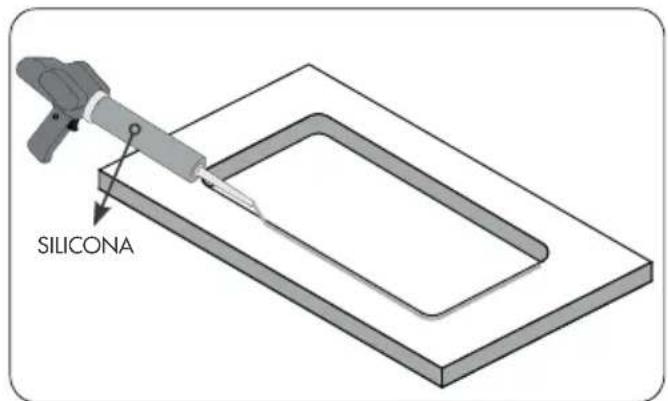

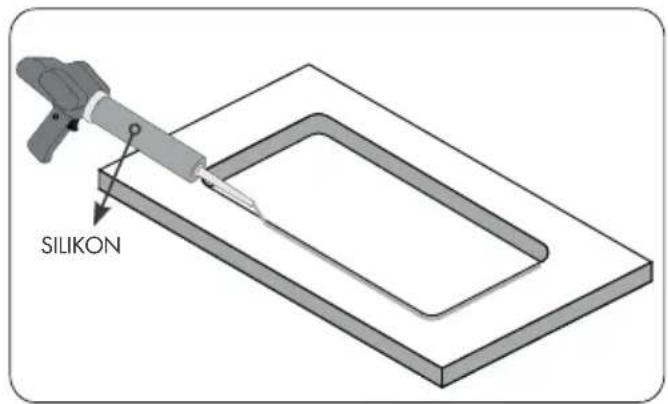

The silicone is not included with the product. The sink shown in this guide is for illustrative purposes only.

1. ROUTINE MAINTENANCE

Cleaning your Smeg product is quick and simple. Even though the non-porous surface prevents liquids penetrating into the material, it is preferable to remove them immediately using a soft, non-abrasive sponge and standard dish detergent. You should then rinse the surface and dry it carefully using a microfibre cloth.

Simple line drawing of a hand wiping a surface with motion lines (no text or symbols)

2. NON-ROUTINE MAINTENANCE

Cleaning stubborn stains is not difficult: all you need to do is choose the right product and use it correctly.

For stubborn stains on LIGHT-COLOURED products, you can use a solution of bleach and warm water ( 34 to 14 ), leaving it to act for eight hours (we recommend that this cleaning be performed during the night). Afterwards, rinse thoroughly and dry the entire surface carefully using a microfibre cloth. If the stains remain, the operation can be repeated one or two more times.

For stubborn stains on DARK-COLOURED products, you can remove them directly with a soft, non-abrasive sponge and standard dish detergent, using small circular movements. When finished, rinse using warm water and carefully dry the entire surface using a microfibre cloth. If the stains remain, the operation can be repeated one or two more times.

To remove limescale stains, we recommend the use of a non-corrosive descaling product diluted with warm water. Distribute the solution uniformly over the entire surface of the product. Clean with a soft, non-abrasive sponge using small circular movements and leave the product to act for several minutes (follow the instructions and conditions for use on the product label). When finished, rinse using warm water and dry carefully using a microfibre cloth.

Failure to follow the cleaning and maintenance instructions stated in this manual may invalidate the standard warranty provided by the manufacturer.

To ensure that there is no change to the characteristics of the product, we recommend that users observe the following precautions:

- dry the surface of the product every day to avoid prolonged exposure to water that could lead to the build-up of limescale or stubborn stains

- do not use detergents that contain alkaline substances and aggressive liquids (such as ammonia, caustic soda or drain cleaners)

- do not remove traces of dirt using steel scourers or abrasive sponges that could damage the surface

- do not cut or chop directly on the surface of the product because this could cause irreparable scratches (always use chopping boards)

- avoid accidental knocks that could cause irreparable micro-damage

- do not place hot cookware, pans or coffee makers directly on the sink surface: stains from discolouration and/or damage could form in areas where hot items are placed

- avoid pouring boiling liquids directly into the sink without first turning on the cold tap and filling the sink with at least 1 cm of water, as this could damage the product

• to prevent the build-up of limescale, it is recommended that a descaling treatment be completed at least once a week. This is recommended in particular for dark-coloured sinks. Fill the tub with warm water and add two spoonfuls of liquid or powder dishwasher detergent or a dishwasher tab. Leave the solution for 5/6 hours. Rinse thoroughly and dry carefully.

Simple line drawing of a crossed-out kitchen counter with no text or symbols

Simple line drawing of a cooking pot with crossed-out kitchen panes (no text or symbols)

Do not put pans or coffee makers that have just been taken off the heat (which sometimes reach 500°C) directly into sink.

Isometric diagram of a device with two stacked plates and directional arrows indicating movement or force (no text or symbols)


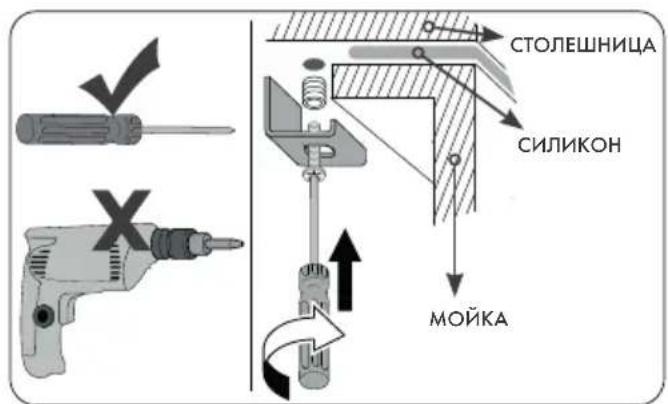

INSTALLATION SOUS LE PLAN SUPÉRIEUR

Diagram of a layered mechanical or electronic component with upward arrows indicating motion or force, no text or symbols present.

Simple line drawing of a hand wiping a surface with a cloth (no text or symbols)

Simple line drawing of a crossed-out kitchen counter with no text or symbols

Simple line drawing of a cooking pot with steam rising, crossed by a diagonal line (no text or symbols)

Isometric diagram of a device with two stacked plates and directional arrows indicating movement or force (no text or symbols)


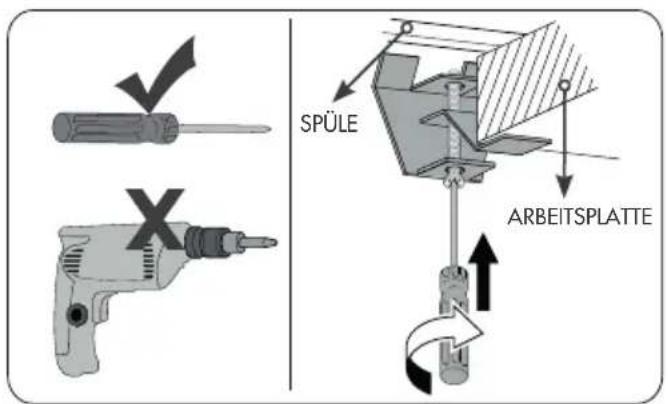

UNTERBAU-INSTALLATION

Diagram of a mechanical assembly with two stacked components and upward arrows indicating motion (no text or symbols)

Simple line drawing of a hand cleaning a surface with a cloth (no text or symbols)

Simple line drawing of a crossed-out kitchen counter with no text or symbols

Simple line drawing of a cooking pot with crossed-out black X marks (no text or symbols)

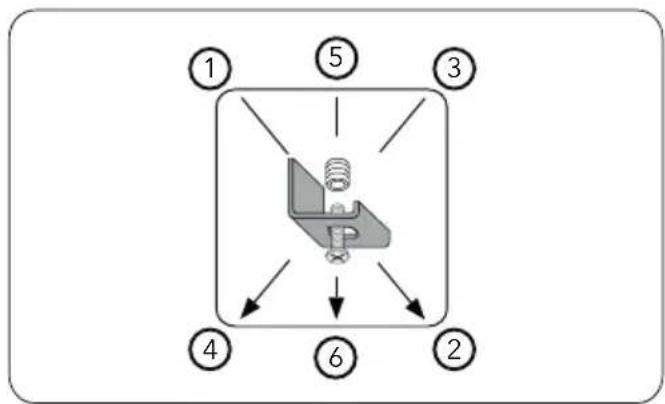

Isometric diagram of a device with two stacked plates and directional arrows indicating movement or force (no text or symbols)

Diagram of a mechanical assembly with two stacked components and upward arrows indicating motion (no text or symbols)

Simple line drawing of a hand covering a cloth with motion lines (no text or symbols)

Simple line drawing of a crossed-out kitchen counter with no text or symbols

Simple line drawing of a cooking pot with a crossed-out X symbol (no text or labels)

Isometric diagram of a device with two stacked plates and directional arrows indicating movement or force (no text or symbols)

Diagram of a mechanical assembly with two stacked components and upward arrows indicating motion (no text or symbols)

Simple line drawing of a hand cleaning a surface with a cloth (no text or symbols)

Simple line drawing of a kitchen counter with a crossed-out black cross symbol (no text or labels)

Simple line drawing of a crossed-out kitchen counter with steam rising (no text or symbols)

Isometric diagram of a device with two stacked plates and directional arrows indicating movement or force (no text or symbols)

Diagram of a layered mechanical or electronic component with upward arrows indicating motion or force, no text or symbols present.

Simple line drawing of a hand cleaning a surface with a cloth (no text or symbols)

2. НЕПЛАНОВЫЙ УХОД

Simple line drawing of a stove with a crossed-out black symbol (no text or numbers)

Simple line drawing of a kitchen with a crossed-out black X symbol (no text or labels)

Isometric diagram of a device with two stacked plates and directional arrows indicating movement or force (no text or symbols)


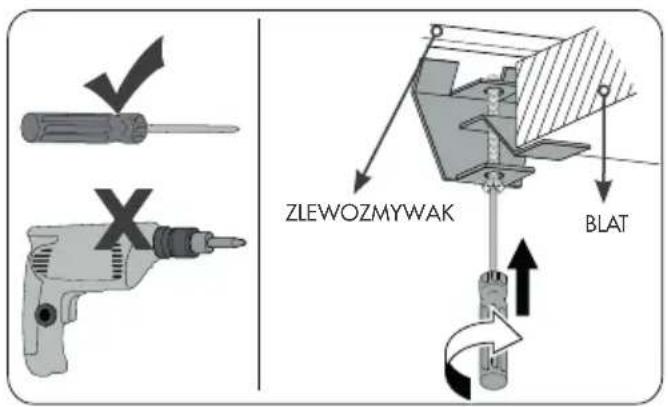

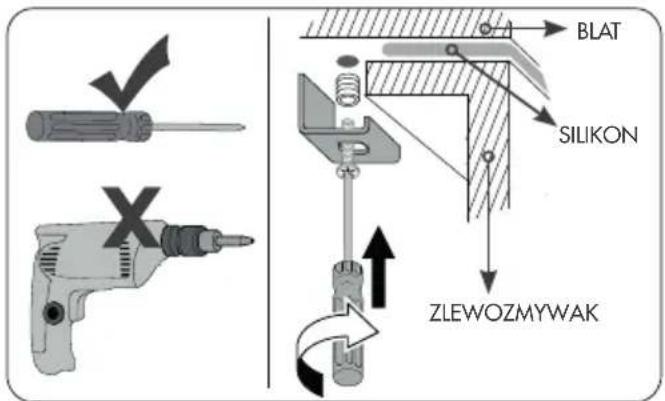

MONTAŻ POD BLATEM

Diagram of a layered mechanical or electronic component with upward arrows indicating motion or force, no text or symbols present.

Simple line drawing of a hand cleaning a surface with a cloth (no text or symbols)

2. KONSERWACJA DORAŻNA

Simple line drawing of a crossed-out kitchen counter with no text or symbols

Simple line drawing of a cooking pot with steam rising, crossed by a diagonal line (no text or symbols)

Isometric diagram of a device with two stacked plates and directional arrows indicating movement or force (no text or symbols)

Diagram of a mechanical assembly with two stacked components and upward arrows indicating motion (no text or symbols)

Simple line drawing of a hand cleaning a surface with a cloth (no text or symbols)

Simple line drawing of a kitchen with a crossed-out black symbol (no text or numbers)

Simple line drawing of a kitchen with a crossed-out black X symbol (no text or labels)

Isometric diagram of a device with two stacked plates and directional arrows indicating movement or force (no text or symbols)

Diagram of a layered mechanical or electronic component with upward arrows indicating motion or force, no text or symbols present.

Two hand icons with different textures, one covering a cloth and the other covering a surface (no text or symbols)

Simple line drawing of a crossed-out kitchen counter with no text or symbols

Simple line drawing of a cooking pot with crossed-out black lines (no text or symbols)
