LZ792CT - Sink SMEG - Free user manual and instructions

Product type	Sink
Brand	SMEG
Model	LZ792CT
Material	Non-porous composite (resin and quartz)
Installation type	Flush mount or top mount
Number of basins	1
Available finishes	Light and dark
Heat resistance	Avoid direct contact with hot pans
Impact resistance	Avoid accidental impacts
Routine maintenance	Clean with a non-abrasive sponge and mild detergent
Descaling	Weekly treatment with a suitable descaler
Stubborn stains (light surfaces)	Bleach and warm water solution (3/4, 1/4), let stand for 8 hours
Stubborn stains (dark surfaces)	Circular rubbing with a soft sponge and detergent
Precautions	Do not cut directly on the sink, use a cutting board
Use of boiling liquids	Turn on the cold water tap and keep 1 cm of water in the bottom
Warranty	Manufacturer's standard warranty (subject to compliance with instructions)
Installation	Carried out by a qualified professional, silicone not provided
Initial cleaning	Wash with ordinary detergent and a soft sponge before installation
Included accessories	None (silicone and cutting board not included)

Frequently Asked Questions - LZ792CT SMEG

How to clean the Smeg LZ792CT sink?

Use a non-abrasive sponge and a mild dish soap. Rinse with warm water and dry with a microfiber cloth. Avoid metal sponges and abrasive products.

What to do about limescale stains?

Apply an anti-corrosion descaler diluted in warm water. Leave for a few minutes, gently rub in a circular motion, rinse and dry. Repeat if necessary.

Can I cut food directly on the sink?

No, this can cause irreparable scratches. Always use a cutting board to protect the surface.

Can I pour boiling water into the sink?

Yes, but first turn on the cold water tap and make sure there is at least 1 cm of water in the bottom to avoid damaging the material.

How to install the Smeg LZ792CT sink?

Installation must be performed by a qualified professional according to current standards. Silicone is not provided. Clean the sink before installation with ordinary detergent.

What to do if stubborn stains persist on light surfaces?

Prepare a solution of bleach and warm water (3/4 + 1/4). Let stand for about 8 hours (preferably overnight), then rinse thoroughly and dry. Repeat 1-2 times if necessary.

How to maintain dark surfaces?

For stubborn stains, rub in circular motions with a soft sponge and mild detergent. Rinse with warm water and dry. Repeat if needed.

What cleaning products to avoid?

Avoid detergents containing alkaline substances or aggressive liquids (ammonia, caustic soda, drain cleaners). Do not use steel wool or abrasive sponges.

What is the warranty for the sink?

The manufacturer's standard warranty applies, provided that cleaning and care instructions are followed. Failure to do so may void it.

How to avoid scratches?

Never cut directly on the sink, use a cutting board. Avoid accidental impacts and do not place hot objects directly on the surface.

USER MANUAL LZ792CT SMEG

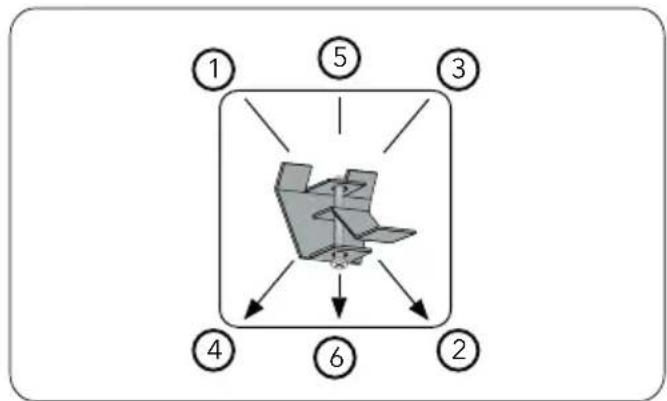

Isometric diagram of a device with two stacked plates and directional arrows indicating movement or force (no text or symbols)

Diagram of a layered mechanical or electronic component with upward arrows indicating motion or force, no text or symbols present.

Simple line drawing of a hand cleaning a surface with a cloth (no text or symbols)

2. MANUTENZIONE STRAORDINARIA

Simple line drawing of a crossed-out kitchen counter with no text or symbols

Simple line drawing of a cooking pot with a crossed-out X symbol (no text or labels)

Before fitting the sink, it is advisable to wash it using standard dish detergent and a soft sponge to remove any manufacturing residues.

Rinse the sink thoroughly and dry it using a microfibre cloth.

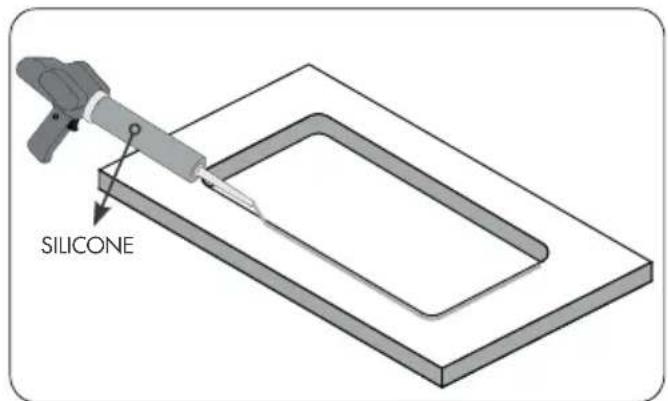

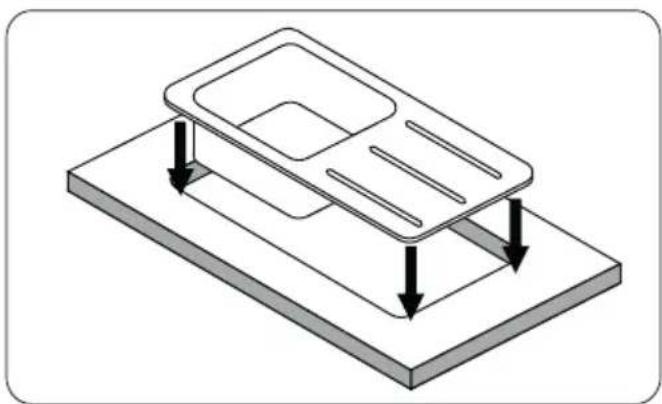

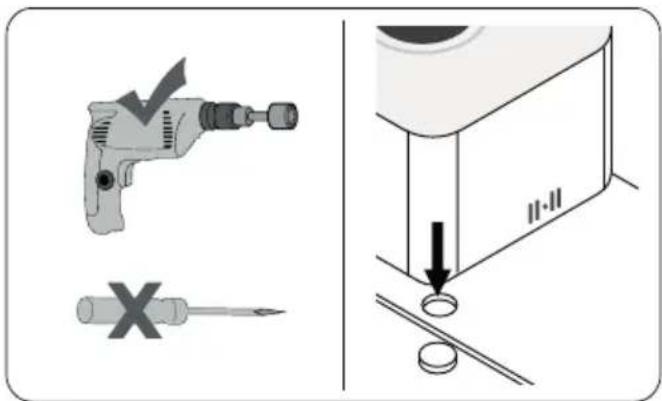

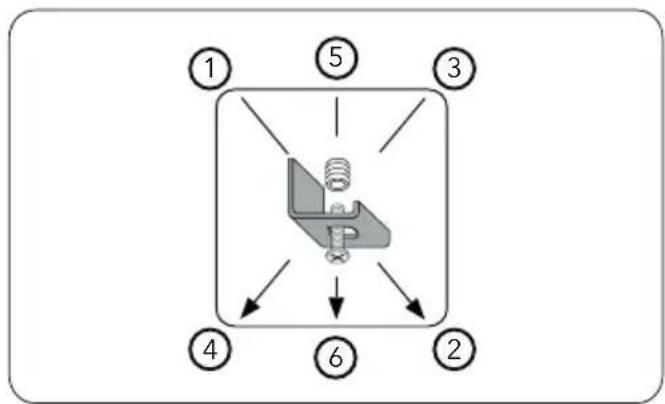

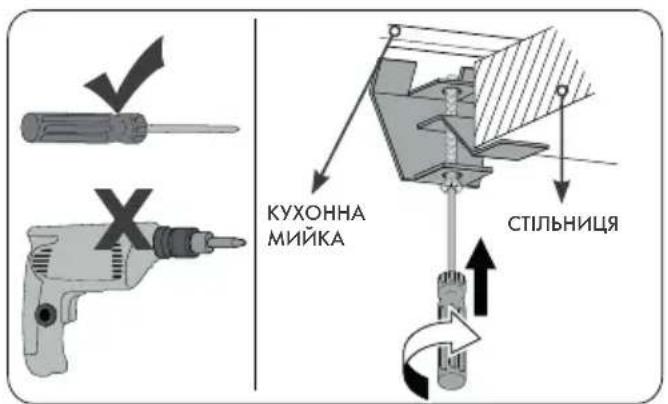

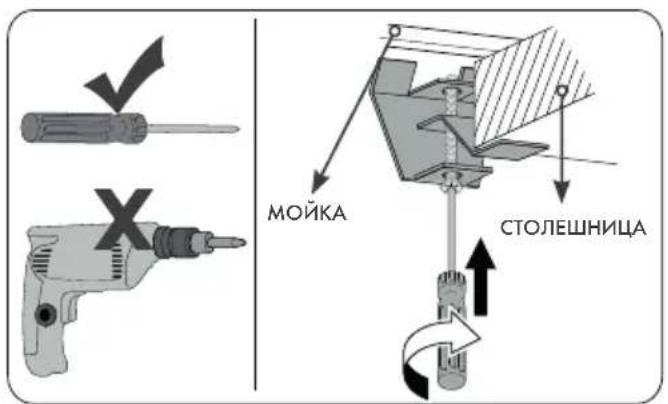

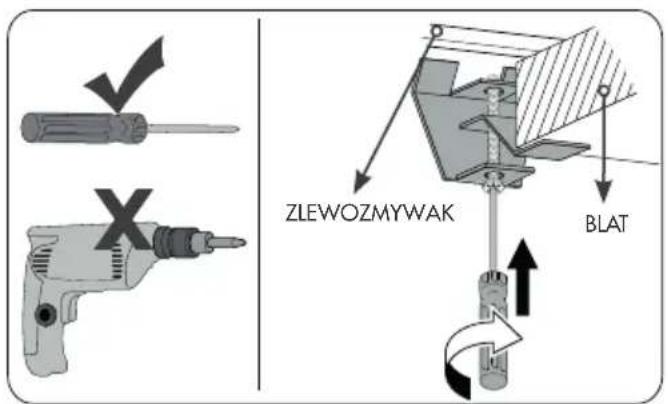

STANDARD INSTALLATION

Isometric diagram of a device with two stacked plates and directional arrows indicating movement or force (no text or symbols)


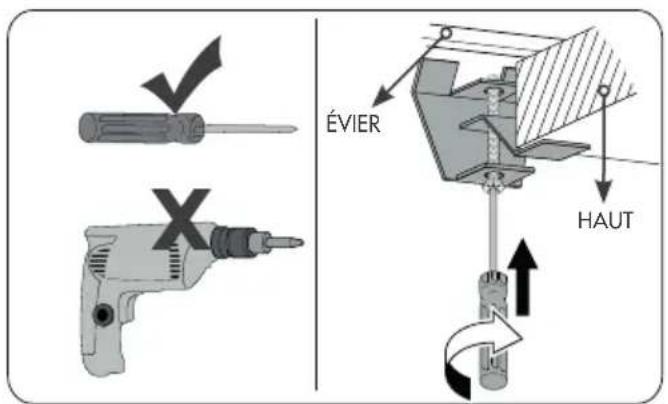

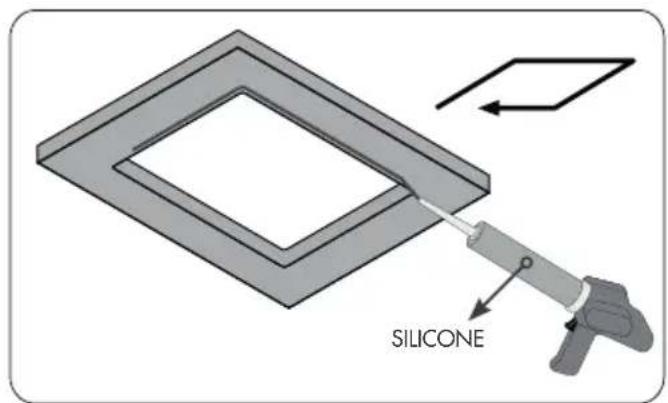

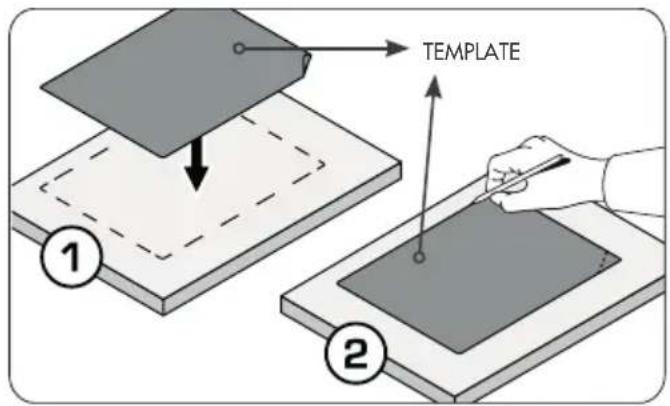

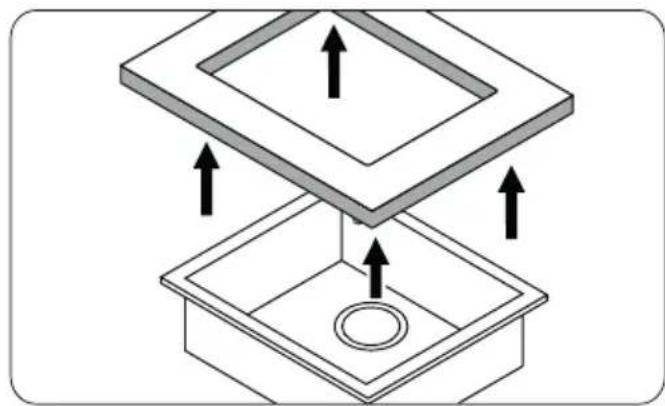

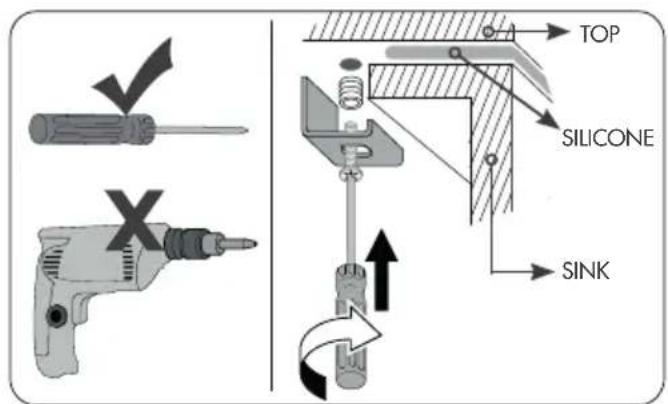

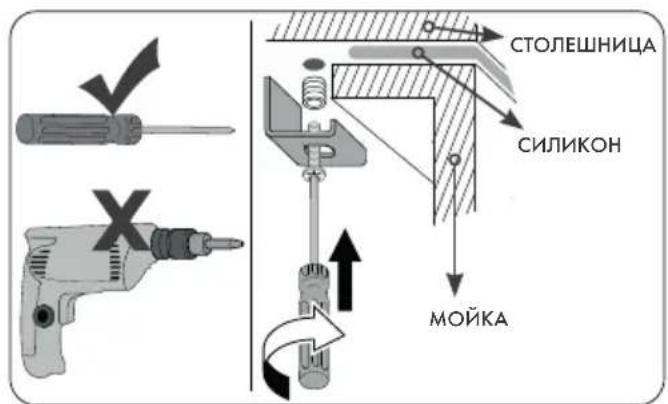

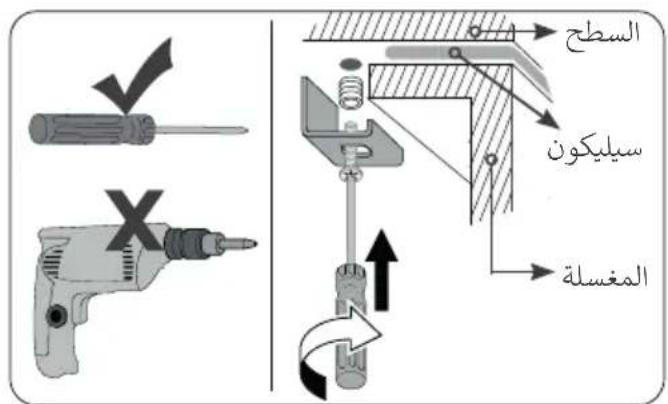

UNDERMOUNT INSTALLATION

Diagram of a mechanical assembly with two stacked components and upward arrows indicating motion (no text or symbols)

The packaging materials (plastic bags, expanded polystyrene, etc.) must not be left within reach of children as they are a potential hazard.

Installation and support should be undertaken by qualified individuals, in accordance with the applicable legal requirements.

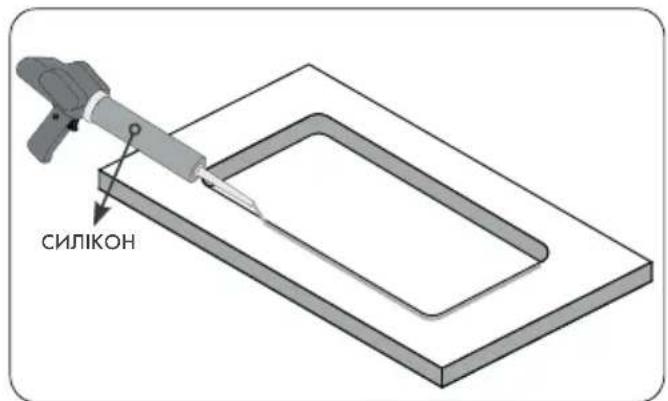

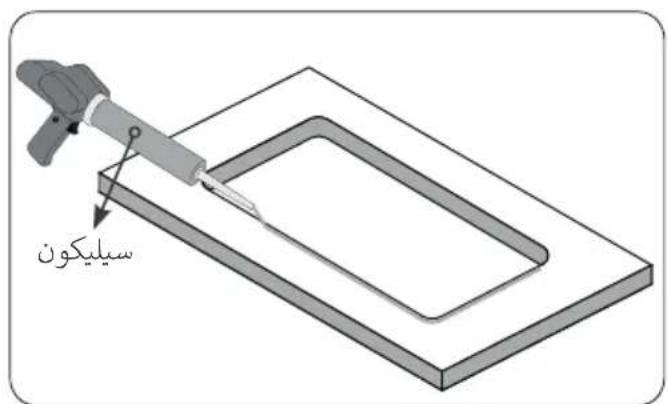

The silicone is not included with the product. The sink shown in this guide is for illustrative purposes only.

1. ROUTINE MAINTENANCE

Cleaning your Smeg product is quick and simple. Even though the non-porous surface prevents liquids penetrating into the material, it is preferable to remove them immediately using a soft, non-abrasive sponge and standard dish detergent. You should then rinse the surface and dry it carefully using a microfibre cloth.

Simple line drawing of a hand wiping a surface with motion lines (no text or symbols)

2. NON-ROUTINE MAINTENANCE

Cleaning stubborn stains is not difficult: all you need to do is choose the right product and use it correctly.

For stubborn stains on LIGHT-COLOURED products, you can use a solution of bleach and warm water ( 34 to 14 ), leaving it to act for eight hours (we recommend that this cleaning be performed during the night). Afterwards, rinse thoroughly and dry the entire surface carefully using a microfibre cloth. If the stains remain, the operation can be repeated one or two more times.

For stubborn stains on DARK-COLOURED products, you can remove them directly with a soft, non-abrasive sponge and standard dish detergent, using small circular movements. When finished, rinse using warm water and carefully dry the entire surface using a microfibre cloth. If the stains remain, the operation can be repeated one or two more times.

To remove limescale stains, we recommend the use of a non-corrosive descaling product diluted with warm water. Distribute the solution uniformly over the entire surface of the product. Clean with a soft, non-abrasive sponge using small circular movements and leave the product to act for several minutes (follow the instructions and conditions for use on the product label). When finished, rinse using warm water and dry carefully using a microfibre cloth.

Failure to follow the cleaning and maintenance instructions stated in this manual may invalidate the standard warranty provided by the manufacturer.

To ensure that there is no change to the characteristics of the product, we recommend that users observe the following precautions:

- dry the surface of the product every day to avoid prolonged exposure to water that could lead to the build-up of limescale or stubborn stains

- do not use detergents that contain alkaline substances and aggressive liquids (such as ammonia, caustic soda or drain cleaners)

- do not remove traces of dirt using steel scourers or abrasive sponges that could damage the surface

- do not cut or chop directly on the surface of the product because this could cause irreparable scratches (always use chopping boards)

- avoid accidental knocks that could cause irreparable micro-damage

- do not place hot cookware, pans or coffee makers directly on the sink surface: stains from discolouration and/or damage could form in areas where hot items are placed

- avoid pouring boiling liquids directly into the sink without first turning on the cold tap and filling the sink with at least 1 cm of water, as this could damage the product

• to prevent the build-up of limescale, it is recommended that a descaling treatment be completed at least once a week. This is recommended in particular for dark-coloured sinks. Fill the tub with warm water and add two spoonfuls of liquid or powder dishwasher detergent or a dishwasher tab. Leave the solution for 5/6 hours. Rinse thoroughly and dry carefully.

Simple line drawing of a crossed-out kitchen counter with no text or symbols

Simple line drawing of a cooking pot with crossed-out kitchen panes (no text or symbols)

Do not put pans or coffee makers that have just been taken off the heat (which sometimes reach 500°C) directly into sink.

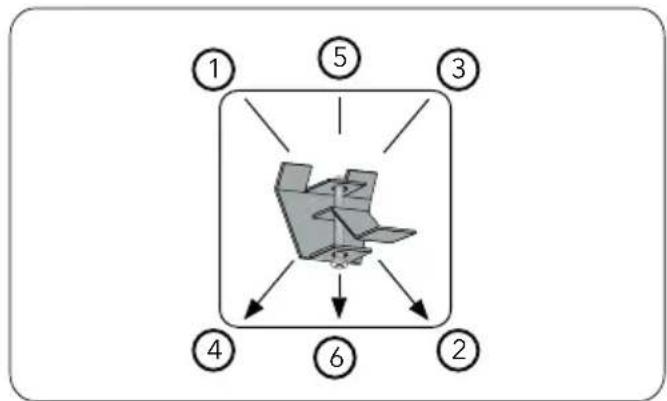

Isometric diagram of a device with two stacked plates and directional arrows indicating movement or force (no text or symbols)


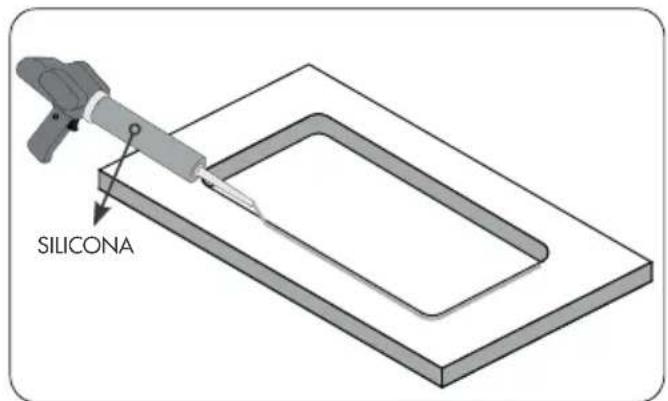

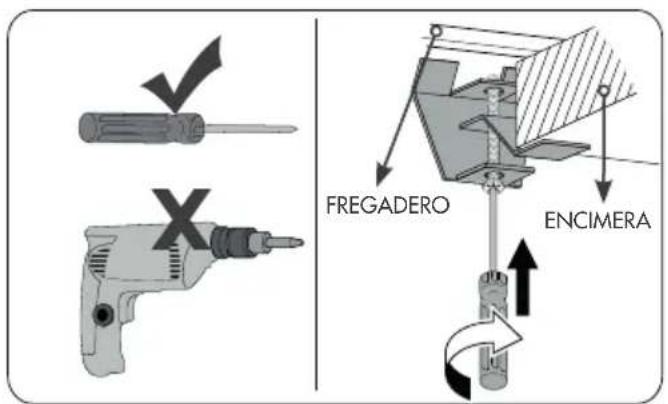

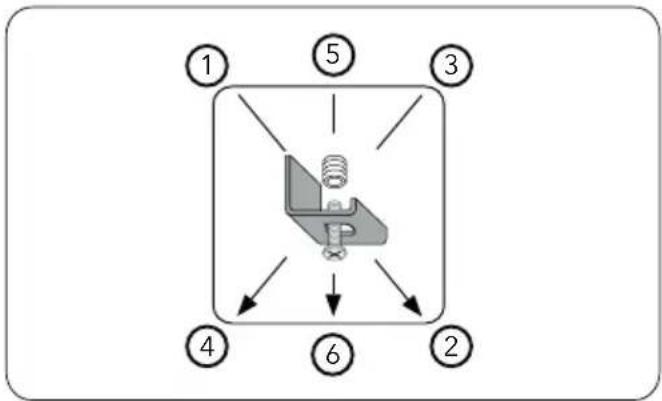

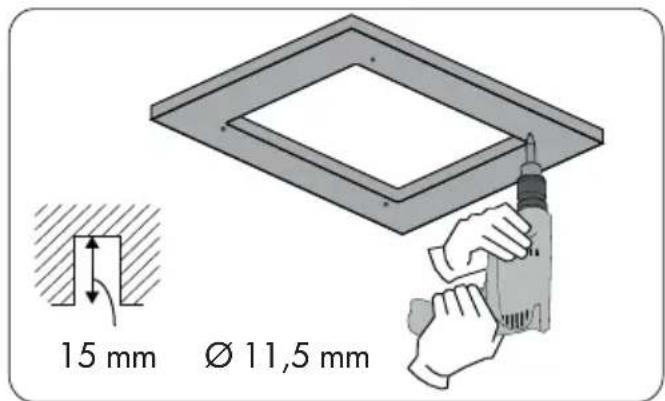

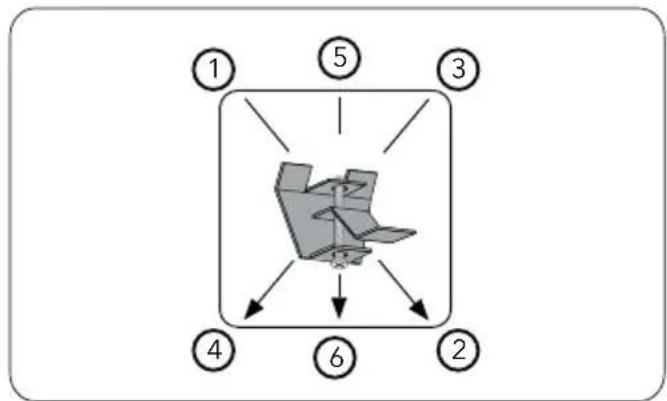

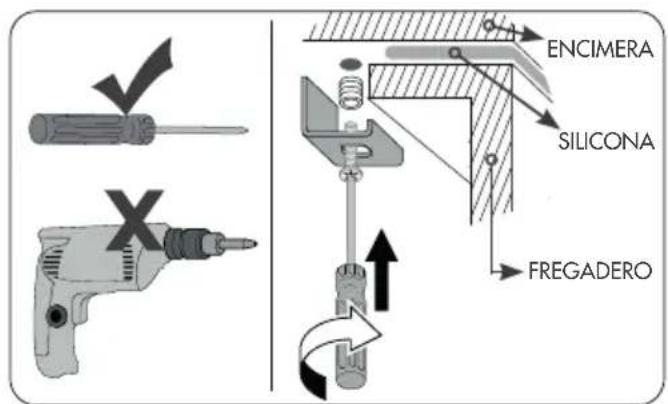

INSTALLATION SOUS LE PLAN SUPÉRIEUR

Diagram of a layered mechanical or electronic component with upward arrows indicating motion or force, no text or symbols present.

Simple line drawing of a hand wiping a surface with motion lines (no text or symbols)

Simple line drawing of a crossed-out kitchen counter with no text or symbols

Simple line drawing of a cooking pot with steam rising, crossed by a diagonal line (no text or symbols)

Isometric diagram of a device with two stacked plates and directional arrows indicating movement or force (no text or symbols)


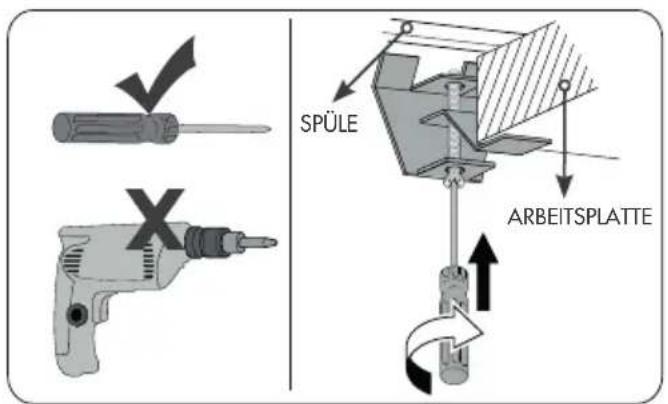

UNTERBAU-INSTALLATION

Diagram of a mechanical assembly with three stacked components and upward arrows indicating motion (no text or symbols)

Simple line drawing of a hand cleaning a surface with a cloth (no text or symbols)

Simple line drawing of a crossed-out kitchen counter with no text or symbols

Simple line drawing of a cooking pot with crossed-out black X marks (no text or symbols)

Isometric diagram of a device with two stacked plates and directional arrows indicating movement or force (no text or symbols)

Diagram of a mechanical assembly with two stacked components and upward arrows indicating motion (no text or symbols)

Simple line drawing of a hand wiping a surface with motion lines (no text or symbols)

Simple line drawing of a crossed-out kitchen counter with no text or symbols

Simple line drawing of a cooking pot with a crossed-out X symbol (no text or labels)

Isometric diagram of a device with two stacked plates and directional arrows indicating movement or force (no text or symbols)

Diagram of a layered mechanical or electronic component with upward arrows indicating motion or force, no text or symbols present.

Simple line drawing of a hand cleaning a surface with a cloth (no text or symbols)

Simple line drawing of a kitchen counter with a crossed-out black cross symbol (no text or labels)

Simple line drawing of a crossed-out kitchen counter with steam rising (no text or symbols)

Isometric diagram of a device with two stacked plates and directional arrows indicating movement or force (no text or symbols)

Diagram of a mechanical assembly with two stacked components and upward arrows indicating motion (no text or symbols)

Hand wiping a surface with a cloth (no text or symbols)

2. НЕПЛАНОВЫЙ УХОД

Simple line drawing of a stove with a crossed-out black symbol (no text or numbers)

Simple line drawing of a kitchen with a crossed-out black X symbol (no text or labels)

Isometric diagram of a device with two stacked plates and directional arrows indicating movement or force (no text or symbols)


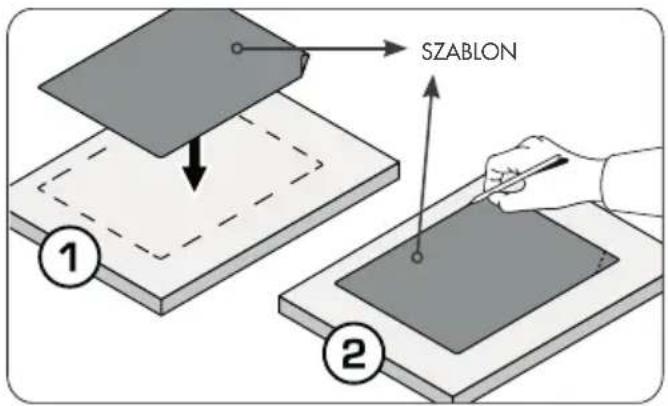

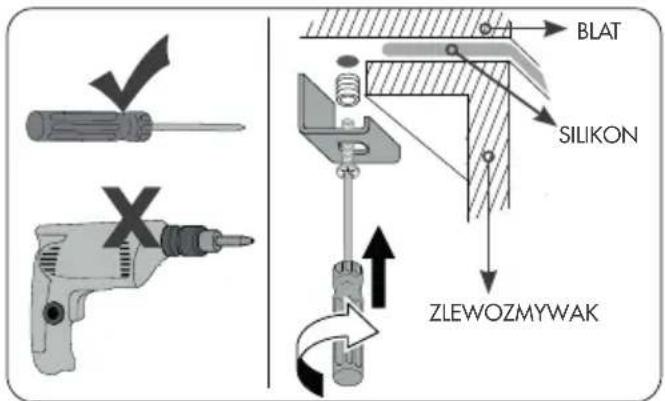

MONTAŻ POD BLATEM

Diagram of a layered mechanical or electronic component with upward arrows indicating motion or force, no text or symbols present.

Simple line drawing of a hand cleaning a surface with a cloth (no text or symbols)

2. KONSERWACJA DORAŻNA

Simple line drawing of a crossed-out kitchen counter with no text or symbols

Simple line drawing of a cooking pot with crossed-out kitchen panes (no text or symbols)

Isometric diagram of a device with two stacked plates and directional arrows indicating movement or force (no text or symbols)

Diagram of a layered mechanical or electronic component with upward arrows indicating motion or force, no text or symbols present.

Simple line drawing of a hand cleaning a surface with a cloth (no text or symbols)

Simple line drawing of a kitchen with a crossed-out black symbol (no text or numbers)

Simple line drawing of a kitchen with a crossed-out black X symbol (no text or labels)

Isometric diagram of a device with two stacked plates and directional arrows indicating movement or force (no text or symbols)

Diagram of a layered mechanical or electronic component with upward arrows indicating motion or force, no text or symbols present.

Two hand icons with different textures, one covering a cloth and the other covering a surface (no text or symbols)

Simple line drawing of a crossed-out kitchen counter with no text or symbols

Simple line drawing of a cooking pot with crossed-out black lines (no text or symbols)
