Reference Premiere RP-1200SW - Subwoofer KLIPSCH - Free user manual and instructions

Product Type	Active Subwoofer
Brand	Klipsch
Model	Reference Premiere RP-1200SW
Dimensions (H x W x D)	40.6 x 37.1 x 47.0 cm
Weight	18.1 kg
Power Supply	100-240 V, 50/60 Hz
Amplifier Power	300 W RMS
Frequency Response	24 - 125 Hz
Speaker	12-inch (30.5 cm) with fiberglass cone
Main Features	Gain adjustment, variable low-pass filter, phase 0/180°, AUTO/ON/OFF power, green LED indicator
Wireless Connectivity	Optional via WA-2 module (2.4 GHz, 15 m range)
Inputs	Line IN L/LFE and R (RCA), WA Port
Care and Cleaning	Dusting with a soft, dry cloth. Avoid abrasive products.
Safety	Unplug the device before any connection. Do not expose to moisture.
Spare Parts and Repairability	Contact Klipsch customer service or an authorized retailer.
Product Registration	Online at www.klipsch.com/register

Frequently Asked Questions - Reference Premiere RP-1200SW KLIPSCH

How to connect the subwoofer to a receiver?

Connect an RCA cable from the Subwoofer output of your receiver to the L/LFE input of the subwoofer. For receivers without a subwoofer output, use the left/right preamp outputs.

Where to place the subwoofer for best performance?

Ideally in a corner of the room, on the same wall as the front speakers. The position in the room affects the bass volume; try different locations.

How to adjust the subwoofer volume?

First set the receiver volume to 0 dB, then increase the subwoofer gain until its sound level matches the main speakers.

What crossover frequency setting to use?

For large speakers (tower), choose between 50 and 90 Hz. For bookshelf speakers, between 90 and 150 Hz. Adjust for a seamless transition.

What is the purpose of the phase switch (0/180°)?

It aligns the phase of the subwoofer with that of the main speakers. Select the position that gives the most power at the listening position.

How does AUTO mode work?

In AUTO mode, the subwoofer automatically turns on when a signal is detected and goes into standby after 15-20 minutes without signal. The switch can also be set to ON (always on) or OFF.

Can I use a wireless connection?

Yes, with the optional WA-2 module. Plug it into the WA-2 port on the subwoofer and connect the transmitter to your source. Range of 15 meters.

What to do if the LED indicator does not light up?

Check that the subwoofer is plugged in and the POWER switch is set to ON or AUTO. If the indicator remains off, the amplifier is not powered; contact customer service.

How to clean the subwoofer?

Use a soft, dry cloth to dust. Do not use abrasive or solvent-based products. A vacuum cleaner with a soft brush can be used.

Where can I find the complete manual?

Download it for free in PDF format from notice-facile.com or the official Klipsch website.

USER MANUAL Reference Premiere RP-1200SW KLIPSCH

In 1946, Paul W. Klipsch revolutionized the audio industry by creating our proprietary horn technology and the acoustic principles that are the driving force behind our highly acclaimed signature sound.

Today, we remain true to PWK's vision and pack the better part of a century's worth of sweat and genius into every product we make. These speakers are the result of our obsession with that aural perfection. Experience the power, detail and emotion of Klipsch. We are the Keepers of the Sound.

ENGLISH

REFERENCE PREMIERE SUBWOOFERS

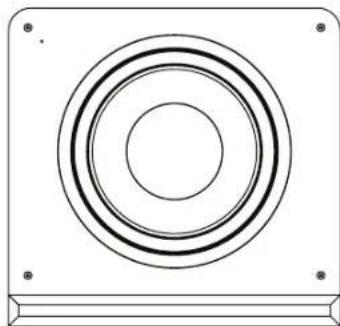

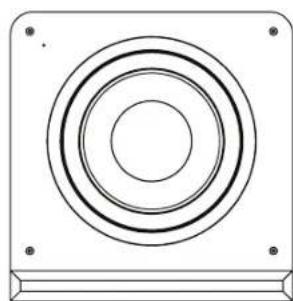

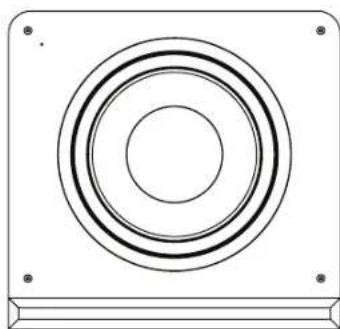

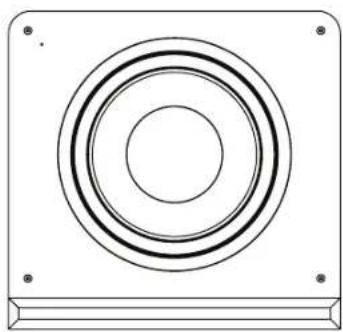

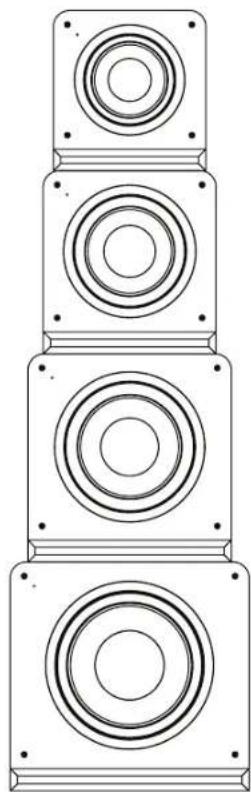

RP-1000SW RP-1200SW RP-1400SW RP-1600SW

INSPECTION

We want your new speaker system to look as good as it did leaving the factory! Please check promptly for any transit damage. Carefully unpack your new speaker system and verify the components against the packing list. In extreme circumstances, items may have become

damaged in transit. If any damage is discovered, notify the delivery service and dealer where the system was purchased. Make a request for inspection, and follow their instructions for evaluation. Be sure to keep the product's original shipping carton.

POSITIONING YOUR REFERENCE PREMIERE SUBWOOFER

Klipsch powered subwoofer are designed to reproduce deep bass and deliver the impact that makes your movies and music come alive. For optimum performance, place your subwoofer in a corner of the room on the same wall as your front channel speakers. (refer to Figure 1). Please note that room placement can have a dramatic effect on the performance of your powered subwoofer. Corner placement, as suggested above, will increase the amount of bass output, while placing the subwoofer along the middle of a wall, or out in the room will decrease the amount of bass output. Experiment with a number of different placement options and control settings to find the one that best suits your particular room and taste. When choosing your subwoofer's location, keep in mind that you will need to connect the subwoofer's built-in amplifier to an AC power outlet.

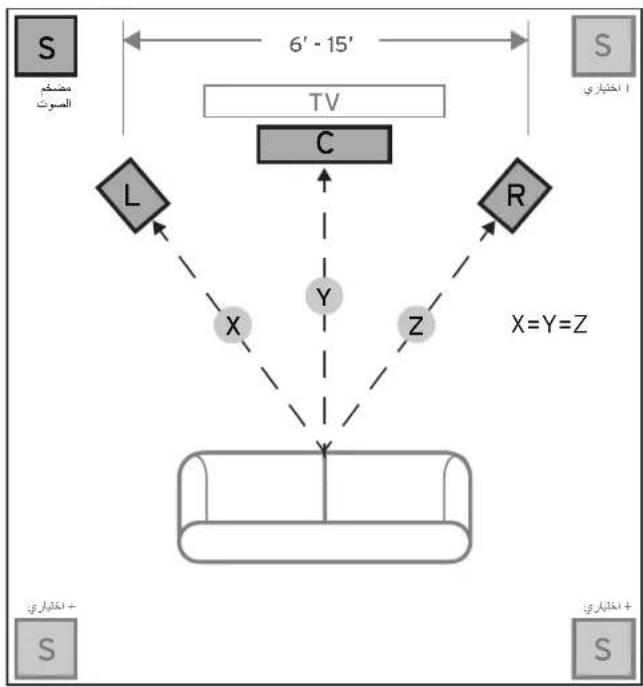

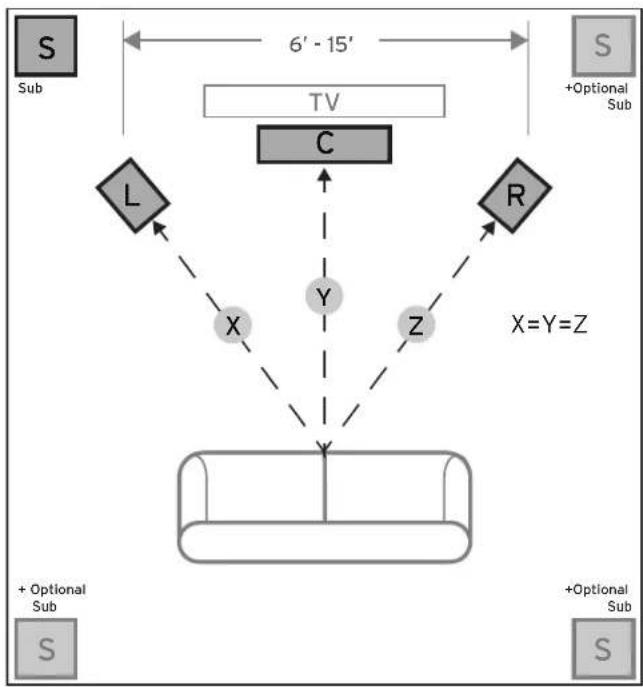

FIGURE 1
SPEAKER PLACEMENT IN LISTENING AREA

CONNECTIONS AND CONTROLS

CAUTION: Ensure that the subwoofer is unplugged from the AC wall outlet before making any connections.

"LINE IN" Connection - Most of today's surround receivers (and pre-amplifiers) have a line level subwoofer output labeled Subwoofer Pre Out, Sub Out, SW Out, etc. If you have this output, connect one end of a subwoofer cable to it and connect the other end of the cable into the subwoofer line input labeled L/LFE. This connection allows the subwoofer to operate with both music and surround sound movies (refer to your receiver manual). In absence of a subwoofer output on your receiver, as an alternative hookup, you can connect Left and Right channel Pre-Amp Outputs from your receiver (if provided) to the L/LFE and R inputs on the subwoofer.

WA-2 Port Connection - For wireless connectivity of your new Klipsch ReferencePremiere subwoofer, the optional WA-2 Wireless subwoofer kit is available. The WA-2 will only operate with select Klipsch, Energy, Mirage and Jamo brand subwooers that have a "WA Port" input. The WA-2 is a 2.4 GHz product designed to wirelessly transmit a signal up to a 50 foot radius. See klipsch.com for more details.

Level - If your subwoofer is connected to a Subwoofer Output of a surround receiver, first set the subwoofer volume level control in the receiver to the "half way" or "0 dB" position. Then increase the volume (or gain) of the subwoofer up until the subwoofer's volume level matches the output of your main speakers. After this setup is completed, the volume control on your system's main amplifier or pre-amplifier will be the volume control for both your subwoofer and speakers together. If your subwoofer is connected to the L/R Pre-Amp Outputs of a receiver there will be no subwoofer volume in that receiver to set before setting the subwoofer's gain control.

"LOWPASS" Control - The crossover point chosen determines where low bass frequencies are "handed off" from the speakers to the subwoofer. If setting the crossover point in the receiver, turn the Lowpass Filter knob on the subwoofer to the farthest point right (160Hz). Set the crossover point based on the size of the main left/right speakers you are using in the system. As a general rule, for larger, floorstanding speakers, set the crossover point between 50Hz-90Hz. If using small bookshelf or "satellite" speakers for the mains, set the crossover point between 90Hz-150Hz. The smaller the speaker, the higher the setting until the bass frequencies blend well between the speakers and your subwoofer once your system is completely hooked up. If your receiver does not have a crossover point setting, set the Lowpass Filter on the subwoofer instead within the same recommended settings (see receiver manual for additional speaker setup info).

"PHASE" 0/180 - This control is used to acoustically match the subwoofer's output to your main speakers. Select the position, either 0^ or 180^ , in which your subwoofer has more output at the listening position.

"POWER" AUTO/ON/OFF - When this switch is in the "ON/AUTO/STANDBY" position, the subwoofer will automatically turn "on" when it senses a signal. It will automatically go into "standby mode" after 15-20 minutes with no signal. When this switch is in the "OFF" position, the subwoofer will remain "off" until the switch is manually turned back to the "ON/AUTO/STANDBY" position.

Power LED indicator - Located on the front baffle, this LED indicates the operating status of the built-in amplifier. The LED will light green when the amplifier is on and receiving a signal. If the LED is dark and not lit, the amplifier is off. For more information on the controls mentioned in this manual and on bass management, see your dealer or visit www.klipsch.com

FIGURE 2 RP-1000SW, RP-1200SW, RP-1400SW AND RP-1600SW SUBWOOFER HOOK UP

OR

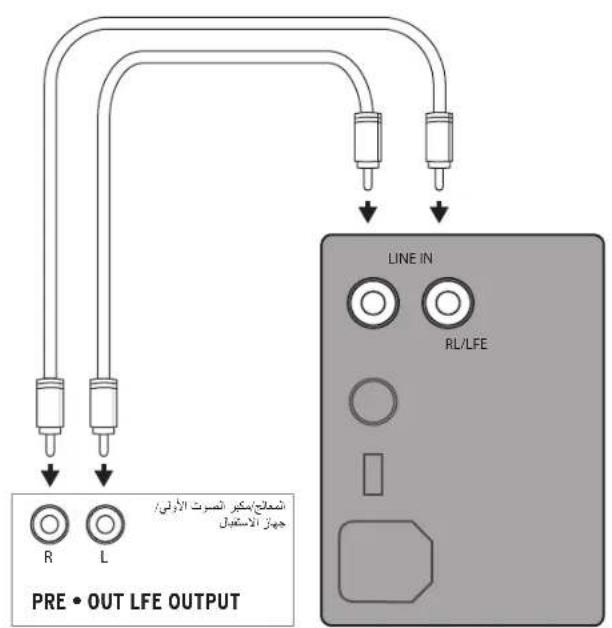

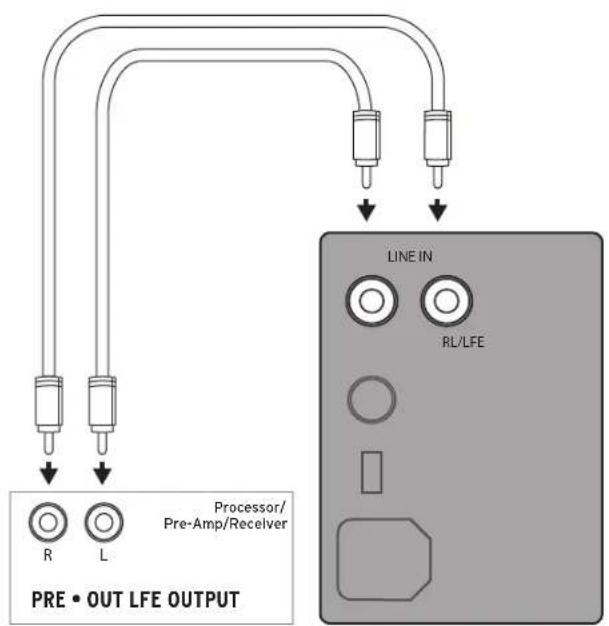

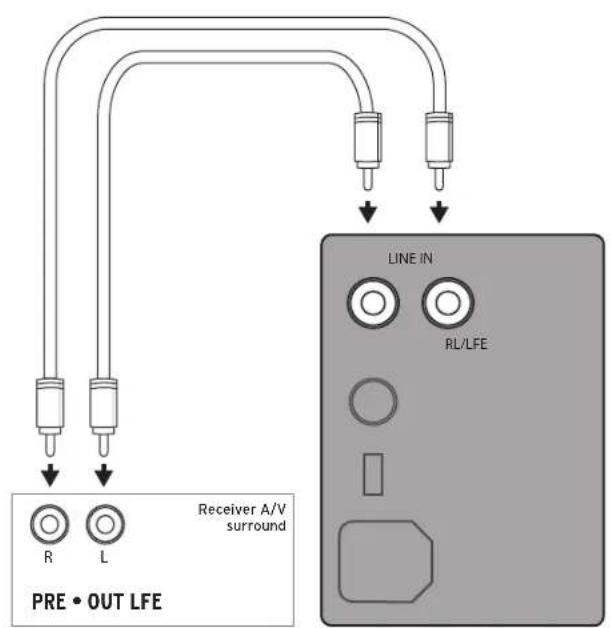

Left and Right pre-outs on Processor/Pre-Amp/Receiver connected to Left and Right line inputs on subwoofer amplifier

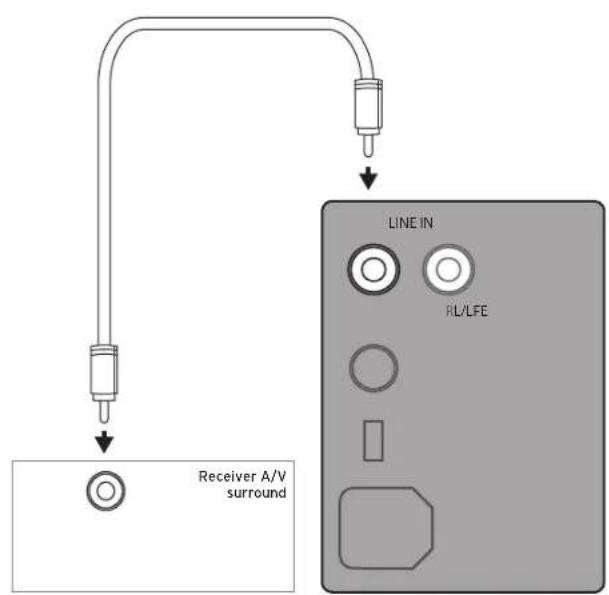

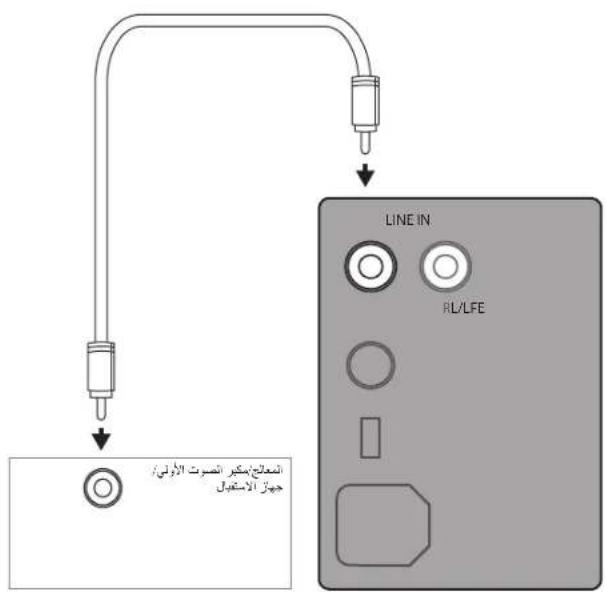

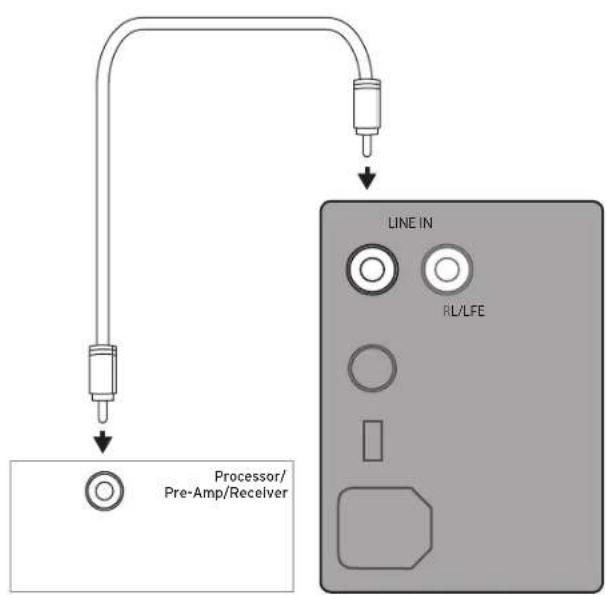

LFE Output on Processor/Pre-Amp/Receiver connected to LFE input on subwoofer amplifier

CARE AND CLEANING

Your subwoofer has a durable vinyl finish that should only require dry dusting or cleaning with a dry cloth. Avoid the use of abrasive or solvent-based cleaners and harsh detergents. The brush attachment of your vacuum should remove any dust from your subwoofer enclosure.

PRODUCT REGISTRATION

Register your product online at www.klipsch.com/register

• Keep up-to-date on new products and promotions.
• Your personal information will never be resold.
• This registration information is not used for warranty purposes.

Please retain your receipt for warranty claims.
