USER MANUAL VE-110452.18 Emerio

Exterior view of a white and gray vacuum cleaner with a black handle, next to a black stand (no text or symbols visible)

Vacuum Cleaner (EN)

Staubsauger (DE)

Aspirateur (FR)

Aspirapolvere (IT)

Content – Inhalt – Contenu – Contenuto

Instruction manual – English ...... - 2 -

Instruction manual – English

SAFETY INSTRUCTIONS

Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual.

In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
2. Children shall not play with the appliance.
3. Cleaning and user maintenance shall not be made by children without supervision.
4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
5. Before inserting the plug into the mains socket, please check that the voltage and frequency comply with the specifications on the rating label.
6. Disconnect the mains plug from the socket when the appliance is not in use and before cleaning.
7. Ensure that the mains cable is not hung over sharp edges and keep it away from hot objects and open flames.
8. Do not immerse the appliance or the mains plug in water or other liquids. There is danger to life due to electric shock!
9. To remove the plug from the plug socket, pull the plug. Do not pull the power cord.
10. Do not touch the appliance if it falls into water. Remove the plug from its socket, turn off the appliance and send it to an authorized service center for repair.
11. Do not plug or unplug the appliance from the electrical outlet with a wet hand.
12. Never attempt to open the housing of the appliance, or to repair the appliance yourself. This could cause electric shock.
13. Never leave the appliance unattended during use.
14. This appliance is not designed for commercial use.
15. Do not use the appliance for other than intended use.
16. Do not wind the cord around the appliance and do not bend it.
17. The use of accessory attachment not recommended by the appliance manufacturer may cause injuries.
18. Do not put any object into openings. Do not use with any opening blocked. Keep free of dust, lint, hair and anything that may reduce airflow.
19. Do not pick up hard or sharp objects such as glass nails, screws, coins, etc.
20. Do not pick up hot coals, cigarette, matches or any hot, smoking, or burning objects.
21. Do not use this appliance without dust bag or filters in place.
22. Use extra care when vacuuming on stairs.
23. Do not pick up flammable or combustible materials (lighter fluid, gasoline, etc.) or use in the presence of explosive liquids or vapor.
24. Do not pick up toxic material (chlorine bleach, ammonia, drain cleaner, etc.).
25. Do not operate the appliance in an enclosed space filled with vapors given off by oil based paints, paint thinner, moth proofing, flammable dust, or other explosive or toxic vapors.
26. Keep your work area well dry.
27. Do not use the cleaner to clean your pets or any animal.
28. When using and you hear a squeaking sound from the vacuum cleaner, or suction power appears to be

reduced, stop the machine immediately and clean all filters and change the dust bag.

1. WARNING: Hold the plug when rewinding the cord. Do not allow the cord to whip when rewinding.

2. Tip: By reducing the suction power you can move the floor brush easier on the floor. Set the suction power to minimal for furniture, to medium for carpet and hard floors. Only use the maximum setting on hard floors in combination with a brush for hard floors.

The general purpose vacuum cleaner (model VE-110452.18), has been tested according to EN 60312-1 and complies with the essential requirements of regulation (EU) 666/2013 for vacuum cleaners.

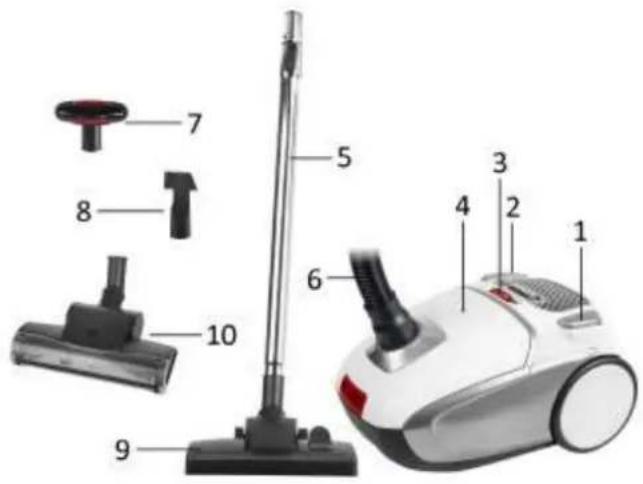

PARTS AND ACCESSORIES

1. On/off switch pedal

2. Cord rewinder pedal

3. Power control button

4. Dust full indicator

5. Telescope tube

6. Hose

7. Textile nozzle

8. Combi nozzle

9. Floor brush

10. Turbo brush

Labeled diagram of a vacuum cleaner with numbered parts for identification

OPERATING MODE

1. Connect the hose accessories:

Press the adaptors at both side of the hose end, and insert the hose into the hose socket.

1. Connect the telescope tube to the curved hose end.

Connect the different nozzle tools/floor brush to the tube for different cleaning purposes. The floor brush has two positions, one for hard and one for soft/textile surfaces – Choose the right one.

1. Turn on the appliance:

Hold the plug and pull out the cord, then insert the plug into the power socket. Make sure that the power supply corresponds to the required power mentioned on the rating label. Press the on/off switch pedal to turn on the power. Adjust the power to the required level depending on the cleaning function.

1. Turn off the appliance:

After using, press the on/off switch pedal, the appliance is turned off. Pull the plug out of the power socket; press the cord pedal, the power cord will be drawn in.

1. To move the appliance from room to room, unplug and carry it by using the handle. Never pull the appliance by its cord when moving.

Tip: By reducing the suction power you can move the floor brush easier on the floor. Set the suction power to minimal for furniture, to medium for carpet and hard floors. Only use the maximum setting on hard floors in combination with a brush for hard floors.

MAINTENANCE

When the dust full indicator turns to red, it is time to clean the dust bag or replace with a new bag. To do that, please follow the instructions:

a) Open the front cover by pressing the lock clip.

b) Remove the dust bag.

c) Then take a new one, insert it into the bag holder and put it in the slot of the cabinet.

d) Close the front cover.

NOTE:

1. The front cover cannot be closed unless the dust bag is installed in right position.

2. The motor protection filter (A) should be removed and rinsed twice a year or whenever it is visibly clogged. If the filter is damaged, a new filter should be replaced.

3. The outlet filter (Hepa filter) (B) should be cleaned in time. To do that, unclip the outlet grille, shake the filter to clean any dust accumulated. Then relocate the filter and clip the grille.

Cross-sectional view of a device housing with labeled component A (no text or symbols beyond label)

Close-up of a black grid-patterned device with a red tool and label B pointing to it (no readable text or symbols beyond label)

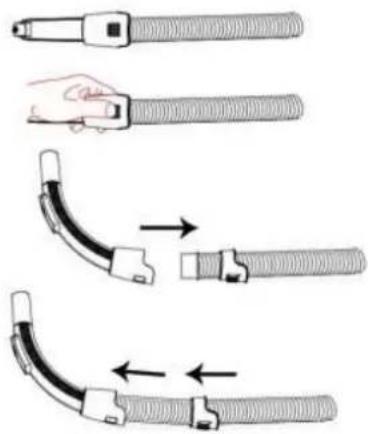

1. If the suction power of the vacuum cleaner gets low please check the hose for obstacles.

You can open the hose by pressing the square part on the hose handle. Take apart the two parts and remove any obstacles.

To assemble the hose again first press the flexible hose into the handle and then click in the connection part.

Diagram illustrating three-step assembly of a cable or hose device with directional arrows indicating movement.

Power Cord Marking

NOTE: Do not exceed the red mark when pulling out the cord. The yellow mark shows the ideal cable length.

WARNING: the plug must be removed from the power socket before any maintenance or replacement.

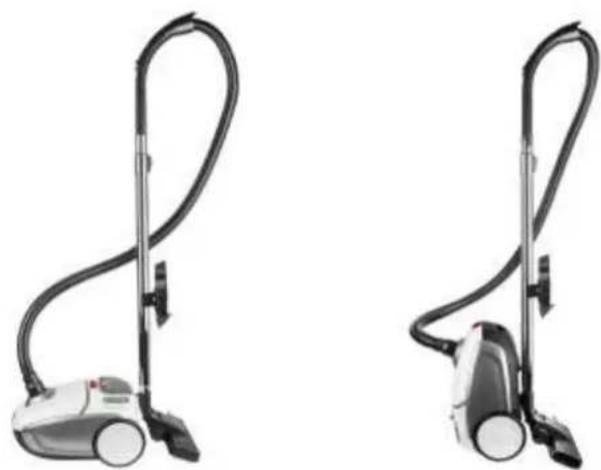

Parking:

This vacuum cleaner can be parked as below style to save you room space.

Two identical black-and-white photos of a vacuum cleaner, shown from front and side views (no text or symbols visible)

TECHNICAL DATA

Voltage: 220-240V \~ 50/60Hz

Power: 600W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer.

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable.

Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance, replacement of said parts or shipping and transportation costs to and from any place of repair are not covered by the warranty and are to be paid.

The crossed out wheelie bin symbol means that this product shall not be disposed of with normal household waste. Electronic and Electrical Equipment not included in the selective sorting process are potentially dangerous for the environment and human health due to the presence of hazardous substances. Please dispose of responsibly at an approved waste or recycling facility.

Emerio Switzerland AG

Oberneuhofstrasse 1

6340 Baar

Switzerland

Labeled diagram of a vacuum cleaner with numbered parts for identification

FUNKTIONSWEISE

Cross-sectional view of a mechanical component with labeled section A (no text or symbols beyond label)

Close-up of a black grid-patterned device with a red tool and label B pointing to it (no readable text or symbols beyond label)

Diagram illustrating three-step assembly of a flexible hose with a hand holding a cable, showing progressive insertion and disassembly.

Two identical black-and-white photos of a vacuum cleaner, shown from front and side views (no text or symbols visible)

TECHNISCHE DATEN

Emerio Switzerland AG

Oberneuhofstrasse 1

6340 Baar

Switzerland

Labeled diagram of a vacuum cleaner with numbered parts for identification

MODE DE FONCTIONNEMENT

Cross-sectional view of a device showing internal components and labeled point A (no text or symbols beyond label)

Close-up of a black grid-patterned device with labeled point B (no text or symbols on the device itself)

Diagram illustrating the step-by-step assembly of a flexible hose with cable connectors and tubing, showing hand placement and movement arrows.

Two identical electric vacuum cleaner units shown from front and side views (no text or symbols visible)

CARACTÉRISTIQUES TECHNIQUES

Tension de service: 220-240V \~ 50/60Hz

Puissance: 600W

GARANTIE ET SERVICE APRÈS-VENTE

Emerio Switzerland AG

Oberneuhofstrasse 1

6340 Baar

Switzerland

Labeled diagram of a vacuum cleaner with numbered parts for identification

UTILIZZO

Cross-sectional view of a mechanical device showing internal components (no text or symbols visible)

Close-up of a black grid-patterned device with a red tool and label B pointing to it (no readable text or symbols beyond label)

Diagram illustrating three-step assembly of a flexible hose with labeled parts and directional arrows indicating movement.

Two identical black-and-white photos of a vacuum cleaner, shown from front and side views (no text or symbols visible)

DATI TECNICI

Emerio Switzerland AG

Oberneuhofstrasse 1

6340 Baar

Switzerland
