USER MANUAL Culer Tourmaline Create

Pure electrical circuit lines without any symbols

Culer Tourmaline

User manual | Manual de instrucciones

CREATE CREATE ATE CREATE CRE CREATE CREATE ATE CREATE CRE CREATE CREATE ATE CREATE CRE CREATE CREATE ATE CREATE CRE CREATE CREATE ATE CREATE CRE CREATE CREATE ATE CREATE CRE CREATE CREATE ATE CREATE CRE CREATE CREATE ATE CREATE CRE CREATE CREATE ATE CREATE CRE CREATE CREATE ATE CREATE CRE CREATE CREATE ATE CREATE CRE

CREATE CREATE ATE CREATE CRE CREATE CREATE ATE CREATE CRE CREATE CREATE ATE CREATE CRE CREATE CREATE ATE CREATE CRE CREATE CREATE ATE CREATE CRE CREATE CREATE ATE CREATE CRE CREATE CREATE ATE CREATE CRE CREATE CREATE ATE CREATE CRE CREATE CREATE ATE CREATE CRE CREATE CREATE ATE CREATE CRE CREATE CREATE ATE CREATE CRE

CREATE

INDEX

ENGLISH

Safety precautions 6

Product parts 7

Instructions for use 8

Tips 8

Cleaning and maintenance 8

ESPAÑOL

Thank you for choosing our hair curler. Before using the appliance, and to ensure the best use, carefully read these instructions.

The safety precautions enclosed herein reduce the risk of death, injury and electrical shock when correctly adhered to. Keep the manual in a safe place for future reference, along with the completed warranty card, purchase receipt and package. If applicable, pass these instructions on to the next owner of the appliance. Always follow basic safety precautions and accident prevention measures when using an electrical appliance. We assume no liability for customer failing to comply with these requirements.

SAFETY PRECAUTIONS

When using any electrical appliance, basic safety precautions should always be observed.

• Do not use in the shower, do not use in the vicinity of a bathtub, washbasin or other utensils filled with water.
• This appliance can be used by children aged from 8 years old and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Close supervision is necessary when any appliance is used by or near children.
• The plastic bag of the product should be placed in a place that is not accessible to infants and young children. This product has an electric heating function. It should be placed where children are not easily touched when not in use. Children should be prevented from touching and playing during use and cooling.
• This product does not have a waterproof function. Do not use it in a humid environment such as a bathroom that is easily exposed to water.
• When liquid enters the inside of the product, it must be sent to the manufacturer's maintenance department or professional maintenance personnel for repair.
• Please use this product for its intended purpose.
• Please use a charger from a regular manufacturer that can provide rated charging voltage and current for charging.
• Please use a charging cable that can be charged by a regular manufacturer with a charging current of 2A or more.
• Do not use this product near flammable or explosive accessories, as this may result in fire or explosion.
• When the product is charging, do not leave it unattended. Be sure to remove the charger when the battery is full.
• Do not pull the charging cable directly.
• Never use accessories or parts manufactured by other manufacturers that are not recommended by the manufacturer of this product. If the product is damaged by such accessories or parts, the company does not guarantee.
• Do not place this product on the surface of objects that cannot be heated during use or cooling.

• Be careful to avoid direct contact with the hot surface of the product, especially eyes, ears, face and neck.

• Do not insert metal objects into the product to avoid electric shock.

• Do not wrap the charging cable around the product after use, which may result in damage to the charging cable.
• Ensure that the product is sufficiently cooled before storing the product.
• When using, choose the appropriate temperature and time, too high temperature, too long time may cause hair damage.
• When using this product for the first time, there may be a slight burnt smell or a little smoke. This is caused by the high temperature of the oil in the rotating mechanism of the appliance. It will disappear after a while, which is normal. Please feel free to use it.
• When the power is different, the heating rate of this product will be different.
• When the product is in use, the display temperature symbol display area flashes "E", indicating that the temperature sensing probe is invalid. The product should be sent to the manufacturer's maintenance department or a qualified professional maintenance organization for repair.

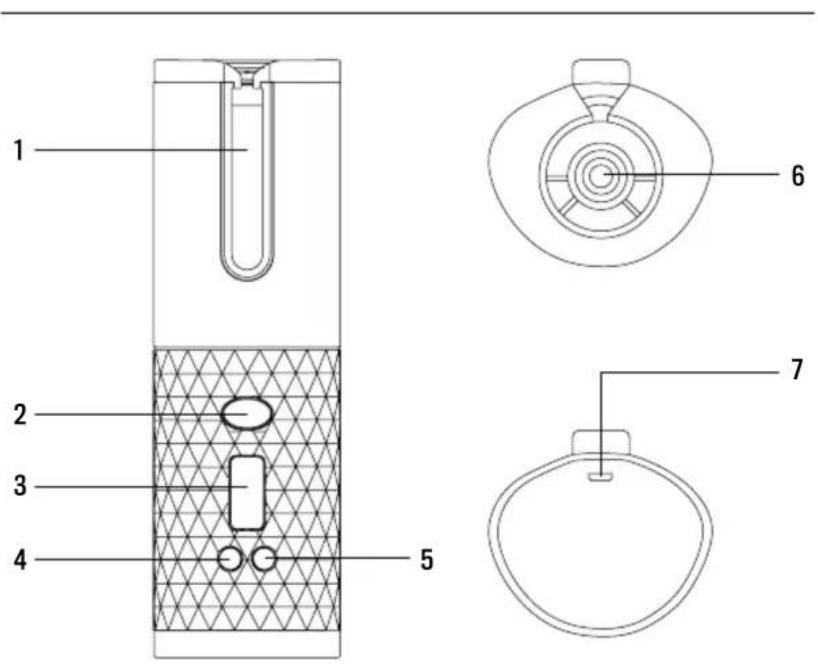

PRODUCT PARTS

1 2 3 4 5 6 7

1. Heater with ceramic coat
2. Start button
3. LCD display

4. Adjustment button

5. Button ON/OFF

6. Curling chamber
7. MicroUSB input

Before using, please fully charge the product to get the best performance and please make sure you read all the instruction you need to pay attention to when using this product.

1. Press and hold power button for 2s to turn on the appliance with a beep sound. The LCD display will switch on.

Note: Press and hold power button (ON/OFF) for 2s to turn off appliance too. If you forget to turn the appliance off, it will shut itself off automatically after 30 minutes.

1. Press power button (do not hold it) to choose Temperature, Direction, ^ C / ^ F and Timer one by one and press Adjustment button to set the value.

Note:

• Temperature: 150 °C, 160 °C, 170 °C, 180 °C, 190 °C, 200 °C.
• Direction: Left or Right.
- Timer: 8, 10, 12, 14, 16 or 18 seconds.

1. It starts to heat following your temperature setting after 5 seconds without any operation.

Note: Heating symbol will blink when it is heating. It will stop blinking and you will hear a double beep when it reaches your temperature setting.

1. Comb through to remove any tangles and divide the hair into sections, no more than 2 cm wide.
2. Let the whole section of hair get through the curling chamber and press Start to activate the motor to draw hair into the curling chamber.
3. The curler wil start beeping, hold the Start button until it stops beeping (you will hear a double beep).

Tips

• Before using, please fully charge the product to get the best performance.
• Before preparing to store this product for a long time, please fully charge the product and ensure that the product is charged once every three months to keep the product in the best condition.
• When the product is in the charging state, the LCD display shows the battery indicator, which will flash.
• When the product is fully charged and the charger is still connected, the battery indicator light will be fixed.
• LCD display will be off after removing charger if the product is off.
• No output of power bank when the battery is low.
• Do not use the product when it is charging, or the life of the battery will decay faster.
• When hair is blocked in the curling chamber, you will hear a continuous beep, while the auto curling process will be stopped. Please release Start button to remove the hair.
• The product will be auto shut off after LCD display flashes three times when the battery is low as set by factory.

CLEANING AND MAINTENANCE

• Do not put this product in a dishwasher or washing machine for cleaning.
• This product does not have waterproof function. When cleaning, care should be taken to prevent water or other liquid from entering the product from the product gap or interface, resulting in short-circuit of the product.
• Please clean up the foreign matter such as hair and dander remaining on the comb teeth after each use.
• Please carry out cleaning, maintenance and care while ensuring that the product has cooled down.
• Do not use sharp or corrosive, volatile thinner cleaners.
• Use a soft, damp cloth (a small amount of non-irritating, volatile, flammable detergent) to clean and wipe the product. When finished, dry with a soft, dry cloth.

Technical diagram of a mechanical component with concentric circles and a labeled dimension line (6), no readable text or symbols beyond the number.

Simple line drawing of a circular object with a small protrusion and a label '7' pointing to the top edge (no text or symbols on the object itself)

Technical diagram of a mechanical component with concentric circles and a labeled dimension line (6), no readable text or symbols beyond the number.

Simple line drawing of a circular object with a small protrusion and a label '7' pointing to the top edge (no text or symbols on the object itself)

Technical diagram of a mechanical component with concentric circles and a labeled dimension line (6), no readable text or symbols beyond the number.

Simple line drawing of a circular object with a small protrusion and a label '7' pointing to the top (no text or symbols on the object itself)

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable re-use of material resources. To return your used device, please use the return and collection systems or contact the retailer from where the product was purchased. They can take this product for environmental safe recycling.
