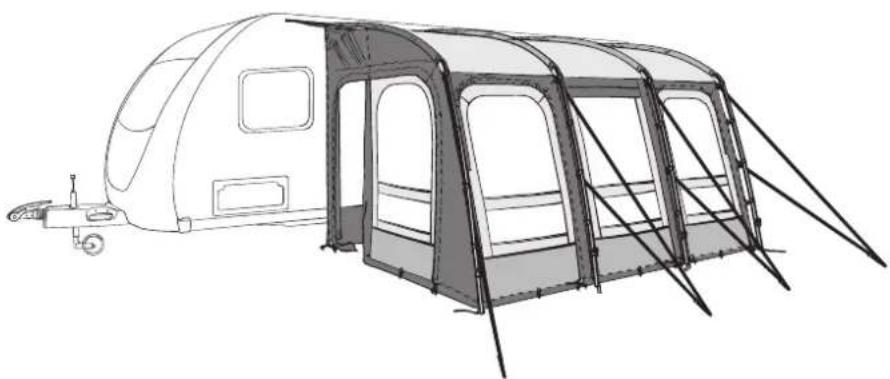

Line drawing of a two-decker camping vehicle with arched windows and deployed equipment (no text or symbols)

Rally Pro 200, 260, 330, 390

EN Awning tent Installation and Operating Manual 7
DE Vorzelt Montage- und Bedienungsanleitung ....10
FR Auvent Instructions de montage et de service ....13
Avancé ES Instrucciones de montaje y de uso .....16
PT Avançado Instruções de montagem e manual de instruções ....19
IT Veranda Istruzioni di montaggio e d'uso ..... 22
Voortent NL Montagehandleiding en gebruiksaanwijzing 25

Fortelt DA Monterings- og betjeningsvejledning 28
SV Förtält Monterings- och bruksanvisning 31
NO Fortelt Monterings- og bruksanvisning .....34
Etuteltta FI Asennus- ja käyttöohje. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
RU Предпалатка Инструкция по монтажу и эксплуатации.....40
Przedsionek PL Instrukcja montażu i obsługi .....43
SK Prístrešok Návod na montáž a uvedenie do prevádzky ....46
CS Předstan Návod k montáži a obsluze .....49
Elősátor Szerelési és használati útmutató .....52

© 2022 Dometic Group. The visual appearance of the contents of this manual is protected by copyright and design law. The underlying technical design and the products contained herein may be protected by design, patent or be patent pending. The trademarks mentioned in this manual belong to Dometic Sweden AB. All rights are reserved.

Illustration showing a vehicle climbing a curved ramp with an arrow indicating motion, alongside a separate sketch of a covered structure (no text or symbols)

Technical diagram illustrating a vehicle interior and its gavel mechanism, with labeled steps and magnified detail.

Technical illustration showing a hand holding a cylindrical mechanical component with two arrows indicating motion or force direction (no text or symbols present)

Technical diagram showing a cable being adjusted for a seatbelt, with an inset diagram illustrating the structural change.

Illustration of a person using a tool to lift a vehicle, with an airplane flying overhead and arrows indicating motion (no text or symbols)

6 1. 2.

Technical diagram showing a train interior with structural details and a close-up of a person adjusting the ladder, with an inset magnified view highlighting hand positioning.

8 1. 2.

9 1. 2.

Illustration of a helicopter with structural components and a close-up inset showing its detail (no text or symbols present)

11

Illustration of a helicopter fuselage being adjusted to a hand using a belt buckle (no text or symbols present)

13 45°

Technical line drawing of a helicopter fuselage and its side profile view (no text or symbols)

Technical line drawing of an aircraft fuselage with structural details and component outlines (no text or symbols)

Illustration showing a helicopter fuselage being adjusted for a cable or cable joint, with no visible text or symbols.

Illustration showing a person using a tool to lift a vehicle onto a surface, with an arrow indicating the motion direction (no text or symbols present)

18 Rally Pro 200 | Rally Pro 260, 330, 390

Technical illustration showing a helicopter cabin and its roof structure with airflow direction indicator (no text or symbols)

Technical illustration showing a helicopter fuselage being inserted into a wing, with no visible text or symbols.

Illustration showing a person touching a aircraft wing with an upward arrow, no text or symbols present

Illustration showing a crane structure being lifted by a tool, with an arrow indicating the process (no text or symbols present)

Illustration showing a helicopter cabin being adjusted for a cable or cable joint, with hands performing the process (no text or symbols present)

24

Please read these instructions carefully and follow all instructions, guidelines, and warnings included in this product manual in order to ensure that you install, use, and maintain the product properly at all times. These instructions MUST stay with this product.

By using the product, you hereby confirm that you have read all instructions, guidelines, and warnings carefully and that you understand and agree to abide by the terms and conditions as set forth herein. You agree to use this product only for the intended purpose and application and in accordance with the instructions, guidelines, and warnings as set forth in this product manual as well as in accordance with all applicable laws and regulations. A failure to read and follow the instructions and warnings set forth herein may result in an injury to yourself and others, damage to your product or damage to other property in the vicinity. This product manual, including the instructions, guidelines, and warnings, and related documentation, may be subject to changes and updates. For up-to-date product information, please visit documents.dometic.com, dometic.com.

Explanation of symbols

DANGER!

Safety instruction: Indicates a hazardous situation that, if not avoided, will result in death or serious injury.

WARNING!

Safety instruction: Indicates a hazardous situation that, if not avoided, could result in death or serious injury.

CAUTION!

Safety instruction: Indicates a hazardous situation that, if not avoided, could result in minor or moderate injury.

NOTICE!

Indicates a situation that, if not avoided, can result in property damage.

NOTE

Supplementary information for operating the product.

Safety instructions

DANGER! Failure to obey this instruction will cause death or serious injury. Hazard of carbon monoxide poisoning

- Never use a fuel-burning appliance such as barbecues or gas heaters inside the awning tent. The burning process produces carbon monoxide which accumulates inside the awning tent as there is no flue.

WARNING! Failure to obey these warnings could result in death or serious injury. Fire hazard

• Make sure you know the fire precaution arrangements on the site.
• Do not cook inside the awning tent or use open flames.

Beware of suffocation

- Make sure ventilation openings are open all the time to avoid suffocation.

CAUTION! Failure to obey these cautions could result in minor or moderate injury. Risk of injury

• This device is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the device by a person responsible for their safety.
• Do not allow children to play around the awning tent and ensure that suitable protective footwear is worn. Guy lines are a trip hazard and pegs can be sharp.
• Cleaning and user maintenance may not be carried out by unsupervised children.
• Keep passage ways clear.

Scope of delivery

Component Quantity
200 260 330 390

A	w	n	i	n	g	t	e
C	u	r	v	e	d	r	o
L	e	g	p	o	l	e	w
A	d	j	u	s	t	a	b
Monsoon pole				l	-	-	-
P	e	g	s	e	t
D	r	a	u	g	h	t	s
T	r	a	n	s	p	o	r

n

O

.

[Non-Text]

[Non-Text]

k

t

Intended use

This awning tent is suitable for:

• motorhomes and caravans
• light to moderate weather
- touring

This awning tent is not suitable for:

• very strong winds or snowfall
- seasonal pitch* or commercial use
* All-Season models have been designed for use on seasonal pitches.

This product is only suitable for the intended purpose and application in accordance with these instructions.

This manual provides information that is necessary for proper installation and/or operation of the product. Poor installation and/or improper operating or maintenance will result in unsatisfactory performance and a possible failure.

The manufacturer accepts no liability for any injury or damage to the product resulting from:

• Incorrect assembly or connection, including excess voltage
• Incorrect maintenance or use of spare parts other than original spare parts provided by the manufacturer
  • Alterations to the product without express permission from the manufacturer
• Use for purposes other than those described in this manual

Dometic reserves the right to change product appearance and product specifications.

Using the awning tent

Before first use

Familiarize yourself with the product by carrying out a test set up before the product is used for the first time. Check if the scope of delivery is complete.

Choosing a site

Choose a flat site that is protected from wind:

1. If necessary, use a windbreak.
2. Choose a shaded site to avoid UV degradation of the fabric.
3. Avoid pitching under trees as falling branches, resin, etc. can damage the product.
4. Clear the site of sharp stones and debris to avoid damaging the groundsheet.
5. Set up the product with the doors facing away from the wind.

Setting up the awning tent

NOTICE! Material damage

Do not open or close the zippers by force.

NOTE

• The awning tent comes with general purpose pegs. These will be suitable for many sites but for some types of ground special pegs will be needed. Ask your dealer.

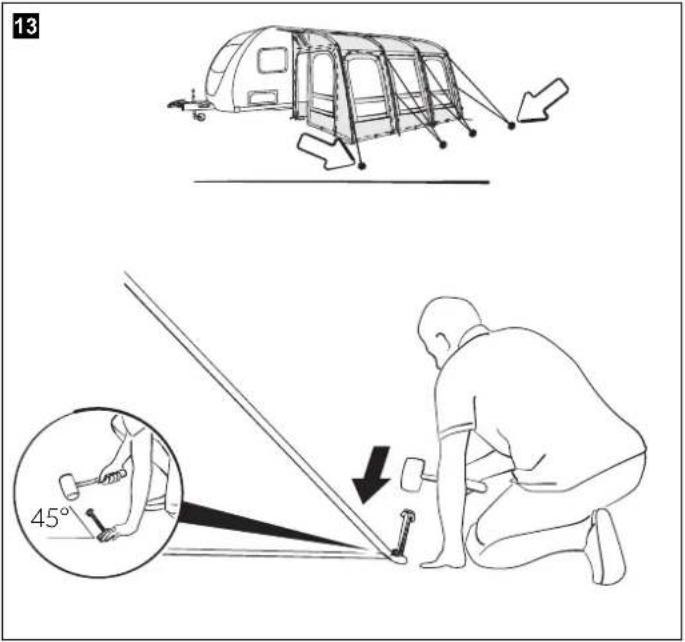

• Drive the pegs at a 45^ angle away from the awning tent into the ground.
• Peg each guy line in-line with the seam it starts from.

Keep the following tips in mind while setting up the awning tent:

• The figures provide a general overview of the set-up. The actual set-up will vary slightly based on the model of awning tent.
• Get help. The set-up is easier with more people.
• Push the poles into the sleeves from front to rear.
• After standing the awning tent upright, check the corner pegs and repeg if necessary. The groundsheet on the inside should be taut and in a rectangular shape.
• Peg the guy lines so that the awning tent is under tension without distorting the shape.
• If available, attach the storm straps.
• Check the guy lines from time to time to ensure adequate tension, if necessary use the runners to adjust.

Set up the awning tent as follows:

1. To protect the awning tent from dirt and damage, lay down a ground-sheet or footprint before unpacking.
2. Unpack the awning tent.
3. Separate and identify the different components.

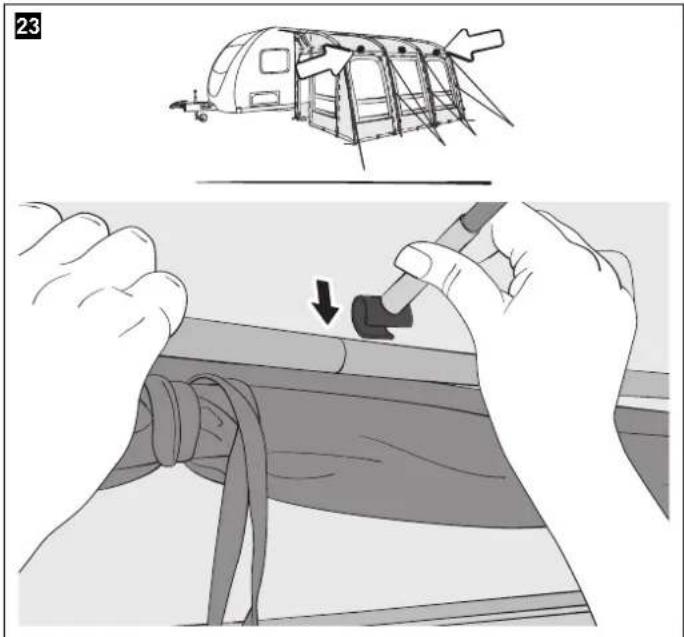

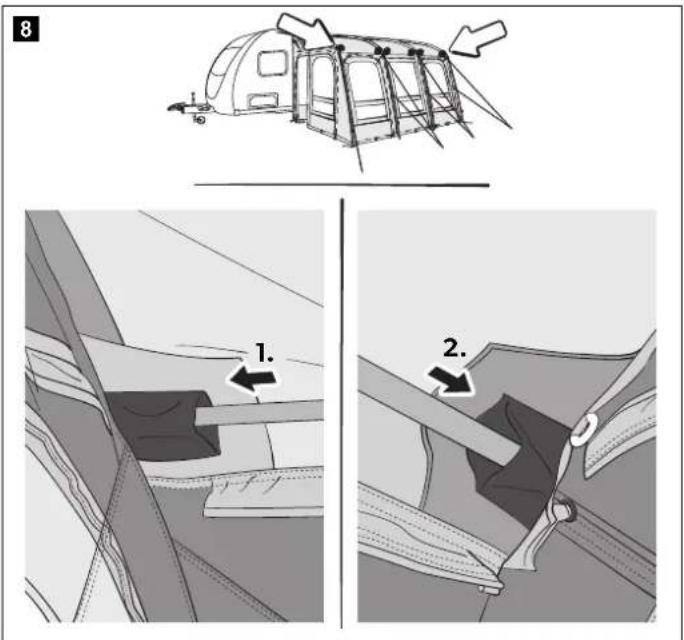

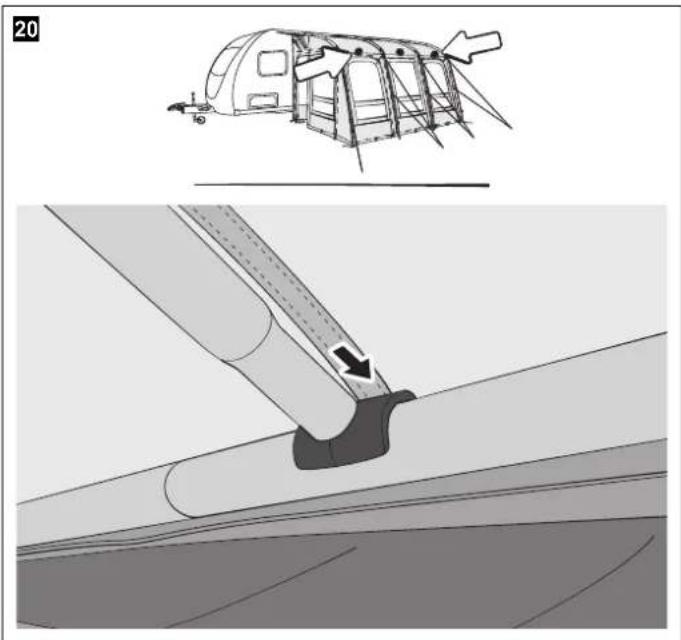

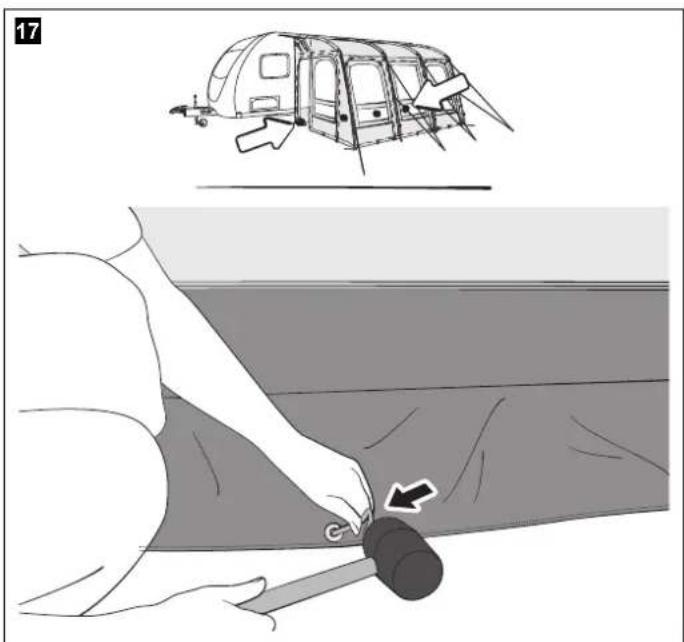

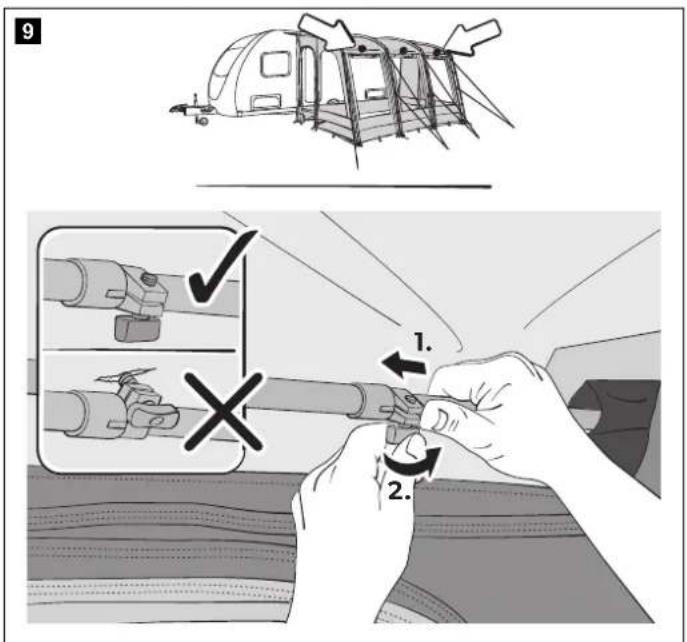

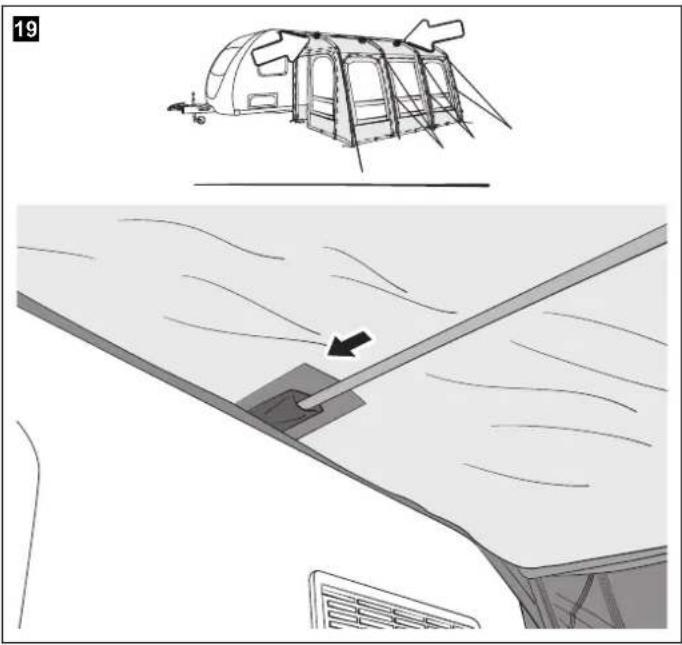

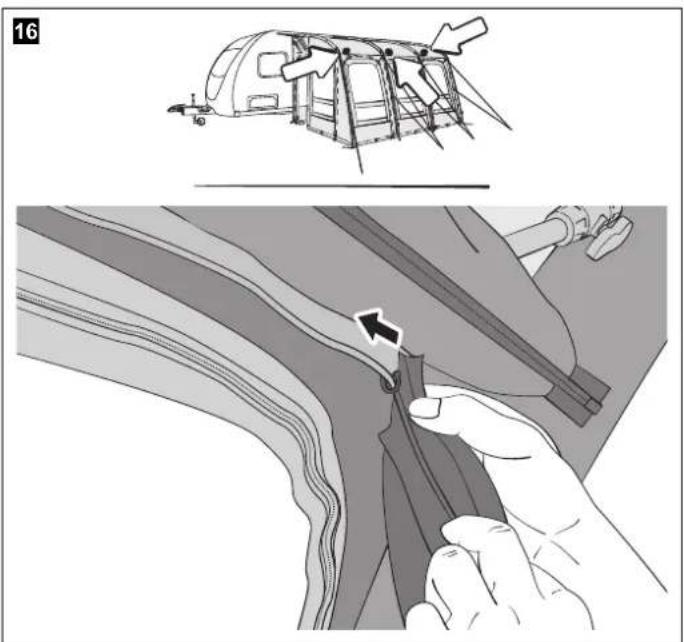

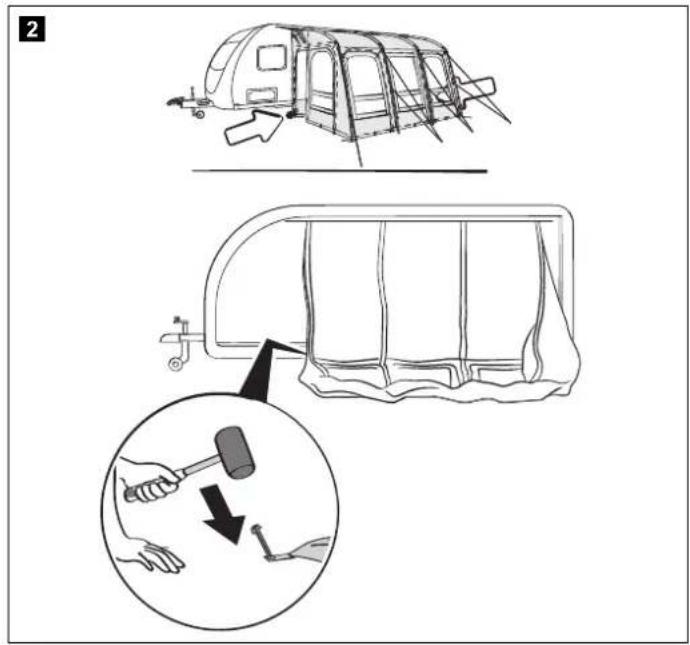

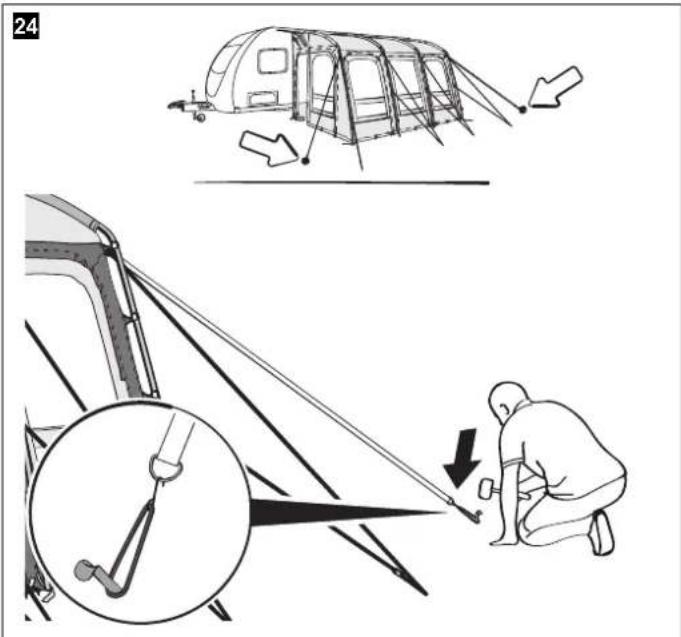

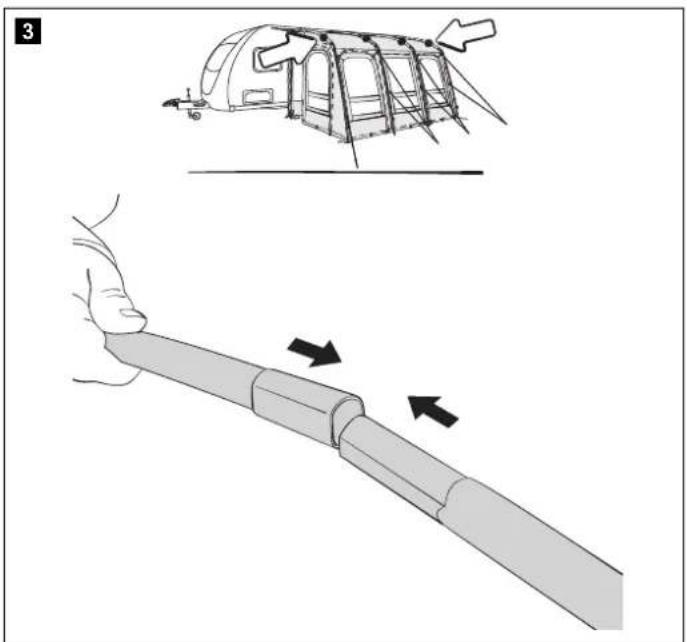

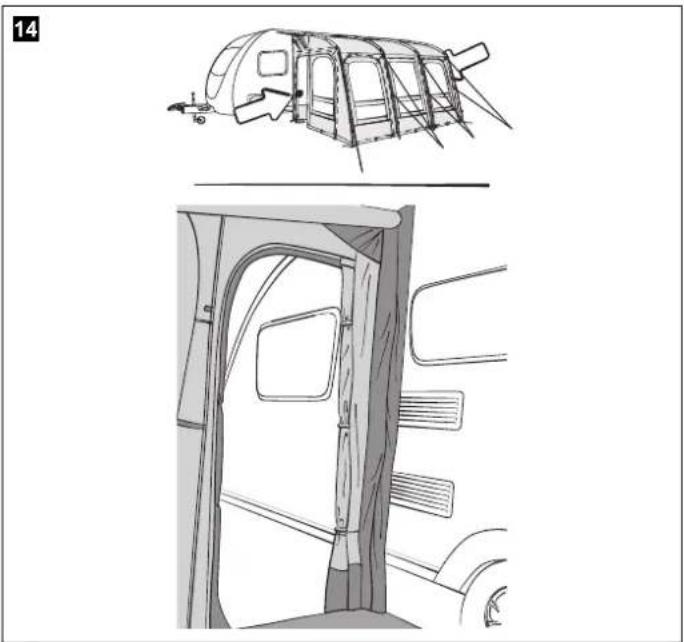

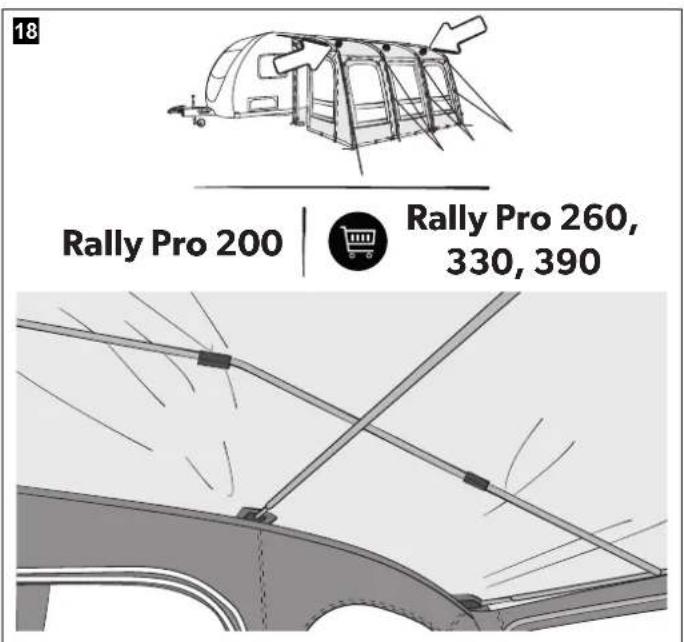

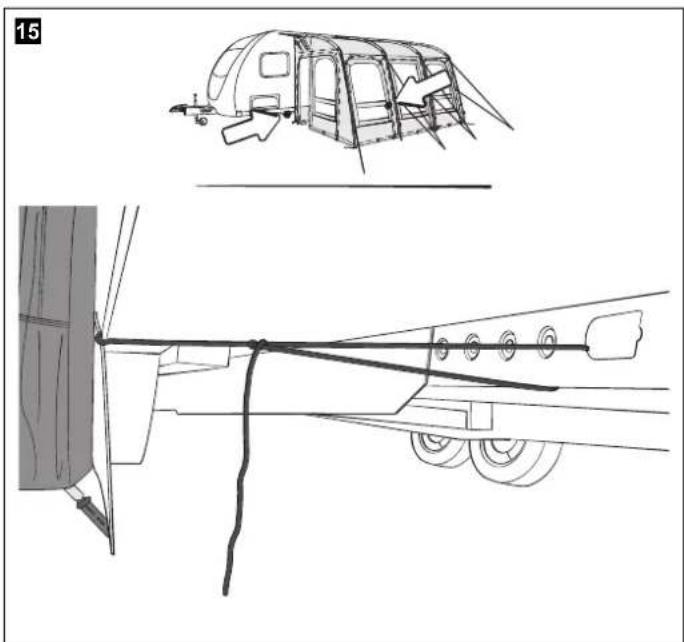

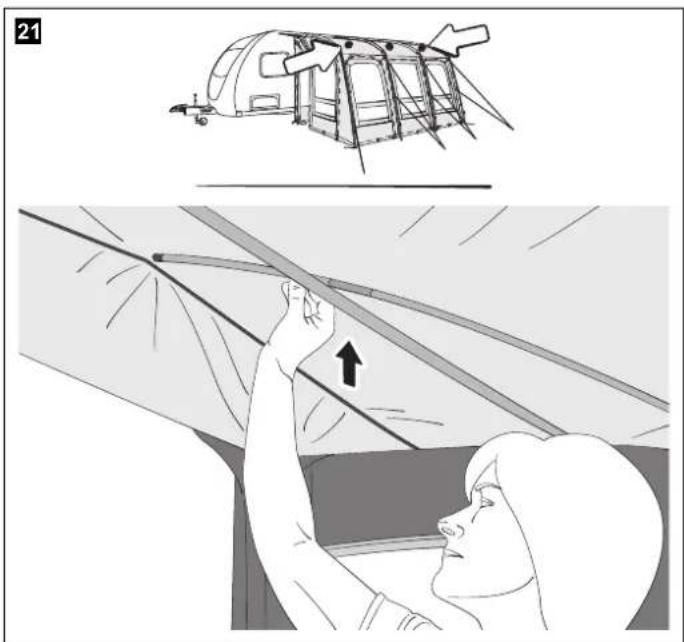

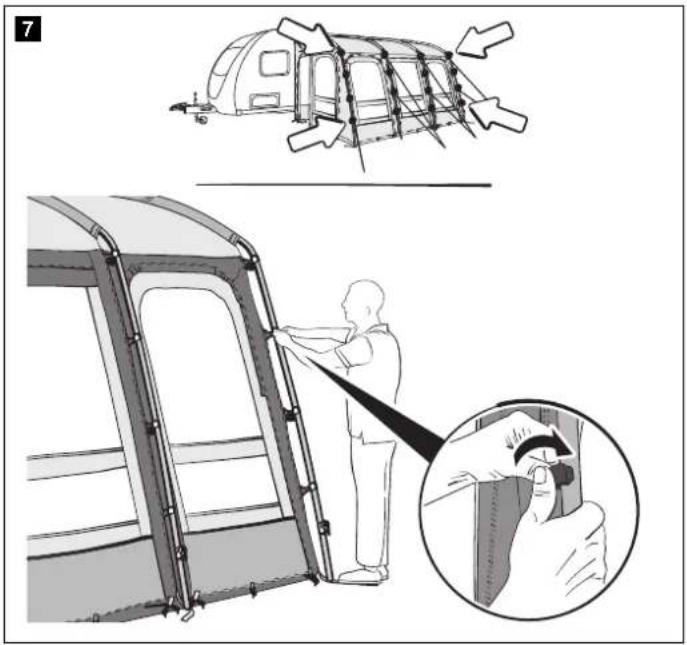

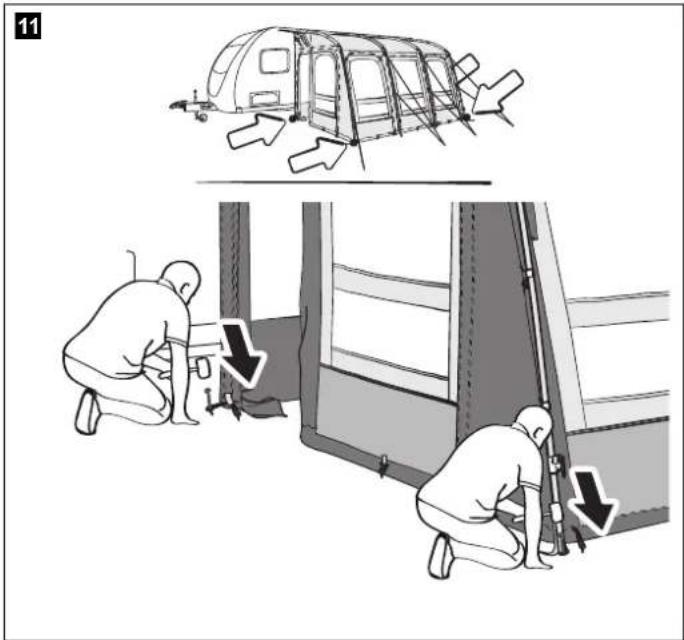

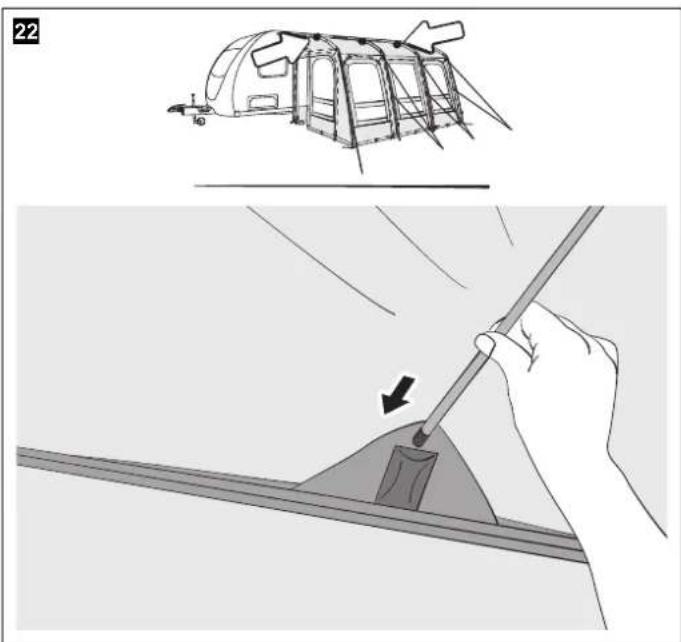

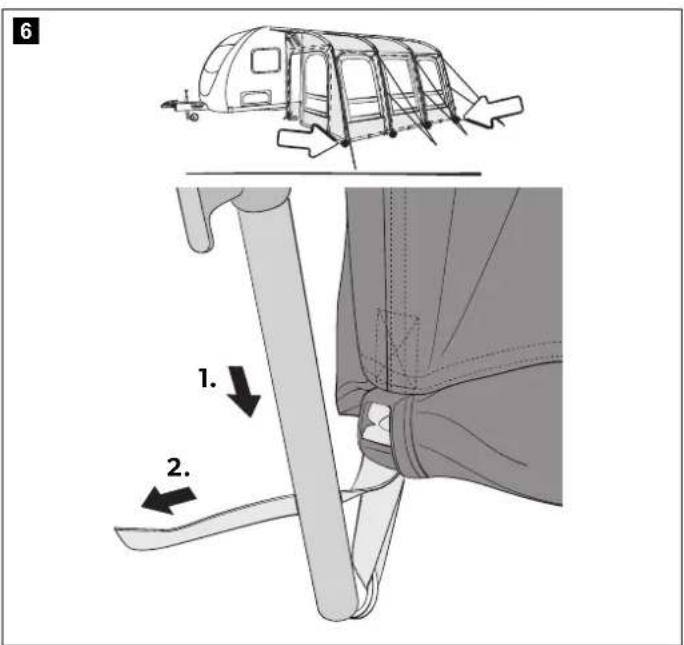

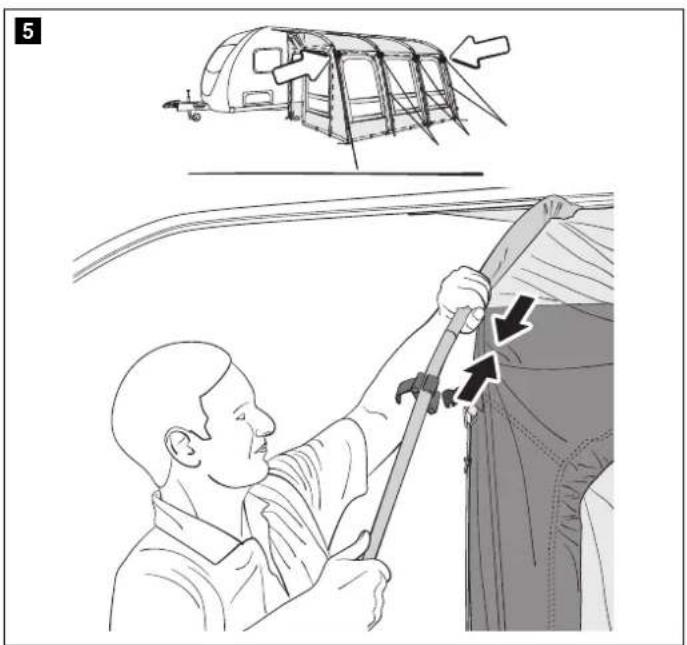

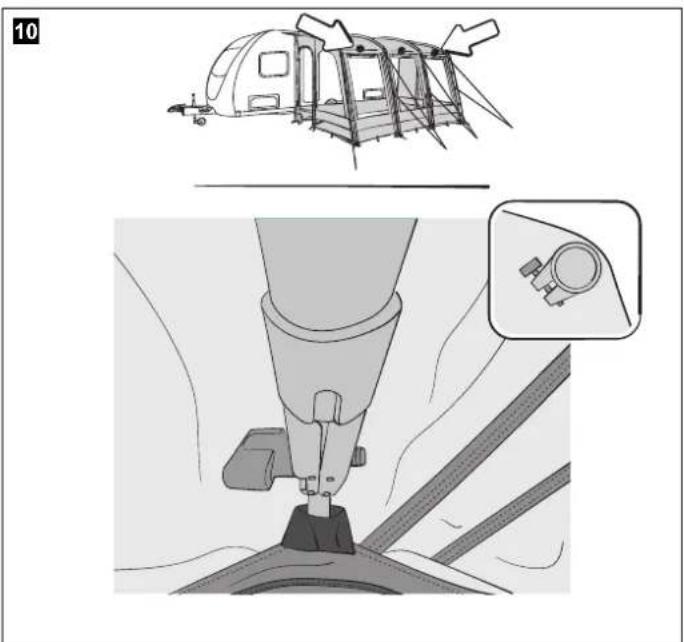

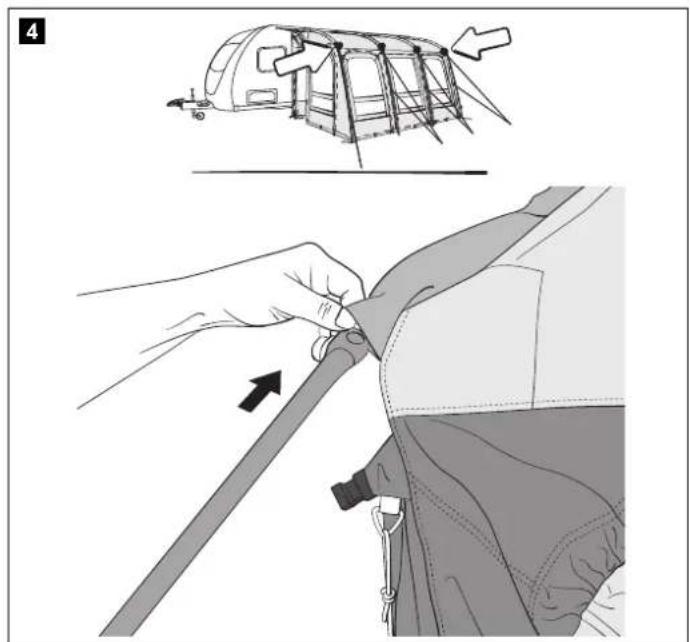

4. Proceed as shown to set up the awning tent (fig. 1, page 3 to fig. 24, page 6).

Dismantling the awning tent

NOTICE! Material damage

Do not use force when dismantling the awning tent. Otherwise you might damage any material.

1. Reverse the set up procedure.
2. Push the poles out of the sleeves, do not pull.
3. Ensure that all parts are clean before packing in the carry bag.
4. If the awning tent is wet or damp, dry fully as soon as possible.

Cleaning and maintenance

NOTICE! Damage hazard

• Do not use sharp or hard objects or cleaning agents for cleaning.
• Do not use alcohol based materials, chemicals, soap and detergents for cleaning.

• Remove bird droppings and tree resin as soon as possible to avoid permanent damage to the material.

• If necessary, clean the product with clean water and a soft brush.

• Apply impregnation against water and UV radiation before each trip.

Storing the awning tent

NOTE

• Fully set up the awning tent for cleaning.

• Choose a sunny day for cleaning to ensure the material will dry thoroughly.

• Clean the awning tent.

• Air fully and ensure the awning tent is totally dry before packing away.
• Store in a well ventilated dry place.

Troubleshooting

NOTE

• During first exposure to water there may be some moisture at the seams. Through this moisture the threads will swell and fill the holes that are created in the sewing process.
• A fully equipped spare parts kit should include:
• Waterproof
  – Repair tape and repair solution
  – Silicone spray for the zippers
• Spare pegs

Problem Solution

Water leak ▶ Check for leaky seams, damaged tapings and moist areas. ▶ If you cannot find any leaks, see chapter “Condensation” on page 8. ▶ If you find any leaks, apply seam sealant.
Rip in the fabric ▶ Use repair tape to seal the fabric. ▶ Have repairs carried out by an authorized specialist.
Pole has broken	▶ Use a metal peg as a splint by taping it to the broken pole. ▶ Purchase a new pole.
Rear of awning tent is too far or too close to motor-home or caravan	▶ First peg the rear pegging points before applying too much tension to the front poles. ▶ Adjust the front poles.
Awning tent is sagging in the roof	▶ Re-peg the awning tent ensuring roof and walls are taut. ▶ Use special Monsoon poles (optional accessory).
Awning tent is moving in the rail	▶ Re-peg the awning tent ensuring roof and walls are taut. ▶ Use special rail stoppers (optional accessory).
Connecting spring has broken	▶ These parts are wear parts used to install the poles. If these springs become overstretched or break, they can be replaced.

Condensation

All awning tents suffer from internal condensation if one or more of the following conditions apply:

• high air humidity
  • high ground moisture
• a drop in temperature

Severe condensation can run down the inside of the roof and drip off ties, tapes and other internal fittings and can be mistaken for leaking.

▶ Install a waterproof groundsheet.

▶ Increase ventilation by opening doors and/or windows.

Disposal

Place the packaging material in the appropriate recycling waste bins wherever possible.
▶ Consult a local recycling center or specialist dealer for details about how to dispose of the product in accordance with the applicable disposal regulations.

Warranty

The statutory warranty period applies. If the product is defective, please contact your retailer or the manufacturer's branch in your country (see dometic.com/dealer).

For repair and warranty processing, please include the following documents when you send in the product:

• A copy of the receipt with purchasing date
- A reason for the claim or description of the fault

Note that self-repair or nonprofessional repair can have safety consequences and might void the warranty.

The warranty covers manufacturing defects, materials and parts. The warranty does not cover fading of the cover and wear and tear due to UV radiation, misuse, accidental damage, storm damage, or permanent, semi-permanent or commercial use. It does not cover any resulting damage. Please contact your dealer for claims. This does not affect your statutory rights.
