EN User Manual | Steam oven 2

Welcome to Electrolux! Thank you for choosing our appliance.

Get usage advice, brochures, trouble shooter, service and repair information at electrolux.com/support

For more recipes, hints, troubleshooting download My Electrolux Kitchen app.

Subject to change without notice.

CONTENTS

1. SAFETY INFORMATION......3
2. SAFETY INSTRUCTIONS......4
3. PRODUCT DESCRIPTION....7
4. CONTROL PANEL....8
5. BEFORE FIRST USE....8
6. DAILY USE....10
7. ADDITIONAL FUNCTIONS....14
8. CLOCK FUNCTIONS....15
9. USING THE ACCESSORIES....16
10. HINTS AND TIPS.... 17
11. CARE AND CLEANING.... 19
12. TROUBLESHOOTING.... 23
13. ENERGY EFFICIENCY....24
14. ENVIRONMENTAL CONCERNS....25

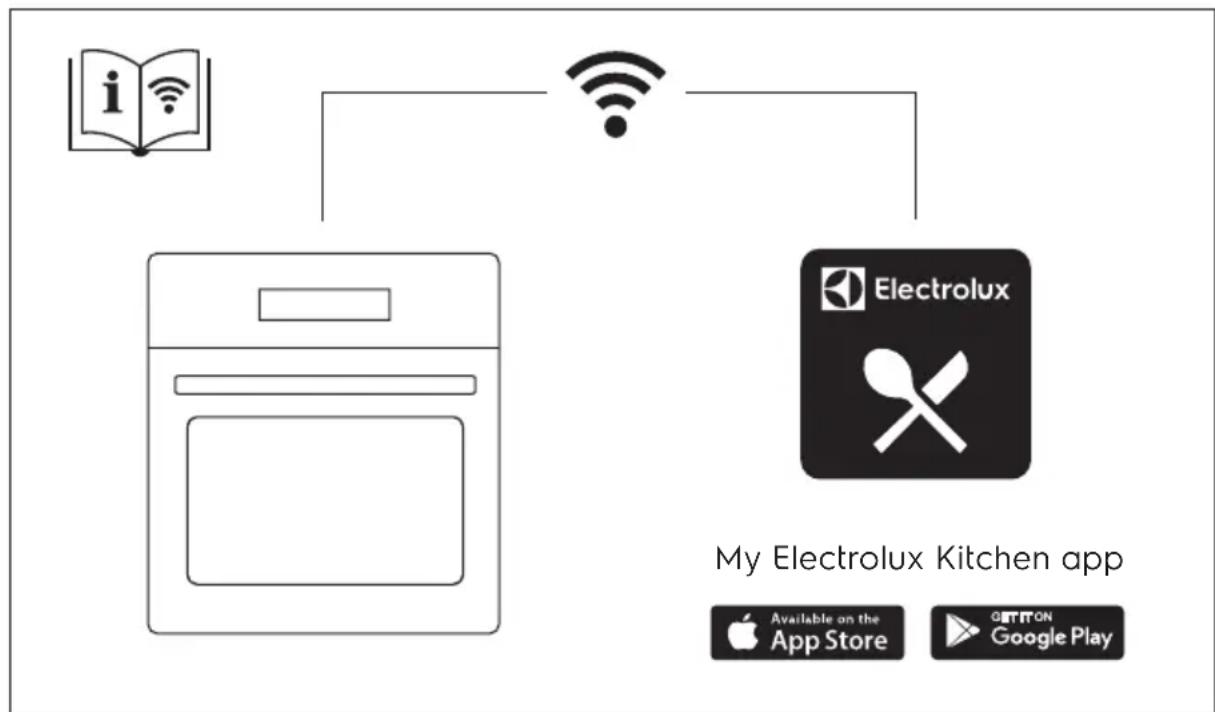


1. ⚠SAFETY INFORMATION

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damage that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.

1.1 Children and vulnerable people safety

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children of less than 8 years of age and persons with very extensive and complex disabilities shall be kept away from the appliance unless continuously supervised.
• Children should be supervised to ensure that they do not play with the appliance and mobile devices with My Electrolux Kitchen.
• Keep all packaging away from children and dispose of it appropriately.
• WARNING: The appliance and its accessible parts become hot during use. Keep children and pets away from the appliance when in use and when cooling down.
• If the appliance has a child safety device, it should be activated.
• Children shall not carry out cleaning and user maintenance of the appliance without supervision.

1.2 General Safety

• This appliance is for cooking purposes only.
- This appliance is designed for single household domestic use in an indoor environment.

• This appliance may be used in, offices, hotel guest rooms, bed & breakfast guest rooms, farm guest houses and other similar accommodation where such use does not exceed (average) domestic usage levels.
• Only a qualified person must install this appliance and replace the cable.
• Do not use the appliance before installing it in the built-in structure.
• Disconnect the appliance from the power supply before carrying out any maintenance.
• If the supply cord is damaged, it must be replaced by the manufacturer, its Authorised Service Centre or similarly qualified persons to avoid an electrical hazard.
• WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.
• WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements or the surface of the appliance cavity.
• Always use oven gloves to remove or insert accessories or ovenware.
• Use only the food sensor (core temperature sensor) recommended for this appliance.

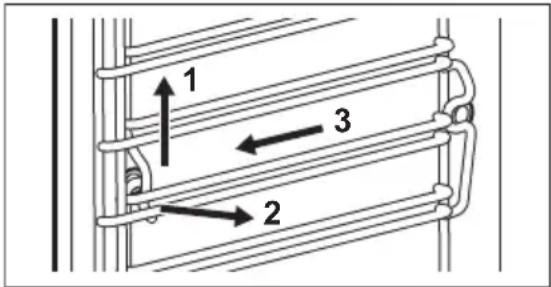

• To remove the shelf supports first pull the front of the shelf support and then the rear end away from the side walls. Install the shelf supports in the opposite sequence.
• Do not use a steam cleaner to clean the appliance.
• Do not use harsh abrasive cleaners or sharp metal scrapers to clean the glass door since they can scratch the surface, which may result in shattering of the glass.

2. SAFETY INSTRUCTIONS

2.1 Installation

WARNING!

Only a qualified person must install this appliance.

- Remove all the packaging.

• Do not install or use a damaged appliance.
• Follow the installation instructions supplied with the appliance.
  • Always take care when moving the appliance as it is heavy. Always use safety gloves and enclosed footwear.

4 ENGLISH

• Do not pull the appliance by the handle.
  • Install the appliance in a safe and suitable place that meets installation requirements.
• Keep the minimum distance from other appliances and units.
• Before mounting the appliance, check if the appliance door opens without restraint.
• The appliance is equipped with an electric cooling system. It must be operated with the electric power supply.
• The built-in unit must meet the stability requirements of DIN 68930.

Cabinet minimum height (Cabinet under the worktop minimum height)	578 (600) mm
Cabinet width 560 mm
Cabinet depth 550 (550) mm
Height of the front of the appliance	594 mm
Height of the back of the appliance	576 mm
Width of the front of the appliance	595 mm
Width of the back of the appliance	559 mm
Depth of the appliance 567 mm
Built in depth of the appliance	546 mm
Depth with open door 1027 mm
Ventilation opening minimum size. Opening placed on the bottom rear side	560x20 mm
Mains supply cable length. Cable is placed in the right corner of the back side	1500 mm
Mounting screws 4x25 mm

2.2 Electrical connection

WARNING!

Risk of fire and electric shock.

• All electrical connections should be made by a qualified electrician.
  • The appliance must be earthed.
  • Make sure that the parameters on the rating plate are compatible with the

electrical ratings of the mains power supply.

• Always use a correctly installed shockproof socket.
- Do not use multi-plug adapters and extension cables.
• Make sure not to cause damage to the mains plug and to the mains cable. Should the mains cable need to be replaced, this must be carried out by our Authorised Service Centre.
- Do not let mains cables touch or come near the appliance door or the niche below the appliance, especially when it operates or the door is hot.
- The shock protection of live and insulated parts must be fastened in such a way that it cannot be removed without tools.
- Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.
- If the mains socket is loose, do not connect the mains plug.
- Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.
- Use only correct isolation devices: line protecting cut-outs, fuses (screw type fuses removed from the holder), earth leakage trips and contactors.
• The electrical installation must have an isolation device which lets you disconnect the appliance from the mains at all poles. The isolation device must have a contact opening width of minimum 3 mm.
- This appliance is supplied with a main plug and a main cable.

2.3 Use

WARNING!

Risk of injury, burns and electric shock or explosion.

• Do not change the specification of this appliance.
  • Make sure that the ventilation openings are not blocked.
• Do not let the appliance stay unattended during operation.

• Deactivate the appliance after each use.

• Be careful when you open the appliance door while the appliance is in operation. Hot air can release.

• Do not operate the appliance with wet hands or when it has contact with water.
• Do not apply pressure on the open door.
• Do not use the appliance as a work surface or as a storage surface.
• Open the appliance door carefully. The use of ingredients with alcohol can cause a mixture of alcohol and air.
• Do not let sparks or open flames to come in contact with the appliance when you open the door.
  • Always use glass and jars approved for preserving purposes.
• Do not put flammable products or items that are wet with flammable products in, near or on the appliance.
• Do not share your Wi-Fi password.

WARNING!

Risk of damage to the appliance.

- To prevent damage or discoloration to the enamel:

• do not put ovenware or other objects in the appliance directly on the bottom.
  – do not put aluminium foil directly on the bottom of cavity of the appliance.
  – do not put water directly into the hot appliance.
  – do not keep moist dishes and food in the appliance after you finish the cooking.
• be careful when you remove or install the accessories.

- Discoloration of the enamel or stainless steel has no effect on the performance of the appliance.

- Use a deep pan for moist cakes. Fruit juices cause stains that can be permanent.

• Always cook with the appliance door closed.

- If the appliance is installed behind a furniture panel (e.g. a door) make sure the door is never closed when the appliance operates. Heat and moisture can build up behind a closed furniture panel and cause subsequent damage to the appliance, the housing unit or the floor. Do not close the furniture panel until the appliance has cooled down completely after use.

2.4 Care and cleaning

WARNING!

Risk of injury, fire, or damage to the appliance.

• Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.
• Make sure the appliance is cold. There is the risk that the glass panels can break.
• Replace immediately the door glass panels when they are damaged. Contact the Authorised Service Centre.
• Be careful when you remove the door from the appliance. The door is heavy!
• Clean regularly the appliance to prevent the deterioration of the surface material.
• Clean the appliance with a moist soft cloth. Use only neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects.
• If you use an oven spray, follow the safety instructions on its packaging.

2.5 Steam Cooking

WARNING!

Risk of burns and damage to the appliance.

• Released Steam can cause burns:
• Be careful when you open the appliance door when the function is activated. Steam can release.
• Open the appliance door with care after the steam cooking operation.

2.6 Internal lighting

WARNING!

Risk of electric shock.

- Concerning the lamp(s) inside this product and spare part lamps sold separately: These lamps are intended to withstand extreme physical conditions in household appliances, such as temperature, vibration, humidity, or are intended to signal information about the operational status of the appliance. They are not intended to be used in other applications

and are not suitable for household room illumination.

• This product contains a light source of energy efficiency class G.
- Use only lamps with the same specifications.

2.7 Service

• To repair the appliance contact the Authorised Service Centre.
- Use original spare parts only.

2.8 Disposal

WARNING!

Risk of injury or suffocation.

• Contact your municipal authority for information on how to dispose of the appliance.
• Disconnect the appliance from the mains supply.
• Cut off the mains electrical cable close to the appliance and dispose of it.

3. PRODUCT DESCRIPTION

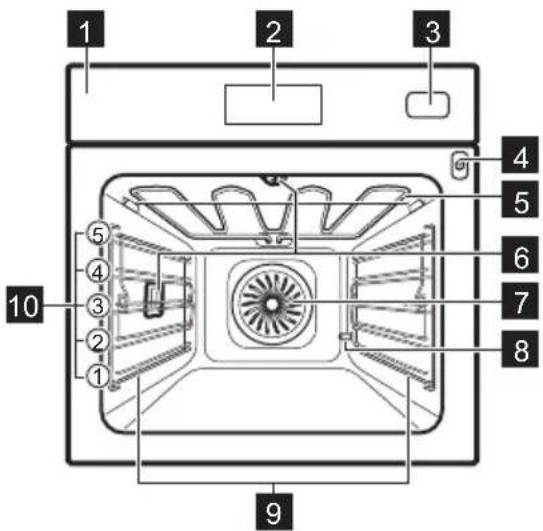

3.1 General overview

1 2 3 4 5 6 7 8 9 10 ① ② ③ ④ ⑤ ⑥

1 Control panel
2 Display
3 Water drawer
4 Socket for the food sensor
5 Heating element
6 Lamp
7 Fan

8 Descaling pipe outlet
9 Shelf support, removable
10 Shelf positions

3.2 Accessories

- Wire shelf

For cake tins, overproof dishes, roast dishes, cookware/ dishes.

- Baking tray

For moist cakes, baked items, bread, large roasts, frozen meals and to catch dripping liquids, e.g. fat when roasting food on wire shelf.

- Grill- / Roasting pan

To bake and roast or as pan to collect fat.

- Food Sensor

To measure the temperature inside food.

- Steam set

One unperforated and one perforated food container. The steam set drains the condensing water away from the food during steam cooking. Use it to prepare vegetables, fish, chicken breast. The set is not suitable for food that needs to soak in the water e.g. rice, polenta, pasta.

4. CONTROL PANEL

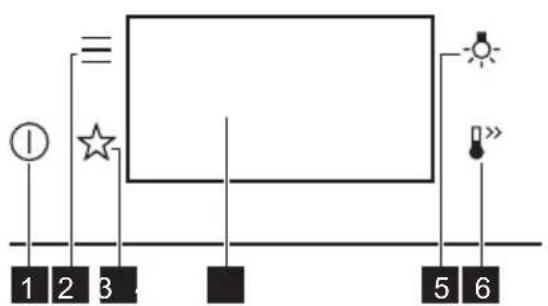

4.1 Control panel overview

1 2 3 5 6

1 ON / OFF Press and hold to turn the appli- ance on and off.

2 Menu Lists the appliance functions.

3 Favour- Lists the favourite settings.

4 Display Shows the current settings of the appliance.

5 Lamp switch To turn the lamp on and off.

6 Fast To turn on and off the function: Heat Up Fast Heat Up.

4.2 Display

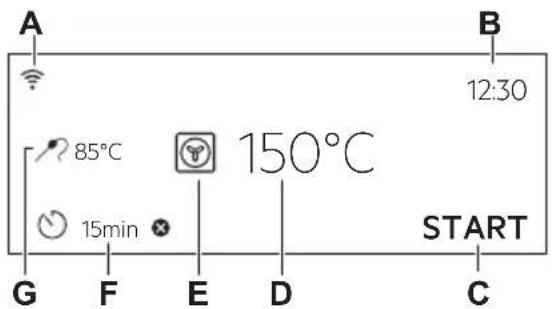

Display with key functions set.

A B 12:30 85°C 150°C 15min START G F E D C

5. BEFORE FIRST USE

WARNING!

Refer to Safety chapters.

A. Wi-Fi
B. Time of Day
C. START / STOP
D. Temperature
E. Heating functions
F. Timer
G. Food Sensor (selected models only)

Display indicators

OK	To confirm the selection / setting.
	To go one level back in the menu.
	To undo the last action.
	To turn the options on and off.
	The sound alarm function is activated.
	The sound alarm and stop cooking function is activated.
	Pop up message only is activated.
	Delayed start function is activated.
	To cancel the setting.
	Wi-Fi connection is turned on.
	Remote Operation is turned on.

5.1 Initial cleaning

1. Remove all accessories and removable shelf supports from the appliance.

2. Clean the appliance and the accessories only with a microfibre cloth, warm water and a mild detergent.

3. Put the accessories and removable shelf supports back to their initial position.

5.2 First connection

The display shows welcome message after the first connection.

You have to set: Language, Display Brightness, Key Tones, Buzzer Volume, Water Hardness, Time of Day.

5.3 Wireless connection

To connect the appliance you need:

• Wireless network with the Internet connection.

• Mobile device connected to the same wireless network.

• To download My Electrolux Kitchen app: Scan the QR code located on the rating plate with the camera on your mobile device to be redirected to Electrolux Homepage.

The rating plate is located on the front frame of the appliance cavity. You can also download the app directly from the app store.

1. Follow the app onboarding instructions.
2. Turn on the appliance.
3. Press .Select: Settings / Connections.
4. • slide or press to turn on or off: Wi-Fi. The appliance wireless module starts within 90 sec.

For safety reasons, remote operation turns off automatically after 24 h. Repeat the onboarding, if needed.

Frequency 2.4 GHz WLAN

2400 - 2483.5 MHz

Protocol IEEE 802.11b DSSS, 802.11g/n OFDM

Max Power EIRP < 20 dBm (100 mW)

Wi-Fi module NIUS-50

5.4 Software licences

The software in this product contains components that are based on free and open source software. Electrolux acknowledges the contributions of the open software and robotics communities to the development project.

To access the source code of these free and open source software components whose license conditions require publishing, and to see their full copyright information and applicable license terms, visit: http://electrolux.opensoftwarerepository.com (folder NIUS).

5.5 Initial preheating

Before the first use, preheat the empty appliance.

1. Remove all accessories and removable shelf supports from the appliance.
2. Set the function ☐. Set the maximum temperature. Let the appliance operate for 1 h.
3. Set the function .Set the maximum temperature. Let the appliance operate for 15 min.
4. Set the function .Set the maximum temperature. Let the appliance operate for 15 min.
   Turn off the appliance and wait until it is cold. The appliance can emit an odour and smoke. Make sure that the airflow in the room is sufficient.

5.6 Setting: Water Hardness

When you connect the appliance to the mains you have to set the water hardness level.

Use the test paper supplied with the steam set.

1. Put the test paper into water for about 1 sec. Do not put the test paper under running water.
2. Shake the test paper to remove any remaining water.
3. After 1 min, check water hardness with the table below.
4. Set the water hardness level: Menu / Settings / Setup / Water Hardness.

The colours of the test paper continue to change. Check the water hardness within 1 min after testing.

You can change the water hardness level in the menu: Settings / Setup / Water Hardness.

The table shows water hardness range (dH) with the corresponding level of Calcium

deposit and the water classification. Adjust the water hardness level according to the table.

When the tap water hardness level is 4, fill the water drawer with still bottled water.

Water hardness Test paper Calcium deposit (mmol/l)		Calcium deposit (mg/l)	Water classification
Level (dH)
10 - 70 - 1.30 - 50 soft
28 - 141.4 - 2.551 - 100 moderately hard
315 - 212.6 - 3.8101 - 150 hard
4 ≥ 22 ≥ 3.9	≥ 151 mmHg

6. DAILY USE

WARNING!

Refer to Safety chapters.

6.1 Heating functions

STANDARD

	GrillTo grill thin pieces of food and to toast bread.
	Turbo GrillingTo roast large meat joints or poultry with bones on one shelf position. To bake gratins and to brown.
	True Fan CookingTo bake on up to three shelf positions at the same time and to dry food. Set the temperature 20 - 40 °C lower than for Conventional Cooking.
	Frozen FoodsPerfect for ready meals (e.g. french fries, croquettes or spring rolls).
	Conventional CookingTo bake and roast food on one shelf position.

Pizza Function

Best for baking pizza and other dishes that require more heat from below.

Bottom Heat

Choose this function after a cooking process to brown the food more on the bottom if needed. Use the lowest shelf level.

SPECIALS

	PreservingTo preserve vegetables and fruits, place canning jars in a baking tray filled with water, using jars with bayonet or screw caps of the same size. Use the lowest shelf position.
	DehydratingTo dry sliced fruit, vegetables and mushrooms. To allow the moisture-saturated air to escape and the fruit to dry better, it is advisable to open the oven door occasionally during the drying process.
	Plate WarmingTo preheat plates for serving.
	DefrostTo defrost food (vegetables and fruit). The defrosting time depends on the amount and size of the frozen food.
	Au GratinFor dishes such as lasagna or potato gratin. To bake gratins and to brown.
	Slow CookingLow temperature cooking process. It's perfect to cook delicate food (e.g., beef, veal or lamb).
	Keep WarmTo keep food warm. Please note that some dishes may continue to cook and dry out while being kept warm. Cover the dishes if necessary.
	Moist Fan BakingThis function is designed to save energy during cooking. When you use this function, the temperature inside the appliance may differ from the set temperature. The residual heat is used. The heating power may be reduced. For more information refer to "Daily Use" chapter, Notes on: Moist Fan Baking.

STEAM

	SteamifyUse steam for steaming, stewing, gentle crisping, baking and roasting.
	Steam RegeneratingFood reheating with steam prevents surface drying. Heat is distributed in a gentle and even way, which allows to recover taste and aroma of food as just prepared. This function can be used to reheat food directly on a plate. You can reheat more than one plate at the same time, using different shelf positions.
	Bread BakingUse this function to prepare bread and bread rolls with professional-like result in terms of crispiness, colour and crust gloss.
	Dough ProvingTo speed up the rising of the yeast dough. It prevents dough surface from drying and keeps the dough elastic.
	Full SteamFor steaming vegetables, side dishes or fish.

	Humidity HighThe function is suitable for cooking delicate dishes like custards, flans, terrines and fish.
	Humidity LowThe function is suitable for meat, poultry, oven dishes and casseroles. Thanks to the combination of steam and heat, the meat gets a juicy and tender texture along with a crusty surface.

6.2 Notes on: Moist Fan Baking

This function was used to comply with the energy efficiency class and ecodesign requirements (according to EU 65/2014 and EU 66/2014). Tests according to: IEC/EN 60350-1.

The oven door should be closed during cooking so that the function is not interrupted and the oven operates with the highest energy efficiency possible.

When you use this function the lamp automatically turns off after 30 sec.

For the cooking instructions refer to "Hints and tips" chapter, Moist Fan Baking. For general energy saving recommendations refer to "Energy Efficiency" chapter, Energy Saving.

6.3 Setting: Heating functions

1. Turn on the appliance. The display shows the default heating function and the temperature.

2. Press the symbol of the heating function to enter the submenu.

3. Select the heating function and press .OK The display shows the temperature.

4. Set the temperature. Press .OK

5. Press START.

Food Sensor - you can plug the sensor at any time before or during cooking. Refer to "Using the accessories, Food sensor" chapter.

1. • press to turn off the heating function.

2. Turn off the appliance.

6.4 Setting: Steamify - Steam heating function

1. Turn on the appliance. Select the symbol of the heating function and press it to enter the submenu.
2. Press . Set the steam heating function.
3. Press . The display shows the temperature settings.
4. Set the temperature. Type of the steam heating function depends on the set temperature:

a. Steam for Steaming 50 - 100 °C - for steaming vegetables, grains, legumes, seafood, terrines and spoon desserts.

b. Steam for Stewing 105 - 130 °C - for cooking stewed and braised meat or fish, bread and poultry, as well as cheesecakes and casseroles.

c. Steam for Gentle Crisping 135 - 150 °C - for meat, casseroles, stuffed vegetables, fish and gratin. Owing to the combination of steam and heat the meat gets a juicy and tender texture along with a crusty surface. If you set the timer, grill function turns on automatically in the last minutes of the cooking process to give dish a gentle gratin.

d. Steam for Baking and Roasting 155 - 230 °C - for roasted and baked dishes meat, fish, poultry, filled puff pastry, tarts, muffins, gratin, vegetables and bakery dishes. If you set the timer and put the food on the first level, bottom heat function turns on automatically in the last minutes of the cooking process to give dish a crispy bottom.

1. Press OK.
2. Press the cover of the water drawer to open it.
3. Fill the water drawer with cold water to the maximum level (around 950 ml) until the signal sounds or the display shows the message. The water supply is sufficient for approximately 50 min. Do not fill the water drawer over its maximum capacity. There is a risk of water leakage, overflow and furniture damage.

WARNING!

Use only cold tap water. Do not use filtered (demineralised) or distilled water. Do not use other liquids. Do not pour flammable or alcoholic liquids into the water drawer.

1. Push the water drawer to its initial position.

2. Press START

Steam appears after approximately 2 min. When the appliance reaches the set temperature, the signal sounds.

1. When the water drawer runs out of water, the signal sounds. Refill the water drawer.

2. Turn off the appliance.

Empty the water drawer after cooking ends. Refer to "Care and Cleaning" chapter, Tank emptying.

Residual water can condensate in the cavity. After cooking, carefully open the oven door. When the appliance is cold, dry the cavity with a soft cloth.

6.5 Menu

Press to enter the menu.

Menu item Application

Assisted Cooking Lists automatic pro-grammes.

Cleaning Lists cleaning pro-grammes.

Favourites Lists the favourite set-tings.

Options To set the appliance configuration.

Settings Connections To set the network con-figuration.

Setup To set the appliance configuration.

Service Shows the software ver-sion and configuration.

Submenu for: Cleaning

Submenu Application

Drying Procedure for drying the cavity from the condensation remaining after a use of the steam functions.
Tank emptying	Procedure for removing the residual water from the water drawer after use of the steam functions.
Steam Cleaning	Light cleaning.
Steam Cleaning Plus	Thorough cleaning.
Descaling Cleaning of the steam generation circuit from residual limestone.
Rinsing Procedure for rinsing and cleaning the steam generation circuit after frequent use of the steam functions.

Submenu for: Options

Submenu Application

Light Turns the lamp on and off.
Child Lock Prevents accidental activation of the appliance.
Fast Heat Up Shortens the heat up time. It is available only for some of the heating functions.
Cleaning Reminder	Turns the reminder on and off.
Time Indication	Turns the clock on and off.
Digital Clock Style	Changes the format of the displayed time indication.

Submenu for: Connections

Submenu Description

Wi-Fi To enable and disable: Wi-Fi.
Remote Operation	To enable and disable remote operation.Option visible only after you turn on: Wi-Fi.

Submenu Description

Auto Remote Operation	To start remote operation automatically after pressing START.Option visible only after you turn on: Wi-Fi.
Network To check network status and the signal power of: Wi-Fi.
Forget Network	To disable current network from auto connection with the appliance.

Submenu for: Setup

Submenu Description

Language Sets the appliance language.
Display Brightness	Sets the display brightness.
Key Tones Turns the tone of the touch fields on and off. It is not possible to mute the tone for Ⓙ
Buzzer Volume	Sets the volume of key tones and signals.
Water Hardness	Sets the water hardness.
Time of Day Sets the current time and date.

Submenu for: Service

Submenu Description

Demo Mode Activation / deactivation code: 2468
Software Version	Information about software version.
Reset All Settings	Restores factory settings.

6.6 Setting: Assisted Cooking

Assisted Cooking submenu consists of a set of additional functions and programs that are designed for dedicated dishes. Each dish in this submenu is provided with a suitable setting. You can adjust the time and the temperature during cooking.

For some of the dishes you can also cook with Food Sensor. The degree to which a dish is cooked:

• Rare
• Medium
• Well Done

For some of the dishes you can also cook with Weight Automatic.

1. Turn on the appliance.

2. Press .

3. Press . Enter Assisted Cooking.

4. Choose a dish or a food type.
5. Place the food inside the appliance and press \$START
   When the function ends, check if the food is ready. Extend the cooking time, if needed.

7. ADDITIONAL FUNCTIONS

7.1 Favourites ☆

You can save your favourite settings, such as heating function, cooking time, temperature or cleaning function. You can save 3 favourite settings.

1. Turn on the appliance.
2. Select the preferred setting.
3. Press .
4. Select: Favourites / Save current settings.

5. Press + to add the setting to the list of: Favourites.

6. Press OK.

- press to reset the setting.

- press to cancel the setting.

7.2 Function lock

This function prevents an accidental change of the appliance function.

1. Turn on the appliance.
2. Set a heating function.
3. , ☆press at the same time to turn on the function.
   ☆, ⚠ press at the same time to turn off the function.

7.3 Child Lock

This function prevents accidental activation of the appliance.

1. Turn on the appliance.
2. Press.

3. Select Options / Child Lock.

4. Press the code letters in an alphabetical order.

Child Lock is activated.

When this function is activated, access to: Timer, Wi-Fi and lamp is available.

To enable the use of the appliance, press the code letters in an alphabetical order.

7.4 Automatic switch-off

For safety reasons, if the heating function is active and no settings are changed, the appliance will turn off automatically after a certain period of time.

	(°C) (h)
30 - 115 12.5
120 - 195 8.5
200 - 230 5.5

If you intend to run a heating function for a duration exceeding the automatic switch-off time, set the cooking length. Refer to the 'Clock functions' chapter.

The Automatic switch-off does not work with the functions: Light, Food Sensor, End time.

7.5 Cooling fan

When the appliance operates, the cooling fan turns on automatically to keep the surfaces of the appliance cool. If you turn off the appliance, the cooling fan can continue to operate until the appliance cools down.

8. CLOCK FUNCTIONS

8.1 Clock functions description

Function Description

Timer To set the length of cooking. Maximum is 23 h 59 min.You can set what happens when the time is up by setting the preferred: End Action.
End Action Sound Alarm - when the time is up the signal sounds. You can set this function at any time, even when the appliance is turned off.
Delayed start	To postpone the start and / or end of cooking.
Time Extension	To extend the cooking time.
Uptimer To show how long the appliance operates. Maximum is 23 h 59 min. You can turn the function on and off. This function has no effect on the operation of the appliance.

8.2 Setting: Time of Day

1. Turn on the appliance.
2. Press: Time of Day.
3. Set the time.
4. Press .OK

8.3 Setting: Timer

1. Choose the heating function and set the temperature.
2. Press .
3. Set the time.

You can select the preferred End action by pressing • • •

1. Press . Repeat the action until the display shows the main screen.

When 10% of cooking time is left and the food does not seem to be ready, you can extend cooking time. You can also change the heating function. Press +1min to extend the cooking time.

8.4 Setting: Delayed start

1. Set the heating function and the temperature.
2. Press .
3. Set the cooking time.
4. Press .
5. Press: Delayed start.
6. Choose the desired start time.
7. Press . Repeat the action until the display shows the main screen.

8.5 Setting: Uptimer

1. Set the heating function and the temperature.

2. Press .

3. Press .

4. Press: Uptimer.

5. Slide or press 🚗 to see the baking time on the main screen.

6. Press . Repeat the action until the display shows the main screen.

8.6 Changing timer settings

You can change the set time during cooking at any time.

1. Press
2. Set the timer value.
3. Press .OK

9. USING THE ACCESSORIES

WARNING!

Refer to Safety chapters.

9.1 Inserting accessories

A small indentation at the top increases safety. The indentations are also anti-tip devices. The high rim around the shelf prevents cookware from slipping off the shelf.

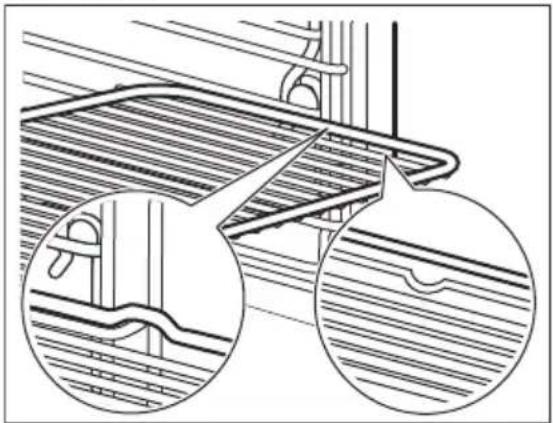

Wire shelf

Technical line drawing of a structural component with two circular inset views showing internal details (no text or symbols)

Insert the shelf between the guide bars of the shelf support.

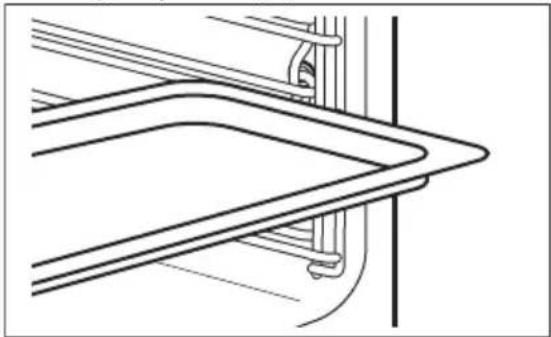

Baking tray / Deep pan

Pure technical line drawing of a mechanical component or bracket (no text or symbols)

Push the tray between the guide bars of the shelf support.

9.2 Food Sensor

It measures the temperature inside the food. You can use it with every heating function.

There are two temperatures to be set:

• °C - the temperature inside the appliance: minimum 120 °C.
• the food core temperature.

For the best cooking results:

• Ingredients should be at room temperature.
• Do not use it for liquid dishes.
• During cooking the needle of the food sensor must be fully inserted in the dish.
  The appliance calculates an approximate end of cooking time. It depends on the quantity of food, the heating function and the temperature.

Cooking with: Food Sensor

WARNING!

There is a risk of burns as Food Sensor and shelf supports become hot. Do not touch Food Sensor handle with bare hands. Always use oven gloves.

1. Turn on the appliance.
2. Set a heating function and, if necessary, the oven temperature.

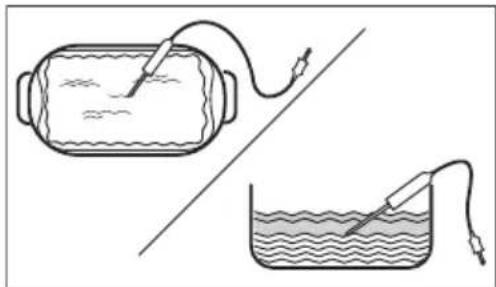

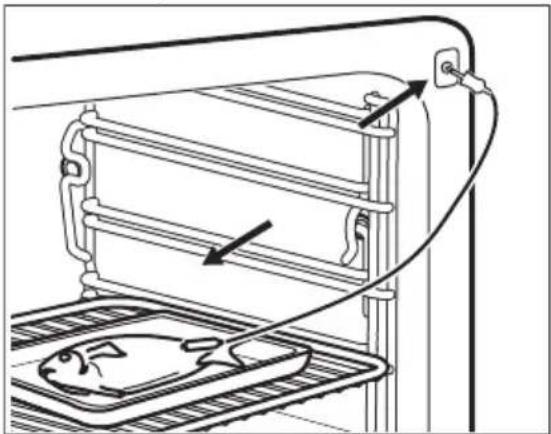

3. Insert Food Sensor inside the dish:

Meat, poultry and fish

Insert the entire needle of the Food Sensor into the centre of meat or fish at its thickest part.

Line drawing of a kitchen appliance with a tray and ladder, showing internal components and a handle (no text or symbols)

Casserole

Insert the tip of Food Sensor exactly in the centre of the casserole. Food Sensor should be stabilized in one place during baking. Use a solid ingredient to achieve that. Use the rim of the baking dish to support the silicone handle of Food Sensor. The tip of Food Sensor should not touch the bottom of a baking dish.

Two laboratory setups: a cylindrical container with electrodes and a beaker with a probe inserted, both without any text or symbols.

1. Plug Food Sensor into the socket located inside the appliance. Refer to "Product description".

The display shows the current temperature of Food Sensor.

1. • press to set the core temperature of the sensor.
2. • press to set the preferred option:

3. Sound Alarm - when food reaches the core temperature, the signal sounds.
   • Sound Alarm and stop cooking - when food reaches the core temperature, the signal sounds and the oven stops.

4. Select the option and repeatedly press OK to go to main screen.

5. Press . START

When the food reaches the set temperature, the signal sounds. Check if the food is ready. Extend the cooking time, if needed.

1. Remove Food Sensor plug from the socket and remove the dish from the appliance.

10. HINTS AND TIPS

10.1 Cooking recommendations

The temperature and cooking times in the tables are for guidance only. They depend on the recipes, quality and quantity of the ingredients used.

Your appliance may bake or roast differently than your previous appliance. The hints below show recommended settings for temperature, cooking time and shelf position for specific types of the food.

If you cannot find the settings for a specific recipe, look for a similar one.

For more cooking recommendations refer to the cooking tables available on our website. To find the Cooking Hints, check the PNC number on the rating plate located on the front frame inside the appliance.

Symbols used in the tables:

	Food type
	Heating function
	Temperature
	Accessory

Container (Gastronorm)

Weight (kg)

Shelf position

Cooking time (min)

10.2 Moist Fan Baking - recommended accessories

Use dark and non-reflective tins and containers. They have better heat absorption than light colour and reflective dishes.

• Pizza pan - dark, non-reflective, diameter 28cm
• Baking dish - dark, non-reflective, diameter 26cm
• Ramekins - ceramic, diameter 8cm, height 5 cm
• Flan base tin - dark, non-reflective, diameter 28cm

10.3 Moist Fan Baking

For the best results follow suggestions listed in the table below.

	°C
Sweet rolls, 16 pieces	baking tray or dripping pan 180 2 25 - 35
Swiss Roll baking tray or dripping pan 180 2 15 - 25
Whole fish, 0.2 kg baking tray or dripping pan 180 3 15 - 25
Cookies, 16 pieces baking tray or dripping pan 180 2 20 - 30
Macaroons, 24 pieces	baking tray or dripping pan 160 2 25 - 35
Muffins, 12 pieces baking tray or dripping pan 180 2 20 - 30
Savory pastry, 20 pieces	baking tray or dripping pan 180 2 20 - 30
Short crust biscuits, 20 pieces	baking tray or dripping pan 140 2 15 - 25
Tartlets, 8 pieces baking tray or dripping pan 180 2 15 - 25

10.4 Information for test institutes

Tests according to: EN 60350, IEC 60350.

Baking on one level - baking in tins

	°C
Fatless sponge cake True Fan Cooking 160 45 - 60 2
Fatless sponge cake Conventional Cooking 160 45 - 60 2
Apple pie, 2 tins ∅20 cm True Fan Cooking 160 55 - 65 2
Apple pie, 2 tins ∅20 cm Conventional Cooking 180 55 - 65 1
Short bread True Fan Cooking 140 25 - 35 2
Short bread Conventional Cooking 140 25 - 35 2

Baking on one level - biscuits

		°C
Small cakes, 20 per tray 1)	True Fan Cooking 150 20 - 30 3
Small cakes, 20 per tray 1)	Conventional Cooking 170 20 - 30 3

1) Preheat the empty appliance.

Multilevel baking - biscuits

		°C
Short bread True Fan Cooking 140 25 - 45 2 / 4

Small cakes, 20 per tray, 1)	True Fan Cooking 150 25 - 35 1 / 4
Fatless sponge cake True Fan Cooking 160 45 - 55 2 / 4
Apple pie, 1 tin per grid (∅ 20 cm)	True Fan Cooking 160 55 - 65 2 / 4

1) Preheat the empty appliance.

Grill

Toast 1)		Grill max. 1 - 2 5
Beef steak 2)		Grill max. 24 - 30 4

1) Preheat the empty appliance for 5 minutes.
2) Preheat the empty appliance for 5 minutes. Turn halfway through .

10.5 Information for test institutes

Tests for the function: Full Steam.

Tests according to IEC 60350.

Set the temperature to 100^ C.

	[SADO]
Broccoli 1)	1 x 2/3 perforated 0.3 3 8 - 9
Broccoli 1)	1 x 2/3 perforated max. 3 10 - 11
Peas, frozen 2)	2 x 2/3 perforated 2 x 1.5 2 and 4 Until the temper-			ature in the cold-est spot reaches 85 °C.

1) Put the baking tray on the first shelf position. Preheat the empty appliance.
2) Put the baking tray on the first shelf position.

11. CARE AND CLEANING

WARNING!

Refer to Safety chapters.

11.1 Notes on cleaning

Cleaning Agents

• Clean the front of the appliance only with a microfibre cloth with warm water and a mild detergent.
• Use a cleaning solution to clean metal surfaces.
  • Clean stains with a mild detergent.

Everyday Use

• Clean the interior of the appliance after each use. Fat accumulation or other residue may cause fire.
• Do not store food in the appliance for longer than 20 minutes. Dry the interior of the appliance only with a microfibre cloth after each use.

Accessories

• Clean all accessories after each use and let them dry. Use only a microfibre cloth with warm water and a mild detergent. Do not clean the accessories in a dishwasher.
• Do not clean the non-stick accessories using abrasive cleaner or sharp-edged objects.

11.2 Removing the shelf supports

Remove the shelf supports to clean the appliance.

1. Turn off the appliance and wait until it is cold.
2. Carefully pull the shelf supports up and out of the front catch.
3. Pull the front end of the shelf support away from the side wall.
4. Pull the supports out of the rear catch.

1 2 3

Install the shelf supports in the opposite sequence.

11.3 Steam Cleaning

1. Turn off the appliance and wait until it is cold.
2. Remove all accessories and removable shelf supports.
3. Clean the bottom of the oven interior and the inner door glass with a soft cloth with warm water and a mild detergent.
4. Fill the water drawer to the maximum level until the signal sounds or the display shows the message.
5. Select: Menu / Cleaning.

Option Description
Steam	Light cleaning
Cleaning	Duration: 30 min
Steam	Normal cleaning
Cleaning	Spray the cavity with a detergent.
Plus	Duration: 75 min

1. Press . Follow the instruction on the display.

The signal sounds when the cleaning ends.

1. Press any symbol to turn off the signal.
2. Turn off the appliance.
3. When the appliance is cold, dry the cavity with a soft cloth.
4. Leave the oven door open and wait until the oven interior is dry.

When this function works, the lamp is off.

11.4 Cleaning Reminder

When the reminder appears, cleaning is recommended.

Use the function: Steam Cleaning Plus.

11.5 Descaling

Use it to descale the steam system.

1. Turn off the appliance and wait until it is cold.
2. Remove all accessories.

3. Make sure that the water drawer is empty. Refer to "Care and cleaning" chapter, Tank emptying. Duration of the first part: around 100 min

4. Select: Menu / Cleaning / Descaling.

5. Place the deep pan on the first shelf position.

6. Pour 250 ml of the descaling agent in the water drawer.

7. Fill the remaining part of the water drawer with 700 ml of water, until the signal sounds or the display shows the message.

8. Turn on the function and follow the instruction on the display. The first part of descaling starts.

Duration of the second part: around 35 min

1. Fill the water drawer with 950 ml of water, until the signal sounds or the display shows the message.
2. When the function ends, remove the deep pan.
3. Turn off the appliance and wait until it is cold.
4. Clean the oven interior with a soft cloth.
5. Leave the oven door open and wait until the cavity is dry.

If some limestone residue remains in the oven after descaling, the display prompts to repeat the procedure.

11.6 Descaling reminder

There are two reminders which prompt you to descale the appliance. You cannot disable the descaling reminder.

• Soft reminder - recommends you to descale the appliance.
• Hard reminder - obligates you to descale the appliance. If you do not descale the appliance when the hard reminder is on, the steam functions are disabled.

11.7 Rinsing

Use it to clean the steam system after frequent use of the steam functions.

1. Turn off the appliance and wait until it is cold.
2. Remove all accessories.
3. Place the deep pan on the first shelf position.
4. Fill the water drawer with water to the maximum level until the signal sounds or the display shows the message.
5. Select: Menu / Cleaning / Rinsing.

Duration: around 30 min
6. Turn on the function and follow the instruction on the display.
7. When the function ends, remove the deep pan.

When this function works, the lamp is off.

11.8 Drying

Use it after cooking with a steam heating function or steam cleaning to dry the cavity.

1. Turn off the appliance and wait until it is cold.

2. Remove all accessories.

3. Select: Menu / Cleaning / Drying.
4. Follow the instruction on the display.

11.9 Drying reminder

After cooking with a steam heating function the display prompts to dry the appliance.

Press YES to dry the appliance.

11.10 Tank emptying

Use it after cooking with steam heating function to remove the residual water from the water drawer.

1. Turn off the appliance and wait until it is cold.
2. Remove all accessories.
3. Place the deep pan on the first shelf position.
4. Select: Menu / Cleaning / Tank emptying. Duration: 6 min
5. Turn on the function and follow the instruction on the display.
6. When the function ends, remove the deep pan.

When this function works, the lamp is off.

11.11 Removing and installing the door

You can remove the door and the internal glass panels to clean it. The number of glass panels is different for different models.

WARNING!

The door is heavy.

CAUTION!

Carefully handle the glass, especially around the edges of the front panel. The glass can break.

1. Fully open the door.

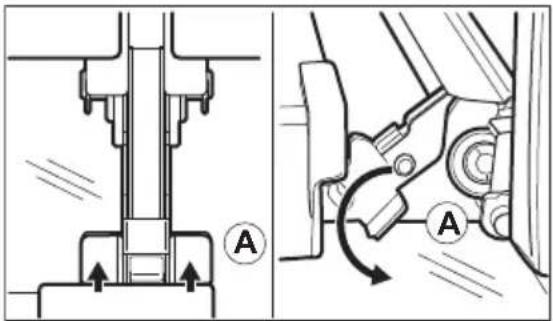

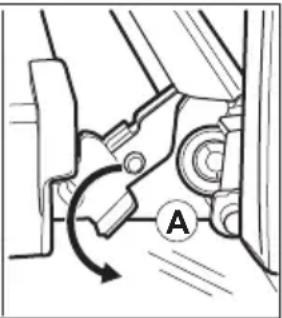

2. Press the clamping levers A on the two door hinges.

Technical diagram showing mechanical assembly with sectional view and rotation arrow labeled A

1. Close the oven door to the first opening position (at approximate angle: 70^ ).
2. Hold the door with one hand on each side and pull it away from the oven at an upwards angle.
3. Put the door with the outer side down on a soft cloth on a stable surface.

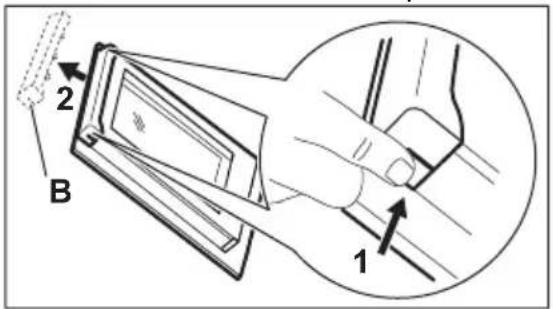

4. Hold the door trim B on the top edge of the door at the two sides and push inwards to release the clip seal.

2 B 1

1. Pull the door trim to the front to remove it.

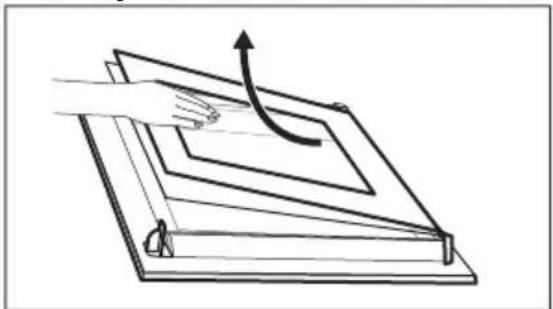

2. Hold the door glass panels on their top edge one by one and pull them up out of the guide.

Diagram of a hand pressing down on a folded document with an upward arrow indicating motion (no text or symbols)

1. Clean the glass panel with water and soap. Dry the glass panel carefully. Do not clean the glass panels in the dishwasher.

After cleaning, do the above steps in the opposite sequence. Install the smaller panel first, then the larger and the door.

Make sure that the glass panels are inserted in the correct position otherwise the surface of the door may overheat.

11.12 Replacing the lamp

WARNING!

Risk of electric shock.

The lamp can be hot.

1. Turn off the appliance and wait until it is cold.
2. Disconnect the appliance from the mains.
3. Place the cloth on the oven floor.

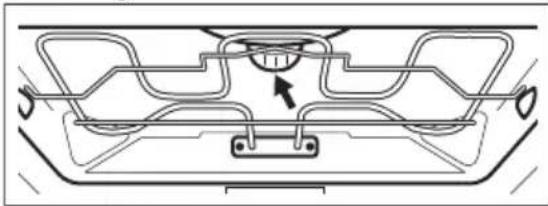

Top lamp

1. Turn the glass cover to remove it.

Technical line drawing of a mechanical component with no visible text or symbols

1. Remove the metal ring and clean the glass cover.
2. Replace the lamp with a suitable 300^ C heat-resistant lamp.
3. Attach the metal ring to the glass cover and install it.

Side lamp

1. Remove the left shelf support to get access to the lamp.
2. Use a Torx 20 screwdriver to remove the cover.
3. Clean the glass cover.
4. Replace the lamp with a suitable 300 °C heat-resistant lamp.
5. Install the metal frame and the seal. Tighten the screws.
6. Install the left shelf support.

12. TROUBLESHOOTING

WARNING!

Refer to Safety chapters.

12.1 What to do if...

Problem description Cause and remedy
You cannot activate or operate the appliance.	The appliance is not connected to an electrical supply or it is connected incorrectly.
The appliance does not heat up. The clock is not set.To set the clock refer to "Clock functions" chapter.
The lamp is turned off. The lamp is burnt out. Replace the lamp.For details refer to "Care and Cleaning" chapter.
i Power cut always stops cleaning. Repeat cleaning if it's interrupted by power failure.
Trouble with wireless network signal.	Check if your mobile device is connected to the wireless network. Check your wireless network and router.Restart the router.
New router installed or router configuration changed.	To configure appliance and mobile device again, refer to "Before first use" chapter, Wireless connection.
The wireless network signal is weak.	Move router as close to the appliance as possible.
The wireless signal is disrupted by microwave oven placed near the appliance.	Turn off the microwave oven.Avoid using microwave oven and the Remote operation of the appliance at the same time. Microwaves disrupt WiFi signal.

12.2 Error codes

When the software error occurs, the display shows error message. You will find the list of problems in the table below.

1) When the following error message continues to appear on the display, it means a faulty subsystem may have been disabled. In such a case contact your dealer or an Authorized Service Centre. If one of these errors occurs, the rest of the appliance functions will continue to work as usual.

Code and description Remedy
F111 - Food Sensor is not correctly inserted into the socket.	Fully plug Food Sensor into the socket.
F240, F439 - the touch fields on the display do not work properly.	Clean the surface of the display. Make sure there is no dirt on the touch fields.
F601 - there is a problem with Wi-Fi signal.	Check your network connection. Refer to "Before first use" chapter, Wireless connection.
F604 - the first connection to Wi-Fi failed.	Turn the appliance off and on and try again. Refer to "Before first use" chapter, Wireless connection.
F908 - the appliance system cannot connect with the control panel.	Turn the appliance off and on.
F602, F603 - Wi-Fi is not available. 1)	Turn the appliance off and on.

12.3 Service data

If you cannot find a solution to the problem yourself, contact your dealer or an Authorised Service Centre.

The necessary data for the service centre is on the rating plate. The rating plate is located on the front frame of the appliance. It is visible when you open the door. Do not remove the rating plate from the appliance.

We recommend that you write the data here:

Model (MOD.) :

Product number (PNC):

Serial number (S.N.):

13. ENERGY EFFICIENCY

13.1 Product Information and Product Information Sheet according to EU Ecodesign and Energy Labelling Regulations

Supplier's name Electrolux
Model identification	COB8S09WX 944032134EOB8S09WX 944032132LOB8S09WX 944032133
Energy Efficiency Index 61.9
Energy efficiency class A++
Energy consumption with a standard load, conventional mode 1.09 kWh/cycle
Energy consumption with a standard load, fan-forced mode 0.52 kWh/cycle
Number of cavities 1
Heat source Electricity
Volume 70 l
Type of oven Built-In Oven
Mass	COB8S09WX 34.5 kg
	EOB8S09WX 34.5 kg
	LOB8S09WX 34.5 kg

IEC/EN 60350-1 - Household electric cooking appliances - Part 1: Ranges, ovens, steam ovens and grills - Methods for measuring performance.

13.2 Energy saving

The appliance has features which help you save energy during everyday cooking.

Make sure that the appliance door is closed when the appliance operates. Do not open the appliance door too often during cooking. Keep the door gasket clean and make sure it is well fixed in its position.

Use metal cookware to improve energy saving.

When possible, do not preheat the appliance before cooking.

Keep breaks between baking as short as possible when you prepare a few dishes at one time.

Cooking with fan

When possible, use the cooking functions with fan to save energy.

Residual heat

If a programme with Duration is activated and the cooking time is longer than 30 min, the heating elements automatically turn off earlier in some appliance functions.

The fan and lamp continue to operate. When you turn off the appliance, the display shows the residual heat. You can use that heat to keep the food warm.

When the cooking duration is longer than 30 min, reduce the appliance temperature to minimum 3 - 10 min before the end of cooking. The residual heat inside the appliance will continue to cook.

Use the residual heat to warm up other dishes.

Keep food warm

Choose the lowest possible temperature setting to use residual heat and keep a meal warm. The residual heat indicator or temperature appears on the display.

Cooking with the lamp off

Turn off the lamp during cooking. Turn it on only when you need it.

Moist Fan Baking

Function designed to save energy during cooking.

When you use this function the lamp automatically turns off after 30 sec. You may turn on the lamp again but this action will reduce the expected energy savings.

14. ENVIRONMENTAL CONCERNS

Recycle materials with the symbol .Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances. Do not dispose of

appliances marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.

TABLE DES MATIÈRES

1. INFORMATION SUR LA SÉCURITÉ.... 27
2. CONSIGNES DE SÉCURITÉ....29
3. DESCRIPTION DE L'APPAREIL....32
4. BANDEAU DE COMMANDE....32
5. AVANT LA PREMIÈRE UTILISATION.... 33
6. UTILISATION QUOTIDIENNE.... 35
7. FONCTIONS SUPPLÉMENTAIRES 39
8. FONCTIONS DE L'HORLOGE....40
9. UTILISATION DES ACCESSOIRES....41
10. CONSEILS....42
11. ENTRETIEN ET NETTOYAGE.... 45
12. DÉPANNAGE....48
13. RENDEMENT ÉNERGÉTIQUE.... 50
14. EN MATIÈRE DE PROTECTION DE L'ENVIRONNEMENT....51

Simple line drawing of a right-angle corner with a Wi-Fi symbol (no text or labels)

Electrolux

Simple line drawing of a kitchen oven with a rectangular top and two blank windows (no text or symbols)

My Electrolux Kitchen app

Available on the

App Store

GITT ON

Google Play

1. ⚠INFORMATION SUR LA SÉCURITÉ

Technical line drawing of a mechanical assembly with two circular inset views showing internal components (no text or symbols)

Pure technical line drawing of a mechanical component or bracket (no text or symbols)

Line drawing of a kitchen appliance with a tray and ladder, showing internal components and a curved line indicating motion (no text or symbols)

Ragoût

Two laboratory setups: a rectangular tank with a probe and wire connected to a line, and a beaker with a probe and wire submerged in liquid (no text or symbols)

Technical diagram of a mechanical assembly with no visible text or symbols

Mechanical assembly diagram showing a rotating component with labeled point A (no text or symbols beyond label)

Diagram of a hand pressing down on a folded paper sheet with an upward arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Simple line drawing of a right-angle corner with a Wi-Fi symbol (no text or labels)

Electrolux

Simple line drawing of a kitchen oven with a rectangular top and two blank windows (no text or symbols)

My Electrolux Kitchen app

Available on the

App Store

GITT ON

Google Play

Technical line drawing of a mechanical assembly with two circular insets showing internal components (no text or symbols)

Pure technical line drawing of a mechanical component or bracket (no text or symbols)

Line drawing of a kitchen appliance with a tray and ladder, showing internal components and a handle (no text or symbols)

Auflauf

Illustration of a cylindrical device connected to a probe and a beaker with a probe inserted, both without any text or symbols.

Technical diagram showing mechanical assembly with labeled components and directional arrows, including section A.

Diagram of a hand pressing down an open book with an upward arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Produktnummer (PNC):

Symbol of a trash bin crossed with a diagonal line, representing no waste or discharge (no text or labels)

Recycling symbol with three arrows forming a triangle (no text or labels)

Technical line drawing of a mechanical assembly with two circular insets showing internal components (no text or symbols)

Pure technical line drawing of a mechanical component or bracket (no text or symbols)

Line drawing of a refrigerator with an attached rack and a tray, showing no text or symbols

Sformato

Illustration of a battery and its water displacement setup with probes (no text or symbols)

Technical diagram showing mechanical assembly with sectional view and rotation arrow, labeled with points A and B

Illustration of a hand pressing down on a stack of papers with an upward arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Simple line drawing of a kitchen oven with a rectangular top and two blank windows (no text or symbols)

My Electrolux Kitchen app

Available on the

App Store

GITT ON

Google Play

Technical line drawing of a mechanical assembly with two circular inset views showing internal components (no text or symbols)

Pure technical line drawing of a mechanical component or bracket (no text or symbols)

Line drawing of a kitchen appliance with a tray and ladder, showing a handle and outlet (no text or symbols)

Estofado

Diagram showing a cylindrical device connected to a wire with a probe, and a beaker with a probe inserted into liquid (no text or symbols present)

Technical diagram showing mechanical assembly with sectional view and rotation arrow, labeled with points A and B

Diagram of a hand pressing down an upward arrow on a document or sheet, with no text or symbols present.

Technical line drawing of a mechanical component with no visible text or symbols
