Welcome to Electrolux! Thank you for choosing our appliance.

Get usage advice, brochures, trouble shooter, service and repair information:

www.electrolux.com/support

Subject to change without notice.

CONTENTS

1. SAFETY INFORMATION......25
2. SAFETY INSTRUCTIONS.... 27
3. INSTALLATION....30
4. PRODUCT DESCRIPTION....32
5. CONTROL PANEL....32
6. BEFORE FIRST USE....33
7. DAILY USE....33
8. ADDITIONAL FUNCTIONS......36
9. CLOCK FUNCTIONS....37
10. USING THE ACCESSORIES....38
11. HINTS AND TIPS....39
12. CARE AND CLEANING.... 41
13. TROUBLESHOOTING.... 44
14. ENERGY EFFICIENCY......45
15. ENVIRONMENTAL CONCERNS......46

1. ⚠ SAFETY INFORMATION

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damage that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.

1.1 Children and vulnerable people safety

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children of less than 8 years of age and persons with very extensive and complex disabilities shall

be kept away from the appliance unless continuously supervised.

• Children should be supervised to ensure that they do not play with the appliance.
• Keep all packaging away from children and dispose of it appropriately.
• WARNING: The appliance and its accessible parts become hot during use. Keep children and pets away from the appliance when in use and when cooling down.
• If the appliance has a child safety device, it should be activated.
• Children shall not carry out cleaning and user maintenance of the appliance without supervision.

1.2 General Safety

• This appliance is for cooking purposes only.
- This appliance is designed for single household domestic use in an indoor environment.
- This appliance may be used in, offices, hotel guest rooms, bed & breakfast guest rooms, farm guest houses and other similar accommodation where such use does not exceed (average) domestic usage levels.
- Only a qualified person must install this appliance and replace the cable.
- Do not use the appliance before installing it in the built-in structure.
- Disconnect the appliance from the power supply before carrying out any maintenance.
- If the supply cord is damaged, it must be replaced by the manufacturer, its Authorised Service Centre or similarly qualified persons to avoid an electrical hazard.
- WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.
- WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements or the surface of the appliance cavity.

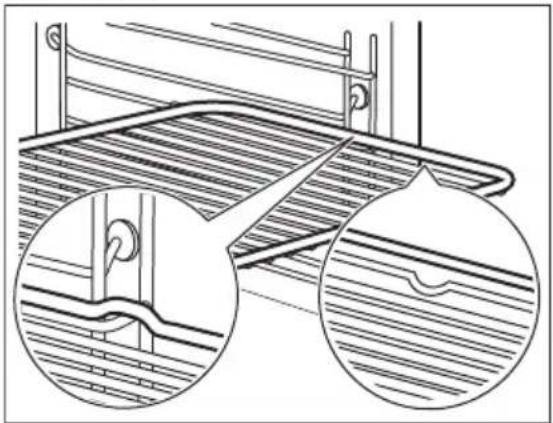

• Always use oven gloves to remove or insert accessories or ovenware.

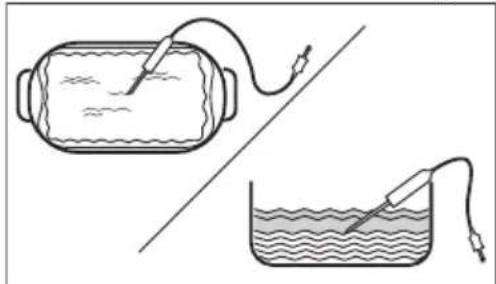

• Use only the food sensor (core temperature sensor) recommended for this appliance.

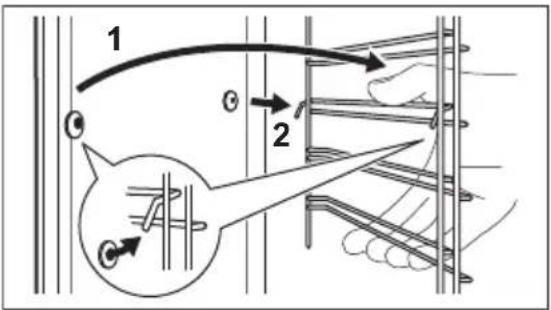

• To remove the shelf supports first pull the front of the shelf support and then the rear end away from the side walls. Install the shelf supports in the opposite sequence.
• Do not use a steam cleaner to clean the appliance.
• Do not use harsh abrasive cleaners or sharp metal scrapers to clean the glass door since they can scratch the surface, which may result in shattering of the glass.
• Before pyrolytic cleaning, remove all accessories and excessive deposits/spills from the appliance cavity.

2. SAFETY INSTRUCTIONS

2.1 Installation

WARNING!

Only a qualified person must install this appliance.

• Remove all the packaging.
• Do not install or use a damaged appliance.
• Follow the installation instructions supplied with the appliance.
  • Always take care when moving the appliance as it is heavy. Always use safety gloves and enclosed footwear.
• Do not pull the appliance by the handle.
  • Install the appliance in a safe and suitable place that meets installation requirements.
• Keep the minimum distance from other appliances and units.
• Before mounting the appliance, check if the appliance door opens without restraint.
• The appliance is equipped with an electric cooling system. It must be operated with the electric power supply.

Cabinet minimum height

590 (600) mm

(Cabinet under the worktop minimum height)

Cabinet width 560 mm

Cabinet depth 550 (550) mm
Height of the front of the appliance	594 mm
Height of the back of the appliance	576 mm
Width of the front of the appliance	595 mm
Width of the back of the appliance	559 mm
Depth of the appliance 569 mm
Built in depth of the appliance	548 mm
Depth with open door 1022 mm
Ventilation opening minimum size. Opening placed on the bottom rear side	560x20 mm
Mains supply cable length. Cable is placed in the right corner of the back side	1500 mm
Mounting screws 4x25 mm

2.2 Electrical connection

WARNING!

Risk of fire and electric shock.

• All electrical connections should be made by a qualified electrician.
  • The appliance must be earthed.
• Make sure that the parameters on the rating plate are compatible with the electrical ratings of the mains power supply.
  • Always use a correctly installed shockproof socket.
• Do not use multi-plug adapters and extension cables.
• Make sure not to cause damage to the mains plug and to the mains cable. Should the mains cable need to be replaced, this must be carried out by our Authorised Service Centre.
• Do not let mains cables touch or come near the appliance door or the niche below the appliance, especially when it operates or the door is hot.
• The shock protection of live and insulated parts must be fastened in such a way that it cannot be removed without tools.
• Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.
• If the mains socket is loose, do not connect the mains plug.
• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.
• Use only correct isolation devices: line protecting cut-outs, fuses (screw type fuses removed from the holder), earth leakage trips and contactors.
• The electrical installation must have an isolation device which lets you disconnect the appliance from the mains at all poles. The isolation device must have a contact opening width of minimum 3 mm.
• Fully close the appliance door before you connect the mains plug to the mains socket.
• This appliance is supplied with a main plug and a main cable.

Cable types applicable for installation or replacement for Europe:

H07 RN-F, H05 RN-F, H05 RRF, H05 VV-F, H05 V2V2-F (T90), H05 BB-F

For the section of the cable refer to the total power on the rating plate. You can also refer to the table:

Total power (W) Section of the cable (mm ^4 )

maximum 1380 3x0.75

maximum 2300 3x1

maximum 3680 3x1.5

The earth cord (green / yellow cable) must be 2 cm longer than the brown phase and blue neutral cables.

2.3 Use

WARNING!

Risk of injury, burns and electric shock or explosion.

• Do not change the specification of this appliance.
• Make sure that the ventilation openings are not blocked.
• Do not let the appliance stay unattended during operation.
• Deactivate the appliance after each use.
• Be careful when you open the appliance door while the appliance is in operation. Hot air can release.
• Do not operate the appliance with wet hands or when it has contact with water.
• Do not apply pressure on the open door.
• Do not use the appliance as a work surface or as a storage surface.
• Open the appliance door carefully. The use of ingredients with alcohol can cause a mixture of alcohol and air.
• Do not let sparks or open flames to come in contact with the appliance when you open the door.
• Do not put flammable products or items that are wet with flammable products in, near or on the appliance.

WARNING!

Risk of damage to the appliance.

- To prevent damage or discoloration to the enamel:

– do not put ovenware or other objects in the appliance directly on the bottom.
– do not put aluminium foil directly on the bottom of cavity of the appliance.
– do not put water directly into the hot appliance.
– do not keep moist dishes and food in the appliance after you finish the cooking.
- be careful when you remove or install the accessories.

• Discoloration of the enamel or stainless steel has no effect on the performance of the appliance.
• Use a deep pan for moist cakes. Fruit juices cause stains that can be permanent.
  • Always cook with the appliance door closed.
• If the appliance is installed behind a furniture panel (e.g. a door) make sure the door is never closed when the appliance operates. Heat and moisture can build up behind a closed furniture panel and cause subsequent damage to the appliance, the housing unit or the floor. Do not close the furniture panel until the appliance has cooled down completely after use.

2.4 Care and cleaning

WARNING!

Risk of injury, fire, or damage to the appliance.

• Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.
• Make sure the appliance is cold. There is the risk that the glass panels can break.
• Replace immediately the door glass panels when they are damaged. Contact the Authorised Service Centre.

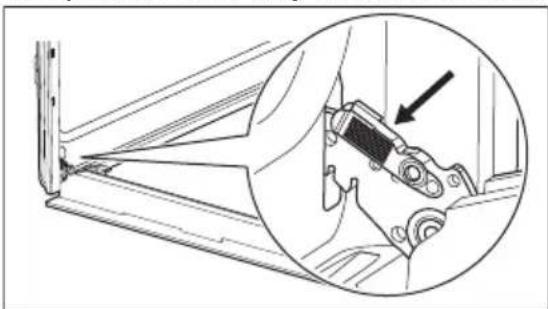

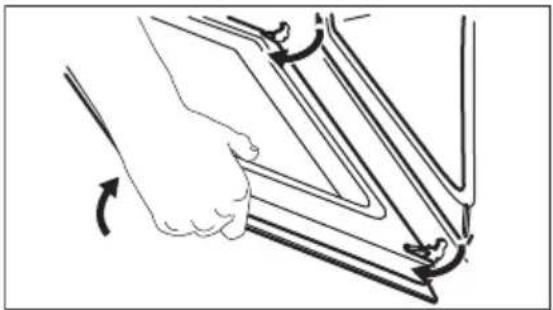

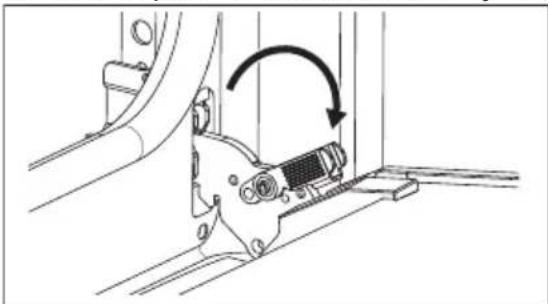

• Be careful when you remove the door from the appliance. The door is heavy!

• Clean regularly the appliance to prevent the deterioration of the surface material.

• Clean the appliance with a moist soft cloth. Use only neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects.

• If you use an oven spray, follow the safety instructions on its packaging.

2.5 Pyrolytic cleaning

WARNING!

Risk of Injury / Fires / Chemical Emissions (Fumes) in Pyrolytic Mode.

- Before carrying out the pyrolytic cleaning and initial preheating remove from the oven cavity: - any excess food residues, oil or grease spills / deposits. - any removable objects (including shelves, side rails, etc., provided with the appliance) especially any non-stick pots, pans, trays, utensils, etc.

• Read carefully all the instructions for pyrolytic cleaning.
• Keep children away from the appliance while the pyrolytic cleaning operates. The appliance becomes very hot and hot air is released from the front cooling vents.
• Pyrolytic cleaning is a high temperature operation that can release fumes from cooking residues and construction materials, as such consumers are advised to:

– provide good ventilation during and after the pyrolytic cleaning.
– provide good ventilation during and after the initial preheating.

• Do not spill or apply water on the oven door during and after the pyrolytic cleaning to avoid damaging the glass panels.
• Fumes released from all pyrolytic ovens / cooking residues as described are not harmful to humans, including children, or persons with medical conditions.
• Keep pets away from the appliance during and after the pyrolytic cleaning and initial preheating. Small pets (especially birds and reptiles) can be highly sensitive to temperature changes and emitted fumes.
  • Non-stick surfaces on pots, pans, trays, utensils etc., can be damaged by the high temperature pyrolytic cleaning operation of

all pyrolytic ovens and can be also a source for low level harmful fumes.

2.6 Internal lighting

WARNING!

Risk of electric shock.

• Concerning the lamp(s) inside this product and spare part lamps sold separately: These lamps are intended to withstand extreme physical conditions in household appliances, such as temperature, vibration, humidity, or are intended to signal information about the operational status of the appliance. They are not intended to be used in other applications and are not suitable for household room illumination.
  • This product contains a light source of energy efficiency class G.

- Use only lamps with the same specifications.

2.7 Service

• To repair the appliance contact the Authorised Service Centre.
- Use original spare parts only.

2.8 Disposal

WARNING!

Risk of injury or suffocation.

• Contact your municipal authority for information on how to dispose of the appliance.
• Disconnect the appliance from the mains supply.
• Cut off the mains electrical cable close to the appliance and dispose of it.

3. INSTALLATION

WARNING!

Refer to Safety chapters.

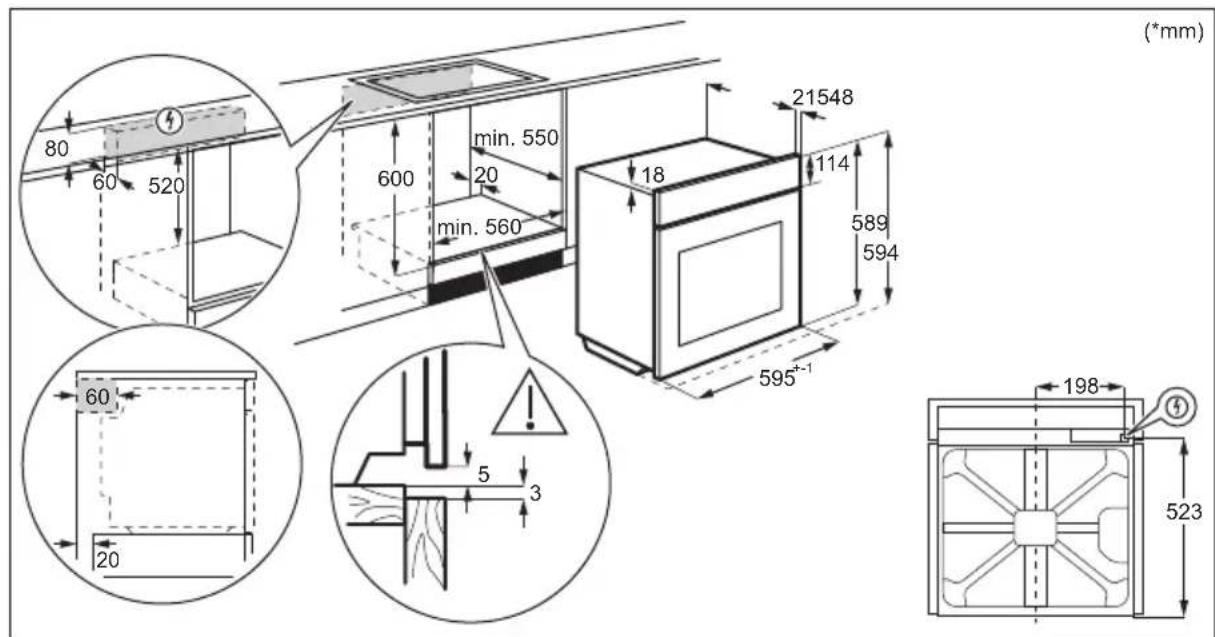

3.1 Building in

YouTube

www.youtube.com/electrolux www.youtube.com/aeg

How to install your AEG/Electrolux Oven - Column installation

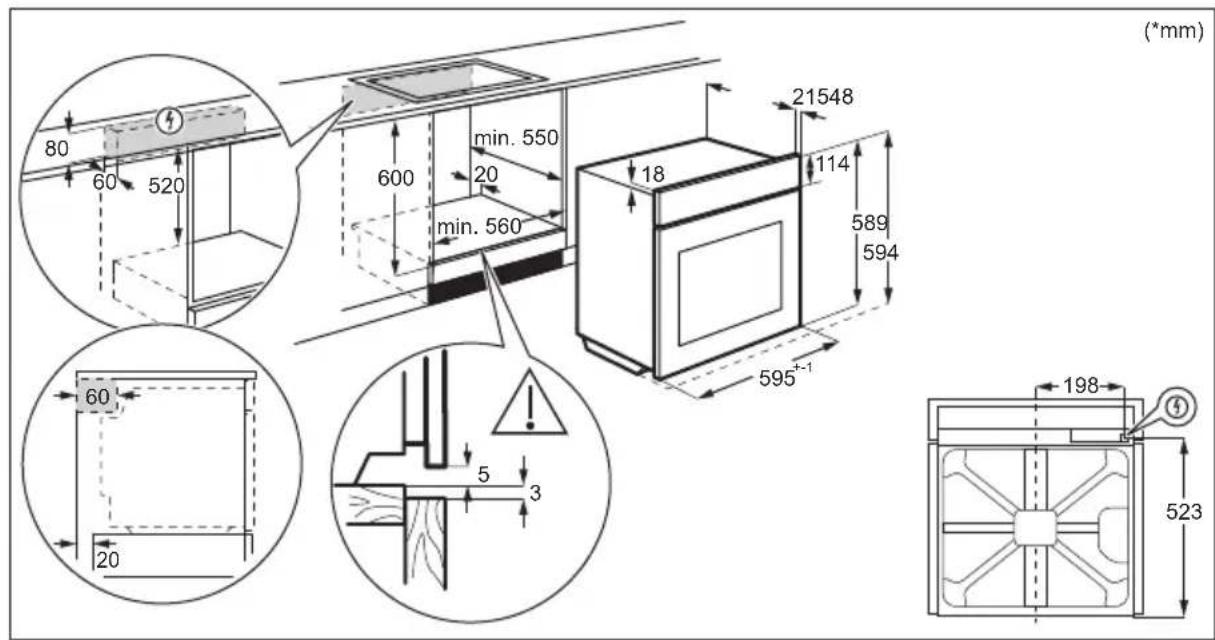

(*mm) 80 60 520 min. 550 600 20 min. 560 18 21548 114 589 594 595+1 60 20 5 3 198 523

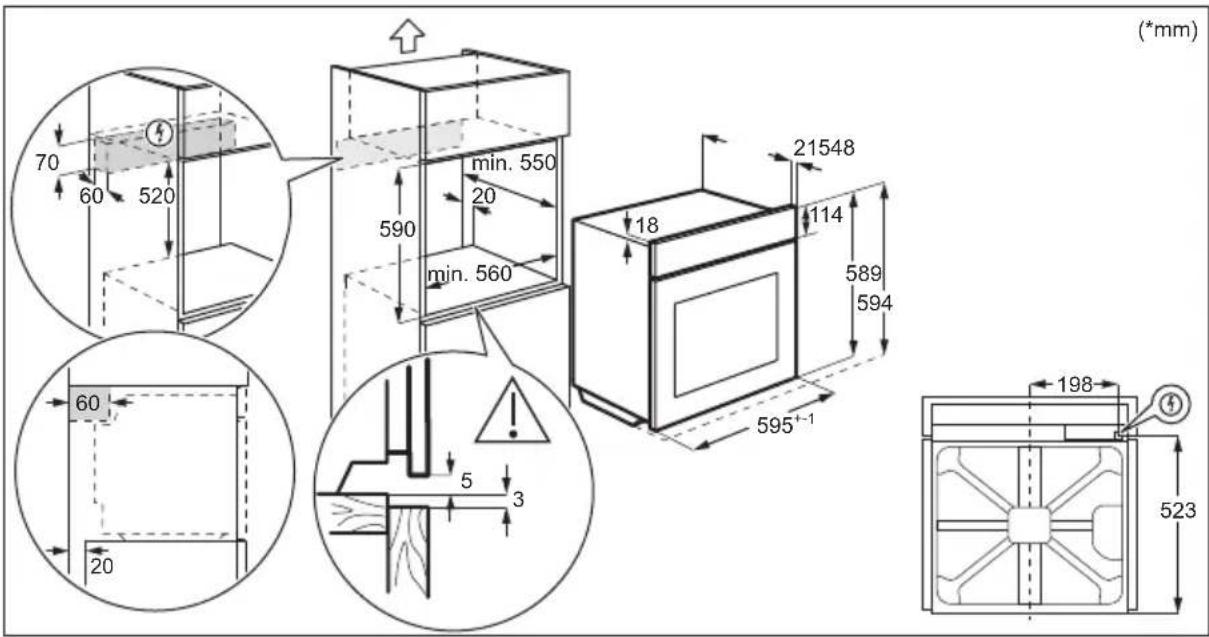

(*mm) 70 60 520 min. 550 20 590 min. 560 18 21548 114 589 594 595+1 60 20 5 3 198 523

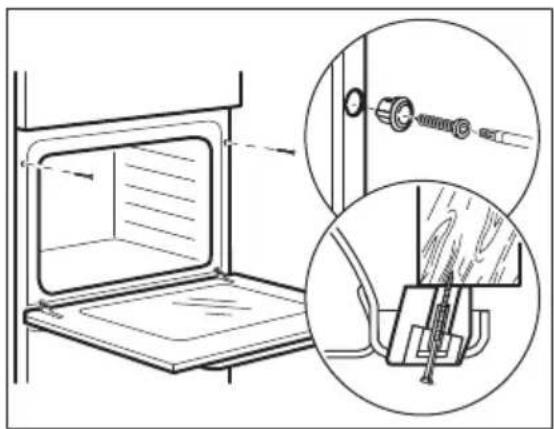

3.2 Securing the oven to the cabinet

Technical illustration of a door opening with an inset close-up showing mechanical components (no text or symbols)

4. PRODUCT DESCRIPTION

4.1 General overview

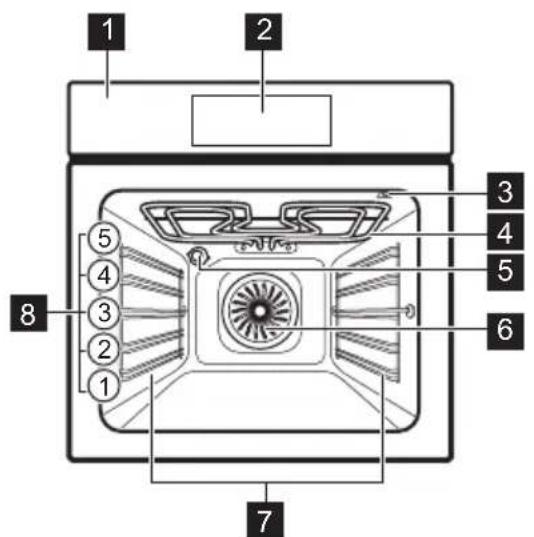

1 2 3 4 5 6 7 8 1 2 3 4 5

1 Control panel
2 Display
3 Socket for the food sensor

4 Heating element
5 Lamp
6 Fan
7 Shelf support, removable
8 Shelf positions

4.2 Accessories

- Wire shelf

For cake tins, overproof dishes, roast dishes, cookware/ dishes.

- Baking tray

For moist cakes, baked items, bread, large roasts, frozen meals and to catch dripping liquids, e.g. fat when roasting food on wire shelf.

- Grill- / Roasting pan

To bake and roast or as pan to collect fat.

- Food Sensor

To measure the temperature inside food.

5. CONTROL PANEL

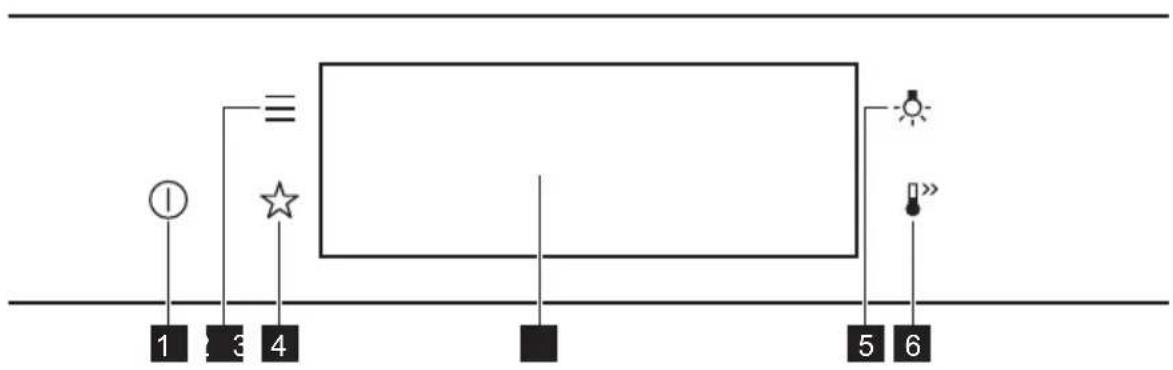

5.1 Control panel overview

1 2 3 4 5 6

1	ON / OFF	Press and hold to turn the appli-ance on and off.
2	Menu Lists the appliance functions.
3	Favour-ites	Lists the favourite settings.
4	Display	Shows the current settings of the appliance.

5	Lamp switch	To turn the lamp on and off.
6	Fast Heat Up	To turn on and off the function: Fast Heat Up.

5.2 Display

Display with key functions set.

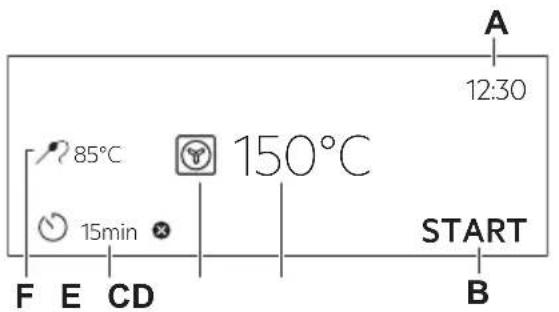

A 12:30 85°C 150°C 15min START F E CD B

A. Time of Day
B. START / STOP
C. Temperature
D. Heating functions
E. Timer
F. Food Sensor (selected models only)

Display indicators

To confirm the selection / setting.

Display indicators

To go one level back in the menu.

To undo the last action.

To turn the options on and off.

The sound alarm function is activated.

The sound alarm and stop cooking function is activated.

Pop up message only is activated.

Delayed start function is activated.

To cancel the setting.

6. BEFORE FIRST USE

WARNING!

Refer to Safety chapters.

6.1 Initial cleaning

1. Remove all accessories and removable shelf supports from the appliance.
2. Clean the appliance and the accessories only with a microfibre cloth, warm water and a mild detergent.
3. Put the accessories and removable shelf supports back to their initial position.

6.2 First connection

The display shows welcome message after the first connection.

You have to set: Language, Display Brightness, Key Tones, Buzzer Volume, Time of Day.

6.3 Initial preheating

Before the first use, preheat the empty appliance.

1. Remove all accessories and removable shelf supports from the appliance.
2. Set the function . Set the maximum temperature. Let the appliance operate for 1 h.
3. Set the function .Set the maximum temperature. Let the appliance operate for 15 ~min
4. Set the function 📋. Set the maximum temperature. Let the appliance operate for 15 min.
   Turn off the appliance and wait until it is cold. The appliance can emit an odour and smoke. Make sure that the airflow in the room is sufficient.

7. DAILY USE

WARNING!

Refer to Safety chapters.

7.1 Heating functions

STANDARD

	GrillTo grill thin pieces of food and to toast bread.
	Turbo GrillingTo roast large meat joints or poultry with bones on one shelf position. To bake gratins and to brown.
	True Fan CookingTo bake on up to three shelf positions at the same time and to dry food. Set the temperature 20 - 40 °C lower than for Conventional Cooking.
	Frozen FoodsPerfect for ready meals (e.g. french fries, croquettes or spring rolls).
	Conventional CookingTo bake and roast food on one shelf position.
	Pizza FunctionBest for baking pizza and other dishes that require more heat from below.
	Bottom HeatChoose this function after a cooking process to brown the food more on the bottom if needed. Use the lowest shelf level.
	Bread BakingTo bake bread.
	Dough ProvingTo speed up the rising of the yeast dough. It prevents dough surface from drying and keeps the dough elastic.

SPECIALS

	PreservingTo preserve vegetables and fruits, place canning jars in a baking tray filled with water, using jars with bayonet or screw caps of the same size. Use the lowest shelf position.
	DehydratingTo dry sliced fruit, vegetables and mushrooms. To allow the moisture-saturated air to escape and the fruit to dry better, it is advisable to open the oven door occasionally during the drying process.

	Plate WarmingTo preheat plates for serving.
	DefrostTo defrost food (vegetables and fruit). The defrosting time depends on the amount and size of the frozen food.
	Au GratinFor dishes such as lasagna or potato gratin. To bake gratins and to brown.
	Slow CookingLow temperature cooking process. It's perfect to cook delicate food (e.g., beef, veal or lamb).
	Keep WarmTo keep food warm. Please note that some dishes may continue to cook and dry out while being kept warm. Cover the dishes if necessary.
	Moist Fan BakingThis function is designed to save energy during cooking. When you use this function, the temperature inside the appliance may differ from the set temperature. The residual heat is used. The heating power may be reduced. For more information refer to "Daily Use" chapter, Notes on: Moist Fan Baking.

7.2 Notes on: Moist Fan Baking

This function was used to comply with the energy efficiency class and ecodesign requirements (according to EU 65/2014 and EU 66/2014). Tests according to: IEC/EN 60350-1.

The oven door should be closed during cooking so that the function is not interrupted and the oven operates with the highest energy efficiency possible.

When you use this function the lamp automatically turns off after 30 sec.

For the cooking instructions refer to "Hints and tips" chapter, Moist Fan Baking. For general energy saving recommendations refer to "Energy Efficiency" chapter, Energy Saving.

7.3 Setting: Heating functions

1. Turn on the appliance. The display shows the default heating function and the temperature.

2. Press the symbol of the heating function to enter the submenu.

3. Select the heating function and press .OK The display shows the temperature.
4. Set the temperature. Press .OK
5. Press . START

Food Sensor - you can plug the sensor at any time before or during cooking. Refer to "Using the accessories, Food sensor" chapter.

1. • press to turn off the heating function.

2. Turn off the appliance.

7.4 Menu

Press to enter the menu.

Menu item Application
Assisted Cooking Lists automatic pro-grammes.
Cleaning Lists cleaning pro-grammes.
Favourites Lists the favourite set-tings.
Options To set the appliance configuration.
Settings Setup To set the appliance configuration.
	Service Shows the software ver-sion and configuration.

Submenu for: Cleaning

Submenu Application
Pyrolytic cleaning, quick	Duration: 1 h.
Pyrolytic cleaning, normal	Duration: 1 h 30 min.
Pyrolytic cleaning, intense	Duration: 2 h 30 min.

Submenu for: Options

Submenu Application
Light Turns the lamp on and off.
Child Lock Prevents accidental activation of the appliance.
Fast Heat Up	Shortens the heat up time. It is available only for some of the heating functions.
Cleaning Reminder	Turns the reminder on and off.
Time Indication	Turns the clock on and off.
Digital Clock Style	Changes the format of the displayed time indication.

Submenu for: Setup

Submenu Description
Language	Sets the appliance language.
Display Brightness	Sets the display brightness.
Key Tones	Turns the tone of the touch fields on and off. It is not possible to mute the tone for 1 .
Buzzer Volume	Sets the volume of key tones and signals.
Time of Day	Sets the current time and date.

Submenu for: Service

Submenu Description
Demo Mode	Activation / deactivation code: 2468
Software Version	Information about software version.
Reset All Settings	Restores factory settings.

7.5 Setting: Assisted Cooking

Assisted Cooking submenu consists of a set of additional functions and programs that are designed for dedicated dishes. Each dish in this submenu is provided with a suitable

setting. You can adjust the time and the temperature during cooking.

For some of the dishes you can also cook with Food Sensor. The degree to which a dish is cooked:

• Rare
• Medium
• Well Done

For some of the dishes you can also cook with Weight Automatic.

1. Turn on the appliance.
2. Press
3. Press . Enter Assisted Cooking.
4. Choose a dish or a food type.
5. Place the food inside the appliance and press START
   When the function ends, check if the food is ready. Extend the cooking time, if needed.

8. ADDITIONAL FUNCTIONS

8.1 Favourites ☆

You can save your favourite settings, such as heating function, cooking time, temperature or cleaning function. You can save 3 favourite settings.

1. Turn on the appliance.
2. Select the preferred setting.
3. Press
4. Select: Favourites / Save current settings.
5. Press + to add the setting to the list of: Favourites.
6. Press OK.
7. press to reset the setting.
   ✗ - press to cancel the setting.

8.2 Function lock

This function prevents an accidental change of the appliance function.

1. Turn on the appliance.
2. Set a heating function.
3. , ☆press at the same time to turn on the function.
   ☆, ⚠ press at the same time to turn off the function.

8.3 Child Lock

This function prevents accidental activation of the appliance.

1. Turn on the appliance.
2. Press .

3. Select Options / Child Lock.

4. Press the code letters in an alphabetical order.

Child Lock is activated.

When this function is activated, access to:

Timer and lamp is available.

To enable the use of the appliance, press the code letters in an alphabetical order.

The door is locked when this function is activated and the appliance is turned off.

8.4 Automatic switch-off

For safety reasons, if the heating function is active and no settings are changed, the appliance will turn off automatically after a certain period of time.

	(°C) (h)
30 - 115 12.5
120 - 195 8.5
200 - 245 5.5
250 - maximum 3

The Automatic switch-off does not work with the functions: Light, Food Sensor, End time, Slow Cooking.

8.5 Cooling fan

When the appliance operates, the cooling fan turns on automatically to keep the surfaces of the appliance cool. If you turn off the appliance, the cooling fan can continue to operate until the appliance cools down.

9. CLOCK FUNCTIONS

9.1 Clock functions description

Function Description

Timer To set the length of cooking. Maximum is 23 h 59 min.You can set what happens when the time is up by setting the preferred: End Action.
End Action Sound Alarm - when the time is up the signal sounds. You can set this function at any time, even when the appliance is turned off.
Delayed start	To postpone the start and / or end of cooking.
Time Extension	To extend the cooking time.
Uptimer To show how long the appliance operates. Maximum is 23 h 59 min. You can turn the function on and off. This function has no effect on the operation of the appliance.

9.2 Setting: Time of Day

1. Turn on the appliance.
2. Press: Time of Day.
3. Set the time.
4. Press .OK

9.3 Setting: Timer

1. Choose the heating function and set the temperature.
2. Press .
3. Set the time.

You can select the preferred End action by pressing • • •

1. Press . Repeat the action until the display shows the main screen.

When 10% of cooking time is left and the food does not seem to be ready, you can extend cooking time. You can also change the heating function. Press +1min to extend the cooking time.

9.4 Setting: Delayed start

1. Set the heating function and the temperature.
2. Press .
3. Set the cooking time.
4. Press .
5. Press: Delayed start.
6. Choose the desired start time.
7. Press . Repeat the action until the display shows the main screen.

9.5 Setting: Uptimer

1. Set the heating function and the temperature.
2. Press .
3. Press .
4. Press: Uptimer.
5. Slide or press 📋 to see the baking time on the main screen.
6. Press . Repeat the action until the display shows the main screen.

9.6 Changing timer settings

You can change the set time during cooking at any time.

1. Press
2. Set the timer value.
3. Press .OK

10. USING THE ACCESSORIES

WARNING!

Refer to Safety chapters.

10.1 Inserting accessories

A small indentation at the top increases safety. The indentations are also anti-tip devices. The high rim around the shelf prevents cookware from slipping off the shelf.

Wire shelf

Technical line drawing of a ladder with two magnified views showing internal structure (no text or symbols)

Insert the shelf between the guide bars of the shelf support and make sure that the feet point down.

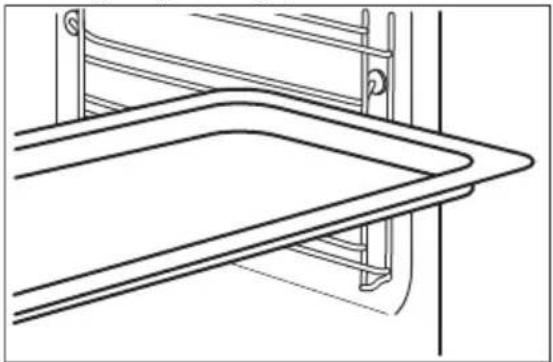

Baking tray / Deep pan

Technical line drawing of a mechanical component or bracket assembly (no text or symbols)

Push the tray between the guide bars of the shelf support.

10.2 Food Sensor

It measures the temperature inside the food. You can use it with every heating function.

There are two temperatures to be set:

- the temperature inside the appliance: minimum 120 °C.

- -the food core temperature.

For the best cooking results:

- Ingredients should be at room temperature.

- Do not use it for liquid dishes.

- During cooking the needle of the food sensor must be fully inserted in the dish.

The appliance calculates an approximate end of cooking time. It depends on the quantity of food, the heating function and the temperature.

Cooking with: Food Sensor

WARNING!

There is a risk of burns as Food Sensor and shelf supports become hot. Do not touch Food Sensor handle with bare hands. Always use oven gloves.

1. Turn on the appliance.

2. Set a heating function and, if necessary, the oven temperature.

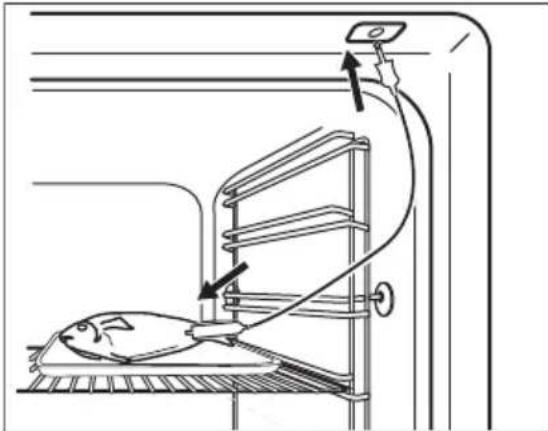

3. Insert Food Sensor inside the dish:

Meat, poultry and fish Insert the entire needle of the Food Sensor into the centre of meat or fish at its thickest part.

Line drawing of a fish inside a medical device with an attached device (no text or symbols)

Casserole

Insert the tip of Food Sensor exactly in the centre of the casserole. Food Sensor should be stabilized in one place during baking. Use a solid ingredient to achieve that. Use the rim of the baking dish to support the silicone handle of Food

Sensor. The tip of Food Sensor should not touch the bottom of a baking dish.

Illustration of a cylindrical device connected to a probe in a beaker with a wire, both without any text or symbols.

1. Plug Food Sensor into the socket located inside the appliance. Refer to "Product description".

The display shows the current temperature of Food Sensor.

1. • press to set the core temperature of the sensor.
2. • press to set the preferred option:

- Sound Alarm - when food reaches the core temperature, the signal sounds. - Sound Alarm and stop cooking - when food reaches the core temperature, the signal sounds and the oven stops.

1. Select the option and repeatedly press OK to go to main screen.

2. Press . START

When the food reaches the set temperature, the signal sounds. Check if the food is ready. Extend the cooking time, if needed.

1. Remove Food Sensor plug from the socket and remove the dish from the appliance.

11. HINTS AND TIPS

11.1 Cooking recommendations

The temperature and cooking times in the tables are for guidance only. They depend on the recipes, quality and quantity of the ingredients used.

Your appliance may bake or roast differently than your previous appliance. The hints below show recommended settings for temperature, cooking time and shelf position for specific types of the food.

If you cannot find the settings for a specific recipe, look for a similar one.

Symbols used in the tables:

	Food type
	Heating function
	Temperature
	Accessory

Shelf position

Cooking time (min)

11.2 Moist Fan Baking - recommended accessories

Use dark and non-reflective tins and containers. They have better heat absorption than light colour and reflective dishes.

• Pizza pan - dark, non-reflective, diameter 28cm
• Baking dish - dark, non-reflective, diameter 26cm
• Ramekins - ceramic, diameter 8cm, height 5 cm
• Flan base tin - dark, non-reflective, diameter 28cm

11.3 Moist Fan Baking

For the best results follow suggestions listed in the table below.

Sweet rolls, 16 pieces baking tray or dripping pan 180 2 20 - 30

		°C
Rolls, 9 pieces baking tray or dripping pan 180 2 30 - 40
Pizza, frozen, 0.35 kg wire shelf 220 2 10 - 15
Swiss Roll baking tray or dripping pan 170 2 25 - 35
Brownie baking tray or dripping pan 175 3 25 - 30
Soufflè, 6 pieces ceramic ramekins on wire shelf		200 3 25 - 30
Sponge flan base flan base tin on wire shelf 180 2 15 - 25
Victoria sandwich baking dish on wire shelf 170 2 40 - 50
Poached fish, 0.3 kg baking tray or dripping pan 180 3 20 - 25
Whole fish, 0.2 kg baking tray or dripping pan 180 3 25 - 35
Fish fillet, 0.3 kg pizza pan on wire shelf 180 3 25 - 30
Poached meat, 0.25 kg	baking tray or dripping pan 200 3 35 - 45
Shashlik, 0.5 kg	baking tray or dripping pan 200 3 25 - 30
Cookies, 16 pieces	baking tray or dripping pan 180 2 20 - 30
Macaroons, 24 pieces	baking tray or dripping pan 180 2 25 - 35
Muffins, 12 pieces	baking tray or dripping pan 170 2 30 - 40
Savory pastry, 20 pieces	baking tray or dripping pan 180 2 25 - 30
Short crust biscuits, 20 pieces	baking tray or dripping pan 150 2 25 - 35
Tartlets, 8 pieces	baking tray or dripping pan 170 2 20 - 30
Vegetables, poached, 0.4 kg	baking tray or dripping pan 180 3 35 - 45
Vegetarian omelette	pizza pan on wire shelf 200 3 25 - 30
Mediterranean vegetables, 0.7 kg	baking tray or dripping pan 180 4 25 - 30

11.4 Information for test institutes

Tests according to IEC 60350-1.

1) Preheat the appliance for 10 minutes.
2) Place the wire shelf on the third level and the dripping pan on the second level of the oven. Preheat the appliance for 10 minutes. Turn the food halfway through the cooking time.

				°C
Small cakes, 20 per tray	Conventional Cooking	Baking tray	3	170	20 - 35
Small cakes, 20 per tray	True Fan Cooking	Baking tray	3	150 - 160	20 - 35
Small cakes, 20 per tray	True Fan Cooking	Baking tray	2 and 4	150 - 160	20 - 35
Apple pie, 2 tins ∅20 cm	Conventional Cooking[XAB4]	Wire shelf	2	180	70 - 90
Apple pie, 2 tins ∅20 cm True Fan Cooking Wire shelf 2 160 70 - 90
Fatless sponge cake, cake mould ∅26 cm 1)	Conventional Cooking Wire shelf 2 170 40 - 50
Fatless sponge cake, cake mould ∅26 cm 1)	True Fan Cooking Wire shelf 2 160 40 - 50
Fatless sponge cake, cake mould ∅26 cm 1)	True Fan Cooking Wire shelf 2 and 4 160 40 - 60
Short bread True Fan Cooking Baking tray 3 140 - 150 20 - 40
Short bread True Fan Cooking Baking tray 2 and 4 140 - 150 25 - 45
Short bread Conventional Cooking Baking tray 3 140 - 150 25 - 45
Toast, 4 - 6 pieces 1)	Grill Wire shelf 4 max. 1 - 5
Beef burger, 6 pieces, 0.6 kg2)	Grill	Wire shelf, dripping pan	4 max.	20 - 30

12. CARE AND CLEANING

WARNING!

Refer to Safety chapters.

12.1 Notes on cleaning

Cleaning Agents

• Clean the front of the appliance only with a microfibre cloth with warm water and a mild detergent.
• Use a cleaning solution to clean metal surfaces.
  • Clean stains with a mild detergent.

Everyday Use

• Clean the interior of the appliance after each use. Fat accumulation or other residue may cause fire.
• Moisture can condense in the appliance or on the door glass panels. To decrease the condensation, let the appliance work for 10 minutes before cooking. Do not store food in the appliance for longer than 20 minutes. Dry the interior of the appliance only with a microfibre cloth after each use.

Accessories

• Clean all accessories after each use and let them dry. Use only a microfibre cloth with warm water and a mild detergent. Do not clean the accessories in a dishwasher.
• Do not clean the non-stick accessories using abrasive cleaner or sharp-edged objects.

12.2 Removing the shelf supports

Remove the shelf supports to clean the appliance.

1. Turn off the appliance and wait until it is cold.
2. Pull the front of the shelf support away from the side wall.
3. Pull the rear end of the shelf support away from the side wall and remove it.

1 G 2

Install the shelf supports in the opposite sequence.

12.3 Pyrolytic Cleaning

Use it to clean the appliance and burn off the residues.

WARNING!

There is a risk of burns.

CAUTION!

If there are other appliances installed in the same cabinet, do not use them at the same time as this function. It can cause damage to the oven.

Do not start the function if you did not fully close the oven door.

1. Turn off the appliance and wait until it is cold.
2. Remove all accessories.
3. Clean the oven floor and the inner door glass with warm water, a soft cloth and a mild detergent.
4. Turn on the appliance.
5. Press Cleaning.
6. Select the cleaning mode.

Option Duration

Pyrolytic cleaning, quick 1 h

Pyrolytic cleaning, normal 1 h 30 min

Pyrolytic cleaning, intense 2 h 30 min

When the cleaning starts, the oven door is locked and the lamp is off. The cooling fan works at a higher speed.

STOP - press to stop the cleaning before it is completed.

Do not use the appliance until the door lock symbol disappears from the display.

1. When the cleaning ends, turn off the appliance and wait until it is cold.
2. Clean the oven interior with a soft cloth. Remove the residue from the bottom of the oven.

12.4 Cleaning Reminder

When the reminder appears, cleaning is recommended.

Use the function: Pyrolytic Cleaning.

12.5 Removing and installing door

The oven door has three glass panels. You can remove the oven door and the internal glass panels to clean them. Read the whole "Removing and installing door" instruction before you remove the glass panels.

CAUTION!

Do not use the appliance without the glass panels.

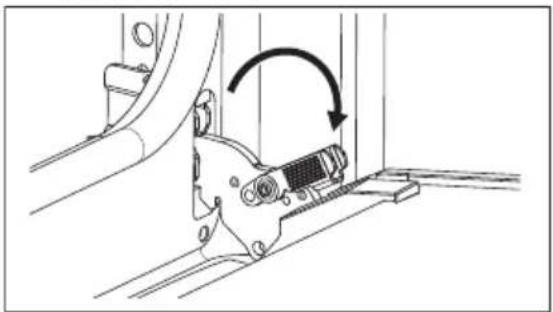

1. Open the door fully and hold both hinges.

Technical diagram showing mechanical assembly with an inset close-up of a component (no text or symbols)

1. Lift and pull the latches until they click.

Technical line drawing of a mechanical assembly with a curved arrow indicating rotation (no text or symbols)

1. Close the oven door halfway to the first opening position. Then lift and pull to remove the door from its seat.

Illustration of a hand holding a folder with curved arrows indicating rotation (no text or symbols)

1. Put the door on a soft cloth on a stable surface.

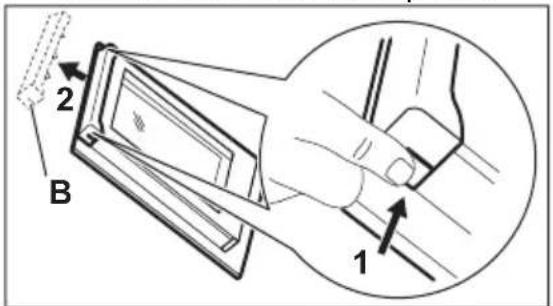

2. Hold the door trim On the top edge of the door at the two sides and push inwards to release the clip seal.

2 B 1

1. Pull the door trim to the front to remove it.

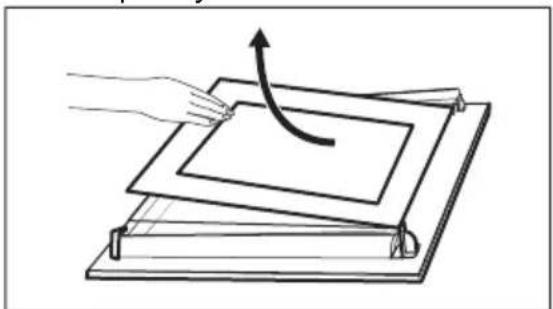

2. Hold the door glass panels by their top edge and carefully pull them out one by one. Start from the top panel. Make sure the glass slides out of the supports completely.

Diagram of a hand pressing a curved arrow on a layered platform (no text or symbols)

1. Clean the glass panels with water and soap. Dry the glass panels carefully. Do not clean the glass panels in the dishwasher.
2. After cleaning, install the glass panels and the oven door.

If the door is installed correctly, you will hear a click when closing the latches.

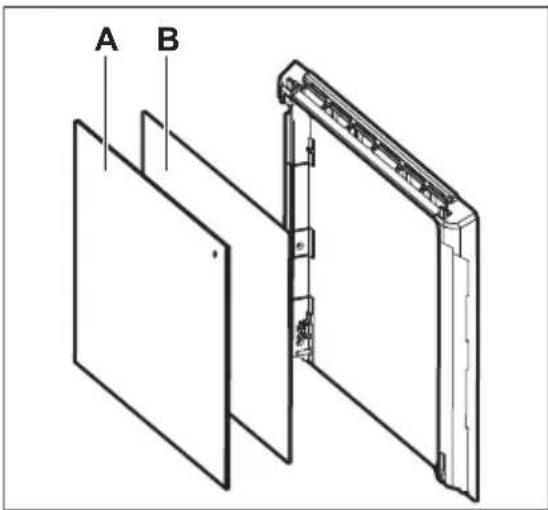

Make sure that you put the glass panels (A and B) back in the correct sequence. Check for the symbol / printing on the side of the glass panel. Each of the glass panels looks different to make the disassembly and assembly easier.

When installed correctly, the door trim clicks.

A B

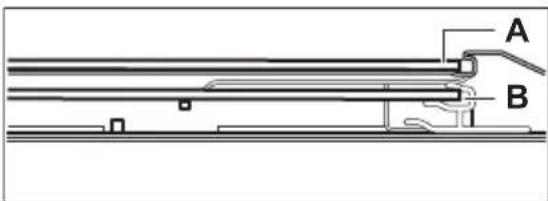

Make sure that you install the middle panel of glass in the seats correctly.

A B

12.6 Replacing the lamp

WARNING!

Risk of electric shock. The lamp can be hot.

1. Turn off the appliance and wait until it is cold.
2. Disconnect the appliance from the mains.
3. Place the cloth on the oven floor.

CAUTION!

Always hold the halogen lamp with a cloth to prevent grease residue from burning on the lamp.

Back lamp

1. Turn the glass cover to remove it.
2. Clean the glass cover.
3. Replace the lamp with a suitable 300^ C heat-resistant lamp.
4. Install the glass cover.

13. TROUBLESHOOTING

WARNING!

Refer to Safety chapters.

13.1 What to do if...

Problem description Cause and remedy

You cannot activate or operate the appliance.	The appliance is not connected to an electrical supply or it is connected incorrectly.
The appliance does not heat up. The clock is not set.To set the clock refer to "Clock functions" chapter.
The lamp is turned off. The lamp is burnt out. Replace the lamp.For details refer to "Care and Cleaning" chapter.

Power cut always stops cleaning. Repeat cleaning if it's interrupted by power failure.

13.2 Error codes

When the software error occurs, the display shows error message. You will find the list of problems in the table below.

Code and description Remedy

C2 - the Food Sensor is in the appliance cavity during Pyrolytic Cleaning.	Take out the Food Sensor.
C3 - the door is not fully closed during Pyrolytic Cleaning.	Close the door.
F111 - Food Sensor is not correctly inserted into the socket.	Fully plug Food Sensor into the socket.
F240, F439 - the touch fields on the display do not work properly.	Clean the surface of the display. Make sure there is no dirt on the touch fields.
F908 - the appliance system cannot connect with the control panel.	Turn the appliance off and on.

13.3 Service data

If you cannot find a solution to the problem yourself, contact your dealer or an Authorised Service Centre.

The necessary data for the service centre is on the rating plate. The rating plate is located

on the front frame of the appliance. It is visible when you open the door. Do not remove the rating plate from the appliance.

We recommend that you write the data here:

Model (MOD.):

Product number (PNC):

Serial number (S.N.):

14. ENERGY EFFICIENCY

14.1 Product Information and Product Information Sheet according to EU Ecodesign and Energy Labelling Regulations

Supplier's name Electrolux

Model identification KOEBP29H 949498494

Energy Efficiency Index 81.2

Energy efficiency class A+

Energy consumption with a standard load, conventional mode 0.93 kWh/cycle

Energy consumption with a standard load, fan-forced mode 0.69 kWh/cycle

Number of cavities 1

Heat source Electricity

Volume 72 l

Type of oven Built-In Oven

Mass 31.2 kg

IEC/EN 60350-1 - Household electric cooking appliances - Part 1: Ranges, ovens, steam ovens and grills - Methods for measuring performance.

14.2 Energy saving

The appliance has features which help you save energy during everyday cooking.

Make sure that the appliance door is closed when the appliance operates. Do not open the appliance door too often during cooking. Keep the door gasket clean and make sure it is well fixed in its position.

Use metal cookware to improve energy saving.

When possible, do not preheat the appliance before cooking.

Keep breaks between baking as short as possible when you prepare a few dishes at one time.

Cooking with fan

When possible, use the cooking functions with fan to save energy.

Residual heat

If a programme with Duration is activated and the cooking time is longer than 30 min, the heating elements automatically turn off earlier in some appliance functions.

The fan and lamp continue to operate. When you turn off the appliance, the display shows the residual heat. You can use that heat to keep the food warm.

When the cooking duration is longer than 30 min, reduce the appliance temperature to minimum 3 - 10 min before the end of cooking. The residual heat inside the appliance will continue to cook.

Use the residual heat to warm up other dishes.

Keep food warm

Choose the lowest possible temperature setting to use residual heat and keep a meal warm. The residual heat indicator or temperature appears on the display.

Cooking with the lamp off

Turn off the lamp during cooking. Turn it on only when you need it.

Moist Fan Baking

Function designed to save energy during cooking.

When you use this function the lamp automatically turns off after 30 sec. You may turn on the lamp again but this action will reduce the expected energy savings.

15. ENVIRONMENTAL CONCERNS

Recycle materials with the symbol .Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances. Do not dispose of

appliances marked with the symbol ☒ with the household waste. Return the product to your local recycling facility or contact your municipal office.

How to install your AEG/Electrolux Oven - Column installation

(*mm) 80 60 520 min. 550 600 20 min. 560 18 21548 114 589 594 595+1 60 20 5 3 198 523

(*mm) 70 60 520 min. 550 20 590 min. 560 18 21548 114 589 594 595+1 60 20 5 3 198 523

Technical illustration of a door opening with an inset showing a mechanical assembly (no text or symbols)

4. DESCRIPTION DE L'APPAREIL

4.1 Vue d'ensemble

1 2 3 4 5 6 7 8 1 2 3 4 5

Activez / Désactivez

Technical line drawing of a mechanical component with two circular inset views showing internal structure (no text or symbols)

Line drawing of a curved architectural or mechanical component with railings, no text or symbols present

Line drawing of a fish inside a medical device with an attached device (no text or symbols)

Ragoût

Illustration of a gas collection setup with a container and a beaker, both connected by wires (no text or symbols)

Technical diagram showing a mechanical assembly with an inset close-up of a component (no text or symbols present)

Mechanical assembly diagram showing a clamping mechanism with a curved arrow indicating rotation (no text or symbols present)

Illustration of a hand holding a folder with curved arrows indicating rotation (no text or symbols)

Diagram of a hand pressing a curved arrow on a layered rectangular object (no text or symbols)

How to install your AEG/Electrolux Oven - Column installation

(*mm) 80 60 520 min. 550 600 20 min. 560 18 21548 114 589 594 60 20 5 3 595+/-1 198 ① 523

(*mm) 70 60 520 min. 550 20 590 min. 560 18 21548 114 589 594 595+1 60 20 5 3 198 523

Technical illustration of a door opening with an inset close-up showing mechanical components (no text or symbols)

Technical line drawing of a metal frame structure with two magnified views showing internal details (no text or symbols)

Line drawing of a curved architectural or mechanical component with railings, no text or symbols present

Diagram of a fish inside a medical device with an attached device and directional arrows indicating movement (no text or symbols)

Auflauf

Diagram showing a test tube connected to a container and a beaker with a probe, both without any text or symbols.

Technical diagram showing a mechanical assembly with an inset close-up of a component (no text or symbols present)

Technical line drawing of a mechanical assembly with a curved arrow indicating rotation (no text or symbols)

Line drawing of a hand holding a folder with arrows indicating rotation (no text or symbols)

Diagram of a hand pressing a curved arrow on a layered rectangular object (no text or symbols)

Symbol of a trash bin crossed with a diagonal line, representing no waste or discharge (no text or labels)

Recycling symbol with three arrows forming a triangle (no text or labels)

The following table provides the results of a single variable: _1 , _2 , _3 , and _4 . The values of the variables are expressed as follows:

[EMPTY]

......

[EMPTY]

[EMPTY]

[EMPTY]

[Non-Text]

......

......

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

......

......

......

[Non-Text]

[EMPTY]

The following table provides the results of a single variable: _1 , _2 , _3 , and _4 . The values of the variables are expressed as follows:

[EMPTY]

electrolux.com
