USER MANUAL PowerStream 4 Chauvet

Line drawing of a rectangular electronic device with four circular ports and mounting holes (no text or symbols)

About This Guide

The PowerStream 4 Quick Reference Guide (QRG) contains the product's connection and mounting information.

Disclaimer

Read ALL the disclaimers and Safety Notes in this document before installing, operating, and maintaining this product.

Limited Warranty

FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE.

For Customers in the United States and Mexico: https://www.chauvetprofessional.com/warranty For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: https://www.chauvetprofessional.eu/warranty/.

Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the period specified in, and subject to the exclusions and limitations set forth in the full limited warranty on our website. This warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this warranty, you must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES. This warranty gives you specific legal rights. You may also have other rights that vary from state to state and country to country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, Germany and Mexico. For warranty terms in other countries, please consult your local distributor.

Safety Notes

• DO NOT open this product unless instructed. It contains no user serviceable parts.
  • ONLY use this product in an area that has adequate ventilation.
  • DO NOT operate this product outdoors or in any location where dust excessive heat, water, or humidity may affect it.
• DO NOT leave any flammable material within 5 cm from this product while connected to the power outlet to minimize the risk of fire.
• DO NOT operate this product if you see damage on the housing. In this case, have the damaged parts replaced by an authorized technician immediately.
  • ONLY connect this product to a grounded and protected circuit.

Contact

Outside the U.S., U.K., Ireland, France, Germany, Mexico, or Benelux, contact your distributor to request support or return a product. Visi www.chauvetprofessional.com for contact information.

What Is Included

- PowerStream 4

- Quick Reference Guide

Features

• Split power in five directions.
• Small form factor allows easy rigging.
- Send power where it needs to go.

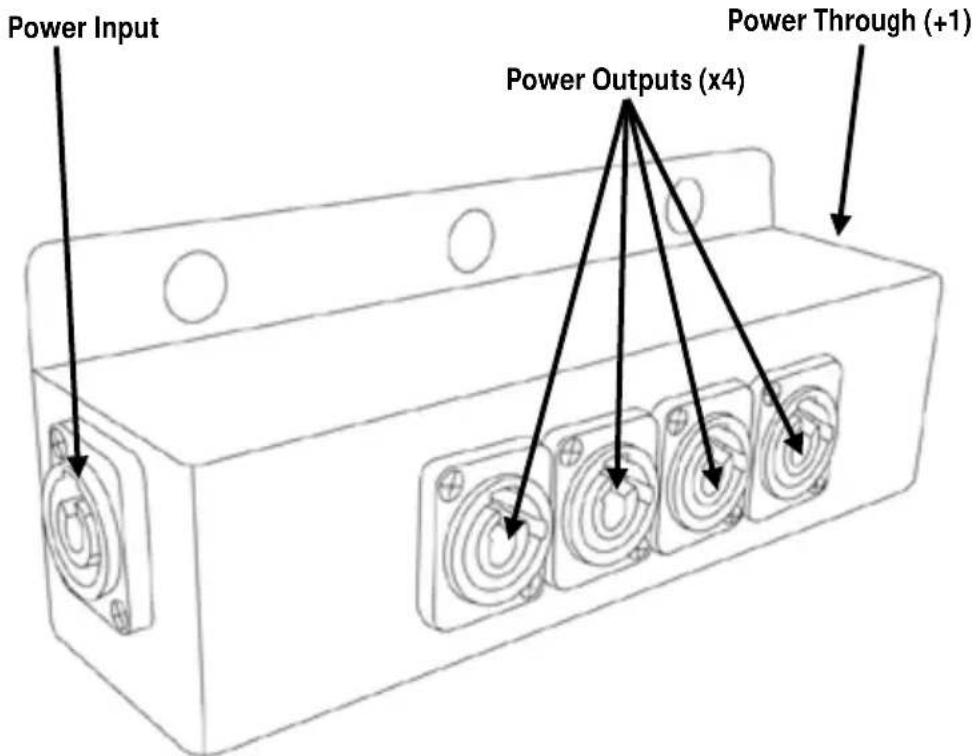

Product Overview

Power Input Power Through (+1) Power Outputs (x4)

AC Power

This product works with an input voltage range of 100 to 240 VAC, 50/60 Hz.

Setup

1. Plug in a power cord to the power input.
2. Plug any additional products to the power outputs.
3. You can daisy chain additional PowerStream™ 4 products by plugging into any empty power output or the power through.

• Do not exceed 20 amps throughout your entire power run.
- The maximum load for the PowerStream 4 is 20 amps. Do not exceed this rating.
- The maximum current for any power output on the PowerStream 4 is 20 amps. Do not exceed this rating.

Mounting

Before mounting this product, read the Safety Notes at the beginning of this guide. Make sure the mounting clamps are capable of supporting the weigh of the product. Use a safety cable when mounting this product overhead.

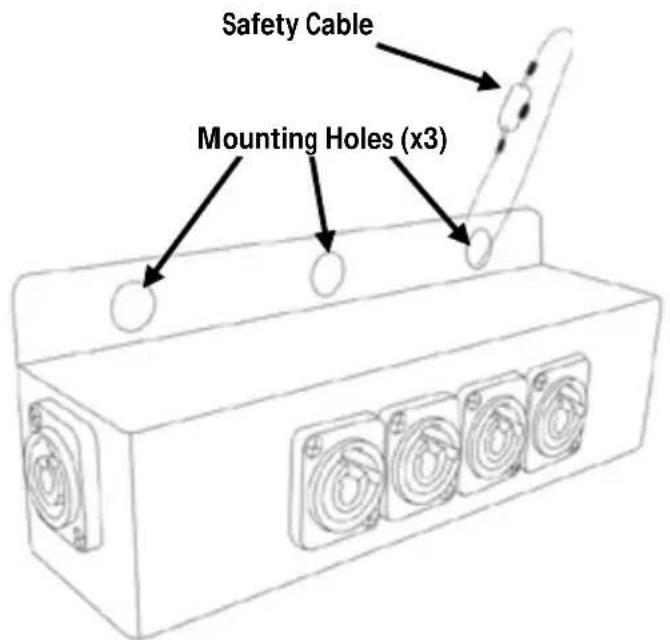

Product Mounting Diagram

Safety Cable Mounting Holes (x3)

Acerca de esta Guía

Visit the applicable website above to verify our contact information and instructions to request support. Outside the U.S., U.K., Ireland, France, Germany, Benelux, or Mexico, contact the dealer of record.
