EN Installation manual Kitchen Faucet

Installation instructions 5

Cleaning and maintenance 7

Replacing the cartridge 7

General maintenance 7

Spare/replacement list 8

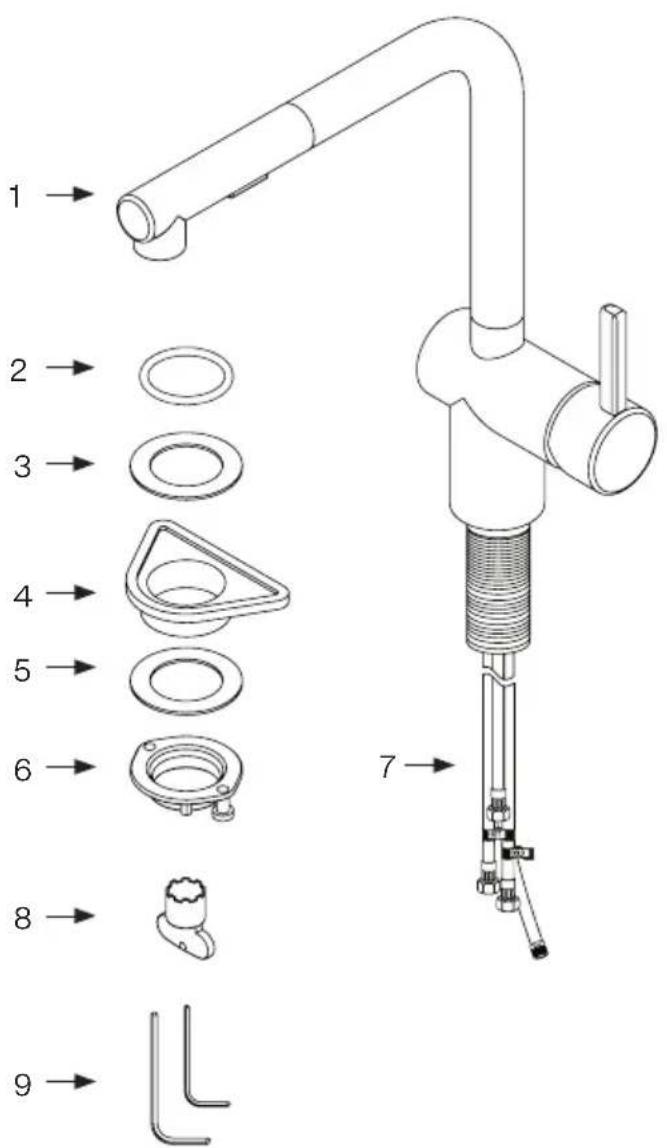

Contents in box ATL-PO-304

1 2 3 4 5 6 7 8 9

1. Faucet Assembly
2. Rubber O-Ring
3. Rubber Washer
4. Plastic Flange
5. Fixing Plate
6. Fixing Nut
7. Supply Hoses
8. Aerator Key
9. Hex Key

Note: Contact us immediately if you see inconsistencies.

phone: [phone]

website: www.franke.us/ks

e-mail: [e-mail]

Technical data

Operating data Value
Operating pressure (ideal)	60 PSI	4 bar	400 kPa
Operating pressure (max.)	115 PSI	8 bar	800 kPa
Operating pressure (min.)	30 PSI	2 bar	200 kPa
Water temperature (ideal)	140°F	60°C
Water temperature (max.)	158°F	70°C
Hole Size For Faucet	13/8"	35 mm

Certifies this faucet complies with ASME A112.18.1 / CSA B125.1, NSF/ANSI/CAN 61-2020 (AB100 compliant, Q<1) & NSF 372. The faucet also complies with water usage requirements of the California Energy Commission and the US Department of Energy.

Installation instructions

1. Remove all contents from the package and check for completeness.
2. Turn off water supply.
3. Remove faucet (1) and hardware from its protective packaging - faucet comes assembled. Remove fixing hardware.
4. Cut mounting hole 1 3/8" in diameter (35 mm) in the desired position (if one isn't available).

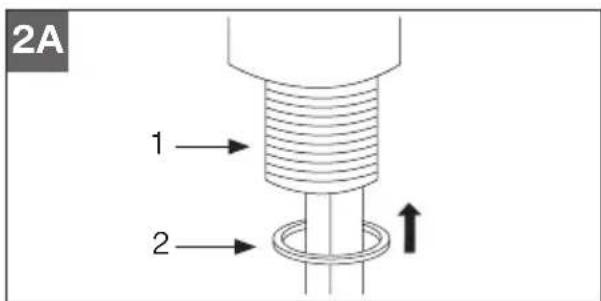

5. Ensure Rubber O-Ring (2) is in place in the Faucet Base (1) (fig. 2A).

2A 1 2

1. Insert the faucet into the hole, hoses first (fig. 2B).

Attention: Rubber O-Ring (2) should be sitting between the countertop and faucet base.

Do not use putty or other sealant at this location.

Notes: Solid surface installation: The countertop mounting surface needs to be flat and free of debris; otherwise the faucet may not sit properly and could leak.

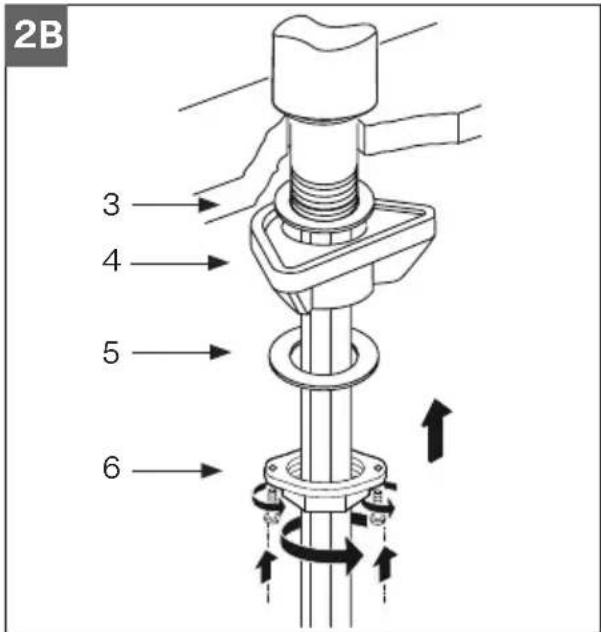

1. Install the mounting hardware to the mounting shank of the Faucet Base (1) underneath the mounting surface in the following order: Rubber Washer (3), Plastic Flange (4) and Fixing Plate (5) (fig. 2B).

2B 3 4 5 6

EN

1. Secure the faucet by tightening the Fixing Nut (6) onto the mounting shank of the Faucet Base (1) and tightening the screws in Fixing Nut (6) (fig. 2B).

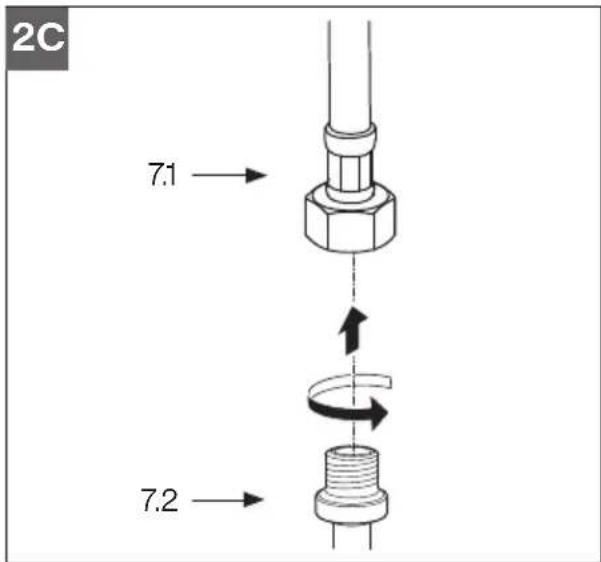

2. Connect Spray Hose (7.1) to Spray Supply Hose (7.2) (fig. 2C).

2C 7.1 7.2

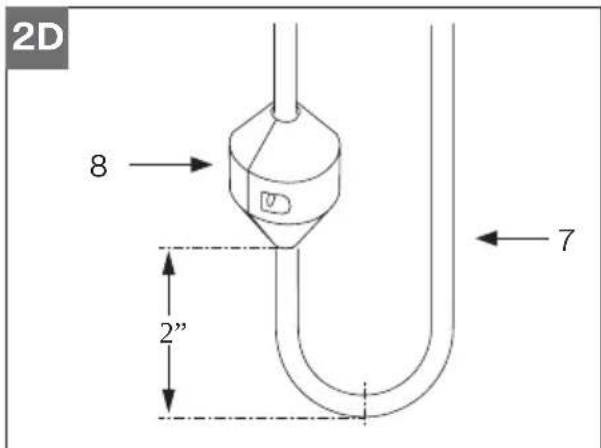

1. Attach the Weight (8) to the Spray Hose (7) approximately 2" (50 mm) above the bend in the bottom of the Spray Hose (fig. 2D).

2D 8 2" 7

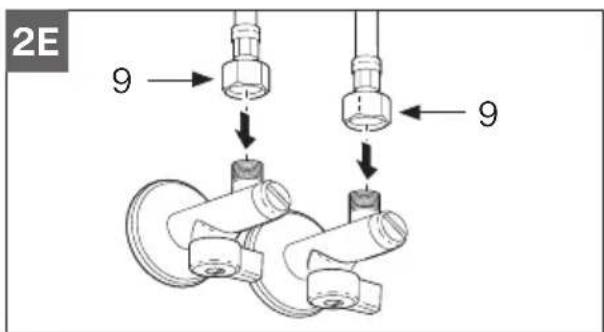

1. Connect the Flexible Supply Hoses (9) to the water supply in the home (fig. 2E).

2E 9 → ↓ 9 ← ↓

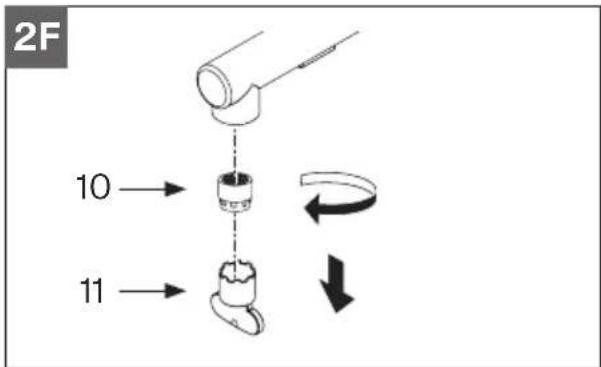

1. Remove Aerator (10) using the Aerator Key (11) (fig. 2F).

2F 10 → 11 →

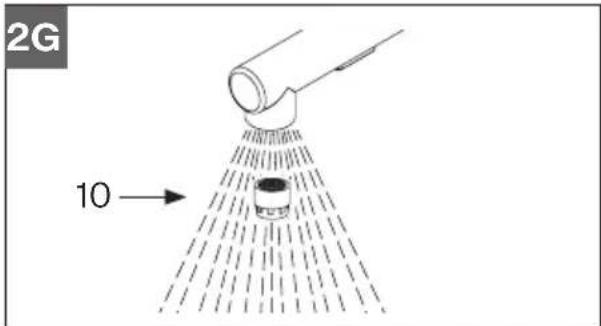

1. Turn on water, flush the faucet and Aerator (10) to remove any debris and check for leaks (fig. 2G).

2G 10 →

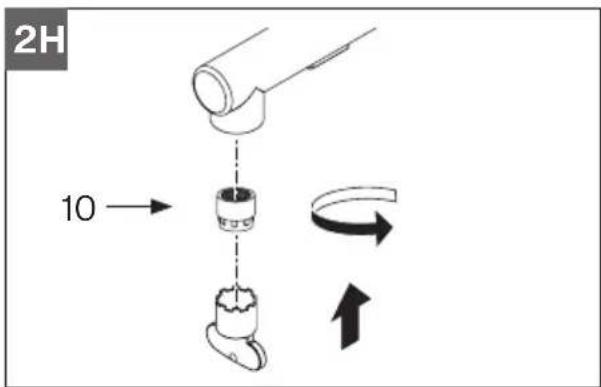

1. Reinstall the Aerator (10) and ensure everything is functioning properly (fig. 2H).

2H 10 → ↓ ↑

Replacing the cartridge

1. Shut off the water supply to the faucet.
2. Turn on the faucet briefly to relieve any pressure inside the faucet.
3. Move the faucet handle to the "OFF" position.

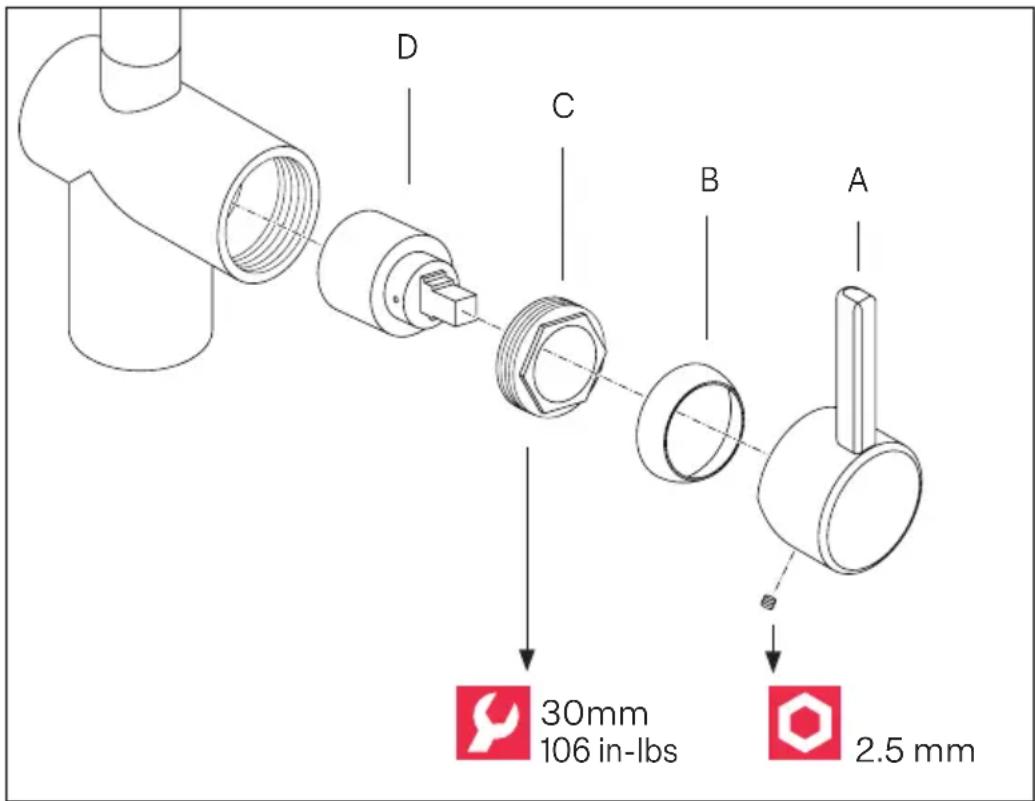

4. Remove the set screw from the Handle Assembly (A) using a 2.5 mm Hex Key.
5. Pull the Lever Handle (A) from faucet body.
6. Unscrew the Cartridge Cap (B) from faucet body.
7. Unscrew the Cartridge Lock Nut (C).
8. Lift Ceramic Disc Cartridge (D) from the body and repalce it with a new one. Ensure the two lugs on bottom of the cartridge sit properly in the allocated holes at the base of the body.
9. Re-assemble faucet in reverse order.
10. Test for leakage.

General maintenance

Clean aerator periodically for any buildup.

Do not use harsh detergents, solvents, chemical agents, especially CHLORINE, or metallic sponges as these can damage the surface finish. Clean only with a soft sponge and soapy water.

Do not store chemicals or cleaning agents in the immediate vicinity of the faucet and connection hoses. Chemical vapors could cause damage.

Attention! For outdoor installation product must be protected from freezing temperatures. Disconnect hot and cold supply hoses from home, open the handle to drain out all water. Disconnect spray hose and ensure all water is removed from spray hose/spray head. Cover faucet with protective covering to keep warm.

D C B A 30mm 106 in-lbs 2.5 mm

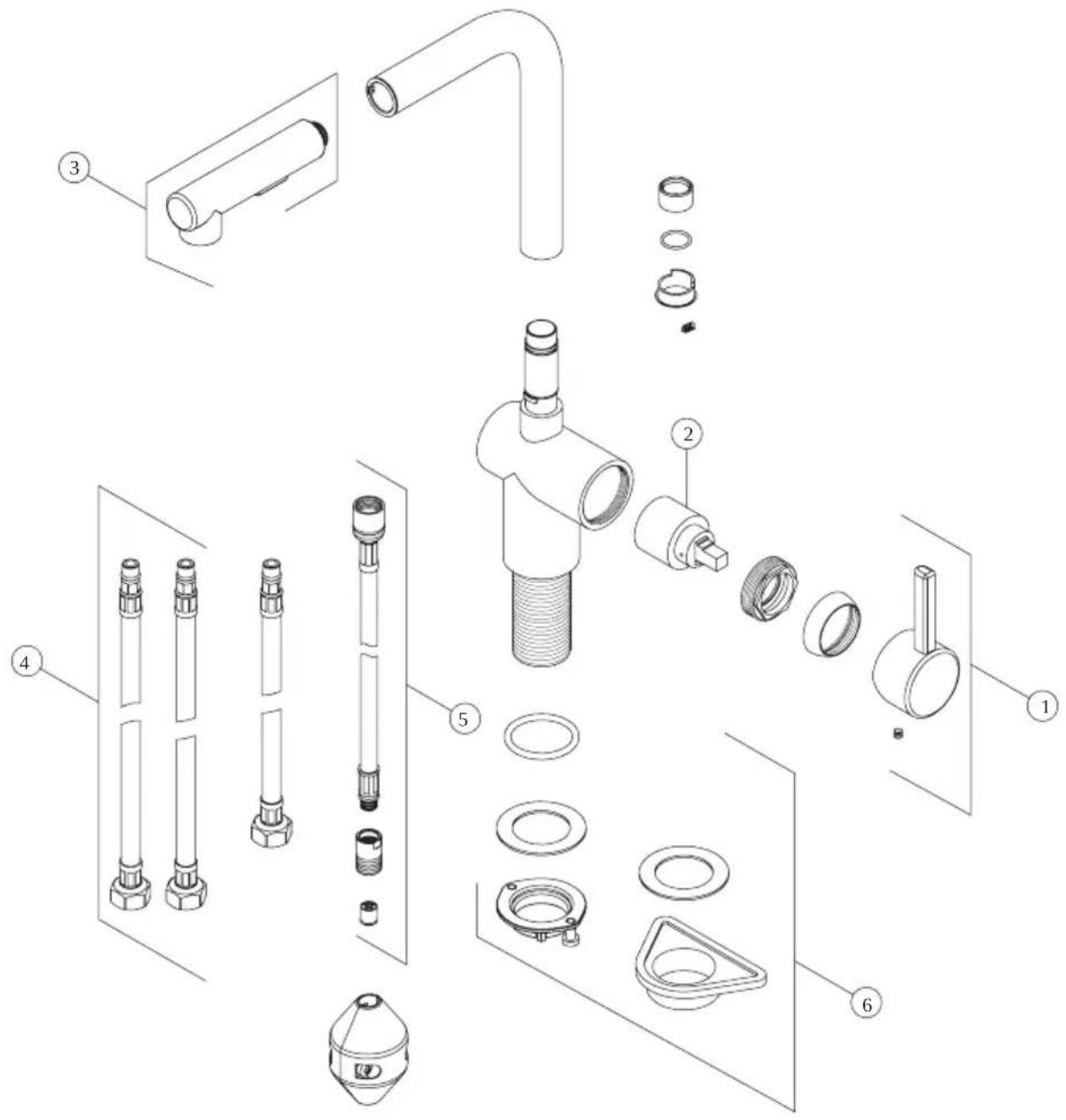

Spare/replacement list

Exploded view diagram of a showerhead assembly with numbered parts for identification

1F4202 Handle Assembly
2 F206502 Cartridge
3 F7201 Spray Head Assembly
4 F3320 Hot&Cold Supply Hose
5 F7203 Pull Out Spray Hose
6 F4203 Fastening Set

For any further information about our products, about the installation of them or about the warranty please contact our customer service department:

Franke Kitchen Systems

North America, LLC

800 Aviation Parkway

Smyrna, TN 37167, USA

Phone: [phone]

[e-mail]

Franke Kindred Canada Ltd.

1000 Franke Kindred Way

Midland, ON LR4 4K9

Phone:[phone]

[e-mail]

Warranty website: https://www.franke.com/us/en/hs/support/warranty.html
