USER MANUAL Rogue R1 FX-B Chauvet

About This Guide The Rogue R1 FX-B Quick Reference Guide (QRG) has basic product information such as connection, mounting, menu options, and DMX values. Download the User Manual from www.chauvetprofessional.com for more details.

Disclaimer The information and specifications contained in this QRG are subject to change without notice.

Safety Notes

DO NOT open this product. It contains no user-serviceable parts.
DO NOT look at the light source when the product is on.
- To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.
- CAUTION: When transferring product from extreme temperature environments, (e.g., cold truck to warm humid ballroom) condensation may form on the internal electronics of the product. To avoid causing a failure, allow product to fully acclimate to the surrounding environment before connecting it to power.
- CAUTION: This product's housing may be hot when lights are operating.
- Mount this product in a location with adequate ventilation, at least 20 in (50~cm) from adjacent surfaces.
DO NOT leave any flammable material within 50~cm of this product while operating or connected to power.
USE a safety cable when mounting this product overhead.
DO NOT operate this product outdoors or in any location where dust, excessive heat, water, or humidity may affect it. (IP20)
- DO NOT operate this product if the housing, lenses, or cables appear damaged.
DO NOT connect this product to a dimmer or rheostat.
- ONLY connect this product to a grounded and protected circuit.
- ONLY use the mounting brackets or the handles to carry this product. Do not carry by the moving head.
In the event of a serious operating problem, stop using immediately.
- The maximum ambient temperature is 113^ (45^) . Do not operate this product at higher temperatures.

Contact Outside the U.S., U.K., Ireland, Benelux, France, Germany, or Mexico, contact your distributor to request support or return a product. Refer to Contact Us at the end of this QRG for contact information.

What Is Included

Rogue R1 FX-B

Warranty Card

Neutrik® powerCON® power cord
Quick Reference Guide

2 Omega brackets with mounting hardware

AC Power This product has an auto-ranging power supply that can work with an input voltage range of 100-240 VAC, 50 / 60Hz

Chauvet Rogue R1 FX-B - What Is Included - 1

To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

Power Linking It is possible to link up to 6 Rogue R1 FX-B products at 100V , 8 products at 120 V, 15 products at 208V , or up to 16 products at 230V or 240V . Never exceed this number. Power-linking cables can be purchased separately.

AC Plug	Connection	Wire (U.S.)	Wire (Europe)	Screw Color
	AC Live	Black	Brown	Yellow/Brass
	AC Neutral	White	Blue	Silver
	AC Ground	Green/Yellow	Green/Yellow	Green

Replacing The 1. Disconnect this product from power.
Fuse 2. Using a flat-head screwdriver, unscrew the fuse holder cap from the housing.
3. Remove blown fuse and replace with a good fuse of the same type and rating.
4. Screw the fuse holder cap back in place and reconnect power.

Signal Connections You can link the Rogue R1 FX-B to a controller or controller software using a DMX connection, an Ethernet connection, or both. If using other Art-Net™, sACN, or Kling-Net -compatible products with the Rogue R1 FX-B, you can control each individually on a single network. See the User Manual for information about how to connect and configure the product for these signals.

Control The Rogue R1 FX-B uses DMX, Art-Net™, sACN, and Kling-Net for its control Personalities:

Single Control	Dual Control Movement	Dual Control Pixel
Tour 2 (52-channel)
Tour (47-channel)
Advanced (47-channel)	Advanced (23-channel)	RGBW (20-channel)
Standard (25-channel)	Standard (17-channel)	RGB (15-channel)
Basic (18-channel)	Basic (10-channel)	Uses DMX, Art-Net, sACN, or Kling-Net
Uses DMX, Art-Net™, or sACN		Uses DMX, Art-Net, sACN, or Kling-Net

DMX Connection The Rogue R1 FX-B will work with a DMX controller using a 3- or 5-pin DMX data connection. A DMX Primer is available from www.chauvetprofessional.com.

Art-NetTM Connection Art-NetTM is an Ethernet protocol that uses TCP/IP which transfers a large amount of DMX512 data using an Neutrik® etherCON® RJ45 connection over a large network. An Art-NetTM protocol document is available from www.chauvetprofessional.com. Chauvet Professional recommends using unicast Art-NetTM for best results.

Art-Net™ designed by and copyright Artistic Licence Holdings Ltd.

sACN Connection Also known as ANSI E1.31, Streaming-ACN is an Ethernet protocol that uses the layering and formatting of Architecture for Control Networks to transport DMX512 data over IP or any other ACN compatible network. ACN is maintained by the Professional Lighting and Sound Association (PLASA).

Kling-Net Kling-Net is a network protocol that allows auto configuration of display devices using a Neutrik® etherCON® RJ45 Ethernet connection. Refer to the ArKaos software manual for detailed instructions on programming this product.

Chauvet Rogue R1 FX-B - What Is Included - 2

For smooth-running operation, ArKaos Kling-Net requires a gigabit (1000 Mbps) Ethernet card and network router.

Mounting

Before mounting this product, read the Safety Notes. Use at least two mounting points per product. Make sure the mounting clamps are capable of supporting the weight of the product. For our Chauvet line of mounting clamps, go to http://trusst.com/products/.

Product Mounting Diagram

Chauvet Rogue R1 FX-B - Product Mounting Diagram - 1

Touchscreen Control Panel

The Rogue R1 FX-B has a touchscreen display as well as 6 control buttons. The touchscreen can be locked and calibrated through the Setup options in the menu.

Control Panel Description

Button	Function
↑	Navigates upwards through the menu list or increases the numeric value when in a function
■	Exits from the current menu or function
↓	Navigates downwards through the menu list or decreases the numeric value when in a function
←	Navigates leftwards through the menu list
←	Enables the currently displayed menu or sets the currently selected value into the selected function
→	Navigates rightwards through the menu list

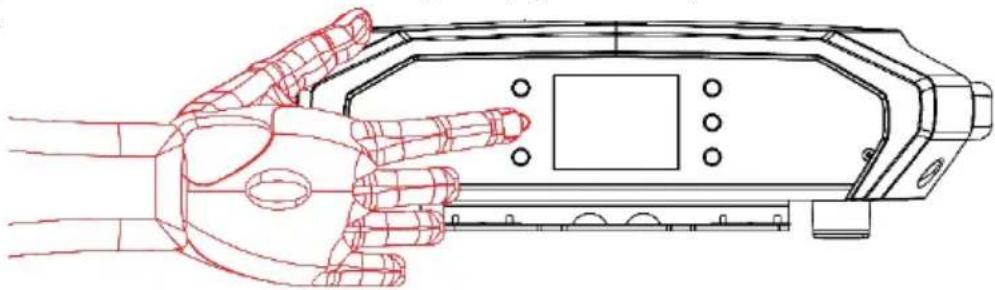

Battery Powered Display

Press and hold until menu screen appears (approx 15 sec.).

Chauvet Rogue R1 FX-B - Battery Powered Display - 1

Menu Map

Programming Levels						Description
Control Settings						Control Settings Main Level
Single Control	DMX		Personality	Basic		Sets the DMX personality, from Basic (18CH), Standard (25CH), Advanced (47CH), Tour (47CH) or Tour 2 (52CH)
				Standard
				Advanced
				Tour
				Tour 2
			Start Address	001-512		Sets the DMX starting address
	ArtNet		Personality	Basic		Sets the Art-NetTM personality from Basic (18CH), Standard (25CH), Advanced (47CH), Tour (47CH) or Tour 2 (52CH)
				Standard
				Advanced
				Tour
				Tour 2
			Start Address	001-512		Sets the Art-NetTM starting address
			Universe	0-254		Sets the Art-NetTM universe
	sACN		Personality	Basic		Sets the sACN personality, from Basic (18CH), Standard (25CH), Advanced (47CH), Tour (47CH) or Tour 2 (52CH)
				Standard
				Advanced
				Tour
				Tour 2
			Start Address	001-512		Sets the sACN starting address
			Universe	0-255		Sets the sACN universe
Dual Control	Movement	DMX		Personality	Basic	Sets the DMX personality, from Basic (10CH), Standard (17CH), or Advanced (23CH)
					Standard
					Advanced
				Start Address	001-512	Sets the DMX starting address
		ArtNet		Personality	Basic	Sets the Art-NetTM personality, from Basic (10CH), Standard (17CH), or Advanced (23CH)
					Standard
					Advanced
				Start Address	001-512	Sets the Art-NetTM starting address
				Universe	0-254	Sets the Art-NetTM universe
		sACN		Personality	Basic	Sets the sACN personality, from Basic (10CH), Standard (17CH), or Advanced (23CH)
					Standard
					Advanced
				Start Address	001-512	Sets the sACN starting address
				Universe	0-255	Sets the sACN universe
	Pixels	DMX		Personality	RGB	Sets the DMX personality, from RGB (15CH) or RGBW (20CH)
					RGBW
				Start Address	001-512	Sets the DMX starting address
		ArtNet		Personality	RGB	Sets the Art-NetTM personality, from RGB (15CH) or RGBW (20CH)
					RGBW
				Start Address	001-512	Sets the Art-NetTM starting address
				Universe	0-254	Sets the Art-NetTM universe
		sACN		Personality	RGB	Sets the sACN personality, from RGB (15CH) or RGBW (20CH)
					RGBW
				Start Address	001-512	Sets the sACN starting address
				Universe	0-255	Sets the sACN universe
		KlingNet		Personality	RGB	Sets the Kling-Net personality, from RGB (15CH) or RGBW (20CH)
					RGBW

Note: In Dual Control mode, the Movement protocol and the Pixel protocol cannot be the same.

Programming Levels				Description
Test Mode				Test Mode Main Level
	Auto test			Auto test all functions
Test Mode Manual test	Pan	000-255		Manually control and test all settings through the control panel
	Pan Speed
	Pan 360
	Tilt 1
	Tilt 2
	Tilt 3
	Tilt 4
	Tilt 5
	Tilt Speed
	Tilt 1 360
	Tilt 2 360
	Tilt 3 360
	Tilt 4 360
	Tilt 5 360
	Dimmer
	Shutter
	Red
	Green
	Blue
	White
	Color
	LED Macro
	LED Macro Speed
Setup				Setup Main Level
Network Settings	IP Mode	Manual	Manually set IP address
		DHCP	Network sets IP address
		Static	Product sets IP address
	IP	xxx.xxx.xxx.xxx	Set IP address in Manual mode
	SubMask	xxx.xxx.xxx.xxx	Set Subnet Mask in Manual mode
Pan Reverse	NO		Normal pan
	YES		Reversed pan
Tilt Reverse	NO		Normal tilt
	YES		Reversed tilt
Screen Reverse	NO		Normal display
	YES		Inverted display
	AUTO		Automatic display orientation
Pan Angle	540		540° pan range
	360		360° pan range
	180		180° pan range
Tilt Angle	540		540° tilt range
	270		270° tilt range
	180		180° tilt range
BL. O. P/T Move	NO		Do not black out while pan/tilt
	YES		Blackout while pan/tilt
Calibration	NO		Keep current settings
	YES		Calibrate touchscreen
Touchscreen Lock	NO		Display responds to touch
	YES		Display does not respond to touch
Lock Screen	NO		Lock the buttons and touch screen
	YES		Passcode: 0920
Setup (cont.)				Setup Main Level (cont.)
Setup (cont.)	Backlight Timer	30S		Display turns off after 30 seconds
		1M		Display turns off after 1 minute
		5M		Display turns off after 5 minutes
		ON		Display stays on
	Loss of Data	Hold		Holds last signal received
		Close		Blacks out fixture
	C Mixing Mode	RGBW		Additive color mixing (0-100%)
		CMY		Subtractive color mixing (100%-0)
	Dimmer Curve	Linear		Set the dimmer curve
		Square
		I Squa
		SCurve
	Dimmer Speed	Smooth		Change the dimmer speed
		Fast
	PWM Option	600Hz		Selects the PWM output frequency
		1200Hz
		2000Hz
		4000Hz
		6000Hz
		25000Hz
	Color Balance	Red	100-255	Sets red LED maximum value
		Green		Sets green LED maximum value
		Blue		Sets blue LED maximum value
		White		Sets white LED maximum value
	Preset Select	PRESET A		Recorded preset menu options
		PRESET B
		PRESET C
	Preset Sync	NO		Allows recorded preset menu options to be transferred to other Rogue R1 FXBs in the DMX daisy chain
		YES
	Reset Function	Pan	NO	Reset individual functions or all functions from start-up
			YES
		Tilt	NO
			YES
		All	NO
			YES
	Factory Settings	NO		Reset to factory default settings
		YES
Sys Info				Sys Info Main Level
Sys Info	Fixture Information	Ver	VX	Shows firmware version
		Running Mode	xxx	Shows current running mode
		DMX Address	xxx	Shows current starting address
		Temperature xx		Shows current product temperature in °C
		Fixture Hours xxxxx		Shows number of hours product has been powered on
		IP	xxx.xxx.xxx.xxx	Shows current IP address
		SubMask	xxx.xxx.xxx.xxx	Shows current Subnet Mask
		MAC	xx.xx.xx.xx.xx.xx	Shows current MAC address
	Error Information	No Error!*		Shows any errors, or No Error!
Programming Levels			Description
Sys Info (cont.)			Sys Info Main Level (cont.)
Channel Information	Frequency	xxx	Shows all current values from input signals, 000-255
	Pan
	Pan Fine
	Pan 360
	Tilt 1
	Tilt 1 Fine
	Tilt 2
	Tilt 2 Fine
	Tilt 3
	Tilt 3 Fine
	Tilt 4
	Tilt 4 Fine
	Tilt 5
	Tilt 5 Fine
	Tilt 1 360
	Tilt 2 360
	Tilt 3 360
	Tilt 4 360
	Tilt 5 360
	Y Macro
	Y Macro Speed
	Function
	Dimmer
	Shutter
	Color
	Lamp Number
	LED Macro
	LED Ma. Speed
	Red 1
	Green 1
	Blue 1
	White 1
	Red 2
	Green 2
	Blue 2
	White 2
	Red 3
	Green 3
	Blue 3
	White 3
	Red 4
	Green 4
	Blue 4
	White 4
	Red 5
	Green 5
	Blue 5
	White 5

Single Control Values

Tour 2(52CH)	Channel	Function	Value	Percent/Setting
	1	Pan	000 ⇌ 255	0-100%
	2	Fine Pan	000 ⇌ 255	0-100%
	3 Continuous Pan		000001 ⇌ 127128129 ⇌ 255	No functionCounterclockwise rotation, slow to fastStopClockwise rotation, slow to fast
	4 Tilt Macro		000 ⇌ 047048 ⇌ 055056 ⇌ 063064 ⇌ 071072 ⇌ 079080 ⇌ 087088 ⇌ 095096 ⇌ 103104 ⇌ 111112 ⇌ 119120 ⇌ 127128 ⇌ 135136 ⇌ 143144 ⇌ 151152 ⇌ 159160 ⇌ 167168 ⇌ 175176 ⇌ 183184 ⇌ 191192 ⇌ 199200 ⇌ 207208 ⇌ 215216 ⇌ 223224 ⇌ 231232 ⇌ 239240 ⇌ 247248 ⇌ 255	No functionTilt macro 1Tilt macro 2Tilt macro 3Tilt macro 4Tilt macro 5Tilt macro 6Tilt macro 7Tilt macro 8Tilt macro 9Tilt macro 10Tilt macro 11Tilt macro 12Tilt macro 13Tilt macro 14Tilt macro 15Tilt macro 16Tilt macro 17Tilt macro 18Tilt macro 19Tilt macro 20Tilt macro 21Tilt macro 22Tilt macro 23Tilt macro 24Tilt macro 25Tilt macro 26
	5	Tilt Macro Speed	000 ⇌ 255	Fast to slow
	6 Control		000 ⇌ 009010 ⇌ 014015 ⇌ 019020 ⇌ 024025 ⇌ 029030 ⇌ 034035 ⇌ 039040 ⇌ 044045 ⇌ 049050 ⇌ 054055 ⇌ 059060 ⇌ 064	No functionManual tilt blackoutCancel manual tilt blackout1 fixture macro2 fixture macro 12 fixture macro 24 fixture macro 34 fixture macro 4Pan resetTilt reset
Tour 2(52CHcont.)	Channel	Function	Value	Percent/Setting
6 Control			065⇔069	No function (reserved for future use)Reset all
			070⇔074	Reset all
			075⇔079	No function (reserved for future use)
			080⇔084	Pan/Tilt reverse
			085⇔089	Pan reverse
			090⇔094	Tilt reverse
			095⇔099	Cancel pan reverse
			100⇔104	Cancel tilt reverse
			105⇔109	Cancel pan/tilt reverse
			110⇔114	No function (reserved for future use)
			115⇔119	Link all heads to head 1
			120⇔124	Unlink all heads from head 1
			125⇔129	No function (reserved for future use)
			130⇔134	No function (reserved for future use)
			135⇔139	Dimmer speed mode fast
			140⇔144	Dimmer speed mode smooth
			145⇔255	No function
7	Dimmer		000⇔255	0-100%
8 Shutter			000⇔019	Off
			020⇔024	On
			025⇔064	Strobe 1, fast to slow
			065⇔069	On
			070⇔084	Strobe 2 (Fast on, slow off) fast to slow
			085⇔089	On
			090⇔104	Strobe 3 (Slow on, fast off) fast to slow
			105⇔109	On
			110⇔124	Strobe 4 (Random) fast to slow
			125⇔129	On
			130⇔144	Strobe 5 (Random fast on, slow off) fast to slow
			145⇔149	On
			150⇔164	Strobe 6 (Random slow on, fast off) fast to slow
			165⇔169	On
			170⇔184	Strobe 7 (Pulse) fast to slow
			185⇔189	On
			190⇔204	Strobe 8 (Random pulse) fast to slow
			205⇔209	On
			210⇔224	Strobe 9 (Fade in, fade out) fast to slow
			225⇔229	On
			230⇔244	Strobe 10 (Random pulse) fast to slow
			245⇔255	On
9 Color Macro			000⇔013	No function
			014⇔020	Color 1
			021⇔028	Color 2
			029⇔036	Color 3
			037⇔044	Color 4
			045⇔052	Color 5
			053⇔060	Color 6
			061⇔068	Color 7
			069⇔076	Color 8
			077⇔084	Color 9

Tour 2 (52CH cont.)	Channel	Function	Value	Percent/Setting
	9 Color Macro	085⇔092	Color 10
		093⇔100	Color 11
		101⇔108	Color 12
		109⇔116	Color 13
		117⇔124	Color 14
		125⇔133	Color 15
		134⇔185	No function
		186⇔207	Rainbow effect, fast to slow
		208⇔213	Stop
		214⇔235	Reverse Rainbow effect, fast to slow
		236⇔240	No function
		241⇔255	Color jump, fast to slow
10	On/Off Preset(● = on; ○ = off)			Head 1	Head 2	Head 3	Head 4	Head 5
		000⇔005	●	●	●	●	●	●
		006⇔011	○	●	●	●	●	●
		012⇔017	○	○	●	●	●	●
		018⇔023	○	○	○	●	●	●
		024⇔029	○	○	○	○	○	●
		030⇔035	○	○	○	○	○	○
		036⇔041	●	○	○	○	○	○
		042⇔047	●	●	○	○	○	○
		048⇔053	●	●	●	○	○	○
		054⇔059	●	●	●	●	●	○
		060⇔065	●	●	●	●	●	●
		066⇔071	○	○	○	○	○	○
		072⇔077	●	○	○	○	○	○
		078⇔083	○	●	○	○	○	○
		084⇔089	○	○	●	○	○	○
		090⇔095	○	○	○	●	○	○
		096⇔101	○	○	○	○	○	●
		102⇔107	○	○	○	○	○	○
		108⇔113	●	●	○	○	○	○
		114⇔119	○	●	●	○	○	○
		120⇔125	○	○	●	●	○	○
		126⇔131	○	○	○	●	●	●
		132⇔137	●	○	○	○	○	●
		138⇔143	○	○	○	○	○	○
		144⇔149	○	●	●	●	●	●
		150⇔155	●	○	●	●	●	●
		156⇔161	●	●	○	●	●	●
		162⇔167	●	●	●	○	●	●
		168⇔173	●	●	●	●	○	○
		174⇔179	○	○	○	○	○	○
		180⇔185	○	○	○	○	○	●
		186⇔191	○	○	○	●	●	●
		192⇔197	○	○	●	●	●	●
		198⇔203	○	●	●	●	●	●
		204⇔209	●	●	●	●	●	●
		210⇔215	○	○	○	○	○	○
		216⇔221	●	●	●	○	○	○
		222⇔227	○	●	●	●	●	○
		228⇔233	○	○	●	●	●	●
10	On/Off Preset(● = on; ○ = off)		Head 1	Head 2	Head 3	Head 4	Head 5
		234 ⇌ 239	●	○	○	●	●
		240 ⇌ 245	●	●	○	○	●
		246 ⇌ 255	●	●	●	●	●
11	LED Macro/Auto Program	000 ⇌ 015	No function
		016 ⇌ 020	LED Macro 1
		021 ⇌ 025	LED Macro 2
		026 ⇌ 030	LED Macro 3
		031 ⇌ 035	LED Macro 4
		036 ⇌ 040	LED Macro 5
		041 ⇌ 045	LED Macro 6
		046 ⇌ 050	LED Macro 7
		051 ⇌ 055	LED Macro 8
		056 ⇌ 060	LED Macro 9
		061 ⇌ 065	LED Macro 10
		066 ⇌ 070	LED Macro 11
		071 ⇌ 075	LED Macro 12
		076 ⇌ 080	LED Macro 13
		081 ⇌ 085	LED Macro 14
		086 ⇌ 090	LED Macro 15
		091 ⇌ 095	LED Macro 16
		096 ⇌ 100	LED Macro 17
		101 ⇌ 105	LED Macro 18
		106 ⇌ 110	LED Macro 19
		111 ⇌ 115	LED Macro 20
		116 ⇌ 120	LED Macro 21
		121 ⇌ 125	LED Macro 22
		126 ⇌ 130	LED Macro 23
		131 ⇌ 135	LED Macro 24 (cycle 1-23)
		136 ⇌ 140	Auto program 1
		141 ⇌ 145	Auto program 2
		146 ⇌ 150	Auto program 3
		151 ⇌ 155	Auto program 4
		156 ⇌ 160	Auto program 5
		161 ⇌ 165	Auto program 6
		166 ⇌ 170	Auto program 7
		171 ⇌ 175	Auto program 8
		176 ⇌ 180	Auto program 9
		181 ⇌ 185	Auto program 10
		186 ⇌ 190	Auto program 11
		191 ⇌ 195	Auto program 12
		196 ⇌ 200	Auto program 13
		201 ⇌ 205	Auto program 14
		206 ⇌ 210	Auto program 15
		211 ⇌ 215	Auto program 16
		216 ⇌ 220	Auto program 17
		221 ⇌ 225	Auto program 18
		226 ⇌ 230	Auto program 19
		231 ⇌ 235	Auto program 20
		236 ⇌ 240	Auto program 21
		241 ⇌ 245	Auto program 22
		246 ⇌ 250	Auto program 23
		251 ⇌ 255	Auto program 24 (cycle 1-23)
12	LED Macro Speed		000 ⇌ 255	Slow to fast

Tour 2(52CHcont.)	Channel	Function	Value	Percent/Setting
	13	Tilt 1	000 ⇌ 255	0-100%
	14	Fine Tilt 1	000 ⇌ 255	0-100%
	15 Continuous Tilt 1		000001 ⇌ 127128129 ⇌ 255	No functionCounterclockwise rotation, slow to fastStopClockwise rotation, slow to fast
	16	Head 1 Dimmer	000 ⇌ 255	0-100%
	17	Head 1 Red	000 ⇌ 255	RGBW mode: 0-100% / CMY mode: 100%-0
	18	Head 1 Green	000 ⇌ 255	RGBW mode: 0-100% / CMY mode: 100%-0
	19	Head 1 Blue	000 ⇌ 255	RGBW mode: 0-100% / CMY mode: 100%-0
	20	Head 1 White	000 ⇌ 255	RGBW mode: 0-100% / CMY mode: 100%-0
	21	Tilt 2	000 ⇌ 255	0-100%
	22	Fine Tilt 2	000 ⇌ 255	0-100%
	23 Continuous Tilt 2		000001 ⇌ 127128129 ⇌ 255	No functionCounterclockwise rotation, slow to fastStopClockwise rotation, slow to fast
	24	Head 2 Dimmer	000 ⇌ 255	0-100%
	25	Head 2 Red	000 ⇌ 255	RGBW mode: 0-100% / CMY mode: 100%-0
	26	Head 2 Green	000 ⇌ 255	RGBW mode: 0-100% / CMY mode: 100%-0
	27	Head 2 Blue	000 ⇌ 255	RGBW mode: 0-100% / CMY mode: 100%-0
	28	Head 2 White	000 ⇌ 255	RGBW mode: 0-100% / CMY mode: 100%-0
	29	Tilt 3	000 ⇌ 255	0-100%
	30	Fine Tilt 3	000 ⇌ 255	0-100%
	31 Continuous Tilt 3		000001 ⇌ 127128129 ⇌ 255	No functionCounterclockwise rotation, slow to fastStopClockwise rotation, slow to fast
	32	Head 3 Dimmer	000 ⇌ 255	0-100%
	33	Head 3 Red	000 ⇌ 255	RGBW mode: 0-100% / CMY mode: 100%-0
	34	Head 3 Green	000 ⇌ 255	RGBW mode: 0-100% / CMY mode: 100%-0
	35	Head 3 Blue	000 ⇌ 255	RGBW mode: 0-100% / CMY mode: 100%-0
	36	Head 3 White	000 ⇌ 255	RGBW mode: 0-100% / CMY mode: 100%-0
	37	Tilt 4	000 ⇌ 255	0-100%
	38	Fine Tilt 4	000 ⇌ 255	0-100%
	39 Continuous Tilt 4		000001 ⇌ 127128129 ⇌ 255	No functionCounterclockwise rotation, slow to fastStopClockwise rotation, slow to fast
	40	Head 4 Dimmer	000 ⇌ 255	0-100%
	41	Head 4 Red	000 ⇌ 255	RGBW mode: 0-100% / CMY mode: 100%-0
	42	Head 4 Green	000 ⇌ 255	RGBW mode: 0-100% / CMY mode: 100%-0
	43	Head 4 Blue	000 ⇌ 255	RGBW mode: 0-100% / CMY mode: 100%-0
	44	Head 4 White	000 ⇌ 255	RGBW mode: 0-100% / CMY mode: 100%-0
	45	Tilt 5	000 ⇌ 255	0-100%
	46	Fine Tilt 5	000 ⇌ 255	0-100%
	47 Continuous Tilt 5		000001 ⇌ 127128129 ⇌ 255	No functionCounterclockwise rotation, slow to fastStopClockwise rotation, slow to fast
	48	Head 5 Dimmer	000 ⇌ 255	0-100%
45	Tilt 5	000⇔255	0-100%
46	Fine Tilt 5	000⇔255	0-100%
47	Continuous Tilt 5	000 001⇔127 128 129⇔255	No function Counterclockwise rotation, slow to fast Stop Clockwise rotation, slow to fast
48	Head 5 Dimmer	000⇔255	0-100%
49	Head 5 Red	000⇔255	RGBW mode: 0-100% / CMY mode: 100%-0
50	Head 5 Green	000⇔255	RGBW mode: 0-100% / CMY mode: 100%-0
51	Head 5 Blue	000⇔255	RGBW mode: 0-100% / CMY mode: 100%-0
52	Head 5 White	000⇔255	RGBW mode: 0-100% / CMY mode: 100%-0

Tour(47CH)	Channel	Function	Value	Percent/Setting
1	Pan		000 ⇌ 255	0-100%
2	Fine Pan		000 ⇌ 255	0-100%
3	Continuous Pan		000001 ⇌ 127128129 ⇌ 255	No functionCounterclockwise rotation, slow to fastStopClockwise rotation, slow to fast
4	Tilt Macro		000 ⇌ 047048 ⇌ 055056 ⇌ 063064 ⇌ 071072 ⇌ 079080 ⇌ 087088 ⇌ 095096 ⇌ 103104 ⇌ 111112 ⇌ 119120 ⇌ 127128 ⇌ 135136 ⇌ 143144 ⇌ 151152 ⇌ 159160 ⇌ 167168 ⇌ 175176 ⇌ 183184 ⇌ 191192 ⇌ 199200 ⇌ 207208 ⇌ 215216 ⇌ 223224 ⇌ 231232 ⇌ 239240 ⇌ 247248 ⇌ 255	No functionTilt macro 1Tilt macro 2Tilt macro 3Tilt macro 4Tilt macro 5Tilt macro 6Tilt macro 7Tilt macro 8Tilt macro 9Tilt macro 10Tilt macro 11Tilt macro 12Tilt macro 13Tilt macro 14Tilt macro 15Tilt macro 16Tilt macro 17Tilt macro 18Tilt macro 19Tilt macro 20Tilt macro 21Tilt macro 22Tilt macro 23Tilt macro 24Tilt macro 25Tilt macro 26
5	Tilt Macro Speed		000 ⇌ 255	Fast to slow
Tour (47CH cont.)	Channel	Function	Value	Percent/Setting
6 Control			000⇔009	No function
			010⇔014	Manual tilt blackout
			015⇔019	Cancel manual tilt blackout
			020⇔024	1 fixture macro
			025⇔029	2 fixture macro 1
			030⇔034	2 fixture macro 2
			035⇔039	4 fixture macro 1
			040⇔044	4 fixture macro 2
			045⇔049	4 fixture macro 3
			050⇔054	4 fixture macro 4
			055⇔059	Pan reset
			060⇔064	Tilt reset
			065⇔069	No function (reserved for future use)
			070⇔074	Reset all
			075⇔079	No function (reserved for future use)
			080⇔084	Pan/Tilt reverse
			085⇔089	Pan reverse
			090⇔094	Tilt reverse
			095⇔099	Cancel pan reverse
			100⇔104	Cancel tilt reverse
			105⇔109	Cancel pan/tilt reverse
			110⇔114	No function (reserved for future use)
			115⇔119	Link all heads to head 1
			120⇔124	Unlink all heads from head 1
			125⇔129	No function (reserved for future use)
			130⇔134	No function (reserved for future use)
			135⇔139	Dimmer speed mode fast
			140⇔144	Dimmer speed mode smooth
			145⇔255	No function
7	Dimmer		000⇔255	0-100%
8	Shutter		000⇔019	Off
			020⇔024	On
			025⇔064	Strobe 1, fast to slow
			065⇔069	On
			070⇔084	Strobe 2 (Fast on, slow off) fast to slow
			085⇔089	On
			090⇔104	Strobe 3 (Slow on, fast off) fast to slow
			105⇔109	On
			110⇔124	Strobe 4 (Random) fast to slow
			125⇔129	On
			130⇔144	Strobe 5 (Random fast on, slow off) fast to slow
			145⇔149	On
			150⇔164	Strobe 6 (Random slow on, fast off) fast to slow
			165⇔169	On
			170⇔184	Strobe 7 (Pulse) fast to slow
			185⇔189	On
			190⇔204	Strobe 8 (Random pulse) fast to slow
			205⇔209	On
			210⇔224	Strobe 9 (Fade in, fade out) fast to slow
			225⇔229	On
			230⇔244	Strobe 10 (Random pulse) fast to slow
			245⇔255	On

Rogue R1 FX-B QRG EN

Tour (47CH cont.)	Channel	Function	Value	Percent/Setting
	9 Color Macro		000⇔013	No function
			014⇔020	Color 1
			021⇔028	Color 2
			029⇔036	Color 3
			037⇔044	Color 4
			045⇔052	Color 5
			053⇔060	Color 6
			061⇔068	Color 7
			069⇔076	Color 8
			077⇔084	Color 9
			085⇔092	Color 10
			093⇔100	Color 11
			101⇔108	Color 12
			109⇔116	Color 13
			117⇔124	Color 14
			125⇔133	Color 15
			134⇔185	No function
			186⇔207	Rainbow effect, fast to slow
			208⇔213	Stop
			214⇔235	Reverse Rainbow effect, fast to slow
			236⇔240	No function
			241⇔255	Color jump, fast to slow
10	On/Off Preset(● = on; ○ = off)			Head 1	Head 2	Head 3	Head 4	Head 5
		000⇔005		●	●	●	●	●
		006⇔011		○	●	●	●	●
		012⇔017		○	○	●	●	●
		018⇔023		○	○	○	●	●
		024⇔029		○	○	○	○	●
		030⇔035		○	○	○	○	○
		036⇔041		●	○	○	○	○
		042⇔047		●	●	○	○	○
		048⇔053		●	●	●	○	○
		054⇔059		●	●	●	●	○
		060⇔065		●	●	●	●	●
		066⇔071		○	○	○	○	○
		072⇔077		●	○	○	○	○
		078⇔083		○	●	○	○	○
		084⇔089		○	○	●	○	○
		090⇔095		○	○	○	●	○
		096⇔101		○	○	○	○	●
		102⇔107		○	○	○	○	○
		108⇔113		●	●	○	○	○
		114⇔119		○	●	●	○	○
		120⇔125		○	○	●	●	○
		126⇔131		○	○	○	●	●
		132⇔137		●	○	○	○	●
		138⇔143		○	○	○	○	○
		144⇔149		○	●	●	●	●
		150⇔155		●	○	●	●	●
		156⇔161		●	●	○	●	●
		162⇔167		●	●	●	○	●
		168⇔173		●	●	●	●	○
Head 1	Head 2	Head 3	Head 4	Head 5
174 ⇌ 179	○	○	○	○
180 ⇌ 185	○	○	○	○
186 ⇌ 191	○	○	○	○
192 ⇌ 197	○	○	○	○
198 ⇌ 203	○	○	○	○
204 ⇌ 209	○	○	○	○
210 ⇌ 215	○	○	○	○
216 ⇌ 221	○	○	○	○
222 ⇌ 227	○	○	○	○
228 ⇌ 233	○	○	○	○
234 ⇌ 239	○	○	○	○
240 ⇌ 245	○	○	○	○
246 ⇌ 255	○	○	○	○
000 ⇌ 015	No function
016 ⇌ 020	LED Macro 1
021 ⇌ 025	LED Macro 2
026 ⇌ 030	LED Macro 3
031 ⇌ 035	LED Macro 4
036 ⇌ 040	LED Macro 5
041 ⇌ 045	LED Macro 6
046 ⇌ 050	LED Macro 7
051 ⇌ 055	LED Macro 8
056 ⇌ 060	LED Macro 9
061 ⇌ 065	LED Macro 10
066 ⇌ 070	LED Macro 11
071 ⇌ 075	LED Macro 12
076 ⇌ 080	LED Macro 13
081 ⇌ 085	LED Macro 14
086 ⇌ 090	LED Macro 15
091 ⇌ 095	LED Macro 16
096 ⇌ 100	LED Macro 17
101 ⇌ 105	LED Macro 18
106 ⇌ 110	LED Macro 19
111 ⇌ 115	LED Macro 20
116 ⇌ 120	LED Macro 21
121 ⇌ 125	LED Macro 22
126 ⇌ 130	LED Macro 23
131 ⇌ 135	LED Macro 24 (cycle 1-23)
136 ⇌ 140	Auto program 1
141 ⇌ 145	Auto program 2
146 ⇌ 150	Auto program 3
151 ⇌ 155	Auto program 4
156 ⇌ 160	Auto program 5
161 ⇌ 165	Auto program 6
166 ⇌ 170	Auto program 7
171 ⇌ 175	Auto program 8
176 ⇌ 180	Auto program 9
181 ⇌ 185	Auto program 10
186 ⇌ 190	Auto program 11
191 ⇌ 195	Auto program 12
196 ⇌ 200	Auto program 13
201 ⇌ 205	Auto program 14
Tour (47CH cont.)	Channel	Function	Value	Percent/Setting
11	LED Macro/ Auto Program	206⇔210	Auto program 15
		211⇔215	Auto program 16
		216⇔220	Auto program 17
		221⇔225	Auto program 18
		226⇔230	Auto program 19
		231⇔235	Auto program 20
		236⇔240	Auto program 21
		241⇔245	Auto program 22
		246⇔250	Auto program 23
		251⇔255	Auto program 24 (cycle 1-23)
12	LED Macro Speed	000⇔255	Slow to fast
13	Tilt 1	000⇔255	0-100%
14	Fine Tilt 1	000⇔255	0-100%
15	Continuous Tilt 1	000	No function
		001⇔127	Counterclockwise rotation, slow to fast
		128	Stop
		129⇔255	Clockwise rotation, slow to fast
16	Head 1 Red	000⇔255	RGBW mode: 0-100% / CMY mode: 100%-0
17	Head 1 Green	000⇔255	RGBW mode: 0-100% / CMY mode: 100%-0
18	Head 1 Blue	000⇔255	RGBW mode: 0-100% / CMY mode: 100%-0
19	Head 1 White	000⇔255	RGBW mode: 0-100% / CMY mode: 100%-0
20	Tilt 2	000⇔255	0-100%
21	Fine Tilt 2	000⇔255	0-100%
22	Continuous Tilt 2	000	No function
		001⇔127	Counterclockwise rotation, slow to fast
		128	Stop
		129⇔255	Clockwise rotation, slow to fast
23	Head 2 Red	000⇔255	RGBW mode: 0-100% / CMY mode: 100%-0
24	Head 2 Green	000⇔255	RGBW mode: 0-100% / CMY mode: 100%-0
25	Head 2 Blue	000⇔255	RGBW mode: 0-100% / CMY mode: 100%-0
26	Head 2 White	000⇔255	RGBW mode: 0-100% / CMY mode: 100%-0
27	Tilt 3	000⇔255	0-100%
28	Fine Tilt 3	000⇔255	0-100%
29	Continuous Tilt 3	000	No function
		001⇔127	Counterclockwise rotation, slow to fast
		128	Stop
		129⇔255	Clockwise rotation, slow to fast
30	Head 3 Red	000⇔255	RGBW mode: 0-100% / CMY mode: 100%-0
31	Head 3 Green	000⇔255	RGBW mode: 0-100% / CMY mode: 100%-0
32	Head 3 Blue	000⇔255	RGBW mode: 0-100% / CMY mode: 100%-0
33	Head 3 White	000⇔255	RGBW mode: 0-100% / CMY mode: 100%-0
34	Tilt 4	000⇔255	0-100%
35	Fine Tilt 4	000⇔255	0-100%
36	Continuous Tilt 4	000	No function
		001⇔127	Counterclockwise rotation, slow to fast
		128	Stop
		129⇔255	Clockwise rotation, slow to fast
37	Head 4 Red	000⇔255	RGBW mode: 0-100% / CMY mode: 100%-0
38	Head 4 Green	000⇔255	RGBW mode: 0-100% / CMY mode: 100%-0
39	Head 4 Blue	000⇔255	RGBW mode: 0-100% / CMY mode: 100%-0
40	Head 4 White	000⇔255	RGBW mode: 0-100% / CMY mode: 100%-0
41	Tilt 5	000↔255	0-100%
42	Fine Tilt 5	000↔255	0-100%
43	Continuous Tilt 5	000 001↔127 128 129↔255	No function Counterclockwise rotation, slow to fast Stop Clockwise rotation, slow to fast
44	Head 5 Red	000↔255	RGBW mode: 0-100% / CMY mode: 100%-0
45	Head 5 Green	000↔255	RGBW mode: 0-100% / CMY mode: 100%-0
46	Head 5 Blue	000↔255	RGBW mode: 0-100% / CMY mode: 100%-0
47	Head 5 White	000↔255	RGBW mode: 0-100% / CMY mode: 100%-0

Advanced Mode(47CH)	Channel	Function	Value	Percent/Setting
	1	Pan	000 ⇌ 255	0-100%
	2	Fine Pan	000 ⇌ 255	0-100%
	3 Continuous Pan		000001 ⇌ 127128129 ⇌ 255	No functionCounterclockwise rotation, slow to fastStopClockwise rotation, slow to fast
	4	Tilt 1	000 ⇌ 255	0-100%
	5	Fine Tilt 1	000 ⇌ 255	0-100%
	6	Tilt 2	000 ⇌ 255	0-100%
	7	Fine Tilt 2	000 ⇌ 255	0-100%
	8	Tilt 3	000 ⇌ 255	0-100%
	9	Fine Tilt 3	000 ⇌ 255	0-100%
	10	Tilt 4	000 ⇌ 255	0-100%
	11	Fine Tilt 4	000 ⇌ 255	0-100%
	12	Tilt 5	000 ⇌ 255	0-100%
	13	Fine Tilt 5	000 ⇌ 255	0-100%
	14 Continuous Tilt 1		000001 ⇌ 127128129 ⇌ 255	No functionCounterclockwise rotation, slow to fastStopClockwise rotation, slow to fast
	15 Continuous Tilt 2		000001 ⇌ 127128129 ⇌ 255	No functionCounterclockwise rotation, slow to fastStopClockwise rotation, slow to fast
	16 Continuous Tilt 3		000001 ⇌ 127128129 ⇌ 255	No functionCounterclockwise rotation, slow to fastStopClockwise rotation, slow to fast
	17 Continuous Tilt 4		000001 ⇌ 127128129 ⇌ 255	No functionCounterclockwise rotation, slow to fastStopClockwise rotation, slow to fast
	18 Continuous Tilt 5		000001 ⇌ 127128129 ⇌ 255	No functionCounterclockwise rotation, slow to fastStopClockwise rotation, slow to fast

Rogue R1 FX-B QRG EN

Advanced Mode(47CH cont.)	Channel	Function	Value	Percent/Setting
			000⇔047	No function
			048⇔055	Tilt macro 1
			056⇔063	Tilt macro 2
			064⇔071	Tilt macro 3
			072⇔079	Tilt macro 4
			080⇔087	Tilt macro 5
			088⇔095	Tilt macro 6
			096⇔103	Tilt macro 7
			104⇔111	Tilt macro 8
			112⇔119	Tilt macro 9
			120⇔127	Tilt macro 10
			128⇔135	Tilt macro 11
			136⇔143	Tilt macro 12
	19 Tilt Macro		144⇔151	Tilt macro 13
			152⇔159	Tilt macro 14
			160⇔167	Tilt macro 15
			168⇔175	Tilt macro 16
			176⇔183	Tilt macro 17
			184⇔191	Tilt macro 18
			192⇔199	Tilt macro 19
			200⇔207	Tilt macro 20
			208⇔215	Tilt macro 21
			216⇔223	Tilt macro 22
			224⇔231	Tilt macro 23
			232⇔239	Tilt macro 24
			240⇔247	Tilt macro 25
			248⇔255	Tilt macro 26
	20	Tilt Macro Speed	000⇔255	Fast to slow
		000⇔009	No function
		010⇔014	Manual tilt blackout
		015⇔019	Cancel manual tilt blackout
		020⇔024	1 fixture macro
		025⇔029	2 fixture macro 1
		030⇔034	2 fixture macro 2
		035⇔039	4 fixture macro 1
		040⇔044	4 fixture macro 2
		045⇔049	4 fixture macro 3
		050⇔054	4 fixture macro 4
		055⇔059	Pan reset
		060⇔064	Tilt reset
		065⇔069	No function (reserved for future use)
		070⇔074	Reset all
21 Control		075⇔079	No function (reserved for future use)
		080⇔084	Pan/Tilt reverse
		085⇔089	Pan reverse
		090⇔094	Tilt reverse
		095⇔099	Cancel pan reverse
		100⇔104	Cancel tilt reverse
		105⇔109	Cancel pan/tilt reverse
		110⇔114	No function (reserved for future use)
		115⇔119	Link all heads to head 1
		120⇔124	Unlink all heads from head 1
		125⇔129	No function (reserved for future use)
		130⇔134	No function (reserved for future use)
		135⇔139	Dimmer speed mode fast
		140⇔144	Dimmer speed mode smooth
		145⇔255	No function
22	Dimmer		000⇔255	0-100%
23	Shutter		000⇔019	Off
			020⇔024	On
			025⇔064	Strobe 1, fast to slow
			065⇔069	On
			070⇔084	Strobe 2 (Fast on, slow off) fast to slow
			085⇔089	On
			090⇔104	Strobe 3 (Slow on, fast off) fast to slow
			105⇔109	On
			110⇔124	Strobe 4 (Random) fast to slow
			125⇔129	On
			130⇔144	Strobe 5 (Random fast on, slow off) fast to slow
			145⇔149	On
			150⇔164	Strobe 6 (Random slow on, fast off) fast to slow
			165⇔169	On
			170⇔184	Strobe 7 (Pulse) fast to slow
			185⇔189	On
			190⇔204	Strobe 8 (Random pulse) fast to slow
			205⇔209	On
			210⇔224	Strobe 9 (Fade in, fade out) fast to slow
			225⇔229	On
			230⇔244	Strobe 10 (Random pulse) fast to slow
			245⇔255	On

Rogue R1 FX-B QRG EN

Advanced Mode (47CH cont.)	Channel	Function	Value	Percent/Setting
			000⇔013	No function
			014⇔020	Color 1
			021⇔028	Color 2
			029⇔036	Color 3
			037⇔044	Color 4
			045⇔052	Color 5
			053⇔060	Color 6
			061⇔068	Color 7
			069⇔076	Color 8
			077⇔084	Color 9
			085⇔092	Color 10
	24 Color Macro		093⇔100	Color 11
			101⇔108	Color 12
			109⇔116	Color 13
			117⇔124	Color 14
			125⇔133	Color 15
			134⇔185	No function
			186⇔207	Rainbow effect, fast to slow
			208⇔213	Stop
			214⇔235	Reverse Rainbow effect, fast to slow
			236⇔240	No function
			241⇔255	Color jump, fast to slow
Advanced Mode(47CHcont.)	Channel	Function	Value	Percent/Setting
				Head 1	Head 2	Head 3	Head 4	Head 5
				000 ⇌ 005	●	●	●	●
				006 ⇌ 011	○	●	●	●
				012 ⇌ 017	○	○	●	●
				018 ⇌ 023	○	○	○	●
				024 ⇌ 029	○	○	○	●
				030 ⇌ 035	○	○	○	○
				036 ⇌ 041	●	○	○	○
				042 ⇌ 047	●	●	○	○
				048 ⇌ 053	●	●	●	○
				054 ⇌ 059	●	●	●	○
				060 ⇌ 065	●	●	●	●
				066 ⇌ 071	○	○	○	○
				072 ⇌ 077	●	○	○	○
				078 ⇌ 083	○	●	○	○
				084 ⇌ 089	○	○	●	○
				090 ⇌ 095	○	○	○	○
				096 ⇌ 101	○	○	○	●
				102 ⇌ 107	○	○	○	○
				108 ⇌ 113	●	●	○	○
				114 ⇌ 119	○	●	●	○
				120 ⇌ 125	○	○	●	○
				126 ⇌ 131	○	○	○	●
				132 ⇌ 137	●	○	○	●
				138 ⇌ 143	○	○	○	○
				144 ⇌ 149	○	●	●	●
				150 ⇌ 155	●	○	●	●
				156 ⇌ 161	●	●	○	●
				162 ⇌ 167	●	●	○	●
				168 ⇌ 173	●	●	●	○
				174 ⇌ 179	○	○	○	○
				180 ⇌ 185	○	○	○	●
				186 ⇌ 191	○	○	○	●
				192 ⇌ 197	○	○	●	●
				198 ⇌ 203	○	●	●	●
				204 ⇌ 209	●	●	●	●
				210 ⇌ 215	○	○	○	○
				216 ⇌ 221	●	●	●	○
				222 ⇌ 227	○	●	●	○
				228 ⇌ 233	○	○	●	●
				234 ⇌ 239	●	○	○	●
				240 ⇌ 245	●	●	○	●
				246 ⇌ 255	●	●	●	●
Advanced Mode(47CH cont.)			000 ⇌ 015016 ⇌ 020021 ⇌ 025026 ⇌ 030031 ⇌ 035036 ⇌ 040041 ⇌ 045046 ⇌ 050051 ⇌ 055056 ⇌ 060061 ⇌ 065066 ⇌ 070071 ⇌ 075076 ⇌ 080081 ⇌ 085086 ⇌ 090091 ⇌ 095096 ⇌ 100101 ⇌ 105106 ⇌ 110111 ⇌ 115116 ⇌ 120121 ⇌ 125126 ⇌ 130	No functionLED Macro 1LED Macro 2LED Macro 3LED Macro 4LED Macro 5LED Macro 6LED Macro 7LED Macro 8LED Macro 9LED Macro 10LED Macro 11LED Macro 12LED Macro 13LED Macro 14LED Macro 15LED Macro 16LED Macro 17LED Macro 18LED Macro 19LED Macro 20LED Macro 21LED Macro 22LED Macro 23LED Macro 24 (cycle 1-23)
26	LED Macro/Auto Program		131 ⇌ 135136 ⇌ 140141 ⇌ 145146 ⇌ 150151 ⇌ 155156 ⇌ 160161 ⇌ 165166 ⇌ 170171 ⇌ 175176 ⇌ 180181 ⇌ 185186 ⇌ 190191 ⇌ 195196 ⇌ 200201 ⇌ 205206 ⇌ 210211 ⇌ 215216 ⇌ 220221 ⇌ 225226 ⇌ 230231 ⇌ 235236 ⇌ 240241 ⇌ 245246 ⇌ 250251 ⇌ 255	LED Macro 24 (cycle 1-23)Auto program 1Auto program 2Auto program 3Auto program 4Auto program 5Auto program 6Auto program 7Auto program 8Auto program 9Auto program 10Auto program 11Auto program 12Auto program 13Auto program 14Auto program 15Auto program 16Auto program 17Auto program 18Auto program 19Auto program 20Auto program 21Auto program 22Auto program 23Auto program 24 (cycle 1-23)
27	LED Macro Speed		000 ⇌ 255	Slow to fast
Advanced Mode(47CH cont.)	Channel	Function	Value	Percent/Setting
	28	Head 1 Red	000↔255	RGBW mode: 0-100% / CMY mode: 100%-0
	29	Head 1 Green	000↔255	RGBW mode: 0-100% / CMY mode: 100%-0
	30	Head 1 Blue	000↔255	RGBW mode: 0-100% / CMY mode: 100%-0
	31	Head 1 White	000↔255	RGBW mode: 0-100% / CMY mode: 100%-0
	32	Head 2 Red	000↔255	RGBW mode: 0-100% / CMY mode: 100%-0
	33	Head 2 Green	000↔255	RGBW mode: 0-100% / CMY mode: 100%-0
	34	Head 2 Blue	000↔255	RGBW mode: 0-100% / CMY mode: 100%-0
	35	Head 2 White	000↔255	RGBW mode: 0-100% / CMY mode: 100%-0
	36	Head 3 Red	000↔255	RGBW mode: 0-100% / CMY mode: 100%-0
	37	Head 3 Green	000↔255	RGBW mode: 0-100% / CMY mode: 100%-0
	38	Head 3 Blue	000↔255	RGBW mode: 0-100% / CMY mode: 100%-0
	39	Head 3 White	000↔255	RGBW mode: 0-100% / CMY mode: 100%-0
	40	Head 4 Red	000↔255	RGBW mode: 0-100% / CMY mode: 100%-0
	41	Head 4 Green	000↔255	RGBW mode: 0-100% / CMY mode: 100%-0
	42	Head 4 Blue	000↔255	RGBW mode: 0-100% / CMY mode: 100%-0
	43	Head 4 White	000↔255	RGBW mode: 0-100% / CMY mode: 100%-0
	44	Head 5 Red	000↔255	RGBW mode: 0-100% / CMY mode: 100%-0
	45	Head 5 Green	000↔255	RGBW mode: 0-100% / CMY mode: 100%-0
	46	Head 5 Blue	000↔255	RGBW mode: 0-100% / CMY mode: 100%-0
	47	Head 5 White	000↔255	RGBW mode: 0-100% / CMY mode: 100%-0

Standard Mode(25CH)	Channel	Function	Value	Percent/Setting
	1	Pan	000⇔255	0-100%
	2 Continuous Pan		000001⇔127128129⇔255	No functionCounterclockwise rotation, slow to fastStopClockwise rotation, slow to fast
	3	Tilt 1	000⇔255	0-100%
	4	Tilt 2	000⇔255	0-100%
	5	Tilt 3	000⇔255	0-100%
	6	Tilt 4	000⇔255	0-100%
	7	Tilt 5	000⇔255	0-100%
	8 Continuous Tilt 1		000001⇔127128129⇔255	No functionCounterclockwise rotation, slow to fastStopClockwise rotation, slow to fast
	9 Continuous Tilt 2		000001⇔127128129⇔255	No functionCounterclockwise rotation, slow to fastStopClockwise rotation, slow to fast
	10 Continuous Tilt 3		000001⇔127128129⇔255	No functionCounterclockwise rotation, slow to fastStopClockwise rotation, slow to fast
	11 Continuous Tilt 4		000001⇔127128129⇔255	No functionCounterclockwise rotation, slow to fastStopClockwise rotation, slow to fast
	12 Continuous Tilt 5		000001⇔127128129⇔255	No functionCounterclockwise rotation, slow to fastStopClockwise rotation, slow to fast
Standard Mode (25CH cont.)	Channel	Function	Value	Percent/Setting
			000 ⇌ 047	No function
			048 ⇌ 055	Tilt macro 1
			056 ⇌ 063	Tilt macro 2
			064 ⇌ 071	Tilt macro 3
			072 ⇌ 079	Tilt macro 4
			080 ⇌ 087	Tilt macro 5
			088 ⇌ 095	Tilt macro 6
			096 ⇌ 103	Tilt macro 7
			104 ⇌ 111	Tilt macro 8
			112 ⇌ 119	Tilt macro 9
			120 ⇌ 127	Tilt macro 10
			128 ⇌ 135	Tilt macro 11
			136 ⇌ 143	Tilt macro 12
	13 Tilt Macro		144 ⇌ 151	Tilt macro 13
			152 ⇌ 159	Tilt macro 14
			160 ⇌ 167	Tilt macro 15
			168 ⇌ 175	Tilt macro 16
			176 ⇌ 183	Tilt macro 17
			184 ⇌ 191	Tilt macro 18
			192 ⇌ 199	Tilt macro 19
			200 ⇌ 207	Tilt macro 20
			208 ⇌ 215	Tilt macro 21
			216 ⇌ 223	Tilt macro 22
			224 ⇌ 231	Tilt macro 23
			232 ⇌ 239	Tilt macro 24
			240 ⇌ 247	Tilt macro 25
			248 ⇌ 255	Tilt macro 26
	14	Tilt Macro Speed	000 ⇌ 255	Fast to slow
15 Control			000⇔009	No function
			010⇔014	Manual tilt blackout
			015⇔019	Cancel manual tilt blackout
			020⇔024	1 fixture macro
			025⇔029	2 fixture macro 1
			030⇔034	2 fixture macro 2
			035⇔039	4 fixture macro 1
			040⇔044	4 fixture macro 2
			045⇔049	4 fixture macro 3
			050⇔054	4 fixture macro 4
			055⇔059	Pan reset
			060⇔064	Tilt reset
			065⇔069	No function (reserved for future use)
			070⇔074	Reset all
			075⇔079	No function (reserved for future use)
			080⇔084	Pan/Tilt reverse
			085⇔089	Pan reverse
			090⇔094	Tilt reverse
			095⇔099	Cancel pan reverse
			100⇔104	Cancel tilt reverse
			105⇔109	Cancel pan/tilt reverse
			110⇔114	No function (reserved for future use)
			115⇔119	Link all heads to head 1
			120⇔124	Unlink all heads from head 1
			125⇔129	No function (reserved for future use)
			130⇔134	No function (reserved for future use)
			135⇔139	Dimmer speed mode fast
			140⇔144	Dimmer speed mode smooth
			145⇔255	No function
16	Dimmer		000⇔255	0-100%
17 Shutter			000⇔019	Off
			020⇔024	On
			025⇔064	Strobe 1, fast to slow
			065⇔069	On
			070⇔084	Strobe 2 (Fast on, slow off) fast to slow
			085⇔089	On
			090⇔104	Strobe 3 (Slow on, fast off) fast to slow
			105⇔109	On
			110⇔124	Strobe 4 (Random) fast to slow
			125⇔129	On
			130⇔144	Strobe 5 (Random fast on, slow off) fast to slow
			145⇔149	On
			150⇔164	Strobe 6 (Random slow on, fast off) fast to slow
			165⇔169	On
			170⇔184	Strobe 7 (Pulse) fast to slow
			185⇔189	On
			190⇔204	Strobe 8 (Random pulse) fast to slow
			205⇔209	On
			210⇔224	Strobe 9 (Fade in, fade out) fast to slow
			225⇔229	On
			230⇔244	Strobe 10 (Random pulse) fast to slow
			245⇔255	On
		000 ⇌ 013	No function
		014 ⇌ 020	Color 1
		021 ⇌ 028	Color 2
		029 ⇌ 036	Color 3
		037 ⇌ 044	Color 4
		045 ⇌ 052	Color 5
		053 ⇌ 060	Color 6
		061 ⇌ 068	Color 7
		069 ⇌ 076	Color 8
		077 ⇌ 084	Color 9
18 Color Macro		085 ⇌ 092	Color 10
		093 ⇌ 100	Color 11
		101 ⇌ 108	Color 12
		109 ⇌ 116	Color 13
		117 ⇌ 124	Color 14
		125 ⇌ 133	Color 15
		134 ⇌ 185	No function
		186 ⇌ 207	Rainbow effect, fast to slow
		208 ⇌ 213	Stop
		214 ⇌ 235	Reverse Rainbow effect, fast to slow
		236 ⇌ 240	No function
		241 ⇌ 255	Color jump, fast to slow

Standard Mode	Channel	Function	Value	Percent/Setting
Standard Mode	22	Red	000↔255	RGBW mode: 0-100% / CMY mode: 100%-0
(25CH cont.)	23	Green	000↔255	RGBW mode: 0-100% / CMY mode: 100%-0
	24	Blue	000↔255	RGBW mode: 0-100% / CMY mode: 100%-0
	25	White	000↔255	RGBW mode: 0-100% / CMY mode: 100%-0

Basic Mode(18CH)	Channel	Function	Value	Percent/Setting
	1	Pan	000⇔255	0-100%
	2 Continuous Pan		000001⇔127128129⇔255	No functionCounterclockwise rotation, slow to fastStopClockwise rotation, slow to fast
	3	Tilt All	000⇔255	0-100%
	4 Continuous Tilt All		000001⇔127128129⇔255	No functionCounterclockwise rotation, slow to fastStopClockwise rotation, slow to fast
	5	Tilt Offset	000⇔255	Offset heads from each other, 0-360°
	6 Tilt Macro		000⇔047048⇔055056⇔063064⇔071072⇔079080⇔087088⇔095096⇔103104⇔111112⇔119120⇔127128⇔135136⇔143144⇔151152⇔159160⇔167168⇔175176⇔183184⇔191192⇔199200⇔207208⇔215216⇔223224⇔231232⇔239240⇔247248⇔255	No functionTilt macro 1Tilt macro 2Tilt macro 3Tilt macro 4Tilt macro 5Tilt macro 6Tilt macro 7Tilt macro 8Tilt macro 9Tilt macro 10Tilt macro 11Tilt macro 12Tilt macro 13Tilt macro 14Tilt macro 15Tilt macro 16Tilt macro 17Tilt macro 18Tilt macro 19Tilt macro 20Tilt macro 21Tilt macro 22Tilt macro 23Tilt macro 24Tilt macro 25Tilt macro 26
	7	Tilt Macro Speed	000⇔255	Fast to slow
Basic Mode (18CH cont.)	Channel	Function	Value	Percent/Setting
8 Control			000↔009	No function
			010↔014	Manual tilt blackout
			015↔019	Cancel manual tilt blackout
			020↔024	1 fixture macro
			025↔029	2 fixture macro 1
			030↔034	2 fixture macro 2
			035↔039	4 fixture macro 1
			040↔044	4 fixture macro 2
			045↔049	4 fixture macro 3
			050↔054	4 fixture macro 4
			055↔059	Pan reset
			060↔064	Tilt reset
			065↔069	No function (reserved for future use)
			070↔074	Reset all
			075↔079	No function (reserved for future use)
			080↔084	Pan/Tilt reverse
			085↔089	Pan reverse
			090↔094	Tilt reverse
			095↔099	Cancel pan reverse
			100↔104	Cancel tilt reverse
			105↔109	Cancel pan/tilt reverse
			110↔114	No function (reserved for future use)
			115↔119	Link all heads to head 1
			120↔124	Unlink all heads from head 1
			125↔129	No function (reserved for future use)
			130↔134	No function (reserved for future use)
			135↔139	Dimmer speed mode fast
			140↔144	Dimmer speed mode smooth
			145↔255	No function
9	Dimmer		000↔255	0-100%
10	Shutter		000↔019	Off
			020↔024	On
			025↔064	Strobe 1, fast to slow
			065↔069	On
			070↔084	Strobe 2 (Fast on, slow off) fast to slow
			085↔089	On
			090↔104	Strobe 3 (Slow on, fast off) fast to slow
			105↔109	On
			110↔124	Strobe 4 (Random) fast to slow
			125↔129	On
			130↔144	Strobe 5 (Random fast on, slow off) fast to slow
			145↔149	On
			150↔164	Strobe 6 (Random slow on, fast off) fast to slow
			165↔169	On
			170↔184	Strobe 7 (Pulse) fast to slow
			185↔189	On
			190↔204	Strobe 8 (Random pulse) fast to slow
			205↔209	On
			210↔224	Strobe 9 (Fade in, fade out) fast to slow
			225↔229	On
			230↔244	Strobe 10 (Random pulse) fast to slow
			245↔255	On
Basic Mode	Channel	Function	Value	Percent/Setting
(18CH cont.)			000⇔013	No function
			014⇔020	Color 1
			021⇔028	Color 2
			029⇔036	Color 3
			037⇔044	Color 4
			045⇔052	Color 5
			053⇔060	Color 6
			061⇔068	Color 7
			069⇔076	Color 8
			077⇔084	Color 9
	11 Color Macro		085⇔092	Color 10
			093⇔100	Color 11
			101⇔108	Color 12
			109⇔116	Color 13
			117⇔124	Color 14
			125⇔133	Color 15
			134⇔185	No function
			186⇔207	Rainbow effect, fast to slow
			208⇔213	Stop
			214⇔235	Reverse Rainbow effect, fast to slow
			236⇔240	No function
			241⇔255	Color jump, fast to slow

Basic Mode (18CH cont.)	Channel	Function	Value	Percent/Setting
	15	Red	000 ⇌ 255	RGBW mode: 0-100% / CMY mode: 100%-0
	16	Green	000 ⇌ 255	RGBW mode: 0-100% / CMY mode: 100%-0
	17	Blue	000 ⇌ 255	RGBW mode: 0-100% / CMY mode: 100%-0
	18	White	000 ⇌ 255	RGBW mode: 0-100% / CMY mode: 100%-0

Dual Control Movement Values

Advanced Movement Mode (23CH)	Channel	Function	Value	Percent/Setting
	1	Pan	000 ⇌ 255	0-100%
	2	Fine Pan	000 ⇌ 255	0-100%
	3 Continuous Pan		000	No function
			001 ⇌ 127	Counterclockwise rotation, slow to fast
			128	Stop
			129 ⇌ 255	Clockwise rotation, slow to fast
	4	Tilt 1	000 ⇌ 255	0-100%
	5	Fine Tilt 1	000 ⇌ 255	0-100%
	6	Tilt 2	000 ⇌ 255	0-100%
	7	Fine Tilt 2	000 ⇌ 255	0-100%
	8	Tilt 3	000 ⇌ 255	0-100%
	9	Fine Tilt 3	000 ⇌ 255	0-100%
	10	Tilt 4	000 ⇌ 255	0-100%
	11	Fine Tilt 4	000 ⇌ 255	0-100%
	12	Tilt 5	000 ⇌ 255	0-100%
	13	Fine Tilt 5	000 ⇌ 255	0-100%
	14 Continuous Tilt 1		000	No function
			001 ⇌ 127	Counterclockwise rotation, slow to fast
			128	Stop
			129 ⇌ 255	Clockwise rotation, slow to fast
	15 Continuous Tilt 2		000	No function
			001 ⇌ 127	Counterclockwise rotation, slow to fast
			128	Stop
			129 ⇌ 255	Clockwise rotation, slow to fast
	16 Continuous Tilt 3		000	No function
			001 ⇌ 127	Counterclockwise rotation, slow to fast
			128	Stop
			129 ⇌ 255	Clockwise rotation, slow to fast
	17 Continuous Tilt 4		000	No function
			001 ⇌ 127	Counterclockwise rotation, slow to fast
			128	Stop
			129 ⇌ 255	Clockwise rotation, slow to fast
	18 Continuous Tilt 5		000	No function
			001 ⇌ 127	Counterclockwise rotation, slow to fast
			128	Stop
			129 ⇌ 255	Clockwise rotation, slow to fast

Advanced Channel	Function	Value	Percent/Setting
Movement Mode(23CH cont.)		000⇔047	No function
		048⇔055	Tilt macro 1
		056⇔063	Tilt macro 2
		064⇔071	Tilt macro 3
		072⇔079	Tilt macro 4
		080⇔087	Tilt macro 5
		088⇔095	Tilt macro 6
		096⇔103	Tilt macro 7
		104⇔111	Tilt macro 8
		112⇔119	Tilt macro 9
		120⇔127	Tilt macro 10
		128⇔135	Tilt macro 11
		136⇔143	Tilt macro 12
19 Tilt Macro	144⇔151	Tilt macro 13
	152⇔159	Tilt macro 14
	160⇔167	Tilt macro 15
	168⇔175	Tilt macro 16
	176⇔183	Tilt macro 17
	184⇔191	Tilt macro 18
	192⇔199	Tilt macro 19
	200⇔207	Tilt macro 20
	208⇔215	Tilt macro 21
	216⇔223	Tilt macro 22
	224⇔231	Tilt macro 23
	232⇔239	Tilt macro 24
	240⇔247	Tilt macro 25
	248⇔255	Tilt macro 26
20	Tilt Macro Speed	000⇔255	Fast to slow
21	Dimmer	000⇔255	0-100%
22 Shutter		000⇔019	Off
		020⇔024	On
		025⇔064	Strobe 1, fast to slow
		065⇔069	On
		070⇔084	Strobe 2 (Fast on, slow off) fast to slow
		085⇔089	On
		090⇔104	Strobe 3 (Slow on, fast off) fast to slow
		105⇔109	On
		110⇔124	Strobe 4 (Random) fast to slow
		125⇔129	On
		130⇔144	Strobe 5 (Random fast on, slow off) fast to slow
		145⇔149	On
		150⇔164	Strobe 6 (Random slow on, fast off) fast to slow
		165⇔169	On
		170⇔184	Strobe 7 (Pulse) fast to slow
		185⇔189	On
		190⇔204	Strobe 8 (Random pulse) fast to slow
		205⇔209	On
		210⇔224	Strobe 9 (Fade in, fade out) fast to slow
		225⇔229	On
		230⇔244	Strobe 10 (Random pulse) fast to slow
		245⇔255	On
Movement Mode (23CH cont.)		000 ⇌ 009	No function
		010 ⇌ 014	Manual tilt blackout
		015 ⇌ 019	Cancel manual tilt blackout
		020 ⇌ 024	1 fixture macro
		025 ⇌ 029	2 fixture macro 1
		030 ⇌ 034	2 fixture macro 2
		035 ⇌ 039	4 fixture macro 1
		040 ⇌ 044	4 fixture macro 2
		045 ⇌ 049	4 fixture macro 3
		050 ⇌ 054	4 fixture macro 4
		055 ⇌ 059	Pan reset
		060 ⇌ 064	Tilt reset
		065 ⇌ 069	No function (reserved for future use)
		070 ⇌ 074	Reset all
	23 Control	075 ⇌ 079	No function (reserved for future use)
		080 ⇌ 084	Pan/Tilt reverse
		085 ⇌ 089	Pan reverse
		090 ⇌ 094	Tilt reverse
		095 ⇌ 099	Cancel pan reverse
		100 ⇌ 104	Cancel tilt reverse
		105 ⇌ 109	Cancel pan/tilt reverse
		110 ⇌ 114	No function (reserved for future use)
		115 ⇌ 119	Link all heads to head 1
		120 ⇌ 124	Unlink all heads from head 1
		125 ⇌ 129	No function (reserved for future use)
		130 ⇌ 134	No function (reserved for future use)
		135 ⇌ 139	Dimmer speed mode fast
		140 ⇌ 144	Dimmer speed mode smooth
		145 ⇌ 255	No function

Standard Movement Mode (17CH)	Channel	Function	Value	Percent/Setting
	1	Pan	000↔255	0-100%
	2	Continuous Pan	000	No function
			001↔127	Counterclockwise rotation, slow to fast
			128	Stop
			129↔255	Clockwise rotation, slow to fast
	3	Tilt 1	000↔255	0-100%
	4	Tilt 2	000↔255	0-100%
	5	Tilt 3	000↔255	0-100%
	6	Tilt 4	000↔255	0-100%
	7	Tilt 5	000↔255	0-100%
	8	Continuous Tilt 1	000	No function
			001↔127	Counterclockwise rotation, slow to fast
			128	Stop
			129↔255	Clockwise rotation, slow to fast
	9	Continuous Tilt 2	000	No function
			001↔127	Counterclockwise rotation, slow to fast
			128	Stop
			129↔255	Clockwise rotation, slow to fast
Standard Movement Mode (17CH cont.)	Channel	Function	Value	Percent/Setting
10 Continuous Tilt 3			000	No function
			001⇔127	Counterclockwise rotation, slow to fast
			128	Stop
			129⇔255	Clockwise rotation, slow to fast
11 Continuous Tilt 4			000	No function
			001⇔127	Counterclockwise rotation, slow to fast
			128	Stop
			129⇔255	Clockwise rotation, slow to fast
12 Continuous Tilt 5			000	No function
			001⇔127	Counterclockwise rotation, slow to fast
			128	Stop
			129⇔255	Clockwise rotation, slow to fast
13 Tilt Macro			000⇔047	No function
			048⇔055	Tilt macro 1
			056⇔063	Tilt macro 2
			064⇔071	Tilt macro 3
			072⇔079	Tilt macro 4
			080⇔087	Tilt macro 5
			088⇔095	Tilt macro 6
			096⇔103	Tilt macro 7
			104⇔111	Tilt macro 8
			112⇔119	Tilt macro 9
			120⇔127	Tilt macro 10
			128⇔135	Tilt macro 11
			136⇔143	Tilt macro 12
			144⇔151	Tilt macro 13
			152⇔159	Tilt macro 14
			160⇔167	Tilt macro 15
			168⇔175	Tilt macro 16
			176⇔183	Tilt macro 17
			184⇔191	Tilt macro 18
			192⇔199	Tilt macro 19
			200⇔207	Tilt macro 20
			208⇔215	Tilt macro 21
			216⇔223	Tilt macro 22
			224⇔231	Tilt macro 23
			232⇔239	Tilt macro 24
			240⇔247	Tilt macro 25
			248⇔255	Tilt macro 26
14	Tilt Macro Speed		000⇔255	Fast to slow
15	Dimmer		000⇔255	0-100%
16 Shutter			000 ⇌ 019	Off
			020 ⇌ 024	On
			025 ⇌ 064	Strobe 1, fast to slow
			065 ⇌ 069	On
			070 ⇌ 084	Strobe 2 (Fast on, slow off) fast to slow
			085 ⇌ 089	On
			090 ⇌ 104	Strobe 3 (Slow on, fast off) fast to slow
			105 ⇌ 109	On
			110 ⇌ 124	Strobe 4 (Random) fast to slow
			125 ⇌ 129	On
			130 ⇌ 144	Strobe 5 (Random fast on, slow off) fast to slow
			145 ⇌ 149	On
			150 ⇌ 164	Strobe 6 (Random slow on, fast off) fast to slow
			165 ⇌ 169	On
			170 ⇌ 184	Strobe 7 (Pulse) fast to slow
			185 ⇌ 189	On
			190 ⇌ 204	Strobe 8 (Random pulse) fast to slow
			205 ⇌ 209	On
			210 ⇌ 224	Strobe 9 (Fade in, fade out) fast to slow
			225 ⇌ 229	On
			230 ⇌ 244	Strobe 10 (Random pulse) fast to slow
			245 ⇌ 255	On

Standard Channel	Function	Value	Percent/Setting
Movement Mode (17CH cont.)		000⇔009	No function
		010⇔014	Manual tilt blackout
		015⇔019	Cancel manual tilt blackout
		020⇔024	1 fixture macro
		025⇔029	2 fixture macro 1
		030⇔034	2 fixture macro 2
		035⇔039	4 fixture macro 1
		040⇔044	4 fixture macro 2
		045⇔049	4 fixture macro 3
		050⇔054	4 fixture macro 4
		055⇔059	Pan reset
		060⇔064	Tilt reset
		065⇔069	No function (reserved for future use)
		070⇔074	Reset all
	17 Control	075⇔079	No function (reserved for future use)
		080⇔084	Pan/Tilt reverse
		085⇔089	Pan reverse
		090⇔094	Tilt reverse
		095⇔099	Cancel pan reverse
		100⇔104	Cancel tilt reverse
		105⇔109	Cancel pan/tilt reverse
		110⇔114	No function (reserved for future use)
		115⇔119	Link all heads to head 1
		120⇔124	Unlink all heads from head 1
		125⇔129	No function (reserved for future use)
		130⇔134	No function (reserved for future use)
		135⇔139	Dimmer speed mode fast
		140⇔144	Dimmer speed mode smooth
		145⇔255	No function

Basic Movement Mode (10CH)	Channel	Function	Value	Percent/Setting
	1	Pan	000↔255	0-100%
	2	Continuous Pan	000	No function
			001↔127	Counterclockwise rotation, slow to fast
			128	Stop
			129↔255	Clockwise rotation, slow to fast
	3	Tilt All	000↔255	0-100%
	4	Continuous Tilt All	000	No function
			001↔127	Counterclockwise rotation, slow to fast
			128	Stop
			129↔255	Clockwise rotation, slow to fast
	5	Tilt Offset	000↔255	Offset heads from each other, 0-360°
Basic Channel	Function	Value	Percent/Setting
Movement Mode(10CH cont.)		000⇔047	No function
		048⇔055	Tilt macro 1
		056⇔063	Tilt macro 2
		064⇔071	Tilt macro 3
		072⇔079	Tilt macro 4
		080⇔087	Tilt macro 5
		088⇔095	Tilt macro 6
		096⇔103	Tilt macro 7
		104⇔111	Tilt macro 8
		112⇔119	Tilt macro 9
		120⇔127	Tilt macro 10
		128⇔135	Tilt macro 11
		136⇔143	Tilt macro 12
6 Tilt Macro	144⇔151	Tilt macro 13
	152⇔159	Tilt macro 14
	160⇔167	Tilt macro 15
	168⇔175	Tilt macro 16
	176⇔183	Tilt macro 17
	184⇔191	Tilt macro 18
	192⇔199	Tilt macro 19
	200⇔207	Tilt macro 20
	208⇔215	Tilt macro 21
	216⇔223	Tilt macro 22
	224⇔231	Tilt macro 23
	232⇔239	Tilt macro 24
	240⇔247	Tilt macro 25
	248⇔255	Tilt macro 26
7	Tilt Macro Speed	000⇔255	Fast to slow
8	Dimmer	000⇔255	0-100%
9 Shutter		000⇔019	Off
		020⇔024	On
		025⇔064	Strobe 1, fast to slow
		065⇔069	On
		070⇔084	Strobe 2 (Fast on, slow off) fast to slow
		085⇔089	On
		090⇔104	Strobe 3 (Slow on, fast off) fast to slow
		105⇔109	On
		110⇔124	Strobe 4 (Random) fast to slow
		125⇔129	On
		130⇔144	Strobe 5 (Random fast on, slow off) fast to slow
		145⇔149	On
		150⇔164	Strobe 6 (Random slow on, fast off) fast to slow
		165⇔169	On
		170⇔184	Strobe 7 (Pulse) fast to slow
		185⇔189	On
		190⇔204	Strobe 8 (Random pulse) fast to slow
		205⇔209	On
		210⇔224	Strobe 9 (Fade in, fade out) fast to slow
		225⇔229	On
		230⇔244	Strobe 10 (Random pulse) fast to slow
		245⇔255	On
Movement Mode(10CH cont.)		000⇔009	No function
		010⇔014	Manual tilt blackout
		015⇔019	Cancel manual tilt blackout
		020⇔024	1 fixture macro
		025⇔029	2 fixture macro 1
		030⇔034	2 fixture macro 2
		035⇔039	4 fixture macro 1
		040⇔044	4 fixture macro 2
		045⇔049	4 fixture macro 3
		050⇔054	4 fixture macro 4
		055⇔059	Pan reset
		060⇔064	Tilt reset
		065⇔069	No function (reserved for future use)
		070⇔074	Reset all
10 Control		075⇔079	No function (reserved for future use)
		080⇔084	Pan/Tilt reverse
		085⇔089	Pan reverse
		090⇔094	Tilt reverse
		095⇔099	Cancel pan reverse
		100⇔104	Cancel tilt reverse
		105⇔109	Cancel pan/tilt reverse
		110⇔114	No function (reserved for future use)
		115⇔119	Link all heads to head 1
		120⇔124	Unlink all heads from head 1
		125⇔129	No function (reserved for future use)
		130⇔134	No function (reserved for future use)
		135⇔139	Dimmer speed mode fast
		140⇔144	Dimmer speed mode smooth
		145⇔255	No function

Dual Control Pixel Values

RGBW Mode(20CH)	Channel	Function	Value	Percent/Setting
	1	Head 1 Red	000 ≦255	RGBW mode: 0-100% / CMY mode: 100%-0
	2	Head 1 Green	000 ≦255	RGBW mode: 0-100% / CMY mode: 100%-0
	3	Head 1 Blue	000 ≦255	RGBW mode: 0-100% / CMY mode: 100%-0
	4	Head 1 White	000 ≦255	RGBW mode: 0-100% / CMY mode: 100%-0
	5	Head 2 Red	000 ≦255	RGBW mode: 0-100% / CMY mode: 100%-0
	6	Head 2 Green	000 ≦255	RGBW mode: 0-100% / CMY mode: 100%-0
	7	Head 2 Blue	000 ≦255	RGBW mode: 0-100% / CMY mode: 100%-0
	8	Head 2 White	000 ≦255	RGBW mode: 0-100% / CMY mode: 100%-0
	9	Head 3 Red	000 ≦255	RGBW mode: 0-100% / CMY mode: 100%-0
	10	Head 3 Green	000 ≦255	RGBW mode: 0-100% / CMY mode: 100%-0
	11	Head 3 Blue	000 ≦255	RGBW mode: 0-100% / CMY mode: 100%-0
	12	Head 3 White	000 ≦255	RGBW mode: 0-100% / CMY mode: 100%-0
	13	Head 4 Red	000 ≦255	RGBW mode: 0-100% / CMY mode: 100%-0
	14	Head 4 Green	000 ≦255	RGBW mode: 0-100% / CMY mode: 100%-0
	15	Head 4 Blue	000 ≦255	RGBW mode: 0-100% / CMY mode: 100%-0
	16	Head 4 White	000 ≦255	RGBW mode: 0-100% / CMY mode: 100%-0
	17	Head 5 Red	000 ≦255	RGBW mode: 0-100% / CMY mode: 100%-0
	18	Head 5 Green	000 ≦255	RGBW mode: 0-100% / CMY mode: 100%-0
	19	Head 5 Blue	000 ≦255	RGBW mode: 0-100% / CMY mode: 100%-0
	20	Head 5 White	000 ≦255	RGBW mode: 0-100% / CMY mode: 100%-0
RGB Mode(15CH)	Channel	Function	Value	Percent/Setting
	1	Head 1 Red	000 ≦255	RGBW mode: 0-100% / CMY mode: 100%-0
	2	Head 1 Green	000 ≦255	RGBW mode: 0-100% / CMY mode: 100%-0

	3	Head 1 Blue	000 ≦255	RGBW mode: 0-100% / CMY mode: 100%-0
	4	Head 2 Red	000 ≦255	RGBW mode: 0-100% / CMY mode: 100%-0
	5	Head 2 Green	000 ≦255	RGBW mode: 0-100% / CMY mode: 100%-0
	6	Head 2 Blue	000 ≦255	RGBW mode: 0-100% / CMY mode: 100%-0
	7	Head 3 Red	000 ≦255	RGBW mode: 0-100% / CMY mode: 100%-0
	8	Head 3 Green	000 ≦255	RGBW mode: 0-100% / CMY mode: 100%-0
	9	Head 3 Blue	000 ≦255	RGBW mode: 0-100% / CMY mode: 100%-0
	10	Head 4 Red	000 ≦255	RGBW mode: 0-100% / CMY mode: 100%-0
	11	Head 4 Green	000 ≦255	RGBW mode: 0-100% / CMY mode: 100%-0
	12	Head 4 Blue	000 ≦255	RGBW mode: 0-100% / CMY mode: 100%-0
	13	Head 5 Red	000 ≦255	RGBW mode: 0-100% / CMY mode: 100%-0
	14	Head 5 Green	000 ≦255	RGBW mode: 0-100% / CMY mode: 100%-0
	15	Head 5 Blue	000 ≦255	RGBW mode: 0-100% / CMY mode: 100%-0

Acerca de esta Guía

Rogue R1 FX-B GRR ES

Niveles de Programación			Descripción
Sys Info (cont.)			Sys Info Nivel Principal (cont.)
Fixture Information	SubMask xxx.xx	xxx.xxx.xxx	Muestra la máscara de subred actual
Fixture Information	MAC	xx.xx.xx.xx.xx.xx	Muestra la direction MAC actual
Error Information	No Error!*		Muestra该如何 error o "No Error!"
Channel Information	Frequency	xxx	Muestra todos los values actuales de las señales de entrada, 000-255
	Pan
	Pan Fine
	Pan 360
	Tilt 1
	Tilt 1 Fine
	Tilt 2
	Tilt 2 Fine
	Tilt 3
	Tilt 3 Fine
	Tilt 4
	Tilt 4 Fine
	Tilt 5
	Tilt 5 Fine
	Tilt 1 360
	Tilt 2 360
	Tilt 3 360
	Tilt 4 360
	Tilt 5 360
	Y Macro
	Y Macro Speed
	Function
	Dimmer
	Shutter
	Color
	Lamp Number
	LED Macro
	LED Ma. Speed
	Red 1
	Green 1
	Blue 1
	White 1
	Red 2
	Green 2
	Blue 2
	White 2
	Red 3
	Green 3
	Blue 3
	White 3
	Red 4
	Green 4
	Blue 4
	White 4
	Red 5
	Green 5
	Blue 5
	White 5

Rogue R1 FX-B GRR ES

Tour 2 (52CH cont.)	Canal	Función	Valor	Porcentaje/Configuración
			000⇔013	Sin funciona
			014⇔020	Color 1
			021⇔028	Color 2
			029⇔036	Color 3
			037⇔044	Color 4
			045⇔052	Color 5
			053⇔060	Color 6
			061⇔068	Color 7
			069⇔076	Color 8
			077⇔084	Color 9
	9 Macro de Color		085⇔092	Color 10
			093⇔100	Color 11
			101⇔108	Color 12
			109⇔116	Color 13
			117⇔124	Color 14
			125⇔133	Color 15
			134⇔185	Sin funciona
			186⇔207	Efektto arco iris,=rápido a lento
			208⇔213	Parada
			214⇔235	Invertir efecto arco iris, rápido a lento
			236⇔240	Sin funciona
			241⇔255	Salto de color, rápido a lento

Rogue R1 FX-B GRR ES

Tour (47CH cont.)	Canal	Función	Valor	Porcentaje/Configuración
			000⇔013	Sin funciona
			014⇔020	Color 1
			021⇔028	Color 2
			029⇔036	Color 3
			037⇔044	Color 4
			045⇔052	Color 5
			053⇔060	Color 6
			061⇔068	Color 7
			069⇔076	Color 8
			077⇔084	Color 9
	9 Macro de Color		085⇔092	Color 10
			093⇔100	Color 11
			101⇔108	Color 12
			109⇔116	Color 13
			117⇔124	Color 14
			125⇔133	Color 15
			134⇔185	Sin funciona
			186⇔207	Efektto arco iris,=rápido a lento
			208⇔213	Parada
			214⇔235	Invertir efekto arco iris, rápido a lento
			236⇔240	Sin funciona
			241⇔255	Salto de color, rápido a lento

Rogue R1 FX-B GRR ES

Modo	Canal	Función	Valor	Porcentaje/Configuración
"Advanced" (47CH cont.)			000⇔013	Sin funciona
			014⇔020	Color 1
			021⇔028	Color 2
			029⇔036	Color 3
			037⇔044	Color 4
			045⇔052	Color 5
			053⇔060	Color 6
			061⇔068	Color 7
			069⇔076	Color 8
			077⇔084	Color 9
	24 Macro de Color		085⇔092	Color 10
			093⇔100	Color 11
			101⇔108	Color 12
			109⇔116	Color 13
			117⇔124	Color 14
			125⇔133	Color 15
			134⇔185	Sin funciona
			186⇔207	Efektto arco iris,=rápido a lento
			208⇔213	Parada
			214⇔235	Invertir efekto arco iris, rápido a lento
			236⇔240	Sin funciona
			241⇔255	Salto de color, rápido a lento

Rogue R1 FX-B GRR ES

Modo	Canal	Función	Valor	Porcentaje/Configuración
“Standard”(25CH cont.)			000⇔013	Sin funciona
			014⇔020	Color 1
			021⇔028	Color 2
			029⇔036	Color 3
			037⇔044	Color 4
			045⇔052	Color 5
			053⇔060	Color 6
			061⇔068	Color 7
			069⇔076	Color 8
			077⇔084	Color 9
	18 Macro de Color		085⇔092	Color 10
			093⇔100	Color 11
			101⇔108	Color 12
			109⇔116	Color 13
			117⇔124	Color 14
			125⇔133	Color 15
			134⇔185	Sin funciona
			186⇔207	Efektto arco iris,=rápido a lento
			208⇔213	Parada
			214⇔235	Invertir efekto arco iris, rápido a lento
			236⇔240	Sin funciona
			241⇔255	Salto de color, rápido a lento

Rogue R1 FX-B GRR ES

Modo	Canal	Función	Valor	Porcentaje/Configuración
“Basic”(18CH cont.)			000⇔013	Sin funciona
			014⇔020	Color 1
			021⇔028	Color 2
			029⇔036	Color 3
			037⇔044	Color 4
			045⇔052	Color 5
			053⇔060	Color 6
			061⇔068	Color 7
			069⇔076	Color 8
			077⇔084	Color 9
	11 Macro de Color		085⇔092	Color 10
			093⇔100	Color 11
			101⇔108	Color 12
			109⇔116	Color 13
			117⇔124	Color 14
			125⇔133	Color 15
			134⇔185	Sin funciona
			186⇔207	Efektto arco iris,=rápido a lento
			208⇔213	Parada
			214⇔235	Invertir efecto arco iris, rápido a lento
			236⇔240	Sin funciona
			241⇔255	Salto de color, rápido a lento

Rogue R1 FX-B GRR ES

Modo	Canal	Función	Valor	Porcentaje/Configuración
“Basic”(18CH cont.)			000⇔015	Sin funciona
			016⇔020	Macro LED 1
			021⇔025	Macro LED 2
			026⇔030	Macro LED 3
			031⇔035	Macro LED 4
			036⇔040	Macro LED 5
			041⇔045	Macro LED 6
			046⇔050	Macro LED 7
			051⇔055	Macro LED 8
			056⇔060	Macro LED 9
			061⇔065	Macro LED 10
			066⇔070	Macro LED 11
			071⇔075	Macro LED 12
			076⇔080	Macro LED 13
			081⇔085	Macro LED 14
			086⇔090	Macro LED 15
			091⇔095	Macro LED 16
			096⇔100	Macro LED 17
			101⇔105	Macro LED 18
			106⇔110	Macro LED 19
			111⇔115	Macro LED 20
			116⇔120	Macro LED 21
			121⇔125	Macro LED 22
			126⇔130	Macro LED 23
13	Macro LED/Programa automática		131⇔135	Macro LED 24 (Ciclo 1-23)
			136⇔140	Programa automática 1
			141⇔145	Programa automática 2
			146⇔150	Programa automática 3
			151⇔155	Programa automática 4
			156⇔160	Programa automática 5
			161⇔165	Programa automática 6
			166⇔170	Programa automática 7
			171⇔175	Programa automática 8
			176⇔180	Programa automática 9
			181⇔185	Programa automática 10
			186⇔190	Programa automática 11
			191⇔195	Programa automática 12
			196⇔200	Programa automática 13
			201⇔205	Programa automática 14
			206⇔210	Programa automática 15
			211⇔215	Programa automática 16
			216⇔220	Programa automática 17
			221⇔225	Programa automática 18
			226⇔230	Programa automática 19
			231⇔235	Programa automática 20
			236⇔240	Programa automática 21
			241⇔245	Programa automática 22
			246⇔250	Programa automática 23
			251⇔255	Programa automática 24 (Ciclo 1-23)
14	Velocidad de macro LED		000⇔255	Lenta a=rápida

Rogue R1 FX-B GRR ES

Modo “Basic” (18CH cont.)	Canal	Función	Valor	Porcentaje/Configuración
	15	Rojo	000↔255	Modo RGBW: 0–100% / Modo CMY: 100%-0
	16	Verde	000↔255	Modo RGBW: 0–100% / Modo CMY: 100%-0
	17	Azul	000↔255	Modo RGBW: 0–100% / Modo CMY: 100%-0
	18	Blanco	000↔255	Modo RGBW: 0–100% / Modo CMY: 100%-0

Valores "Dual Control Movement"

Rogue R1 FX-B GRR ES

Valeurs "Dual Control Movement"

Table of contents Click a title to access it

Safety Notes
What Is Included
Mounting
Product Mounting Diagram
Touchscreen Control Panel
Control Panel Description
Battery Powered Display
Acerca de esta Guía

Manual assistant

Waiting for your message

Product information

Brand : Chauvet

Model : Rogue R1 FX-B

Category : Professional lighting projector
