USER MANUAL PH 26 TX MILWAUKEE


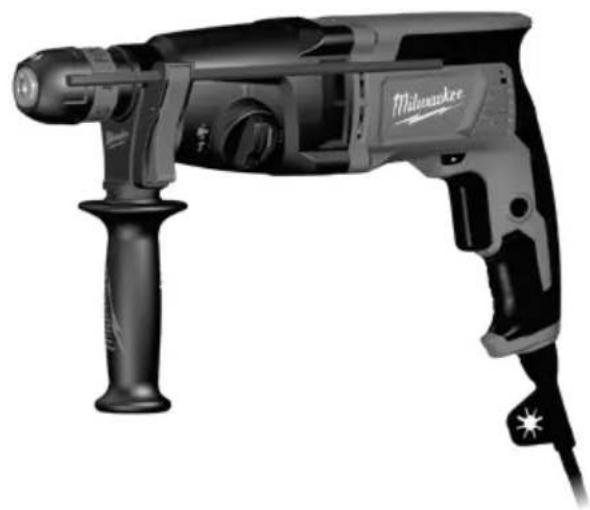

Black Milwaukee electric drill put tool with handle and control panel (no visible text or symbols)PH 26 TX
Original instructions


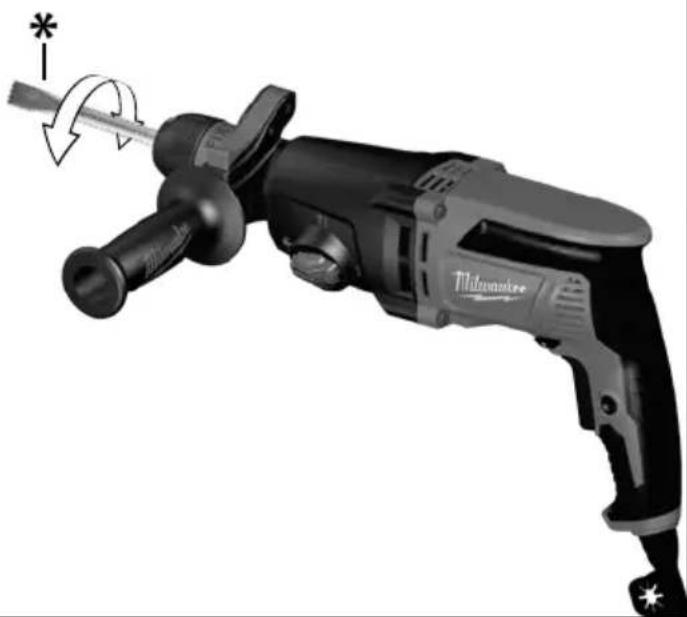

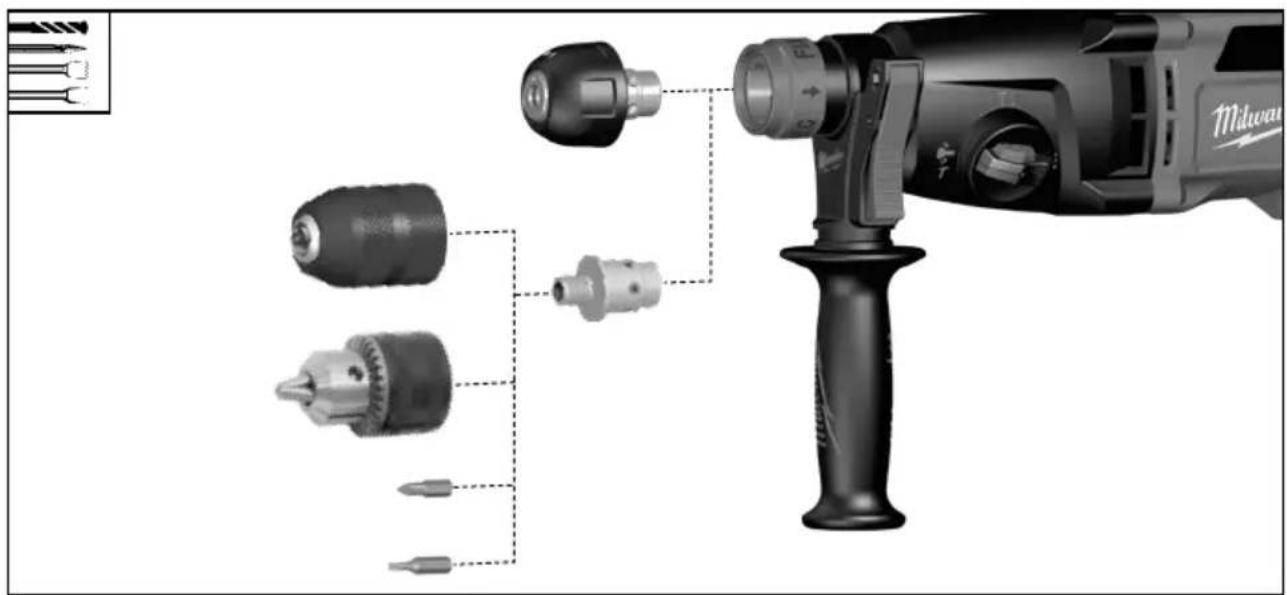

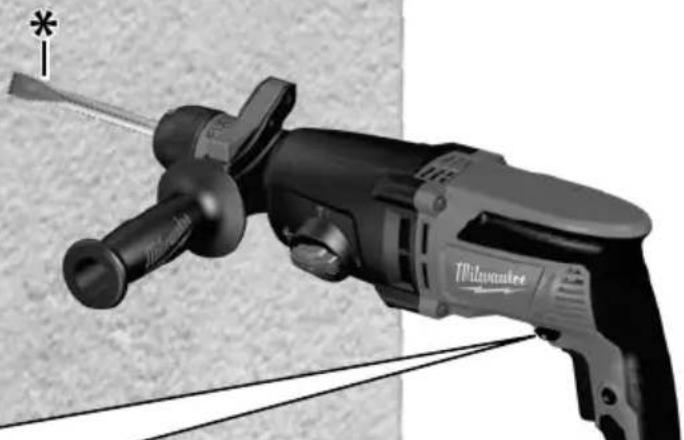

Accessory
Zubehör
Accessoires
Accessorio


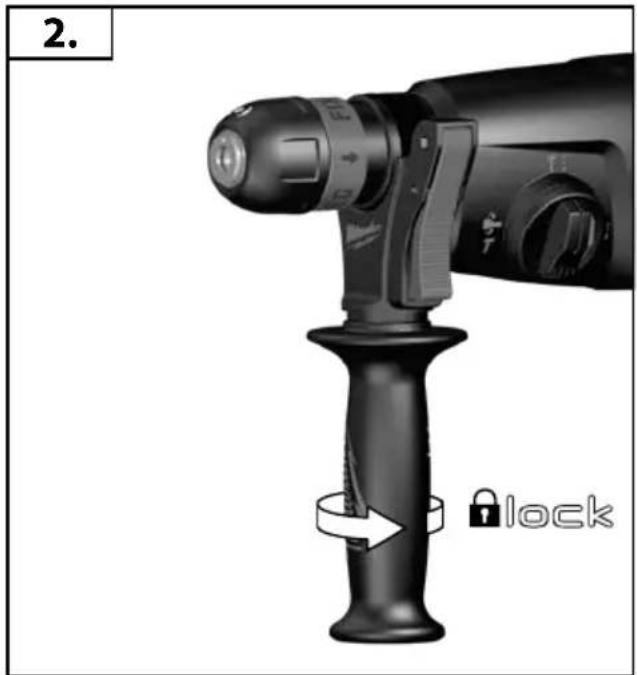

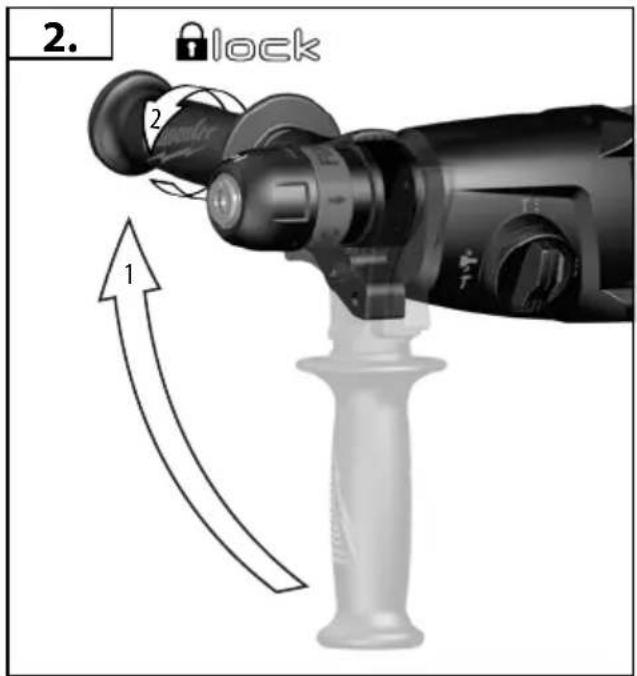

2. lock


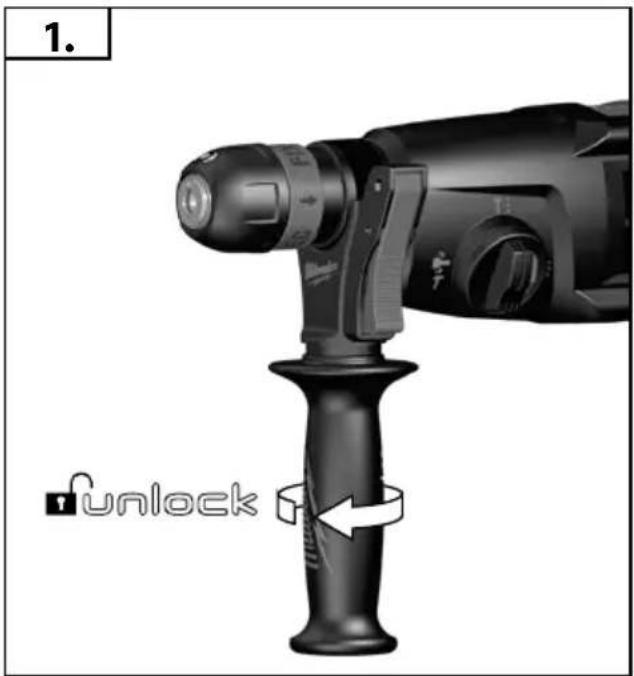

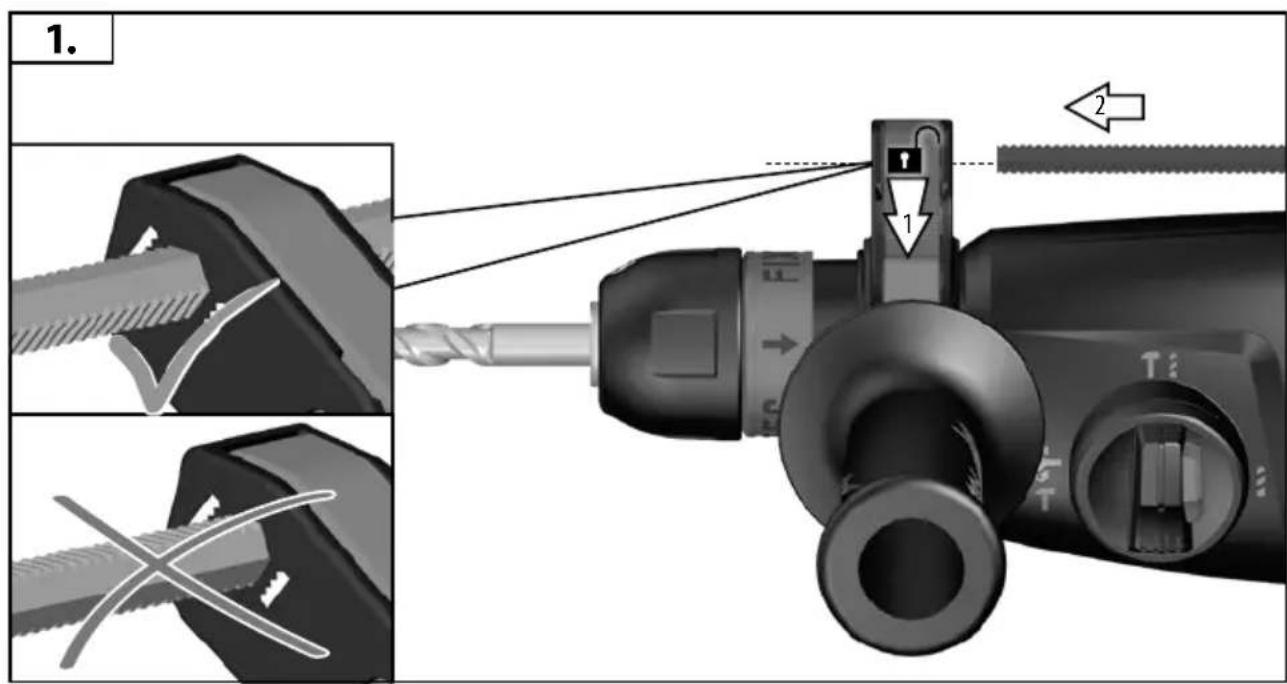

1. Unlock


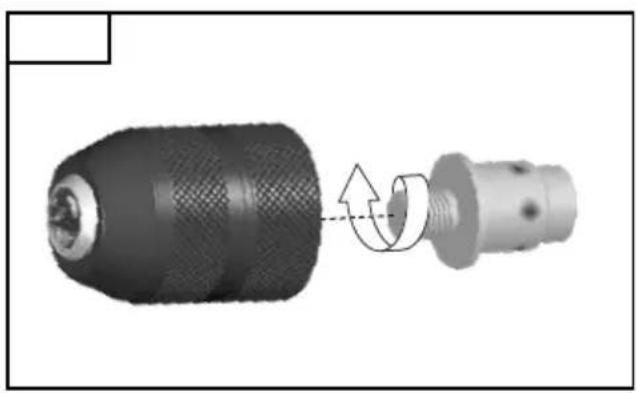

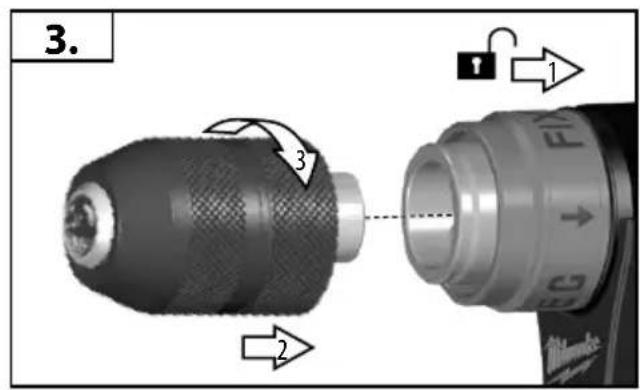

3. 2 3 1


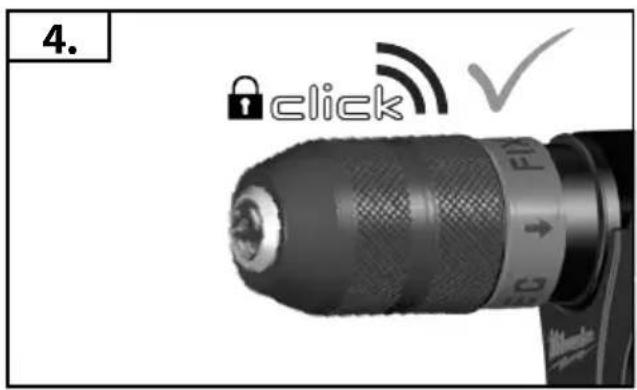

4. click


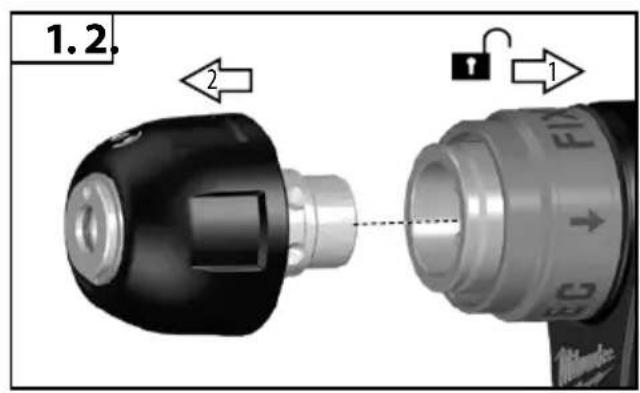

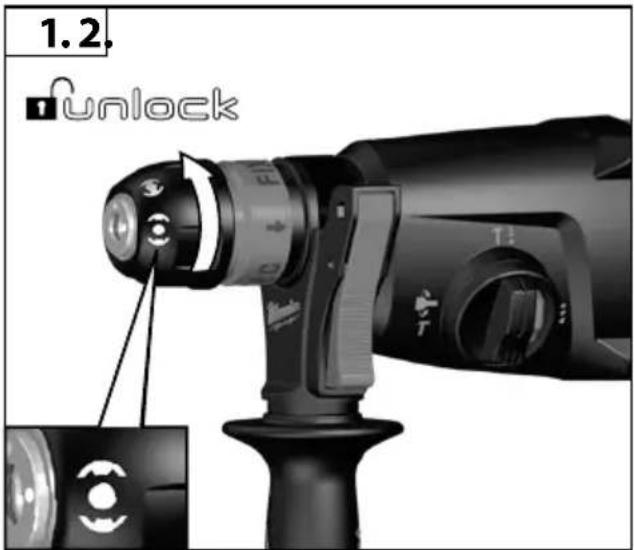

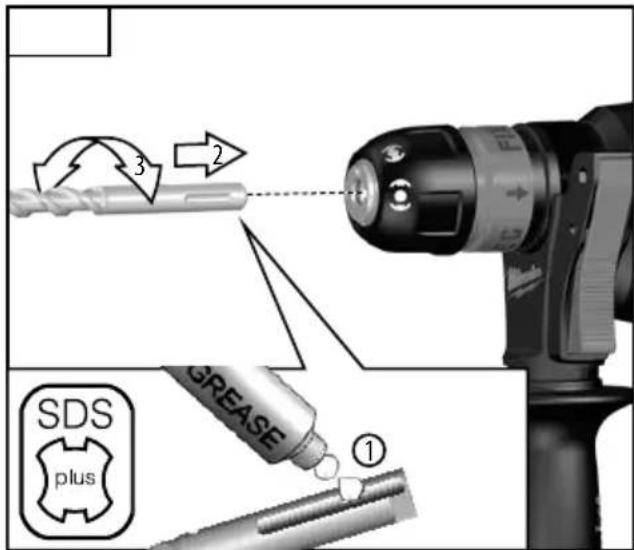

SDS plus GREASE ①


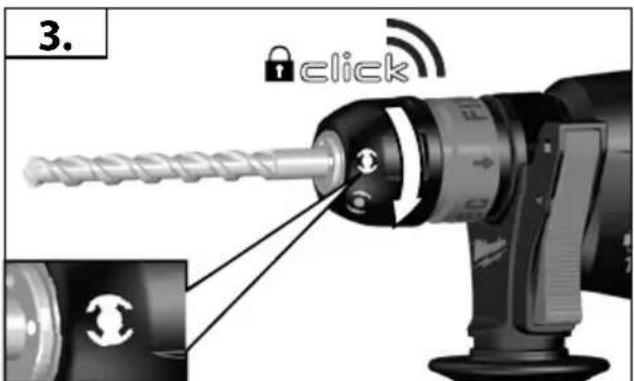

3. click


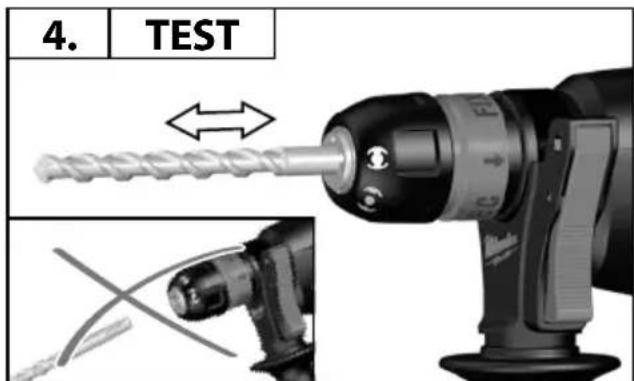

4. TEST


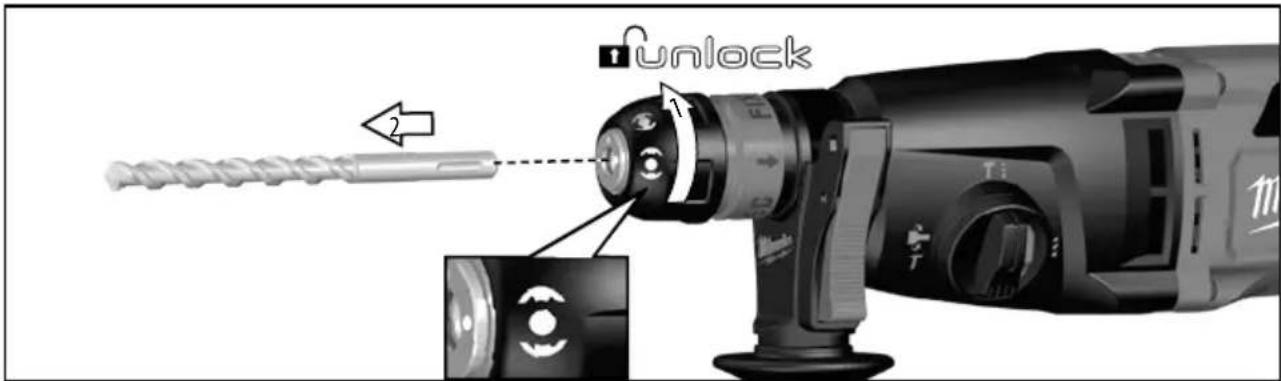

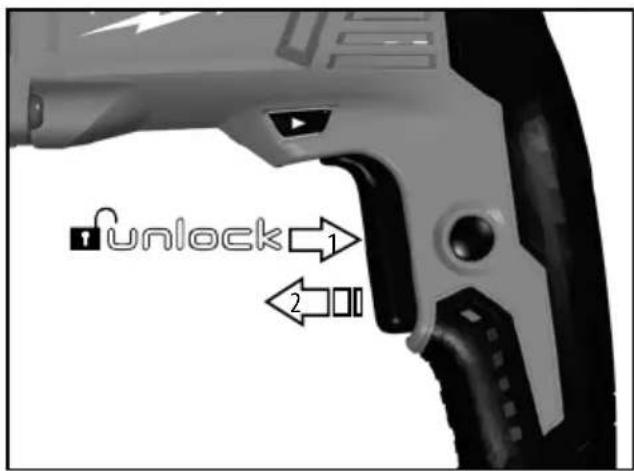

Unlock


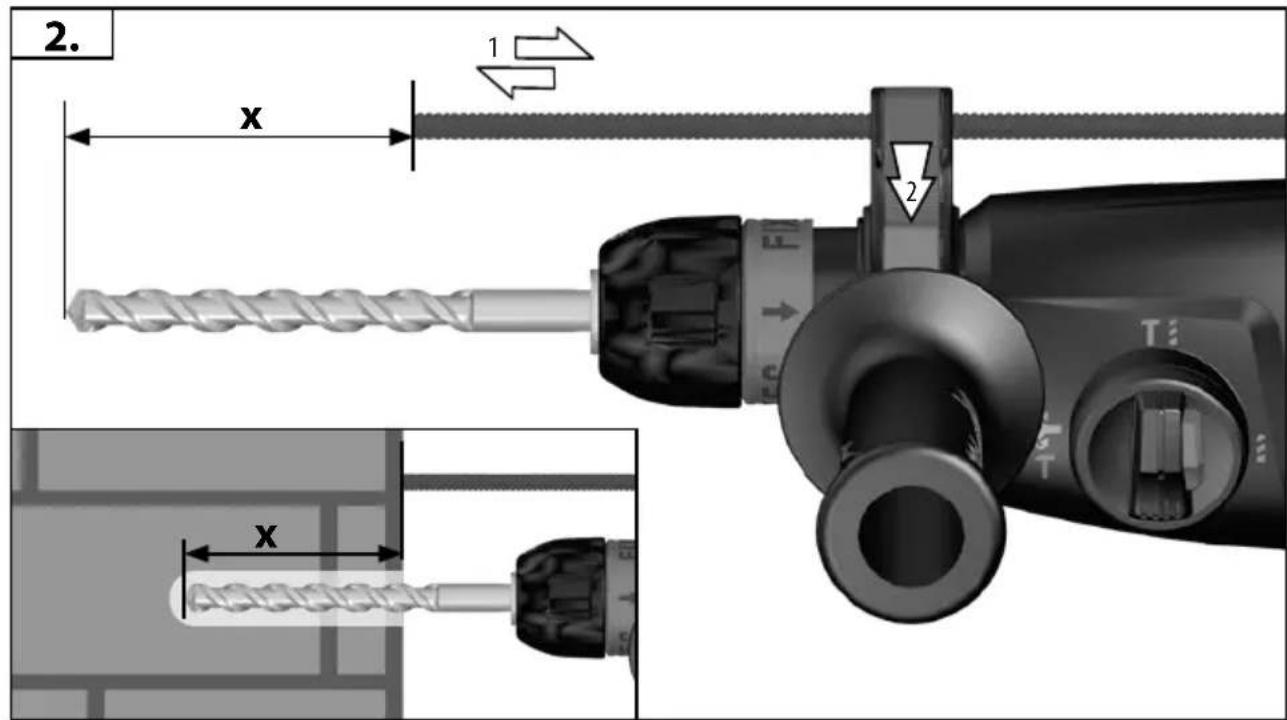

2. x 1 2 x


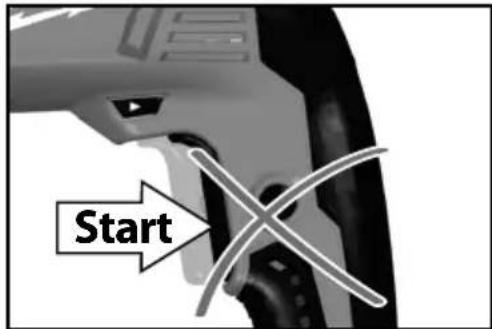

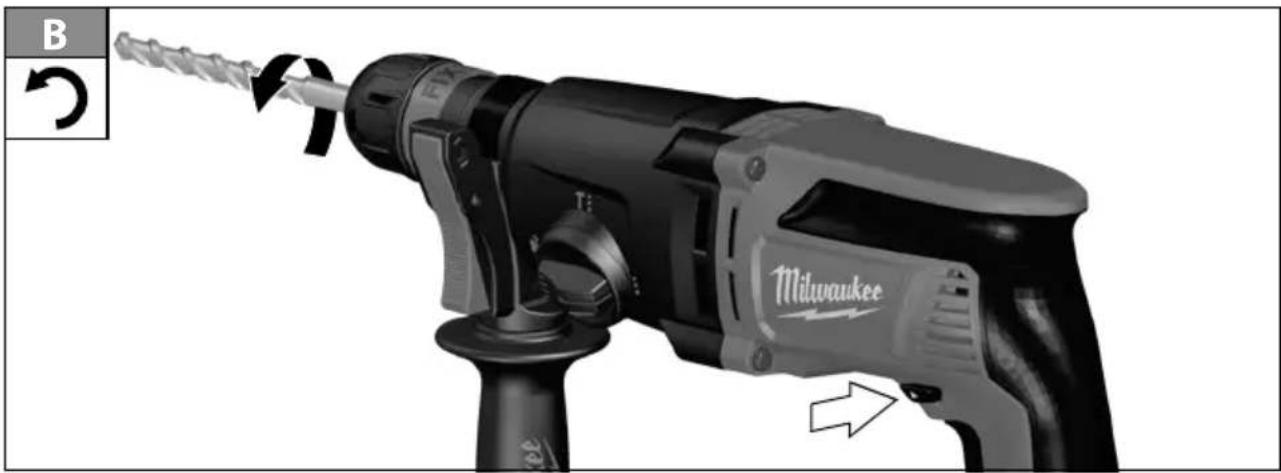

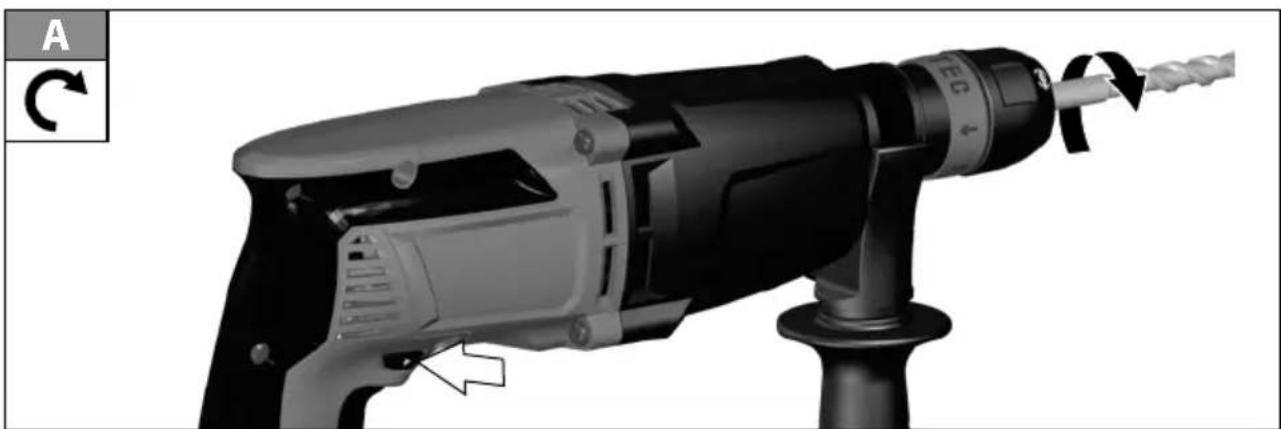

Start
*

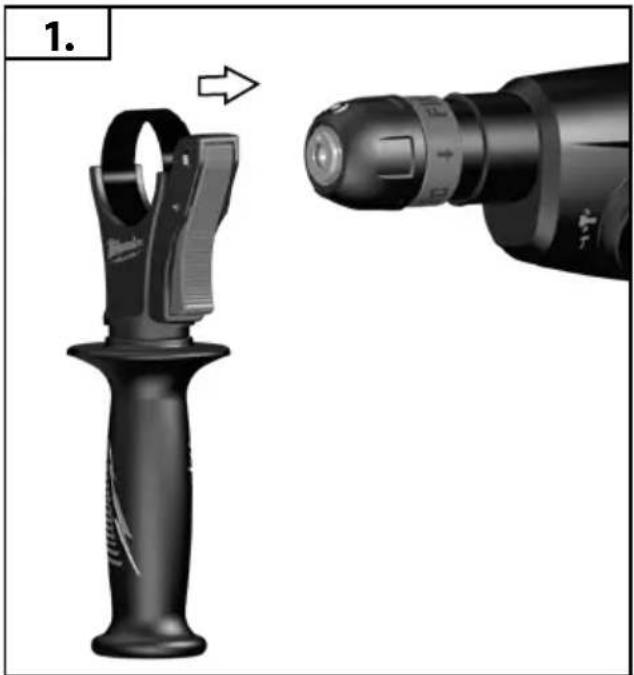

1.

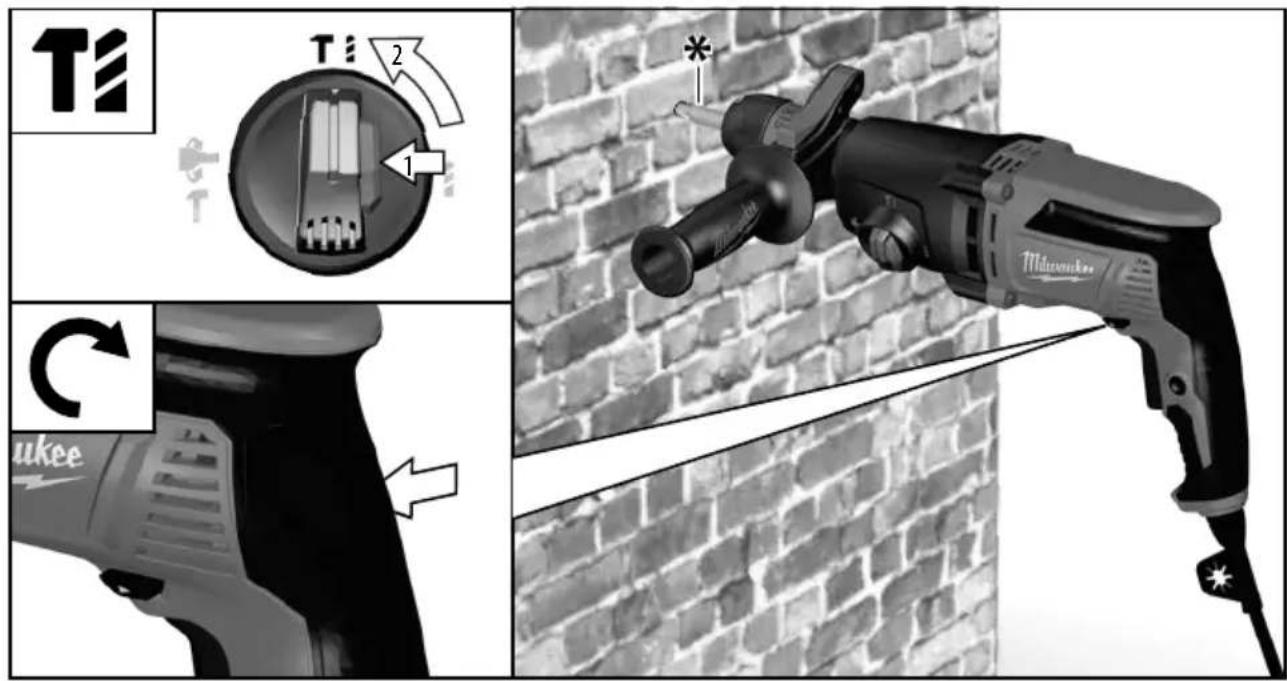

T


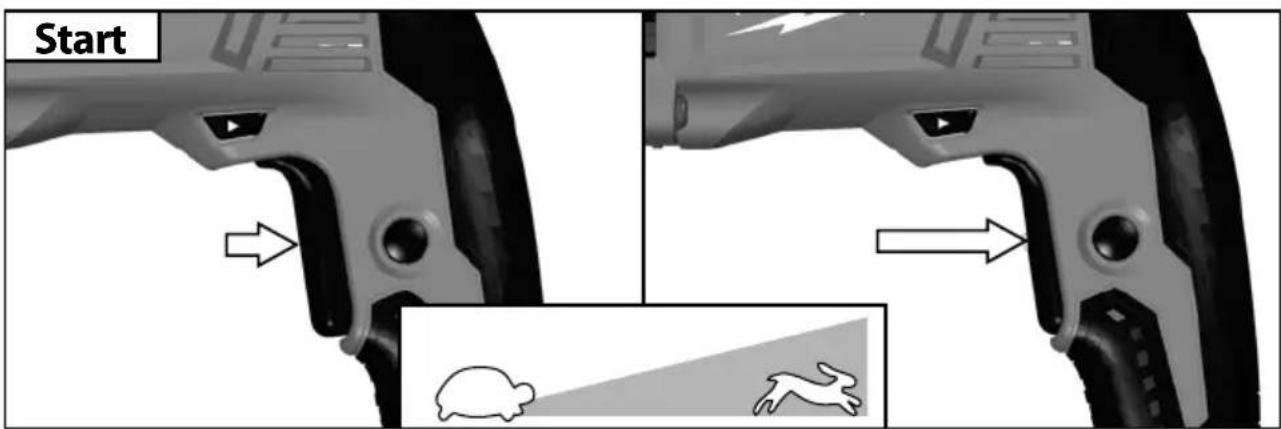

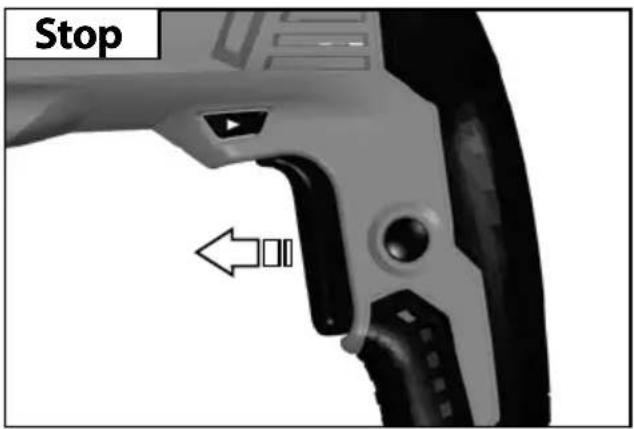

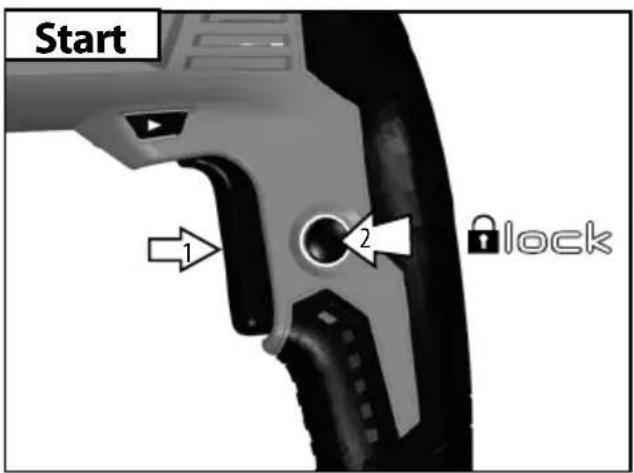

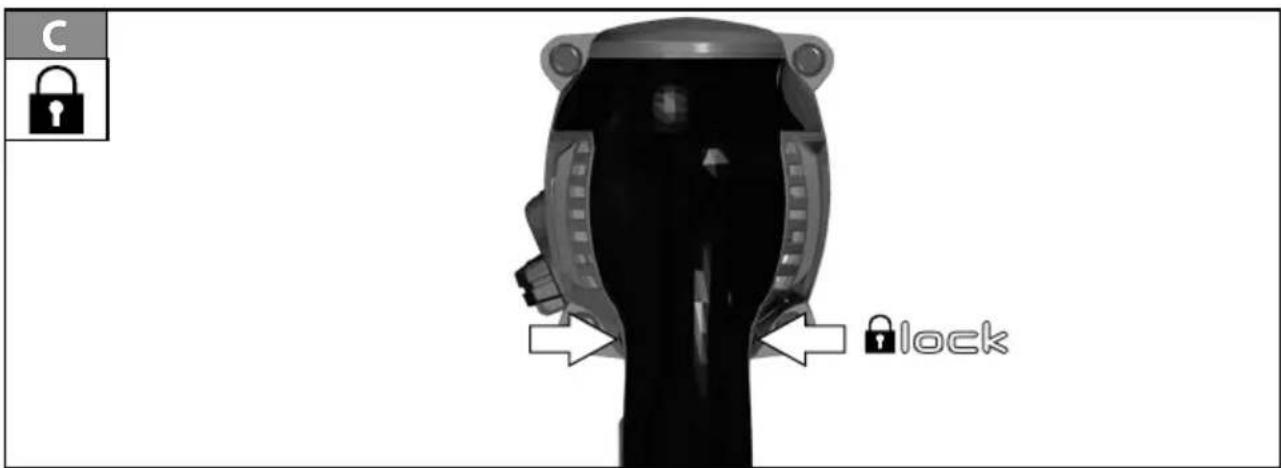

Start 1 2 lock


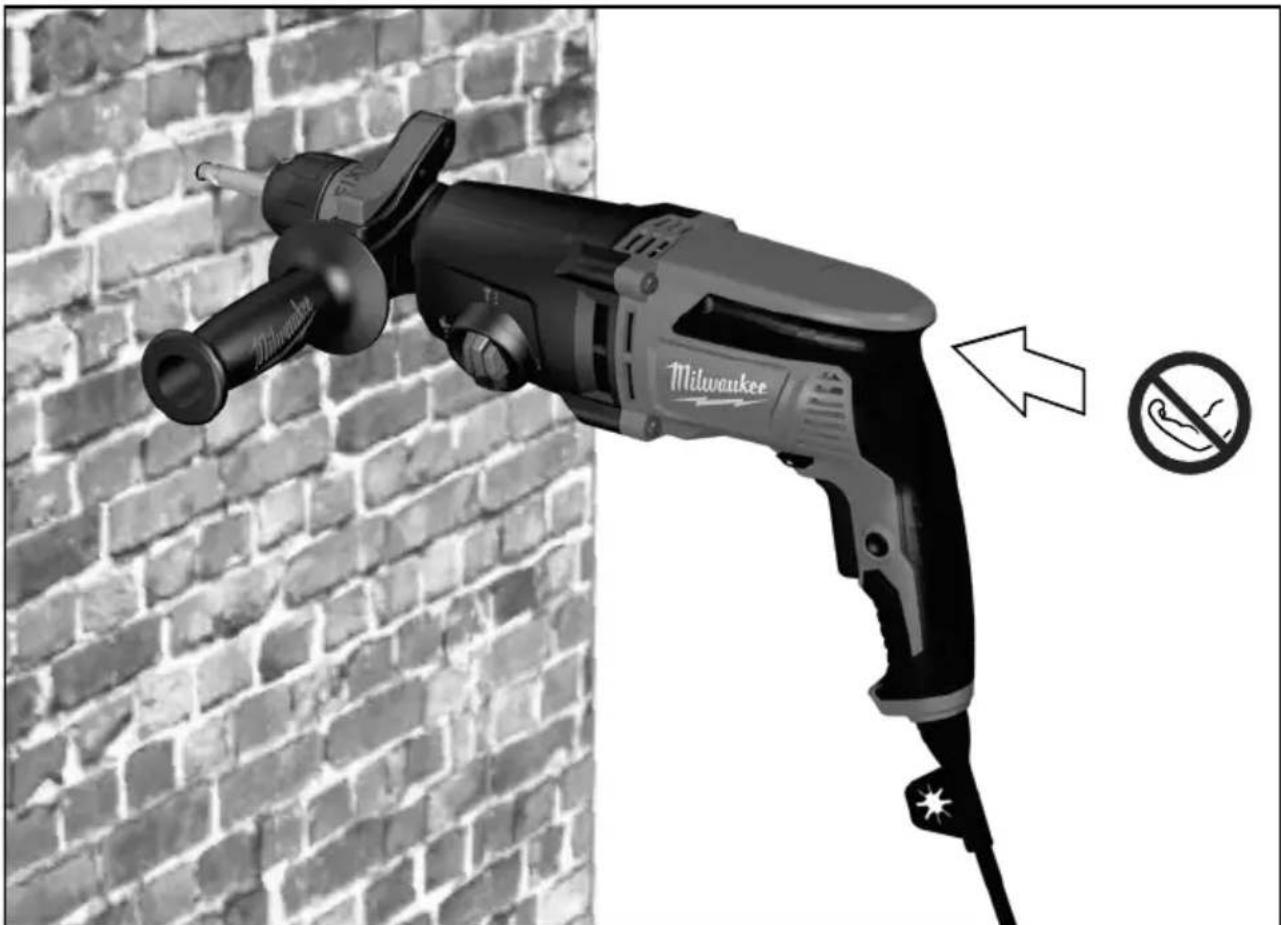

Black-and-white photo of a Milwaukee electric drill putter against a brick wall, with no visible text or symbols on the device itself.| TECHNICAL DATARotary Hammer | PH 26 TX220-230 V |
| Production code 4690 70 02... | ... 000001-999999 |
| Rated input 800 W | |
| No-load speed 0-1500 min | -1 |
| Rate of percussion under load max. 0-4500 min | -1 |
| Impact energy per stroke according to EPTA-Procedure 05/2009 2,4 J | |
| Drilling capacity in concrete 26 mmDrilling capacity in steel 13 mmDrilling capacity in wood 30 mmLight core cutter in bricks and limestone 50 mm | |
| Chuck neck diameter 43 mm | |
| Weight according EPTA-Procedure 01/2014 3,0 kg | |
| Noise informationMeasured values determined according to EN 60745. Typically, the A-weighted noise levels of the tool are:Sound pressure level (Uncertainty K=3dB(A))Sound power level (Uncertainty K=3dB(A))Wear ear protectors! | 89,5 dB (A)100,5 dB (A) |
| Vibration informationVibration total values (triaxial vector sum) determined according to EN 60745Hammer-drilling into concrete:Vibration emission value a_h, HD Uncertainty K=Chiselling:Vibration emission value a_h, Cheq Uncertainty K= | 13,6 m/s ^2 1,5 m/s ^2 11,9 m/s ^2 1,5 m/s ^2 |
WARNING
The vibration emission level given in this information sheet has been measured in accordance with a standardised test given in EN 60745 and may be used to compare one tool with another. It may be used for a preliminary assessment of exposure.
The declared vibration emission level represents the main applications of the tool. However if the tool is used for different applications, with different accessories or poorly maintained, the vibration emission may differ. This may significantly increase the exposure level over the total working period.
An estimation of the level of exposure to vibration should also take into account the times when the tool is switched off or when it is running but not actually doing the job. This may significantly reduce the exposure level over the total working period.
Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.
WARNING!
Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
HAMMER SAFETY WARNINGS
Wear ear protectors. Exposure to noise can cause hearing loss.
Use auxiliary handle(s), if supplied with the tool. Loss of control can cause personal injury.
Hold the power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
Additional Safety and Working Instructions
Use protective equipment. Always wear safety glasses when working with the machine. The use of protective clothing is recommended, such as dust mask, protective gloves, sturdy non-slip footwear, helmet and ear defenders.
The dust produced when using this tool may be harmful to health. Do not inhale the dust. Use a dust absorption system and wear a suitable dust protection mask. Remove deposited dust thoroughly, e.g. with a vacuum cleaner.
Keep mains lead clear from working range of the machine. Always lead the cable away behind you.
Do not machine any materials that present a danger to health (e.g. asbestos).
When working in walls ceiling, or floor, take care to avoid electric cables and gas or waterpipes.
Switch the device off immediately if the insertion tool stalls! Do not switch the device on again while the insertion tool is stalled, as doing so could trigger a sudden recoil with a high reactive force. Determine why the insertion tool stalled and rectify this, paying heed to the safety instructions.
Possible causes can be:
- it is tilted in the workpiece to be machined
- breakage of the material to be used
• the power tool is overloaded
Do not reach into the machine while it is running.
The insertion tool may become hot during use.
WARNING! Danger of burns
- when changing tools
- when setting the device down
Chips and splinters must not be removed while the machine is running.
Clamp your workpiece with a clamping device. Unclamped workpieces can cause severe injury and damage.
Always disconnect the plug from the socket before carrying out any work on the machine.
OPERATION
Work when it's cold
If the tool is stored for a long period of time or at cold temperatures, the lubrication may become stiff and the tool may not working initially or the working may be weak. If this happens:
- Insert a bit or chisel into the tool. Run the tool against a scrap piece of concrete.
- Pull and release the trigger every few seconds.
- After 15 seconds to 2 minutes, the tool will start hammering normally. The colder the tool is, the longer it will take to warm up.
MAINS CONNECTION
Connect only to single-phase AC system voltage as indicated on the rating plate. It is also possible to connect to sockets without an earthing contact as the design conforms to safety class II.
Appliances used at many different locations including wet room and open air must be connected via a residual current device (FI, RCD, PRCD) of 30mA or less.
Only plug-in when machine is switched off.
Under the effect of extreme electromagnetic interferences from the outside, temporary variations in the speed of rotation could arise in particular cases.
SPECIFIED CONDITIONS OF USE
The rotary pneumatic hammer can be used for hammer drilling, chiselling in stone and concrete and drilling in wood, metal as well as plastic.
MAINTENANCE
The ventilation slots of the machine must be kept clear at all times.
If the supply cord of this appliance is damaged, it must only be replaced by a repair shop appointed by the manufacturer, to avoid hazardous situations.
Important note! If the carbon brushes are worn, in addition to exchanging the brushes the tool should be sent to after-sales service. This will ensure long service life and top performance.
Use only Milwaukee accessories and Milwaukee spare parts. Should components need to be replaced which have not been described, please contact one of our Milwaukee service agents (see our list of guarantee/service addresses).
If needed, an exploded view of the tool can be ordered. Please state the Article No. as well as the machine type printed on the label and order the drawing at your local service agents or directly at: Techtronic Industries GmbH, Max-Eyth-Straße 10, 71364 Winnenden, Germany.
EC-DECLARATION OF CONFORMITY
We declare under our sole responsibility that the product described under "Technical Data" fulfills all the relevant provisions of the directives
2011/65/EU (RoHS)
2006/42/EC
2014/30/EU
and the following harmonized standards have been used.
EN 60745-1:2009+A11:2010
EN 60745-2-6:2010
EN 55014-1:2017+A11:2020
EN 55014-2:2015
EN 61000-3-2:2014
EN 61000-3-3:2013
EN IEC 63000:2018
Winnenden, 2021-02-15
Alexander Krug / Managing Director
Authorized to compile the technical file
Techtronic Industries GmbH
Max-Eyth-Straße 10, 71364 Winnenden, Germany
GB-DECLARATION OF CONFORMITY
We declare as the manufacturer under our sole responsibility that the product described under „Technical Data“ fulfills all the relevant provisions of the following Regulations
S.I. 2012/3032 (as amended), S.I. 2008/1597 (as amended),
S.I. 2016/1091 (as amended) and that the following designated standards have been used:
BS EN 60745-1:2009+A11:2010
BS EN 60745-2-6:2010
BS EN 55014-1:2017+A11:2020
BS EN 55014-2:2015
BS EN 61000-3-2:2014
BS EN 61000-3-3:2013
BS EN IEC 63000:2018
Winnenden, 2021-02-15
Alexander Krug / Managing Director
Authorized to compile the technical file
Techtronic Industries GmbH
Max-Eyth-Straße 10, 71364 Winnenden, Germany
English
SYMBOLS

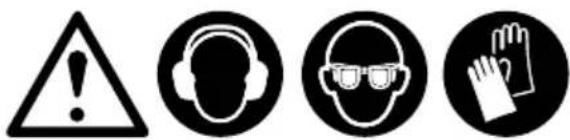

CAUTION! WARNING! DANGER!
Always disconnect the plug from the socket before carrying out any work on the machine.
Please read the instructions carefully before starting the machine.
Wear ear protectors!
Always wear goggles when using the machine.
Wear gloves!
Do not use force.
Accessory - Not included in standard equipment, available as an accessory.
Do not dispose of electric tools together with household waste material. Electric tools and electronic equipment that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility. Check with your local authority or retailer for recycling advice and collection point.
Class II tool. Tool in which protection against electric shock does not rely on basic insulation only, but in which additional safety precautions, such as double insulation or reinforced insulation, are provided. There being no provision for protective earthing or reliance upon installation conditions.
Volts
AC Current
No-load speed
European Conformity Mark
British Conformity Mark
Ukraine Conformity Mark
EurAsian Conformity Mark
Winnenden, 2021-02-15
Alexander Krug / Managing Director
Max-Eyth-Straße 10, 71364 Winnenden, Germany
SYMBOLE
DÉCLARATION CE DE CONFORMITÉ
Winnenden, 2021-02-15
Alexander Krug / Managing Director
Max-Eyth-Straße 10, 71364 Winnenden, Germany
Français
SYMBOLES
ATTENTION! AVERTISSEMENT! DANGER!
Winnenden, 2021-02-15
Alexander Krug / Managing Director
Max-Eyth-Straße 10, 71364 Winnenden, Germany
SIMBOLI
ATTENZIONE! AVVERTENZA! PERICOLO!
Winnenden, 2021-02-15
Alexander Krug / Managing Director
Max-Eyth-Straße 10, 71364 Winnenden, Germany
Español
SÍMBOLOS
Winnenden, 2021-02-15
Alexander Krug / Managing Director
Max-Eyth-Straße 10, 71364 Winnenden, Germany
SYMBOLE
ATENÇÃO! PERIGO!
Winnenden, 2021-02-15
Alexander Krug / Managing Director
Max-Eyth-Straße 10, 71364 Winnenden, Germany
Nederlands
SYMBOLEN
OPGELET! WAARSCHUWING! GEVAAR!
71364 Winnenden, Germany.
CE-KONFORMITETSERKLÆRING
Winnenden, 2021-02-15
Alexander Krug / Managing Director
Max-Eyth-Straße 10, 71364 Winnenden, Germany
SYMBOLER
VIGTIGT! ADVARSEL! FARE!
Winnenden, 2021-02-15
Alexander Krug / Managing Director
Max-Eyth-Straße 10, 71364 Winnenden, Germany
Norsk
SYMBOLER
OBS! ADVARSEL! FARE!
Winnenden, 2021-02-15
Alexander Krug / Managing Director
Max-Eyth-Straße 10, 71364 Winnenden, Germany
SYMBOLER
OBSERVERA! WARNING! FARA!
Winnenden, 2021-02-15
Alexander Krug / Managing Director
Max-Eyth-Straße 10, 71364 Winnenden, Germany
Suomi
SYMBOLIT
HUOMIO! VAROITUS! VAARA!
Winnenden, 2021-02-15
Alexander Krug / Managing Director
Max-Eyth-Straße 10, 71364 Winnenden, Germany
ΣΥΜΒΟΛΑ
Winnenden, 2021-02-15
Alexander Krug / Managing Director
Max-Eyth-Straße 10, 71364 Winnenden, Germany
SEMBOLLER
DİKKAT! UYARI! TEHLİKE!
Winnenden, 2021-02-15
Alexander Krug / Managing Director
Max-Eyth-Straße 10, 71364 Winnenden, Germany
SYMBOLY
POZOR! VAROVÁN! NEBEZPEČÍ!
CE - VYHLÁSENIE KONFORMITY
Winnenden, 2021-02-15
Alexander Krug / Managing Director
Max-Eyth-Straße 10, 71364 Winnenden, Germany
Slovensky
SYMBOLY
POZOR! NEBEZPEČENSTVO!
Winnenden, 2021-02-15
Alexander Krug / Managing Director
Max-Eyth-Straße 10, 71364 Winnenden, Germany
SYMBOLE
Winnenden, 2021-02-15
Alexander Krug / Managing Director
Max-Eyth-Straße 10, 71364 Winnenden, Germany
SZIMBÓLUMOK
FIGYELEM! FIGYELMEZTETÉS! VESZÉLY!
UPORABA V SKLADU Z NAMEMBNOSTJO
Udarni vrtalnik je univerzalno uporaben za udarno vrtanje in kle-sanje v kamnu in betonu in za vrtanje v lesu, kovini ter umetni masi.
VZDRŽEVANJE
Winnenden, 2021-02-15
Alexander Krug / Managing Director
Max-Eyth-Straße 10, 71364 Winnenden, Germany
SIMBOLI
POZOR! OPOZORILO! NEVARNO!
Winnenden, 2021-02-15
Alexander Krug / Managing Director
Ovlašten za formiranje tehničke dokumentacije.
Techtronic Industries GmbH
Max-Eyth-Straße 10, 71364 Winnenden, Germany
Hrvatski
SIMBOLI
PAŽNJA! UPOZORENIE! OPASNOST!
Prije radova na stroju izvući utikač iz utičnice.
Molimo da pažljivo pročitate uputu o upotrebi prije puštanja u rad.
Nositi zaštitu sluha!
ATBILSTIBA CE NORMAM
Winnenden, 2021-02-15
Alexander Krug / Managing Director
Max-Eyth-Straße 10, 71364 Winnenden, Germany
SIMBOLI
UZMANĪBU! BĪSTAMI!
Pirms jebkādiem darbiem, kas attiecas uz mašinas apkopi, mašinu noteikti vajag atvienot no kontaktligzdas.
Winnenden, 2021-02-15
Alexander Krug / Managing Director
lgaliotas parengti techninius dokumentus.
Techtronic Industries GmbH
Max-Eyth-Straße 10, 71364 Winnenden, Germany
Lietuviškai
SIMBOLIAI
DÈMESIO! JSPÉJIMAS! PAVOJUS!
Winnenden, 2021-02-15
Alexander Krug / Managing Director
Max-Eyth-Straße 10, 71364 Winnenden, Germany
SÜMBOLID
ETTEVAATUST! TÄHELEPANU! OHUD!
Winnenden, 2021-02-15
Alexander Krug / Managing Director
Max-Eyth-Straße 10, 71364 Winnenden, Germany
Русский
СИМВОЛЫ
Winnenden, 2021-02-15
Alexander Krug / Managing Director
Max-Eyth-Straße 10, 71364 Winnenden, Germany
СИМВОЛИ
Winnenden, 2021-02-15
Alexander Krug / Managing Director
Max-Eyth-Straße 10, 71364 Winnenden, Germany
SIMBOLURI
PERICOL! AVERTIZARE! ATENTIE!
Winnenden, 2021-02-15
Alexander Krug / Managing Director
Max-Eyth-Straße 10, 71364 Winnenden, Germany
СИМБОЛИ
ВНИМАНИЕ! ПРЕДУПРЕДУВАЊЕ! ОПАСНОСТ!
Winnenden, 2021-02-15
Alexander Krug / Managing Director
Max-Eyth-Straße 10, 71364 Winnenden, Germany
СИМВОЛИ
Alexander Krug / Managing Director
Techtronic Industries (UK) Ltd
Fieldhouse Lane
Marlow Bucks SL7 1HZ
UK
(02.21)
4931 4250 94
