USER MANUAL PH 26 T MILWAUKEE

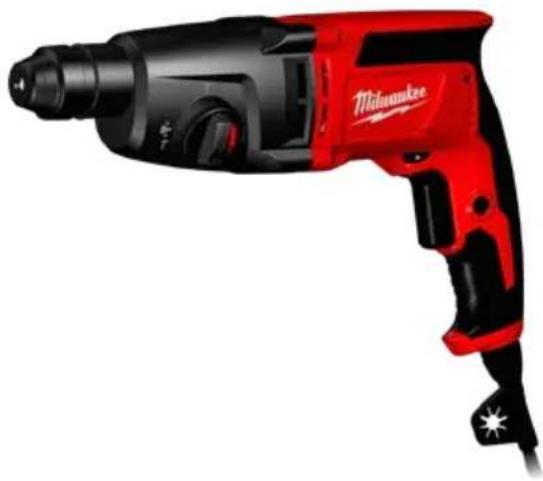

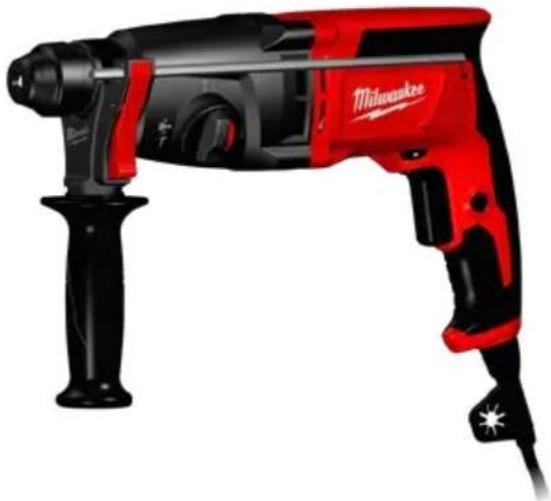

Red Milwaukee power drill with black handle and black head (no visible text or symbols)

PH 26 T

PFH 26 T

Original instructions

Black and red handheld tool with handle and grip (no visible text or symbols)

4

Red Milwaukee electric drill with black handle and power tool (no visible text or symbols)

Red Milwaukee electric drill putter with black handle and head screw (no visible text or symbols)

Close-up of a red and black drill bit with motion arrows indicating movement (no text or symbols)

Close-up of a mechanical component with a metallic shaft and directional arrow indicating rotation (no text or symbols)

Close-up of a mechanical tool with red and black components, no visible text or symbols

IVV

Close-up of a circular mechanical component with internal components and arrows indicating direction (no text or symbols)

START STOP

VII ische Daten . Technical Dat étristiques technées . Da ecnici . Datos tècnik veril Caracteristicas Technick data . Techniç Tekni podat podaci Tekni undmed Technici dанныe 14 chieski Technischer annni evens

Accessory

Zubehör

Accessoires

Accessorio

Close-up of a red-handled tool with curved arrows indicating motion or force direction (no text or symbols visible)

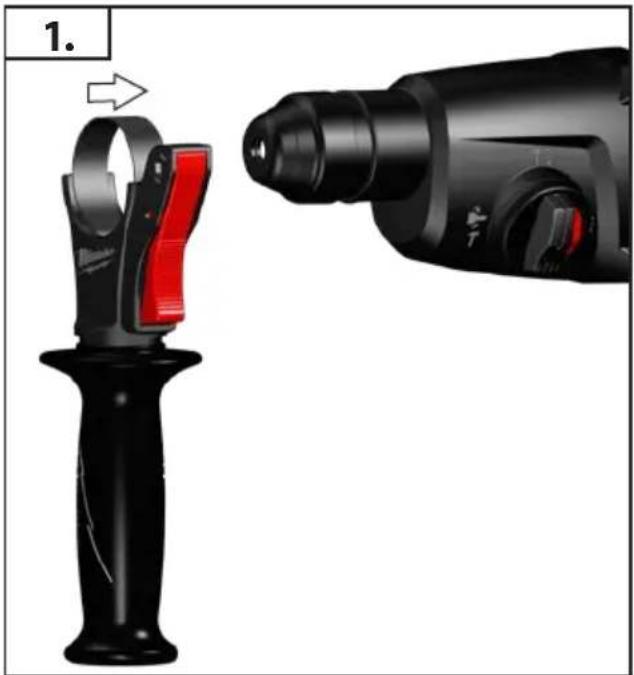

Two black industrial tools with red clamps, one being adjusted and the other assembled (no text or symbols visible)

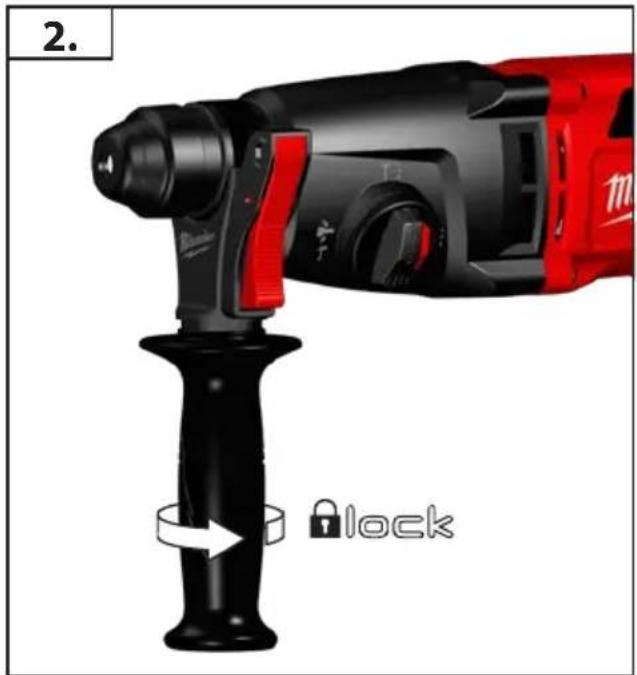

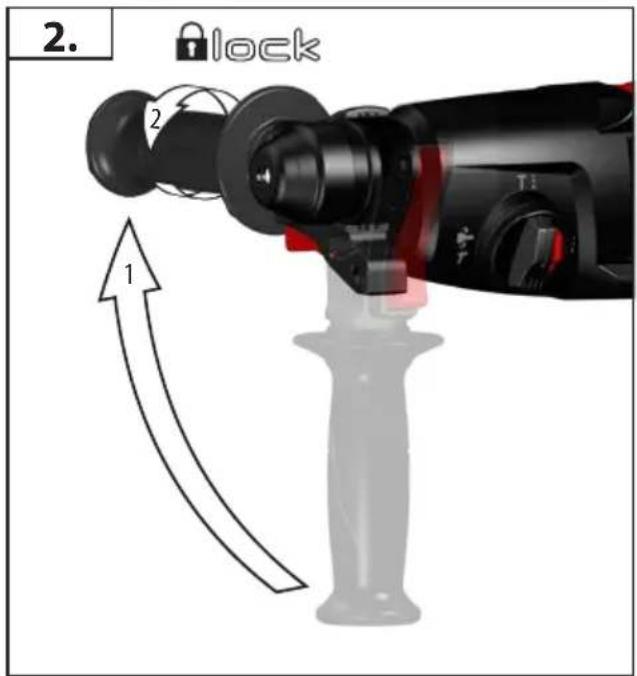

2. lock

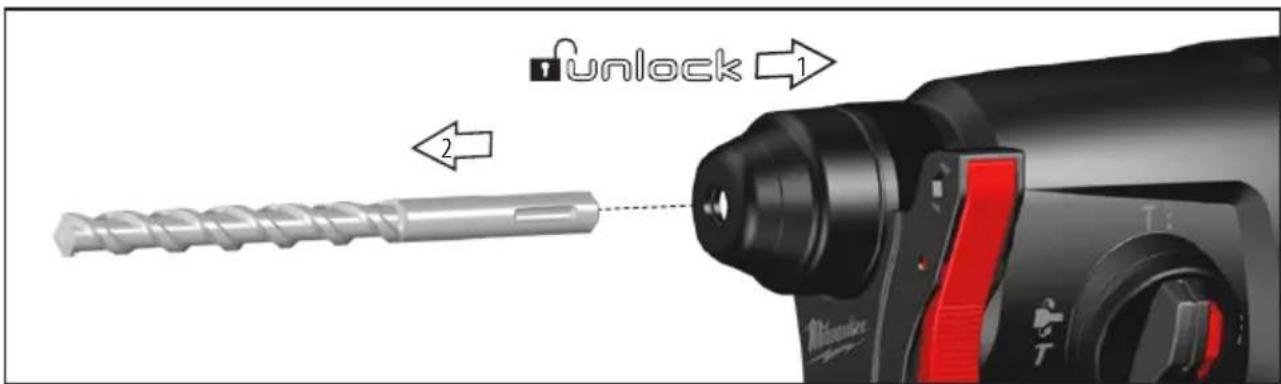

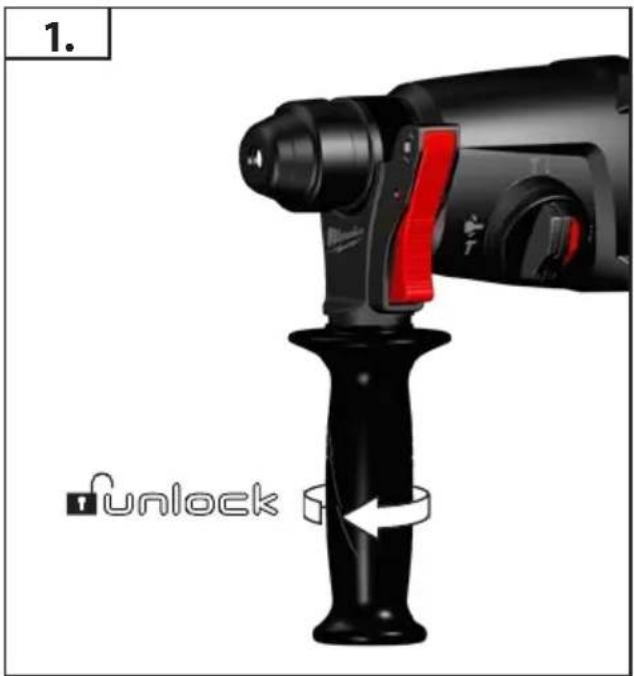

1. Unlock

2. lock 1

Close-up of a mechanical tool emitting motion arrows (no text or symbols visible)

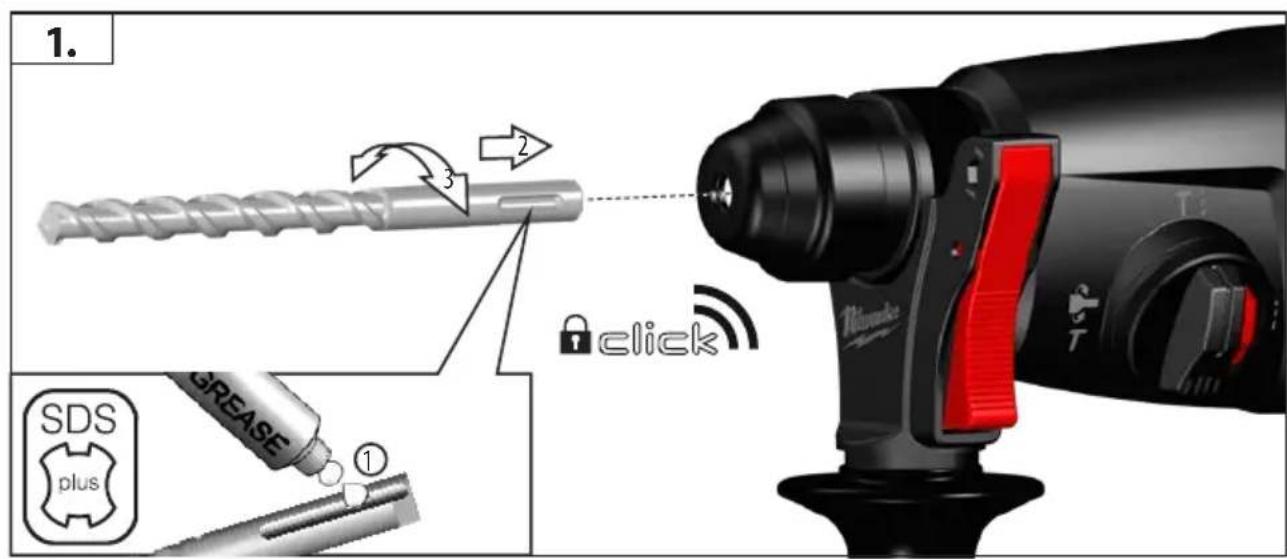

1. 2 3 click SDS plus ①

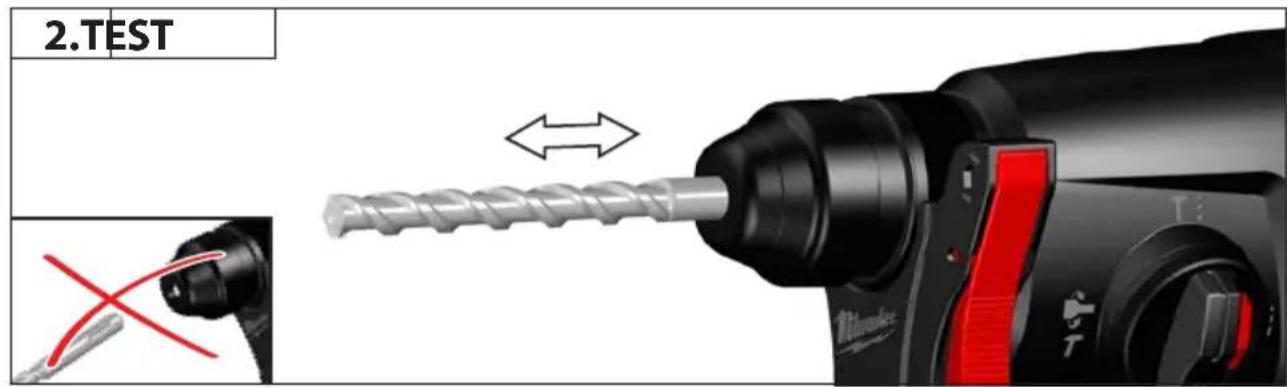

2.TEST Mitsubishi

Unlock 2

Blank gray image with no visible content, text, or symbols

1.

2

1

2.

1

X

2

X

Close-up of a black and red drill bit with three blades, no text or symbols visible

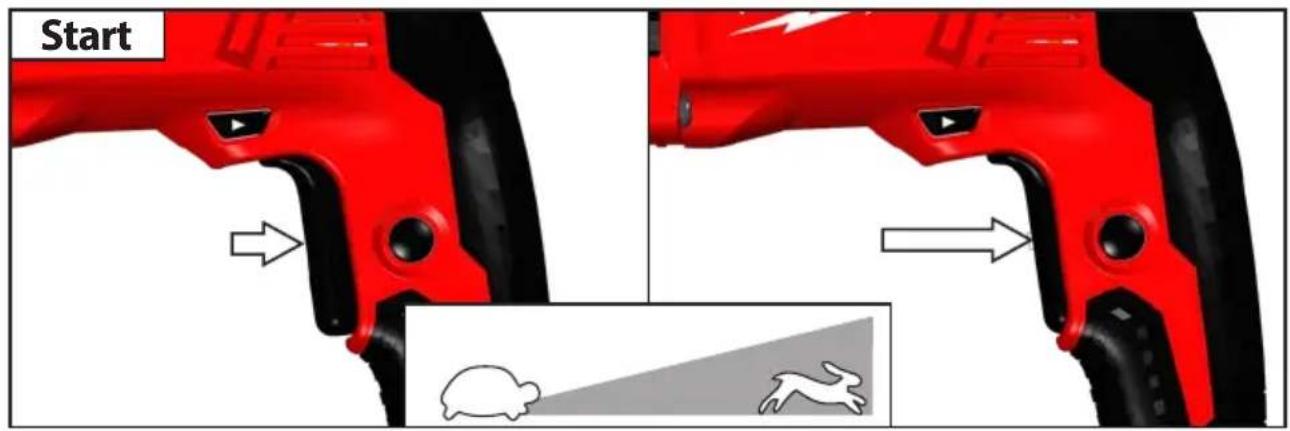

Start

Red and black electric drill putter with coiled wire, shown in 3D rendering (no text or symbols)

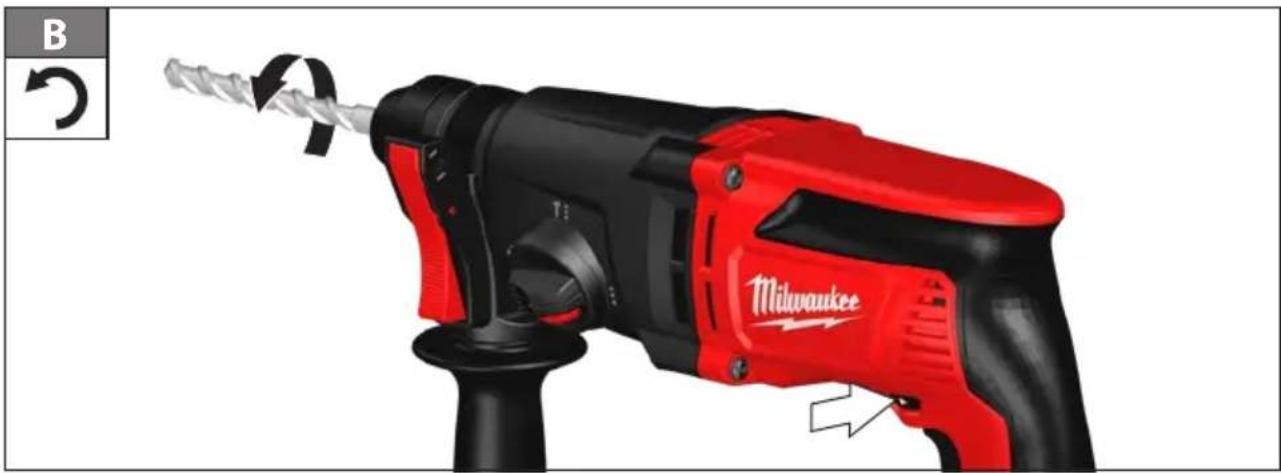

Red Milwaukee electric drill with drill bit, shown from side profile (no text or symbols on the drill itself)

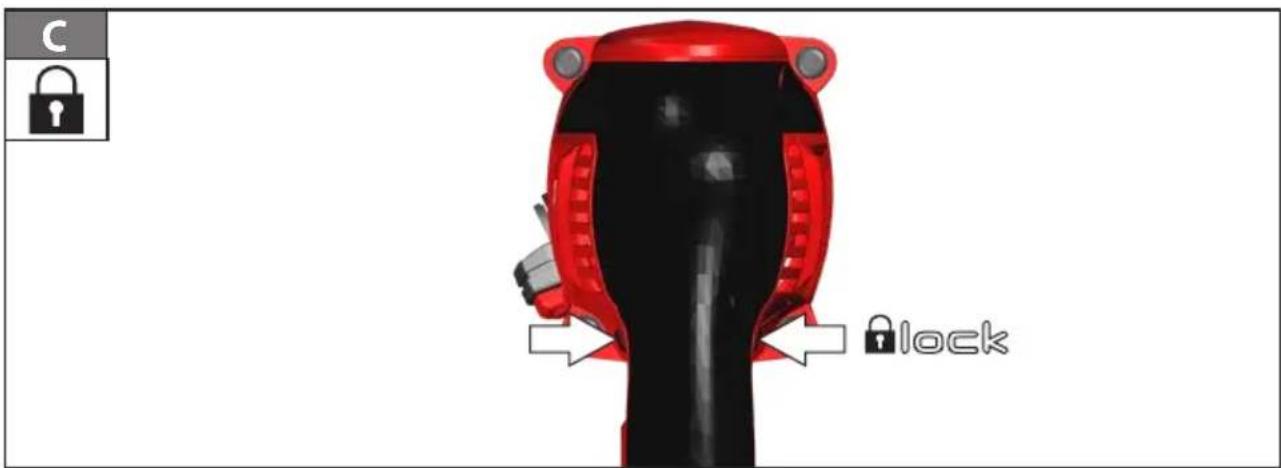

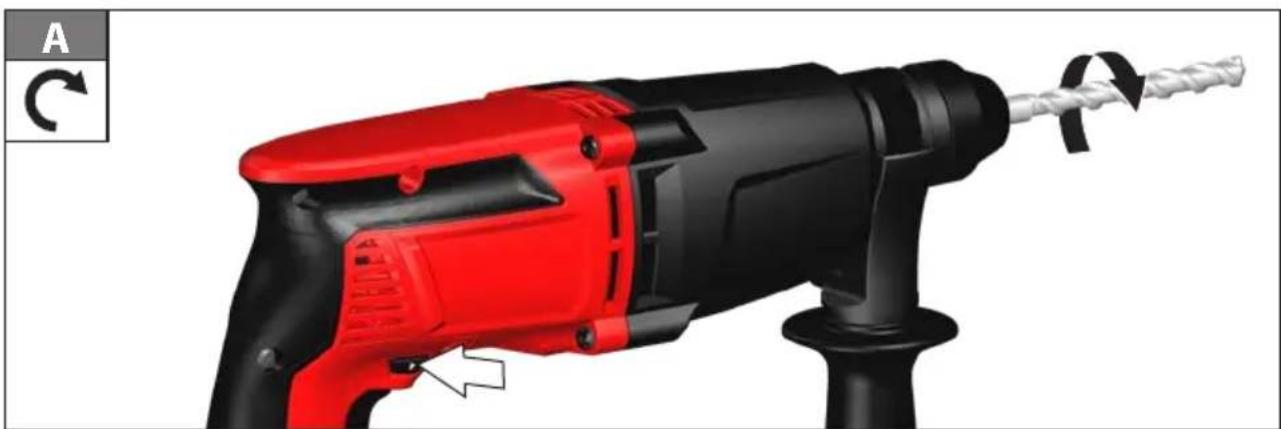

C lock

Diagram of a car dashboard with directional arrows and a highlighted red area indicating a specific component or area.

Instructional diagram showing tool application steps for Milwaukee's power tool, including cutting and retraction with labeled parts.

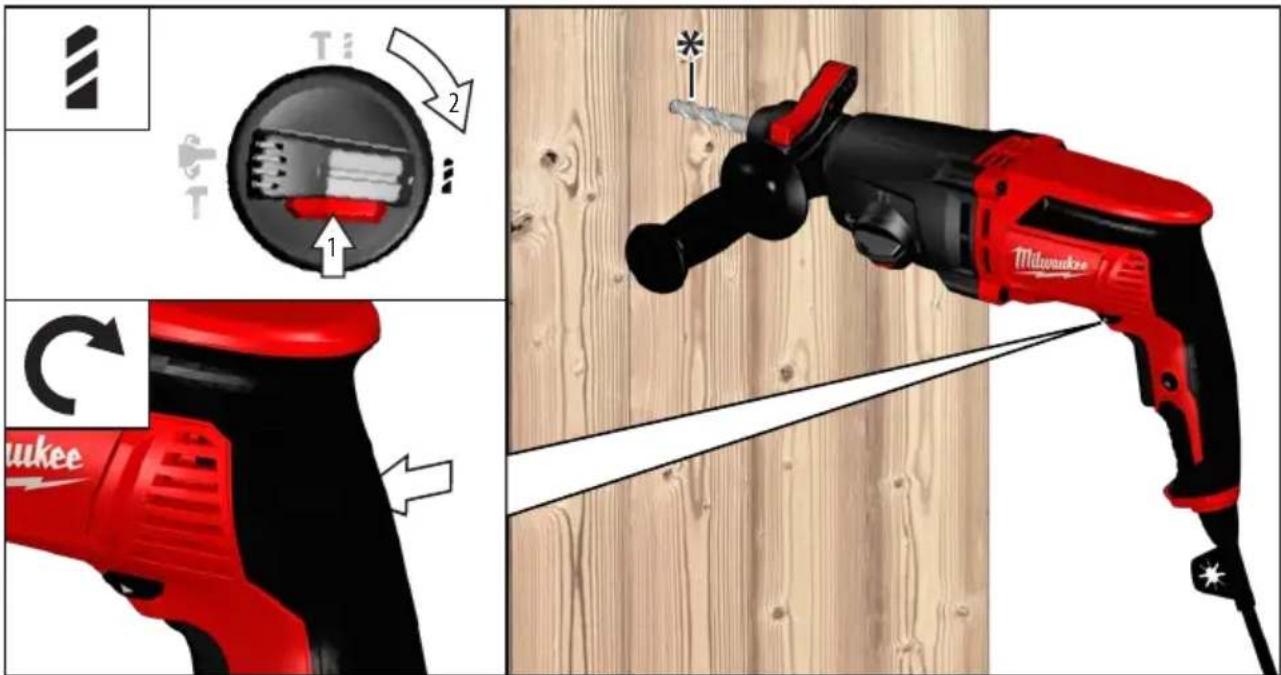

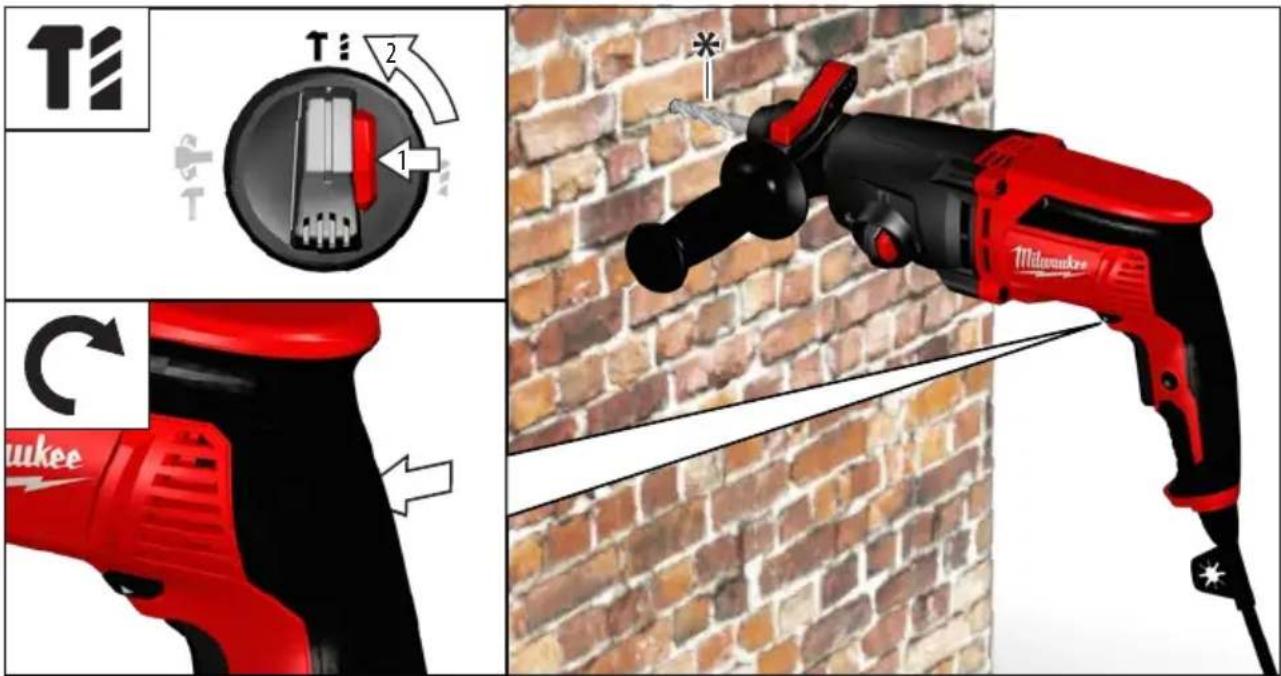

Ti Ti 2 1 * Milwaukee wukee

Close-up of a black circular device with internal components and symbols (no readable text or labels)

PH 26 T

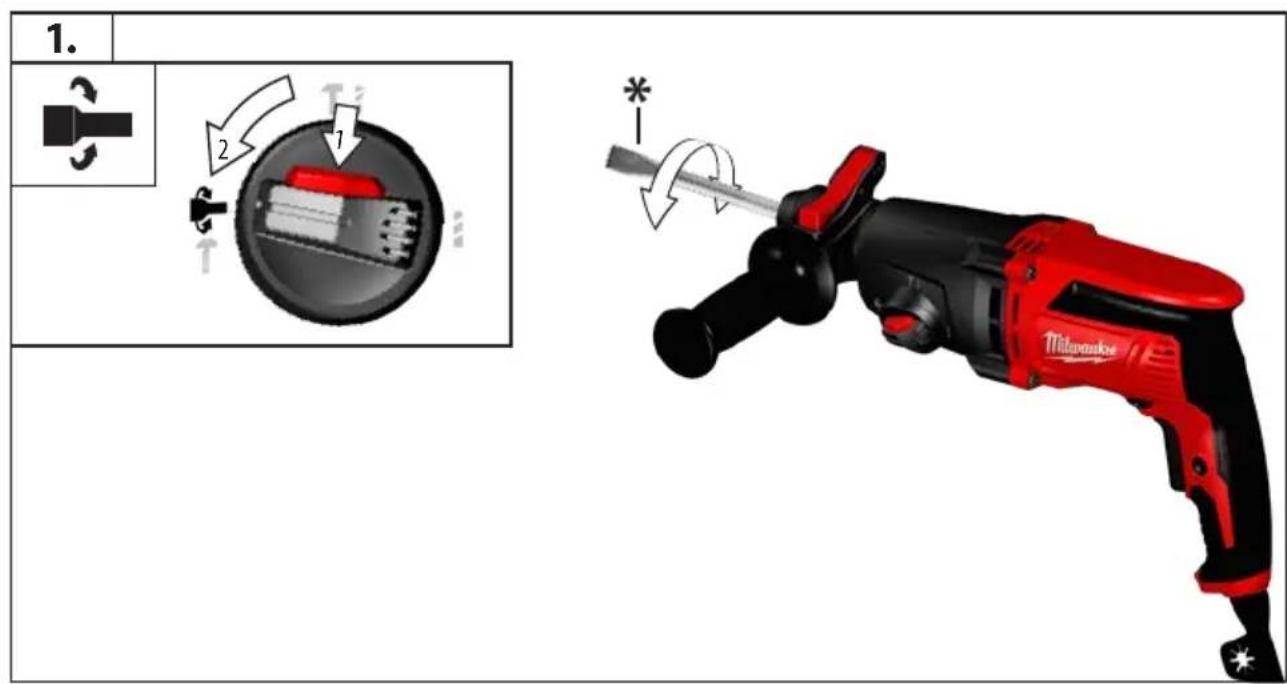

1. 2 3 * Milwaukee

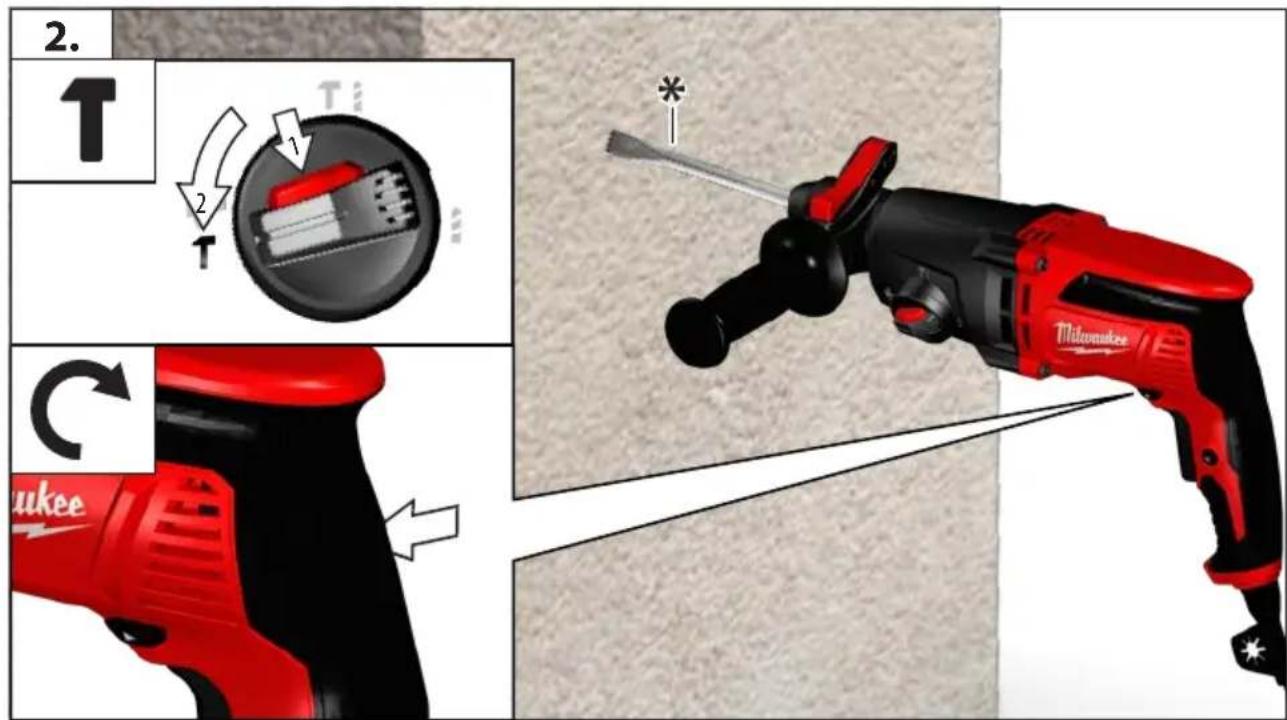

2. T T 2 T * Milwaukee ukee

START STOP

Four black-and-white warning symbols: triangular warning triangle with exclamation mark, head/shoulder helmet, person wearing safety goggles, and hand holding glove.

≤ START STOP

Start

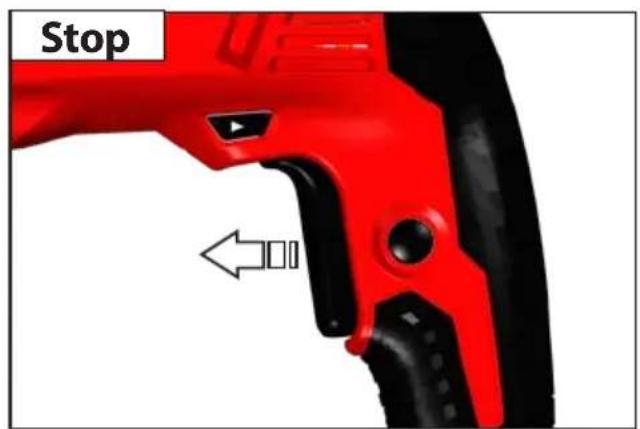

Stop

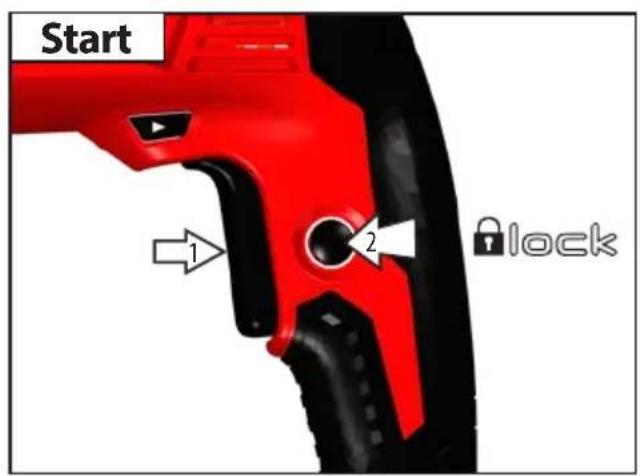

Start 1 2 lock

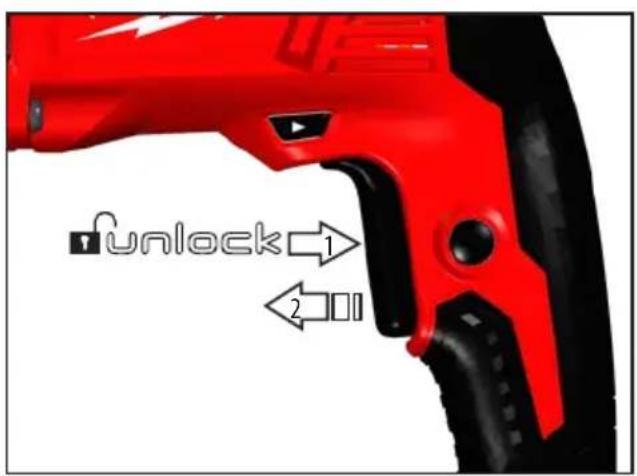

Unlock 1 2

START STOP

Four black-and-white warning symbols: triangular warning triangle, head/ear headphones, safety helmet, and hand gesture.

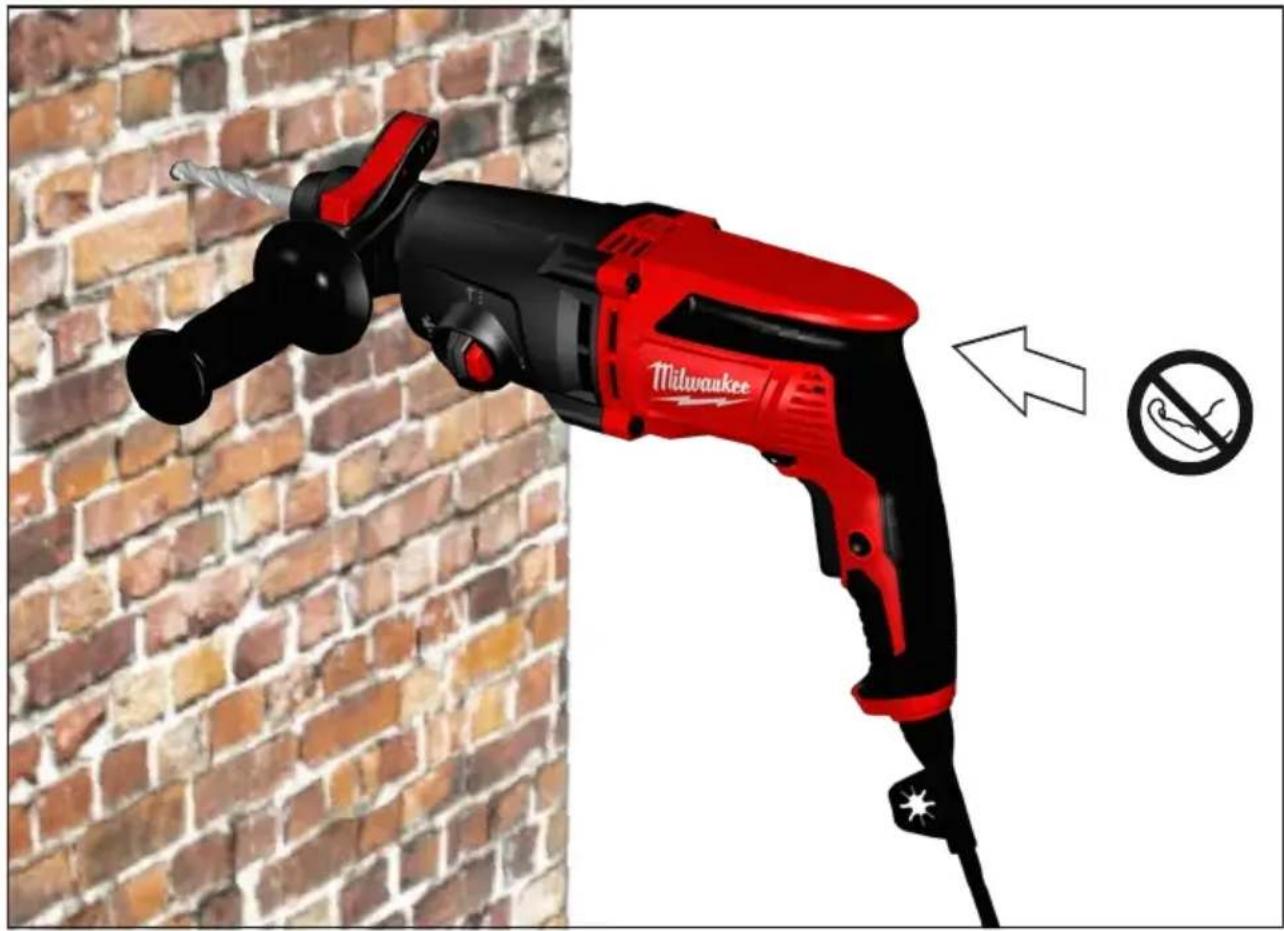

Red Milwaukee electric drill putter against a brick wall, with no visible text or symbols on the tool itself.

TECHNICAL DATARotary Hammer	PH 26 T220-230 V	PFH 26 T220-230 V
Production code	4690 50 01... ... 000001-999999	4690 90 01... ... 000001-999999
Rated input 800 W 800 W
No-load speed 0-1500 min	-1	0-1500 min^-1
Rate of percussion under load max. 0-4500 min	-1	0-4500 min^-1
Impact energy per stroke according to EPTA-Procedure 05/2009 2,4 J 2,4 J
Drilling capacity in concrete 26 mm 26 mmDrilling capacity in steel 13 mm 13 mmDrilling capacity in wood 30 mm 30 mmLight core cutter in bricks and limestone 50 mm 50 mm
Chuck neck diameter 43 mm 43 mm
Weight according EPTA-Procedure 01/2014 2,8 kg 2,8 kg
Noise informationMeasured values determined according to EN 60745. Typically, the A-weighted noise levels of the tool are:Sound pressure level (Uncertainty K=3dB(A))Sound power level (Uncertainty K=3dB(A))Wear ear protectors!	89,5 dB (A)100,5 dB (A)	89,5 dB (A)100,5 dB (A)
Vibration informationVibration total values (triaxial vector sum) determined according to EN 60745Hammer-drilling into concrete:Vibration emission value a_h, HD Uncertainty K=Chiselling:Vibration emission value a_h, Cheq Uncertainty K=	13,6 m/s^2 1,5 m/s^2 11,9 m/s^2 1,5 m/s^2	13,6 m/s^2 1,5 m/s^2 11,9 m/s^2 1,5 m/s^2

WARNING

The vibration emission level given in this information sheet has been measured in accordance with a standardised test given in EN 60745 and may be used to compare one tool with another. It may be used for a preliminary assessment of exposure.

The declared vibration emission level represents the main applications of the tool. However if the tool is used for different applications, with different accessories or poorly maintained, the vibration emission may differ. This may significantly increase the exposure level over the total working period.

An estimation of the level of exposure to vibration should also take into account the times when the tool is switched off or when it is running but not actually doing the job. This may significantly reduce the exposure level over the total working period.

Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.

WARNING!

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

HAMMER SAFETY WARNINGS

Wear ear protectors. Exposure to noise can cause hearing loss.

Use auxiliary handle(s), if supplied with the tool. Loss of control can cause personal injury.

Hold the power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.

Additional Safety and Working Instructions

Use protective equipment. Always wear safety glasses when working with the machine. The use of protective clothing is recommended, such as dust mask, protective gloves, sturdy non-slip footwear, helmet and ear defenders.

The dust produced when using this tool may be harmful to health. Do not inhale the dust. Use a dust absorption system and wear a suitable dust protection mask. Remove deposited dust thoroughly, e.g. with a vacuum cleaner.

Keep mains lead clear from working range of the machine. Always lead the cable away behind you.

Do not machine any materials that present a danger to health (e.g. asbestos).

When working in walls ceiling, or floor, take care to avoid electric cables and gas or waterpipes.

English

Switch the device off immediately if the insertion tool stalls! Do not switch the device on again while the insertion tool is stalled, as doing so could trigger a sudden recoil with a high reactive force. Determine why the insertion tool stalled and rectify this, paying heed to the safety instructions.

Possible causes can be:

• it is tilted in the workpiece to be machined
• breakage of the material to be used
  • the power tool is overloaded

Do not reach into the machine while it is running.

The insertion tool may become hot during use.

WARNING! Danger of burns

• when changing tools
• when setting the device down

Chips and splinters must not be removed while the machine is running.

Clamp your workpiece with a clamping device. Unclamped workpieces can cause severe injury and damage.

Always disconnect the plug from the socket before carrying out any work on the machine.

MAINS CONNECTION

Connect only to single-phase AC system voltage as indicated on the rating plate. It is also possible to connect to sockets without an earthing contact as the design conforms to safety class II.

Appliances used at many different locations including wet room and open air must be connected via a residual current device (FI, RCD, PRCD) of 30mA or less.

Only plug-in when machine is switched off.

Under the effect of extreme electromagnetic interferences from the outside, temporary variations in the speed of rotation could arise in particular cases.

SPECIFIED CONDITIONS OF USE

PH 26 T : The rotary pneumatic hammer can be used for hammer drilling, chiselling in stone and concrete and drilling in wood, metal as well as plastic.

PFH 26 T : The rotary pneumatic hammer can be used for hammer drilling in stone and concrete and drilling in wood, metal as well as plastic.

MAINTENANCE

The ventilation slots of the machine must be kept clear at all times.

If the supply cord of this appliance is damaged, it must only be replaced by a repair shop appointed by the manufacturer, to avoid hazardous situations.

Important note! If the carbon brushes are worn, in addition to exchanging the brushes the tool should be sent to after-sales service. This will ensure long service life and top performance.

Use only Milwaukee accessories and Milwaukee spare parts. Should components need to be replaced which have not been described, please contact one of our Milwaukee service agents (see our list of guarantee/service addresses).

If needed, an exploded view of the tool can be ordered. Please state the Article No. as well as the machine type printed on the label and order the drawing at your local service agents or directly at: Techtronic Industries GmbH, Max-Eyth-Straße 10, 71364 Winnenden, Germany.

EC-DECLARATION OF CONFORMITY

We declare under our sole responsibility that the product described under "Technical Data" fulfills all the relevant provisions of the directives

2011/65/EU (RoHS)

2006/42/EC

2014/30/EU

and the following harmonized standards have been used.

EN 60745-1:2009 + A11:2010

EN 60745-2-6:2010

EN 55014-1:2017

EN 55014-2:2015

EN 61000-3-2:2014

EN 61000-3-3:2013

EN 50581:2012

Winnenden, 2018-08-17

Alexander Krug / Managing Director

Authorized to compile the technical file

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

SYMBOLS

CAUTION! WARNING! DANGER!

Always disconnect the plug from the socket before carrying out any work on the machine.

Please read the instructions carefully before starting the machine.

Wear ear protectors!

Always wear goggles when using the machine.

Wear gloves!

Do not use force.

Accessory - Not included in standard equipment, available as an accessory.

Do not dispose of electric tools together with household waste material. Electric tools and electronic equipment that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility. Check with your local authority or retailer for recycling advice and collection point.

Class II tool. Tool in which protection against electric shock does not rely on basic insulation only, but in which additional safety precautions, such as double insulation or reinforced insulation, are provided. There being no provision for protective earthing or reliance upon installation conditions.

V

Volts

AC Current

n_0

No-load speed

European Conformity Mark

Ukraine Conformity Mark

EurAsian Conformity Mark

English

Alexander Krug / Managing Director

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Deutsch

SYMBOLE

DÉCLARATION CE DE CONFORMITÉ

Alexander Krug / Managing Director

Max-Eyth-Straße 10, 71364 Winnenden, Germany

SYMBOLES

ATTENTION! AVERTISSEMENT! DANGER!

Alexander Krug / Managing Director

Max-Eyth-Straße 10, 71364 Winnenden, Germany

SIMBOLI

ATTENZIONE! AVVERTENZA! PERICOLO!

Alexander Krug / Managing Director

Max-Eyth-Straße 10, 71364 Winnenden, Germany

SÍMBOLOS

Alexander Krug / Managing Director

Max-Eyth-Straße 10, 71364 Winnenden, Germany

SYMBOLE

ATENÇÃO! PERIGO!

Alexander Krug / Managing Director

Max-Eyth-Straße 10, 71364 Winnenden, Germany

SYMBOLEN

OPGELET! WAARSCHUWING! GEVAAR!

Alexander Krug / Managing Director

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Dansk

SYMBOLER

VIGTIGT! ADVARSEL! FARE!

Alexander Krug / Managing Director

Max-Eyth-Straße 10, 71364 Winnenden, Germany

SYMBOLER

OBS! ADVARSEL! FARE!

Alexander Krug / Managing Director

Max-Eyth-Straße 10, 71364 Winnenden, Germany

SYMBOLER

OBSERVERA! WARNING! FARA!

Alexander Krug / Managing Director

Max-Eyth-Straße 10, 71364 Winnenden, Germany

SYMBOLIT

HUOMIO! VAROITUS! VAARA!

Alexander Krug / Managing Director

Max-Eyth-Straße 10, 71364 Winnenden, Germany

ΣΥΜΒΟΛΑ

Alexander Krug / Managing Director

Max-Eyth-Straße 10, 71364 Winnenden, Germany

SEMBOLLER

DİKKAT! UYARI! TEHLİKE!

Alexander Krug / Managing Director

Max-Eyth-Straße 10, 71364 Winnenden, Germany

SYMBOLY

POZOR! VAROVÁN! NEBEZPEČÍ!

CE - VYHLÁSENIE KONFORMITY

Alexander Krug / Managing Director

Max-Eyth-Straße 10, 71364 Winnenden, Germany

SYMBOLY

POZOR! NEBEZPEČENSTVO!

Alexander Krug / Managing Director

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Polski

SYMBOLE

Alexander Krug / Managing Director

Max-Eyth-Straße 10, 71364 Winnenden, Germany

SZIMBÓLUMOK

FIGYELEM! FIGYELMEZTETÉS! VESZÉLY!

UPORABA V SKLADU Z NAMEMBNOSTJO

PH 26 T : Udarni vrtalnik je univerzalno uporaben za udarno vrtanje in klesanje v kamnu in betonu in za vrtanje v lesu, kovini ter umetni masi.

PFH 26 T : Udarni vrtalnik je univerzalno uporaben za udarno vrtanje v kamnu in za vrtanje v lesu, kovini ter umetni masi.

VZDRŽEVANJE

Alexander Krug / Managing Director

Max-Eyth-Straße 10, 71364 Winnenden, Germany

SIMBOLI

POZOR! OPOZORILO! NEVARNO!

Alexander Krug / Managing Director

Ovlašten za formiranje tehničke dokumentacije.

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

SIMBOLI

PAŽNJA! UPOZORENIE! OPASNOST!

Prije radova na stroju izvući utikač iz utičnice.

Molimo da pažljivo pročitate uputu o upotrebi prije puštanja u rad.

Nositi zaštitu sluha!

Alexander Krug / Managing Director

Max-Eyth-Straße 10, 71364 Winnenden, Germany

SIMBOLI

UZMANĪBU! BĪSTAMI!

Pirms jebkādiem darbiem, kas attiecas uz mašinas apkopi, mašinu noteikti vajag atvienot no kontaktligzdas.

Alexander Krug / Managing Director

lgaliotas parengti techninius dokumentus.

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

SIMBOLIAI

DĖMESIO! JSPĖJIMAS! PAVOJUS!

Alexander Krug / Managing Director

Max-Eyth-Straße 10, 71364 Winnenden, Germany

SÜMBOLID

ETTEVAATUST! TÄHELEPANU! OHUD!

Alexander Krug / Managing Director

Max-Eyth-Straße 10, 71364 Winnenden, Germany

СИМВОЛЫ

Alexander Krug / Managing Director

Max-Eyth-Straße 10, 71364 Winnenden, Germany

СИМВОЛИ

Alexander Krug / Managing Director

Max-Eyth-Straße 10, 71364 Winnenden, Germany

SIMBOLURI

PERICOL! AVERTIZARE! ATENTIE!

Alexander Krug / Managing Director

Max-Eyth-Straße 10, 71364 Winnenden, Germany

СИМБОЛИ

ВНИМАНИЕ! ПРЕДУПРЕДУВАЊЕ! ОПАСНОСТ!

Alexander Krug / Managing Director

Max-Eyth-Straße 10, 71364 Winnenden, Germany

СИМВОЛИ

Alexander Krug / Managing Director
