USER MANUAL PFH 26 T MILWAUKEE


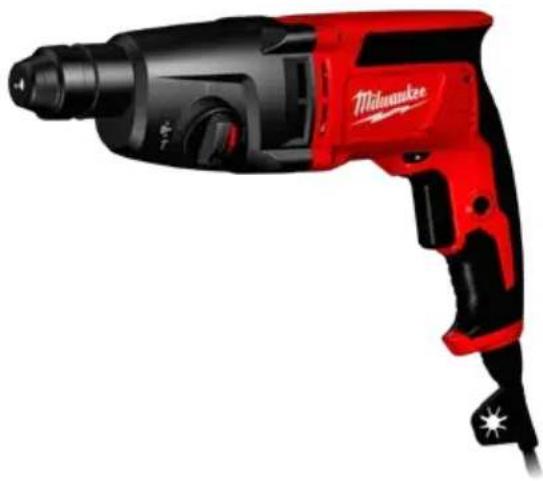

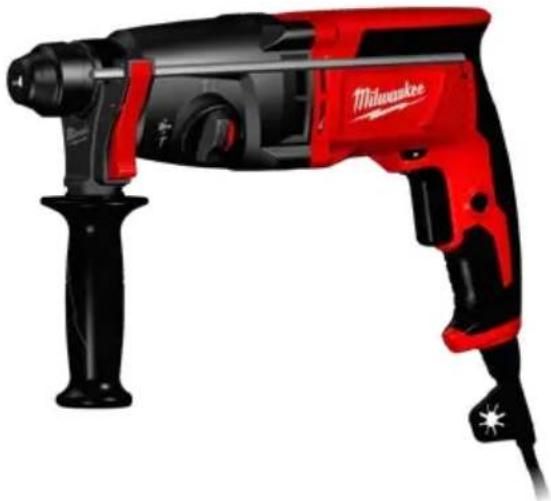

Red Milwaukee power drill with black handle and black head (no visible text or symbols)PH 26 T
PFH 26 T
Original instructions
Accessory
Zubehör
Accessoires
Accessorio


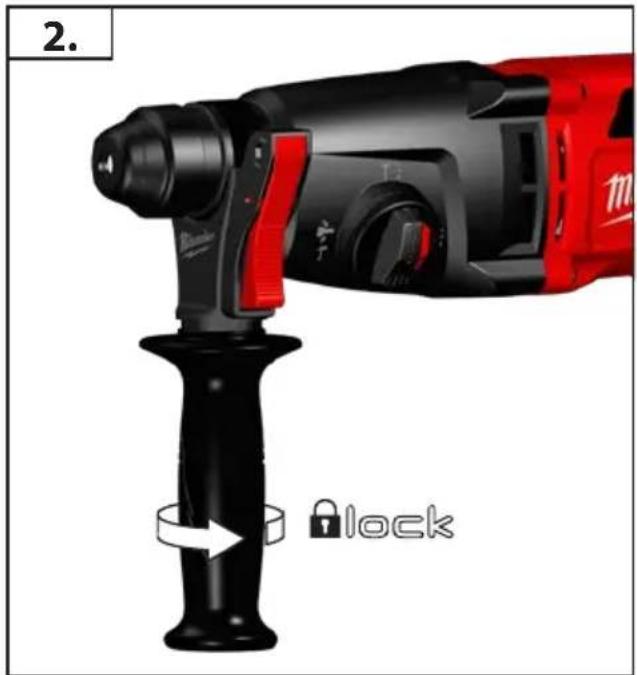

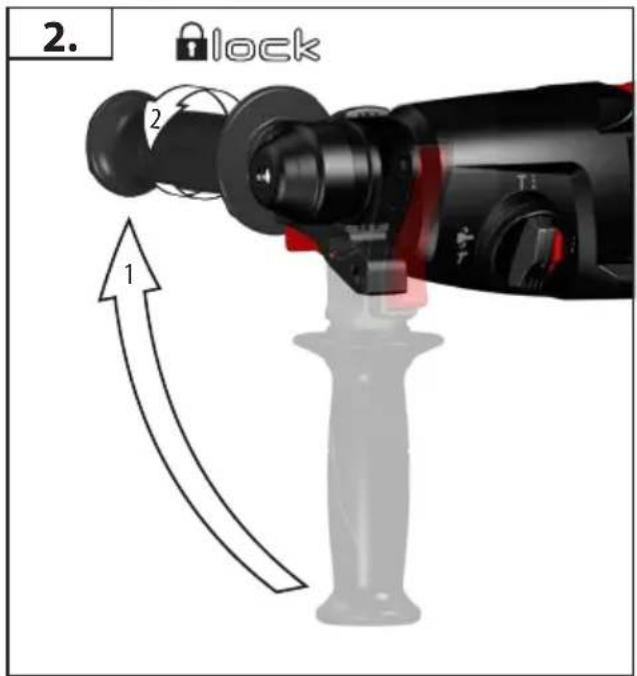

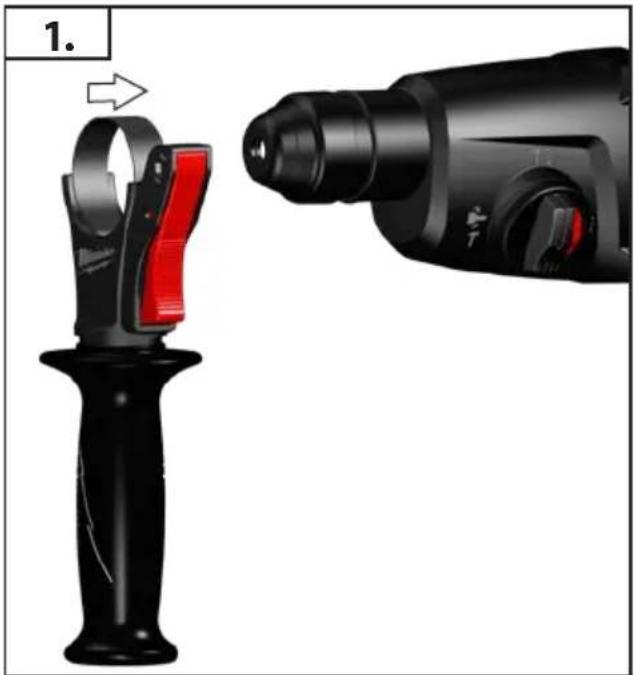

2. lock


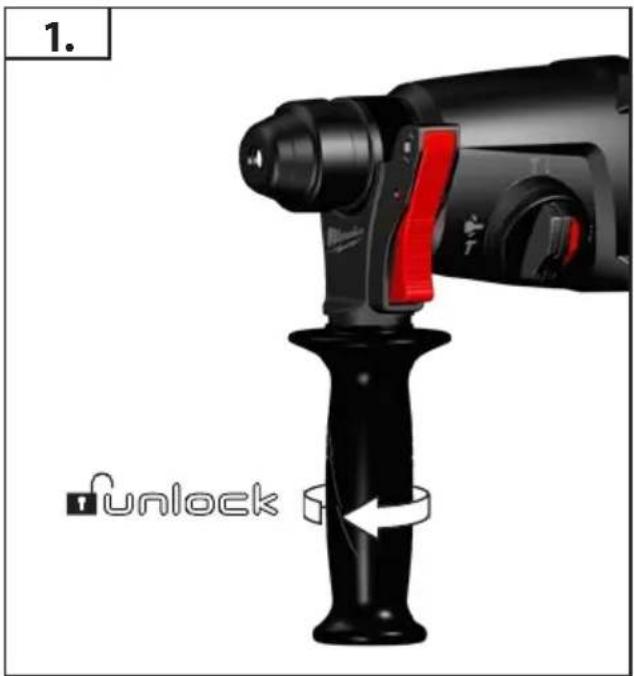

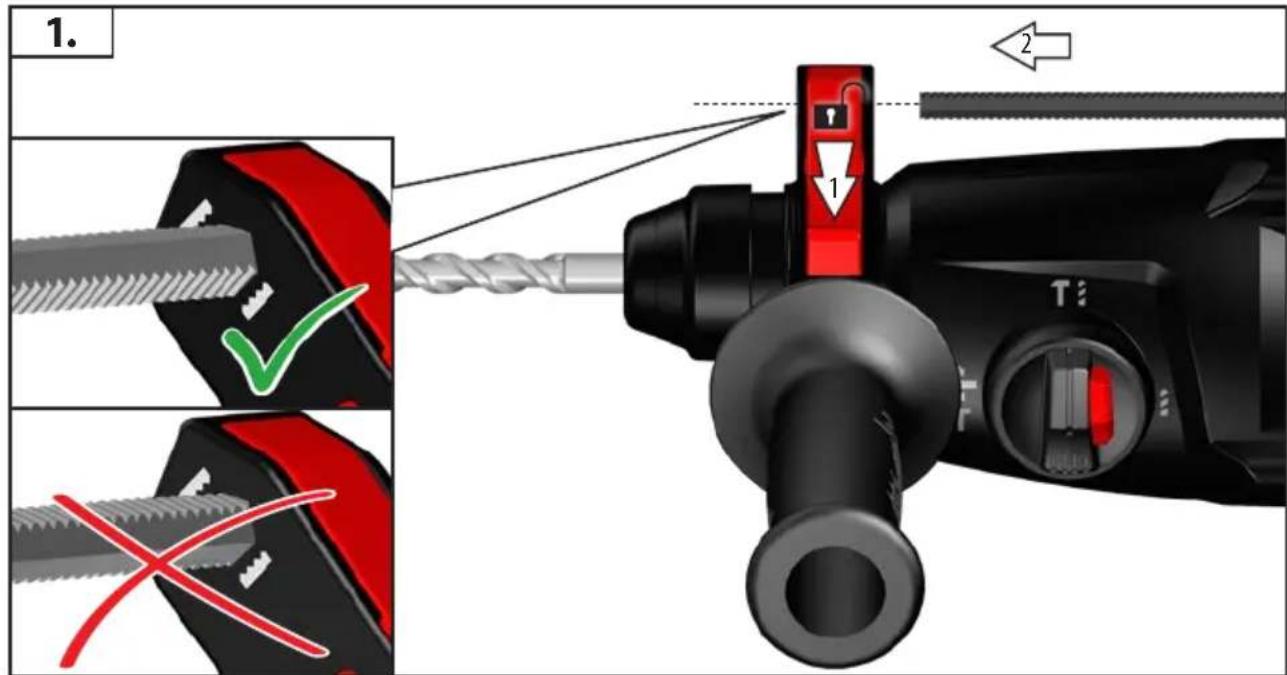

1. Unlock


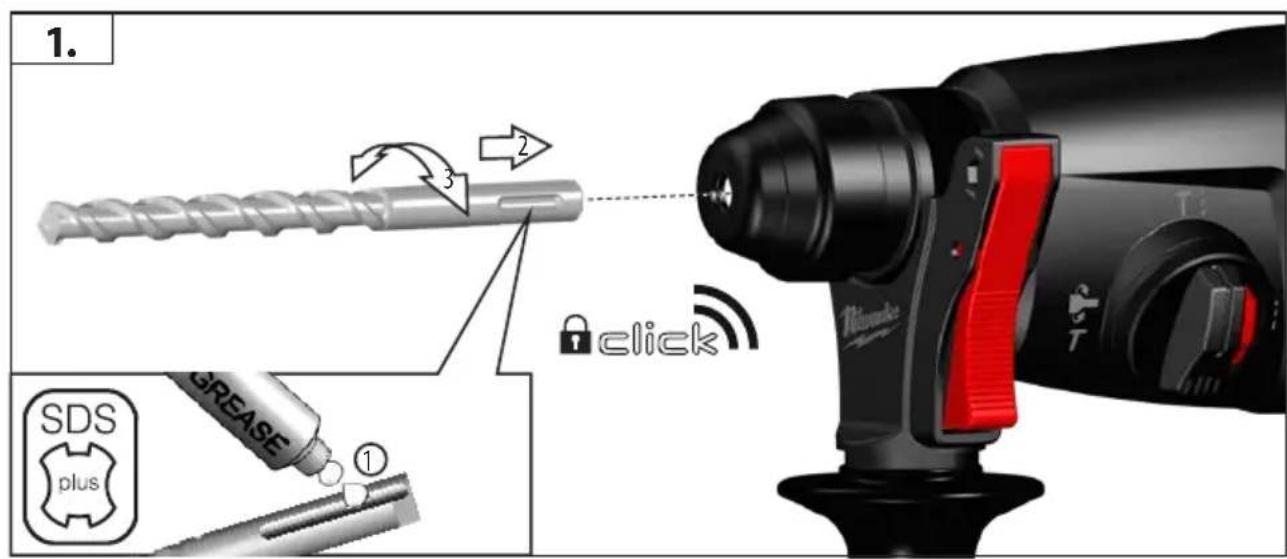

1. 2 3 click SDS plus ①


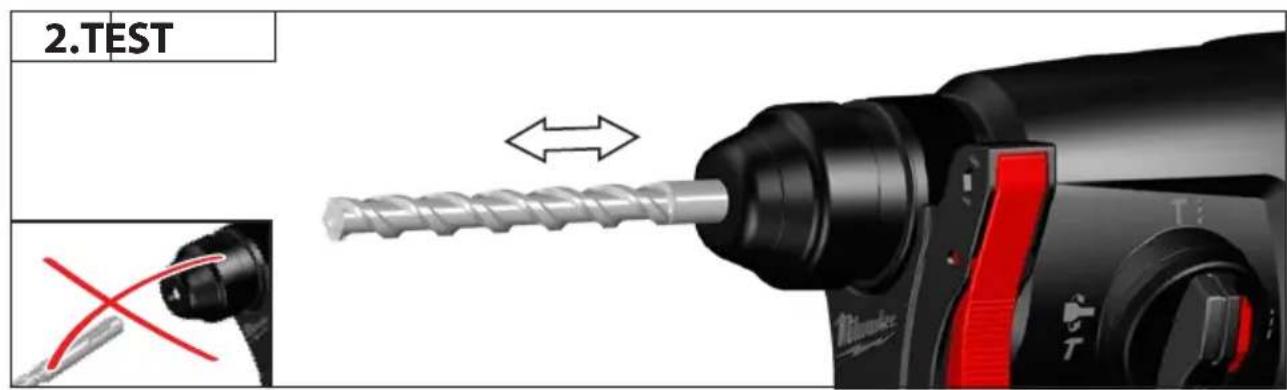

2.TEST Mitaride T1 ST


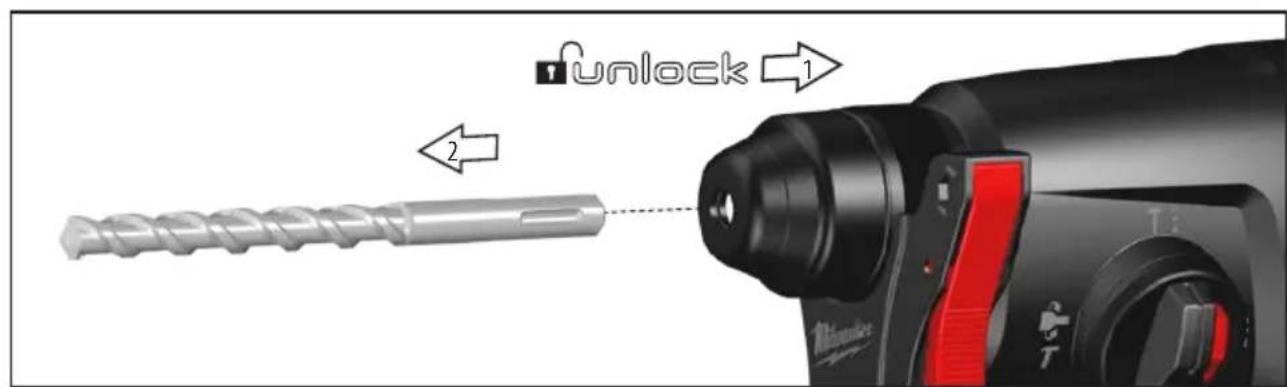

Unlock 2


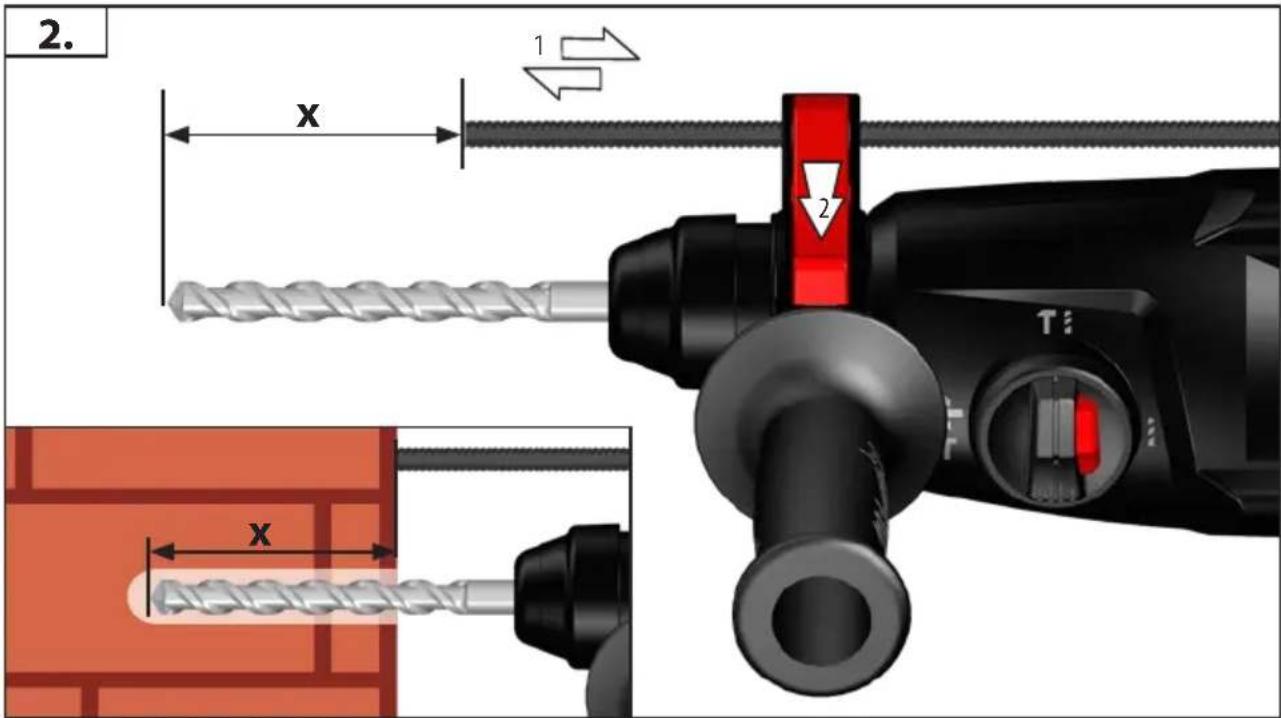

2. x 1 2 x


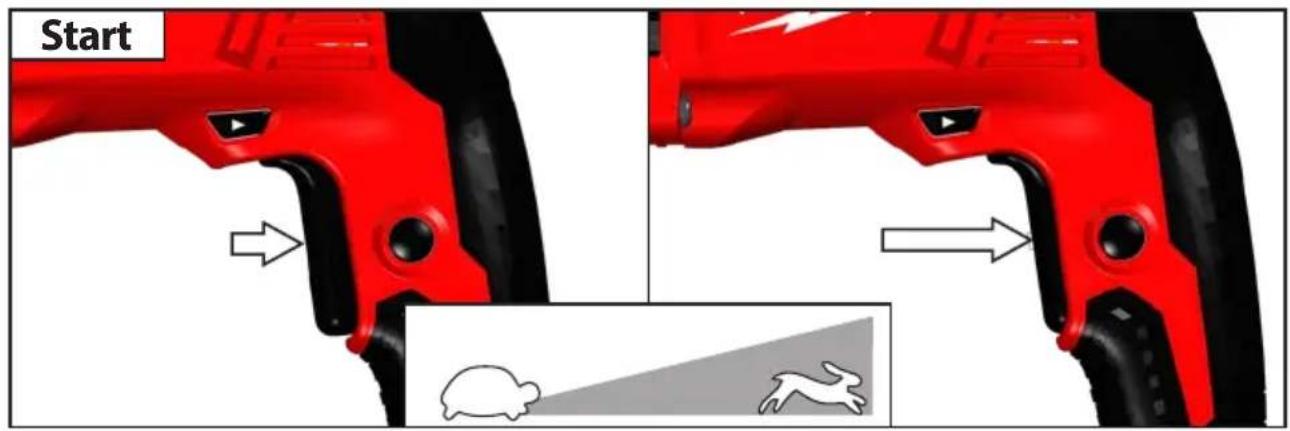

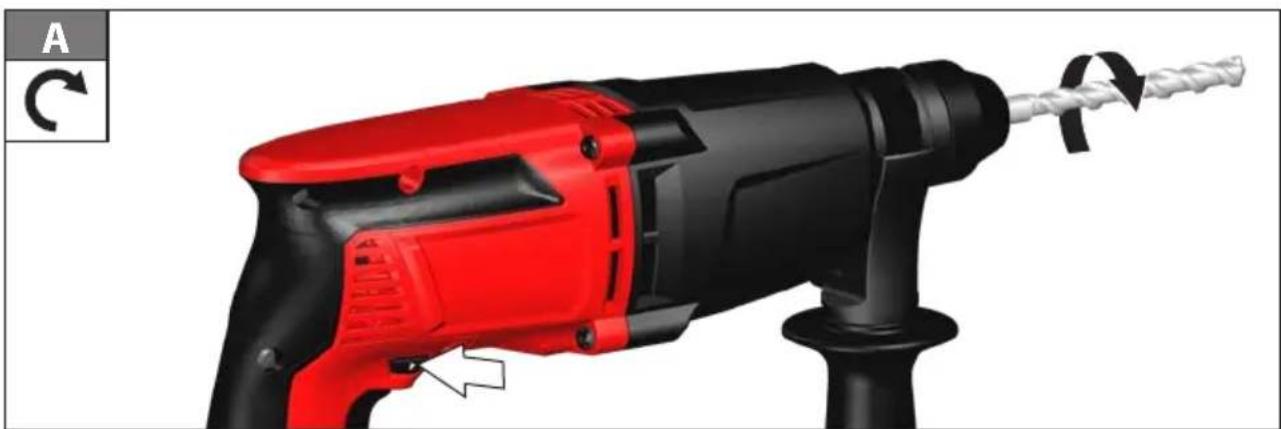

Start


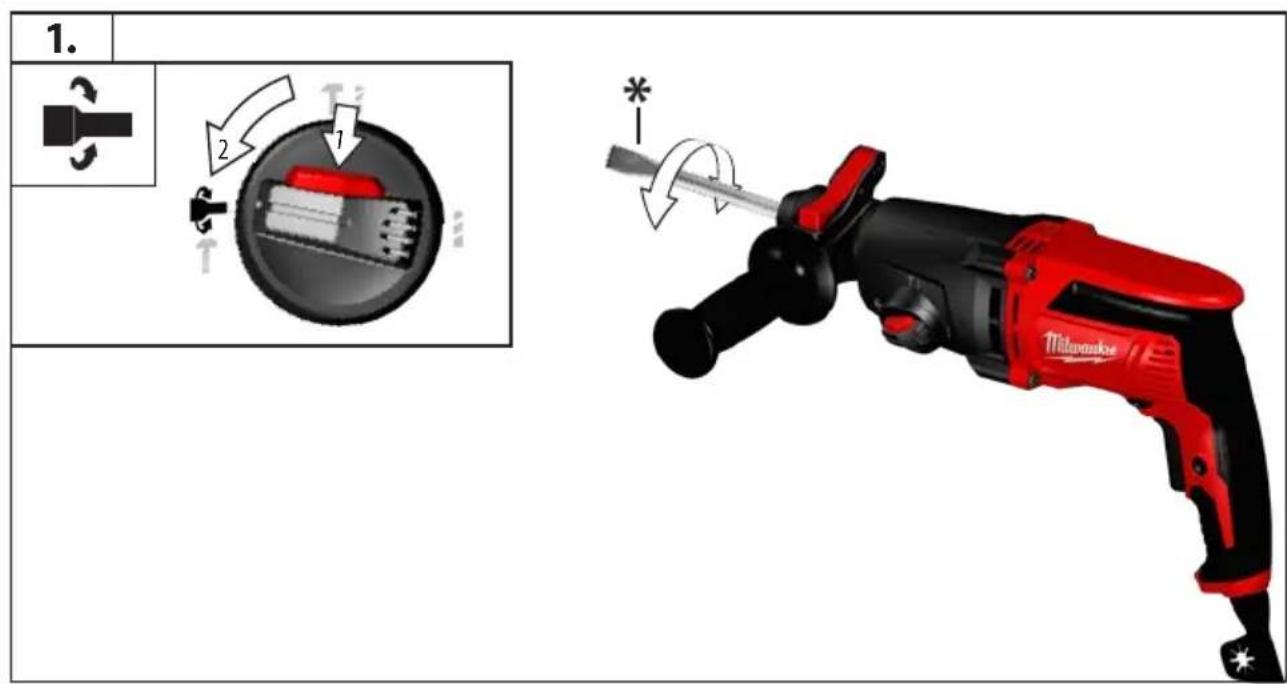

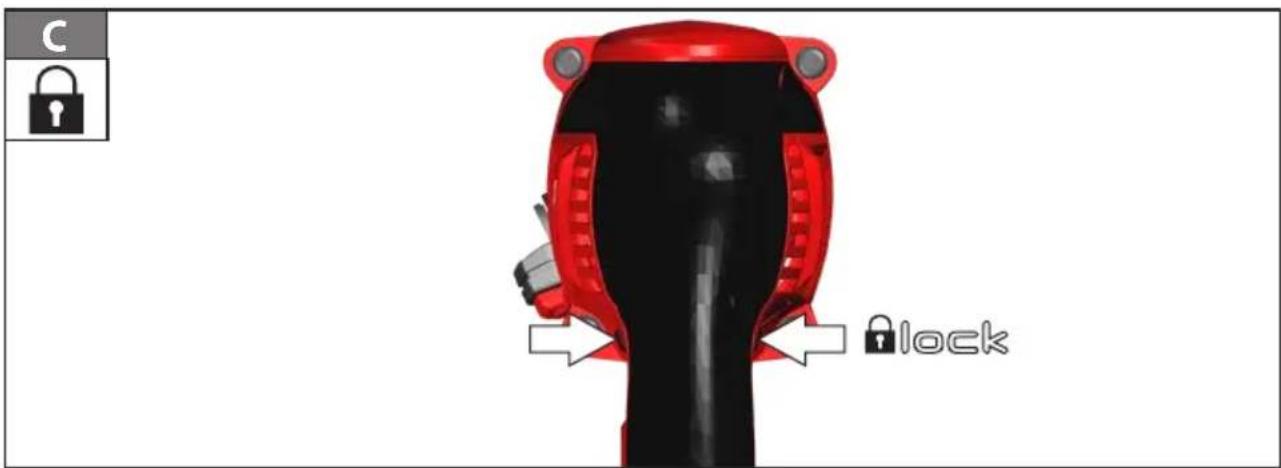

C lock


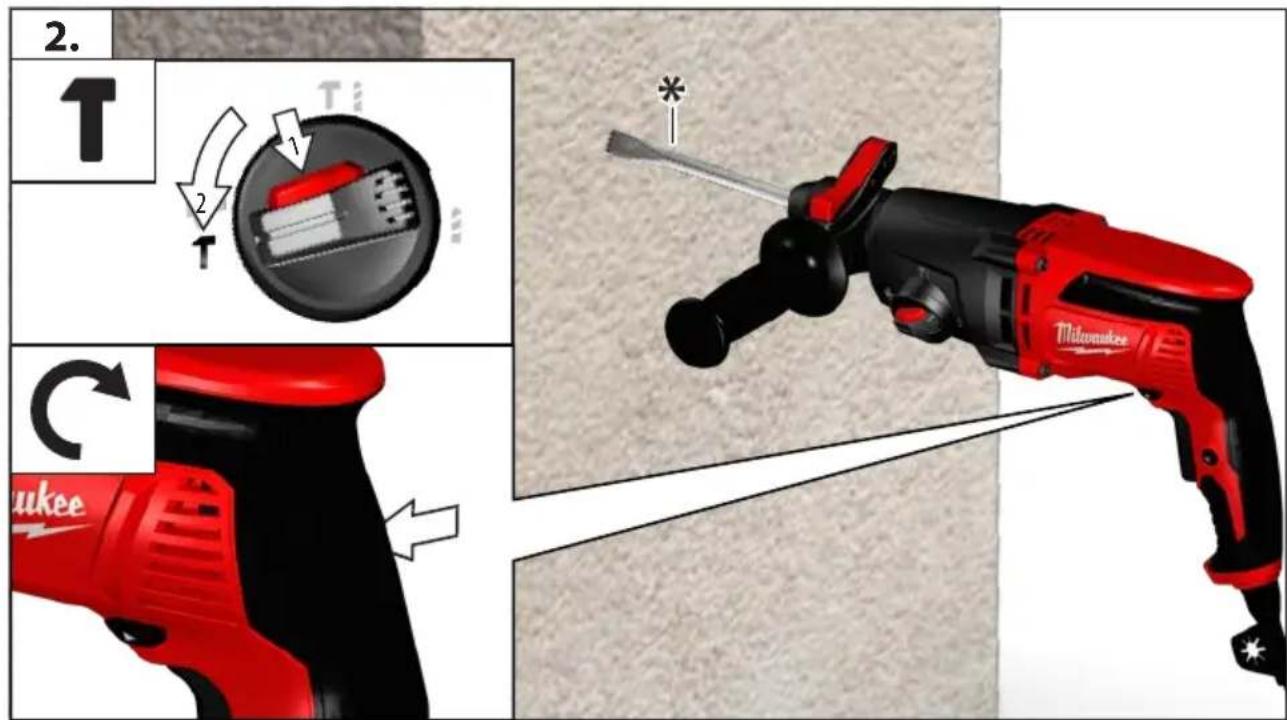

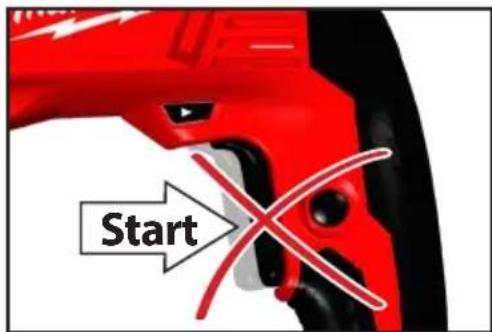

Start


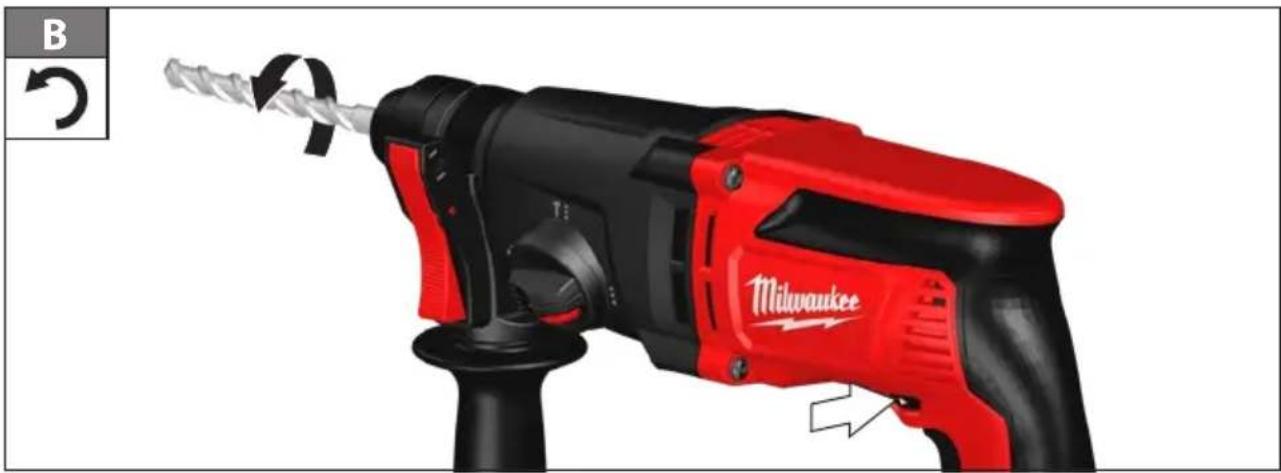

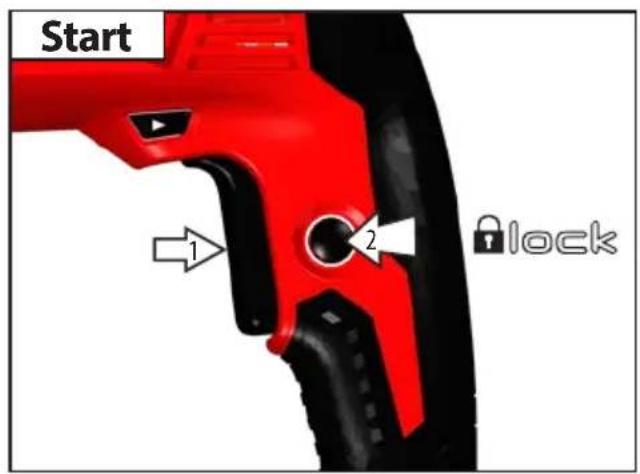

Start 1 2 lock


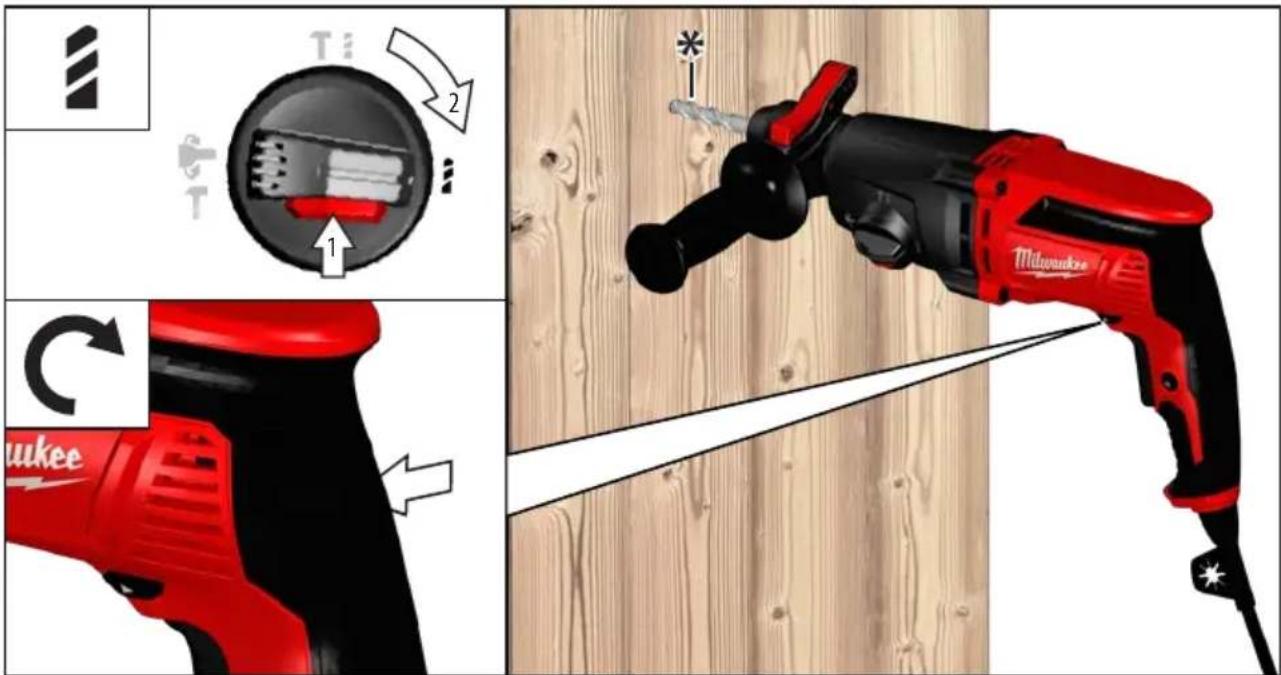

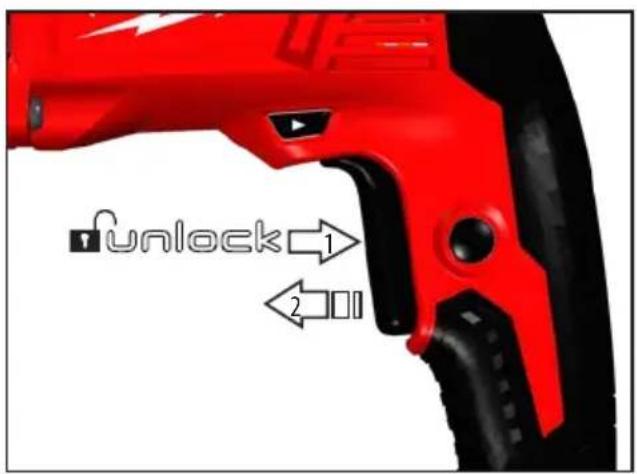

Unlock 1 2


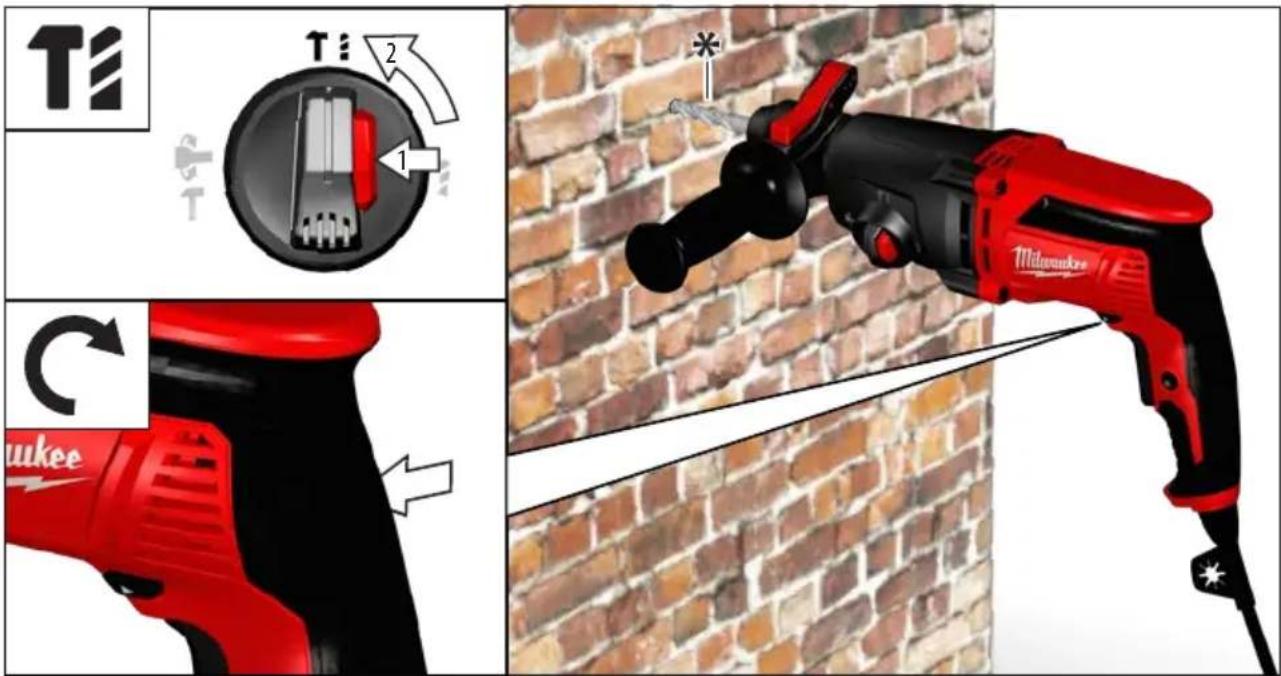

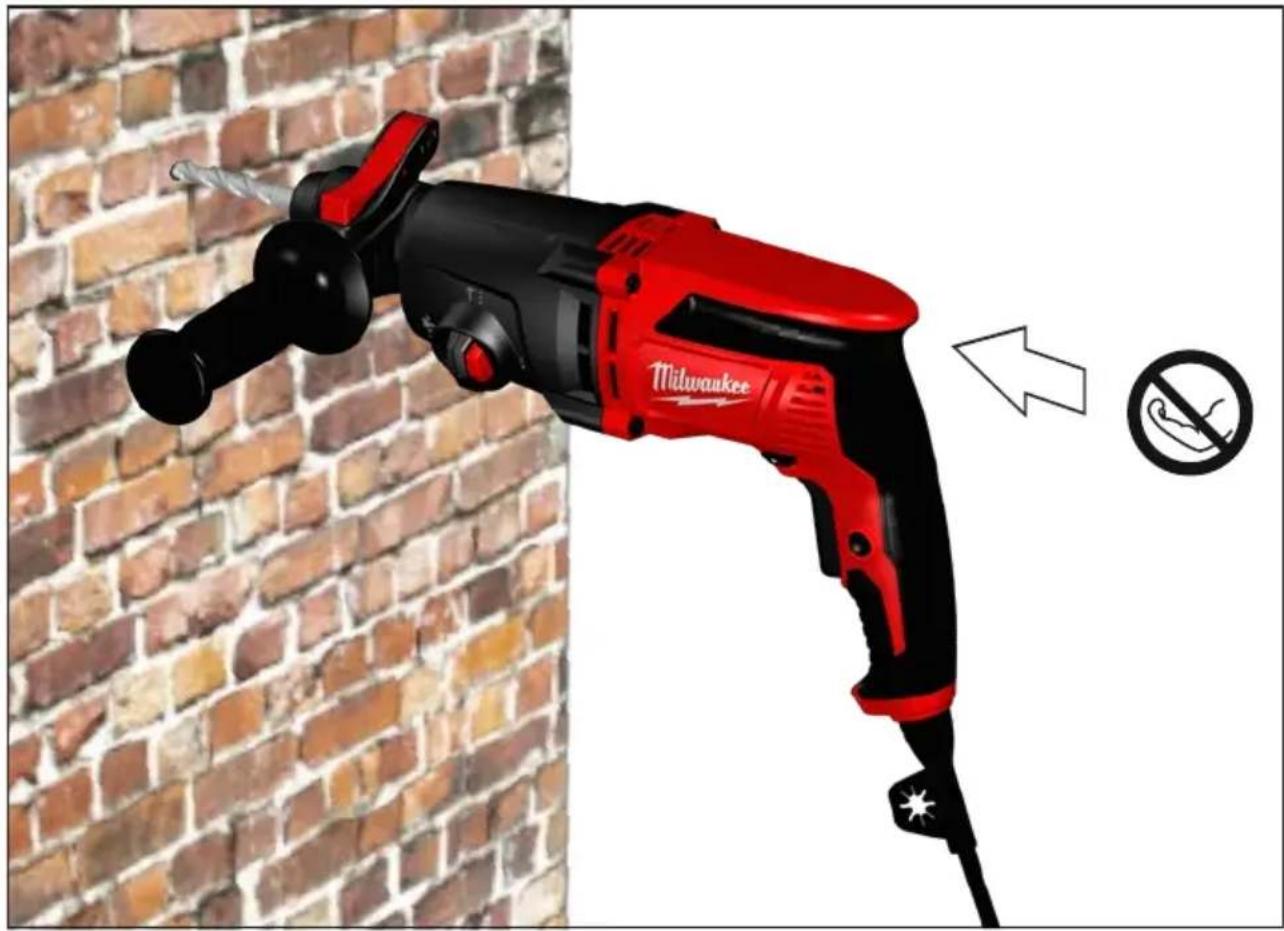

Red Milwaukee electric drill putter against a brick wall, with no visible text or symbols on the tool itself.
| TECHNICAL DATARotary Hammer | PH 26 T220-230 V | PFH 26 T220-230 V |
| Production code | 4690 50 01... ... 000001-999999 | 4690 90 01... ... 000001-999999 |
| Rated input 800 W 800 W | ||
| No-load speed 0-1500 min | -1 | 0-1500 min^-1 |
| Rate of percussion under load max. 0-4500 min | -1 | 0-4500 min^-1 |
| Impact energy per stroke according to EPTA-Procedure 05/2009 2,4 J 2,4 J | ||
| Drilling capacity in concrete 26 mm 26 mmDrilling capacity in steel 13 mm 13 mmDrilling capacity in wood 30 mm 30 mmLight core cutter in bricks and limestone 50 mm 50 mm | ||
| Chuck neck diameter 43 mm 43 mm | ||
| Weight according EPTA-Procedure 01/2014 2,8 kg 2,8 kg | ||
| Noise informationMeasured values determined according to EN 60745. Typically, the A-weighted noise levels of the tool are:Sound pressure level (Uncertainty K=3dB(A))Sound power level (Uncertainty K=3dB(A))Wear ear protectors! | 89,5 dB (A)100,5 dB (A) | 89,5 dB (A)100,5 dB (A) |
| Vibration informationVibration total values (triaxial vector sum) determined according to EN 60745Hammer-drilling into concrete:Vibration emission value a_h, HD Uncertainty K=Chiselling:Vibration emission value a_h, Cheq Uncertainty K= | 13,6 m/s^2 1,5 m/s^2 11,9 m/s^2 1,5 m/s^2 | 13,6 m/s^2 1,5 m/s^2 11,9 m/s^2 1,5 m/s^2 |
WARNING
The vibration emission level given in this information sheet has been measured in accordance with a standardised test given in EN 60745 and may be used to compare one tool with another. It may be used for a preliminary assessment of exposure.
The declared vibration emission level represents the main applications of the tool. However if the tool is used for different applications, with different accessories or poorly maintained, the vibration emission may differ. This may significantly increase the exposure level over the total working period.
An estimation of the level of exposure to vibration should also take into account the times when the tool is switched off or when it is running but not actually doing the job. This may significantly reduce the exposure level over the total working period.
Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.
WARNING!
Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
HAMMER SAFETY WARNINGS
Wear ear protectors. Exposure to noise can cause hearing loss.
Use auxiliary handle(s), if supplied with the tool. Loss of control can cause personal injury.
Hold the power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
Additional Safety and Working Instructions
Use protective equipment. Always wear safety glasses when working with the machine. The use of protective clothing is recommended, such as dust mask, protective gloves, sturdy non-slip footwear, helmet and ear defenders.
The dust produced when using this tool may be harmful to health. Do not inhale the dust. Use a dust absorption system and wear a suitable dust protection mask. Remove deposited dust thoroughly, e.g. with a vacuum cleaner.
Keep mains lead clear from working range of the machine. Always lead the cable away behind you.
Do not machine any materials that present a danger to health (e.g. asbestos).
When working in walls ceiling, or floor, take care to avoid electric cables and gas or waterpipes.
English
Switch the device off immediately if the insertion tool stalls! Do not switch the device on again while the insertion tool is stalled, as doing so could trigger a sudden recoil with a high reactive force. Determine why the insertion tool stalled and rectify this, paying heed to the safety instructions.
Possible causes can be:
- it is tilted in the workpiece to be machined
- breakage of the material to be used
• the power tool is overloaded
Do not reach into the machine while it is running.
The insertion tool may become hot during use.
WARNING! Danger of burns
- when changing tools
- when setting the device down
Chips and splinters must not be removed while the machine is running.
Clamp your workpiece with a clamping device. Unclamped workpieces can cause severe injury and damage.
Always disconnect the plug from the socket before carrying out any work on the machine.
MAINS CONNECTION
Connect only to single-phase AC system voltage as indicated on the rating plate. It is also possible to connect to sockets without an earthing contact as the design conforms to safety class II.
Appliances used at many different locations including wet room and open air must be connected via a residual current device (FI, RCD, PRCD) of 30mA or less.
Only plug-in when machine is switched off.
Under the effect of extreme electromagnetic interferences from the outside, temporary variations in the speed of rotation could arise in particular cases.
SPECIFIED CONDITIONS OF USE
PH 26 T : The rotary pneumatic hammer can be used for hammer drilling, chiselling in stone and concrete and drilling in wood, metal as well as plastic.
PFH 26 T : The rotary pneumatic hammer can be used for hammer drilling in stone and concrete and drilling in wood, metal as well as plastic.
MAINTENANCE
The ventilation slots of the machine must be kept clear at all times.
If the supply cord of this appliance is damaged, it must only be replaced by a repair shop appointed by the manufacturer, to avoid hazardous situations.
Important note! If the carbon brushes are worn, in addition to exchanging the brushes the tool should be sent to after-sales service. This will ensure long service life and top performance.
Use only Milwaukee accessories and Milwaukee spare parts. Should components need to be replaced which have not been described, please contact one of our Milwaukee service agents (see our list of guarantee/service addresses).
If needed, an exploded view of the tool can be ordered. Please state the Article No. as well as the machine type printed on the label and order the drawing at your local service agents or directly at: Techtronic Industries GmbH, Max-Eyth-Straße 10, 71364 Winnenden, Germany.
EC-DECLARATION OF CONFORMITY
We declare under our sole responsibility that the product described under "Technical Data" fulfills all the relevant provisions of the directives
2011/65/EU (RoHS)
2006/42/EC
2014/30/EU
and the following harmonized standards have been used.
EN 60745-1:2009 + A11:2010
EN 60745-2-6:2010
EN 55014-1:2017
EN 55014-2:2015
EN 61000-3-2:2014
EN 61000-3-3:2013
EN 50581:2012
Winnenden, 2018-08-17
Alexander Krug / Managing Director
Authorized to compile the technical file
Techtronic Industries GmbH
Max-Eyth-Straße 10, 71364 Winnenden, Germany

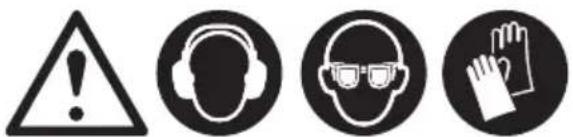

SYMBOLS
CAUTION! WARNING! DANGER!
Always disconnect the plug from the socket before carrying out any work on the machine.
Please read the instructions carefully before starting the machine.
Wear ear protectors!
Always wear goggles when using the machine.
Wear gloves!
Do not use force.
Accessory - Not included in standard equipment, available as an accessory.
Do not dispose of electric tools together with household waste material. Electric tools and electronic equipment that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility. Check with your local authority or retailer for recycling advice and collection point.
Class II tool. Tool in which protection against electric shock does not rely on basic insulation only, but in which additional safety precautions, such as double insulation or reinforced insulation, are provided. There being no provision for protective earthing or reliance upon installation conditions.
V
Volts
AC Current
n_0
No-load speed
European Conformity Mark
Ukraine Conformity Mark
EurAsian Conformity Mark
English
