F7IBM36O2-R - Fridge Fulgor Milano - Free user manual and instructions
Find the device manual for free F7IBM36O2-R Fulgor Milano in PDF.
| Brand | Fulgor Milano |
| Model | F7IBM36O2-R |
| Category | American two-compartment refrigerator |
| Refrigerant type | R600a (flammable) |
| Power supply | 115 V ~ 60 Hz, dedicated 15 A circuit |
| Climate class | SN, N, ST, T (from +10°C to +43°C) |
| Cooling type | Ventilated (dual refrigeration system) |
| Main functions | Vacation mode, Max Cool Fresh Zone, bottle refrigeration, automatic ice maker, convertible Fresh Zone drawer (freezer/refrigerator/fresh), water filter, LED lighting |
| Control panel | Electronic touchscreen with temperature display and icons |
| Ice | Integrated ice maker, production up to 1.5 kg/day, adjustable size |
| Water filter | Filter cartridge, lifespan 12 months or 3000 liters, with replacement alert |
| Lighting | Interior LED and freezer drawer, optional external lighting |
| Interior equipment | Adjustable glass shelves, door bins, vegetable drawer, ice bucket |
| Refrigerator temperature | Adjustable from +34°F to +46°F (+1°C to +7°C) |
| Freezer temperature (Fresh Zone) | Adjustable from +9°F to -11°F (-15°C to -22°C) |
| Maintenance and cleaning | Condenser cleaning every 12 months (built-in alert), interior cleaning with warm water and mild detergent |
| Safety | Grounding required, flammable refrigerant, do not use extension cord, automatic shutdown in Sabbath mode |
| Spare parts and repairability | OEM water filter, filter cartridge, manufacturer-certified spare parts |
| General information | Made in Italy, ETL listed, compliant with ANSI/UL and CSA standards |
Frequently Asked Questions - F7IBM36O2-R Fulgor Milano
User questions about F7IBM36O2-R Fulgor Milano
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Fridge in PDF format for free! Find your manual F7IBM36O2-R - Fulgor Milano and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. F7IBM36O2-R by Fulgor Milano.
USER MANUAL F7IBM36O2-R Fulgor Milano
F7PBM36S2 - L
F7IBM36O2 - R
F7IBM36O2 - L
REFRIGERATOR
RÉFRIGÉRATEUR
REFRIGERADOR
EN
USER MANUAL
FR
MODE D'EMPLOI
ES
MANUAL DEL USUARIO
1 IMPORTANT DIRECTIONS OF SAFETY AND THE ENVIRONMENT 6
1.1 For your safety 6
1.2 Important information when using the appliance 6
1.3 Caring for the environment 8
1.4 Cleaning, sanitization and maintenance of the ice dispenser (if present) 8
2 INSTALLATION 9
2.1 Installation 9
2.2 Connection to the water system.... 9
2.3 Connection to the electrical power supply 9
3 BEFORE STARTING 9
3.1 Know your appliance 9

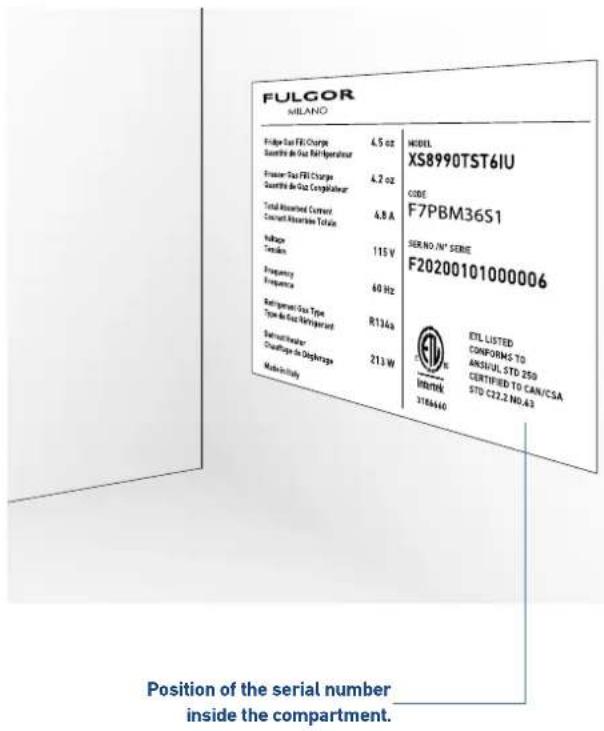

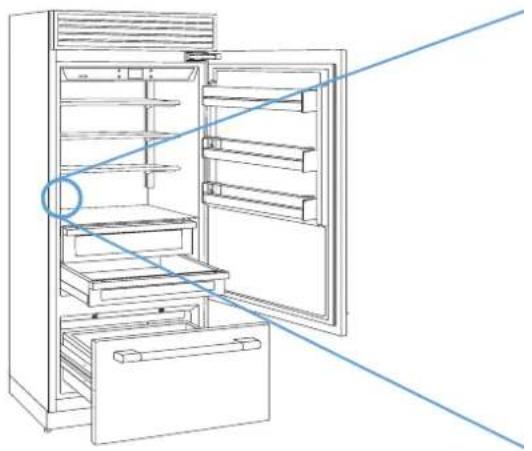

3.2 Model / serial identification.... 10

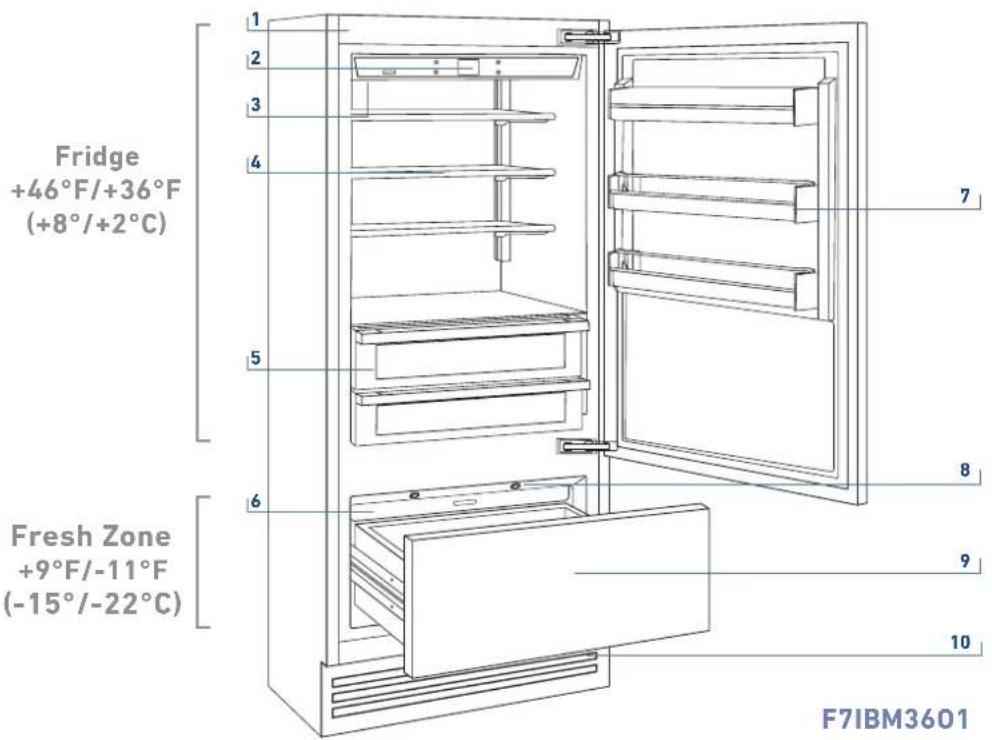

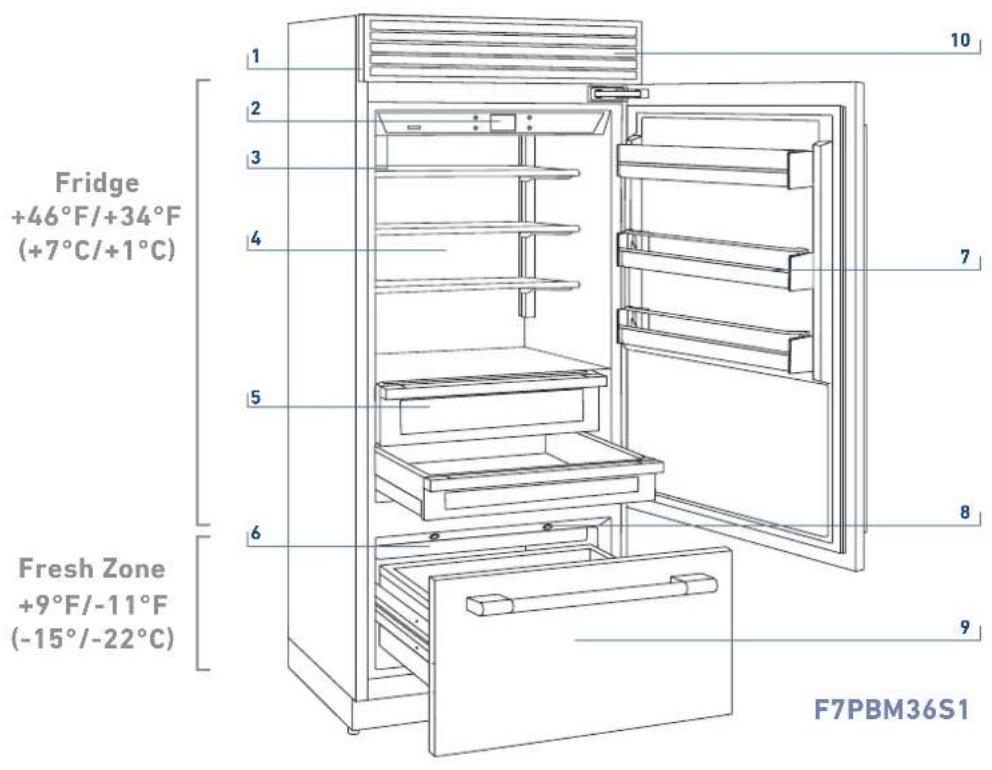

3.3 Main components 12
3.4 Electronic Control.... 14
3.5 Main control panel.... 14
4 APPLIANCE SWITCHING ON AND OFF 15
4.1 Switching on and off 15
4.2 How to adjust the temperature for different requirements 17
4.3 Messages and alarms.... 18
5 FUNCTIONS AND SETTINGS 19
5.1 Functions.... 19

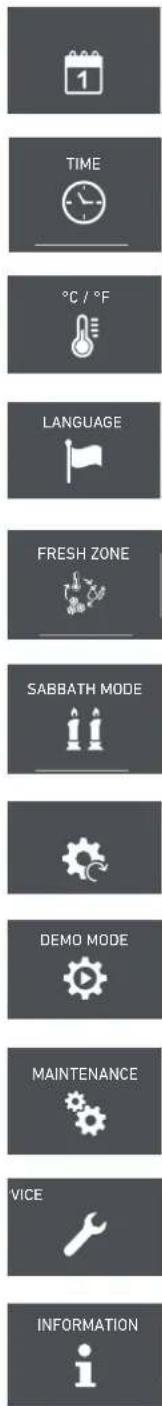

5.2 Settings.... 26
6 INTERNAL LAYOUT 32
6.1 Internal layout (positioning, adjustment, removal) 32
7 USE OF THE ICE MAKER 33
7.1 Activation and use of the Ice Maker 33
7.2 Water Filter 34
8 LIGHTING 35
8.1 Lighting.... 35
9 FOOD PRESERVATION 35
9.1 General directions 35
9.2 How to maintain good food quality.... 36
10 CARE AND CLEANING 39
10.1 Care and Cleaning 39
10.2 Internal cleaning.... 39

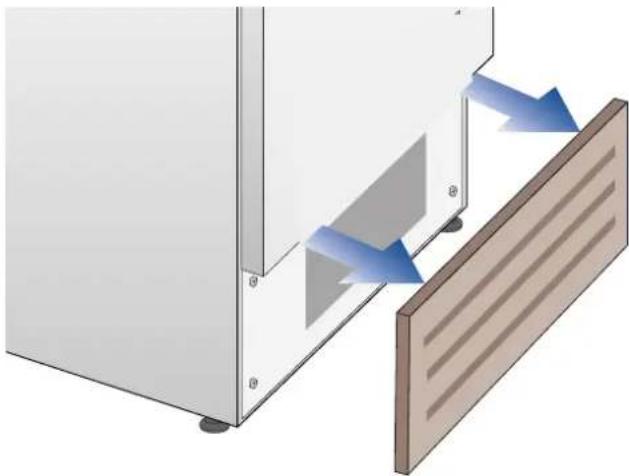

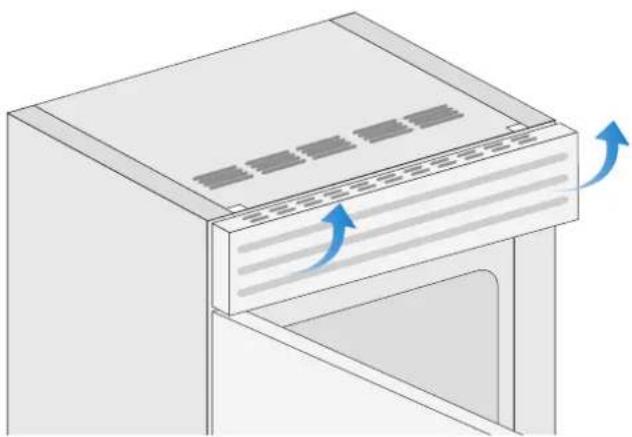

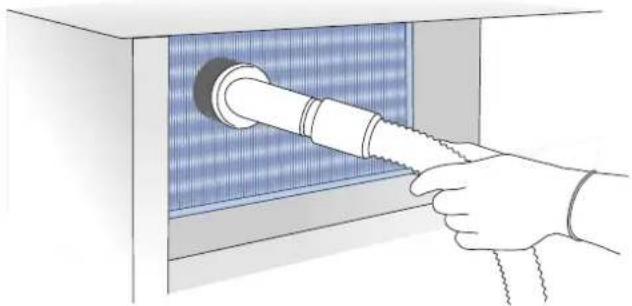

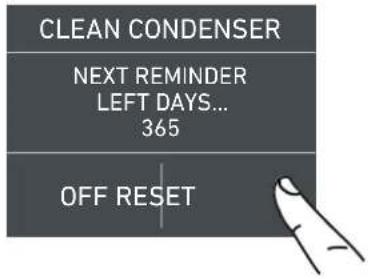

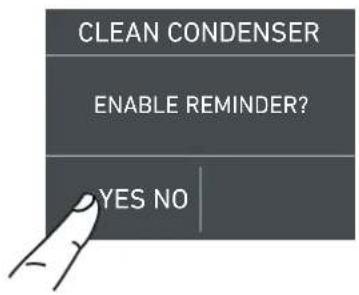

10.3 Cleaning of the ventilation grille, filter and condenser 40
11 TROUBLESHOOTING GUIDE 41
11.1 Troubleshooting Guide.... 41
11.2 Malfunction messages appearing on the display.... 43
This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others. All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.” These words mean:
WARNING
You can be killed or seriously injured if you don't follow instructions.
DANGER
You can be killed or seriously injured if you don't immediately follow instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.
SAVE THESE INSTRUCTIONS!
WARNING
IMPORTANT SAFETY INSTRUCTIONS
This manual contains operational instructions for the users of the appliance.
Keep this manual in an easily accessible place for future reference.
Improper installation, adjustment, alteration, service or maintenance can cause property damage, injury, or death.
Read the installation, operating, and maintenance instructions thoroughly before installing or servicing this equipment.
To reduce risk of fire, electric shock, or injury to persons when using your appliance, follow basic precautions, including the following:
Children should be supervised to ensure that they do not play with the appliance.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or lack of experience and knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
This appliance is designed to refrigerate beverages and foods and is intended for household use.
This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices, and other working environments; farm houses and by clients in hotels, motels, and other residential-type environments; bed and breakfast-type environments; and catering and similar non-retail applications.
Do NOT use an extension cord or adapter.
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
A qualified installer / plumber must complete the water connection (if available).
If present, clean the ice bucket or drawer regularly. Use only potable water.
The appliance should be supplied only with drinkable water (if water connection is present).
WARNING
In the event of a power failure, do not attempt to operate this appliance.
WARNING
Keep the appliance area free and clear from combustibles or flammable materials and vapors.
WARNING
Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. Do not obstruct the air intake or exhaust openings of the appliance.
WARNING
Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
WARNING
Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
IMPORTANT SAFETY INSTRUCTIONS FOR PROPER DISPOSAL OF YOUR OLD REFRIGERATOR
WARNING
Suffocation Hazard
Remove doors and / or drawers from your old appliance.
Failure to do so can result in death or brain damage.
WARNING
Risk of child entrapment.
Before you throw away your old refrigerator or freezer:
Take off the doors and cut off the power cord.
Leave the shelves in place so that children may not easily climb inside.
IMPORTANT: Child entrapment and suffocation are not problems of the past. Junked or abandoned refrigerators are still dangerous, even if they will sit for "just a few days." If you are getting rid of your old refrigerator, please follow these instructions to help prevent accidents.
Important information to know about disposal of refrigerants:
Dispose of refrigerator in accordance with federal and local regulations. Refrigerants must be evacuated by a licensed. EPA-certified refrigerant technician in accordance with established procedures.
IMPORTANT SAFETY INSTRUCTIONS FOR MAINTENANCE AND CARE
! DANGER
Risk of fire or explosion due to puncture of refrigerant tubing; follow handling instructions carefully. Flammable refrigerant used.
WARNING
To be repaired only by trained service personnel.
Use only manufacturer-authorized service parts. Do not use replacement parts that have not been recommended by the manufacturer (e.g, parts made at home using a 3D printer). If power supply cord is damaged, it must be replaced by the manufacturer, its service agent, or a similarly qualified person in order to avoid a hazard. Any repair equipment used must be designed for flammable refrigerants. Follow all manufacturer repair instructions. Use nonflammable cleaner.
WARNING
Do not puncture refrigerant tubing, do not damage the refrigerant circuit.
WARNING
Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
TIP OVER HAZARD
WARNING
Refrigerator is top heavy and tips easily when not completely hazard due to instability of the appliance, it must be fixed in ac-structions (see instruction manual provided).
installed; to avoid a hazard due to instability of the appliance, it must be fixed in accordance with the instructions (see instruction manual provided).
Keep doors taped closed until refrigerator is completely installed.
Use two or more people to move and install refrigerator.
Failure to do so can result in death or serious injury.
1.1 For your safety
If this appliance is replacing an existing appliance which must be removed or disposed of, make sure that it does not become a dangerous trap for children by cutting its power supply cable and rendering it impossible to close the door. Use the same caution at the end of the lifespan of the new appliance.
The appliance is not designed to operate with external timers or with remote-control systems.
This appliance is for refrigeration and conservation of fresh and frozen foods in the home. Every other use is considered inappropriate.
The appliance must be installed by following the instructions in the Installation Guide, particular care should be taken not to obstruct the vent openings of the appliance and of the built-in units.
The appliance features a concentrated lighting system with LED lamps. Do not stare into these lamps when they are on to avoid possible eyesight damage.
This warning is also contained on the label attached to the inside of the refrigerator door.
When the freezer is functioning do not touch the inner surfaces in stainless steel with wet or damp hands, since skin may stick to the very cold surfaces.
When positioning the shelves, do not place fingers in the shelf slide guides.
Never attempt to extinguish a flame/fire with water: turn off the appliance and cover the flame with a fireproof blanket.
Do not position containers of flammable liquids near the appliance.
Completely switch off the appliance and unplug the power supply cable during cleaning operations. If the plug is not easily reached, it is a good idea to turn off the breaker or remove the fuse that controls the socket that the appliance is connected to.
The packaging parts can be dangerous for children: do not allow children to play with the plastic bags, plastic film or Styrofoam.
Any repairs must be performed by a qualified appliance Service technician.
Do not damage the appliance refrigerant circuit pipes.
Improper installations and repairs may put the user at considerable risk.
Repairs may be performed by the manufacturer, customer service or a similarly qualified person only.
Plug into a grounded Nema5-15R outlet.Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Disconnect power to all units before servicing.
Do not modify this appliance.
Do not insert pointed metal objects (cutlery or utensils) into the slots in the appliance.
Do not touch (especially with wet hands) frozen products or put them in your mouth directly.
Do not store inflammable, explosive or volatile substances inside or near the appliance.
Do not keep explosive substances, such as spray bottles with flammable propellants in the appliance.
Bottles containing strong alcoholic drinks must be tightly closed and stored vertically.
Organic compounds, acids and essential oils can corrode the seals and plastic surfaces if left in contact with them for extended periods.
Turn off the appliance and unplug it from the mains before cleaning or maintenance.
Do not pull the cable to unplug the appliance.
1.2 Important information when using the appliance
Cleaning and maintenance that should be performed by the user must not be carried out by unsupervised children.
Never use electrical appliances inside the appliance (e.g. heater, electric ice maker, etc.). Explosion hazard!
Never defrost or clean the appliance with a steam cleaner! The steam may penetrate electrical parts and cause a short-circuit. Risk of electric shock!
Do not use pointed and sharp-edged implements to remove frost or layers of ice. You could damage the refrigerant tubes. Leaking refrigerant may cause eye injuries or ignite.
Take care that no objects prevent doors from closing.
Do not store products which contain flammable propellants (e.g. spray cans) or explosive substances in the appliance. Explosion hazard!
Do not stand on or lean heavily against base of appliance, drawers or doors, etc.
Before cleaning the appliance, pull out the power cord plug or switch off the breaker. Do not pull out the power cord plug by tugging on the power cord.
Keep plastic parts and the door seal free of oil and grease. Otherwise, parts and door seal will
deteriorate.
Never cover or block the ventilation openings of the appliance.
According to current regulations, children between 3 and 8 years of age can take or load food from the appliance, but it is highly discouraged to allow children under 8 years of age to perform these operations and in general to use the appliance.
Keep children under the age of eight at a safe distance unless they are constantly supervised and make sure that they do not play with the appliance.
Do not use mechanical, electrical, chemical devices other than those recommended by the manufacturer to speed up the defrosting process.
Do not damage the cooling circuit (if it can be accessed).
Do not use electrical appliances inside food storage compartments unless these are of the type recommended by the manufacturer.
In the event of damage to the cooling circuit, avoid the use of naked flames and ventilate the area properly.
Do not use the appliance or parts of it in ways other than those specified in this manual.
Opening the door for long periods can cause the temperature in the appliance compartments to rise considerably.
Clean surfaces that may come into contact with food and accessible drainage systems regularly.
Store raw meat and fish in suitable containers in the freezer, so that it does not come into contact with other food or drip on it.
If the appliance is left empty for long periods of time, switch it off, thaw it, clean it, dry it and leave the door open to prevent the development of mould inside.
Never rest sharp metal objects such as knives, forks, spoons and lids on the appliance during use.
Do not use abrasive or corrosive detergents (e.g. scouring powders, stain removers and metallic sponges) on glass parts.
Do not sit on the appliance.
Do not sit or lean on the door or any open drawers.
Do not press the door or handle to move the appliance.
Do not use electrical appliances (e.g. hair dryers) or sprays for defrosting, the plastic parts could be damaged.
Do not use the appliance to cool rooms for any reason.
Always disconnect the appliance from power in the event of a fault or when performing cleaning or maintenance.
Do not keep liquids in tins or glass containers in the freezer.Do not place heavy objects on the top of the appliance.
Symbols used in the Guide:
Note Recommendations for correct use of the appliance
Important Directions for avoiding appliance damage
Warning Indications for avoiding injury to people
1.3 Caring for the environment
Pay special attention to correct disposal procedure for all the packaging materials.
The appliance must not be disposed of with urban waste. Contact local waste disposal centres for on how to dispose of recyclable waste.
Prior to disposal, cut the power supply cord and make it impossible to close the door.
During disposal, avoid damage to the refrigeration circuit.
The appliance does not contain hazardous substances for the atmospheric ozone layer, neither in the refrigeration circuit nor in the insulation.
1.4 Cleaning, sanitization and maintenance of the ice dispenser
Failure to follow the instructions regarding sanitizing can compromise the hygienic safety of the ice produced.
When using the appliance for the first time and every time the filter is changed, it is recommended to let the water flow in the circuit using the "Manual Cleaning" and discard the ice produced in the first 24 hours.

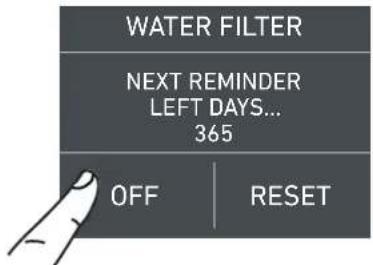

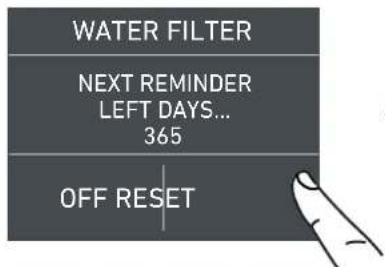

The filter must be changed when indicated on the
control panel or when the ice maker has not been used for more than 30 days.
Only the OEM water filter should be used when it comes time to replace.
Any work on the appliance must be carried out by a qualified technician.
Warning
To avoid contamination of food, please respect the following instructions: >Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance. > Clean regularly surfaces that can come in contact with food and accessible drainage systems. > Clean water tanks if they have not been used for 48 h; flush the water system connected to a water supply if water has not been drawn for 5 days. > Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food. > If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.
2.1 Installation
Make sure that installation is performed correctly, adhering to all directions in the specific installation manual provided with the appliance.
Warning
Always connect the water before the power.
2.2 Connection to the water system
Different pressures can cause malfunctions or leaks in the water system.
The appliance should be supplied only with drinkable water.
Warning
The appliance should be supplied only with drinkable water.
Warning
Make sure that installation is performed correctly, according to all of the directions in the specific installation manual provided with the appliance.
Warning
Do not attempt to use a locally sourced garden hose threaded adapter or braided supply line. It will strip the threads on the appliance water connection solenoid.
2.3 Connection to the electrical power supply
The appliance operates at 115 V AC, 60 Hz and is equipped with a power supply cord with a 3-prong grounded plug, which must be connected to a corresponding 3-prong grounding-type wall receptacle on a dedicated 15A circuit.
Important
Do not use extension cords and/or multiple adapters for the power supply connection.
2.4 Refrigerant
The refrigerant isobutane (R600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable.
During transportation and installation of the appliance, be certain that none of the components of the refrigerant circuit become damaged.
If the refrigerant circuit should become damaged:
- avoid open flames and sources of ignition;
– thoroughly ventilate the room in which the appliance is situated.
DANGER
Risk of fire or explosion. Flammable refrigerant used. Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
Do not puncture refrigerant tubing.
Do not damage the refrigerant circuit.
Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
3.1 Know your appliance
This manual will answer most of your questions about the product's features. Should you require further information, please check our website
call us 1-855-4FULGOR (1-855-438-5467)
visit fulgor-milano.com/us/en/assistance
Important
Before calling, write down the model type and serial number which are available on the warranty certificate and on the rating plate, and any messages which may have appeared on the display.
3.2 Model / serial identification
The model / serial identification tag shows the technical data, the serial number and the model. The product plate must never be removed.
FULGOR
MILANO
| Fridge Gas Fill ChargeQuantité de Gaz Réfrigerateur | 1.7 oz |
| Freezer Gas Fill ChargeQuantité de Gaz Congélateur | 2.1 oz |
| Total Absorbed CurrentCourant Absorbée Totale | 3.5 A |
| VoltageTension | 115 V |
| FrequencyFrequency | 60 Hz |
| Refrigerant Gas TypeType de Gaz Réfrigerant | R600a |
| Defrost HeaterChauffage de Dégivrage | 213 W |
| Made in Italy |
MODEL
XS8990TST6IU
Internal factory code
CODE
F7PBM36S\*
North American Model Number
SER.NO./N° SERIE
F20200101000006
Serial Number
Intertek
3186660
ETL LISTED
CONFORMS TO
ANSI/UL STD 250
CERTIFIED TO CAN/CSA
STD C22.2 NO.63
Specifications
Climate Class: SN/T
SN (Subnormal) from +50°F to +90°F (+10°C to +32°C)
N (Normal) from +61°F to +90°F (+16°C to +32°C)
ST (Subtropical) from +64°F to +100°F (+18°C to +38°C)
T (Tropical) from +64°F to +109°F (+18°C to +43°C)
3.3 Main components
1) Appliance body.
2) Interactive control panel.
3) Water filter (*).
4) Internal storage shelves.
5) Crisper drawers.
6) Ice maker (*).
7) Adjustable door shelves.
8) LED illuminations for the freezer compartment bottom drawer.
9) FreshZone convertible drawer (Freezer, Fridge or Fresh).
10) Ventilation grille.
(*) not all models.
3.4 Electronic Control
The innovative electronic control system maintains constant temperature of the refrigeration compartments shown on the control panel display. It also allows user interaction making it possible to personalize settings of the various functions and to receive sound and/or visual messages should any malfunction occur in the appliance.
3.5 Main control panel
FULGOR
MILANO
Turning On/ Turning Off:
Touch the icon for turning on or off the unit.
Home
Touch the icon home for going back to the main display screen.
Alarm
Touch the icon to view the alarm message and temporarily deactivate the audible alarm.
Back
Touch the arrow icon for going back to the previous display screen.
4.1 Switching on and off
First time starting the unit
Touch the icon ⓊThe display shows the following launch screens:
1) Logo.
2) Initial test
2) Touch the icon Yes to confirm.
3) Confirm shutdown again touching the Yes icon.
When the fridge is off there are no indicators that the fridge is plugged to a socket.
3) The main display shows a rolling average of the actual temperature of each compartment. Automatically the unit start to cool down until reaching the set temperatures.

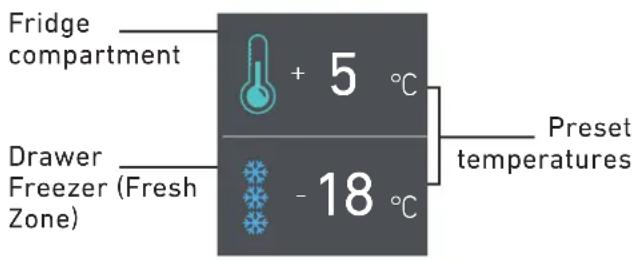

4) Home screen (*).
- Fridge Compartment +39°F (+5°C)
- Drawer Freezer (Fresh Zone)
+0°F (-18°C)
(*) The
home
screen
varies
depending
on
the
models;
The Fresh Zone compartment is set in the freezer mode +0°F (-18°C) by default. For changing this setting look up the setting 5.
When the appliance is first switched on it is recommended to wait at least 12 hours without opening the doors and before placing any food inside the unit. During the initial cooling period after switching on, alarms will be be disabled.
Shutdown.
1) Touch the icon Off for 3 seconds.
Switching off the fridge compartment only.
The fridge compartment, can be shutdown individually whereas the Fresh Zone drawer can't be turned off unless through the complete shutdown of the unit.
1) Touch in the compartment temperature display area.
2) Touch the icon Off.
3) Touch the icon Yes to turn compartment off.
4) Touch the icon Yes for confirming the deactivation.
5) The main display will now show the icon off, which indicates that the fridge compartment is off and the lights in the compartment will also be off.
Turning the fridge compartment on again.
In the case you wish to turn the fridge back on.
1) Home screen. Touch the fridge temperature display area of the screen.
2) Touch the ON icon.
3) Touch YES.
4) Touch YES to confirm activation.
5) Now the fridge compartment will turn back on. The home screen will appear again.
Switching off for long periods
During long absence periods it is recommended to switch off the refrigerator by pfollowing the procedure for turning the unit off described on the previous page and disconnecting the electrical breaker controlling the socket. Completely empty the refrigerator, clean and dry it and leave the doors and drawers partially open to prevent unpleasant odors.
During the first startup, it will not be possible to use the Menu to modify the factory settings until the preset temperature has been reached.
Each time the appliance is switched on it goes through a self-diagnosis procedure lasting up to three minutes before completely starting up.
If only the refrigerator compartment is switched off, the fridge fan will continue to operate to prevent the formation of unpleasant odours and mould.
4.2 How to adjust the temperature for different requirements
Each model has been carefully tested before leaving the factory and is adjusted in such a way to ensure high performance and efficient operation. Usually, it is not necessary to modify the settings.
How it looks to the home screen:
Modify the temperatures compartment
Example: How to modify the Fridge compartment temperature.
1) Home screen. Touch the icon of fridge compartment.
2) Scoll up/down to select the desired temperature fridge from +34°F to +46°F (from +1°C to +7°C)
3) Touch OK to confirm the new temperature.
The temperature shown can vary slightly in respect to the set temperature following frequent openings of the doors or insertion of room temperature foods or large quantities of foods.
6 to 12 hours are necessary to reach the selected temperature in some cases.
Padlock icon.
The padlock icon shows up when the temperatures are set up.
The padlock open/close shows that is or isn't possible to modify the compartment's temperatures anymore.
Usually an open grey padlock can be seen; in that case you can scroll up or down with a finger on the display, select the desired temperature and press OK for confirming.
Whereas a white closed padlock can be seen if the user has activated some functions (described in the paragraph 5.1 such as Holiday Mode, Max Cool FreshZone, etc...) that override the settings of the Fridge and/or Freezer (Fresh Zone) compartments therefore the user will not be able to change the temperature of the compartments until the overriding function has completed or been canceled.
4.3 Messages and alarms
An integrated control system will give information through highlighted messages you can see on the display.
The audible signal that goes along with some of the alarm signals can be turned off by touching the alarm icon ☐ on the main control panel.
You can find the list of the alarms at the end of this manual.
INFORMATION FOR THE USE OF THE DISPLAY.
It is possible to personalize the operation of your Fulgor Milano unit in order to adapt it to the different ways you might want to use it.
5.1 Functions
After touching the Function icon 📋 on the home screen you can access some or all of the functions shown below depending on your model and how it is equipped.
1) Max Cool Fridge.
2) Holiday Mode.
3) Max Cool Fresh Zone.
4) Beverage Cooler.
5) Ice Maker.
6) Water Filter.
7) System Cleaning.
1) Max Cool Fridge
The function lowers the refrigerator temperature to +36°F (+2°C) for 12 hours, permitting more rapid cooling of food that has just been placed in. Once the 12 hours have expired, the function deactivates automatically, returning to the previously set temperature. It is possible to program a timed activation of the function.
If the power goes out during this function's operation the unit will resume operation in normal mode and this function will be canceled.
A) Home screen. Touch FUNCTIONS.
B) Touch the icon Max Cool Mode Fridge.
C) Touch the icon On to activate the function.
D) Scroll up / down to setting the desired start time delay and then press OK.
It is possible to program activation of this function in advance between 1 and 24 hours.
2) Vacation
This function (recommended in case of prolonged absences since it allows considerable energy savings) brings the refrigerator compartment temperature to +57°F (+14°C).
It is possible to program the duration, or it can be manually deactivated upon re-entry after a period of absence. This function remains active even if during the period of absence there is a prolonged interruption of electrical power.
It is possible to program a period from 1 to 90 days.
3) Max Cool Fresh Zone Mode
It is recommended to activate this function at least 24 hours before inserting room temperature items into the freezer, or several hours before placing into the freezer previously frozen items which have been subject to a slight temperature rise.
This function is automatically deactivated when the programmed time period expires. It is possible to program delayed activation of the function.
If the power goes out during this function's operation the unit will resume operation in normal mode and this function will be canceled.
A) Home screen. Touch FUNCTIONS.
A) Home screen. Touch FUNCTIONS.
B) Touch the Holiday Mode.
B) Touch the icon Max Cool Fresh Zone icon.
C) Touch ON to activate the function.
C) Touch ON to activate the function.
D) Scroll up / down to set the desired duration (in days) and then press OK.
It is possible to program a period from 1 to 90 days.
D) Scroll up / down to set the desired start time delay (in hours) and then press OK.
It is possible to program a delayed start from 1 to 24 hours.
4) Rapid Bottle Cooler (\*)
This function can be activated when it is necessary to cool off beverages quickly, by placing them inside the freezer compartment. The ideal location for beverages is in the center of the upper, inner freezer drawer.
It is possible to select a duration of 1 to 45 minutes. A sound signal will indicate when the timer has expired.
After removing the beverages, deactivate the sound signal by pressing the Alarm icon ⏻.
5) Ice Maker activation (\*)
A manual clean of the water circuit should be performed before activating the Ice Maker for the first time. After a few minutes the Ice Maker can be activated.
Important
Do not activate the Ice Maker unless the appliance is connected to a water source.
A) Home screen. Touch FUNCTIONS.
A) Home screen. Touch FUNCTIONS.
B) Touch the Beverage Cooler icon.
B) Swipe left until you see the ICE MAKER icon and touch it.
C) Touch ON to activate the function.
C) Touch ON to activate the ice maker.
D) Scroll up / down to set the desired time (in minutes) and then press OK.
(*) Only available when FreshZone is configured as 'Freezer'
(*) Only available when FreshZone is configured as 'Freezer'
5a) Set Ice cube Size / Fast Ice
The IceMaker sub-menu permits setting the size of the ice cubes by choosing between Large (default setting) or Medium, and activation of the Fast Ice function, which lowers the temperature of the freezer in an effort to increase ice production..
The Fast Ice function deactivates automatically after 24 hours.
A) Home screen. Touch FUNCTIONS.
B) Swipe left until you see the ICE MAKER icon and touch it.
C) Touch SET CUBE SIZE. The default cube size is "large".
D) Select 'MEDIUM' or 'LARGE' to choose the desired cube size.
E) If you would like to increase the production of ice, touch the Fast Ice icon, this will enable the freezer to produce more ice, up to 1.5kg a day.
F) Confirm the function or not by touching ON or OFF.
6) Water Filter Reminder Activation
The water filter is essential for the purification of the water used for making ice, for cleaning the circuit or for supplying water for the fridge compartment. When enabled, you can view the time left before the filter needs to be replaced. The water filter reminder needs to be activated by the user.
A) Home screen. Touch FUNCTIONS.
B) Swipe left until you see the WATER FILTER icon and touch it.
C) Confirm the function by touching YES
D) The remaining days before filter replacement is required are displayed.
Touch the home icon
6a) Water Filter Deactivation
To deactivate the active filter reminder countdown follow these steps:
6b) Reset Filter
The Reset Filter function resets the time left before the filter needs to be replaced to 365 days. It is necessary to reset the counter each time the filter cartridge is replaced.
A) Home screen. Touch FUNCTIONS.
A) Home screen. Touch FUNCTIONS.
B) Swipe left until you see the WATER FILTER icon and touch it.
B) Swipe left until you see the WATER FILTER icon and touch it.
C) Touch OFF to the deactivate Water Filter Reminder.
C) Touch RESET.
D) Confirm deactivation by touching YES. Touch the home button
D) Touch YES to continue.
E) You will be shown the full duration of the Water Filter Cartridge.
7) System Cleaning
If ice production has been disabled or unused for a long period it is recommended to perform a Manual Clean function.
Before proceeding it is important to turn off the ice maker. (See section 5) above) Ensure the ice collection bin is in place and is empty.
A) Home screen. Touch FUNCTIONS.
B) Swipe left until you see the SYSTEM CLEANING icon and touch it.
C) Touch YES to activate the manual cleaning.
D) Please wait, at this point you should hear the motor of the ice maker turning over the tray.
E) Once the START CLEANING message is displayed - touch ENTER
F) Cleaning running (water valves will open for approximately 40 seconds).
G) At the end of the cleaning, press OK and empty water from ice bin.
H) Wait a few seconds the main menu screen will appear.
Bypass filter
This is an additional sub-menu item of the Water Filter function. The included filtration system can be bypassed when excellent water quality is available from the home water system. You can simply remove the water filter from the adapter, enable the FILTER BYPASS and the system will not remind you to replace the filter that you are not using.
5.2 Settings
It is possible to personalize the settings of your Fulgor Milano fridge for adapting it to the different ways you might want to use it.
1) Date
The display will show the date in the format (day:month:year).
By touching the display you can modify the settings.
1) Date.
2) Time.
3) Fahrenheit and Celsius degrees (display units).
4) Language.
5) Fresh Zone.
6) Sabbath Mode (Optional).
7) Reset.
8) Demo Mode.
9) Maintenance.
10) Service.
11) Info System.
A) Home screen. Touch SETTINGS.
C) Scroll up or down until selecting the desired year and press OK.
D) Scroll up or down until selecting the desired month and press OK.
E) Scroll up or down until selecting the desired day and then press OK.
2) Time
The display shows the hours and minutes in the format hh:mm.
This function selects the display at 12 or 24 h.
3) SET °F/°C
This setting shows the temperatures displayed in Fahrenheit or Centigrade degrees. By default, the appliance is set for Fahrenheit.
A) Home screen. Touch SETTINGS.
A) Home screen. Touch SETTINGS.
C) Choose which way you want to see the time: 12 or 24 hours.
C) Scroll up / down to select either Fahrenheit or Centigrade degrees and press OK.
D) Scroll up / down to set the hours and then press OK.
E) Scroll up / down to set the minutes and then press OK.
4) Language
To set the language of the display.
5) Fresh Zone
The bottom drawer compartment can, if required, be converted to a FRIDGE or FRESH operating mode, in addition to the default FREEZER mode.
A) Home screen. Touch SETTINGS.
A) Home screen. Touch SETTINGS.
B) Touch the LANGUAGE icon.
B) Swipe left until you see the FRESH ZONE icon and press it.
C) Scroll up / down to select the desired language and press OK.
C) Scroll up / down and select one of the three settings.
D) Touch YES to confirm the setting.
6) Sabbath Mode (Optional)
This setting makes it possible to comply to certain religious observances requiring that the operation of the appliance is not affected by the opening or closing of the doors (the control, the inner lighting and the ice maker are deactivated).
7) Reset
It gives the possibility to restore the base settings that were set in the factory, cancelling any changes that have been made by the user.
A) Home screen. Touch SETTINGS.
A) Home screen. Touch SETTINGS.
B) Swipe left until you see the SABBATH MODE icon and press it.
B) Swipe left until you see the RESET icon and press it.
C) Touch ON to activate the function.
C) Touch YES.
D) Touch YES to confirm.
D) Touch YES to confirm.
E) The fridge will work accordingly to this configuration.
E) The reset has been performed. The fridge's factory settings have been restored.
Note: Sabbath mode automatically expires after 72 hours. To deactivate prior to this, touch the display to wake it up and choose the OFF option.
Important
If you restore the base settings ("reset"), it is necessary to restore the configuration of the Fresh Zone drawer that has been made, if it was something other than FREEZER.
8) Demo Mode
It is possible to simulate the functioning of the fridge, for showroom display or for tradeshows.
A) Home screen. Touch SETTINGS.
B) Swipe left until you see the DEMO MODE icon and press it.
9) Maintenance
For efficient operation of the appliance, the condenser needs to be cleaned (vacuumed) periodically to keep it free of dust and pet hair. This setting enables a 12 month countdown timer reminding the user to clean the condenser. The default of this setting is "Warning disabled". Once enabled, it is possible to disable the warning or see the time left before the next cleaning that has to be done.
A) Home screen. Touch SETTINGS.
C) Insert the password for the activation.
Default password 1-2-3-4
B) Swipe left until you see the MAINTENANCE icon and press it.
D) Press the desired choice: ON to activate Demo Mode or OFF to deactivate Demo Mode.
C) To enable it, touch the Yes icon.
D) Instead, if you want to disable the warning previously set, touch the icon reset.
If you want to disable the reminder, at step D touch Off, then touch Yes as below.
E) To disable the warning, touch the Yes button.
11) Info System
The Information System shows the software versions of the electronics.
A) Home screen. Touch SETTINGS.
B) Touch the icon Info System.
C) Here are shown the data of the appliance.
10) Service
The service function is reserved for the authorized Fulgor Milano after sales service technician.
6.1 Internal Layout (positioning, adjustment, removal)
Crisper Drawer
Fixed to the slide guides with two thumbscrews.
to remove the drawer, unscrew the thumbscrews, lift slightly at the front and pull forward. Be sure to support the rear of the drawer when removing.
The upper Fresh Zone can be removed using the same method used for the crisper drawer. To remove the inner Fresh Zone drawer unscrew the thumbscrews.
When replacing the drawers, make certain the back of the drawers engage under the clips on the slide guides.
Located in the upper drawer of the freezer compartment on some models. There are feet protruding from the bottom of the ice bin that will situate it correctly in at the back left of the inner FreshZone drawer. The notch in the ice collection bin should be at the back.
after removal, make sure to reposition it correctly.
Warning
Do not place hands or fingers near the Icemaker when in operation.
Shelves
The shelves are positioned on the left and right by two pins engaged in the shelf supports.
To reposition a shelf it is recommended to removed contents for safety and ease of movement.
Lift the shelf slightly and pull towards you to disengage the pins from the support geometry in the guides.
Note
If the ice is not used frequently is advisable to empty the ice bin once every 8-10 days.
It is normal that some ice cubes stick to one another. If the ice is not frequently used, the older cubes can become opaque, and will have a strange flavour and become smaller.
The Icemaker automatically deactivates if the Vacation function is activated.
When the Icemaker is started for the first time, it is recommended to dispose of the first full bin of ice.
If the equipment has been switched off for a month or more, it is recommended to perform a water □ and filter □ cleaning cycle.
The IceMaker only makes ice if the Fresh Zone compartment is set on Freezer Mode.
Warning
The ice maker will continue to operate even when the ice bin is not in position
To activate the Ice Maker see section earlier in this manual.
Please note that 12 to 24 hours are necessary before ice production may begin.
The production is of 10 cubes per cycle in approximately 10 cycles in 24 hours.
The yield depends on the temperature set in the freezer, the room temperature and the frequency of drawer / door opening.
If the appliance is operating without being connected to the water system, make sure that the Icemaker is deactivated. The Ice Maker produces ice until the ice tray is full and will automatically stop once the maximum level is reached.
With the Fast Ice function, it is possible to increase the quantity of ice produced in 24 hours, while the Set Cube Size function permits selection of the size of the produced ice cubes.
Do the ice cubes have an unusual odor?
Ice is a porous material which can absorb odors from the environment. Ice cubes which have been in the ice cube container for a long time may absorb odors, stick together and slowly become smaller.
We recommend that old ice cubes not be used. Other means of preventing odors:
The ice cube container should be cleaned occasionally with warm water. Make sure that you switch off the ice maker before clearing the container. Rinse out and wipe dry.
Check the contents of the freezer for spoiled or out-of-date food. All odorous foods should be wrapped thoroughly or stored in airtight containers to prevent the build-up of odors.
The water filter may have to be replaced in some models.
In some cases the quality of the water connection in the house should be checked.
Operating noises
Quite normal noises
Grumbling: refrigerating unit is running. Fan in the recirculating air system is running.
Bubbling, humming or gurgling noises: refrigerant is flowing through the tubes.
Clicking: motor is switching on or off. Solenoid valve on the water connection is opening/closing.
Rumbling: ice cubes are falling into the ice cube container.
The appliance is powered by two independent compressors. It is therefore normal to always have one of two compressors in operation.
Warning
Do not place any bottles or food for rapid cooling in the ice cube container. The ice maker may become blocked and be damaged.
7.2 Water Filter
Filter Replacement
The filter is located inside the refrigerator compartment, above the top glass panel. Prior to changing the filter, switch off the Ice Maker. Open the top glass panel and carefully rotate the filter cartridge for a quarter rotation in a counter clockwise direction until it detaches from its housing. It is normal for a small quantity of water to come out. Remove the packaging of the new cartridge and insert it into the housing by gently rotating it for a quarter rotation in a clockwise direction until it locks into place.
Then enter the FUNCTIONS menu and perform a "Manual Clean" through the icon. At the end of the cleaning cycle remove the water from the ice tray and wipe it dry. Remember to turn the ice maker back on.
8.1 Lighting
In case of malfunction and/or wearing out of the lighting system, the repair should be carried out by a qualified Fulgor Milano Service technician.
9.1 General directions
Your Fulgor Milano is designed to ensure precise, constant temperatures and appropriate humidity levels in all compartments.
In addition, the double refrigeration ensures that frozen foods and ice do not absorb the odor of fresh foods and that the humidity in the refrigerator does not freeze and build up frost.
Nevertheless, to properly preserve all of your foods, it is not enough to have an excellent refrigerator. It is also necessary to know the rules for correct food preservation.
Do bear in mind that all foods will inevitably change their characteristics over the passage of time. This change begins long before the food is consumed, since foods contain micro organisms which multiply and can cause deterioration. This process occurs more rapidly due to improper handling, preservation temperatures and humidity levels.
It is therefore recommended to follow the directions presented below which will permit using your refrigerator/freezer in the most effective and safe manner to keep your foods in the best way for as long as possible.
Periodically check that all foods are in a perfect state of preservation. It is usually quite clear when a food item is deteriorated, due to mold, unpleasant odor and unpleasant aspect. Nevertheless, there are cases in which these conditions are not so evident. If you believe that a food item was kept for an excessive period of time and may be deteriorated, do not consume this item or even taste it, even if it seems to still be healthy, since the bacteria that cause deterioration of food can also cause poisoning and illness.
When in doubt, throw the food away.
9.2 How to maintain good food quality
When buying groceries
Always take the following precautions:
Place any packages of raw meat, fish or poultry in plastic bags so that they do not drip on other foods.
Purchase meat, poultry and fish last. Do not leave your groceries in a warm car. Keep an insulated bag in your car and use it in case of very high temperatures or long trips.
Check the production dates and "best before" times on foods to be sure that they are fresh.
Be very careful when buying fresh foods, and only buy a quantity that can be consumed during your planned preservation period.
When possible, let warm foods adjust to room temperature for at least two hours before placing them in the refrigerator, unless you have activated the Max Cool function before.
When placing foods in the appliance
Check the refrigeration temperature of the various compartments on the control panel:
The refrigerator temperature must be +45°F (+8°C) or lower and the freezer temperature must be +0°F (-18°C)
Follow the recommendations regarding the preservation times and temperatures indicated in the tables to follow.
Keep raw meat, fish and poultry separate from other foods and avoid any possible drippings.
When placing in the refrigerator your meat, fish or poultry, leave these in their original packaging, unless the packaging is ripped or punctured. Repeated handling could introduce bacteria into these foods.
To keep food in the freezer is a good idea to use freezer containers.
Label and date the packages
Be careful to correctly position the food items on the shelves in a way that does not obstruct the air circulation vents inside the compartment.
Notes
When a high level of humidity is present either in the environment or in the foods placed in the crisper drawers, the bottom of the Fridge compartment beneath the crispers might be covered with some water temporarily and may come and go.
Such condition is normal and it is due to the high humidity levels of the Fridge compartment; high humidity together with lower temperatures is what guarantees a longer preservation of foods.
Warning
After a prolonged interruption of electrical power, once the electrical power is reactivated, an audible signal will indicate if the temperature has raised above normal levels. In addition to this the display will show for one minute the highest temperature detected inside the compartments, to allow the user to decide how to better use the food items.
After one minute the display will resume normal operation, while the Alarm button will continue to blink.
Press the Alarm button ⚙️ to display the highest recorded temperatures.
FRESH FOODS PRESERVATION AREA TIME
Raw meats
Large cuts Crisper Drawer 4 days
Beef steaks, poultry and wild game Crisper Drawer 3 days
Ground meat Crisper Drawer 1-2 days
Carpaccio Crisper Drawer Immediately
Cooked meat
Boiled meat and roasted meat Refrigerator Compartment 2 days
Meat sauce Refrigerator Compartment 6 days
Fish
Raw and cooked fish Crisper Drawer 2 days
Other
Soups and broths Refrigerator Compartment 2 days
Pasta Refrigerator Compartment 2 days
Opened cold cuts Crisper Drawer 3 days
Fresh cheeses Crisper Drawer 2-3 days
Well sealed aged cheeses
Refrigerator Compartment
Several months
Eggs (fresh and unwashed)
Refrigerator Compartment 2 weeks
Opened cans
Refrigerator Compartment 2-3 days
Raw vegetables (in perforated bags)
Crisper Drawer 1 week
FROZEN FOODS PRESERVATION AREA TIME
Beef, veal, lamb and goat meat Freezer Compartment (steaks) 6-12 months
Beef, veal, lamb and goat meat Freezer Compartment (Meat with bone) 4-6 months
Ground beef Freezer Compartment 1-2 months
Pork Freezer Compartment (Without bones) 4-6 months
Pork Freezer Compartment (With bones) 2-3 months
Ground pork Freezer Compartment 1-2 months
Meat leftovers Freezer Compartment 2-3 months
Whole chicken and turkey Freezer Compartment 8-12 months
Goose, duck and pheasant Freezer Compartment 4-8 months
Fish Freezer Compartment 1-2 months
Shellfish Freezer Compartment 2-3 months
Cooked food Freezer Compartment 1-2 months
Vegetables Freezer Compartment 8-12 months
Fruit Freezer Compartment 6-12 months
Desserts and cakes Freezer Compartment 2-3 months
10.1 Care and Cleaning
To clean the parts made of steel use a microfiber cloth and the sponge provided in the kit with the appliance. Always use the cloth and sponge in the direction of the steel's satin finish.
Every now and then, to polish the steel, wipe with a slightly damp microfiber cloth.
Do not use the sponge on aluminium parts, such as the handles and the profiles of the glass shelves.
You should use special care to keep the ventilation openings in the appliance or in the cabinet that houses it free of obstructions.
Scrupulously follow the detailed directions that can be found in the provided kit and never use abrasive or metallic products which could scratch and damage the satin finishing on the appliance permanently.
Before performing any sort of cleaning, disconnect the appliance from the electrical power supply.
Make sure you do not damage the refrigerant circuit in any way.
Warning
The use of chlorine-based detergents or similar that contains it should be avoided (bleach, hypochlorite, etc).
10.2 Internal cleaning
Clean the internal and removable parts by washing them with a solution of lukewarm water, a small amount of dishwashing detergent.
Rinse and dry right away.
Do not use mechanical devices or other methods to speed up defrosting.
Warning
Do not use water on the electrical parts, lights and control panel.
Warning
The use of chlorine-based detergents or similar that contains it should be avoided (bleach, hypochlorite, etc).
Do not bring cold glass parts into contact with boiling water.
Do not wash any parts of the refrigerator in a dishwashing machine since this could damage or irreparably deform the parts.
10.3 Cleaning of the ventilation grille, filter and condenser
The unit requires, for a correct operation, the cleaning of the ventilation grille, filter and condenser.
The recurring cleaning every 12 months is reminded by a signal on the display (if enabled by the user).
Behind the frontal ventilation grille there is the condenser.
To clean it use a vacuum cleaner with a soft brush attachment at maximum power, sweeping it along the vent slits.
On the maintenance settings, after the installation of the unit and after it has been turned on, you can set the condenser cleaning warning.
In the case the warning is enabled, there will be a message every 12 months, that informs that is time to clean the condenser.
After cleaning it, touch the reset icon in order to reactivate the warning signal in another 12 months.
Upper condenser.
For cleaning the condenser follow the instructions:
Rotate up the grille from the bottom.
Warning
The edges of the condenser can be sharp, therefore use adequate protection for the hands and arms when cleaning the condenser.
Lower condenser.
For cleaning the condenser follow the instructions:
Open the door or bottom drawer and remove the magnetic grille.
Warning
The edges of the condenser are sharp, therefore use adequate protection for the hands and arms when cleaning the condenser.
11.1 Troubleshooting Guide
If you notice malfunctions in your appliance, use this guide before calling for service: this guide can help you personally resolve the problem or could provide important information to be conveyed to the service technician to ensure rapid and effective repair.
Display message and audible alarms.
A malfunction is usually indicated by the display. Problems that cannot be solved by the user are reported through a fault code. Keep in mind, however, that in messages or alarms they may appear for particular conditions of use or during start-up. In these cases, deactivate the audible alarm by pressing the Alarm button and leave the appliance running and limit the opening of the doors to the maximum for about 10-12 hours.
The refrigerator or the freezer does not work.
Is the appliance connected to the electrical power supply?
Is electrical power available at the electricity socket?
Is the Unit button activated?
Is the unit in 'Demo' Mode?
Is there something preventing the door or drawer from closing / sealing properly?
The refrigerator or the freezer is warmer than usual.
Does the display show a malfunction code?
Is the temperature adjusted correctly?
Were the doors or drawers open for a long period of time?
Were large quantities of food recently inserted?
Is the unit in 'Demo' Mode?
The appliance remains in function for a long time period.
Bear in mind that during very hot weather and with very high temperatures in the room it is normal that the compressor remains on for prolonged periods of time.
Were the doors or drawers open for a long period of time?
Were large quantities of food recently inserted?
Check that the doors are closed and that the food or containers do not obstruct the perfect closure of the door.
Is one or more compartments in Max Cool Mode?
If you hear unusual noises.
It is normal to hear noises from the fans or compressors during operation or during the defrost phase.
Noise could be more marked depending on the position of the appliance and the surrounding environment.
Condensation inside and outside of the refrigerator.
If the climate is very humid, the formation of condensation is normal. Opening the door or drawers for prolonged periods of time can contribute to the formation of condensation.
In any case, make sure that the doors are always perfectly closed.
Ice or frost build up inside the refrigerator or freezer.
Did you leave the doors open for a long period of time?
Do the doors close perfectly?
If the doors do not close perfectly, contact your installer.
In case of frost or ice build up in the Fresco compartment, due to frequent and prolonged opening of the doors, deactivate the Crisper-Fresco function via the button on the control panel. Wait until the frost or ice melt, then remove the drawer and dry the sides and bottom of the compartment.
Unpleasant odors inside the refrigerator.
Clean the appliance completely according to the instructions.
Hermetically cover all the food. Do not conserve food for prolonged periods of time.
The doors are difficult to open.
The appliance is designed to ensure a fully hermetic closure. When the door is closed, a vacuum condition can occur: in this case it is necessary to wait a few seconds until the pressure balances before opening the door.
Appliance is cooling but lights and display are not working.
Check to see if the appliance was accidentally placed into Sabbath Mode
The Ice Maker does not work.
Make sure that the Ice Maker is on (icon 📄).
The Ice Maker does not produce sufficient amounts of ice.
On average, the Ice Maker produces approximately 10 cubes of ice every two and half hours.
The ice cubes freeze into one block.
If the ice is not used frequently, it is possible that blocks of ice may form. It is recommended to remove the block of ice cubes and then let the Ice Maker fill the ice tray again. When using ice, be mindful to bring ice at the back of the bin to the front.
The ice has an unusual flavour or colour.
When the Ice Maker is started for the first time, it is recommended to empty the first full tray of ice cubes.
If the refrigerator was switched off for more than one month or if the cartridge was not changed for more than six months, it could be necessary to replace the filter cartridge.
Contact a plumber or a water treatment expert to make sure that the problem is not due to the water supply.
If the unit you purchased was used as a showroom model it may be in a special energy-saving mode called Demo Mode where the appliance appears to be operating (lights work and false temperatures are displayed) but no cooling actually takes place. If you suspect your appliance is in Demo Mode please follow the procedure for disabling Demo Mode described in this manual.
11.2 Malfunction messages appearing on the display
| Display message Malfunction description | |
| Power Failure!! | Prolonged interruption of electrical powerthe appliance resumes work automatically, the display shows the warmest temperatures achieved |
| Door Fridge OPEN | Fridge door openthe message appears after few minutes from the door opening |
| Fresh Zone OPEN | Freezer door openthe message appears after few minutes from the door opening |
| Replace filter | Replace filter cartridgemessage appears when only 30% of filter capacity is left |
| Fridge too warm | Fridge too warmsee Troubleshooting Guide |
| Fridge too cold | Fridge too coldwait for 12 hours: if malfunction persists call Customer Care for advice |
| Fresh Zone too warm | Freezer too warmsee Troubleshooting Guide |
| Fresh Zone too cold | Freezer too coldwait for 12 hours: if malfunction persists call Customer Care for advice |
| Error Code... | Functional problemscall Customer Care who may help you to salve the problem or put you in contact with the nearest Service Agent |
| Check condenser | Check CondenserEvery 12 months the display shows the message “Check Cond”, clean the condenser and follow the prompts for resetting or disabling the reminder. |
In case of errors, touch the button Alarm ⏻ and the display will show the error message with its error number code.
The message will be shown for 3 seconds, then it will go back to the home screen.
For longer viewing of the message on the screen, navigate to the INFORMATION menu item (i). The message will be on the screen for 30 seconds, then it will go back to the home screen.
In the case there is more than one error message, the display will show each message in sequence.
1 INDICATIONS IMPORTANTES CONCERNANT LA SÉCURITÉ 4
Illustration of hands connecting a plug to a wall socket (no text or symbols)
Important
2) Essai initial (il dure environ 2-3 minutes).
INFORMATIONS POUR L'UTILISATION DE L'ÉCRAN.
Attention
Illustration of a hand holding a flat panel with directional arrows indicating movement (no text or symbols)natural_image
Technical diagram of a mechanical assembly with labeled components (no readable text or symbols)natural_image
Illustration of a person in bed with a head turned, no visible text or symbolsnatural_image
Illustration of a two-panel kitchen appliance with white shades on blue background (no text or symbols)natural_image
Diagram of a kitchen appliance with ventilation slots and airflow arrows (no text or symbols)natural_image
Illustration of a hand using a tool to interact with a blue-patterned panel inside a cabinet (no text or symbols)
Avertissement
Illustration of a hand inserting a cylindrical device into a blue-patterned liquid container (no text or symbols)
Avertissement
Illustration of hands inserting a plug into an electrical outlet (no text or symbols)
Importante
FULGOR
MILANO
1) Logo.
3) Max Cool Fresh Zone.
Atencion
Illustration of a hand holding a metal bracket with arrows indicating direction (no text or symbols)natural_image
Technical diagram of a mechanical assembly with labeled components (no readable text or symbols)7.1 Uso del Ice Maker
Notas
Illustration of a double door with white triangular cutouts and recessed lighting (no text or symbols)natural_image
Diagram of a kitchen appliance with ventilation slots and airflow arrows (no text or symbols)natural_image
Illustration of a hand inserting a pipe into a blue-patterned container (no text or symbols)
Atencion
Illustration of a hand inserting a pipe into a blue-patterned panel inside a cabinet (no text or symbols)
