USER MANUAL D40 Majority

Controls & Functions....4

Setting up your Majority D40 Speakers .... 7

Basic Operation 8

Bluetooth, SD & USB Controls....9

AUX and Optical Modes....10

Bluetooth Mode 11

USB & SD Card Mode....12

Connecting Headphones 13

Troubleshooting 14

Spec & Warranty....15

Safety Information......

3

YEAR WARRANTY

Register your product online for a FREE 3 year extended warranty at: www.majority.co.uk

WHAT'S IN THE BOX

A. Majority D40 Bookshelf Speakers
B. 3.5mm to 3.5mm AUX Cable
C. 3.5mm to RCA Cable
D. Instructions Guide

E. Remote Control
F. Pow er Adapter

Diagram showing various electronic devices and wiring connections, including speaker units, cable, remote control, and plug connections.

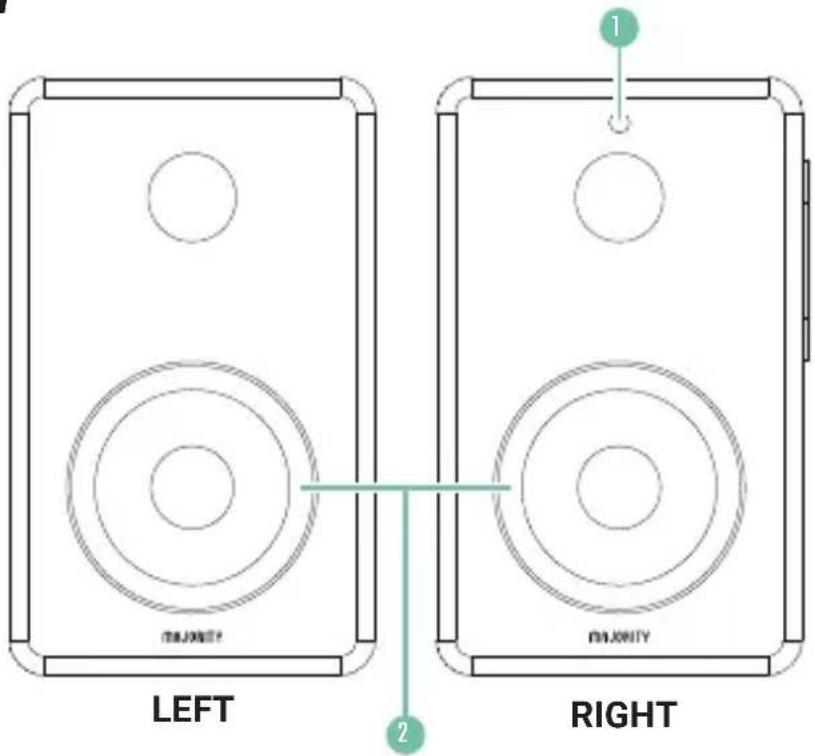

FRONT VIEW

MAJXNET LEFT MAJXNTY RIGHT 1 2

1. Remote Sensor 2. Speakers

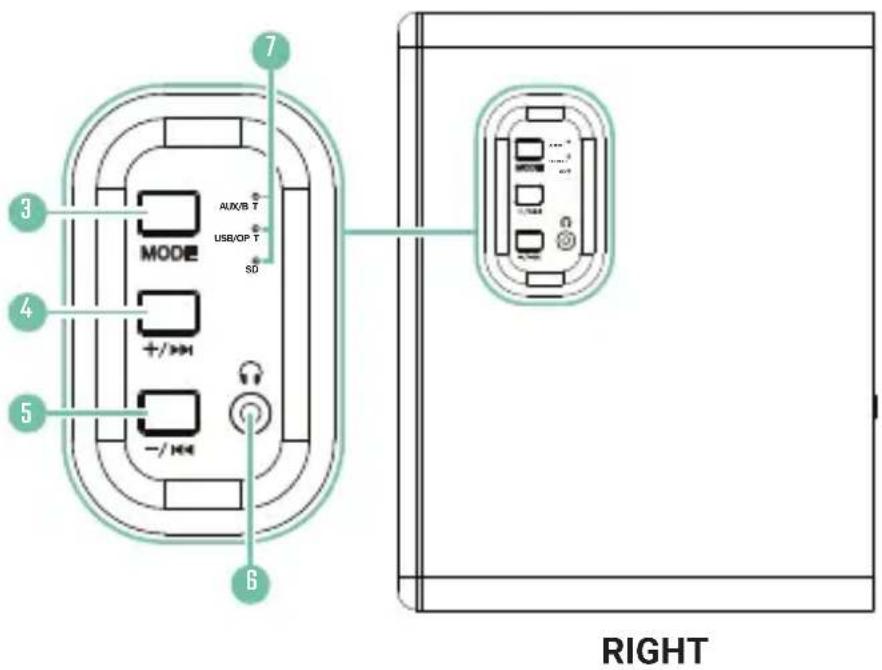

SIDE VIEW

MODE AUX/B T USB/OP T SD 3 4 5 - / + - 6 7 RIGHT

1. Mode
2. Vol + / Next

3. Vol - / Previous

4. Headphone Jack

5. Mode indicator lights

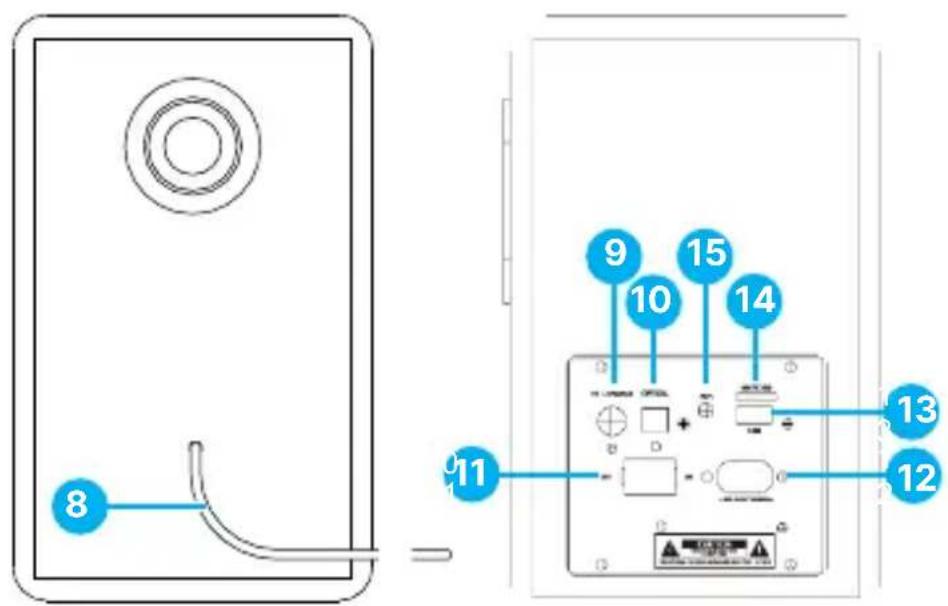

BACK VIEW

8 9 10 15 14 13 12 11

LEFT RIGHT

1. Speaker connector cable
2. Output to left speaker
3. OPTICAL input

4. Power On/Off

5. 100--240V/50-60HZ Power

6. USB slot
7. SD Card slot
8. AUX input

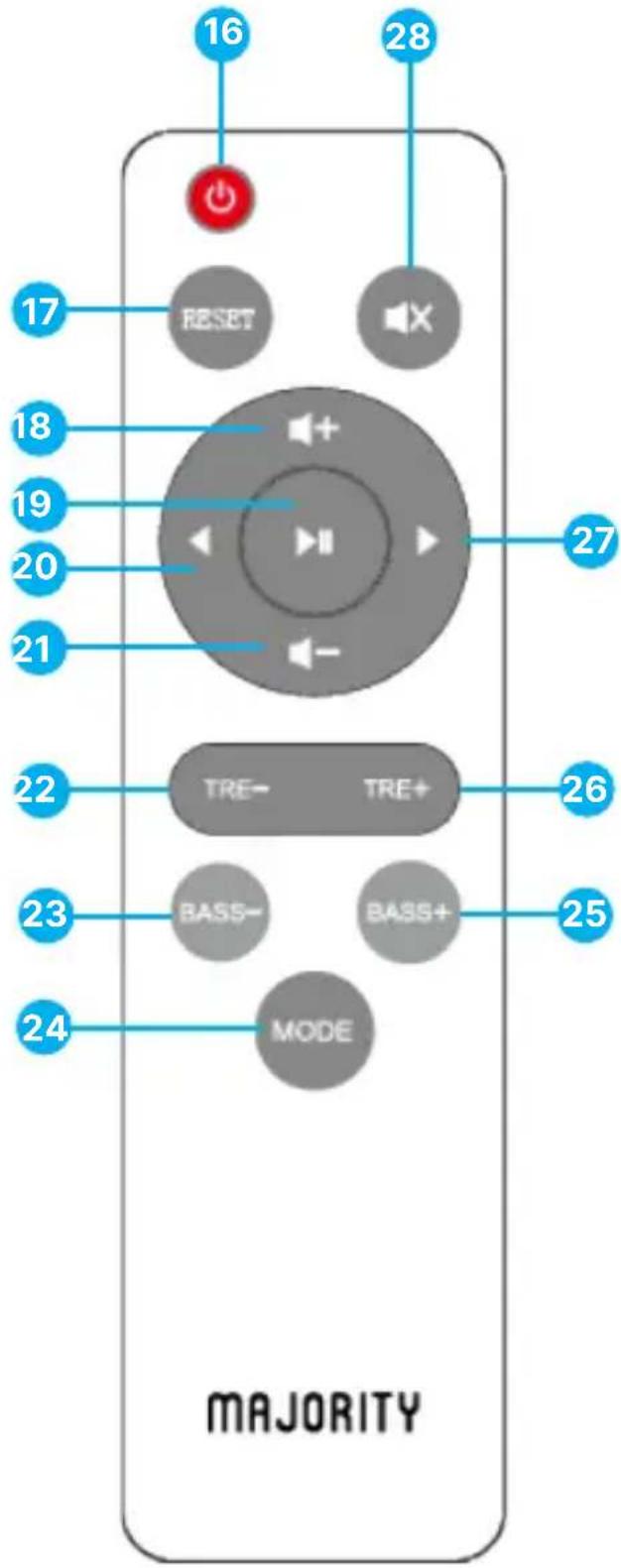

REMOTE CONTROL

16 28 17 RESET 18 19 20 21 22 TRE- TRE+ 23 BASS- BASS+ 24 MODE 25 26 27 MAJORITY

1. Power
2. Reset
3. Vol +
4. Play/Pause
5. Previous/Back
6. Vol -
7. Treble -
8. Bass -
9. Mode
10. Bass +
11. Treble +
12. Next
13. Mute

Please note that the instructions in this manual will refer to the speaker or remote control button number e.g (Ref.*number*) in accordance with the diagrams on pages 2-4.

Connecting and powering the unit

Using the power cord provided, plug one end into the back of the primary speaker (Ref.12) and plug the other end into a mains socket. Switch the unit on at the back of the primary speaker (Ref.11).

Connect the two speakers together via the speaker connector cable (Ref.8). To do this, plug the left speaker connector cable plug into the right (primary) speaker connector, which reads ('To L speaker') (Ref.9).

Switch on your Majority D40 Speakers

Press the ⏻ button (Ref.16) or press and hold the 'Mode' button on the unit (Ref.3) to switch on the speakers. Press the ⏻ button (Ref.16) to switch the speakers off.

Remote Power

Remove the battery cover of the remote control. Insert 2 x AAA batteries (included). Replace battery cover.

Note: when using the remote control, ensure that you are pointing at the remote sensor (Ref.1) otherwise the unit may not respond to keypresses.

Basic controls

Volume, treble and bass can be changed on all speaker modes.

Use the ◀+ (Ref.18)/(Ref.4) and ◀- (Ref.21)/(Ref.5) buttons to control the volume.

Press ◀X (Ref.28) to mute the audio.

Use the Treble- (Ref.22), Treble+ (Ref.26), Bass- (Ref.23) and Bass+ (Ref.25) to control the bass and treble settings of the sound. Press 'RESET' (Ref.17) to reset the treble and bass settings.

In Bluetooth, SD, or USB mode, use the ◀ ▶ (Ref.20)/(Ref.27) and -/◄◄ +/►► buttons (press and hold (Ref.4)/(Ref.5)) to skip tracks and rewind or fast forward (see page 7).

Switching mode

When a USB, SD card or AUX cable is inserted, the unit will automatically switch to the correct mode and begin playing audio. If necessary, select the correct mode using the 'Mode' button (Ref.24)/(Ref.3).

On the speaker set, Bluetooth and USB modes are indicated by a blue light. All other modes are indicated by a red light (Ref.7).

Please note that the following controls and functions relate to Bluetooth, SD card and USB mode only. For AUX and Optical controls and functions, please see the section 'AUX and Optical Modes' (page 8).

Note: in the table below, (H) = 'Press and hold'.

Remote Speaker Function
◀-◀+	-/|◀◀ +/-▶▶|	Volume up/down
◀▶	(H) -/|◀◀ +/-▶▶|	Previous/next track
(H) ◀▶	n/a Rewind/Fast forward
◀X n/a Mute
▶II	MODE Play/Pause
TRE-/TRE+	n/a Treble up/down
BASS-/BASS+	n/a Bass up/down
MODE	(H) MODE	Change Mode
RESET	n/a Reset Treble/Bass

Use the 3.5mm to 3.5mm AUX cable or 3.5mm to RCA cable to connect an external AUX device to the 'AUX' input of the D40 speakers (Ref.15).

Switch to AUX mode

When an AUX cable is plugged in to the AUX port at the rear of the speaker (Ref.15), the unit will automatically switch to AUX mode (indicated with a red light (Ref.7)) and you will hear the words 'Line in' from the speakers. If necessary, select 'AUX' mode using the 'Mode' button (Ref.24)/(Ref.3).

Optical mode

To connect the D40 speakers to an external device, use an optical cable to connect via the OPTICAL input (Ref.10).

Press the 'Mode' button (Ref.24)/(Ref.3) to switch the Mode to Optical. The corresponding mode indicator light (Ref.7) will light up red and you will hear the word 'Optical' from the speakers when Optical mode is selected.

Controls and Functions - AUX/Optical

Note: in the table below, (H) = 'Press and hold'.

Remote Speaker Function
◀-◀+	-/|◀◀ +/▶▶|	Volume up/down
◀X ▶II	MODE	Mute
TRE-/TRE+	n/a Treble up/down
BASS-/BASS+	n/a Bass up/down
MODE	(H) MODE	Change Mode
RESET	n/a Reset Treble/Bass

To connect an external device to the D40 speakers, ensure that the speakers are in 'Bluetooth' mode. Select 'Bluetooth' mode manually by using the 'Mode' button (Ref.24)/(Ref.3) until the corresponding mode indicator light, labelled 'AUX/BT', (Ref.7) lights up blue. You will hear the word 'Bluetooth' to indicate that Bluetooth mode is now active.

Switch Bluetooth on for your external device. Select 'D40' from the list of devices. When your external device is connected, you will hear the words 'Bluetooth Connected' to indicate successful connection. You can now play audio through the speakers. When Bluetooth is disconnected, you will hear the words 'Bluetooth Disconnected' to indicate successful disconnection.

Controls and Functions

Please see page 7.

USB

To use USB mode, insert a USB drive into the USB port at the back of the speaker (Ref.13). You will hear the word 'USB' from the speakers indicating that USB mode is active, and the 'USB/OPT' mode indicator light (Ref.7) will light up blue. If necessary, select 'USB' mode using the 'Mode' button (Ref.24)/(Ref.3).

SD

To use SD mode, insert a SD/TF card into the SD port at the back of the speaker (Ref.14). You will hear the words 'Memory card' come from the speakers, indicating that SD card mode is active, and the 'SD' mode indicator light (Ref.7) will light up red. If necessary, select 'SD' mode using the 'Mode' button (Ref.24)/(Ref.3). Maximum storage compatibility for USB and SD/TF cards: 64GB.

Controls and Functions

Please see page 7.

Connect wired headphones (not included) to the headphone port of the Majority D40 speakers (Ref.6) to listen to audio through headphones.

Ensure the volume is turned down before you use the headphones.

You will now hear audio output through the headphones.

Please note that the Majority D40 speakers are not compatible with Bluetooth headphones.

Observation Potential Cause/Solution
No power/function	Check whether the power is switched on or off at the wall.Check that the power adaptor is properly connected to the power outlet.
No sound	Check whether unit is set to MUTE.Check whether MODE is correctly selected.Turn up the volume on the speakers or on your external device.Check that cables are properly installed.
Function disturbance	Switch off and unplug the unit. Leave it for 2 minutes and switch it on again.
Bluetooth not connecting	Ensure that you are on Bluetooth mode on the speaker and the Bluetooth on your device is switched on. Select the Bluetooth device ‘D40’ and you should now be able to play audio.

SUPPORT

If you require further assistance with your new soundbar, please contact our support team on the Majority website: www.majority.co.uk/support

SPECIFICATION

Power Supply 100-240V/50-60Hz
Mode:	Bluetooth3.5mm AUX-inUSB readerSD reader
Power consumption 0.5W (standby mode)
Dimensions 223 x 137 x 179 mm
Weight 3.80 kg
Speakers 2*4" full range + 2 * 1" tweeter
Bluetooth Version 5.0
Bluetooth range up to 10 meters
Compatible file types	MP3
Maximum compatible USB/SD storage	64GB

WARRANTY

All products come with a standard 12 month warranty. All items must be registered within 30 days of purchase on www.majority.co.uk for the warranty to be valid. Once on the web page, use the menu to find “Register Your Product”. You will also be given the chance to extend your warranty for an additional 24 months, free of charge.

Completely dark image with no visible content, text, or symbols.

D40

USER MANUAL

EN DE FR IT ES

Inhalt....2

1. Mode
2. Vol + / Next

3. Vol - / Previous

4. Headphone Jack

5. Mode indicator lights

ANSICHT VON HINTEN

8 9 10 5 14 11 13 12

LINKER RECHTER

Completely dark image with no visible content, text, or symbols.

MAJORITY

HOMMEAUDI O - CAMBRI DGE

Contenu 2

Completely dark image with no visible content, text, or symbols.

MAJORITY

AUDI O - CAMBRI DIGE

Contenuti.... 2

Completely dark image with no visible content, text, or symbols.

MAJORITY

EN Safety and Usage Guidelines (All where applicable)

General Safety Information - Read and Retain: Review all safety and operating instructions before use; keep them for future reference. Follow Instructions: Adhere strictly to all safety and operational guidelines. Water Exposure: Keep the device away from water; avoid placing liquids near it. Ventilation: Ensure ventilation openings are unobstructed to prevent overheating. Heat Sources: Keep the device away from heat-emitting appliances. Wall Mounting - Installation Safety: Follow the manufacturer's instructions and use approved mounting kits only. Avoid drilling into areas with cables, gas, or water lines. Use proper tools and safety apparatus. Regular Maintenance: Inspect regularly for wear or damage, especially if wall-mounted. Relocation: Detach from the wall mount before moving. Child Safety: Keep out of children's reach and ensure heavy items are securely mounted. Seismic Precautions: Use specialized mounts in earthquake-prone areas. Electrical Safety - Power Source: Use the specified power source; consult an electrician if unsure. Cable Management: Protect the power cord from damage. Power Disconnection: Keep the main plug accessible; unplug during storms or long periods of non-use. Battery Safety - Charging: Use the manufacturer's charger; avoid extreme conditions. Heat Exposure: Keep batteries away from heat to prevent explosion or leakage. Battery Condition: Discontinue use if the battery is damaged; dispose of it properly. Replacement: Only use recommended batteries; incorrect types can cause hazards. External Batteries: Use only specified types, observing correct polarity. Battery Removal: Remove batteries if not used for an extended period. Disposal: Follow local regulations for battery disposal; do not incinerate. Connectivity Safety - Cable Connections: Power off devices before connecting or disconnecting cables. Bluetooth Pairing: Ensure a secure connection; avoid interference from other devices. Volume Control: Keep volume moderate to prevent hearing damage. Connectivity and Data Security - Wireless Security: Review privacy policies and secure your network. Software Updates: Keep software updated for security and performance. Children's Safety Warnings - Product Use: Intended for adults; keep away from children. Battery Warning: Keep batteries and items containing batteries out of children's reach. Volume Control: Maintain a safe volume level to protect children's hearing. Fire Hazard - Flammable Materials: Do not place open flames near the product. Overheating: Avoid covering the product to prevent overheating and fire risks. Disposal and Recycling - Product Disposal: Dispose of at a recycling centre according to local laws. Environmental Compliance: Follow regulations for battery and electronic waste disposal. User Maintenance - Cleaning: Unplug before cleaning; use a dry cloth only. Servicing: Only qualified personnel should perform repairs. Data Protection: Reset to factory settings before returning or disposing of the product. Disclaimer: Failure to follow these instructions may result in injury, death, or property damage. The manufacturer is not liable for damage caused by improper use.

Declaration of Conformity:

We, Izilla Ltd, Newton House, 2 Pioneer Court, Histon, Cambridge, CB24 9PT declare under our sole responsibility that the product:

Product Name: Majority D40 Bookshelf Speakers Model: 1000000390 / 1000000391

Brand Name: Majority

To which this declaration referred is in conformity to the following harmonized standards or normative documents (CE & Rohs 2.0);

EN 55035:2017, EN 55032:2015, EN61000-3-2:2014, EN61000-3-3:2013, EEN62368-1:2004+A11:2017, ETSI EN 301 489-1 V2.2.3(2019-11), ETSI EN 301 489-17, V3.2.2(2019-12), ETSI EN 300 328 V2.2.2 (2019-07), EN 62479: 2010, IEC 62321-3-1:2013, IEC 62321-4:2013, IEC 62321-5:2013, IEC 62321-6:2015, IEC 62321-7-1:2015, IEC 62321-7-2:2017, IEC 62321-8:2017, (EC)NO 1275/2008,EN50564:2011, (EC)NO 801/2013.

Complying with the requirements or provisions of Council Directives which relate to:

EMC Directive 2014/30/EU, RED Directive 2014/53/EU, LVD Directive 2014/35/EU, Directive (2011/65/EU) and its amendment directives 2015/863/EU (RoHS 2.0) of the, European parliament, ERP Directive 2009/125/EC.

All essential test suites have been carried out.

Point of Contact: Eddie Latham | Founder

Signed:

Date of Issue: January 2024

Place of Issue: Cambridge, UK

Importer's Addresses:

UK: iZilla Ltd, Newton House, 2 Pioneer Court, Histon, Cambridge, CB249PT

Email: [e-mail]

EU RP: AR Experts, Po Box 5047, 3620 AA Breukelen, The Netherlands

Email: [e-mail]

US: iZilla Ltd C/O A.N.Deringer Inc, 19520 Wilmington Ave, Rancho

Dominguez, CA, 90220

Email: [e-mail]
