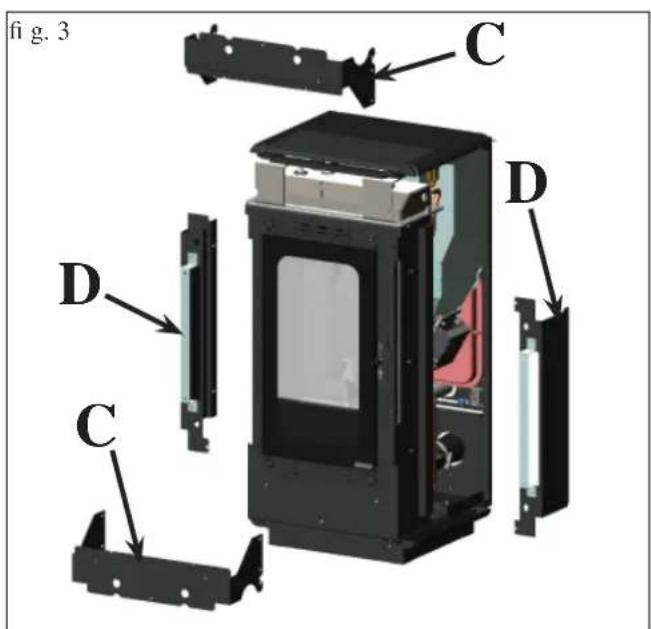

fig. 3 C D D C

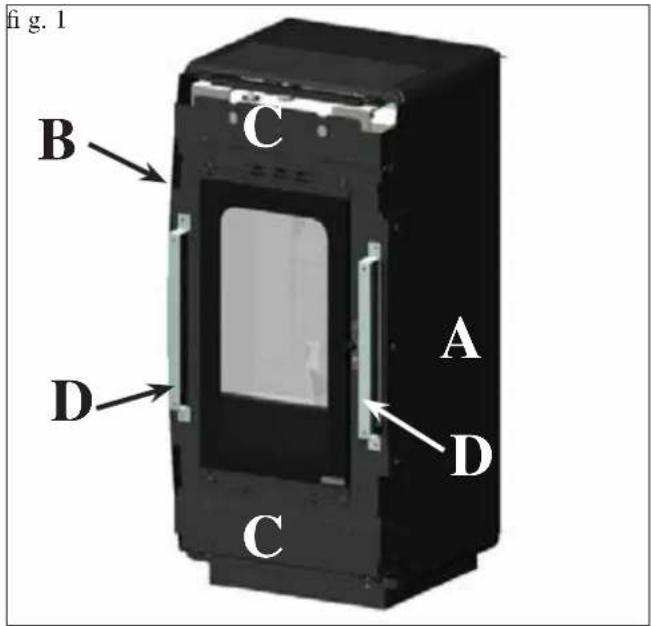

Fig. 1

Interior view of a device showing internal components and labeled sections A and B (no text or symbols on the device itself)

Fig. 8

3D model of a rectangular device with a yellow top and black side, showing a central screen (no text or symbols visible)

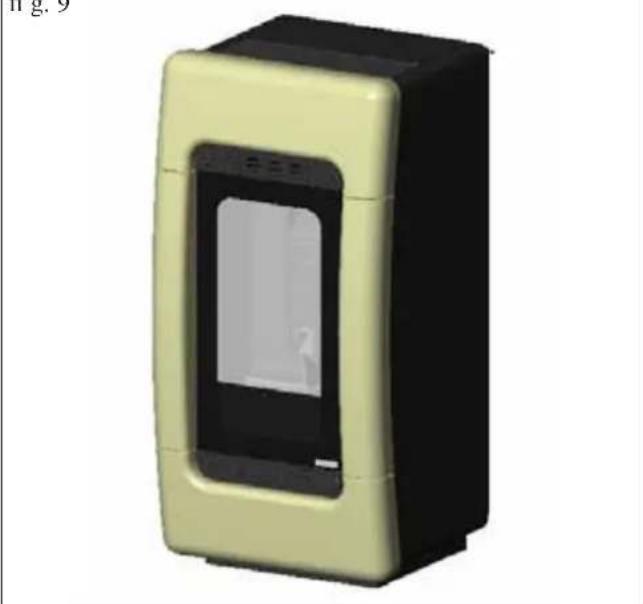

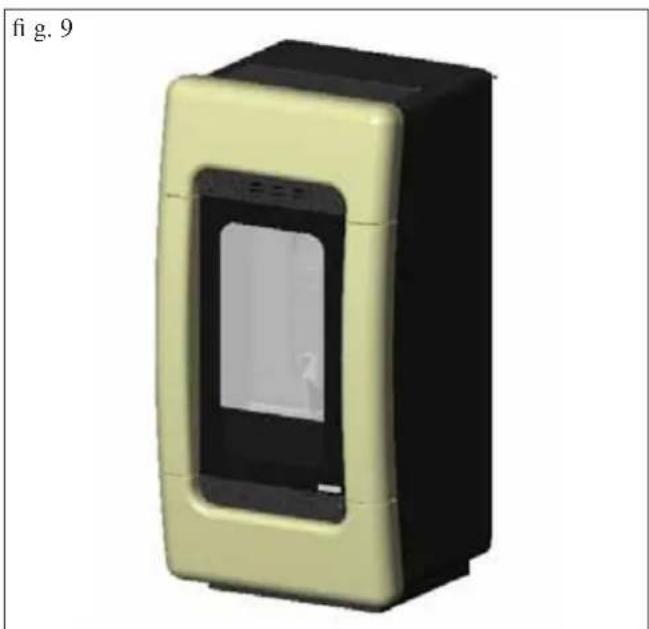

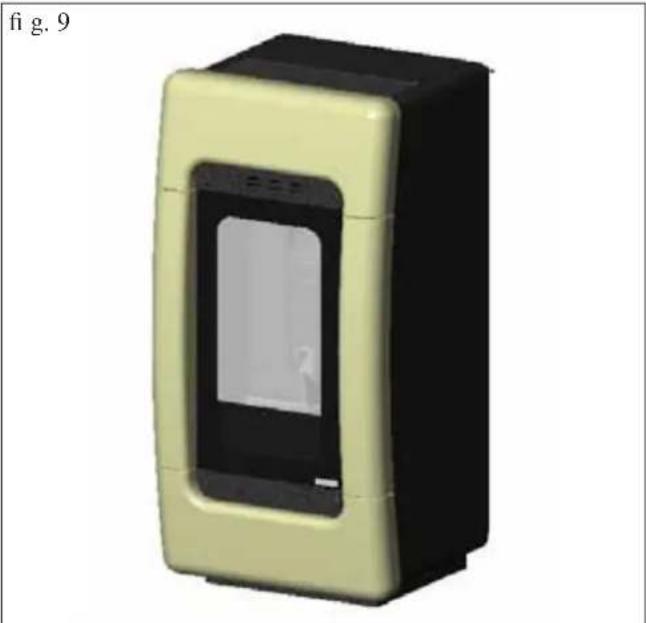

Fig. 9

Close-up of a red and black electronic device with a metallic top panel and a star-shaped symbol on the lid (no text or symbols visible)

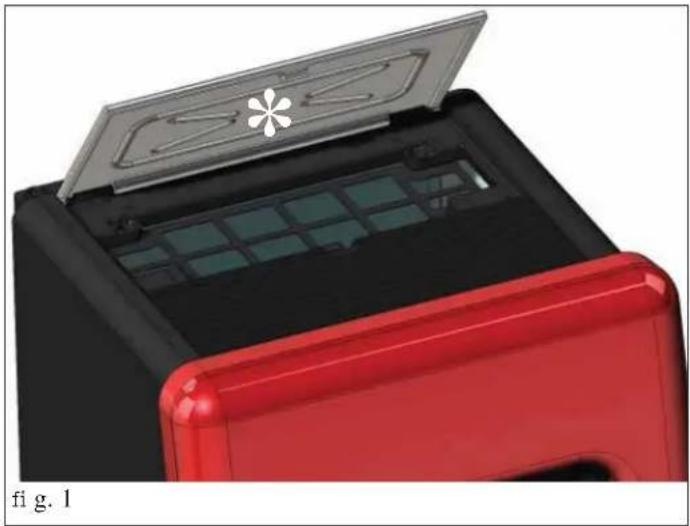

fig.1

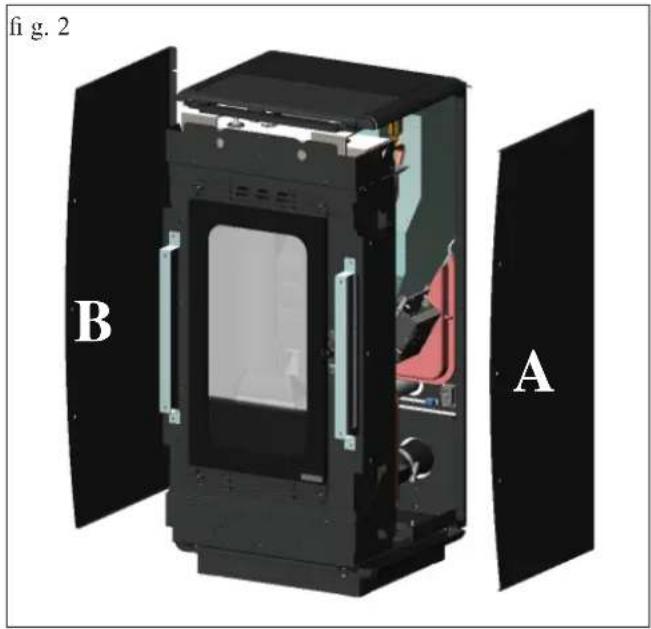

V fig. 2

Attenzione:

Black handheld electronic device with a digital display showing the number 254 (no text or symbols on the device body)

Technical diagram of a mechanical assembly with no visible text or symbols

3D architectural rendering of a cabinet or storage unit with labeled components (no text or symbols beyond label)

Close-up of a mechanical component with a numbered label '4' on the top surface (no other text or symbols visible)

SI

Close-up of a car interior with red dashed lines and the number 4 on the seat (no text or symbols beyond the number)

NO

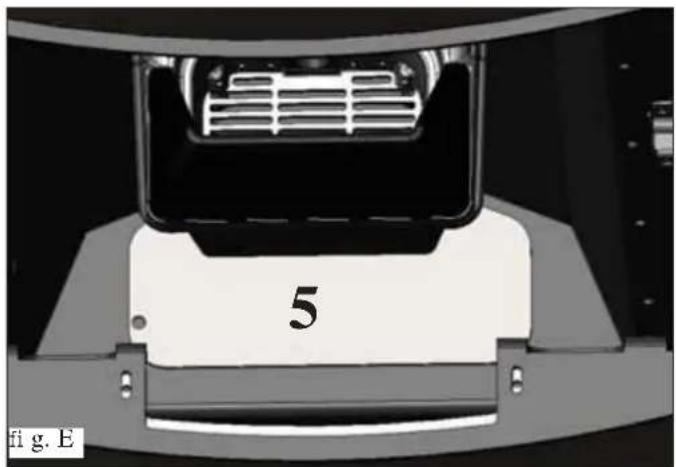

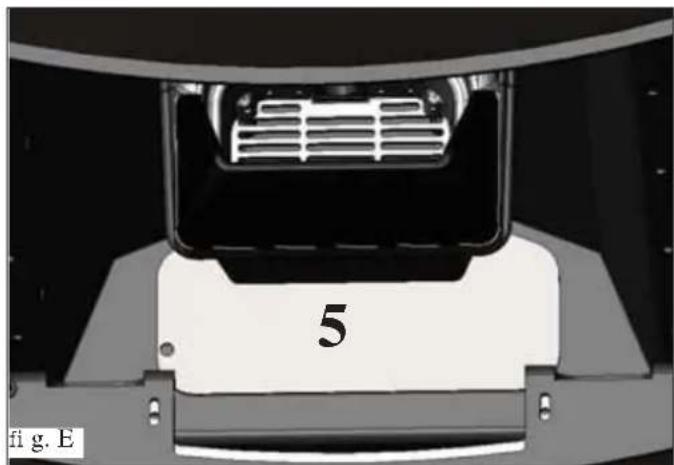

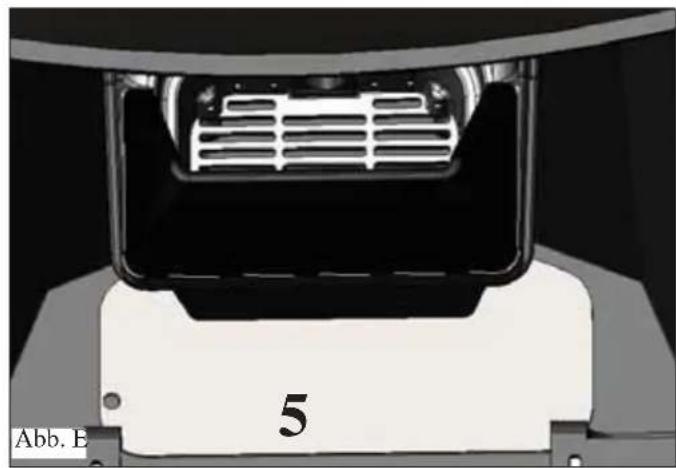

MANUTENZIONE

3D rendering of a yellow and black industrial machine with a labeled component '2' (no text or symbols beyond label)

Close-up of a mechanical component with a numbered label '5' on its side, no readable text or symbols beyond the number.

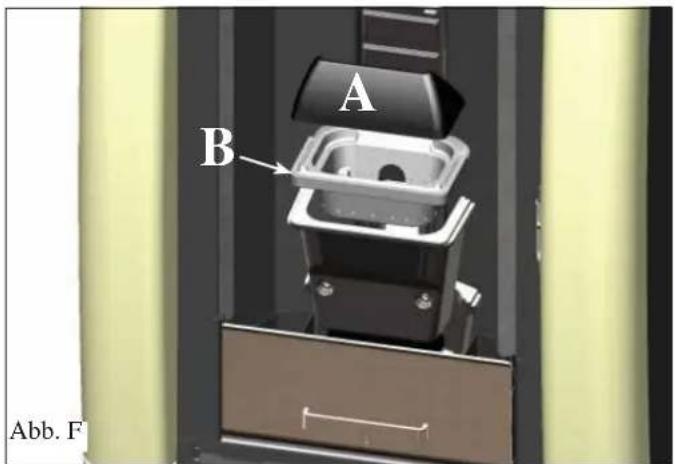

A B fig. F

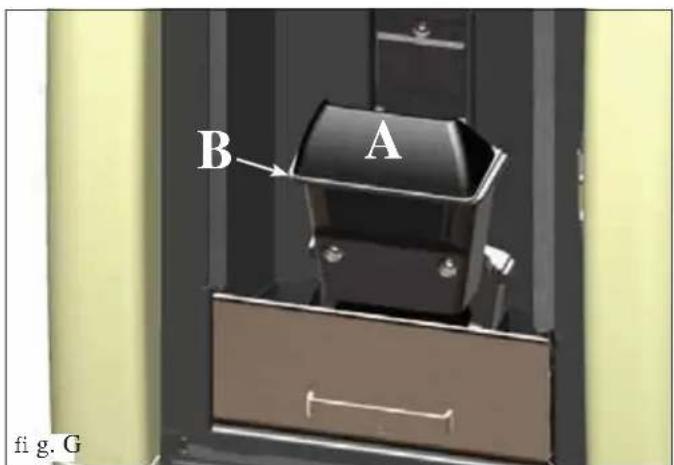

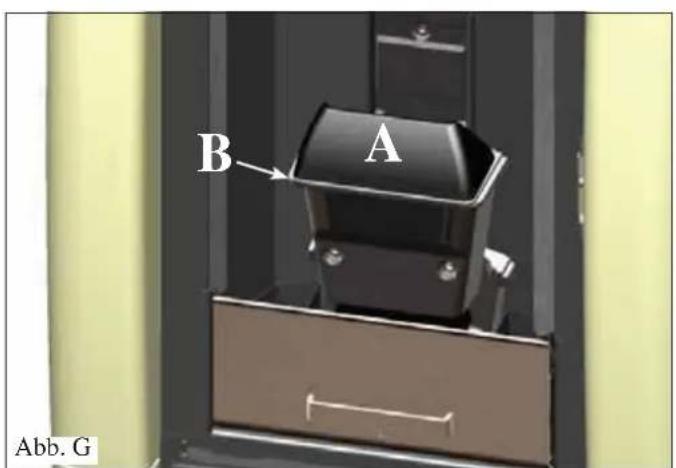

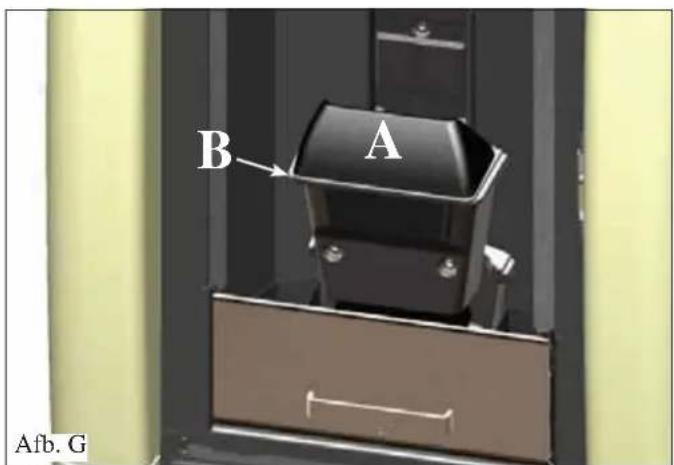

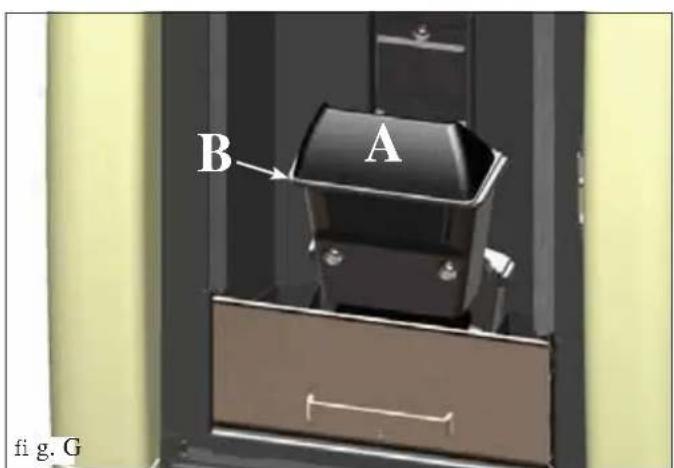

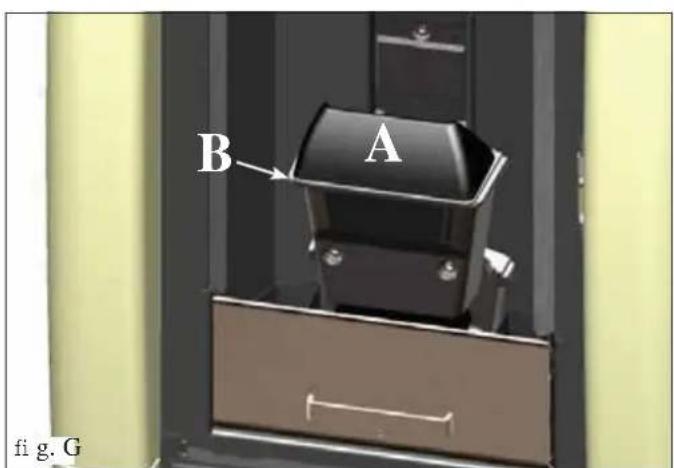

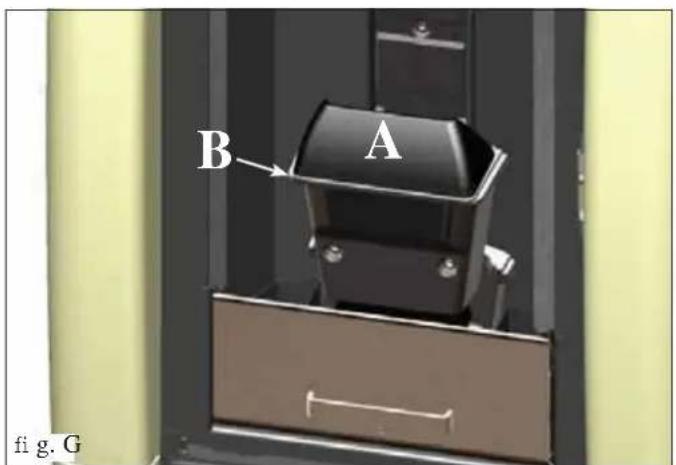

B A fig. G

CONSIGLI PER POSSIBILI INCONVENIENTI

Metallic cylindrical container with black hose, no visible text or symbols

Congratulations and thank you for choosing our product.

Please read this document carefully before you use this product in order to obtain the best performance in complete safety.

For further details or assistance, please contact the DEALER where you purchased the product or visit our website www.edilkamin.com. and click on DEALERS.

NOTE

- After having unpacked the boiler-stove, ensure that its contents are complete and intact (covering, remote control, “cold-hand” handle to open the inner door, guarantee booklet, glove, CD/technical data sheet, spatula, dehumidifying salt).

In case of anomalies please contact the dealer where you purchased the product immediately. You will need to present a copy of the warranty booklet and valid proof of purchase.

- Commissioning/ testing

Commissioning and testing must be performed by the DEALER. Failure to do so will void the warranty.

Commissioning, as specified in standard UNI 10683 consists in a series inspections to be performed with the boiler-stove installed in order to ascertain the correct operation of the system and its compliance to applicable regulations.

- Incorrect installation, incorrect maintenance, or improper use of the product, shall relieve the manufacturer from any damage resulting from the use of this product.

- the proof of purchase tag, necessary for identifying the boiler-stove, is located:

-on the top of the package

- in the warranty booklet found inside the fi rebox

- on the ID plate affixed to the back side of the unit;

This documentation must be saved for identification together with the valid proof of purchase receipt. The data contained therein must be reported when requesting information and made available should servicing be required;

- All images are for illustration purposes only; actual products may vary.

The undersigned EDILKAMIN S.p.a. with head office headquarters at Via Vincenzo Monti 47 - 20123 Milan - Italy - VAT IT00192220192

Declares under its own responsibility as follows:

The pellet Boiler-stoves illustrated below conforms to Regulation EU 305/2011 (CPR) and to the harmonised European Standard EN 14785:2006

WOOD PELLET BOILER-STOVES, trademark EDILKAMIN, called MEG PIU'

Year of manufacture: Ref. Data nameplate

Declaration of performance (DoP - EK 123): Ref. data tag plate

In addition, it is hereby declared that:

The wood pellet Boiler-stoves MEG PIU' is in compliance with the requirements of the European directives:

2006/95/EC - Low voltage directive

2004/108/EC - Electromagnetic compatibility directive

EDILKAMIN S.p.a. will decline all responsibility of malfunctioning or damage to the equipment in case of unauthorized substitution, assembly or modifications of any sort on the said equipment on the part of non-EDILKAMIN personnel.

SAFETY INFORMATION

THE BOILER-STOVE MUST NEVER BE MADE TO OPERATE WITHOUT WATER IN THE SYSTEM.

IT CAN BE DAMAGED IF IT IS IGNITED WITH NO WATER IN THE SYSTEM.

MUST BE MADE WITH A PRESSURE OF ABOUT 1.5 BAR.

• The boiler-stove is designed to heat water by means of automatic combustion of pellets in the hearth.
• The appliance is not designed to be used by people, including children, with reduced physical, sensorial or mental abilities. Children must be supervised to ensure they do not play with the appliance.
• The main risks that may derive from using the boiler-stove pertain to non-compliance with installation instructions, direct contact with live electrical parts (internal), contact with the fire or hot parts (glass, pipes, hot air output), when extraneous substances or non-recommended fuel are introduced, or due to incorrect maintenance or by repeatedly pressing the ignition button without having emptied the crucible.
• Should components fail, the boiler-stove is equipped with safety devices to guarantee its automatic shutdown. These are activated without any intervention required.
• In order to function correctly, the boiler must be installed in accordance with the instructions given herein and the door must not be opened during operation: combustion is fully automatic and requires no intervention.
• Only use certified, high quality, 6 mm diameter wooden pellets for fuel.
• Under no circumstances should any foreign substances be put into the hearth or the hopper.
• Do not use fl ammable products to clean the smoke channel (the flue section connecting the boiler-stove smoke outlet to the chimney fl ue).
• Do not clean when hot.
• Hearth and hopper components must only be cleaned with a vacuum cleaner.

• The glass can be cleaned when COLD with a suitable product and a cloth.

• The boiler-stove must not function if the door is open, if the glass is broken or if the pellet-loading port is open.

• It must not be used as a step ladder or a base on which to rest any object.
• Do not lay laundry directly on the boiler-stove to dry. Any clothes horse or similar must be placed at a safe distance from the boiler-stove (danger of fire).
• Make sure the boiler-stove is installed and ignited the first time by Edilkamin-qualified CAT personnel (technical assistance centre) in accordance with the instructions provided here within; this is an essential requirement for the validation of the guarantee.
• Whilst the boiler-stove is in operation, the exhaust pipes and door become very hot (do not touch without using the right gloves).
• Do not place anything, which is not heat resistant near the boiler-stove.
• NEVER use liquid fuel to ignite the boiler-stove or rekindle the embers.
• Do not obstruct the ventilation apertures in the room where the boiler-stove is installed, nor the air inlets of the boiler-stove itself.

Do not wet the boiler-stove and do not go near electrical parts with wet hands.

• Do not use reducers on the smoke exhaust pipes.
• The boiler-stove must be installed in a room that is suitable for fire prevention and equipped with all that is required (power and air supply and outlets) for the boiler-stove to function correctly and safely.
• The boiler-stove must be kept in a room where the temperature is above 0^ .
• Use appropriate anti-freeze additives for the water of the system.
• In the event that the water used for filling and topping up has a hardness greater than 35^ , use a water softener. For suggestions please refer to regulation UNI 8065-1989 (Water Treatment In Heating Systems For Civil Use).
• SHOULD IGNITION FAIL, DO NOT RE-IGNITE UNTIL YOU HAVE EMPTIED THE COMBUSTION CHAMBER.

FEATURES

The boiler-stove is fuelled by pellets. These are little, cylindrical shapes of pressed wood whose combustion is controlled electronically.

The boiler stove can heat water for supplying the heating system (radiators, heated towel rails, radiant floor heating system) through optional kits and, in addition, produces hot air through a fan for heating the installation room.

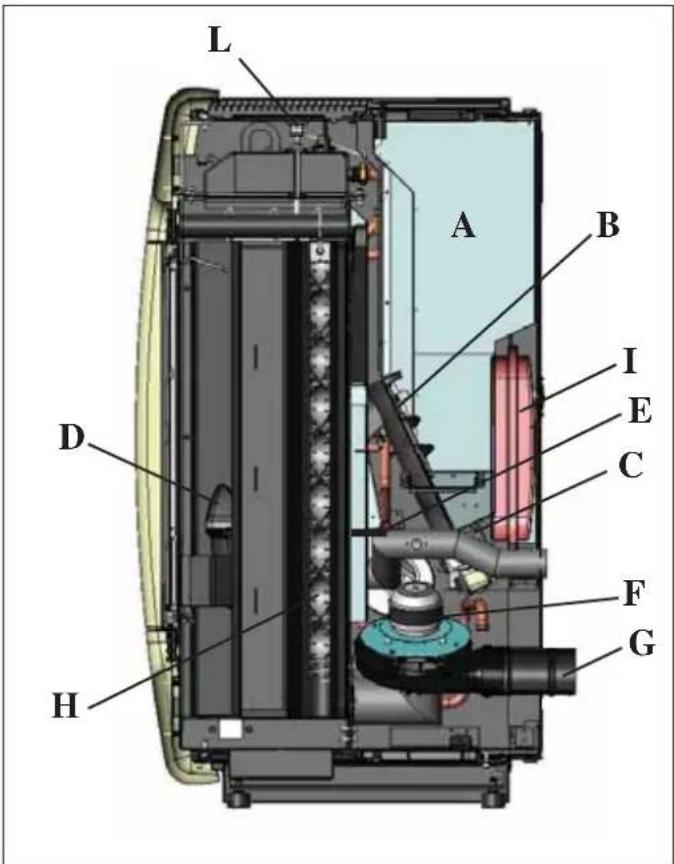

The fuel tank (A) is located at the rear of the boiler-stove. Filling the tank is through the back of the lid at the rear of the top. The fuel (pellets) is taken from the storage tank (A) and, via an Archimedes' screw (B) activated by a gear motor (C) it is then transported to the combustion crucible (D).

The ignition of the pellet is via air heated by an electrical heating element (E) and is sucked into the crucible by a smoke extractor (F).

The combustion air is drawn into the room (where there must be an air intake) smoke extractor (F).

The smoke produced by combustion, is extracted from the boiler-stove through the smoke extractor (F), and expelled from the pipe union (G) located in the bottom portion of the rear of the boiler-stove.

The ash falls under and beside the crucible in which is housed an ash tray from which the ash must be periodically removed by vacuuming when cool.

The boiler stove is designed for operating with a closed expansion vessel (I).

Fuel quantity, smoke extraction/combustion air supply and pump activation are regulated by the control board which is equipped with Leonardo® software to achieve high combustion efficiency and low emissions.

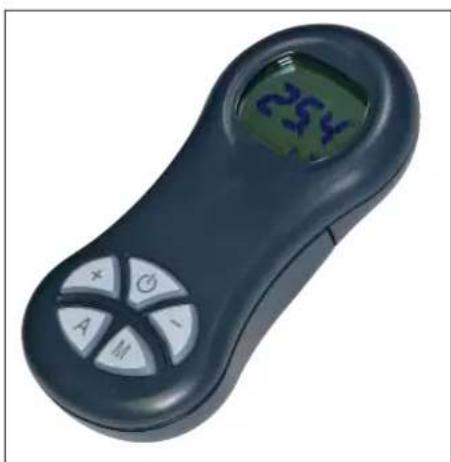

The main functioning phases are managed by remote control, and there is also a simplified on/off key (page 37).

The exchanger tubes are cleaned by means of tube-cleaners (H) manoeuvred with a handle (L).

Aserial port is found at the back of the boiler-stove (optional cable: code 640560) to be connected to devices that allow remote ignition (e.g. remote telephone, local thermostat).

Operating modes

(for further details, please see page 35)

The temperature of the water required in the system is set via the panel (standard recommendation 70^ C) and the boiler manually or automatically modulates the power to maintain or reach this temperature.

The Eco function can be enabled in small systems (the boiler shuts down and goes on again according to the water temperature required).

L A B D I E C F G H

FEATURES

• ELECTRONIC CIRCUIT BOARD

LEONARDO ^® is a combustion safety and control system which allows optimal performance in all conditions thanks to two sensors measuring the pressure level in the combustion chamber and smoke temperature.

The detection of and subsequent optimisation of these two parameters is continuous in order to correct operation anomalies in real time.

The LEONARDO® system offers constant combustion, automatically regulating the draft based on the characteristics of the chimney flue (bends, length, shape, diameter, etc.) and environmental conditions (wind, humidity, atmospheric pressure, installations at high altitude, etc.).

The standards for installation must be respected. LEONARDO ^® system is also able to recognise the type of pellets and automatically djust the flow moment by moment to ensure the required level of combustion.

sistema® LEONARDO ΓΕΟΙΛΒΔΟ

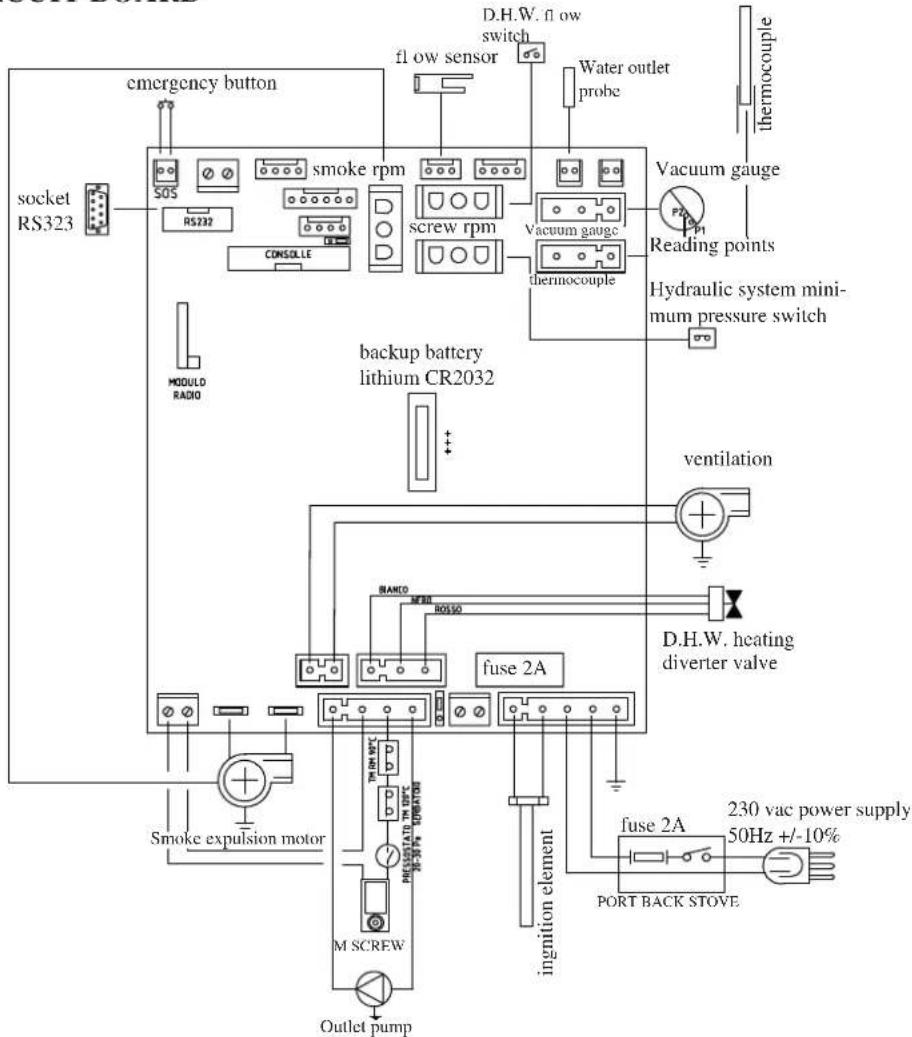

• ELECTRONIC CIRCUIT BOARD

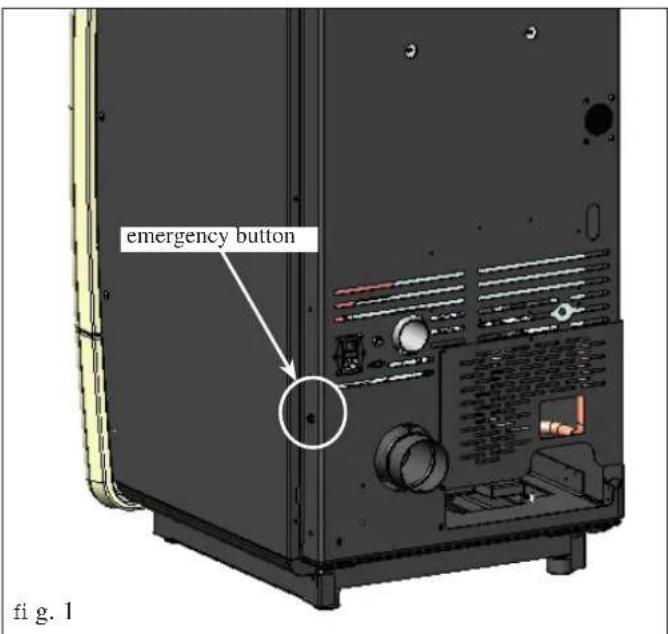

emergency button SOS RS232 smoke rpm flow sensor D.H.W. flow switch Water outlet probe thermocouple vacuum gauge P0 P1 Reading points hydraulic system mini- mum pressure switch MODULE RADIO backup battery lithium CR2032 ventilation D.H.W. heating diverter valve SMOKE EXPULSION MOTOR M SCREW fuse 2A ingmition element fuse 2A 230 vac power supply 50Hz +/-10% PORT BACK STOVE outlet pump

SERIAL PORT

The Dealer can install an optional on the AUX outlet for controlling the process of switching on and off (e.g. telephone remote, local thermostat), located at the rear oh the boiler-stove. Can be connected via special optional trestle (code 640560).

BACKUP BATTERY

A backup battery is found on the control board (3-Volt CR 2032 battery). Its malfunction is indicated with the following messages (not considered a defect but due to normal wear-and-tear): "Battery check". For more detailed information, please contact the DEALER who has performed the first 1st ignition.

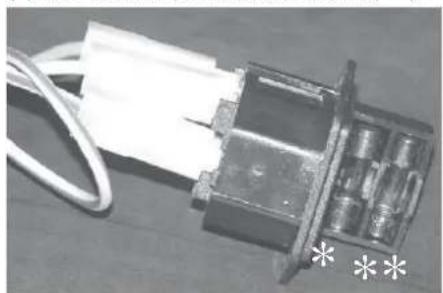

FUSE two fuses are inserted in the socket with switch, located on the back of the boiler-stove, one of which operational (*) and the other is held in reserve (* *).

Close-up of a metallic electrical connector with wires and connectors (no visible text or symbols)

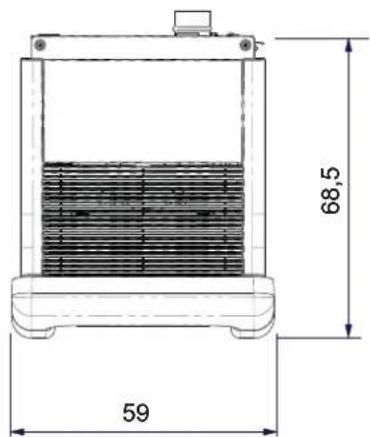

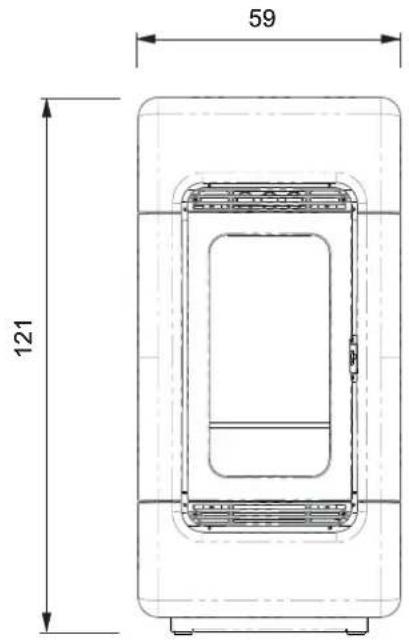

DIMENSIONS AND FINISHINGS

THE STOVE IS AVAILABLE WITH CERAMIC FRONT IN THREE DIFFERENT COLOURS

• cream ceramic
• parchment ceramic
• burgundy ceramic

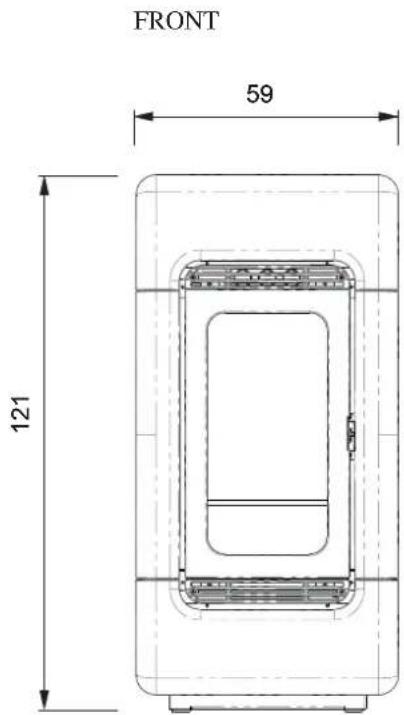

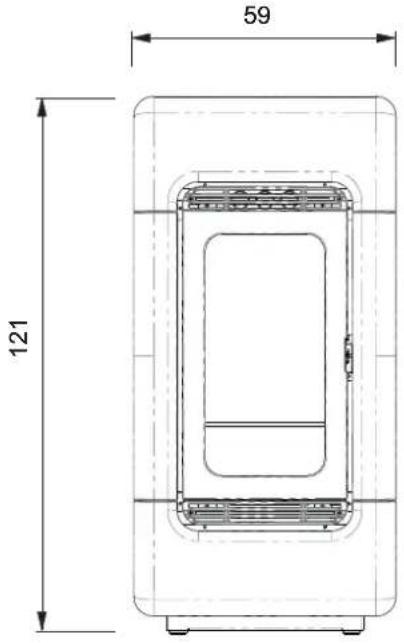

FRONT 59 121

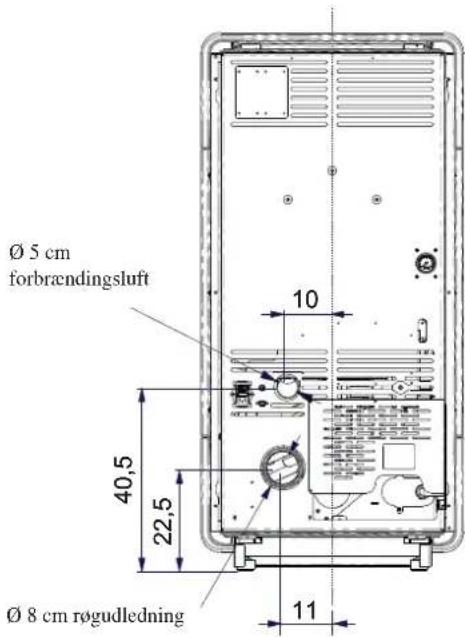

BACK Combustion air Ø 50 mm 10 40,5 22,5 Ø 8 cm Ø 80 mm 11 Sugorita/umi

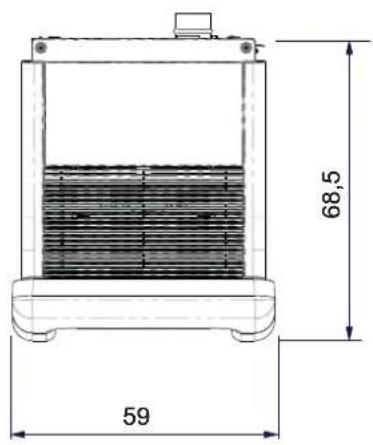

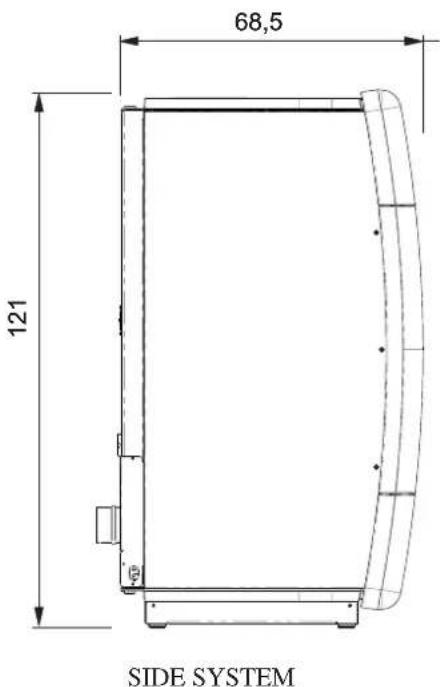

68,5 121 SIDE SYSTEM

68,5 59

CHARACTERISTICS

THERMO TECHNICAL CHARACTERISTICS according to EN 14785

	Nominal power Reduced power
Heat input (burnt)	33 9,5	kW
Heat output 30 9 kW
Thermal power transferred to the water	25 6,5	kW
Thermal power transferred to the environment	5	2,5	kW
Yield / Efficiency	92,2	94,2	%
Emissions CO 13% O_2	0,006	0,049	%
Fume temperature	137 76 °C
Fuel consumption	6,8	2	kg/h
Minimum draught	12 - 5	10 - 3	Pa
Hopper capacity	40		kg
Water content	35		Litres
Maximum operating pressure of the water	1,5		bar
Maximum operating temperature of the water 80	°C
Autonomy	5 19	hours
Heatable volume *	780		m^3
Smoke outlet pipe diameter (male)	80		mm
Air intake pipe diameter (male)	50		mm
Weight including packaging	342		kg

TECHNICAL DATA FOR THE DIMENSIONING OF THE FLUE

	Nominal power Reduced power
Heat output 30 9 kW
Temperature of fumes on exit from the discharge pipe 165 91 °C
Minimum draught	3 - 5		Pa
Fume flow capacity	21	9,4	g/s

* The heatable room dimensions are calculated on the basis of home insulation in compliance with Italian law 10/91, and subsequent changes together with an expected heat output of 33Kcal / m^3 per hour.

CARATTERISTICHE ELETTRICHE

Power supply 230Vac +/- 10% 50 Hz
On/off switch si
Average power consumption 120 -150 W
Power consumption during ignition 320 W
Remote control frequency	Radio waves 2,4 GHz
Protection on mains power supply T2A, 250 Vac, 5x20 Fuse
Protection on electronic circuit board T2A, 250 Vac, 5x20 Fuse

N.B.
1) keep in mind that external devices can cause interference to the operation of the circuit board.
2) warning: activity on live components, maintenance and/or checks must be carried out by qualified personnel.
(before carrying out any maintenance, disconnect the appliance from the mains electricity)

The above data are indicative and are those resulting during certification on the part of the notified body.

EDILKAMIN s.p.a. reserves the right to change the products at its discretion without notice.

FEATURES

• COMPONENTS - SAFETY AND DETECTION DEVICES

Smoke thermocouple

on the smoke outlet. It reads the smoke temperature. It regulates the ignition stage and shuts the boiler-fireplace down if the temperature is too high or too low.

Flow sensor

located in the extraction duct, is activated and shuts down the thermo stove when the flow of combustion air is incorrect, which means a resulting risk of low pressure problems in the smoke circuit.

Feed Screw safety thermostat

Placed near the pellet hopper. It disconnects the electrical supply to the gear motor if the temperature detected is too high.

Water temperature detector

It reads the water temperature in the boiler and sends the circuit board information for pump management and boiler power modulation.

If the temperature is too high, it starts a shutdown.

Water overheating safety thermostat

detects the water temperature in the thermo-stoves. If this is too high, it triggers the shutdown process by disconnecting the electrical supply to the gear motor. If the thermostat has triggered a reaction, it must be reset by means of the red emergency button at the back of the stove (A - fi g. 1).

Electric coil

It sets off of the combustion of the pellets and it remains lit until the flame has been ignited. This component is subject to wear.

Pressure switch

Positioned in the fume-aspiration area, it is triggered in the case of a depression in the fumes circuit (e.g. obstructed flue) and interrupts the movement of the pellets. It blocks pellet loading causing the stove to go out.

Vacuum gauge (electronic pressure sensor):

positioned on the smoke extractor, which detects the vacuum value (compared to the installation environment) in the combustion chamber.

Tank safety thermostat:

Located on the system that loads the pellets from the hopper. Trips when the temperature inside the boiler-stove is too high. It stops pellet loading, causing the boiler-stove to go out.

Closed expansion tank

“absorbs” the variations in the volume of water contained inside the boiler-stove due to the heating effect.

Aheating technician must evaluate the need to add a second tank to the existing one, depending on total amount of water in the system.

Gear motor

This activates the screw allowing the transport of the pellets from the hopper to the chamber.

Manometer

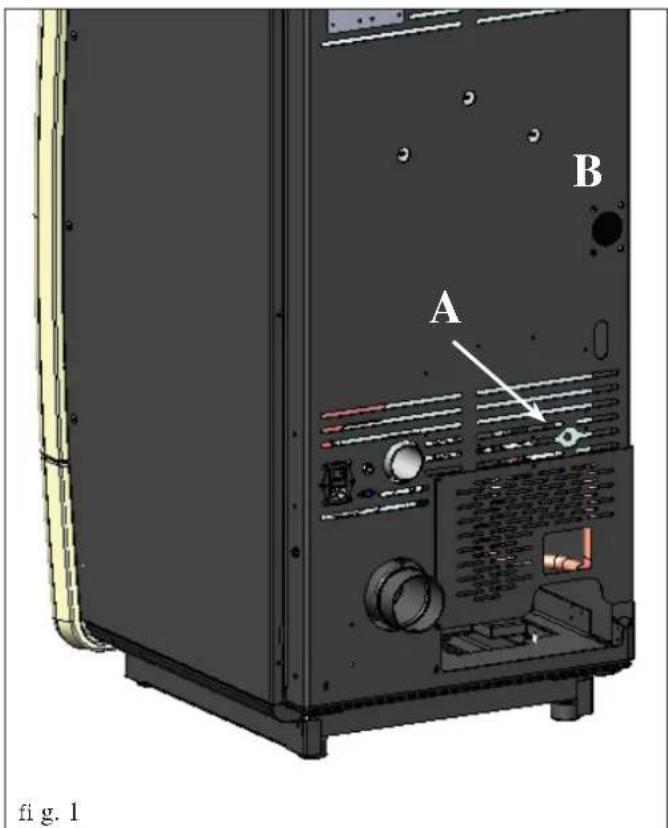

Positioned on the back of the thermo stove (B -fi g. 1), it allows water pressure to be read. When the thermo stove is running, the recommended pressure is 1,5 bar.

Venting valve

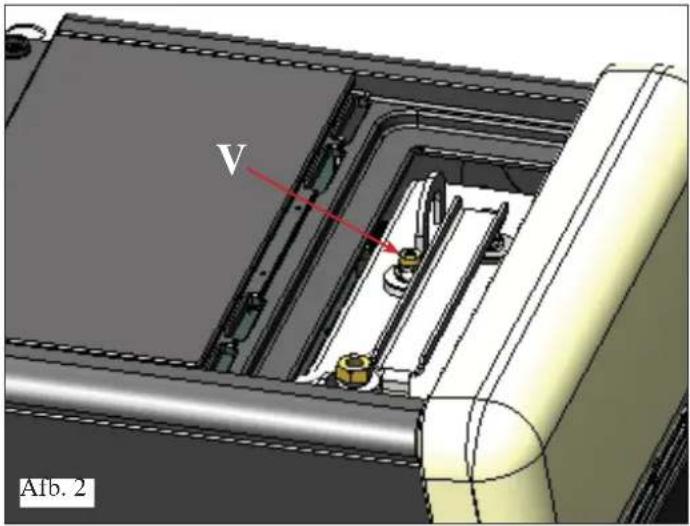

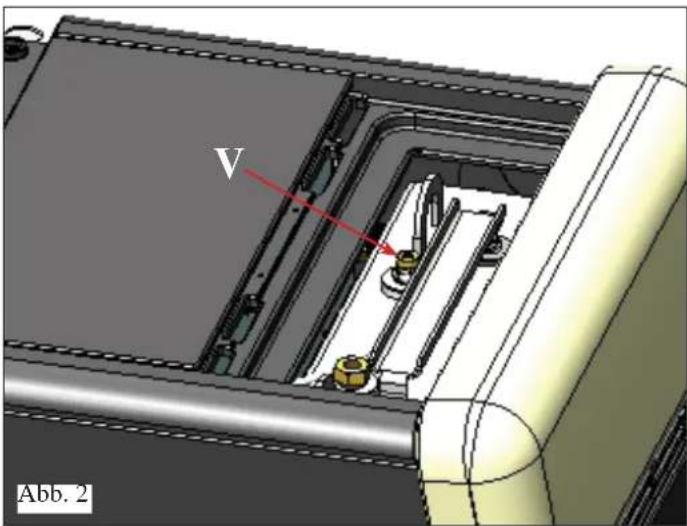

Positioned in the upper part under the front-top grill (see page 36 fig. 2), it allows for any air present during the loading of the water into the stove to be bled off.

Water pressure switch

Situated on the hydraulic circuit, it cuts in to block the boiler when the system pressure is low.

Check there are no leaks and re-establish the correct system pressure by adding water from the dedicated circuit

B A fig. 1

N.B.:

IF THE BOILER-STOVE BLOCKS, THE REASON WILL APPEAR ON THE DISPLAY AND THIS WILL BE SAVED.

INSTALLATION

The plumbing connection must be formed by qualified personnel that are able to issue a declaration of conformity in terms of Ministerial Decree 37 ex Law 46/90.

All local and national laws and European standards must be met when installing and using the appliance. In Italy, refer to the UNI 10683 standard, as well as any regional or local health-authority regulations.

It is necessary to refer to regulations in force in each country. If installing in an apartment building, check with the management company first.

VERIFY COMPATIBILITY WITH OTHER DEVICES

In Italy the boiler-stove MUST NOT be installed in the same space as type B gas heating equipment (e.g. gas boilers, stoves, and equipment served by an extraction hood) as the stove may cause a vacuum in the space which may compromise or influence how these units work.

VERIFYTHE POWER SUPPLY

CONNECTION (the plug must be accessible)

The boiler-stove is supplied with a power cable that is to be connected to a 230V 50 Hz socket, preferably fitted with a magnetothermic switch.

The electrical system must comply with the law; particularly verify the efficiency of the earthing system.

The power line must have a suitable cross-section for the boiler power.

An inadequate earthing system can cause anomalies for which Edilkamin cannot be held liable.

FIRE SAFETY DISTANCES AND LOCATION

For correct operation the boiler-stove must be level.

Check the load-bearing capacity of the floor.

The boiler-stove must be installed in compliance with the following safety conditions:

- flammability items must be kept at a minimum distance of 10 cm from the sides and back of the boiler-stove

- highly fl ammable items must be kept at a minimum distance of 80 cm if placed in front of the boiler-stove

- if the boiler-stove is installed on a flammable floor, a sheet of heat insulating material must be placed between the boiler-stove and the floor, which protrudes by at least 20 cm at the sides and 40 cm at the front.

Flammable objects must not be placed above the boiler-stove or at a distance that is any less than the stipulated safety distances. If connected to wooden walls or other fl ammable materials, the smoke exhaust pipe must be appropriately insulated with ceramic fi bre or other similar material.

AIR INLET (to be mandatorily implemented)

The room where the boiler-stove is located must have an air intake with cross section of at least 80cm^2 to ensure replenishment of the air consumed by combustion.

Alternatively, the boiler-stove air may be taken directly from outside through a 5 cm steel extension of the pipe. In this case, there may be condensation problems and it is necessary to protect the air intake with a grille, which must have a free-section of at least 12 cm ^2 . The pipe must be less than 1 metre long and have no bends. It must end with section at 90° facing downwards or be fitted with a wind guard. In any case all the way air intake duct must be a free section of at least 12 cm ^2 .

The external terminal of the air inlet channel must be protected with an anti-insect netting that does not reduce the 12 cm^2 through passage.

SMOKE OUTLET

The boiler-stove must have its own smoke outlet (the smoke cannot be discharged into a smoke fl ue used by other devices).

In Germany, discharge can be by multiple flue with explicit verification on the part of a chimney-sweep.

The smoke is discharged through the 8 cm diameter outlet at the back of the boiler-stove. A T-junction must be set up with a condensation collection stopper at the beginning of the vertical section. The smoke outlet must be connected to outside by means of suitable steel pipes EN 1856 certifi ed.

All piping must be hermetically sealed and, if necessary, insulated.

To seal the various elements of the piping together, materials resistant to high temperatures must be used (silicon or mastics for high temperatures).

The pipe must be hermetically sealed. The material used to seal and if necessary insulate the pipes, must be resistant to high temperatures (high temperature silicone or mastic).

The only horizontal section allowed may be up to 2 m long. It may have up to three 90° bends.

If the outlet is not fitted into a chimney flue, a vertical section and a wind guard are required (reference UNI 10683).

The vertical duct can be internal or external.

If the smoke channel (part of the pipe that goes from the boiler-stove to the chimney flue) is outside, it must be appropriately insulated. If the smoke channel is fitted inside a chimney flue, the latter must be suitable for solid fuel.

If it is wider than 150 mm in diameter it must be improved by entering a pipe that has a suitable cross-section and is made of suitable material (e.g. 80 mm diameter steel).

All sections of the smoke duct must be accessible for inspection. If it is not removable, it must have inspection holes to allow for cleaning.

The boiler-stove is designed to operate under any weather conditions.

In the case of particular conditions, such as strong winds, safety systems may intervene that extinguish the thermo stove. In this case, do not operate the appliance while the safety devices are disabled. If the problem persists, contact the Service Centre.

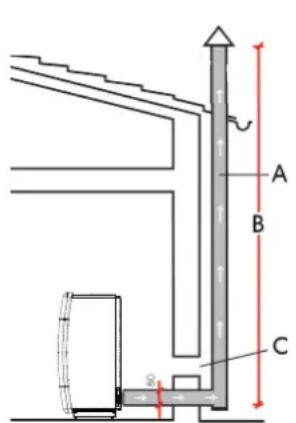

TYPICAL EXAMPLES
Fig. 1
Fig.

Technical diagram showing a structural component with labeled parts A, B, and C, including dimension lines and annotations.

D E

A: insulated steel chimney flu, Insulated
B: minimum height 1.5 m, and however beyond the eaves of the roof C-E: air intake from outside (through section at least 80 cm²)
D: steel chimney flue inside existing masonry chimney flue

CHIMNEY POT

The main characteristics are:

• an internal cross-section at the base, which is the same as that of the chimney fl ue
• an outlet cross-section which is no smaller than twice that of the chimney fl ue
• its position must be high enough to catch the wind and avoid downdraft areas in turbulent wind..

COVERING INSTALLATION

fig. 1 B C A D D C

3D cutaway view of a mechanical device with labeled sections A and B, showing internal components and no visible text or symbols.

fig. 3 C D D C

Fig. 1

The stove is delivered (fig. 1) with metallic sides (A-B) and the metallic brackets for fixing the vertical elements and with the ceramic front elements (C-D) already fitted.

The pieces indicated below are packaged separately.

• 2 ceramic side elements (E - fi g. 7)
• 2 ceramic horizontal elements (E - fi g. 7)
• 10 milled pins M4
- 10 washers

For fitting proceed as follows:

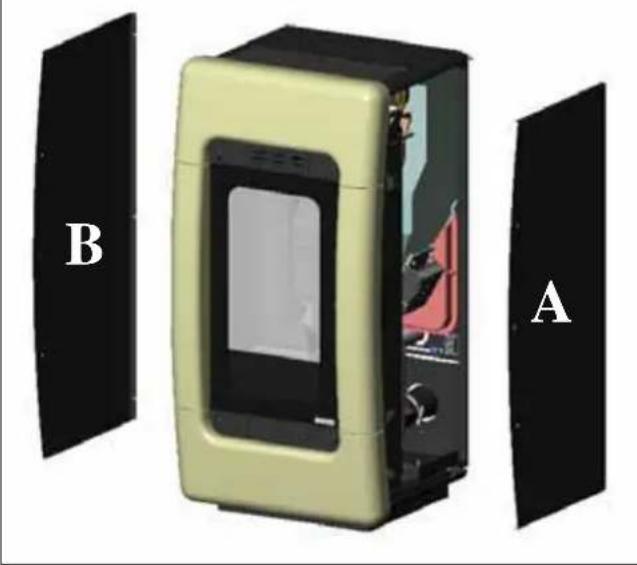

Fig. 2

Remove the two metallic sides from the stove (A-B)

Fig. 3

Remove from the stove the metallic brackets (C-D) for fixing the vertical and horizontal ceramic elements

COVERING INSTALLATION

fig. 4 F C

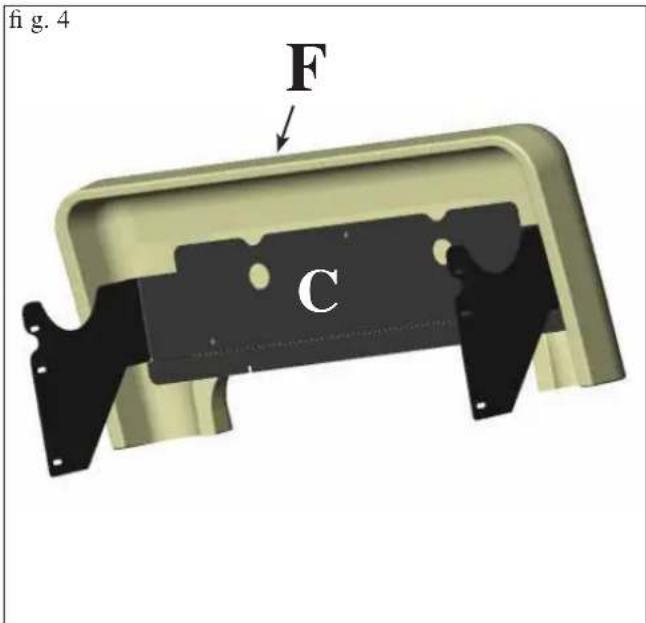

Fig. 4

Fit the metallic fixing brackets (C) onto the back of the horizontal ceramic elements using the holes and the milled M4 pins provided.

fig. 5 D E

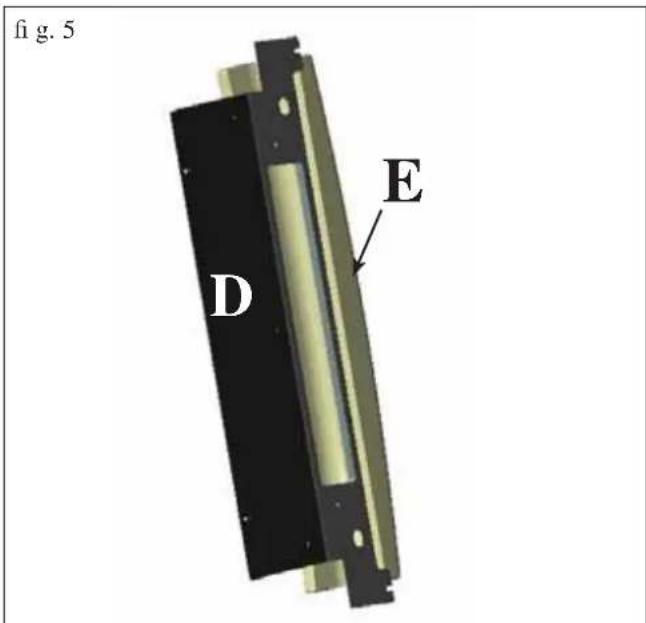

Fig. 5

Fit the metallic fixing brackets (D) onto the back of the vertical ceramic elements using the holes and the milled M4 pins provided.

fig. 6 F C D E C D E

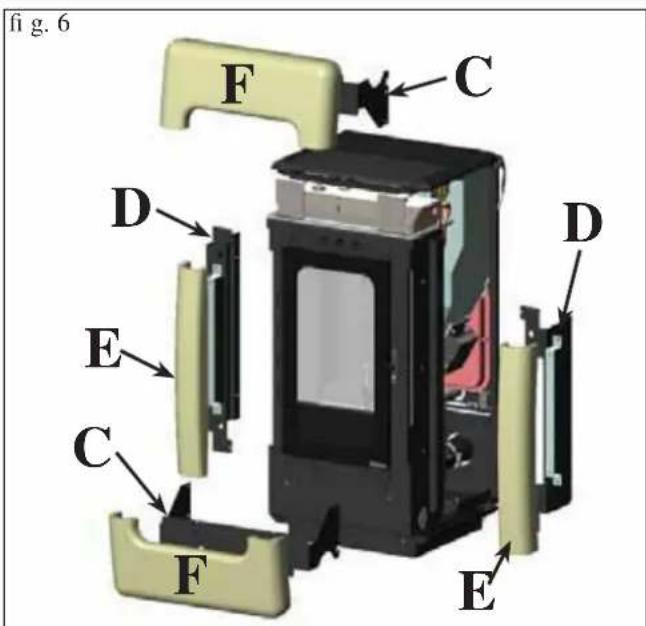

Fig. 6

Fit onto the structure the vertical and horizontal elements (F, E) complete with the metallic brackets (C, D) previously removed from the stove.

COVERING INSTALLATION

fig.7

F 1 2 E E 3 4 F F 10 9 5 E E 6 8 7

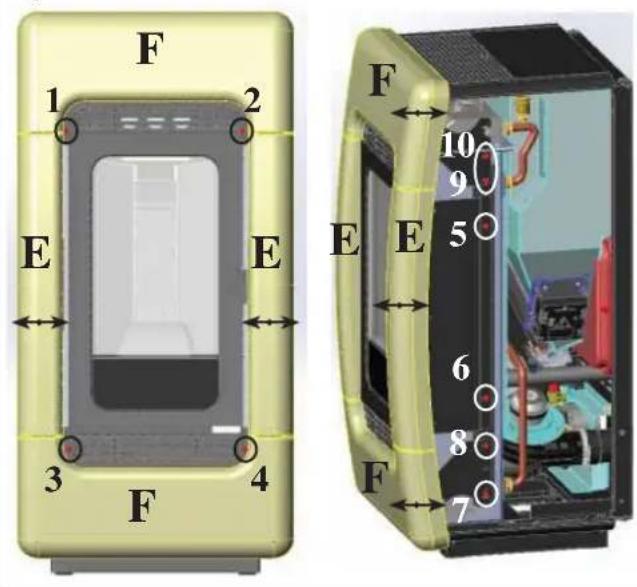

Fig. 7

After fitting the elements E and F onto the stove, they must be adjusted so that they are aligned with each other, proceeding as follows:

• Align the vertical ceramic elements (E) horizontally by means of the screws 1-2-3-4.
• Align the curve of the vertical ceramic elements (E) by means of the screws 5-6.
• Align the curve of the horizontal ceramic elements (F) by means of the screws 7-8-9-10.

fig. 8

Interior view of a device showing internal components and labeled sections A and B (no text or symbols on the device itself)

Fig. 8

Replace the metallic sides (A and B) previously removed from the stove.

fig. 9

3D rendered image of a yellow and black rectangular device with a central glass window (no text or symbols visible)

Fig. 9

The figure shows the stove completely assembled.

ATTENTION:

CHECK THAT WHEN THE DOOR IS OPENED IT DOES NOT COME INTO CONTACT WITH THE VER-TICAL CERAMIC ELEMENTS.

INSTRUCTIONS FOR USE

1st ignition/test by the Edilkamin authorised Dealer

Commissioning must be done as laid down in the UNI 10683. This standard indicates the control operations to be carried out in situ, aimed at ascertaining correct system function.

Edilkamin's Technical Assistance staff (CAT) will also calibrate the boiler-stove based on the pellet type used and the installation conditions (e.g. features of the fl ue).

Edilkamin's Technical Assistance staff (CAT) must commission the boiler in order for the guarantee to be activated.

The DEALER must also:

- Verify that the hydraulic system is correctly installed and is equipped with an expansion tank that is sufficiently large to guarantee safety.

The presence of a tank within the boiler-stove does NOT guarantee appropriate protection from thermal expansion occurring in the whole system.

Therefore the installer must assess whether an additional expansion tank is needed, depending on the type of system installed.

• Connect the electrical power to the boiler and implement a cold test (to be carried out by the DEALER).
• Fill the system using the filling tap (it is recommended not to exceed a pressure of 1.5 bar).
  When filling, 'bleed' the pump and the relief tap.

There may be a slight smell of paint the first few times it is ignited, however, this will disappear quickly.

Before igniting you must check:

• that installation is correct
• the power supply
• that the door closes properly to a perfect seal
• that the combustion chamber is clean
- that the display is on stand-by (time and temperature set).

FILLING THE PELLET HOPPER

the hopper lid opens and closes with a practical click-clack system. simply apply slight pressure to the front part of the cast iron lid ^* (fi g. 1).

ATTENTION:

Use the glove supplied when filling the stove whilst it is running and therefore is hot.

3D rendering of a red and black device with a metallic lid and star-shaped symbol on top (no text or symbols)

V fig. 2

ATTENTION:

The first time the stove is lit, the air/water bleeding operation must be carried out by means of the small manual valve (See - fi g. 2) positioned below the front-top grill.

The operation must be repeated during the first days of use and in the event the plant has only been partially reloaded.

The presence of air in the ducts does not allow for proper operation.

The valve is provided with a small rubber tub-e to facilitate bleeding operations.

NOTE regarding the fuel.

Boiler-stove is designed and programmed to burn wood pellets with 6 mm diameter. Pellets are a type of fuel in the form of little cylinders, made from compacted sawdust, compressed under high pressure with no adhesives or foreign materials. They are sold in bags of 15 kg.

For the boiler to function properly, you MUST NOT burn anything else in it. Using other materials (including wood) will render the warranty null and void. Such use is detected by laboratory analyses.

Edilkamin has designed, tested and programmed their boiler-stoves to guarantee the best performance when pellets with the following characteristics are used:

• diameter: 6 millimetres
• maximum length: 40 mm
• maximum moisture content: 8%
• calorifi c value: at least 4300

If pellets with different characteristics are used, the boiler-stoves must be recalibrated – a similar procedure to that carried out by the DEALER when the boiler is ignited the first time. Using unsuitable pellets may: decrease efficiency; cause malfunctions; stop the boiler-stove from functioning due to clogging, dirt on the glass, unburnt fuel, etc.

A simple, visual analysis of the pellets may be carried out:

Good quality: smooth, uniform length, not very dusty.

Poor quality: with longitudinal and transverse cracks, very dusty, various lengths and mixed with foreign matter.

INSTRUCTIONS FOR USE

REMOTE CONTROL

This controls all the functions.

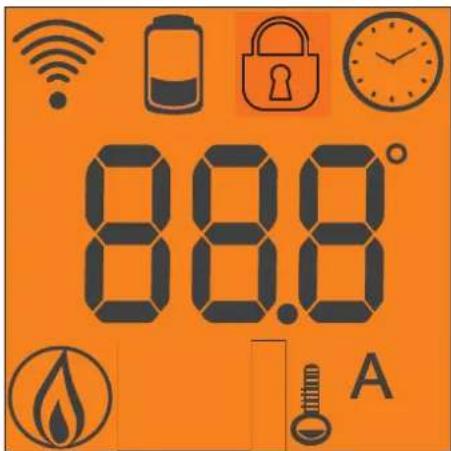

Key to buttons and display:

: to turn off and on (to go from "remote control on standby" to "remote control on")

+/- : to increase/decrease the various regulations

A : AIR key: to adjust the functioning of the fan in OFF-AUTO or manual mode F1, F2, F3, F4, F5

M : MENU' key: press quickly to set the "Comfort Clima" mode or the power mode. Press for 2 seconds to access to the various programming menus

Black handheld electronic device with a digital display showing '254' and control buttons (no readable text beyond symbols)

- icon fl ashing: remote control searching for network

- icon fi xed: remote control with connection enabled

keypad locked (press "A" and "M" in parallel for a few seconds to lock or unlock the keypad)

fl at battery (3 mini alkaline batteries type AAA)

programming enabled

88.8 A

alphanumeric display consisting of 16 fi gures arranged in two lines of 8 fi gures

- icon fl ashing: boiler-stove turning on

- icon fi xed: boiler-stove working

automatic function (display shows temperature)

In addition to the above-described icons, the display also gives other useful information.

• Stand-by position: shows the output temperature (TM), the set temperature (SET), the Kg of pellets (15Kg) remaining in the hopper and the current time.
• During the ignition phase: START-UP as well as the information shown in stand-by mode
• When operating: shows the output temperature (TM), the set temperature (SET), the Kg of pellets (15Kg) still in the hopper and the current time.

DO NOT PRESS THE BUTTON MORE THAN ONCE

Note: If the radio control is not used for a few seconds, the display will go dark as it has moved into the power-saving function. The display can be reactivated by pressing any button.

VENTILATION ADJUSTMENT:

By pressing key A, the display will show the AIR setting, one of three different ventilation modes can be selected:

OFF: ventilation is off even when the stove is operating

AUTO: ventilation is activated automatically according to a programme for the issue of power designed by the manufacturer MANUAL: Ventilation functions only when the stove is operating; there are 5 fixed ventilation levels to choose from, starting from the minimum (silent) F1 up to the maximum F5.

INSTRUCTIONS FOR USE

Filling the cochlea.

The first time you use the product, or should the tank be completely emptied of pellets, to fill the cochlea press both keys “+” and “-” on the remote control at the same time, holding for a few seconds. As you release the keys, the display should show the wording “LOAD”.

This should be carried out before ignition if the boiler-stove has stopped due to having run out of pellets, at the end of operation to empty the combustion pot before turning.

It is quite normal for some pellets to remain, that the cochlea cannot suction.

Automatic igniting.

With the boiler-stove on stand-by, press and hold the key , on the remote control for 2 seconds. This will start-up the ignition procedure, showing the wording "START".

At the same time, a countdown in seconds begins (from 1020 to 0). Ignition is not at a preset time, however: its duration is automatically shortened if the board reports that certain tests have been passed. The flame appears after about 5 minutes.

Manual igniting.

Temperatures of below 3^ C will not allow the electrical resistance to heat sufficiently. In this case, or should the resistance be temporarily out of action, Diavolina ^ type fi restarters can be used.

Insert a piece of lit Diavolina into the combustion chamber, close the door and press 📋 the remote control.

OUTPUT TEMPERATURE ADJUSTMENT:

The SET output temperature can be altered by pressing the keys +/-.

ENVIRONMENT TEMPERATURE ADJUSTMENT:

By activating the COMFORT CLIMA (CAT) function with the +/- keys, the remote control device can be used as a mobile thermostat/chronothermostat: place it in the home in a position where the set temperature is desired, select COMFORT CLIMA with the menu key; the display will show the environmental temperature (AIR) and the desired environmental temperature (SET); adjust the desired temperature with the +/- keys and the remote control device will automatically send the request to the stove.

Turning off

With the boiler-stove running, press and hold the key from the remote control for 2 seconds. The turn-off procedure will begin, showing a countdown on the display from 9 to 0 (for a total of 10 minutes).

The turn-off phase involves:

• Interruption of pellet supply
• Smoke expulsion motor
• Circulator

Unless otherwise set, managed by the CAT.

Never pull the plug out whilst the device is still in the process of turning off.

N.B.: the circulator will continue turning for 5 - 10 minutes after switching off.

OPERATIONS THAT CAN ONLY BE CARRIED OUT BY REMOTE CONTROL

Clock regulation

Press and hold the key “M” for 2 seconds to access the “Clock” menu. This allows you to set the internal electronic board clock. By then pressing the key “M”, the following data appears in sequence and can be regulated: day, month, year, hour, minutes, day of the week.

The wording “SAVE?” will appear for confirmation with “M”. This will allow you to check that the operations performed are correct, prior to completion (the wording “SAVE” will then be shown on the display).

Operations for switching on, switching off and changing the SET temperature can be carried out by means of the red emergen-cy button placed on the back of the boiler-stove (see page 37).

Weekly timer

Press and hold the “M” key on the remote control for 2 seconds. This turns on the clock regulation and by pressing the ‘+’ key, the weekly timer function is accessed, with the display showing the description “PROGRAMM ON/OFF”.

This function allows you to select the type of programming, which allows a maximum of three ignitions to be set.

As you confirm the display with the key “M”, one of the following options will appear:

NO PROG. (no programme set)

DAILY PROGRAM (single programme for every day of the week)

WEEKLY PROGRAM. (specific programme for each day individually)

Use the “+” and “−” keys to switch between programmes.

Confirming by pressing the “M” key “DAILY PROGRAM.” and pressing the “+” key, the choice of the number of programmes (ignition/extinguishing) per day can be made.

Use the “DAILY PROGRAM” to set identical programme/s for every day of the week.

By then pressing the “+” key, the following can be seen: - Prog. no.

- 1st prog. (one turn on and one turn off per day), 2nd prog. (identical), 3rd prog. (identical)

Use the “−” key to show in reverse order.

If the 1st programme is selected, the turn on time is shown.

The display shows: 1 “ON” at 10 Use the “+” and “−” key to change the hour. Confirm with the “M” key (All 1 On/Hour 10).

The display shows: 1 "ON" at 30 Use the "+" and "-" key to change the minutes. Confirm with the "M" key (1 Off min).

The same applies for the turn-off time to be set and for subsequent turning on and off.

Confirm by pressing "M" and the wording "SAVE??" will appear on the display.y.

When confi rming "WEEKLY PROGRAM", you will need to choose the day to which the programming is to apply:

7 Sat; Progr.1; 1 Mon ; 2 Tues; 3 Wed; 4 Thurs; 5 Fri; 6 Sa; Once the day is set, use the keys “+” and “+” and confirm by pushing the “M” key to choose 1 to 3 ignitions, to programme in the same way as for the “DAILY PROGRAM”, choosing whether or not to enable a programme for each day of the week, and if so choose the number of interventions and at what times.

Should you make an error during programming, you can leave the programme without saving. As you press a key, ▼, the display will show the word “no SAVE”.

INSTRUCTIONS FOR USE

Pellet-loading adjustment: (with self-regulation deactivated). Press and hold the menu key for two seconds to gain access to the language menu, use the + key to find the "ADJ PELLET" menu, con-firm the menu with the M key, and the message "PELLET ADJ 00%" will appear on the display. The pellet drop can be adjusted manually by changing the capacity in percentage terms (+/- 30 %). By confi rming this function with the menu key, you can access the function to adjust pellet loading. By decreasing the value set, pellet loading is decreased. By increasing the value set, pellet loading increases. This function is useful if changing the pellet type for which the stove has been calibrated and loading therefore needs correcting.

Should this correction not suffice, contact the Edilkamin-authorised Dealer, to establish the new operating axis.

Notes on flame variability

Flame status may vary depending on the type of pellet used, in addition to normal solid fuel flame variability and regular combustion chamber cleaning carried out automatically by the boiler.

(N.B.: which does NOT replace necessary cold suction by the user prior to ignition).

RESERVE WARNING

The boiler-stove is fitted with an electronic function that detects the residual quantity of pellets in the tank. The detection system is integrated into the electronic board, allowing you to see how many hours and kg are left until pellet exhaustion, at all times. For correct system function, it is important that the following procedure is followed during the first ignition (by the Dealer).

This provides a reference indicator.

Greater precision is obtained by regularly zeroing the system before filling it again. Edilkamin does not accept any responsibility for differences from what is indicated (which may be due to external factors).

Pellet reserve system

Before enabling the system, you need to load a sack of pellets into the tank and use the stove until the loaded fuel has run out. This allows for a short system road test. After this, the tank can be filled completely and the stove started up.

When running, at the time at which a whole 15 kg sack of pellets can be loaded, the display will show the word "Reserve" fl ashing.

At this point, after having poured in a sack of pellets, you need to 'inform' the memory that you have loaded 15 kg.

To do so, proceed as follows:

1. press the "M" key (for approximately 3-4 seconds) until the word "LANGUAGE" appears.
2. press the "+" key until the word "Reserve pellet" appears.
3. press the "M" key until the following screen appears,

PELLET KG 07 + 15* Kg remaining in tank Kg loaded

then use the “+” key to take the figure (*) to the value equal to the Kg of pellets loaded (15 kg in the above example).

1. press the "M" key to confirm

2. press the key ▼ to exit.

After having completed the above procedure, after having consumed the 15 kg, the wording "Reserve" will appear flashing at intervals.

The operation can then be repeated, proceeding from point 1 to point 5, every time you wish to load pellets (optional).

EMERGENCY BUTTON

If the remote control device does not work, you can ca-rry out the basic functions by means of a re-d emergency button placed on the right side of the stove (see fi g. 1).

Push this button once or more times to activate the required function:

1. BOILER-STOVE OFF

by pressing the red button for 2 seconds this turns on.

1. BOILER-STOVE ON

by pressing the red button for 2 seconds this turns off.

1. BOILER-STOVE ON

manual mode, by pressing the red button, you go from P1 to P3.

1. BOILER-STOVE ON

If the stove is set in power mode, press it quickly to change the SET output, increasing it cyclically from 50 to 80°C; if set in “comfort clima”, the desired environmental temperature can be increased cyclically from 10 to 30°C

emergency button fig. 1

MAINTENANCE

Before performing any maintenance, disconnect the appliance from the mains.

Regular maintenance is required for the boiler-stove to function correctly.

Any problems resulting from lack of maintenance will immediately void the warranty.

When cleaning is necessary, the message “Clean - exchanger” will appear on the panel if further cleaning is necessary.

NOTE: The DEALER, upon commissioning, sets the kg value of consumed pellets; after which, the message “SERVICE UTE” will appear on the display. The boiler-stove continues operation, but the end client is invited to perform careful maintenance, described above and explained by the DEALER during commissioning, to the extent of his abilities.

Once the maintenance work has been performed, press and hold down the "M" button on the radio remote control for at least 5 seconds to delete the message displayed on the screen (this operation must be performed with the thermo-stove off).

N.B.

• Any unauthorised modification is forbidden
• Use spare parts recommended by the manufacturer
• The use of counterfeit parts results in the guarantee becoming null and void

DAILY MAINTENANCE

Operations must be performed when the boiler-stove is off, cold and unplugged from the power supply.

Cleaning should be carried out with the aid of a vacuum cleaner (see optional page. 43), the whole procedure takes up a few minutes.

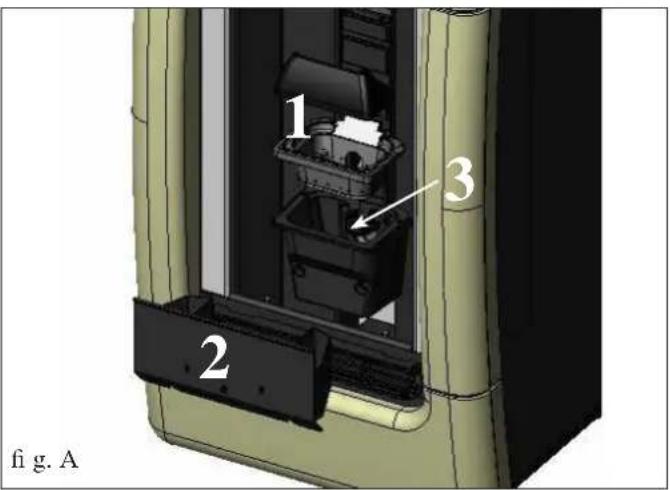

• Open the door, remove the combustion chamber (1 - fig. A) and empty the residue out into the ash pan.
• Scrap the combustion chamber with the spatula provided, removing any obstructions in the openings.
  • DO NOT EMPTY THE RESIDUE OUT INTO THE PELLET HOPPER.
  • Take out and empty the ash (2 - fig A) pan into a fireproof container (the ash may still contain hot parts and/or embers).
  • Vacuum clean the inside of the fireplace, the fire surface, the compartment around the chamber where ash falls, and the ash pan.
  • Vacuum the combustion chamber holder, clean the edges where the combustion chamber is lodged into its seat.
• Clean the glass, if necessary (when cold).

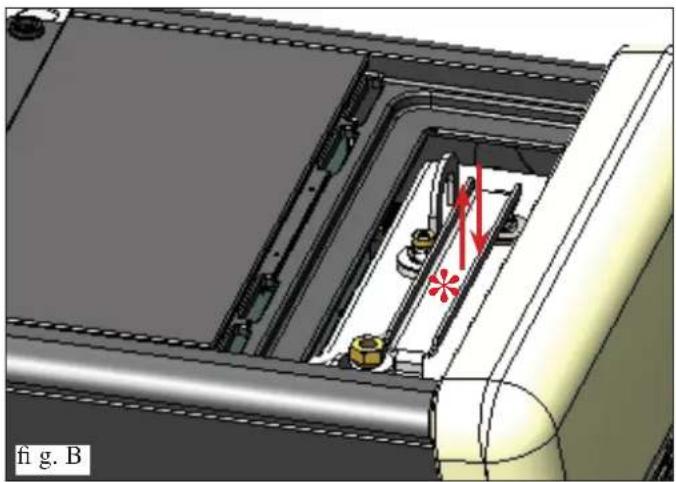

AT LEAST ONCE A DAY ACTION THE CLEANING BRUSHES OF THE EXCHANGERS (*), EVEN WHILE THE STOVE IS LIT, USING THE GLOVE PROVIDED:

- Proceed by shaking the cleaning handle positioned under the front-top grill (fi g. B).

NEVER SUCTION HOT ASH, as this could damage the suction device and possibly cause a fi re.

ATTENTION:

MAKE SURE THE ASH PAN IS CORRECTLY POSITIONED IN ITS HOUSING (2 fi g. A)

WEEKLY MAINTENANCE

• Clean the hearth (with the tube brush).
  • Vacuum the pipe near the electric coil (3 - fi g A).

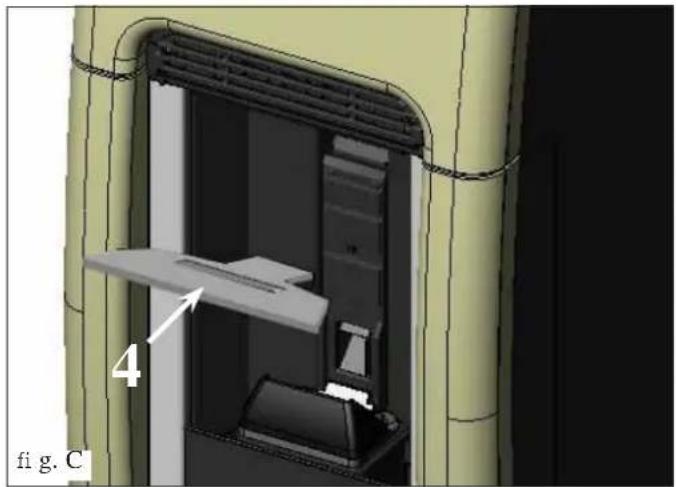

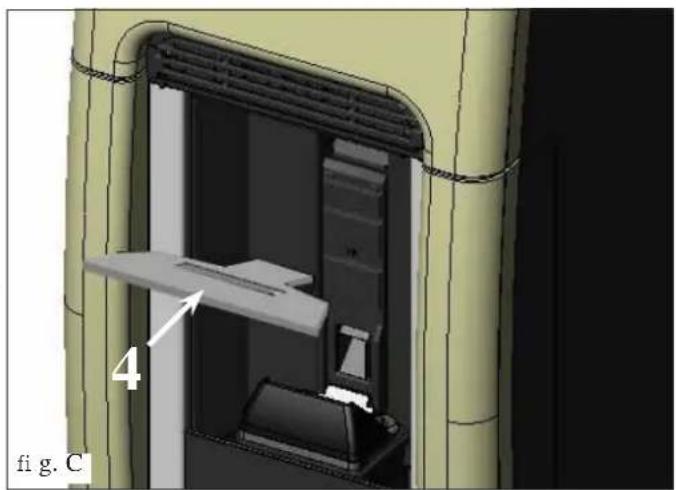

• Remove the ceiling (4 - fig. C) and tip the residue into the ash drawer (2 - fig. A).

1 2 3 fi g. A

Mechanical assembly diagram showing internal components with arrows and a star symbol (no readable text or labels)

3D architectural diagram of a cabinet or storage unit with labeled components, showing internal structure and no readable text or symbols.

Close-up of a mechanical component with a numbered label '4' on the top (no other text or symbols visible)

YES

Close-up of a car interior with red dashed lines and the number 4 on the door (no readable text or symbols)

NO

MAINTENANCE

SEAS ONAL MAINTE NANCE (implemented by the DEALER)

Consists in:

• Clean the boiler-stove internally and externally
• Carefully clean the heat exchange tubes
• Carefully clean and remove dirt from the combustion chamber and the relative compartment

- Clean fans, verify mechanical and clamp loosening

- Clean smoke channel (replace seals on smoke exhaust pipe)

- Clean smoke duct

- Check the expansion tank

- Verification and cleaning of the circulator installed on the optional kit

- Clean smoke extraction fan compartment.

- Clean smoke flow sensor.

- Clean smoke check thermocouple.

- Empty the pellet hopper and clean the base with the vacuum cleaner.

- Clean, inspect and scrape any residue from the ignition resistance compartment and if necessary, replace it

- Visually inspect the electrical wires, connections and power cable

- Check play of the screw-gear motor group

- Clean the pellet hopper and check loosening of the feed screw - gear motor assembly

- Replace the door seal

- Functionality test: load the feed screw, ignite, let it run for 10 minutes and shutdown

If the boiler-stove is used very frequently, it is advisable to clean the smoke channel and the fume duct every 3 months.

Cleaning the smoke channel

• When the boiler-stove is off and cold, move the cleaning handle vigorously (see previous page)

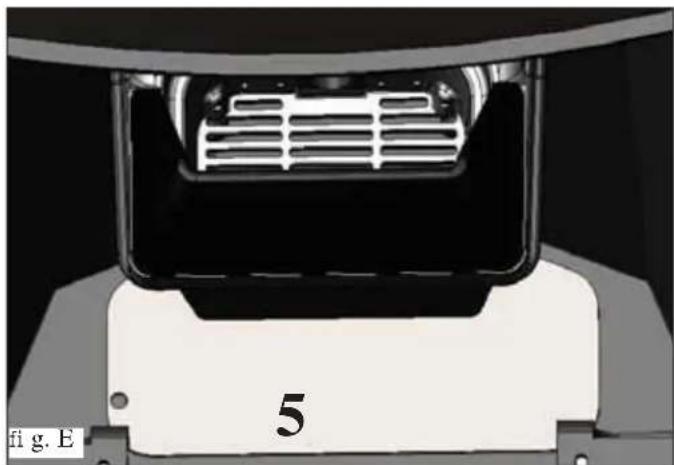

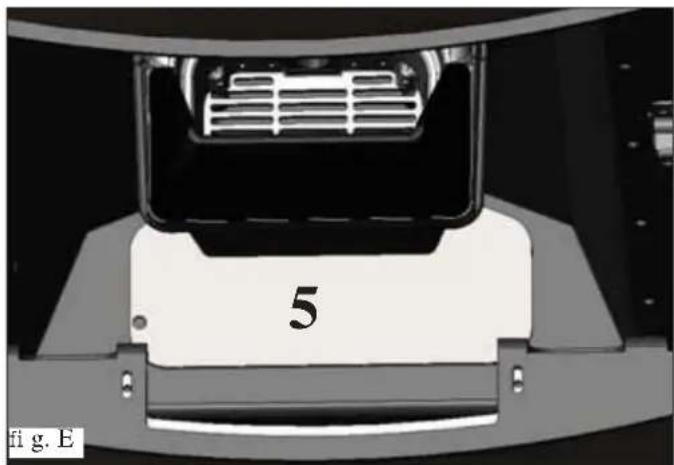

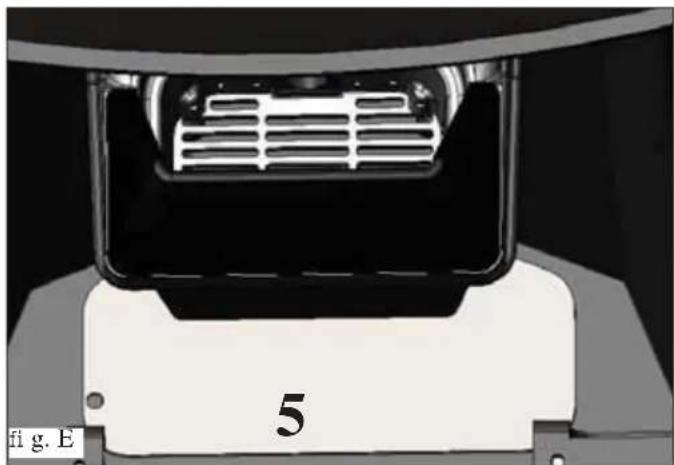

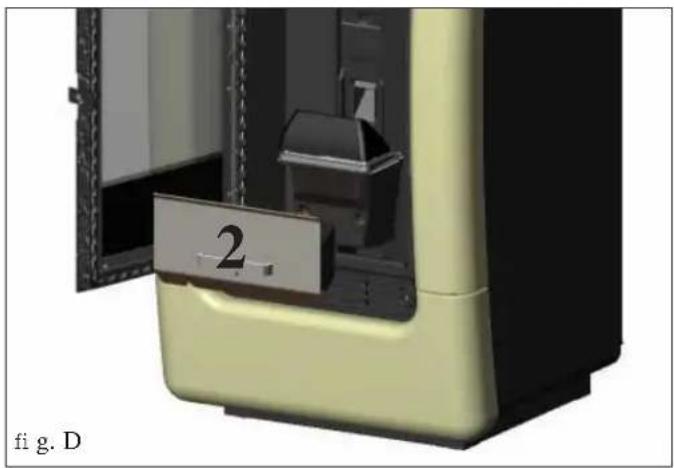

• Remove the ash tray (2 - fig. D), lift the inspection metal plate and vacuum inside (5 - fig. E).

The quantity of residue which forms depends on the type of fuel and the type of system.

If cleaning is not carried out, the boiler-stove may not function properly.

N.B.: after having completed the operation, make sure that the two inspection hatches of the smoke channel are correctly repositioned.

ATTENTION !!!

After implementing a normal cleaning procedure, INCORRE CT coupling of the upper (A) (figura F) and lower (B) (figura F) combustion chambers can compromise the boiler-stove's performance. Before igniting the boiler-stove, make sure the combustion chambers are correctly paired as indicated in (fi g. G) without ash or unburnt material present on the support perimeter.

We remind you that using the stove without cleaning the melting pot, may cause a sudden ignition gas inside the combustion chamber with the consequent breaking of the glass

3D rendering of a yellow and black industrial machine with a labeled component '2' (no text or symbols beyond label)

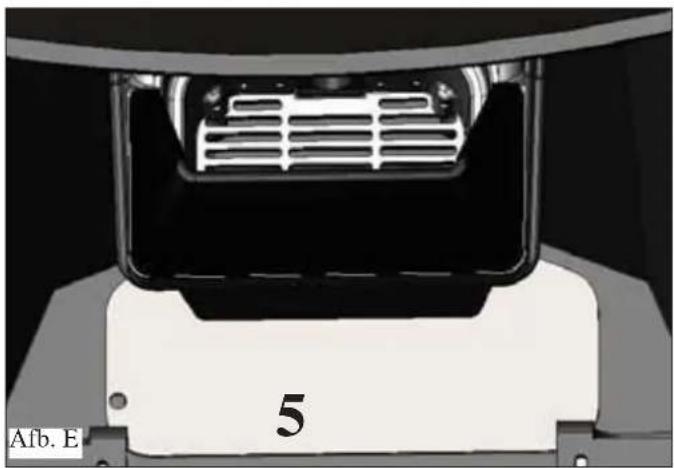

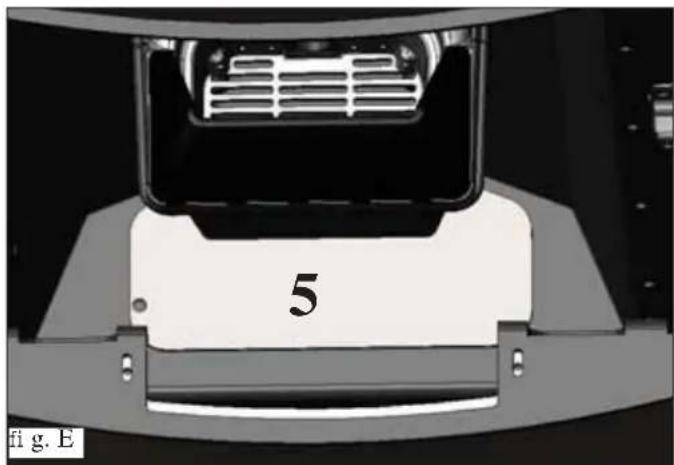

Close-up of a mechanical component with a numbered label '5' on its base, no readable text or symbols beyond the number.

A B fig. F

B A fig. G

POSSIBLE TROUBLESHOOTING

In the event of problems the boiler-stove stops automatically and runs the shutdown process and the display shows text regarding the motivation of the shutdown (see the various alarms below).

Never pull the plug during shutdown on account of malfunction.

To start the boiler-stove up again after a shutdown, let the shutdown procedure end (10 minutes marked by a beep) tand then press the button ▼.

Do not turn the boiler-stove on again before checking the cause of the malfunction and CLEANING/ EMPTYING the crucible.

INDICATION OF POSSIBLE CAUSES OF MALFUNCTION AND INDICATIONS AND REMEDIES:

1) Signalling: H2O PTC_FAULT

Problem: Shuts down due to the water temperature sensor being broken or disconnected.

Actions: - Check connection of the sensor to the control board.

- Verify functionality by means of a cold test

2) Signalling: Verific./extract.: (this trips if the smoke extraction speed sensor detects a fault)

Problem: Shutdown for smoke extraction speed fault detection

Actions: • Check smoke extractor function (devolution sensor connection) and board (DEALER).

- Check smoke channel for dirt

- Verify the electrical system and earthing system.

- Check electronic circuit board (DEALER).

3) Signalling: Stop/Flame: (this trips if the thermocouple detects a smoke temperature lower than the value set, which it interprets as the absence of flames)

Problem: Turns off due to drop in smoke temperature

Flame may fail for any of the following reasons:

- lack of pellets

- too many pellets have suffocated the flame, check pellet quality (DEALER)

- the maximum thermostat has intervened (rare, this only intervenes in the event of excessive smoke temperature) (DEALER)

- The safety pressure switch comes on because of clogging/blockage of the smoke discharge pipe or the flue (have it checked by a qualified technician - chimney sweep)

- Activation of the safety thermostat of the tank. Check that around the stove there aren't any objects blocking the ventilation or whether the fans are broken or off, in which case call the DEALER.

4) Signalling: Block_FI/NO Start: (intervenes if a flame fails to appear within a maximum of 15 minutes, or if ignition temperature is not reached).

Problem: Turns off due to incorrect smoke temperature during ignition

Distinguish either of the following cases:

Flame does NOT appear

Actions: Check: - combustion chamber position and cleanliness;

- arrival of combustion air in the combustion chamber;

- if the heating element is working (DEALER);

- room temperature (if lower than 3°C use a firelighter) and damp.

- Try to light with a fi relighter.

Flames appear, but AF appears on the display after Ar.

Actions: Check: (only by the Dealer)

- if the thermocouple is working (DEALER);

- start-up temperature setting in the parameters (DEALER).

5) Signalling: Black Out: (not a defect of the boiler-stove).

Problem: Turns off due to lack of electricity

Actions: • Check electricity connection and drops in voltage.

6) Signalling: Fault/RC: (intervenes if the thermo coupling has failed or is disconnected).

Problem: Turns off due to thermo coupling failed or disconnected

Actions: Check connection of thermo coupling to Check function in cold test (DEALER).

7) Signalling: smoke °C/high.: (turns off due to exceeding maximum smoke temperature).

Problem: Switching off due to exceeding the maximum smoke temperature.

Check (only by the Dealer):

- pellet type, anomaly in smoke extraction,

• smoke channel blocked,

- incorrect installation,

- gear motor 'drift'

8) Signalling: Check button (signals an anomaly on the emergency button)

Actions: • check maintenance status of the button and its board connection cable (DEALER).

POSSIBLE TROUBLESHOOTING

9) Signalling: ADD WATER (cuts in when the system pressure falls below a pressure of approximately 0.2 bar).

Actions:

- Check there are no leaks and only afterwards re-establish the correct pressure by adding water to the system.

10) Signalling: H2O TEMPALARM (Activated if the water sensor is faulty or disconnected)

Problem:

Shuts down due to water temperature being higher than 90 °C.

An excessive temperature may occur because of the following:

• system too small: ask the DEALER to activate the ECO function
• blockage: clean the exchanger pipes, the combustion chamber and the smoke outlet.

11) Signalling: "Battery check"

Problem: The boiler-stove does not stop but the error appears on the display.

Actions:

- The buffer battery of the control board needs changing (DEALER).

12) Signalling: HIGH CURRENT ALARM: Activated when anomalous, excessive current is being absorbed by the gear motor.

Actions: Check functioning (CAT): gear motor - Electrical connections and electronic board.

13) Signalling: LOW CURRENT ALARM: Activated when anomalous, insufficient current absorption is detected on the gear motor.

Actions: Check functioning (CAT): gear motor - pressure switch - tank thermostat - electrical connections and electronic board

14) Problem: Remote control not working

Actions: • Move closer to the boiler-stove

• check the battery and if necessary, replace it.
• Synchronisation with automatic search on activation: when you put the batteries into the radio control a radio channel search phase will start up automatically, and it will subsequently connect to the product detected. So that this occurs correctly, make sure to switch the product on before inserting the batteries in the radio control, and stay in the vicinity of the antenna in order to achieve radio coverage with certainty.
• Synchronisation with automatic search and manual activation - it is possible to launch an automatic search for a product manually, simply carry out the following operations after having already put the batteries into the radio control:

- Approach the device and make sure that it is connected to the mains electricity.

- With the display switched off (standby) hold the 0/I key down for 10".

• After 10" a "NETWORK SEARCH" message appears on the display, then release the o/I key, as this means that the automatic search has been activated.
• Automatic tuning of the radio channel will occur within a few seconds.

15) Problem: During ignition, the differential switch trips (DEALER):

Actions:

- Check the condition of the ignition coil, the electrical system, and the electrical components.

16) Problem: Water is not hot enough:

Actions:

- clean the hearth exchanger

NOTE 1

All signals/warnings remain shown until you intervene on the remote control, by pressing the button ▼. Do not use the insert before having eliminated the problem.

NOTE 2

Once 1000 kg of pellets have been consumed or some other value set by the CAT during the first ignition, the display fl ashes a message that reads “maintenance”.

The boiler-stove works, but you must call the Dealer out to perform extraordinary maintenance.

NOTE 3

solid-fue due to the quality of pellets or particularly critical installation, the boiler-stove becomes clogged earlier, the message “CALL SERVICE” will appear. Proceed as per “Mainten.” instructions.

N.B.:

The combustion chambers and smoke ducts connected to the solid-fuel appliances must be cleaned once a year (check if your country has specific legislation covering this).

Failure to regularly check and clean increases the likelihood of a fire in the chimney pot.

IMPORTANT!!!

In the case of a fire in the boiler-stove, in the flue or in the chimney, proceed as follows:

• Disconnect the power supply
• Use a carbon dioxide (CO_2) extinguisher
• Call the fi re brigade

DO NOT ATTEMPT TO PUT THE FIRE OUT WITH WATER!

After the event, have the appliance checked by an authorised Service Centre and have an authorised technician check the flue.

FAQ

The answers are listed below in summary form, for further details see the other pages of this document.

1) What do I need to prepare in order to install the boiler-stove?

Flue pipe at least 80 mm in diameter or direct connection to the outside.

An air inlet in the room that is at least 80 cm².

^3/_4 " G outlet and inlet fi tting.

3/4" G drains connection for overpressure valve.

^3/_4 " G load fi tting.

Optional hydraulic kits

A certified electrical connection with a thermal magnetothermic switch 230V +/- 10% 50 Hz. (assess the division of primary and secondary circuits).

2) Can the boiler-stove work without water?

NO. Using the boiler-stove without water will damage it.

3) Does the boiler-stove generate hot air?

Yes. Most of the heat produced is transferred to the water, while a fan produces hot air which is issued into the room in which the stove is installed.

4) Can I connect the inlet and outlet of the boiler-stove directly to a radiator?

NO, just like other boilers, it must be connected to a collector from which the water is then distributed to the radiators.

5) Do boiler-stove also supply hot sanitary water?

Hot water can be produced by the use of a special kit, after having assessed the power of the stove in terms of the plumbing system.

6) Can I discharge the smoke from the boiler-stoves along the wall?

NO, a discharge which is conform with standards (UNI 10683) must reach the ridge of the roof, and in any case proper functioning requires a vertical stroke of at least 1.5 meters; avoiding that in case of power outage or wind, a slight amount of smoke forms in the installation environment.

7) Do I need an air inlet in the room where it is installed?

Yes, to replenish the air used by the boiler-stove for combustion; or direct connection t the outside.

8) What settings are required on the boiler-stove display?

The desired water temperature. The boiler-stove will then adjust the power accordingly to obtain or maintain this.

For small systems, a mode can be set that ignites and shuts down the boiler-stove accordingly, as the water temperature is reached. (contact DEALER for initial start up)

9) How often do I need to clean the combustion chamber?

Before switching on, when the stove is off and cold. AFTER CLEANING THE EXCHANGER TUBES by means of the smoke-channel cleaning handle (see page 38).

10) Do I need to vacuum the pellet hopper?

Yes, at least once a month when the boiler-stove is not used for some time.

11) Can I burn other fuel apart from pellets?

NO. The boiler-stove has been designed to burn wood pellets that are 6 mm in diameter. Any other material can damage it.

12) Can I ignite the boiler-stove by sending an SMS?

Yes, by connecting a dialler to the serial port on the back of the stove using the optional cable

CHECK LIST

To be integrated with a complete reading of the technical specifications

Positioning and installation

• Commissioning done by an approved CAT that issued the guarantee
  • Air vent in the room
  • Only the boiler-stove outlet passes through the smoke channel/chimney flue
  • Features of the smoke channel (stretch of duct connecting the boiler-stove to the flue/chimney):

a maximum of 3 curves

a maximum of 2 horizontal metres

• The exhaust pipes are made of suitable material (recommended: stainless steel)
• When using any flammable materials (e.g. wood), all precautions have been taken to prevent a fire hazard
• The heating capacity has been appropriately assessed considering radiator efficiency:
• The hydraulic system has been declared to be compliant with the Ministerial Decree 37 ex Law No. 46/90 by a qualified technician.

Use

• Good quality, dry wood pellets are used (diameter 6 mm) (maximum permissible humidity 8%).
- The chimney pot and ash compartment are clean and well positioned.
• The cleaning rods are moved every day.
- The exchanger tubes and internal parts of the hearth are clean.
• The smoke extract duct is clean.
- The bleeding process has been applied to the hydraulic system.
• The pressure (shown on the pressure gauge) is at least 1,5 bar.

REMEMBER TO VACUUM THE COMBUSTION CHAMBER BEFORE EACH IGNITION Should ignition fail, DO NOT re-ignite until you have emptied the combustion chamber.

OPTIONAL

TELEP HONE COMBINER FOR RE MOTE IGNITION

The boiler-stove can be ignited remotely by asking the DEALER to connect the telephone combiner to the serial port behind the boiler-stove via the optional cable (code 640560).

HYDRAULIC KITS

CLEANING ACCESSORIES

GlassKamin (code 155240)

Used for cleaning the ceramic glass

Metallic cylindrical container with black hose and handle, no visible text or symbols

Ash vacuum cleaner without motor (code 275400)

Used for cleaning the hearth

INFORMATION FOR USERS

In accordance with Art. 13 of the Legislative Decree No. 151, dated 25 July 2005, “Implementation of Directives: 2002/95/EC, 2002/96/EC and 2003/108/EC, pertaining to the reduction of hazardous substances used in electrical and electronic equipment, as well as disposal of waste”. The crossed-out wheeled bin symbol shown on the equipment or on the packaging indicates that the product must be disposed of separately at the end of its useful life. Therefore, at the end of the equipment’s useful life, the user must hand in the equipment to suitable collection facilities for electrical and electronic waste, or return it to the retailer when a new, equivalent appliance is purchased in a ratio of one to one.

Madame, Monsieur,

2006/95/CE - Directive Basse Tension

L A B D I E C F G H

CARACTERISTIQUES

• APPAREILS ÉLECTRONIQUES

Close-up of a metallic electrical connector with wires and connectors (no visible text or symbols)

DIMENSIONS ET FINITIONS

LE THERMOPOÊLE EST DISPONIBLE AVEC UNE FAÇADE EN CÉRAMIQUE, DANS TROIS VARIANTES DE COULEUR :

Technical diagram showing a structural component with labeled parts A, B, and C, including dimension indicators.

Technical diagram of a mechanical assembly with labeled components D and E

3D cutaway view of a device showing internal components labeled A and B, with no visible text or symbols beyond labels.

3D cutaway view of a device showing internal components and labeled sections A and B (no text or symbols on the main body)

3D model of a rectangular device with yellow and black casing, showing internal cavity (no text or symbols)

Fig. 7

Close-up of a red and black electronic device with a metallic top cover (no visible text or symbols)

fig.1

V fig. 2

ATTENTION:

Close-up of a black handheld electronic device with a green display screen showing the number 254 (no visible text or symbols on the device body)

Technical diagram of a mechanical assembly with internal components and directional arrows (no readable text or symbols)

3D architectural rendering of a building interior with ventilation ducts and a labeled component (no text or symbols beyond label)

Close-up of a mechanical component with two cylindrical parts and a numbered label '4' at the top (no other text or symbols visible)

OUI

Close-up of a metallic mechanical component with red dashed lines and the number 4 on the side (no readable text or symbols)

NON

ENTRETIEN

ENTRET IEN SA ISONNIER (par le revendeur)

3D rendering of a yellow and black industrial machine with a labeled component '2' (no text or symbols beyond label)

Close-up of a mechanical component with a numbered label '5' on its base (no readable text or symbols beyond the number)

A B fig. F

B A fig. G

INCONVENIENTS POSSIBLES

Metallic cylindrical device with black hose and blue handle, no visible text or symbols

L A B D I E C F G H

CARACTERÍSTICAS

Close-up of a mechanical component with wires and connectors (no visible text or symbols)

DIMENSIONES Y ACABADOS

LA TERMOESTUFA ESTÁ DISPONIBLE CON PARTE FRONTAL DE CERÁMICA, EN TRES VARIANTES DE COLOR:

3D cutaway view of a device showing internal components labeled A and B, with no visible text or symbols beyond labels.

fig. 3 C D D C

Fig. 1

3D diagram of a device with labeled sections A and B, showing internal components and casing (no text or symbols beyond labels)

3D model of a rectangular device with a black top and yellow interior, showing a white screen (no text or symbols visible)

Fig. 7

Close-up of a red and black electronic device with a metallic top cover (no visible text or symbols)

fig.1

V fig. 2

ATENCIÓN:

Black handheld remote control device with green display screen showing '25x' and control buttons (no readable text beyond symbols)

Technical diagram of a mechanical assembly with internal components and directional arrows (no text or symbols)

3D architectural rendering of a building interior with a window and door, showing structural details and a numbered label '4' (no readable text or symbols beyond labels)

Close-up of a mechanical component with a numbered label '4' on the top (no other text or symbols visible)

SI

Close-up of a metallic mechanical component with red dashed lines and the number 4 on its side (no text or symbols beyond the number)

NO

MANUTENCIÓN

MANTENIMIENTO ESTACIONAL (a cargo del distribuidor)

3D rendering of a yellow and black industrial machine with a labeled component '2' (no text or symbols beyond label)

Close-up of a mechanical component with a grating and base plate, labeled '5' (no readable text or symbols beyond label)

A B fig. F

B A fig. G

POSIBLES INCONVENIENTES

Metallic cylindrical container with black hose and cap, no visible text or symbols

L A B D I E C F G H

MERKMALE

• ELEKTROAPPARATE

Close-up of a mechanical component with wires and connectors (no visible text or symbols)

ABMESSUNGEN UND FINISHES

Technical diagram showing a structural component with labeled parts A, B, and C, including dimension indicators.

Technical diagram of a vertical structure with labeled components D and E, likely representing a mechanical or architectural component.

3D cutaway view of a device showing internal components labeled A and B, with no visible text or symbols beyond labels.

Abb. 3 C D D C

Abb. 1

3D model of a device with labeled sections A and B, showing internal components and casing (no text or symbols beyond labels)

Abb. 8

3D rendered image of a yellow and black rectangular device with a central display (no text or symbols visible)

Abb. 9

Close-up of a red and black electronic device with a metallic top cover and display screen (no visible text or symbols)

Abb. 1

V Abb. 2

ACHTUNG:

Close-up of a black handheld electronic device with a green screen displaying '25x' and control buttons (no readable text beyond symbols)

Mechanical assembly diagram showing internal components and directional arrows (no text or symbols)

3D architectural diagram of a building interior with a window and door, showing structural details and a numbered label (4) in the lower left corner.

Close-up of a mechanical component with a numbered label '4' on the top (no other text or symbols visible)

JA

Close-up of a metallic mechanical component with red dashed lines and the number 4 on its side (no readable text or symbols)

NEIN

WARTUNG

3D rendering of a yellow and black industrial machine with a labeled component '2' (no text or symbols on the device itself)

Close-up of a mechanical component with a grating and base plate, labeled '5' (no readable text or symbols beyond label)

A B Abb. F

A B Abb. G

MÖGLICHE PROBLEME

Metal cylindrical container with black hose and lid, no visible text or symbols

L A B D I E C F G H

EIGENSCHAPPEN

• ELEKTRONISCHE APPARATEN

Close-up of a mechanical component with wires and connectors, no visible text or symbols

AFMETINGEN EN UITRUSTINGEN

DE THERMOKACHEL IS VERKRIJGBAAR MET EEN VOORZIJDE IN KERAMIEK, IN DRIE VERSCHILLENDE KLEUREN:

• roomwit keramiek
• perkamentkleurig keramiek
• bordeauxrood keramiek

FRONT TUREG

59 121

toeø5roerabri- dingslucht Ø 5 cm 10 40,5 22,5 rookafvoer Ø 8 cm 11

68,5 121

68,5 59

KANT PLAN

EIGENSCHAPPEN

THERMOTECHNISCHE KENMERKEN volgens EN 14785

Technical diagram showing a mechanical or structural assembly with labeled components A, B, and C, including dimension lines and annotations.

Technical diagram of a mechanical assembly with labeled components D and E

Interior view of a device with labeled sections A and B, showing internal components and casing (no text or symbols on main body)

Afb. 8

3D model of a rectangular device with a black top and yellow interior, showing a white screen (no text or symbols visible)

Afb. 9

Close-up of a red and black electronic device with a metallic top cover (no visible text or symbols)

Afb. 1

V Alb. 2

LET OP:

Black handheld electronic device with a digital display showing '254' and control buttons (no readable text beyond symbols)

DRUK DE TOETS NOOIT MEERDERE KEREN IN

Systeem pelletreserve

Mechanical assembly diagram showing internal components with arrows and a red asterisk, no readable text or symbols

3D architectural diagram showing a window with a shelf and a labeled component (Afb. C), no readable text or symbols present.

Close-up of a mechanical component with a numbered label '4' on the top (no other text or symbols visible)

JA

Close-up of a metallic mechanical component with red dashed lines and the number 4 on its side (no readable text or symbols)

NEEN

ONDERHOUD

SEIZOENSGEBONDEN ONDERHOUD (door de dealer)

3D rendering of a yellow and black industrial machine with a labeled component '2' (no text or symbols on the device itself)

Close-up of a mechanical component with a grating and base plate, labeled '5' (no readable text or symbols beyond label)

A B Afb. F

A B Afb. G

MOGELIJKE STORINGEN

Metallic cylindrical container with black hose and lid, no visible text or symbols

L A B D I E C F G H

KARAKTERISTIKA

• ELEKTRONISKE APPARATER

Close-up of a metallic connector with wires and connectors, no visible text or symbols

MÅL OG FÆRDIGBEHANDLINGER

BRÆNDEOVNEN FÅS MED KERAMIKFRONT I TRE FARVEVARIANTER:

• cremefarvet keramik
• pergamentfarvet keramik
• bordeauxfarvet keramik

FORSIDE

59 121

BAGSIDE

Technical diagram showing a structural component with labeled parts A, B, and C, including dimension lines and a small inset image.

Technical diagram of a vertical structure with labeled components D and E, likely representing a mechanical or architectural component.

3D cutaway view of a device showing internal components labeled A and B, with no visible text or symbols beyond labels.

fig. 3 C D D C

Fig. 1

3D model of a device with labeled sections A and B, showing internal components and casing (no text or symbols beyond labels)

Fig. 8

3D rendered image of a rectangular device with a black top and yellow interior, showing a white vent and a small inset (no text or symbols)

Fig. 9

PELLETPÄFYLDNING I BEHOLDEREN

Close-up of a red and black electronic device with a metallic top cover (no visible text or symbols)

fig.1

V fig. 2

Giv agt:

Black handheld electronic device with a digital display showing '254' and control buttons (no readable text beyond symbols)

Pellet reservesystem

Technical diagram of a mechanical assembly with no visible text or symbols

3D architectural rendering of a building interior with a window and shelf, labeled 'fig. C' (no text or symbols on the diagram itself)

Close-up of a metallic mechanical component with a numbered label '4' on the top (no other text or symbols visible)

JA

Close-up of a metallic mechanical component with red dashed lines and the number 4 on the side (no readable text or symbols)

NEJ

VEDLIGEHOLDELSE

3D rendering of a yellow and black industrial machine with a labeled component '2' (no text or symbols beyond label)

Close-up of a mechanical component with a numbered label '5' on its side, no readable text or symbols beyond the number.

A B fig. F

B A fig. G

MULIGE ULEMPER

Metallic cylindrical device with black hose and lid, no visible text or symbols

Askesuger uden motor (kod. 275400)

L A B D I E C F G H

CARACTERÍSTICAS

• APARELHAGEM ELECTRÓNICA

Close-up of a mechanical component with wires and a metallic housing (no visible text or symbols)

3D cutaway view of a device showing internal components labeled A and B, with no visible text or symbols beyond labels.

fig. 3 C D D C

Fig. 1

Interior view of a device showing internal components and labeled sections A and B (no text or symbols on the device itself)

Fig. 8

Remontar as laterais metálicas (A e B) anteriormente desmontadas da caldeira térmica.

3D rendered image of a rectangular device with a yellow top and black side, showing a white interior (no text or symbols)

Fig. 9

A fi gura representa a caldeira térmica completamente montada.

ATENÇÃO

VERIFICAR SE A PORTA DE ABERTURA NÃO ENTRA EM CONTATO COM OS ELEMENTOS VERTICAIS EM CERÂMICA.

INSTRUÇÕES PARA O USO

Close-up of a red and black electronic device with a metallic top cover (no visible text or symbols)

fig.1

V fig. 2

Atenção:

Black handheld electronic device with a digital display showing '254' and control buttons (no readable text beyond basic symbols)

- ícone intermitente: controlo remoto procurando a rede

Mechanical assembly diagram showing internal components with arrows and a star symbol (no readable text or labels)

3D architectural rendering of a cabinet or storage unit with a labeled component (4), no visible text or symbols beyond the label and arrow.

Close-up of a metallic mechanical component with a white number '4' on top (no other text or symbols visible)

SIM

Close-up of a metallic mechanical component with red dashed lines and the number 4 on its side (no readable text or symbols)

NÃO

MANUTENÇÃO

3D rendering of a yellow and black industrial machine with a labeled component '2' (no text or symbols beyond label)

Close-up of a mechanical component with a grating and base plate, labeled '5' (no readable text or symbols beyond label)

A B fig. F

B A fig. G

POSSÍVEIS INCONVENIENTES

Metallic cylindrical container with black hose and handle, no visible text or symbols
