USER MANUAL EASY UX PRF0120352A ELICA

EN Instruction on mounting and use

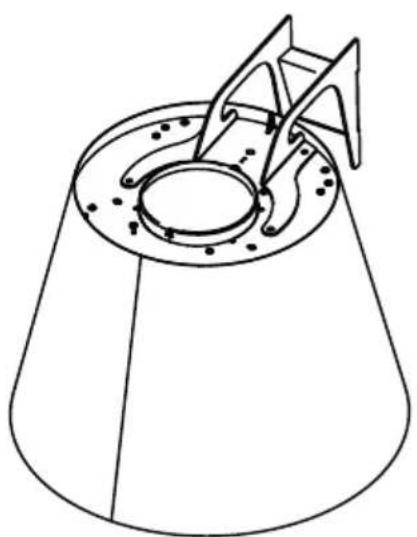

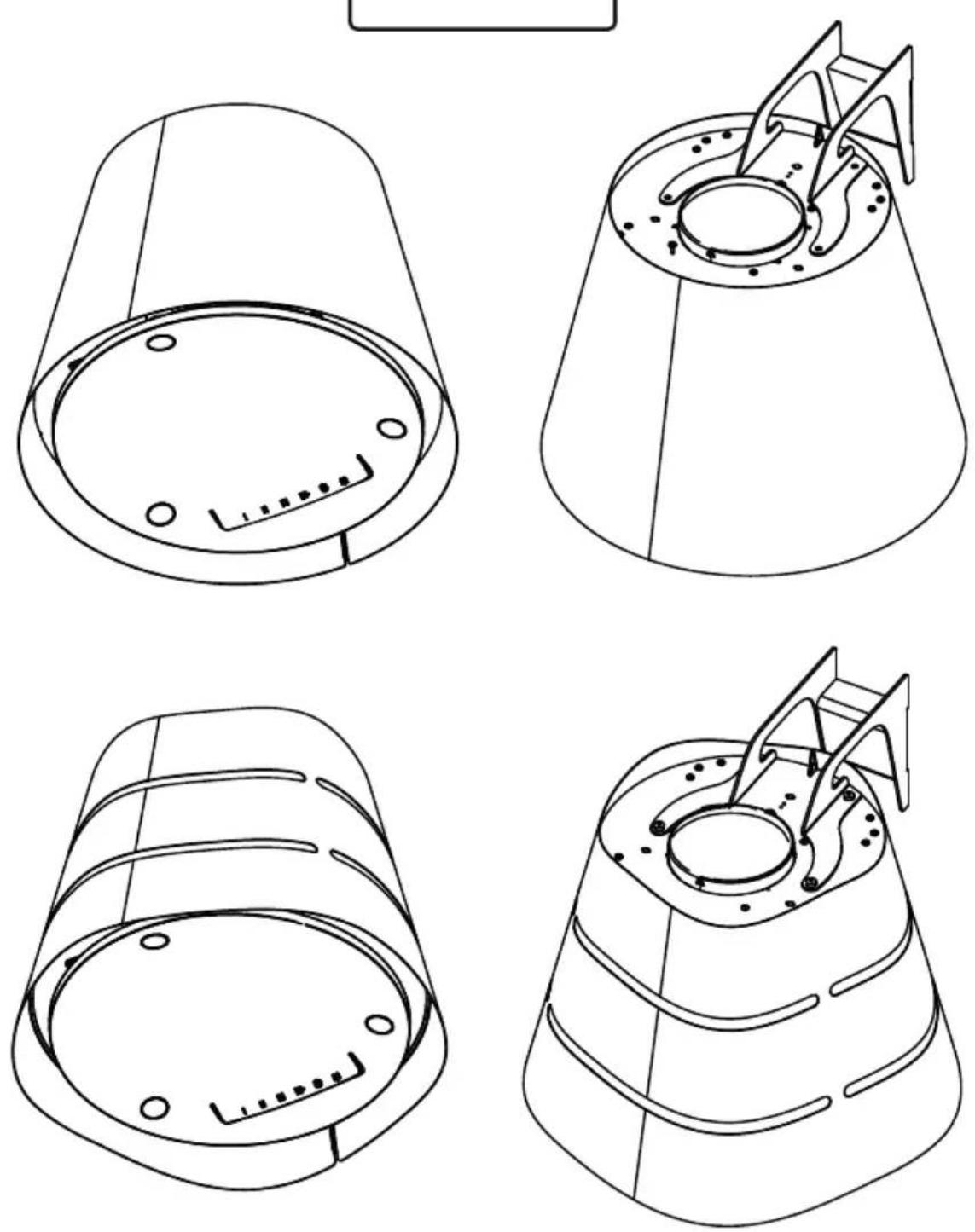

Technical line drawing of a conical device with three vertical posts and a central circular component (no text or symbols)

Line drawing of a mechanical component with three vertical rods and a central circular feature (no text or symbols)

Technical line drawing of a conical mechanical component with internal structure and mounting holes (no text or symbols)

Line drawing of a conical mechanical component with internal ribs and mounting holes (no text or symbols)

Two identical black silhouette figures of men, no text or symbols present

Illustration of two gloves, one white and one gray, overlapping without any text or symbols.

Simple line drawing of an open cardboard box (no text or symbols)

Simple line drawing of stacked documents or sheets with a central crosshair (no text or symbols)

Abstract line drawing with overlapping curved lines and a small dot (no text or symbols)

3x

1x

3x

3x

2x

5x

ø5X35mm

3x

3x

2x

5x

∅8x40mm

3x

1x

1x

6x

ø2,9x9,5mm

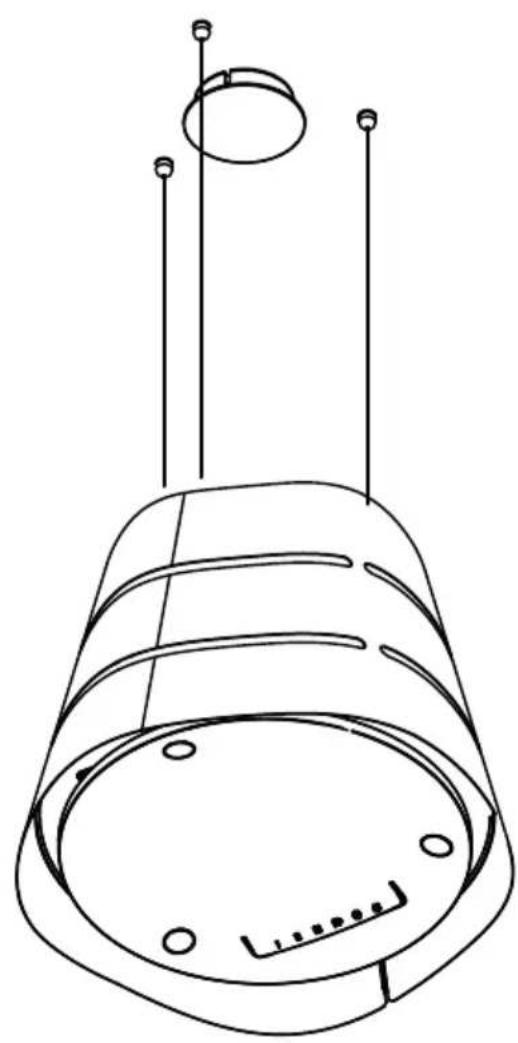

Simple line drawing of a conical object with three vertical rods and a central circular base (no text or symbols)

Simple line drawing of a cylindrical object with three vertical posts and a base, no text or symbols present.

Pure diagram of a mechanical or electrical component with arrows indicating direction, no text or symbols present

Pure vertical line pattern with no text, numbers, or symbols

M1

Diagram showing a trapezoidal shape with directional arrows and a vertical wall, no text or symbols present.

M2

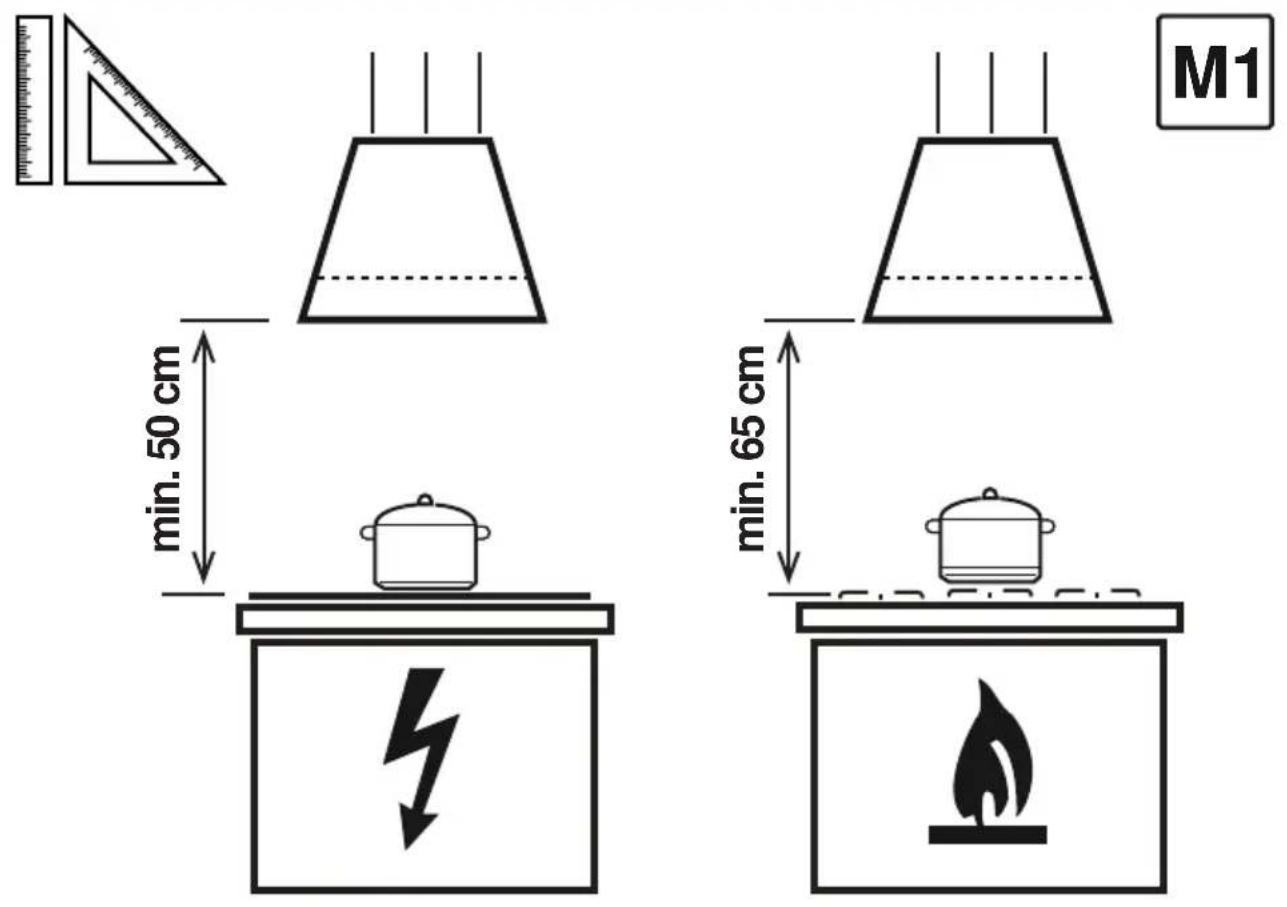

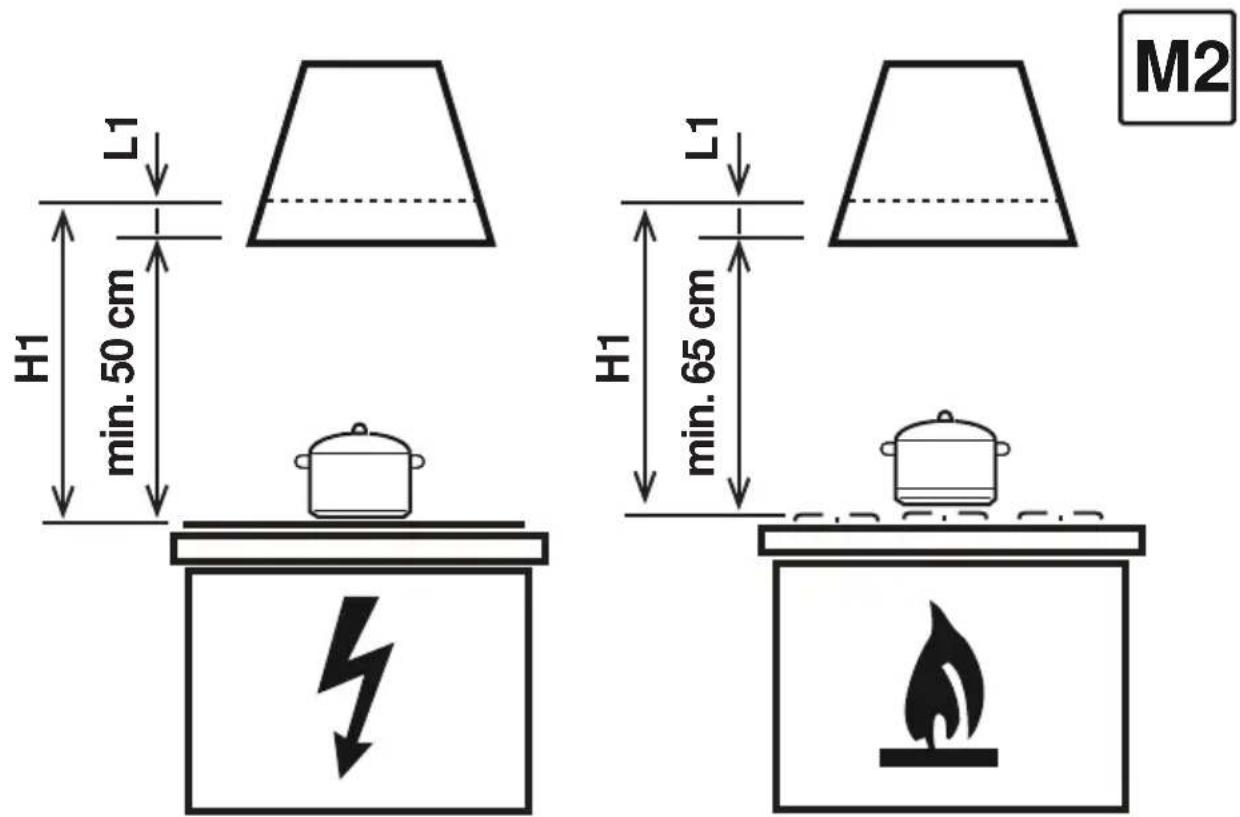

M2 L1 H1 min. 50 cm L1 H1 min. 65 cm L1 H1 min. 50 cm F F

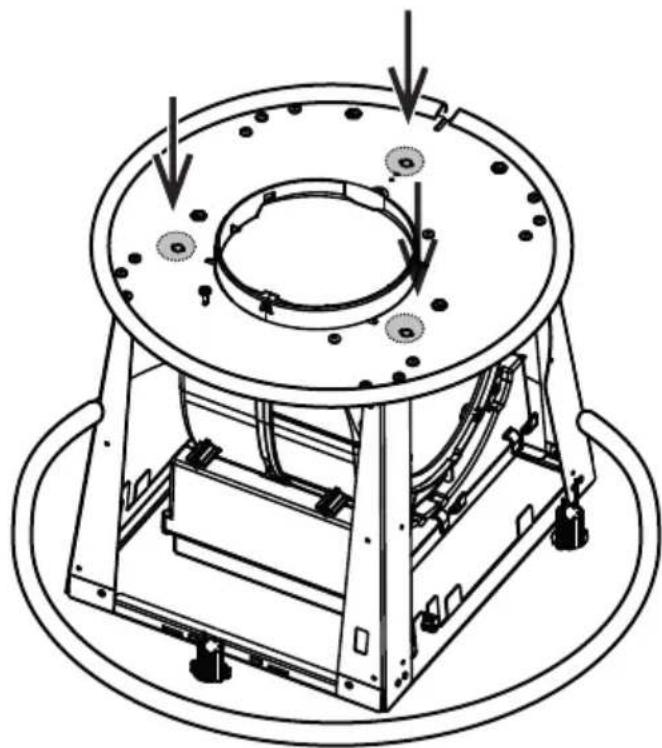

Technical line drawing of a mechanical component with three vertical rods and a central circular base (no text or symbols)

Line drawing of a mechanical component with three vertical rods and a central circular feature (no text or symbols)

1x

Diagram illustrating a 3D grid-based structure with an arrow indicating rotation or transformation, alongside a magnified view of the grid plane.

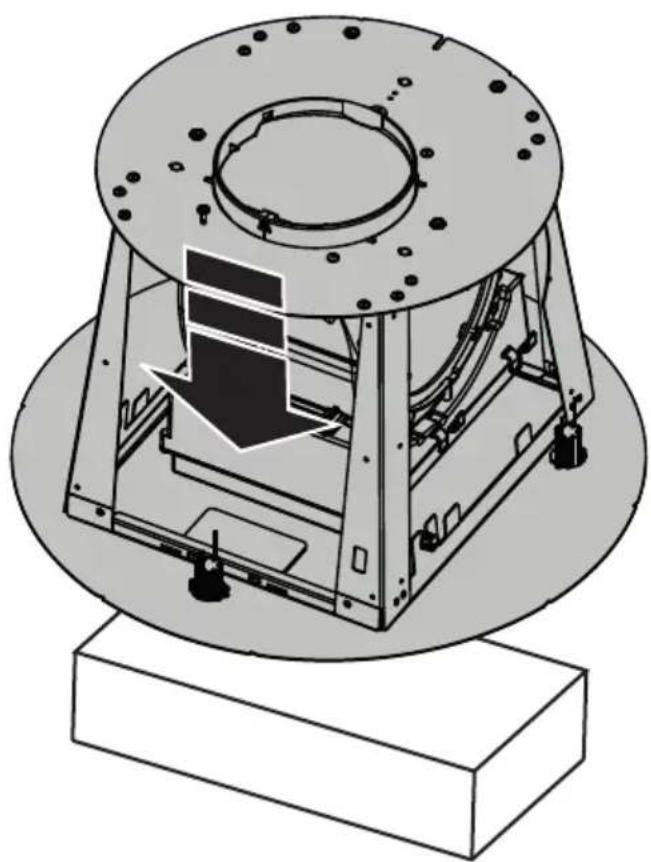

1

2

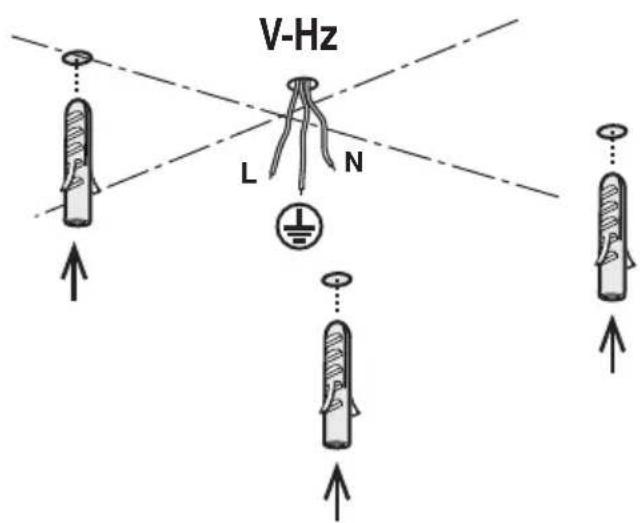

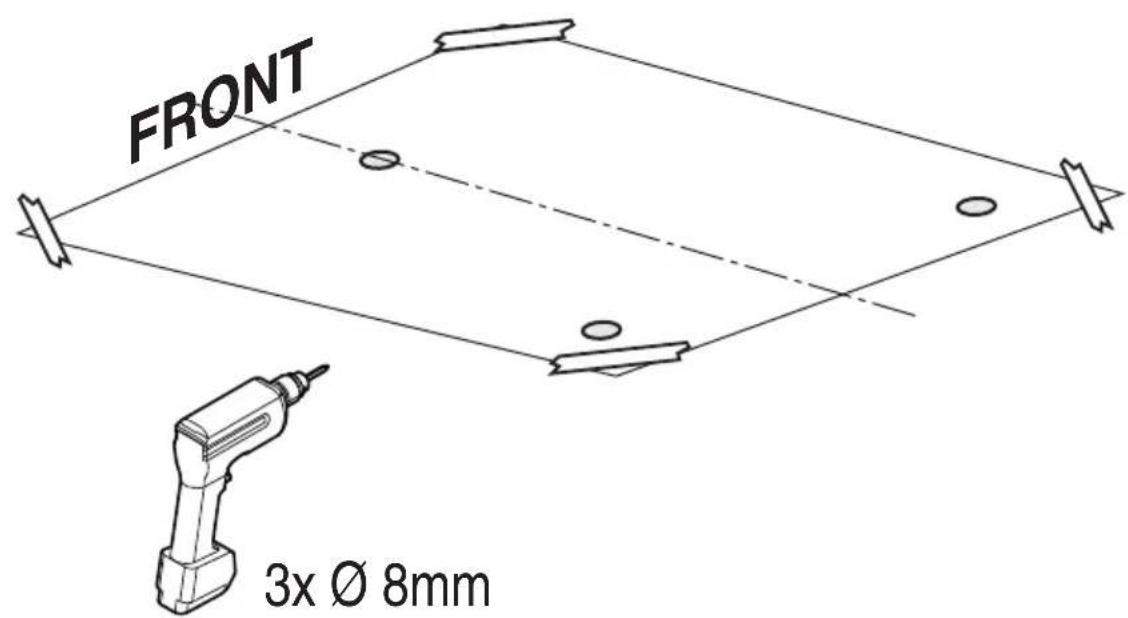

FRONT 3x Ø 8mm

M1

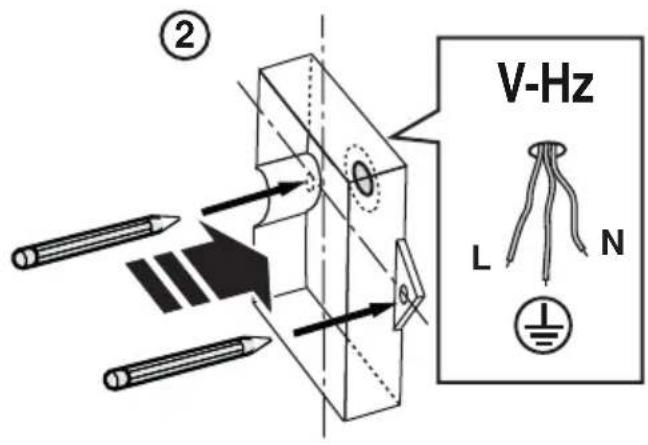

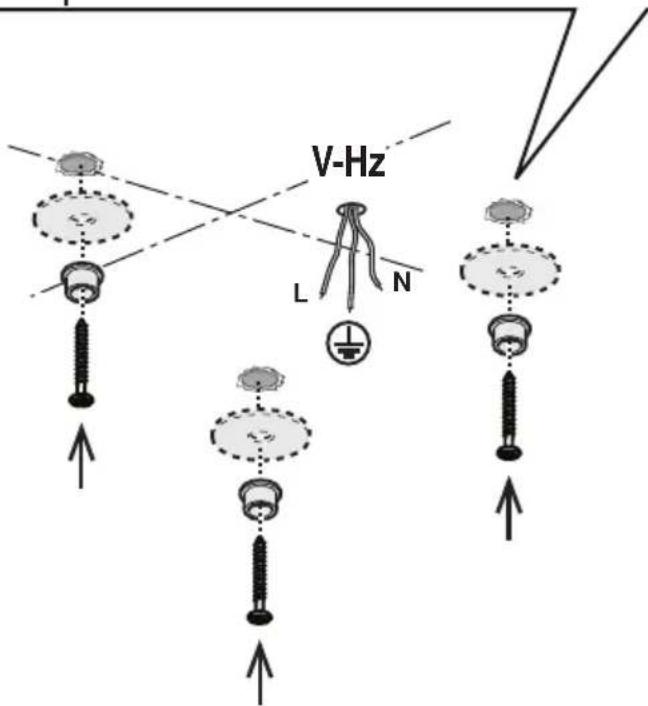

V-Hz L N

M1
3

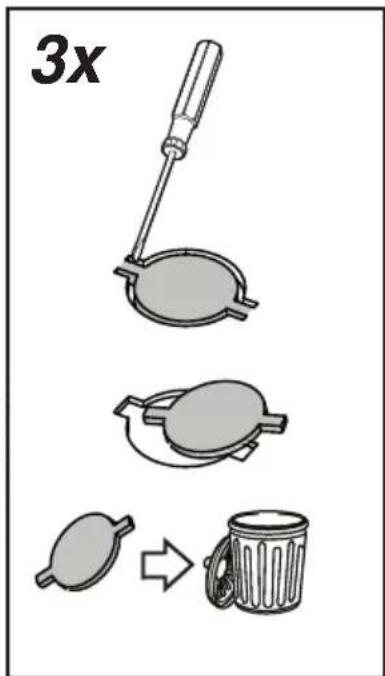

3x

ø4,5X36mm

3x

3x

M1

a

Diagram showing a mechanical component with an upward arrow and dashed lines indicating motion (no text or symbols)

b

Diagram showing a pipe joint with an upward arrow and a cylindrical component below (no text or symbols)

Diagram showing a layered structure with a paper-like top and a circular base, no text or symbols present.

Simple line drawing of a cylindrical container with a mouth and a smiley face below (no text or symbols)

Simple line drawing of a cracked surface with a sad face below (no text or symbols)

Simple line drawing of a hat and a smiley face (no text or symbols)

4

V-Hz L N

3x 3x

① ② 3 4 V-Hz L N

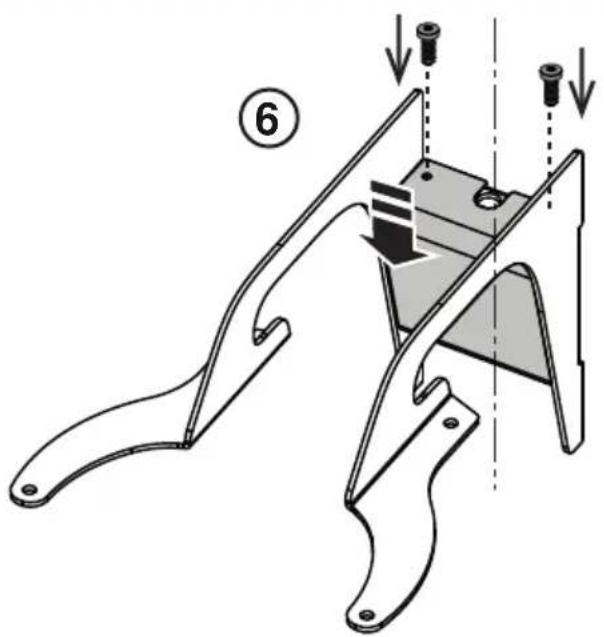

6

7

Technical diagram illustrating a mechanical assembly process with labeled steps ① and ②, showing tool positioning and component alignment.

M1

Technical illustration of a mechanical assembly with a central circular component and mounting base (no text or symbols)

M1

Simple line drawing of a laboratory setup with a test tube, warning symbol, and a circular head (no text or labels)

8

1x

M1

Technical line drawing of a mechanical assembly with circular components and directional arrows (no text or symbols)

9

Technical line drawing of a mechanical assembly with circular components and directional arrows (no text or symbols)

3x

10
M1

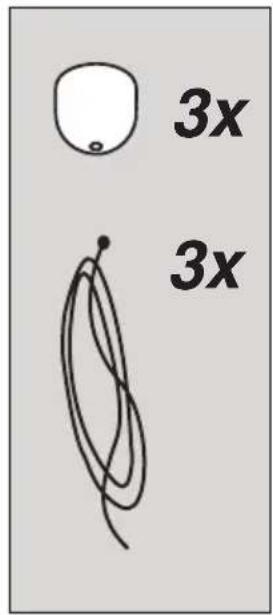

3x 3x

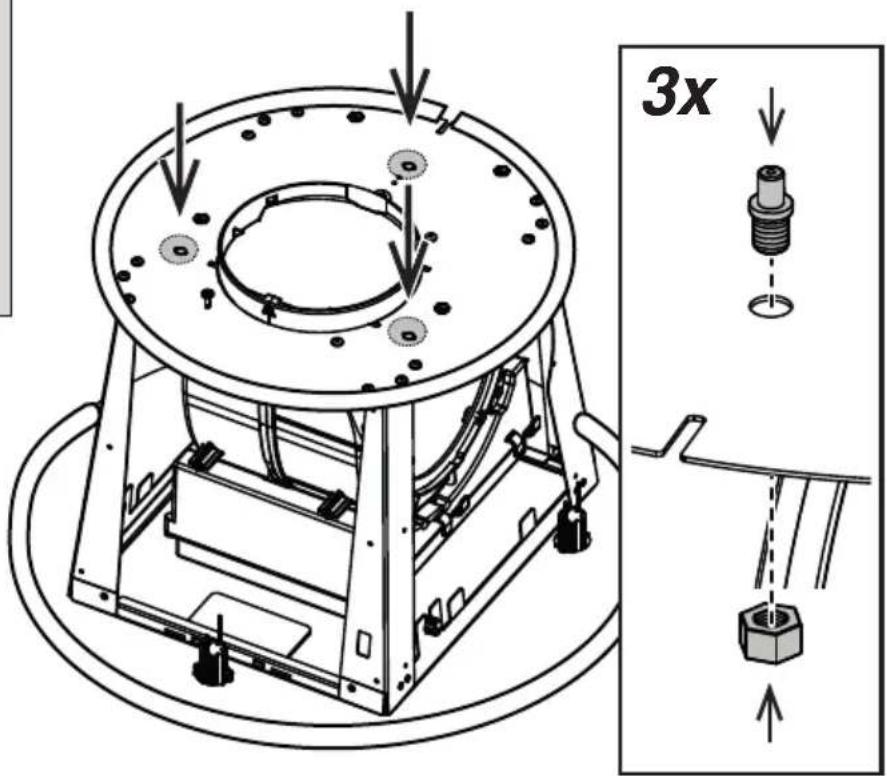

3x

M1
11
M1

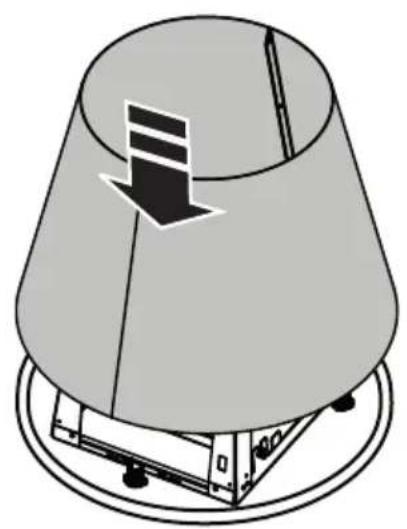

Diagram of a conical lamp with a ruler and base device, showing no text or symbols

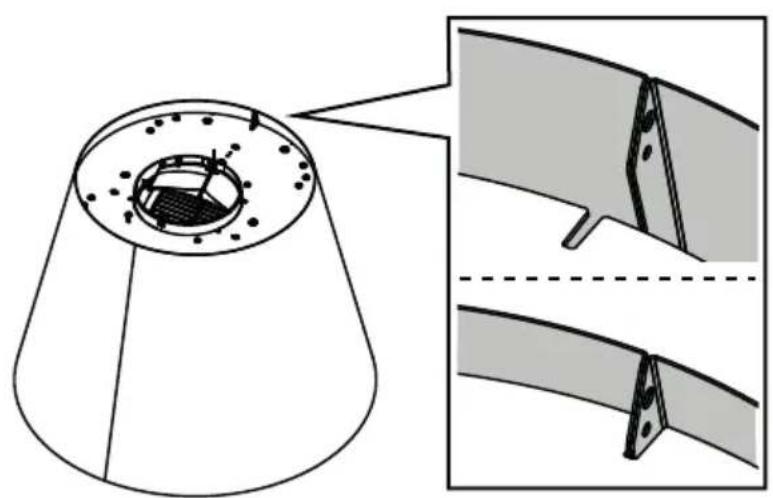

Technical diagram of a conical component with internal structure and two close-up views showing internal details (no text or symbols)

12

Diagram of a mechanical device with arrows indicating motion or force directions, no readable text or symbols present.

M1

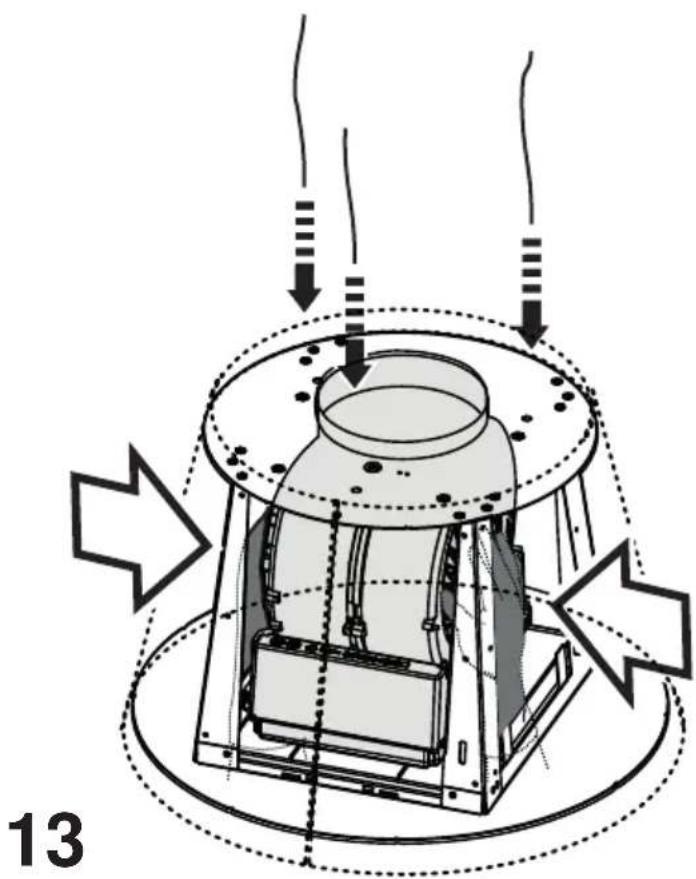

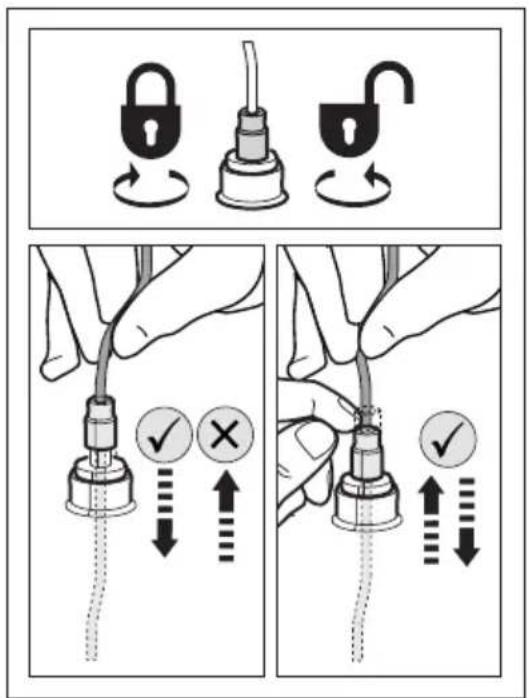

Diagram illustrating three steps of a medical procedure: opening lock, adjusting lock position, and adjusting valve with checkmark and cross symbols.

M1

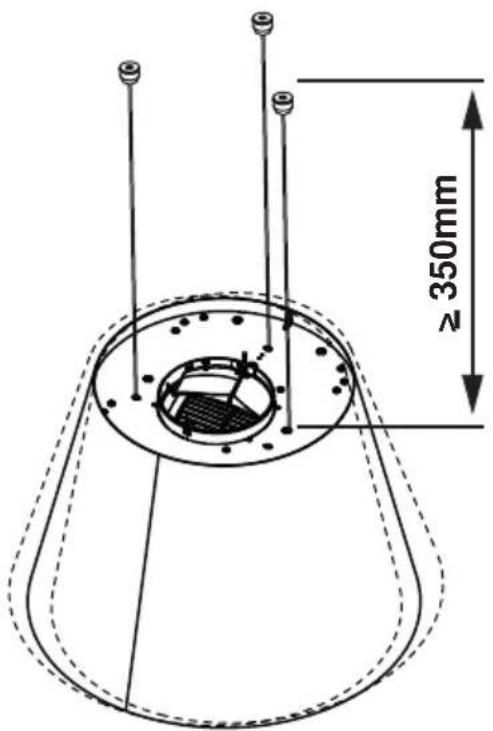

≥350mm

14

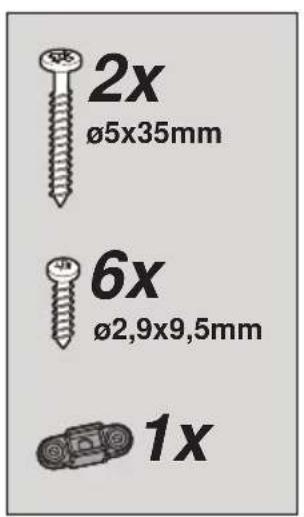

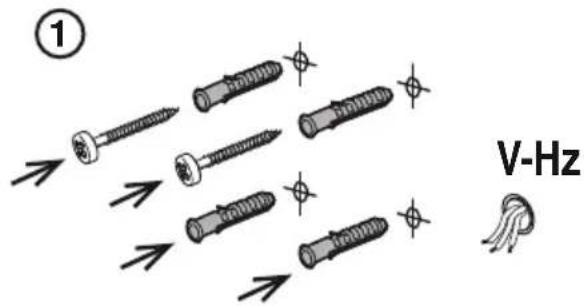

2x Ø5x35mm 6x Ø2.9x9.5mm 1x

V-Hz

M1

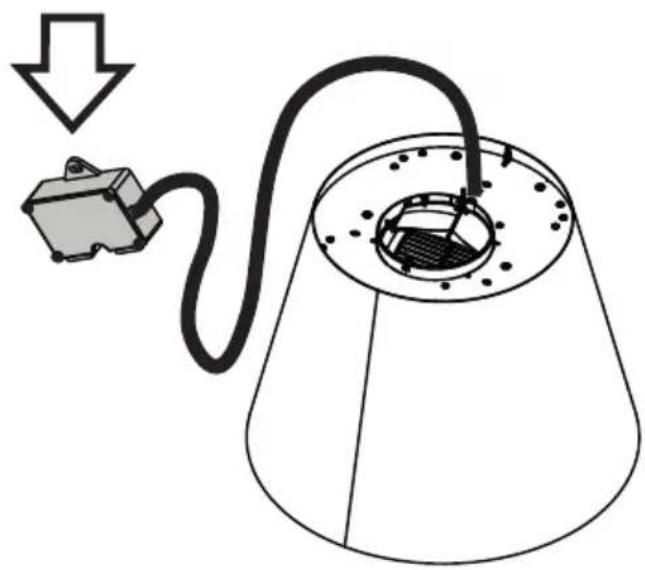

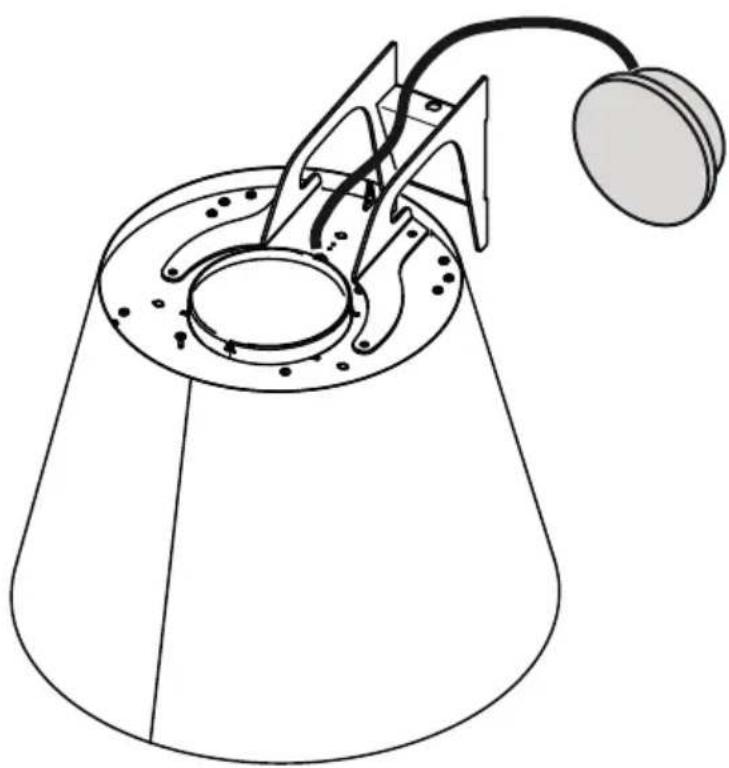

Diagram of a device connected to a conical lampshade with a cable, showing no text or symbols.

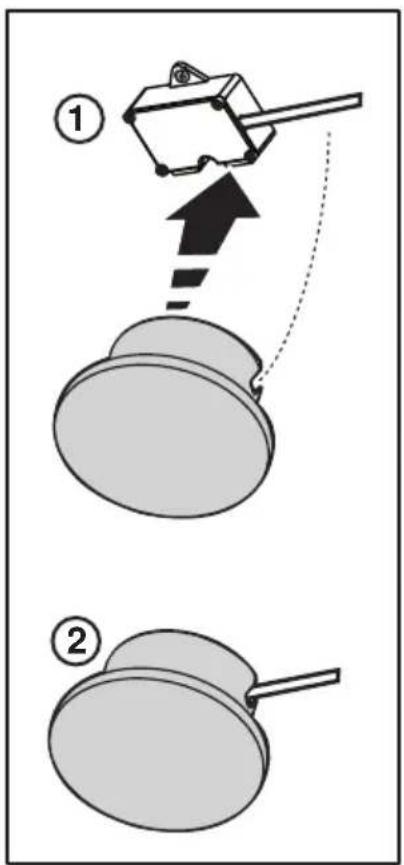

① V-Hz L N

②

Ø 4,5x36mm

Ø 2,9x9,5mm

④

Diagram of a mechanical component with screws and a clip, no text or symbols present

1x

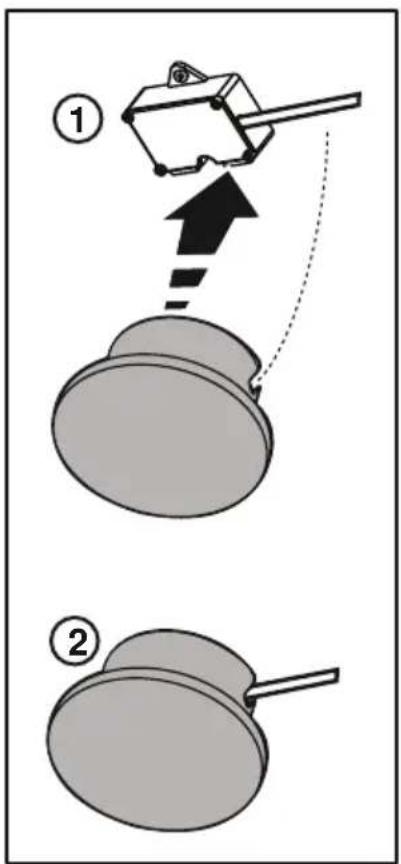

Diagram illustrating a mechanical assembly process with labeled steps ① and ② showing motion of a component.

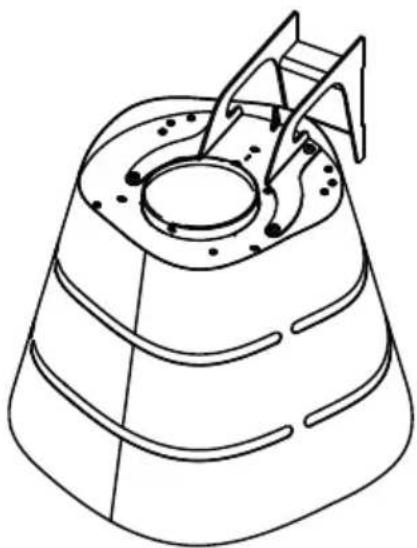

Technical line drawing of a conical lamp with internal components and wiring (no text or symbols)

M2

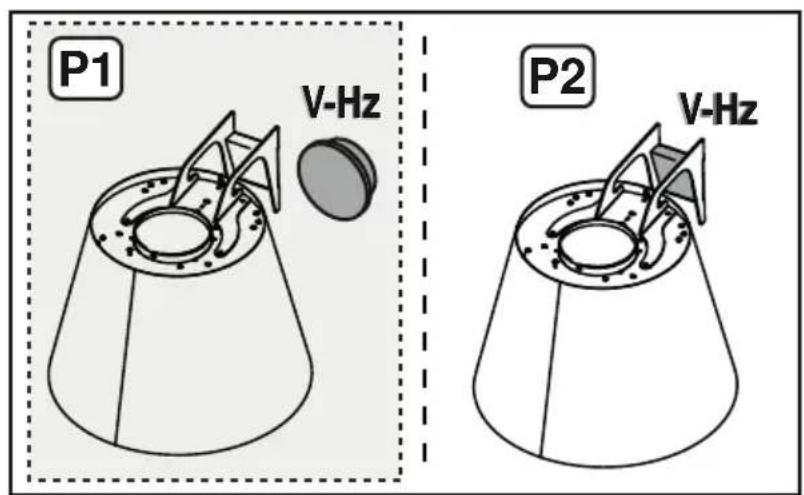

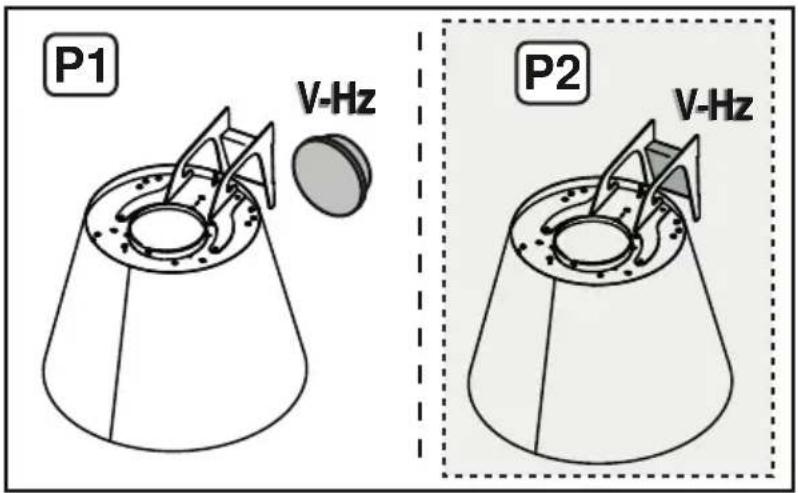

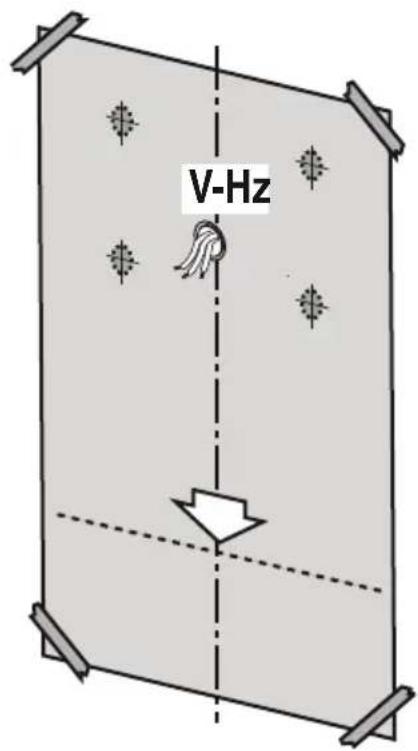

P1 V-Hz P2 V-Hz

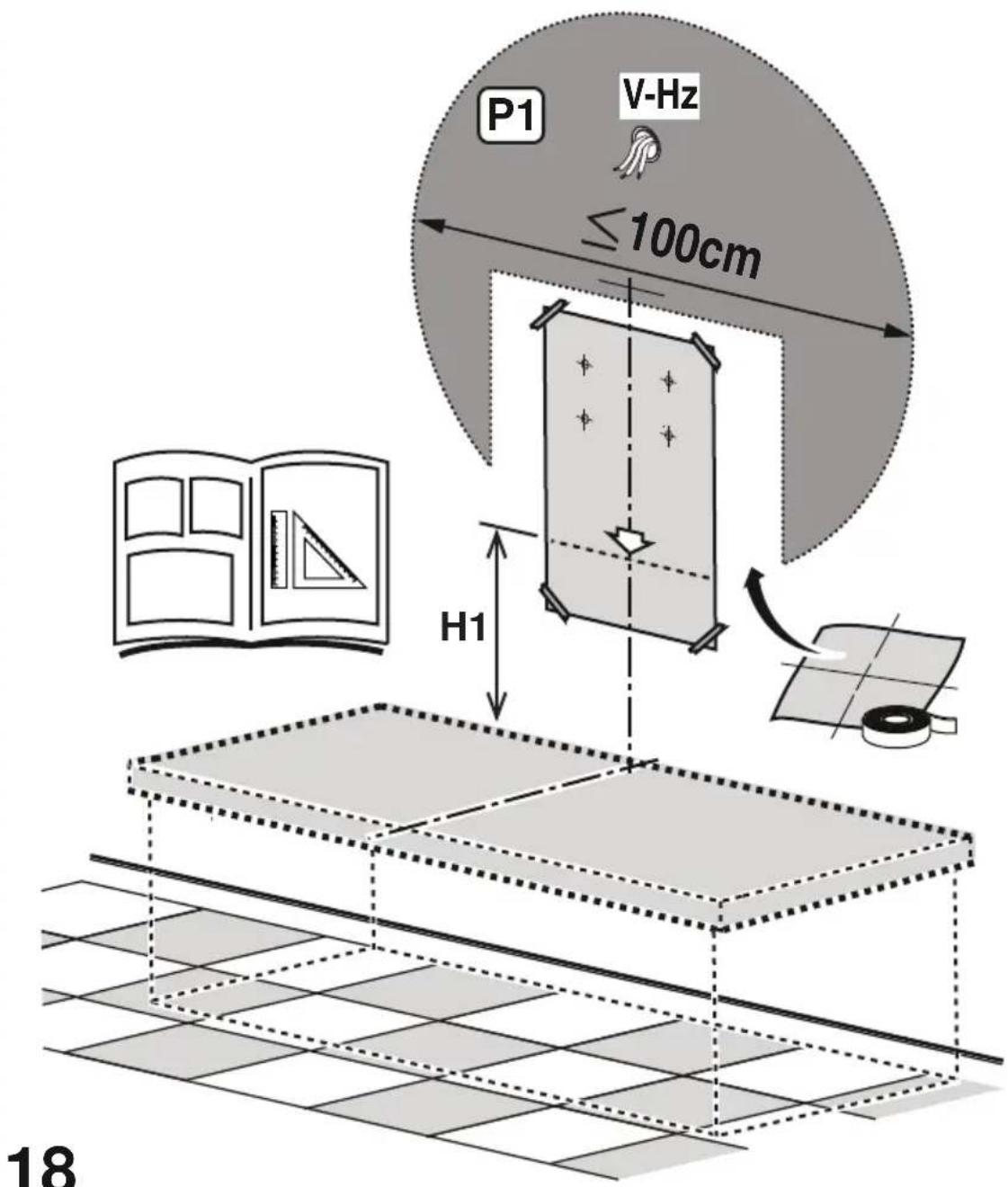

P1 V-Hz ≤100cm H1 18

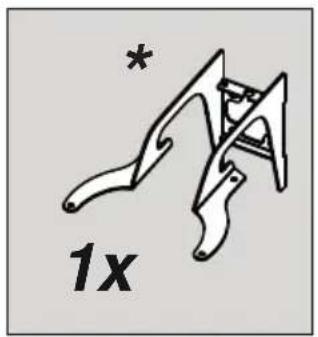

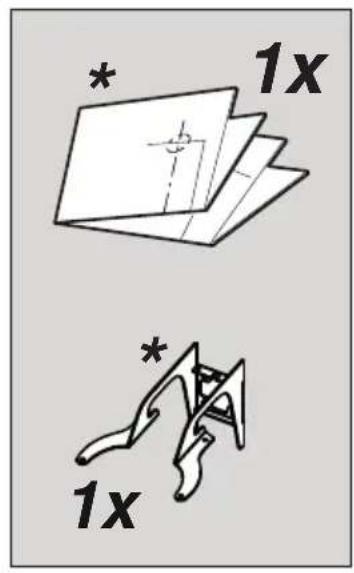

* 1x

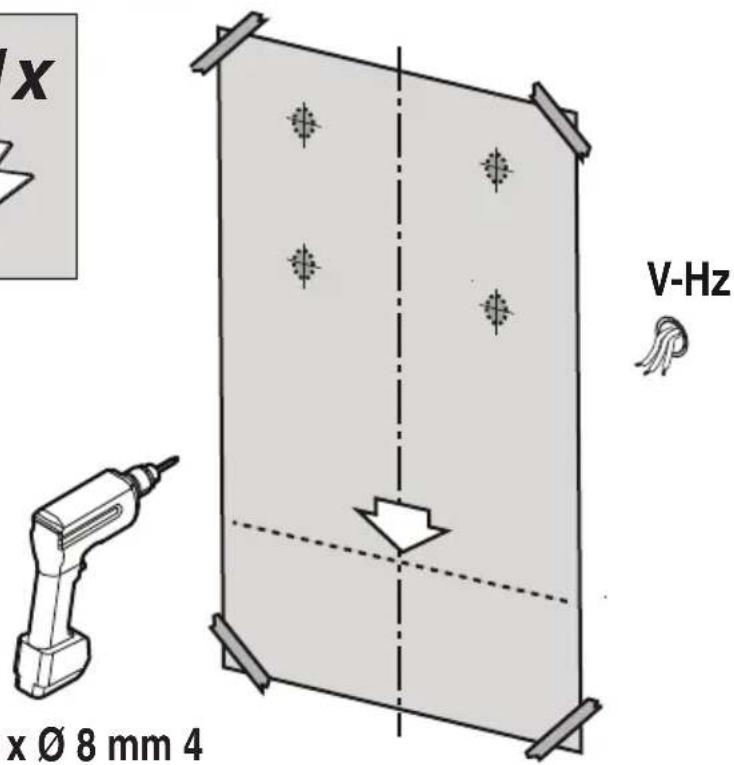

x Ø 8 mm 4 V-Hz

M2

P1

19

x ∅ 8 mm 4

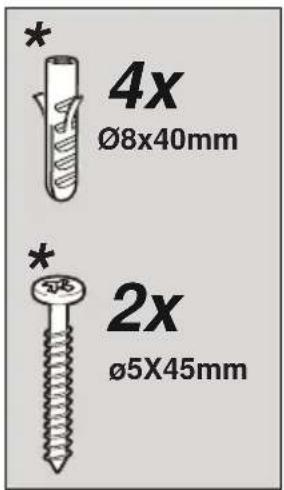

4x

∅8x40mm

2x

ø5X45mm

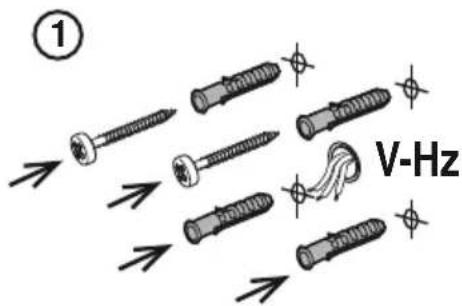

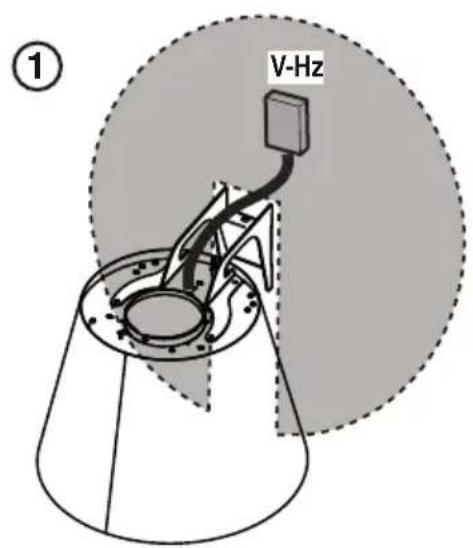

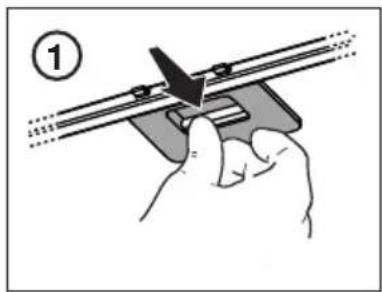

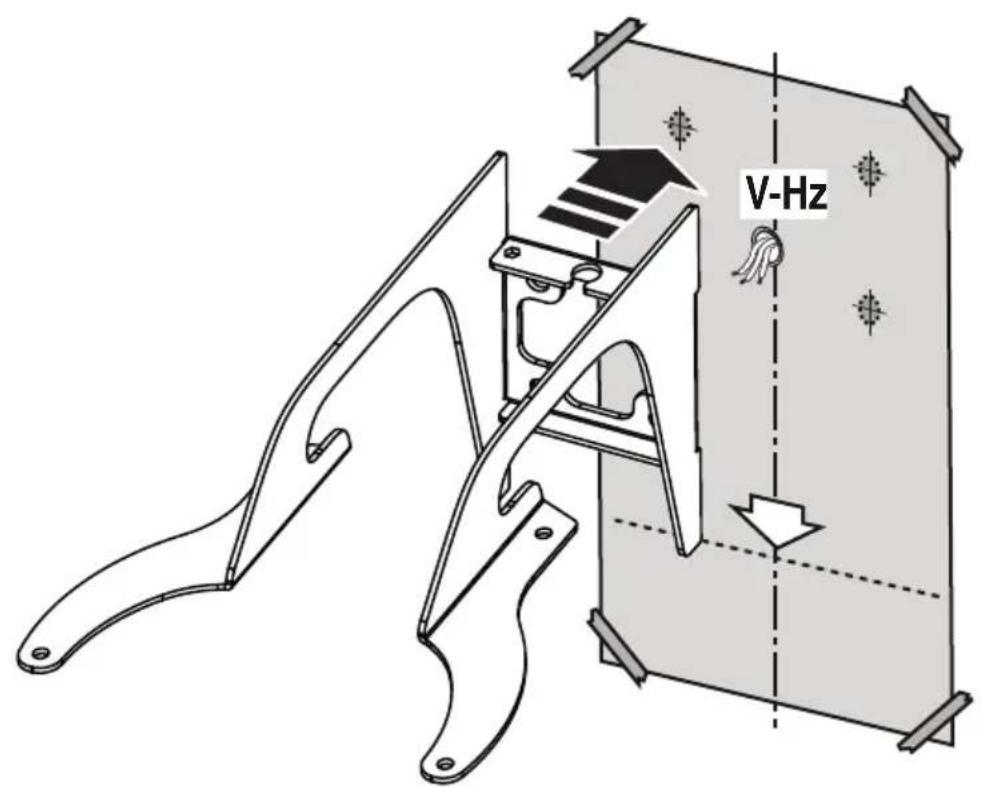

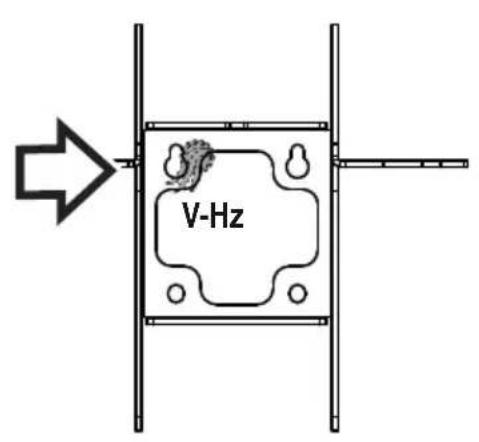

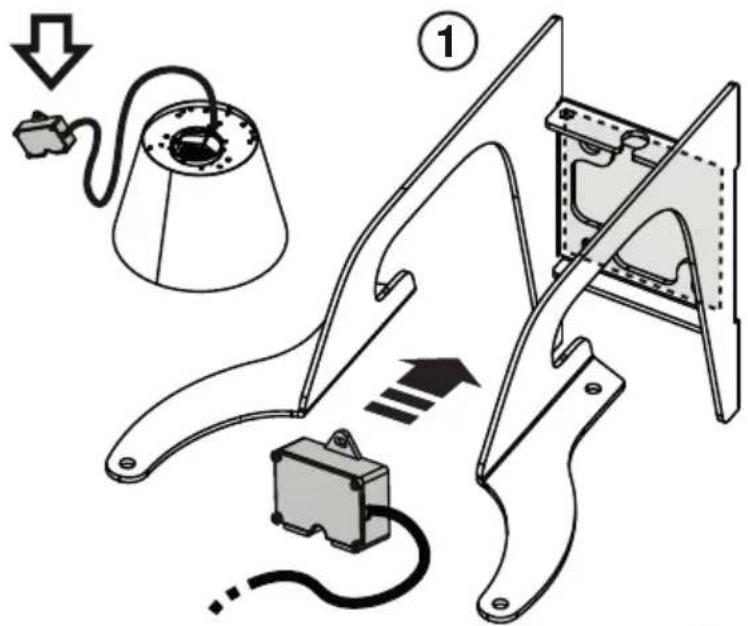

① V-Hz

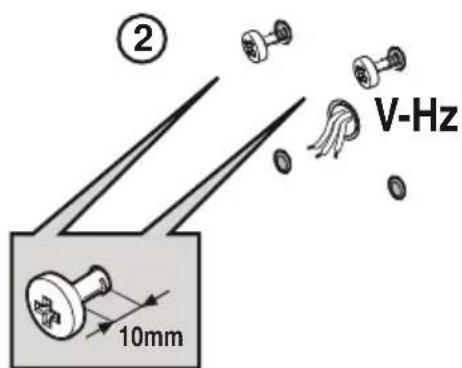

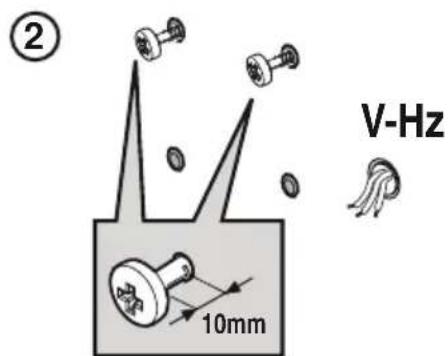

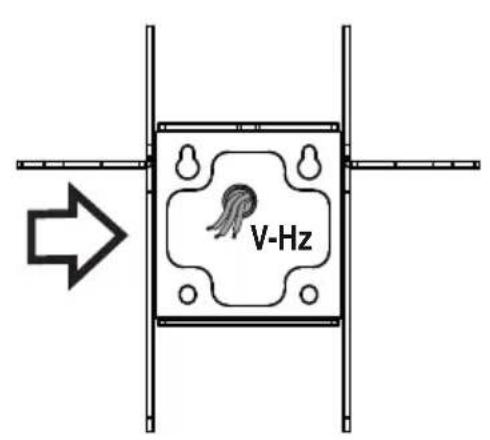

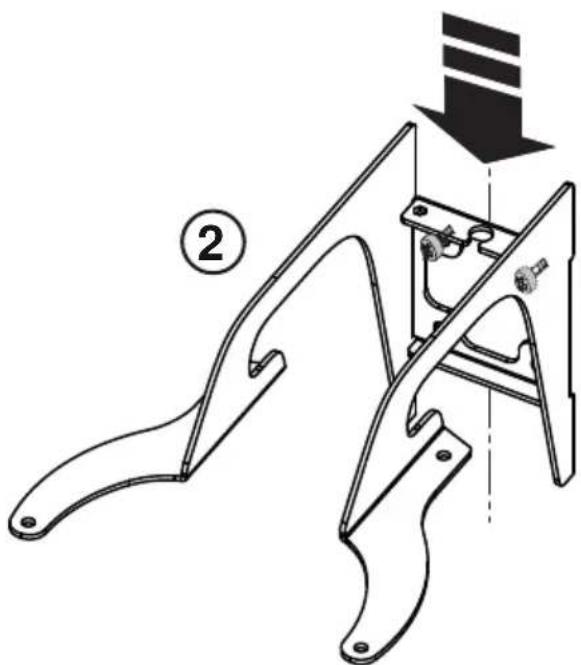

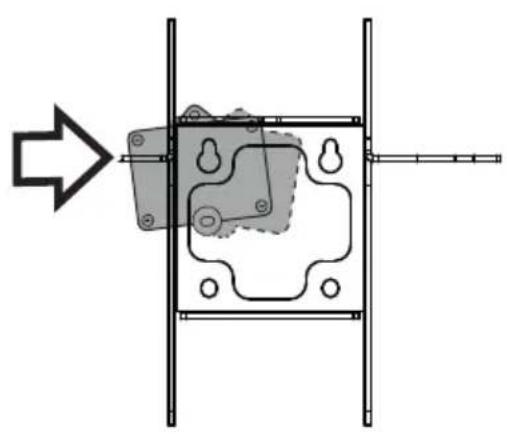

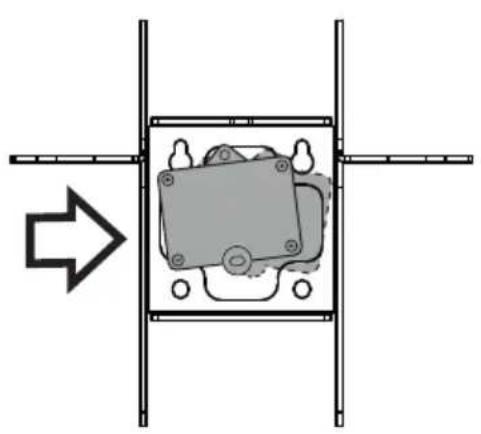

② V-Hz 10mm

20

M2

P1

1x

Technical diagram of a mechanical assembly with numbered component and directional arrows indicating motion or flow

M2

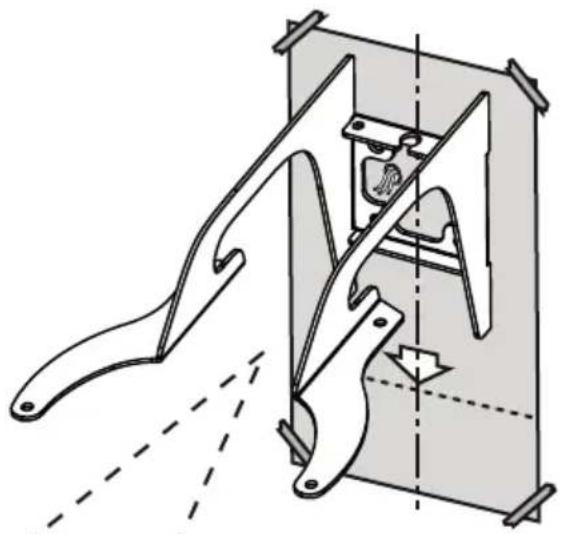

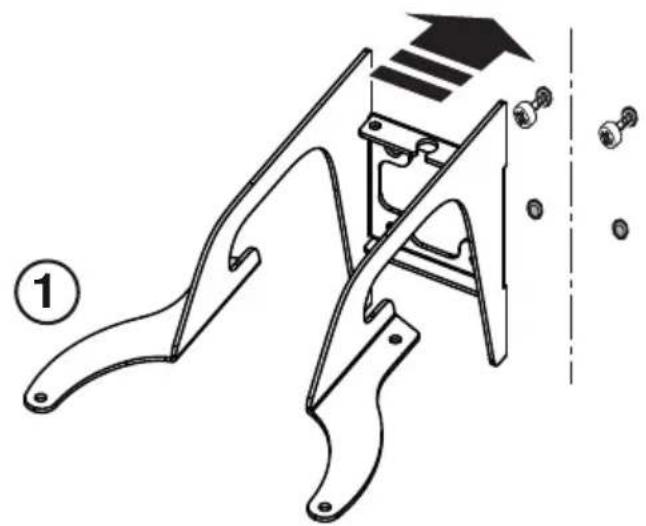

Technical diagram of a mechanical bracket assembly with labeled parts and directional arrow

Diagram showing three symbols: a padlock with plus sign, a circle with plus sign and downward arrow, and a checkmark.

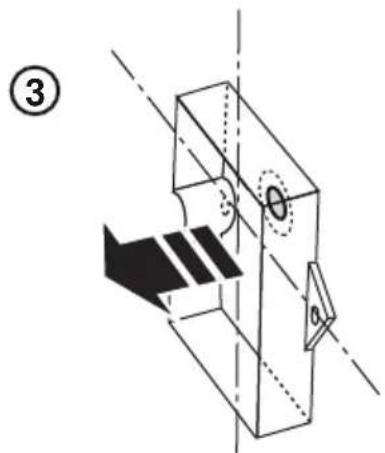

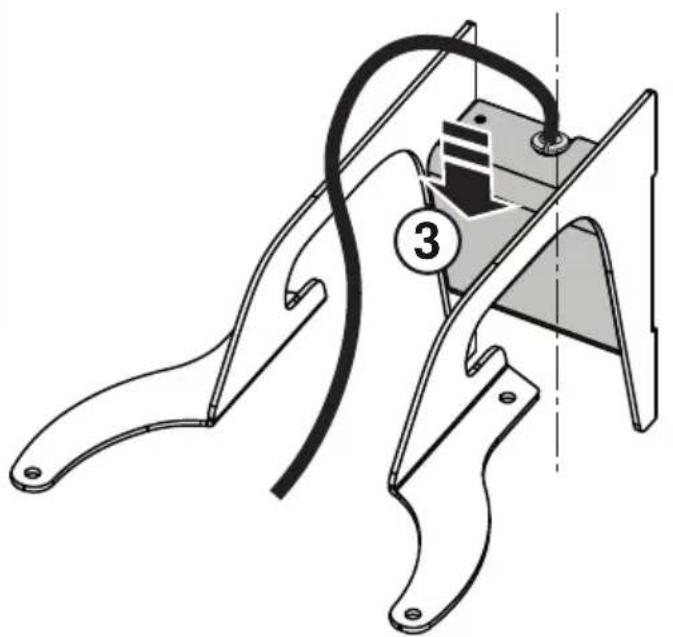

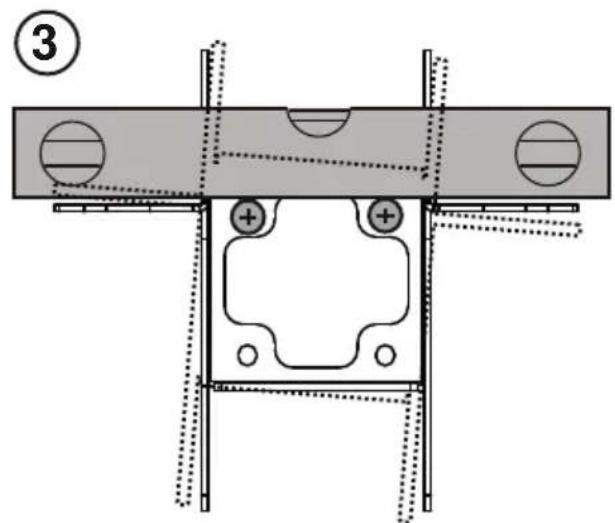

③

* 2x ø5X45mm

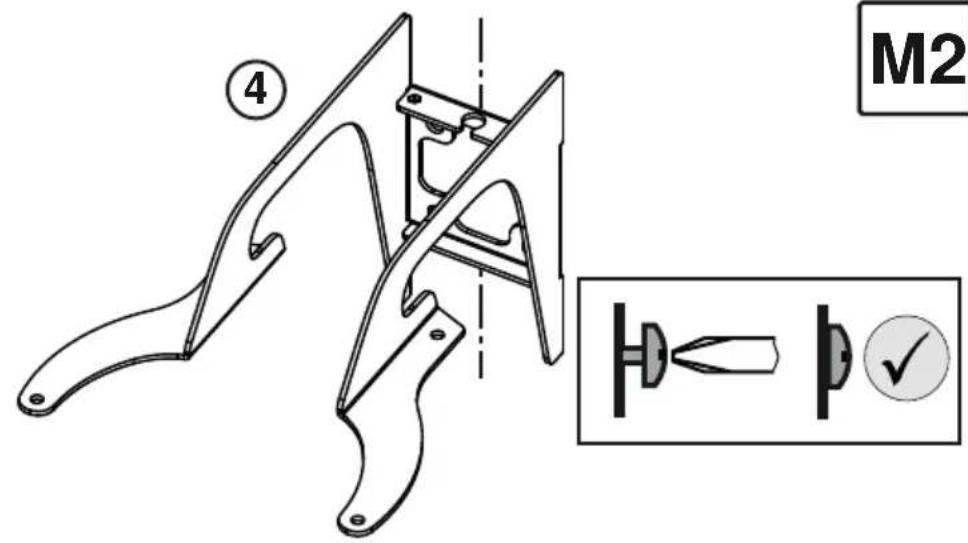

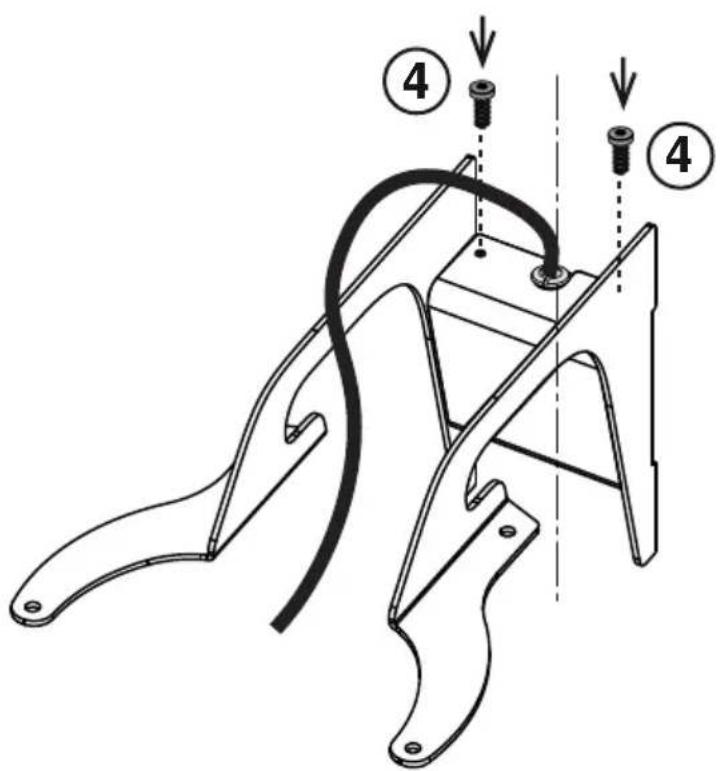

M2 ④

21.1

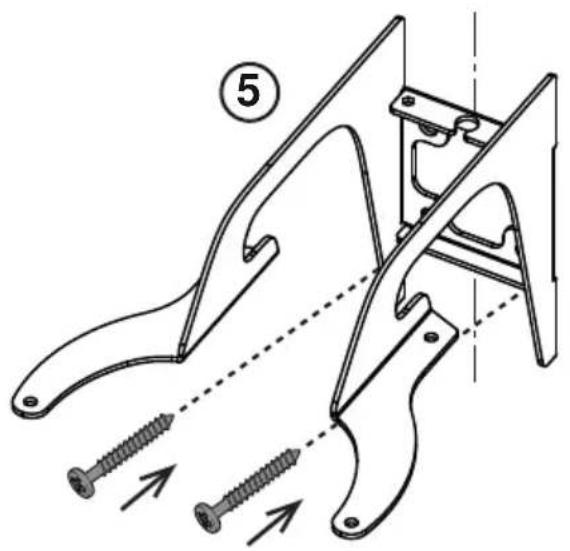

⑤

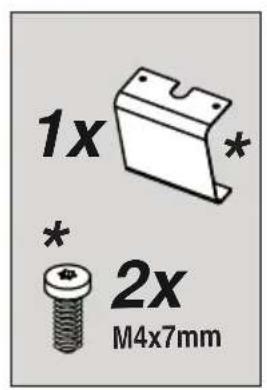

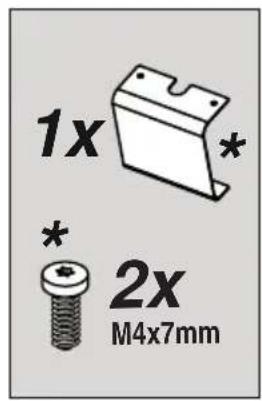

1x * 2x M4x7mm

Technical diagram of a mechanical component with labeled parts and directional arrows indicating assembly or assembly steps.

21.2

22

7-8-9 12

Simple line drawing of an open book with a page number 23 visible on the right (no text or symbols on the pages)

4x

M6 x 16 mm

M2

Diagram illustrating a mechanical assembly with labeled parts and directional arrows, showing components like screw fasteners and a conical base.

23

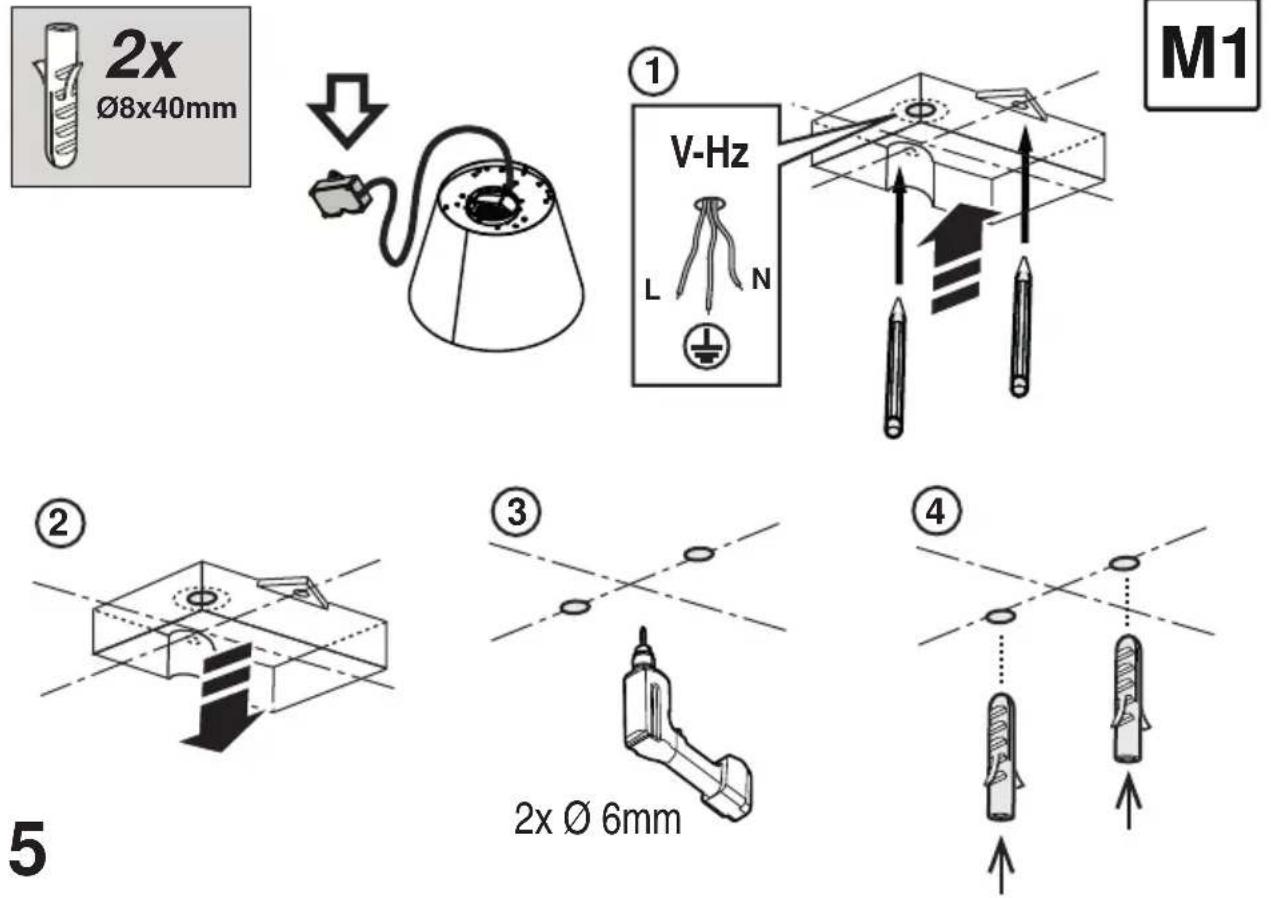

2x Ø8x40mm

V-Hz ①

V-Hz L N ②

③ α

Diagram showing a tool and two labeled parts with arrows indicating movement, possibly illustrating a precision or optical setup.

2x ∅ 8mm

24

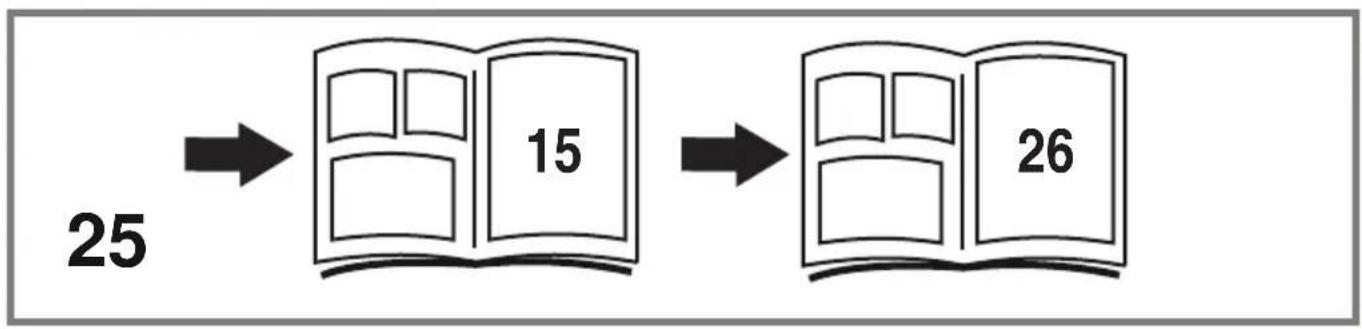


1x

Diagram illustrating a mechanical assembly process with labeled steps ① and ② showing motion of a component.

Line drawing of a conical lamp with a base and top component, no text or symbols present

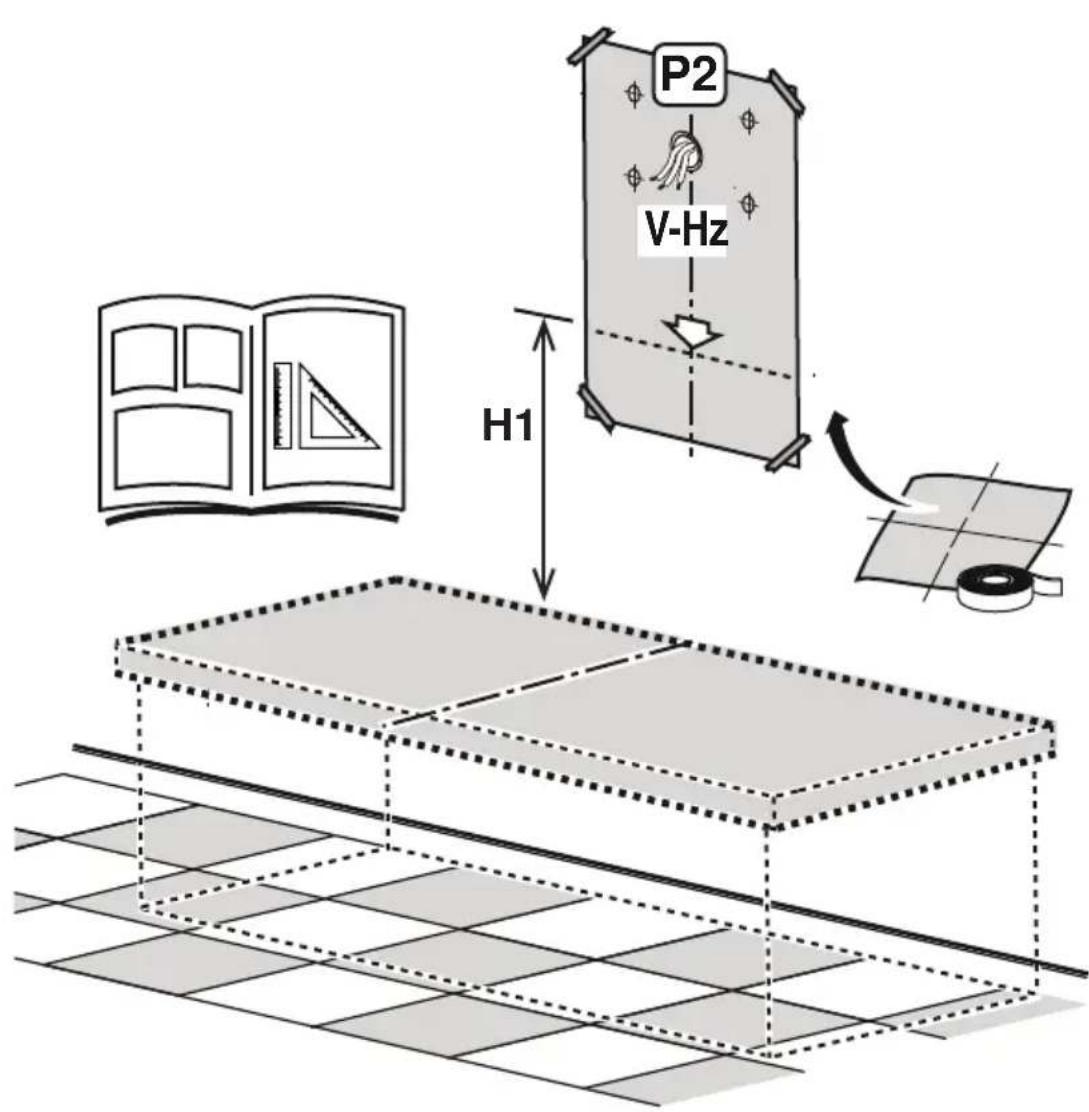

P1 V-Hz P2 V-Hz

P2 V-Hz H1

* 1x * 1x

V-Hz

V-Hz

!

Technical line drawing of a mechanical device with no visible text or symbols

V-Hz

V-Hz

Diagram of a mechanical assembly with an arrow indicating direction, no text or symbols present

Mechanical assembly diagram showing a bracket with mounting holes and a directional arrow (no text or symbols)

29

30

18

Line drawing of a handheld electric drill bit (no text or symbols)

x ∅ 8 mm 4

V-Hz

30

M2

P2

* 4x Ø8x40mm * 2x Ø5X45mm

① V-Hz

M2

P2

② V-Hz 10mm

31

32

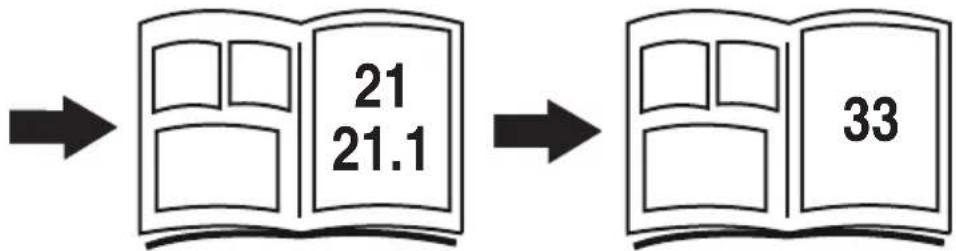


* 1x

Technical diagram illustrating a mechanical assembly with labeled components and directional arrows indicating motion or assembly.

Technical diagram showing mechanical assembly steps with labeled components and directional arrows

33

1x * 2x M4x7mm

Technical line drawing of a mechanical clamp or tool with labeled component (3), no readable text or symbols present.

Technical diagram showing mechanical assembly with numbered callouts indicating parts of a component

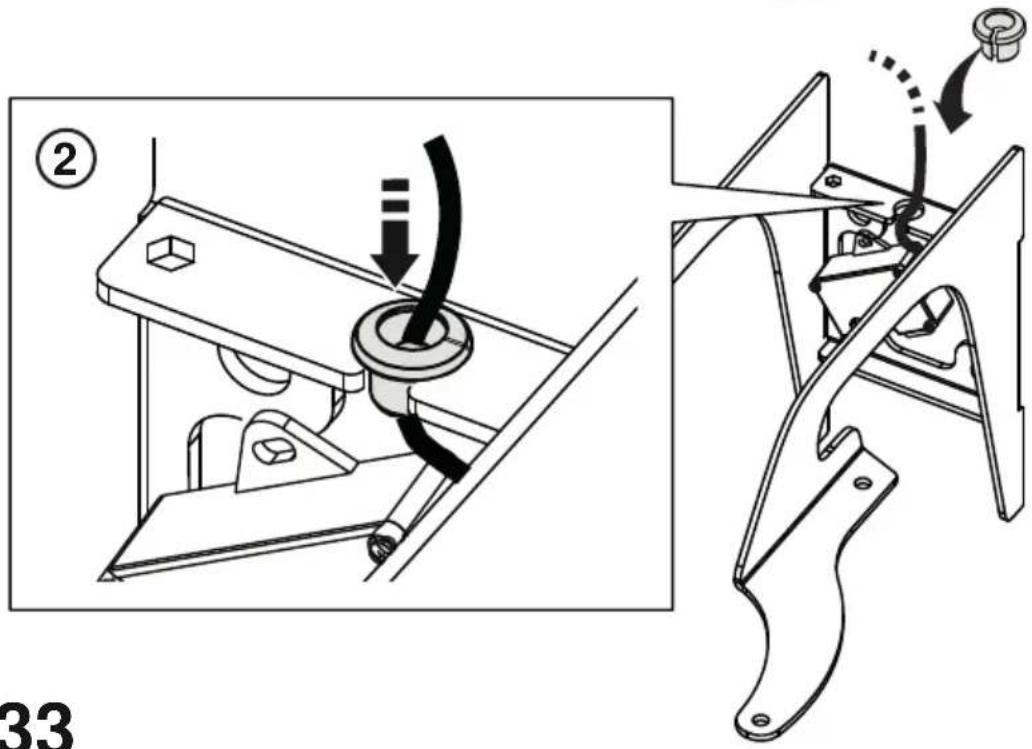

33.1

2x 2x

2x ① ② ③ ② ③

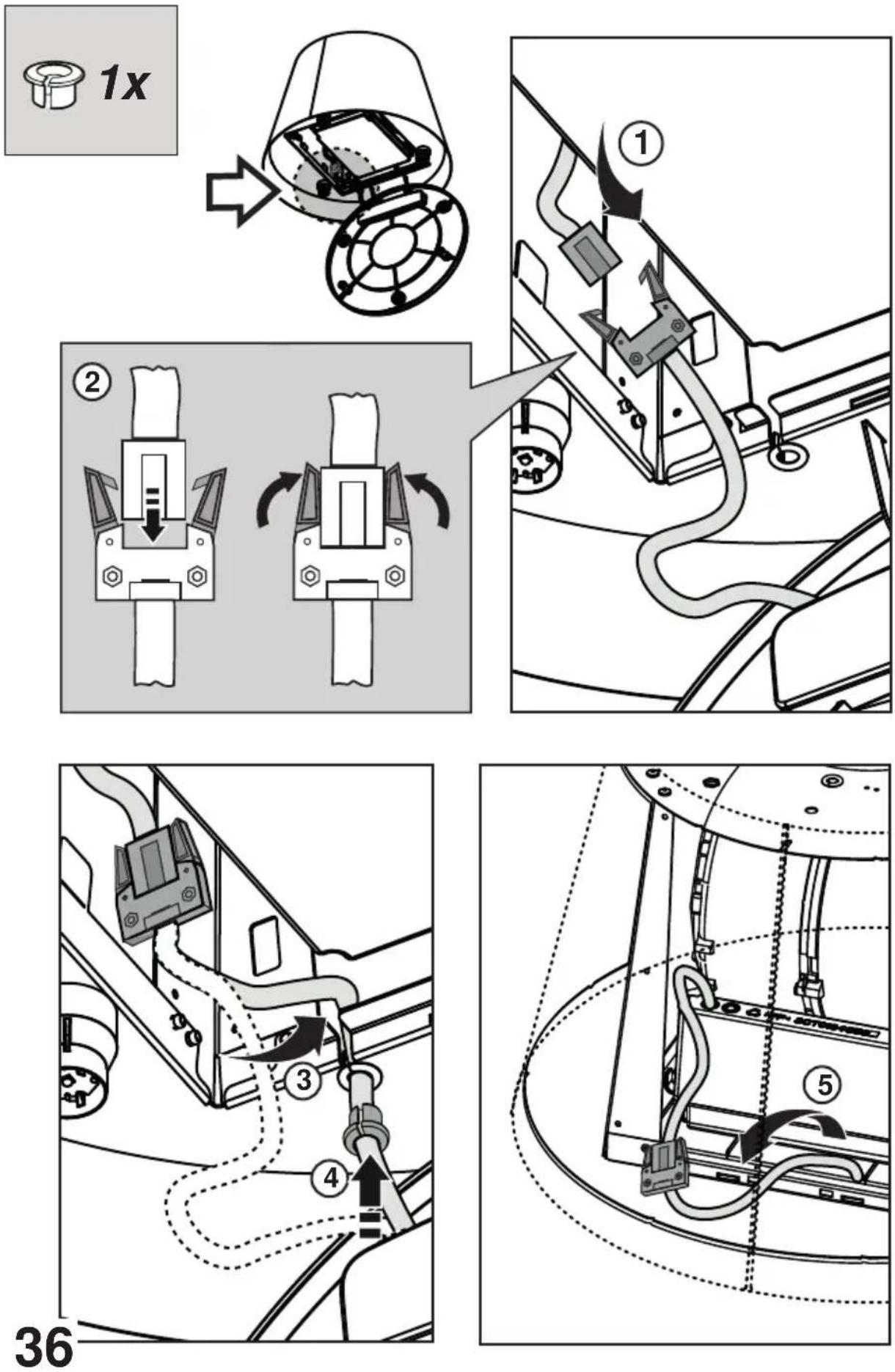

Illustration of a hand using a cutting tool to cut a metal sheet (no text or symbols visible)

Diagram of a mechanical device with a rotating base and directional arrow, no text or symbols present

37

Diagram of a device with a curved arrow pointing upward, no text or symbols present

38

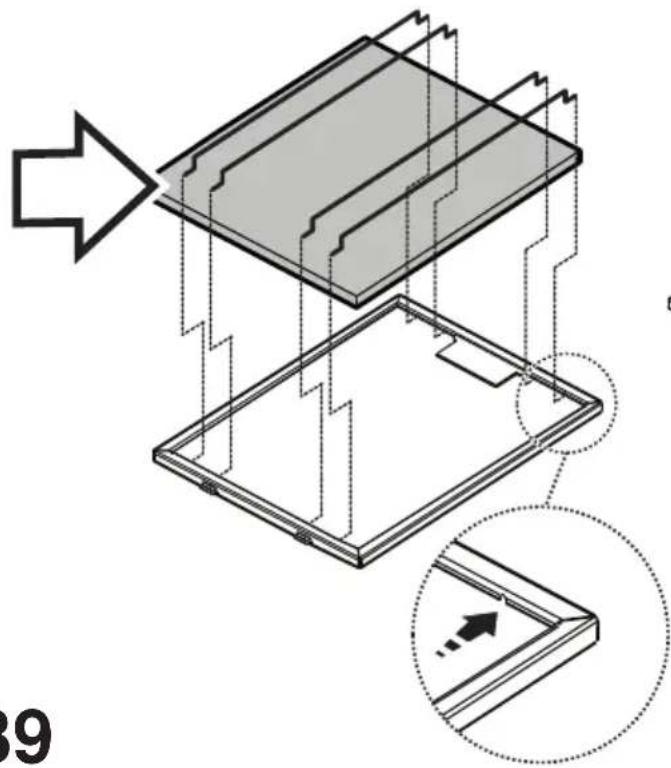

39

Technical diagram showing a 3D mechanical assembly with labeled components and directional arrows indicating flow or movement.

Isometric view of a rectangular electronic component with horizontal slats and mounting holes (no text or symbols)

Diagram of a mechanical device with rotating components and a central component, no text or symbols present

40

EN - Instruction on mounting and use

Closely follow the instructions set out in this manual. All responsibility, for any eventual inconveniences, damages or fires caused by not complying with the instructions in this manual, is declined. This appliance is intended to be used in household and similar application such as: - staff kitchen areas in shop, offices and other working environments; - farm houses; - by clients in hotels, motels and other residential type environments; - bed and breakfast type environments.

The hood can look different to that illustrated in the drawings in this booklet. The instructions for use, maintenance and installation, however, remain the same.

• It is important to conserve this booklet for consultation at any moment. In the case of sale, cession or move, make sure it is together with the product.
• Read the instructions carefully: there is important information about installation, use and safety.
• Do not carry out electrical or mechanical variations on the product or on the discharge conduits.
• Before proceeding with the installation of the appliance verify that there are no damaged all components. Otherwise contact your dealer and do not proceed with the installation.

Note: The parts marked with the symbol "(*)" are optional accessories supplied only with some models or otherwise not supplied, but available for purchase.

Caution

• Before any cleaning or maintenance operation, disconnect hood from the mains by removing the plug or disconnecting the mains electrical supply.
  • Always wear work gloves for all installation and maintenance operations.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children shall not be allowed to tamper with the controls or play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.
• The premises where the appliance is installed must be sufficiently ventilated, when the kitchen hood is used together

with other gas combustion devices or other fuels.

• The hood must be regularly cleaned on both the inside and outside (AT LEAST ONCE A MONTH).
• This must be completed in accordance with the maintenance instructions provided. Failure to follow the instructions provided regarding the cleaning of the hood and filters will lead to the risk of fires.
• Do not flambé under the range hood.
• Do not remove filters during cooking.
• For lamp replacement use only lamp type indicated in the Maintenance/Replacing lamps section of this manual.

The use of exposed flames is detrimental to the filters and may cause a fire risk, and must therefore be avoided in all circumstances.

Any frying must be done with care in order to make sure that the oil does not overheat and ignite.

CAUTION: Accessible parts of the hood may become hot when used with cooking appliances.

• Do not connect the appliance to the mains until the installation is fully complete.
• With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided by the local authorities.
• The air must not be discharged into a flue that is used for exhausting fumes from appliance burning gas or other fuels.

WARNING! Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

• Do not use or leave the hood without the lamp correctly mounted due to the possible risk of electric shocks.
• Never use the hood without effectively mounted grids.
• The hood must NEVER be used as a support surface unless specifically indicated.
• Use only the fixing screws supplied with the product for installation or, if not supplied, purchase the correct screws type.
• Use the correct length for the screws which are identified in the Installation Guide.
• In case of doubt, consult an authorized service assistance center or similar qualified person.

⚠ WARNING! Do not use with a programmer, timer, separate remote control system or any other device that switches on automatically.

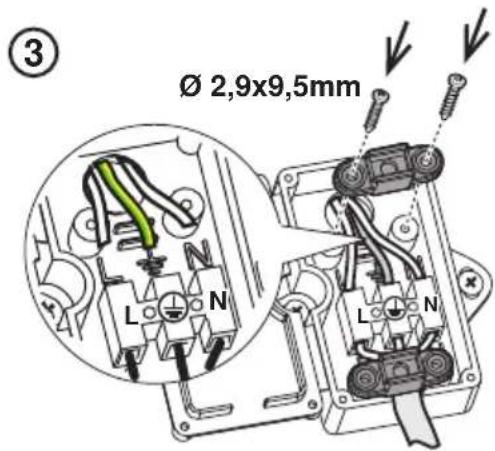

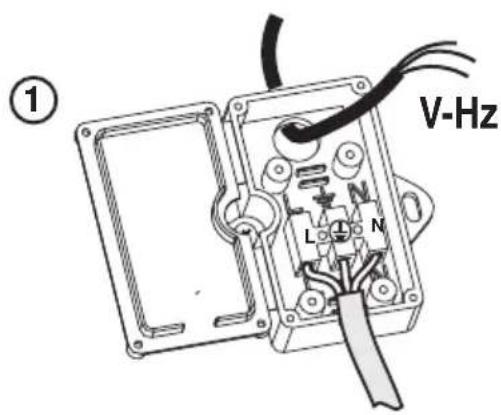

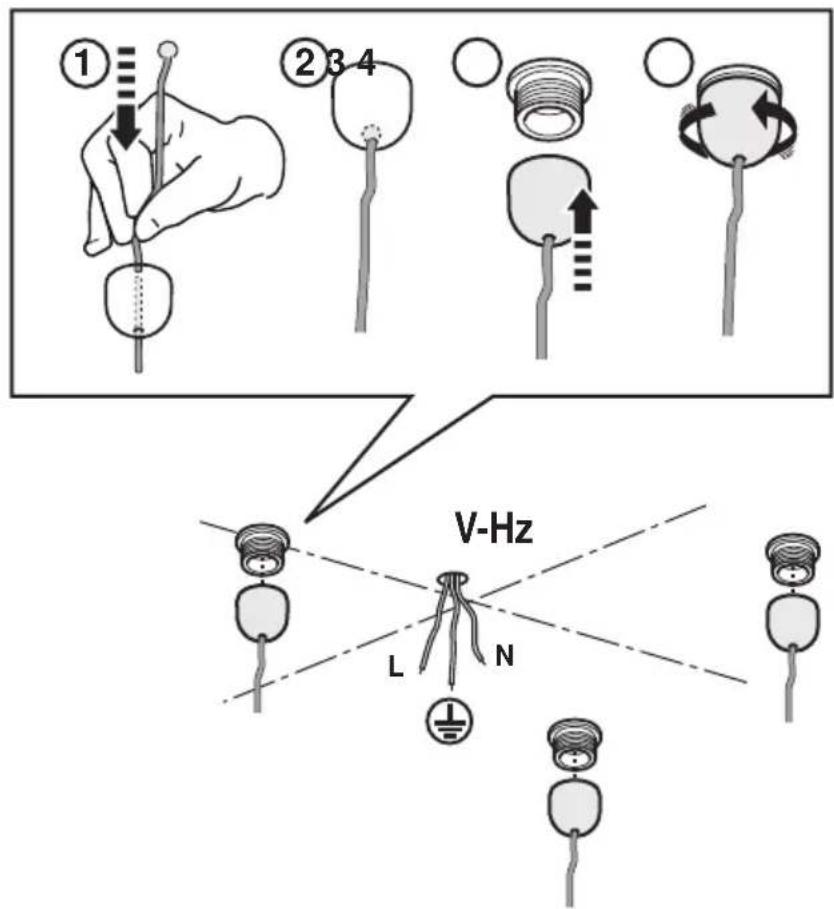

Electrical connection

The mains tension must correspond to the tension shown on the characteristic label situated inside the hood.

The product is meant for connecting directly to the mains supply, therefore apply a regulation bipolar switch that ensures complete disconnection from the mains in the conditions of category III over-tension, conforming to the installation rules.

Waring! Changing the interconnection cable must be carried out by the authorised technical assistance service.

Installation

- The minimum distance between the supporting surface for the cooking equipment on the hob and the lowest part of the range hood must be not less than 50cm from electric cookers and 65cm from gas or mixed cookers.

If the instructions for installation for the gas hob specify a greater distance, this must be adhered to.

Specialised personnel must carry out both the electrical and the mechanical installation.

• This appliance is marked according to the European directive 2012/19/EC - UK SI 2013 No.3113 on Waste Electrical and Electronic Equipment (WEEE).
• By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

• The symbol ■ on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal.
• For further detailed information regarding the process, collection and recycling of this product, please contact the appropriate department of your local authorities or the local department for household waste or the shop where you purchased this product.

Appliance designed, tested and manufactured according to:

• Safety: EN/IEC 60335-1; EN/IEC 60335-2-31, EN/IEC 62233.
• Performance: EN/IEC 61591; ISO 5167-1; ISO 5167-3; ISO 5168; EN/IEC 60704-1; EN/IEC 60704-2-13; EN/IEC 60704-3; ISO 3741; EN 50564; IEC 62301.
- EMC: EN 55014-1; CISPR 14-1; EN 55014-2; CISPR 14-2; EN/IEC 61000-3-2; EN/IEC 61000-3-3. Suggestions for a correct use in order to reduce the environmental impact: Switch ON the hood at minimum speed when you start cooking and kept it running for few minutes after cooking is finished. Increase the speed only in case of large amount of smoke and vapor and use boost speed(s) only in extreme situations. Replace the charcoal filter(s) when necessary to maintain a good odor reduction efficiency. Clean the grease filter(s) when necessary to maintain a good grease filter efficiency. Use the maximum diameter of the ducting system indicated in this manual to optimize efficiency and minimize noise.

Use

The hood is conceived for the suction of cooking fumes and

steam and is destined only for domestic use.

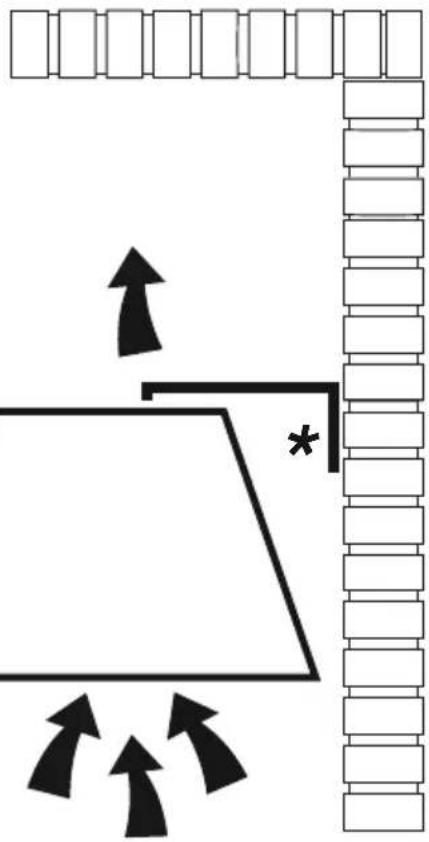

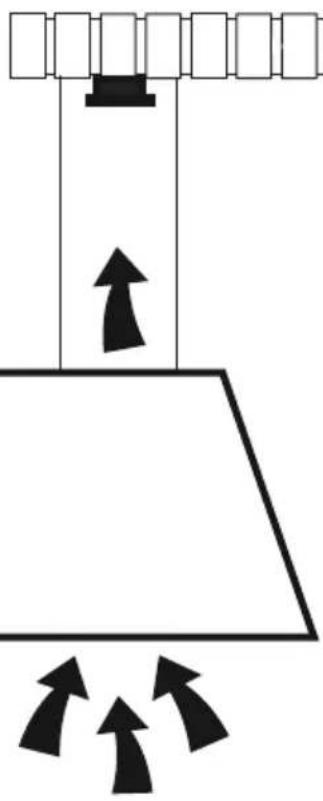

The hood has been made for use in the internal recirculating filtering version.

Cooking fumes and steam are aspirated inside the hood, filtered and cleaned, passing through the fat filter/s and the carbon filter/s that MUST be supplied with the hood.

Mounting

Before beginning installation:

• Check that the product purchased is of a suitable size for the chosen installation area.
• Remove the charcoal (*) filter/s if supplied (see also relative paragraph). This/these is/are to be mounted only if you want to use the hood in the filtering version.
• Check (for transport reasons) that there is no other supplied material inside the hood (e.g. packets with screws (*), guarantees (*), etc.), eventually removing them and keeping them.

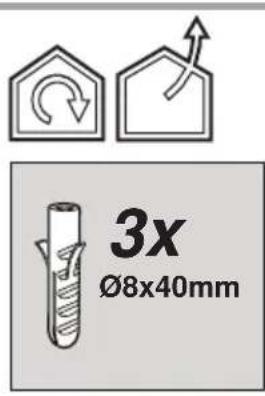

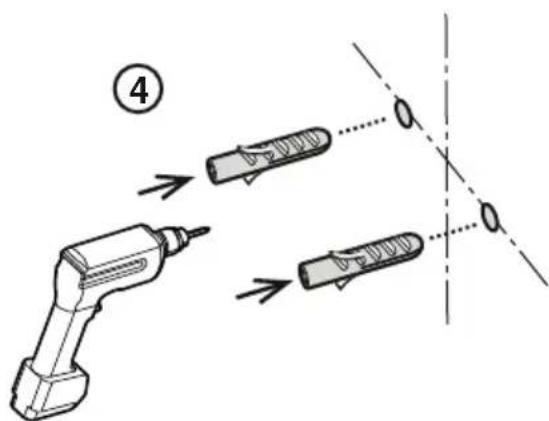

Expansion wall plugs are provided to secure the hood to most types of walls/ceilings. However, a qualified technician must verify suitability of the materials in accordance with the type of wall/ceiling. The wall/ceiling must be strong enough to take the weight of the hood.

Do not tile, grout or silicone this appliance to the wall.

Surface mounting only.

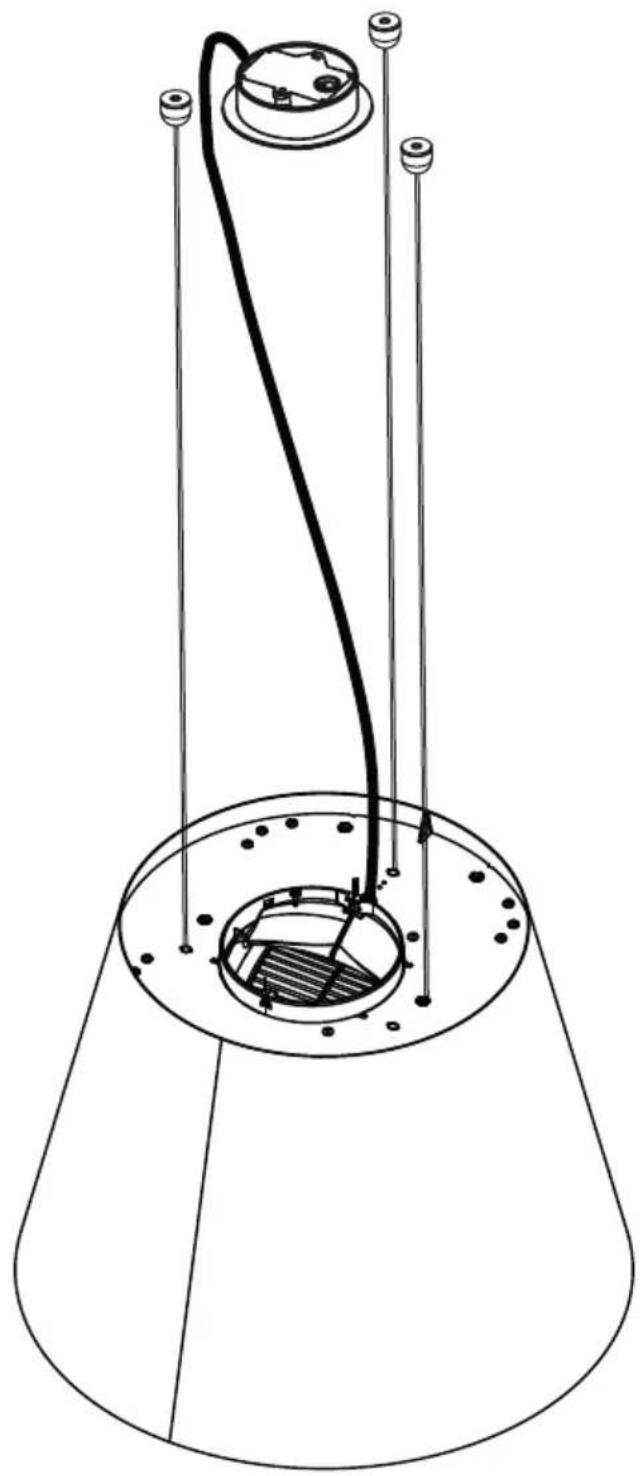

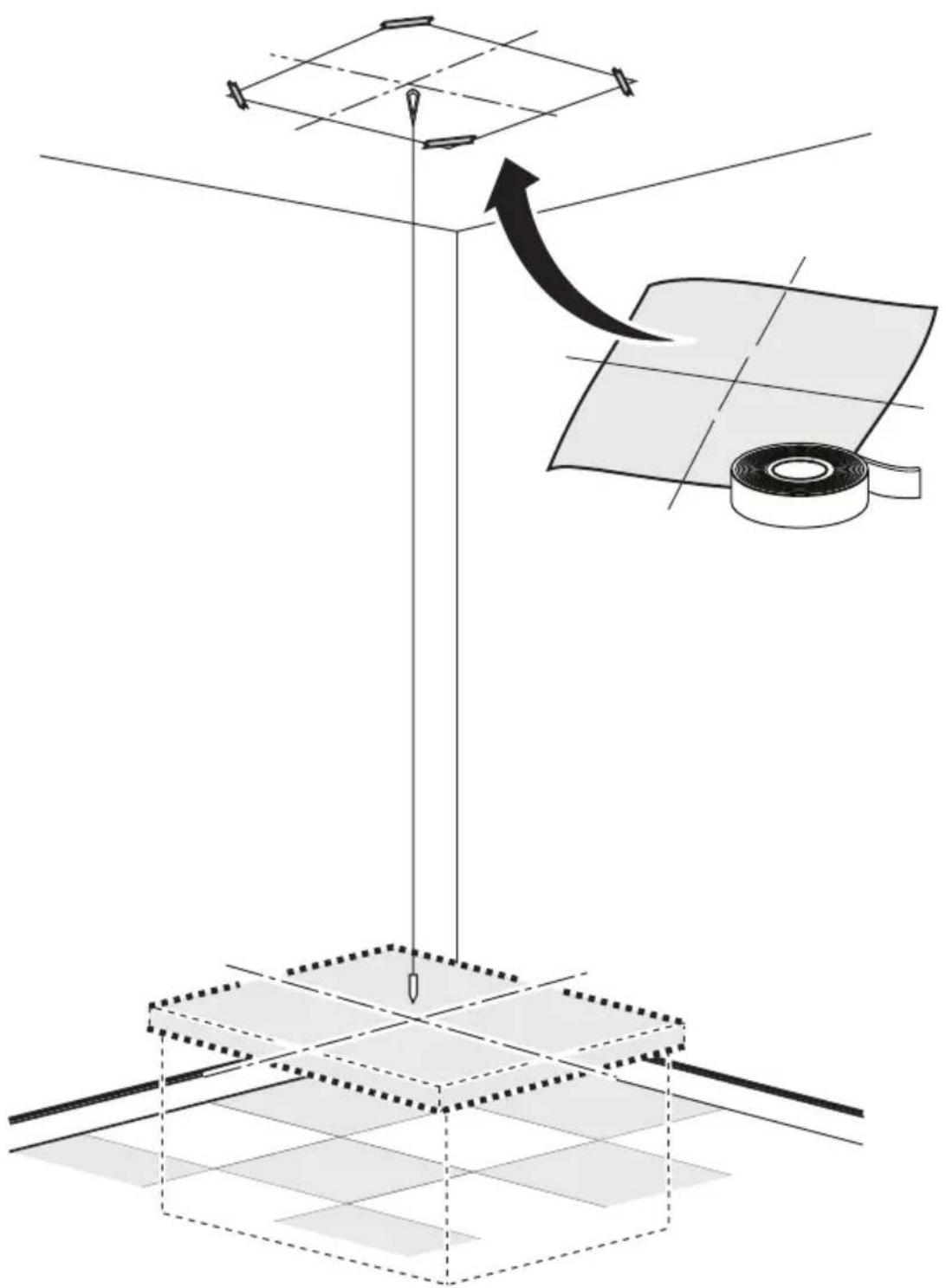

Mounting M1:

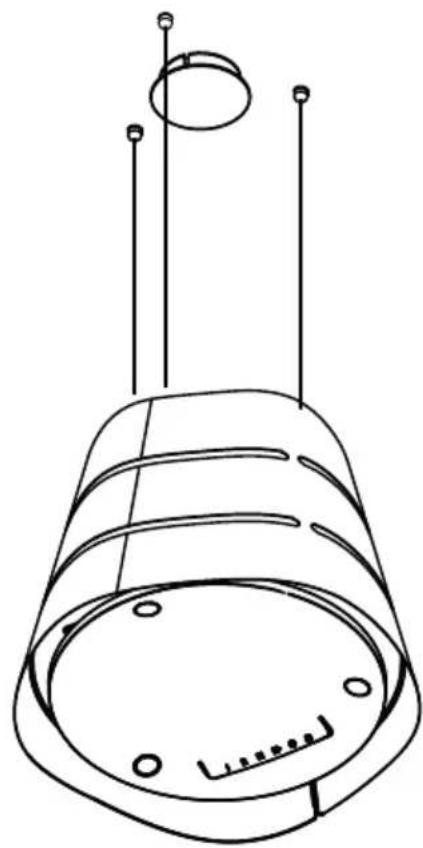

This type of cooker hood must be fixed to the ceiling.

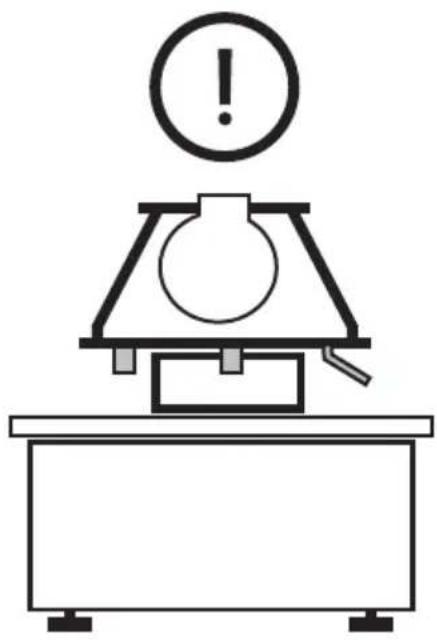

Very heavy product; hood handling and installation must be carried out by at least two persons.

Operation

T1: Speed 1 selection key

Push to activate the low speed (suction power)

. Pushing a second time turns the motor off

T2: Speed 2 selection key

Push to activate the medium speed (suction power). Pushing a second time turns the motor off

T3: Speed 3 selection key

Push to activate the high speed (suction power). Pushing a second time turns the motor off

T4: "BOOST" speed selection key

With the motor turned on to any speed T1 / T2 / T3 push the T4 key to activate the "BOOST" speed. The speed key will remain lit and the T4 key will start flashing.

With "BOOST" active, pushing the T4 key turns off the motor.

The "BOOST" speed is timed and will remain active for 5

minutes, then the "BOOST" will automatically be disabled,

bringing the motor to the previously selected T1 / T2 / T3 speed.

T5: "AMBIENT LIGHT" Light ON/OFF key (Only for some models)

Push to activate / turn off the supplementary lighting to light the surrounding environment.

T6: "COOKTOP" Light ON/OFF key

Push to activate / turn off the main lighting.

Motor "DELAY OFF" Mode:

Pushing it down again for a longer time, the activated speed T1 / T2 / T3 key sets the automatic motor shutdown.

The motor will turn off according to the following times:

T1 = after 20 minutes;

T2 = after 15 minutes;

T3 = after 10 minutes.

Notes: This function cannot be programmed for the "BOOST"

T4 speed. When Delay OFF is active, pushing the key of any speed will disable the function.

Filters saturation INDICATOR:

The hood warns the user at regular intervals that the filters have to be cleaned/replaced.

With the T1 key lit and +T2 key flashing, it is necessary to replace the Grease Filter

With the T1 key lit and +T3 key flashing, it is necessary to replace the Carbon Filter

Note: the indication of filters saturation is visible only within the first 10 seconds of turning on the hood.

RESET Filters saturation Alarm:

To reset the Grease Filter, push the T1+T2 keys at the same time and for approximately 3 seconds.

To reset the Carbon Filter, push the T1+T3 keys at the same time and for approximately 3 seconds.

ACTIVATE / DISABLE the Filters counter.

You can access the menu for the management of the Filters saturation by pushing down, for several seconds and at the same time, the keys T2+T3.

From this menu:

- Pushing the T2 key activates / disables the Grease Filter indicator.

Note: The Grease Filter is ACTIVATED as default setting.

- Pushing the T3 key activates / disables the Carbon Filter indicator.

Note: The Carbon Filter is DISABLED as default setting.

Pushing the T2+T3 keys once again for several seconds, allows one to exit the menu and save the settings.

Maintenance

Cleaning

Clean using ONLY a cloth dampened with neutral liquid detergent. DO NOT CLEAN WITH TOOLS OR INSTRUMENTS. Do not use abrasive products. DO NOT USE ALCOHOL!

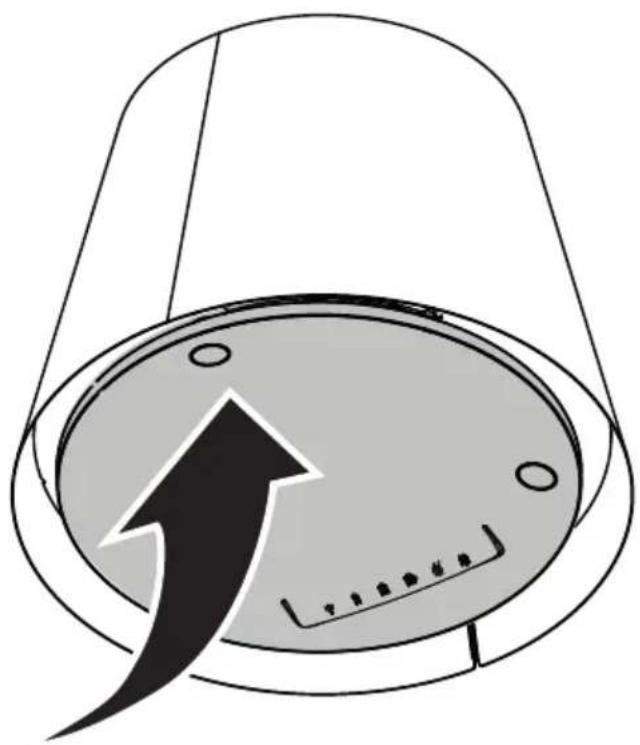

Grease filter

Fig. 40

Traps cooking grease particles.

The grease filter must be cleaned once a month using non aggressive detergents, either by hand or in the dishwasher, which must be set to a low temperature and a short cycle. When washed in a dishwasher, the grease filter may discolor slightly, but this does not affect its filtering capacity.

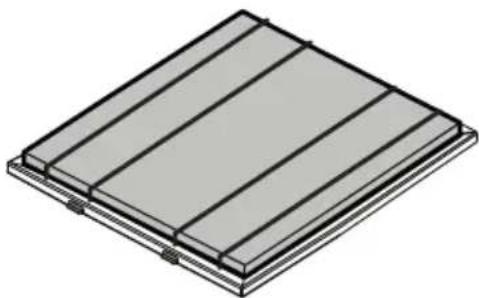

Charcoal filter (filter version only)

Fig. 39

It absorbs unpleasant odors caused by cooking.

The charcoal filter can be washed once every two months using hot water and a suitable detergent, or in a dishwasher at 65^ C (if the dishwasher is used, select the full cycle function and leave dishes out).

Eliminate excess water without damaging the filter, then put it in the oven for 10 minutes at 100^ C to dry completely. Replace the mattress every 3 years and when the cloth is damaged.

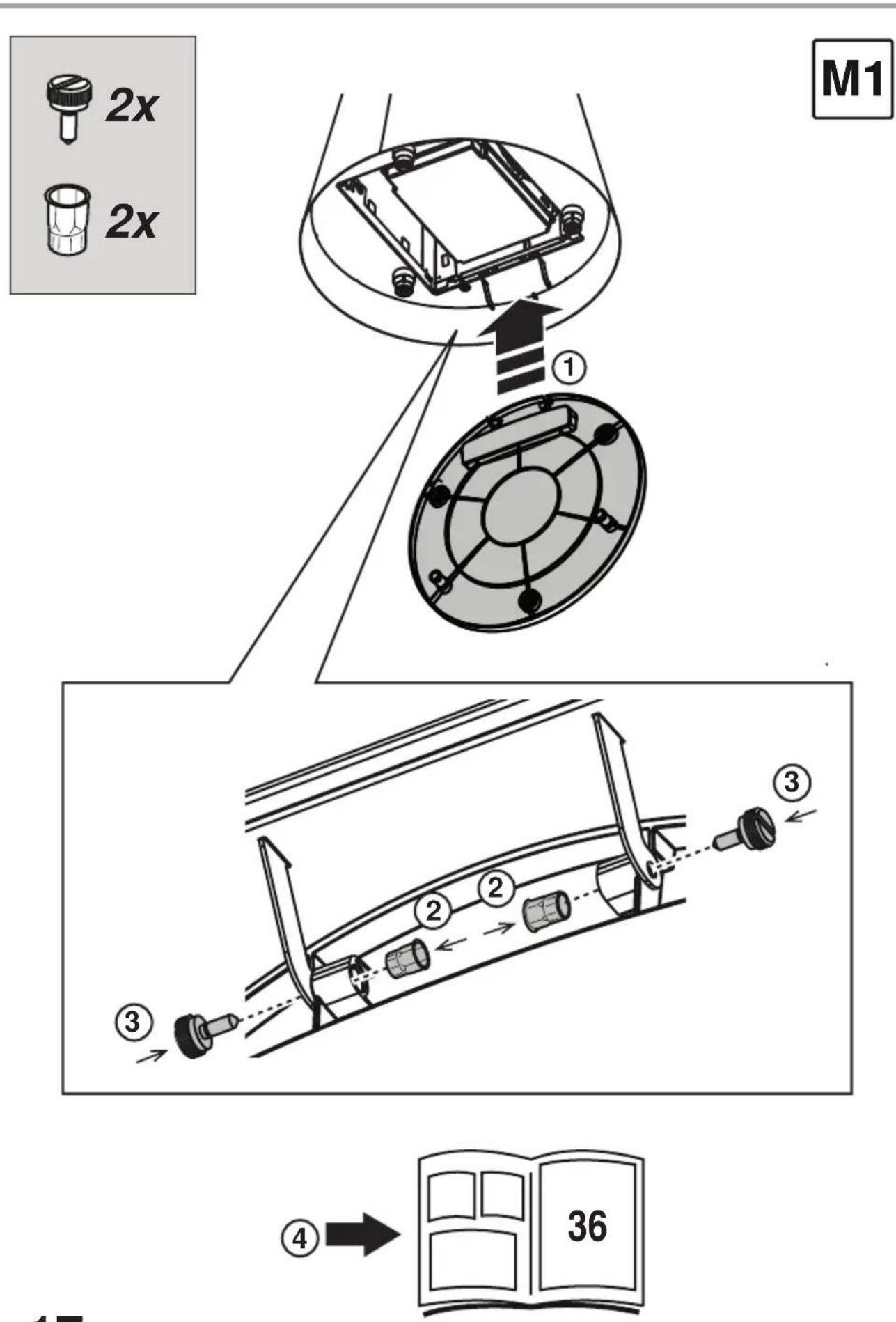

- Montage

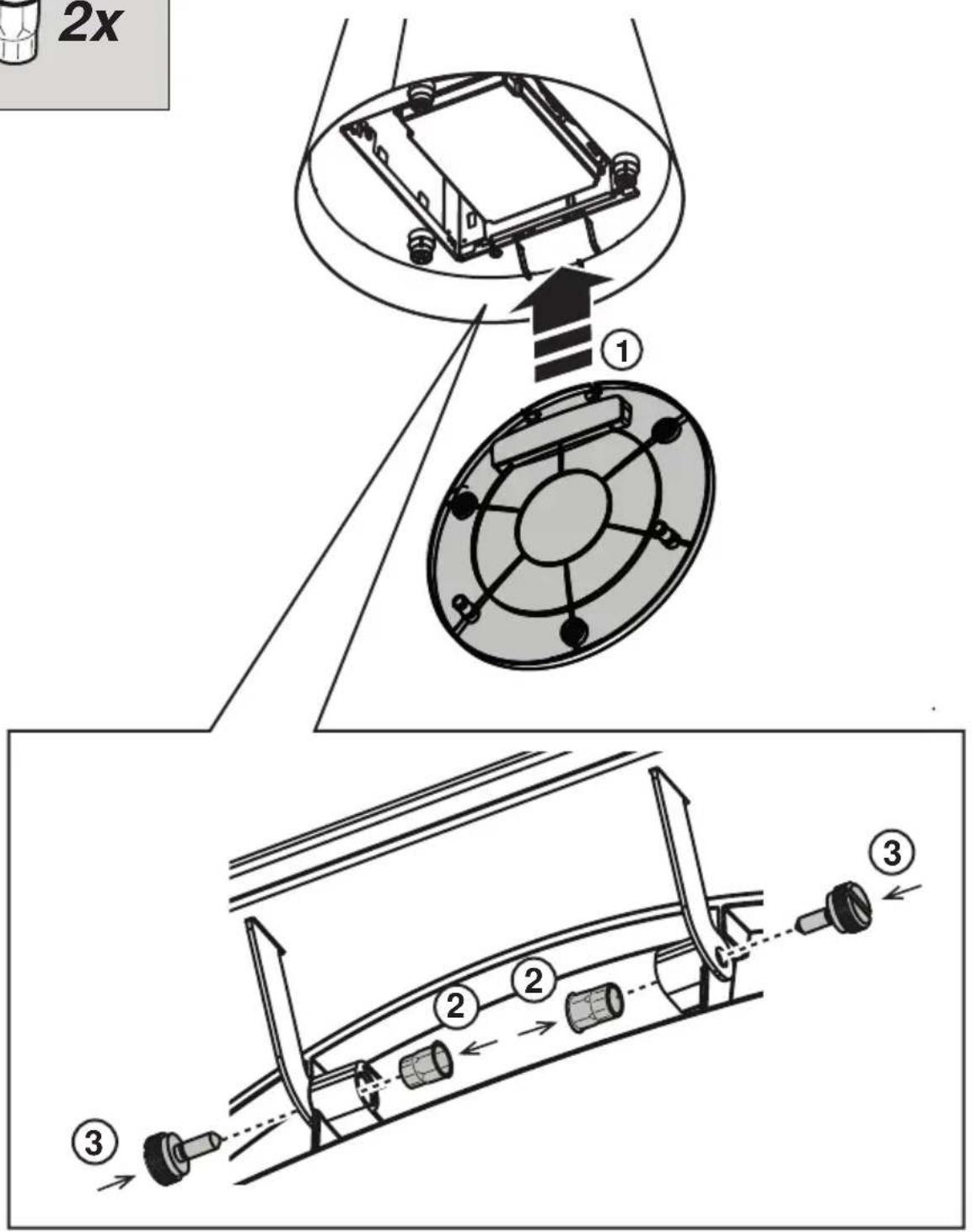

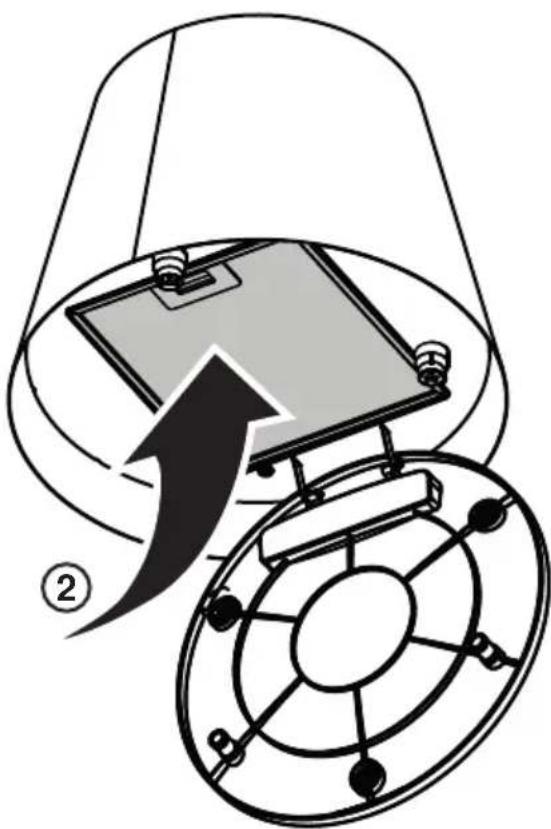

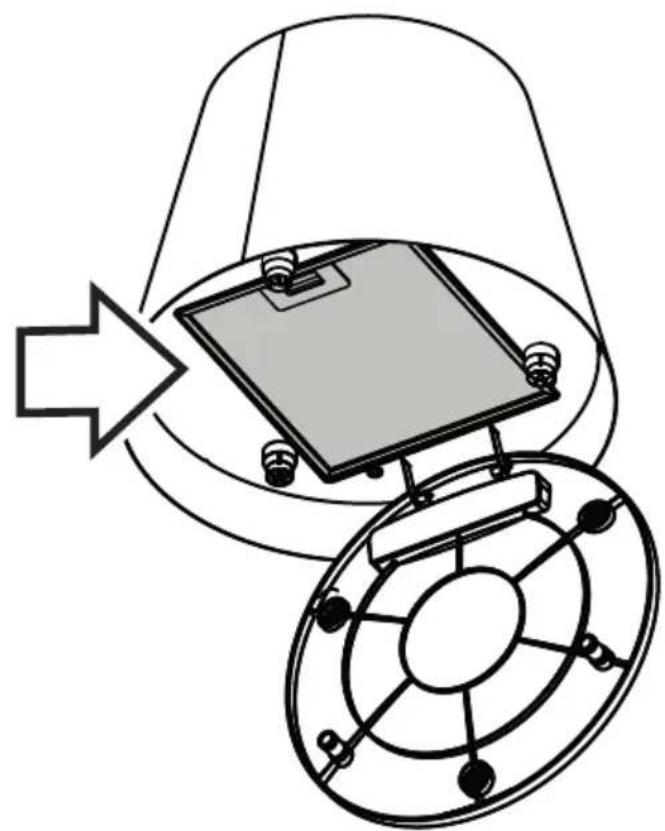

Install the carbon filter on the back of the grease filter and fix with two rods.

Attention! The rods are included in the carbon filter packing and not on the hood.

- To dismantle the filter act in the reverse manner.

Replacing lamps

The hood is equipped with a lighting system based on LED technology.

The LEDs guarantee an optimum lighting, a duration up to 10 times longer than the traditional lamps and allow to save 90% electrical energy.

The lighting system cannot be replaced by the user, contact Customer Service in case of malfunction.

INDICATOR verzadiging filters:

Modo "DELAY OFF" do motor:

T6: ON/OFF-tast "COOKTOP"-lys

Tryk for at aktivere / deaktive hovedlyset.

"DELAY OFF"-tilstand for motor:

- Waste Electrical and Electronic Equipment (WEEE).
