Product type	Bluetooth headset
Brand	Conceptronic
Model	POLONA04BA
Bluetooth version	5.3
Supported Bluetooth profiles	A2DP, AVRCP, HFP, HSP
Operating range	Approximately 10 meters (Class 2)
Supported audio formats	SBC
Battery capacity	600 mAh (Lithium-polymer)
Talk time	40 hours
Music play time	44 hours
Standby time	860 hours
Charging time	2 hours ± 0.5 hour
Charging input	USB-C
Wired connectivity	3.5mm audio jack
Button functions	Play/Pause, Volume +/-, Mute, Call control
Voice assistant	Compatible with Siri and Google Assistant
Dual connection	Yes (connect two phones simultaneously)
Care and cleaning	Disconnect before cleaning; use a soft dry cloth
Safety instructions	Do not expose to water or fire; do not open; use a 5V charger; moderate volume
Weight	170 g
Dimensions (L x W x H)	169.19 x 67.97 x 186.52 mm
Operating temperature	-10°C to 45°C
Storage temperature	-20°C to 60°C

Frequently Asked Questions - POLONA04BA CONCEPTRONIC

How to pair the headset with my smartphone?

Turn on the headset by sliding the switch to ON. The blue and red indicators flash alternately. On your phone, search for Bluetooth devices and select "POLONA04". A beep confirms pairing.

How to charge the headset?

Plug the provided USB-C cable into a 5V power adapter. The red light stays on during charging, then turns off when fully charged. Charging time is about 2 hours.

What is the battery life?

The headset offers up to 40 hours of talk time or 44 hours of music play, and 860 hours of standby.

How to use the headset in wired mode?

Plug the 3.5mm audio cable into the corresponding jack on the headset. The headset then prioritizes the wired source over Bluetooth.

How to skip to the next or previous song?

Press and hold the Volume + (▲) button for 2 seconds for the next song, and the Volume - (▼) button for 2 seconds for the previous song.

How to activate the voice assistant?

Press the Play/Pause button (▶II) for 1.5 seconds. A beep sounds and the assistant (Siri/Google Assistant) activates.

How to answer a call?

A short press on the Play/Pause button to answer. To reject, press and hold for 2 seconds. To redial the last number, double-click.

How to clean the headset?

Before cleaning, turn off the headset and disconnect all cables. Use a soft dry cloth. Do not use water or chemicals.

What to do if the Bluetooth connection is unstable?

Ensure the headset is less than 10 meters from the device. If the connection is lost, the headset attempts to reconnect automatically within 5 minutes. You can also clear the pairing by pressing and holding the ▶II and ▲ buttons for 5 seconds in standby mode.

Can I connect the headset to two devices at the same time?

Yes, the headset supports dual connection. First pair with the first device, then disable Bluetooth on that device so the headset enters pairing mode, then connect the second device. Finally, re-enable Bluetooth on the first device.

USER MANUAL POLONA04BA CONCEPTRONIC

Line drawing of a pair of headsets with a finger pointing at the front (no text or symbols)

Push the power switch to "ON".

2

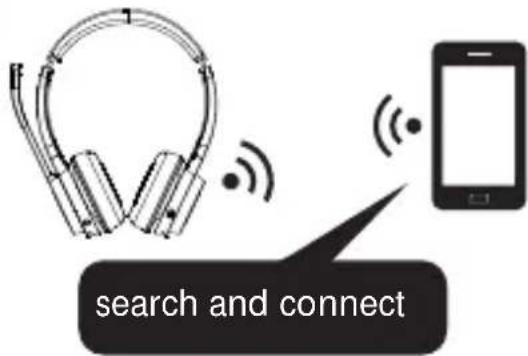

search and connect

Illustration of a pair of hardcover headsets with sound waves (no text or symbols)

Bluetooth Audio Adapter (POLONA04BA)

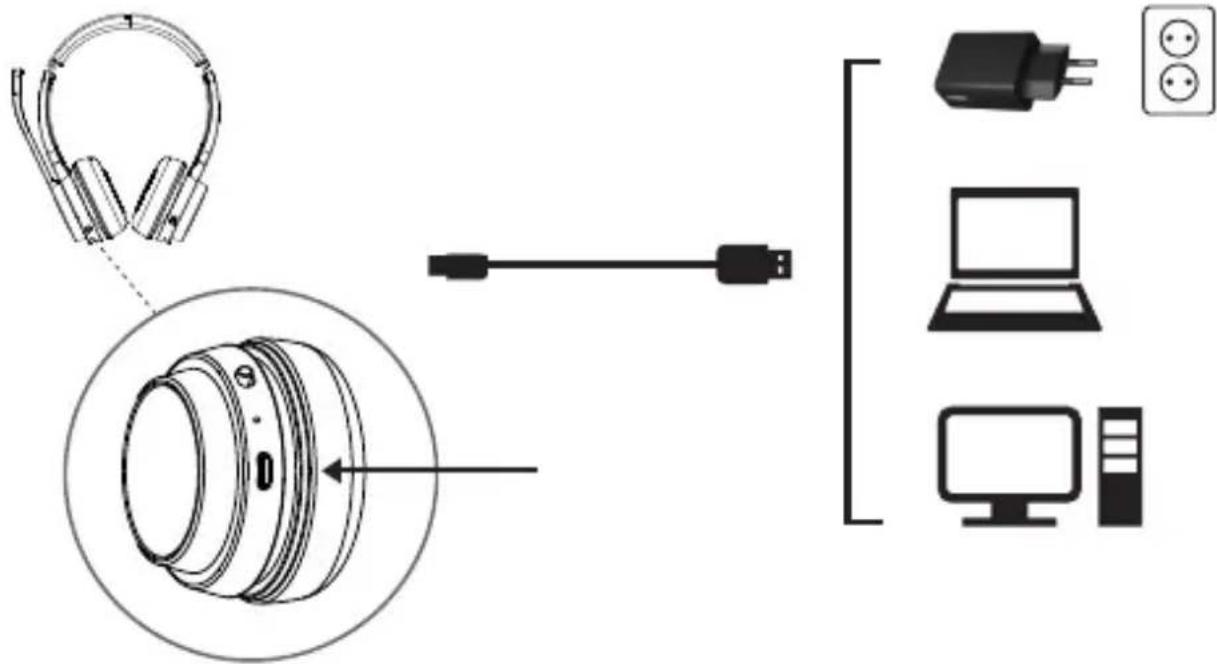

Charging

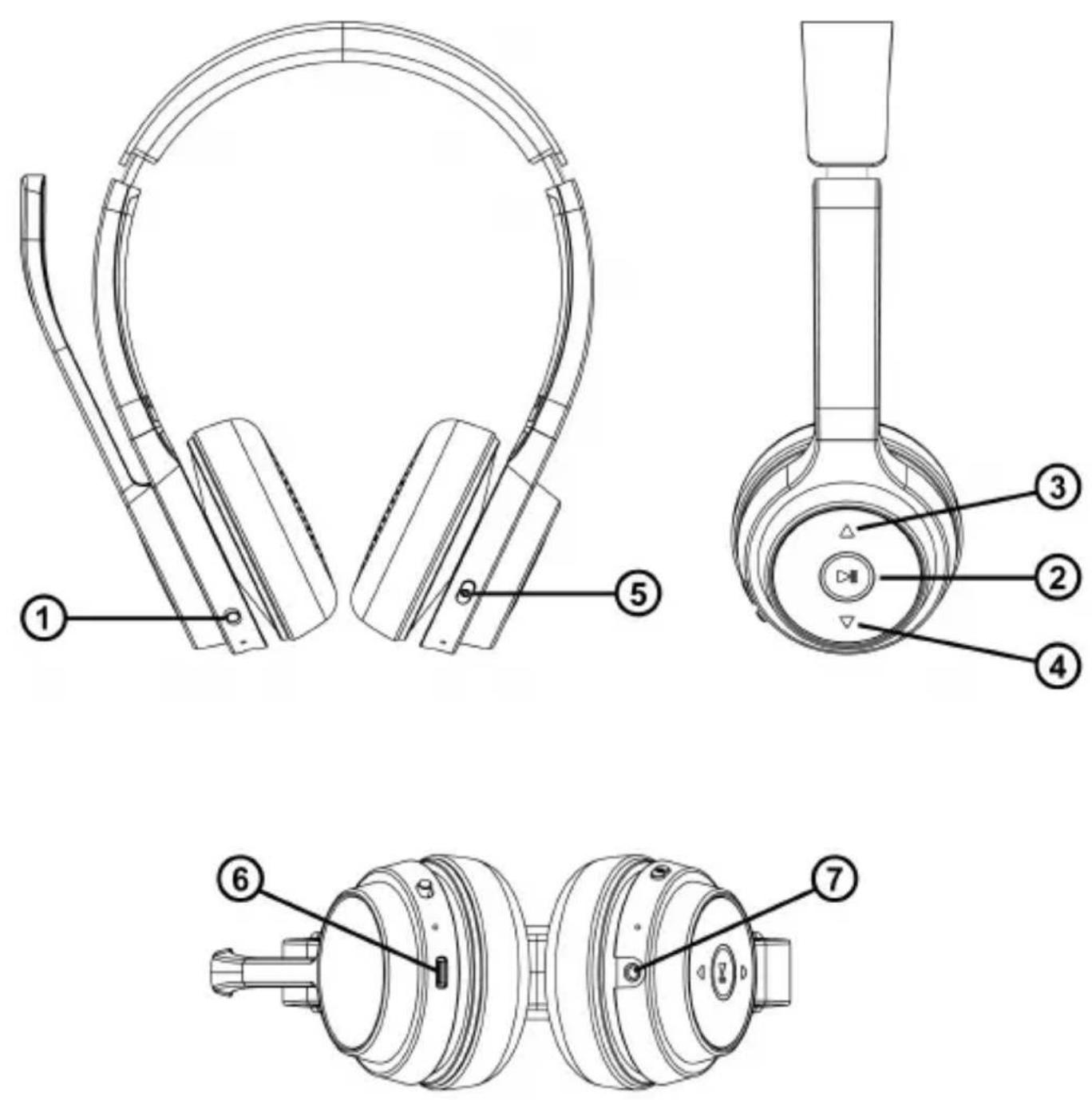

PRODUCT OVERVIEW

Produktübersicht | Descripción del producto | Aperçu du produit Panoramica del prodotto | Termék áttekintés | Przegląd produktu Visão geral do produto

EN

1: Power switch
2: Play/Pause
3: Volume +
4: Volume -
5: Mute button
6: USB-C charging port
7: 3.5mm audio jack

DE

Congratulations on the purchase of your Conceptronic POLONA04B/ POLONA04BA. When problems occur, we advise you to visit our support site (go to www.conceptronic.net and click on 'Support'). If you have other questions about your product and cannot find it on our website, please contact us via email: [e-mail].

For more information about Conceptronic products, please visit the Conceptronic website: www.conceptronic.net.

Safety & Warnings instructions:

Read the operating instructions carefully and especially observe the safety information. If you do not follow the safety instructions and information on proper handling in this manual, we assume no liability for any resulting personal injury or damage to property. Such cases will invalidate the warranty/guarantee.

• Keep the device away from water, humidity, fire or hot environments.
• Keep your device and all its parts and accessories out of the reach of small children.
  ■ Do not leave the packaging material lying around carelessly. This may become dangerous playing material for children.
  ■ Avoid dropping, throwing or crushing the device.
  ■ Do not open, change or damage the device.
  ■ Do not use a damaged USB charger or cable to charge the device. Using an improper charging method may result in fire or explosion.
  ■ Do not recharge batteries near a fire or in extremely hot conditions.
  ■ Observe signs and notices that prohibit or restrict the use of electronic devices.
  ■ Turn off your device in any location where instructed to do so.
  ■ Do not listen to music at an excessive volume for prolonged periods. This can lead to hearing damage.
  ■ Unplug all cables and turn your device off before cleaning.

Disposal of waste electrical equipment and batteries: Do not dispose of waste electrical equipment and batteries with household waste. Please hand them to your local recycling point. Batteries should be fully discharged when disposed of. Incorrect storage/disposal can harm the environment and/or cause injury.

CE marking: Conceptronic declares that this product complies with the directives listed in the section 'Declaration of Conformity'.

Installation & usage:

Button	Function	Operation
1Power switch	Power on	Push the power switch to "ON", the blue light flashes 5 times quickly then blue and red light will flash alternately, and the headset enters the pairing mode when a second prompt tone is heard. Then operate the smartphone/tablet according to instructions to pair with the headset. Select "POLONA04".
	Power off	Push the power switch to "OFF".
2▶ IIPlay/Pause	Answer/ hang up phone calls	Short press and there will be a prompt tone.
	Reject phone calls	Long press 2 seconds and there will be a prompt tone.
	Last Number Redial	Double-click and there will be a prompt tone.
	Activating SIRI, Google Assistant	Long press 1.5 seconds and there will be a prompt tone.
	Music Play/Pause	Short press.
3▲Volume +	Volume up *	Long press 2 seconds.
	Next song	Short press.
	Voice transfer	During the call, double-click and wait for the alert to sound.
4▼Volume -	Volume down *	Long press 2 seconds.
	Previous song	Short press.
5⊗ Mute button	Turn on/off the microphone	During the call, long press 1 second and there will be a prompt tone.

* A prompt tone will sound when the volume is at its maximum or minimum.

LED indicator:

Power-on	Blue light flashes 5 times.
Power off	Blue light goes out.
Pairing mode	Red and blue lights flash alternately.
Standby mode	Blue light flashes once every 5 seconds.
Incoming call	Blue light flashes once every 2 seconds.
During the call	Blue light flashes once every 7 seconds.
Music playback	Blue light flashes once every 8 seconds.
Charging process	Red light remains on.
Charging completed	Red light will turn off.
Low battery reminder	Red light flashes twice every 7 seconds and there is a “Toot” sound every 60 seconds.

Double connection:

1. Pair with the first mobile phone A.
2. Turn off the Bluetooth on mobile phone A, and the product will automatically enter pairing mode.
3. Search for and connect with the second mobile phone B.
4. Manually reconnect with the first phone A, so that the Bluetooth headset connects the two phones.

Automatic reconnection:

1. When the headset is turned on, it can automatically connect to the last paired phone.
2. If the connection between the product and the mobile phone is lost due to exceeding the normal distance, it will return to the normal communication distance within about 5 minutes, and the headset will automatically connect to the newly paired mobile phone.

Line-in Input (3.5mm audio jack):

When the headset is powered on, it automatically connects via Bluetooth. However, if a Line-in connection is used, the headset will prioritize Line-in audio playback.

Exiting pairing mode:

(After the headset automatically powers off, the switch should be returned to the OFF position and then pushed to ON to restart the headset)

If there is no connection during boot in pairing mode, the headset will exit the pairing mode after 5 minutes, enter standby mode, and automatically shut down after 5 minutes.

Clear pairing:

In standby state, long press "▶ II " and "▲" for about 5 seconds to clear the pairing information. After clearing the pairing, the product will automatically enter the pairing state with prompt tone.

Charging:

After powering on, plug in the charging cable, and the headset will automatically shut down for charging.

Power Adapter Notice:

This product does not include a power adapter. Please use a power adapter with a 5V charging voltage to charge the product.

Bluetooth Audio Adapter (POLONA04BA):

1. Put the Bluetooth audio adapter into a computer, the device will appear as "POLONA04", it will power on and enter 're-connect mode'. A blue light will flash once every 5 seconds.
2. Power on the headset. After it has connected successfully, a blue light will switch on.
3. If there is no connection after about 10 seconds, it will enter 'searching and pairing mode' (Red and blue lights flash alternately).

Specification

Bluetooth Version	5.3
Frequency	2.402 ~ 2.480GHz
EIRP	5.72dBm
Support Bluetooth profile	A2DP/AVRCP/HFP/HSP
Working range	Class 2, about 10M
Support Audio Format	SBC
Battery Capacity	600mAh rechargeable lithium polymer battery
Working Time	40 hours talk time or 44 hours music playback
Standby Time	860 hours
Charging time	2 ± 0.5 hours
Operating temperature	-10°C ~ 45°C
Storage temperature	-20°C ~ 60°C
Dimensions (W x D x H)	169.19 x 67.97 x 186.52 mm
Product weight	170g
