USER MANUAL VA8215SLR Atag

Blank gray rectangular image with no visible text, symbols, or markings

GEBRUIKSAANWIJZING

Vaatwasser

NL

VA8215SLR

3Uwvaatwasser......

Diagram showing a valve adjustment mechanism with directional arrows and a close-up of the valve component.

Diagram of a grid-based infrastructure with two black arrows indicating directional movement or flow, no readable text or symbols present.

3D wireframe model of a mechanical assembly with no visible text or symbols

Middenkorf

Technical diagram showing structural components with arrows indicating assembly or assembly steps (no text or symbols present)

Onderkorf

Illustration of a multi-tiered kitchen appliance basket with cutlery and utensils (no text or symbols)

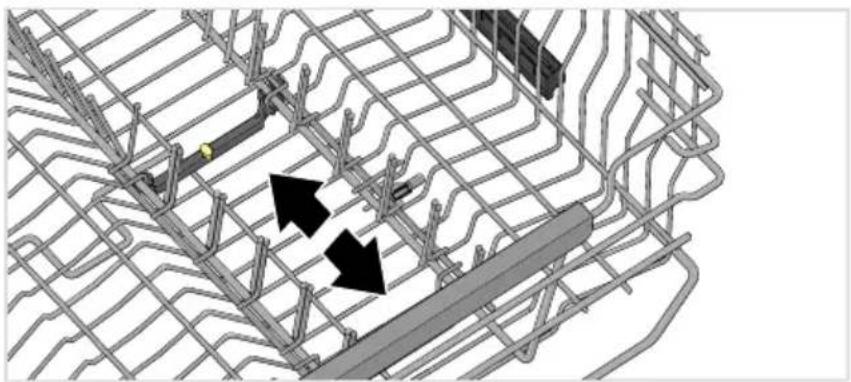

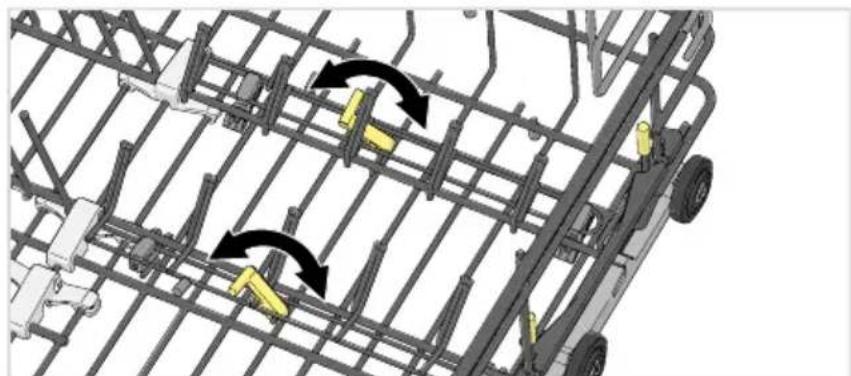

Verstelbarebordensteunen

Technical diagram of a steel rebar structure with directional arrows indicating movement or force (no text or symbols present)

Diagram of a vehicle chassis with yellow robotic arms and black directional arrows indicating motion (no text or symbols)

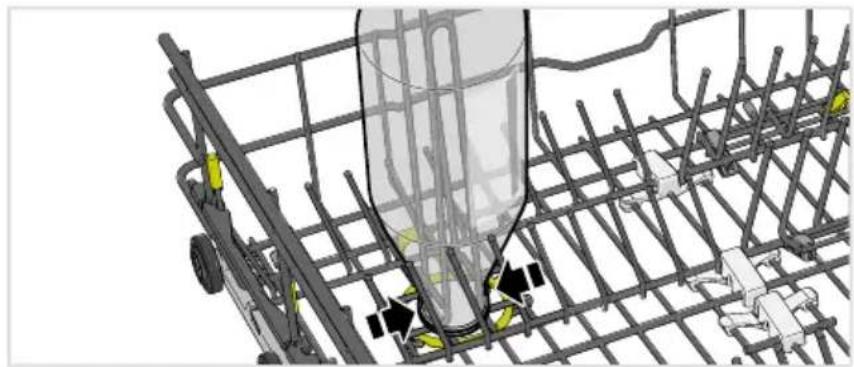

Vazen-enflessenhouder

3D technical diagram of a mechanical assembly with grid framework and highlighted components (no text or symbols)

Illustration showing a hand using a tool to cut a 3D architectural structure, with two circular insets illustrating the same architectural details (no text or symbols present)

Voegvaatwasmiddeltoe

Simple line drawing of a corner joint with a central mark and radiating lines (no text or symbols)

QR code image with a central logo, likely linking to a digital resource or website.

ScandeQR-codeofzoeknaarConnectLifeinuwfavorieteappstoreomde ConnectLife-apptedownloaden.

SelecteerenstarteenprogrammaindeappConnectLife.

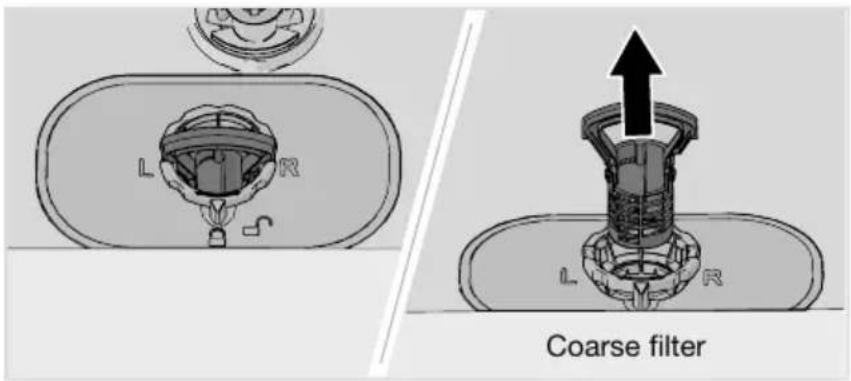

L R Groffilter

L R Fijnfilter

Technical diagram showing a circular mechanical component with internal structure and a yellow arrow indicating a specific part (no text or symbols present)

Technical diagram of a mechanical component with multiple bolt holes and mounting features (no text or symbols)

Mechanical assembly diagram showing a rotating component with rotational arrow (no text or symbols)

Mechanical assembly diagram showing a rotating shaft with an upward arrow indicating motion (no text or symbols)

Schoonmakenvandebuitenkantvandevaatwasser

Deurendeurafdichting

Blank gray rectangular image with no visible text, symbols, or markings

NOTICED'UTILISATION

Lave-vaisselle

FR

VA8215SLR

Avantlepremierlavage

ATTENTION!

Diagram of a grid-based infrastructure with two black arrows indicating directional movement or flow, no readable text or symbols present.

3D wireframe diagram of a mechanical or structural assembly with no visible text, numbers, or symbols

Interior view of a food preparation tray with rectangular compartments and cutlery (no text or symbols visible)

Technical illustration of a mechanical assembly with multiple views and arrows indicating assembly steps (no text or symbols present)

Illustration of a multi-tiered kitchen appliance basket with cutlery and utensils (no text or symbols)

Picotsàassiettesréglables

Technical diagram of a steel rebar structure with directional arrows indicating movement or force (no text or symbols present)

Diagram of a vehicle chassis with structural framework and directional arrows indicating movement or force (no text or symbols present)

3D wire mesh diagram of a vehicle chassis with structural components and highlighted parts (no text or symbols)

Illustration showing a hand placing a component into a 3D model of a mechanical part, with two circular insets illustrating the same components (no text or symbols present)

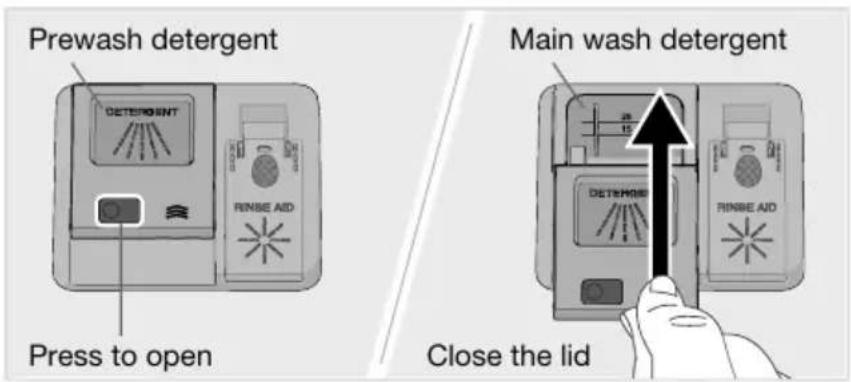

DETEMENT RINSE AID

Appuyez pour ouvrir

Simple circular diagram showing a diagonal line intersecting a rectangular block with a central mark (no text or symbols)

QR code image with a central logo, likely linking to a digital resource or website.

Technical diagram showing a circular mechanical component with internal structure and a yellow arrow indicating a specific part (no text or symbols present)

Diagram of a mechanical component with four arrows pointing to circular features on a curved surface (no text or symbols)

Mechanical assembly diagram showing a rotating component with rotational arrow (no text or symbols)

Entretienetmaintenance

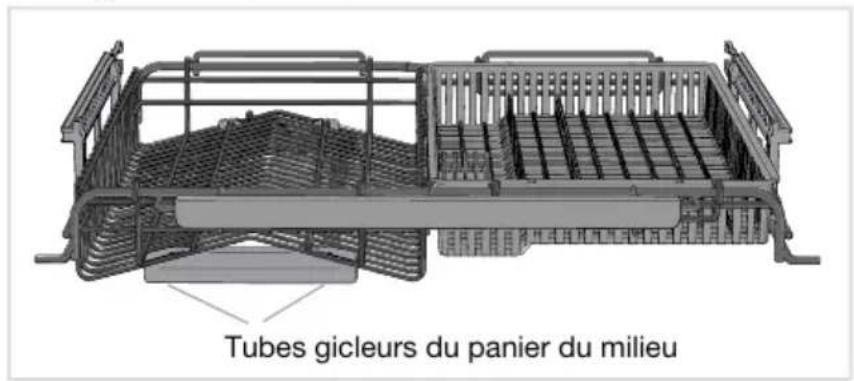

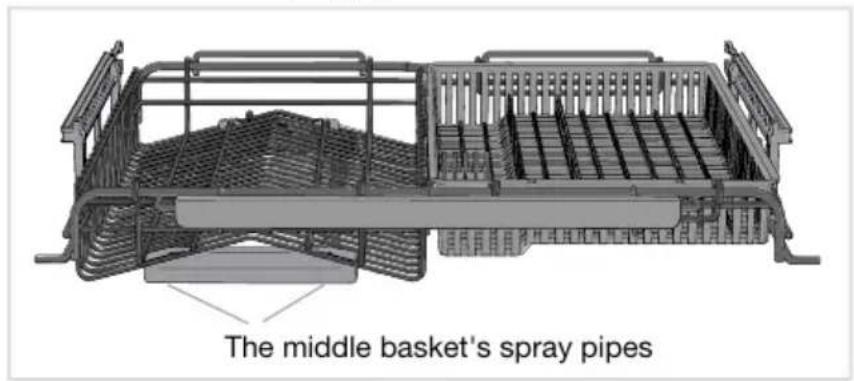

Tubesgicleursdupanierdumilieu

Mechanical assembly diagram showing a rotating shaft with an upward arrow indicating motion (no text or symbols)

Blank gray rectangular image with no visible text, symbols, or markings

GEBRAUCHSANWEISUNG

Geschirrspüler

DE

VA8215SLR

Diagram of a grid-based infrastructure with two black arrows indicating directional movement or flow, no readable text or symbols present.

3D wireframe model of a mechanical assembly with no visible text or symbols

MittlererKorb

Technical illustration of a structural assembly with multiple components and directional arrows indicating assembly steps (no text or symbols present)

Illustration of a multi-tiered kitchen appliance basket with cutlery and utensils (no text or symbols)

Technical diagram of a steel structure with rebar and pipe connections (no text or symbols)

Technical diagram of a vehicle chassis with structural grid and mechanical components, showing directional arrows indicating movement (no text or symbols present)

3D technical diagram of a mechanical assembly with grid framework and highlighted components (no text or symbols)

Illustration showing a hand using a tool to cut a 3D architectural structure, with two circular insets illustrating the same components (no text or symbols present)

Simple line drawing of a mechanical joint or bracket with a circular outline (no text or symbols)

QR code image with a central logo containing the letter 'C'

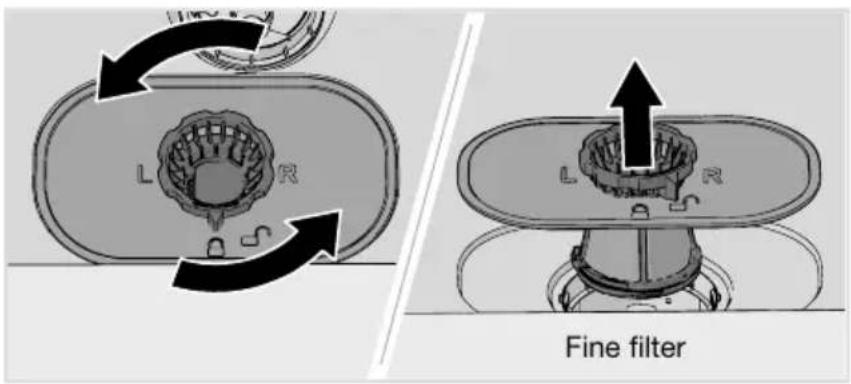

L R Feinfilter

Technical diagram showing a circular mechanical component with internal structure and a highlighted yellow section (no text or symbols)

Technical diagram of a mechanical component with four arrows pointing to circular features (no text or symbols present)

Mechanical assembly diagram showing a rotating component with rotational arrow (no text or symbols)

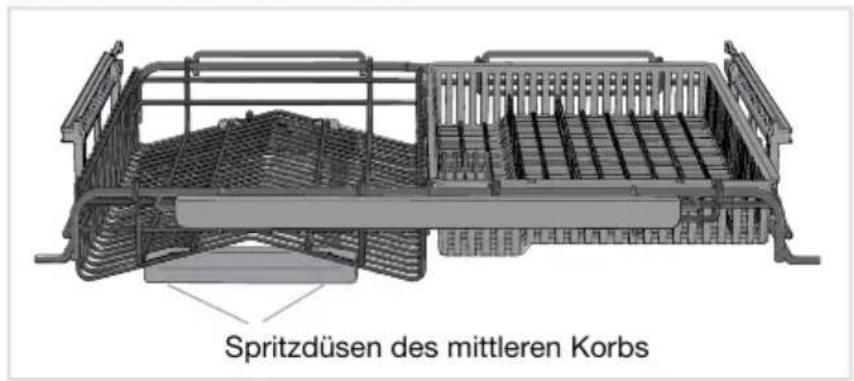

SpritzdüsendesmittlerenKorbs

Mechanical assembly diagram showing a rotating component with an upward arrow indicating motion (no text or symbols present)

Blank gray rectangular image with no visible text, symbols, or markings

USERMANUAL

Dishwasher

EN

VA8215SLR

3Yourdishwasher......

4Safetyinstructions......

5Childlock......
5Installation....
5Overflowguard......
5Packaging......
5Disposal....
5Symbolsontheappliance......

7Beforewashingforthefirsttime......

7Waterhardness....
8Basicsettings......
9Topuprinseaid......
9Topupsalt......

10Topupautodose......

11Greenerdishwashing......

11Saveenergyandwater......

12Loadingthedishwasher......

12Fragiledishes......
12Loadingaffectstheresults......
13Thedishwasher'sbaskets......

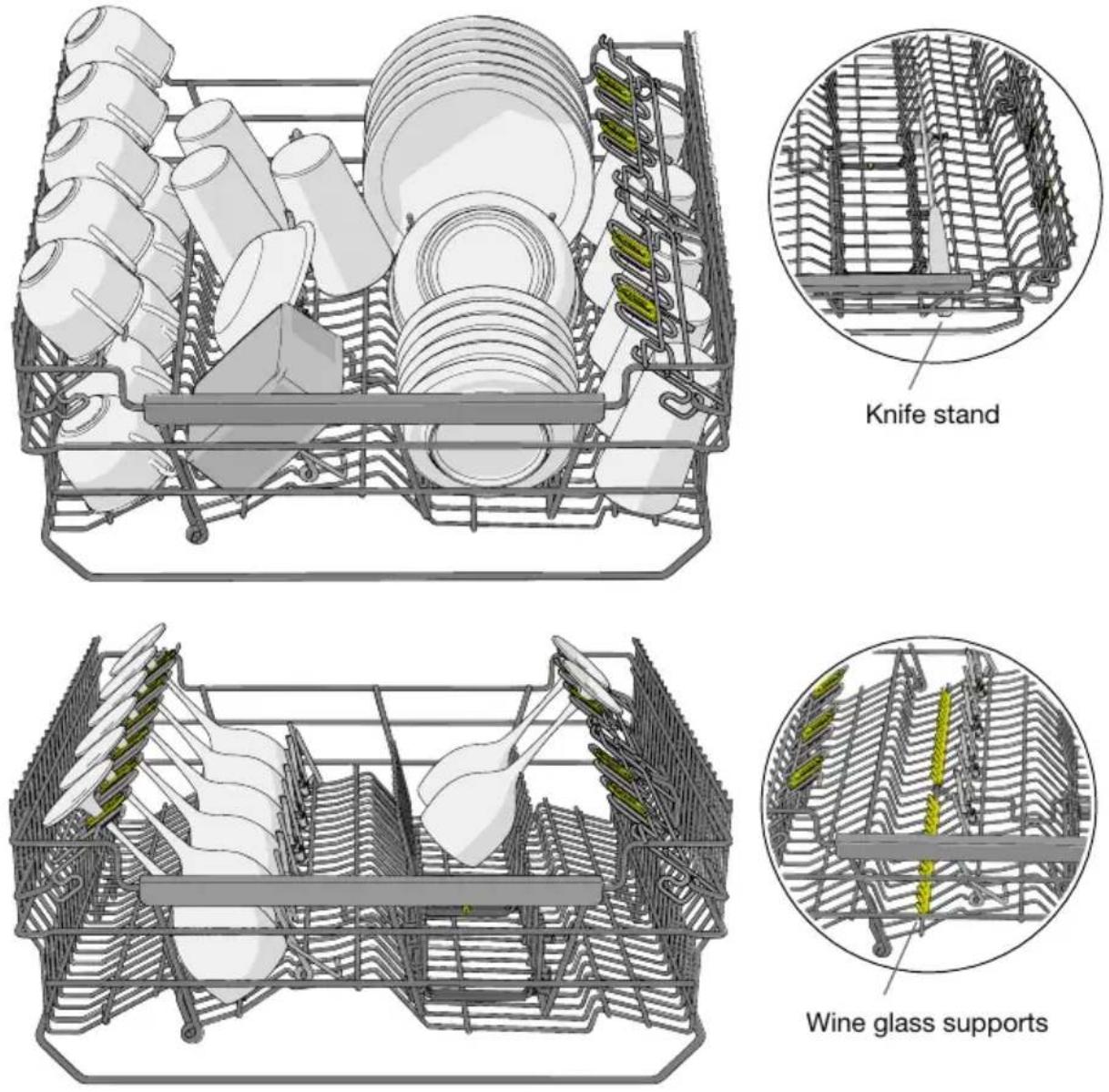

13Upperbasket......

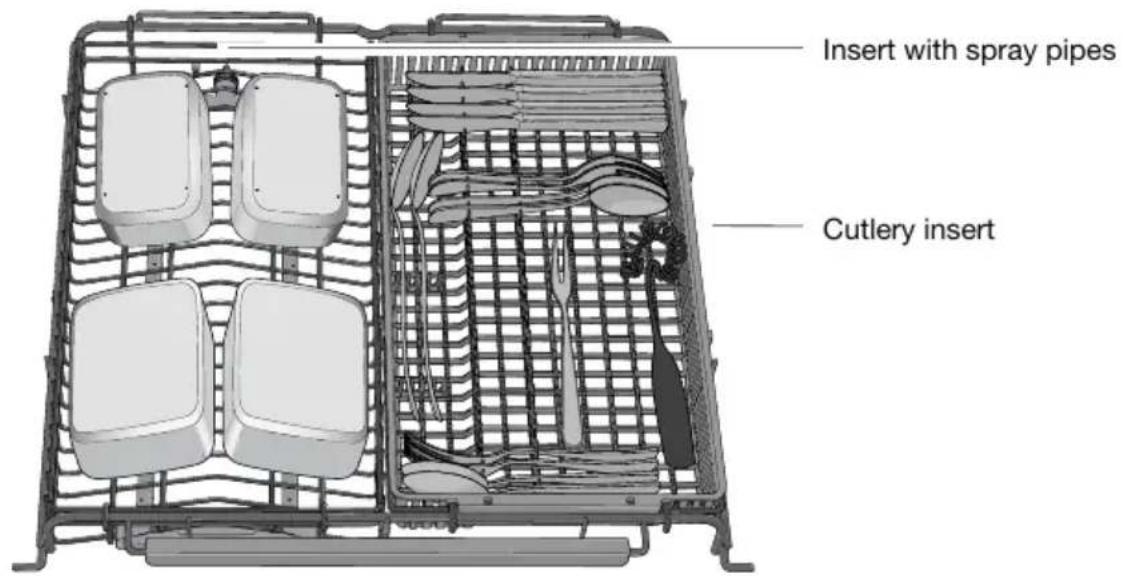

15Middlebasket......

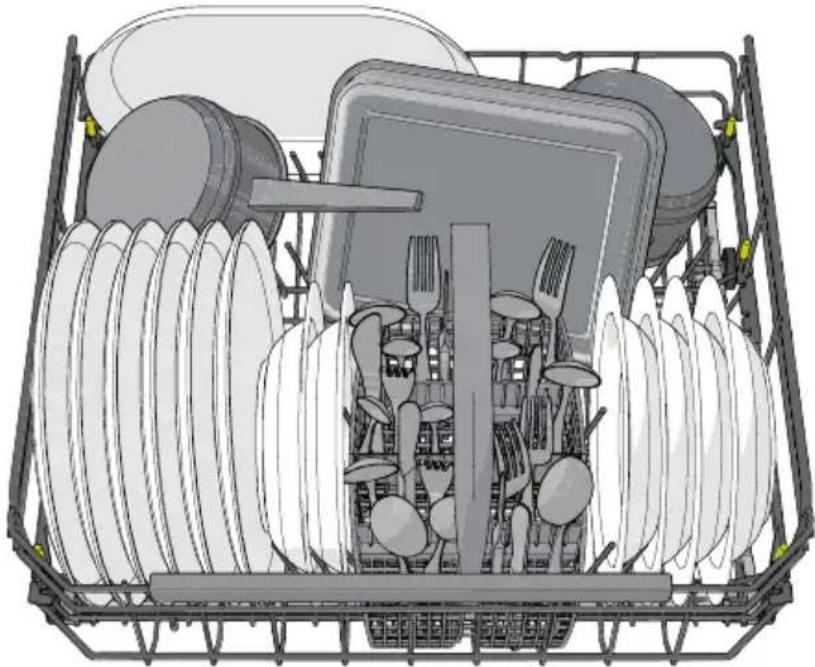

16Lowerbasket......

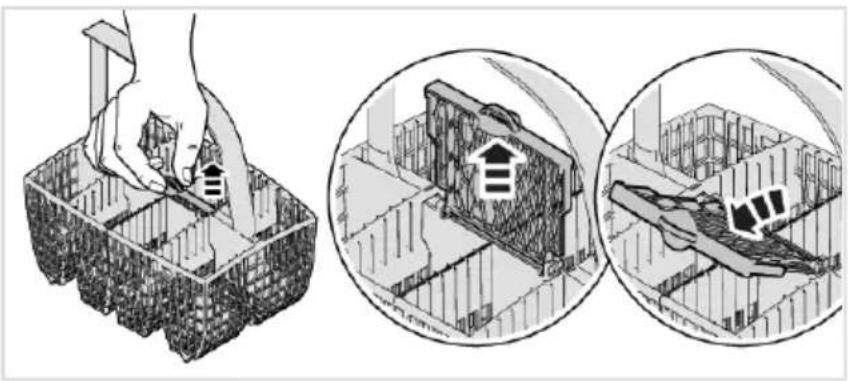

17Cutlerybasket......

19Usingthedishwasher......

19Adddetergent......
20On/Standbymode......
20Selectprogram......
22Selectprogrammode......

22Selection....

23Start/Stop......

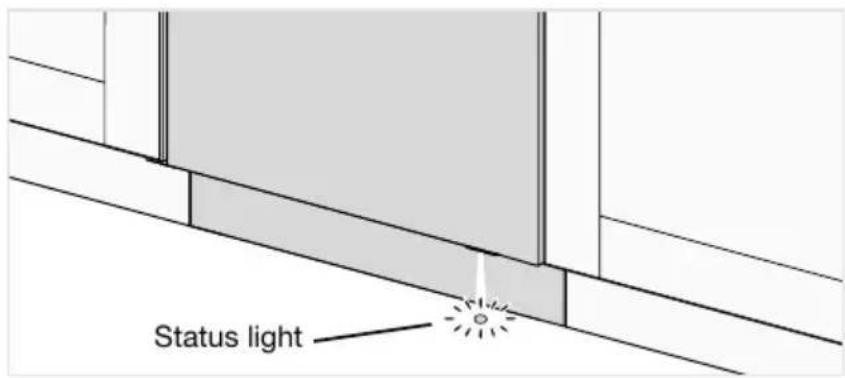

24Statuslight....

24Ifyouwanttoloadmoredishes......

24Powerfailure....

25Oncetheprogramhasfinished......

25Thebestdryingresults......

25Unloadingthedishwasher......

26Programchart......

27Connectt
28Remotec
28Remotest
28Pairmorec
28WiFiconn
28Removea
33Topuprins
33Topupsal
33Topupaut
33Cleanthea
34Cleanthef
35Cleaningt
36Cleanthed
36RunSelf-c
37Removeb
38Wintersto
40General...
46WiFi......
47Safetyinst
47Setup.....
48Drainage
48Connectic
49Electrical
49Pushtoop
50Informatic
50Contactyc
50Sparepar
50Numbero
51Technical
51Informatic
51Informatic
51Declaratic

27Connectl

29Settings.

33Careando

39Troubles

47Installatio

50Service...

51Technica

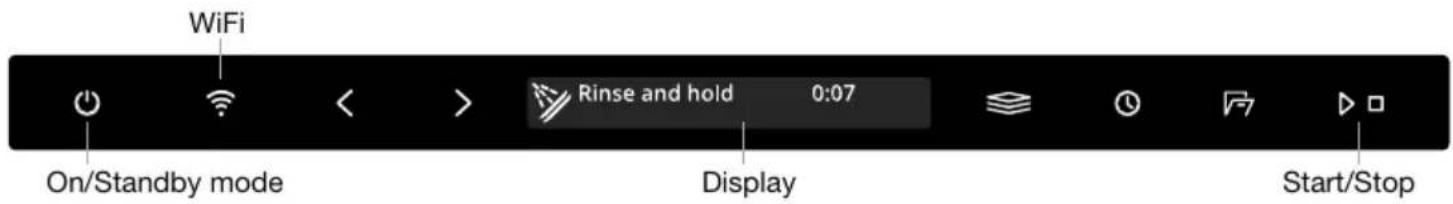

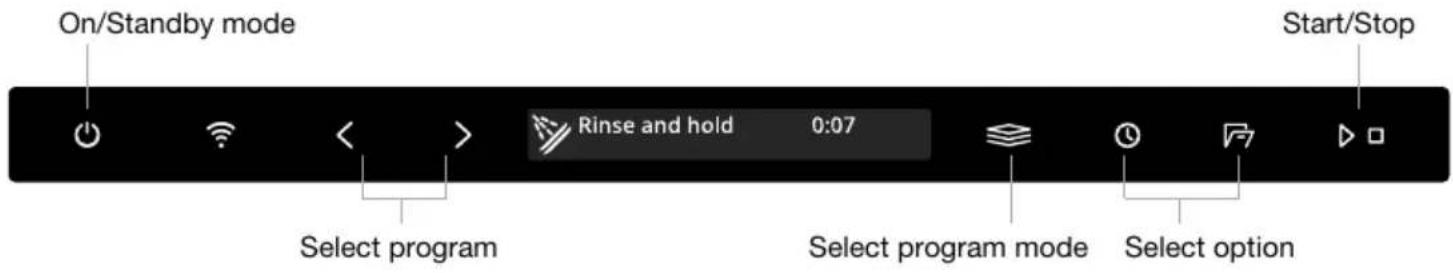

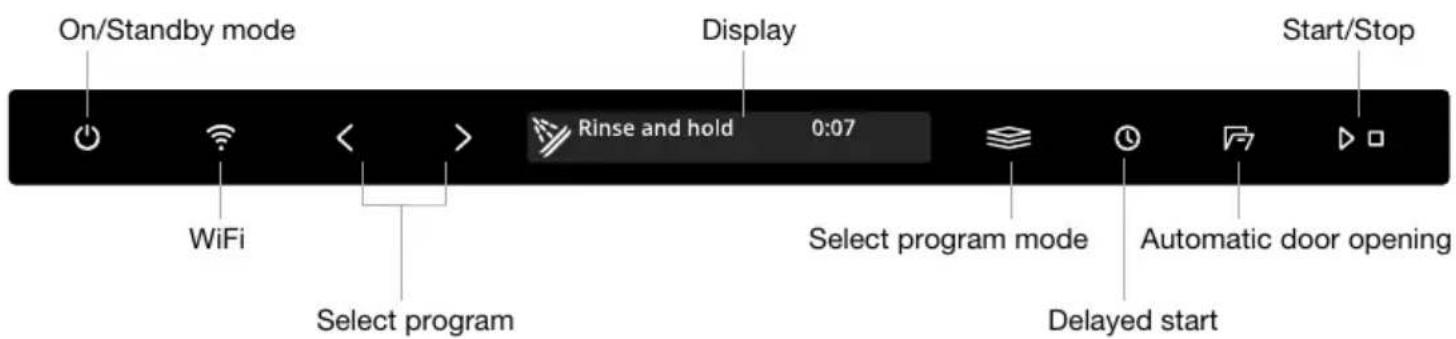

On/Standby mode Display Rinse and hold 0:07 Start/Stop WiFi Select program Select program mode Automatic door opening Delayed start

Symbols on the display:

※ Top up rinse aid
S Top up salt
Auto dose
Top up auto dose

Connected to cloud (Flashes when connecting)
Remote control active

Text on the display:
Clean the filters
Run Self-cleaning
See the chapter Care and cleaning.

Installthedishwasher,seethechapterInstallation.Thenopenthedoorandpress.

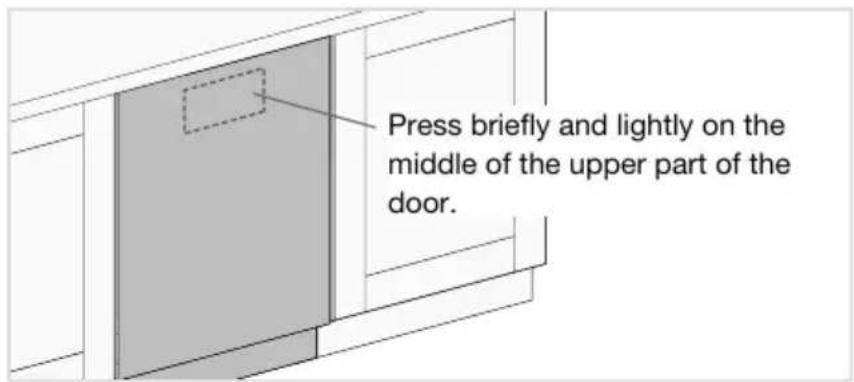

Press briefly and lightly on the middle of the upper part of the door.

"This is a first time setup." is shown on the display the first time the dishwasher is switched on. It is important that you choose the right setting to ensure good dishwashing results. Seepage7.

You can remote control this dishwasher with your smartphone/tablet. Connect the dishwasherto your wireless network and pair with your smartphone/tablett be able to remote control and start the dishwasher using the Connect Life app. The app can be used to find information, change settings and monitored dishwasher. (Thedish washer can always be used without the app.)

Safetyinstructions

• Readtheusermanualandkeepitinasafeplace!
  •Numberofstandardplacesettings: 15
• Neverusethedishwasherforanypurposeotherthanthat specifiedintheseoperatinginstructions.
• Donotloadthedishwasherdoorordishwasherbasketswith anythingotherthandishes.
• Neverleavethedishwasherdooropenassomeonemaytripon it. Pushthebasketsintoavoidriskingthedishwashertipping over.
• Useonlydishwasherdetergent!
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in asafeway and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Damagedsupplycordmustonlybereplacedbythe manufacturer'sservicecentreorsomeonesimilarlyprofessionally qualified.
• Onlyusethedishwasherinhousehold-typeenvironmentsfor dishwashinghouseholddishes. Allotheruseisprohibited.
• Neverplacedisheswithsolventresiduesinthedishwasherdue totheriskofexplosion.Normaydishesthatcontainash,waxor lubricantsbewashedinthedishwasher.
• Childrenmustbewatched.Donotallowchildrentouseorplay withthedishwasher.Beespeciallyvigilantwhenthedoorisopen. Somedetergentmayremaininside!Afteraddingdetergent,always startthedishwasherimmediately.

WARNING!

Knivesandotherpointeditemsmustbeplacedwiththepoints downinthecutlerybasketorhorizontallyinotherbaskets.

WARNING!

Childrenmustbesupervised-dishwasherdetergentiscorrosive!

Childlock

You can activate the Automaticchildlocksetting to prevent children from starting the dishwasher. See the chapter Settings. You can also temporarily activate and deactivate the Child lock function. Press and hold and forth three seconds.

Installation

SeethechapterInstallation.

Overflowguard

Theoverflowguardstartspumpingoutthewaterandturnsoffthewatersupplyifthewaterlevelin thedishwasherexceedsthenormallevel.Iftheoverflowguardistriggered,F54(Overfillingwater) appearsonthedisplay.Turnoffthewatertapandcontactyournearestservicecentre.(Toavoid waterleakageoutsidethedishwasher,donotremovetheplugfromthewallsocketuntilthewater taponthesupplylinehasbeenturnedoff!)

Packaging

Theouterpackagingprotectstheproductduringtransport. Thepackagingmaterialisrecyclable. Separatethedifferentpackagingmaterialstohelpreducerawmaterialuseandwaste. Yourdealer cantakethepackagingforrecyclingordirectyoutothenearestrecyclingcentre. Thepackaging iscomprisedof:

• Corrugatedcardboardmadefromupto 100% recycledmaterial.
• Expandedpolystyrene(EPS)withnoaddedchlorineorfluorine.
  •Supportsmadefromuntreatedwood.
• Protectiveplasticmadefrompolyethylene(PE).

Disposal

Thedishwashermanufacturedandlabelledforrecycling.Whenthedishwasherhasreachedthe endofitsservicelifeandistobedisposedof,itshouldimmediatelybemadeunusable.Pulloutthe powercableandcutitasshortaspossible.Removethelightsource/lightsources.

Contact your local authority for information about where and how your dish washers should be correctly recycled.

Symbolsontheappliance

Readtheusermanual.

Recycleaselectricalwaste.

ApprovedinaccordancewiththerelevantEUdirectives.

ApprovedinaccordancewiththerelevantUKlegalrequirements.

Safetyinstructions

NOTE!

Followtheinstructionscarefullytoavoidinjurytopersonsanddamagetoproperty,andtomaintain thewarranty.

Waterhardness

Inordertoachievegooddishwashingresults,thedishwasherneedssoftwater(waterwithlowmineral content).Hardwaterleavesawhitecoatingondishesandthedishwasher.

Checkingwaterhardness

WaterhardnessisspecifiedusingGermandegreesofwaterhardness(°dH),Frenchdegreesofwaterhardness(°fH),Englishdegreesofwaterhardness(°eH)ormillimolesperlitre(mmol/l).

Awatersupplywithawaterhardnessinexcessof5°dH(9°fH/6°eH/0.9mmol/l)mustbesoftened. Thisisdoneautomaticallywiththeaidofthebuilt-inwatersoftener.Inorderforthewatersoftener tofunctionproperly,itssettingsmustbeadjustedtothehardnessofthewatersupply.Onceyou haveadjustedthewatersoftenersettings,adddetergentandrinseaidindosessuitableforsoft water.

Contact the local water work to check the water hardness in your area.

Makeanoteofthewaterhardness: ____

				Recommendedsettingmmol/l°eH°fH°dH
				00.0-0.90-60-90-5
				11.0-1.47-1010-146-8
				21.5-2.011-1415-209-11
				32.1-2.515-1821-2512-14
				42.6-3.419-2426-3415-19
				53.5-4.325-3035-4320-24
				64.4-5.231-3644-5225-29
				75.3-7.037-4953-7030-39
				87.1-8.850-6171-8840-49
				98.9628950

If the water hardness exceeds 50^(89^ / 62^ / 8.9mmol / l) , were recommend connecting an external watersoftener.

Increasedconsumptionduringregeneration

Thedishwasher's built-in watersofteneris regularly regenerated to maintain its function. Regeneration extend the dish washing program and increases energy and water consumption. Just how often the dish washer's watersofteneris regenerated depends on these selected setting.

Example: If the Ecoprogram is run with a water hardness of 14^ dH ( 25^ fH/ 18^ eH/2.5mmol/l), the watersofteneris regenerated at regular intervals (after 7 dishwashing cycles), energy consumption increases by 0.015 kWh, and water consumption increases by 2.3 litres, while the program time is extended by 3 minutes. Regeneration takes placed during the program's mainwash.

WARNING!

Hardwaterleavesawhitecoatingondishesandinsidethedishwasher.Itisthereforeimportant thatyouselecttherightsettingforthewatersoftener!SeeWaterhardness.

Neverrunthedishwasherwithanemptysaltcompartmentifthewatersupplyhasawaterhardness inexcessof5°dH(9°fH/6°eH/0.9mmol/l).

Basicsettings

Openthedoor.Press.

"This is a first time setup." is shown on the display. It is important that you choose the right settings to ensure good dish washing results.

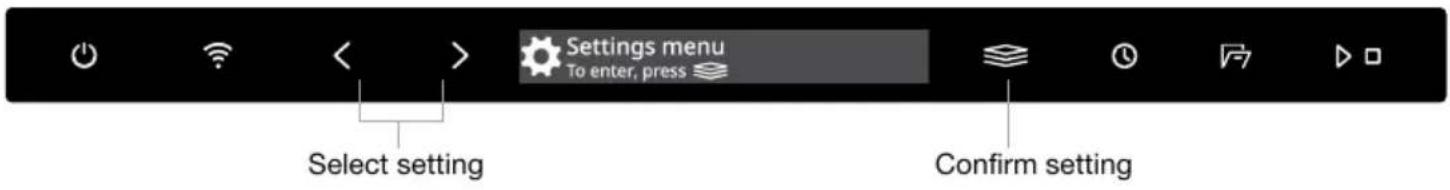

Selectsettingwithor Confirmselectedsettingwith.

Settings
		Selectthelanguagetobeshownonthedisplay.Language1.
2.	Rinseaid0/1/2/3/4/5Pre-selectedatfactory:4	Dryingisfasterandabetterresultisachievedifyouuserinseaid.Youwillalsoachieveabetterdishwashingresultwithclearandspotlessdishes.Therinseaiddispensercanbeadjustedbetween0(Off)and5(Highdosage).
3.	Waterhardness0/1/2/3/4/5/6/7/8/9Pre-selectedatfactory:4	Adjustingthewatersoftener.Selectasettingdependingonthehardnessofthewatersupply.Itisimportantthatthissettingiscorrect!Forawatersupplywithahardnessabove5°dH(9°fH/6°eH/0.9mmol/l),fillwithsalt.Forawatersupplywithahardnessbelow6°dH(10°fH/7°eH/1.0mmol/l),select0.Thewatersoftenerisdeactivatedandnosaltneedstobeadded.
4.	TABOn/Off(All-in-onedetergent)Pre-selectedatfactory:Off	Activatethesettingwhenusingall-in-onedetergentcontainingrinseaid.(Alsoappliestodishwasherdetergentgelforautomaticdosingthatcontainsrinseaid.)Thissettingreducestherinseaiddosageandaffectshowoftenthedishwasher'sbuilt-insoftenerisregenerated.
5.	AutodoseOff, 15-40mlPre-selectedatfactory:Off	Activatethissettigifyouwanttouseautomaticdosingofdetergent.Theexactdosagedependsonwhichprogramisrunning.FortheAutoprogram,thedosagealsodependsonhowdirtythedishesare.

Tochangetheselectedsetting,seethechapterSettings.

Beforewashingforthefirsttime

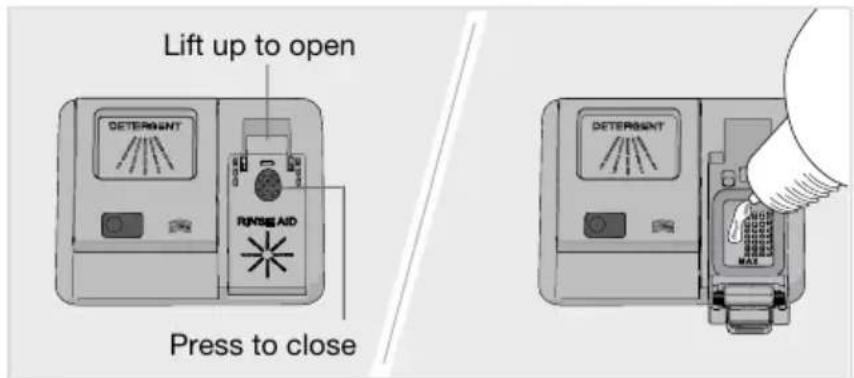

\* Topuprinseaid

TopuptherinseaidcompartmentwithrinseaidifyouhaveselectedRinseaid1-5.

Lift up to open DETERMS RUNS AID Press to close

1. Opentherinseaaidcompartmentlid.
2. CarefullytopupwithrinseaidtothelevelmarkedMAX.
   3.Wipeupanysplashesofrinseaidaroundthecompartment.
3. Closethelidfirmly.

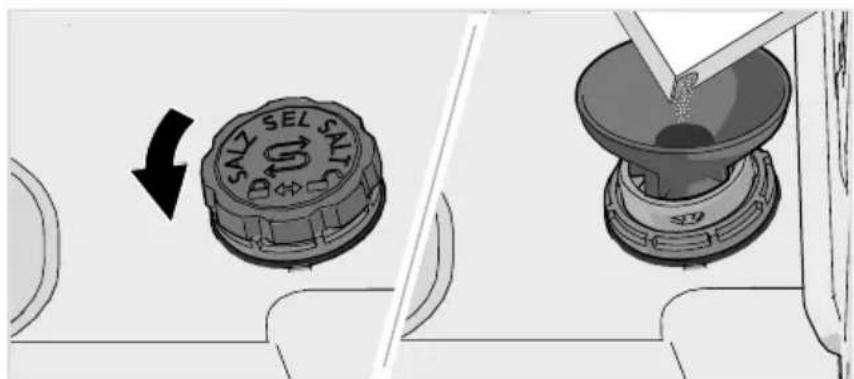

S Topupsalt

Forawatersupplywithahardnessabove5°dH(9°fH/6°eH/0.9mmol/l),fillwithsalt.

AddsalttothesaltcompartmentifyouhaveselectedWaterhardness1-9.

SALZ SEL SALTAS

1. Removethesaltcompartmentlidbyturningitanticlockwise.
2. Placethefunnelsuppliedwiththedishwasherinthesaltcompartmenttop-uphole.Before washingforthefirsttime,pourinabout1lofwater.(Waterisonlyneededthefirsttime.)
3. Addenoughsalttofillthesaltcompartment(max.750gram). Usespecialdishwashersalt.
4. Wipeawayexcesssaltandturnthelidclockwiseuntilintheclosedposition.

WARNING!

Inordertoavoidruststainsadishwashingprogrammustbestartedinmediatelyafteradding salt.

Neverpourdishwasherdetergentintothesaltcompartment. Thisdestroysthewatersoftener!

Beforewashingforthefirsttime

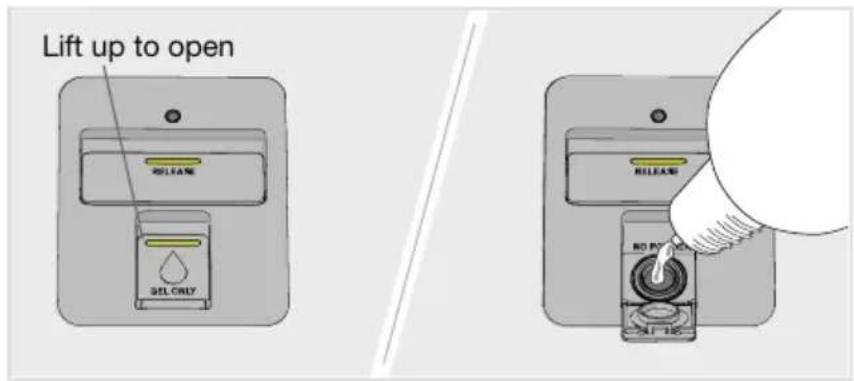

Topupautodose

Fill the automatic dosing compartment with dishwasher detergent gel if you have activated the Auto dosesetting.

Lift up to open RELAME SEL ONLY NO PON RELAME

1. Opentheliodoftheautomaticdosingcompartmentfordishwasherdetergentgel.
2. CarefullyaddishwasherdetergentgeltothelevelmarkedMAX.
3. Cleanupanyexcessdishwasherdetergentgeloutsidethecompartment.
4. Closethelidfirmly.

NOTE!

Useonlydishwasherdetergentgelintheautomaticdosingcompartment!Donotusedishwasher detergentpowder.Washingupliquidmustnotbeusedasthefoamthatformspreventsthe dishwasherfromoperatingeffectively.

Somethickdishwasherdetergentgelsarenotsuitablefortheautomaticdosingcompartment. Addverythickdishwasherdetergentgelintothemanualdetergentcompartment.Seethedetergent manufacturer'srecommendations.

Dishwasherdetergentgelhasamilderformulathandishwasherdetergentpowderorall-in-one detergentwithbleachingagent. Thismeansthatdishwasherdetergentgelmayprovelesseffective atremovingstainscausedby,forexample,lipstickandtea/coffee.Ifnecessary,onsuchoccasions dishwasherdetergentpowderorall-in-onedetergentwithbleachingagentcanbeaddedtothe manualdetergentcompartment(whenAutodoseisactivated).SeeAdddetergent.

Dosingofdishwasherdetergentgel

DishwasherdetergentgelisdispensedduringthemainwashforallprogramsexceptSelf-cleaning. Alittleextradishwasherdetergentgelisalsodispensedduringtheprewashinthefollowingprograms:

Auto, Universal, Intensive, Timeprogram(2:00, 2:30)

Saveenergyandwater

When using a dishwasher a residential setting, less energy and water are generally used compared to washing the dishes by hand.

Donotrinseunderrunningwater

Donotrinsethedishesunderrunningwaterasthiswillleadtoincreasedenergyandwater consumption.Simplyscrapeofflargefoodparticlesbeforeloadingthedishwasher.

Chooseagreendetergent

Readtheenvironmentaldeclarationonthepackaging!

Toomuchdetergent, rinseaidandsaltcanresultinlesseffectivedishwashingandalsoentailgreater environmentalimpact.

Runafullyloadeddishwasher

Saveenergyandwaterbywaitinguntilthedishwasherisfullbeforerunningaprogram(seenumber ofstandardplacesettings).UsetheRinseandholdprogramtorinsethedishesifthereareany unpleasantodours.

Runprogramsatalowertemperature

Ifthedishesareonlyslightlydirty,youcanselectaprogramwithalowtemperature.

Selectdishwashingprogram—Eco

This program is suitable for washing normally soiled dishes and isth most effective program in terms of combined energy and water consumption. This program is used to assess compliance with EU legislation on one ecodesign.

Thedishwashingprogramisdesignedforaneffectivewashashingaslittleenergyandwateras possible. Theprogramwashesatalowtemperatureforalongtime.

Selection-Automaticdooropening

BetterdryingresultsareachievedifyouusetheAutomaticdooropeningoption,whichautomatically openthedishwasherdoor.Waituntilthedishwasherindicatesthattheprogramhasendedandthe disheshavecooledbeforeunloadingthedishwasher.(Ifthedishwasherisbuilt-inthesurrounding furnishingsmustberesistanttoanycondensationfromthedishwasher.)

Connecttocoldwater

Connectthedishwashertothecoldwatersupplyifthebuildingisheatedusingoil,electricityorgas.

Connecttohotwater

Connectthedishwashertothehotwatersupply(max.70°C)ifthebuildingisheatedusingan energy-efficientmeanssuchasdistrictheating,solarpowerorgeothermalpower.Choosingahot waterconnectionreducethedishwasher'senergyconsumption.

NOTE!

Donotexceedthepermittedwatersupplytemperature.Certainmaterialsusedinsomecookware cannot withstand high heat. See Fragile dishes in the chapter Loading the dishwasher.

Loadingthedishwasher

Fragiledishes

Somecookwareisnotdishwashersafe. This can be for several reasons. Somematerials cannot withstand high heat, others can be damaged by dishwasher detergent.

Exercisecautionwith,forexample,handmadeitems,fragiledecoration,crystal/glassware,silver,copper,tin,aluminium,woodandplastic.Lookforthe"Dishwashersafe"marking.

Fragiledecoration

Porcelainwithdecorationontopoftheglazing(theitemsfeelrough)shouldnotbewashedina dishwasher.

Crystal/Glass

Washfragileitemsmadeofcrystal/glassusingthegentledishwashingprogramCrystalglass. Remembertouseasmallamountofdetergentandtoplaceitemssothattheydonottoucheach otherduringthewash.

Dryingisfasterandabetterresultisachievedifyouuserinseaid.Youwillalsoachieveabetterdishwashingresultwithclearandspotlessdishes.

Hand-paintedglassware, as well as antique and very fragile items, should not bewashed in dishwasher.

Silver

Silverandstainlesssteelitemsshouldnotcomeintocontact, asthesilvercanbecomediscoloured.

Inordertoavoidmarksandtarnishing, separatedishesmadefromdifferentmetals,suchassilver, stainlesssteelandaluminium.

Aluminium

Aluminiumcanloseitsshineifwashedinadishwasher. However, goodqualityaluminiumpanscan bewashedinadishwasher, even if some of the shinewillbelost.

Cutlerywithgluedhandles

Sometypesofgluearenotdishwashersafe.Insuchcases,thehandlesmayloosen.

Loadingaffectstheresults

Loadthedishescarefullytoensurethebestwashinganddryingresultswiththelowestpossible energyandwaterconsumption.Giveyourdishwasherthebestchancetoreachandcleanallsurfaces, aswellastodrythedishesasthoroughlyaspossible.

- Allirtysurfaceshouldfaceinwardsanddownwards!

- Dishesshouldnotbeplacedinoroneachother.

- Angle dishes with hollows, such as cups, so that the rinse water will run off. This is also important for plastic items.

- Makesuresmallitemscannotfallthroughthedishwasherbasket; placetheminthecutlery basket.

NOTE!

Checkthatthesprayarmscanrotatefreely.

Thedishwasher'sbaskets

Thedishwasherisequippedwithanupperbasket,amiddlebasketandalowerbasketwithacutlery basket.

Theappearanceofthebasketsmaydifferdependingonthedishwashersetup.

Upperbasket

Placeglasses,cups,bowls,sideplatesandsaucersintheupperbasket.Alldirtysurfaceshould faceinwardsanddownwards!Wineglassesareplacedonthewineglassshelfandknivesare placedintheknifestandontheright.

Loadingthedishwasher

Adjustableplatesupports

The adjustable plates supports can be pushed together to suit the dishes.

Diagram of a grid-based infrastructure with two black arrows indicating directional movement or flow, no readable text or symbols present.

Raisingtheupperbasket

1. Pullouttheupperbasket.
2. Grabthesides of the upper basket with both hands and lift it up.

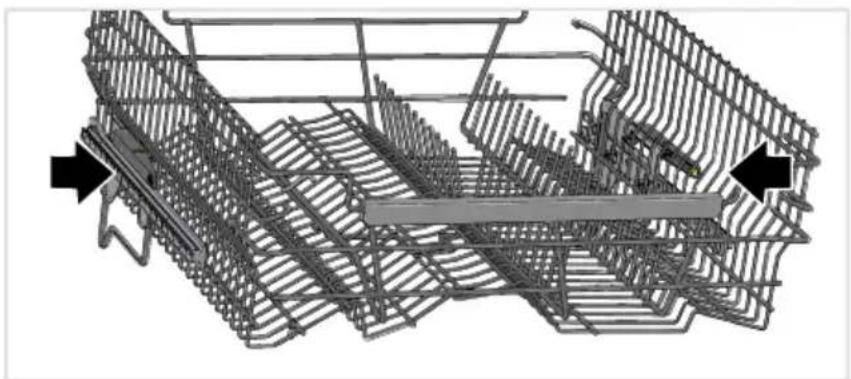

Loweringtheupperbasket

1. Pullouttheupperbasket.
2. Grabthesides of the upper basket with both hands and push in the two locking handle to lower the upper basket.

3D wireframe model of a mechanical assembly with no visible text or symbols

Middlebasket

Themiddlebasketcomeswithtwodifferentbasketinserts. Theinsertwithspraypipesissuitable forlowitems. Thecutleryinserthasspaceforladles, whisks, servingcutleryandsimilaritems.

Insert with spray pipes Cutlery insert

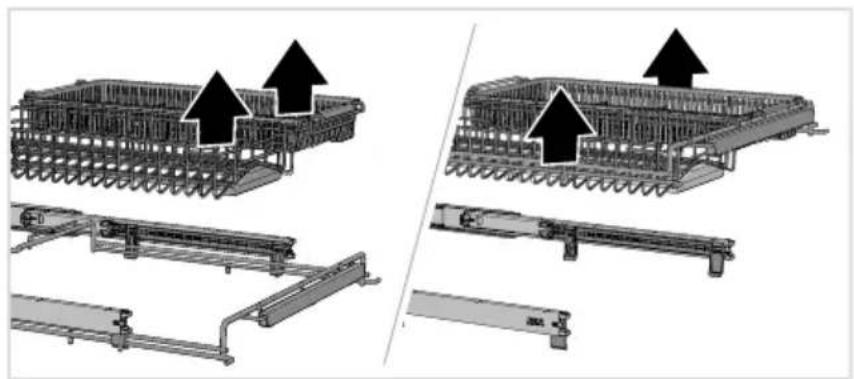

Washinglargeritems

If large items are to be washed in the lower basket, either the middle basket's two inserts can be removedortheentiremiddlebasketcanbeliftedout.Toremovetheentiremiddlebasket,grabthe sidesofthemiddlebasketwithbothhandsandliftbothsidesatthesametime.Torefit,simply reversetheprocedure.

Technical illustration of a mechanical assembly with exploded and assembled views (no text or symbols)

Loadingthedishwasher

Lowerbasket

Placeplates, sideplates, serving dishes, pots and cutlery (inthecutlery basket) in the lower basket.

Illustration of a multi-tiered kitchen appliance basket with cutlery and utensils (no text or symbols)

Adjustableplatesupports

Theadjustableplatesupportscanbeadjustedtosuitthedishes.Releasetheplatesupportsby pushingtheminwardsbeforerepositioningthem.Theplatesupportscanalsobefoldeddownto makeiteasiertoloadpotsandbowls.

Technical diagram of a steel rebar structure with directional arrows indicating movement or force (no text or symbols present)

Atthebackoftherightsideofthelowerbasket,theplatesupportscanbepushedtogethertoprovide morespacefor,forexample,stonewareoradeeppan.

Diagram of a vehicle's structural grid with yellow robotic arms and black directional arrows indicating motion (no text or symbols)

Vaseandbottleholder

3D technical diagram of a mechanical assembly with grid framework and highlighted components (no text or symbols)

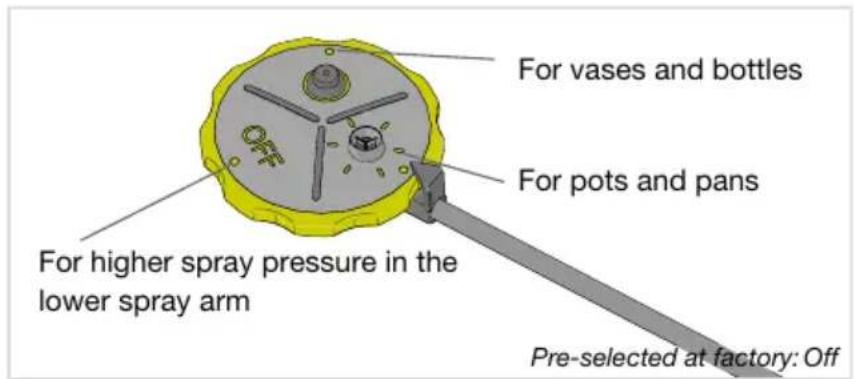

Adaptablepowerzones

Thedishwasher'stwoadaptablepowerzonescanbeopenedintwodifferentpositionsorturned off.

For vases and bottles For pots and pans For higher spray pressure in the lower spray arm Pre-selected at factory: Off

Leavethepowerzonesopenifyouwantanincreasedwaterflowwhere,forexample,youhave placed pots and pans or vases and bottles. Turn the dishwasher's power zones off if you want greater spraypressureinthelowersprayarm.

Washinglargeplates

You can adjust the lower basket for plates with diameter of 25-29 cm by moving the adjustable plates supports and their fixture to increase the distance between the inner rows.

Cutlerybasket

Placecutlerywiththehandlesfacingdown,exceptforknives,andspreadthemoutasmuchas possible.Ensurethatspoonsdonotstackinsideeachother.

Thecutlerybasketisbestplacedinthemiddleatthefrontofthelowerbaskettobestutilise dishwashingperformancefromtheuniquesprayzoneintendedforthecutlerybasket.

WARNING!

Knivesandotherpointeditemsmustbeplacedhorizontallyinthedishwasher'sspecialcutlery baskets.

Loadingthedishwasher

Fold-downsectionforsmallitems

Thecutlerybaskethasafold-downsectioninthemiddleforsmallitemsorsmallshafts(suchas electricwhiskattachments).

Technical diagram illustrating a mechanical assembly process with labeled components and cross-sectional views

Adddetergent

Youhavetwooptionsforaddingdetergent-manualorautomatic.ToactivateAutodose,seethe chapter Settings.Themanualdetergentcompartmentcanbeusedasasupplementevenwhen Autodoseisactivated(e.g.fordishwasherdetergentwithbleachingagentoriftheautomaticdosing compartmentisempty).

Followtheinstructionsonthedetergentpackaging. Thisdishwasherisfittedwithawatersoftener, sousedetergentandrinseaiddosessuitableforsoftwater.

Manualdetergentcompartment

Donotaddetergenttothemanualdetergentcompartmentwhenusingautomaticdetergentdosing! Toomuchdetergentcanresultinlesseffectivedishwashingandalsoentailsgreaterenvironmental impact.

Prewash detergent DETEMENT RINBE AID Press to open Main wash detergent DETEMENT RINBE AID Close the lid

The detergent compartment must bedry when adding detergent. There is one compartment for the prewash and one forthemain wash. If dishwasher detergent powder or dishwasher detergent gel is used, you can add small amount of the detergent to the prewash compartment. Contact the detergent manufacturer if you have questions about the detergent.

NOTE!

Useonlydishwasherdetergent!Washingupliquidmustnotbeusedasthefoamthatforms preventshedishwasherfromoperatingeffectively.

All-in-onedetergent

Therearemanytypesofall-in-onedetergentsonthemarket.Readthroughthedirectionsforthese productscarefully.

Activate the TAB setting when using an all-in-on-detergent that contains rinse aid.

Dishwashertabletsarenotrecommendedforprogramslastinglessthan75minutes.Usedishwasher detergentpowderordishwasherdetergentgelinstead.

NOTE!

Optimalwashinganddryingresultsareachievedbyusingdishwasherdetergenttogetherwith separatelydispensedrinseaidandsalt.

Usingthedishwasher

On/Standby mode Rinse and hold 0:07 Select program Select program mode Select option Start/Stop

On/Standbymode

Openthedoorandpress.Alsbturnonthewatertapifitisturnedoff.

Selectprogram

Ecoisalwayspre-selected. Toselectanotherprogram, pressoruntik the desired program is shownonthedisplay.

Selectaprogramtosuitthetypeofdishesandhowdirtytheyare.

Eco

Thisprogramissuitableforwashingnormallysoileddishesandisthemosteeffectiveprogramin termsofcombinedenergyandwaterconsumption. Thisprogramisusedtoassesscompliancewith EUlegislationonecodesign.

YoucanreadmoreaboutgreenerdishwashinginthechapterGreenerdishwashing.

Forheavilysoileddisheswithalotofgrease,aprogramwithhighertemperaturesshouldbeused.

Auto

Thedishwashercanmeasurehowdirtythedishesareandadjustwaterconsumptionandtemperature accordingly. Whennewlyinstalled, theprogramneedstoberunfivetimesbeforeitisfullyadapted andcanprovidethebestresults.

If Autodose is activated, the dosage of dishwasher detergent gelis also adjusted.

Universal

Aneffectiveprogramfordailyuseforslightlydriedleftovers.(Thisprogramisnotintendedforburnt food,suchasonovendishes.)

Intensive

Aprogramwithahightemperaturefordissolvinggreaseonverydirtydishes,suchaspans,casserole dishesandovendishes.Ifthesedishesdonotcompletelyfillthedishwasher,youcanaddplates andotherdishes.

Quickpro 1)

Afastandeffectiveprogramforslightlydriedleftovers.(Thisprogramisnotintendedforburntfood, suchasonovendishes.)

The Automatic door opening option is important for ensuring the best drying results.

Preheated(30min+20min)

Adishwashingprogramwithapreheatingphase(thewaterisheatedfor30min)andadishwashing phase(thedishesarewashedfor20min).Thisprogramisdesignedtoofferyouaquickdishwashing programthatcanbestartedwithin180minutesofthepreheatingphaseending.

Step1: Tostartthepreheatingphase, press. Closetedoor. (Thesprayarmsrotate and the statuslightisredwhilethewaterisbeingpreheated.) Waituntilthestatuslightturnsblue. When you openedoor, the displayshows "Preheatingphasecompleted", indicating that the dishwashing phase is ready to be started within 180 minutes.

Youcanloadthedishesthroughoutthepreheatingphase. Thisprogramisnotintendedfordried leftovers.Remembertoscrapeofflargerfoodparticlesbeforeloadingthedishwasher.

Step2: Tostartthedishwashingphase, press.

Crystalglass

Agentledishwashingprogramwithalowtemperatureforwashingfragileitemsmadeofcrystal/glass. Remembertouseasmallamountofdetergentandtoplaceitemssothattheydonottoucheach other during the wash. See also Fragile dishes in the chapter Loading the dishwasher. Porcelain thathasjustbeenusedwithoutdriedleftoverscanalsobewashedusingthisprogram.

Timeprogram

The program adapt to the specified running time or finish time. With this program it is important to choose times suited to how dirty the dishes are.

Presstsetthedesiredprogramtime.

Slightlydirtydishes0:15-0:45

Normallydirtydishes1:00-1:30

Verydirtydishes2:00-2:30

Hygiene

This program is ideal to use hered demand on hygiene are e xtrahigh, e.g. for baby bottles and cutting boards. The temperature is high both them main wash and in the final rinse.

Plastic

Aprogramintendedforwashingplasticitemsthataredishwashersafe. Thisprogramhasanextra longdryingcycle.Porcelainandglassescanalsobewashed.

1) When combined with Speed, the program is shortened (39 minutes).

Usingthedishwasher

Rinseandhold

Usedtorinsedisheswhileyouwaitforthedishwashertobecomefullyloaded.

Self-cleaning

Self-cleaningprogramforhygieniccleaningofthedishwashertub,sprayarmsandspraypipes.

Thisprogramshouldberun(withnodishesinthemachine)usingdishwasherdetergentorcitric acid – add it to the dishwasher's manual detergent compartment. (Detergent is not automatically dispensedwiththeAutodosefunction.)Specialdishwashercleanersarealsoavailableonthe market. For the removal of limescale deposits, see Dishwasher tub in the chapter Care and cleaning.

Lowerhalf

Youcanusethisprogramwhenyouonlywanttowashplatesandcutleryinthelowerbasket.Slightly dirtydishescanalsobeplacedintheupperbasket.

Upperhalf

Youcanusethisprogramify you only have cups and glasses that need washing in the upper basket. Slightly dirty dishescan also be placed in the lower basket.

Selectprogrammode

Presstscrollthroughtheavailableprogrammodes. Thesymbolisdimlylitinavailableprogram modes, and glowsbrighterwhenaprogrammodehasbeenactivated. (Theprogrammodesyou canselectvarybetweenprograms.)

Speed

The program time is shortened, but the dish washer uses more energy.

Green

Thedishwasheruseslessenergyandwater.

Night

Lowernoiselevelduringthedishwashingprogram. The program time is extended.

Intensive

The higher temperature dissolved dissolves grease on very dirty dishes, but the dishwasher consumes more energy and water. The program time is extended.

Selection

Availableoptionsaredimlylit.Selecttheoptions(,)toactivatethem.Theoptionsglowbrighter whenactivated.(Theoptionsyoucanselectvarybetweenprograms.)

Delayedstart

When you select Delayed start, the dish washer will start 1-24 hours after you have pressed and closed the door.

1. PressocetoactivateDelayedstart.Pressseveraltimes,orholditin,tosetthedesired numberofhours.

2. Press and closetedoor. Thetimercountsdownandthedishwasherstartsaftertheselected delay.

If you want to cancel the Delayed start option, open the do or then press and hold for three seconds.

Automaticdooropening

Thedishwasherdooropensduringthedryingphase,whichshortenstheprogramtimeandimproves thedryingresults.Waituntilthedishwasherindicatesthattheprogramhasendedandthedishes havecooledbeforeunloadingthedishwasher.(Ifthedishwasherisbuilt-in,thesurroundingfurnishings mustberesistanttoanycondensationfromthedishwasher.)

The drying time of the Automatic door opening option varies (from 5 to 90 minutes) depending on the model, program and temperature of the final rinse.

The Automatic door opening option is pre-selected for some programs.

NOTE!

Forthebestdryingresults, donotclosethedoorbeforethedryingphasehasfinishedandthe machinehasautomaticallyswitchedoff.

WARNING!

Thedishwasherdoormustnotbeblockedorclosedwhenopenedautomatically.Doingsomay damagethedorlockmechanism.Waitatleast5minutesbeforeclosingthedoor.

▷ □ Start/Stop

Press until the display shows "Program started, closed door". This indicates that the dishwasher is ready to start. Closetedoor properly, other-wise the dishwasher will not start.

If the dish washer is not started or the door is not closed within 2 minutes of the last time the control panel was pressed, them machines switches off.

Toremotestartthedishwasher,seethechapterConnectLife.

Stoppingorchangingaprogram

If you want to change program after starting the dishwasher, opened do or then press and hold for three seconds. Add more detergentifth elid of the detergent dispenser has opened. Then select anew program, press and closed the door.

Remainingtime

Once you have selected a program, program mode and options, the time the program took when last used is displayed.

Usingthedishwasher

Statuslight

Thestatuslightatthebottomonthedishwasherprovidesinformationbymeansof3differentcolours.

Status light

Simple circular diagram showing a diagonal line intersecting a vertical rectangle, with a small circular mark and radiating lines (no text or symbols)

A lens for a forward-facing status light can be fitted. See the chapter Installation.

Blue-Loadmore

Theprogramhasstarted, butyoucanstillloadmoredishes.

Red-Donotload

Youshouldnotloadmoredishes(riskofpoorerdishwashingresult).

Green-Unload

Thedishwashingprogramisfinished. Thestatuslightstaysonfor15minutes.

Flashingred

Aflashinglightindicatesthatthedoorhasbeenopenedwhileaprogramisinprogress.Ifitflashes whenthedoorisclosed,anerrorhasoccurred.SeethechapterTroubleshooting.

Flashingblue/green

Thestatuslightflashesblue/greentoindicatethatremotestartisactivated.

Ifyouwanttoloadmoredishes 2)

Openthedoor. Thedishwasherstopsautomatically. Addthedishesandclosethedoor. Aftera while, thedishwashercontinuestheprogram.

If the dishwashing program was remot started, the interrupted program will continue on the door is closed. You can monitor the dishwasher using the ConnectLife app and remote stop the program, although you will not be able to start it again.

Powerfailure

If the dishwasher is turned off due to a power failure when adish washing program is running, the program continues when power is restored. If the power is cut during drying, the program is interrupted.

If the dish washing program was removed and has not ended, the program will continue once the power is restored. You can monitor the dish washer using the ConnectLifeapp and remotestop the program, although you will not be able to remot start it again.

If you opened the door form more than 2 minutes during drying, the program will be interrupted.

The door can be opened manually if the dish washer is not connected to the electrical supply. Grasp the door on both sides at the top and pull it straight out.

2) You should not load more redishes if the status light is red.

Oncetheprogramhasfinished

Theendoftheprogramisindicatedbyoneshortsignalfromthebuzzer. Thechapter Settings describeshowtochangethisfunction.

Moreover, the end of the program is indicated by the status light turning green.

Oncethedishwasherdoorisopenedandtheprogramhasfinished"Programdone"appearsonthe display.

The dishwasher automatically enters standby mode after the program has finished. Shutoff the water tap after each use (if required by your insurance company).

Thebestdryingresults

• Fullyloadthedishwasher.
• Angle dishes with hollows, such as cups, so that the rinse water will run off. This is also important for plastic items.
• Topupwithrinseaidorincreasetherinseaiddosagesetting.
• Activate the Automatic door opening option.
• Allowthedishestocoolbeforeunloadingthedishwasher.

Unloadingthedishwasher

Hotporcelainismorefragile.Leavethedishestocoolinthedishwasherbeforeunloadingthem.

Unloadthelowerbasketfirsttoavoidanywaterdropsfromtheupperbasketfallingontothedishesinthelowerbasket.

Program chart 48°C 09-1 60°C 70°C

Program	Programmode /Option	ofprewashes	MainwashNumber ofrinses	Final rinse	Consumptionvalues 1)
					Coldwater 2)		Hotwater 3)		Watercons. (liter)
					Dishwashing time (approx. hrs:min)	Energy (approx.kWh)	Dishwashing time (approx. hrs:min)	Energy (approx.kWh)
Eco 4)	5)								9.60.33:200.653:3044°C248°C
Auto	5)								11.5-18.50.6-1.01:50-2:500-9:1.42:10-3
Universal	5)								12.50.72:201.12:4060°C260°C1
									16.01.22:301.62:5070°C270°C2Intensiv
Quickpro	5)								14.50.70:591.10:5965°C360°C
									9.50.60:20+0:200.90:30+0:2055°C265°C
									10.00.41:200.71:4050°C245°CCrystalg
									10.0-16.50.2-1.00:15-2:300.3-1.40:15-2
									10.50.90:451.31:0570°C270°CHygiene
Plastic	5)								13.00.82:101.22:3068°C255°C1
				Rinseandhold				1	3.50.010:070.010:07
									10.00.60:451.01:0570°C270°CSelf-clea
									13.00.71:501.12:1060°C265°C1Lowerh
									13.00.71:501.12:1060°C265°C1Upperh

1) Consumption values vary depending on the temperature of the incoming water, room temperature, load size, selected additional functions and more. The values for the Eco program are
accurate, others are indicative only.
2) Connectiontocoldwater,approx.15°C
3) Connectiontohotwater, approx. 60°C.
4) This program is suitable for washing normally soiled dishes and is the most effective program in terms of combined energy and water consumption. This program is used to assess compliance with EUlegislationonecodesign.
5) Automaticdooropening

ConnectLifeisasmarthomeplatformthatconnectspeople,devicesandservices.TheConnectLife applicationincludesadvanceddigitalservicesandcarefreesolutionsthatallowuserstomonitor andcontrolappliances,receivenotificationsfromasmartphone,andupdatesoftware(supported featuresmayvarydependingonyourapplianceandtheregion/countryinwhichyouarelocated).

Toconnectyoursmartdevice,youneedahomeWi-Finetwork(only2.4GHznetworksaresupported) andasmartphoneequippedwiththeapplicationConnectLife.

QR code image with a central logo, likely linking to a digital resource or website.

TodownloadtheConnectLifeapplication,scantheQRcodeorsesearchfor ConnectLifeinyourfavouriteappstore.

1. InstalltheConnectLifeapplicationandcreateanaccount.
2. IntheConnectLifeapplication, gotothe» Adddevices«menuandselecttheappropriatetype ofdevice. ThenscantheQRcode(itcanbefoundontheserialnumberplateoftheappliance; youcanalsoentertheAUID/SNnumbermanually).
3. The application thenguidesyouthroughtheentireprocessofconnectingtheapplianceto your smartphone.
4. After a successful connection, the appliance can be operated remotely via the mobile application.

WiFi On/Standby mode < > Rinse and hold 0:07 Display Start/Stop

Connecttoanetworkandpair

Connectthedishwashertoyourwirelessnetworkandpairwithyoursmartphone/tablet.(Thiscan alsobedonefromthedishwasher'sSettingsmenu.)

• In the ConnectLife application, go to the »Add devices« menu and select the appropriate type of device. ThenscantheQRcode(itcanbefoundontheserialnumberplateoftheappliance; youcanalsoentertheAUID/SNnumbermanually).
• Openthedishwasherdoorandpress.
• Onthedishwasher's control panel: PresstoactivatetheWiFimodule.
• On the dishwasher's control panel: Press and hold 🔺 for 3 seconds to initiate Connection setup.

Networksymbolonthedisplay

Flashing0.5secon/off

Thedishwasherisreadytobeconnectedtoyourwirelessnetworkor pairedwithyoursmartphone/tablet.

Thedishwasherisconnectedtoyourwirelessnetwork.Flashing1.0secon/off Thedishwasherisconnectedtoyourwirelessnetworkandthecloud.Glows

Remotecontrolthedishwasher

Thedishwasher'snetworksymbolisshownonthedisplaywhenthedishwasherispairedwitha smartphone/tablet. You can use the ConnectLife app to monitor the dishwasher and change settings.

Remotestartthedishwasher

Toremotestartthedishwasher, press. Remotestartactivated will appear on the dishwasher's display. Closethedoor. The status light will flash blue/greento indicate that remotestartis activated.

IntheConnectLifeapp,selectandstartaprogram.

If the door is not closed within 2 minutes, them machines switches off.

NOTE!

Thedishwashercanalwaysbeusedwithouttheapp.Whenthedishwasher'scontrolpanelis pressed, commandsfromtheConnectLifeappareblockedfor10seconds.

Pairmoredevices

Pairmoredevices/userswiththedishwasher.(Thiscanalsobedonefromthedishwasher'sSettings menu.)

• In the ConnectLife application, go to the »Add devices« menu and select the appropriate type of device. ThenscantheQRcode(itcanbefoundontheserialnumberplateoftheappliance; youcanalsoentertheAUID/SNnumbermanually).
• Openthedishwasherdoorandpress.
• Onthedishwasher'scontrolpanel:Pressandholdfor4secondstoinitiateAdddevice.

WiFiconnectionOff/WiFiconnectionOn

After connecting the dishwasher to your local network, you can select WiFi connection Off to deactivate the connection. Select WiFi connection On to reconnect to the same network. (This can also be done from the dishwasher's Settingsmenu.)

- Onthedishwasher's control panel: Press and hold for 8 second to select WiFiconnection Off. Briefly press to select WiFiconnection on again.

Removealldevices

Remove all connected devices/users.(This can also be done from the dish washer's Settings menu.)

- On the dishwasher's control panel: Press and hold 📤 until Add device is shown on the display. Onceacountdownhasbegun,pressandholdfor3seconds.Removealldevicesindicates thatalldevices/usershavebeenerased.

Doyouhavequestions?[e-mail].

Openthedoorandpress.

Toopenthedishwasher'sSettingsmenu, pressor until Settings menu is shown on the display and confirm your selection with.

Toexitthedishwasher'sSettingsmenu,selectExitandconfirmyourselectionwith.

Settings menu To enter, press Select setting Confirm setting

		AlternativesSettings
		Youcanchoosethelanguageusedforthedisplay.Language1.
	WiFistatus	ThecurrentWiFistatusisshownonthedisplay.Network2.Connectthedishwashertoyourwirelessnetworktobeabletoremote controlthedishwasherusingtheConnectLifeapp.
		On/OffWiFiconnectionAfterconnectingthedishwashertoyourlocalnetwork,youcanselect WiFiconnectionOfftodeactivatetheconnection.SelectWiFiconnectionOntoreconnecttothesamenetwork.
	Connectionsetup	Connectthedishwashertoyourwirelessnetworkandpairwithyour smartphone/tablet.•IntheConnectLifeapplication,gotothe»Adddevices«menuand selecttheappropriatetypeofdevice.ThenscantheQRcode(it canbefoundontheserialnumberplateoftheappliance;youcan alsoentertheAUID/SNnumbermanually).•SelectConnectionsetup.
		Pairmoredevices/userswiththedishwasher.Adddevice•IntheConnectLifeapplication,gotothe»Adddevices«menuand selecttheappropriatetypeofdevice.ThenscantheQRcode(it canbefoundontheserialnumberplateoftheappliance;youcan alsoentertheAUID/SNnumbermanually).•SelectAdddevice.
	Remove all devices	Select Remove all devices to remove all connected devices/users.
	WiFi factory reset	Select WiFi factory reset to restore the default factory settings.
Exit		SelectExittoexitthemenuforNetwork,press. ≈
	Selectprograms3.	EcoOn/OffAutoOn/OffUniversalOn/OffIntensiveOn/OffQuickproOn/OffPreheatedOn/OffCrystalglassOn/OffTimeprogramOn/OffHygieneOn/OffPlasticOn/OffRinseandholdOn/OffSelf-cleaningOn/OffLowerhalfOn/OffUpperhalfOn/Off	Programscanbeshownorhiddeninthe menu.ChoosebetweenOnandOff.(Ecocannotbehiddeninthemenu.)
		On/OffAutomaticchildlock	oucanactivatetheAutomaticchildlock settingtopreventchildrenfromstartingthe dishwasher.Totemporarilydeactivateoractivatethe Automaticchildlocksetting,pressandhold< andforthreeseconds.
5.	Display: Brightness	1/2/3/4	For adjusting the brightness of the display.
		0/1/2/3Feedbackvolume6	Abeepconfirmsthatthecontrolpanelhas beenpressed.
		0/1/2/3Notificationvolume7	Thebuzzerindicateswhenadishwashing programhasended.Errormessagesarealwaysindicatedbya loudbuzzer.
		0/1/2/3/4/5Rinseaid8.0/1/2/3/4/5/6/7/8/9Waterhardness	Settingforrinseaiddosage.Therinseaid dispensercanbeadjustedbetween0(Off) and5(Highdosage).Increasetherinseaiddosage:Ifthedisheshavewatermarks.Decreasetherinseaiddosage:Ifthedisheshaveastickywhite/bluefilm.Ifthedishesarestreaked.Build-upoffoam.Ifyouhaveverysoft water,therinseaidcanbediluted50:50 withwater.Adness;thewatersoftener.Selectasetting dependingonthehardnessofthewater supply.Itisimportantthatthissettingis correct!SeeWaterhardnessinthechapterBefore washingforthefirsttime.Forawatersupplywithahardnessabove 5°dH(9°fH/6°eH/0.9mmol/l),fillwithsalt.Forawatersupplywithahardnessbelow 6°dH(10°fH/7°eH/1.0mmol/l),select0.Thewatersoftenerisdeactivatedandnosalt needstobeadded.
10.	(All-in-onedetergent)	On/OffTAB	Activatethesettingwhenusingall-in-one detergentcontainingrinseaid.(Alsoapplies todishwasherdetergentgelforautomatic dosingthatcontainsrinseaid.)Thissettingreducestherinseaiddosage andaffectshowoftenthedishwasher's built-insoftenerisregenerated.
		Off,15-40mlAutodose11.	Activatethissettingifyouwanttouse automaticdosingofdetergent.Theexactdosagedependsonwhich programisrunning.FortheAutoprogram,thedosagealsodependsonhowdirtythe dishesare.
		On/OffSuperrinse12.	TheSuperrinsefunctionrinsesthedishesan extratwotimes.Theprogramtimeisextendedandthe dishwasherusesmoreenergyandwater.Activatedinthefollowingprograms:UniversalIntensiveQuickproHygienePlasticLowerhalfUpperhalf
		On/OffPushtoopen13.	Thedishwasherdoorcanbeopenedwithout ahandle.
14.	poweroff	On/OffInteriorlightat	Selectwhethertheinteriorlightistobe switchedonwhenthedishwasheristurned offandthedoorisopened.(Ifisturded on,theinteriorlightisalwaysswitchedon whenthedorisopened.)

Settings

		AlternativesSettings
			Anyerrormessages.Failurereadout15.Whencontactingyourservicecentre,you maybeaskedtoprovidethemostrecent errormessages.
			Restoresallsettingstothefactorydefaults.Factoryreset10SelectFactoryresetandpress. ▷ □
	Exit17.		Toexitthedishwasher'sSettingsmenu,selectExitandpress. ≈

\* Topuprinseaid

Whetherinseaaidneedstoppingup,thesymbollightsonthedisplay.

SeethechapterBeforewashingforthefirsttime.

S Topupsalt

Whenthesaltneedstoppingup,thesymbollightsonthedisplay.

Seethechapter Beforewashingforthefirsttime.

Topupautodose

Whenthedishwasherdetergentgelneedstoppingup,thesymbolappearsonthedisplay.(Youcan run1-2washprogramsbeforethecompartmentiscompletelyempty.)

Seethechapter Beforewashingforthefirsttime.

Cleantheautomaticdosingcompartment

Detergent is dispensed from here Compartment

1. The compartment can belifted out for cleaning and refilling.

2. Check that the dispensing hole is not blocked. Clean the compartment with hot water.

NOTE!

Important-refitthecompartment. Thedishwashermustnotbeusedwithouttheautomaticdosing compartmentinplace!

Careandcleaning

Cleanthefilters

Coarsefilter

The coarsefiltertrapslargerfoodparticles, which cannot get past the drainage pump. Empty the coarse filter when necessary. It should be cleaned at regular intervals depending on how often the dishwasher is used.

L R Coarse filter

1. Liftthecoarsefilterbythehandle.
2. Emptythecoarsefilter.
3. Refitthecoarsefilter. Pressitdownuntilclicksintoplace.

Finefilter

Debristhatcollectsonthefinefilterisautomaticallyrinsedawayduringeachwash.Cleanthefine filterwhennecessary.Itshouldbecleanedatregularintervalsdependingonhowoftenthedishwasher isused.

L R Fine filter

1. Turnthelockingringanticlockwiseandliftthefinefilterstraightup.
   2.Cleanthefinefilter.
2. Refitthefinefilterandturnthelockingringclockwisetoitsstopposition. Checkthattheedges sealproperly.

Remembertorefitthecoarsefilter!

NOTE!

Dishwashing results may be affected if the coarse and fine filters are incorrectly fitted. The dishwasher must not be used without the filters in place!

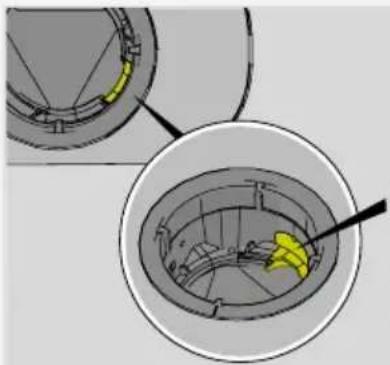

Technical illustration of a mechanical component with highlighted internal structure (no text or symbols)

Check that the yellow drainage pump stop (on the right in the bottom drain) is in place.

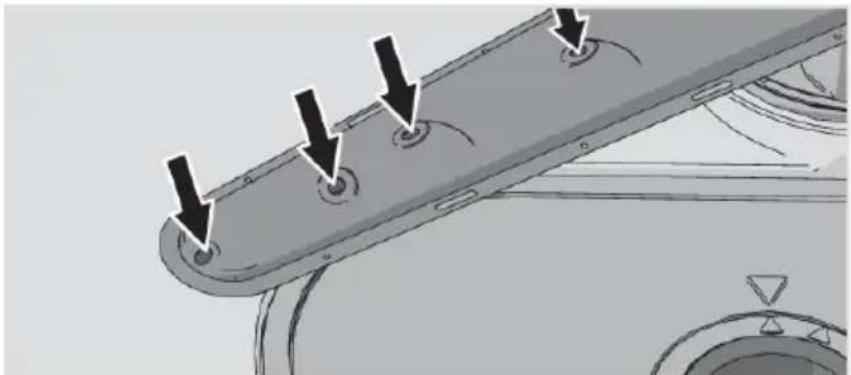

Cleaningthesprayarmsandspraypipes

Holesandbearingscansometimesbecomeblocked.Removeanydebrisusingapinorthelike. Thesprayarmsalsohaveholesunderneath.

Diagram of a mechanical component with four arrows pointing to circular features (no text or symbols)

Tofacilitatecleaningyoucanremovethesprayarms.Remembertofitthemfirmlybackintoplace afterwards.

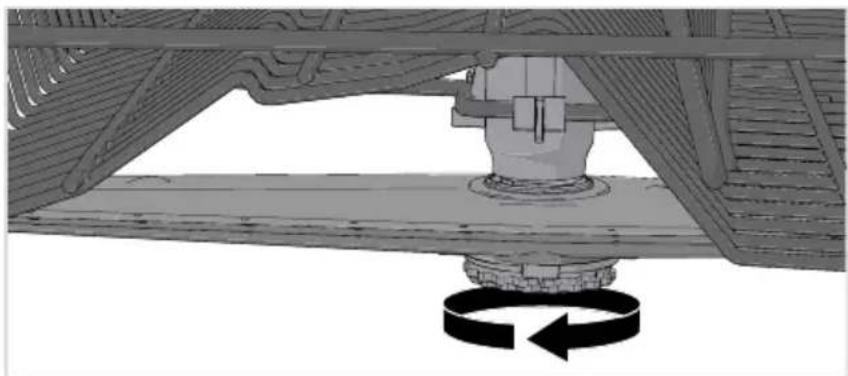

Uppersprayarm

•Pullouttheupperbasket.
- Unscrewthesprayarmbearingsanticlockwisetoremovethesprayarmfromtheupperbasket.

Mechanical assembly diagram showing a rotating component with rotational arrow (no text or symbols)

Careandcleaning

Themiddlebasket'sspraypipes

The middle basket's spray pipes

•Pulloutthemiddlebasket.
- Checktheholesinthespraypipes.

Lowersprayarm

Mechanical assembly diagram showing a rotating component with an upward arrow indicating motion (no text or symbols present)

Cleantheoutsideofthedishwasher

Dooranddoorseal

Openthedoor.Cleanthesidesofthedoorandthedoorsealregularlywithaslightlydampcloth. Cleanthedoorsealatthelowerfrontedgeofthedishwasherwithawashing-upbrush.

Controlpanel

Keepthecontrolpanelclean.Ifnecessary,wipeitwithadryorslightlydampcloth.Neveruse cleaningproducts-theymayscratchthesurface.

RunSelf-cleaning

Dishwashertub

Thedishwashertubismadeofstainlesssteelandiskeptcleanthroughnormaluse(whenused regularly).

If you have hardwater, limescale deposits may build up in the dishwasher. If this happens, run the Self-cleaning program with twotablespoon so of citric acid in the dishwasher's manual detergent compartment (with nodishes in the machine). Special dishwasher cleaners are also available on themarket.

Removeblockages

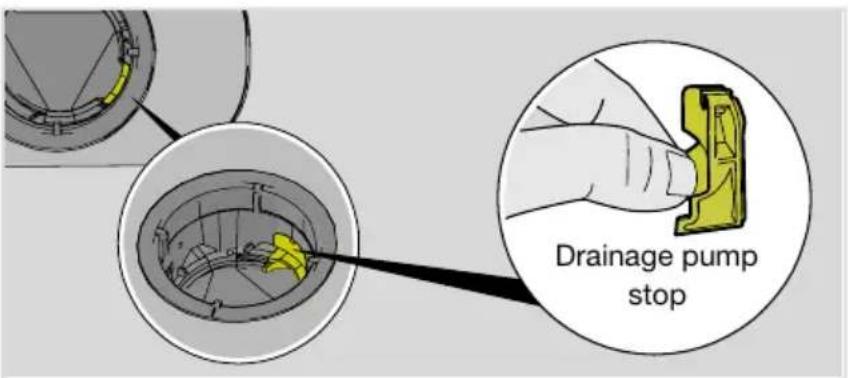

Unblockingthedrainagepump

If the dishwasher still contains water after the program has finished, something may be blocking the drainage pump, which results in the error message Water outlet fault or BLDC drain pump fault.

1. Turnoffthemachineusingandemovetheplugfromthewallsocket.
2. Removethecoarsefilterandthefinefilter.
3. Scoopoutthewaterfromthedishwashertub.
4. Inordertoinspectthedrainagepump, removetheyellowdrainagepumpstopontherightin thebottomdrain.(Useapairofpliersifnecessary.)
5. Turnthepumpwheellocatedbehindthedrainagepumpstopbyhand.Carefullyremoveany sharpitems,suchasglass.
6. Refitthedrainagepumpstopalongwiththefineandcoarsefilters.
   7.Plugthemachineinagain.

Drainage pump stop

NOTE!

Donotforgettorefitthedrainagepumpstop.

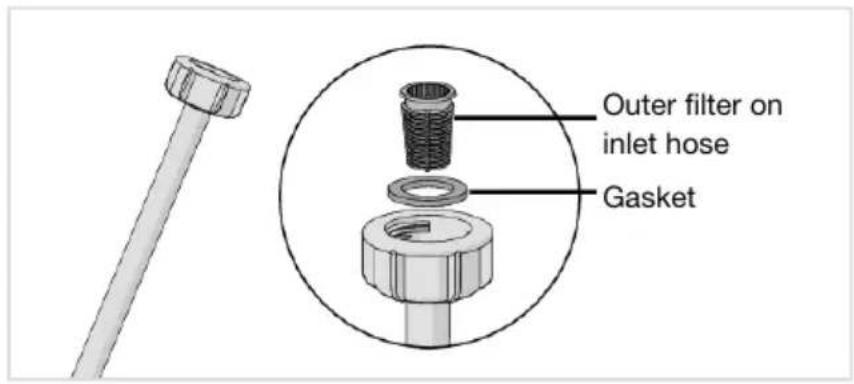

Unblockingtheinlethosefilter

Ifthewatersupplycontainssmallparticles, theouterfilterontheinlethosemaybecomeblocked, whichresultsintheWaterinletfaulterrormessage.

1. Turnoffthemachineusingandemovetheplugfromthewallsocket.
2. Turnoffthewatertap.
3. Unscrewtheinlethose.
4. Carefully remove the outer filter from the inlethose and clean it.
5. Refitthefilterandcheckthatthegasketiscorrectlypositioned.
6. Screw the inle those firmly into place.

Careandcleaning

1. Plugthemachine into the wall socket and turn on the watertap. Allow the pressure to settle for awhile and check that the connection is watertight.

Outer filter on inlet hose Gasket

Winterstorage/Transport

Storethedishwasherabovefreezingtemperatureandavoidlongtransportdistancesinverycold weather. Transportthedishwasheruprightorlayingonitsback.

Handlethefrontcornersofthedishwasherwithcaresothattheydonotgetbent,whichcanaffect dooropening.

Beforetransportingauseddishwasher,orbeforeprolongedstorage,watermustfirstberemoved fromthemachine.RuntheSelf-cleaningprogram.

		ActionErrormessages
	Overfillingwater1F10	Unblockingthedrainagepump.SeethechapterCareand cleaning.Iftheproblempersists,contactyournearestservice centre.
	WateroutletfaultF11	See"Waterremainsinthedishwasher"under"Problem"inthe tablebelow.Iftheproblempersists,contactyournearestservice centre.
	Waterinletfault1F12	Checkthatthewatertapison.Checkthattheouterfilteronthe inlethoseisnotblocked.SeeUnblockingtheinlethosefilterin thechapterCareandcleaning.Iftheproblempersists,contact yournearestservicecentre.
		Turnoffthewatertapandcontactyournearestservicecentre.InletvalveleakageF
	Heaterfault1F41	Turnoffthewatertap.Removetheplugfromthewallsocketand contactyournearestservicecentre.
	DiverterfaultF45	Runanydishwashingprogram.Iftheproblempersists,contact yournearestservicecentre.
	WaterlevelfaultF52	Cleanthecoarseandfinefilters.Checkthattheouterfilteronthe inlethoseisnotblocked.Iftheproblempersists,contactyour nearestservicecentre.
		Turnoffthewatertapandcontactyournearestservicecentre.Overfillingwater2FToavoidwaterleakageoutsidethedishwasher,donotremove theplugfromthewallsocketuntilthewatertaponthesupplyline hasbeenturnedoff!
	CirculationpumpfaultF56	Runanydishwashingprogram.Iftheproblempersists,contact yournearestservicecentre.
	Waterinletfault2F67	Checkthatthewatertapison.Checkthattheouterfilteronthe inlethoseisnotblocked.SeeUnblockingtheinlethosefilterin thechapterCareandcleaning.Iftheproblempersists,contact yournearestservicecentre.
	BLDCdrainpumpfaultF68	See"Waterremainsinthedishwasher"under"Problem"inthe tablebelow.Iftheproblempersists,contactyournearestservice centre.

Pressanybuttontocleartheerrormessage.

General

		ActionPossiblecausesProblem
Thecontrolpaneldoesnotreact whenpressed.	paneltoosoonafteropeningthe door.	Waitamomentthentryagain.Youhavepresses
	ChildlockorAutomaticchild lockisactivated.	SeethechapterSafety instructions.
	Thedoorisclosed.	Openthedor.Thecontrol panelonlyreactstousewhen thedoorisopen.
	Dirtonthecontrolpanel.	Cleanwithadryorslightlydamp cloth.
	Thecontrolpanelrequires calibration.	Turnoffthewatertap.Remove theplugfromthewallsocket andwaitfor60seconds.Then plugtheappliancebackinto the wallsocketandturnonthe watertap.
Cannotclosedoor.	Thebasketsarenotcorrectly positioned.	Checkthatthebasketsare correctlypositionedhorizontally, andthatthemiddlebasket's waterconnectorisinlinewithits spraypipe.
		Checkthatthedishesarenot blockingthebasketsfrom slidingproperlyintoplace.
	Thedoorlockdoesnotclickinto placeandlock.	Openthedor.Pressandhold <anduntil"Autodooropen recovery"isshownonthe display,waituntilthemessage disappears.Closethedoorand checkthatthedoorlockis working.
Thedishwasherdoesnotstart.	hasnotbeenpressed.	Pressinlthedisplay shows"Programstarted,close door".
		Check.Thedoorisnotproperlyclosed.
	Thedishwasherhasbeen openedwhileaprogramisin progress.	Closethedoorandwait.Aftera while,thedishwashercontinues theprogram.
	Thedoorlockhasnotclicked intoplaceandlocked.	Openthedor.Pressandholdanduntil"Autodooropen recovery"isshownonthe display,waituntilthemessage disappears.Closethedoorand checkthatthedoorlockis working.
	CheckwhethertheDelayedstart optionhasbeenselected.	Pressandholdforthree secondsifyouwanttocancel theDelayedstartoption.
	wallsocket.	Check.Theplugisnotpluggedintothe
	tripped.	Check.Afuse/circuitbreakerhasbeen

Troubleshooting

		ActionPossiblecausesProblem
Thedishesarenotclean.	Thesprayarmsarenotrotating freely.	Checkthatthedishesarenot blockingthesprayarms.
	Sprayarmholesorbearings blocked.	Cleanthesprayarmsandthe middlebasket'sspraypipes.SeethechapterCareand cleaning.
	Unsuitabledishwashing program.	SelectaprogramwithIntensive.Theprogramwilluseahigher temperaturetodissolvegrease onverydirtydishes.
	Incorrectdetergentdosage.	Doseaccordingtowater hardness.Fartoomuchorfartoolittledetergentresultsin poorerdishwashingresults.
	perishableproduct.	Avoidlargepackages.Olddetergent.Deterg
	Autodoseisactivated,but dishwasherdetergentgelisnot dispensed.	Tocheckthatdetergentis dispensed,pressandhold andforvesecondssymbolwillflashonthe displayandthestatuslightwill turned.Nowcheckwhether anydishwasherdetergentgel hasbeendispensed.
	Dishesloadedincorrectly.	Donotcoverporcelainwith largebowlsorthelike.Avoid placingverytallglassesinthe cornersofthebaskets.Seethe chapterLoadingthe dishwasher.
	overduringtheprogram.	Placedishestositsteady.Glassesandcupsh
		Cleanthecoarseandfinefilters.Thefiltersare
	Thefiltersarenotfittedcorrectly.	Checkthatthefiltersarefitted correctly.SeethechapterCare andcleaning.
	Drainagepumpstopmissing.	Checkthattheyellowdrainage pumpstop(ontherightinthe bottomdrain)isinplace.See thechapterCareandcleaning.
Spotsonstainlesssteelorsilver.	Somefoodstuffs,suchas mustard,mayonnaise,lemon, vinegar,saltanddressings,can causespotsonstainlesssteelif leftfortoolong.	Rinseoffthesetypesof foodstuffsifnotstartingthe dishwasherimmediately.Use theRinseandholdprogram.
	Allstainlesssteelcancause spotsonsilveriftheycomeinto contactduringdishwashing. Aluminiumcanalsocausespots ondishes.	Inordertoavoidmarksand tarnishing,separatedishes madefromdifferentmetals, suchassilver,stainlesssteel andaluminium.
Spotsorfilmsonthedishes.	setting.	SeethechapterSettings.Incorrectrinseaidd
	ThesettingTABisactivatedand all-in-onedetergentwith insufficientdryingeffectisbeing used.	Switchall-in-onedetergentsor deactivatethesettingTABand topupwithsaltandseparate rinseaid.SeeRinseaidinthe chapterSettings.
	Saltcompartmentempty.	Topupwithsalt.Seethe chapterCareandcleaning.
	Incorrectwatersoftenersetting.	SeeWaterhardnessinthe chapterSettings.
	Thewatersoftenerisleaking salt.	Checkthatthesaltcompartment lidistightenedclockwisetoits endposition.Otherwisecontact yournearestservicecentre.
	Toohightemperatureand/ortoo muchdetergentcancause etchingoncrystal. Unfortunately,thiscannot be repaired,onlyprevented.	Washcrystalatalow temperatureandwitha conservativeamountof detergent.Contactthedetergent manufacturer.
Thedisheshaveasticky white/bluefilm.	Rinseaiddosagesettingtoo high.	Reducethdosage.Seethe chapterSettings.Ifyouhave verysoftwater,youmaywantto dilutetherinseaaid50:50with water.

Troubleshooting

		ActionPossiblecausesProblem
Spotsleftafterwashing.	Lipstickandtea/coffeestains canbedifficulttoremove.	Useadetergentwitha bleachingagent.
		Dishwasherdetergentgelis beingused.Ifnecessary,on suchoccasionsdishwasher detergentpowderorall-in-one detergentwithbleachingagent canbeaddedtothemanual detergentcompartment(when Autodoseisactivated).See Adddetergent.
Detergentresidueinthe detergentcompartmentafter dishwashing.	The detergentcompartmentwas dampwhenaddingdetergent.	The detergentcompartment mustbedrywhenadding detergent.
	The detergentcompartmenthas beenblocked.	Checkthatthedishesarenot preventingthedetergent compartmentfromopening.
Rattlingsoundwhen dishwashing.	Thedishesarenotcorrectly placedorthesprayarmsarenot rotatingfreely.	Checkthatthedishesare placedsecurely.Spinthespray armstomakesuretheycan rotate.
dishwasher.		Cleanthecoarseandfinefilters.Thefiltersare
	Thefiltersarenotfittedcorrectly.	Checkthatthefiltersarefitted correctly.SeethechapterCare andcleaning.
	Debrisinthedrainagepump.	Cleanthedrainagepump.See thechapterCareandcleaning.
	Drainagepumpstopmissing.	Checkthattheyellowdrainage pumpstop(ontherightinthe bottomdrain)isinplace.See thechapterCareandcleaning.
	Kinkindrainagehose.	Checkthatthehoseisfreefrom kinksandsharpbends.
	Blockeddrainagehose.	Disconnectthedrainagehose whereitconnectstothesink unit'swatertrap.Checkthatno debrisfasfastenedandthatthe connectionhasaninner diameterofatleast14mm.
Badodourindishwasher.	Dirtaroundthesealsandin corners.	Cleanwithwashing-upbrush andlowfoamingcleaner.
	Lowtemperatureprogramshave beenselectedforaprolonged period.	Runaprogramwithahigh temperatureonceortwicea month.Orrunaself-cleaning program.SeeSelf-cleaning in thechapterUsingthe dishwasher.
Greasedepositsinthe dishwasher.	Lowtemperatureprogramshave beenselectedforaprolonged period.	SelectaprogramwithIntensive. Theprogramwilluseahigher temperaturetodissolvegrease onverydirtydishes.Orruna self-cleaningprogramonceor twiceamonth.SeeSelf-cleaning inthechapterUsingthe dishwasher.
Thedishesarenotdryenough.	TheAutomaticdooropening optionisnotactivated.	ActivatetheAutomaticdoor openingoption.
	loaded.	Fullyloadthedishwasher.Thedishwasherisr
	Rinseaidneedstoppingupor dosageissettoolow.	Topupwithrinseaidorincrease therinseaiddosagesetting.
	ThesettingTABisactivatedand all-in-onedetergentwith insufficientdryingeffectisbeing used.	Switchall-in-onedetergentsor deactivatethesettingTABand topupwithsaltandseparate rinseaid.SeeRinseaidinthe chapterSettings.

WiFi

		ActionPossiblecausesProblem
Thedishwasher'snetwork symbol does not appear on the display.	Thedishwasherisnot connected to your wireless network.	Connectthedishwashertoyour wireless network. Seethe chapter ConnectLife.
		ActivateWiFiconnection.WiFiconnection isc See WiFiconnection Off/WiFi connectionOninthechapter ConnectLife.
Connection setup failed	Thedishwasher cannot access your wireless network. Orthe routerisnot connected to the internet.	Check thattherouteris connected to the internet.
		Makesureyourwirelessnetwork is using 2.4GHzandvisible. Trymovingtheroutercloserto thedishwasherifthesignalis tooweak.
		Sealsotroubleshootingat www.connectlife.io. Iftheproblempersists,contact yournearestservicecentre.
Add device failed	Yoursmartphone/tabletisnot connected to your wireless network. Ortherouterisnot connected to the internet.	Check thattherouteris connected to the internet.
		Check that your smartphone/tabletisconnected to your wireless network.
		Sealsotroubleshootingat www.connectlife.io. Iftheproblempersists,contact yournearestservicecentre.
disconnected in the ConnectLife app.		Activate WiFiconnection.WiFiconnection isc See WiFiconnection Off/WiFi connection Oninthechapter ConnectLife.
		Sealsotroubleshootingat www.connectlife.io. Iftheproblempersists,contact yournearestservicecentre.
Software update failed.	Thenetworkconnection was lost orthedishwasherlostpower duetoapowerfailure.	Makesurethatthepowersupply is not interrupted and that the network connection is stable before trying again. Ifthe problempersists,contact your nearestservicecentre.

It is important that you read through hand follow the instructions and directions below. Conduct installation and connection in accordance with these separate installation instructions.

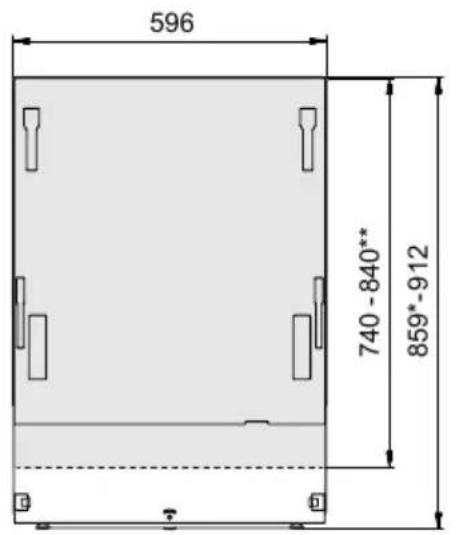

[mm]

596 740 -840** 859* -912

1231 554 740 131 52 32-94 106 52**

*Remove the locking nuts when installing in a recess measuring 860-861 mm.

**Cover door length.

Cover door with slide function fitted, which means the cover door slides upwards/outwards when the dishwasher is opened.

Nominal dimensions. Actual measurements may vary.

Safetyinstructions

• Connectionstoelectricity, wateranddrainagemustbeperformedbyaqualifiedprofessional.
• Always follow applicable regulations for water, drainage and electricity.
  •Takecareduringinstallation!Wearprotectivegloves!Theremustalwaysbetwopeople!
• Placeadriptrayonthefloorbeneaththedishwashertopreventdamagefromanywaterleaks.
• Beforefasteningthedishwasher,testthedishwasherbyrunningtheRinseandholdprogram. Checkthatthedishwasherfillswithwateranddrains.Checkalsothatnoneoftheconnections leak.

WARNING!

Turnoffthewatersupplywheninstallingthedishwasher!

Theplugmustbedisconnectedorpowertothesocketturnedoffwhiletheworkiscarriedout!

Setup

• Therecessandconnectiondimensionsareincludedintheseparateinstallationinstructions. Checkthatalldimensionsarecorrectbeforestartingtheinstallation.Notethattheheightofthe coverdoorcanbeadjustedtomatchotherfittings.
• Handlethefrontcornersofthedishwasherwithcaresothattheydonotgetbent,whichcan affectdooropening.

Installation

• Make sure the area on which the dishwasher is to be installed is firm. Adjust the adjustable feet so that the dishwasher is level. Tight enthelocknuts.
• If the dishwasher is built-in the surrounding furnishings must be resistant to any condensation fromthedishwasher.
• Mounttheprotectivefilmbeneaththeworktopanduparoundtheedge. The function of the protective filmistoprotecttheworktopfrommoisture. (The protective film is in the enclosed plastic bag.)
• Check that the machine is installed such that the door opens freely, otherwise door lock functionality may be disrupted.
• Note that the door springs may need adjusting after a cover door has been fitted. Adjust the left and rightdoorspringsequallyuntilthedoorisevenlybalanced.

Drainageconnection

Thisdishwasherissuitableforinstallinginaraisedrecess(toattainanergonomicworkingheight). Thismeansthatthedishwashercanbeplacedsothatthedrainagehoserunstoalowerlevelthan thebottomofthedishwasher,suchasbyroutingitdirectlytoafloordrain.

The drainage hose can also be connected to a connection nipple on the sink unit's water trap. The connection nipple must have an internal diameter of at least 14mm.

Thedrainagehosemaybeextendedbyamaximumof2.5m(thetotallengthofthedrainagehose mustnotexceed4.5m).Anyjointsandconnectingpipesmusthaveaninternaldiameterofatleast 14mm.

Nopartofthedrainagehosemaybemorethan950mmabovethebottomofthedishwasher.

Attachthedrainagehosewithahoseclamp.Ensurethatthedrainagehosehasnokinks.

Connection to watersupply

Useonlytheinlethosesuppliedwiththedishwasher.Donotre-useoldorothersparehoses.

Thesupplypipemustbefittedwithawatertap(stopcock). Thewatertapmustbeeasilyaccessible, sothatthewatercanbeshutofffifthedishwasherhastobemoved.

Oncetheinstallationiscomplete,turnonthewatertapandallowthepressuretosettleforawhile. Checkthatallconnectionsarewatertight.

Connecttocoldwater

Connectthedishwashertothecoldwatersupplyifthebuildingisheatedusingoil,electricityorgas.

Connecttohotwater

Connectthedishwashertothehotwatersupply(max.70°C)ifthebuildingisheatedusingan energy-efficientmeanssuchasdistrictheating,solarpowerorgeothermalpower.Choosingahot waterconnectionreducethedishwasher'senergyconsumption.

NOTE!

Donotexceedthepermittedwatersupplytemperature.Certainmaterialsusedinsomecookware cannot withstand high heat. See Fragile dishes in the chapter Loading the dishwasher.

Electricalconnection

Informationabouttheelectricalconnectioncanbefoundontheserialnumberplate.Thisspecification mustmatchtheelectricitysupply.

Thedishwashermustbeconnectedtoanearthedsocket.

Theelectricwallsocketmustbeplacedoutsideoftheinstallationareatobeeasilyaccessibleafter installingthedishwasher.Donotuseanextensioncord!

Pushtoopen

Thedishwasherdoorcanbeopenedwithoutahandle.

Press briefly and lightly on the middle of the upper part of the door.

NOTE!

The door can be opened manually if the dish washer is not connected to the electrical supply. Grasptedooron both sides at the top and pull it straight out.

Informationaboutyourproduct

ThereisaQRcodeontheserialnumberplate.Scanthecodetoviewinformationaboutyourproduct.

Contactyournearestservicecentre

Read the chapter Troubleshooting before contacting the service centre. If you have encountered a problem that you cannot resolve, please contact your nearest service centre for professional help, see www.atag.nl/www.atag.be. Our website also has information about spare part availability and what you can repair yourself.

Whenmakingcontact, providethedetailsontheserialnumberplate. Include thearticlenumber(1) and theserialnumber(2).

Pleasenotethatnon-professionalrepairsmayriskusersafetyandaffectthewarranty.

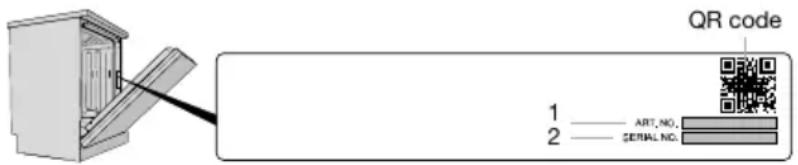

QR code 1 —— ART, NO., 2 —— SERIAL NO.

Spareparts

The following spare parts are available for at least seven years after the model is longer manufactured: Motor, circulation and drainage pump, heating element, pipes and hoses, valves, filters and aquastops, door attachment components, circuit boards, electronic display, pressure sensor, thermostats and sensors, software including restore programs.

The following spare parts are available for at least ten years after the model is no longer manufactured: Doorhinges and seals, other seals, spray arms, drain filters, wire baskets and plastic accessories such as baskets and lids.

Numberofcycles

Pressandholdandfor3secondstoshowNumberofcyclesonthedisplay.

Technicaldata

Weight:

Numberofstandardplacesettings:

859-912mmHeight:

596mmWidth:

554mmDepth:

55kg 1)

152)

0.03-1.0MPaWaterpressure:

SeetheserialnumberplateElectricalconnection:

SeetheserialnumberplateRatedpower:

2.4GHzFrequencyband,WiFimodule:

≤1WMaximumtransmitpower, WiFimodule:

1) Weightcanvaryduetodifferentspecifications.
2) InaccordancewiththeEN60436standard.

Informationforconsumers

Informationaboutyourapplianccanbefoundatwww.atag.nl/www.atag.be.Youcanalsofind informationintheEUProductRegistrationdatabaseforEnergyLabelling,EPREL.ScantheQRcode ontheenergylabelsuppliedwiththedishwasher(orgotohttps://eprel.ec.europa.euandsearch forthemodelname).

This appliance contains alight source/light sources of energy efficiency class D. Light sources are available as spare parts and can be replaced, without damage to the dish washer, by your nearest service centre or as similarly qualified professional.

Informationfortestinstitute

InformationaboutthisproductcanbefoundintheEuropeanProductDatabaseforEnergyLabelling, EPREL,[e-mail].

Therequest should include the detail on the serial number plate. Include the article number(1), the serial number(2) and the model name(3).

3 — Model 1 — ART.NO. 2 — SERIAL.NO.

Declarationofconformity

The company declares that the device with the function Connect life complies with the essential requirements and other relevant provisions of Directive 2014/53/EU. The detailed Declaration of Conformity can be found at the web address https://auid.connectlife.ioonthepageofyourdevice among the additional documents.

ATAG

www.atag.nl•www.atag.be
