Installation

At first, remove the old PSU from the system case. Firstly, draw off all plugs from the PSU, that are connected with the mainboard or other components in the PC. Now remove the screws at the back side of the case which connects the PSU with the case. After the screws are removed, remove the old PSU from the case carefully and replace it with your new FSP PSU.

Set the PSU into the intended position in the housing and tighten it with the supplied screws. If you purchased a PSU with modular cables, put all necessary cables on the PSU. No need to connect cables that are not intended to be used on the PSU.

Close-up of electronic circuit board components with visible wiring and connectors (no text or symbols)

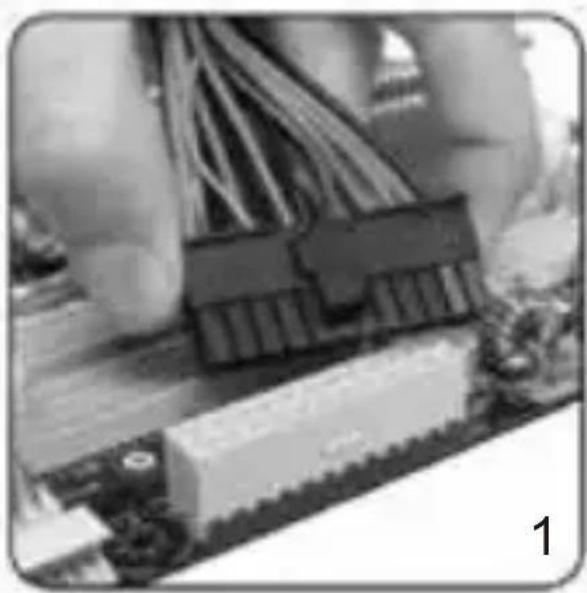

Put the 20+4 / 24-pin ATX plug through the housing to the correct connection of the mainboard.

Close-up of mechanical components and wiring (no visible text or symbols)

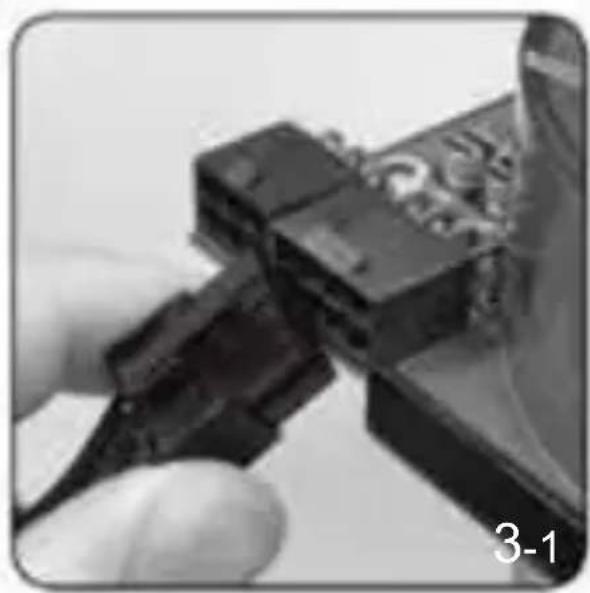

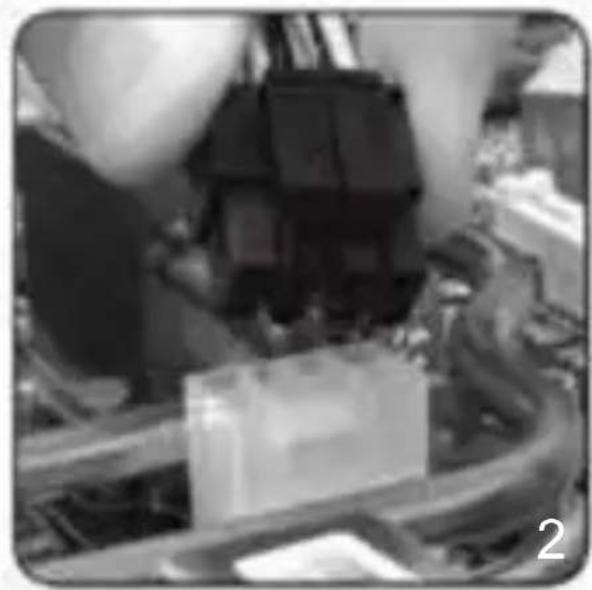

Connect the 8-pin plug to the mainboard. If your mainboard only has a 4-pin connector, then use the 4-pin plug or split the 8-pin connector in half.

Close-up of a hand holding a black cable with a connector, no visible text or symbols

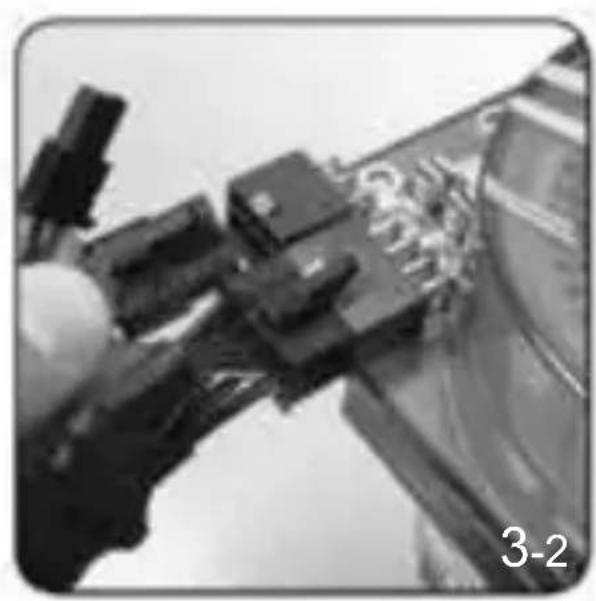

For graphic cards with 6-pin connector or connectors, use the suitable cables. Modern graphic cards with 8-pin connectors are also supported. In this case, use the other two pins beside the regular 6-pin plug in order to create an 8-pin connector.

Close-up of mechanical components or tools with no visible text or symbols

Close-up of a black plastic connector attached to a computer interface (no visible text or symbols)

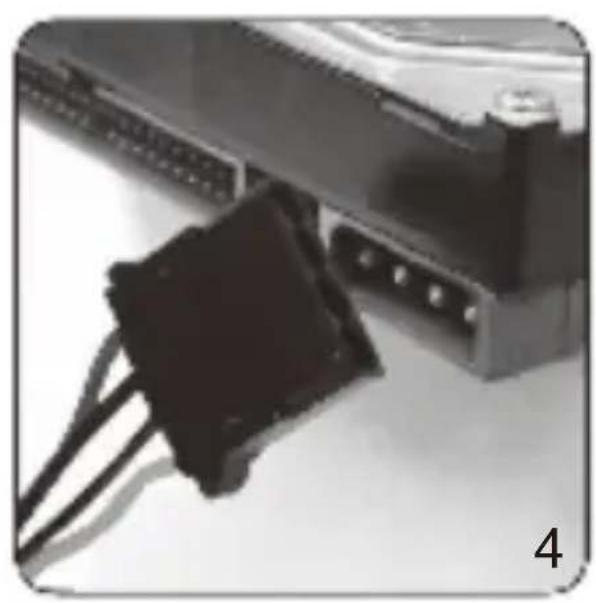

Lastly connect the peripheral devices such as hard disks and optical drives with 4-pin Molex-or 15-pin SATA connectors.

Connectors

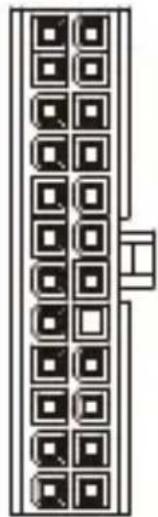

20+4 / 24-pin connection to mainboard (ATX)

3D rendering of a black plastic connector with multiple slots and a notch (no text or symbols visible)

Pin 1	+3.3V		Pin 13	+3.3V
Pin 2	+3.3V		Pin 14	-12V
Pin 3	GND		Pin 15	GND
Pin 4	+5V		Pin 16	PS-ON
Pin 5	GND		Pin 17	GND
Pin 6	+5V		Pin 18	GND
Pin 7	GND		Pin 19	GND
Pin 8	PG		NOT CONNECTED	N/C
Pin 9	+5VSB		Pin 20	+5V
Pin 10	+12V		Pin 21	+5V
Pin 11	+12V		Pin 22	+5V
Pin 12	+3.3V		Pin 23	GND

Close-up of a black plastic electrical connector with multiple ports (no visible text or symbols)

4+4-pin connection to mainboard (EPS)

Pin 1	GND		Pin 5	+12V
Pin 2	GND		Pin 6	+12V
Pin 3	GND		Pin 7	+12V
Pin 4	GND		Pin 8	+12V

Close-up of a black plastic electrical connector (no visible text or symbols)

6-pin connection to graphics card (PCI-E)

Pin 1	+12V		Pin 4	GND
Pin 2	+12V		Pin 5	GND
Pin 3	+12V		Pin 6	GND

Close-up of a black plastic electrical connector with multiple ports (no visible text or symbols)

6+2-pin connection to graphics card (PCI-E)

Pin 1	+12V		Pin 5	GND
Pin 2	+12V		Pin 6	GND
Pin 3	+12V		Pin 7	GND
Pin 4	GND		Pin 8	GND

Serial-ATA connection for components (SATA)

Black plastic electronic component with four slots (no visible text or symbols)

Pin 1 +12V

Pin 2 GND

Pin 3 +5V

Pin 4 GND

Pin 5 +3.3V

3D rendering of a black plastic electrical connector (no text or symbols visible)

4-pin molex connection for components (4P)

Pin 1 +12V

Pin 2 GND

Pin 3 GND

Pin 4 +5V

4-pin connector for floppy drives (4P)

Pin 1 +12V

Pin 2 GND

Pin 3 GND

Pin 4 +5V

Attention

• Please make sure the modular connector must be connected with flat cable closely.
• If power supply is modular design, please double check the followings:

1) Make sure connectors have been connected until hear "Click"
2) If connectors broken, please stop using and contact with your dealer immediately.
3) It's recommended to check connectors per 6 months.
4) Connectors would be burned or short circuit occurred if connectors loose.

- Warranty does not cover side stickers. Stickers should only be used once.

Close-up of a computer keyboard with visible scrollbars and keyframe (no readable text or symbols)

3

Warranty Policy

Thank you for purchasing FSP product!

FSP warrants that the product will be free of defects in material and workmanship, and provides the warranty period-identified on the product package from the power supply on the date of purchase.

In the event that warranty policy might be different in certain regions; please contact local authorized FSP reseller where the product is purchased.

The warranty is applied to damages caused through normal use and is void if it is resulted from, but not limited to, the following situations:

• Wear and tear associated with normal use
• Any modification, abuse, accident, disassembly, misapplication, or unauthorized repair
• Removal of any manufacturer label(s) or sticker(s)
• Any improper operation, including any use not in accordance with any supplied product instructions
• Connection to any improper voltage supply

- Any other cause which does not relate to a product defect in materials or workmanship

4

Trouble Shooting

If the power supply unit fails to function properly, please check the following:

• Is the AC input connected securely and electrical outlet switched out?
• Check that the output connectors are connected properly to all the components.
• Disconnect the power cord from the unit to reset supply unit.

However, if the power supply unit still does not function properly, please contact your original vendor or retailer for repair or replacement.

5

WEEE

ATTENTION!!!

The product contains hazardous waste and/or recycling goods. According to the law it is not allowed to be disposed of in the household waste.
For more detailed information please contact the applicable collection point for hazardous waste or recycling goods.
