IMPORTANT SAFETY INSTRUCTIONS FOR HOUSEHOLD USE ONLY

When using an electrical Appliance, basic precautions should always be followed, including the following:

WARNING: READ ALL SAFETY WARNINGS AND INSTRUCTIONS. FAILURE TO FOLLOW THE WARNINGS AND INSTRUCTIONS MAY RESULT IN ELECTRIC SHOCK, FIRE OR SERIOUS INJURY.

READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE

SAVE THESE INSTRUCTIONS

1. This Appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the Appliance in a safe way and understand the hazards involved. Children shall not play with the Appliance. Cleaning and user maintenance shall not be made by children without supervision.(For European Union countries)

2. Clear the area to be cleaned. Remove power cords and small objects from the floor that could entangle the Appliance.

Tuck rug fringe under the rug base, and lift items such as curtains and tablecloths off the floor.

1. If there is a drop off in the cleaning area due to a step or stairs, you should operate the Appliance to ensure that it can detect the step without falling over the edge. It may become necessary to place a physical barrier at the edge to keep the unit from falling. Make sure the physical barrier is not a trip hazard.
2. Only use as described in this manual. Only use attachments recommended or sold by the manufacturer.
3. Please make sure your power supply source voltage matches the power voltage marked on the Docking Station.
4. For INDOOR household use ONLY. Do not use the Appliance in outdoor, commercial or industrial environments.

5. Use only the original rechargeable battery and Docking Station provided with the Appliance from the manufacturer. Non-rechargeable batteries are prohibited. For battery information, please refer to Specifications section.

6. Do not use without dust bin and/or filters in place.

7. Do not operate the Appliance in an area where there are lit candles or fragile objects.
8. Do not use in extremely hot or cold environments (below -5°C/23°F or above 40°C/104°F).
9. Keep hair, loose clothing, fingers, and all parts of body away from any openings and moving parts.
10. Do not operate the Appliance in a room where an infant or child is sleeping.
11. Do not use Appliance on wet surfaces or surfaces with standing water.
12. Do not allow the Appliance to pick up large objects like stones, large pieces of paper or any item that may clog the Appliance.
13. Do not use Appliance to pick up flammable or combustible materials such as gasoline, printer or copier toner, or use in areas where they may be present.
14. Do not use Appliance to pick up anything that is burning or smoking, such as cigarettes, matches, hot ashes, or anything that could cause a fire.
15. Do not put objects into the suction intake. Do not use if the suction intake is blocked.

Keep the intake clear of dust, lint, hair, or anything that may reduce air flow.

1. Take care not to damage the power cord. Do not pull on or carry the Appliance or Docking Station by the power cord, use the power cord as a handle, close a door on the power cord, or pull power cord around sharp edges or corners. Do not run Appliance over the power cord. Keep power cord away from hot surfaces.

2. If the power cord is damaged, it must be replaced by the manufacturer or its service agent in order to avoid a hazard.

3. Do not use the Docking Station if it is damaged. The power supply is not to be repaired and not to be used any longer if it is damaged or defective.

4. Do not use with a damaged power cord or receptacle. Do not use the Appliance or Docking Station if it is not working properly, has been dropped, damaged, left outdoors, or come in contact with water. It must be repaired by the manufacturer or its service agent in order to avoid a hazard.

5. Turn OFF the power switch before cleaning or maintaining the Appliance.

6. The plug must be removed from the receptacle before cleaning or maintaining the Docking Station.

7. Remove the Appliance from the Docking Station, and turn OFF the power switch to the Appliance before removing the battery for disposal of the Appliance.
8. The battery must be removed and discarded according to local laws and regulations before disposal of the Appliance.
9. Please dispose of used batteries according to local laws and regulations.
10. Do not incinerate the Appliance even if it is severely damaged. The batteries can explode in a fire.
11. When not using the Docking Station for a long period of time, please unplug it.
12. The Appliance must be used in accordance with the directions in this Instruction Manual. The manufacturer cannot be held liable or responsible for any damages or injuries caused by improper use.

13. The robot contains batteries that are only replaceable by skilled persons. To replace the robot's battery, please contact Customer Service.

14. If the robot will not be used for a long time, power OFF the robot for storage and unplug the Docking Station.

15. WARNING: For the purposes of recharging the battery, only use the detachable supply unit CH1822 provided with the Appliance, or CH1918 sold separately as an accessory.
16. This Appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the Appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the Appliance. (For Non-European Union countries)

To satisfy RF exposure requirements, a separation distance of 20 cm or more should be maintained between this device and persons during device operation.

To ensure compliance, operations at closer than this distance is not recommended. The antenna used for this transmitter must not be co-located in conjunction with any other antenna or transmitter.

To disable Wi-Fi module on Robot, powerthe robot ON.

Place the robot on the Docking Station making sure the Charging Contacts on Robot and the Docking Station Pins make a connection.

Press and hold the AUTO Mode Button on the robot for 20 seconds until Robot emits 3 beeps.

To enable Wi-Fi module on Robot, power the robot OFF and then power ON. The Wi-Fi module is turned on when Robot is restarted.

	Class II
[XHDV]	Short-circuit-proof safety isolating transformer
[OADH]	Switch mode power supply
[AOD5]	For indoor use only
	Direct current
	Alternating current

For EU Countries

For EU Declaration of Conformity information, visit https://www.yeedi.com/support

Correct Disposal of this Product

This marking indicates that this product should not be disposed of with other household waste throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To recycle your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can safely recycle this product.

Working	Temperature	-5-40°C
	Humidity	5%-95%
Storage	Temperature	-5-40°C
	Humidity	5%-95%
Service Life 5 years

1. Package Contents/1.1 Package Contents

Top-down line drawing of a circular mechanical component with a central hub and mounting holes (no text or symbols)

Robot

Simple line drawing of a battery pack connected to a wire with a plug (no text or symbols)

Docking Station

Edge Brush

Instruction Manual

Oscillating Mopping

Washable Mopping Pad(Oscillating Mopping) (Pre-installed)
Note: Figures and illustrations are for reference only and may differ from actual product appearance. Product design and specifications are subject to changes without notice.

1. Package Contents/1.2 Product Diagram

Robot

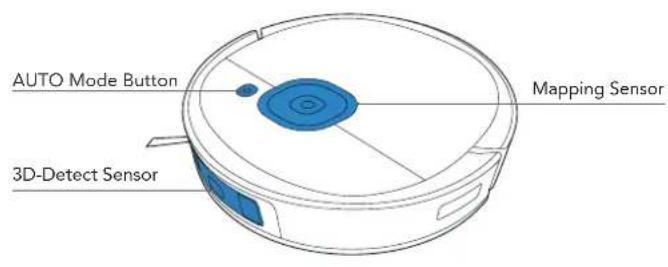

AUTO Mode Button Mapping Sensor 3D-Detect Sensor

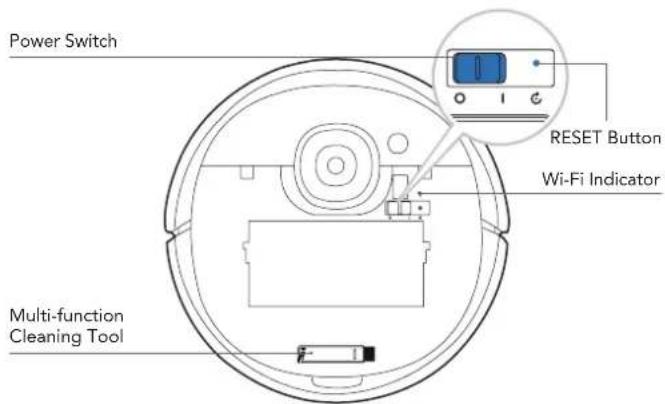

Power Switch RESET Button Wi-Fi Indicator Multi-function Cleaning Tool

Bottom View

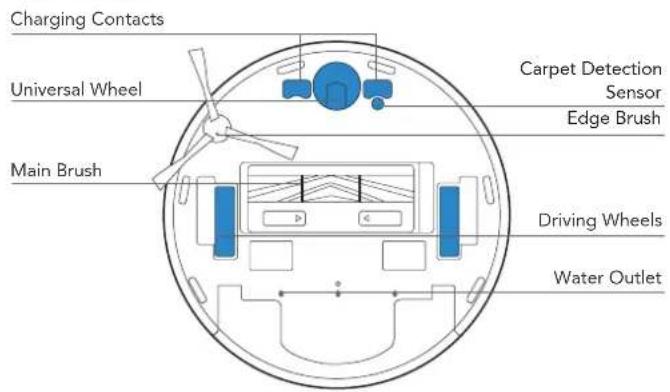

Charging Contacts Universal Wheel Main Brush Carpet Detection Sensor Edge Brush Driving Wheels Water Outlet

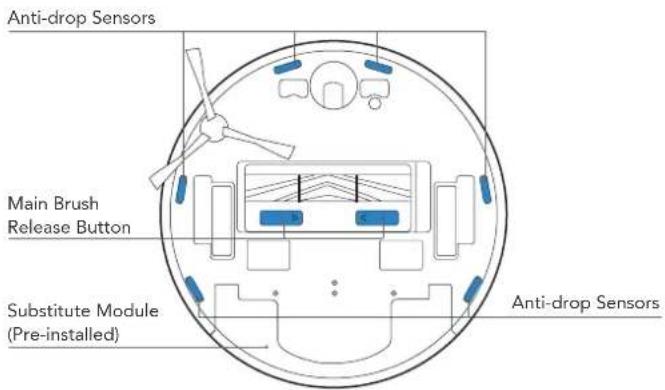

Anti-drop Sensors Main Brush Release Button Substitute Module (Pre-installed) Anti-drop Sensors

Dust Bin

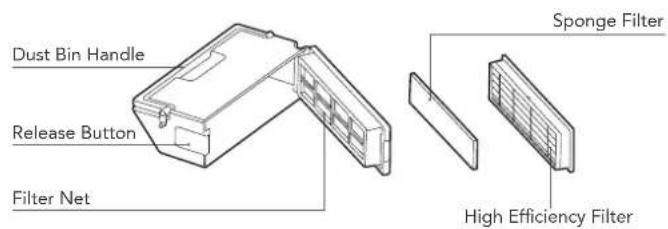

Dust Bin Handle Release Button Filter Net Sponge Filter High Efficiency Filter

Docking Station

Docking Station Pins Power Cord

Oscillating Mopping

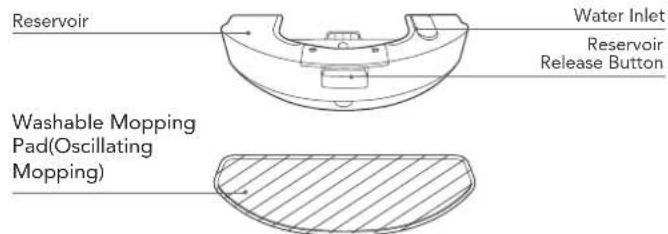

Reservoir Water Inlet Reservoir Release Button Washable Mopping Pad(Oscillating Mopping)

2. Operating and Programming/2.1 Notes Before Cleaning

Tidy up the area to be cleaned by putting furniture, such as chairs, in their proper place.

During the first use, make sure each room door is open to help Robot fully explore your house.

It may be necessary to place a physical barrier at the edge of a drop to stop the unit from falling over the edge.

Line drawing of a dining table with chairs and a floor lamp (no text or symbols)

Floor plan diagram showing room layout with furniture placement (no text or labels)

Architectural diagram showing a railing and a circular pipe with a blue arrow indicating direction (no text or symbols)

Put away objects including wires, cloths and slippers, etc. on the floor to improve the cleaning efficiency.

Before using the product on a rug with tasseled edges, please fold the rug edges under.

Please do not stand in narrow spaces, such as hallways, and make sure not to block the Detection Sensor.

2. Operating and Programming/2.2 Preparation

Please remove all protection materials on Robot and Docking Station before use.

1 Assemble Docking Station

Simple line drawing of a wall-mounted device with cable and power plug, no text or symbols present

2 Docking Station Placement

≥0.5m (0.62) ≥0.5m (0.62) ≥1.5m (0.87)

Line drawing of a robotic vacuum cleaner with an open lid and a blue battery icon pointing to it (no text or symbols)

5 Charge Robot

≥ 6.5 h

Note: When Robot completes the cleaning cycle or when the battery gets low, Robot automatically returns to the Docking Station to recharge itself. Robot can also be sent back to the Docking Station at any time by using the yeedi App or by pressing the AUTO Button on the robot for 3 seconds. Empty remaining water from the Reservoir before charging Robot.

2. Operating and Programming/2.3 yeedi App

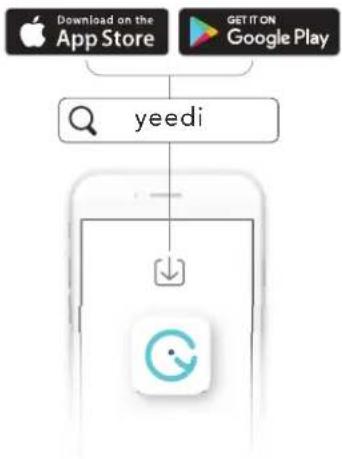

To enjoy all available features, it is recommended to control your Robot via the yeedi App.

• Your mobile phone is connected to a Wi-Fi network.
  • The 2.4GHz band wireless signal is enabled on your router.
  • The Wi-Fi indicator light on Robot is slowly flashing.

Wi-Fi Indicator LightBefore you start, make sure that:

	Slowly flashing	Disconnected to Wi-Fi or waiting for Wi-Fi connection
	Rapidly flashing Connecting to Wi-Fi
	Solid Connected to Wi-Fi

Tips: If you have any problems during the Wi-Fi setup process, refer to the Troubleshooting > Wi-Fi Connection section in this manual.

2. Operating and Programming/2.4 Start, Pause, Wake Up, Power Off

During the first cleaning:

1. Please supervise Robot and assist it should there be a problem.

1 Start

Press ⏻

3 Wake Up

Simple line drawing of a hand pointing at a circular object with concentric rings (no text or symbols)

Press the AUTO button on Robot to wake it up

2 Pause

Line drawing of a hand pointing at a circular object with concentric rings and a small blue dot (no text or symbols)

4 Power OFF

Diagram of a device inside a circular frame with a blue arrow pointing to a component, no text or symbols present.

Note: The robot's Control Panel stops glowing after the robot is paused for a few minutes. Press the AUTO Mode Button on Robot to wake it up.
Note: When Robot is not working, it is recommended to keep it switched ON and charging.

2. Operating and Programming/2.5 Oscillating Mopping

Note:

1. Install Oscillating Mopping for floor scrubbing.
2. With electric oscillating mopping up to 480 times per minute, Oscillating Mopping is applicable for area of highly concentrated dirt or dust.
3. Before installing Oscillating Mopping, please make sure the contacts are thoroughly dry.
4. Please avoid using Oscillating Mopping on the carpet.

1 Remove the Substitute Module

Illustration of a robotic vacuum cleaner with a hand interacting with it (no text or symbols)

2 Add Water

Technical line drawing of a mechanical component with no visible text or symbols

* To prolong the service life of Oscillating Mopping, it is recommended to use purified water or softened water.
* Do not soak Oscillating Mopping in water.

3 Dry Contacts Thoroughly

Line drawing of a hand inserting a blue component into a device (no text or symbols)

4 Install Oscillating Mopping

Illustration of a hand holding a lid with a circular button and a 'Click' button, no text or symbols present.

5 Start Cleaning

Line drawing of a hand pointing at a circular component with a blue dot (no text or symbols)

3. Maintenance/3.1 Oscillating Mopping

1 Remove Oscillating Mopping

Illustration of a robotic vacuum cleaner with hands holding the lid and a blue arrow indicating rotation (no text or symbols)

* After Robot finishes mopping, please empty the reservoir.

3 Washable Mopping Pad(Oscillating Mopping)

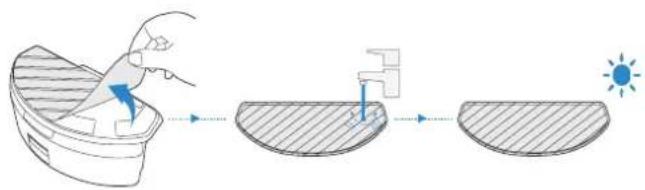

Diagram illustrating a solar thermal process with labeled components and directional arrows

2 Wipe Oscillating Mopping Clean

Line drawing of a hand holding a mechanical component (no text or symbols)

* Wipe Oscillating Mopping with a clean, dry cloth. Do not soak into water.

3. Maintenance/3.2 Dust Bin and Filters

1

Diagram showing a hand holding a device next to an open circular device with a blue arrow pointing to the component (no text or symbols present)

4

Illustration of a hand holding a small electronic device with blue dots and a black square on the handle (no text or symbols)

2

Illustration of hands pouring liquid from a device into a petri dish with particles (no text or symbols)

5

Diagram of a device with an open lid and a close-up view showing internal components (no text or symbols)

3

Diagram showing a device's internal structure with two panels, one open and one closed, both connected by arrows indicating assembly or transformation (no text or symbols present)

6

7

Diagram showing a device with a solar panel and its internal components, no text or symbols present.

Note: 1. Please rinse the filter with water as shown above. 2. Do not use finger or brush to clean the filter. 3. Be sure to dry out the filter for at least 24 hours after washing.

3. Maintenance/3.3 Main Brush, Edge Brush and Mapping Sensor

Note: A Multi-Function Cleaning Tool is provided for easy maintenance. Handle with care, this cleaning tool has sharp edges.

Main Brush

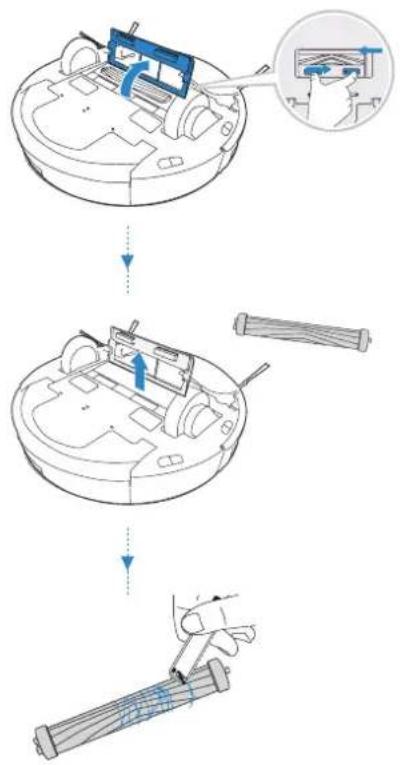

Technical diagram illustrating a mechanical assembly process with labeled steps and a magnified inset showing the component being processed.

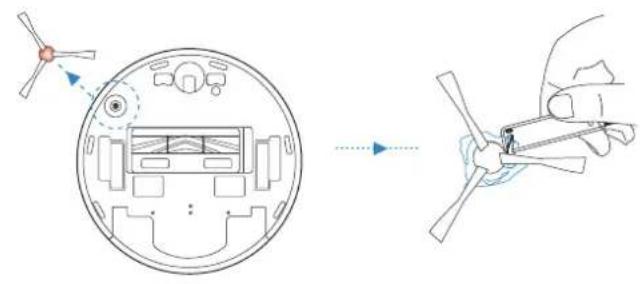

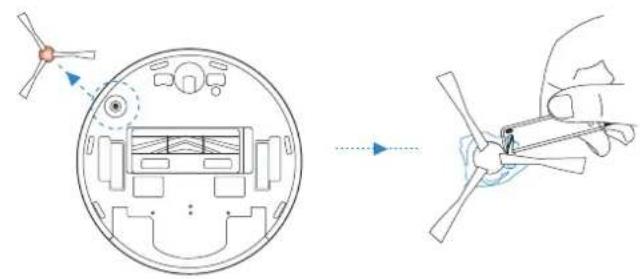

Edge Brush

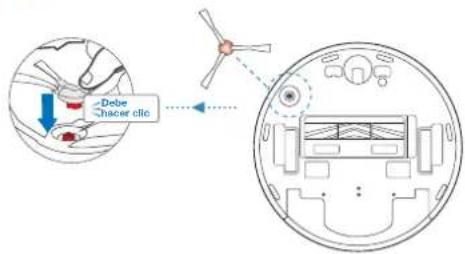

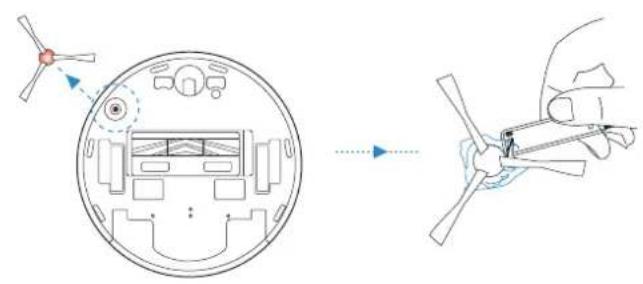

Diagram illustrating the working principle of a helicopter, showing the top view and side view with labeled components.

Mapping Sensor

Line drawing of a hand placing a blue circular object onto a circular device (no text or symbols)

3. Maintenance/3.4 Other Components

Line drawing of a blue robotic vacuum cleaner with a hand adjusting its lid (no text or symbols)

Diagram of a hand placing a component into a circular device with control buttons (no text or symbols)

Diagram of a device interior with labeled components and a hand pointing to a component, likely illustrating a mechanical or electrical assembly.

Line drawing of a hand pressing a small blue object on a device (no text or symbols)

Note: Before cleaning the robot's Charging Contacts and Docking Station Pins, turn the robot OFF and unplug the Docking Station.

3. Maintenance/3.5 Regular Maintenance

To keep Robot running at peak performance, perform maintenance tasks and replace parts with the following frequencies:

Robot Part Maintenance	Frequency Replacement Frequency
Washable Mopping Pad(Oscillating Mopping)	After each use Every 50 washings
Edge Brush Once every 2 weeks	Every 3-6 months
Main Brush Once per week	Every 6-12 months
Sponge Filter/High Efficiency Filter	Once per week Every 3-6 months

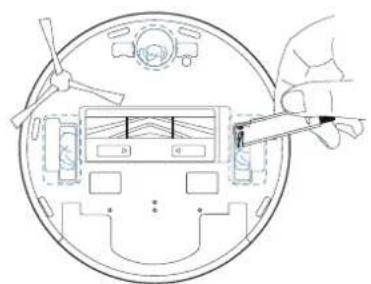

3D-Detect Sensor Universal Wheel Anti-Drop Sensors Bumper Mapping Sensor Charging Contacts Docking Station Pins	Once per week /

A multi-function Cleaning Tool is provided for easy maintenance. Handle with care, this cleaning tool has sharp edges.

Note: yeedi manufactures various replacement parts and fittings. Please contact Customer Service for more information on replacement parts.

4. Indicator Light

Robot

Robot will tell you something is wrong with an indicator light and voice report. More detailed support is available through the yeedi app and online website.

Indicator Light Scenario
AUTO Mode Button glows a solid WHITE.	The robot is cleaning.
	The robot is paused while cleaning.
AUTO Mode Button flashes WHITE.	The robot is charging.
	The robot is starting.
	The robot is relocating.
AUTO Mode Button glows a solid RED. The robot has low battery.
AUTO Mode Button flashes RED. The robot has a problem.

1. Troubleshooting/5.1 Troubleshooting

No.	Malfunction Possible Causes Solutions
1	Robot is not able to connect to the home Wi-Fi network.	Incorrect home Wi-Fi username or password entered.	Enter the correct home Wi-Fi username and password.
		Robot is not within range of your home Wi-Fi signal.	Make sure Robot is within range of your home Wi-Fi signal.
		Network setup started before Robot was ready.	Turn ON Power Switch. Press the RESET Button for 3 seconds. Robot is ready for network setup when it plays a musical tune and its Wi-Fi Indicator light flashes slowly.
2	Robot is not charging.	Robot is not switched ON. Switch ON Robot.
		Robot has not connected to the Docking Station.	Be sure that the robot's Charging Contacts have connected to the Docking Station Pins.
		The Power Cord is not connected to the Docking Station.	Make sure the Power Cord is firmly connected to the Docking Station.
		The battery is completely discharged.	Re-activate the battery. Switch ON. Place Robot on the Docking Station by hand, remove after charging for 3 minutes, repeat 3 times; then charge normally.
		Make sure the Docking Station is connected to the power supply.	The Docking Station is not connected to the power supply.
3	Robot cannot return to the Docking Station.	The Docking Station is not correctly placed.	Refer to section 2.2 to correctly place the Docking Station.
		The Docking Station is disconnected or moved.	Please check if the Docking Station is connected to power. Do not move the Docking Station manually.
		Robot is working in a dark environment.	Make sure to use Robot in a well illuminated environment.
		Robot is paused for more than 60 minutes. Avoid pausing Robot for over 60 minutes.
		Robot did not start cleaning from the Docking Station.	Make sure Robot starts cleaning from the Docking Station.
4	Robot returns to the Docking Station before it has finished cleaning.	Robot is working in a dark environment.	Make sure to use Robot in a well illuminated environment.
		When the battery gets low, Robot automatically switches to Return to Charger Mode and returns to the Docking Station to recharge itself.	This is normal. No solution necessary.
		Working time varies according to floor surface, room complexity and the Cleaning Mode selected.	This is normal. No solution necessary.
		The cleaning area is not tidy.	Remove small objects from the floor and tidy up the cleaning area before Robot starts cleaning.
5	Robot gets stuck while working and stops.	Robot is tangled with something on the floor (electrical wires, curtains, Carpet fringing, etc.).	Robot will try various ways to free itself. If it is unsuccessful, manually remove the obstacles and restart.
6	Robot makes much noise when cleaning.	The brushes are tangled, or the dust bin is stuck.	Clear the debris stuck regularly.
7	Robot is stuck when cleaning with Oscillating Mopping installed.	Robot may have difficulty climbing over obstacles when using Oscillating Mopping.	Please assist Robot If there is a problem.

5. Troubleshooting/5.2 Wi-Fi Connection

Before Wi-Fi setup, make sure Robot, mobile phone, and Wi-Fi network meet the following requirements.

Robot and Mobile Phone Requirements

• Robot is fully charged and the power switch of Robot is turned on.
  • Wi-Fi status light slowly flashes.
• Turn off mobile phone's cellular data (you can turn it back on after setup).

Wi-Fi Network Requirements

• You are using a 2.4GHz or 2.4/5 GHz mixed network.
• Your router supports 802.11b/g/n and IPv4 protocol.
• Do not use a VPN (Virtual Private Network) or Proxy Server.
• Do not use a hidden network.
• WPA and WPA2 using TKIP, PSK, AES/CCMP encryption.
• WEP EAP (Enterprise Authentication Protocol) is not supported.
• Use Wi-Fi channels 1-11 in North America and channels 1-13 outside North America (refer to local regulatory agency).

• If you are using a network extender/repeater, the network name (SSID) and password are the same as your primary network.

• Product Specifications

Model YDVN11
Rated Input 20V	--- 1A
Docking Station Model CH1822 CH1918*
	Rated Input 100-240V ~ 50-60Hz 0.5A		Rated Input (Charging)	For European Union Only	220-240V ~ 50-60Hz 0.3A
				For Russia Only	220V ~ 50-60Hz 0.3A
	Rated Output 20V 1A Rated Output 20V 1A				---
	/ Power (Auto-Emptying)		1000W
Frequency bands 2400-2483.5MHz
Off Mode Power Less than 0.50W
Networked Standby Power Less than 2.00W

Output power of the Wi-Fi module is less than 100mW.
Note: Technical and design specifications may be changed for continuous product improvement.
* CH1918 is an Self-empty Station sold separately that automatically empties your Robot's dustbin.
Explore more accessories at https://www.yeedi.com.

Inhalt

Top-down line drawing of a circular mechanical component with a central hub and mounting holes (no text or symbols)

Roboter

Simple line drawing of a battery pack connected to a wire with a plug (no text or symbols)

Dockingstation

Seitenbürste

Bedienungsanleitung

Line drawing of a dining table with a stand and a fan, no text or symbols present

Floor plan diagram with furniture layout and a curved arrow indicating direction (no text or labels)

Architectural diagram showing a railing and a circular pipe (no text or symbols)

Simple line drawing of a wall-mounted device with a cable and plug, no text or symbols present

≥0.5m (0.6") ≥0.5m (0.9") ≥1.5m (0.8)

Diagram of a robotic vacuum cleaner with an open lid and a blue battery icon pointing to it (no text or symbols present)

Line drawing of a hand pointing at a circular component with concentric rings and a blue dot (no text or symbols)

Line drawing of a hand pointing at a circular component with a blue dot, no text or symbols present

4 Ausschalten

Diagram of a device inside a circular housing with a blue arrow indicating left motion (no text or symbols)

Line drawing of a robotic vacuum cleaner with a hand pulling the component (no text or symbols)

Line drawing of a hand pressing a component on a mechanical part (no text or symbols)

2 Wasser nachfüllen

Technical line drawing of a mechanical component with no visible text or symbols

Illustration of a hand holding a circular device with a scroll wheel, next to a button labeled 'Click' (no text or symbols on the device itself)

Line drawing of a hand pointing at a circular component with a blue dot (no text or symbols)

Illustration of a robotic vacuum cleaner with hands holding the lid and valve (no text or symbols)

Diagram illustrating a solar thermal process with labeled components and directional arrows

Line drawing of a hand holding a mechanical component (no text or symbols)

Diagram showing a hand holding a device next to an open circular device with a blue arrow pointing to the component (no text or symbols present)

4

Illustration of a hand holding a small electronic device with blue dots and a black square on the handle (no text or symbols)

2

Illustration of hands pouring liquid from a device into a petri dish with scattered blue particles (no text or symbols)

5

Diagram of a device with an open lid and a close-up view showing internal components (no text or symbols)

3

Diagram showing a device's internal structure with two panels, one open and one closed, both connected by arrows indicating assembly or transformation (no text or symbols present)

6

7

Diagram showing a device with solar panel and its internal components, no text or symbols present

Technical diagram illustrating a mechanical assembly process with labeled steps and a magnified inset showing a component detail.

Seitenbürste

Diagram illustrating the operation of a helicopter to lift a propeller, showing the aircraft interior and propeller assembly.

Mapping-Sensor

Line drawing of a hand placing a blue circular object onto a circular device (no text or symbols)

Line drawing of a blue robotic vacuum cleaner with a hand adjusting its side (no text or symbols)

Diagram of a hand placing a component into a circular device with control buttons (no text or symbols)

Diagram of a device interior with labeled components and a hand pointing to a component, likely illustrating a mechanical or electrical assembly.

Line drawing of a hand pressing a button on a device (no text or symbols)

Top-down line drawing of a circular mechanical component with a central hub and mounting holes (no text or symbols)

Robot

Simple line drawing of a battery pack connected to a wire with a plug (no text or symbols)

Estación de carga

Cepillo lateral

Line drawing of a dining table with chairs and a stand, no text or symbols present

Floor plan diagram with furniture layout and a curved arrow indicating direction (no text or labels)

Architectural diagram showing a railing and a circular pipe (no text or symbols)

Simple line drawing of a wall-mounted device with cable and plug, no text or symbols present

≥0.5m (0.65) ≥0.5m (0.45) ≥1.5m (0.85)

3 Instale el cepillo lateral

Debe Chaser clic

Diagram of a robotic vacuum cleaner with an open lid and a blue battery icon pointing to it (no text or symbols present)

5 Cargue el robot

≥ 6.5 h

Line drawing of a hand pointing at a circular component with a blue dot (no text or symbols)

4 Apagado

Diagram of a mechanical device inside a circular housing, with a magnified inset showing a blue arrow pointing to a component (no text or symbols present)

Illustration of a robotic vacuum cleaner with a hand interacting with it (no text or symbols)

Line drawing of a hand inserting a blue component into a device (no text or symbols)

2 Añada agua

Technical line drawing of a mechanical component with no visible text or symbols

Illustration of hands holding a circular device with a 'Click' button (no text or symbols on the device itself)

Line drawing of a hand pointing to a circular object with concentric rings and a small blue dot at the center (no text or symbols)

Illustration of a robotic vacuum cleaner with hands holding the lid and valve (no text or symbols)

Diagram illustrating a solar thermal process with labeled components and directional arrows

Line drawing of a hand holding a mechanical component (no text or symbols)

Diagram showing a hand holding a device next to an open circular device with a blue arrow pointing to the component (no text or symbols present)

4

Illustration of a hand holding a small electronic device with blue dots and a black square on the handle (no text or symbols)

2

Illustration of hands pouring liquid from a device into a petri dish with particles (no text or symbols)

5

Diagram of a device with an open lid and a close-up view showing internal components (no text or symbols)

3

Diagram showing a device's internal structure with two panels, one open and one closed, both connected by arrows indicating assembly or transformation (no text or symbols present)

6

7

Diagram showing a solar panel installation with a sun icon (no text or symbols)

Technical diagram illustrating a mechanical assembly process with labeled steps and component details

Cepillo lateral

Diagram illustrating the working principle of a helicopter, showing head and torso positioning with directional arrows.

Sensor de mapeo

Line drawing of a hand placing a blue circular object onto a circular device (no text or symbols)

Line drawing of a blue robotic vacuum cleaner with a hand adjusting its lid (no text or symbols)

Diagram of a hand placing a component into a circular device with control buttons (no text or symbols)

Diagram of a device interior with labeled components and a hand pointing to a component, likely illustrating a mechanical or electrical assembly.

Line drawing of a hand pressing a small blue object on a device (no text or symbols)

Top-down line drawing of a circular mechanical component with a central hub and mounting holes (no text or symbols)

Robot

Simple line drawing of a battery pack connected to a coiled electrical plug (no text or symbols)

Station d'accueil

Brosse latérale

Line drawing of a dining table with chairs and a fan, no text or symbols present

Floor plan diagram with furniture layout and a curved arrow indicating direction (no text or labels)

Architectural line drawing of a balcony with railing and circular base (no text or symbols)

Simple line drawing of a wall-mounted device with cable and plug, no text or symbols present

≥0.5m (0.65) ≥0.5m (0.45) ≥1.5m (0.85)

Diagram of a robotic vacuum cleaner with an open lid and a blue battery icon pointing to it (no text or symbols present)

5
Charger le robot

≥ 6.5 h

Line drawing of a hand holding a circular object with a pointer (no text or symbols)

2 Mise en pause

Simple line drawing of a hand pointing at a circular component with a blue dot (no text or symbols)

Simple line drawing of a hand pointing at a circular object with concentric rings (no text or symbols)

Diagram of a mechanical device with a circular housing and a blue directional arrow indicating motion (no text or symbols)

Illustration of a robotic vacuum cleaner with a hand interacting with it (no text or symbols)

2 Ajouter de l'eau

Technical line drawing of a mechanical component with a blue valve or handle (no text or symbols)

Line drawing of a hand inserting a blue component into a device (no text or symbols)

4 Installer le Lavage oscillant

Click

Line drawing of a hand pointing at a circular component with a blue dot, no text or symbols present

3. Entretien/3.1 Lavage oscillant

1 Retirer le Lavage oscillant

Illustration of a robotic vacuum cleaner with hands holding the lid and valve (no text or symbols)

Diagram illustrating a solar thermal process with labeled components and directional arrows

Line drawing of a hand holding a mechanical component (no text or symbols)

Diagram showing a hand holding a device next to an open circular device with a blue arrow pointing to the component (no text or symbols present)

4

Illustration of a hand holding a small electronic device with blue dots and a black square on the handle (no text or symbols)

2

Illustration of hands pouring liquid from a device into a petri dish with particles (no text or symbols)

5

Diagram of a device with an open lid and a close-up view showing internal components (no text or symbols)

3

Diagram showing a device's internal structure with two panels, one open and one closed, both connected by arrows indicating assembly or transformation (no text or symbols present)

6

7

Diagram showing a device with solar panel and its internal components, no text or symbols present

Technical diagram illustrating a mechanical assembly process with labeled steps and a magnified inset showing the component being installed.

Brosse latérale

Diagram illustrating the working principle of a wind turbine, showing rotor positioning and fan assembly before and after work.

Line drawing of a hand placing a blue circular object onto a circular device (no text or symbols)

3. Entretien/3.4 Autres composants

Line drawing of a blue robotic vacuum cleaner with a hand adjusting its lid (no text or symbols)

Diagram of a hand placing a component into a circular device with control buttons (no text or symbols)

Diagram of a device interior with labeled components and a hand pointing to a component, likely illustrating a mechanical or electrical assembly.

Line drawing of a hand pressing a small blue object on a device (no text or symbols)

Top-down line drawing of a circular mechanical component with a central hub and mounting holes (no text or symbols)

Robot

Simple line drawing of a battery pack connected to a coiled electrical plug (no text or symbols)

Line drawing of a dining table with a stand and a fan, no text or symbols present

Floor plan diagram showing room layout with furniture placement (no text or labels)

Architectural diagram showing a railing and a circular pipe with a blue arrow indicating direction (no text or symbols)

Simple line drawing of a wall-mounted electrical socket with a cable and plug, no text or symbols present

≥0.5m (0.65) ≥0.5m (0.95) ≥1.5m (0.85)

Diagram of a robotic vacuum cleaner with an open lid and a blue battery icon pointing to it (no text or symbols present)

5
Caricare il robot

≥ 6.5 h

Simple line drawing of a hand pointing at a circular object with concentric rings (no text or symbols)

Line drawing of a hand pointing at a circular component with a blue dot (no text or symbols)

4 Spegnimento (OFF)

Diagram of a device inside a circular frame with a blue arrow pointing to a component, no text or symbols present.

Illustration of a robotic vacuum cleaner with a hand interacting with it (no text or symbols)

Line drawing of a hand inserting a blue component into a device (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Illustration of hands holding a circular device with a 'Click' button (no text or symbols on the device itself)

Line drawing of a hand pointing at a circular component with a blue dot, no text or symbols present

Illustration of a robotic vacuum cleaner with hands holding the lid and valve (no text or symbols)

Diagram illustrating a solar thermal process with labeled components and directional arrows

Line drawing of a hand holding a mechanical component (no text or symbols)

Diagram showing a hand holding a device next to an open circular device with a blue arrow pointing to the component (no text or symbols present)

4

Illustration of a hand holding a small electronic device with blue dots and a black square on the handle (no text or symbols)

2

Illustration of hands pouring liquid from a device into a petri dish with scattered blue particles (no text or symbols)

5

Diagram of a device with an open lid and a close-up view showing internal components (no text or symbols)

3

Diagram showing a device's internal structure with two panels, one open and one closed, both connected by arrows indicating assembly or transformation (no text or symbols present)

6

7

Diagram showing a device with a solar panel and its internal components, no text or symbols present.

Technical diagram showing three-step assembly of a device with labeled parts and directional arrows indicating process flow.

Spazzola per bordi

Diagram illustrating the structural change of a helicopter's internal components, showing before and after assembly.

Line drawing of a hand placing a blue circular object onto a circular device (no text or symbols)

Line drawing of a blue robotic vacuum cleaner with a hand adjusting its lid (no text or symbols)

Diagram of a hand placing a component into a circular device with control buttons (no text or symbols)

Diagram of a device interior with labeled components and a hand pointing to a component, likely illustrating a mechanical or electrical assembly.

Line drawing of a hand pressing a button on a device (no text or symbols)

Top-down line drawing of a circular mechanical component with a central hub and mounting holes (no text or symbols)

Робот

Simple line drawing of a battery pack connected to a wire with a plug (no text or symbols)

Док-станция

Line drawing of a dining table with a fan and chair, no text or symbols present

Floor plan diagram with room layouts and a curved arrow indicating direction (no text or labels)

Architectural line drawing of a balcony with railing and circular base (no text or symbols)

Simple line drawing of a wall-mounted device with cable and plug, no text or symbols present

≥0.5m (0.65) ≥0.5m (0.95) ≥1.5m (0.85)

Diagram of a robotic vacuum cleaner with an open lid and a blue battery icon pointing to it (no text or symbols present)

5
Зарядка робота

≥ 6.5 h

Simple line drawing of a hand pointing at a circular component with a blue dot (no text or symbols)

Simple line drawing of a hand pointing at a circular object with concentric rings (no text or symbols)

Diagram of a mechanical device with a circular component and a magnified inset showing a blue arrow pointing to a component (no text or symbols present)

Line drawing of a robotic vacuum cleaner with a hand holding the lid and blue arrow indicating rotation (no text or symbols)

2 Налейте воду

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a hand pressing a blue component on a mechanical device (no text or symbols)

Illustration of a robotic vacuum cleaner with hands holding the lid and button labeled 'Click' (no text or symbols on the device itself)

5 Начните уборку

Line drawing of a hand pressing a circular component with a blue dot on the ring (no text or symbols)

Illustration of hands holding a circular device with a scroll wheel, no text or symbols present

Diagram illustrating the process of light interaction with a container, showing light dispersion and sunlight emission.

Line drawing of a hand holding a small electronic device (no text or symbols)

Diagram showing a hand holding a device next to an open circular device with a blue arrow pointing to the component (no text or symbols present)

4

Illustration of a hand holding a small electronic device with blue dots and a black square on the handle (no text or symbols)

2

Illustration of hands pouring liquid from a device into a petri dish with scattered blue particles (no text or symbols)

5

Diagram of a device with an open lid and a close-up view showing internal components (no text or symbols)

3

Diagram showing a device's internal structure with two panels, one open and one closed, both connected by arrows indicating assembly or transformation (no text or symbols present)

6

7

Diagram showing a device with solar panel and its internal components, no text or symbols present

Diagram illustrating the operation of a helicopter to lift a wind turbine, showing the blade and rotor assembly.

Line drawing of a hand placing a blue circular object on top of a circular device (no text or symbols)

Line drawing of a blue robotic vacuum cleaner with a hand adjusting its lid (no text or symbols)

Diagram of a hand placing a component into a circular device with control buttons (no text or symbols)

Diagram of a device interior with labeled components and a hand pointing to a component, likely illustrating a mechanical or electrical assembly.

Line drawing of a hand pressing a button on a device (no text or symbols)

Building 5-6, ShangLiLang Science and Technology Park,

ShangLiLang Community, NanWan Street, LongGang District,

ShenZhen City, Guangdong Province, P. R. China

KA00275R2
