USER MANUAL Artistry ABE20EGEWS GE

Safety Instructions....2, 3

Operating Instructions

Automatic Icemaker 10

Care and Cleaning 11, 12

Controls 4

Crispers and Pans 7

Freezer 8,9

Replacing the Light Bulbs ..... 1 3

Shelves and Bins 6

Water Filter 5

Installation Instructions

Installing the Refrigerator .....15–19

Installing the Water Line .....28-30 se

Preparing to Install

the Refrigerator 14

Removing and Replacing

the Doors (Double Door

Refrigerator Models only) .....25-37

Removing and Replacing the

Freezer Drawer 20, 21

Reversing the Door Swing

(Single Door Refrigerator

Modelsonly) 22-25

Troubleshooting Tips ..... 32–34

Normal Operating Sounds .... 3 1

Consumer Support

Consumer Support .... Back Cover

Performance Data Sheet 36

Warranty 37

Owner's Manual and Installation Instructions

Models 20, 21, 22 and 23

Write the model and serial

numbers here:

Model # ____

Serial #

Find these numbers on a label on the right side, near the top of the refrigerator compartment.

SAFETY

GE Appliances website

For more information on your refrigerator's operation, visit www.GEAppliances.com or call 800.GECARES (800.432.2737). In Canada visit GEAppliances.ca or call 800.561.3344.

REFRIGERATOR SAFETY INFORMATION

This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others. All safety messages will follow the safety alert symbol and the word "DANGER", "WARNING", or "CAUTION". These words are defined as:

DANGER

Indicates a hazardous situation which, if not avoided, will result in death or serious injury.

WARNING

Indicates a hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION

Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.

IMPORTANT SAFETY INSTRUCTIONS

WARNING

To reduce the risk of fire, explosion, electric shock, or injury when using your refrigerator follow these basic safety precautions:

This refrigerator must be properly installed and located in accordance with the Installation Instructions before it is used.
■ Unplug the refrigerator before making repairs, replacing a light bulb, or cleaning.
Note: Power to the refrigerator cannot be disconnected by any setting on the control panel.
Note: Repairs must be performed by a qualified service professional.
- Replace all parts and panels before operating.
- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

Because of potential safety hazards under certain conditions, we strongly recommend against the use of an extension cord. However, if you must use an extension cord, it is absolutely necessary that it be a UL-listed (in the United States) or a CSA certified (in Canada), 3-wire grounding type appliance extension cord having a grounding type plug and outlet and that the electrical rating of the cord be 15 amperes (minimum) and 120 volts.
To prevent suffocation and entrapment hazards to children, remove the fresh food and freezer doors from any refrigerator before disposing of it or discontinuing its use.
Do not allow children to climb, stand or hang on the door handles or the shelves in the refrigerator. They could seriously injure themselves.

IMPORTANT SAFETY INSTRUCTIONS

CAUTION

To reduce the risk of injury when using your refrigerator, follow these basic safety precautions.

Do not clean glass shelves or covers with warm water when they are cold. Glass shelves and covers may break if exposed to sudden temperature changes or impact, such as bumping or dropping. Tempered glass is designed to shatter into many small pieces if it breaks.
- Keep fingers out of the “pinch point” areas; clearances between the doors and between the doors and cabinet are necessarily small. Be careful closing doors when children are in the area.

Do not touch the cold surfaces in the freezer compartment when hands are damp or wet, skin may stick to these extremely cold surfaces.
- Do not refreeze frozen foods which have thawed completely.
In refrigerators with automatic icemakers, avoid contact with the moving parts of the ejector mechanism, or with the heating element that releases the cubes. Do not place fingers or hands on the automatic ice making mechanism while the refrigerator is plugged in.

INSTALLATION

WARNING

Explosion Hazard.

Keep flammable materials and vapors, such as gasoline, away from refrigerator. Failure to do so can result in fire, explosion, or death.

SAFETY (CONT.)

CONNECTING ELECTRICITY

WARNING

Electrical Shock Hazard.

Plug into a grounded 3-prong outlet

Do not remove the ground prong

Do not use an adapter

Failure to follow these instructions can result in death, fire, or electrical shock.

Do not, under any circumstances, cut or remove the third (ground) prong from the power cord. For personal safety, this appliance must be properly grounded.

The power cord of this appliance is equipped with a 3-prong (grounding) plug which mates with a standard 3-prong (grounding) wall outlet to minimize the possibility of electric shock hazard from this appliance. Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly grounded.

Where a standard 2-prong wall outlet is encountered, it is your personal responsibility and obligation to have it replaced with a properly grounded 3-prong wall outlet. Do not use an adapter.

The refrigerator should always be plugged into its own individual electrical outlet which has a voltage rating that matches the rating plate.

A 115 Volt AC, 60 Hz, 15- or 20-amp fused, grounded electrical supply is required. This provides the best performance and also prevents overloading house wiring circuits which could cause a fire hazard from overheated wires.

Never unplug your refrigerator by pulling on the power cord. Always grip plug firmly and pull straight out from the outlet.

Repair or replace immediately all power cords that have become frayed or otherwise damaged. Do not use a cord that shows cracks or abrasion damage along its length or at either end.

When moving the refrigerator away from the wall, be careful not to roll over or damage the power cord.

USE OF ADAPTER PLUGS

Adapter plugs are not permitted in Canada.

PROPER DISPOSAL OF YOUR OLD REFRIGERATOR

WARNING

Suffocation and child entrapment hazard.

Remove fresh-food and freezer doors from the refrigerator, prior to disposal. Failure to do so can result in child entrapment which can lead to death or brain damage.

IMPORTANT:

Child entrapment and suffocation are not problems of the past. Junked or abandoned refrigerators are still dangerous even if they will sit for "just a few days." If you are getting rid of your old refrigerator, please follow the instructions below to help prevent accidents.

Before You Throw Away Your Old Refrigerator or Freezer:

■ Take off the fresh food and freezer doors.
Leave the shelves in place so that children may not easily climb inside.

Refrigerants

All refrigeration products contain refrigerants, which under federal law must be removed prior to product disposal. If you are getting rid of an old refrigeration product, check with the company handling the disposal about what to do.

READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.

SAVE THESE INSTRUCTIONS

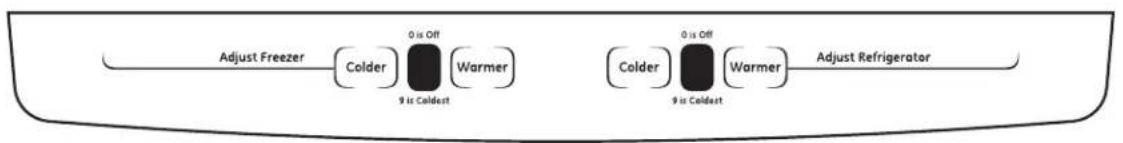

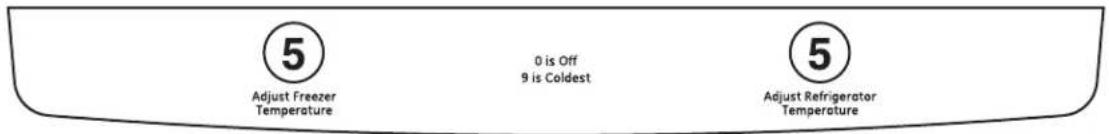

About the controls with temperature settings.

(on some models)

5 Adjust Freezer Temperature 0 is Off 9 is Coldest 5 Adjust Refrigerator Temperature

(on some models)

NOTE: The refrigerator is shipped with protective film covering the digital temperature controls. If this film was not removed during installation, remove it now.

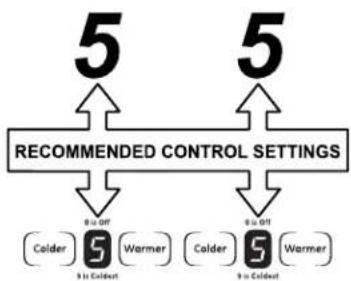

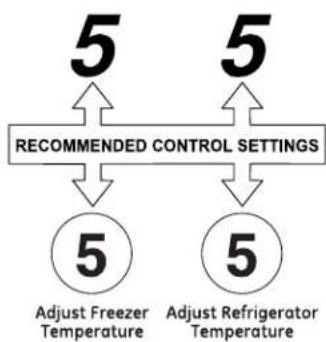

Initially, set the refrigerator control at 5 and the freezer control at 5. Allow 24 hours for the temperature to stabilize. Several adjustments may be required. Adjust the controls one increment at a time, and allow 24 hours after each adjustment for the refrigerator to reach the temperature you have set.

Setting either or both controls to 0 for digital and 0 for the refrigerator control knob stops cooling in both the refrigerator and freezer compartments, but does not shut off electrical power to the refrigerator.

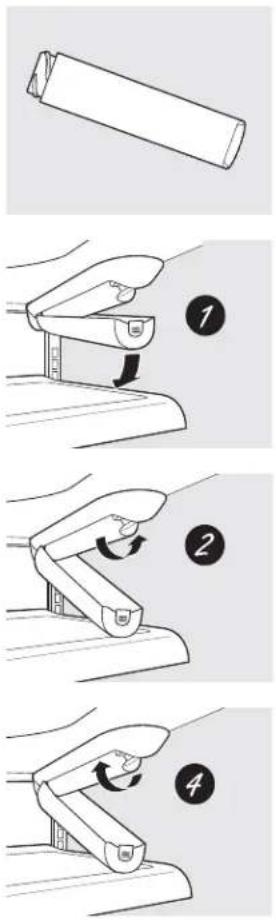

Illustration showing four-step instructions for a mechanical device, labeled 1 to 4 with arrows indicating rotation or adjustment.

Water Filter Cartridge

The water filter cartridge is located in the back upper right corner of the refrigerator compartment.

When to Replace the Filter

The filter cartridge should be replaced when the flow of water to the icemaker decreases, or every six months.

Installing the Filter Cartridge

7 If you are replacing the cartridge, first remove the old one. Open the cartridge cover by pressing in on the tab at the front and pulling down.
2 Remove the cartridge by slowly rotating it counterclockwise. A small amount of water may drip down.

CAUTION

If air has been trapped in the

system, the filter cartridge may be ejected as it is removed. Use caution when removing.

3 Remove the protective foil from the end of the cartridge.
4 Lining up the arrow on the cartridge and the cartridge holder, slowly rotate the cartridge clockwise until it stops. When the cartridge is properly installed, you will feel it "click" as it locks into place. The grip on the end of the cartridge should be positioned vertically. Do not overtighten.
5 Close the cartridge cover.

Filter Bypass Plug

You must use the filter bypass plug when a replacement filter cartridge is not available. The icemaker will not operate without the filter or filter bypass plug.

Replacement Filters:

To order additional filter cartridges in the United States, visit our Website, GEAppliances.com, or call GE Appliances Parts and Accessories, 800.626.2002.

Filter Model GSWF

Customers in Canada should consult the yellow pages for the nearest Mabe Service Center.

Not all features are on all models.

Rearranging the Shelves

Shelves in the refrigerator compartment are adjustable.

Refrigerator Compartment

Diagram showing two labeled arrows pointing to a rectangular object with a base, indicating direction or movement.

Some models have wire shelves that can be adjusted in the same manner.

To remove:

1 Remove all items from the shelf.
2 Tilt the shelf up at the front.
3 Lift the shelf up at the back and bring the shelf out.

Technical diagram showing two labeled components (① and ②) with directional arrows indicating movement or flow.

To replace:

While tilting the shelf up, insert the top hook at the back of the shelf in a slot on the track.
2 Lower the front of the shelf until the bottom of the shelf locks into place.

Diagram of a car interior showing a handle with arrows indicating direction (no text or symbols)

Non-Adjustable Shelves on the Door (on some models)

To remove: Lift the shelf straight up; then pull out.

To replace: Engage the shelf in the molded supports on the door and push down. It will lock in place.

About the crispers and pans. GEAppliances.com

Not all features are on all models.

Simple line drawing of a cabinet or storage unit inside a container (no text or symbols)

Fruit and Vegetable Crisper

Excess water that may accumulate in the bottom of the drawers or under the drawers should be wiped dry.

Pure technical line drawing of a symmetrical mechanical component with two flanges and a central pin (no text or symbols)

Adjustable Humidity Crisper (on some models)

Slide the control all the way to the HIGH setting to provide high humidity recommended for most vegetables.

Slide the control all the way to the LOW setting to provide lower humidity levels recommended for most fruits.

Line drawing of a rectangular box with a lid and side panel, no text or symbols present

Snack Pan (on some models)

This pan can be moved to the most useful location for your family's needs.

To remove, slide the pan out to the stop position, lift the pan up and past the stop position and lift it out.

About the freezer drawer. (on some models)

Not all features are on all models.

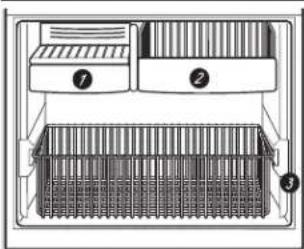

Diagram of a storage rack with labeled compartments and numbered parts

Appearance and features may vary

Freezer Shelves and Baskets

1 A shelf above the ice storage bin
2 A half-width basket
3 A deep full-width basket

NOTE: Do not fill baskets higher than the rim of the basket. This may cause baskets to stick or jam when opening or closing.

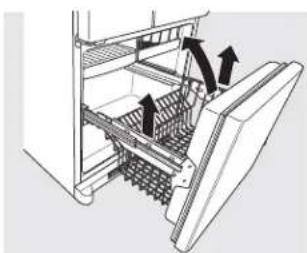

Diagram of a refrigerator interior showing a rack with two arrows indicating movement or force (no text or symbols present)

Appearance may vary

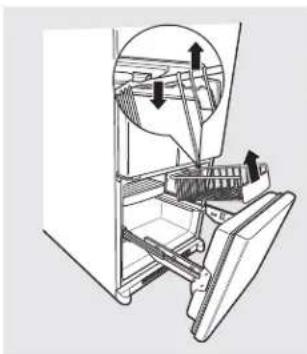

Basket Removal

To remove the deep full-width basket on freezer drawer models:

7 Open the freezer drawer until it stops.
2 The freezer basket rests on the inside tabs on the drawer slides.
3 Lift the basket so that it is out of all 6 slide bracket tabs.
4 Tilt the basket and lift out of the drawer.

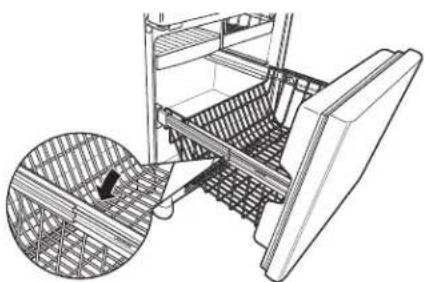

When replacing the deep full-width basket:

Tilt the basket back and lower it down into the drawer. Rotate the basket to a horizontal position and press it down into the 6 alignment tabs.

NOTE: Always be sure that the basket is seated in all 6 slide bracket tabs before sliding back into the freezer. The basket can be turned in either direction front to back and installed into the freezer.

Diagram of a refrigerator interior showing hand positioning and structural components (no text or symbols)

Appearance may vary

To remove the half-width basket:

7 Pull the basket out to the stop location.
2 Lift the basket up at the front to release it from the stop hooks on each side.
3 Lift the basket out to remove it from the sides.

When replacing the basket, make sure that the basket goes under the stop hooks on each side.

NOTE: Always be sure to fully close this basket.

Not all features are on all models.

Diagram of a two-tiered storage unit with mesh structure and labeled components (no text or symbols)

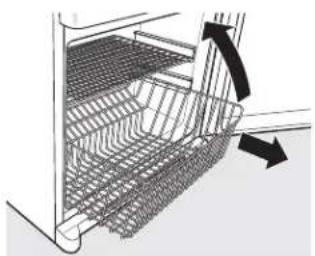

Freezer Shelf and Basket

1 A full-width fixed wire shelf
2 A full-width sliding wire basket

NOTE: Do not fill basket higher than the rim of the basket. This may cause basket to stick or jam when opening or closing.

Diagram of a metal basket structure with arrows indicating direction (no text or symbols)

Basket Removal

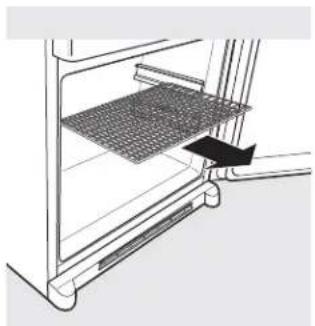

To remove the full-width sliding wire basket on door models:

1 Open the basket out to its full extension.
2 Lift up the front of the basket and pull straight out to remove.

When replacing the full-width sliding wire basket:

Insert the wire basket into the lower liner's rails and push back into place.

Technical diagram of a mechanical assembly with a grid-patterned component and an arrow indicating direction (no text or symbols)

Fixed Shelf Removal

NOTE: The full-width wire shelf is not intended to slide.

To remove for cleaning:

Hold the shelf at the front and pull it firmly forward.

When replacing the full-width sliding wire shelf:

Insert the wire shelf into the upper liner's rails and push back into place.

Line drawing of a mechanical component or bracket with no visible text or symbols

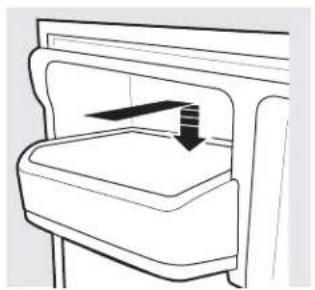

Non-Adjustable Shelf on Freezer Door

To remove: Lift the shelf straight up; then pull out.

To replace: Engage the shelf in the molded supports on the door and push down. It will lock in place.

To remove

Line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

To replace

About the automatic icemaker. (on some models)

A newly installed refrigerator may take 12 to 24 hours to begin making ice.

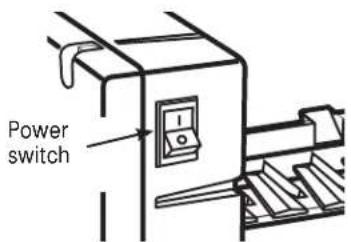

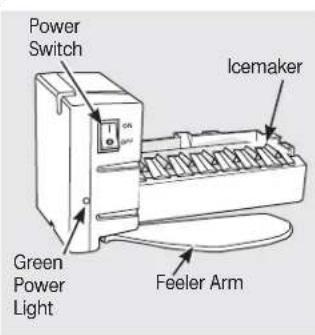

Power Switch Green Power Light Feeler Arm Icemaker

Automatic Icemaker

The icemaker will produce seven cubes per cycle—approximately 100–130 cubes in a 24-hour period, depending on freezer compartment temperature, room temperature, number of door openings and other use conditions.

See below for how to access ice and reach the power switch.

If the refrigerator is operated before the water connection is made to the icemaker, set the power switch in the O (off) position.

When the refrigerator has been connected to the water supply, set the power switch to the I(on) position. The icemaker power light will turn green when the freezer light switch is pressed in or when the freezer door is closed.

The icemaker will fill with water when it cools to 15°F (-10°C). A newly installed refrigerator may take 12 to 24 hours to begin making ice cubes.

You will hear a buzzing sound each time the icemaker fills with water.

Throw away the first few batches of ice to allow the water line to clear.

Be sure nothing interferes with the sweep of the feeler arm.

When the bin fills to the level of the feeler arm, the icemaker will stop producing ice. It is normal for several cubes to be joined together.

If ice is not used frequently, old ice cubes will become cloudy, taste stale and shrink.

NOTE: In homes with lower-than-average water pressure, you may hear the icemaker cycle multiple times when making one batch of ice.

NOTE: Set the power switch to the O (off) position if the water supply is shut off.

CAUTION

Avoid contact with the

moving parts of the ejector mechanism, or with the heating element (located on the bottom of the ice maker) that releases the cubes. Do not place fingers or hands on the automatic ice making mechanism while the refrigerator is plugged in.

Shelf Ice Bin

To reach the power switch.

Accessing Ice and Reaching the Power Switch

To reach the icemaker power switch, pull the shelf above the ice bin straight out. Always be sure to replace the shelf.

To access ice, simply pull the bin forward.

Shelf Ice Bin

To access ice.

Icemaker Accessory Kit

If your refrigerator did not come already equipped with an automatic icemaker, an icemaker accessory kit is available at extra cost.

Check the back of the refrigerator for the specific icemaker kit needed for your model.

Cleaning the Outside

The door handles and trim. Clean with a cloth dampened with soapy water. Dry with a soft cloth. Do not use wax on the door handles and trim.

Keep the outside clean. Wipe with a clean cloth lightly dampened with kitchen appliance wax or mild liquid dish detergent. Dry and polish with a clean, soft cloth.

Do not wipe the refrigerator with a soiled dish cloth or wet towel. These may leave a residue that can erode the paint. Do not use scouring pads, powdered cleaners, bleach or cleaners containing bleach because these products can scratch and weaken the paint finish.

The stainless steel panels and door handles.

The stainless steel doors and door handles (on some models) can be cleaned with a commercially available stainless steel cleaner. Cleaners with oxalic acid such as Bar Keepers Friend Soft Cleanser™ will remove rust, tarnish and small blemishes. Use only a liquid cleanser free of grit and rub in the direction of the brush lines with a damp soft sponge.

Do not use appliance wax or polish on the stainless steel.

Cleaning the Inside

To help prevent odors, leave an open box of baking soda in the refrigerator and freezer compartments.

Unplug the refrigerator before cleaning.

If this is not practical, wring excess moisture out of sponge or cloth when cleaning around switches, lights or controls.

Use an appliance wax polish on the inside surface between the doors.

Use warm water and baking soda solution—about a tablespoon (15 ml) of baking soda to a quart (1 liter) of water. This both cleans and neutralizes odors. Rinse and wipe dry.

After cleaning the door gaskets, apply a thin layer of petroleum jelly to the door gaskets at the hinge side. This helps keep the gaskets from sticking and bending out of shape.

CAUTION

Do not clean glass shelves

or covers with warm water when they are cold. Glass shelves and covers may break if exposed to sudden temperature changes or impact such as bumping or dropping. Tempered glass is designed to shatter into many small pieces if it breaks.

Do not wash any plastic refrigerator parts in the dishwasher.

Care and cleaning of the refrigerator.

Behind the Refrigerator

Be careful when moving the refrigerator away from the wall. All types of floor coverings can be damaged, particularly cushioned coverings and those with embossed surfaces.

Raise the leveling legs located at the bottom front of the refrigerator.

Pull the refrigerator straight out and return it to position by pushing it straight in. Moving the refrigerator in a side direction may result in damage to the floor covering or refrigerator.

Lower the leveling legs until they touch the floor.

When pushing the refrigerator back, make sure you don't roll over the power cord or icemaker supply line (on some models).

Preparing for Vacation

For long vacations or absences, remove food and unplug the refrigerator. Clean the interior with a baking soda solution of one tablespoon (15 ml) of baking soda to one quart (1 liter) of water. Leave the doors open.

Set the icemaker power switch to the O (off) position and shut off the water supply to the refrigerator.

If the temperature can drop below freezing, have a qualified servicer drain the water supply system (on some models) to prevent serious property damage due to flooding.

Preparing to Move

Secure all loose items such as base grille, shelves and drawers by taping them securely in place to prevent damage.

When using a hand truck to move the refrigerator, do not rest the front or back of the refrigerator against the hand truck. This could damage the refrigerator. Handle only from the sides of the refrigerator.

Be sure the refrigerator stays in an upright position during moving.

WARNING

Before replacing a burned-out light bulb, the refrigerator should be unplugged in order to avoid contact with a A burned-out light bulb may break when being replaced.)

Turning the control to the OFF position does not remove power to the light circuit.

Line drawing of a hand holding a device with a circular component and ventilation slots (no text or symbols)

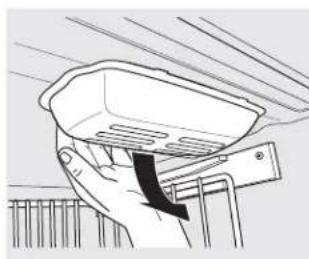

Refrigerator Lights

1 Unplug the refrigerator.
2 To remove the light shield, grasp the shield at the back and pull out to release the tabs at the back.
3 Rotate the shield down and then forward to release the tabs at the front of the shield.

4 After replacing with an appliance bulb of the same or lower wattage, replace the shield.
5 Plug the refrigerator back in.

NOTE: Appliance bulbs may be ordered from GE Appliance Parts and Accessories, 800.626.2002.

Hand holding a cleaning board with a black arrow indicating force (no text or symbols)

Appearance may vary

Freezer Light

1 Unplug the refrigerator.
2 The bulb is located at the top of the freezer inside a light shield. To remove the shield, grasp the shield at the back and pull out to release the tabs at the back.
3 Rotate the shield down and then forward to release the tabs at the front of the shield.

4 After replacing with an appliance bulb of the same or lower wattage, replace the shield.
5 Plug the refrigerator back in.

Installation Instructions

Refrigerator

Models 20, 21, 22 and 23

Questions? Call 800.GE.CARES (800.432.2737) or Visit our Website at: GEAppliances.com

In Canada, call 1.800.561.3344 or Visit our Website at: www.geappliances.ca

BEFORE YOU BEGIN

Read these instructions completely and carefully.

• IMPORTANT — Save these instructions for local inspector's use.
• IMPORTANT – Observe all governing codes and ordinances.
• Note to Installer – Be sure to leave these instructions with the Consumer.
• Note to Consumer – Keep these instructions for future reference.
• Skill level – Installation of this appliance requires basic mechanical skills.
• Completion time – Refrigerator Installation 20 minutes

Water Line Installation 30 minutes

• Proper installation is the responsibility of the installer.
• Product failure due to improper installation is not covered under the Warranty.

PREPARATION

MOVING THE REFRIGERATOR INDOORS

If the refrigerator will not fit through a doorway, the refrigerator door and freezer drawer can be removed.

• To remove the refrigerator door, see Step 1 in the Reversing the Door Swing section.
• To remove the freezer drawer, see the Removing the Freezer Drawer section.

WATER SUPPLY TO THE ICEMAKER AND DISPENSER (ON SOME MODELS)

If the refrigerator has an icemaker, it will have to be connected to a cold water line. A GE Appliances water supply kit (containing tubing, shutoff valve, fittings and instructions) is available at extra cost from your dealer, by visiting our Website at GEAppliances.com (in Canada at www.geappliances.ca) or from Parts and Accessories, 800.626.2002 (In Canada 1.888.661.1616).

TOOLS YOU MAY NEED

Adjustable Wrench

3/8" and 5/16" Socket Ratchet/Driver

1/4" Outer Diameter Compression Nut and Ferrule (sleeve) (icemaker models only)

Line drawing of a screwdriver with a magnified view of the tip (no text or symbols)

Phillips Head Screwdriver

3/32", 1/8" and 3/16" wrenches

Allen

1/8" Drill Bit and Electric or Hand Drill

Tape measure

Pencil

1/4" Nut Driver

Wire Cutters

Level

INSTALLING THE REFRIGERATOR

REFRIGERATOR LOCATION

• Do not install the refrigerator where the temperature will go below 60^ F ( 16^ C) because it will not run often enough to maintain proper temperatures.
• Do not install the refrigerator where the temperature will go above 100^ F ( 37^ C) because it will not perform properly.
• Do not install the refrigerator in a location exposed to water (rain, etc.) or direct sunlight.
  • Install it on a floor strong enough to support it fully loaded.

CLEARANCES

For clearance for ease of installation, proper air circulation and plumbing and electrical, please refer to the rating plate on the top left wall of the refrigerator.

REMOVETOPCAP(on some models)

• IMPORTANT NOTE: This refrigerator is 34-1/2" deep. Doors and passageways leading to the installation location must be at least 36" wide in order to leave the doors and handles attached to the refrigerator while transporting it into the installation location. If passageways are less than 36", the refrigerator doors and handles can easily be scratched and damaged. The top cap and doors can be removed to allow the refrigerator to be safely moved indoors. Start with Step A.
• If it is not necessary to remove doors, skip Step A. Leave tape and all packaging on doors until the refrigerator is in the final location.
• SKID REMOVAL: Tilt refrigerator to each side to remove skid.
• NOTE: Use a padded hand truck to move this refrigerator. Place the refrigerator on the hand truck with a side against the truck. We strongly recommend that TWO PEOPLE move and complete this installation.

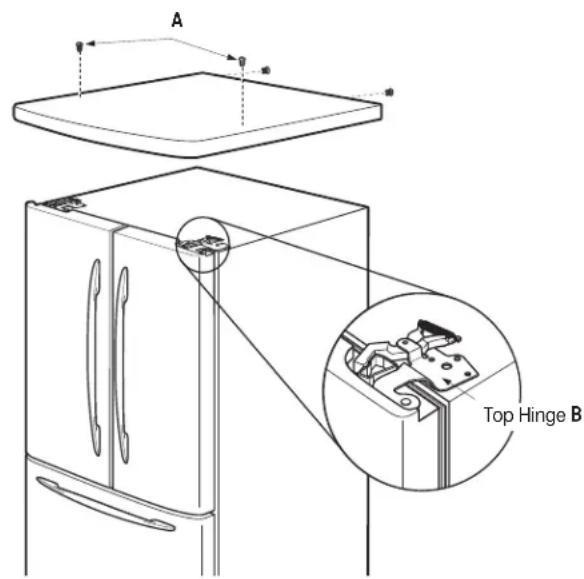

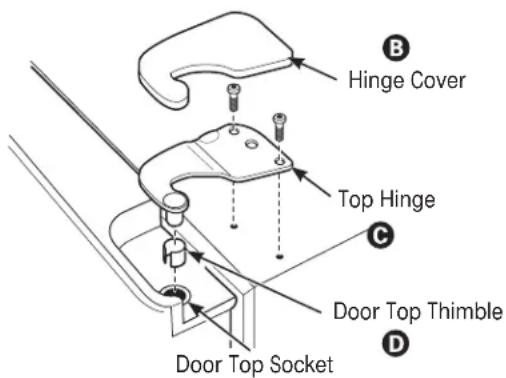

A Locate and remove the two Phillips head screws on the top of the refrigerator. Remove the two screws on each side at the rear of the top cap. Lift off and remove top cap.
B Remove the fresh-food door(s). Refer to Steps 1 and 3 of "Reversing the Door Swing" section or Steps 1 and 2 of "Removing the Doors" section.
C Remove the bottom freezer drawer or door. Refer to "Removing Freezer Drawer" section or Step 2 of "Reversing the Door Swing" section.
D Move refrigerator to the installation location.

REMOVE TOP CAP (cont.)(on some models) REINSTALL DOORS, DRAWERS AND TOP CAP

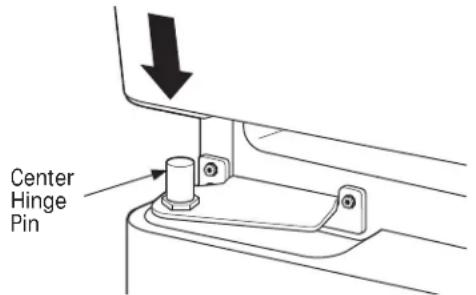

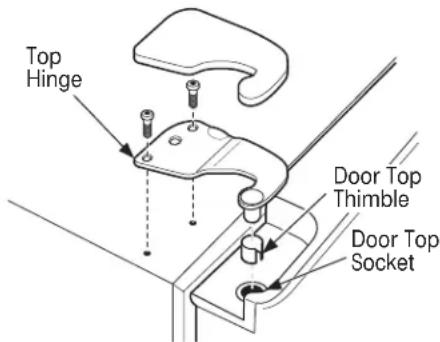

E Carefully lower the door(s) onto the center hinge(s). Reinstall top hinge(s). NOTE: Ensure the door is properly aligned to the case top to avoid readjustment of the door during top cap reinstallation.
F Place cap over the top of the refrigerator. Reinstall the original screws in the top and back of the cap.
G Reinstall the bottom freezer drawer or door. Refer to "Replacing the Freezer Drawer" section or Step 8 of "Reversing the Door Swing" section.

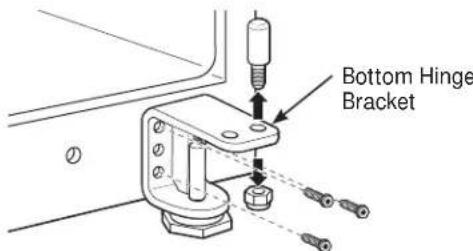

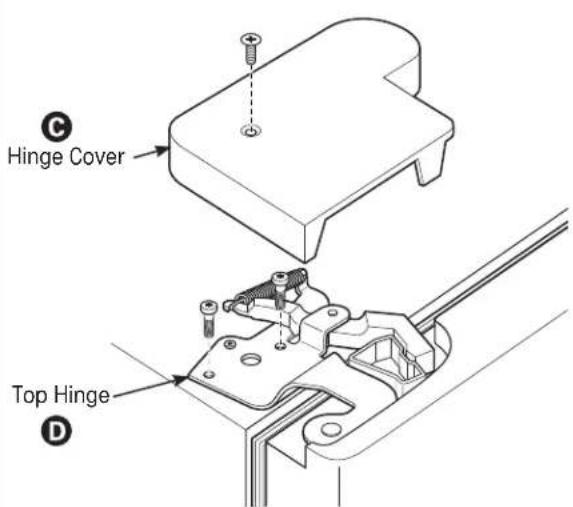

A Top Hinge B

① CONNECTING THE REFRIGERATOR TO THE HOUSE WATER LINE

(icemaker models)

A cold water supply is required for automatic icemaker operation. If there is not a cold water supply, you will need to provide one. See Installing the Water Line section.

NOTES:

• Before making the connection to the refrigerator, be sure the refrigerator power cord is not plugged into the wall outlet.
• If your refrigerator does not have a water filter, we recommend installing one if your water supply has sand or particles that could clog the screen of the refrigerator's water valve. Install it in the water line near the refrigerator. If using SmartConnect™ Refrigerator Tubing Kit, you will need an additional tube (WX08X10002) to connect the filter. Do not cut plastic tube to install filter.

INSTALLING THE REFRIGERATOR (cont.)

① CONNECTING THE REFRIGERATOR TO THE HOUSE WATER LINE (cont.)

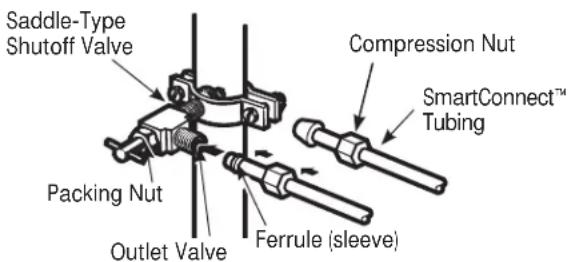

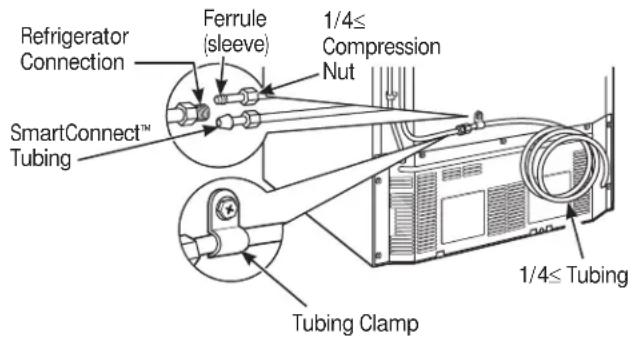

A If you are using copper tubing, place a compression nut and ferrule (sleeve) onto the end of the tubing coming from the house cold water supply. If you are using the SmartConnect™ tubing, the nuts are already assembled to the tubing.
B If you are using copper tubing, insert the end of the tubing into the refrigerator connection, at the back of the refrigerator, as far as possible. While holding the tubing, tighten the fitting. If you are using SmartConnect™ tubing, insert the molded end of the tubing into the refrigerator connection, at the back of the refrigerator, and tighten the compression nut until it is hand tight. Then tighten one additional turn with a wrench. Overtightening may cause leaks.
C Fasten the tubing into the clamp provided to hold it in position. You may need to pry open the clamp.

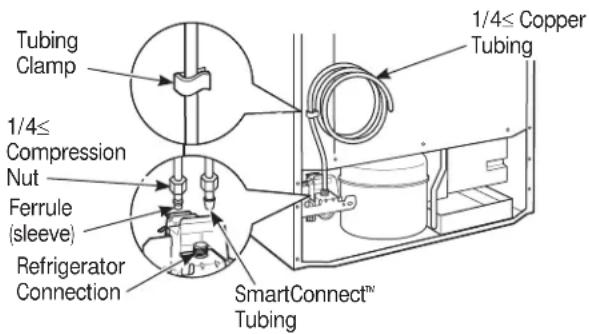

One of the illustrations below will look like the connection on your refrigerator.

Icemaker-Ready models

Tubing Clamp 1/4≤ Compression Nut Ferrule (sleeve) Refrigerator Connection 1/4≤ Copper Tubing SmartConnect™ Tubing

Icemaker-Installed Models

Refrigerator Connection Ferrule (sleeve) 1/4≤ Compression Nut SmartConnect™ Tubing Tubing Clamp 1/4≤ Tubing

② TURN ON THE WATER SUPPLY (icemaker models)

Turn the water on at the shutoff valve (house water supply) and check for any leaks.

3 PLUG IN THE REFRIGERATOR

On models with an icemaker, before plugging in the refrigerator, make sure the icemaker power switch is set to the O (off) position.

Diagram showing a plug-in socket connected to a wall-mounted power socket with two outlets, illustrating electrical installation or circuitry.

See the grounding information attached to the power cord.

4 PUT THE REFRIGERATOR IN PLACE

Move the refrigerator to its final location.

Adjustable legs at the front corners of the refrigerator should be set so the refrigerator is firmly positioned on the floor, and the front is raised just enough that the door closes easily when opened about halfway.

To adjust the leveling legs, turn the legs clockwise to raise the refrigerator, counterclockwise to lower it.

Mechanical assembly diagram showing a rotating lever mechanism with no text or symbols

6 REMOVE THE FRESH FOOD DOOR HANDLE

(For placement in the installation location or reversal of the handles – on some models)

Stainless steel (on some models):

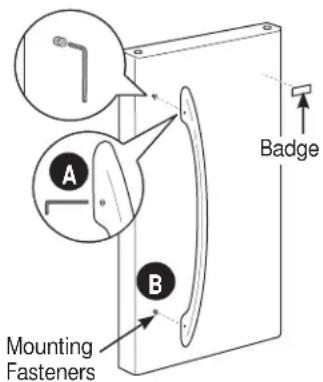

A REMOVING THE DOOR HANDLE: Loosen the set screws with the 3/32" Allen wrench and remove the handle. NOTE: For Double Door models follow the same procedure on the opposite door.

Mounting Fasteners A B Badge

(appearance may vary)

Plastic handle

(on some models):

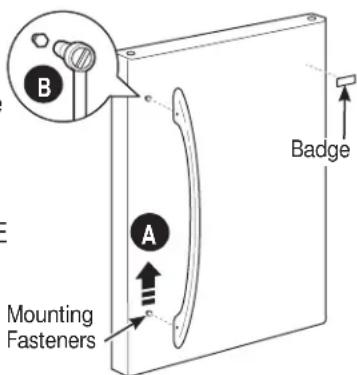

A REMOVING THE DOOR HANDLE: Depress the

tab on the underside of the handle and slide the handle up and off of the mounting fasteners.

B REVERSING THE DOOR HANDLE (on some models):

- Remove the handle (appearance may vary) mounting fasteners with a 3/16" Allen wrench and transfer the handle mounting fasteners to the right side.

• Remove the logo badge.
• Remove and transfer the plug button to the left side of the fresh food door. NOTE: Use a flat plastic edge to prevent damaging the door. Remove any adhesive on the door with a mild detergent. Remove the paper covering on the adhesive backing on the logo badge prior to carefully attaching the badge to the door.

B A Mounting Fasteners Badge

(appearance may vary)

7 REMOVE THE FREEZER DOOR HANDLE

Stainless steel and plastic handles:

A Loosen the set screws located on the underside of the handle with the 1/8" Allen wrench and remove the handle.

NOTE: If the handle mounting fasteners need to be tightened or removed, use a 3/16" Allen wrench.

Pure technical diagram of a mechanical assembly with no text, numbers, or symbols

INSTALLING THE REFRIGERATOR (cont.)

8 ATTACH THE FRESH FOOD DOOR HANDLE

Stainless steel handle:

Attach the handle to the handle mounting fasteners and tighten the set screws with a 3/32" Allen wrench.

NOTE: For Double Door models follow the same procedure on the opposite door.

Mounting Fasteners

(appearance may vary)

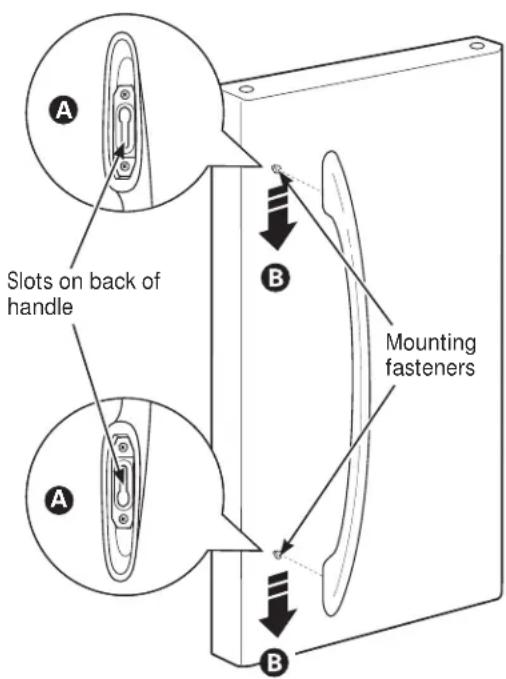

Plastic handle:

A Attach the handle to the handle mounting fasteners by aligning the slots with the handle mounting fasteners.
B Slide it down until it is firmly locked into position.

Slots on back of handle Mounting fasteners

(appearance may vary)

9 ATTACH THE FREEZER DOOR HANDLE

Stainless steel and plastic handles:

Attach the handle firmly to the mounting fasteners and tighten the set screws on the bottom of the handle with a 1/8" Allen wrench.

A j

(appearance may vary)

10 LEVEL THE REFRIGERATOR

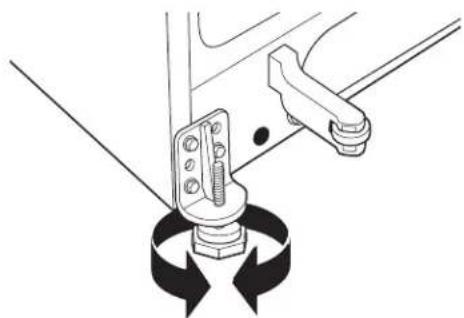

The leveling legs have 2 purposes:

1) Leveling legs adjust so the refrigerator is firmly positioned on the floor and does not wobble.
2) Leveling legs serve as a stabilizing brake to hold the refrigerator securely in position during operation and cleaning. The leveling legs also prevent the refrigerator from tipping.

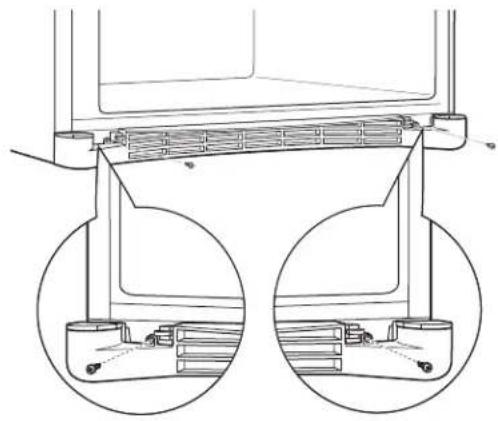

A Remove the grille by removing the two Phillips head screws.

Technical line drawing of a mechanical assembly with two circular insets showing internal components (no text or symbols)

B Turn the leveling legs clockwise to raise the refrigerator, counterclockwise to lower it.

Mechanical assembly diagram showing a rotating lever mechanism with no text or symbols

CAUTION

To avoid possible personal

injury or property damage, the leveling legs must be firmly touching the floor.

C Replace the base grille by inserting the two Phillips head screws.

11 SET THE CONTROLS

Set the controls to the recommended setting.

REMOVE PACKAGING, START ICEMAKER (icemaker models)

12 A) Remove all tape, foam and protective packing from shelves and drawers.
B) Remove the tie downs from the freezer baskets.
C) Place half width basket onto drawer slides. See About the freezer section for instructions.
Set the icemaker power switch to the I (on) position. The icemaker will not begin to operate until it reaches its operating temperature of 15^ F ( -9^ C) or below. It will then begin operation automatically. It will take 2–3 days to fill the ice bin.

Power switch

NOTE: In lower water pressure conditions, the water valve may turn on up to 3 times to deliver enough water to the icemaker.

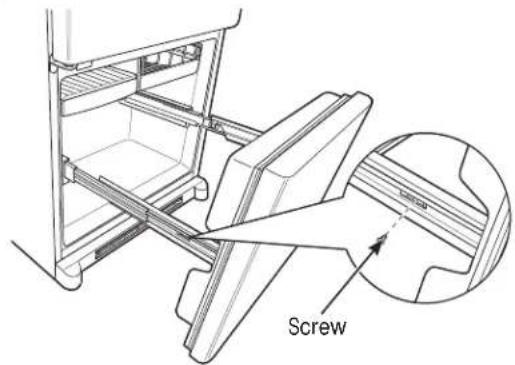

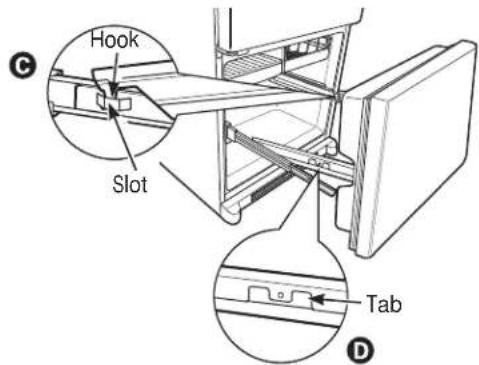

REMOVING THE FREEZER DRAWER (on some models)

The freezer drawer can be removed, if needed, to fit through tight areas.

Read these instructions completely and carefully.

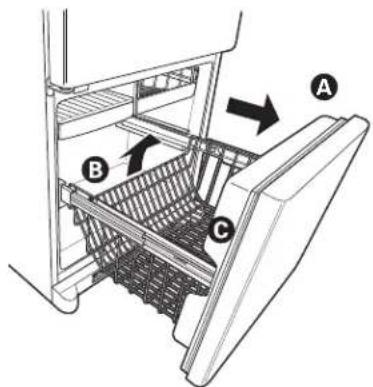

1 REMOVE THE BASKET

A Open the freezer drawer until it stops.
B The freezer basket rests on a frame inside the freezer drawer. Lift the basket up at the back.
C Lift the front up and lift the entire basket up and out of the drawer.

Diagram of a refrigerator interior with labeled parts A, B, and C showing internal structure and directional arrows

2 REMOVE THE DRAWER FRONT (cont.)

B Lift up on both sides of the freezer drawer handle to separate the drawer railings from the rail assemblies.
C Set the drawer front on a non-scratching surface.
D Push the rail assemblies back into locking position.

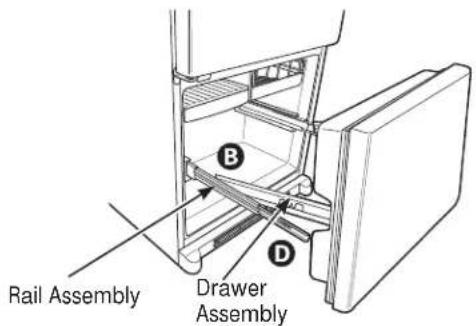

Rail Assembly Drawer Assembly B D

② REMOVE THE DRAWER FRONT

A Remove the screw on each side of the railing.

Screw

③ REMOVE THE BASE GRILLE (if needed)

If, after removing the freezer drawer and refrigerator door, the refrigerator will still not fit through a doorway, the base grille can be removed.

A Remove the base grille by removing the screws.

Technical line drawing of a mechanical assembly with two circular insets showing internal components (no text or symbols)

REPLACING THE FREEZER DRAWER (on some models)

Two people may be required to complete this procedure.

1 ATTACH AND SECURE THE DRAWER FRONT TO THE SLIDES

A Pull out the rail assemblies to the full length on each side of the cabinet.

Technical line drawing of a refrigerator interior with handle and door (no text or symbols)

B Locate the slots on the inside of the rail assemblies near the back.

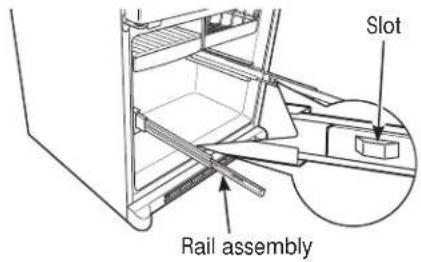

Slot Rail assembly

C Insert the hooks at the back of the drawer railings into the slots on the rail assemblies.
D Lower the front of the drawer, making sure the tabs on the sides of the railings fit into the front slots in the rail assemblies.

Hook Slot Tab D

1 ATTACH AND SECURE THE DRAWER FRONT TO THE SLIDES (cont.)

E Replace the screws on both rail assemblies.

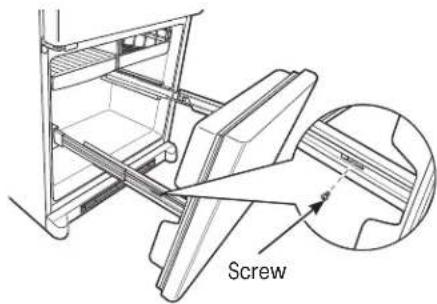

Screw

② REPLACE THE FREEZER BASKET

Replace the lower freezer basket by lowering it into the frame.

Technical line drawing of a multi-level refrigerator with a close-up inset showing the interior space (no text or symbols)

REVERSING THE DOOR SWING (Single Door Refrigerator Models only)

WARNING

Follow all steps when

reversing the door swing. Failure to follow these instructions, leaving off parts, or overtightening screws, can lead to the door falling off and result in injury and property damage.

IMPORTANT NOTES

When reversing the door swing:

• Read the instructions all the way through before starting.
• Parts are included in the door hinge kit.
• Handle parts carefully to avoid scratching paint.
• Set screws down by their related parts to avoid using them in the wrong places.
• Provide a non-scratching work surface for the doors.

IMPORTANT: Once you begin, do not move the cabinet until door-swing reversal is completed.

These instructions are for changing the hinges from the right side to the left side—if you ever want to change the hinges back to the right side, follow these same instructions and reverse all references to left and right.

- Once door swing is finalized, ensure the logo badge is properly aligned and permanently secured to the door by removing the adhesive cover on the back side. NOTE: A replacement logo badge is included in the hinge kit.

Unplug the refrigerator from its electrical outlet.

Empty all door shelves, including the dairy compartment.

TOOLS YOU WILL NEED

Adjustable Wrench

5/16"
Socket Ratchet/Driver

Masking Tape

Thin-blade Screwdriver

Phillips Screwdriver

Torx T-20 Driver

1 REMOVE THE

REFRIGERATOR DOOR

A Tape the door shut with masking tape.

Pure technical line drawing of a mechanical component with no text or symbols

B Remove the hinge cover on top of the refrigerator door.
C Using a 5/16" socket ratchet/driver, remove the bolts securing the top hinge to the cabinet. Then lift the hinge straight up to free the hinge pin from the socket in the top of the door.
D Carefully remove the door top thimble from inside the socket. This will be used again when reinstalling the door on the other side.

Hinge Cover Top Hinge Door Top Thimble Door Top Socket

E Remove the tape and tilt the door away from the cabinet. Lift the door off the center hinge pin. Ensure that the door bottom thimble is removed from the center hinge pin. Retain door bottom thimble for Step 6.

Door Bottom Thimble Center Hinge Pin

F Set the door on a non-scratching surface with the inside up.

② REMOVE THE FREEZER DOOR

A Tape the door shut with masking tape.
B Remove hinge pin from hinge bracket. This will be used again with the new hinge bracket for the other side.

Technical line drawing of a mechanical assembly with a bolt and mounting bracket (no text or symbols)

C Remove the tape and tilt the door away from the cabinet. Lift the door off the bottom hinge pin.

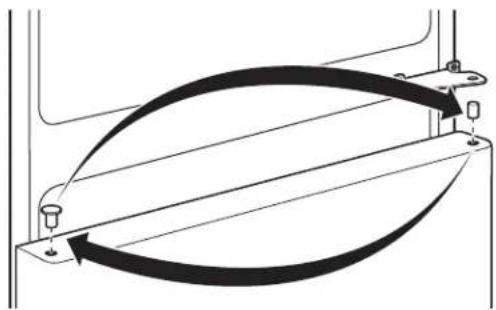

D Remove the button plug from the left side of the door. Remove the door thimble from the right side of the door. Install the door thimble into the hole on the left and the button plug into the hole on the right.

Pure mechanical diagram showing a curved pipe or lever system with directional arrows, no text or symbols present.

E Set the door on a non-scratching surface, with the inside up.

3 TRANSFER CENTER HINGE BRACKET

A Using a 5/16" socket ratchet/driver, remove the bolts securing the center hinge to the cabinet.

Technical line drawing of a mechanical bracket with screws and dashed alignment lines (no text or symbols)

③ TRANSFER CENTER HINGE BRACKET (cont.)

B Transfer the plug button and screw hole cover in the hinge holes on the left side to the right side.

Pure mechanical diagram showing a curved arrow and linkage without any text, numbers, or symbols

C Install the new center hinge bracket from the kit on the left side.

Technical line drawing of a mechanical bracket with two screws attached (no text or symbols)

4 REMOVE BOTTOM HINGE AND LEVELING LEG

A Using a 1/2" socket ratchet/driver, remove the nut and hinge pin from the hinge bracket with leveling leg. Using a 5/16" socket ratchet/driver, remove the screws from the bottom hinge bracket. These will be reinstalled on the other side.

Bottom Hinge Bracket

B Using a 5/16" socket ratchet/driver, remove the screws from the leveling leg bracket on the other side. These will be reinstalled on the opposite side.

Leveling Leg Bracket

REVERSING THE DOOR SWING (cont.)

WARNING

Follow all steps when

reversing the door swing. Failure to follow these instructions, leaving off parts, or overtightening screws, can lead to the door falling off and result in injury and property damage.

5 INSTALL BOTTOM HINGE AND LEVELING LEG

A Using a 1/2" socket ratchet/driver, install the hinge pin and nut in the opposite hole on the hinge bracket with leveling leg.

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

B Using a 5/16" socket ratchet/driver, install the hinge bracket with leveling leg on the left side of the refrigerator. The pin will be toward the outside of the refrigerator.

Technical line drawing of a mechanical clamp or bracket assembly with screws and a screw base (no text or symbols)

C Using a 5/16" socket ratchet/driver, install the leveling leg bracket on the right side of the refrigerator.

Technical line drawing of a mechanical bracket with two screws attached (no text or symbols)

6 TRANSFER REFRIGERATOR AND FREEZER DOOR STOPS

A Remove the door stop on the right side of the bottom of the door by removing the two screws and pulling the door stop free from the door.
B Transfer the door bottom thimble to the opposite door stop hole.
C Install the door stop on the left side, making sure to line up the screw holes in the door stop with the holes in the bottom of the door.

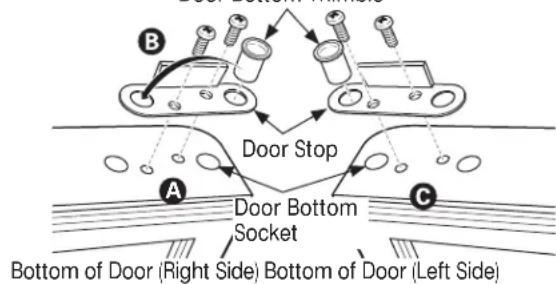

Door Bottom Thimble

B Door Stop A Door Bottom Socket C Bottom of Door (Right Side) Bottom of Door (Left Side)

7 TRANSFER REFRIGERATOR DOOR HANDLE TO RIGHT

Refer to Remove the Fresh Food Door Handle and Attach the Fresh Food Door Handle sections for instructions.

8 REHANG FREEZER DOOR

A Lower the freezer door onto the bottom hinge pin. Ensure that the plastic hinge pin thimble is on the hinge pin or inside the door hinge pin hole located in the bottom of the door.

Mechanical assembly diagram showing a bracket with a cylindrical component inserted, no text or symbols present

B Straighten the door and line it up with the center hinge bracket.
C Install the center hinge pin with a 3/4" socket ratchet/driver. Turn it until it extends through the hinge bracket and into the freezer door.

Technical line drawing of a mechanical assembly with a bolt and mounting bracket (no text or symbols)

9 REHANG REFRIGERATOR DOOR

A Per Step 6, the bottom thimble should be inside the door bottom socket. Lower the refrigerator door onto the center hinge pin.

Center Hinge Pin

B On top of the refrigerator door, insert the top thimble into the door top socket and then insert the top hinge pin. Make sure the door is aligned with the cabinet. Attach the hinge to the top of the cabinet loosely with the bolts.

Top Hinge Door Top Thimble Door Top Socket

C Make sure the gasket on the door is flush against the cabinet and is not folded. Support the door on the handle side and make sure the door is straight and the gap between the doors is even across the front. While holding the door in place, tighten the top hinge bolts. Replace the hinge cover.

10 INSTALL THE LOGO BADGE

Remove the adhesive backing paper and align the pins on the back of the badge with the holes in the door. Apply pressure to the badge to ensure it sticks to the door.

Technical line drawing of a mechanical bracket and a separate view of a flat plate (no text or symbols)

REMOVING THE DOORS

(Double Door Refrigerator Models only)

IMPORTANT NOTES

NOTE: Door swing is not reversible.

• Read the instructions all the way through before starting.
• Handle parts carefully to avoid scratching paint.
• Set screws down by their related parts to avoid using them in the wrong places.
• Provide a non-scratching work surface for the doors.

IMPORTANT: Once you begin, do not move the cabinet.

These instructions are for removing the doors.

Unplug the refrigerator from its electrical outlet.

Empty all door shelves, including the dairy compartment.

TOOLS YOU WILL NEED

Adjustable Wrench

3/8≤ and 10 mm Socket Ratchet/Driver

Masking Tape

Thin-blade Screwdriver

Phillips Screwdriver

REMOVING THE DOORS (Double Door Refrigerator Models only)

1 REMOVE THE REFRIGERATOR DOORS

A Tape the doors shut with masking tape.

Pure architectural line drawing of a corner wall structure without any text, numbers, or symbols

Start with left-hand door first: Remove the screw securing the center hinge cover, lift the hinge cover and place to the side on top of the refrigerator.

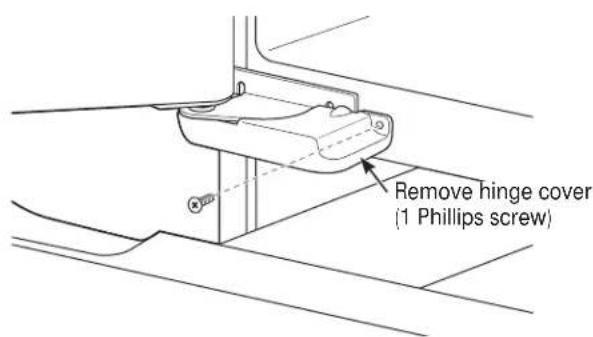

Remove hinge cover (1 Phillips screw)

C Remove the hinge cover on top of the refrigerator door by removing the Phillips head screw and pulling the cover up.
D Using a 5/16" socket ratchet/driver, remove the bolts securing the top hinge to the cabinet. Then lift the hinge straight up to free the hinge pin from the socket in the top of the door.

Hinge Cover Top Hinge

1 REMOVE THE REFRIGERATOR DOORS (cont.)
E Remove the tape and tilt the door away from the cabinet. Lift the door off the center hinge pin. Ensure that the plastic hinge pin thimble remains on the hinge pin or inside door hinge pin hole located in the bottom of the door.

Technical line drawing of a mechanical bracket with an upward arrow indicating motion (no text or symbols)

F Set the door on a non-scratching surface with the inside up.
2 REMOVE CENTER HINGE

Using a 5/16" socket ratchet/driver, remove the bolts securing the center hinge to the cabinet. Set the hinge and bolts aside.

Technical line drawing of a sewing machine needle and support structure (no text or symbols)

3 REMOVE OPPOSITE DOOR

Follow the same procedure on the opposite door. There are no center hinge covers on the opposite side.

4 REMOVE FREEZER DRAWER

Refer to the Removing the Freezer Drawer section for instructions.

REPLACING THE DOORS (Double Door Refrigerator Models only)

INSTALL CENTER HINGE

Install the center hinge on each side.

Technical line drawing of a mechanical clamp or bracket assembly with two screws (no text or symbols)

② REHANG REFRIGERATOR DOORS

A Lower the refrigerator door onto the center hinge pin. Ensure that the plastic hinge pin thimble is on the center hinge pin or inside door hinge pin hole located in the bottom of the door.

Hinge Pin

B Securely tape the door shut with masking tape or have a second person support the door.
Insert the top hinge pin into the hinge hole on top of the refrigerator door. Make sure the door is aligned with the cabinet and opposite door. Attach the hinge to the top of the cabinet loosely with the bolts.
D Make sure the gasket on the door is flush against the cabinet and is not folded. Make sure the door is straight and the gap between the doors is even across the front. While holding the aligned door in place, tighten the top hinge bolts. Replace the hinge cover and screw.

Hinge Cover Top Hinge Bolts

(appearance may vary)

③ REPLACE OPPOSITE DOOR

Follow the same procedure on the opposite door. There is no water line or hinge cover.

4 ALIGN DOUBLE DOORS

If the top of the doors are uneven, first try to raise the lowest door by turning the leveling leg on the same side as the door until the doors are even. If the unit rocks, re-adjust the leveling legs to the extent that the unit is stable.

Diagram of a mechanical assembly with rotating components and directional arrows (no text or symbols)

If the doors remain uneven, turn the adjustable pin to raise, or lower, the left door to match the right door. Use a 1/4" Allen wrench to turn the pin.

Adjustable pin

5 REPLACE FREEZER DRAWER

Refer to the Replacing the Freezer Drawer section for instructions.

INSTALLING THE WATER LINE (ICEMAKER MODELS)

BEFORE YOU BEGIN

Recommended copper water supply kits are WX8X2, WX8X3 or WX8X4, depending on the amount of tubing you need. Approved plastic water supply lines are SmartConnect™ Refrigerator Tubing (WX08X10006, WX08X10015 and WX08X10025).

When connecting your refrigerator to a GE Appliances Reverse Osmosis Water System, the only approved installation is with a GE Appliances RVKit. For other reverse osmosis water systems, follow the manufacturer's recommendations.

If the water supply to the refrigerator is from a Reverse Osmosis Water Filtration System AND the refrigerator also has a water filter, use the refrigerator's filter bypass plug. Using the refrigerator's water filtration cartridge in conjunction with the RO filter can result in hollow ice cubes.

This water line installation is not warranted by the refrigerator or icemaker manufacturer. Follow these instructions carefully to minimize the risk of expensive water damage.

Water hammer (water banging in the pipes) in house plumbing can cause damage to refrigerator parts and lead to water leakage or flooding. Call a qualified plumber to correct water hammer before installing the water supply line to the refrigerator.

To prevent burns and product damage, do not hook up the water line to the hot water line.

If you use your refrigerator before connecting the water line, make sure the icemaker power switch is in the O (off) position.

Do not install the icemaker tubing in areas where temperatures fall below freezing.

When using any electrical device (such as a power drill) during installation, be sure the device is double insulated or grounded in a manner to prevent the hazard of electric shock, or is battery powered.

All installations must be in accordance with local plumbing code requirements.

WHAT YOU WILL NEED

- Copper or SmartConnect" Refrigerator Tubing kit, 1/4" outer diameter to connect the refrigerator to the water supply. If using copper, be sure both ends of the tubing are cut square.

To determine how much tubing you need: measure the distance from the water valve on the back of the refrigerator to the water supply pipe.

Be sure there is sufficient extra tubing to allow the refrigerator to move out from the wall after installation.

SmartConnect™ Refrigerator Tubing Kits are available in the following lengths:

8' (2.4 m) - WX08X10006

15' (4.6 m) - WX08X10015

25' (7.6 m) - WX08X10025

WHAT YOU WILL NEED (CONT.)

NOTE: The only GE Appliances approved plastic tubing is that supplied in SmartConnect™ Refrigerator Tubing kits. Do not use any other plastic water supply line because the line is under pressure at all times. Certain types of plastic will crack or rupture with age and cause water damage to your home.

• A GE Appliances water supply kit (containing tubing, shutoff valve and fittings listed below) is available at extra cost from your dealer or from Parts and Accessories, 800.626.2002 (in Canada 1.888.261.3055).
• A cold water supply. The water pressure must be between 20 and 120 p.s.i. (1.4–8.1 bar).

• Power drill.
• 1/2" or adjustable wrench.
  • Straight and Phillips blade screwdriver.

- Two 1/4 ≤ outer diameter compression nuts and 2 ferrules (sleeves)—to connect the copper tubing to the shutoff valve and the refrigerator water valve.

OR

- If you are using a SmartConnect™ Refrigerator Tubing kit, the necessary fittings are preassembled to the tubing.

- If your existing copper water line has a flared fitting at the end, you will need an adapter (available at plumbing supply stores) to connect the water line to the refrigerator OR you can cut off the flared fitting with a tube cutter and then use a compression fitting. Do not cut formed end from SmartConnect™ Refrigerator tubing.

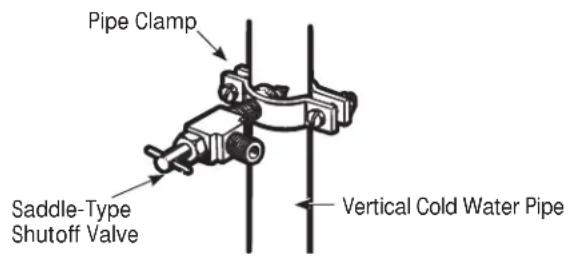

- Shutoff valve to connect to the cold water line. The shutoff valve should have a water inlet with a minimum inside diameter of 5/32" at the point of connection to the COLD WATER LINE. Saddle-type shutoff valves are included in many water supply kits. Before purchasing, make sure a saddle-type valve complies with your local plumbing codes.

Install the shutoff valve on the nearest frequently used drinking water line.

① SHUT OFF THE MAIN WATER SUPPLY

Turn on the nearest faucet long enough to clear the line of water.

② CHOOSE THE VALVE LOCATION

Choose a location for the valve that is easily accessible. It is best to connect into the side of a vertical water pipe. When it is necessary to connect into a horizontal water pipe, make the connection to the top or side, rather than at the bottom, to avoid drawing off any sediment from the water pipe.

③ DRILL THE HOLE FOR THE VALVE

Drill a 1/4" hole in the water pipe (even if using a self-piercing valve), using a sharp bit. Remove any burrs resulting from drilling the hole in the pipe.

Take care not to allow water to drain into the drill.

Failure to drill a 1/4" hole may result in reduced ice production or smaller cubes.

Simple line drawing of a tool or probe inserted into a cylindrical component (no text or symbols)

INSTALLING THE WATER LINE (CONT.)

4 FASTEN THE SHUTOFF VALVE

Fasten the shutoff valve to the cold water pipe with the pipe clamp.

Pipe Clamp Saddle-Type Shutoff Valve Vertical Cold Water Pipe

NOTE: Commonwealth of Massachusetts Plumbing Codes 248CMR shall be adhered to. Saddle valves are illegal and use is not permitted in Massachusetts. Consult with your licensed plumber.

5 TIGHTEN THE PIPE CLAMP

Tighten the clamp screws until the sealing washer begins to swell.

NOTE: Do not overtighten or you may crush the tubing.

Pipe Clamp Clamp Screw Washer Inlet End

6 ROUTE THE TUBING

Route the tubing between the cold water line and the refrigerator.

Route the tubing through a hole drilled in the wall or floor (behind the refrigerator or adjacent base cabinet) as close to the wall as possible.

7 CONNECT THE TUBING TO THE VALVE

Place the compression nut and ferrule (sleeve) for copper tubing onto the end of the tubing and connect it to the shutoff valve.

Make sure the tubing is fully inserted into the valve. Tighten the compression nut securely.

For plastic tubing from a SmartConnect™ Refrigerator Tubing kit, insert the molded end of the tubing into the shutoff valve and tighten compression nut until it is hand tight, then tighten one additional turn with a wrench. Overtightening may cause leaks.

Saddle-Type Shutoff Valve Packing Nut Outlet Valve Compression Nut SmartConnect™ Tubing Ferrule (sleeve)

NOTE: Commonwealth of Massachusetts Plumbing Codes 248CMR shall be adhered to. Saddle valves are illegal and use is not permitted in Massachusetts. Consult with your licensed plumber.

8 FLUSH OUT THE TUBING

Turn the main water supply on and flush out the tubing until the water is clear.

Shut the water off at the water valve after about one quart (1 liter) of water has been flushed through the tubing.

Simple line drawing of a flower with a curved arrow, no text or symbols present

To complete the installation of the refrigerator, go back to Step 1 in Installing the Refrigerator.

Newer refrigerators sound different from older refrigerators.

Modern refrigerators have more features and use newer technology.

Do you hear what I hear? These sounds are normal.

HUMMM... WHOOSH...

The new high efficiency compressor may run faster and longer than your old refrigerator and you may hear a high-pitched hum or pulsating sound while it is operating.
- You may hear a whooshing sound when the doors close. This is due to pressure equalizing within the refrigerator.

WHIR!

You may hear the fans spinning at high speeds. This happens when the refrigerator is first plugged in, when the doors are opened frequently or when a large amount of food is added to the refrigerator or freezer compartments. The fans are helping to maintain the correct temperatures.
The fans change speeds in order to provide optimal cooling and energy savings.

CLICKS, POPS, CRACKS and SNAPS

• You may hear cracking or popping sounds when the refrigerator is first plugged in. This happens as the refrigerator cools to the correct temperature.
  The freezer control will click when starting or stopping the compressor.
  ■ Defrost timer snapping in and out of the defrost cycle.
  ■ Expansion and contraction of cooling coils during and after defrost can cause a cracking or popping sound.
  On models with an icemaker, after an icemaking cycle, you may hear the ice cubes dropping into the ice bucket.
  On models with a dispenser, during water dispense, you may hear the water lines move at initial dispense and after dispenser button is released.

WATER SOUNDS

The flow of refrigerant through the freezer cooling coils may make a gurgling noise like boiling water.
Water dropping on the defrost heater can cause a sizzling, popping or buzzing sound during the defrost cycle.
A water dripping noise may occur during the defrost cycle as ice melts from the evaporator and flows into the drain pan.
- Closing the door may cause a gurgling sound due to pressure equalization.

For additional information on normal icemaker operating sounds, see the About the automatic icemaker section.

Before you call for service...

Troubleshooting Tips

Save time and money! Review the charts on

the following pages first and you may not need to call

for service.

Problem Possible Causes What To Do
Refrigerator does not operatebreaker is tripped.	Refrigerator in defrost cycle.	·Wait about 30 minutes for defrost cycle to end.
	Control in Off position.	·Move the control to a temperature setting.
	Refrigerator is unplugged.	·Push the plug completely into the outlet.
	The fuse is blown/circuit	·Replace fuse or reset the breaker.
Vibration or rattling (slight vibration is normal)	Leveling legs need adjusting.	·See Level the Refrigerator.
Motor operates for long periods or cycles on and off frequently. (Modern refrigerators with more storage space and a larger freezer require more operating time. They start and stop often to maintain even temperatures.)	Normal when refrigerator is first plugged in.	·Wait 24 hours for the refrigerator to completely cool down.
	Often occurs when large amounts of food are placed in refrigerator.	·This is normal.
	Door left open.	·Check to see if package is holding door open.
	Hot weather or frequent door openings.	·This is normal.
	Temperature control set at the coldest setting.	·See About the controls.
Refrigerator or freezer compartment too warm	Temperature controls not set cold enough.	·See About the controls.
	Warm weather or frequent door openings.	·Set the temperature control one step colder. See About the controls.
	Door left open.	·Check to see if package is holding door open.
Frost or ice crystals on frozen food (frost within package is normal)	Door left open.	·Check to see if package is holding door open.
	Door openings too frequent or too long.	·This is normal.
Frequent “buzzing” sound water supply to the refrigerator has not been connected.	Icemaker power switch is in the I(on) position, but the	·Set the power switch to the 0(off) position. Keeping it in the I(on) position will damage the water valve.
Small or hollow cubes	Water filter clogged.	·Replace filter cartridge with new cartridge or with plug.
Automatic icemaker(on some models)does not workpressed in or when the freezer door is closed.	Icemaker power switch is not on.	• Set the power switch to the I(on) position. The icemaker power light will turn green when the freezer light switch is
	Water supply turned off or	• See Installing the water line.
not connected.	Freezer compartment	• Wait 24 hours for the refrigerator to completely cool down.
too warm.	Piled up cubes in the storage bin	• Level cubes by hand.
cause the icemaker to shut off.	Ice cubes stuck in icemaker.(Green power light on	• Turn off the icemaker, remove cubes and turn the icemaker back on.
icemaker blinking.)	Icemaker light is not lit.	• This is normal when the freezer door is open. The icemaker
power light will turn green when the freezer light switch is pressed in or when the freezer door is closed.	Icemaker light is not lit.	• This is normal when the freezer door is open. The icemaker
Ice cubes have odor/taste to ice cubes.	Food transmitting odor/taste	• Wrap foods well.
needs cleaning.	Interior of refrigerator	• See Care and cleaning.• Keep an open box of baking soda in the refrigerator; replace every three months.
Slow ice cube freezing cold enough.	Door left open.	• Check to see if package is holding door open.
	Freezer control not set	• See About the controls.
Refrigerator has odor	Foods transmitting odor to refrigerator.	• Foods with strong odors should be tightly wrapped.• Keep an open box of baking soda in the refrigerator; replace every three months.
	Interior needs cleaning.	• See Care and cleaning.
Moisture forms on outside of refrigerator	Not unusual during periods of high humidity.	• Wipe surface dry and reset the refrigerator control one setting colder.
Moisture collects inside (in humid weather, air carries moisture into refrigerator when doors are opened)	Too frequent or too long door openings.	• This is normal.
Refrigerator or freezer compartment light does not work	No power at outlet.	• Replace fuse or reset the breaker.
	Light bulb burned out or loose.	• See Replacing the light bulbs.
Door/drawer does not close by itself	Leveling legs need adjusting.	• See Installing the Refrigerator.
Freezer door/drawer pops open when refrigerator door is closed	This is normal if, after popping open, the freezer door/drawer closed on its own.	• This indicates that there is a good seal on the freezer door/drawer. If the freezer door/drawer does not automatically close after popping open, then see the Problem: Door/drawer does not close by itself, above.

Before you call for service...

Troubleshooting Tips

Problem Possible Causes What To Do
Hot air from bottom Normal air flow cooling of refrigerator motor. In the refrigeration process, it is normal that heat be expelled in the area under the refrigerator. Some floor coverings will discolor at these normal and safe temperatures.
Food freezing in the refrigerator at the back of the refrigerator.	Food too close to the air vent	·Move the food away from the air vent.
	Refrigerator control is set setting one increment at a time.	·Move the refrigerator control to a warmer
too cold. temperature setting one increment at a time.
Orange glow in the freezer	Defrost heater is on.	·This is normal.
No ice cube production (on some models)	Supply line or shutoff valve is clogged.	·Call a plumber.
	Water filter clogged.	·Replace filter cartridge or remove filter and install plug.
	Filter cartridge not properly installed.	·Remove and reinstall filter cartridge, being certain that it locks into place. The blade on the end of the cartridge should be positioned vertically.
Handle is loose / handle has a gap	Handle needs adjusting.	·See Attach the Fresh Food Door Handle and Attach the Freezer Door Handle sections for detailed instructions.
Refrigerator beeping	This is the door alarm.	·Close door.
Control setting is not lit compartment light up the temperature control settings.	On some models, the light bulbs at the top of the refrigerator	·If the control settings do not light up, check to see if the light bulbs are burned out, and replace if necessary.
Refrigerator doors are not even (on Double Door models only)	Doors need realigning.	·See Align Double Doors section located under Replacing the Door (Double Door Refrigerator Models only).
Baskets stick or jam when opening or closing	Baskets are too full.	·To open: remove some of the products from the basket when opened as far as possible. Readjust the products left in the basket and try to open the basket again. ·To close: readjust products in the basket or remove any product that is above the rim of the basket and close the basket.

Performance Data Sheet SmartWater Filtration System GSWF Cartridge

This system has been tested according to NSF/ANSI 42/53 for reduction of the substances listed below. The concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the permissible limit for water leaving the system, as specified in NSF/ANSI 42/53.*

(100% safety factors built in for unmetered usage)

Standard No. 42: Aesthetic Effects
Parameter	USEPA MCL	Influent Average	Influent Challenge Concentration	Effluent		% Reduction		Min. Required Reduction
				Average	Maximum	Average	Minimum
Chlorine	—	1.845 mg/L	2.0 mg/L ± 10%	< 0.05 mg/L	0.05 mg/L	>97.29%	96.43%	≥ 50%
T & O	—	—	—	—	—	—	—	—
Particulate**	—	143,333 #/mL	at least 10,000 particles/mL	29.83 #/mL	140 #/mL	99.98%	99.91%	≥ 85%

Standard No. 53: Health Effects
Parameter	USEPA MCL	Influent Average	Influent Challenge Concentration	Effluent		% Reduction		Min. Required Reduction
				Average	Maximum	Average	Minimum
Turbidity	1 NTU***	10.3 NTU***	1±1 NTU***	0.106 NTU	0.14 NTU	98.97%	98.61%	0.5 NTU
Cysts	99.95% Reduction	200,000 #/L	Minimum 50,000 L	0	0	>99.99%	>99.99%	>99.95%
Lead at pH 6.5	0.015 mg/L	0.15 mg/L	0.15 mg/L+10%	< 0.001 mg/L	< 0.001 mg/L	>99.33%	>99.33%	0.010 mg/L
Lead at pH 8.5	0.015 mg/L	0.14 mg/L	0.15 mg/L+10%	0.001 mg/L	0.003 mg/L	>99.29%	97.86%	0.010 mg/L
Lindane	0.0002 mg/L	0.0216 mg/L	0.002 mg/L+10%	< 0.00002 mg/L	< 0.00002 mg/L	99.07%	98.75%	0.0002 mg/L
Atrazine	0.003 mg/L	0.008 mg/L	0.009 mg/L+10%	< 0.002 mg/L	< 0.002 mg/L	>76.12%	>66.67%	0.003 mg/L

* Tested using a flow rate of 0.5 gpm; pressure of 60 psig; pH of 7.5 ± 0.5; temp. of 68° ± 5°F (20° ± 3°C)
** Measurement in Particles/ml. Particles used were 0.5-1 microns
*** NTU=Nephelometric Turbidity units

Operating Specifications

■ Capacity: certified for up to 750 gallons (2,838 l); up to six months
■ Pressure requirement: 40–120 psi (2.8–8.2 bar)
■ Temperature: 33–100°F (0.6–38°C)
■ Flow rate: 0.5 gpm (1.9 lpm)

General Installation/Operation/Maintenance Requirements

■ Flush new cartridge at full flow for 3 minutes to purge out trapped air.
■ Replace cartridge when flow becomes too slow.

Special Notices

■ Installation instructions, parts and service availability, and standard warranty are included with the product when shipped.
This drinking water system must be maintained according to manufacturer's instructions, including replacement of filter cartridges.
■ Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system. Systems certified for cyst reduction may be used on disinfected water that may contain filterable cysts.
■ The contaminants or other substances removed or reduced by this water treatment system are not necessarily in your water.
■ Check for compliance with the state and local laws and regulations.
Note that while the testing was performed under standard laboratory conditions, actual performance may vary. Systems must be installed and operated in accordance with manufacturer's recommended procedures and guidelines.

System tested and certified by NSF International against Standard 42 for the reduction of chlorine, taste and odor, particulate Class I and Standard 53 for the reduction of cyst, lead, Lindane, Atrazine and turbidity.

Manufactured for: General Electric Company, Louisville, KY 40225

Refrigerator Warranty.

All warranty service is provided by our Factory Service Centers or an authorized Customer Care® technician. To schedule service on-line visit us at GEAppliances.com (Canada GEAppliances.ca), or call 800. GE.CARES (800.432.2737) (Canada 1.800.561.3344). Please have serial number and model number available when calling for service.

Staple your receipt here. Proof of the original purchase date is needed to obtain service under the warranty.

For The Period Of: GE Appliances Will Replace:

GE, GE PROFILE and GE CAFÉ MODELS:

One YearFrom the date of the original purchase service	Any part of the refrigerator which fails due to a defect in materials or workmanship.During this limited one-year warranty, GE Appliances will also provide, free of charge, all labor and related to replace the defective part.
Thirty Days(Water filter, if included)From the original purchase date of the refrigerator	Any part of the water filter cartridge which fails due to a defect in materials or workmanship.During this limited thirty-day warranty, GE Appliances will also provide, free of charge, a replacement liter cartridge.

GE PROFILE and GE CAFÉ MODELS ONLY:

Five Years

From the date of the original purchase

Any part of the sealed refrigerating system (the compressor, condenser, evaporator and all connecting tubing) which fails due to a defect in materials or workmanship. During this limited five-year sealed refrigerating system warranty, GE will also provide, free of charge, all labor and related effective part in the sealed refrigerating system.

What GE Appliances Will Not Cover:

■ Service trips to your home to teach you how to use the product.
■ Improper installation, delivery or maintenance.
- Failure of the product if it is abused, misused, or used for other than the intended purpose or used commercially.
■ Loss of food due to spoilage.
■ Replacement of house fuses or resetting of circuit breakers.
- Damage to finish, such as surface rust, tarnish, or small blemishes not reported within 48 hours of delivery.
■ Damage caused by a non-GE Appliances brand water filter.

■ Replacement of the water filter cartridge, if included, due to water pressure that is outside the specified operating range or due to excessive sediment in the water supply.
- Replacement of the light bulbs, if included, or water filter cartridge, if included, other than as noted above.
■ Damage to the product caused by accident, fire, floods or acts of God.
■ Incidental or consequential damage caused by possible defects with this appliance.
■ Product not accessible to provide required service.

EXCLUSION OF IMPLIED WARRANTIES—Your sole and exclusive remedy is product repair as provided in this Limited Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law.

This warranty is extended to the original purchaser and any succeeding owner for products purchased for home use within the USA. If the product is located in an area where service by a GE Appliances Authorized Servicer is not available, you may be responsible for a trip charge or you may be required to bring the product to an Authorized GE Appliances Service location for service. In Alaska, the warranty excludes the cost of shipping or service calls to your home.

Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. To know what your legal rights are, consult your local or state consumer affairs office or your state's Attorney General.

Warrantor: GE Appliances, a Haier company

In Canada, this warranty is extended to the original purchaser and any succeeding owner for products purchased in Canada for home use within Canada. In home warranty service will be provided in areas where it is available and deemed reasonable by MC Commercial to provide.

WARRANTOR IS NOT RESPONSIBLE FOR CONSEQUENTIAL DAMAGES.

Warrantor: MC Commercial, Burlington, ON, L7R 5B6

Notes.

Notes.

GE Appliances Website

In the U.S.: GEAppliances.com

Have a question or need assistance with your appliance? Try the GE Appliances Website 24 hours a day, any day of the year! For greater convenience and faster service, you can now download Owner's Manuals, order parts or even schedule service on-line. In Canada: www.geappliances.ca

Schedule Service

In the U.S.: GEAppliances.com

Expert GE Appliances repair service is only one step away from your door. Get on-line and schedule your service at your convenience any day of the year! Or call 800.GE.CARES (800.432.2737) during normal business hours.

In Canada, call 1.800.561.3344

Real Life Design Studio

In the U.S.: GEAppliances.com

GE Appliances supports the Universal Design concept—products, services and environments that can be used by people of all ages, sizes and capabilities. We recognize the need to design for a wide range of physical and mental abilities and impairments. For details of GE Appliances' Universal Design applications, including kitchen design ideas for people with disabilities, check out our Website today. For the hearing impaired, please call 800.TDD.GEAC (800.833.4322).

In Canada, contact: Manager, Consumer Relations, Mabe Canada Inc.

Suite 310, 1 Factory Lane

Moncton, N.B. E1C 9M3

Extended Warranties

In the U.S.: GEAppliances.com

Purchase a GE Appliances extended warranty and learn about special discounts that are available while your warranty is still

in effect. You can purchase it on-line anytime, or call 800.626.2224 during normal business hours. GE Appliances Consumer Home Services will still be there after your warranty expires. In Canada, call 1.888.261.2133

Parts and Accessories

In the U.S.: GEApplianceParts.com

Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes (VISA, MasterCard and Discover cards are accepted). Order on-line today, 24 hours every day or by phone at 800.626.2002 during normal business hours.

Instructions contained in this manual cover procedures to be performed by any user. Other servicing generally should be referred to qualified service personnel. Caution must be exercised, since improper servicing may cause unsafe operation.

Customers in Canada should consult the yellow pages for the nearest Mabe service center, or call 1.800.661.1616.

Contact Us In the U.S.: GEAppliances.com

If you are not satisfied with the service you receive from GE Appliances, contact us on our Website with all the details including your phone number, or write to: General Manager, Customer Relations

GE Appliances, Appliance Park

Louisville, KY 40225

In Canada: www.geappliances.ca, or write to: Director, Consumer Relations, Mabe Canada Inc.

Suite 310, 1 Factory Lane

Moncton, N.B. E1C 9M3

Register Your Appliance

In the U.S.: GEAppliances.com

Register your new appliance on-line—at your convenience! Timely product registration will allow for enhanced communication and prompt service under the terms of your warranty, should the need arise. You may also mail in the pre-printed registration card included in the packing material. In Canada: www.geappliances.ca

5 Adjust Freezer Temperature 0 is Off 9 is Coldest 5 Adjust Refrigerator Temperature

Diagram showing two hands pressing down on a rectangular object with arrows indicating motion (no text or symbols)

Technical diagram showing two labeled components (1 and 2) with arrows indicating direction or flow, likely illustrating a mechanical or structural assembly.

Remise en place :

Diagram of a door handle with arrows indicating direction (no text or symbols)

Simple line drawing of a cabinet or enclosure with a lid and base, no text or symbols present.

Simple line drawing of a vehicle front view with two rear seats and two side compartments (no text or symbols)

Line drawing of a rectangular box with a lid, showing internal structure and mounting brackets (no text or symbols)

Diagram of a refrigerator interior with labeled compartments and numbered parts

Diagram of a refrigerator interior showing internal compartments and door handle (no text or labels)

Diagram of a refrigerator interior showing internal components and airflow direction (no text or symbols)

Diagram of a two-tiered storage unit with mesh structure and labeled components (no text or symbols)

Diagram of a mesh basket being opened with a handle, showing internal structure and directional arrows (no text or symbols)

Diagram of a kitchen appliance with a grater inside and a black arrow indicating a component (no text or symbols)

Line drawing of a mechanical component or bracket with no visible text or symbols

Line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Remise en place

Line drawing of a hand holding a computer mouse (no text or symbols)

Illustration of a hand holding a cleaning board with a black arrow indicating force (no text or symbols)

Diagram of a screwdriver with a pointed tip, showing the tool's tip and head (no text or symbols)

Tournevis cruciforme

Diagram showing a plug-in socket connected to a wall-mounted electrical socket with two outlets, illustrating the process of installation or installation.

4 METTEZ LE RÉFRIGÉRATEUR EN PLACE

Mechanical assembly diagram showing a rotating lever mechanism with no text or symbols

6 ENLEVEZ LA POIGNÉE DE PORTE DU COMPARTIMENT POUR ALIMENTS FRAIS

Pure technical diagram of a mechanical component with no text, numbers, or symbols

INSTALLATION DU RÉFRIGÉRATEUR (SUITE)

8 FIXEZ LA POIGNÉE DE LA PORTE DU COMPARTIMENT ALIMENTS FRAIS

Simple line drawing of a door handle with a circular inset showing a letter 'J' (no text or symbols)

Technical line drawing of a mechanical assembly with two circular insets showing internal components (no text or symbols)

Mechanical assembly diagram showing a rotating component with circular arrows indicating rotation (no text or symbols)

ATTENTION

Adjust Freezer Temperature
Adjust Refrigerator Temperature

Diagram of a refrigerator interior with labeled parts A, B, and C showing internal structure and directional arrows

② ENLEVEZ L'AVANT DU TIROIR

Technical line drawing of a refrigerator interior with an inset view showing internal components (no text or symbols)

2 ENLEVEZ L'AVANT DU TIROIR (suite)

Technical line drawing of a mechanical assembly with two circular insets showing internal components (no text or symbols)

Technical line drawing of a refrigerator or shelf unit with directional arrows indicating movement (no text or symbols)

Technical line drawing of a refrigerator interior showing internal compartments and structural details (no text or symbols)

CHANGEMENT DU SENS D'OUVERTURE DES PORTES

Pure technical line drawing of a structural bracket or frame (no text or symbols)

Technical line drawing of a mechanical assembly with an upward arrow indicating motion (no text or symbols present)

Technical line drawing of a mechanical assembly with a bolt and mounting bracket (no text or symbols)

Pure mechanical diagram showing curved arrows and a plate, without any text, numbers, or symbols.

Technical line drawing of a mechanical bracket with mounting holes and three screws attached (no text or symbols)

3 TRANSFERT BRACKET DE LA CHARNIÈRE DU CENTRE (suite)

Pure mechanical diagram showing curved trajectory and linkage without any text or symbols

Technical line drawing of a mechanical bracket with screws and mounting holes (no text or symbols)

4 COMMENT RETIRER LA CHARNIÈRE ET LE TRÉPIED

Technical line drawing of a mechanical clamp or bracket assembly with a separate inset showing dashed lines indicating alignment or projection (no text or symbols present)

ENLÈVEMENT DES PORTES

Diagram of a screwdriver with a magnified view of the tip (no text or symbols)

Tournevis cruciforme

Pure technical line drawing of a structural bracket or frame (no text or symbols)

Technical line drawing of a mechanical bracket with an upward arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

3 ENLÈVEMENT DE LA PORTE OPPOSÉE

Technical line drawing of a mechanical bracket with mounting holes and dashed alignment lines (no text or symbols)

② RE-SUSPENSION DES PORTES DU COMPARTIMENT RÉFRIGÉRATION

Mechanical assembly diagram showing a bolt and nut with a rotating arrow indicating rotation (no text or symbols)

Simple line drawing of a tool interacting with a curved object (no text or symbols)

INSTALLATION DE LA CONDUITE D'EAU (SUITE)

4 FIXEZ LE ROBINET D'ARRÊT

Garant : MC Commercial, Burlington, ON, L7R 5B6

Adjust Freezer Colder 0 is Off 9 is Coldest Warmer Adjust Refrigerator Colder 0 is Off 9 is Coldest Warmer

5 Adjust Freezer Temperature 0 is Off 9 is Coldest 5 Adjust Refrigerator Temperature

Diagram showing two labeled arrows pointing to a rectangular object, with arrows indicating direction or force.

Technical diagram showing two labeled components (① and ②) with directional arrows indicating flow or movement.

Para reemplazarlo:

Diagram of a door handle with two arrows indicating direction (no text or symbols)

Simple line drawing of a cabinet or enclosure with no text, numbers, or symbols

Pure diagram of a vehicle front view with two rectangular panels and a central display unit (no text or symbols)

Line drawing of a rectangular box with a lid, placed on a vertical surface (no text or symbols)

Diagram of a refrigerator interior with labeled compartments and storage areas

Diagram of a refrigerator interior showing internal compartments and arrows indicating movement (no text or symbols)

Diagram of a refrigerator interior showing internal components and a close-up view of the lid (no text or symbols)

Diagram of a two-tiered storage unit with mesh structure and labeled components (no text or symbols)

Diagram of a wire mesh basket with directional arrows indicating movement (no text or symbols)

Technical line drawing of a door frame with a grating and handle (no text or symbols)

Line drawing of a mechanical component or bracket with no visible text or symbols

Line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

To replace

Line drawing of a hand holding a device with no visible text or symbols

Luces del refrigerador

Illustration of a hand holding a cleaning board with a black arrow indicating force (no text or symbols)

Line drawing of a screwdriver with a magnified inset showing the tip (no text or symbols)

Destornillador Phillips

Diagram showing a plug-in socket connected to a wall-mounted power socket with two I/O terminals, indicating electrical connection or installation.

Mechanical assembly diagram showing a rotating lever mechanism with three circular arrows indicating rotational motion (no text or symbols present)

6 RETIRE LA MANIJA DE LA PUERTA DE ALIMENTOS FRESCOS

Pure technical diagram of a mechanical assembly with two circular components labeled A and J, no text or symbols present.

Technical line drawing of a mechanical assembly with two circular insets showing internal components (no text or symbols)

Mechanical assembly diagram showing a rotating lever mechanism with no text or symbols

PRECAUCIÓN

Adjust Freezer Temperature
Adjust Refrigerator Temperature

12 RETIRE EL EMBALAJE, INICIE LA MÁQUINA DE HIELO

Interruptor

Diagram of a refrigerator interior with labeled parts A, B, and C showing internal structure and directional arrows

2 RETIRE EL FRENTE DE LA GAVETA (cont.)

Technical line drawing of a mechanical assembly with two circular insets showing internal components (no text or symbols)

② RETIRE EL FRENTE DE LA GAVETA

Technical line drawing of a mechanical lifting or assembly with arrows indicating direction (no text or symbols)

Technical line drawing of a refrigerator with an inset showing a mesh structure (no text or symbols)

CÓMO INVERTIR EL VAIVÉN DE LA PUERTA

Technical line drawing of a mechanical assembly with a bolt and mounting bracket (no text or symbols)

Pure mechanical diagram showing a curved pipe or channel with directional arrows, no text or symbols present

Technical line drawing of a mechanical bracket with screws and dashed alignment lines (no text or symbols)

③ TRASLADE EL SOPORTE DE LA BISAGRA CENTRAL (cont.)

Pure mechanical diagram showing a curved arrow and linkage without any text, numbers, or symbols

Technical line drawing of a mechanical bracket with mounting holes and dashed alignment lines (no text or symbols)

4 QUITE LA BISAGRA INFERIOR Y LA PATA NIVELADORA

Technical line drawing of a mechanical clamp or bracket assembly with a screw and nut (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly with screws, no text or symbols present

Technical line drawing of a mechanical clamp or bracket assembly with two screws attached (no text or symbols)

Mechanical clamp assembly diagram showing a bracket with mounting holes and a downward arrow indicating force (no text or symbols)

Technical line drawing of a mechanical assembly with a bolt and mounting bracket (no text or symbols)

9 VUELVA A COLGAR LA PUERTA DEL REFRIGERADOR

Technical line drawing of a mechanical bracket and a separate plate assembly (no text or symbols)

CÓMO RETIRAR LAS PUERTAS

Isometric line drawing of a mechanical component with multiple notches and grooves (no text or symbols)

Technical line drawing of a mechanical bracket with an upward arrow indicating motion (no text or symbols)

Technical line drawing of a sewing machine with base and clasp components (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

2 VUELVA A COLGAR LAS PUERTAS DEL REFRIGERADOR

Mechanical assembly diagram showing a rotating lever mechanism with no text or symbols

Simple line drawing of a mechanical component with a curved handle and threaded end (no text or symbols)

Simple line drawing of a flower with a curved arrow above it, no text or symbols present.

Hecho por General Electric, Appliance Park, Louisville, KY 40225

General Manager, Customer Relations

GE Appliances, Appliance Park

Louisville, KY 40225

Registre su electrodoméstico GEAppliances.com

Have a question or need assistance with your appliance? Try the GE Appliances Website 24 hours a day, any day of the year! For greater convenience and faster service, you can now download Owner's Manuals, order parts or even schedule service on-line. In Canada: www.geappliances.ca

Schedule Service

In the U.S.: GEAppliances.com

Expert GE Appliances repair service is only one step away from your door. Get on-line and schedule your service at your convenience any day of the year! Or call 800.GE.CARES (800.432.2737) during normal business hours.

In Canada, call 1.800.561.3344

Real Life Design Studio

In the U.S.: GEAppliances.com

GE Appliances supports the Universal Design concept—products, services and environments that can be used by people of all ages, sizes and capabilities. We recognize the need to design for a wide range of physical and mental abilities and impairments. For details of GE Appliances' Universal Design applications, including kitchen design ideas for people with disabilities, check out our Website today. For the hearing impaired, please call 800.TDD.GEAC (800.833.4322).

In Canada, contact: Manager, Consumer Relations, Mabe Canada Inc.

Suite 310, 1 Factory Lane

Moncton, N.B. E1C 9M3

Extended Warranties

In the U.S.: GEAppliances.com

Purchase a GE Appliances extended warranty and learn about special discounts that are available while your warranty is still in effect. You can purchase it on-line anytime, or call 800.626.2224 during normal business hours. GE Appliances Consumer Home Services will still be there after your warranty expires. In Canada, call 1.888.261.2133

Parts and Accessories

In the U.S.: GEApplianceParts.com

Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes (VISA, MasterCard and Discover cards are accepted). Order on-line today, 24 hours every day or by phone at 800.626.2002 during normal business hours.

Instructions contained in this manual cover procedures to be performed by any user. Other servicing generally should be referred to qualified service personnel. Caution must be exercised, since improper servicing may cause unsafe operation.

Customers in Canada should consult the yellow pages for the nearest Mabe service center, or call 1.800.661.1616.

Contact Us In the U.S.: GEAppliances.com

If you are not satisfied with the service you receive from GE Appliances, contact us on our Website with all the details including your phone number, or write to: General Manager, Customer Relations

GE Appliances, Appliance Park

Louisville, KY 40225

In Canada: www.geappliances.ca, or write to: Director, Consumer Relations, Mabe Canada Inc.

Suite 310, 1 Factory Lane

Moncton, N.B. E1C 9M3

Register Your Appliance

In the U.S.: GEAppliances.com

Register your new appliance on-line—at your convenience! Timely product registration will allow for enhanced communication and prompt service under the terms of your warranty, should the need arise. You may also mail in the pre-printed registration card included in the packing material. In Canada: www.geappliances.ca
