Product type	Kitchen hood
Brand	CATA
Model	GCX 53 BK
Extraction speeds	4 speeds (including Max speed limited to 5 minutes)
Timer	Runs 5 min at the selected speed, then 5 min at each lower speed until stop
Lighting	Yes, with intensity adjustment
Grease filters	Aluminum filters, dishwasher-safe (vertical position)
Filter cleaning warning	Indicator light on the control panel
External cleaning	Non-corrosive liquid detergent, avoid abrasives and steam cleaning
Filter cleaning frequency	Increase if use >2h/day
Power supply	Mains (disconnect before intervention)
Safety	Disconnect power before any intervention; contact an authorized dealer in case of defect
Troubleshooting	Common problems: vibration, motor stuck, broken bulb, etc. See troubleshooting guide
Repairability	Repair by qualified personnel; use original filters
Use in recirculation mode	Requires charcoal filter (not included)

Frequently Asked Questions - GCX 53 BK CATA

How to clean the grease filters?

Remove the filters and wash them with hot water and a neutral detergent. You can also put them in the dishwasher, in vertical position to avoid deposits. Do not use rinse aid.

What to do if the hood vibrates excessively?

Check that the appliance is correctly installed on its supports. If the problem persists, remove the appliance and check the fixation.

The motor does not work but the light is on, what to do?

The fan blade may be blocked. Turn off the appliance and call qualified personnel. If the motor is damaged, contact customer service.

How to adjust the lighting intensity?

Press and hold the lighting button to adjust the intensity.

What is the indicator light for?

It signals that it is time to clean or replace the filters. Press it to deactivate the alert after cleaning.

How to use the timer?

Activate the timer: the hood runs 5 minutes at the selected speed, then 5 minutes at each lower speed until stop.

What to do in case of poor suction?

Check that the selected speed is sufficient. Clean the grease filters. Ensure the exhaust is not obstructed and the exhaust kit is correctly installed.

Why do cooking odors persist?

If the hood is in recirculation mode, check that the charcoal filter is present and not saturated. Replace it if necessary.

The hood does not turn on at all, what to check?

Check the power supply connection and that the fuses or circuit breaker have not tripped.

How to maintain the appliance?

Clean the exterior with a non-corrosive liquid detergent. Clean the grease filters regularly. Replace charcoal filters if used. Follow the manufacturer's instructions.

USER MANUAL GCX 53 BK CATA

cata

new tech

Line drawing of a 3D architectural structure with a sloped roof and rectangular base (no text or symbols)

ES MANUAL DE INSTRUCCIONES
EN INSTRUCTIONS FOR USE
FR MANUEL D'UTILISATION
PT MANUAL DE INSTRUÇÕES
DE GEBRAUCHSANWEISUNG

Illustration of an open box with warning symbols and a document icon above it (no text or labels)

EN IMPORTANT – Please read carefully the separate safety guide before use.

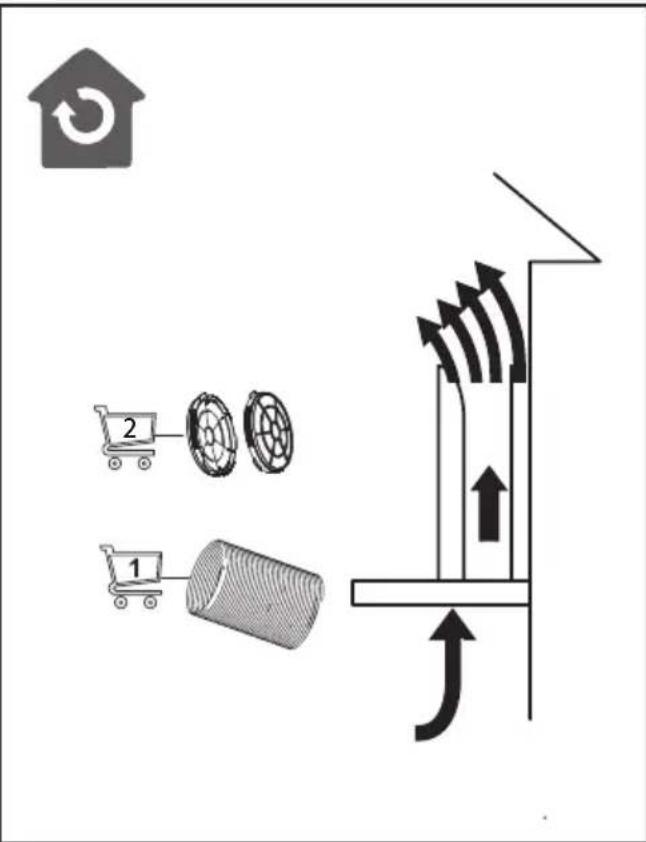

3

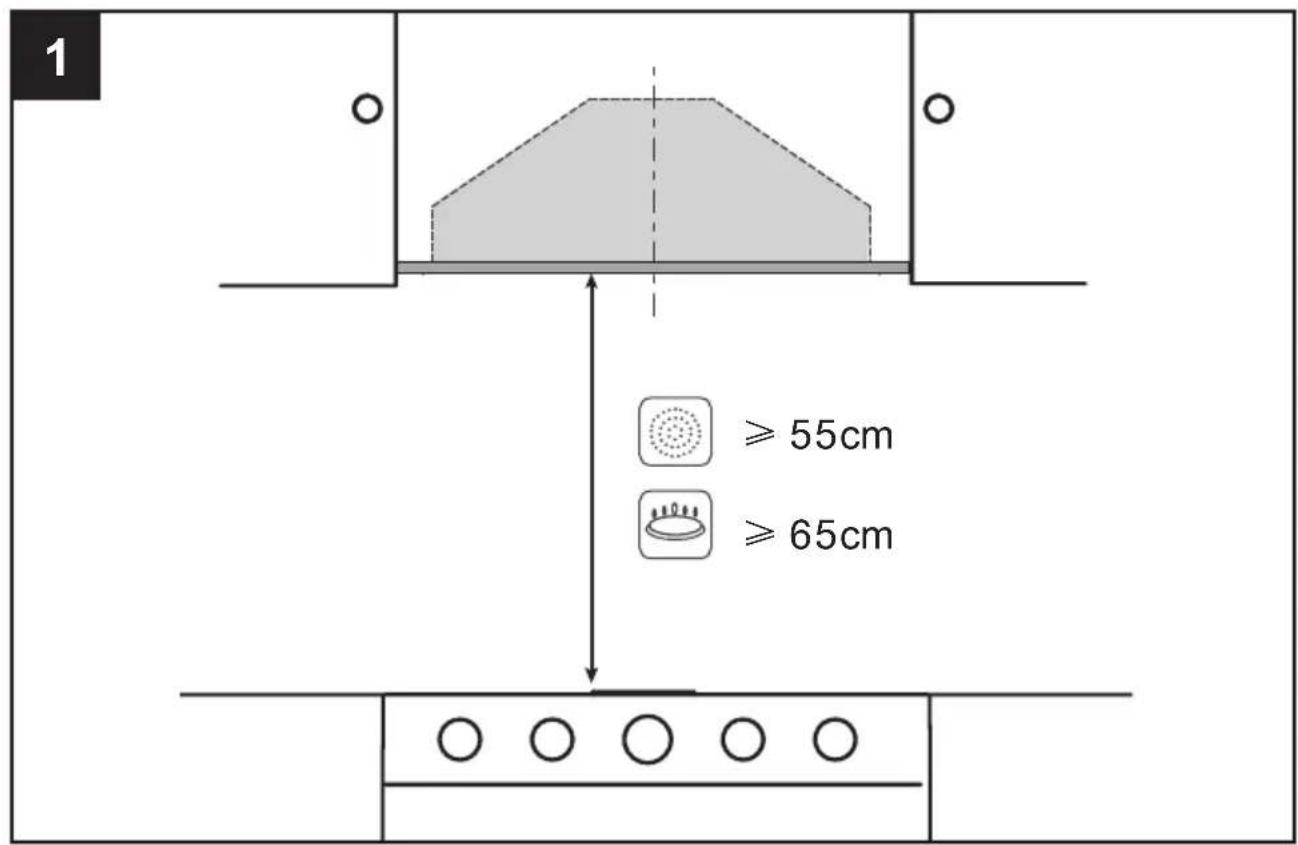

4

Diagram showing a structural change before and after assembly of a multi-story appliance, with no visible text or symbols.

5

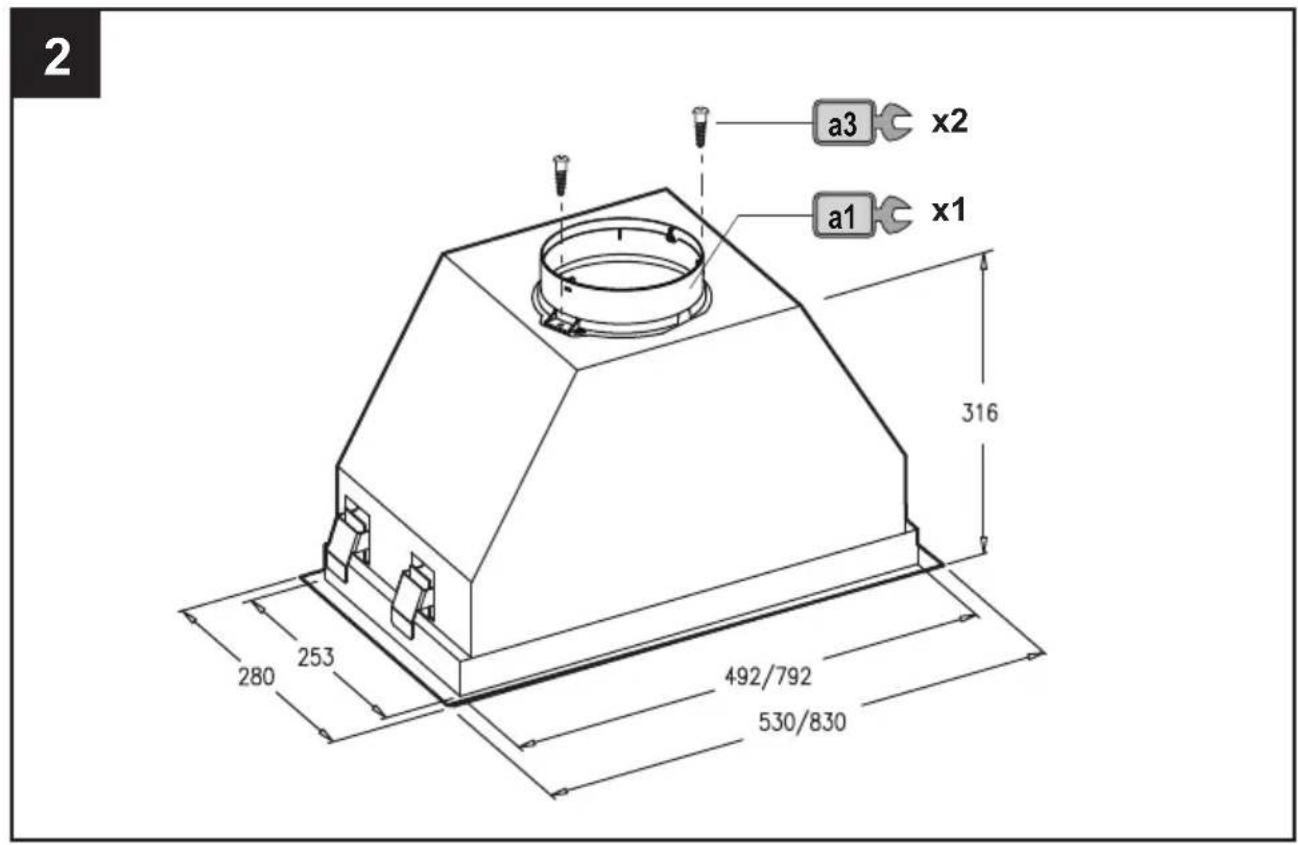

Technical line drawing of a mechanical component with top and side views (no text or symbols)

6

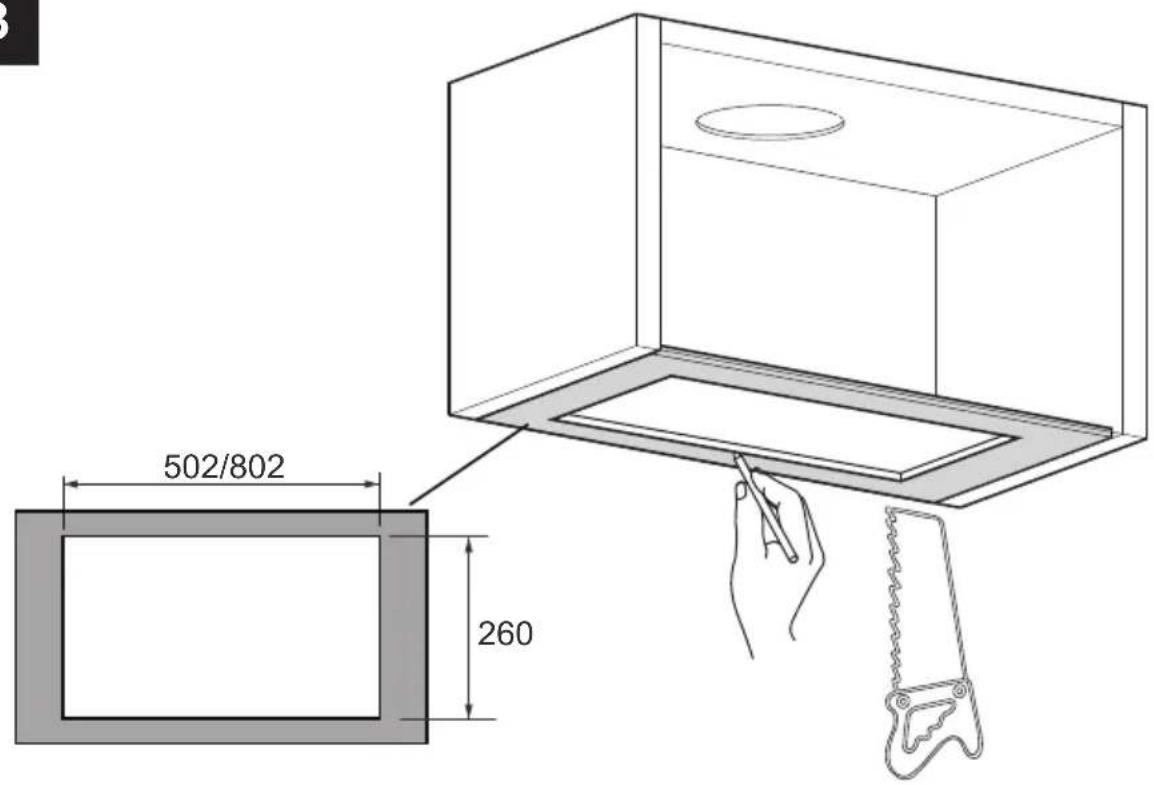

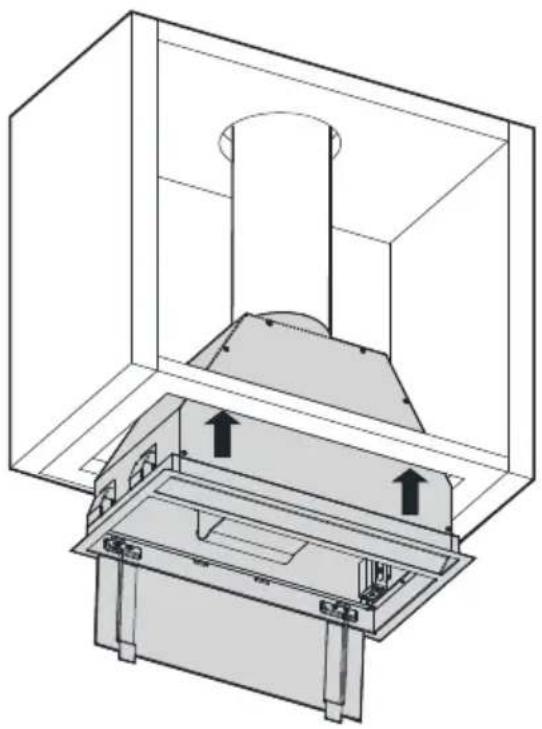

Technical line drawing of a mechanical assembly with internal components and directional arrows (no text or symbols)

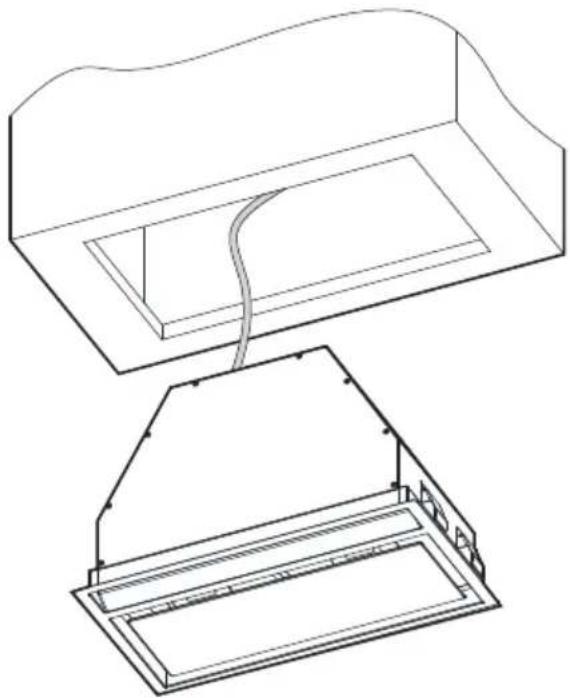

7

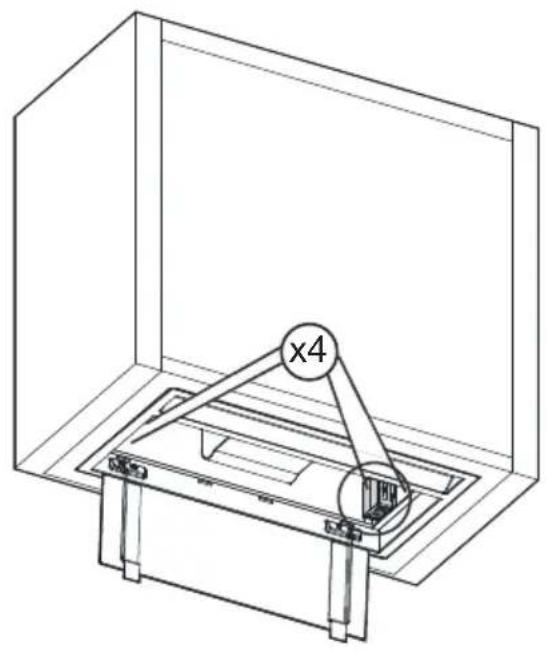

Technical line drawing of a mechanical assembly inside a transparent enclosure, featuring a multi-ring component labeled 'x4' (no text or symbols beyond the label)

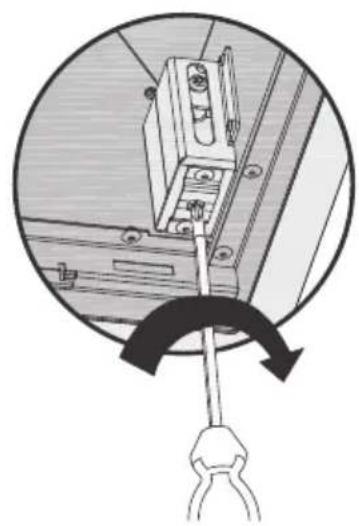

Diagram of a mechanical clamp or bracket assembly with a tool, shown in circular motion (no text or symbols)

8

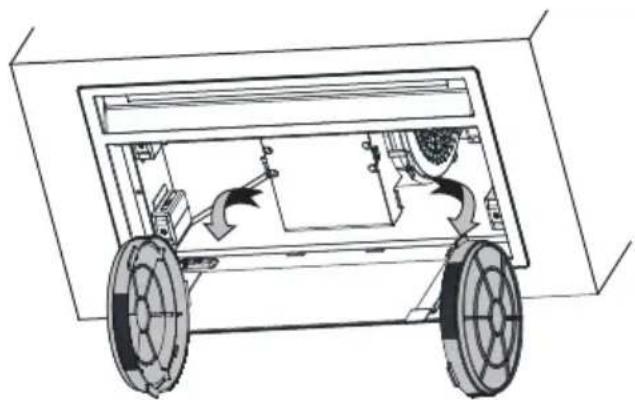

Technical line drawing of a vehicle chassis with wheels and a handle, no text or symbols present

3 MESES

3 MONTHS

3 MOIS

3 MESES

3 MONATE

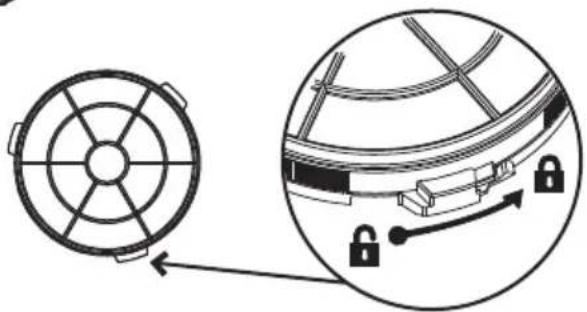

Diagram showing a circular fan with internal blades and an inset view of a mechanical component with padlocks (no text or symbols)

	Filter clean warning display/button. Warning of the need to replace the filter – press to deactivate once the filter has been cleaned or replaced.
	Enable and disable extractor fan timer.Timer: the extractor fan works for 5 min. at the current speed and another 5 min. at each of the lower speeds until it stops.
	Lighting on and off. Keep pressed down to adjust the lighting intensity.
	Extractor fan on and off.
1	Extractor fan speed - button: speed 1, 2 and 3/4. In panels with MAX button, MAX speed only will work during 5 minutes, once it runs out, the speed will decrease to 3rd speed.
2
3
T

Warning: always switch off the electricity supply before carrying out maintenance work on the hood. In the event of a fault, contact an official distributor or authorised dealer.

Cleaning the outside: use liquid, non-corrosive detergent and avoid using abrasive cleaning products and solvents. Do not use high-pressure or steam cleaning devices.

Important: increase the filter cleaning/replacement frequency if the hood is used for more than 2 hours a day. Always use genuine filters from the manufacturer.

Grease cleaning

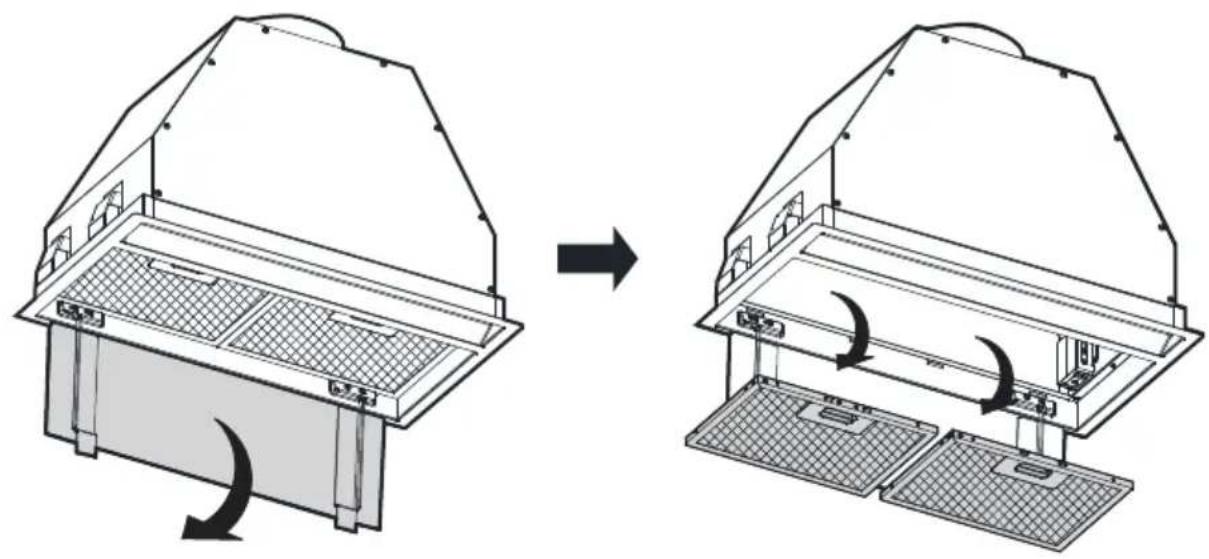

To avoid fires, clean thoroughly once a month or whenever the display pilot light indicates as such. To do so, remove the filters and wash with hot water and detergent. If using a ishwasher (metal parts may turn black without this affecting their functional capacity), load the filters vertically to avoid solid residue from being deposited.
